,QVWUXFWLRQ0DQXDODQG,QVWDOODWLRQ,QVWUXFWLRQV
W
ashing mac
hine
WM16W5H0GB, WM14W5H0GB
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Siemens WM16W5H0GB:
Washing machine
1
WM16W5H0GB, WM14W5H0GB
1
Your new washing machine
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 5
3
( Safety instructions 6
3
7 Environmental protection 13
3
5 Positioning and connecting 14
3
Y Main points in brief 23
3
* Getting to know the appliance 24
3
Z Laundry 28
3
C Detergent 29
3
/ Overview of programmes 30
3
0 Programme default settings 36
3
\ Additional programme settings 37
3
1 Operating the appliance 38
3
o Home Connect 43
4
Q Appliance settings 48
4
H Sensors 49
4
2 Cleaning and maintenance 50
4
3 Faults and what to do about them. 53
4
4 After-sales service 57
4
[ Consumption values table 58
4
J Technical data 59
4
r Aqua-Stop warranty 59
4
8 Intended use
5
Intended use
5
( Safety instructions
6
Safety instructions
6
Children/people/pets
6
: Warning
6
Risk of death!
6
: Warning
6
Risk of death!
6
: Warning
7
Risk of suffocation!
7
: Warning
7
Risk of poisoning!
7
: Warning
7
Risk of burns!
7
: Warning
7
Eye/skin irritation!
7
Installation
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
8
Risk of electric shock/fire/ material damage/damage to the appliance!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
8
Risk of injury/material damage/damage to the appliance!
8
: Warning
8
Risk of injury!
8
Caution!
9
Material damage/damage to the appliance
9
Operation
9
: Warning
9
Risk of explosions/fire!
9
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of scalding!
10
: Warning
10
Eye/skin irritation!
10
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
11
: Warning
11
Risk of death!
11
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
12
Material damage/damage to the appliance
12
7 Environmental protection
13
Environmental protection
13
Packaging/used appliance
13
Tips on economical use
13
5 Positioning and connecting
14
Positioning and connecting
14

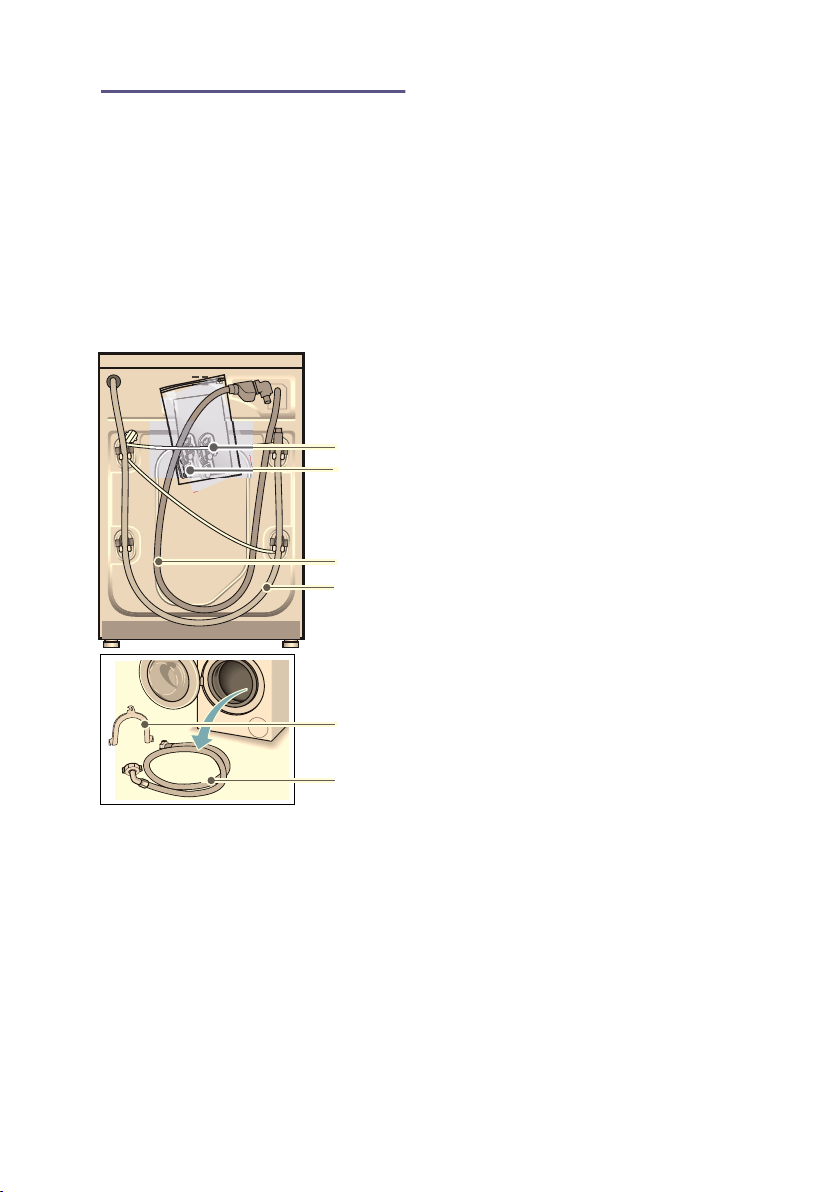

Included with the appliance
14
Note:
14
Useful tools
14
Safety instructions
15
: Warning
15
Risk of injury!
15
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Installation surface
15
Note:
15
Installation on a base or a wooden joist floor
15
Caution!
15
Damage to the appliance
15
Note:
15
Installation on a platform with drawer
15
Installing the appliance in a kitchenette
16
: Warning
16
Danger of death!
16
Notes
16
Removing the transport locks
16
Caution!
16
Damage to the appliance
16
Note:
16
1. Take the hoses out of the holders.
16
2. Unscrew and remove all four transportation securing bolts with a wrench (WAF 13).
16
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
16
Hose and cable lengths
17
Tip:
17

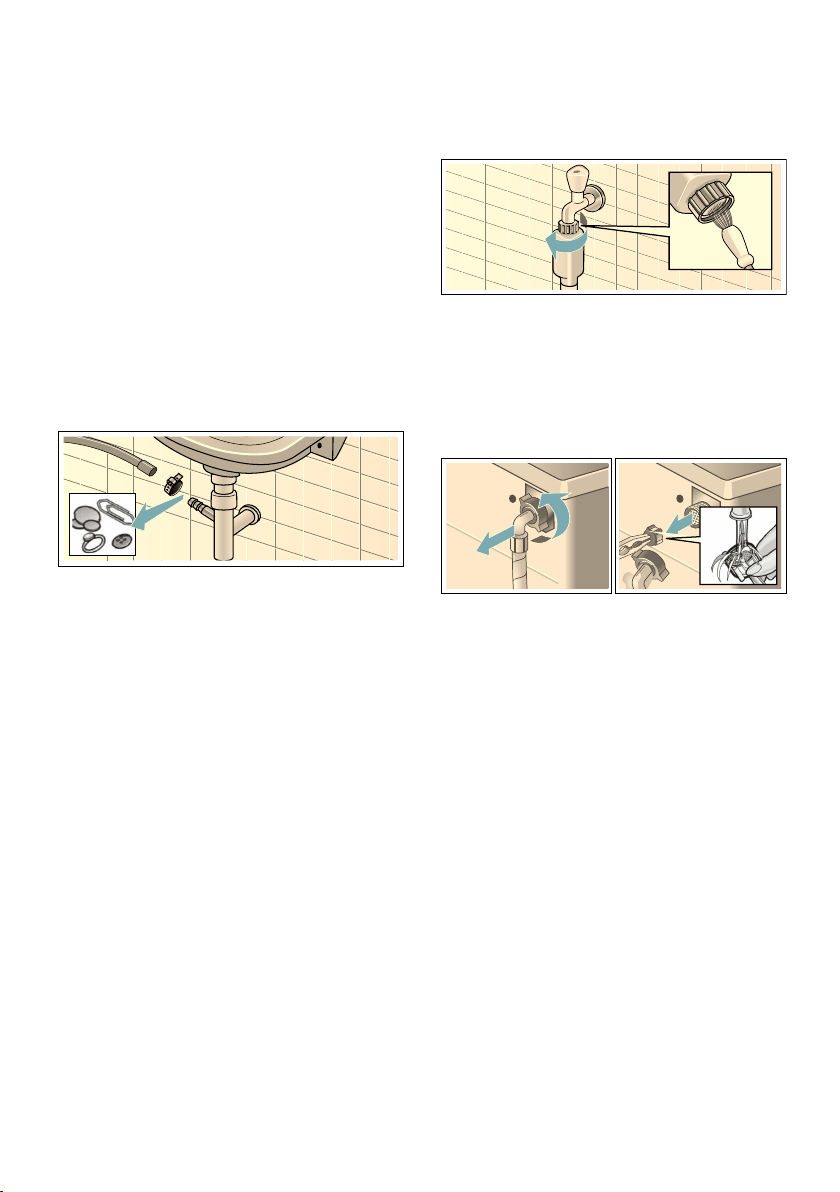

Water inlet
18
: Warning
18
Danger of death!
18
Notes
18
Connection
18
Note:
18

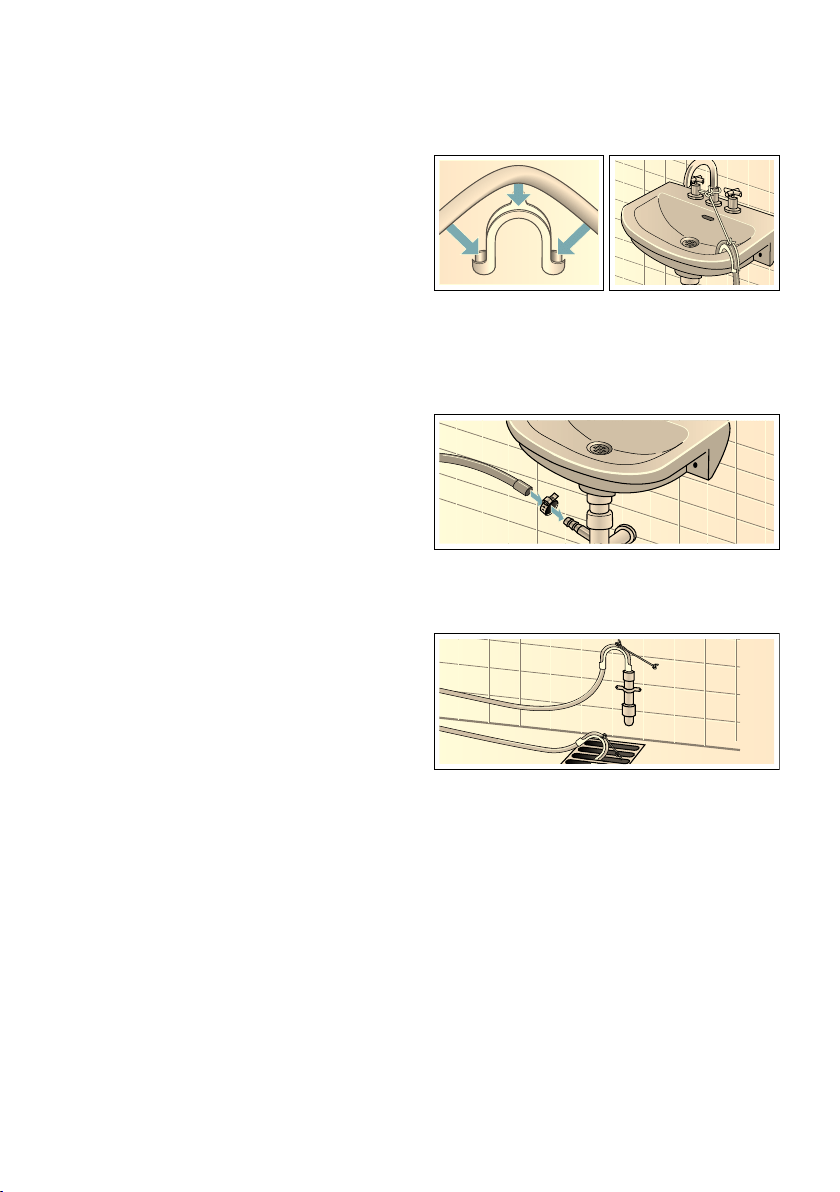

Water outlet
19
: Warning
19
Risk of scalding!
19
Caution!
19
Water damage
19
Caution!
19
Damage to the appliance/fabrics
19
Note:
19
Connection
19
Levelling
20
1. Loosen the lock nuts using a WAF17 spanner, by turning it in a clockwise direction.
20
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
20
3. The lock nuts on all four appliance feet must be screwed tightly against the housing using a suitable WAF17 spanner. In doing so, hold the foot tight and do not adjust its height.
20
Electrical connection
20
: Warning
20
Danger of death!
20
Notes
20
Before washing for the first time
21
Notes
21
Preparatory work:
21
1. Check the machine.
21
2. Remove the protective film from the control panel.
21
3. Plug in the mains plug.
21
4. Turn on the tap.
21
Running the programme without laundry:
21
1. Switch on the appliance.
21
2. Close the door (do not load any laundry).
21
3. Set the Drum Clean 90 °C programme.
21
4. Open the detergent drawer.
21
5. Pour approximately 1 litre of water into compartment II.
21
6. Pour standard washing powder into compartment II.
21
Note:
21
7. Close the detergent drawer.
21
8. Press the Ü button.
21
9. Switch off the appliance at the end of the programme.
21
Transportation
22
Preparatory work:
22
1. Turn off the tap.
22
2. Reduce the water pressure in the supply hose: ~ Page 52; Cleaning and maintenance – filter in the water supply blocked
22
3. Disconnect the washing machine from the mains.
22
4. Drain the remaining water: ~ Page 51; cleaning and maintenance – the drain pump is blocked, emergency draining
22
5. Remove the hoses.
22
Fitting the transportation securing means:
22
1. Remove the covers and keep them in a safe place.
22
2. Insert all four sleeves.
22
Notes
22
Y Main points in brief
