• Page 2 - English - : Your new washing machine You have chosen a Siemens washing machine Please take a few minutes to read and become familiar with the advantages of your washing machine To meet the high quality demands required by Siemens every washing machine that leaves our factory is carefully checked to ensure that it functions correctly and is in perfect condition For more information on our products accessories replacement parts and services see our website wwwsiemens homebshgroupcom or contact our aftersales service centres If the operating and installation instructions describe different models any differences will be pointed out at the relevant points in the text Read these operating and installation instructions before switching on the washing machine Display rules Warning This combination of symbol and signal word indicates a possibly dangerous situation Not heeding the warning can cause death or injuries Caution This signal word indicates a possibly dangerous situation Not heeding the caution can cause property andor environmental damage Notetip Information about the optimum use of the applianceany other useful information 1 2 3 a b c The steps are represented by numbers or letters Lists are represented by a small box or a dash
• Page 3 - English - : en Contents enInstruction Manual and Installation Instructions 8 Intended use 4 Safety instructions 5 Childrenpeoplepets 5 Installation 6 Operation 8 CleaningMaintenance 10 7 Environmental protection 11 Packagingused appliance 11 Tips on economical use 11 5 Positioning and connecting 12 Included with the appliance 12 Safety instructions 12 Installation surface 13 Installation on a base or a wooden joist floor 13 Installation on a platform with drawer 13 Installing the appliance in a kitchenette 13 Removing the transport locks 13 Hose and cable lengths 14 Water inlet 14 Water outlet 16 Levelling 17 Electrical connection 17 Before washing for the first time 18 Transportation 18 Getting to know the appliance 20 Washing machine 20 Control panel 21 Display panel 22 Z Laundry 23 Prepare the laundry 23 Sorting laundry 23 Starching 23 Dyeingbleaching 24 Soaking 24 C Detergent 24 Correct selection of detergent 24 Saving energy and detergent 25 0 Programme default settings 25 Temperature 25 Spin speed 25 Finish intime 26 Additional programme settings 26 speed I eco 26 Less iron 27 WaterampRinse 27 Prewash 27 1 Operating the appliance 27 Preparing the washing machine 27 Select programmeswitch on the appliance 27 Change the programme default settings 28 Select additional programme settings 28 Placing laundry into the drum 28 Measure and add detergent and care products 28 Start the programme 29 Childlock 30 Adding laundry 30 Changing the programme 30 Cancel the programme 30 Programme end during rinse hold 31 Programme end 31 Removing laundryswitching off the appliance 31 H Sensors 31 Automatic load sensing 31 Unbalanced load detection system 31
• Page 4 - English - : en Intended use M Setting the signal 32 2 Cleaning and maintenance 32 Machine housingcontrol panel 32 Drum 33 Descaling 33 Detergent drawer and housing 33 Detergent solution pump blocked 33 The drain hose at the siphon is blocked 34 Filter in the water supply blocked 34 3 Faults and what to do about them 35 Emergency release 35 Information on the display panel 35 Faults and what to do about them 36 4 Aftersales service 39 J Technical data 39 r AquaStop warranty 39 8 Intended use Intended use This appliance is intended for private domestic use only Do not install or operate this appliance anywhere that is liable to experience frost andor outdoor conditions There is a risk that the appliance will be damaged if residual water in it freezes If hoses freeze up they may crackburst This appliance must only be used for washing domestic laundry consisting of machinewashable items and handwashable woollens see label on item Using the appliance for any other purpose is outside of the scope of its intended application and is forbidden This appliance is suitable for operation with mains water and commercially available detergents and care products must be suitable for use in washing machines This appliance is intended for use up to a maximum height of 4000 metres above sea level Before you switch on the appliance Check that there is no visible damage to the appliance Do not operate the appliance if it is damaged Should you have any problems please contact your specialist dealer or our customer service Read and follow the operating and installation instructions and all other information provided with this appliance Retain the documents for subsequent use or for subsequent owners
• Page 5 - English - : Safety instructions en Safety instructions Safety instructi ons The following safety information and warnings are provided to protect you from injury and to prevent material damage to your surroundings It is nevertheless important to take the necessary precautions and to proceed with care when installing maintaining cleaning and operating the appliance Childrenpeoplepets Warning Risk of death Children and other people who are unable to assess the risks involved when using the appliance may injure themselves or may find themselves in lifethreatening situations Therefore please note The appliance may be used by children over the age of 8 years and by persons with reduced physical sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how to use the appliance safely and they have understood the potential risks of using the appliance Children must not play with this appliance Do not allow children to clean or maintain this appliance unsupervised Keep children under 3 years and pets away from this appliance Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity Warning Risk of death Children may lock themselves inside appliances and find themselves in a lifethreatening situation Do not position the appliance behind a door as this may obstruct the appliance door or prevent it from opening completely Once an appliance has reached the end of its life pull the mains plug from the socket before severing the mains cable and then destroy the lock on the appliance door Warning Risk of suffocation If allowed to play with the packagingplastic film or packing components children may become caught in these or pull them over their heads and suffocate
• Page 6 - English - : en Safety instructions Keep packaging plastic film and packing components away from children Warning Risk of poisoning Detergents and care products may result in poisoning if consumed If accidentally swallowed seek medical advice Keep detergents and care products out of the reach of children Warning Risk of burns When washing at high temperatures the glass in the appliance door becomes hot Stop children from touching the appliance door when it is hot Warning Eyeskin irritation Contact with detergents or care products may cause eyeskin irritation Rinse eyesskin thoroughly if theyit comes into contact with detergents or care products Keep detergents and care products out of the reach of children Installation Warning Risk of electric shockfire material damagedamage to the appliance If the appliance is not installed properly this may lead to a dangerous situation Ensure the following The mains voltage on your power socket must match the rated voltage specified on the appliance identification plate The connected loads and the required fuse protection are specified on the identification plate The mains plug and the protective contact socket must match and the earthing system must be correctly installed The installation must have an adequate cross section The mains plug must be freely accessible at all times If this is not possible in order to comply with the relevant safety regulations a switch all pole disconnection must be built into the permanent installation in accordance with electrical installation regulations If using a residual current circuit breaker only use one that bears the following mark z The presence of this mark is the only way to be sure that it fulfils all the applicable regulations
• Page 7 - English - : Safety instructions en Warning Risk of electric shockfire material damagedamage to the appliance If the appliances mains cable is altered or damaged this may result in electric shock short circuiting or fire due to overheating The mains cable must not be kinked crushed or altered and must not come into contact with any heat sources Warning Risk of firematerial damage damage to the appliance The use of extension cords or power strips may result in fire due to overheating or short circuiting Connect the appliance directly to an earthed socket that has been correctly installed Do not use extension cords power strips or multiway couplers Warning Risk of injurymaterial damagedamage to the appliance The appliance may vibrate or move when in operation potentially resulting in injury or material damage Place the appliance on a clean even solid surface and using a spirit level to guide you level it with the screwin feet Risk of injurymaterial damagedamage to the appliance If you take hold of any of the appliances protruding parts eg the appliance door in order to lift or move it these parts may break off and cause injury Do not take hold of any of the appliances protruding parts in order to move the appliance Warning Risk of injury The appliance is very heavy Lifting it may result in injury Do not lift the appliance on your own Risk of injury The appliance has sharp edges on which you could cut your hands Do not take hold of the appliance by its sharp edges Wear protective gloves to lift it Risk of injury If the hoses and mains cables are not correctly routed they may constitute a tripping hazard which may result in injury Route hoses and cables such that they do not constitute a tripping hazard
• Page 8 - English - : en Safety instructions Caution Material damagedamage to the appliance If the water pressure is too high or too low the appliance may not be able to operate properly and it may also result in material damage or damage to the appliance Make sure that the water pressure in the water supply facility is at least 100 kPa 1 bar and does not exceed 1000 kPa 10 bar Material damagedamage to the appliance If the water hoses are altered or damaged this may result in material damage or damage to the appliance The water hoses must not be kinked crushed altered or severed Material damagedamage to the appliance The use of hoses supplied by other brands to connect to the water supply may result in material damage or damage to the appliance Use the hoses supplied with the appliance or genuine spare part hoses only Material damagedamage to the appliance The appliance is secured for transportation by transport locking devices If the transport locking devices are not removed before the appliance is operated this may result in damage to the appliance It is important to completely remove all transport locking devices before using the appliance for the first time Make sure that you retain these transport locking devices separately It is important to refit the transport locking devices if the appliance is to be transported in order to prevent the appliance from being damaged in transit Operation Warning Risk of explosionsfire Laundry that has been pretreated with cleaning agents that contain solvents eg stain removercleaning solvent may cause an explosion in the drum Rinse the laundry thoroughly with water before washing it in the machine Warning Risk of poisoning Poisonous fumes may be given off by cleaning agents that contain solvents eg cleaning solvent
• Page 9 - English - : Safety instructions en Do not use cleaning agents that contain solvents Warning Risk of injury If you support your weightsit on the appliance door when it is open the appliance may tip over which may result in injury Do not support your weight on the appliance door when it is open Risk of injury If you climb onto the appliance the worktop may break which may result in injury Do not climb onto the appliance Risk of injury If you reach into the drum while it is still rotating you risk injuring your hands Wait until the drum has stopped rotating Warning Risk of scalding When washing at high temperatures there is a risk of scalding if you come into contact with hot detergent solution eg when draining hot detergent solution into a washbasin Do not reach into the hot detergent solution Warning Eyeskin irritation Detergent and care products may spray out if the detergent drawer is opened while the appliance is in operation Rinse eyesskin thoroughly if theyit comes into contact with detergents or care products If accidentally swallowed seek medical advice Caution Material damagedamage to the appliance If the amount of laundry in the appliance exceeds its maximum load capacity it may not be able to operate properly or this may result in material damage or damage to the appliance Do not exceed the maximum load capacity of dry laundry Make sure you comply with the maximum load capacities specified for each of the programs Supplementary sheet for the operating and installation instructions Material damagedamage to the appliance If you pour the wrong quantity of detergent or cleaning agent into the appliance this may result in material damage or damage to the appliance Use detergentscare productscleaning agents and softeners in accordance with the manufacturers instructions
• Page 10 - English - : en Safety instructions CleaningMaintenance Warning Risk of death The appliance is powered by electricity There is a risk of electric shock if you come into contact with live components Therefore please note Switch off the appliance Disconnect the appliance from the power supply pull out the plug Never take hold of the mains plug with wet hands When removing the mains plug from the socket always take hold of the plug itself and never the mains cable otherwise this may damage the mains cable Do not make any technical modifications to the appliance or its features Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician The same applies for replacing the mains cable when necessary Spare mains cables can be ordered from our customer service Warning Risk of poisoning Poisonous fumes may be given off by cleaning agents that contain solvents eg cleaning solvent Do not use cleaning agents that contain solvents Warning Risk of electric shockmaterial damagedamage to the appliance If moisture penetrates the appliance this may cause it to short circuit Do not use a pressure washer steam cleaner hose or spray gun to clean your appliance Warning Risk of injurymaterial damagedamage to the appliance The use of spare parts and accessories supplied by other brands is dangerous and may result in injury material damage or damage to the appliance For safety reasons use genuine spare parts and accessories only Caution Material damagedamage to the appliance Cleaning agents and agents for pretreating laundry eg stain removers prewash sprays etc may cause damage if they come into contact with the surfaces of the appliance Therefore please note Do not allow these agents to come into contact with the surfaces of the appliance
• Page 11 - English - : Environmental protection en Clean the appliance with nothing but water and a soft damp cloth Remove any detergent spray or other residues immediately 7 Environmental protection Environmental protecti on Packagingused appliance Tips on economical use Always fill the appliance with the maximum amount of laundry for each programme Overview of programmes Supplementary sheet for the operating and installation instructions Wash normally soiled laundry without a prewash Save energy and detergent when washing lightly and normally soiled laundry Page 25 The selectable temperatures apply to the care labels on the textiles The temperatures in the machine may deviate from this so that you get the optimum mix of energysaving and washing results Information about the energy consumption Page 22 The display provides information about the relative energy consumption in the selected programs The more indicator lights light up the higher the programs consumption This enables you to compare the consumption levels of the different programs when choosing your program settings and to decide on an energy and watersaving program setting depending on the model Energysaving mode The display panel lighting goes out after a few minutes and the button flashes Press any button to activate the lighting Energysaving mode is not activated if a programme is running If the laundry is subsequently dried in a tumble dryer select the spin speed according to the tumble dryer manufacturers instructions Dispose of packaging in an environmentallyresponsible manner This appliance is labelled in accordance with European Directive 201219EU concerning used electrical and electronic appliances waste electrical and electronic equipment WEEE The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU
• Page 12 - English - : en Positioning and connecting 5 Positioning and connecting Positioning and connecting Included with the appliance Note Check the machine for transport damage Never use a damaged machine If you have any complaints contact the dealer from whom you purchased the appliance or our aftersales service depending on model In addition a hose clamp 2440 mm diameter available from specialist dealers is required to connect the water drain hose to a siphon Useful tools Spirit level for levelling Spanner with WAF 13 for loosening the transport locks and WAF 17 for aligning the appliance feet Safety instructions Warning Risk of injury The washing machine is very heavy Be careful when liftingtransporting the washing machine When the washing machine is lifted by its protruding parts eg the washing machine door the components may break off and cause injuries Do not lift the washing machine by protruding parts If the hose and mains cables are not routed properly there is a risk of tripping and injury Lay hoses and cables in such a way that there is no risk of tripping Water drainage 0 Mains cable 8 Water supply hose Covers for the transport locks H Elbow for securing the water drain hose
• Page 13 - English - : Positioning and connecting en Caution Damage to the appliance Frozen hoses may ripburst Do not install the washing machine in areas exposed to frost or outdoors Caution Water damage The connection points for the water supply hose and water drain hose are under high water pressure To prevent leaks and water damage you must follow the instructions in this section Notes In addition to the safety information listed here the local water and electricity supplier may have special requirements If in doubt have the appliance connected by a specialist Installation surface Note The washing machine be stable so that it does not move around The installation surface must be firm and level Soft floorsfloor coverings are not suitable Installation on a base or a wooden joist floor Caution Damage to the appliance The washing machine may quotwanderquot and tiptopple from the base when spinning The feet of the appliance must be secured with holding brackets Order no WMZ 2200 WX 9756 Z 7080X0 Note On wooden joist floors install the washing machine In a corner if possible On a waterresistant wooden board min 30 mm thick which is screwed tightly to the floor Installation on a platform with drawer Platform order no WMZ 20490 WZ Installing the appliance in a kitchenette Warning Risk of death There is a risk of electric shock if you touch live components Disconnect the appliance from the power supply Notes Recess width of 60 cm required Only install the washing machine underneath a continuous worktop that is securely connected to adjacent cabinets If you remove the appliance covering plate for installation underneath the worktop or fitted in a cabinet you must replace it with a metal cover Order no WMZ20331 WZ20331 Removing the transport locks Caution Damage to the appliance The machine is secured for transportation using transport locks If the transport locks are not removed the drum for example may become damaged when the machine is operated Before using the appliance for the first time make sure that you completely remove all four transport locks Keep the locks in a safe place

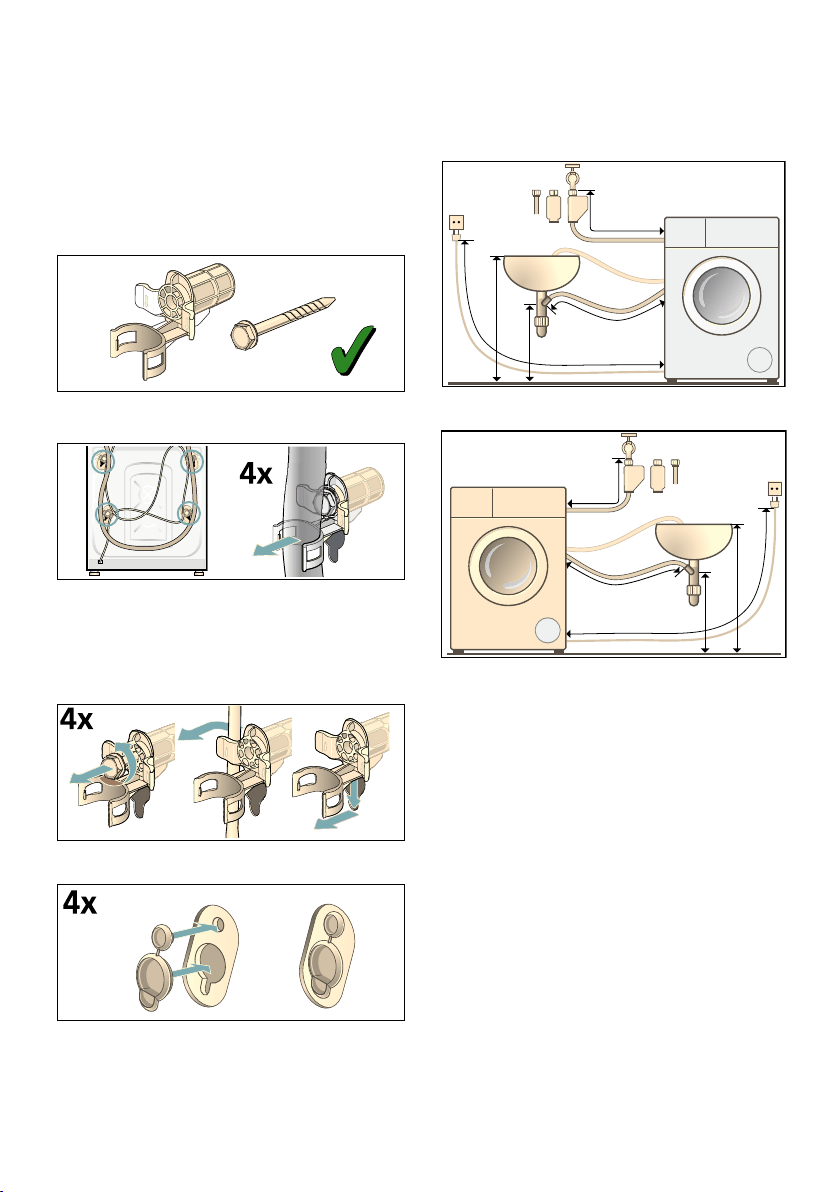

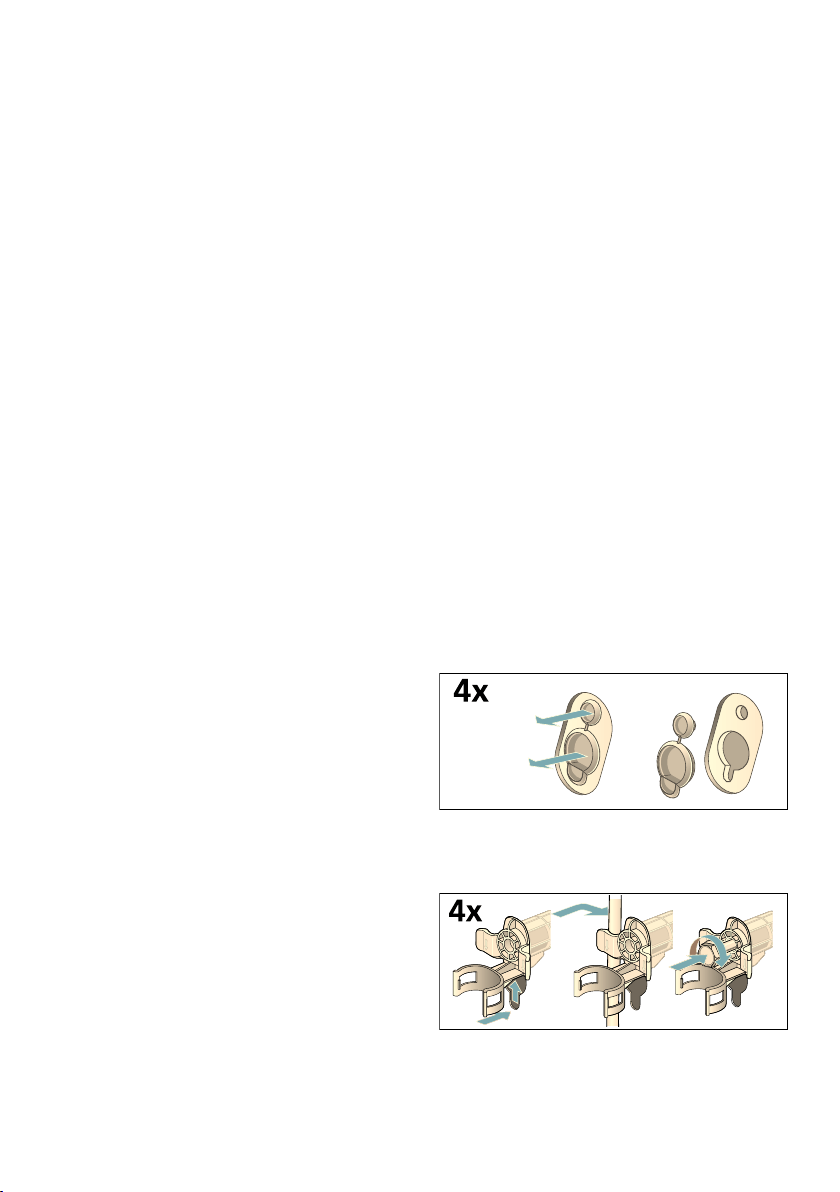

• Page 14 - English - : en Positioning and connecting To prevent transport damage from occurring if the appliance is moved at a later date you must refit the transport locks before transporting the appliance Note Keep the screws and sleeves in a safe place 1 Take the hoses out of the holders 2 Unscrew and remove the bolts from all four transport safety devices Remove the sleeves To do this remove the mains cable from the holders 3 Insert the covers Hose and cable lengths Lefthand connection Righthand connection depending on model Tip The following are available from specialist dealerscustomer services Extension for AquaStop and cold water supply hose approx 250 m order no WM Z2380 WZ 10130 Z 7070X0 A longer supply hose approx 220 m for standard models individual component number for customer services 00353925 Water inlet Warning Risk of death There is a risk of electric shock if you touch live components PLQFP PDFP aFP aFP aFPaFP aFP aFP aFPaFP PLQFP PDFP

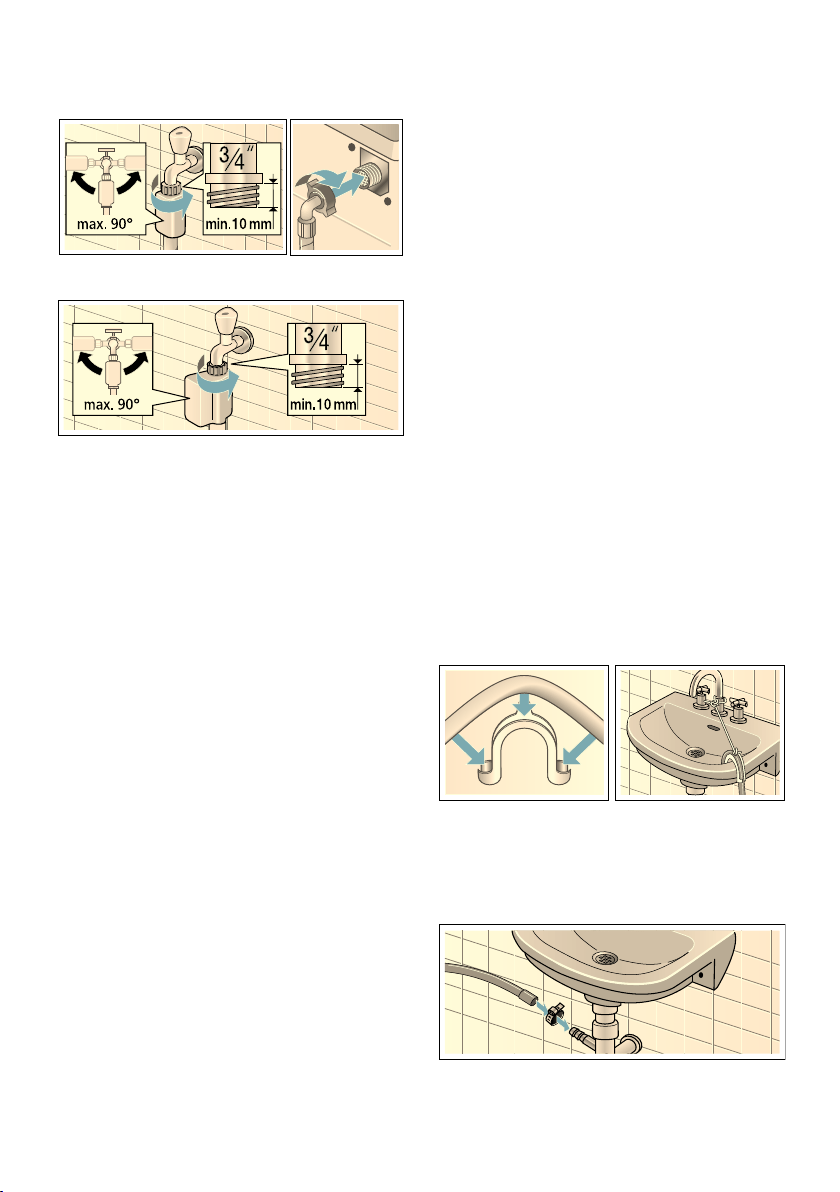

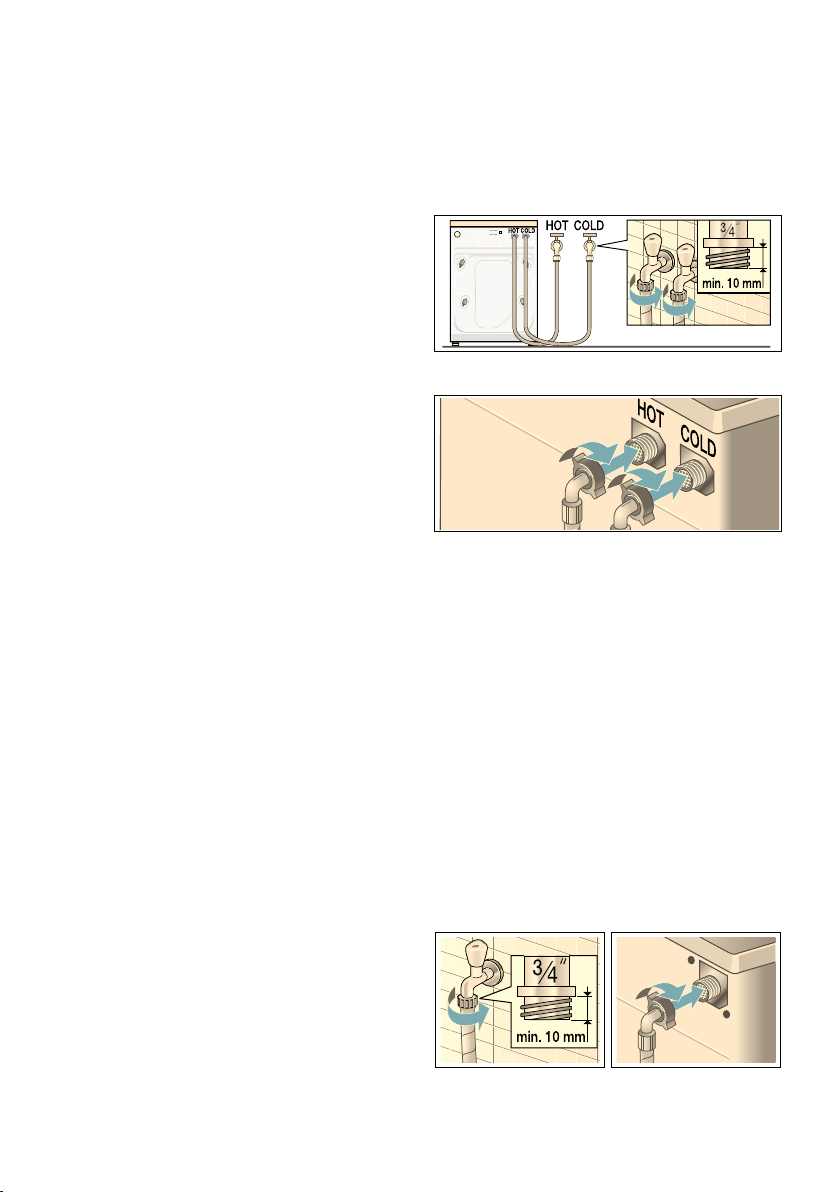

• Page 15 - English - : Positioning and connecting en Do not immerse the AquaStop safety valve in water it contains an electric valve Observe the following when connecting the machine Notes With a cold water connection only operate the washing machine using cold mains water With a hot water connection operate the washing machine with hot and cold mains water with a maximum temperature of 60 C Do not connect the machine to the mixer tap of an unpressurised hot water boiler Do not use a used supply hose Only use the supply hose supplied or one that was purchased from an authorised specialist retailer Do not bend squash modify or cut through the water supply hose otherwise its strength is no longer guaranteed Only tighten the screw connections by hand If the screw connections are tightened too much with a tool pliers the thread may become damaged Optimum water pressure in the supply network At least 100 kPa 1 bar Maximum 1000 kPa 10 bar When the tap is open the water flow is at least 8 lmin If the water pressure is higher than this a pressurereducing valve must be installed Hot and cold water connection Note Red hot water supply hose on the hot water tap and red valve on the appliance Cold water supply hose on the cold water tap and white valve on the appliance Connection to the water pipes ¾quot 264 mm Connection to the appliance Cold water connection only If no hot water connection is present only connect the cold water inlet hose and cover the hot water connection on the appliance so that it is kept free of dirt Note Carefully turn on the tap and check that the connection points are not leaking The screw connection is under water pipe pressure Cold water connection Connect the water supply hose to the water tap ¾quot 264 mm and to the appliance not necessary for AquaStop models as this is permanently installed Model Standard
• Page 16 - English - : en Positioning and connecting Model AquaSecure Model AquaStop Note Carefully turn on the tap and check that the connection points are not leaking The screw connection is under water pipe pressure Water outlet Caution Water damage If the drain hose slips out of the wash basin or the connection point during draining due to high water pressure any escaping water may cause water damage Secure the drain hose so that it cannot slip out Note Do not kink the water drain hose or put strain on it lengthways You can lay the water drain hose as follows Outlet in a sink Warning Risk of scalding When you are washing at high temperatures there is a risk of scalding if you come into contact with hot detergent solution eg if hot detergent solution is being drained into a wash basin Do not reach into the hot detergent solution Caution Damage to the appliancefabrics If the end of the drain hose is immersed in the drained water water may be sucked back into the appliance and may damage the appliancefabrics Make sure that The plug does not block drainage from the sink The end of the drain hose is not immersed in the drained water The water drains away quickly enough Drainage into a siphon The connection point must be secured using a hose clamp with a diameter of 2440 mm available from specialist dealers

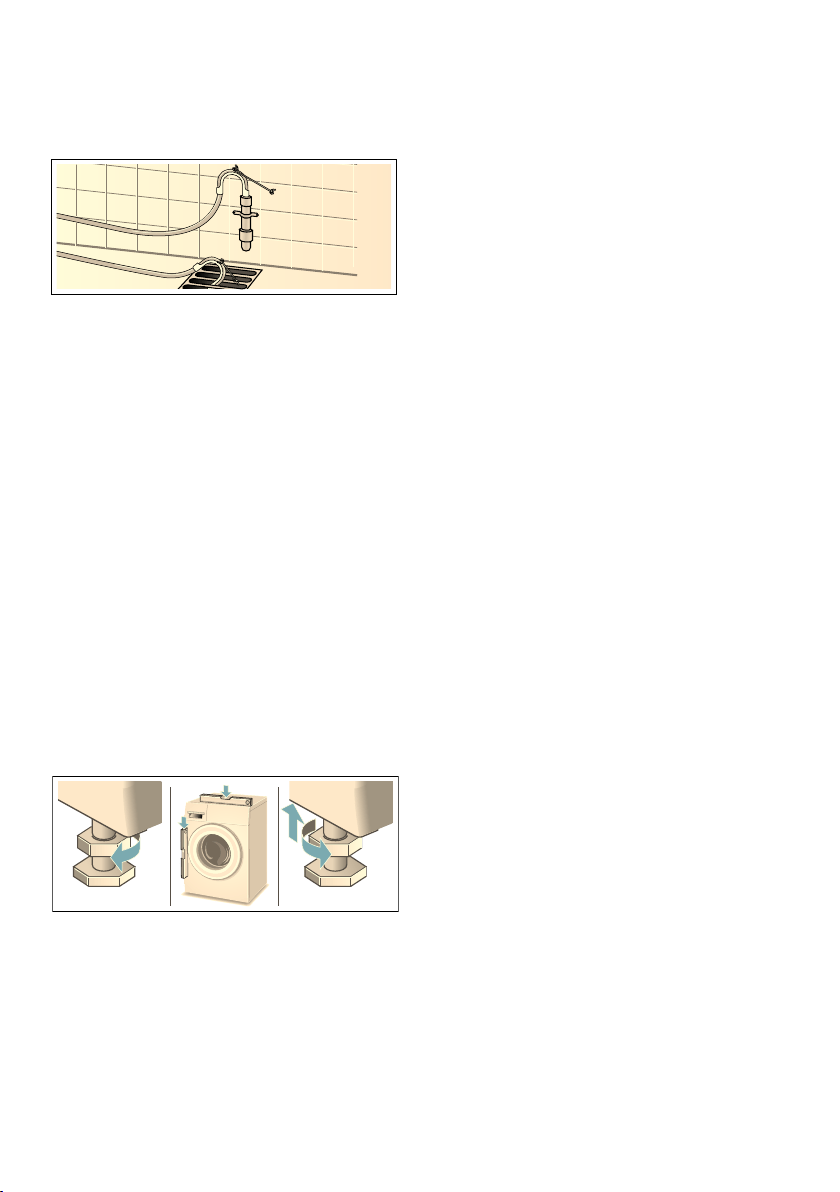

• Page 17 - English - : Positioning and connecting en Outlet into a plastic pipe with rubber bushing or into a drainage pit Levelling Level the appliance using a spirit level Incorrect levelling may result in intense noise vibrations and quotwanderingquot 1 Loosen the lock nuts using a wrench by turning it in a clockwise direction 2 Check the alignment of the washing machine with a spirit level and adjust it if necessary Change the height by turning the appliance feet All four appliance feet must stand firmly on the ground 3 Tighten the lock nut against the housing In doing so hold the foot tight and do not adjust its height The lock nuts on all four appliance feet must be screwed tightly against the housing Electrical connection Warning Danger of death There is a risk of electric shock if you touch live components Never touch or hold the mains plug with wet hands Only pull out the mains cable by the plug and never by the cable as this could damage it Never unplug the mains plug during operation Observe the following information and ensure that Notes The mains voltage and voltage indicated on the washing machine rating plate are the same The connected load and fuse required are specified on the rating plate The washing machine is only connected to an alternating current via a properly installed earthed socket The mains plug fits the socket The cable crosssection is adequate The earthing system is properly installed The mains cable is only replaced by a qualified electrician if this is necessary Replacement mains cables are available from the after sales service No multiple plugscouplings or extension cables are used If an earthleakage circuit breaker is used only a type which displays this symbol is used z Only this symbol guarantees compliance with the currently applicable regulations
• Page 18 - English - : en Positioning and connecting The mains plug must be freely accessible at all times If this is not possible in order to comply with the relevant safety regulations a switch 2pole switchoff must be built into the permanent installation in accordance with electrical installation regulations The mains cable is not bent squashed modified cut through or in contact with heat sources Before washing for the first time The washing machine was thoroughly tested before leaving the factory To remove any water that may be left over from the test run the first wash cycle without any laundry Notes The washing machine must be correctly installed and connected from Page 12 Never use a damaged machine Inform customer services 1 Check the machine 2 Remove the protective film from the control panel 3 Connect the mains plug 4 Turn on the tap 5 Close the door do not load any laundry 6 Depending on the model run the Drum Clean 90 C or Î Cottons 90 C program 7 Open the detergent drawer 8 Pour approximately 1 litre of water into compartment II 9 Pour standard detergent into compartment II Note To prevent foaming only use half the amount of detergent recommended by the detergent manufacturer Do not use detergent designed for wool or delicates 10Close the detergent drawer 11Press the button 12When the program ends switch off the appliance Your washing machine is now ready to use Transportation eg when moving home Preparatory work 1 Turn off the water tap 2 Reduce the water pressure in the supply hose Maintenance filter in the water supply Page 34 3 Drain the remaining detergent solution Maintenance detergent solution pump blocked Page 33 4 Disconnect the washing machine from the mains 5 Remove the hoses Installing the transport locks 1 Remove the covers and keep in a safe place If required use a screwdriver 2 Insert all four sleeves Clamp the mains cable on the holders Insert and tighten the bolts

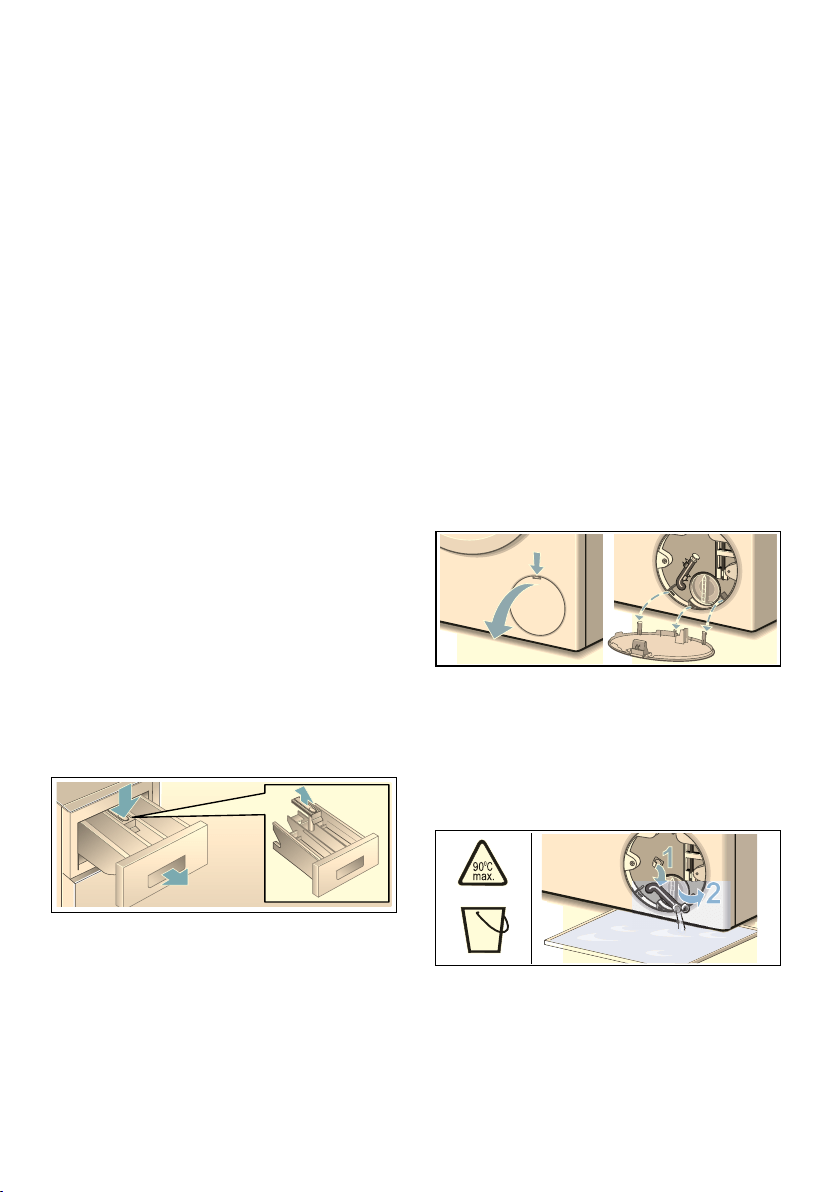

• Page 19 - English - : Positioning and connecting en Before switching on the appliance again Notes The transport braces must be removed To prevent unused detergent from flowing straight into the drain during the next wash Pour approx 1 litre of water into compartment II and start the p DrainEmpty program
• Page 20 - English - : en Getting to know the appliance Getting to know the appliance Getti ng to know the appliance Washing machine 6 Detergent drawer Page 28 0 Operatingdisplay panel 8 Door with door handle 9S Open the door 9T Close the door Service flap
• Page 21 - English - : Getting to know the appliance en Control panel Control panel depending on the model depending on the model C C Program selector for selecting a program and switching the machine on and off via the Off position You can find an overview of all programs on the supplementary sheet for the installation and operating instructions 0 Change Temperature Page 25 8 Change Spin speed Page 25 Change Finish intime Page 26 H Childlock w 3 sec w 3 δευτ to prevent the set functions from being changed accidentally Page 30 To do so press Spin speed and Finish intime simultaneously for approx 3 seconds P Select additional program settings if necessary Page 26 speed I eco WaterampRinse Less iron Prewash X button for Starting a program Interrupting a program eg to add items of laundry Page 30 Cancelling a program Page 30 Display panel for settings and information Page 22
• Page 22 - English - : en Getting to know the appliance Display panel Note You will find settings and information for the selected program in the table depending on the model depending on the selected program settings and modell 90 C Temperature in C cold 0 1400 0 Spin speedin rpm 0 no spin cycle draining only Page 25 Rinse Stop Page 25 eg 230 Finish intime Program duration depends on the program selection in hmin hoursminutes 1 24 û End time preselection in hours End of program after hours 8 kg Load recommendation Ò Energy consumption display Page 11 The more indicator lights light up the higher the relative energy consumption ää More information on the display panel Program progress ¼ Washing ½ Rinse 0 Spin End Program end 0 Program end during Rinse Stop Washing machine door Õ lights up The washing machine door cannot be opened Õ flashes When the program has started The washing machine door is not closed properly Tap flashes Tap not turned on no water pressure lights up Water pressure too low may increase the program duration Childproof lock Page 30 w lights up Childproof lock activated w flashes Childproof lock activated program selector adjusted Foam detection o lights up Page 29 Fault display E Page 35 Signal setting 0 4 Page 32
• Page 23 - English - : Laundry en Z Laundry Laundry Prepare the laundry Caution Damage to the appliancefabrics Foreign objects eg coins paperclips needles nails may damage the laundry or components in the washing machine You should therefore note the following tips when preparing your laundry Empty any pockets Look out for metal items paperclips etc and remove them Wash delicates in a laundry bag tights underwired bras etc Close any zips button up any cover buttons Brush sand out of pockets and collars Remove curtain fittings or place curtains in a laundry bag Sorting laundry Sort your laundry according to the care instructions and manufacturers information on the care labels depending on Type of fabricfibre Colour Note Laundry can discolour or not be cleaned correctly Wash white and coloured items separately Wash new coloured items separately the first time you wash them Soiling Wash laundry with the same level of soiling together Some examples of soiling levels can be found on Page 25 Light Do not prewash select the speed setting if necessary Normal Heavy Load less laundry select a program with prewash Stains Removepretreat stains while they are fresh Firstly dab with soapy water do not rubThen wash the items of laundry with the appropriate program Stubborn or driedin stains can sometimes only be removed by washing several times Symbols on the care labels Note The numbers in the symbols indicate the maximum washing temperature that may be used Starching Note Laundry should not be treated with fabric softener Liquid starch can be used to stiffen fabrics particularly in the Rinse and Cottons programmes Measure starch into compartment M in accordance with the manufacturers instructions clean first if necessary M Suitable for normal washing process eg Cottons program N A gentle washing process is required eg EasyCare program O An especially gentle washing process is required eg DelicateSilk program W Suitable for washing by hand eg W Wool program Ž Do not machine wash
• Page 24 - English - : en Detergent Dyeingbleaching Dye should only be used in normal household quantities Salt may damage stainless steel Always follow the dye manufacturers instructions Do not use the washing machine to bleach clothes Soaking 1 Switch on the appliance 2 Select the Î Cottons 20 C program 3 Pour soaking agentdetergent into compartment II in accordance with the manufacturers instructions 4 Press the button 5 After approx 10 minutes press the button to pause the program 6 Leave the laundry to soak for as long as required then either press the button again to continue the program or change the program Notes Load laundry of the same colour No additional detergent is required the soaking solution is used for washing C Detergent Detergent Correct selection of detergent The care label is crucial for selecting the correct detergent temperature and treatment of the laundry See also wwwsartexch If you visit wwwcleanrighteu you will find further information on detergents care products and cleaning agents for domestic use Standard detergent with optical brighteners Suitable for boilwashable white laundry made from linen or cotton Programme Cottons cold max 90 C Detergent for colours without bleach or optical brighteners Suitable for coloured laundry made from linen or cotton Programme Cottons cold max 60 C Detergent for coloursdelicates without optical brighteners Suitable for coloured laundry made from easycare fibres synthetic fibres Programme EasyCare cold max 60 C Detergent for delicates Suitable for delicate fine fabrics silk or viscose Programme DelicateSilk cold max 40 C Detergent for woollens Suitable for wool Wool programme cold max 40 C
• Page 25 - English - : Programme default settings en Saving energy and detergent For light and normal soiling you can save energy lower washing temperature and detergent Note When measuring the amount of all detergentsadditivescare products and cleaning agents please always check the manufacturers instructions and information Page 28 0 Programme default settings Programme default settings The default program settings are displayed in the display panel after selecting the program You can change the default settings To do this repeatedly press the corresponding button until the required setting is displayed on the display panel Note Pressing and holding the buttons automatically runs through the setting values until the last one Then press the button again and you will be able to change the setting values again You can find an overview of all possible program settings on the supplementary sheet for the installation and operating instructions Temperature C C Temp C Θερμοκρ Button depending on the model Depending on what stage the program is in you can change the set temperature before and during the program The maximum temperature that can be set depends on the program that has been selected Spin speed 0 0 rpm 0 Στύψιμο centrif 0 Depending on what stage the program is in you can change the spin speed in rpm revolutions per minute before and during the program Setting 0 The rinsing water is drained but there is no final spin The laundry stays wet inside the drum eg for items that should not be spun Saving Soilingnote Reduced temper ature and deter gent quantity as per the recom mended dosage Light No visible dirt or stains Cloth ing has taken on some body odour eg Light summersports clothing worn for a few hours Tshirts shirts blouses worn for up to one day Guest bed linen and hand towels used for one day Normal Visible dirt or a few light stains eg Tshirts shirts blouses sweat soaked worn a few times Towels bedding used for up to one week Temperature as per the care label and detergent quantity as per the recom mended dosage for heavy soiling Heavy Dirt andor stains clearly visi ble eg tea towels baby items work clothing
• Page 26 - English - : en Additional programme settings Setting Rinse Stop no final spin The laundry stays in the water after the final rinse You can select quotRinse Stopquot to prevent creasing if the laundry will not be taken out of the washing machine immediately after the program has ended To continueend the program Page 31 The maximum speed that can be set depends on the model and program that has been selected Finish intime û û Finish in û Λήξη σε termin û Before starting the program you can preselect the program end quotFinish inquot time in hourly increments h hour up to a maximum of 24 hours To do this 1 Select a program The program duration is displayed for the selected program eg 230 hoursminutes 2 Press the Finish intime button repeatedly until the required number of hours is displayed 3 Press the button The program starts The selected number of hours eg 8 h is shown in the display panel and counts down until the wash program starts The duration of the program is then displayed Note The length of the program is automatically adjusted when the program is running Certain factors can affect the program length eg Program settings Detergent dosage additional rinse cycles if required due to foaming Load sizetype of textiles water absorption differs Imbalances e g due to fitted sheets are offset with several start ups of spin cycles Fluctuations in power supply Water pressure infeeding speed Following the start of the program you can change the preselected number of hours as follows 1 Press the button 2 Use the Finish intime button to change the number of hours 3 Press the button Following the start of the program you can add or remove laundry as required Page 30 Additional programme settings Additional programme setti ngs You can find an overview of all possible additional settings on the supplementary sheet for the installation and operating instructions The settings vary depending on the model speed I eco Button with two possible settings for adapting the selected program speed Washing in a shorter time while achieving a washing result that is consistent with but uses more energy than the selected program without the speed I eco setting Note Do not exceed the maximum load

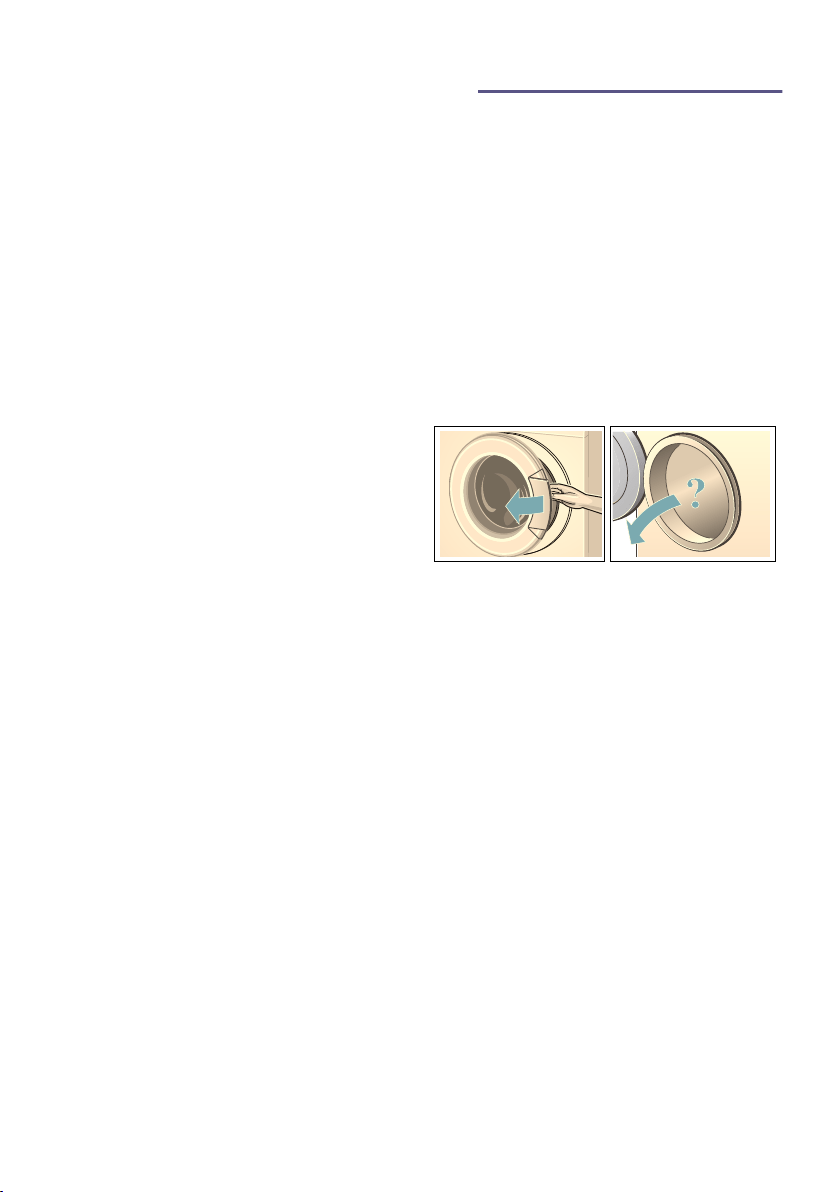

• Page 27 - English - : Operating the appliance en eco Energyoptimised washing by reducing the temperature while achieving a washing result that is consistent with the selected program without the speed I eco setting Press the button to do this First of all you can select the speed setting If you press the button again the eco setting is active The respective symbol is shown in the display when the setting is activated If you press the button again no setting is active Less iron menos S Λιγότ τσαλάκωμα Button depending on the model Reduces creasing thanks to a special spin sequence followed by fluffing and reduced spin speed Note The washings residual moisture is increased WaterampRinse Ô Ô RinseÔ Εξτρα Ξέβγαλμα extra l à Button depending on the model Higher water level and additional wash cycle for particularly sensitive skin and or for areas with very soft water Prewash Πρόπλυση Button depending on the model For heavily soiled laundry Note Pour detergent into compartments I and II 1 Operating the appliance Operati ng the appliance Preparing the washing machine Note The washing machine must be correctly installed and connected From Page 12 1 Connect the mains plug 2 Turn on the water tap 3 Open the door 4 Check that the drum is completely drained Drain if necessary Select programmeswitch on the appliance Note If you have activated the childproof lock you must first deactivate it before you can set a program Use the program selector to select the required program Can be rotated in either direction The appliance is switched on The program default settings for the selected program appear in the display panel Temperature The maximum load and the duration of the program alternately Energy consumption depending on the model

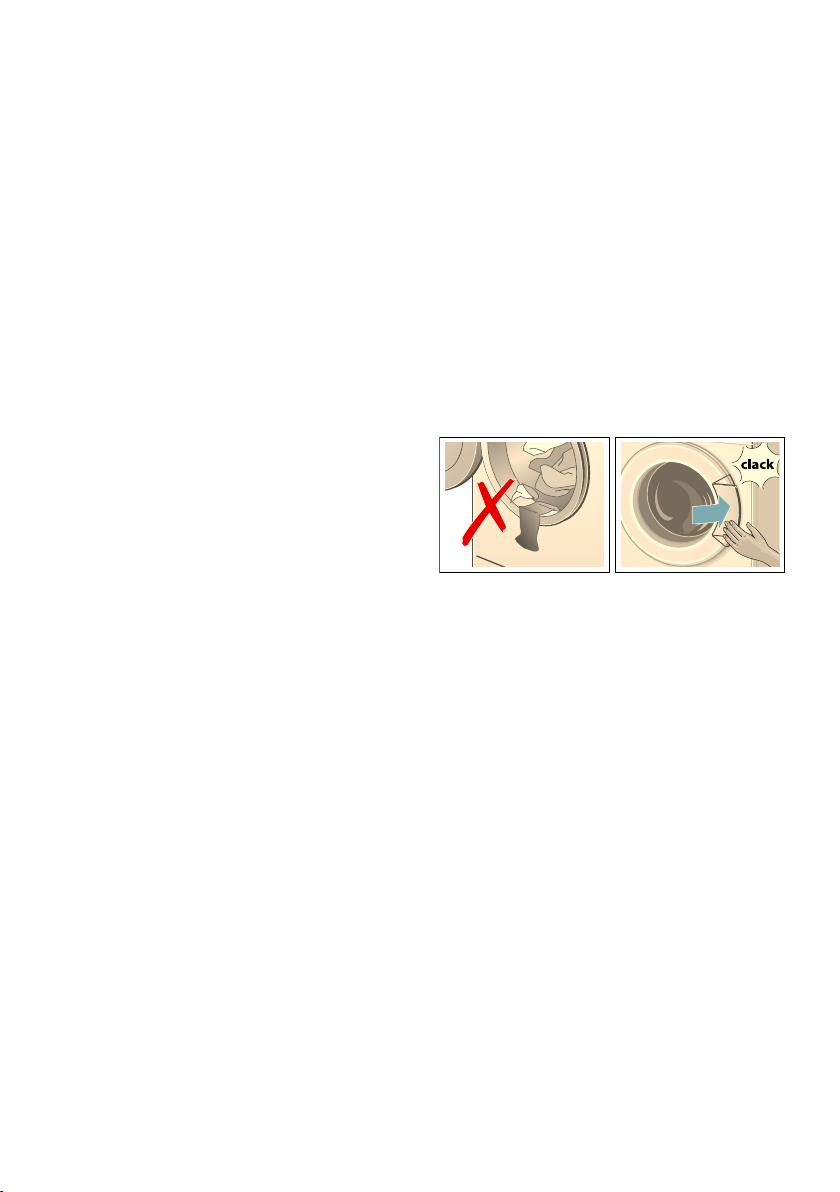

• Page 28 - English - : en Operating the appliance Change the programme default settings You can use the default settings for each wash cycle or change them To do this repeatedly press the corresponding button until the required setting is displayed The settings are activated without needing to be confirmed The settings are not saved after switching off the washing machine Default program settings Page 25 Select additional programme settings By selecting additional settings you can better adapt the washing process to your items of laundry The settings can be selected or deselected depending on the program progress The button indicator lamps light up if a setting is activated The settings are not saved after switching off the washing machine Additional program settings Page 26 Placing laundry into the drum Warning Danger of death Items of laundry pretreated with cleaning agents that contain solvents eg stain removercleaning solvent may cause an explosion after being loaded into the washing machine Handrinse these items of laundry thoroughly beforehand Notes Mix items of laundry of varying sizesLaundry items of different sizes distribute themselves better during the spin cycleIndividual laundry items may cause an unbalanced load Observe the maximum specified load Overfilling adversely affects the washing result and promotes creasing 1 Unfold presorted laundry items and place them in the drum 2 Make sure that no items of laundry are trapped between the door and the rubber seal and close the door Measure and add detergent and care products Caution Damage to the appliance Cleaning agents and agents for pretreating laundry eg stain removers prewash sprays etc may cause damage if they come into contact with the surfaces of the washing machine Do not allow these agents to come into contact with the surfaces of the washing machine If necessary immediately wipe away spray residue and other residues droplets with a damp cloth Dosing Dose detergent and care products according to The water hardness ask your water supply company The manufacturers instructions on the packaging

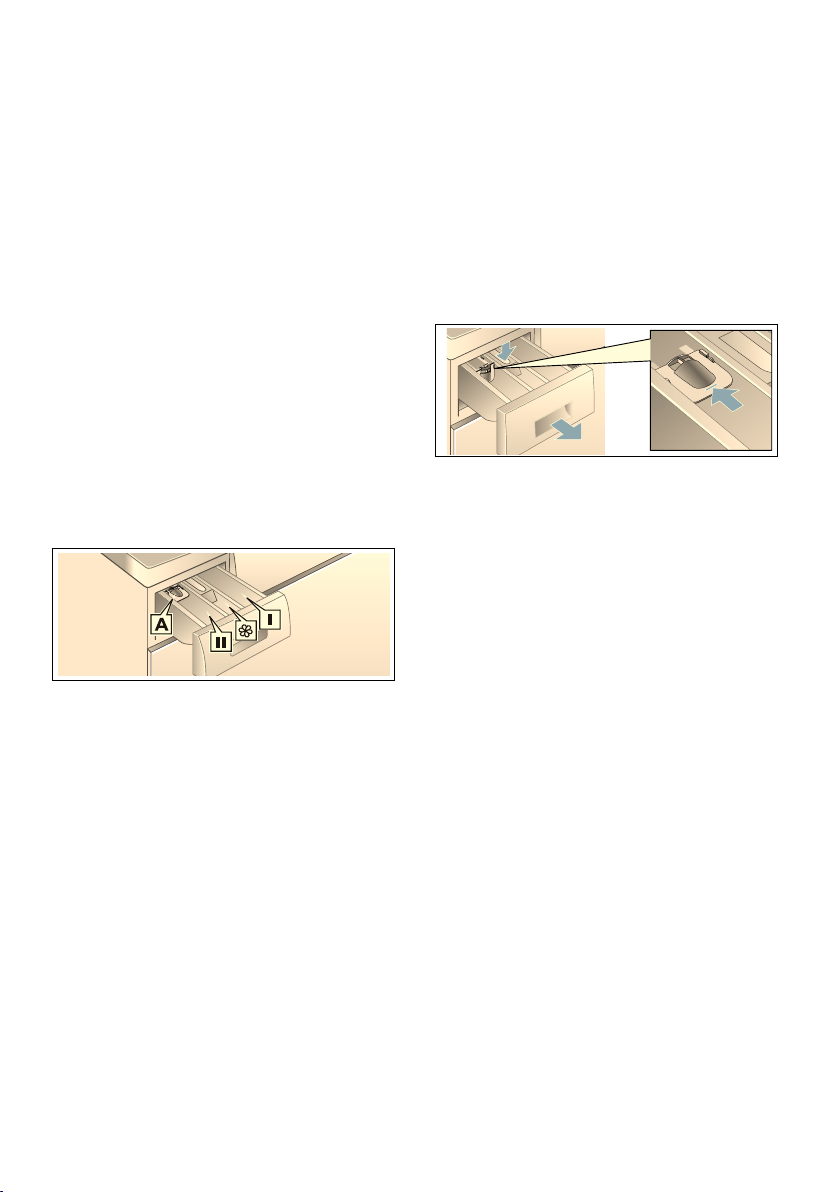

• Page 29 - English - : Operating the appliance en The amount of laundry The degree of soiling Page 25 Filling Warning Eyeskin irritation Detergent and care products may spray out if the detergent drawer is opened while the machine is in operation Open the drawer carefully Rinse eyesskin thoroughly if they come into contact with detergent or care products If swallowed accidentally seek medical advice Note Dilute viscous fabric softener and fabric conditioner with water to prevent blockages Pour the detergent and care products into the appropriate compartments 1 Pull out the detergent drawer as far as possible 2 Add detergent andor care products 3 Close the detergent drawer Measuring aid for liquid detergent depending on model Position the measuring aid for measuring liquid detergent 1 Pull out the detergent drawer Press down the insert and fully remove the drawer 2 Slide the measuring aid forwards fold it down and click it into place 3 Reinsert the drawer Note Do not use the measuring aid for gel detergents and washing powder or for programmes with prewash or when the Ready in time is selected For models without a measuring aid pour the liquid detergent into the appropriate dispenser and place it in the drum Start the programme Press the button The indicator lamp lights up and the program starts The display panel shows the Ready in time while the program is running or the program duration and the program progress symbols once the wash cycle has started Display panel Page 22 Note Foam detection If the o symbol also lights up in the display panel the washing machine has detected too much foam during the wash cycle and automatically activated additional rinse cycles to remove the foam Add less detergent to the next wash cycle with the same load Measuring aid A For liquid detergent Compartment II Detergent for the main wash water softener bleach stain remover Compartment i Softener starch do not exceed the max mark Compartment I Detergent for prewash
• Page 30 - English - : en Operating the appliance If you want to lock the program to prevent it from being inadvertently adjusted you can select the childproof lock as follows Childlock w 3 sec w 3 δευτ You can lock the washing machine to prevent the functions you have set from being changed inadvertently To do this activate the childproof lock when the program has started To activatedeactivate press and hold the Spin speed and Finish intime buttons at the same time for approx three secondsThe w symbol appears in the display panel w lights up The childproof lock is active w flashes The childproof lock is active and the program selector has been adjustedTo deactivate the childproof lock reset the program selector to the initial program The symbol lights up again Note To avoid the program to terminate do not turn the program selector beyond the Off position Note The childproof lock remains active after the program has ended and the appliance is switched off You must always deactivate the childproof lock if you want to start a new program Adding laundry Following the start of the program you can add or remove laundry as required Press the button to do this The button indicator lamp flashes and the machine checks whether it is possible to add laundry If the following appears in the display panel the Õ symbol disappears and adding is possible the Õ symbol lights up it is not possible to add laundry To continue the program press the button The program continues automatically Notes Do not leave the door open for too long when adding laundry as water from the laundry may leak out For safety reasons the door remains locked when the water level or temperature is high or while the drum is turning and it is not possible to add laundry during this time The load display is not active during reloading Changing the programme 1 Press the button 2 Select another program 3 Press the buttonThe new program starts from the beginning Cancel the programme For programs at high temperature 1 Press the button 2 To cool down laundry Select q Rinse 3 Press the button For programs at low temperature 1 Press the button 2 Select 0 p SpinDrainSpin Empty 3 Press the button

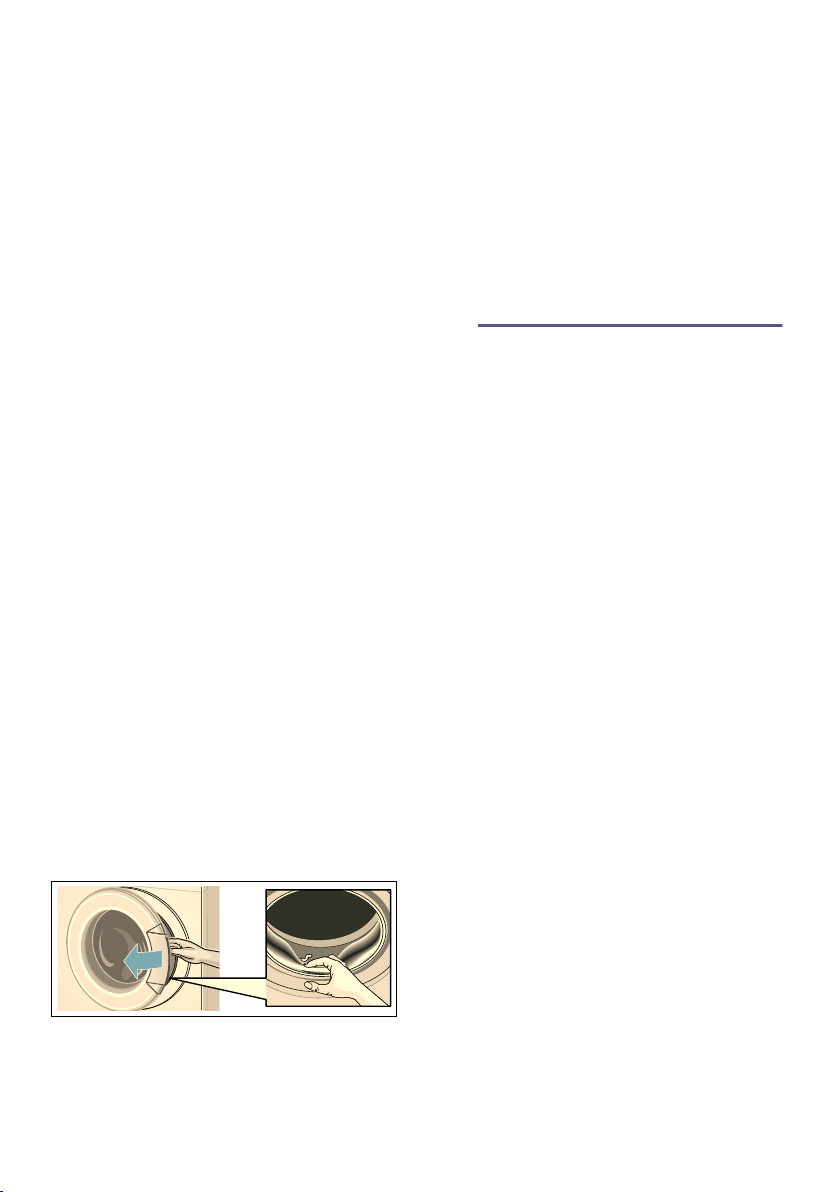

• Page 31 - English - : Sensors en Programme end during rinse hold 0 appears in the display panel and the indicator lamp of the button flashes Continue the program by Pressing the button or Selecting a spin speed or setting the program selector to 0 p Spin DrainSpinEmpty and then pressing the button Programme end End appears in the display panel and the indicator lamp of the button is off Removing laundryswitching off the appliance 1 Open the door and remove the laundry 2 Turn the program selector to Off The appliance is switched off 3 Turn off the tap Note Not required for AquaStop models Notes Do not leave any items of laundry in the drumThey may shrink in the next wash or discolour another item Remove any foreign objects from the drum and the rubber seal risk of rusting Wipe the rubber seal dry Leave the door and detergent drawer open so that any residual water can evaporate Always wait until the program ends as the appliance could still be locked Then switch the appliance on and wait for it to unlock If the display panel goes off at the end of a program the energysaving mode is activePress any button to activate the panel H Sensors Sensors Automatic load sensing The automatic load sensing function adapts the water consumption ideally to each programme depending on the type of fabric and the load Unbalanced load detection system The automatic unbalanced load detection system detects imbalances and ensures even distribution of the laundry by repeatedly starting and stopping drum spinning If the laundry is extremely unevenly distributed the speed is reduced or the spin cycle is not performed for safety reasons Note Place large and small items of laundry evenly in the drum Page 36
• Page 32 - English - : en Setting the signal M Setting the signal Setti ng the signal You can change the following settings The volume of the buttons and information signals eg at the end of the program andor The volume of the button signals You will need to activate the setting mode in order to change these settings Activating the setting mode 1 Select the Î Cottons program to position 1 The washing machine is switched on 2 Press the button and at the same time turn the program selector clockwise to position 2Release the button The setting mode is activated and the preset volume for the information signals appears in the display panel eg at the end of the program Changing the volume Use the Finish intime or button to change the following settings at the corresponding program selector positions 2 The volume of the information signals andor 3 The volume of the button signals Exiting setting mode You can now end the process and set the program selector to the Off position The settings are saved 2 Cleaning and maintenance Cleaning and maintenance Warning Danger of death There is a risk of electric shock if you touch live components Switch off the appliance and pull out the mains plug Warning Risk of poisoning Toxic vapours can be produced by cleaning agents that contain solvents eg cleaning solvent Do not use cleaning agents that contain solvents Caution Damage to the appliance Cleaning agents that contain solvents eg cleaning solvent can damage surfaces and components in the machine Do not use cleaning agents that contain solvents Prevent detergent residue from building up and odours from forming by following these instructions Notes Ensure the room in which the washing machine is set up is well ventilated Leave the door and detergent dispenser tray open slightly when the washing machine is not in use Occasionally run a wash using the Î Cottons 60 C programme and powder detergent Machine housingcontrol panel Wipe the housing and the control panel with a soft damp cloth 0 off 1 quiet 2 medium 3 loud 4 very loud 3RVLWLRQV
• Page 33 - English - : Cleaning and maintenance en Remove the detergent residue immediately Do not clean with a water jet Drum Use chlorinefree cleaning agents do not use steel wool If there are odours in the washing machine or to clean the drum run the Drum Clean 90 C or Î Cottons 90 C program without laundry Add washing powder Descaling Descaling should not be necessary if the detergent is measured out correctly However if it is required follow the manufacturers instructions for the descaling agent Suitable descalers can be obtained via our website or from our aftersales service Detergent drawer and housing If the washing machine contains detergent or fabric softener residues 1 Pull out the detergent drawer Press down the insert and fully remove the drawer 2 To remove the insert Push the insert upwards from below with your finger 3 Clean the detergent dispenser tray and insert with water and a brush and dry it Clean the inside of the housing as well 4 Fit the insert and lock it in place push the cylinder onto the guide pin 5 Push in the detergent drawer Note Leave the detergent drawer open so that any residual water can evaporate Detergent solution pump blocked Warning Risk of scalding When you wash at high temperatures the water gets very hot If you come into contact with the hot water you may be scalded Allow the water to cool down 1 Turn off the tap so that no more water can flow in and has to be drained via the drain pump 2 Switch off the appliance Pull out the mains plug 3 Open and remove the service flap 4 Take the drain hose out of the retainer Remove the sealing cap and pour the water out into a suitable container Replace the sealing cap and place the drain hose back in the retainer 5 Carefully unscrew the pump cover residual water may leak out Clean the interior pumpcover thread and pump housing The
• Page 34 - English - : en Cleaning and maintenance impeller in the drain pump must be able to rotate Refit the pump cover and screw it on tightly The handle must be in a vertical position 6 Place the service flap back on lock it into place and close it Note To prevent unused detergent from flowing straight into the drain during the next wash Pour 2 litre of water into compartment II and start the Empty programme The drain hose at the siphon is blocked 1 Switch off the appliance Disconnect the mains plug 2 Loosen the hose clamp Carefully remove the drain hose residual water may leak out 3 Clean the drainage hose and siphon connecting piece 4 Reattach the drainage hose and secure the connection using the hose clamp Filter in the water supply blocked First reduce the water pressure in the supply hose 1 Turn off the tap 2 Select any program except Rinse SpinEmpty 3 Press the buttonAllow the program to run for approximately 40 seconds 4 Turn the program selector to Off Pull out the mains plug 5 Clean the filter on the tap Disconnect the hose from the tap Clean the filter with a small brush 6 For standard and AquaSecure models clean the filter on the rear of the appliance Remove the hose from the rear of the appliance Use pliers to remove the filter and then clean it 7 Connect the hose and check for leaks
• Page 35 - English - : Faults and what to do about them en 3 Faults and what to do about them Faults and what to do about them Emergency release eg in the event of a power cut The programme will continue running when the power supply has been restored However if the laundry has to be removed the washing machine door can be opened as follows Warning Risk of scalding When you are washing at high temperatures there is a risk of scalding if you come into contact with detergent solution and laundry If possible leave it to cool down Warning Risk of injury You may injure your hands if you reach into the drum while it is turning Do not reach into the drum when it is turning Wait until the drum has stopped turning Caution Water damage Any escaping water may cause water damage Do not open the washing machine door if water can be seen through the glass 1 Switch off the appliance Disconnect the mains plug 2 Drain the detergent solution 3 Pull the emergency release downwards with a tool and release The washing machine door can then be opened Information on the display panel Display Causeremedy Õ is lit up The temperature is too high Wait until the temperature drops The water level is too high It is not possible to add laundry Close the door immediately if necessary Press the button to continue the program Õ flashes Laundry may be trapped Open and close the door again and press the but ton If necessary push the door closed or remove the trapped laundry and then push it closed again If necessary switch the appliance off and then on again set a programme and apply the settings you require start the programme is lit up Turn on the cold water tap fully The supply hose is kinkedjammed Correct the position of the hose The water pressure is too low Clean the filter Page 34 w The childproof lock is activated deactivate it
• Page 36 - English - : en Faults and what to do about them Faults and what to do about them o is lit up Too much foam has been detected and additional rinse cycles have been acti vated Add less detergent to the next wash cycle with the same load Page 29 the quotReady inquot time flashes Mains voltage is too low the quotReady inquot time flashes Undervoltage during the wash programme The programme duration is extended E18 The drain pump is blocked Clean the drain pump Page 33 The drain hosedrain pipe is blocked Clean the drain hose at the siphon Page 34 E23 There is water in the base trough the appliance is leaking Turn off the tap Call the aftersales service E32 flashes alternately with End at the end of the programme Not a fault the unbalanced load detection system has interrupted the spin cycle because the laundry is unevenly distributed Distribute small and large items of laundry evenly in the drum Spin the laundry again if necessary E93 on models with hot and cold water con nections The hot water pressure is too low Turn on the hot water tap fully The supply hose for hot water is kinkedtrapped Correct the position of the hose Clean the filter Page 34 The supply hose for hot water is not connected correctly The appliance will only be operated with cold water Display only appears during the first wash cycle after installation of the appliance without a hot water connection Other displays Switch off the appliance wait for five seconds and then switch it on again If the display appears again call the aftersales service Page 39 Faults Causeremedy Water is leaking from the machine Attach the drain hose correctly or replace it Tighten the threaded joint on the supply hose Water is not flowing in Detergent is not being dis pensed Have you pressed the button Is the tap turned on Could the filter be clogged Clean the filter Page 34 Is the supply hose kinked or trapped The door will not open The safety function is active Do you want to stop the programme Page 30 Is the w childproof lock activated Deactivate it Page 30 Is selected Rinse Stop no final spin Page 31 Can the door only be opened by the emergency release Page 35 Display Causeremedy
• Page 37 - English - : Faults and what to do about them en The programme will not start Have you pressed the button Is Finish intime selected Is the door closed Is the w childproof lock activated Deactivate it Page 30 The drum briefly jerks or judders after the pro gramme has started Not a fault the internal motor test may cause the drum to jerk or judder briefly when the wash programme starts The water is not draining Is selected Rinse Stop no final spin Page 31 Clean the drain pump Page 33 Clean the drain pipe andor the drain hose Water is not visible in the drum Not a fault the water is below the visible area The spin result is not sat isfactory Laundry is wettoo damp Not a fault the unbalanced load detection system has interrupted the spin cycle because the laundry is unevenly distributed Distribute small and large items of laundry evenly in the drum Is Anticrease depending on the model selected Is the selected speed too low The appliance restarts the spin cycle several times Not a fault the unbalanced load detection system is adjusting an imbalance The programme is taking longer than usual Not a fault the unbalanced load detection system is adjusting an imbal ance by repeatedly redistributing the laundry Not a fault the foam detection system is active a rinse cycle has been activated The length of the pro gramme changes during the wash cycle Not a fault the programme sequence is optimised for the specific washing process This may change the length of the programme shown on the display panel Water remaining in the care product compart ment i Not a fault the effectiveness of the care product is not affected Clean the insert if necessary Odours in the washing machine Depending on the model run the Drum Clean90 C or Î Cottons90 C pro gram without laundry Add standard washing powder or a detergent that contains bleach Note To prevent foaming only use half the amount of detergent recommended by the detergent manufacturer Do not use detergents intended for woollens or delicates The o symbol is lit on the display panel Foam may also be leaking from the detergent drawer Have you used too much detergent Mix one tablespoon of fabric softener with 12 litre of water and pour it into compartment II not suitable for outdoor clothing sportswear or items made with down Use less detergent in the next wash cycle Faults Causeremedy
• Page 38 - English - : en Faults and what to do about them Loud noises vibrations and machine wander ing during the spin cycle Is the appliance level Make the appliance level Page 17 Are the appliances feet secured Secure the appliances feet Page 17 Have the transport braces been removed Remove the transport braces Page 13 The display panelindica tor lights do not work while the appliance is run ning Has there been a power failure Have the fuses blownhas the circuit breaker tripped Switch on the circuit breakerreplace the fuses If the fault occurs repeatedly call the aftersales service There is detergent resi due on the laundry Some phosphatefree detergents contain waterinsoluble residue Select q Rinse or brush the laundry after washing The Õ symbol is lit in the display panel when paused The water level is too high It is not possible to add laundry Close the door immediately if necessary Press the button to resume the programme The Õ symbol in the dis play panel is off when paused The door is unlocked It is possible to add laundry If you cannot rectify a fault yourself after switching the machine off and then on again or a repair is required Switch off the appliance and pull the mains plug out of the socket Turn off the tap and call the aftersales service Faults Causeremedy
• Page 39 - English - : Aftersales service en 4 Aftersales service Aftersales service If you cannot rectify a fault yourself contact customer services Cover page We will always find an appropriate solution in order to avoid unnecessary visits by engineers Please give customer services the product number E no and the production number FD of the appliance You can find this information depending on the model On the inside of the doorin the opened service flap and on the rear of the appliance Trust the expertise of the manufacturer Contact us for assistance By doing so you will ensure that the repairs are carried out by trained service personnel using genuine spare parts J Technical data Technical data Dimensions 60 x 55 x 85 cm width x depth x height Weight 66 73 kg Mains connection Nominal voltage 220 240 V 50 Hz Nominal current 10 A Nominal power 1900 2300 W Water pressure 100 1000 kPa 1 10 bar Power consumption when switched off 012 W Power consumption when left on 058 W depending on the model r AquaStop warranty AquaStop warranty Only for appliances with AquaStop In addition to warranty claims against the vendor based on the purchase agreement and to our appliance warranty we will provide compensation under the following conditions 1 If water damage is caused due to a fault in our AquaStop system we will compensate domestic customers for the damage caused 2 The liability guarantee is valid for the service life of the appliance 3 It is a prerequisite of all warranty claims that the appliance with Aqua Stop must have been installed and connected correctly in accordance with our instructions this also includes a correctly fitted AquaStop extension genuine accessories Our warranty does not cover defective feed lines or fittings leading to the AquaStop connection at the tap 4 Appliances with AquaStop do not need to be supervised during operation nor secured afterwards by turning off the tap The tap only needs to be turned off if you are away from home for a long period eg for several weeks holiday E no Product number FD Production number 1U
