Delonghi ECAM23120SB Digital Super Automatic Machine with Lattecrema System

Instructions for use

For ECAM23120SB.

PDF File Manual, 24 pages, Read Online | Download pdf file

ECAM23120SB photo
background
De’Longhi Appliances via Seitz, 47 31100 Treviso Italy www.delonghi.com
5713227721/11.15
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...

Other documents for Delonghi ECAM23120SB

The following documents are available:
User Manual Warranty Photos

Specifications

Instructions for use - Transcript

  • Page 1: DeLonghi Appliances via Seitz 47 31100 Treviso Italy wwwdelonghicom 57132277211115

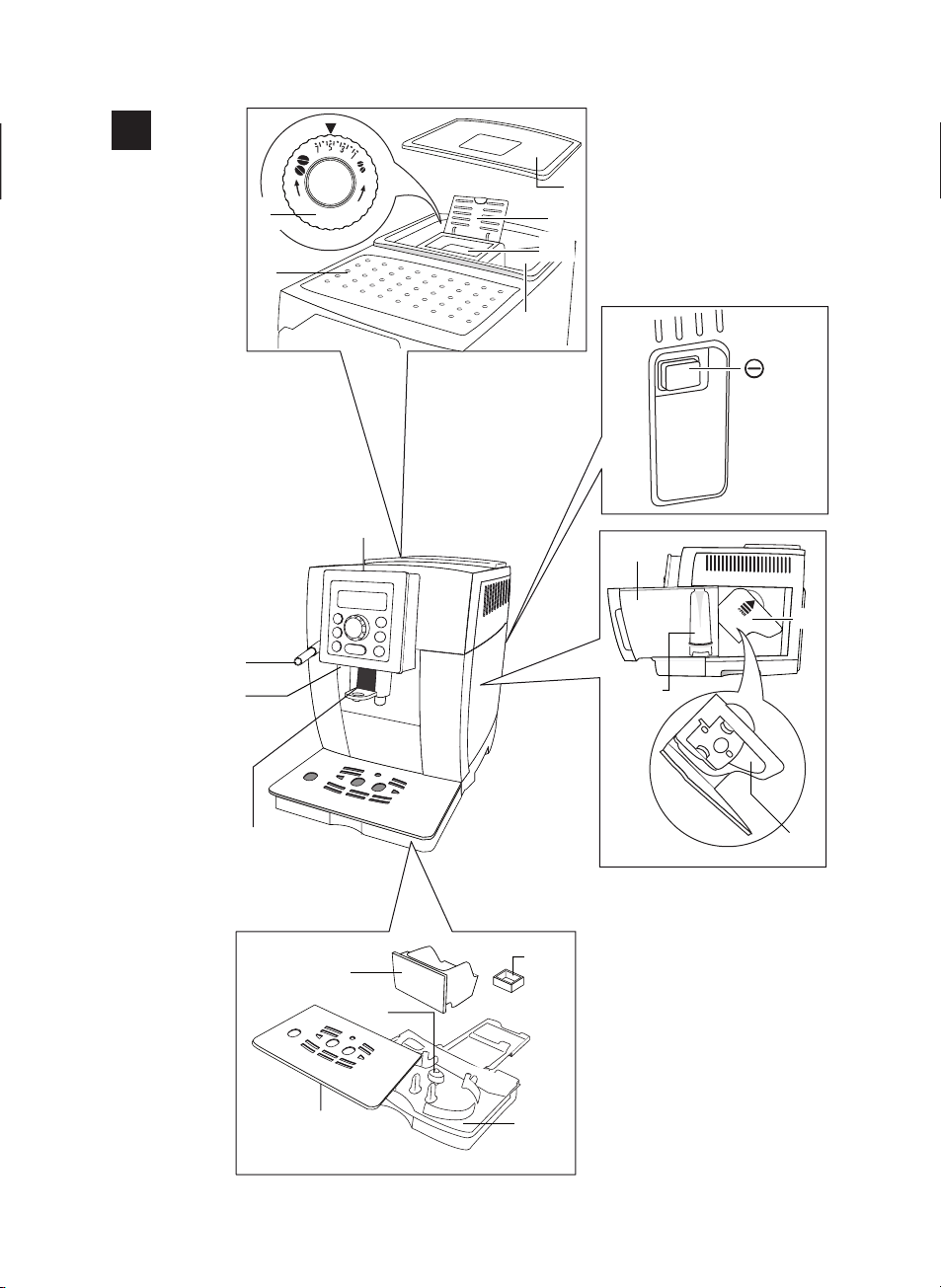

  • Page 3 - Hungarian - : PUSH A1 A10 A11 A13 A14 A17 A16 A18 A15 A9 C4 A A3 A5 A6 A7 A12 A19 A4 A2 A8 B1 B7 C6 C5 C2 B8 B9 B6 B3 B2 B4 B5 B C D C4 C1 C3 B10 D1 D2 D3 D4 D5 EN FR ES page 6 page 24 pàg 43
  • Page 4: PUSH A1 A10 A11 A13 A14 A17 A16 A18 A15 A9 C4 A A3 A5 A6 A7 A12 A19 A4 A2 A8

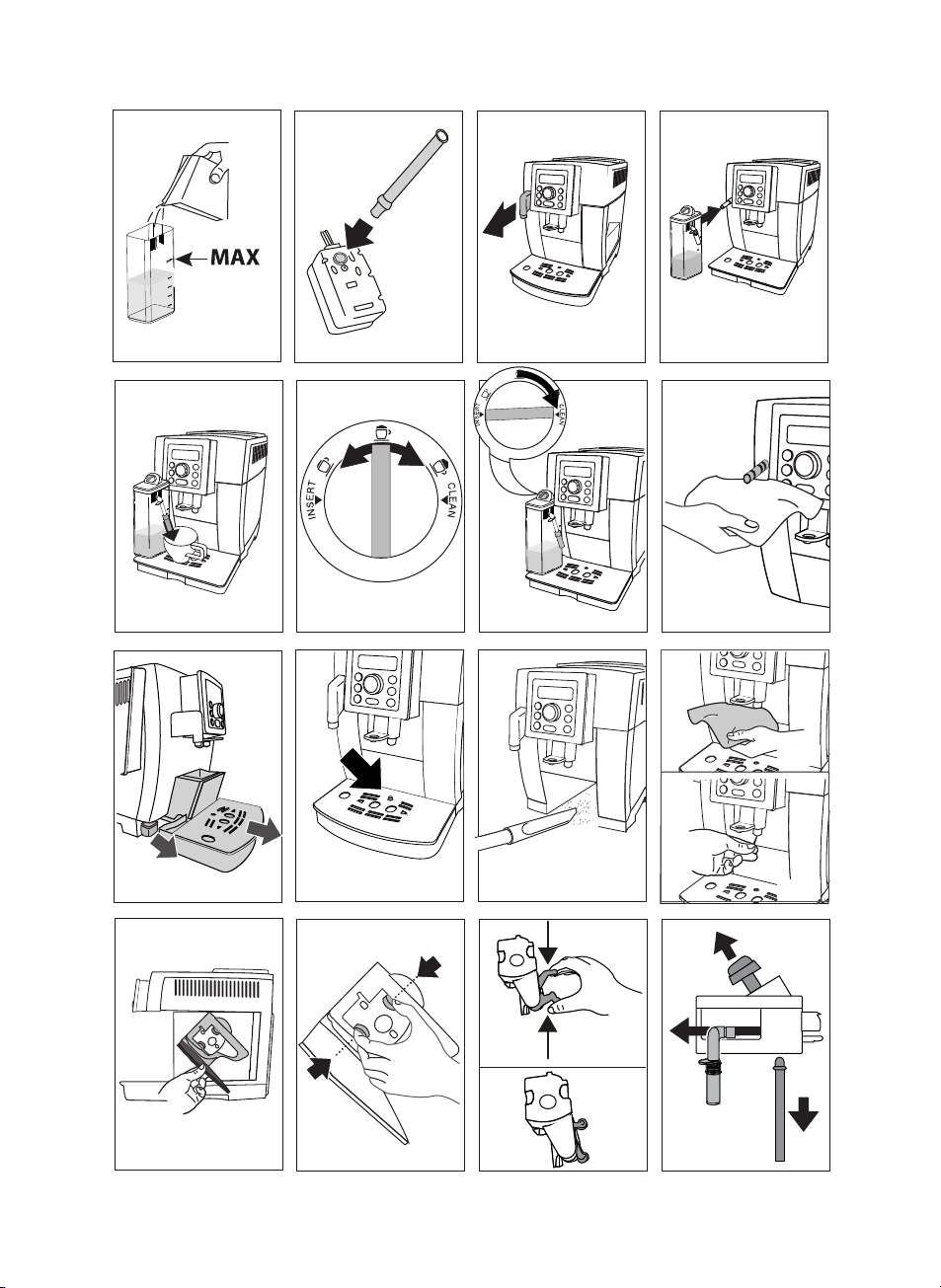

  • Page 5 - Hungarian - : 2 3B 3A 65 7 8 10 11 12 14 16 18 19 20 22 23 24 26 27 30 31 28A 28B PUSH PUSH 338 oz 2 3B 3A 65 7 8 10 11 12 14 16 18 19 20 22 23 24 26 27 30 31 28A 28B PUSH PUSH
  • Page 6 - Hungarian - : 2 3B 3A 65 7 10 11 18 19 20 22 23 24 26 27 30 31 28A 28B PUSH PUSH 338 oz 2 3B 3A 65 7 8 10 11 12 14 16 18 19 20 22 23 24 26 27 30 31 28A 28B PUSH PUSH
  • Page 7 - English - : CONTENTS 1 IMPORTANT SAFEGUARDS 7 11 Short cord instructions 7 2 INTRODUCTION 8 21 Symbols used in these instructions 8 22 Letters in brackets 8 23 Troubleshooting and repairs 8 24 Video instruction manual available on 8 3 DESCRIPTION8 31 Description of the appliance 8 32 Description of the control panel 8 33 Description of the accessories 9 34 Description of the milk container 9 4 BEFORE USE9 41 Checking the appliance 9 42 Installing the appliance 9 43 Connecting the appliance 9 44 Setting up the appliance 9 5 TURNING THE APPLIANCE ON 10 6 TURNING THE APPLIANCE OFF 10 7 MENU SETTINGS 10 71 Descaling 10 72 Install lter10 73 Replacing the lter 10 74 Adjust time 10 75 Autostart 10 76 Autoo 11 77 Energy saving 11 78 Setting the temperature 11 79 Setting water hardness 11 710 Enabledisable the beep 11 711 Setting the language 11 712 Cup light11 713 Default values reset 12 714 Statistics function12 8 RINSING 12 9 MAKING COFFEE 12 91 Selecting the coee taste 12 92 Selecting the quantity of coee in the cup 12 93 Customising the quotmy coeequot quantity 13 94 Adjusting the coee mill 13 95 Tips for a hotter coee13 96 Making coee using coee beans 13 97 Making coee using preground coee 13 10 MAKING CAPPUCCINOS AND MILKBASED COFFEES 14 101 Filling and attaching the milk container 14 102 Adjusting the amount of froth 14 103 Making cappuccino or latte macchiato 14 104 Making frothed milk without coee 14 105 Preparing milk unfrothed and without coee 14 106 Cleaning the milk container after use 15 107 Programming the quantity of coee and milk in the cup for cappuccino or milk 15 11 HOT WATER 15 111 Changing the quantity of water delivered automatically 15 12 CLEANING 15 121 Cleaning the machine 15 122 Cleaning the machines internal circuit 16 123 Cleaning the coee grounds container 16 124 Cleaning the drip tray and condensate tray 16 125 Cleaning the inside of the coee machine 16 126 Cleaning the water tank 16 127 Cleaning the coee spouts 16 128 Cleaning the preground coee funnel 16 129 Cleaning the infuser 17 1210 Cleaning the milk container 17 1211 Cleaning the hot watersteam connection nozzle17 13 DESCALING 17 14 SETTING WATER HARDNESS 18 141 Measuring water hardness 18 142 Setting water hardness 19 15 WATER SOFTENER FILTER 19 151 Installing the lter 19 152 Replacing the lter 20 153 Removing the lter 20 16 TECHNICAL DATA 20 17 DISPLAYED MESSAGES 21 18 TROUBLESHOOTING 22 1 IMPORTANT SAFEGUARDS When using electrical appliances basic safety precautions should always be followed including the following Read all instructions carefully Make sure the voltage of your electrical system corresponds to the voltage shown on the bottom of the machine Do not touch hot surfaces Use handles or knobs To protect against re electrical shock and personal injury do not immerse cord plug or appliance in water or other liquid Keep the appliance out of the reach of children and do not leave appliance unattended while in operation Unplug from the outlet when not in use and before cleaning Do not operate with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner Return the appliance to the nearest authorized service facility for examination repair or adjustment The use of accessory attachments not recommended by the manufacturer may result in re electrical shock or personal injury Do not use outdoors Make sure the power cord does not hang over the edge of the table or countertop to avoid getting acci dentally caught or entangled Do not place the appliance or its electrical parts on or near electric stoves cooking surfaces or gas burners Plug cord into the wall outlet To disconnect rst turn machine o then remove plug from wall outlet Do not use the appliance for other than the intended use This appliance is to be utilized for domestic use only The manufacturer declines all responsibility for any damage caused by improper incorrect or irresponsible use WARNING To reduce the risk of re or electric shock do not remove the cover or the exterior of the unit Dont attempt to repair or modify the machine doing so will void the warranty Repair should be done by authorized service personnel only SAVE THESE INSTRUCTIONS THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY 11 Short cord instructions A short power cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord Longer detachable power supply cords or extension cords are available and may be used if care is exer cised in their use If an extension cord is used the marked electrical rating should be at least as great as the electrical rating of the appliance If the appliance is provided with 3 wire grounding type cord the extension should be a GROUNDING TYPE 3 WIRE CORD The longer cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over Your product is equipped with a polarized alternating current line plug a plug having one blade wider than the other This plug will t into the power outlet only one way This is a safety feature If you are un able to insert the plug fully into the outlet try reversing the plug If the plug should still fail to t contact your electrician to replace your obsolete outlet Do not defeat the safety purpose of the polarized plug
  • Page 8 - English - : 10 MAKING CAPPUCCINOS AND MILKBASED COFFEES 14 101 Filling and attaching the milk container 14 102 Adjusting the amount of froth 14 103 Making cappuccino or latte macchiato 14 104 Making frothed milk without coee 14 105 Preparing milk unfrothed and without coee 14 106 Cleaning the milk container after use 15 107 Programming the quantity of coee and milk in the cup for cappuccino or milk 15 11 HOT WATER 15 111 Changing the quantity of water delivered automatically 15 12 CLEANING 15 121 Cleaning the machine 15 122 Cleaning the machines internal circuit 16 123 Cleaning the coee grounds container 16 124 Cleaning the drip tray and condensate tray 16 125 Cleaning the inside of the coee machine 16 126 Cleaning the water tank 16 127 Cleaning the coee spouts 16 128 Cleaning the preground coee funnel 16 129 Cleaning the infuser 17 1210 Cleaning the milk container 17 1211 Cleaning the hot watersteam connection nozzle17 13 DESCALING 17 14 SETTING WATER HARDNESS 18 141 Measuring water hardness 18 142 Setting water hardness 19 15 WATER SOFTENER FILTER 19 151 Installing the lter 19 152 Replacing the lter 20 153 Removing the lter 20 16 TECHNICAL DATA 20 17 DISPLAYED MESSAGES 21 18 TROUBLESHOOTING 22 1 IMPORTANT SAFEGUARDS When using electrical appliances basic safety precautions should always be followed including the following Read all instructions carefully Make sure the voltage of your electrical system corresponds to the voltage shown on the bottom of the machine Do not touch hot surfaces Use handles or knobs To protect against re electrical shock and personal injury do not immerse cord plug or appliance in water or other liquid Keep the appliance out of the reach of children and do not leave appliance unattended while in operation Unplug from the outlet when not in use and before cleaning Do not operate with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner Return the appliance to the nearest authorized service facility for examination repair or adjustment The use of accessory attachments not recommended by the manufacturer may result in re electrical shock or personal injury Do not use outdoors Make sure the power cord does not hang over the edge of the table or countertop to avoid getting acci dentally caught or entangled Do not place the appliance or its electrical parts on or near electric stoves cooking surfaces or gas burners Plug cord into the wall outlet To disconnect rst turn machine o then remove plug from wall outlet Do not use the appliance for other than the intended use This appliance is to be utilized for domestic use only The manufacturer declines all responsibility for any damage caused by improper incorrect or irresponsible use WARNING To reduce the risk of re or electric shock do not remove the cover or the exterior of the unit Dont attempt to repair or modify the machine doing so will void the warranty Repair should be done by authorized service personnel only SAVE THESE INSTRUCTIONS THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY 11 Short cord instructions A short power cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord Longer detachable power supply cords or extension cords are available and may be used if care is exer cised in their use If an extension cord is used the marked electrical rating should be at least as great as the electrical rating of the appliance If the appliance is provided with 3 wire grounding type cord the extension should be a GROUNDING TYPE 3 WIRE CORD The longer cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over Your product is equipped with a polarized alternating current line plug a plug having one blade wider than the other This plug will t into the power outlet only one way This is a safety feature If you are un able to insert the plug fully into the outlet try reversing the plug If the plug should still fail to t contact your electrician to replace your obsolete outlet Do not defeat the safety purpose of the polarized plug
  • Page 9 - English - : 33 Description of the accessories page 2 C C1 Indicator paper C2 Preground coee measure C3 Descaler C4 Water softener lter certain models only C5 Cleaning brush C6 Hot water spout 34 Description of the milk container page 2 D D1 Froth adjustment and CLEAN dial D2 Milk container lid D3 Milk container D4 Milk intake tube D5 Frothed milk spout adjustable 4 BEFORE USE 41 Checking the appliance After removing the packaging make sure the product is com plete and undamaged and that all accessories are present Do not use the appliance if it is visibly damaged Contact DeLonghi Customer Services 42 Installing the appliance Important When you install the appliance you should respect the follow ing safety warnings The appliance gives o heat After positioning the appli ance on the worktop leave a space of at least 3 cm be tween the surfaces of the appliance and the side and rear walls and at least 15 cm above the coee maker Water penetrating the coee maker could cause damage Do not place the appliance near taps or sinks The appliance could be damaged if the water it contains freezes Do not install the appliance in a room where the tempera ture could drop below freezing point Arrange the cord in such a way that it cannot be damaged by sharp edges or contact with hot surfaces eg electric hot plates 2 INTRODUCTION Thank you for choosing the ECAM2346X automatic coee and cappuccino maker We hope you enjoy using your new appliance Take a few minutes to read these instructions This will avoid all risks and damage to the machine 21 Symbols used in these instructions Important warnings are identied by these symbols It is vitally important to observe these warnings Danger Failure to observe the warning could result in life threatening injury from electric shock Important Failure to observe the warning could result in injury or damage to the appliance Danger of burns Failure to observe the warning could result in scalds Please note This symbol identies important advice or information for the user 22 Letters in brackets The letters in brackets refer to the legend in the Description of the Appliance on page 3 23 Troubleshooting and repairs In the event of problems rst try and resolve them following the information given in the section 17 Displayed messages and 18 Troubleshooting If this does not resolve the problem or you require further in formation you should consult Customer Experience by calling the number given on the annexed Customer Experience sheet If your country is not among those listed on the sheet call the number given in the guarantee If repairs are required contact DeLonghi Customer Experience only Contact details are given in the guarantee certicate provided with the appliance 24 Video instruction manual available on httpecam23460delonghicom 3 DESCRIPTION 31 Description of the appliance page 3 A A1 Control panel A2 Grinding adjustment dial A3 Cup shelf A4 Beans container lid A5 Preground coee funnel lid A6 Preground coee funnel A7 Beans container A8 Main switch A9 Water tank A10 Infuser door A11 Infuser A12 Hot water and steam connection nozzle A13 Coee spouts adjustable height A14 Coee grounds container A15 Condensate tray A16 Cup tray A17 Drip tray water level indicator A18 Drip tray A19 Cup light 32 Description of the control panel page 2 B A number of buttons on the panel have a double function This is indicated in brackets in the description B1 Display guides the user in using the appliance B2 Selection dial turn to select the required quantity of cof fee When in the settings MENU turn to select the required function B3 button turns the appliance on and o B4 P button to access the menu B5 button to perform a rinse cycle When in the settings MENU it acts as the quotESCquot button to exit from the selected function and go back to the main menu B6 aroma selection button to select the coee taste B7 button to make 1 cup of coee with the settings displayed B8 button to make 2 cups of coee with the settings displayed B9 button to deliver hot water When in the MENU it acts as the quotOKquot button to conrm the selection made B10 CAPPUCCINO button to prepare cappuccino or frothed milk
  • Page 10 - English - : 33 Description of the accessories page 2 C C1 Indicator paper C2 Preground coee measure C3 Descaler C4 Water softener lter certain models only C5 Cleaning brush C6 Hot water spout 34 Description of the milk container page 2 D D1 Froth adjustment and CLEAN dial D2 Milk container lid D3 Milk container D4 Milk intake tube D5 Frothed milk spout adjustable 4 BEFORE USE 41 Checking the appliance After removing the packaging make sure the product is com plete and undamaged and that all accessories are present Do not use the appliance if it is visibly damaged Contact DeLonghi Customer Services 42 Installing the appliance Important When you install the appliance you should respect the follow ing safety warnings The appliance gives o heat After positioning the appli ance on the worktop leave a space of at least 3 cm be tween the surfaces of the appliance and the side and rear walls and at least 15 cm above the coee maker Water penetrating the coee maker could cause damage Do not place the appliance near taps or sinks The appliance could be damaged if the water it contains freezes Do not install the appliance in a room where the tempera ture could drop below freezing point Arrange the cord in such a way that it cannot be damaged by sharp edges or contact with hot surfaces eg electric hot plates 43 Connecting the appliance Important Check that the mains power supply voltage corresponds to that indicated on the rating plate on the bottom of the appliance Connect the appliance to an eciently earthed and correctly installed socket with a minimum current rating of 10A only If the power socket does not match the plug on the appliance have the socket replaced with a suitable type by a qualied professional 44 Setting up the appliance Please note Coee has been used to factory test the appliance and it is therefore completely normal for there to be traces of cof fee in the mill The machine is however guaranteed to be new You should customise water hardness as soon as possible following the instructions in section 14 Setting water hardness 1 Connect the appliance to the mains electricity supply g 1 Make sure the main switch A8 at the back of the appli ance is pressed g 2 2 Remove the water tank A9 ll to the MAX line with fresh water g 3A then put back in the appliance g 3B You must rst choose the language by turning the selection dial or waiting until the languages scroll through on the display B1 automatically at intervals of about 3 seconds 3 When quotEnglishquot appears on the display press the button B9 g 4 for a few seconds until quotEnglish setquot is displayed Follow the instructions indicated on the appliance display 4 quotINSERT WATER SPOUTquot Check that the hot water spout C6 is inserted on the connection nozzle A12 and place a container holding a minimum of 338 oz 100ml under neath g 5 5 quotHOT WATER Conrmquot appears on the display 6 Press the button to conrm g 4 The appliance delivers water from the spout then goes o automatically The coee machine is now ready for normal use Please note The rst time you use the coee maker you need to make 45 cups of coee or 45 cappuccinos before it starts to give satisfactory results When making the rst 56 cappuccinos it is normal to hear the noise of boiling water After this the noise becomes less 3 DESCRIPTION 31 Description of the appliance page 3 A A1 Control panel A2 Grinding adjustment dial A3 Cup shelf A4 Beans container lid A5 Preground coee funnel lid A6 Preground coee funnel A7 Beans container A8 Main switch A9 Water tank A10 Infuser door A11 Infuser A12 Hot water and steam connection nozzle A13 Coee spouts adjustable height A14 Coee grounds container A15 Condensate tray A16 Cup tray A17 Drip tray water level indicator A18 Drip tray A19 Cup light 32 Description of the control panel page 2 B A number of buttons on the panel have a double function This is indicated in brackets in the description B1 Display guides the user in using the appliance B2 Selection dial turn to select the required quantity of cof fee When in the settings MENU turn to select the required function B3 button turns the appliance on and o B4 P button to access the menu B5 button to perform a rinse cycle When in the settings MENU it acts as the quotESCquot button to exit from the selected function and go back to the main menu B6 aroma selection button to select the coee taste B7 button to make 1 cup of coee with the settings displayed B8 button to make 2 cups of coee with the settings displayed B9 button to deliver hot water When in the MENU it acts as the quotOKquot button to conrm the selection made B10 CAPPUCCINO button to prepare cappuccino or frothed milk
  • Page 11 - English - : Once the time has been conrmed activation of autostart is indicated by the symbol displayed alongside the time and under quotAutostartquot in the menu To disable the function 1 Select autostart from the menu 2 Press the button quotDisablequot is displayed 3 Press the button to conrm The symbol is no longer displayed 76 Autoo The time can be changed so that the appliance switches o after 15 or 30 minutes or after 1 2 or 3 hours To reprogramme Autoo proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotAutooquot appears on the display B1 3 Press the button B9 4 Turn the selection dial until the required operating time 15 or 30 minutes or 1 2 or 3 hours is displayed 5 Press the button to conrm 6 Press the button B5 to exit the menu Autoo is now programmed 77 Energy saving Use this function to enable or disable energy saving When en abled the function reduces energy consumption in compliance with European regulations When energy saving mode is active an asterisk appears under quotEnergy Savingquot in the menu To enable or disable energy saving proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotEnergy Savingquot appears on the display B1 3 Press the button B9 quotDisablequot is displayed or quotEnablequot if the function has already been disabled 4 Press the button to disable energy saving mode 5 Press the button B5 to exit the menu When the function is active if the machine is not used for some time quotEnergy savingquot is displayed Please note When in energy saving mode a few seconds elapse before the rst coee cappuccino or milkbased drink is delivered as the appliance must heat up again To prepare any drink press any button to exit energy sav ing then press the button corresponding to the drink you want to make If the milk container D is inserted quotEnergy Savingquot can not be activated To enjoy your coee even more and improve the perfor mance of your appliance we recommend installing a water softener lter C4 as described in section 15 Water softener lter If your model is not provided with a lter you can request one from DeLonghi Customer Services 5 TURNING THE APPLIANCE ON Please note Before turning the appliance on make sure the main switch A8 on the back of the appliance is pressed g 2 Each time the appliance is turned on it performs an automatic preheat and rinse cycle which cannot be interrupted The appli ance is ready for use only after completion of this cycle Danger of burns During rinsing a little hot water comes out of the coee spouts A13 and is collected in the drip tray A18 underneath Avoid contact with splashes of water To turn the appliance on press the button B3 g 6 The message quotHeating up Please waitquot appears on the display B1 When heating is complete the message changes to quotRINSINGquot As well as heating the boiler this also heats the internal circuits by circulating hot water The appliance is at temperature when the message indicating the taste and quantity of coee appears 6 TURNING THE APPLIANCE OFF Whenever the coee machine is turned o after being used to make coee it performs an automatic rinse cycle Danger of burns During rinsing a little hot water ows from the coee spouts A13 Avoid contact with splashes of water To turn the appliance o press the button B3 g 6 The message quotTurning o Please waitquot appears on the dis play B1 then the appliance performs a rinse cycle and goes o standby Please note If you will not be using the appliance for some time unplug from the mains socket rst turn the appliance o by pressing the button g 6 press the main switch A8 g 2 Important Never press the main switch while the appliance is on 7 MENU SETTINGS When you access the settings menu by pressing the P button B4 the following menu items can be selected 71 Descaling For instructions on descaling see section 13 Descaling 72 Install lter For instructions on how to install the lter C4 see section 151 Installing the lter 73 Replacing the lter For instructions on how to replace the lter C4 see section 152 Replacing the lter 74 Adjust time To adjust the time on the display B1 proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotAdjust timequot is displayed 3 Press the button B9 g 3 4 Turn the selection dial to change the hours 5 Press the button to conrm 6 Turn the selection dial to change the minutes 7 Press the button to conrm The time is set press the button B5 to exit the menu 75 Autostart You can set the autostart time in order to have the appliance ready at a certain time for example in the morning so you can make coee immediately Please note To enable this function the time must already be set correctly To enable autostart proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotAutostartquot ap pears on the display B1 3 Press the button B9 quotEnablequot appears on the display 4 Press the button to conrm 5 Turn the selection dial to choose the hours 6 Press the button to conrm 7 Turn the selection dial to change the minutes 8 Press the button to conrm 9 Press the button B5 to exit the menu
  • Page 12 - English - : Once the time has been conrmed activation of autostart is indicated by the symbol displayed alongside the time and under quotAutostartquot in the menu To disable the function 1 Select autostart from the menu 2 Press the button quotDisablequot is displayed 3 Press the button to conrm The symbol is no longer displayed 76 Autoo The time can be changed so that the appliance switches o after 15 or 30 minutes or after 1 2 or 3 hours To reprogramme Autoo proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotAutooquot appears on the display B1 3 Press the button B9 4 Turn the selection dial until the required operating time 15 or 30 minutes or 1 2 or 3 hours is displayed 5 Press the button to conrm 6 Press the button B5 to exit the menu Autoo is now programmed 77 Energy saving Use this function to enable or disable energy saving When en abled the function reduces energy consumption in compliance with European regulations When energy saving mode is active an asterisk appears under quotEnergy Savingquot in the menu To enable or disable energy saving proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotEnergy Savingquot appears on the display B1 3 Press the button B9 quotDisablequot is displayed or quotEnablequot if the function has already been disabled 4 Press the button to disable energy saving mode 5 Press the button B5 to exit the menu When the function is active if the machine is not used for some time quotEnergy savingquot is displayed Please note When in energy saving mode a few seconds elapse before the rst coee cappuccino or milkbased drink is delivered as the appliance must heat up again To prepare any drink press any button to exit energy sav ing then press the button corresponding to the drink you want to make If the milk container D is inserted quotEnergy Savingquot can not be activated 78 Setting the temperature To modify the temperature of the water used to make the coee proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotSet temperaturequot appears on the display B1 3 Press the button B9 4 Turn the selection dial until the required temperature low high appears on the display 5 Press the button to conrm 6 Press the button B5 to exit the menu 79 Setting water hardness For instructions on setting water hardness see section 14 Set ting water hardness 710 Enabledisable the beep This enables or disables the beep emitted by the machine each time the buttons are pressed or an accessory is insertedre moved The beep is active by default To disable or reenable the beep proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotBeepquot appears on the display B1 3 Press the button B9 quotDisablequot or quotEnablequot is displayed 4 Press the button to enable or disable the beep 5 Activation of the beep is indicated by an asterisk below the quotBeepquot item in the menu Press the button B5 to exit the menu 711 Setting the language To modify the language of the display B1 proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotSet languagequot is displayed 3 Press the button B9 4 Turn the selection dial until the required language appears on the display 5 Press the button to conrm 6 A message conrming the language installed is displayed 7 Press the button B5 to exit the menu 712 Cup light This function enables or disables the cup lights The lights are enabled by default The lights come on each time coee and cappuccino is made and during each rinsing cycle To disable or enable this function proceed as follows Important Never press the main switch while the appliance is on 7 MENU SETTINGS When you access the settings menu by pressing the P button B4 the following menu items can be selected 71 Descaling For instructions on descaling see section 13 Descaling 72 Install lter For instructions on how to install the lter C4 see section 151 Installing the lter 73 Replacing the lter For instructions on how to replace the lter C4 see section 152 Replacing the lter 74 Adjust time To adjust the time on the display B1 proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotAdjust timequot is displayed 3 Press the button B9 g 3 4 Turn the selection dial to change the hours 5 Press the button to conrm 6 Turn the selection dial to change the minutes 7 Press the button to conrm The time is set press the button B5 to exit the menu 75 Autostart You can set the autostart time in order to have the appliance ready at a certain time for example in the morning so you can make coee immediately Please note To enable this function the time must already be set correctly To enable autostart proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotAutostartquot ap pears on the display B1 3 Press the button B9 quotEnablequot appears on the display 4 Press the button to conrm 5 Turn the selection dial to choose the hours 6 Press the button to conrm 7 Turn the selection dial to change the minutes 8 Press the button to conrm 9 Press the button B5 to exit the menu
  • Page 13 - English - : 93 Customising the quotmy coeequot quantity The appliance is set by default to automatically deliver 101 oz 30ml of quotmy coeequot To modify this quantity proceed as follows 1 Place a cup under the coee spouts A13 g 9 2 Turn the selection dial B2 g 7 until quotMY COFFEEquot is displayed 3 Press and hold the button B7 g 10 until the message quot1 MY COFFEE Program quantityquot appears on the display B1 and coee delivery begins Then release the button 4 As soon as the coee in the cup reaches the required level press the button g 10 again The quantity of coee in the cup has now been programmed 94 Adjusting the coee mill The coee mill is set by default to prepare coee correctly and should not require regulating initially However if after making the rst few coees you nd that the coee is either too weak and not creamy enough or delivery is too slow a drop at a time this can be corrected by adjusting the grinding adjustment dial A2 g 11 Please note The grinding adjustment dial must only be turned when the coee mill is in operation If the coee is delivered too slowly or not at all turn one click clockwise towards 7 For fuller bodied creamier coee turn one click anticlockwise towards 1 do not turn more than one click at a time otherwise the coee could be delivered a drop at a time These adjustments will only be evident after at least 2 cups of coee have been delivered If this adjustment does not obtain the desired result turn the dial another click 95 Tips for a hotter coee For hotter coee you should perform a rinse cycle before delivery by pressing the button B5 as described in section 9 making coee warm the cups with hot water using the hot water function see section 11 Hot water select the quothighquot coee temperature in the menu see sec tion 78 Setting the temperature 96 Making coee using coee beans Important Do not use caramelised or candied coee beans as they could stick to the coee mill and make it unusable 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotCup lightingquot ap pears on the display B1 3 Press the button B9 quotDisablequot or quotEnablequot ap pears on the display B1 4 Press the button to enable or disable the cup lighting 5 When the function is active an asterisk appears under quotCup lightingquot in the menu Press the button B5 to exit the menu 713 Default values reset This resets all menu settings and programmed quantities back to the default values with the exception of the language which remains as set To reset the default values proceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotDefault valuesquot appears on the display 3 Press the button B9 4 The message quotConrmquot is now displayed 5 Press the button to conrm and exit 714 Statistics function This displays statistics relating to the machine To display pro ceed as follows 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 g 7 until quotStatisticsquot appears on the display B1 3 Press the button B9 4 Turn the selection dial to verify how many coees have been made the total number of cappuccinos and milkbased coees made the total number of litres of water delivered how many times the machine has been descaled how many times the water softener lter has been replaced 5 Press the button B5 twice to exit the menu 8 RINSING Use this function to deliver hot water from the coee spouts A13 and hot water spout C6 if inserted to clean and heat the appliances internal circuit Place a container with a minimum capacity of 338 oz100ml under the coee and hot water spouts g 5 Important Danger of burns Do not leave the appliance unattended while hot water is being delivered 1 To enable this function press the button B5 quotRINSING Please waitquot appears on the display B1 2 After a few seconds hot water is delivered rst from the coee spouts then from the hot water spout if inserted to clean and heat the appliances internal circuit quotRINSINGquot appears on the display together with a progress bar which lls gradually as preparation proceeds 3 To stop the process press any button or wait for delivery of water to stop automatically Please note If the appliance is not used for more than 34 days when switched on again we strongly recommend performing 23 rinses before use After cleaning it is normal for the coee grounds container A13 to contain water 9 MAKING COFFEE 91 Selecting the coee taste The appliance is set by default to make coee with a standard taste You can also choose one of these tastes Extramild taste Mild taste Standard taste Strong taste Extrastrong taste To change the taste press the aroma selection button B6 g 8 repeatedly until the required taste appears on the display B1 92 Selecting the quantity of coee in the cup The appliance is set by default to make a standard quantity of coee To select the quantity of coee turn the selection dial B2 g 7 until the message corresponding to the required quantity of coee appears on the display B1 Coee selected Quantity in cup oz ml MY COFFEE Programmable from 06220 to 607180 SHORT 13540 STANDARD 20360 LONG 30490 EXTRA LONG 406120
  • Page 14 - English - : 93 Customising the quotmy coeequot quantity The appliance is set by default to automatically deliver 101 oz 30ml of quotmy coeequot To modify this quantity proceed as follows 1 Place a cup under the coee spouts A13 g 9 2 Turn the selection dial B2 g 7 until quotMY COFFEEquot is displayed 3 Press and hold the button B7 g 10 until the message quot1 MY COFFEE Program quantityquot appears on the display B1 and coee delivery begins Then release the button 4 As soon as the coee in the cup reaches the required level press the button g 10 again The quantity of coee in the cup has now been programmed 94 Adjusting the coee mill The coee mill is set by default to prepare coee correctly and should not require regulating initially However if after making the rst few coees you nd that the coee is either too weak and not creamy enough or delivery is too slow a drop at a time this can be corrected by adjusting the grinding adjustment dial A2 g 11 Please note The grinding adjustment dial must only be turned when the coee mill is in operation If the coee is delivered too slowly or not at all turn one click clockwise towards 7 For fuller bodied creamier coee turn one click anticlockwise towards 1 do not turn more than one click at a time otherwise the coee could be delivered a drop at a time These adjustments will only be evident after at least 2 cups of coee have been delivered If this adjustment does not obtain the desired result turn the dial another click 95 Tips for a hotter coee For hotter coee you should perform a rinse cycle before delivery by pressing the button B5 as described in section 9 making coee warm the cups with hot water using the hot water function see section 11 Hot water select the quothighquot coee temperature in the menu see sec tion 78 Setting the temperature 96 Making coee using coee beans Important Do not use caramelised or candied coee beans as they could stick to the coee mill and make it unusable 1 Fill the container A7 g 12 with coee beans 2 Place under the coee spouts A13 1 cup if you want to make 1 coee g 9 2 cups if you want 2 coees 3 Lower the spouts as near as possible to the cup This makes a creamier coee g 13 4 Press the button corresponding to the number of coees required 1 cup B7 or 2 cups B8 gs 10 and 14 5 Preparation begins The amount of coee selected appears on the display B1 together with a progress bar which gradually lls as preparation progresses Please note While the machine is making coee delivery can be inter rupted at any moment by pressing any button At the end of delivery to increase the quantity of coee in the cup just press and hold within 3 seconds one of the coee buttons or Once the coee has been made the appliance is ready to make the next drink Please note Various alarm messages could be displayed while using the appliance FILL TANK EMPTY GROUNDS CONTAINER ETC Their meaning is explained in section 17 Displayed messages For hotter coee see section 95 Tips for a hotter coee If the coee is delivered a drop at a time too weak and not creamy enough or too cold read the tips in section 18 Troubleshooting 97 Making coee using preground coee Important Never add preground coee when the machine is o or it could spread through the inside of the machine and dirty it This could damage the appliance Never use more than 1 level measure C2 or it could dirty the inside of the coee machine or block the funnel A6 Please note If you use preground coee you can only make one cup of coee at a time 1 Press the button B6 g 8 until quotPregroundquot appears on the display B1 2 Make sure the funnel is not blocked then add one level measure of preground coee g 15 3 Place a cup under the coee spouts A13 g 9 1 To enable this function press the button B5 quotRINSING Please waitquot appears on the display B1 2 After a few seconds hot water is delivered rst from the coee spouts then from the hot water spout if inserted to clean and heat the appliances internal circuit quotRINSINGquot appears on the display together with a progress bar which lls gradually as preparation proceeds 3 To stop the process press any button or wait for delivery of water to stop automatically Please note If the appliance is not used for more than 34 days when switched on again we strongly recommend performing 23 rinses before use After cleaning it is normal for the coee grounds container A13 to contain water 9 MAKING COFFEE 91 Selecting the coee taste The appliance is set by default to make coee with a standard taste You can also choose one of these tastes Extramild taste Mild taste Standard taste Strong taste Extrastrong taste To change the taste press the aroma selection button B6 g 8 repeatedly until the required taste appears on the display B1 92 Selecting the quantity of coee in the cup The appliance is set by default to make a standard quantity of coee To select the quantity of coee turn the selection dial B2 g 7 until the message corresponding to the required quantity of coee appears on the display B1 Coee selected Quantity in cup oz ml MY COFFEE Programmable from 06220 to 607180 SHORT 13540 STANDARD 20360 LONG 30490 EXTRA LONG 406120
  • Page 15 - English - : 106 Cleaning the milk container after use Important Danger of burns When cleaning the internal tubes of the milk container D a little hot water and steam leak out of the milk spout D5 Avoid contact with splashes of water quotSET DIAL TO CLEANquot appears on the display B1 each time you use a milk function To eliminate all milk residues proceed as follows 1 Leave the milk container D in the machine you do not need to empty it 2 Place a cup or other recipient under the frothed milk spout g 21 3 Turn the froth adjustment dial D1 to quotCLEANquot g 23 A progress bar appears on the display and gradually lls as the operation proceeds together with the message quotClean ing underway Please waitquot Cleaning stops automatically 4 Turn the dial back to one of the froth selections 5 Remove the milk container and always clean the steam connection nozzle A12 with a sponge g 24 Please note To prepare a number of cappuccinos or milkbased coees clean the milk container after you have prepared the last drink only The milk container can be kept in the refrigerator In some cases before cleaning you must wait for the appli ance to heat up 107 Programming the quantity of coee and milk in the cup for cappuccino or milk The appliance is set by default to automatically deliver standard quantities To change these quantities proceed as follows 1 Place a cup under the coee spouts A13 and milk spout D5 g 21 2 Press and hold the CAPPUCCINO BUTTON B10 until the message quotPROGRAM MILK Program Quantityquot appears on the display B1 3 Release the button The appliance starts delivering milk 4 Once the required quantity of milk has been delivered into the cup press the CAPPUCCINO button again 5 The appliance stops delivering milk and after a few seconds the coee is delivered into the cup quotPROGRAM COFFEE Pro gram quantityquot is displayed 6 Once the required quantity of coee has been delivered into the cup press the CAPPUCCINO button again Coee delivery stops The machine is now reprogrammed with the new milk and cof fee quantities 4 Press the 1 cup coee button B7g 10 5 Preparation begins The amount of coee selected appears on the display together with a progress bar which gradual ly lls as preparation progresses Please note If quotEnergy Savingquot mode is active you may have to wait a few seconds before the rst coee is delivered 10 MAKING CAPPUCCINOS AND MILKBASED COFFEES Please note To avoid milk with poor froth or large bubbles always clean the milk container lid D2 and hot water connection noz zle A12 as described in sections 106 Cleaning the milk container after use 1210 Cleaning the milk container and 1211 Cleaning the hot watersteam connection nozzle 101 Filling and attaching the milk container 1 Remove the lid D2 g 16 2 Fill the milk container D3 with a sucient quantity of milk not exceeding the MAX level marked on the contain er g 17 Each mark on the side of the container corre sponds to 100ml of milk Please note For a denser more even froth you must use skimmed or partially skimmed milk at refrigerator temperature about 5C If quotEnergy Savingquot mode is enabled you may have to wait a few seconds before the rst cappuccino is delivered 3 Make sure the milk intake tube D4 is correctly inserted in the bottom of the milk container lid g 18 4 Place the lid back on the milk container 5 Remove the hot water spout C6 from the connection noz zle A12 g 19 6 Attach the container to the connection nozzle and push as far as it will go g 20 The machine emits a beep if enabled 7 Place a suciently large cup under the coee spouts A13 and frothed milk spout D5 Adjust the length of the milk spout To move it nearer the cup simply pull it downwards g 21 8 Follow the instructions below for each function 102 Adjusting the amount of froth Turn the froth adjustment dial D1 to adjust the amount of froth on the milk delivered while making cappuccinos and milkbased coees Dial position Description Recommended for No froth HOT MILK Min froth CAPPUCCINO LATTE MACCHIATO FROTHED MILK Max froth 103 Making cappuccino or latte macchiato 1 After attaching the milk container D turn the froth ad justment dial D1 on the milk container lid D2 to the required position g 22 2 Press the CAPPUCCINO button B10 quotCAPPUCCINOquot ap pears on the display B1 together with a progress bar which lls gradually as preparation proceeds 3 After delivering the milk the machine automatically makes the coee Please note If during delivery you want to stop making milk or coee press the CAPPUCCINO button twice At the end of delivery to increase the quantity of milk or coee in the cup press and hold within 3 seconds the CAPPUCCINO button Do not leave the milk container out of the refrigerator for long periods The warmer the milk 5C is ideal the poorer the quality of froth produced 104 Making frothed milk without coee Proceed as described in the previous section 103 Making cap puccino or latte macchiato pressing the CAPPUCCINO button B10 twice instead of once Please note If during delivery you want to stop preparation press the CAP PUCCINO button once 105 Preparing milk unfrothed and without coee Proceed as described in the previous section 104 Making frothed milk without coee turning the froth adjustment dial D1 to the position
  • Page 16 - English - : 106 Cleaning the milk container after use Important Danger of burns When cleaning the internal tubes of the milk container D a little hot water and steam leak out of the milk spout D5 Avoid contact with splashes of water quotSET DIAL TO CLEANquot appears on the display B1 each time you use a milk function To eliminate all milk residues proceed as follows 1 Leave the milk container D in the machine you do not need to empty it 2 Place a cup or other recipient under the frothed milk spout g 21 3 Turn the froth adjustment dial D1 to quotCLEANquot g 23 A progress bar appears on the display and gradually lls as the operation proceeds together with the message quotClean ing underway Please waitquot Cleaning stops automatically 4 Turn the dial back to one of the froth selections 5 Remove the milk container and always clean the steam connection nozzle A12 with a sponge g 24 Please note To prepare a number of cappuccinos or milkbased coees clean the milk container after you have prepared the last drink only The milk container can be kept in the refrigerator In some cases before cleaning you must wait for the appli ance to heat up 107 Programming the quantity of coee and milk in the cup for cappuccino or milk The appliance is set by default to automatically deliver standard quantities To change these quantities proceed as follows 1 Place a cup under the coee spouts A13 and milk spout D5 g 21 2 Press and hold the CAPPUCCINO BUTTON B10 until the message quotPROGRAM MILK Program Quantityquot appears on the display B1 3 Release the button The appliance starts delivering milk 4 Once the required quantity of milk has been delivered into the cup press the CAPPUCCINO button again 5 The appliance stops delivering milk and after a few seconds the coee is delivered into the cup quotPROGRAM COFFEE Pro gram quantityquot is displayed 6 Once the required quantity of coee has been delivered into the cup press the CAPPUCCINO button again Coee delivery stops The machine is now reprogrammed with the new milk and cof fee quantities 11 HOT WATER Important Danger of burns Never leave the machine unattended while delivering hot water The hot water spout C6 becomes hot during delivery Hold by the handle only 1 Make sure the hot water spout is attached correctly 2 Place a container under the spout as close as possible to avoid splashes 3 Press the button B9 g 4 quotHOT WATERquot appears on the display B1 together with a progress bar which lls gradually as preparation proceeds 4 The machine delivers about 845 oz250ml of hot water then delivery stops automatically To interrupt delivery of hot water manually press the button again Please note If quotEnergy Savingquot mode is active you may have to wait a few seconds before hot water is delivered 111 Changing the quantity of water delivered automatically The machine is set by default to automatically deliver about 250ml of hot water To modify these quantities proceed as follows 1 Position a container under the hot water spout C6 2 Press and hold the button B9 until quotHOT WATER Program Quantityquot appears on the display B1 then re lease the button 3 When the hot water in the cup reaches the required level press the button again The machine is now reprogrammed with the new quantity 12 CLEANING 121 Cleaning the machine The following parts of the machine must be cleaned regularly the appliances internal circuit coee grounds container A14 drip tray A18 and condensate tray A15 water tank A9 coee spouts A13 preground coee funnel A6 infuser A11 accessible after opening the infuser door A10 milk container D hot watersteam connection nozzle A12 Important Do not use solvents abrasive detergents or alcohol to clean the coee machine With DeLonghi superautomatic coee 102 Adjusting the amount of froth Turn the froth adjustment dial D1 to adjust the amount of froth on the milk delivered while making cappuccinos and milkbased coees Dial position Description Recommended for No froth HOT MILK Min froth CAPPUCCINO LATTE MACCHIATO FROTHED MILK Max froth 103 Making cappuccino or latte macchiato 1 After attaching the milk container D turn the froth ad justment dial D1 on the milk container lid D2 to the required position g 22 2 Press the CAPPUCCINO button B10 quotCAPPUCCINOquot ap pears on the display B1 together with a progress bar which lls gradually as preparation proceeds 3 After delivering the milk the machine automatically makes the coee Please note If during delivery you want to stop making milk or coee press the CAPPUCCINO button twice At the end of delivery to increase the quantity of milk or coee in the cup press and hold within 3 seconds the CAPPUCCINO button Do not leave the milk container out of the refrigerator for long periods The warmer the milk 5C is ideal the poorer the quality of froth produced 104 Making frothed milk without coee Proceed as described in the previous section 103 Making cap puccino or latte macchiato pressing the CAPPUCCINO button B10 twice instead of once Please note If during delivery you want to stop preparation press the CAP PUCCINO button once 105 Preparing milk unfrothed and without coee Proceed as described in the previous section 104 Making frothed milk without coee turning the froth adjustment dial D1 to the position
  • Page 17 - English - : If necessary remove coee deposits with the brush C5 supplied 129 Cleaning the infuser The infuser A11 must be cleaned at least once a month Important The infuser may not be extracted when the machine is on 1 Make sure the machine is correctly turned o see 6 Turn ing the appliance o 2 Remove the water tank A9 3 Open the infuser door A10 g 29 on the right side of the appliance g 29 4 Press the two coloured release buttons inwards and at the same time pull the infuser outwards g 30 5 Soak the infuser in water for about 5 minutes then rinse under the tap Important RINSE WITH WATER ONLY NO WASHING UP LIQUID NO DISH WASHER Clean the infuser without using washing up liquid as it could be damaged 6 Use the brush C5 to remove any coee residues left in the infuser housing visible through the infuser door 7 After cleaning replace the infuser by sliding it onto the in ternal support then push the PUSH symbol fully in until it clicks into place Please note If the infuser is dicult to insert before insertion adapt it to the right size by pressing the two levers g 31 8 Once inserted make sure the two coloured buttons have snapped out 9 Close the infuser door 10 Put the water tank back 1210 Cleaning the milk container Clean the milk container D each time you prepare milk as de scribed below 1 Remove the lid D2 2 Remove the milk spout D5 and intake tube D4 g 32 machines you need not use chemical products to clean the machine None of the components of the appliance can be washed in a dishwasher with the exception of the milk container D Do not use metal objects to remove encrustations or coee deposits as they could scratch metal or plastic surfaces 122 Cleaning the machines internal circuit If the appliance is not used for more than 34 days before using it again we strongly recommend switching it on and performing 23 rinse cycles by pressing the button B5 delivering hot water for a few seconds by pressing the button B9 123 Cleaning the coee grounds container When quotEMPTY GROUNDS CONTAINERquot appears on the display B1 the grounds container must be emptied and cleaned The appliance cannot be used to make coee until you have cleaned the grounds container A14 Even if not full the empty grounds container message is displayed 72 hours after the rst coee has been prepared For the 72 hours to be calculated correctly the machine must never be turned o with the main switch Important Danger of burns If you make a number of cappuccinos one after the other the metal cup tray A16 becomes hot Wait for it to cool down be fore touching it and handle from the front only To clean with the machine on Remove the drip tray A18 g 25 empty and clean Empty the grounds container A14 and clean thoroughly to remove all residues left on the bottom This can be done with the spatula on the brush C5 provided Check the condensate tray A15 red and empty if necessary Important When removing the drip tray the grounds container must be emptied even if it contains few grounds If this is not done when you make the next coees the grounds container may ll up more than expected and clog the machine Please note After cleaning it is normal for the coee grounds container to contain water 124 Cleaning the drip tray and condensate tray Important The drip tray A18 is tted with a level indicator A17 red showing the level of water it contains g 26 Before the in dicator protrudes from the cup tray A16 the drip tray must be emptied and cleaned otherwise the water may overow the edge and damage the appliance the surface it rests on or the surrounding area To remove the drip tray 1 Remove the drip tray and the coee grounds container A14 g 25 2 Empty the drip tray and grounds container and wash them 3 Check the red condensate tray A15 and empty if necessary 4 Replace the drip tray and grounds container 125 Cleaning the inside of the coee machine Danger of electric shock Before cleaning internal parts the machine must be turned o see section 6 Turning the appliance o and unplugged from the mains power supply Never immerse the coee machine in water 1 Check regularly about once a month that the inside of the appliance accessible after removing the drip tray A18 is not dirty If necessary remove coee deposits with the brush C5 supplied and a sponge 2 Remove all the residues with a vacuum cleaner g 27 126 Cleaning the water tank 1 Clean the water tank A9 regularly about once a month and whenever you replace the water softener lter C4 if provided with a damp cloth and a little mild washing up liquid 2 Remove the lter C4 if present and rinse with running water 3 Replace the lter if provided ll the tank with fresh water and replace the tank 4 Models with water softener lter only Deliver about 100ml of water 127 Cleaning the coee spouts 1 Clean the coee spouts A13 regularly with a sponge or cloth g 28A 2 Check that the holes in the coee spouts are not blocked If necessary remove coee deposits with a toothpick g 28B 128 Cleaning the preground coee funnel Check regularly about once a month that the preground cof fee funnel A6 is not blocked
  • Page 18 - English - : If necessary remove coee deposits with the brush C5 supplied 129 Cleaning the infuser The infuser A11 must be cleaned at least once a month Important The infuser may not be extracted when the machine is on 1 Make sure the machine is correctly turned o see 6 Turn ing the appliance o 2 Remove the water tank A9 3 Open the infuser door A10 g 29 on the right side of the appliance g 29 4 Press the two coloured release buttons inwards and at the same time pull the infuser outwards g 30 5 Soak the infuser in water for about 5 minutes then rinse under the tap Important RINSE WITH WATER ONLY NO WASHING UP LIQUID NO DISH WASHER Clean the infuser without using washing up liquid as it could be damaged 6 Use the brush C5 to remove any coee residues left in the infuser housing visible through the infuser door 7 After cleaning replace the infuser by sliding it onto the in ternal support then push the PUSH symbol fully in until it clicks into place Please note If the infuser is dicult to insert before insertion adapt it to the right size by pressing the two levers g 31 8 Once inserted make sure the two coloured buttons have snapped out 9 Close the infuser door 10 Put the water tank back 1210 Cleaning the milk container Clean the milk container D each time you prepare milk as de scribed below 1 Remove the lid D2 2 Remove the milk spout D5 and intake tube D4 g 32 3 Turn the froth adjust ment dial D1 anti clockwise to the quotIN SERTquot position g 33 and pull o upwards 4 Wash all the compo nents thoroughly with hot water and mild washingup liquid All components are dish washer safe placing them in the top basket of the dishwasher Make sure there are no milk residues on the hollow and groove under the dial g 34 If necessary scrape the groove with a toothpick 34 35 5 Rinse inside the froth adjustment dial seat with running water g 35 6 Check that the intake tube and milk spout are not clogged with milk residues 7 Replace the dial in correspondence to the word quotINSERTquot spout and milk intake tube 8 Place the lid back on the milk container D3 1211 Cleaning the hot watersteam connection nozzle Each time you prepare milk clean the connection nozzle A12 with a sponge to remove milk residues from the gaskets g 24 13 DESCALING Descale the machine when the message quotDESCALEquot ashes on the display B1 Important Before use read the instructions and the labelling on the descaler pack dicator protrudes from the cup tray A16 the drip tray must be emptied and cleaned otherwise the water may overow the edge and damage the appliance the surface it rests on or the surrounding area To remove the drip tray 1 Remove the drip tray and the coee grounds container A14 g 25 2 Empty the drip tray and grounds container and wash them 3 Check the red condensate tray A15 and empty if necessary 4 Replace the drip tray and grounds container 125 Cleaning the inside of the coee machine Danger of electric shock Before cleaning internal parts the machine must be turned o see section 6 Turning the appliance o and unplugged from the mains power supply Never immerse the coee machine in water 1 Check regularly about once a month that the inside of the appliance accessible after removing the drip tray A18 is not dirty If necessary remove coee deposits with the brush C5 supplied and a sponge 2 Remove all the residues with a vacuum cleaner g 27 126 Cleaning the water tank 1 Clean the water tank A9 regularly about once a month and whenever you replace the water softener lter C4 if provided with a damp cloth and a little mild washing up liquid 2 Remove the lter C4 if present and rinse with running water 3 Replace the lter if provided ll the tank with fresh water and replace the tank 4 Models with water softener lter only Deliver about 100ml of water 127 Cleaning the coee spouts 1 Clean the coee spouts A13 regularly with a sponge or cloth g 28A 2 Check that the holes in the coee spouts are not blocked If necessary remove coee deposits with a toothpick g 28B 128 Cleaning the preground coee funnel Check regularly about once a month that the preground cof fee funnel A6 is not blocked
  • Page 19 - English - : 2 Immerse the paper completely in a glass of water for one second 3 Remove the paper from the water and shake lightly After about a minute 1 2 3 or 4 red squares form depending on the hardness of the water Each square corresponds to one level 142 Setting water hardness 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 to select quotWater Hardnessquot 3 Conrm the selection by pressing the button B9 4 Turn the selection dial and set the level shown by the indi cator paper C1 see previous section 5 Press the button to conrm the setting 6 Press the button B5 to exit the menu The machine is now reprogrammed with the new water hard ness setting 15 WATER SOFTENER FILTER Certain models are tted with a water softener lter C4 If this is not the case with your model you are recommended to pur chase one from DeLonghi Customer Services To use the lter correctly follow the instructions below 151 Installing the lter 1 Remove the lter C4 from the packaging 2 Turn the date indicator disk see g 38 until the next two months of use are displayed 10 The appliance is now ready for rinsing through with clean water Empty the container used to collect the descal er solution Extract the water tank empty rinse under running water ll with fresh water up to the MAX level and put back in the appliance quotRINSING Conrmquot is displayed 11 Place the container used to collect the descaler solution empty under the coee spouts and hot water spout g 37 12 Press the button to start rinsing Hot water ows out of the spouts and the message quotRinsing Please waitquot is displayed 13 When the water tank is empty the messages quotRINSINGquot quotFILL TANKquot and quotREPLACE FILTERquot if previously removed alternate on the display 14 Remove the water tank replace the lter if previously re moved ll the tank up to the MAX level with fresh water and insert it in the appliance the display will show quotRINS ING Conrmquot 15 Place the container used to collect the rinsing water empty under the hot water spout 16 Press the button to restart rinsing Hot water ows out of the hot water spout only and the message quotRINSING Please waitquot is displayed 17 When it nishes the message quotRinsing complete Con rmquot appears on the display 18 Press the hot water button The message quotFILL TANKquot is displayed 19 Empty the drip tray remove and top up the water tank with fresh water to the MAX level and put back in the machine Descaling is complete Please note If the descaling cycle is not completed correctly eg no electricity we recommend repeating the cycle After descaling it is normal for the grounds container A14 to contain water 14 SETTING WATER HARDNESS The DESCALE message is displayed after a period of time estab lished according to water hardness The machine is set by default for a hardness value of 4 The ma chine can also be programmed according to the hardness of the mains water in the various regions so that the machine needs to be descaled less often 141 Measuring water hardness 1 Remove the quotTOTAL HARDNESS TESTquot indicator paper C1 from its pack attached to the English instructions You should use DeLonghi descaler only Using unsuitable descaler andor performing descaling incorrectly may re sult in faults not covered by the manufacturers guarantee 1 Turn the appliance on and wait until it is ready for use 2 Press the P button B4 to access the menu 3 Turn the selection dial B2 until quotDescalequot is displayed 4 Select by pressing the button B9 quotDescale Con rmquot appears on the display B1 Press again to enable the function 5 quotEMPTY DRIP TRAYquot is displayed alternating with quotRE MOVE FILTERquot if the lter is present and quotAdd descaler Conrmquot 6 Empty the water tank A9 completely and remove the water softener lter C4 if present Empty the drip tray A18 and grounds container A14 then put them back in the appliance 7 Pour the descaler into the tank up to level A corresponding to a 340 oz100ml pack marked on the side of the tank g 36 then add water 3385 oz1 litre up to level B g 36 and put the water tank back B A A B 6086 oz 18 l 8 Place an empty container with a minimum capacity of 6086 oz 18 litres under the coee spouts A13 and hot water spout C6 g 37 Important Danger of burns Hot water containing acid ows out of the coee spouts and hot water spout Take care to avoid contact with splashes of this solution 9 Press the button to conrm that you have added the descaler solution The message quotDescale underwayquot is dis played and the descaling procedure begins The descaler liquid comes out of the coee spouts and hot water spout and a series of rinses and pauses is performed to remove limescale deposits from inside the machine After about 25 minutes descaling stops and the messages quotRINSINGquot and quotFILL TANKquot alternate on the display
  • Page 20 - English - : 2 Immerse the paper completely in a glass of water for one second 3 Remove the paper from the water and shake lightly After about a minute 1 2 3 or 4 red squares form depending on the hardness of the water Each square corresponds to one level 142 Setting water hardness 1 Press the P button B4 to enter the menu 2 Turn the selection dial B2 to select quotWater Hardnessquot 3 Conrm the selection by pressing the button B9 4 Turn the selection dial and set the level shown by the indi cator paper C1 see previous section 5 Press the button to conrm the setting 6 Press the button B5 to exit the menu The machine is now reprogrammed with the new water hard ness setting 15 WATER SOFTENER FILTER Certain models are tted with a water softener lter C4 If this is not the case with your model you are recommended to pur chase one from DeLonghi Customer Services To use the lter correctly follow the instructions below 151 Installing the lter 1 Remove the lter C4 from the packaging 2 Turn the date indicator disk see g 38 until the next two months of use are displayed Please note The lter lasts about two months if the appliance is used nor mally If the coee machine is left unused with the lter in stalled it will last a maximum of three weeks 3 To activate the lter run tap water through the hole in the lter as shown in gure 39 until water comes out of the openings at the side for more than a minute 4 Extract the tank A9 from the appliance and ll with water 5 Insert the lter in the water tank and immerse it com pletely for about ten seconds sloping it to enable the air bubbles to escape g 40 6 Insert the lter in the lter housing and press as far as it will go g 41 7 Close the tank with the lid then put the tank back in the machine g 42 When you install the lter you must notify the appliance of its presence 8 Press the P button B4 to enter the menu 9 Turn the selection dial B2 g 9 until quotInstall lterquot appears on the dis play B1 10 Press the button B9 11 quotEnablequot appears on the display 12 Press the button to conrm the selection quotHOT WATER Conrmquot is displayed 13 Position a container under the hot water spout C6 min capacity 169 oz500ml 14 Press the button to conrm the selection The appli ance begins hot water delivery and the message quotPlease waitquot is displayed 10 The appliance is now ready for rinsing through with clean water Empty the container used to collect the descal er solution Extract the water tank empty rinse under running water ll with fresh water up to the MAX level and put back in the appliance quotRINSING Conrmquot is displayed 11 Place the container used to collect the descaler solution empty under the coee spouts and hot water spout g 37 12 Press the button to start rinsing Hot water ows out of the spouts and the message quotRinsing Please waitquot is displayed 13 When the water tank is empty the messages quotRINSINGquot quotFILL TANKquot and quotREPLACE FILTERquot if previously removed alternate on the display 14 Remove the water tank replace the lter if previously re moved ll the tank up to the MAX level with fresh water and insert it in the appliance the display will show quotRINS ING Conrmquot 15 Place the container used to collect the rinsing water empty under the hot water spout 16 Press the button to restart rinsing Hot water ows out of the hot water spout only and the message quotRINSING Please waitquot is displayed 17 When it nishes the message quotRinsing complete Con rmquot appears on the display 18 Press the hot water button The message quotFILL TANKquot is displayed 19 Empty the drip tray remove and top up the water tank with fresh water to the MAX level and put back in the machine Descaling is complete Please note If the descaling cycle is not completed correctly eg no electricity we recommend repeating the cycle After descaling it is normal for the grounds container A14 to contain water 14 SETTING WATER HARDNESS The DESCALE message is displayed after a period of time estab lished according to water hardness The machine is set by default for a hardness value of 4 The ma chine can also be programmed according to the hardness of the mains water in the various regions so that the machine needs to be descaled less often 141 Measuring water hardness 1 Remove the quotTOTAL HARDNESS TESTquot indicator paper C1 from its pack attached to the English instructions soft water hard water very hard water slightly hard water
  • Page 21 - English - : 15 After the ow of hot water stops the appliance automati cally resets to quotReady for coeequot status The new lter is active and indicated by an asterisk displayed under quotInstall lterquot in the menu You can now use the appliance 152 Replacing the lter When quotREPLACE FILTERquot appears on the display B1 after two months see date indicator or when the appliance has not been used for three weeks you should replace the lter C4 1 Extract the tank A9 and exhausted lter 2 Take the new lter out of its packet and proceed as illus trated in points 2 3 4 5 and 6 in the previous section 3 Position a container with a minimum capacity of 169 oz500ml under the hot water spout 4 Press the P button B4 to enter the menu 5 Turn the selection dial B2 until quotReplace lterquot is displayed 6 Press the button B9 7 The message quotConrmquot is now displayed 8 Press the button to conrm the selection 9 quotHOT WATER Conrmquot is displayed 10 Press the button to conrm the selection The appli ance begins hot water delivery and the message quotPlease waitquot is displayed 11 After the ow of hot water stops the appliance automati cally resets to quotReady for coeequot status The new lter is now active and you can use the coee machine 153 Removing the lter If you want to use the appliance without the lter C4 you must remove it and notify the appliance of its removal Proceed as follows 1 Extract the tank A9 and exhausted lter 2 Press the P button B4 to enter the menu 3 Turn the selection dial B2 g 9 until quotInstall lter quot appears on the display B1 4 Press the button B4 5 quotDisablequot appears on the display 6 Press the button to conrm and the button B5 to exit the menu 16 TECHNICAL DATA Voltage 120 V 60 Hz max 10A Power 1250W Pressure 15MPa 15 bars Max water tank capacity 6086 oz18 l Size LxDxH 240x430x350 mm Cord length 1350 mm Weight 34215 oz 97 kg Max beans container capacity 882 oz 250 g
  • Page 22 - English - : 16 TECHNICAL DATA Voltage 120 V 60 Hz max 10A Power 1250W Pressure 15MPa 15 bars Max water tank capacity 6086 oz18 l Size LxDxH 240x430x350 mm Cord length 1350 mm Weight 34215 oz 97 kg Max beans container capacity 882 oz 250 g 17 DISPLAYED MESSAGES DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY FILL TANK Insucient water in the tank A9 Fill the tank with water andor insert it correct ly pushing it as far as it will go until it clicks into place g 3 EMPTY GROUNDS CONTAINER The grounds container A14 is full Empty the grounds container and drip tray A18 clean and replace g 25 Important when removing the drip tray the grounds con tainer must be emptied even if it contains few grounds If this is not done when you make the next coees the grounds container may ll up more than expected and clog the machine INSERT GROUNDS CONTAINER After cleaning the grounds container has not been replaced A14 Remove the drip tray A18 and insert the grounds container ADD PREGROUND COFFEE The quotpreground coeequot function has been se lected without placing any preground coee in the funnel A6 Place preground coee in the funnel g 15 or deselect the quotpregroundquot function GROUND TOO FINE ADJUST MILL The grinding is too ne and the coee is deliv ered too slowly or not at all Repeat coee delivery and turn the grind ing adjustment dial A2 g 11 one click clockwise towards 7 while the coee mill is in operation If after making at least 2 coees delivery is still too slow repeat the correction procedure turning the grinding adjustment dial another click until delivery is correct see section 94 Adjusting the coee mill If the problem persists make sure the water tank A9 is fully inserted If the water softener lter C4 is present an air bubble may have been released inside the circuit obstructing delivery Insert the hot water spout C6 in the appli ance and deliver a little water until the ow becomes regular DESCALE The machine must be descaled The descaling procedure described in section 13 Descaling needs to be performed LESS COFFEE Too much coee has been used Select a milder taste by pressing the dial B6 g 8 or reduce the quantity of preground coee FILL BEANS CONTAINER The coee beans have run out Fill the beans container A7 g 12 The preground coee funnel A6 is clogged Empty the funnel with the help of the brush C5 as described in section 128 Cleaning the preground coee funnel INSERT INFUSER ASSEMBLY The infuser A11 has not been replaced after cleaning Insert the infuser as described in section 129 Cleaning the infuser INSERT TANK The tank A9 is not correctly in place Insert the tank correctly and press as far as it will go page 3B
  • Page 23 - English - : GENERAL ALARM The inside of the appliance is very dirty Clean the inside of the appliance thoroughly as described in section 12 Cleaning If the message is still displayed after cleaning con tact a service centre REPLACE FILTER The water softener lter C4 is exhausted Replace the lter or remove it as described in the quotWater softener lterquot section SET DIAL TO CLEAN Milk has been delivered recently and the tubes inside the milk container D must be cleaned Turn the froth adjustment dial D1 to the CLEAN position INSERT WATER SPOUT The hot water spout C6 is not inserted or is inserted incorrectly Insert water spout as far as it will go INSERT MILK CONTAINER The milk container D is not inserted correctly Insert the milk container g 20 as far as it will go WATER CIRCUIT EMPTY FILL WATER CIRCUIT HOT WATER Conrm The water circuit is empty Press B9 to deliver water from the hot water spout C6 until it ows out normally If the problem persists make sure the water tank A9 is fully inserted 18 TROUBLESHOOTING Below is a list of some of the possible malfunctions If the problem cannot be resolved as described contact Customer Services PROBLEM POSSIBLE CAUSE REMEDY The coee is not hot The cups were not preheated Warm the cups by rinsing them with hot water Please note you can use the hot water function The internal circuits of the appliance have cooled down because 23 minutes have elapsed since the last coee was made Before making coee rinse the internal circuits by pressing the button B5 A low coee temperature is set Set a high coee temperature in the menu The coee is weak or not creamy enough The coee is ground too coarsely Turn the grinding adjustment dial A2 one click anticlockwise towards 1 while the coee mill is in operation g 11 Continue one click at a time until coee delivery is satisfactory The eect is only visible after delivering 2 coees see section 94 Adjusting the coee mill The coee is unsuitable Use preground coee for espresso machines The coee is delivered too slowly or a drop at a time The coee is ground too nely Turn the grinding adjustment dial A2 one click clockwise towards 7 while the coee mill is in operation g 11 Continue one click at a time until coee delivery is satisfactory The eect is only visible after delivering 2 coees see section 94 Adjusting the coee mill Coee does not come out of one or both of the spouts The coee spouts A13 are blocked Clean the spouts with a toothpick g 28B The milk does not come out of the milk spout D5 The lid D2 of the milk container lid is dirty Clean the milk container lid as described in sec tion 1210 Cleaning the milk container The appliance does not come on It is not plugged into the mains socket Plug into the mains socket The main switch A8 is not turned on Place the main switch in the I position g 2 The infuser cannot be extracted The appliance has not been turned o correctly Turn the appliance o by pressing the button B3 g 6 see section 6 Turning the appliance o The milk contains large bubbles and squirts out of the milk spout D5 or there is little froth The milk is not cold enough or is not semiskimmed Use skimmed or semiskimmed milk at refrig erator temperature about 5 C If the result is not as you wished try changing brand of milk The froth adjustment dial D1 is incorrectly adjusted Adjust following the instructions in section 102 Adjusting the amount of froth The milk container lid D2 or froth adjustment dial D1 is dirty Clean the milk container lid and control knob as described in section 13 Descaling The hot watersteam connection nozzle A12 is dirty Clean the connection nozzle as described in section 1211 Cleaning the hot watersteam connection nozzle
  • Page 24 - English - : GENERAL ALARM The inside of the appliance is very dirty Clean the inside of the appliance thoroughly as described in section 12 Cleaning If the message is still displayed after cleaning con tact a service centre REPLACE FILTER The water softener lter C4 is exhausted Replace the lter or remove it as described in the quotWater softener lterquot section SET DIAL TO CLEAN Milk has been delivered recently and the tubes inside the milk container D must be cleaned Turn the froth adjustment dial D1 to the CLEAN position INSERT WATER SPOUT The hot water spout C6 is not inserted or is inserted incorrectly Insert water spout as far as it will go INSERT MILK CONTAINER The milk container D is not inserted correctly Insert the milk container g 20 as far as it will go WATER CIRCUIT EMPTY FILL WATER CIRCUIT HOT WATER Conrm The water circuit is empty Press B9 to deliver water from the hot water spout C6 until it ows out normally If the problem persists make sure the water tank A9 is fully inserted Coee does not come out of one or both of the spouts The coee spouts A13 are blocked Clean the spouts with a toothpick g 28B The milk does not come out of the milk spout D5 The lid D2 of the milk container lid is dirty Clean the milk container lid as described in sec tion 1210 Cleaning the milk container The appliance does not come on It is not plugged into the mains socket Plug into the mains socket The main switch A8 is not turned on Place the main switch in the I position g 2 The infuser cannot be extracted The appliance has not been turned o correctly Turn the appliance o by pressing the button B3 g 6 see section 6 Turning the appliance o The milk contains large bubbles and squirts out of the milk spout D5 or there is little froth The milk is not cold enough or is not semiskimmed Use skimmed or semiskimmed milk at refrig erator temperature about 5 C If the result is not as you wished try changing brand of milk The froth adjustment dial D1 is incorrectly adjusted Adjust following the instructions in section 102 Adjusting the amount of froth The milk container lid D2 or froth adjustment dial D1 is dirty Clean the milk container lid and control knob as described in section 13 Descaling The hot watersteam connection nozzle A12 is dirty Clean the connection nozzle as described in section 1211 Cleaning the hot watersteam connection nozzle
