User Manual Samsung DV50K7500GV/A3 7.5 cu. ft. Gas Dryer

Item

Cycle settings

Washable sweaters (block to shape and lay flat on rack)

TIME DRY with the Extra Low temperature setting

Stuffed toys (cotton or polyester fiber-filled)

Stuffed toys (foam or rubber-filled)

AIR FLUFF

Foam rubber pillows

Sneakers

Turn the Cycle Selector to select the desired cycle. The indicator by the cycle name lights up.

• Sensor Dry cycles: The dryer senses the internal humidity and uses it to determine the drying time.

• Manual Dry cycles: The drying time is fixed.

• Steam cycles: The dryer sprays water into the drum to deodorize clothes and reduce static electricity and wrinkles.

Displays all cycle information, including the cycle time, information code, and operating status.

• Filter Check

• Child Lock

• Steam

• Vent Sensor

• Smart Control (Smart Monitor)

• Sound

The Dry Level button serves two purposes.

Use 1: Press Dry Level to select a dry level. This is available only with the Sensor Dry cycles.

• Larger or bulkier loads may require Very Dry or More Dry for complete dryness.

• Less Dry is best suited for lightweight fabrics or for leaving some moisture in the clothing at the end of the cycle.

• Damp Dry is designed to partially dry items. Use for items that lay flat or hang to dry.

NOTE

This option is not available with: WOOL, ACTIVE WEAR, and STEAM SANITIZE.

Use 2 (DV50K7500E(G)*): Press and hold Dry Level for 3 seconds to turn off the dryer’s notification beeps and melodies. To unmute the dryer, press and hold again for 3 seconds.

NOTE

The mute function remains active even after you restart the dryer.

Press Temp. to change the temperature of the current cycle.

• High: For sturdy cottons or those labeled Tumble Dry.

• Medium: For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry Medium.

• Med Low: For heat lower than Medium. Use to dry synthetic or washable knit fabrics.

• Low: For heat sensitive items labeled Tumble Dry Low or Tumble Dry Warm.

• Extra Low: Provides the lowest heated drying temperature possible.

Press Time to select a drying time for the selected cycle. This is available only with TIME DRY, QUICK DRY, AIR FLUFF, and WRINKLE AWAY.

This button is not available for Sensor Dry cycles because exact drying times are determined by fluctuating humidity levels.

Anti Static reduces static electricity that occurs from clothing friction. This is done by spraying steam into the drum in a later stage of the drying cycle.

Remote control

After you have inserted the Smart Home Adapter and connected the dryer to your home network using the Samsung Smart Home app, you can control the dryer remotely. To begin, press and hold Smart Control (Smart Monitor) for 3 seconds. The Smart Control (Smart Monitor) indicator blinks. The dryer enters the waiting for remote commands mode For more information, visit the Samsung Smart Home website.

NOTE

The Anti Static function is only available with NORMAL, HEAVY DUTY, PERM PRESS, DELICATES, and TIME DRY.

The Mixed Load Bell notifies you when the average dry level in a load is damp dry (80 % dried). This lets you take items that you don’t want fully dried or that dry quickly out of the dryer early while letting others continue to dry.

You can select this option in all Sensor Dry cycle except for WOOL, ACTIVE WEAR, and STEAM SANITIZE. Available dry levels are Normal Dry, More Dry, and Very Dry.

The Wrinkle Prevent button serves two purposes.

Use 1: Wrinkle Prevent provides approximately 180 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling. Press Wrinkle Prevent to activate this feature. The load is dry and can be removed at any time during the Wrinkle Prevent cycle.

Use 2 (DV50K7500E(G)*): Press and hold Wrinkle Prevent for 3 seconds to turn on the drum light while the dryer is running. To turn off the drum light, press and hold again for 3 seconds.

NOTE

After 2 minutes of inactivity, the drum light automatically turns off.

This function is available with Normal and Time Dry.

With the Eco Dry activated, drying takes a longer time but power consumption is reduced.

The drying time can be extended by up to 3 times normal depending on the temperature and load. The Eco Dry function is enabled by default.

14 Sound

(DV45K6200E(G)*, DV45K6500E(G)*)

Use 1: Press Sound to turn on or off the dryer’s notification beeps and melodies.

Use 2: Press and hold Sound for 3 seconds to turn on the drum light while the dryer is running. To turn off the drum light, press and hold again for 3 seconds.

NOTE

This function remains active even after you restart the dryer.

Cycle

Description

ECO NORMAL (DV45K6500E(G)*, DV50K7500E(G)*)

For reducing energy usage. This cycle adjusts the cycle time and temperature for increased efficiency.

NORMAL

For most fabrics including cottons and linens.

If Normal is selected, the Eco Dry function is enabled by default. For more information, see Eco Dry in the “Feature panel“ section.

HEAVY DUTY

For drying items made out of heavy fabrics, such as jeans, corduroys, or work clothes, with high temperature heat.

BEDDING

For bulky items such as blankets, sheets, and comforters.

PERM PRESS

Dry wrinkle-free cottons, synthetic fabrics, knits, and permanent press fabrics automatically.

WOOL (DV45K6500E(G)*, DV50K7500E(G)*)

For machine washable and tumble dryable wool only.

DELICATES

For heat-sensitive items at a low drying temperature.

ACTIVE WEAR

For exercise wear and outdoor wear such as sports jerseys, training pants, water-repellent jackets, and other performance clothing. Thick fabrics like a zipper or velcro closure of a jacket, or training socks may not be completely dried.

QUICK DRY

A quick drying cycle that runs for 30 minutes

TIME DRY

You can specify a cycle time in minutes.

If Time Dry is selected, the Eco Dry function is enabled by default. For more information, see Eco Dry in the “Feature panel“ section.

AIR FLUFF

Tumbles the load in room temperature air.

REFRESH

Use to smooth out wrinkles and reduce odors in loads of one to four items. With this cycle selected, a small amount of water is sprayed into the dryer drum after several minutes of tumbling with heat. Before removing the laundry, confirm that the laundry load is dry.

WRINKLE AWAY

For best results, load 2-3 items at once. You can extend the drying time by a minimum of 20 minutes, depending on the item type or load. Before removing the laundry, confirm that the laundry load is dry.

Cycle

Description

Bedspreads & Comforters

Follow the care label instructions or dry using Bedding.

• Make sure the item is thoroughly dry before using or storing.

• May require repositioning in the drum to ensure even drying.

Blankets

Use Normal and dry only one blanket at a time for best tumbling action.

• Make sure blankets are is thoroughly dry before using or storing.

Curtains & Draperies

Use Perm Press and the Medium temperature setting to help minimize wrinkling.

• Dry curtains and draperies in small loads for best results and remove as soon as possible after the cycle is complete.

Cloth Diapers

Use Normal and the Medium temperature setting for soft, fluffy diapers.

Down–filled Items (jackets, sleeping bags, comforters, etc.)

Use Normal and the Medium temperature setting.

• Add a couple of dry towels to absorb moisture and shorten drying time.

Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.)

Do not dry on a heat setting. Use AIR FLUFF.

WARNING

Drying a rubber item with heat may damage it or cause a fire.

Pillows

Use Normal.

• Add a couple of dry towels and a pair of clean sneakers to help the tumbling action and to fluff the pillows.

• Do not dry kapok or foam pillows using a heated drying cycle. You can dry these items in the dryer only if you use AIR FLUFF.

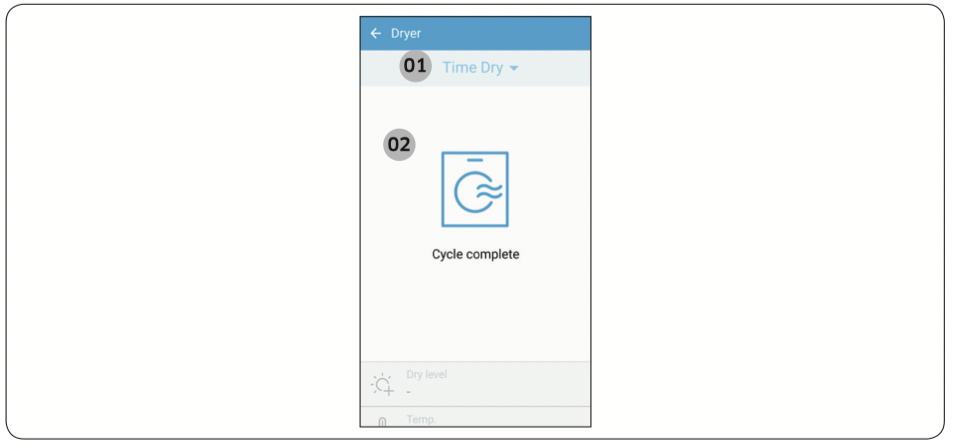

01 Current cycle

Tap to select a desired cycle.

02 Start/Pause

With Smart Control (Smart Monitor) enabled on the dryer, you can remotely start an operation or pause an operation temporarily.

03 Options

You can set or adjust options remotely. Option default values and available setting values differ depending on the selected cycle.

04 Remaining Laundry (applicable models only)

If the dryer has laundry remaining in the drum after a cycle has finished, this function can notify you that laundry remains in the drum.

To use, tap the Remaining Laundry icon to turn the function on, and then specify a notification interval.

The function stays active for up to 12 hours. If you open the door, the function will be terminated and the machine turns off.

05 Settings

The Settings menu differs by model and is not available for all models.

06 About Device.

• Version: Displays the current version of the Dryer app.

• Self Check (applicable models only): The dryer runs a self- diagnosis and displays an information code if it finds an issue to check.

07 Current Process

The current process - Washing, Rinsing, etc. - is displayed.

08 Progress

The progress of the selected cycle is displayed in 1 % increments.

09 Remaining Time

The time remaining for the selected cycle is displayed for.

10 Estimated Finish Time

The estimated finish time is displayed.

11 Cancel

Tap to cancel the current cycle and return to the cycle selection screen.

• The duct or lint filter is clogged.

• The pressure applied to the duct is high because the duct is too long or bent.

• Check the lint filter or duct and clean if necessary.

• Check the duct connections and shorten or straighten the duct if necessary.

• The duct or lint filter is severely clogged.

• The pressure applied to the duct is very high because the duct is too long or bent.

• Check and clean the lint filter or duct and make sure they are not clogged.

• Check the duct connections and shorten or straighten the duct work.

Problem

Action

Does not run.

• Make sure the door is latched shut.

• Make sure the power cord is plugged into a live electrical outlet.

• Check your home’s circuit breakers or fuses.

• Press or tap START/PAUSE again if the door was opened during a cycle.

• Clean the lint filter.

Does not heat.

• Check your home’s circuit breakers or fuses.

• Some cycles do not require heat. Check the selected cycle again.

• For a gas dryer, make sure the gas supply is on.

• Clean the lint filter and exhaust duct.

• The dryer may have moved into the cool-down phase of the cycle.

Does not dry.

• Check all of the above, plus...

• Make sure the exhaust hood outside your home can open and close freely.

• Check the exhaust system for lint buildup. Ducting should be inspected and cleaned annually.

• Use a 4” rigid metal exhaust duct.

• Do not overload. 1 wash load = 1 dryer load.

• Dry heavy items and light weight items separately.

• Large, bulky items, such as blankets or comforters, may require repositioning to ensure even drying.

• Make sure that your washer is draining properly and extracting adequate water from the load.

• The load may be too small to tumble properly. Add a few towels and restart the dryer.

• The load may be too large to tumble properly. Remove some items and restart the dryer.

• Clean the lint filter.

Is noisy.

• Check the load for objects such as coins, loose buttons, nails, etc. Remove promptly.

• It is normal to hear the dryer gas valve or heating element cycle on and off during the drying cycle.

• Make sure the dryer is leveled properly as outlined in the installation instructions.

• It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum, fan, or exhaust system.

Dries unevenly.

• Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal. You can choose a higher dryness level or a cycle that involves a higher dryness level.

• If one heavy item is dried with a light weight load, such as one towel with sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level.

• For the best drying results, dry heavy items and light weight items separately.

Has odors.

• Household odors from paint, varnish, strong cleaners, etc. may enter the dryer with the surrounding room air. This is normal as the dryer draws the air from the room, heats it, pulls it through the tumbler, and exhausts it outside.

• When these odors linger in the air, completely ventilate the room before using the dryer.

• Use a cycle featuring the Refresh function. If odors persist, wash and dry the items again.

Lint on clothes.

• Make sure the lint filter is cleaned before every load. For clothes that naturally build up lint, clean the filter during the cycle.

• Some fabrics are lint producers (for example, a fuzzy white cotton towel) and they must be dried separately from clothes that are lint trappers (for example, a pair of black linen pants).

• Divide larger loads into smaller loads for drying.

• Check pockets thoroughly before drying, then dry clothes.

• Remove lint inside the drum before drying a load.

Items still wrinkled after Wrinkle Prevent (Wrinkle Away, Wrinkle Release).

• Small loads of 1 to 4 items work best.

• Load fewer items. Load similar-type items.

• Take out the items immediately after drying is complete.

Water drips from the nozzle when the Steam cycles starts.

• This is steam condensation. The dripping water will stop after a short time.

Sprayed water is not visible during Steam cycles.

• Sprayed water is difficult to see when the door is closed.

Extended time.

• Sensor Dry automatically senses the moisture in the load and shuts the dryer off when the selected dryness level is reached.

The drying time can change according to the type and amount of laundry. See the cycle chart for reference.

Problem

• The Samsung Smart Home app is available for applicable models only.

• The old Samsung Smart Dryer app cannot connect with Samsung Smart Home models.

• You must log into your Samsung account to use the app.

• Make sure that your router is operating normally.

• Make sure that the Smart Home Adapter is inserted properly.

• If the Smart Control (Smart Monitor) indicator on the dryer’s display is off, this indicates that no network connection has been established. Use the Samsung Smart Home app to connect and register the dryer with your home network access point (AP).

• You must log into your Samsung account to use the app.

• If you don’t have a Samsung account, follow the app’s onscreen instructions to create one.

• Exit and restart the Samsung Smart Home app or unplug your router and then reconnect it.

• Remove the Smart Home Adapter, and reconnect it properly. Then, try again.

Code

Action

DC.

Operating the dryer with the door open.

• Make sure the door is properly closed.

• Make sure laundry is not caught in the door.

FC

Invalid power source frequency

• Try restarting the cycle.

• If this information code remains, contact a Samsung service center.

AC

Electronic control problem (Invalid Communication). • Contact a Samsung service center.

HC

High temperature heating check

• Clean the lint filter.

• If this information code remains, contact a Samsung service center.

9C1

The electronic control needs to be checked.

• Check if power is supplied properly.

• If the information code remains, contact a Samsung service center.

tC

The Thermistor1 resistance is very low or high.

• Check for a clogged lint screen

• Check if the vent system is restricted.

• If this information code remains, contact a Samsung service center.

tC5

The Thermistor2 resistance is very low or high.

• Check for a clogged lint screen.

• Check if the vent system is restricted.

• If this information code remains, contact a Samsung service center.

dF

Incorrect door switch.

• Contact a Samsung service center.
