CONTENTS
INTRODUCTION .....................................................................8
Symbols used in these instructions ................................8
Letters in brackets .......................................................... 8
Troubleshooting and repairs ..........................................8
Important safeguards ....................................................8
DESCRIPTION OF THE APPLIANCE .......................................10
Description of the appliance ........................................10
Description of homepage .............................................10
Description of the accessories ......................................10
Description of milk container .......................................10
PRELIMINARY OPERATIONS ................................................10
Checking the appliance ................................................ 10
SETTING UP THE APPLIANCE ...............................................10
TURNING THE APPLIANCE ON..............................................11
TURNING THE APPLIANCE OFF ............................................11
MENU SETTINGS .................................................................. 11
Rinsing .........................................................................11
De-scaling ....................................................................12
Water lter ...................................................................12
Beverage settings ........................................................12
Set time .......................................................................12
Auto -start ...................................................................12
Auto-o (standby) ....................................................... 12
Cup warmer .................................................................13
Energy saving ...............................................................13
Coee temperature ...................................................... 13
Water hardness ............................................................13
Selecting the language ................................................ 13
Sound notication .......................................................13
Light ............................................................................13
Demo mode .................................................................13
Default values .............................................................. 13
Statistics ......................................................................14
MAKING COFFEE ..................................................................14
Selecting the coee aroma ..........................................14
Selecting the coee quantity ....................................... 14
Making coee using coee beans ................................14
Making coee using pre-ground coee .......................15
Adjusting the coee mill .............................................. 15
Tips for a hotter coee .................................................15
MAKING MILK-BASED HOT DRINKS .....................................15
Filling and attaching the milk container ......................16
Adjusting the amount of froth .....................................16
Making milk based hot drinks automatically ...............16
Cleaning the milk container after use ..........................16
DELIVERING HOT WATER .....................................................17
STEAM DELIVERY .................................................................17
Tips for using steam to froth the milk...........................17
Cleaning the hot water/steam spout after use ............. 17
CUSTOMISING BEVERAGES ..................................................17
MEMORISING YOUR PERSONAL PROFILE ............................18
CLEANING ............................................................................ 18
Cleaning the machine ..................................................18
Cleaning the appliance internal circuit .........................18
Cleaning the coee grounds container .........................18
Cleaning the drip tray ..................................................19
Cleaning the inside of the coee machine ...................19
Cleaning the water tank ...............................................19
Cleaning the coee spouts ........................................... 19
Cleaning the pre-ground coee funnel .......................19
Cleaning the infuser ..................................................... 19
Cleaning the milk container .........................................19
Cleaning the hot water/steam connection nozzle ........ 20
DESCALING .......................................................................... 20
PROGRAMMING WATER HARDNESS .................................... 21
Measuring water hardness ...........................................21
Setting water hardness ................................................ 21
WATER SOFTENER FILTER ....................................................21
Installing the lter .......................................................21
Replacing the lter ......................................................22
Removing the lter ...................................................... 22
TECHNICAL DATA .................................................................22
DISPLAYED MESSAGES ........................................................23
TROUBLESHOOTING ............................................................28
8
INTRODUCTION
Symbol used in these Instructions
Important warnings are identied by these symbols. Failure to
observe the Instructions for Use could result in electric shock,
serious injury, burns, re or damage to the appliance
Danger!
Failure to observe the warning may result in life threatening in-
jury by electric shock.
Important!
Failure to observe the warning could result in injury or damage
to the appliance.
Danger of burns!
Failure to observe the warning could result in scalds or burns.
Please note:
This symbol identies important advice or information for the
user.
Letters in brackets
The letters in brackets refer to the key in the Description of the
appliance.
Troubleshooting and repairs
In the event of problems, follow the information given in the
sections "Displayed messages" and "Troubleshooting".
If this does not resolve the problem, you should consult customer
services. For repairs, contact customer services only.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety pre-
cautions should always be followed, including the
following.
Read all instructions before installation or use of
the coee system.
Please read these instructions carefully to prevent acci-
dents and machine damage.
This appliances is for household use only, to prepare
espresso, cappuccino and coee. Do not use appliance
other than for its intended use. Any other use could be
dangerous. The manufacturer cannot be held responsible
for damage caused by improrer use of the appliance.
Electrical safety
• Before connecting the appliance to the electrical supply
make sure thet the voltage and frequency listed on the
data plate correspond with the household electrical sup-
ply. If in doubt, consult a qualied technician.
• The appliance must be properly installed before opera-
tion to ensure that no electrical components are acces-
sible. Ensure that power is not supplied to the appliance
while installation work, repairs or maintenance is per-
formed.
• Be certain your appliance is properly installed and
grounded by a qualied technician. To guarantee the
electrical safety of this appliance, continuity must exist
between the appliance and eective grounding system.
It is imperative that this basic safety requirement be
met. If there is any doubt, have the electrical system of
the house checked by a qualied electrician. The manu-
facturer cannot be held responsible for damages caused
by the lack, or inadequacy, of an eective grounding
system.
• Do not use an extension cord to connect the appliance
to electricity. Extension cord doesn’t guarantee the re-
quired safety of the appliance (danger of overheating).
• Before service or maintenance disconnect the power
supply by either switching o the main swich and un-
plugging the unit.
• Install or locate this appliance only in accordance with
the provided installation instructions.
• Installation work and repairs must be only performed
by a trained technician in accordance with national and
local safety regulations. Repairs and other work by un-
authorized persons could be dangerous and may void
the warranty.
• Only use original spare parts. Only then can the manu-
facturer guarantee the safety of this machine.
• Never open the outer casing of the appliance. Tampering
with electrical connections or components and mechan-
ical parts is dangerous and may cause machine damage.
• If the machine is installed in combination with other ap-
pliances, a protective base should be installed between
the appliance and the unit.
• Do not install or use outdoors even if installed in the dis-
play cabinet.
• To protect against re, electric shock and injury to per-
sons do not submerge the cord or plugs in water or other
liquids.
• To reduce the risk of injury, do not drape cord over the
counter top or table top where it can be pulled on by
9
EN
children or tripped over unintentionally.
• Do not let the cord hang over the edge of a table or
counter, or touch hot surfaces.
• Do not operate any appliance with a damaged cord or
plug, or after the appliance malfunctions or has been
damaged in any manner.
• Return appliance to an authorized service faciliy for ex-
amination, repair or adjustement.
• To disconnect turn the machine o, switch o the main
switch then remove the plug from the wall outlet.
• To reduce the risk of re, do not place any heating or cook-
ing appliance beneath the appliance.
• To reduce the risk of re, do not mount unit over or near any
portion of a heating or cooking appliance.
• To reduce the risk of electric shock, do not mount over a sink.
• To reduce the risk of re, do not store anything directly on top
of the appliance surface when the appliance is in operation.
• The use of accessory attachments not recommended by the
appliance manufacturer may result in re, electric shock or
injury to persons.
Use
The coee system must be maintained daily to prevent
the growth of harmful bacteria and mold. Please read the
Cleaning section of the booklet.
Important! Do not look directly or with an optical
instrument into the lighting.
Danger of burns! Risk of burns when dispensing
hot beverages, they are extremely hot.
• Persons which lack physical, sensory or mental abilities
or experience with the machine should not use it with-
out supervision or instruction by a responsible person.
• Close supervision is necessary when any appliance is
used by or near children.
• Do not touch hot surfaces. Use handles or knobs.
• To avoid injuries allow the coee system to cool before
cleaning or putting on and taking o parts. Turn the ma-
chine o at the main switch when not in use and before
cleaning.
• Only ll the water tank with cold, fresh tap water. Warm
or hot water, or any other liquids may damage the ma-
chine.
• The water should be changed daily to prevent bacteria
or mold growth.
• Do not use mineral water. Mineral water leads to heavy
calcium buildup in the machine that can damage the
unit.
• Do not ll anything but coee beans into the beans con-
tainer. Do not ll ground coee in the beans container, it
will damage the grinding unit.
• Sugar can damage the appliance! Caramelized or other-
wise pre-treated coee beans or other sugar containing
beverages must not be put in the machine.
• Never place a cup with an alcohol-coee mixture under-
neath the coee dispenser. Plastic parts of the unit could
catch re!
• The hot water and steam dispensed could cause scald-
ing. These functions must be used carefully. Never hold
any parts of the body under the steam nozzle or the hot
water dispenser. The machine must never be used to
clean objects.
• Never use a steam cleaner to clean the appliance. Pres-
surized steam could damage electrical components and
cause a short circuit.
• The appliances must be descaled regularly with the
supplied descaling tablets. In areas with very hard water
the machine may need to be descaled more often. The
manufacturer cannot be held responsible for damages
resulting from insucient descaling.
• Only use the descaling tablets. Take care to use the cor-
rect mixture of water and descaler, otherwise it may
cause damage.
• Never make coee, hot water or steam when the ap-
pliance is extracted. Always make sure the appliance
is inactive before extracting it. Failure to observe this
precaution could lead to damage to the appliance! The
only exception is adjusting the coee mill which must
be done with the machine out (see the section “Adjust-
ing the coee mill”).
• Do not place on or near a hot gas or electric burner, or in
a heated oven.
• The cleaning and user maintenance shall not be made
by children without supervision.
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
Important!
Do not allow children and animals to stop or linger near the
appliance when it is pulled out of the cabinet.
10
Do not leave the machine pulled out of the cabinet when it
is being used.
Do not leave the machine pulled out of the cabinet when it
is not needed.
Install the machine according to the instructions in the hand-
book to guarantee there are no spills when it is pulled out
from the cabinet.
The rail xing panel must have a thickness suited to the xing
screws provided.
The panel material must be suited to the machine weight of
approximately 55lb (25kg).
Please note: Empty the water tank if the appliance
is not used for extended periods (holidays etc.).
Replace the water if the appliance is not used for more
than two days. Fill with fresh drinking water.

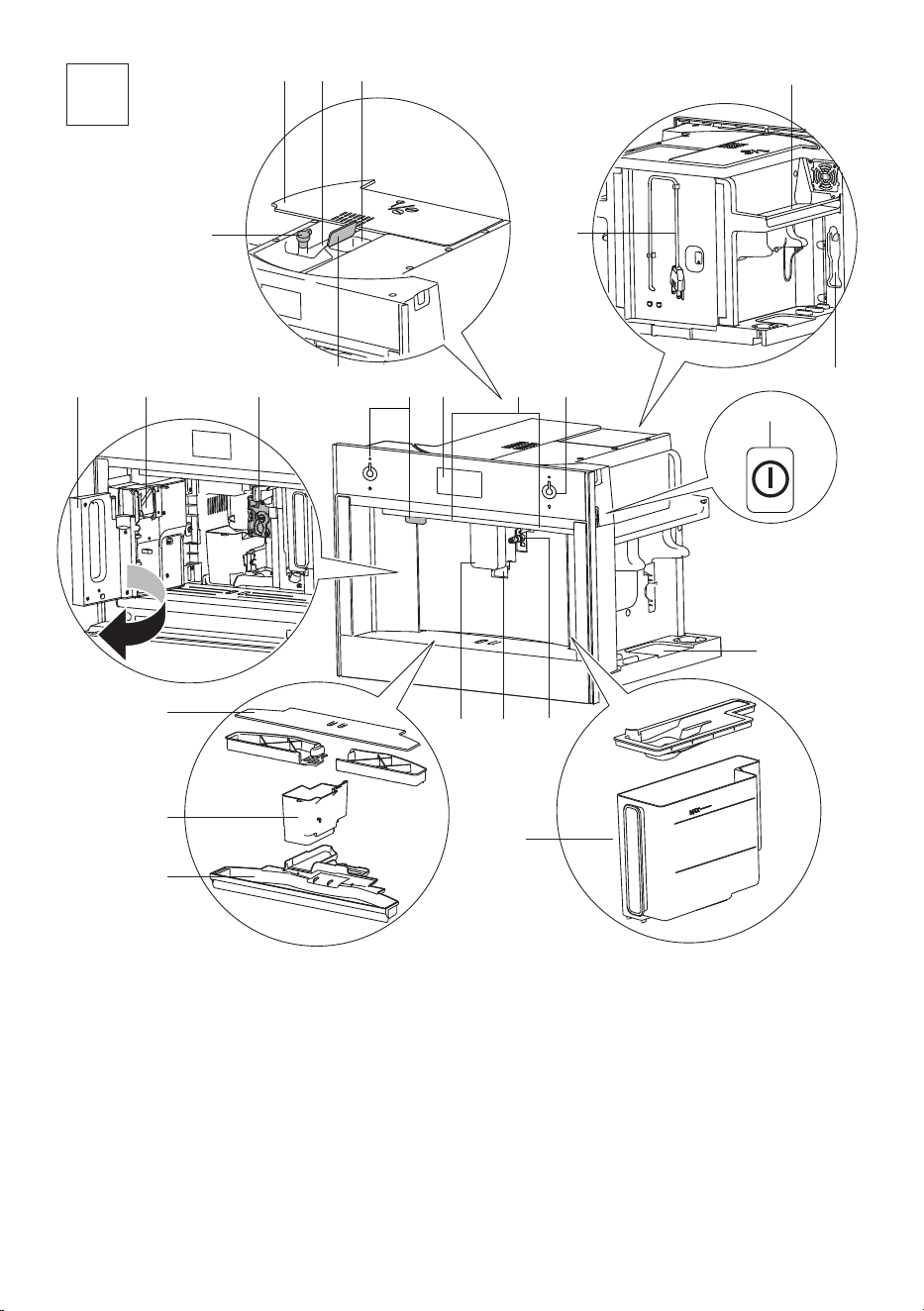

DESCRIPTION OF THE APPLIANCE
Description of the appliance
(page 3 - A)
A1. Cup holder tray
A2. Service door
A3. Coee guide
A4. Coee grounds container
A5. Infuser
A6. Lighting to illuminate interior compartment
A7. On/stand-by button / knob (only on some models)
A8. Control panel
A9. Tray for objects
A10. Hot water/steam connection nozzle
A11. Lighting knob to illuminate the interior compartment
(only on some models)
A12. Water tank
A13. Coee spouts (adjustable height)
A14. Drip tray
A15. Beans container lid
A16. Beans container
A17. Grinding adjustment dial
A18. Lights to illuminate cup
A19. Main ON/OFF switch
A20. Measure holder
A21. Ground coee funnel
A22. Power cord
A23. Pre-ground door
A24. Cup warming ledge
Description of homepage (page 3 - B)
B1. : menu to customise beverages settings
B2. : appliance settings menu
B3. Selected aroma
B4. Clock
B5. Selected quantity
B6. : aroma selection
B7. : quantity selection
B8. : scroll arrow
B9. Selectable drinks (press on the scrolling arrow or
to see all the drinks
B10. : scroll arrow
B11. Customisable proles (see “Memorising your personal pro-
le”)
Description of the accessories
(page 3 - C)
C1. "Total Hardness Test" indicator paper
C2. Ground coee measure
C3. De-scaler
C4. Water softener lter (certain models only)
C5. Cleaning brush
C6. Hot water/steam spout
C7. Connection nozzle cover
Description of the milk container
(page 3 - D)
D1. Froth adjustment and CLEAN function dial
D2 Lid with milk frother
D3. Milk container
D4. Milk intake tube
D5. Adjustable frothed milk spout
D6. Thermal casing
D7. Lid release buttons
PRELIMINARY OPERATIONS
Checking the appliance
After removing the packaging, make sure the product is com-
plete and undamaged and that all accessories are present. Do
not use the appliance if it is visibly damaged. Contact customer
services Technical Assistance.
SETTING UP THE APPLIANCE
Please note:
• Coee has been used to factory test the appliance and it is
therefore completely normal to nd traces of coee in the
mill. The machine is, however, guaranteed to be new.
• You should customise water hardness as soon as possible
following the instructions in section “Setting water hard-
ness”.
11
EN

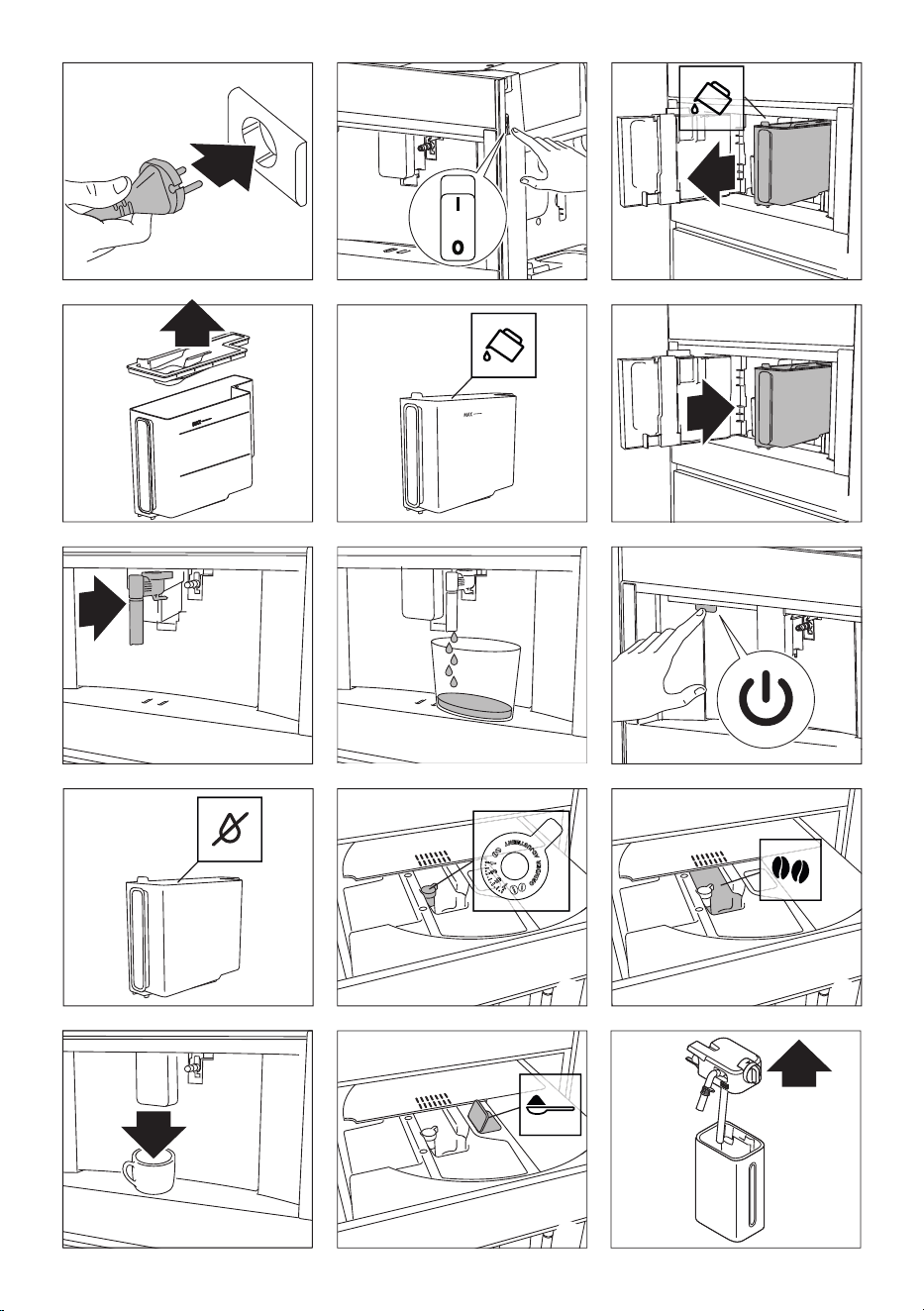

1. Connect the appliance to the mains electricity supply
(g.1) and make sure the main switch (A19) on the side of
the appliance is pressed down (g.2);
2. SELECT LANGUAGE (setting language): press (B10) or
(B8) until the ag corresponding to the required lan-
guage appears on the display (B), then press the ag;
To proceed follow the instructions indicated on the appliance
display:
1. FILL WATER TANK WITH FRESH WATER: remove the water
tank (A12) (g.3), open the lid (g.4), ll to the MAX line
(marked on the inside of the tank) with fresh water (g.5);
close the lid and put the tank back into the appliance
(g.6);
2. INSERT WATER OUTLET: Check that the hot water/steam
spout (C6) is inserted on the connection nozzle (A10)
(g.7) and place a container with a minimum capacity of
100 ml underneath (g.8);
3. WATER CIRCUIT EMPTY PRESS OK TO START FILLING PRO-
CESS is shown on the display;
4. Press to conrm: the appliance delivers water from
the spout (g.8) then goes o automatically.
The coee machine is now ready for normal use.
Please note:
• The rst time the appliance is used, it needs to make 4-5
cappuccinos before it starts to give satisfactory results.
• On rst use the water circuit is empty, the machine could
therefore be very noisy: the noise will lessen as the circuit
lls up.
• When making the rst 5-6 cappuccinos, it is normal to hear
the noise of boiling water: after this the noise will lessen.
• To improve the performance of the appliance, we recom-
mend installing a water softener lter (C4) as described in
section “Water softener lter”. If your model is not equipped
with a lter, it is possible to request one from Authorised
Customer Service Centres.
TURNING THE APPLIANCE ON
Please note:
Before turning the appliance on, make sure the main switch
(A23) is pressed (g.2). Each time the appliance is turned on, it
performs an automatic preheat and rinse cycle which cannot be
interrupted. The appliance is ready for use only after completion
of this cycle.
Danger of burns!
During rinsing, a little hot water comes out of the coee spouts
(A13) and is collected in the drip tray (A14) underneath. Avoid
contact with splashes of water.
• To switch the appliance on, press the button (A7-
g.9): message HEATING UP PLEASE WAIT, is shown on the
display.
• When heating is complete, the message changes to: RINS-
ING HOT WATER RUNNING; As well as heating the boiler, the
appliance also continues to allow hot water to run in the
internal pipework as they also heat up.
The appliance is at the desired temperature when the main
screen, homepage, appears.
TURNING THE APPLIANCE OFF
Every time the appliance is turned o, it automatically carries
out a rinse if it has made a coee.
Danger of burns!
During rinsing, a little hot water ows from the coee spouts
(A13). Avoid contact with splashes of water.
• To turn the appliance o, press the button (A7-g.9).
• The message TURNING OFF PLEASE WAIT is shown on the
display: if needed the appliance performs a rinse cycle and
then goes o (standby).
Please note:
If the appliance is not used for long periods, disconnect from the
electricity supply as follows:
• rst turn the appliance o by pressing the button
(g.9);
• release the main switch (A23) situated on the side of the
appliance (g.2).
Important!
Never press the main switch while the appliance is on.
MENU SETTINGS
Rinsing
Use this function to supply hot water from the coee spouts
(A13) to clean and heat the appliance’s internal circuit. Place a
container with a minimum capacity of 100ml under the coee
and hot water spouts (g.8).
To enable the function, proceed as follows:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display shows (B)
RINSING;
3. Press to start rinsing.
Danger of burns!
Do not leave the appliance unattended while hot water is being
delivered.
1. After a few seconds, hot water comes out of the coee
12
spout which cleans and heats the internal circuit of the
appliance: the following message is shown on the display
RINSING HOT WATER RUNNING as well as a progress bar
which lls up as the preparation progresses;
2. To stop the rinsing cycle, press or wait for rins-
ing to stop automatically.
Please note:
• If the appliance is not used for more than 3-4 days, when
switched on again, we strongly recommend doing 2/3 rins-
es before use;
• After rinsing, it is normal that there is some water in the
grounds container (A10).
De-scaling
For instructions on de-scaling, see section “De-scaling”.
Water lter
For instructions on how to install the lter (C4), see section
“Water softener lter”.
Beverages settings
In this section, you can consult your customised settings and, if
you wish, reset the default values for each beverage.
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until DRINKS SETTINGS
appears on the display (B);
3. Press : The values for the rst beverage appear on the
display;
4. The reference user prole is highlighted on the display. The
values are shown on the vertical bars: the manufacturer de-
fault value is indicated by the symbol while the cur-
rent set value is highlighted by the lled part of the vertical
bar;
5. To go back to the settings menu, press .
To scroll and display the beverages, press ;
6. To return to the default manufacturer values for the bever-
age shown on the display, press RESET;
7. CONFIRM RESET?: to conrm, press (to cancel,
press );
8. RETURN TO FACTORY: press .
The beverage has been reset to the default values. Continue with
the other beverages, or go back to the settings menu.
Please note:
• To change the beverages for another prole, go back to the
homepage, select the required prole (B11) and repeat the
procedure.
• To reset all the beverages in the prole to the default val-
ues, see paragraph “Manufacturer Default values”.
Set time
To adjust the time on the display (B), proceed as follows:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display (B) shows
SET TIME;
3. Press : The time setting panel appears on the screen;
4. Press or corresponding to the hours and minutes
until the current time is displayed;
5. To conrm, press (to cancel, press ), then
press to go back to the homepage.
The time is now set.
Auto-start
The auto-start time can be set in order to have the appliance
ready at a certain time (for example in the morning) so that it
can immediately make coee.
Please note:
To enable this function, the time must already be set correctly,
see paragraph “Set time ”.
To enable auto-start, proceed as follows:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display (B) shows
AUTO-START;
3. Select the function by pressing : The time setting panel
appears on the screen;
4. Press or corresponding to the hours and minutes
until the required auto-start time is displayed;
5. Press or to enable or disable au-
to-start.
6. To conrm, press (to cancel and go back to the
settings menu press ), then press to go
back to the homepage.
The auto-start time is now set and the corresponding symbol is
displayed next to the time to indicate that the function has been
enabled.
Please note:
When the appliance is turned o using the main switch (A21),
the auto-start setting if enabled, is lost.
Auto-o (standby)
Auto-o can be set so that the appliance goes o after 15 or 30
minutes, or 1, 2 or 3 hours of no use.
To programme Auto-o, proceed as follows:
13
EN
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display (B)
shows AUTO-OFF, together with the current selection (15 or
30 minutes, or 1, 2 or 3 hours);
3. Press on the display to select the required value;
4. Press to go back to the homepage.
Auto-o is now programmed.
Cup warmer
To warm the cups before making coee, it is possible to activate
the cup warmer (A24) and put it above the cups.
1. Press " " (B2) to enter the menu;
2. Press (B10) or
(B8)
until the display (B) shows "
CUP WARMER";
3. Press to activate- or de-activate -
the cup warmer.
4. Press " " to go back to the homepage.
Energy saving
Use this function to enable or disable energy saving mode. When
enabled, the function guarantees reduced energy consumption
in compliance with European regulations. When it is disabled,
warming time is reduced.
To disable or enable "Energy Saving", proceed as follows:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until ENERGY SAVING ap-
pears on the display (B);
3. Press to enable- or disable- en-
ergy saving.
4. Press to go back to the homepage.
Coee temperature
To modify the temperature of the water supplied to make the
coee, proceed as follows:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display (B) shows
COFFEE TEMPERATURE together with the current selection
(LOW, MEDIUM, HIGH, OR MAX);
3. Press to select the required temperature;
4. Press to go back to the homepage.
Water hardness
For instructions related to setting water hardness, see section
“Setting water hardness”.
Selecting the language
To modify the language of the display (B), proceed as follows:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display shows
SET LANGUAGE;
3. Press : press or until the ag corresponding
to the required language is shown and then select it;
4. Press 2 times to go back to the homepage.
Sound notication
This enables or disables the beep emitted by the machine each
time an icon is pressed or an accessory is inserted/removed. To
disable or enable the beep, proceed as follows:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display (B) shows
BEEP;
3. Press to enable- or disable- the
sound notication;
4. Press to go back to the homepage.
Light
This function enables or disables the lights (A6). The cup lights
(A18) come on each time coee beverages are produced, hot
milk is made and during each rinse cycle and turn o after a few
seconds.
To disable or enable this function, proceed as follows:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display (B) shows
LIGHT;
3. Press to enable- or disable- the
cup lighting;
4. Press to go back to the homepage.
Please note: The lighting to illuminate the interior com-
partment A6 comes on when the appliance is turned on.
Models with knobs: it is possible to enables or disables the
lights (A6) by turning the knob (A11).
Demo mode
By enabling this mode, the main functions of the machine are
shown on the display:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display shows
DEMO MODE;
3. Press " " to start the demo;
4. To exit from the DEMO MODE, rst turn the appliance o
by pressing the button (A7). Press again the button
to go back to the homepage.
14
Default values
This resets all menu settings and programmed quantities back
to the default values (with the exception of the language which
remains as set).
To reset the default values, proceed as follows:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display (B) shows
DEFAULT VALUES. Press ;
3. Press RESET ALL to reset all the proles to the
original parameters, otherwise select the required prole
(e.g.USER1);
4. RETURN TO FACTORY SETTINGS? RESET ALL: press
to conrm (or to leave parameters unaltered);
5. FACTORY SETTINGS SET : press to conrm.
Statistics
This function displays statistical data relating to the machine. To
display the statistics, proceed as follows:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display (B) shows
STATISTICS ;
3. Press : it is possible to check all the available statistics
by pressing or ;
4. Press : to go back to the homepage.
MAKING COFFEE
(see recipes on page 30)

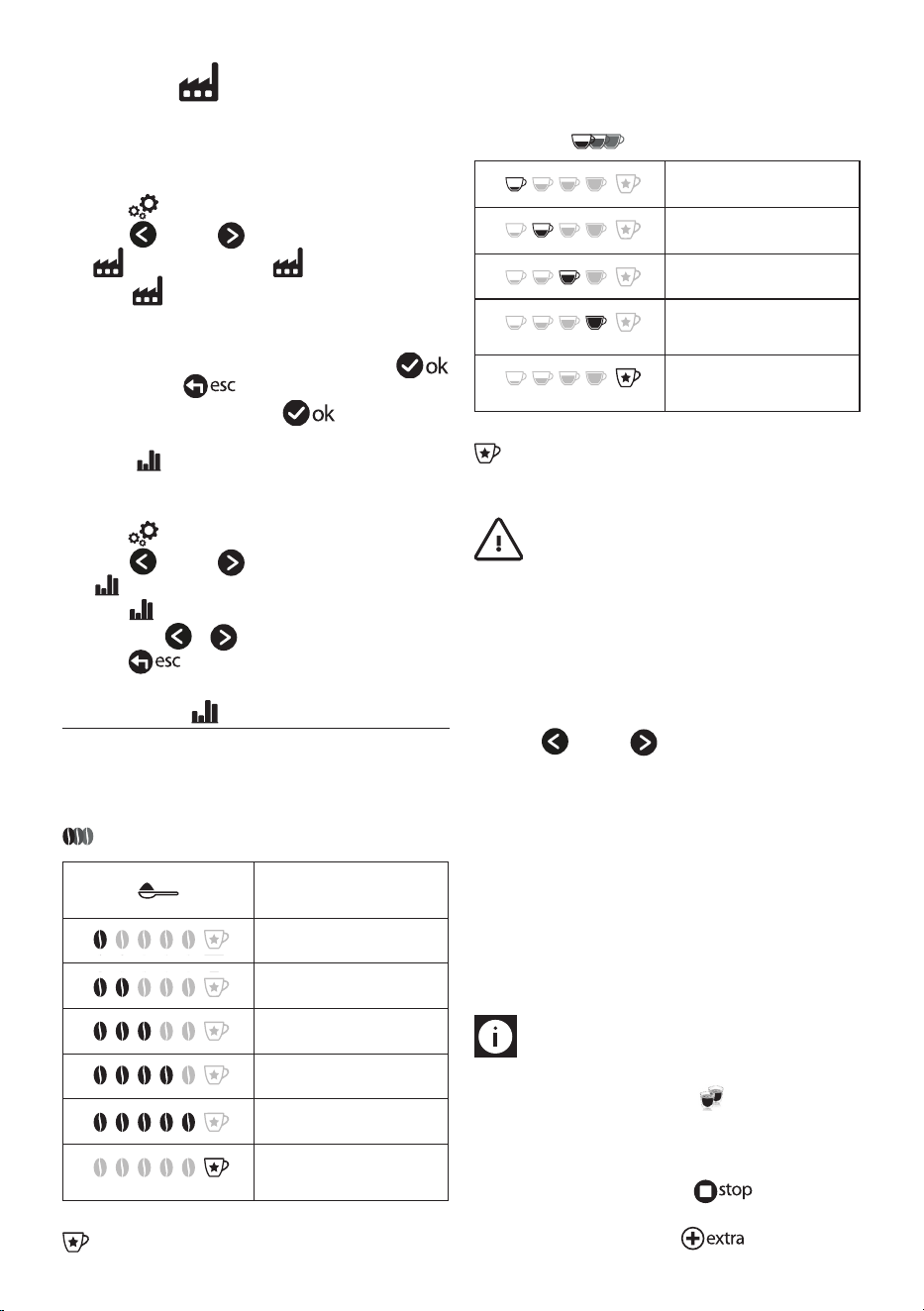

Selecting the coee aroma
Select the required aroma from the homepage by pressing
AROMA (B6):
(see “Making coee using
pre-ground coee”)
AROMA EXTRA LIGHT
LIGHT AROMA
MEDIUM AROMA
STRONG AROMA
X-STRONG AROMA
Custom (if programmed) /
Standard
After delivering the beverage, the aroma setting is reset to the
value.
Selecting the coee quantity
From the homepage select the required quantity of coee in the
cup by pressing QUANTITY (B7):
SMALL SIZE (SMALL)
MEDIUM SIZE (MEDIUM)
LARGE SIZE (LARGE)
X-LARGE SIZE
(EXTRA LARGE)
Custom quantity (if pro-
grammed) / Standard quantity
After delivering the beverage, the quantity setting is reset to the
value.
Making coee using coee beans
Important!
Do not use green, caramelised or candied coee beans as they
could stick to the coee mill and make it unusable.
1. Fill the beans container (A16) (g.12) with coee beans;
2. Place a cup under the coee spout (A13);
3. Lower the spout so that it is as near as possible to the cup
(g.13): this helps achieve a better cream;
4. Press (B10) or (B8) until the required coee is
displayed;
5. Then select your required coee from the homepage:
• ESPRESSO
• DOPPIO+
• COFFEE
• LONG
• 2 X ESPRESSO
• AMERICANO
6. Preparation begins and the display (B) shows the image of
the selected beverage together with a progress bar which
gradually lls as preparation proceeds.
Please note:
• It is possible to prepare 2 cups of ESPRESSO coee at the
same time by also pressing X2 during preparation of
1 ESPRESSO (the image remains shown on the display for a
few seconds at the start of preparation).
• While the machine is making coee, delivery can be inter-
rupted at any time by pressing .
• As soon as delivery has ended, to increase the quantity of
coee in the cup, just press : once the desired
15
EN
quantity is reached, press .
Once the coee has been made, the appliance is ready to make
the next beverage.
Please note:
Various alarm messages may be displayed while using the
appliance (FILL TANK, EMPTY GROUNDS CONTAINER, etc.).
Their meaning is explained in section “Displayed messages”.
• For hotter coee, see paragraph “Tips for a hotter coee”.
• If the coee comes out in drops, too weak and not creamy
enough or too cold, read the tips in section “Adjusting the
coee mill” and the “Troubleshooting” chapter.
• Preparation of each coee can be customised (see sections
“Customising beverages” and “Memorising your personal
prole”).
• If "Energy Saving" mode is active, the rst coee may take
a few seconds before it is delivered.
Making coee using pre-ground coee
Important!
• Never add pre-ground coee when the machine is o in or-
der to avoid it spreading through the inside of the machine
and making it dirty. This could damage the appliance.
• Never use more than 1 level measure (C2) or it could dirty
the inside of the coee machine or block the funnel (A4).
Please note:
If you use pre-ground coee, you can only make one cup of cof-
fee at a time.
1. Repeat Press AROMA (B6) until the display (B) shows
(pre-ground).
2. Open the cover (A15) and the pre-ground door (A23).
3. Make sure the funnel (A21) is not blocked, then add one
level measure of pre-ground coee (g.14).
4. Place a cup under the coee spouts (A13) (g.13).
5. Then select your required coee (ESPRESSO, COFFEE, LONG
etc.) from the homepage;
6. Preparation begins and the image of the selected beverage
appears on the display, together with a progress bar which
gradually lls as preparation progresses.
Please note:
• While the machine is making coee, delivery can be inter-
rupted at any time by pressing .
• As soon as delivery has ended, to increase the quantity of
coee in the cup, just press : once the desired
quantity is reached, press .
Once the coee has been made, the appliance is ready to make
the next beverage.
Important! Making LONG coee :
Halfway through preparation, the display will show message
ADD PRE-GROUND COFFEE, MAXIMUM ONE MEASURING CUP.
Add one level measure of pre-ground coee and press
.

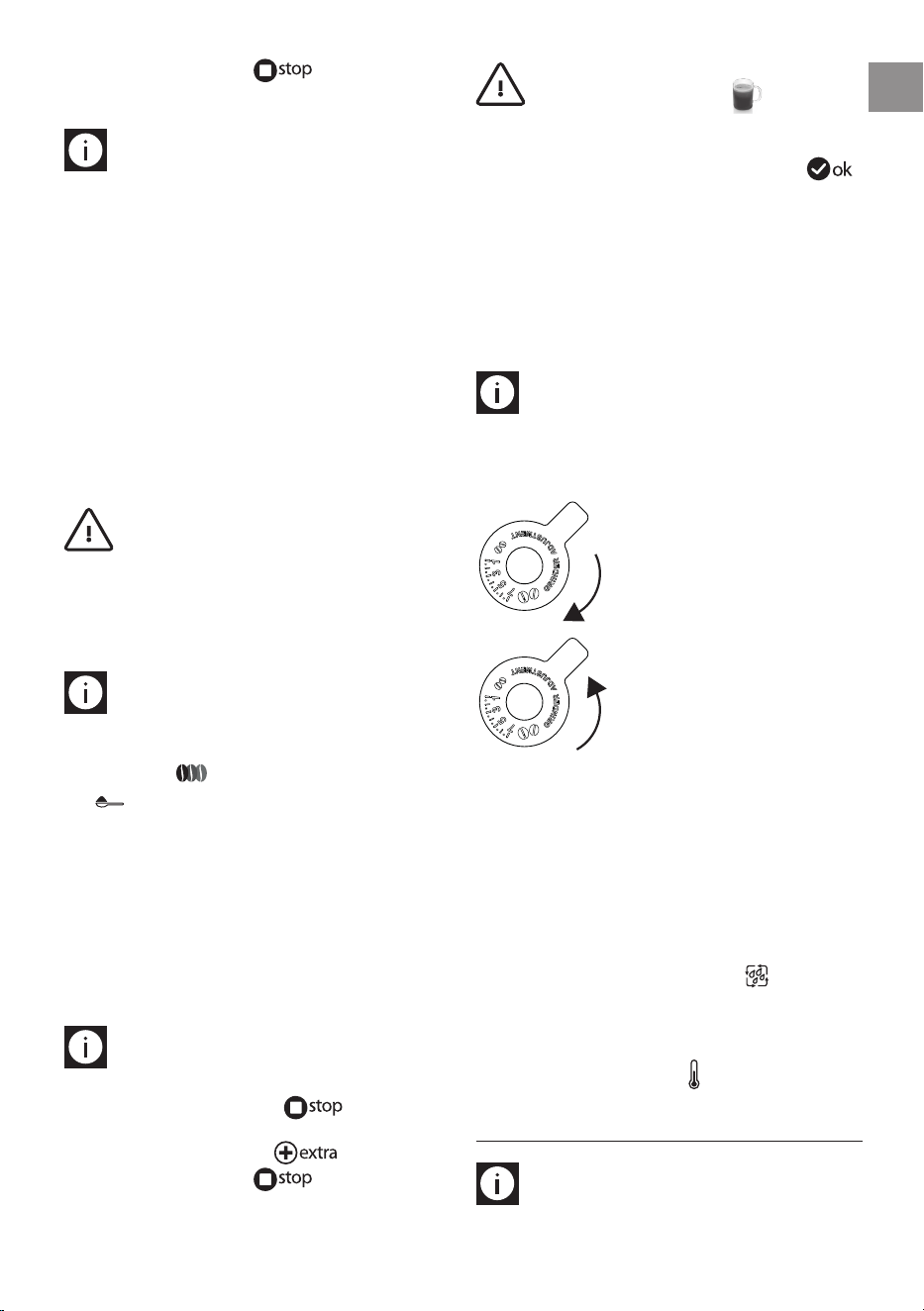

Adjusting the coee mill
The coee mill should not require adjusting, at least initially, be-
cause it has already been set by default in order to prepare coee
correctly. However, if after making the rst few coees you nd
that the coee is either too weak and not creamy enough or
delivery is too slow (a drop at a time), this can be corrected by
adjusting the grinding adjustment dial (g.11).
Please note:
The grinding adjustment dial must only be turned when the
coee mill is in operation during the initial phase of coee
preparation.
If the coee comes out too slowly or
does not come out at all, a message will
be shown GROUND TOO FINE. ADJUST
GRIND LEVEL, turn the coee mill dial
one or two clicks clockwise.
For fuller bodied creamier coee, turn one
click anticlockwise towards 1 (do not turn
more than one click at a time otherwise
the coee could come out one drop a drop
at a time).
The eect of these adjustments will only be evident after at least
2 cups of coee have been delivered. If this adjustment does not
obtain the desired result, repeat the correction by turning the
dial another click.
Tips for a hotter coee
For hotter coee, it is recommended to:
• carry out a rinse cycle by selecting the "Rinsing" function in
the settings menu (paragraph “Rinsing ”);
• warm the cups with hot water (using the hot water func-
tion, see section “hot water supply”);
• increase the coee temperature in the settings menu (see
section “Coee temperature ”).

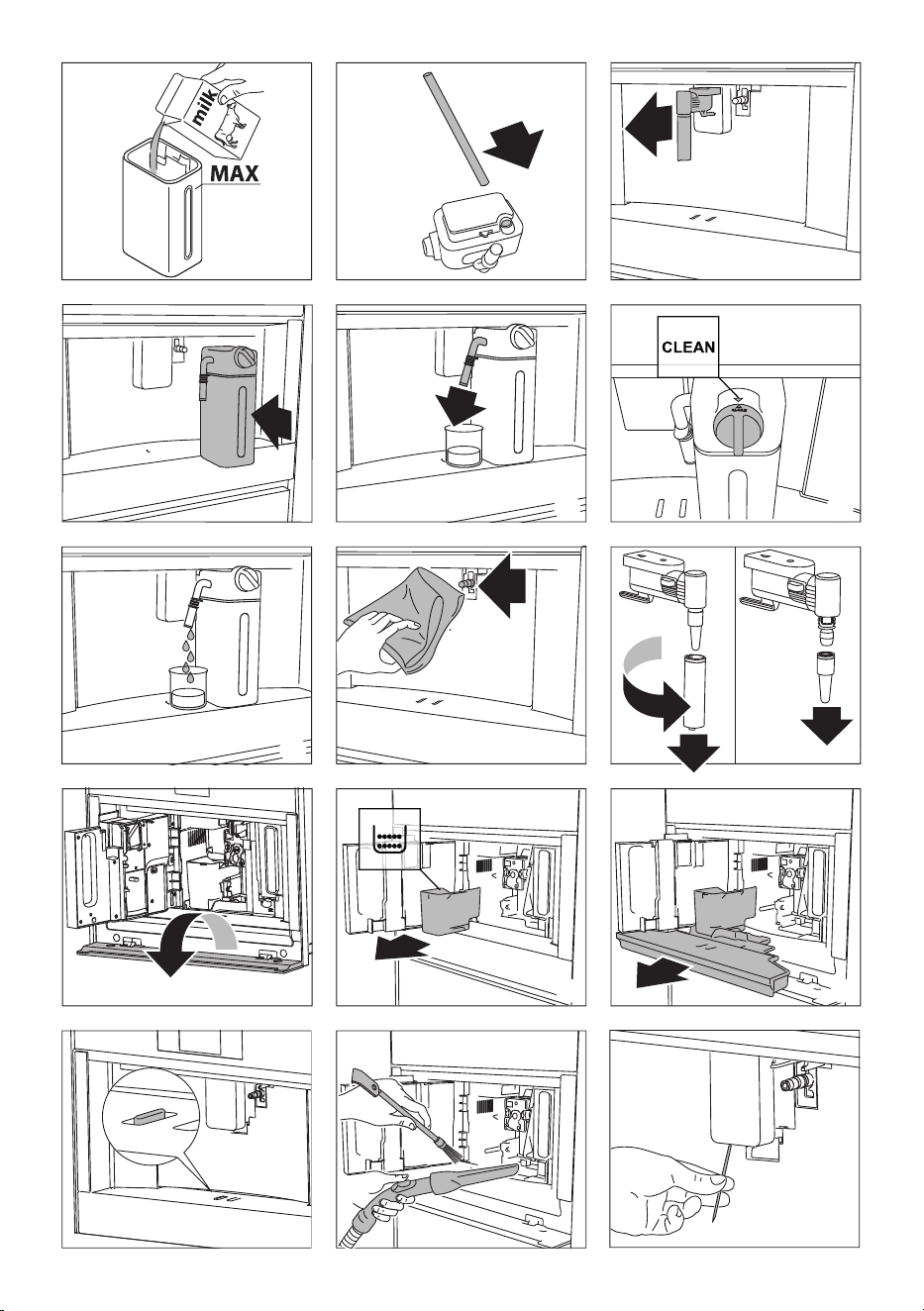

MAKING MILK-BASED HOT DRINKS
(see recipes on page 31)
Please note:
To avoid milk with little froth or large bubbles, always clean the
16
milk container lid (D2) and hot water connection nozzle (A10)
as described in sections “Cleaning the milk container after use”
, “Cleaning the milk container” and “Cleaning the hot water/
steam connection nozzle”.
Filling and attaching the milk container
1. Remove the lid (D2) (g.15);
2. Fill the milk container (D3) with a sucient quantity of
milk, not exceeding the MAX level marked on the contain-
er (g.16). Each mark on the side of the container corre-
sponds to about 100 ml of milk;
Please note:
• For a denser and more even froth, you must use skimmed or
partially skimmed milk at refrigerator temperature (about
5°C).
• If "Energy Saving" mode is enabled, there may be a few
seconds delay before the beverage is delivered.
1. Make sure the milk intake tube (D4) is correctly inserted in
the bottom of the milk container lid (g.17);
2. Place the lid back on the milk container;
3. Remove the hot water/steam spout (C6) (g.18);
4. By pushing the bottom attach the milk container (D) to the
nozzle (A10) (g.19): the machine will let out a noise signal
(if the sound notication function is enabled);
5. Place a suciently large cup under the coee spouts (A13)
and frothed milk spout (D5); adjust the length of the milk
spout, to move it nearer to the cup, simply pulling it down-
wards (g.20).
5. Follow the instructions below for each function.
Adjusting the amount of froth
Turn the froth adjustment dial (D1) on the milk container lid, to
adjust the amount of froth on the milk delivered while making
the drinks. Follow the tips in the table below:
Dial position Description Recommended for...
No froth CAFFE LATTE /
MILK (hot milk)
Min. froth
LATTE MACCHIATO
Max. froth CAPPUCCINO /
MILK (frothed milk)
Making milk-based drinks automatically
1. Fill the milk container (D) and attach it as described above.
2. Select the required beverage from the homepage:
• CAPPUCCINO
• LATTE MACCHIATO
• CAFFE LATTE
• HOT MILK
• CAPPUCCINO+
• ESPRESSO MACCHIATO
• FLAT WHITE
• CAPPUCCINO MIX
3. On the display (B) the machine recommends turning the
foam adjustment dial (D1) based on the foam requirements
for the original recipe: therefore turn the dial on top of the
milk container lid (D2) and conrm the selection by press-
ing .
4. After a few seconds, preparation begins automatically and
an image of the selected beverage appears on the display,
together with a progress bar which gradually lls as prepa-
ration progresses.
Please note: general indications when preparing all
milk based drinks
• : press to interrupt preparation completely and go
back to the homepage.
• : press to interrupt milk or coee delivery and
move on to the next delivery (if applicable) to complete the
beverage.
• At the end of delivery, to increase the quantity of coee in
the cup, press .
• Preparation of each milk based drink can be customised
(see sections “Customising beverages” and “Memorising
your personal prole”).
• Do not leave the milk container out of the fridge for a long
time: as the temperature increases (5°C ideal), the quality
of the foam decreases.
Once the coee has been made, the appliance is ready to make
the next beverage.
Cleaning the milk container after use
Danger of burns!
The following cleaning operations should be performed each
time a milk beverage is delivered. When cleaning the internal
tubes of the milk container, a little hot water and steam leak out
of the frothed milk spout (D5). Avoid contact with splashes of
water. Each time a milk function is used, TURN MILK FROTH AD-
JUSTMENT KNOB TO CLEAN TO START CLEANING appears on the
display and the milk frother lid must be cleaned:
1. Leave the milk container (D) in the machine (you do not
need to empty it);
2. Place a cup or other recipient under the frothed milk spout
(g.20);
3. Turn the foam adjustment dial (D1) to CLEAN (g.21):
17
EN
CLEANING MILK CONTAINER PLACE A CUP UNDER THE MILK
OUTLET (FIG.22) appears on the display (B) together with
a bar which gradually lls as cleaning proceeds. Cleaning
stops itself automatically;
4. Turn the dial back to one of the froth selections;
5. Remove the milk container and always clean the steam
connection nozzle (A10) with a clean cloth (g.23).
Please note:
• If a number of milk based drinks need to be made, only
clean the milk container after preparing the last beverage.
To proceed with making the next beverages, when the
CLEAN message is displayed, press .
• If the milk container does not get cleaned, the symbol
appears on the display as a reminder that the milk contain-
er needs cleaning.
• The milk container can be kept in the refrigerator.
• In some cases, to carry out the cleaning the appliance re-
quires a short time to heat up.
DELIVERING HOT WATER
Danger of burns!
Do not leave the appliance unattended while hot water is being
delivered.
1. Make sure the hot water/steam spout (C6) is attached cor-
rectly to the hot water/steam connection nozzle (A10);
2. Place a container under the spout (as close as possible to
avoid splashes);
3. Select HOT WATER from the homepage. The corre-
sponding image appears on the display (B), together with a
progress bar which lls gradually as preparation proceeds;
4. The machine delivers hot water, then delivery stops auto-
matically. To interrupt hot water delivery manually, press
.
Please note:
• If "Energy Saving" mode is active, there may be a few sec-
onds delay before hot water is delivered.
• Preparation of hot water can be customised (see sections
“Customising beverages” and “Memorising your personal
prole”).
STEAM DELIVERY
Danger of burns!
Do not leave the appliance unattended while steam is being
delivered.
1. Make sure the hot water/steam spout (C6) is attached cor-
rectly to the hot water/steam connection nozzle (A10);
2. Fill a container with the liquid to be heated or frothed and
immerse the hot water/steam spout in the liquid;
3. Select " STEAM" from the homepage. The corre-
sponding image appears on the display (B), together with
a progress bar which lls gradually as preparation proceeds
and after a few seconds, steam to heat the liquid is deliv-
ered from the hot water/steam spout;
4. When the required temperature or level of froth is reached,
interrupt steam delivery by pressing ;
Important!
Always stop steam delivery before extracting the container con-
taining the liquid to avoid burns from splashes.
Please note:
If “Energy saving” mode is active, there may be a few seconds
delay before steam is delivered.
Tips for using steam to froth milk
• When choosing the size of the container, bear in mind that
the liquid doubles or triples in volume.
• For a richer denser froth, use skimmed or partially skimmed
milk at refrigerator temperature (about 5°C).
• For a creamier froth, rotate the container with slow move-
ments in an upward motion.
• To avoid milk with poor froth or large bubbles, always clean
the spout (C6) as described in the following paragraph.
Cleaning the hot water/steam spout after use
Always clean the hot water/steam spout (C6) after use to avoid
the build-up of milk residues and prevent it from clogging.
1. Place a container under the hot water/steam spout and let
a little water out (see section “Delivering hot water”). Then
stop the delivery of hot water by pressing .
2. Wait a few minutes for the hot water/steam spout to cool
down; then extract it (g.18). Hold the spout steady with
one hand and with the other, turn and detach the cappuc-
cino maker pulling it downwards (g.24).
3. Also remove the steam connection nozzle by pulling it
downwards (g.24).
4. Check the hole in the connection nozzle is not blocked. If
necessary, clean using a toothpick.
5. Wash all parts of the spout thoroughly with a sponge and
warm water.
6. Attach the connection nozzle and the cappuccino maker
onto the spout by pushing it upwards and turning it clock-
wise until it is secure.
18
CUSTOMISING BEVERAGES
The aroma (for drinks where required) and length of the drinks
can be customised.
1. Make sure that the prole for which customising the drink
is required is active: it is actually impossible to select the
drinks for all 6 proles ;
2. From the homepage, press (B1);
3. Choose the beverage you wish to customise in order to ac-
cess the customising screens: the relative accessories must
be inserted;
4. (Beverages with coee only) CHOOSE COFFEE AROMA LEV-
EL: Select the required aroma by pressing or
and press ;
5. CUSTOMISING COFFEE (OR WATER) QUANTITY, PRESS STOP
TO SAVE: Preparation begins and the appliance displays the
quantity customising screen in the form of a vertical bar.
The star alongside the bar represents the current quantity
set.
6. When the amount reaches the minimum quantity you can
set, the display shows .
7. Press when the required quantity in the cup is
reached.
8. SAVE NEW SETTINGS? : Press YES or NO.
The appliance conrms if the values have been saved or not (de-
pending on the previous selection): press .
The appliance goes back to the homepage.
Please note:
• Milk based drinks: the coee aroma is saved rst, followed
by the quantity of rst milk, then coee;
• Hot water: the appliance supplies hot water: press
to save the desired quantity.
• It is possible to come out of programming by pressing
: the values will not be saved.
MEMORISING YOUR PERSONAL PROFILE
The appliance allows you to memorise 6 dierent proles, each
associated with a dierent icon.
In every prole the customised beverages aroma and quantity
values are saved (see section “Customising beverages ”)
and the order in which all the beverages are displayed is based
on the frequency of selection.
To select or enter a prole, press on the prole currently in use
(B11), press (B10) or
(B8)
until the required prole is
displayed, then press on the prole.
Please note:
• Prole GUEST : select this prole to deliver beverages
with the default settings.
CLEANING
Cleaning the machine
The following parts of the machine must be cleaned regularly:
• appliance internal circuit;
• coee grounds container (A4);
• drip tray (A14);
• water tank (A12);
• coee spouts (A13);
• pre-ground coee funnel (A21);
• infuser (A5), accessible after opening the service door (A2);
• milk container (D);
• hot water/steam connection nozzle (A10);
• control panel (B).
Important!
• Do not use solvents, abrasive detergents or alcohol to clean
the coee machine. It is not necessary to use chemical
products to clean the machine.
• None of the components of the appliance can be washed in
a dishwasher with the exception of the milk container (D).
• Do not use metal objects to remove encrustations or coee
deposits as they could scratch metal or plastic surfaces.
Cleaning the appliance internal circuit
If the appliance is not used for more than 3/4 days, before using
it again, we strongly recommend switching it on and:
1. performing 2/3 rinse cycles by selecting the "Rinse" func-
tion (paragraph “Rinsing ";
2. delivering hot water for a few seconds (section “Delivering
hot water”).
Please note:
After cleaning, it is normal for the grounds container (A4) to
contain water.
Cleaning the coee grounds container
When the display (B) shows the message EMPTY GROUND CON-
TAINER (g.26) the grounds container must be emptied and
cleaned. The appliance cannot be used to make coee until the
grounds container (A4) has been cleaned. Even if not full, the
empty grounds container message is displayed 72 hours after
the rst coee has been prepared (for the 72 hours to be calcu-
lated correctly, the machine must never be turned o with the
main switch).
To clean (with the machine on):
1. Open the bottom door by rotating it downwards (g.25).
2. Open the door.
3. Remove the drip tray (A14) (g.27), empty and clean it.
19
EN
4. Carefully empty and clean the coee grounds container
(A4) taking care to remove all the residue that can be de-
posited on the bottom: the brush provided (C5) features a
spatula especially for this job.
Important!
When removing the drip tray it is obligatory to always empty the
grounds container even if it contains few grounds. If this is not
done, when you make the next coees, the grounds container
may ll up more than expected and clog the machine.
Cleaning the drip tray
Important!
The drip tray (A14) is tted with a level indicator (red) showing
the level of water it contains (g.28).
Before the indicator protrudes from the cup tray (A1), the drip
tray must be emptied and cleaned, otherwise the water may
ow over the edge and damage the appliance, the surface it
rests on or the surrounding area.
To remove the drip tray, proceed as follows:
1. Open the door (g.25). Remove the drip tray and coee
grounds container (A4) (g.27);
2. Empty the drip tray and grounds container and wash them;
3. Replace the drip tray complete with grounds container.
Cleaning the inside of the coee machine
Danger!
Before cleaning internal parts, the machine must be turned o
(see section “Turning the appliance o”) and unplugged from
the mains power supply. Never immerse the coee machine in
water.
1. Check regularly (about once a month) that the inside of the
appliance (accessible after removing the drip tray - A14) is
not dirty.
2. If necessary, remove coee deposits with the brush (C5)
supplied and a sponge. Remove all the residues with a vac-
uum cleaner (g.29).
Cleaning the water tank
1. Clean the water tank (A12) regularly (about once a month)
and whenever you replace the water softener lter (C4) (if
provided) with a damp cloth and a small amount of mild
washing up liquid.: rinse carefully before lling and replac-
ing the tank;
2. Remove the lter (if present) and rinse with running water;
3. Replace the lter (if provided), ll the tank with fresh water
and replace the tank;
4. (Models with water softener lter only) Deliver about
100ml of hot water to reactivate the lter.

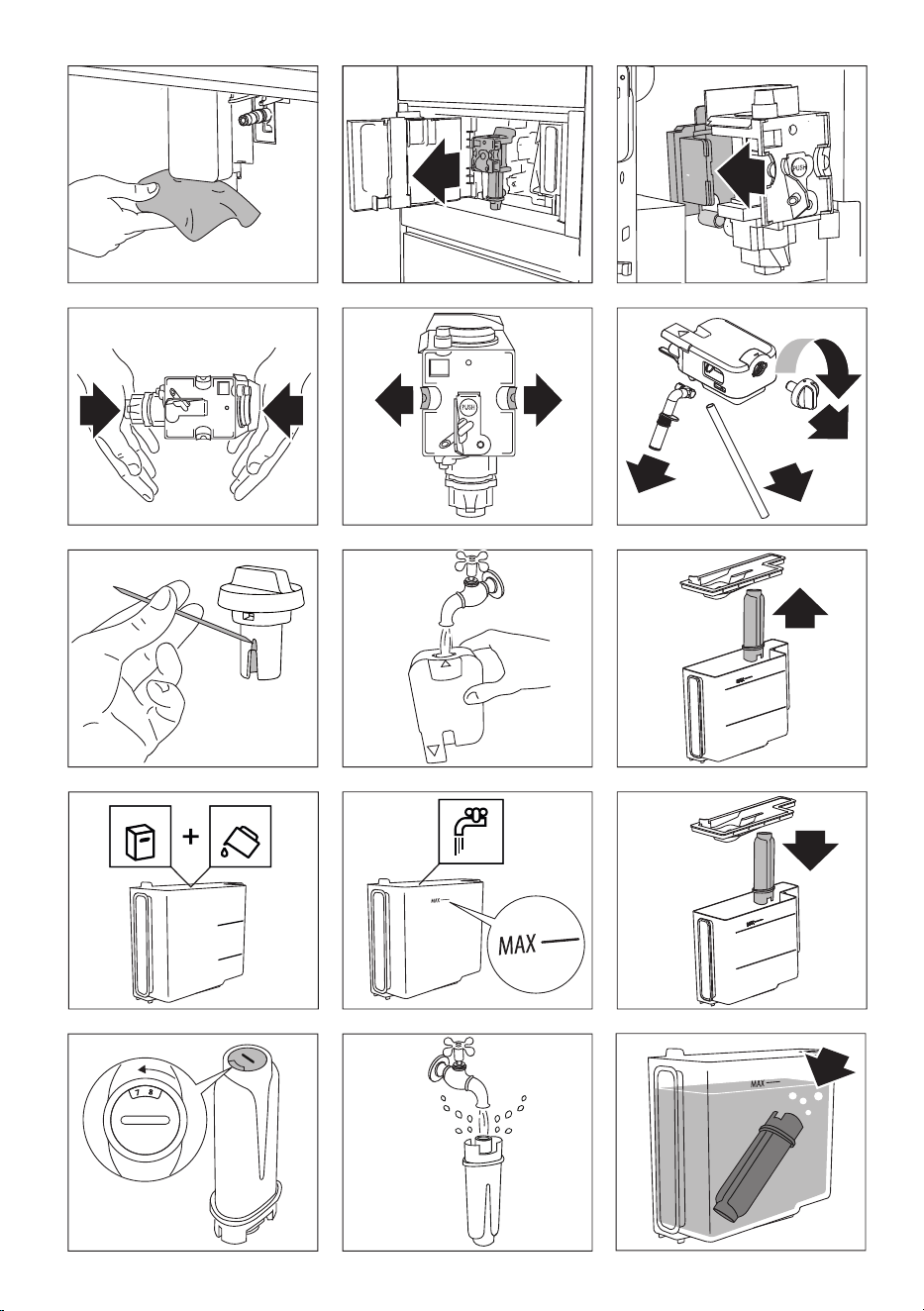

Cleaning the coee spouts
1. Clean the coee spouts (A13) regularly with a sponge or
cloth (g.31);
2. Check that the holes in the coee spouts are not blocked.
If necessary, remove coee deposits with a toothpick
(g.30).
Cleaning the pre-ground coee funnel
Check regularly (about once a month ) that the pre-ground
coee funnel (A21) is not blocked. If necessary, remove coee
deposits with the brush (C5) supplied.
Cleaning the infuser
The infuser must be cleaned at least once a month.
Important! The infuser (A5) must not be removed
when the appliance is on. Do not use force to remove the infuser.
1. Make sure the machine is correctly turned o (see "Turning
o").
2. Open the service door.
3. Remove the drip tray and waste coee container (g.27).
4. Press the two coloured release buttons inwards and at the
same time pull the infuser outwards (g.32).
Important! Do not use washing up liquid to clean the
infuser to avoid removing the lubricant applied to the inside of
the piston.
5. Soak the infuser in water for about 5 minutes, then rinse.
6. After cleaning, replace the infuser (A5) by sliding it onto the
internal support and pin at the bottom, then push the PUSH
symbol fully in until it clicks into place (g.33).
Please note carefully: If you encounter diculty in-
serting the infuser, (before inserting it) you must adapt it to the
right dimension by pressing it forcefully from the bottom and
top as shown in the gure 34.
7. Once inserted, make sure the two coloured release buttons
have snapped out (g.35).
8. Replace the drip tray and waste coee container.
9. Close the service door.
Cleaning the milk container (D)
Clean the milk container after each time you prepare milk, as
described below:
1. Lift and remove the lid (D2);
2. Extract the milk container (D3) from the thermal casing
20
(D6), holding it by the two side grips.
Important!
The thermal casing must not be lled or immersed in wa-
ter: to clean it wipe with a damp cloth.
3. Remove the milk spout (D5) and intake tube (D4).
4. Turn the froth adjustment dial clockwise to the "INSERT"
position (g.36) and pull o.
5. Wash all the components of the frother thoroughly with
hot water and mild washing-up liquid. All components and
the container are dishwasher safe, placing them in the top
basket of the dishwasher.
Pay particular attention to check in the hollow and groove
under the dial (
g.37
) that no milk residues remain: scrape
any residue from the groove with a toothpick.
6. Rinse inside the froth adjustment dial seat (g.38) and the
milk frother connector hole using running water.
7. Check as well that the intake tube and spout are not
clogged with milk residues.
8. Replace the dial, lining up the arrow with the word INSERT,
the spout and milk intake tube.
9. Place the milk container in the thermal casing.
10. Place the lid back on the milk container.
Cleaning the hot water/steam connection nozzle
Each time you prepare milk, clean the connection nozzle (A10)
with a clean cloth to remove milk residues deposited on the seals
(g.23).
DESCALING
Important!
• Before use, read the instructions and the labelling on the
de-scaler packaging.
• You should use de-scaler authorised by the manufactur-
er only. Using unsuitable de-scaler and/or performing
de-scaling incorrectly may result in faults not covered by
the manufacturer's guarantee.
De-scale the appliance when the display (B) shows message
DESCALING NEEDED PRESS OK TO START (~45min) : to
de-scale immediately, press
and follow the instructions
from point 4.
To postpone de-scaling to another time, press : on the
display the symbol is a reminder that the appliance needs-
to be de-scaled (the message will be re-proposed every time the
machine is switched on).
To access the de-scaling menu:
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display shows
DESCALE;
3. Press to start the de-scaling cycle then follow the in-
structions on the display;
4. REMOVE WATER FILTER (g. 39):extract the water tank
(A12), remove the water softener lter (C4) (if present) and
empty the water tank. Press ;
5. ADD DESCALER (UP TO LEVEL A) AND WATER (UP TO LEVEL
B) (g.40); Pour the de-scaler into the tank up to the level
A marked inside the tank (equal to one 100 ml pack); then
add water (one litre) up to level B; and put the water tank
back in. Press ;
6. EMPTY GROUND CONTAINER AND DRIP TRAY (g. 27):
remove, empty and replace the drip tray (A14) and the
ground container (A4). Press ;
7. PLACE 2.5l CONTAINER UNDER OUTLET PRESS OK TO START
DESCALING :
Place an empty container with a minimum capacity of 2.5
litres under the hot water/steam spout (C6) and coee
spouts (A13) (g.8);
Danger of burns!
Hot water ows out of the hot water/steam spout which contains
acid. Take care to avoid contact with splashes of this solution.
8. Press to conrm that you have added the de-scal-
ing solution. The display shows DESCALING PLEASE WAIT
: the de-scale programme starts and the de-scaler liquid
comes out of the hot water/steam and coee spouts. A
series of rinses and pauses is automatically carried out to
remove all the scale residues from the inside of the coee
machine;
After about 25 minutes, de-scaling stops:
9. RINSE AND FILL WATER TANK UP TO MAX LEVEL (g.41): the
appliance is now ready for a fresh water rinsing cycle. Emp-
ty the container used to collect the de-scaler solution and
extract the water tank, empty, rinse under running water,
ll with fresh water up to the MAX level and put back in the
appliance;
10. PLACE 2.5l CONTAINER UNDER OUTLET PRESS OK TO START
RINSING: Place the container used to collect the de-scaler
solution empty under the coee spouts and hot water/
steam spout (g.8) again and press ;
11. Hot water is delivered rst from the coee spouts and the
display shows RINSING PLEASE WAIT ;
12. When the water in the tank has run out, empty the contain-
er used to collect the rinsing water;
13. (If the lter is installed) INSERT FILTER INTO ITS HOUSING
(g.42). Press and extract the water tank, rein-
sert the water softener lter if removed previously;
21
EN
14. RINSE AND FILL WATER TANK UP TO MAX LEVEL (g.41): Fill
the tank up to the MAX level with fresh water;
15. INSERT WATER TANK (g.6): Put the water tank back in the
appliance;
16. PLACE 2.5l CONTAINER UNDER OUTLET PRESS OK TO START
RINSING :
Place the empty container used to collect the de-scaler
solution under the hot water/steam spout (g.8) and press
;
17. Hot water is delivered from the hot water/steam spout and
RINSING PLEASE WAIT is displayed.
18. EMPTY DRIP TRAY (g.27): At the end of rinsing, remove,
empty and replace the drip tray (A14) and grounds contain-
er (A4): press ;
19. For a few seconds DESCALE COMPLETE will be shown on the
display; the appliance turn o.
De-scaling is complete.
Please note:
• If the de-scaling cycle is not completed correctly (e.g. no
electricity) we recommend repeating the cycle;
• After de-scaling, it is normal for the grounds container (A4)
to contain water.
• If the water tank has not been lled to the max level, at the
end of de-scaling, the appliance requests a third rinse to
guarantee that the de-scaler solution has been complete-
ly eliminated from the machine's internal circuits. Before
starting rinsing, remember to empty the drip tray;
• The appliance may request de-scaling cycles at very short
intervals. This is normal and due to the appliance’s ad-
vanced control system
PROGRAMMING WATER HARDNESS
The DESCALING NEEDED - PRESS OK TO START (~45min)
message is displayed after a period of time established according
to water hardness.
The appliance default is pre-set in manufacturing at "level 4"
hardness. The machine can also be programmed according to
the hardness of the mains water in the various regions so that
the machine needs to be de-scaled less often.
Measuring water hardness
1. Remove the "Total hardness test" indicator paper (C1) pro-
vided from its packaging, attached to the instructions.
2. Immerse the paper completely in a glass of water for about
one second.
3. Remove the paper from the water and shake lightly. After
about a minute, 1, 2, 3, or 4 red squares form, depending
on the hardness of the water. Each square corresponds to
one level.
soft water - level. 1
slightly hard water - level. 2
hard water - level. 3
very hard water - level. 4
Setting water hardness
1. Press (B2) to enter the menu;
2. Press (B10) or (B8) until the display (B) displays
WATER HARDNESS ;
3. To change the level selected, press the symbol itself until
the required level is displayed (Level 1 = soft water;
Level4=very hard water);
Press to go back to the homepage.
The machine is now reprogrammed with the new water hard-
ness setting.
WATER SOFTENER FILTER
Some models are tted with a water softener lter (C4): if your
model is not equipped with one, we recommend buying one
through an authorised customer service centre.
To use the lter correctly, follow the instructions below.
Installing the lter
1. Remove the lter (C4) from the packaging;
2. Press (B2) to enter the menu;
3. Press (B10) or (B8) until the display shows
WATER FILTER ;
4. Press ;
5. TURN THE DATE INDICATOR UNTIL THE NEXT 2 MONTHS ARE
DISPLAYED (g.43):
turn the date indicator disk until the next two months of
use are displayed. Press ;
Please note:
the lter lasts about two months if the appliance is used normal-
ly, if the coee machine is left unused with the lter installed, it
will last a maximum of 3 weeks.
1. FILL FILTER WITH WATER UNTIL IT’S COMPLETELY FILLED
(g.44): To activate the lter, run tap water through the
hole in the lter as shown in the gure until water comes
out of the openings at the side for more than a minute.
Press ;
22
2. Extract the tank (A12) from the appliance and ll with
water.
3. IMMERSE FILTER IN THE WATER TANK LETTING AIR BUBBLES
ESCAPE (g.45): Insert the lter in the water tank and im-
merse it completely for about ten seconds, sloping it and
pressing it lightly to enable the air bubbles to escape. Press
;
4. INSERT FILTER INTO ITS HOUSING AND PUSH IT DOWN TO
BOTTOM: Insert the lter in the lter housing (g.42) and
press as far as it will go. Press ;
5. INSERT WATER TANK : Close the tank with the lid (A15), then
replace the tank in the machine.
6. PLACE 0.5L CONTAINER UNDER OUTLET, PRESS OK TO FILL
FILTER (g.8): place the container under the hot water/
steam spout (C6) and press : delivery starts and
stops itself automatically.
The symbol appears on the display alongside the time to
indicate that the lter has been enabled. The coee machine can
now be used.
Replacing the lter
Replace the lter (C4) when the display (B) shows the message
REPLACE WATER FILTER, PRESS OK TO START : to replace
immediately, press and follow the instructions from
point 4.
To postpone replacing the lter to another time, press
:
on the display the symbol is a reminder that the lter
needs to be replaced.
To replace, proceed as follows:
1. Extract the water tank (A12) and exhausted lter;
2. Remove the new lter from the packaging;
3. Press (B2) to enter the menu;
4. Press (B10) or (B8) until the display shows
WATER FILTER ;
5. Press ;
6. The display shows REPLACE FILTER ;
7. Press ;
8. Follow the operations described in the previous paragraph
from point 5.
The lter is now active and the coee machine can be used.
Please note:
After two months (see date indicator) or when the appliance has
not been used for 3 weeks, you should replace the lter even if
the message has not yet been displayed.
Removing the lter
If you want to use the appliance without the lter (C4), you must
remove it and notify the appliance of its removal. Proceed as
follows:
1. Extract the water tank (A12) and exhausted lter;
2. Press (B2) to enter the menu;
3. Press (B10) or (B8) until the display shows
WATER FILTER ;
4. Press ;
5. On the display REMOVE FILTER appears;
6. Press ;
7. REMOVE FILTER? : press (or to go back to the
settings menu, press );
8. FILTER REMOVED : the appliance has recognised the
change. Press to go back to the homepage.
Please note:
After two months (see date indicator) or when the appliance has
not been used for 3 weeks, you should remove/replace the lter
even if the message has not yet been displayed.
TECHNICAL DATA
Voltage: 120 V~ 60 Hz max.
Absorbed power: 1350W
Pressure: 15 bar
Water tank capacity: 84.5 . oz / 2.5 litres
Size:LxHxD: 3.5 x 17.7 x 18.5 in / 597x450x470 mm
Net weight: 44 lb / 20 kg
23
EN

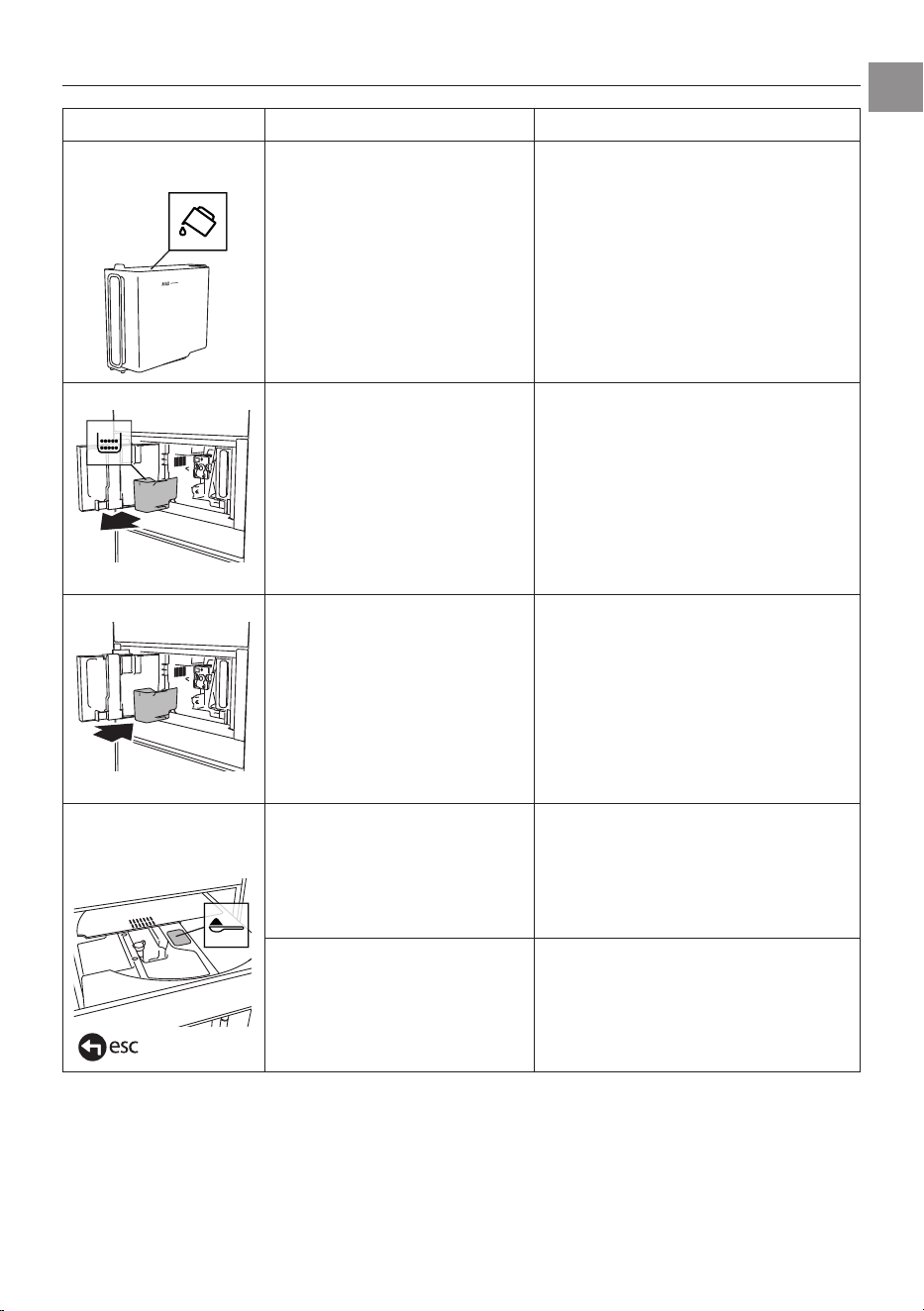

DISPLAYED MESSAGES
DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY
FILL WATER TANK WITH
FRESH WATER
Water in the tank
(A12)
is not sucient. Fill the tank with water and/or insert it correctly,
pushing it as far as it will go until it clicks into place.
EMPTY GROUND CONTAINER The grounds container (A4) is full.
Empty the grounds container and drip tray (A14),
clean and then replace them. Important: when re-
moving the drip tray, the grounds container must
always be emptied, even if it contains few grounds. If
this is not done, when you make the next coees, the
grounds container may ll up more than expected
and clog the machine.
INSERT GROUND CONTAINER After cleaning, the grounds container
(A4),
has not been replaced.
Remove the drip tray (A14) and insert the grounds
container.
ADD PRE-GROUND COFFEE
PRE-GROUND MAXIMUM
ONE MEASURING CUP
The "pre-ground coee" function has
been selected, but without placing any
pre-ground coee in the funnel
(A21)
.
Place pre-ground coee in the funnel
(g.14)
and
repeat delivery
The funnel
(A21)
for pre-ground coee, is
clogged.
Empty the funnel with the help of the brush (C5) as
described in par. "Cleaning the pre-ground coee
funnel".
24

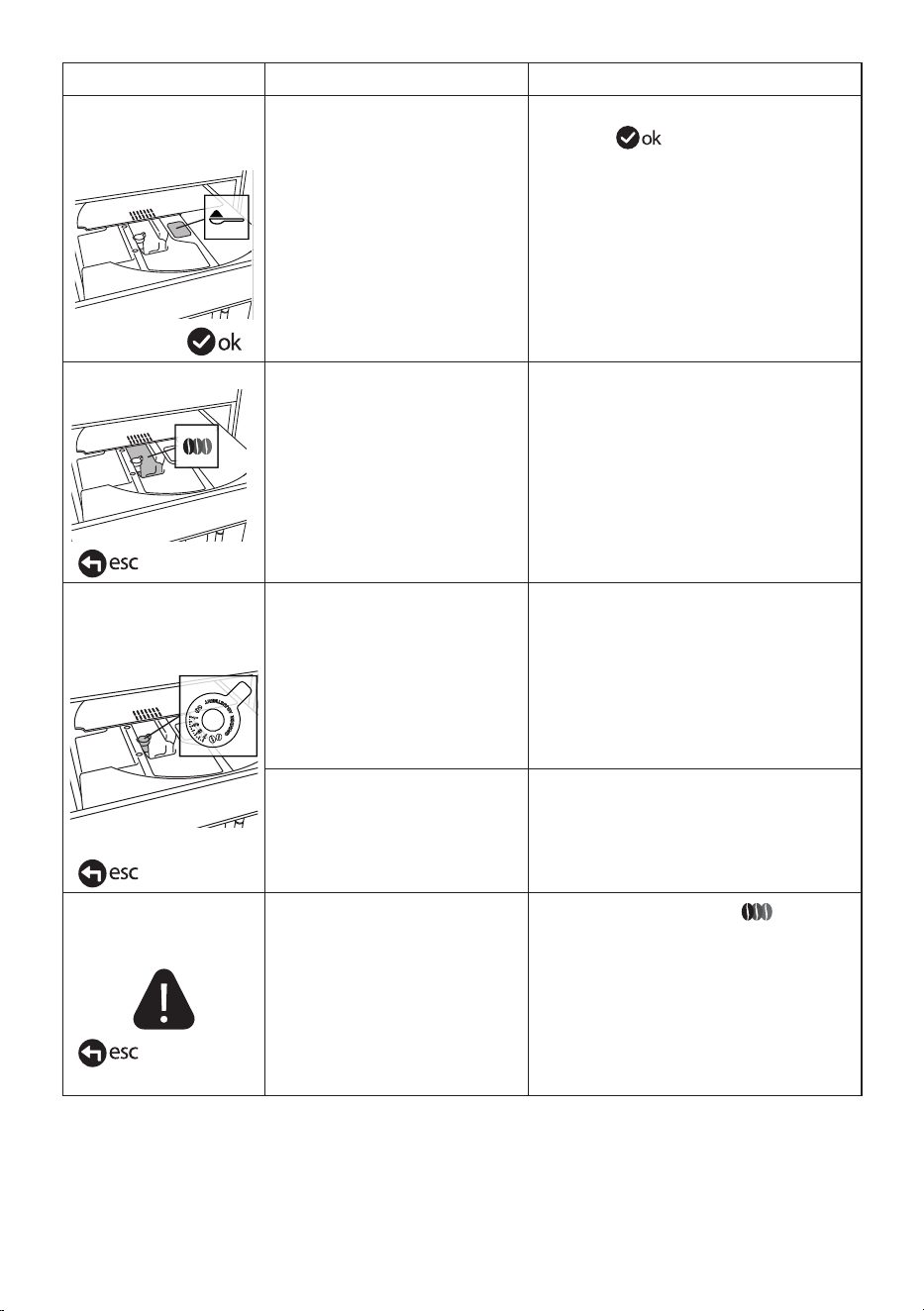

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY
ADD PRE-GROUND COFFEE
PRE-GROUND MAXIMUM
ONE MEASURING CUP
A LONG coee with pre-ground coee
has been requested
Place pre-ground coee in the funnel (A21) (g.14)
and press to continue and complete
delivery.
FILL BEAN CONTAINER The coee beans have run out. Fill the beans container
(A16 - g.12)
.
GROUND TOO FINE. ADJUST
GRIND LEVEL 1 CLICK WHILE
IN OPERATION
The grinding is too ne and the coee is
delivered too slowly or not at all.
Repeat coee delivery and turn the grinding adjust-
ment dial
(g.11)
one click clockwise towards num-
ber 7 while the coee mill is in operation. If after
making at least 2 coees delivery is still too slow,
repeat the correction procedure, turning the grind-
ing adjustment dial another click (par. "Adjusting the
coee mill"
)
. If the problem persists, make sure the
water tank (A12) is fully inserted.
If the water softener lter (C4) is present,
an air bubble may have been released
inside the circuit, obstructing delivery.
Insert the hot water/steam spout (C6) in the appli-
ance and deliver a little water until the ow becomes
regular.
SELECT A MILDER TASTE
OR REDUCE PRE-GROUND
COFFEE QUANTITY
Too much coee has been used.
Select a milder taste by pressing AROMA (B6)
or reduce the quantity of pre-ground coee (maxi-
mum 1 measure).
25
EN

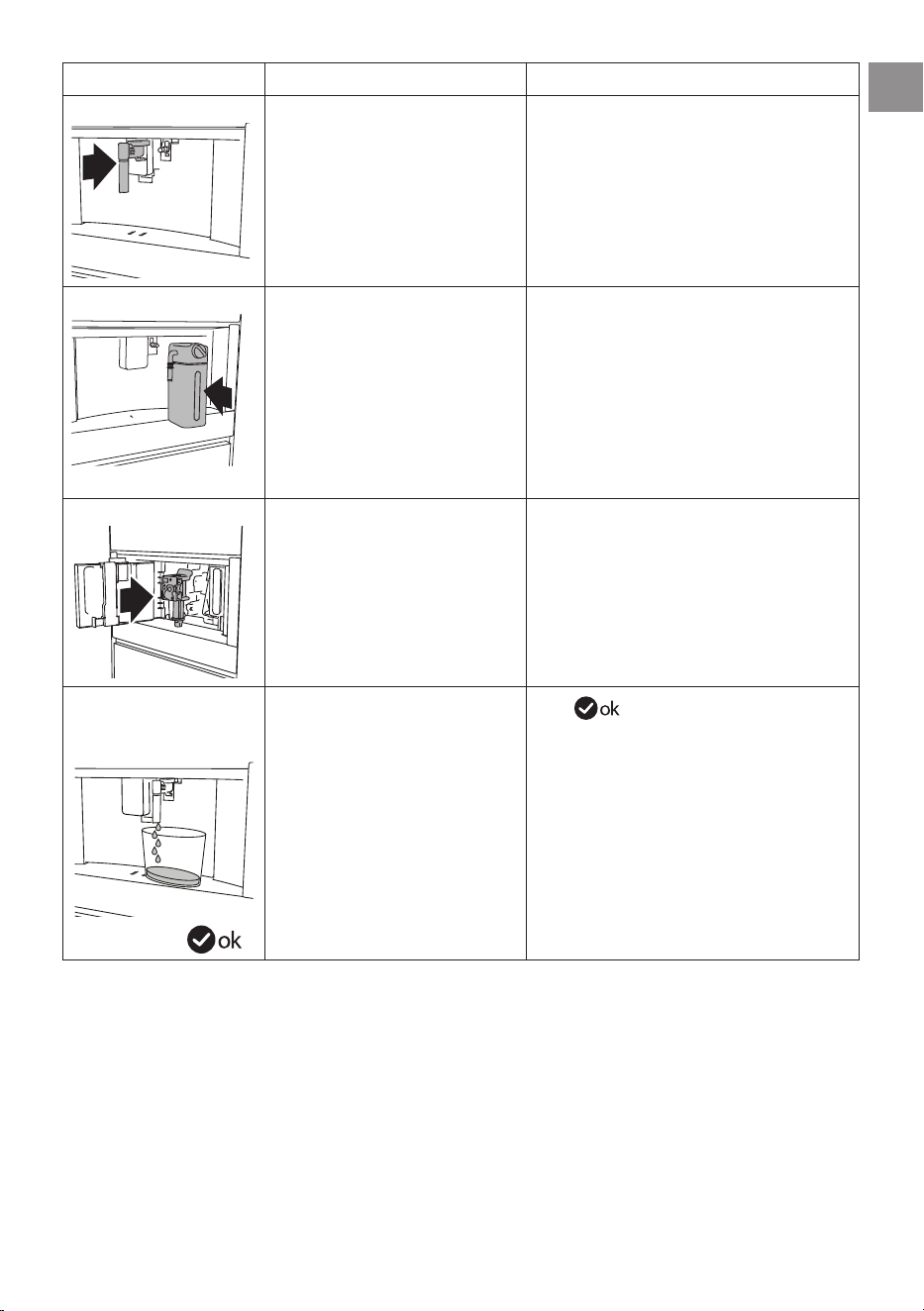

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY
INSERT WATER OUTLET The hot water spout (C6) is not inserted
or is inserted incorrectly
Insert the water spout as far as it will go.
INSERT MILK CONTAINER The milk container (D) is not inserted
correctly.
Insert the milk container as far as it will go
(g.19)
.
INSERT BREWING UNIT After cleaning the infuser has not been
replaced.
Insert the infuser as described in par. "Cleaning the
infuser".
WATER CIRCUIT EMPTY
PRESS OK TO START FILLING
PROCESS
The water circuit is empty
Press and allow water to drain out of the
spout (
C6)
: the ow will stop itself automatically.
If the problem persists, make sure the water tank
(A12) is fully inserted.
26

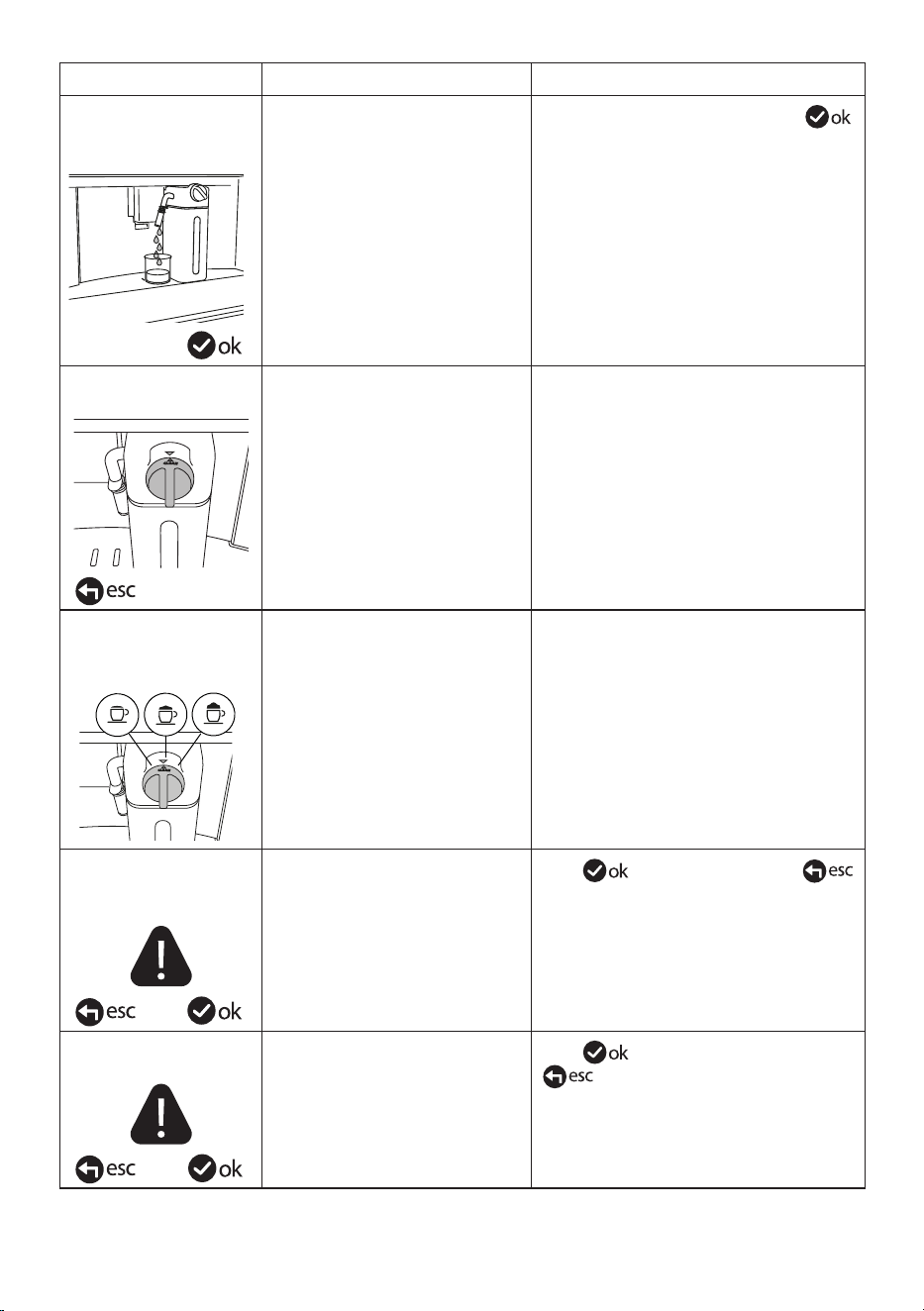

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY
PRESS OK TO START CLEANING
PROCESS OR TURN MILK
FROTH ADJUSTMENT KNOB
The milk container has been inserted
with the froth adjustment dial (D1) in the
CLEAN position .
To proceed with the CLEAN function, press
or turn the froth adjustment dial to one of the milk
positions.
TURN THE MILK FROTH ADJUST-
MENT KNOB TO START CLEANING
Milk has been delivered recently and the
tubes inside the milk container must be
cleaned (D).
Turn the froth adjustment dial (D1) to CLEAN
(g.21).
TURN THE MILK FROTH
ADJUSTMENT KNOB
TOMILKPOSITION
The milk container has been inserted
with the froth adjustment dial (D1) in the
CLEAN position.
Turn the dial to the required froth position.
DESCALING NEEDED
PRESS OK TO START
(~45MIN)
Indicates that the machine must be
de-scaled.
Press to start de-scaling or press
to de-scale later. The de-scaling procedure described
in section “De-scale” needs to be performed.
REPLACE WATER FILTER
PRESS OK TO START
The water softener lter (C4) is
exhausted.
Press to replace or remove the lter, or
to carry out the procedure later. Follow the
instructions in section “Water softener lter”.
27
EN
DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY
GENERAL ALARM: REFER TO
USER MANUAL
The inside of the appliance is very dirty. Clean the inside of the appliance thoroughly, as
described in section “Cleaning”. If the message is
still displayed after cleaning, contact an authorised
Customer Service centre.
Reminder that appliance needs de-scaling
and/or the lter (C4) must be replaced.
The de-scaling procedure described in section “De-
scale” needs to be performed as soon as possible
and/or the lter needs replacing or removing as de-
scribed in section “Water softener lter”.
Reminder that tubes inside the milk con-
tainer (D) must be cleaned.
Turn the froth adjustment dial (D1) to CLEAN
(g.21).
Reminder that lter (C4) must be
replaced.
Replace the lter or remove it as described in section
“Water softener lter”.
Reminder that machine must be
de-scaled.
The de-scaling procedure described in section “De-
scale” needs to be carried out as soon as possible.
Indicates that the auto-start function is
enabled.
To disable the function, proceed as described in par.
"Auto-start ".
Energy saving is enabled. To disable energy saving, proceed as described in par.
"Energy saving ".
Indicates that the lter (C4) has been
enabled
To remove the lter, proceed as described in section
“Water softener lter”.
CLEANING
PLEASE WAIT
The appliance has detected impurities in
its internal circuits.
Wait for the appliance to be ready for use again and
reselect the required beverage. Contact an Author-
ised Customer Service Centre if the problem persists.
MACHINE TOO HOT Using the stirrers continuously for long
periods may cause the appliance to
overheat
Wait for the appliance to cool down.
28
PROBLEM POSSIBLE CAUSE REMEDY
The coee is not hot. The cups were not preheated. Warm the cups by rinsing them with hot water
(Please note! the hot water function can be
used).
The infuser has cooled down because
2/3 minutes have elapsed since the last
coee was made.
Before making the coee, heat the infuser by
rinsing using the rinse function
(see par. "Rins-
ing ").
A low coee temperature is set.
Set a hotter coee temperature in the menu (see
par. "Coee temperature " ).
The coee is weak or not creamy
enough.
The coee is ground too coarsely. Turn the grinding adjustment dial one click an-
ticlockwise towards number 1 while the coee
mill is in operation (g.11). Continue one click
at a time until coee delivery is satisfactory.
The eect can only be noticed after delivering
2 coees (see par. "Adjusting the coee mill").
The coee is unsuitable. Use coee for espresso machines.
The coee is delivered too slowly or a
drop at a time.
The coee is ground too nely. Turn the grinding adjustment dial one click
clockwise towards number 7 while the coee
mill is in operation (g.11). Continue one click
at a time until coee delivery is satisfactory.
The eect can only be noticed after delivering
2 coees (see par. "Adjusting the coee mill").
Coee does not come out of one or
both of the spouts.
The coee spouts (A13) are blocked. Clean the spouts with a toothpick (g.30).
The appliance is not producing coee The appliance detects impurities in its
system: the display shows "CLEANING
IN PROGRESS".
Wait for the appliance to be ready for use again
and reselect the required beverage. Contact
an Authorised Customer Service Centre if the
problem persists.
The appliance does not come on It is not plugged into the socket. Plug into the mains socket (g.1).
The main switch (A21) is not turned on. Press the main switch (g.2).
The infuser cannot be extracted The appliance has not been turned o
correctly
Turn the appliance o by pressing the
button (A7)
(see section “Turning the appliance
o”).
At the end of de-scaling, the appli-
ance requests a third rinse
During the two rinse cycles, the water
tank (A12) was not lled to the MAX
level
Follow the instructions displayed by the appli-
ance, rst emptying the drip tray (A14) to avoid
the water overowing.
TROUBLESHOOTING
Below is a list of some of the possible malfunctions.
If the problem cannot be resolved as described, contact Customer Services Technical Assistance.
29
EN
PROBLEM POSSIBLE CAUSE REMEDY
The milk does not come out of the
milk spout (D5)
The lid (D2) of the milk container (D)
is dirty
Clean the milk container lid as described in par.
"Cleaning the milk container".
The milk contains large bubbles and
squirts out of the milk spout (D5) or
there is little froth
The milk is not cold enough or is not
semi-skimmed or skimmed.
Use fully skimmed or semi-skimmed milk at
refrigerator temperature (about 5° C). If the
result is not as you wished, try changing brand
of milk.
The froth adjustment dial (D1) is incor-
rectly adjusted.
Adjust following the instructions in section
“Adjusting the amount of froth”.
The milk container lid (D2) or froth ad-
justment dial (D1) is dirty
Clean the milk container lid and froth adjust-
ment dial as described in par. "Cleaning the
milk container".
The hot water/steam connection noz-
zle (A13) is dirty
Clean the connection nozzle as described in
par. "Cleaning the hot water/steam connec-
tion nozzle".
The machine emits noises or small
pus of steam while not in use
The machine is ready for use, or has re-
cently been turned o, and condensate
is dripping into the vaporiser which is
still hot
This is part of normal operation.To limit this,
empty the drip tray.
30
ESPRESSO
Origin Italy
PROCESS Grinding Coee powder 6-11gr (according to aroma)
Brewing Pre-infusion •
Infusion high pressure (9-12 bar)
RESULT IN CUP Default Quantity ~ 40ml
Cream compact and nut-coloured
Taste intense
OCCASION OF USE short-term pleasure, every moment of the day
COFFEE
Origin Germany & Central Europe
PROCESS Grinding Coee powder 8-14gr (according to aroma)
Brewing Pre-infusion no pre infusion
Infusion high pressure (9-12 bar)
RESULT IN CUP Default Quantity ~ 180ml
Cream thinner than espresso
Taste balanced and delicate
OCCASION OF USE long-lasting pleasure, every moment of the day
LONG
Origin USA, Australia
PROCESS Grinding Coee powder 2 grindings of 5-9gr (according to aroma)
Brewing Pre-infusion no pre infusion
Infusion impulse mode lower pressure than espresso
RESULT IN CUP Default Quantity ~ 160ml
Cream thinner and lighter than espresso
Taste perfect for drip coee lovers
OCCASION OF USE long-lasting pleasure, every moment of the day
DOPPIO+
Origin Italy
PROCESS Grinding Coee powder 15gr
Brewing Pre-infusion reduced pre infusion
Infusion higher pressure than espresso
RESULT IN CUP Default Quantity ~ 120ml
Cream thicker and darker than espresso
Taste stronger than espresso
OCCASION OF USE need for energy
AMERICANO
Origin USA, UK
PROCESS Grinding Coee powder 6-11gr (according to aroma)
Brewing Pre-infusion •
Infusion high pressure (9-12 bar)
RESULT IN CUP Default Quantity ~ 150ml
Cream thinner and lighter than espresso
Taste Light and delicate
ESPRESSO MACCHIATO
Origin Italy
PROCESS Coee 6-11gr (according to aroma) (~ 30ml)
Milk few drops (~ 20ml)
Milk foam maximum level
Delivery order coee rst, milk afterwards
RESULT IN CUP Visual black with one thin layer or milk foam
Milk foam
OCCASION OF USE every moment of the day, people who want to taste a slightly sweet espresso
31
EN
CAPPUCCINO
Origin Italy
PROCESS Coee balanced (~ 80ml)
Milk balanced (~ 70ml)
Milk foam maximum level
Delivery order milk rst, coee afterwards
RESULT IN CUP Visual separate layers of foam, coee and milk
Milk foam white with milky taste
OCCASION OF USE every moment of the day, people who want to taste coee and milk separately
CAPPUCCINO+
Origin Italy
PROCESS Coee Doppio+ (~ 120ml)
Milk ~ 70ml
Milk foam maximum level
Delivery order milk rst, coee afterwards
RESULT IN CUP Visual darker than cappuccino
Milk foam separate layers of foam, coee and milk, with milky taste
OCCASION OF USE need for energy, people who want a cappuccino with a strong coee taste
CAPPUCCINOMIX
Origin Italy
PROCESS Coee balanced (~ 80ml)
Milk balanced (~ 70ml)
Milk foam maximum level
Delivery order coee rst, milk afterwards
RESULT IN CUP Visual uniformly brown milk drink
Milk foam light brown with coee taste
OCCASION OF USE every moment of the day, people who loves melted milk and coee tastes
LATTE MACCHIATO
Origin Italy
PROCESS Coee ~ 60ml
Milk ~ 90ml
Milk foam medium level
Delivery order milk rst, coee afterwards
RESULT IN CUP Visual separate layers of foam, coee and milk
Milk foam white with milky taste
OCCASION OF USE every moment of the day, people who want to taste coee and milk separately
FLAT WHITE
Origin USA, Australia
PROCESS Coee ~ 60ml
Milk ~ 200ml
Milk foam medium level
Delivery order milk rst, coee afterwards
RESULT IN CUP Visual separate layers of foam, coee and milk
Milk foam served in a ceramic cup white with milky taste
OCCASION OF USE every moment of the day, people who want to taste coee and milk separately
CAFFELATTE
Origin Italy
PROCESS Coee ~ 60ml
Milk ~240ml
Milk foam medium level
Delivery order milk rst, coee afterwards
RESULT IN CUP Visual separate layers coee and milk
Milk foam little layer of white foam with milky taste
OCCASION OF USE every moment of the day, people who want to taste coee and milk separately
32
The manufacturer reserves the right to make any changes deemed useful for improvement of its products without prior
notice. The illustrations and descriptions contained in this manual are therefore not binding and are merely indicative.
SMEG S.p.A.
Via Leonardo Da Vinci, 4
42016 San Girolamo di
Guastalla (RE)
ITALY
www.smeg.com
5713244661_03_1224
