SERVICE MANUAL forLite
WFRB1054BHG
WFRB954 BHG
WFRB852BHG
WFRB752BHW
front load drum washer
Models：
WFRB1054BHG
WFRB954 BHG
WFRB852BHG
WFRB752BHW
Appearance, Color, Functions, Parameters of the Washing Machines
[键入文字]
WFRB1054BHG
WFRB954BHG
WFRB802BHG
WFRB752BHW
Cabinet color
Gold body+
Black door
Gold body+
Black door
Gold body+
Black door
White body+
White door
Product picture
AC motor
√
√
√
√
Air wash eradicate odors
×
×
×
×
LCD display
×
×
×
×
LED display
√
√
√
√
Digital control
×
×
×
×
Support the liquid detergent
√
√
√
√
Drum self-clean program
√
√
√
√
Multistage heating wash
√
√
√
√
Changeable spin revolving speed
√
√
√
√
Mirror surface STS inner tub
√
√
√
√
Drain left water function
×
×
×
×
Drain with pump
×
×
×
×
Drain without pump
√
√
√
√
Child lock function
√
√
√
√
All-pole outage
×
×
×
×
Auto outage
√
√
√
√
Voltage specification
220-240V～
60Hz
220-240V～
60Hz
220-240V～
60Hz
220-240V～
60Hz
Water heating power（W）
1700
1700
1700
1700
Product size(W*D*H)
600*635*850
600*580*850
600*580*850
600*580*850
Packed product size (W*D*H)
694*710*930
635*693*910
635*693*910
635*693*910
Inner tubDiameter（mm）
Ф504
Ф504
Ф504
Ф504
Inner tubvolume（L）
64
59
54
54
Net weight /Gross weight (kg)
70/76
70/66
67/63
67/63
Wash capacity (kg)
10.5
9.5
8.5
7.5
Spin capacity
10.5
9.5
8.5
7.5
Rated heat power
1800
1800
1800
1800
Wash water temperature（℃）
Cold/30-80
Cold/30-80
Cold/30-80
Cold/30-80
Spin speed
600/800/1000/
1200/1400
600/800/1000/
1200/1400
600/800/1000/
1200
600/800/1000/
1200
[键入文字]
Contents
1. Product Specification
2. Structure
3. Functions setting and display
4. Explosive decomposition diagram

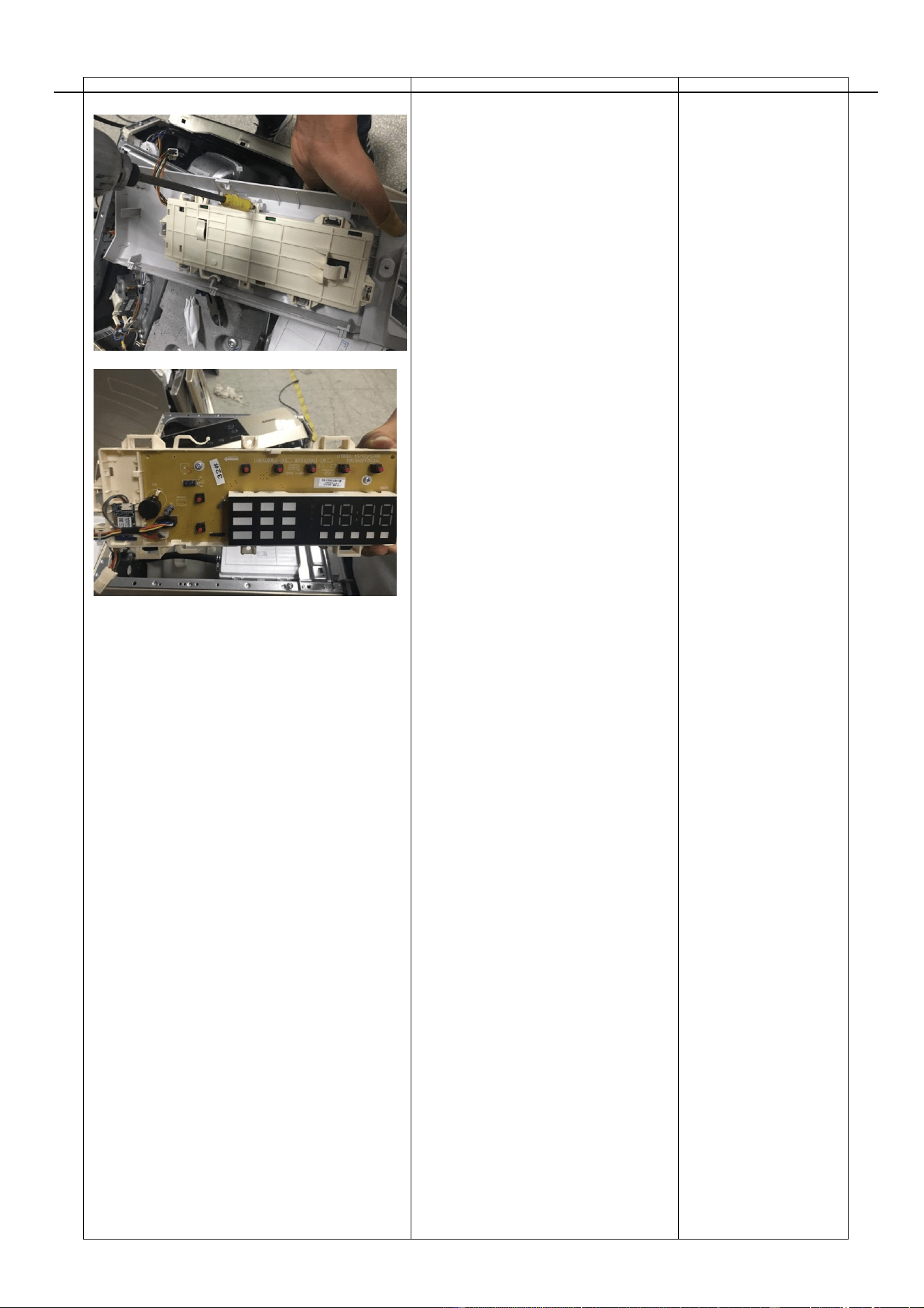

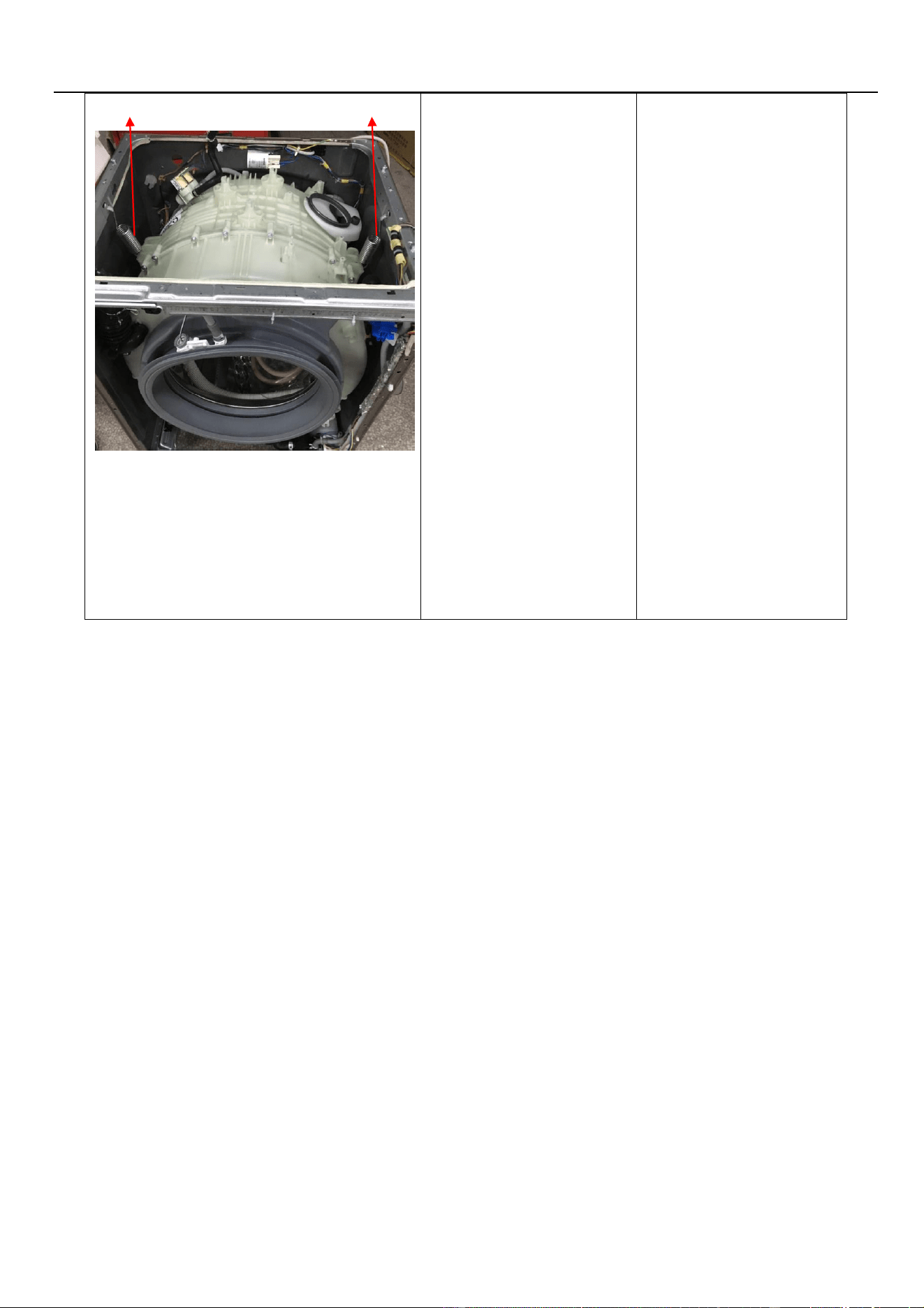

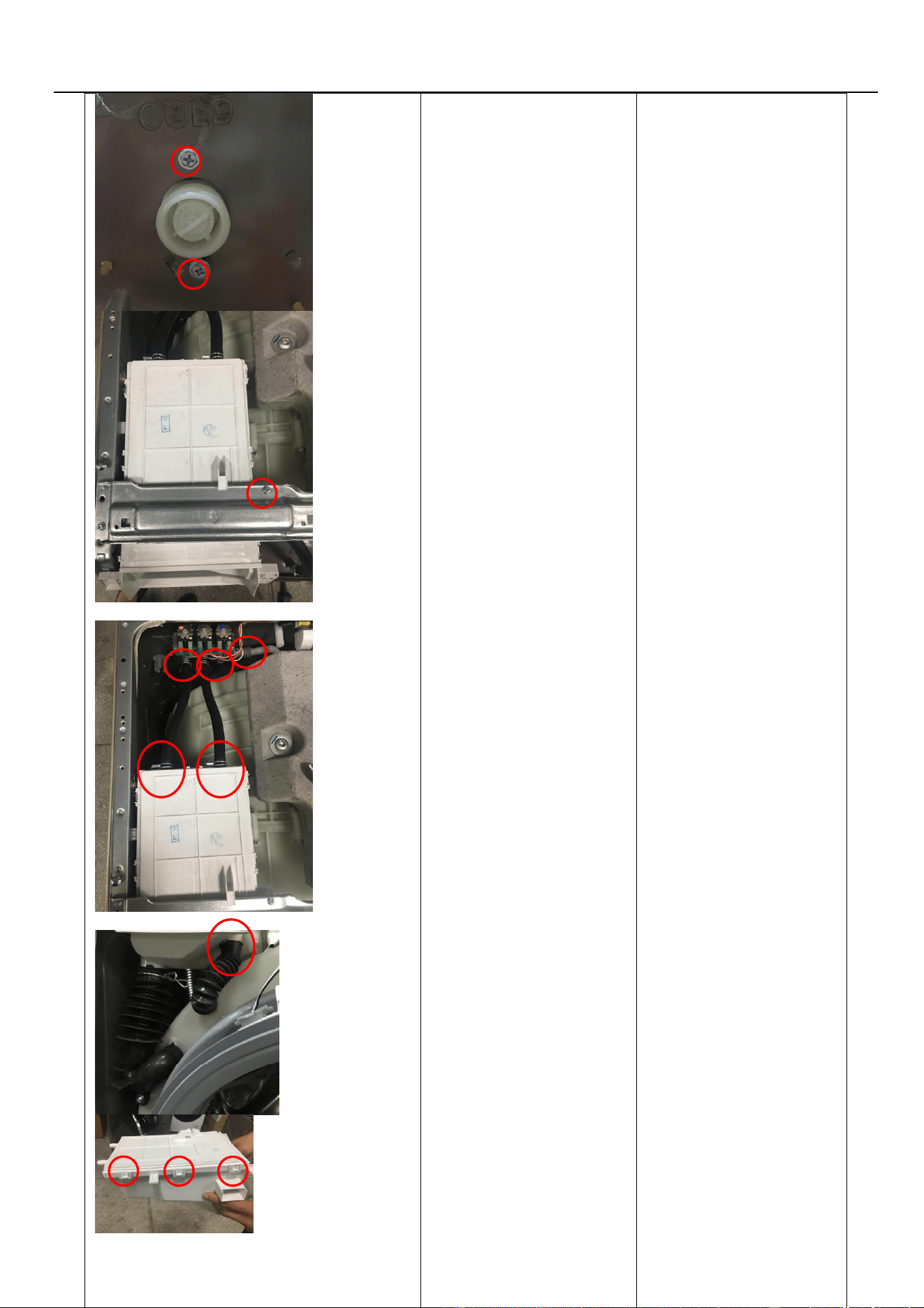

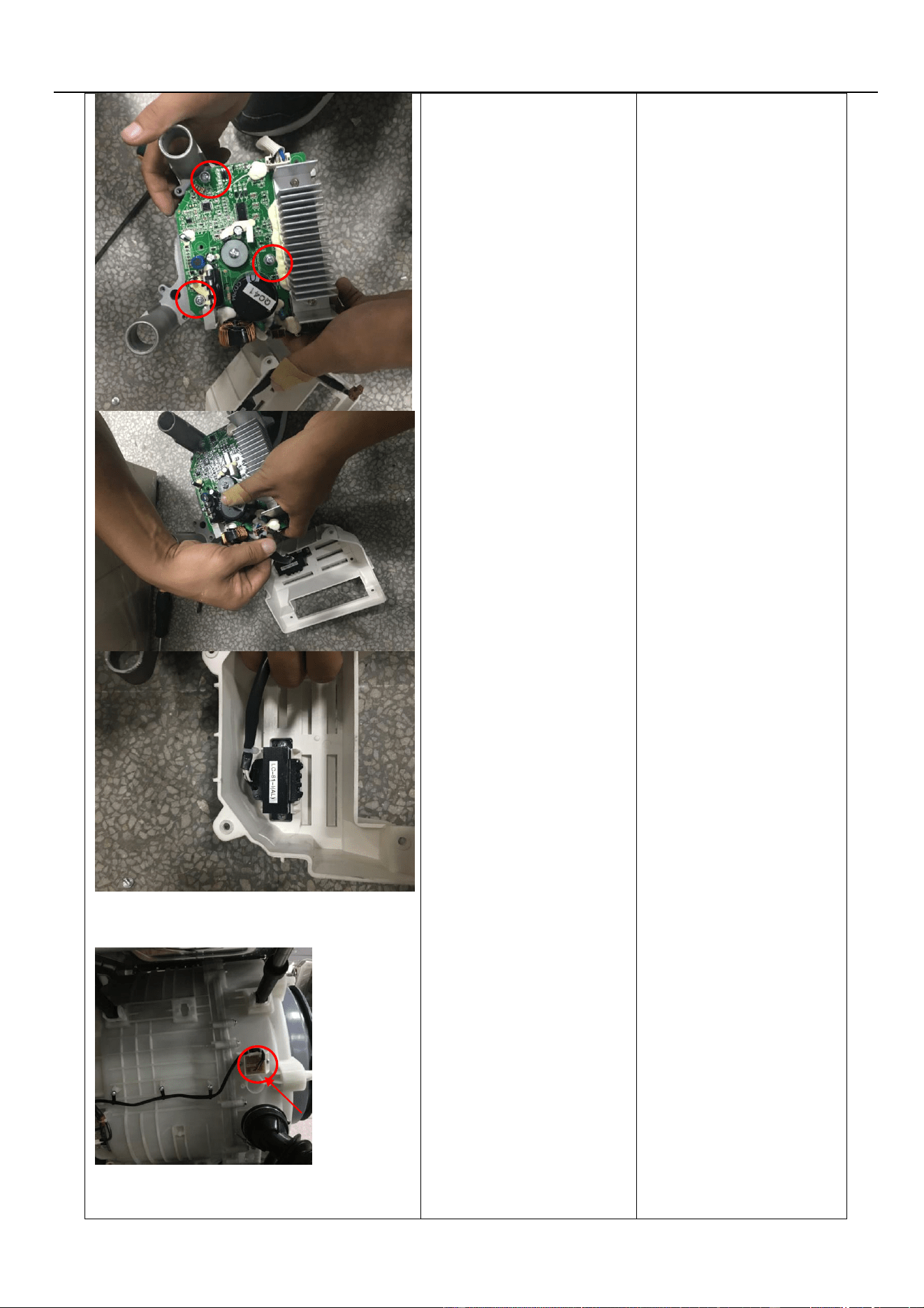

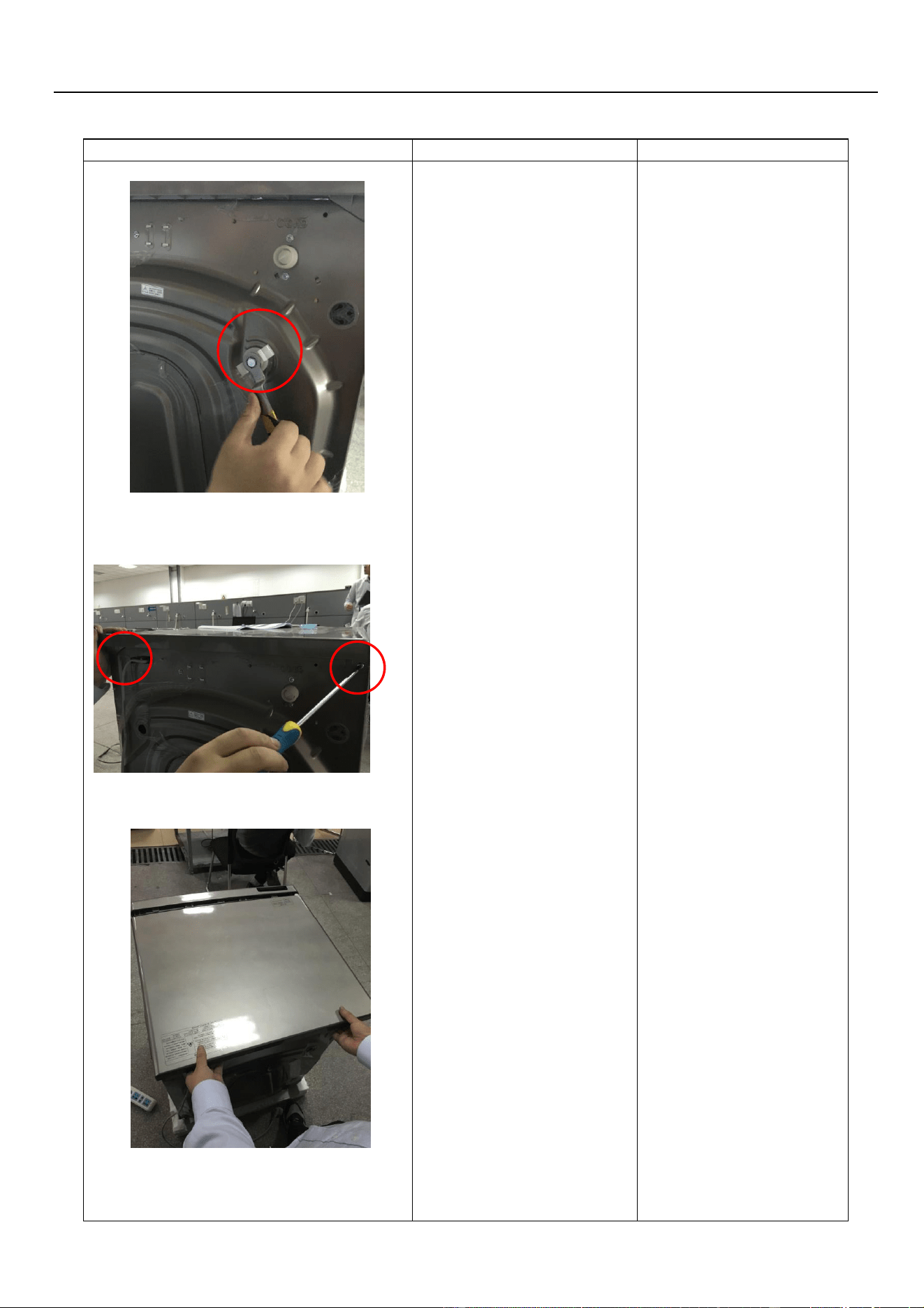

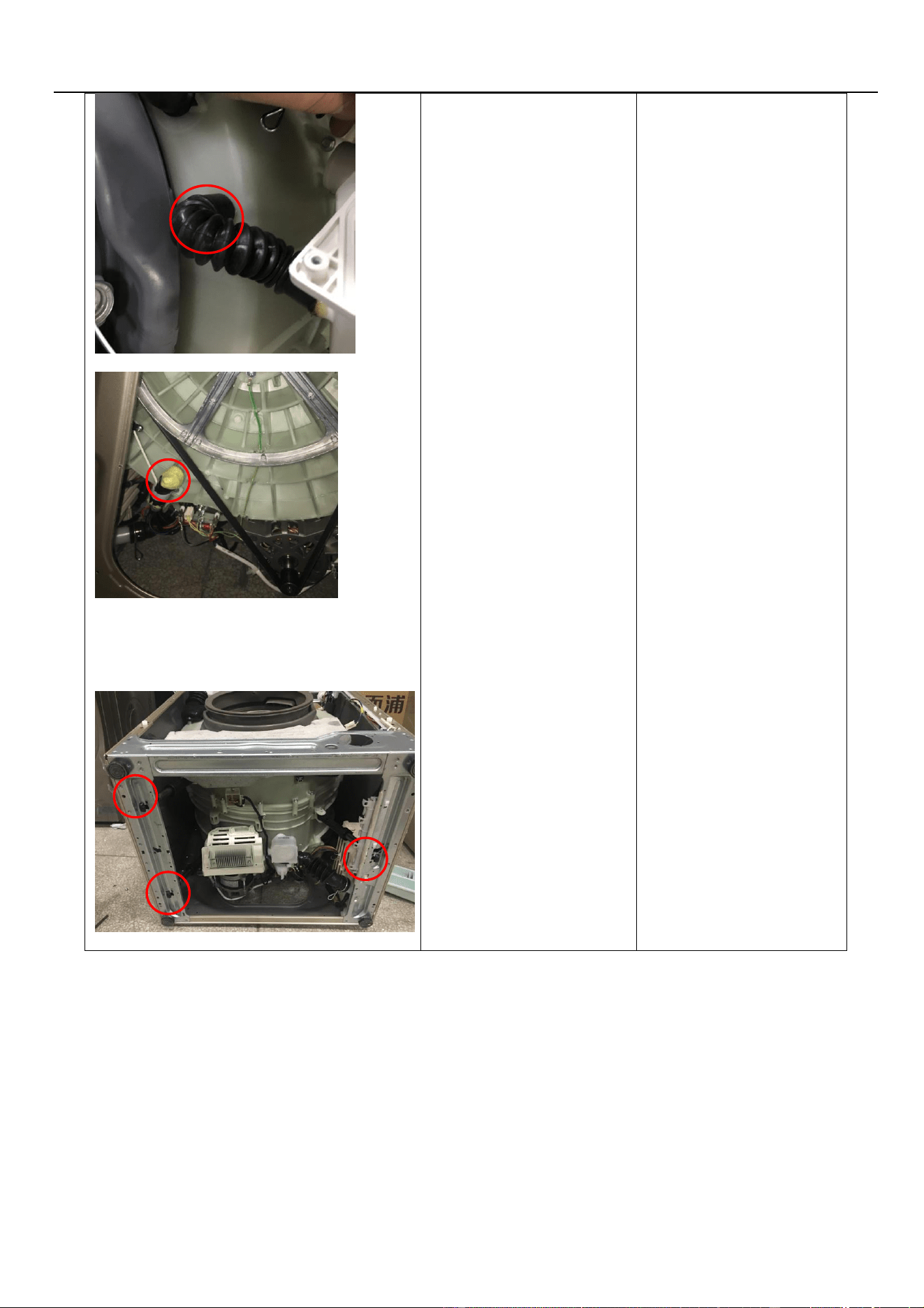

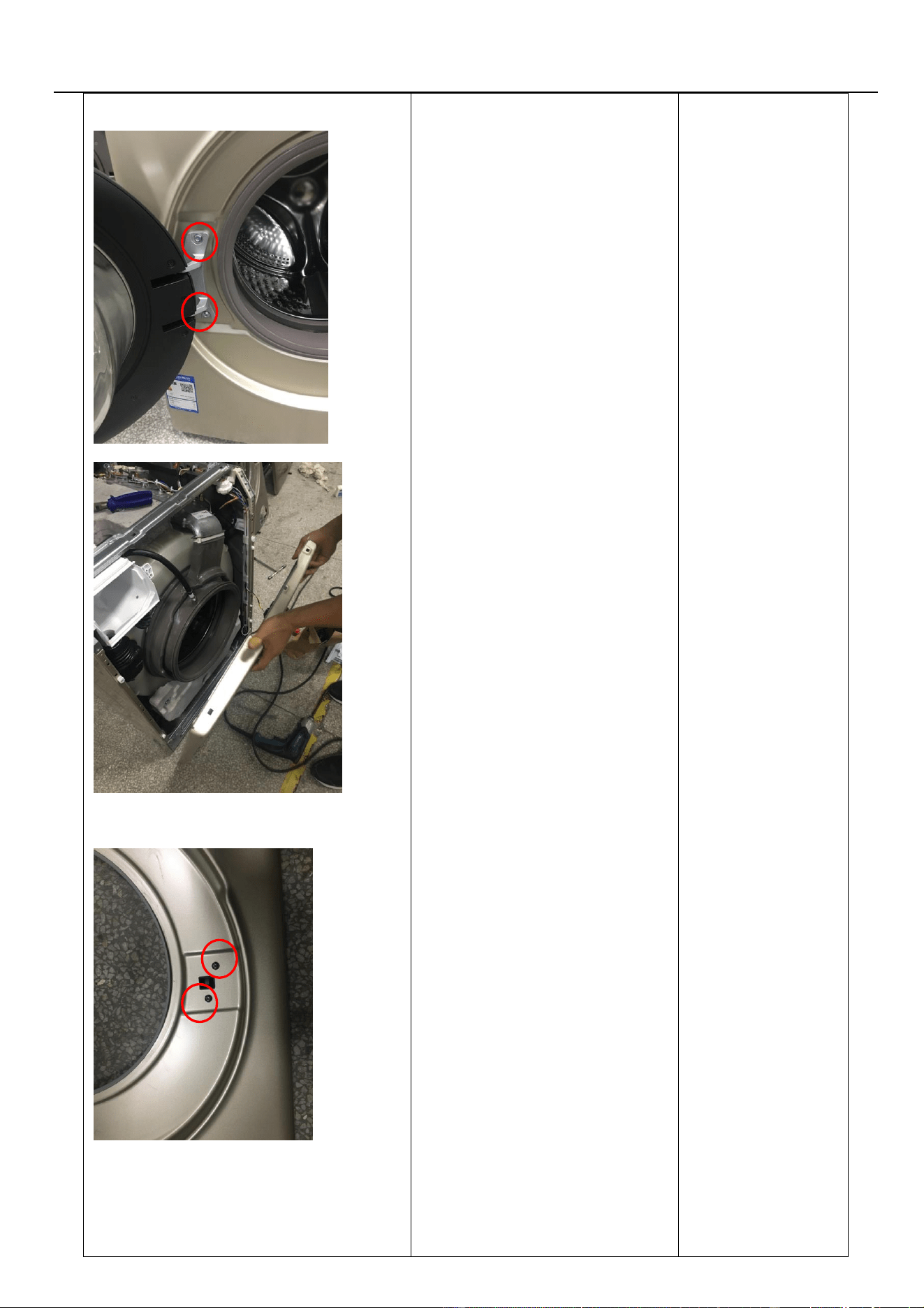

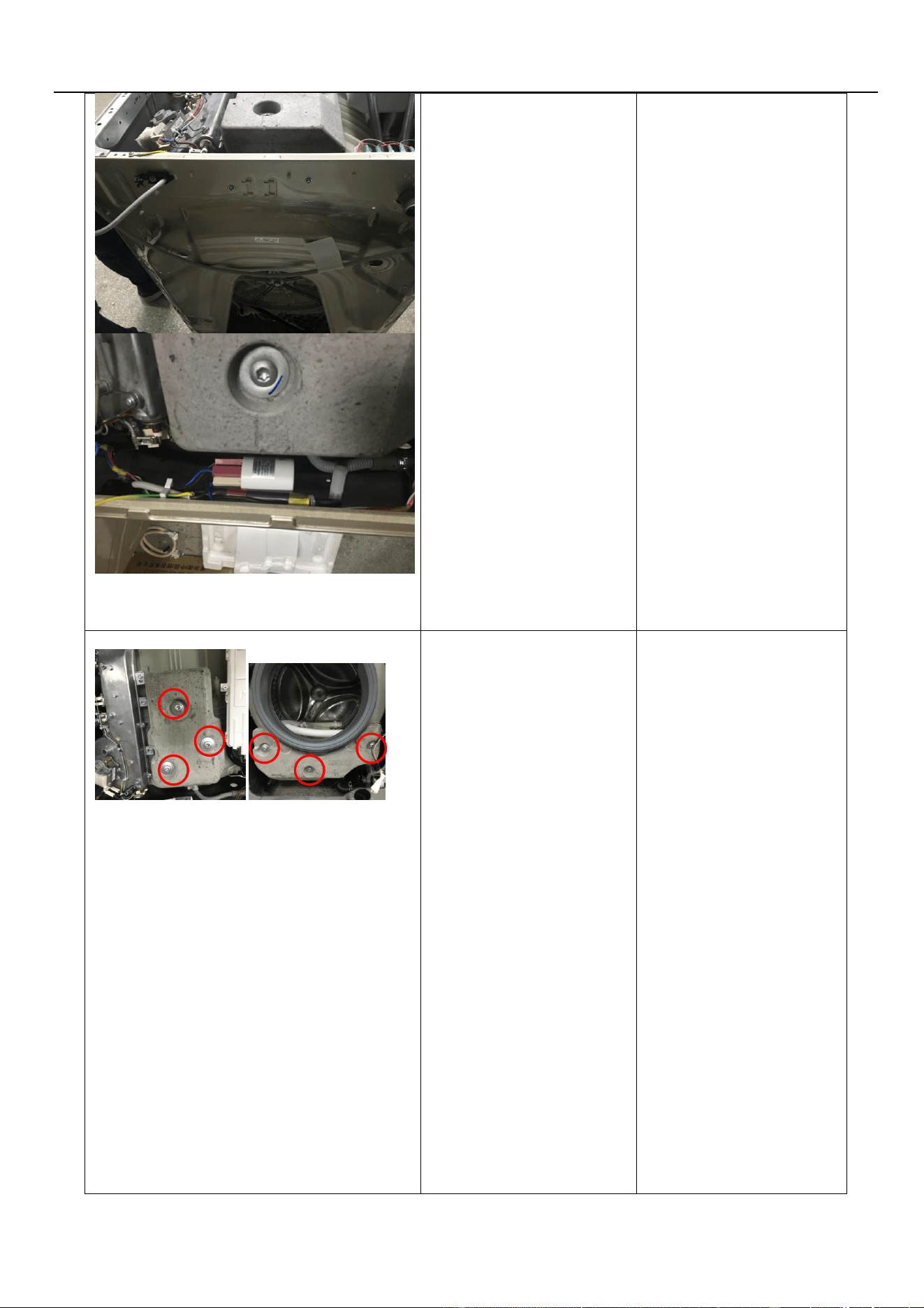

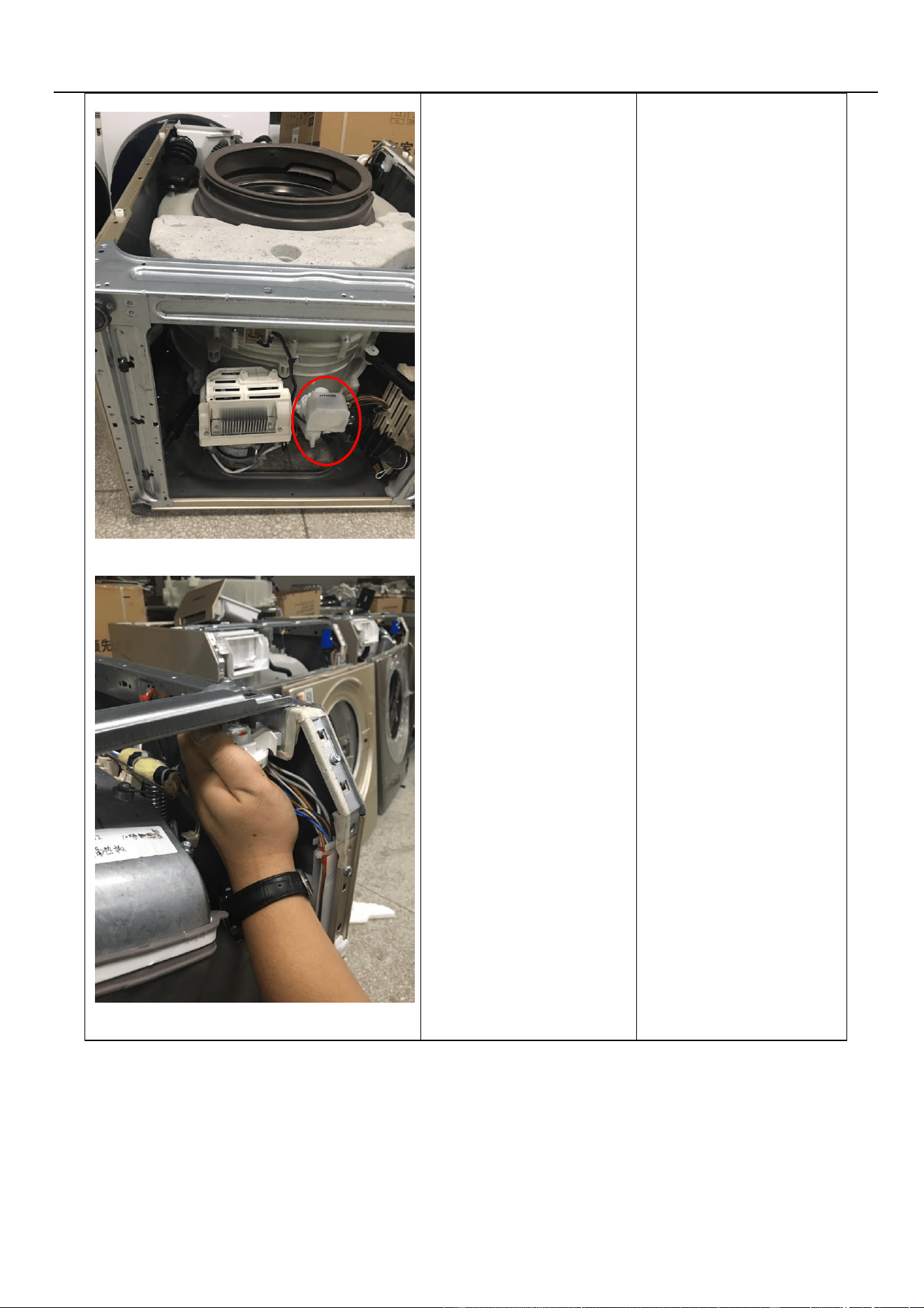

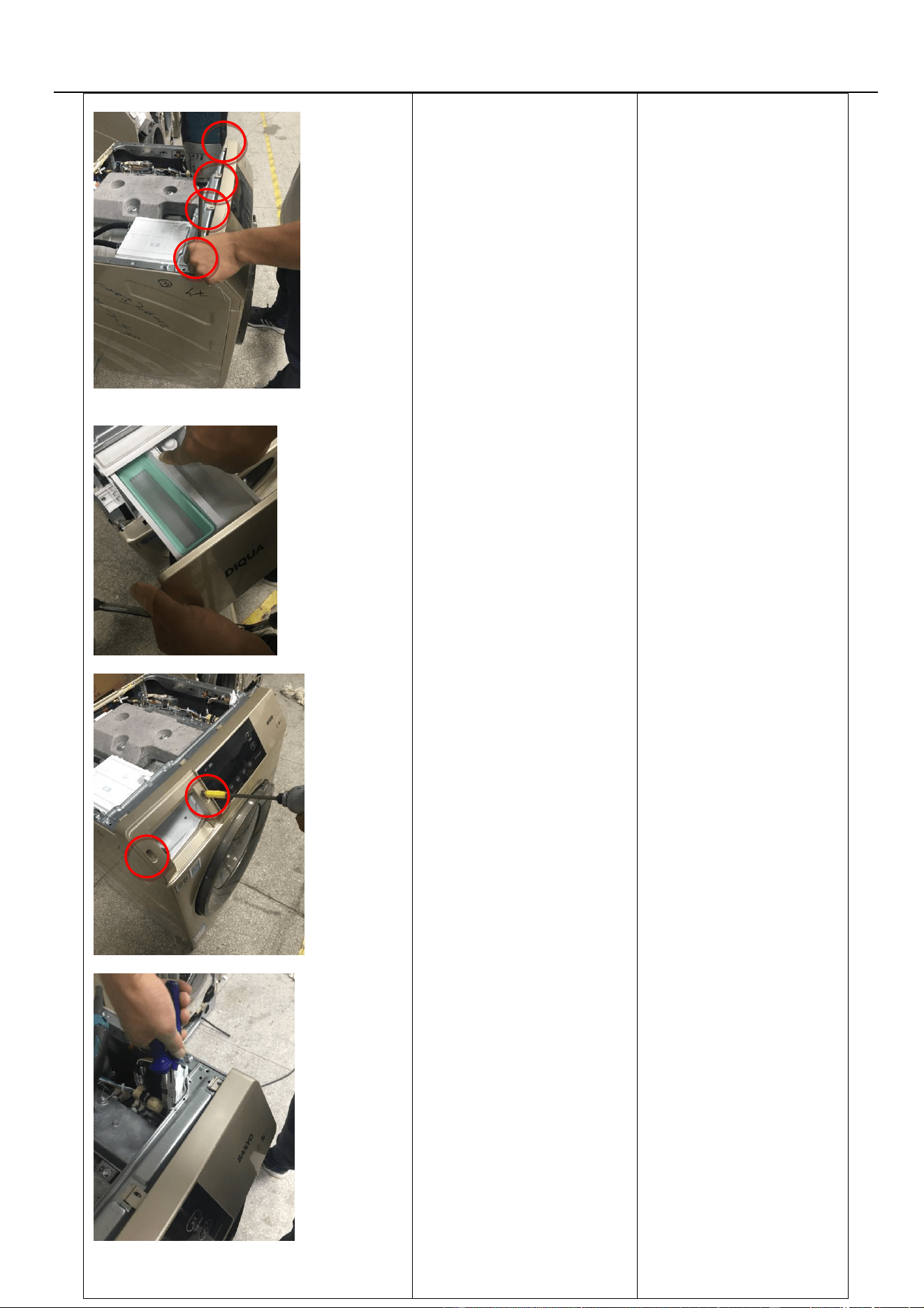

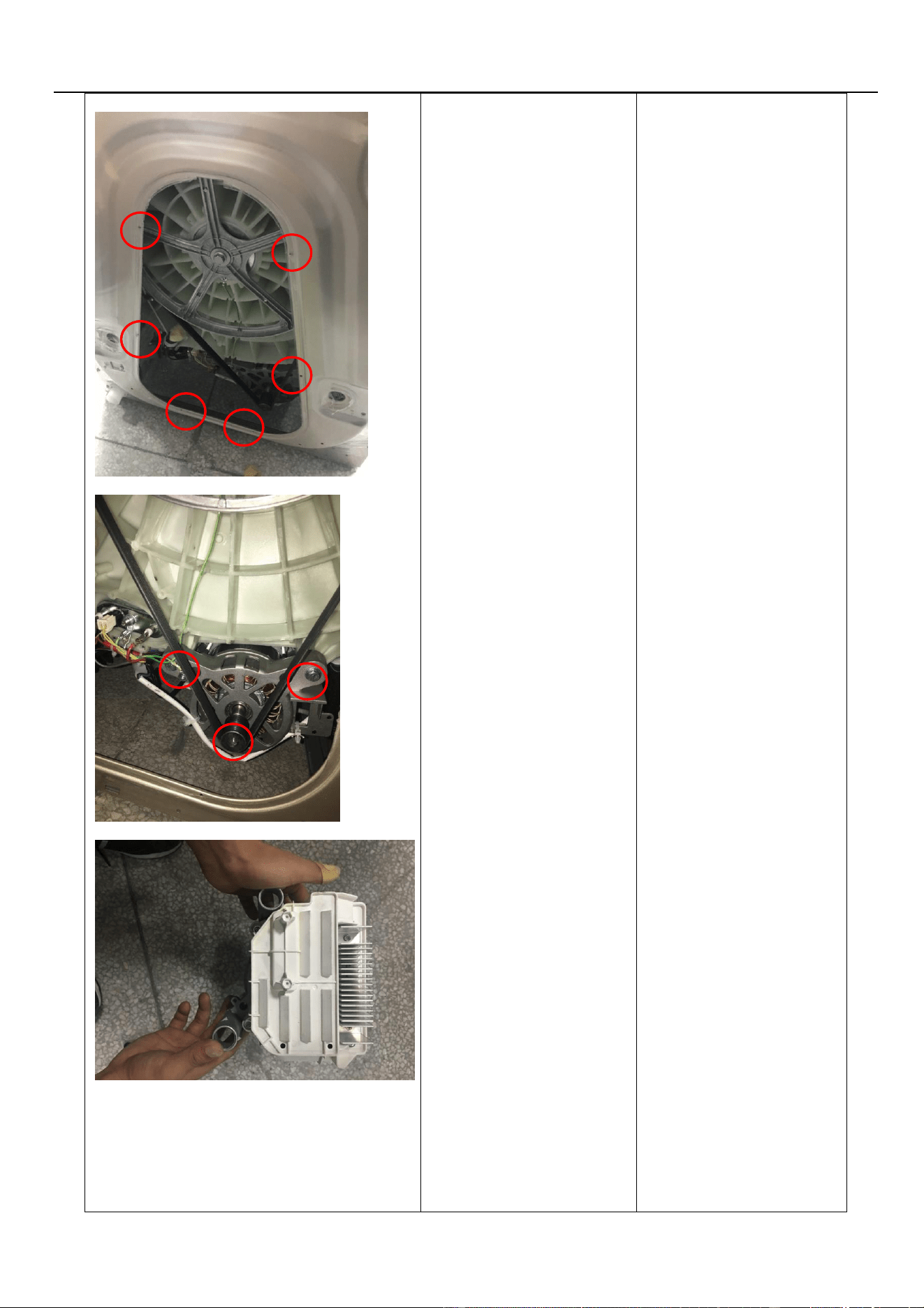

5. The machine decomposition step
6. Use precautions
[键入文字]
1.Product specification
Specifications of major components
Part name
Specification
Part name
Specification
Out tub （total
length of front and
back）
Material：PP+GF30
I
Back cover
SGCC, T1.0
Front cover
Material：PCM board，
Buzzer
Electric buzzer
Leg
The four legs are
adjustable.
Temperature
Sensor（for wash
heating）
Resistance R(50°C)＝19.73 kΩB
Parameter（25/85°C）= 3992K
Power On/Off
Light touch
Option switch
Knob type
Start/Pause
touch
Door lock
Strong open electromagnetic door
lock, double pulse unlock.
Water level Sensor
Diaphragm Water
Sensor
Valve Assembly
(two heads)
1). water pressure
：0.02~1.0Mpa
2). Maximum flow：
Main water inlet:8 L/min
Washing, spinning
motor
Universal motor：
220V-240V 50Hz
Washer heater
1800W
Water supply hose
PVC Hose about 1.0m
Drain pump
220-240V~,50Hz
0.25A
Class 155(F)
[键入文字]
2.Structure

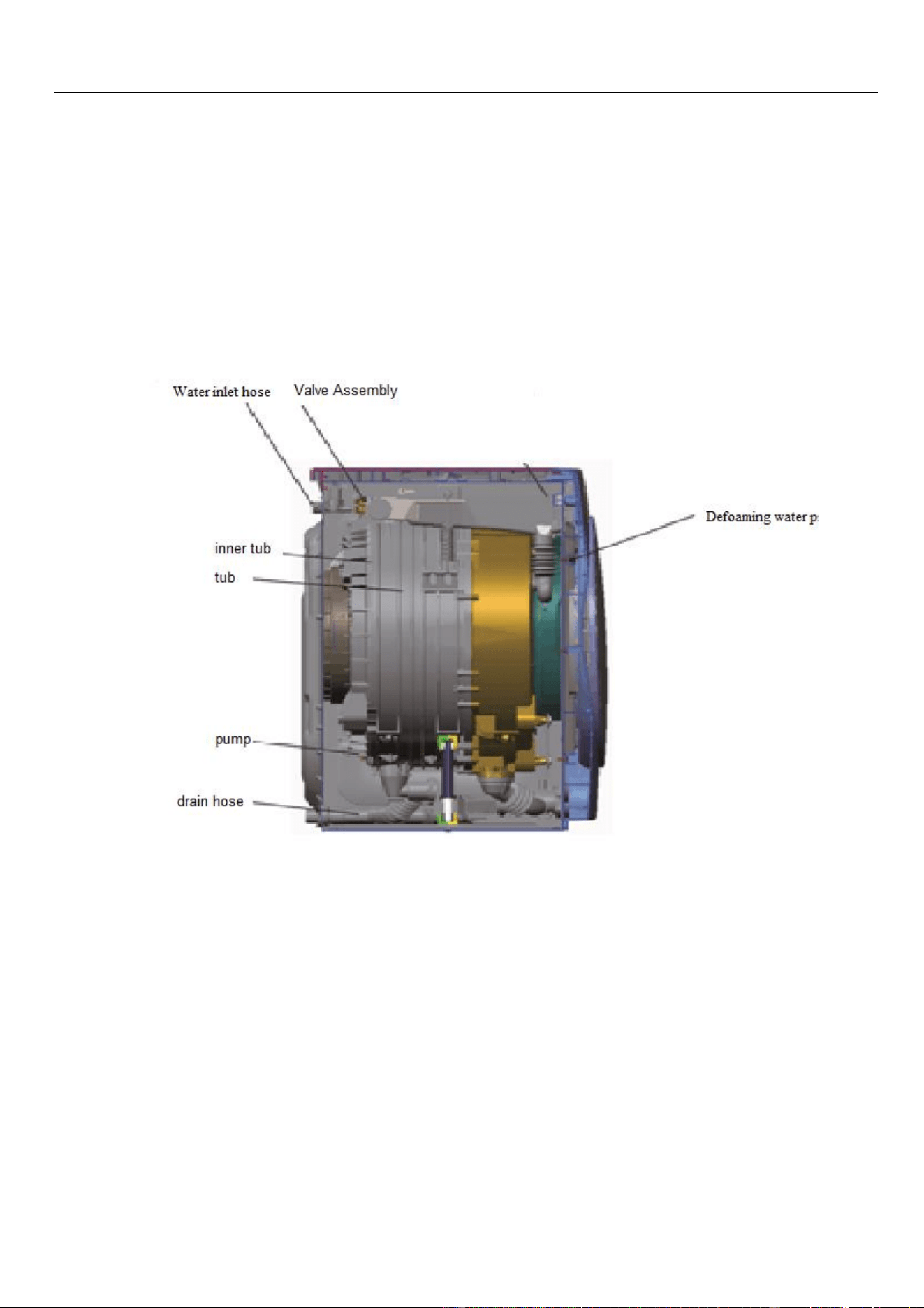

1. Structure diagram（Detailed assembly drawings）
2 Waterway system
Water inlet ：Water inlet pipe―→Valve Assembly―→water inlet hose―→Pour Inlet―→Feed
Hose―→Out Tub
Drainage：Spin tub out tub―→Drain pump―→Drain hose inside―→Drain hose
Defoaming：Water inlet pipe―→Valve Assembly―→water inlet hose―→Pour Inlet（Water inlet for pre-wash）―
→Defoaming export―→Out Tub
[键入文字]
3.The buttons and functions setting and displaying

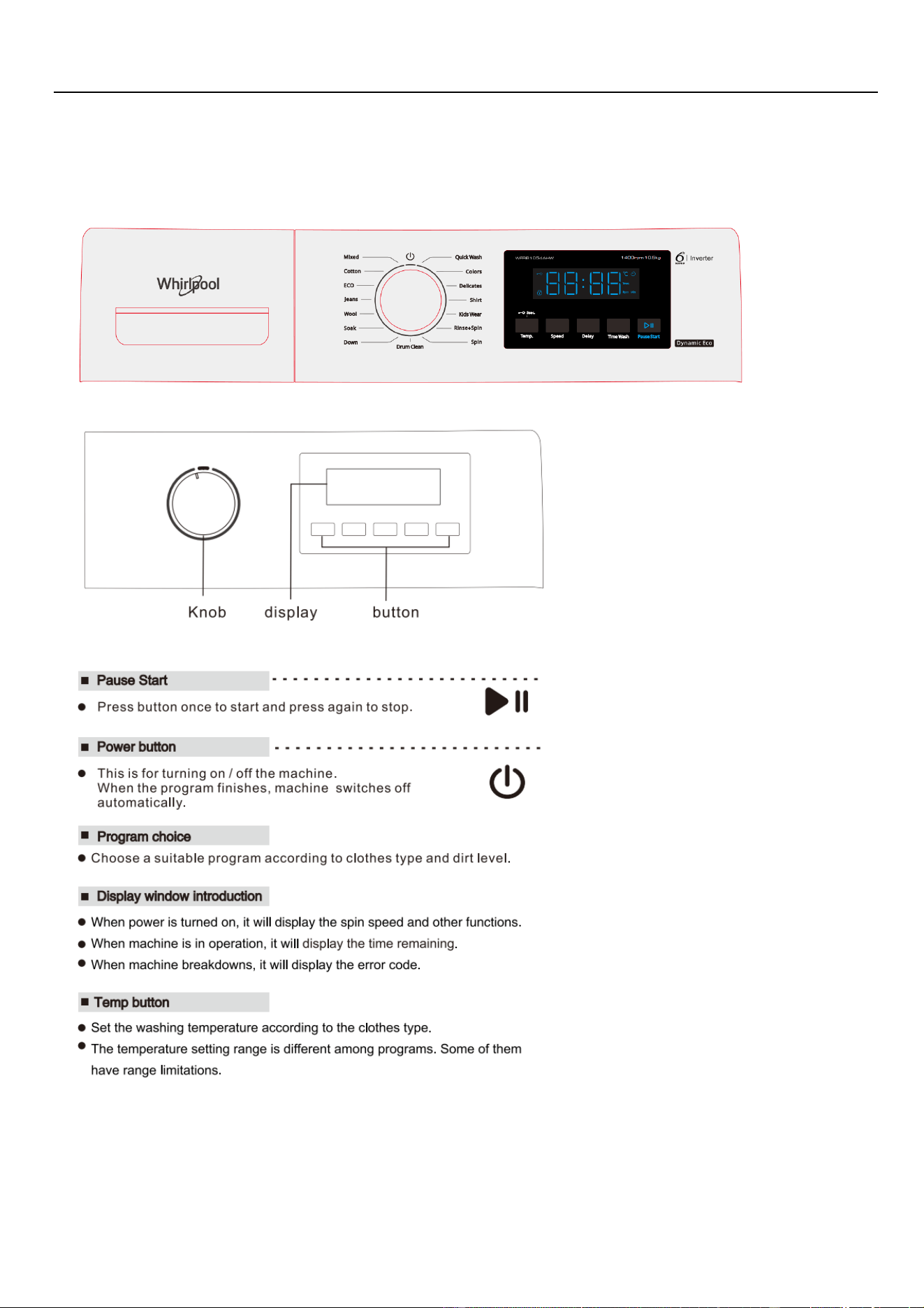

1、Control panel
[键入文字]

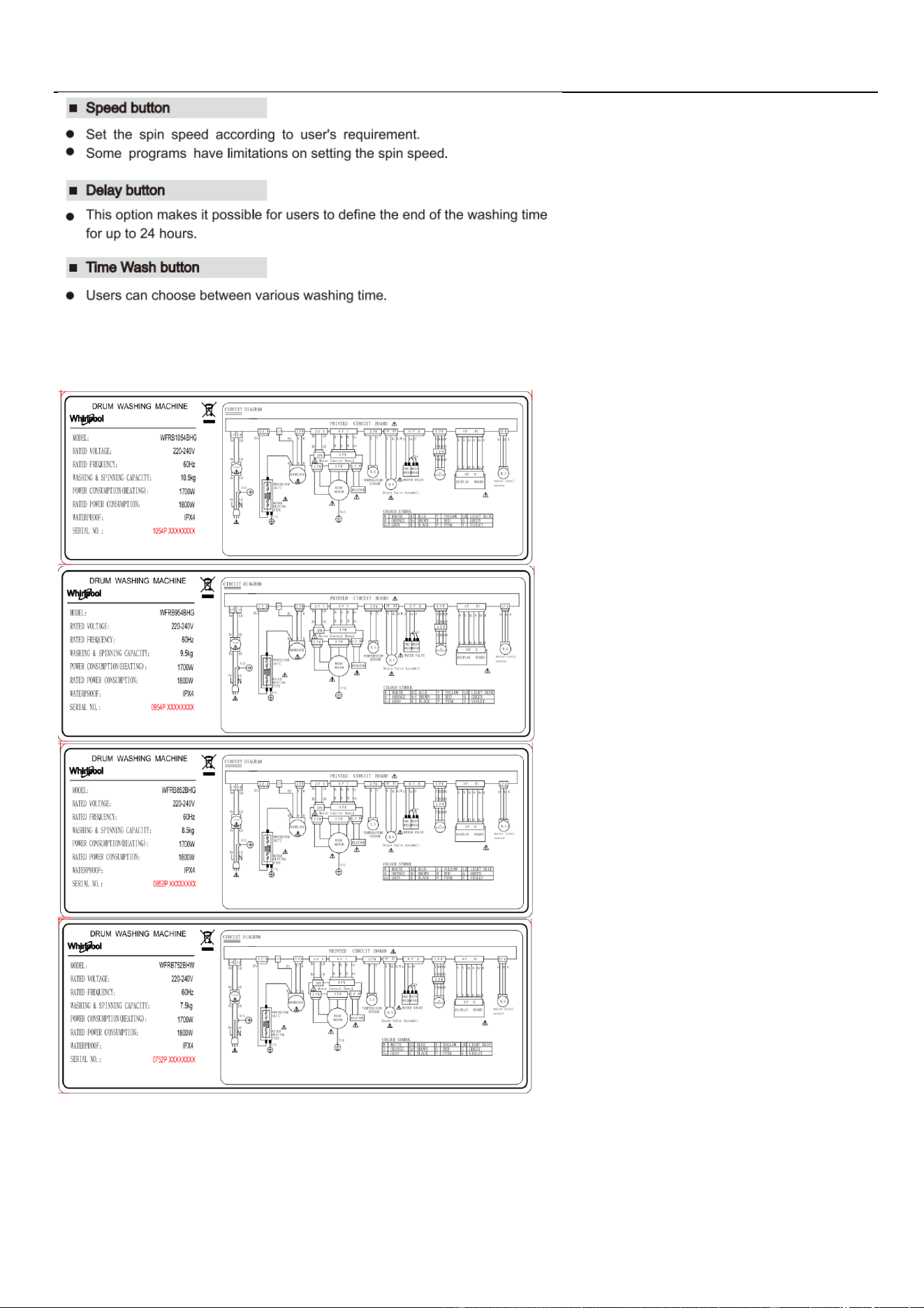

2、Specs label
[键入文字]

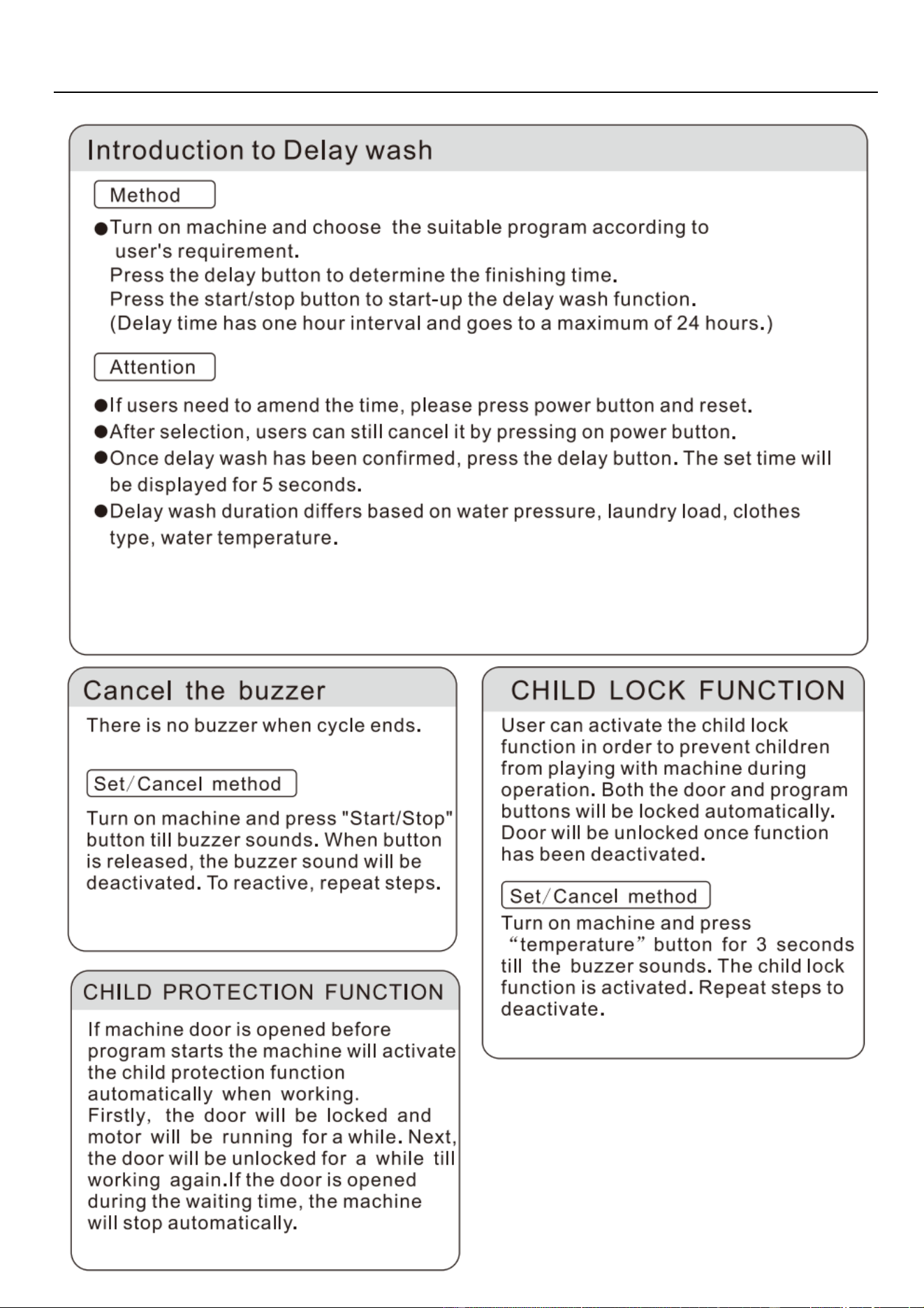

3、Various Functions
[键入文字]
4、No Trouble Conditions
[键入文字]

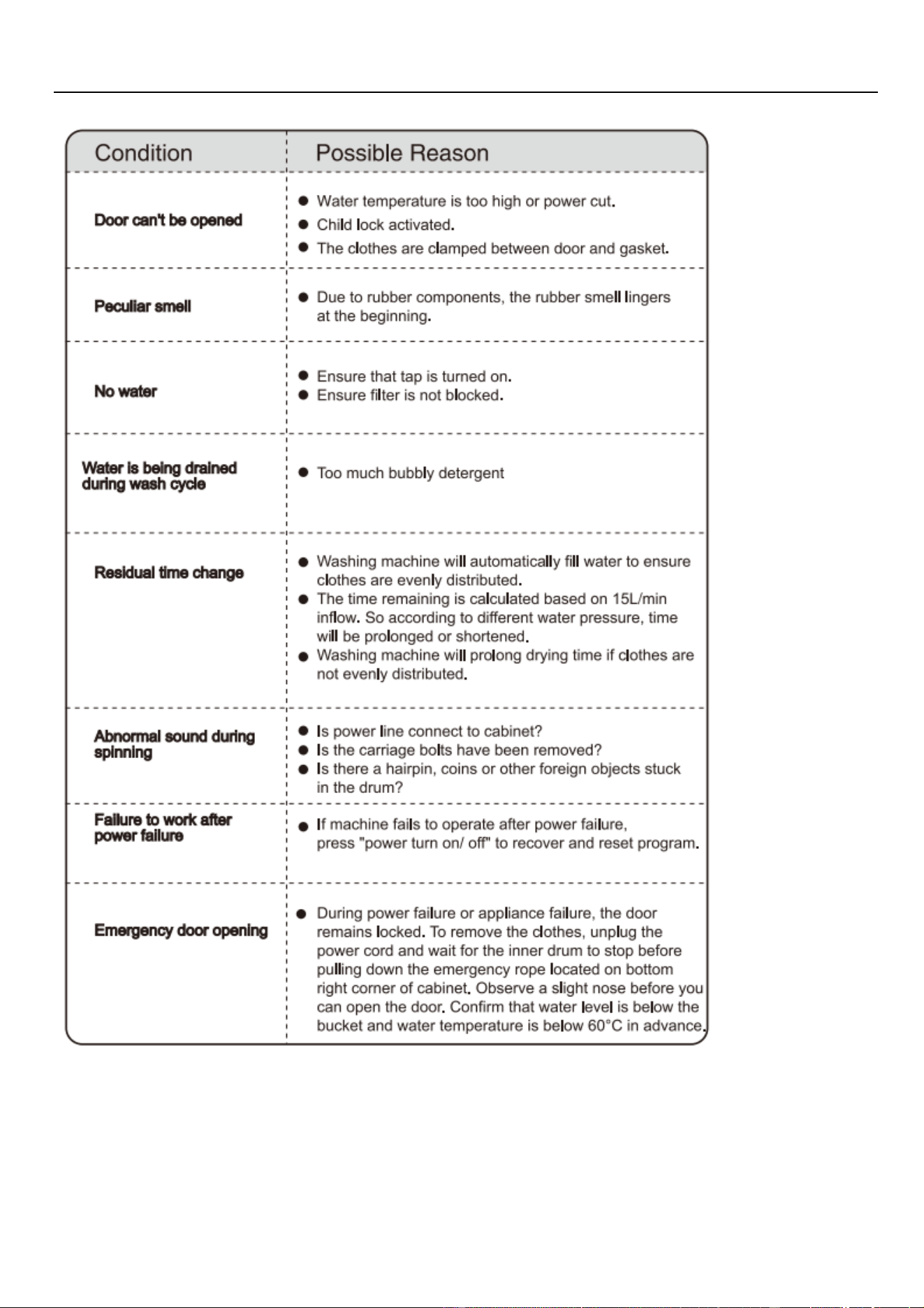

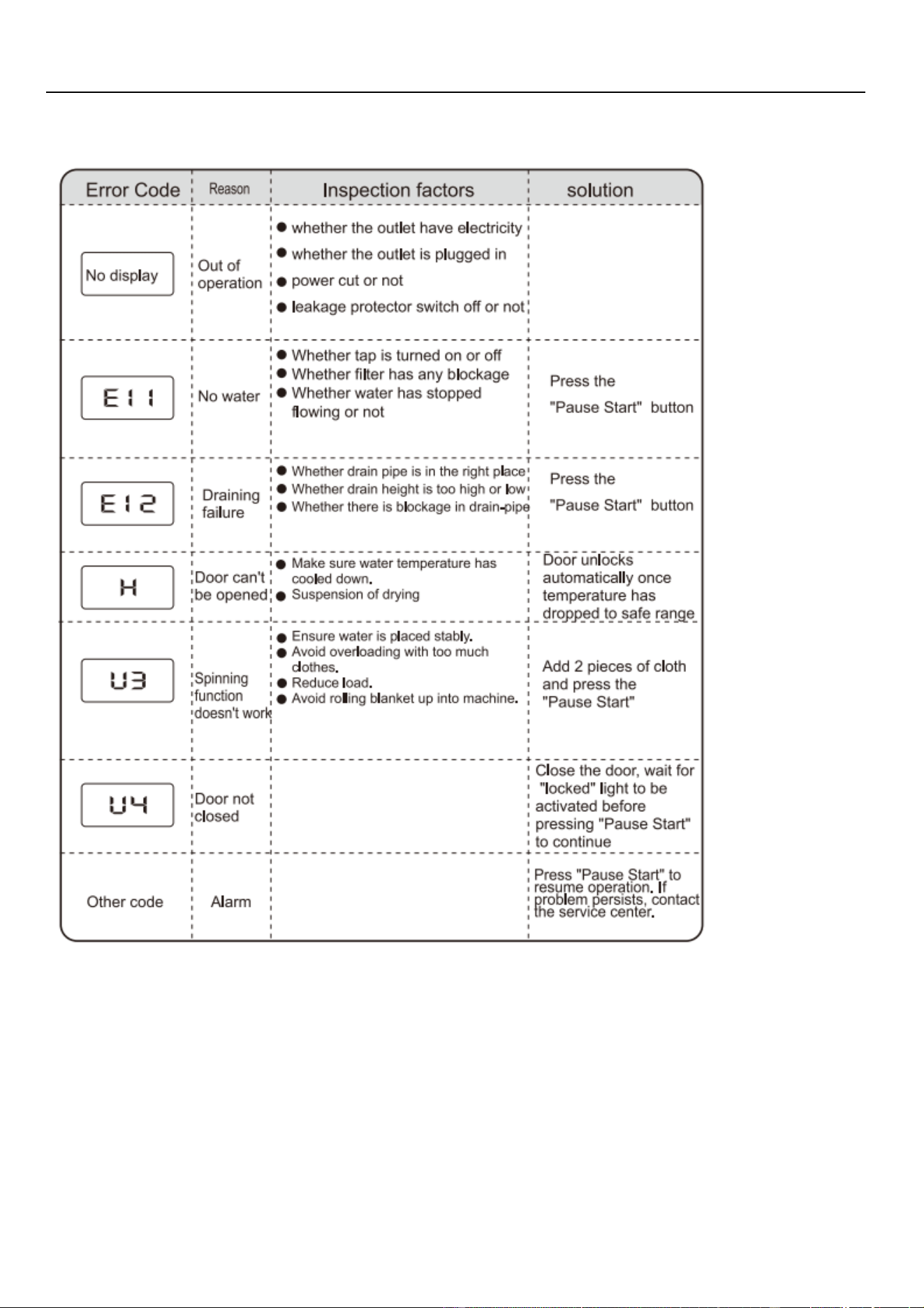

5、Trouble Shooting Guide
[键入文字]

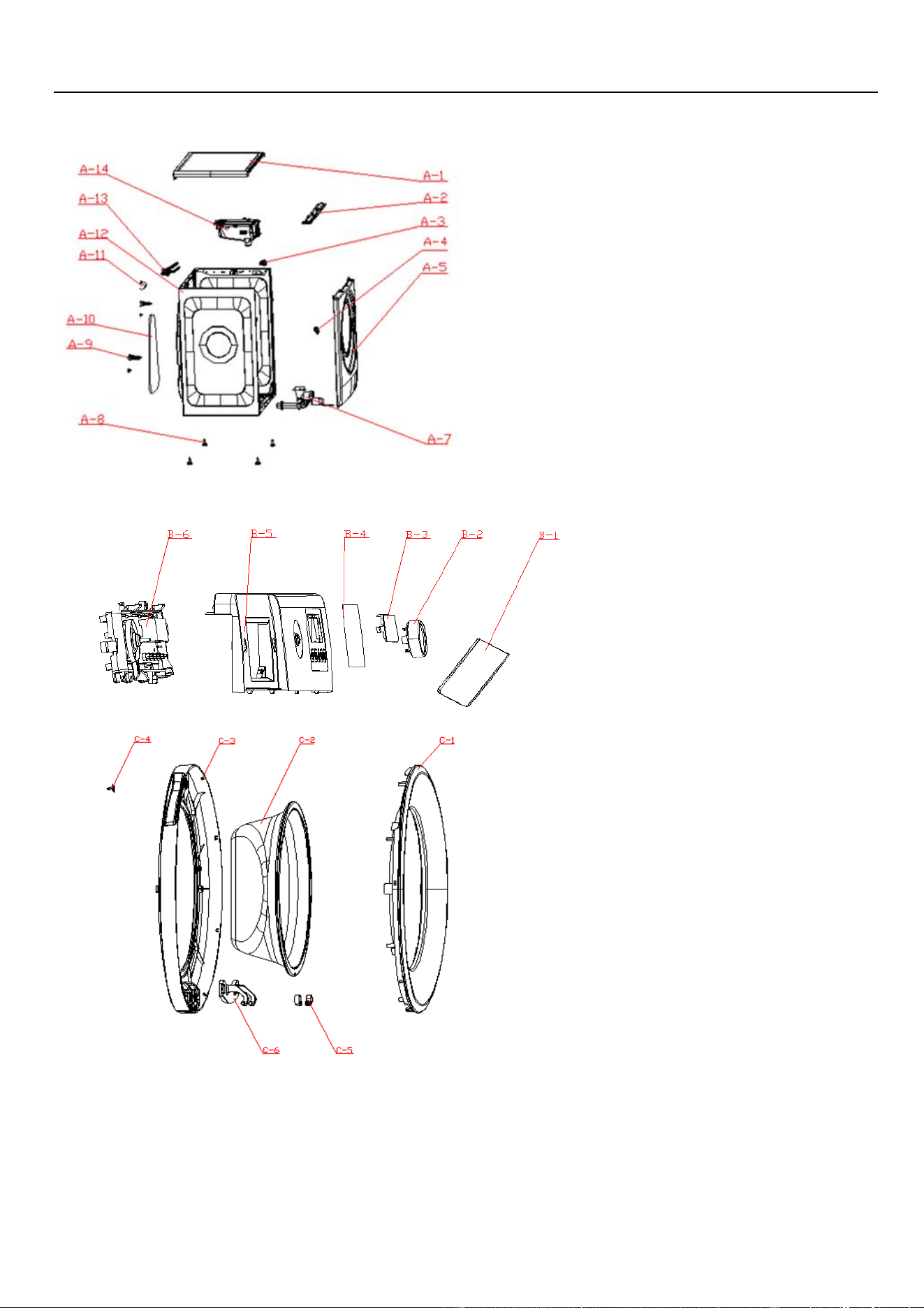

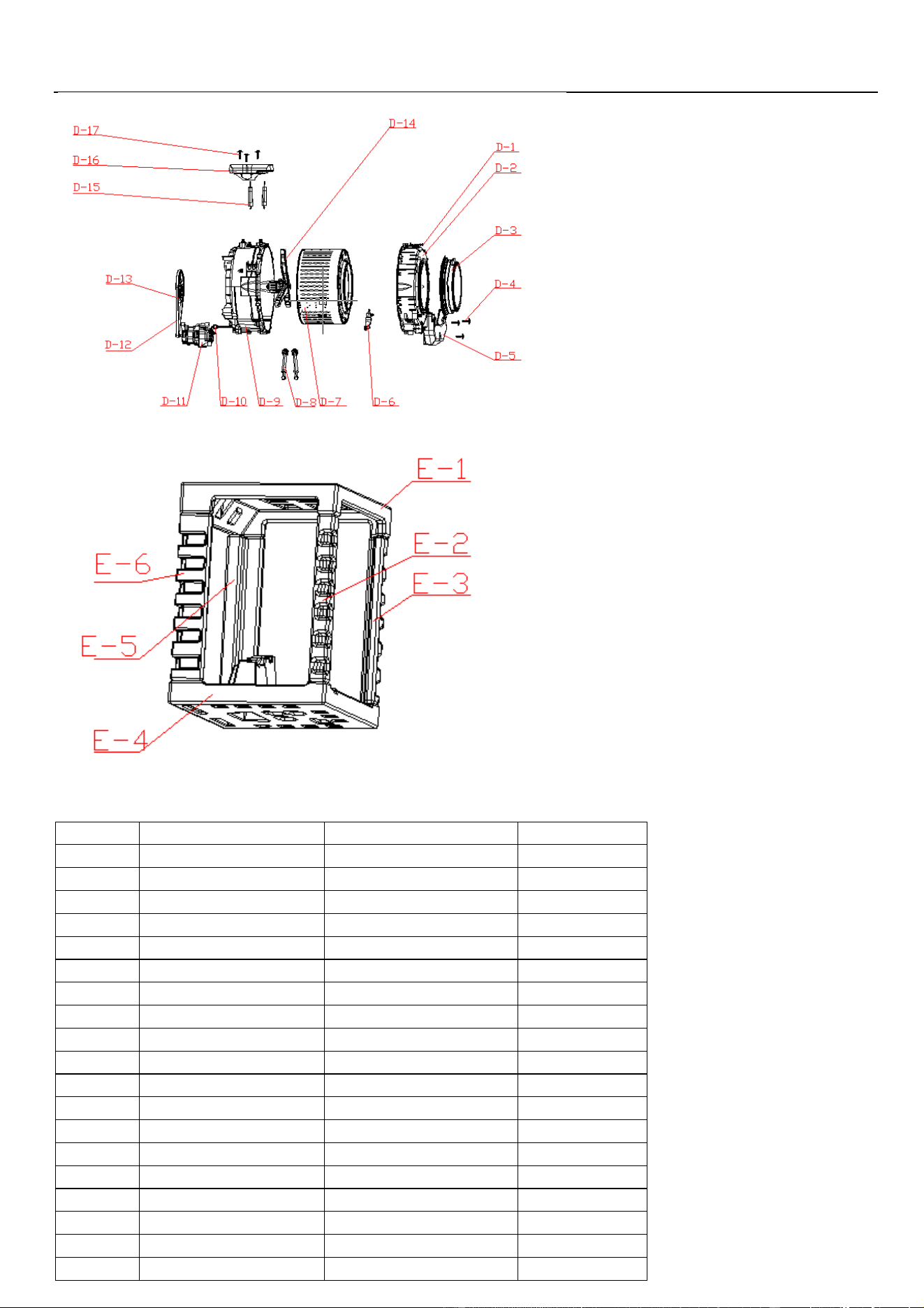

4. Explosive decomposition diagram
[键入文字]
WFRB1054BHG
A-1
301G16A004601
top cover kit
1
A-2
301G11A003649
Connection Panel
1
A-3
301G801600003
Water Sensor
1
A-4
301G80A004827
door lock
1
A-5
301G11A003660
cabient front
1
A-7
301G802700018
Drain Valve Assembly
1
A-8
301G14A002672
leg
4
A-9
301G99A005207
Transport bolt
4
A-10
301G11A002102
cabient back Cover
1
A-11
301G809000007
filter
1
A-12
301G11A001404
cabient
1
A-13
301G31A003725
inlet valve
1
A-14
301G31A007457
Pour Inlet Assembly
1
B-1
301G31A007813
Soap Box
1
B-2
301G18A003672
knob
1
B-3
301G18A003665
Control Plate mirror
1
B-4
301G18A006499
Control Plate sticker
1
B-5
301G16A007337
Control Plate
1
B-6
70C03575
computer board
1
C-1
301G15A003675
outer door
1
[键入文字]
C-2
301G15A003677
door glass
1
C-3
301G15A003676
inner door
1
C-4
301G152000008
door hook
1
C-5
301G15A003679
hinge cap
2
C-6
301G15A003678
door hinge
1
D-1
301G991000035
Screw
20
D-2
301G22A003656
front tub
1
D-3
301G15A004603
Outer Tub Gasket
1
D-4
301G991000011
counterweight Screw
3
D-5
301G221500021
lower counterweight
1
D-6
301G32A005375
Air Hose
1
D-7
301G24A003653
drum kit
1
D-8
301G221900006
damper
3
D-9
301G22A006364
back tub
1
D-10
301G80A005881
heater
1
D-11
301G80A006644
motor
1
D-12
301G22A002199
belt
1
D-13
301G22A002197
pulley
1
D-14
301G24A005361
spider
1
D-15
301G99A004726
spring
2
D-16
301G22A003659
upper counterweight
1
D-17
301G99A004641
counterweight Screw
3
E-1
301G901900011
packing top
1
E-2
301G902100027
packing side
1
E-3
301G902100026
packing side
1
E-4
301G901600008
packing bottom
1
E-5
301G902100025
packing side
1
E-6
301G902100024
packing side
1
WFRB954BHG
No.
Part ID
Part Name
quantity
A-1
301G16A004599
top cover kit
1
A-2
301G11A003649
Connection Panel
1
A-3
301G801600003
Water Sensor
1
A-4
301G80A004827
door lock
1
A-5
301G11A003660
cabient front
1
A-7
301G802700018
Drain Valve Assembly
1
A-8
3010143009140
leg
4
A-9
301G99A005207
Transport bolt
4
A-10
301G11A002102
cabient back Cover
1
A-11
301G809000007
filter
1
A-12
301G11A003702
cabient
1
A-13
301G31A003725
inlet valve
1
A-14
301G31A007457
Pour Inlet Assembly
1
B-1
301G31A007813
Soap Box
1
B-2
301G18A006795
knob
1
B-3
301G18A003665
Control Plate mirror
1
B-4
301G18A006489
Control Plate sticker
1
B-5
301G16A007337
Control Plate
1
B-6
70C02128
computer board
1
C-1
301G15A003675
outer door
1
C-2
301G15A003677
door glass
1
[键入文字]
C-3
301G15A003676
inner door
1
C-4
301G152000008
door hook
1
C-5
301G15A003679
hinge cap
2
C-6
301G15A003678
door hinge
1
D-1
301G991000035
Screw
20
D-2
301G22A003656
front tub
1
D-3
301G15A004603
Outer Tub Gasket
1
D-4
301G991000011
counterweight Screw
3
D-5
301G221500021
lower counterweight
1
D-6
301G32A005375
Air Hose
1
D-7
301G24A003717
drum kit
1
D-8
301G221900006
damper
2
D-9
301G22A003706
back tub
1
D-10
301G80A005881
heater
1
D-11
301G80A006637
motor
1
D-12
3012991703140
belt
1
D-13
301G221700002
pulley
1
D-14
301G24A003718
spider
1
D-15
301G99A004723
spring
2
D-16
301G22A003858
upper counterweight
1
D-17
301G991000011
counterweight Screw
3
E-1
301G90A003736
packing top
1
E-2
301G90A003735
packing side
1
E-3
301G90A003734
packing side
1
E-4
301G41A005411
packing bottom
1
E-5
301G90A003733
packing side
1
E-6
301G90A003731
packing side
1
WFRB852BHG
No.
Part ID
Part Name
quantity
A-1
301G16A004599
top cover kit
1
A-2
301G11A003649
Connection Panel
1
A-3
301G801600003
Water Sensor
1
A-4
301G802600006
door lock
1
A-5
301G11A003660
cabient front
1
A-7
301G802700018
Drain Valve Assembly
1
A-8
3010143009140
leg
4
A-9
301G99A005207
Transport bolt
4
A-10
301G11A002102
cabient back Cover
1
A-11
301G809000007
filter
1
A-12
301G11A003702
cabient
1
A-13
301G31A003725
inlet valve
1
A-14
301G31A007457
Pour Inlet Assembly
1
B-1
301G31A007813
Soap Box
1
B-2
301G18A006795
knob
1
B-3
301G18A003665
Control Plate mirror
1
B-4
301G18A007434
Control Plate sticker
1
B-5
301G16A007337
Control Plate
1
B-6
70C04108
computer board
1
C-1
301G15A003675
outer door
1
C-2
301G15A003677
door glass
1
C-3
301G15A003676
inner door
1
[键入文字]
C-4
301G152000008
door hook
1
C-5
301G15A003679
hinge cap
2
C-6
301G15A003678
door hinge
1
D-1
301G991000035
Screw
20
D-2
301G22A003656
front tub
1
D-3
301G15A004603
Outer Tub Gasket
1
D-4
301G991000011
counterweight Screw
3
D-5
301G22A003856
lower counterweight
1
D-6
301G32A005375
Air Hose
1
D-7
301G24A003866
drum kit
1
D-8
301G221900006
damper
2
D-9
301G22A003854
back tub
1
D-10
301G80A005881
heater
1
D-11
301G80A006637
motor
1
D-12
3012991703140
belt
1
D-13
301G221700002
pulley
1
D-14
301G24A003867
spider
1
D-15
301G99A004723
spring
2
D-16
301G22A003858
upper counterweight
1
D-17
301G991000011
counterweight Screw
3
E-1
301G90A003736
packing top
1
E-2
301G90A003735
packing side
1
E-3
301G90A003734
packing side
1
E-4
301G90A003731
packing bottom
1
E-5
301G90A003733
packing side
1
E-6
301G90A003732
packing side
1
WFRB752BHW
No.
Part ID
Part Name
quantity
A-1
301G16A004058
top cover kit
1
A-2
301G11A003649
Connection Panel
1
A-3
301G801600003
Water Sensor
1
A-4
301G802600006
door lock
1
A-5
301G11A004077
cabient front
1
A-7
301G802700018
Drain Valve Assembly
1
A-8
3010143009140
leg
4
A-9
301G99A005207
Transport bolt
4
A-10
301G11A004081
cabient back Cover
1
A-11
301G809000007
filter
1
A-12
301G11A004084
cabient
1
A-13
301G31A003725
inlet valve
1
A-14
301G31A007457
Pour Inlet Assembly
1
B-1
301G31A004079
Soap Box
1
B-2
301G18A006795
knob
1
B-3
301G18A003665
Control Plate mirror
1
B-4
301G18A007443
Control Plate sticker
1
B-5
301G18A006639
Control Plate
1
B-6
70C04108
computer board
1
C-1
301G15A005688
outer door
1
C-2
301G15A003677
door glass
1
C-3
301G15A003676
inner door
1
C-4
301G152000008
door hook
1
[键入文字]
C-5
301G15A003679
hinge cap
2
C-6
301G15A003678
door hinge
1
D-1
301G991000035
Screw
20
D-2
301G22A003656
front tub
1
D-3
301G15A004603
Outer Tub Gasket
1
D-4
301G991000011
counterweight Screw
3
D-5
301G22A003856
lower counterweight
1
D-6
301G32A005375
Air Hose
1
D-7
301G24A003866
drum kit
1
D-8
301G221900006
damper
2
D-9
301G22A003854
back tub
1
D-10
301G80A005881
heater
1
D-11
301G80A006637
motor
1
D-12
3012991703140
belt
1
D-13
301G221700002
pulley
1
D-14
301G24A003867
spider
1
D-15
301G99A004723
spring
2
D-16
301G22A003858
upper counterweight
1
D-17
301G991000011
counterweight Screw
3
E-1
301G90A003736
packing top
1
E-2
301G90A003735
packing side
1
E-3
301G90A003734
packing side
1
E-4
301G90A003731
packing bottom
1
E-5
301G90A003733
packing side
1
E-6
301G90A003732
packing side
1
[键入文字]
5.Complete machine decomposition step
Photos
Process
Attention
1.Use bolts for transportation
fix
A.
Use a wrench to loosen the
transport fixing bolts (4
pieces), shake the bolt to the
right and left, pull it out, and
press it into the position of
the hole and align it with the
hole until it fits.
2.Top plate
B.
Remove the two fastening
screws at the rear.
C.
Drag backward to remove
the cover
1. Please confirm the
empty of the
washing machine
before
disassembling.
2. Please disconnect the
power plug before
disconnecting the
machine, disconnect
the inlet pipe and the
faucet, and connect
the drain pipe to the
drain outlet.
[键入文字]
3.Control panel
A.
Remove the upper part of
the control panel and the
four fastening screws under
the shelf。
B.
Hold down the tab at the
detergent box and pull
outwards to remove the
detergent box。
C.
Remove the two screws
from the detergent box,
remove the cable tie, and
remove the connector
harness under the control
board to take off the control
board
[键入文字]
4. Display board
A. After the control board is
fixed, the two screws of the
display board box are
dropped, and the six buckles
are removed to remove the
display board box.
B.
Remove the screws that hold the
display board, remove the harness
connector, and remove the display
board
[键入文字]
5.Door
A.
Remove the 2 screws on the hinge
to remove the door
6.Front cover
A.
Remove the 2 top and 3
bottom fastening screws on
the front cover
B.
Pull down the tight spring
C.
Unplug the harness connector,
then the front cover can be
removed
7.Door lock
Remove the 2 screws on the front
cover to fix the door lock, then you
can remove the door lock
[键入文字]
7. Water inlet and inlet
valve assembly
ARemove the fastening
screws for the valve and
inlet box assembly on the
back of the cabinet
B.Remove the 1 screw from
the illustration
C.With the vise clamped off
the water inlet hose, cut off
the cable tie, unplug the
harness connector, remove
the water inlet hose and
inlet pipe, remove the water
inlet box and inlet valve
assembly.
C.If it is not necessary, the
figure may not need to be
removed because it is difficult
to seal again after
dismantling.
。
D.Pick up the water inlet
box and deduct 6 clips
around the water inlet box
to take out the shower
[键入文字]
9Filter removal
Remove the two screws on
the rear side and remove the
filter harness connector.
10 Upper counterweight and
front counterweight
AUse a special tool to
remove the three screws
shown to remove the upper
counterweight and the front
counterweight
[键入文字]
12.Rear cover
A.Remove the six fastening
screws shown in the
illustration and remove the
back cover
13.Motor
Remove the 2 screws and
belt screws of the fixed
motor, unplug all the
harness connectors, and
cut off the cable tie to
remove the motor (the
drive board box is
connected to the motor)
14.Drive board box
A. Remove the 4 screws
that connect the driver
board box to the motor to
open the driver board box
[键入文字]
B.
Remove the 3 screws that
hold the drive plate and
unplug the rear wire
harness insert. The drive
plate can be removed.
C.
Reactor removal: Remove
2 screws on the driver
board cover to remove the
reactor
16.3D Sensor
A.
After the washing machine
is dumped, the two screws
of the 3D sensor screw are
lowered and the connected
harness plug is removed to
take off the 3D sensor
[键入文字]
17. Drain Valve Assembly
A.
Put down the washing
machine
B.
Remove the 3 screws and the
1 circlip
Take off the drain valve
assembly
18 Water level sensor
Hold the water level sensor
by hand, shake it left and
right, and then pull it out to
pull out the water level
sensor
[键入文字]
19.Components outside the
tub
A.
Remove the screws and
retaining springs that fix the
water level sensor vent
hose, remove the vent
hose, pull out the harness
connector, and separate it
from the tub
B.
Remove the temperature
sensor and other connectors
C.
Remove 3 shock absorbers
and remove the
suspension
[键入文字]
20. Out tub
A.
Two or three people work
together to force the tub
assembly from the lift
springs on both sides and
then pull it out of the box
and place it on the
protective floor at an
appropriate angle.
When doing this operation,
please pay attention to
your own safety, and pay
special attention to the
installation of the tub
(recovery) must be
installed in the shock
absorber piston rod inside
the damper barrel
6.Use Precautions
1. Adjust the washer steadily before using. Otherwise it will affect the dehydration shock.
2. When washing, try to use low foam detergent and the amount of detergent based on the detergent
manufacturer. Because too much detergent will produce excessive foam and it will affect the washing,
rinsing affection even lead to functional failure.
3. Before choosing the heat washing, it should confirm the clothes label is consistent with the set temperature.
