MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
BULLETIN NO.
54-00-3300
SERVICE PARTS LIST
CATALOG NO. 3300R
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
ROLL-ON™ 7200W/3600W 2.5kWh Power Supply
SERIAL NO.
DATE
July 2025
WIRING INSTRUCTION
N87A and B
Only maintenance, service, repairs, and replacements of parts as dened in the Operator's Manual
can be performed by the user.
All other repairs are to ONLY be performed by personnel authorized by MILWAUKEE TOOL.
Do not attempt to install other parts; this COULD void your tool warranty.
For service, parts, or inquiries, contact us:
• Customer Service at 1.800.SAWDUST (1.800.729.3878)
• E-Service tool repair at: www.milwaukeetool.com/e-service
• Find a local authorized MILWAUKEE service location at Milwaukeetool.com
• Find a MILWAUKEE factory Service Center Location or MILWAUKEE factory Central Repair
Center at Milwaukeetool.com. Send the following, prepaid and insured:
• Your name, address, and phone number
• Description of the issues
• Copy of the proof of purchase
• Tool, charger, and batteries involved with the issues
MILWAUKEE factory Central Repair Centers:
MILWAUKEE TOOL MILWAUKEE TOOL
Central Repair Central Repair
1401 Sycamore Avenue 2198 Southtech Drive
Greenwood, MS 38930 Greenwood, IN 46143

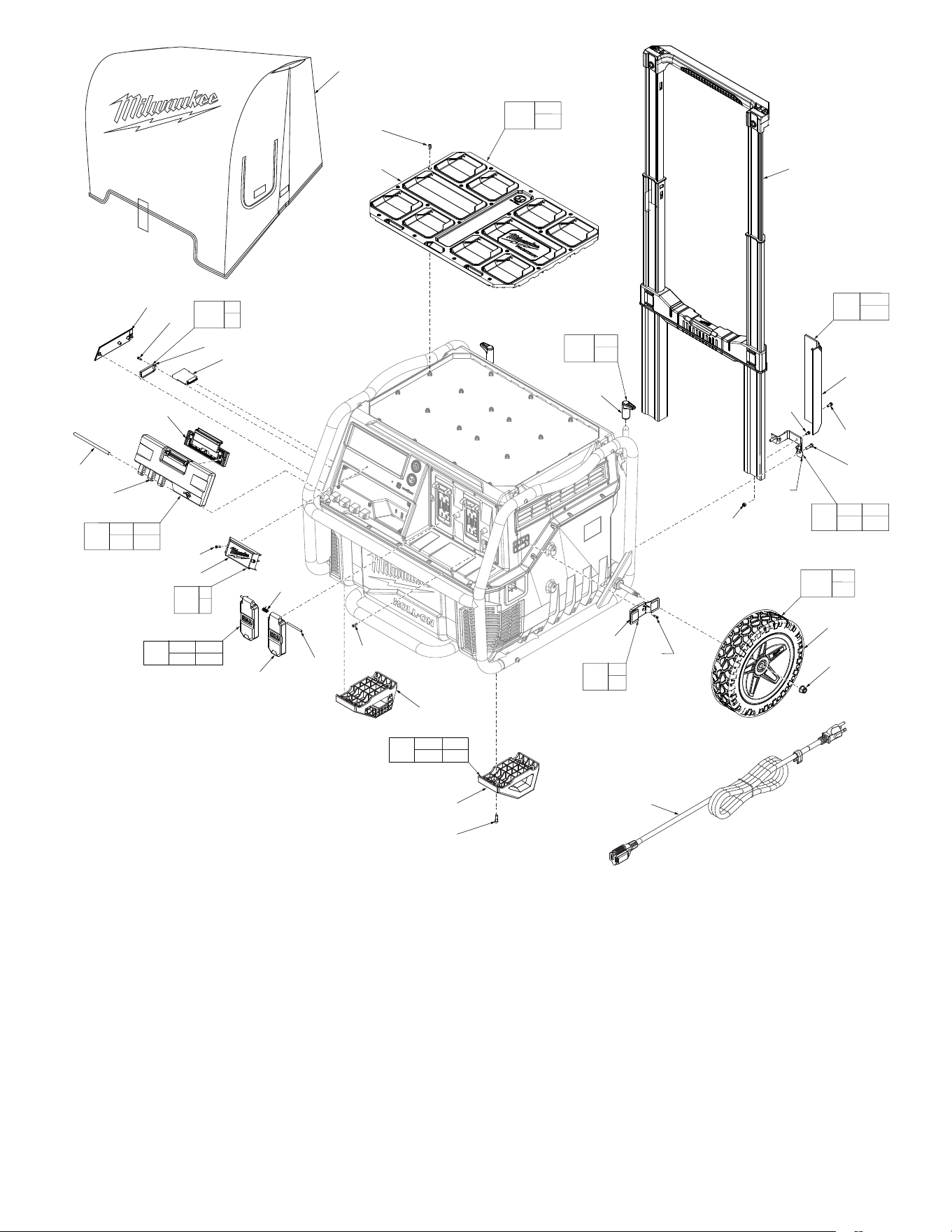

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 31-15-0228 ONE-KEY Card Cover Kit 1
2 05-74-0421 M3 x 16mm T-10 FH Screw 2
3 --------------- Decorative Front Cover 1
4 05-81-0005 M3 x 11mm T-10 PH Screw 4
5 --------------- Charger Cord Wrap 2
7 06-82-0154 M3 x 10mm T-10 TH Screw 1
8 --------------- Service Port Cover 1
10a 14-20-0291 ONE-KEY card 1
14a --------------- Outlet Cover 1
14b --------------- Pin 1
14c --------------- Spring 1
19 05-74-0544 M4 Screw w/Spring Washer & Nylock
1
24f --------------- Storage Door 1
24g --------------- Dowel Pin 1
24j --------------- Packout Plate Screws 19
24k --------------- Packout Plate 1
50 22-64-0026 Power Cord 6ft 1
51a --------------- Cord Wrap Tip 2
51b --------------- Handle Skid Plate 2
51c --------------- M4 x 20mm T-25 PH Screw 2
51d 48-22-8027 Handle Assembly 1
50
2
3
87
2
3
24g
24f
74
24f 24g
86
86
97
14a 14b
14c
14b
(2x)
14a
(2x)
14c
(2x)
51m
51h
(8x)
79
51h 51l
51m
5
(2x)
4
(4x)
84
4
5
53
(2x)
54
(2x)
116
53
54
24j
(19x)
24k
112
24j
24k
51d
51k
(2x)
51h
(4x)
51e
(2x)
51c
(2x)
51a
(2x)
51g
(4x)
51b
(2x)
73
51b
51g
72
51c 51e
51h 51k
76
7
8
1
7
8
10a
113
51a
114
19
51l
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
51e --------------- Bottom Handle Bracket 2
51g --------------- M4 x 20mm T-20 PH Screw 4
51h --------------- M5 x 20mm T-25 PH Screw 12
51k --------------- M4 Hex Nut with Nylon Insert 2
51l --------------- Left Leveling Foot 1
51m --------------- Right Leveling Foot 1
53 --------------- Wheel 2
54 14-46-1048 M8 Locknut w/Nylon Insert 2
72 14-46-1049 Mounting Bracket Kit 2
73 14-46-1050 Handle Skid Plate Kit (set of 2) 1
74 14-46-1051 Storage Cover Kit 1
76 14-46-1054 Service Port Cover Kit 1
79 14-46-1056 Roll Cage Feet Kit (set of 2) 1
84 31-15-0319 Cord Wrap Kit 2
86 14-46-1066 Storage Door Latch Kit 1
87 14-46-1067 Decorative Front Cover Kit 1
97 14-46-1078 Outlet Cover Kit 2
112 14-46-1091 Packout Plate Kit 1
113 14-46-1052 Cord Wrap Tip (set of 2) 1
114 48-11-3300 Cover (Accessory) 1
116 14-46-1046 Wheel Kit 2
