SERVICE PARTS LIST
BULLETIN NO.
Feb. 2023
STARTING
SERIAL NO.
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
00
0
WIRING INSTRUCTION
Pages 3 thru 4
DATEREVISED BULLETIN
54-07-2845
M18™ CARRY-ON™ 3600W/1800W Power Supply
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
2845-20
CATALOG NO.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-74-0490 M6 x 15 Screw 4
2 05-74-0491 M6 x 20 Screw 16
3 --------------- Roll Cage 2
7 05-74-0492 PA3 x 8 Screw 4
8 05-74-0493 PA3.5 x 14 Screw 9
10 44-34-0037 Rubber Foot 4
11 05-74-0494 PA3.5 x 20 Screw 44
12 --------------- Rear Cover 1
13 --------------- USB Module 1
15 --------------- PCBA Bracket 1
16 05-74-0495 PA2.5 x 8 Screw 4
17 --------------- Key Cap 1 1
18 --------------- Key Cap 2 1
19 --------------- HMI Board Module 1
20 --------------- Button 1
21 --------------- Front Cover 1
22 44-06-0073 IMD Lens 1
23 05-74-0496 PA3 x 12 Screw 4
26 05-74-0497 M4 x 10 Screw 2
27 --------------- Gasket 1
28 22-68-0051 USB-A Cover 1
29 22-68-0052 USB-C Cover 1
31 --------------- AC Plug 1
32 --------------- Control Board Module 1
33 --------------- Inverter Module 1
34 --------------- Bottom Cover 1
50 05-74-0498 PA3 x 35 Screw 1
M30A and B
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 3
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
51 --------------- Fan 1 1
52 --------------- Fan 2 1
60 31-44-0463 Rear Housing Kit 1
61 42-46-0022 Roll Cage Kit 1
62 31-44-0476 H Handle Kit 1
63 31-44-0477 Main Housing Assembly 1
64 22-84-0020 Fan Kit 1
65 31-44-0478 Front housing 1
66 --------------- IMD Lens Kit 1
67 31-12-0069 AC Plug In Socket Kit 1
68 14-20-0369 HMI PCBA Kit 1
69 31-15-0157 Front Cover Plug / USB Port Kit 1
70 42-42-0148 HMI Button Kit 1
71 23-37-0015 Inverter PCBA Kit 1
72 14-20-0434 Control PCBA Kit 1
73 43-92-0010 Bonding Lug Kit 1
74 31-15-0232 USB PCBA Kit 1
75 31-44-0479 Front Housing Kit 1
76 22-64-0217 Power Cord 1
77 12-20-0186 Service Nameplate (Not Shown) 1
78 10-20-7142 Warning Label (Not Shown) 1
79 49-16-2845 Shoulder Strap (Accessory) 1
80 22-68-0037 Bottom Cover Kit 1
See page two for Front Cover Plug /
USB Port Kit (69) detail.
*
*

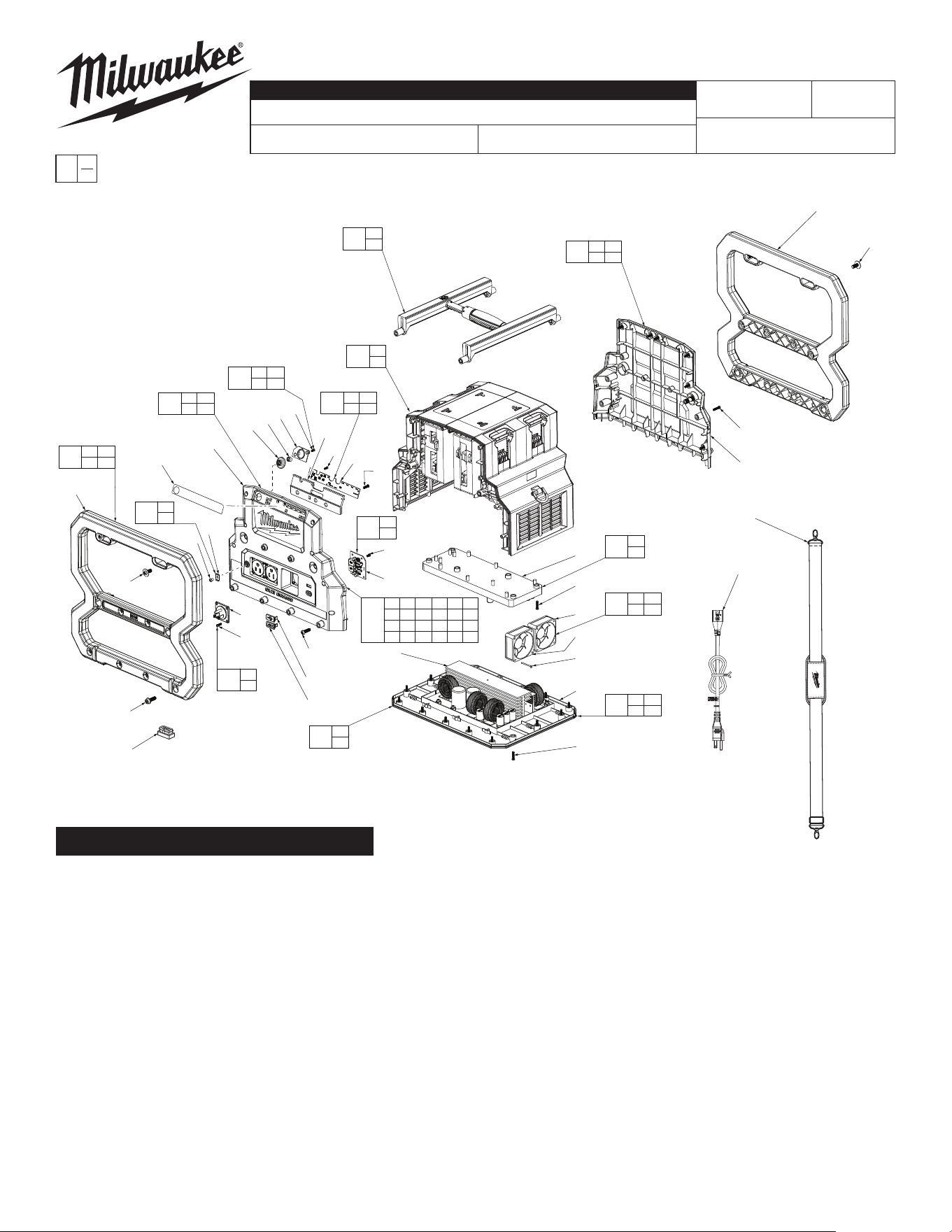

SERVICE PARTS EXPLODED VIEW
30
26
26
27
8
x6
13
7
x4
69
7 8 13 14 23 24 25
26 27 28 29 30 31
23
x4
31
23
x4
29
28
14
23x2
24x2
25
81
23 24
25
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
7 05-74-0492 PA3 x 8 Screw 4
8 05-74-0493 PA3.5 x 14 Screw 6
13 --------------- USB Board Module 1
14 --------------- Panel 1
23 05-74-0496 PA3 x 12 Screw 14
24 --------------- PCBA Mounting Clip 2
25 --------------- Adapter Board 1
26 05-74-0497 M4 x 10 PW Screw 2
27 --------------- Gasket 1
28 22-68-0051 USB-A Cover 1
29 22-68-0052 USB-C Cover 1
30 --------------- AC Plug Out 2
31 --------------- AC Plug In 1
69 31-15-0157 Front Cover Plug / USB Port Kit 1
81 31-12-0281 AC Plug PCBA Kit 1

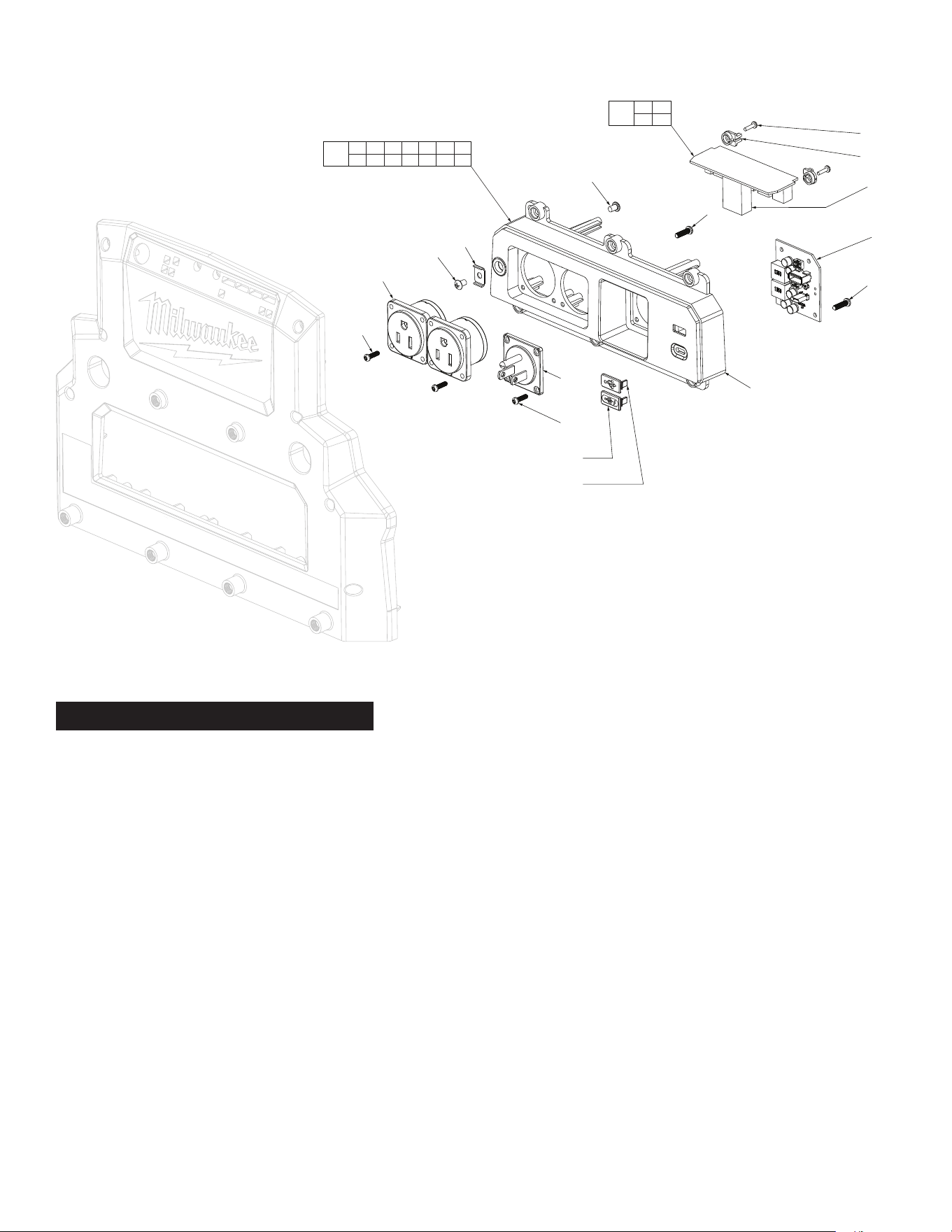

SERVICE PARTS EXPLODED VIEW
Follow wire orientation of Main
Housing Assembly (63) wires to
Inverter PCBA (71).
Wire harness from Main Housing
Assembly (63) will have glued
connection points in key wire traps.
Wire trap or channel.
Fan connection
points.
WIRE ROUTING
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
Wire trap or channel.
White glue-
UB618
5.6g
White glue-
UB618
8.5g
RTV-TS-45
(NO2)
3.56g
Ground wires are connected
to Bonding Lug (73).

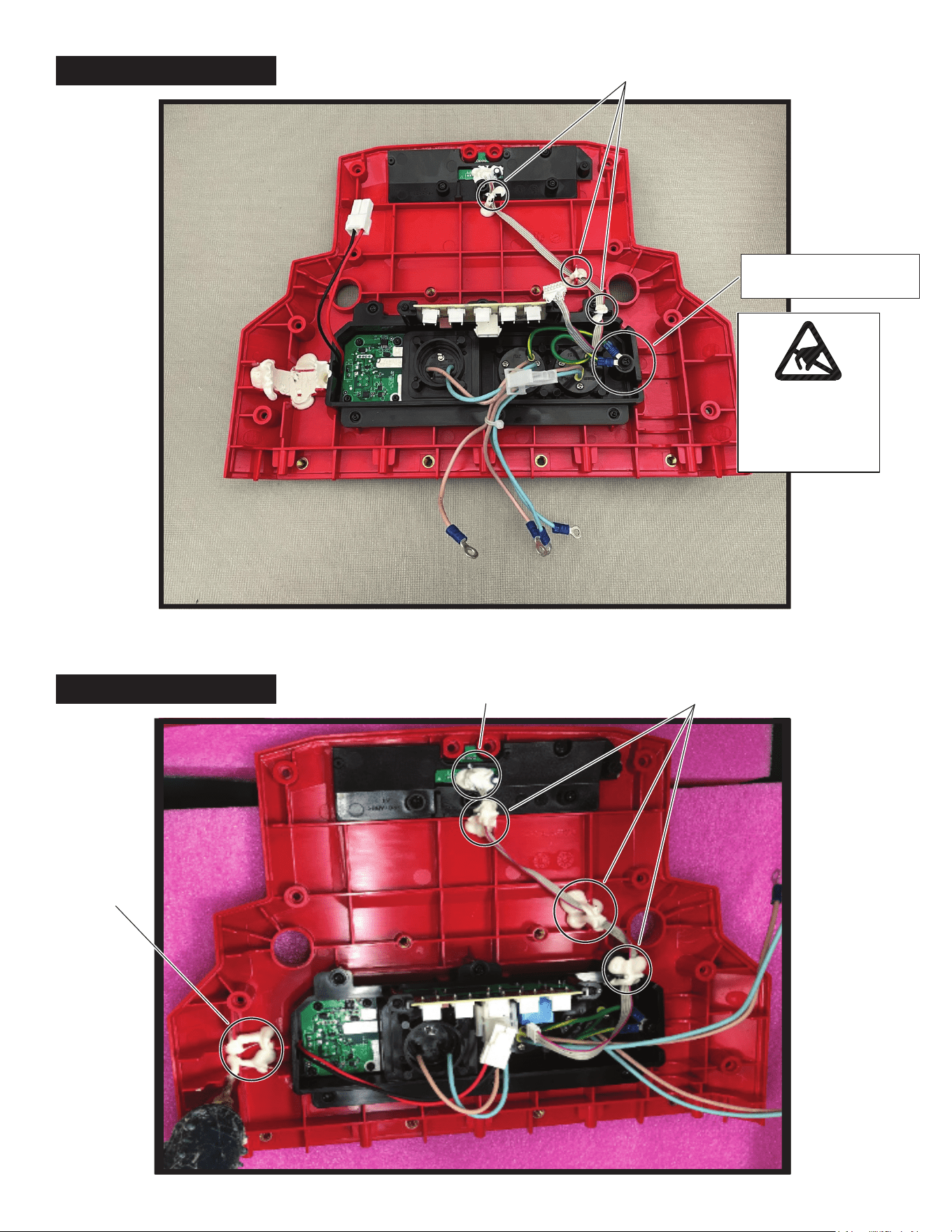

WIRE ROUTING (cont.)

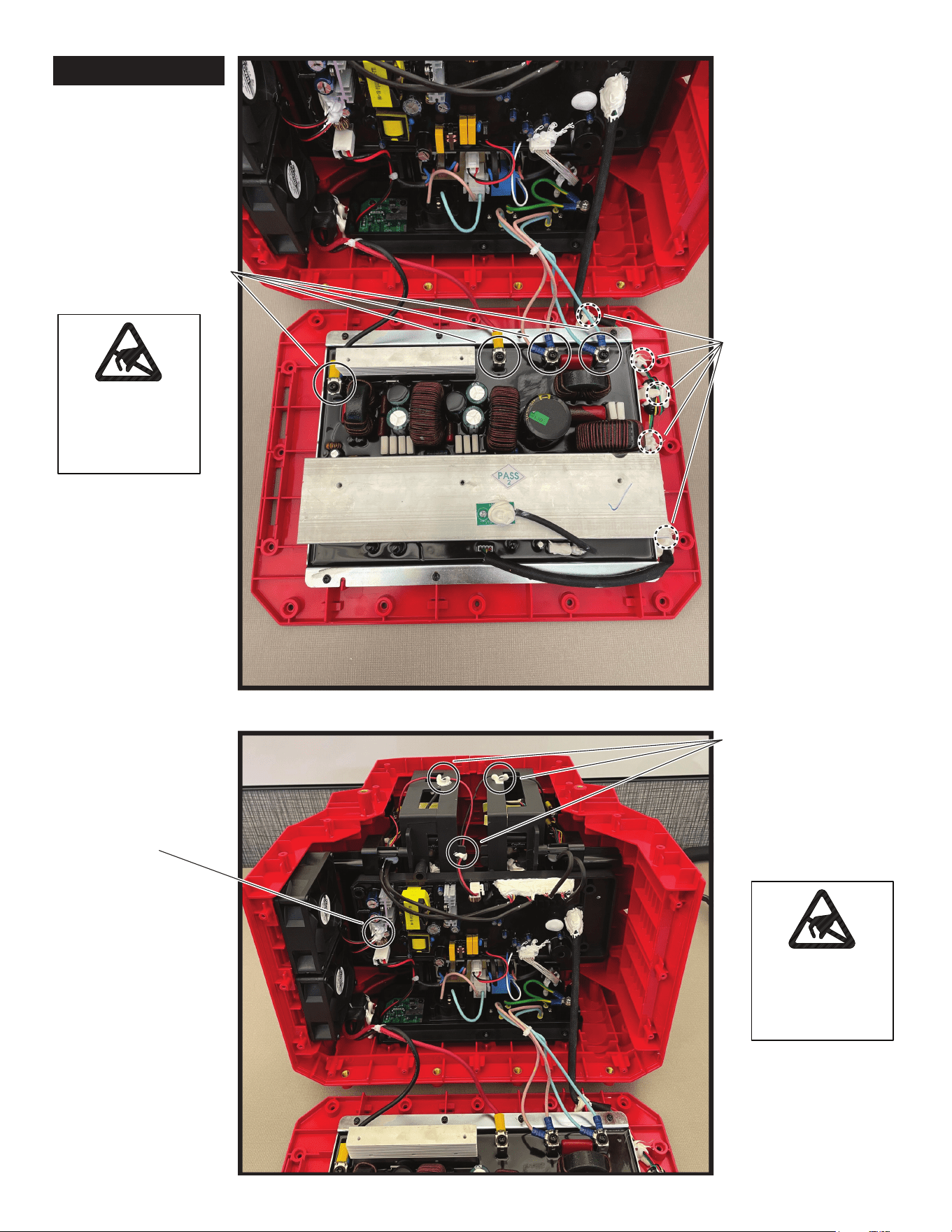

GLUE LOCATIONS
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
1
2
3
6
4
5
White glue-UB618
21.55g

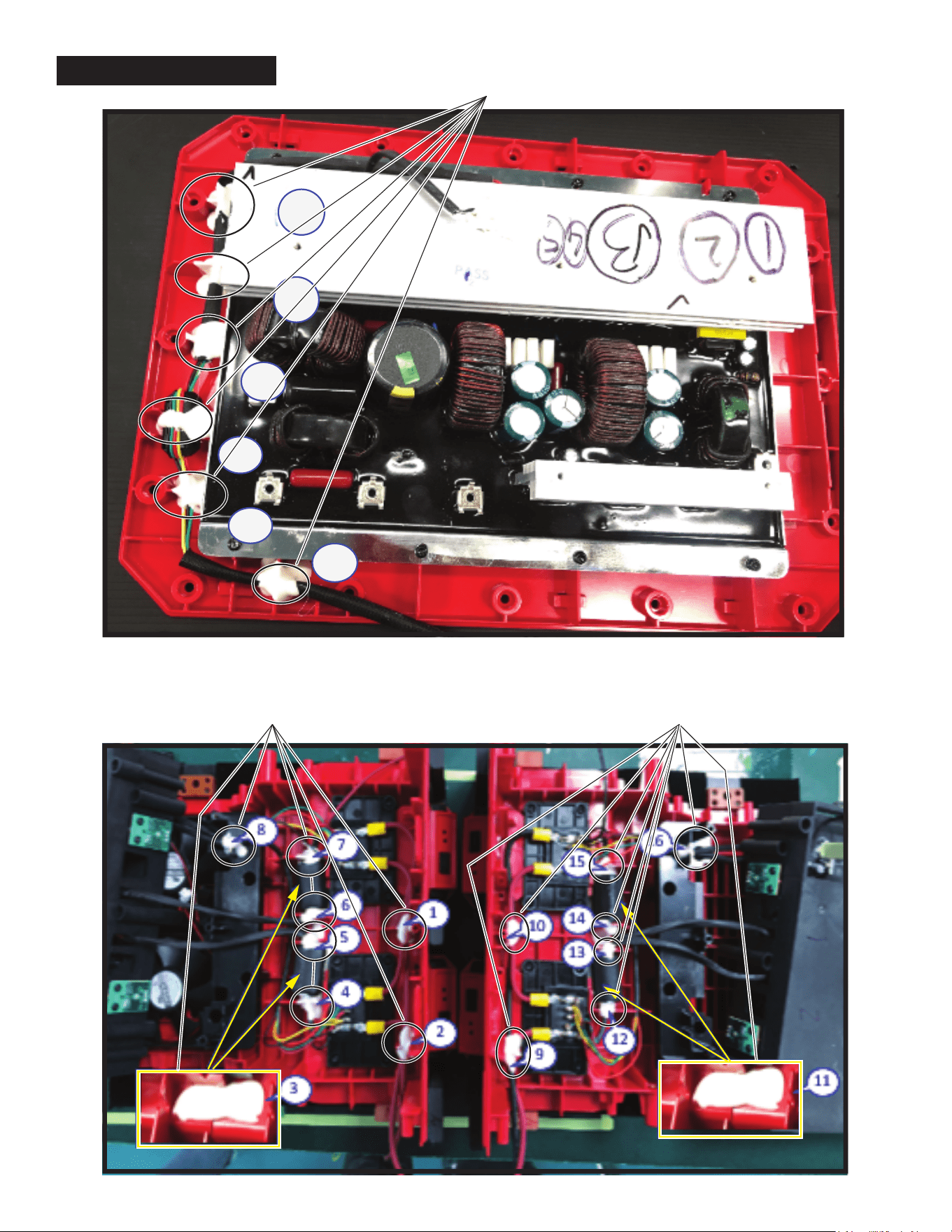

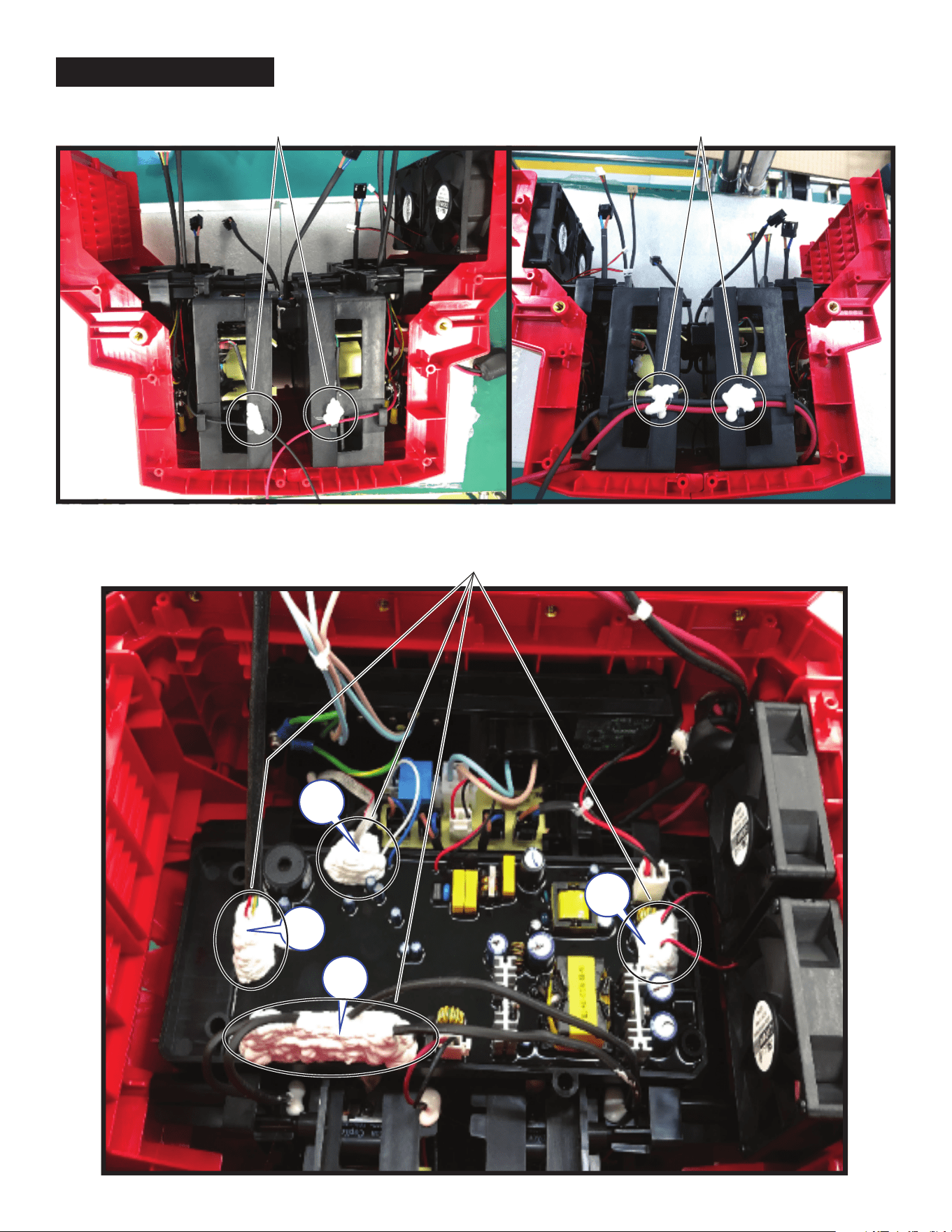

GLUE LOCATIONS (cont.)
White glue-UB618
35.6g
Bottom of magnet
Bottom of magnet
White glue-UB618
35.6g
1
2
3
4
GLUE LOCATIONS (cont.)
White glue-UB618
7.5g
White glue-UB618
7.5g
RTV-TS-45 (NO2)
30.06g
