User guide.
WARNING! To reduce the risk of serious injury, read this User Guide
before operating your nutribullet Juicer
™
. Save these instructions.
Be sure anyone who uses the nutribullet
®
knows how to do so safely.
3
PERSONAL SAFETY
This juicer system has sharp
blades and moving parts, and
is NOT intended for use by
children who lack experience
and knowledge of its safe
operation. They require close
supervision and thorough
instruction on its proper use
and safe operation.
Keep the appliance and its
cord out of reach of children.
Children shall not play with
the appliance. To eliminate
a choking hazard for young
children, remove and safely
discard the protective cover
fitted to the power plug of
this juicer.
AVOID CONTACT WITH
MOVING PARTS.
Keep hands, fingers, hair,
clothing as well as spatulas
and other utensils away
from the appliance during
operation. This appliance is
not intended for use by
persons (including children)
with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
SIEVE AND BLADES ARE SHARP!
HANDLE WITH EXTREME CARE!
Do not touch the small cutting
blades/teeth on the bottom/
base of the sieve. Keep fingers
away from the sharp blade in
the feed chute.
Do not leave the appliance
unattended when in use.
Hard fruits and vegetables will
put excess strain onto the motor
if a low speed is selected.
If there is a spill under, around
or onto the juicer itself,
disconnect the unit from the
power source. Clean with a
cloth and allow unit to dry
completely before operating.
Do not push food into the
feed chute with your fingers
or utensils. Only use the food
pusher provided. Do not place
your hand or fingers into the
feed chute when it is attached
to the juicer. If food becomes
WARNING!
Important safeguards.
Warning! To avoid the risk of serious injury, carefully
read all instructions before operating your nutribullet
Juicer
™
. When using any electrical appliance, basic
safety precautions should always be observed,
including the following important information.
54
lodged in the feed chute, use the
food pusher provided or another
piece of fruit or vegetable to
push it down. Turn the motor
o and ensure that all moving
parts have stopped before
disassembling the juicer to
remove the remaining pulp.
Do not operate this or any
appliance with a damaged cord
or plug or after the appliance
malfunctions, or is dropped
or damaged in any manner. If
the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
Always ensure the juicer is
turned OFF after each use.
Before disassembling, make
sure the sieve has stopped
rotating and the motor has
completely stopped.
PRODUCT SAFETY
This juicer is only designed to
juice fruits and vegetables.
Please refer to the juicing guide
to determine the correct speed
for the fruits and vegetables
selected for juicing. Do not use
any frozen fruits or vegetables.
Do not use the juicer without
the pulp basin and basin lid
attached to the motor base.
Please see assembly instructions
for proper placement.
Remove and safely discard
any packaging material or
promotional labels before using
the juicer for the first time.
Ensure that the surface where
the appliance operates is
stable, level, clean, and dry.
Remove rind from all citrus
fruits before juicing.
Do not juice stone fruit unless
pits of the seed stone has been
removed.
Always make sure the pulp
basin cover is clamped securely
in place (with locking handle)
before the motor is turned on.
Do not unfasten the clamps
(locking handle) while the juicer
is in operation.
When using this juicer, make
sure there is adequate air space
around and under it for proper
air circulation.
The use of attachments not
recommended or sold by
nutribullet
®
may cause fire,
electric shock or injury. This juicer
is for household use only. Do not
use this juicer for anything other
than its intended use. Do not use
in moving vehicles or boats. Do
not use outdoors. Misuse may
cause injury.
If no speed is selected after 10
minutes, the unit will power o.
If the motor stops for any reason,
unplug the power base and let it
cool for at least 15 minutes.
Turn the juicer OFF, then unplug
from the outlet when not in
use, before assembling or
disassembling parts and before
cleaning. To unplug, grasp the
plug and pull from the outlet.
Never pull from the power cord.
Do not let the power cord hang
over the edge of a table or
counter-top.
Do not let the power cord touch
hot surfaces, such as a stove or
let it become tangled or knotted.
Regularly inspect the power
cord, plug and the actual juicer
for any damage.
To protect against fire, electrical
shock and injury to persons, do
not immerse the juicer, Motor
Base, cord or plug in water or
any other liquid.
The cleaning brush and sieve
are consumable components.
Over time, if the unit starts to get
louder or make unusual noises
or vibration, it indicates that
this consumable part may need
replacing. The continued use of
worn parts may result in part
failure and/or personal injury.
Do not use the juicer if the
rotating sieve is damaged; if
the filter mesh is torn, crinkled
or deformed in anyway. For
high use users, we recommend
replacing your sieve every 12
months or as needed for optimal
performance. You can purchase
both the sieve and the cleaning
brush at www.bulletbrands.
com.au / www.bulletbrands.
co.nz or contact customer
service.
Keep the juicer clean. Refer to
care and cleaning section for
further information.
Vibration can occur during
normal operation.
If extreme vibration occurs,
discontinue use and call
Customer Service.
Any maintenance other
than cleaning should be
performed by an authorized
electrician. Do not attempt
to repair or service the juicer,
contact Customer Service for
assistance at
www.bulletbrands.com.au /
www.bulletbrands.co.nz
WARNING!
Save these
instructions!
!
FOR HOUSEHOLD
USE ONLY
76
Contents.

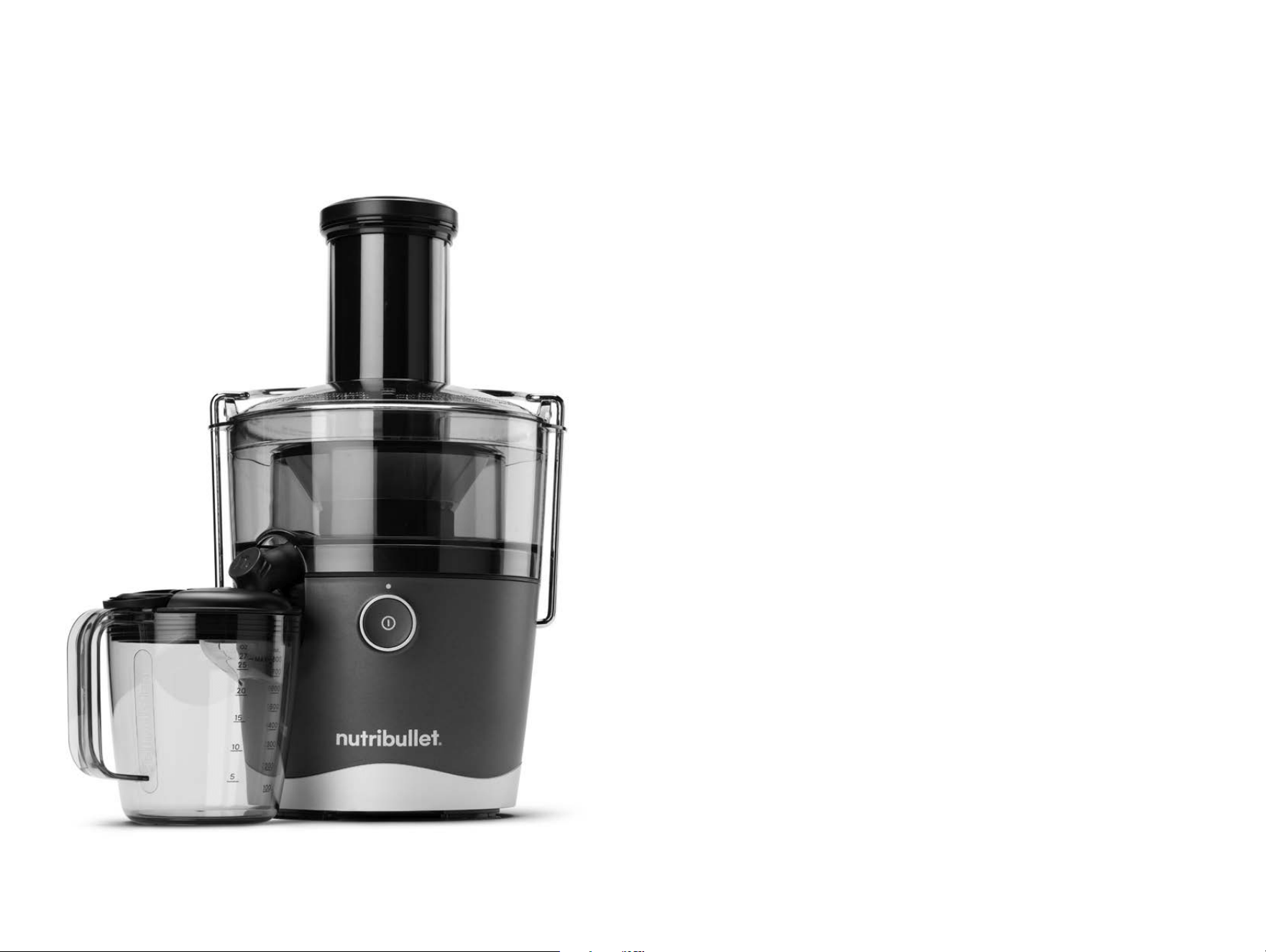

Thank you for purchasing the nutribullet Juicer
™
.
03 Important safeguards
08 What’s included
09 Assembly guide
10 Assembly & use
12 Usage instructions
15 Control dial
16 Juicing tips
20 Disassembly
22 Care instructions
23 Replacement parts
23 How to store
24 nutribullet Juicer
™
one-year limited warranty
27 Product registration
98
What’s included.
800 WATT MOTOR
BASE WITH
LOCKING HANDLE
PULP BASIN COVER
WITH 76 MM
FEED CHUTE
FOOD PUSHER
1.5L PULP BASIN WITH
NO-DRIP SPOUT
Base
5L Pulp Basin
STAINLESS STEEL SIEVE
CLEANING BRUSH
800 ML JUICE PITCHER
JUICE PITCHER LID
WITH FROTH SEPARATOR
Assembly guide.
food pusher
76 mm feed chute
locking handle
basin cover
1.5L pulp basin
stainless steel
sieve (inside basin)
juice pitcher lid
no-drip spout
800 ml juice
pitcher
dual-speed
control dial
motor base
1110
Assembly.
1 Place the Motor Base on
a dry, level counter top.
Ensure the Power Button,
in the center of the dial, is
in the "OFF" position, and
the unit is unplugged.
2 Place the Pulp Basin on top
of the Motor Base. Align the
Pulp Basin with the Motor
Base so that the No-Drip
Spout is aligned with the
dimpled side of the
Motor Base.
3 Align the Sieve with the
motor drive coupling,
carefully holding it by the
rim to avoid touching the
sharp teeth at the base.
Push down until it clicks
into place, ensuring it’s
securely seated in the
Pulp Basin.
4 Place the Basin Cover
over the Sieve and Pulp
Basin. The side “ears” on
the Basin Cover should
align with the “ears” on the
sides of the Pulp Basin.
Ensure spout opening is facing down
Ensure spout opening is facing down
5 Secure the Locking Handle
into the "ears" on either
side of the Basin Cover. The
handle will click into place
when locked.
NOTE: The juicer will not power
on if the Locking Handle is not
properly secured.
6 Ensure the No-Drip Spout
opening is facing down for
proper juice flow.
7 Place the Juice Pitcher
Lid on top of the Juice
Pitcher and open the
flip-top portion of the
Juice Pitcher Lid.
8 Secure the Juice Pitcher by
angling it slightly so the
No-Drip Spout fits into the
flip-top opening. Then, set
the Juice Pitcher flat on the
surface, ensuring the No-Drip
Spout sits snugly inside.
1312
Usage instructions.
1 Gather all of your desired
ingredients and wash them.
Prepare the ingredients
to be juiced by cutting,
skinning, or removing the
rind, stems, or stone seeds.
2 Once the juicer is
assembled, plug the power
cord into an outlet. Use
the Dual-Speed Control
Dial to select a speed, then
press the Power Button
to begin juicing. You can
switch between speeds
as needed based on the
type of produce (refer to
the chart on page 16 for
recommendations).
4 Juice will flow from the
No-Drip Spout into the
Juice Pitcher, while pulp is
separated and stored in the
Pulp Basin. Ensure the
No-Drip Spout is facing
down for proper juice flow.
3 Start the motor FIRST before
inserting ingredients. With
the motor running, use the
Food Pusher to gently guide
ingredients down the
Feed Chute.
NOTE: When pushing ingredients
through the Feed Chute, avoid using
excessive force or speed, as this can
reduce juice yield.
WARNING! DO NOT use
excessive force when pushing
ingredients through the Feed
Chute, as this can reduce
juice yield and may damage
the unit.
WARNING! Never use hands/
fingers or other tools to push
food down the Feed Chute
into the Sieve. Only the Food
Pusher should be used to push
down ingredients.
1514
Turn spout upward
Turn spout upward
6 Turn the juicer o by
pushing the Power Button.
Unplug the unit. Wait
until the Sieve comes to
a complete stop spinning
before proceeding to
remove the Juice Pitcher.
Turn spout upward
5 If the Pulp Basin becomes
too full during juicing, you
will need to empty it before
continuing juicing. See
Disassembly Instructions on
page 20.
7 Remove the Juice Pitcher by
tilting it forward at a slight
angle to create separation
between the flip-top
opening and the No-Drip
Spout, then slide it out. You
can store juice in the Juice
Pitcher if desired.
8 Immediately turn the
No-Drip Spout upward
to prevent any residual
drips onto the unit or
surface below.
TIP: Use your left hand to pull the
Juice Pitcher away while using
your right hand to turn the
No-Drip Spout.
Control dial.
OFF:
O is the default position for
your juicer. When the unit is o,
the center Power Button is
flush with the Dial Ring and
the green indicator ring is
not visible.
LOW SPEED (I):
For low speed, align the
single-line on the Dial Ring
with the white dot above. Press
the Power Button. The green
indicator ring will be visible
and the machine will start
juicing. Use this speed for
softer fruits and vegetables.
HIGH SPEED (II):
For high speed, align the
double-line on the Dial Ring
with the white dot above.
Press the Power Button. The
green indicator ring will be
visible and the machine will
start juicing. Use this speed
for harder ingredients like
carrots and beets.
DUAL-SPEED CONTROL DIAL & JUICING SETTINGS
1716
Juicing tips.
JUICING SPEED SELECTION GUIDE
Apple High All Year
Beets High Summer / Fall / Winter
Blueberry High Summer
Broccoli High Fall / Spring
Brussels Sprouts High Fall / Winter
Cabbage Low Fall / Winter / Spring
Carrots High All Year
Cauliflower High Fall
Celery High All Year
Cucumber Low Summer
Fennel High All Year
Ginger High Fall
Grapes Low Fall
Grapefruit Low Winter
Kale High Fall / Winter / Spring
Kiwi Low Fall / Winter / Spring
Lemon Low All Year
Lime Low All Year
Melons (all) Low Summer
Orange High Winter
Peaches Low Summer
Pears High Fall / Winter
Pineapple High Fall / Winter / Spring
Plums High Summer
Raspberries Low Summer / Fall
Spinach Low Fall / Spring
Sweet Potato (raw) High Fall / Winter
Tomatoes Low Summer
INGREDIENTS SPEEDS SEASONS
source of quercetin
excellent source of folate
good source of vitamin C
high in vitamin C, high in folate, good source of potassium
high in vitamin C, good source of folate
high in vitamin C
excellent source of vitamin A, good source of vitamin C
high in vitamin C, good source of folate
good source of vitamin C, good source of vitamin A
good source of vitamin C
good source of vitamin C and potassium
contains vitamin C, magnesium, and potassium
good source of vitamin K
high in vitamin A, high in vitamin C
excellent source of vitamin A and vitamin C, good source of calcium and potassium
high in vitamin C, good source of potassium and vitamin E
high in vitamin C
high in vitamin C
high in vitamin A, high in vitamin C
high in vitamin C
good source of vitamin C
good source of vitamin C
high in vitamin C
good source of vitamin C
high in vitamin C
high in vitamin A, vitamin C, iron, and folate, good source of magnesium
good source of potassium, high in vitamin A and vitamin C
high in vitamin A, high in vitamin C, good source of potassium
VITAMINS / NUTRIENTS
1918
PROPER PRODUCE PREP
Prepare fruit and veggies before
inserting them into the juicer:
• Properly clean produce (rinse
with lukewarm water, produce
wash, or water and apple
cider vinegar).
• Peel or remove skin as
needed, and chop food items
down to the right size – just
small enough to fit easily
into the Feed Chute, without
having to force the pieces
down with the Food Pusher.
• Remove rind from all citrus
fruits before juicing.
• Remove large pits and
seeds from stone fruits
before juicing.
FEED CHUTE
• Never place your hand or
fingers into the Feed Chute
when it is attached to
the appliance.
• Always start the juicer before
adding food to the Feed
Chute. The juicer must be
running when items enter it.
• Do not overload the Feed
Chute. Items must be added
gradually, at a pace the
juicer can keep up with.
• Use only the provided Food
Pusher to push food into
the Feed Chute. Never use
fingers, utensils, or any
other apparatus.
• Never use excessive
force to push items into
the Feed Chute.
• When juicing, ensure all
produce has moved through
the Feed Chute and into the
Sieve before adding more.
WARNING! DO NOT attempt
to juice ingredients with very
little water content, such as
avocados, coconut, rhubarb,
and bananas. These are
generally not suitable for
juicing because they lack the
necessary liquid for the juicer
to function properly, and may
cause the unit to clog.
WARNING! Apples can be
juiced, but you should remove
the seeds first. Apple seeds
contain amygdalin, which
can be poisonous when
metabolized.
• If any food gets stuck in the
Feed Chute, use the Food
Pusher to move it down the
chute and into the Sieve.
• IMPORTANT TIP: Always
start the motor first before
inserting ingredients into the
Feed Chute. Overfilling the
Feed Chute before starting
may overheat the motor. Also,
do not use excessive force
when pushing ingredients
through the Feed Chute as
it may strain the motor and
cause it to overheat.
CONSUMING JUICE & PULP
Instead of composting or
throwing away the pulp left
over after juicing, you can
choose to consume it. Check
out our recipe section on
nutribullet.com for some fun
tips on what to do with leftover
pulp. By using these creative
ideas, you can enjoy pulp in
a variety of delicious (and
healthy) ways.
• Whether you prefer sweet or
savory, you can use pulp to
create some tasty treats!
• For best taste,consume fresh
juice and pulp within 48
hours of juicing.
NO-GO FOODS
Foods that should NEVER be
used in this juicer:
• Foods that do not contain
juice to extract (for example,
bananas or avocados).
• Frozen fruits or vegetables.
• Stone fruits that have large
pits or seeds that have not
been removed. Stone fruits
may be used only if the seed
or pit has been removed.
OVERHEATING
• If the motor overheats,
the juicer will turn o.
• If the juicer stops working,
unplug it and allow it to cool
down for at least fifteen
minutes before attempting to
use again.
2120
Disassembly.
1 Ensure the unit is powered
o and unplugged.
2 Remove the Juice Pitcher
from under the No-Drip
Spout. To prevent drips, turn
the No-Drip Spout upwards.
NOTE: The No-Drip Spout can be removed.
Wash and rinse with water. DO NOT
wash No-Drip Spout in dishwasher
3 Unlock the Locking Handle
from the Basin Cover by
pulling the handle backward
out of the “ears” on either
side of the Basin Cover.
Move the handle down.
4 Remove the Pulp Basin
from the Motor Base by
pulling upwards with the
Basin Cover and Sieve still
in place. Take it directly to
your sink.
Turn spout upward
5 Remove the Food Pusher
by lifting it out of the
Feed Chute.
6 Lift the Basin Cover vertically
o of the Pulp Basin and
remove any pulp from the
inside of the cover. You
may use the flat end of the
Cleaning Brush to scrape
pulp o of the cover.
7 Gently lift the Sieve
vertically out of the center
of the Pulp Basin. Clean
the Sieve right away (see
care instructions).
WARNING! The Sieve
contains sharp blades. Do
not touch the blades. Use
the Cleaning Brush.
8 Empty the Pulp Basin. Use
the flat end of the Cleaning
Brush to scrape out the
pulp, setting it aside for use in
other recipes or composting.
You can also empty the pulp
directly into your waste bin
or compost.
2322
1 Always ensure the Motor
Base is unplugged before
you begin assembly,
disassembly, cleaning or
storage of the unit.
2 Once the Pulp Basin is
emptied, rinse all parts
under running water.
3 Use the Cleaning Brush
to scrub the Sieve under
running water. Be sure to
properly clean the Sieve
every time you juice.
Residue from fruits and
vegetables can cause
buildup in the Sieve which
can clog the holes and
may prohibit maximum
juice extraction.
WARNING! Always use
precaution when cleaning
the Sieve, as it contains
sharp blade teeth on the
flat disc part.
TIP: Clean the Sieve immediately
after juicing with the Cleaning
Brush to prevent pulp from drying
and clogging the holes. If buildup
occurs, soak the Sieve in hot water
for 30 minutes before scrubbing.
4 All of the components
except the Food Pusher,
Motor Base, and No-Drip
Spout are dishwasher safe.
You may also hand wash
all pieces with warm
soapy water.
TIP: Do not use the Sterilize cycle
on your dishwasher to clean your
juicer, as high temperatures may
deform parts.
5 Wipe down the Motor Base
with a clean, damp cloth.
WARNING! Never submerge
Motor Base into water or
other liquid.
Care instructions.
Replacement parts.
Periodically inspect your
nutribullet Juicer
™
for damage
or wear that may impair
proper function or present
a danger or safety hazard.
Discontinue use if you detect
cracking or damage. Never
operate your nutribullet Juicer
™
with damaged parts
or components.
Always use genuine nutribullet
®
parts and accessories. Use of
incompatible or aftermarket
parts may result in damage
to your nutribullet Juicer
™
or
create safety hazards that
may cause personal injury
or damage.
To order additional parts and
accessories, please visit our
website at bulletbrands.com.au /
bulletbrands.co.nz.
How to store.
Store the Juice Pitcher upright
with the Pitcher Lid secured
on top. Do not place anything
on top of the Pitcher Lid. Store
remaining pieces in a safe place
where they will not be damaged
and won’t cause harm, as some
of the pieces are sharp.
2524
If your product becomes
defective due to faulty
material or workmanship
within a period of 1
year from the date of
purchase, we warrant
to do the following:
• For New Zealand Consumers:
We will replace the product
with a new product, free of
charge, or repair the product
at our cost, at our discretion.
• For Australian Consumers:
Our goods come with
guarantees that cannot be
excluded under the Australian
Consumer Law. You are
entitled to a replacement or
refund for a major failure
and for compensation for any
other reasonably foreseeable
loss or damage. You are also
entitled to have the goods
repaired or replaced if the
goods fail to be of acceptable
quality and the failure does
not amount to a major failure.
one (1) year limited
replacement warranty
statement.
YOUR WARRANTY
IS SUBJECT TO THE
FOLLOWING CONDITIONS:
• DO NOT operate the
appliance with a damaged
plug or cord, or if the unit has
been dropped, damaged or
dropped in water. To avoid
the risk of electric shock, do
not disassemble or attempt
to repair the appliance
on your own. If the supply
cord is damaged, it must
be replaced by a qualified
electrician in order to avoid
a hazard. Incorrect re-
assembly or repair can
cause a risk of electric shock
or injury to persons when the
appliance is used.
• The item has not been
misused, abused, neglected,
altered, modified or repaired
by anyone.
• The item has been subjected
to fair wear and tear.
• The item has not been used
for trade, professional or
hire purposes.
• The item has not sustained
damage through foreign
objects, substances or accident.
YOUR WARRANTY
DOES NOT COVER:
• Components that are
subject to natural wear
and tear caused by
normal use in accordance
with operating instructions.
• Unauthorised/improper
maintenance/handling or
overload is excluded from
this warranty.
• For guarantee claims, you
will need to submit a proof
of purchase in the form of
a valid receipt that displays
date and place of purchase.
This warranty does not replace
but is in addition to your
statutory rights.
This warranty does not apply
to accessories supplied with
the item.
This warranty applies only to
the original purchaser and
may not be transferred.
Replacement items will
be covered by the limited
warranty for the balance of the
warranty period from the date
of the original purchase.
PLEASE NOTE:
Only the defective product
or parts returned to place of
purchase will be replaced
under this warranty.
NEW ZEALAND
PO Box 100-707
NSMC
Auckland 0745
0800 232633
bulletbrands.co.nz
AUSTRALIA
PO Box 574
South Morang
Victoria 3752
1300 285538
bulletbrands.com.au
Capital Brands Distribution, LLC | All rights reserved.
NutriBullet and the NutriBullet logo are trademarks of
CapBran Holdings, LLC registered in the U.S.A. and worldwide.
220-240VAC 50-60Hz 800W
Illustrations may dier from the actual product. We are constantly striving
to improve our products, therefore the specifications contained herein
are subject to change without notice.
250417_NBJ07150
