USER GUIDE

NZ AU GB EU

INTEGRATED COLUMNS

RS4621F, RS6121F, RS7621F,

RS6121S & RS7621S models

CONTENTS

IMPORTANT!

SAVE THESE INSTRUCTIONS

The models shown in this User guide may

not be available in all markets and are

subject to change at any time. For current

details about model and specification

availability in your country, please go to

our website fisherpaykel.com or contact

your local Fisher & Paykel dealer.

Registration

provide you with the best service possible.

To register your product visit our website:

fisherpaykel.com

Introduction 3

Safety and warnings 4

Storage features 10

Refrigerator 10

Freezer 11

ActiveSmart™ special features 12

Control panel — Refrigerator 12

Control panel — Freezer 13

Variable temperature zones 14

Max Cool 15

Fast Freeze 15

Bottle Chill 15

Ice 15

Ice Boost 15

Operating instructions 16

Cleaning care 19

Food care 21

User warnings and sounds 22

Troubleshooting 23

European Directive 2012/19/EU on

WasteElectricalandElectronicEquipment(WEEE) 26

Service & Warranty 27

INTRODUCTION

Welcome to the family of Fisher & Paykel appliances. Our team has spent thousands

ofhours designing, engineering and testing this Integrated Column to ensure you

getthe perfect product for your home. For more information on your product please

visit fisherpaykel.com or contact our Customer Care team.

SAFETY AND WARNINGS

WARNING!

Electric Shock Hazard

Read and follow the safety and warnings

outlined in this user guide before operating this

appliance.

Failure to do so can result in death, electric

shock, fire or injury to persons.

WARNING!

This refrigerator contains flammable refrigerant

isobutane (R600a).

R600a

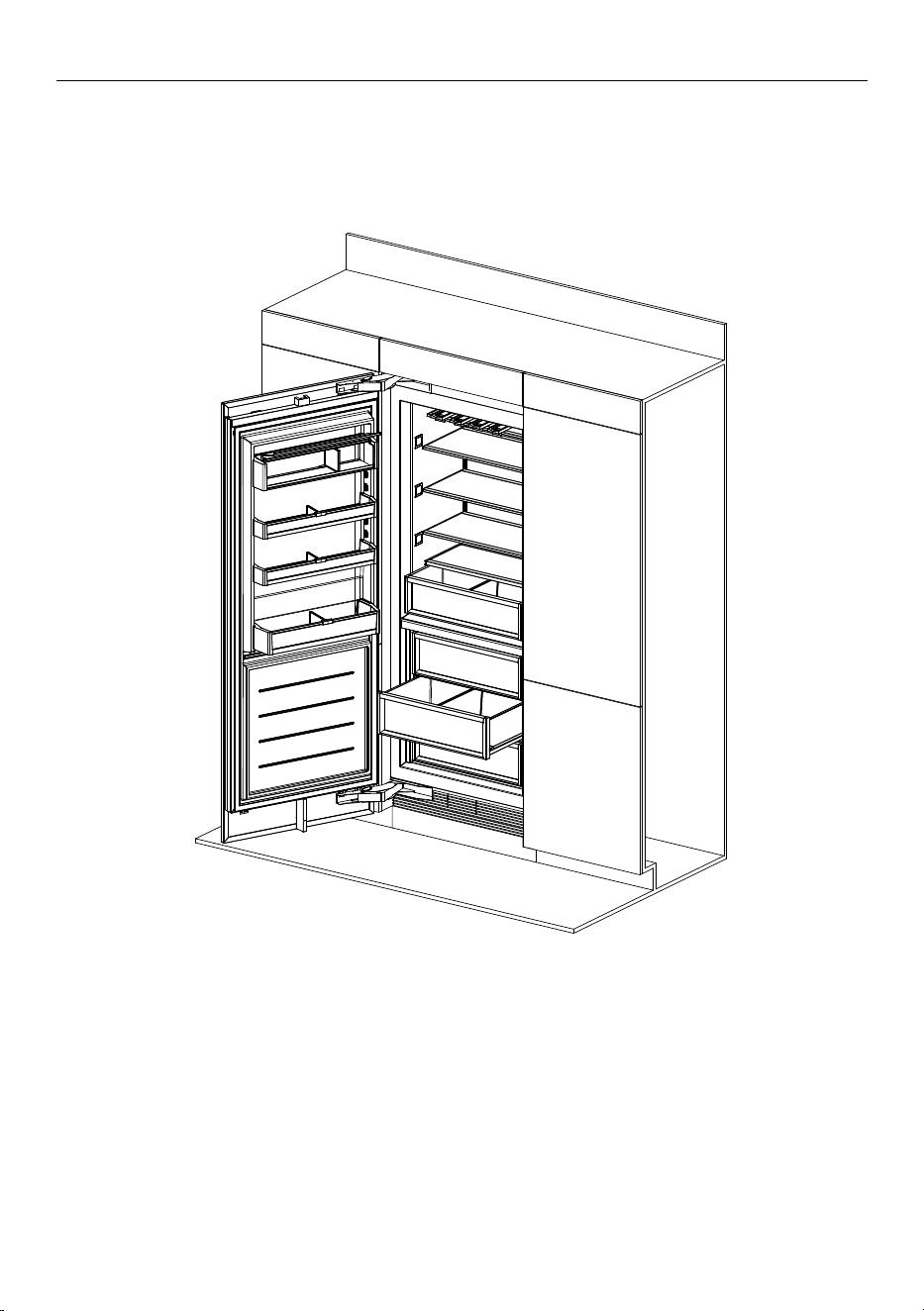

SAFETY AND WARNINGS

Use this appliance only for the intended purpose as described in the user guide.

IMPORTANT SAFETY INSTRUCTIONS

WARNING!

When using this appliance always exercise basic safety

precautions including thefollowing:

●●

Children should be supervised to ensure that they do not

play with the appliance.

●●

Cleaning and user maintenance shall not be undertaken by

children without supervision.

●●

This appliance can be used by children aged from

8years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way

and understand the hazards involved.

●●

The manufacturer’s installation instructions for product

and cabinetry ventilation must be followed when

installing the appliance.

●●

To avoid hazard due to instability of the appliance, it

must be fixed in accordance with installation instructions.

●●

Keep ventilation openings, in the appliance enclosure or

the built-in structure, clear ofobstruction.

●●

Do not use mechanical devices or other means to

accelerate the defrosting process, other than those

recommended by the manufacturer.

●●

Do not damage the refrigerant circuit.

●●

In case of damage to the refrigerant circuit, ventilate the

area by opening all windows.

– Do not operate electrical equipment or any other

equipment that may produce arcs, sparks or flames

in the area. Contact your Fisher & Paykel trained and

supported service technician immediately to arrange

for the appliance to berepaired.

SAFETY AND WARNINGS

●●

It is hazardous for anyone other than an authorised

service person to service thisappliance.

●●

In Queensland, the authorised service person must hold

a gas work licence or authorisation for hydrocarbon

refrigerants to carry our service or repairs which involve

removal of covers.

●●

Connect to potable water supply only.

Electrical

●●

This refrigerator must be installed in accordance with the

installation instructions beforeuse.

●●

To allow disconnection of the refrigera from the supply

after installation, incorporatea switch in the fixed wiring

in accordance with the local wiring rules.

●●

If the power supply cord is damaged, it must only be

replaced by your Fisher&Paykel trained and supported

service technician.

●●

WARNING: Do not use electrical appliances inside the

food storage compartments of the appliance, unless they

are of the type recommended by the manufacturer.

IMPORTANT!

●●

Your refrigerator is designed to operate for many years

without the need for service checks. However, if your

refrigerator is malfunctioning, have it attended to by your

Fisher& Paykel trained and supported service technician

as soon as possible.

●●

If you suspect that the product is not getting cold — items

such as ice cream are melting— remove all perishable

food and store in another appliance or cooler to prevent

spoilage. Immediately call for a service technician.

SAFETY AND WARNINGS

Cleaning

●●

Use only soap based cleaning products.

●●

Avoid using anti-bacterial cleaning products on either

the interior or exterior of the cabinet as they may

cause rusting of metal components and cracking of

plasticcomponents.

Disposal

●●

Extreme care must be taken when disposing of your old

appliance to avoid hazards:

– The flammable refrigerant gas must be safely

removed by a qualified service technician.

– The thermal insulation foam in this appliance may

contain flammable insulationblowing gases, any

exposed foam may be highly flammable andmustbe

carefully treated during disposal.

– DANGER: The doors and panels should be removed

and the shelves left in placeso that children may not

easily climb inside.

●●

Consult your local energy authority or local codes as to

the best way to dispose of your old appliance.

Storing food and drinks

●●

Do not store explosive substances such as aerosol cans

with a flammable propellant in thisappliance.

●●

Never store volatile or flammable materials in your

appliance as they may explode.

●●

Never freeze liquids in glass containers. Liquid expands

during freezing, which may cause the container to

explode.

●●

Never freeze carbonated drinks. They may explode.

SAFETY AND WARNINGS

Water filter

IMPORTANT!

●●

The water connection to your Ice & water refrigerator

must be installed by a qualified plumber or Fisher &

Paykel trained and supported service technician and

comply with all state and local laws.

●●

Installation and use MUST comply with all state and local

plumbing codes. Check with your local public works

department for plumbing codes. You must follow their

guidelines as you install the water filtration system.

●●

To avoid serious illness or death, only connect your water

filter to safe drinking water.

●●

The water filter cartridge needs to be changed when the

replacement indicator icon illuminates. This will happen

every 6 months.

●●

If the water filtration system has been allowed to freeze,

replace filter cartridge. Failure to replace the disposable

filter at recommended intervals may lead to reduced

filter performance and failure of the filter, causing

property damage from water leakage or flooding.

●●

In cases of excessively reduced filter life — we recommend

that you consult a local plumber or your water supplier

for advice on suitable filtration requirements for the

water supplied to your home.

●●

Filter replacement is the consumer’s responsibility and

will not be covered by the warranty except in the case of

faulty parts or materials within the filter cartridge.

●●

If the water has not created ice for some time or ice has

an unpleasant taste or odour dispose of ice and refer to

‘Automatic ice’ for flushing instructions. If unpleasant

taste or odour persists, you may wish to fit a new filter

cartridge.

●●

Use new tubing supplied with the refrigerator. DO NOT

reuse old tubing from old water and ice connections.

SAFETY AND WARNINGS

●●

Your water filtration system can withstand up to 120psi

(827kPa) of water pressure. Ensure the supplied pressure

reducing valve is installed before installing the water

filtration system. DO NOT install if water pressure

exceeds 120psi (827kPa).

To reduce the risk associated with property damage due

to water leakage or flooding:

●●

DO NOT install systems in areas where ambient

temperatures may go above 100°F (38°C) or drop below

33°F (0.6°C).

●●

DO NOT install on hot water supply lines. The maximum

operating water temperature of this filter system is 100°F

(38°C).

●●

DO NOT install where water hammer conditions may

occur. If water hammer conditions exist, you must install

a water hammer arrester.

WARNING!

To reduce the risk associated with choking:

●●

DO NOT allow children under 3 years of age to have access

to small parts during the installation of the water filter.

Ice making

IMPORTANT!

●●

Avoid contact with the moving parts of the ice maker

ejector mechanism, and do not place your fingers on the

automatic ice- making mechanism while the appliance is

inoperation.

●●

Do not use ice cubes that may have become discoloured,

usually with a green-blue colour. If such discolouration

is noted, discard the ice cubes and contact your

Fisher&Paykel trained and supported service technician.

STORAGE FEATURES

Refrigerator

Easy-clean design with evenly distributed lighting and aluminium trims.

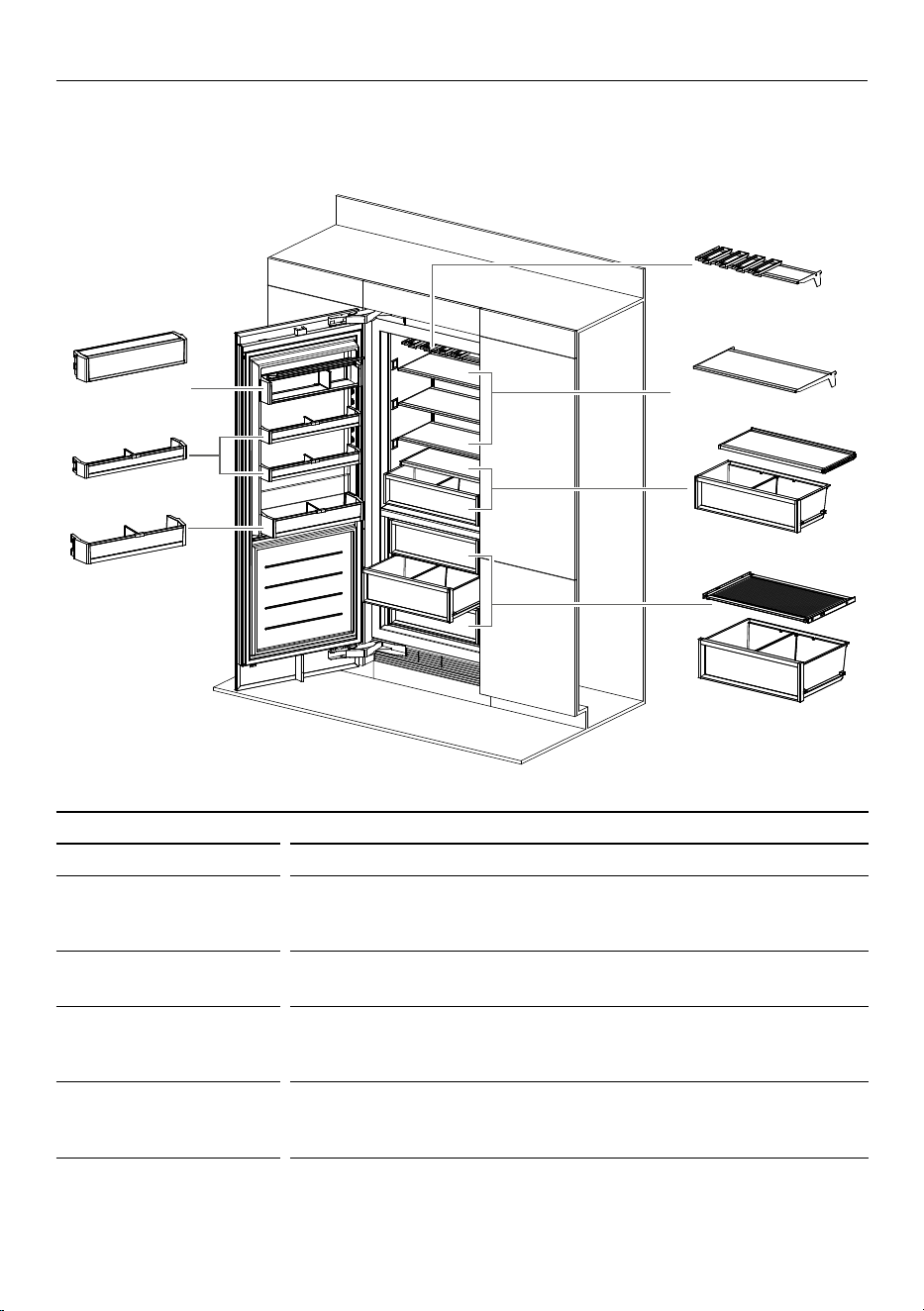

REFRIGERATOR COMPONENTS

Bottle racks Adjustable and removable bottle racks.

Dairy compartment

●●

Dividers to allow organisation of food items.

●●

A lid to prevent tainting of dairy items from the rest

oftheupper compartment.

Humidity controlled

compartments

These compartments help to provide a humid microclimate

toextend the storage times of fruit and vegetables.

Shelving

●●

Selectable shelf heights.

●●

Heat treated safety glass.

●●

Adjustable door shelves with dividers.

Soft close bins Soft close bins ensure bins close quietly and properly.

●●

Adjustable bin dividers.

●●

Mats.

Humidity control

compartments

Shelving

Soft close bins

Dairy

compartment

Extra deep shelf

Bottle racks

Door shelf

STORAGE FEATURES

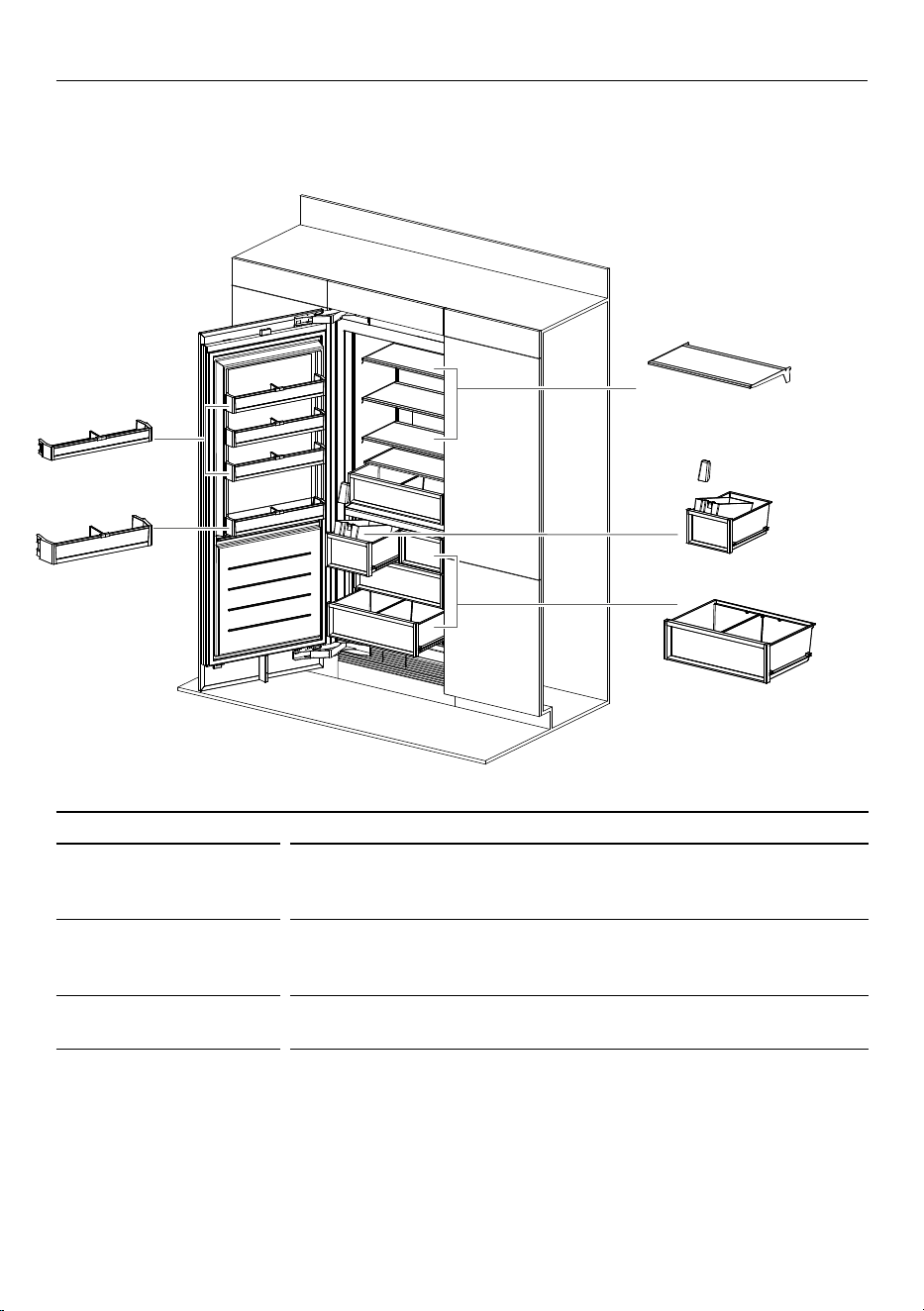

FREEZER COMPONENTS

Shelving

●●

Selectable shelf heights.

●●

Heat treated safety glass.

●●

Adjustable door shelf dividers.

Ice maker

●●

Adjustable production speeds.

●●

Removable ice container.

●●

Hygienic ice scoop.

Self close bins Freezer bins self close to ensure all bins close properly.

●●

Adjustable bin dividers.

Freezer

Easy-clean design with evenly distributed lighting and aluminium trims.

Shelving

Self close bins

Door shelf

Ice maker

ACTIVESMART™ SPECIAL FEATURES

Compartment Allowsyoutounlock the control panel and enable compartment

selection. Press for 4 seconds to activate your appliance for the first

time.

The control panel will automatically lock when inactive for more than

10seconds or when the door is closed. To unlock, press for 2seconds.

Compartment

lights

Lights illuminate to show which compartment is selected.

Food Mode Allows you to select the food mode for the selected compartment.

Food Mode

lights

Lights illuminate to show which food mode is selected.

WiFi Illuminates to show wireless remote mode is enabled.

Visitfisherpaykel.com/connected for further details on using

thisfeature.

Sabbath mode

IIluminates to indicate that Sabbath mode is activated.

Key lock

Illuminates to indicate that the keys on the control panel are

locked. When the door is closed the display is automatically locked.

Digital display Displays the set temperature of the compartments. To change

between Celsius and Fahrenheit on the display:

●●

Press and together for 4seconds.

Colder

Warmer

Allows you to adjust the temperature of the selected compartment.

Max Cool

Boosts the cooling speed of your refrigerator by dropping the

refrigerator to its coldest temperature for a set time, dependent on

the food mode in use.

Alarm Mute This button has a dual function — it allows you to deactivate door

alarms for 20minutes and/or mute key tones on the control panel.

Control panel — Refrigerator

1 3 4 5 6 8 92 7

ACTIVESMART™ SPECIAL FEATURES

Control panel — Freezer

1 3 4 5 6 8 92 7

Compartment Allows you to unlock the control panel and enable compartment

selection. Press for 4 seconds to activate your appliance for the first

time.

The control panel will automatically lock when inactive for more than

10seconds or when the door is closed. To unlock, press for 2seconds.

Compartment

lights

Lights illuminate to show which compartment is selected.

Food Mode Allows you to select the food mode for the selected compartment.

Food Mode

lights

Lights illuminate to show which food mode is selected.

WiFi Illuminates to show wireless remote mode is enabled.

Visitfisherpaykel.com/connected for further details on using

thisfeature.

Filter Illuminates to indicate that water filter replacement is required.

Sabbath

mode

IIluminates to indicate that Sabbath mode is activated.

Key lock

Illuminates to indicate that the keys on the control panel are

locked. When the door is closed the display is automatically locked.

Digital display Displays the set temperature of the compartments. To change

between Celsius and Fahrenheit on the display:

●●

Press and together for 4seconds.

Colder

Warmer

Allows you to adjust the temperature of the selected compartment.

Features Allows you to scroll and select features:

●●

Fast Freeze

●●

Bottle Chill

●●

Ice

●●

Ice Boost

Refer to ‘Selecting Features’ for details on these features.

Alarm Mute This button has a dual function—it allows you to deactivate door

alarms for 20minutes and/or mute key tones on the control panel.

ACTIVESMART™ SPECIAL FEATURES

Variable temperature zones

Separate food modes, in both fridge and freezer, allow you adjust the temperature

independently for optimal storage.

REFRIGERATOR FOOD MODES TYPES OF FOOD TO STORE

Pantry

(12°C/54°F)

‘Pantry’ mode provides a cool, dark

place for a wide variety of foods that

perish quickly or mayspoil at room

temperature, but are too sensitive

to be stored at normal refrigerator

temperatures.

●●

Bananas, avocados, tomatoes.

●●

Dry food items such as grains,

flours, sugars, crackers, cereal,

baked goods, tortillas, wraps

and breads.

●●

Spreads, preserves, honey,

tropical fruits, nuts and seeds,

chocolate and fresh herbs.

●●

Wine.

Fridge

(3°C/38°F)

The ideal mode for fresh, everyday

foods. This mode offers a higher

relative humidity than many other

refrigerators allowing fresh foods

such as fruits and vegetables, meats

and cheeses to stay fresher for longer.

●●

Fruit and vegetables, dairy

products, jams and chutneys/

preserves, meats and drinks.

Chill

(-0.5°C/31°F)

‘Chill’ mode is an extension of

‘Fridge’ mode, providing the perfect

storage zone for highly perishable

food to ensure they retain their vital

freshness and quality. These items will

last slightly longer here compared

with storage at ‘Fridge’ mode.

Note: Ensure these highly perishable

items are consumed within their

recommended storage times.

●●

Highly perishable meats,

poultryand seafood.

●●

Alcoholic beverages such

asbeer.

ACTIVESMART™ SPECIAL FEATURES

FREEZER FOOD MODES TYPES OF FOOD TO STORE

Soft Freeze

(-9°C/16°F)

‘Soft Freeze’ mode is an extension

of your refrigerator, extending the

shelf life of perishable items while

maintaining the quality. ‘SoftFreeze’

mode allows easy portioning of food

and the ability to heat, cook or serve

foods straight from the compartment

without waiting for it to thaw.

●●

Meats, seafood, soups,

sauces, pureed foods, bread,

desserts and pastries.

Note: ‘Soft Freeze’ mode is not

recommended for storage of

creamy desserts such as ice

cream.

Freezer

(-18°C/-1°F)

‘Freezer’ mode is for general frozen

food items that require storage

between 1 – 12 months.

●●

Meat, poultry, seafood,

pre-cooked foods and

leftovers, some fruits and

vegetable, ice cream, and

other frozen desserts.

Deep Freeze

(-25°C/-13°F)

‘Deep Freeze’ mode is for frozen food

items that may need to be stored for

longer periods. ‘Deep Freeze’ extends

the shelf life of general frozen items

by up to 6months longer than that of

‘Freezer’ mode.

●●

General frozen food that is

required to be stored for

extended times — eg larger

cuts ofmeat.

Note: Not all combinations of food modes are available in all compartments. Ifafoodmode is not available, it

will not be selectable on the control panel.

Max Cool

Boosts the cooling speed of your refrigerator by dropping the refrigerator to its coldest

temperature for a set time, dependent on the food mode in use. We recommend using

‘Max Cool’ or ‘Fast Freeze’ when you are adding food items toyour appliance, such as

after grocery shopping. This feature will ensure the food ischilled/frozen within the

shortest period of time, locking in the freshness andextending the shelf life of your food.

Fast Freeze

Boosts the freezing speed by dropping the freezer to its coldest temperature for a set

time dependent on the food mode in use. Offered on ‘Soft Freeze’ and ‘Freezer’ modes.

Bottle Chill

This feature allows you to rapidly chill your beverage for a set time depending on your

chosen food mode.

Ice*

Turns on your automatic ice. This feature is only available in the lower compartment.

Ice Boost*

Increases ice production by up to 30%, and deactivates automatically after 24hours.

* This feature is not available if the compartment is set to ‘Soft Freeze’. If ice making is turned on and the food

mode is changed to ‘Soft Freeze’ any ice that is already in the ice bin may melt and form clumps. To avoid this

either remove the ice or use a different compartment for ‘Soft Freeze’.

OPERATING INSTRUCTIONS

Selecting the Food Mode

●●

Select the desired compartment.

●●

Press to scroll through the available modes. The light next to the name ofthe ‘Food

Mode’ will illuminate as you scroll to indicate which mode is selected.

Adjusting the temperature

Each ‘Food Mode’ will automatically default to the recommended temperature setting.

Once you have selected the compartment and required ‘Food Mode’, the temperature

can be adjusted as desired.

●●

To increase the temperature of your selected ‘Food Mode’, press .

●●

To decrease the temperature of your selected ‘Food Mode’, press .

Selecting Features

Pressing will scroll through the available ‘Features’ for the compartment and mode

you have selected. A blinking light indicates the current position when scrolling through

the list.

To activate/deactivate a feature:

●●

Select the feature from the list, by scrolling through and stopping at the feature you

wish to use.

●●

Press for 2seconds.

Bottle Chill

An alarm will sound, ‘Bottle Chill’ will flash and will illuminate after the elapsed time to

remind you to remove your beverage.

To silence the alarm:

●●

Press once.

●●

The time taken to chill depends on the size of your beverage. If your beverage is not cold

enough after the set time, return it to the compartment and reset the ‘Bottle Chill’ feature.

OPERATING INSTRUCTIONS

Automatic ice maker (freezer only)

Before turning on your automatic ice maker, the water filter must be installed

(refertoyour installation guide) and flushed to remove any impurities or trappedair

inthe filter system.

1 Turn your ice maker on, refer to ‘Selecting Features’.

2 Press the , and together for 4seconds then close the doors. The ice tray will

empty the water into the bin below. The ice tray will only empty after the doors are closed.

3 Repeat step

to remove dust in the ice tray collected during manufacture and transport.

4 Empty the water, dry the bin and return it correctly.

5 Once your ice maker is turned on the first bin of ice may be discoloured, this is not

harmful and normal during the flushing process. Discard the first full bin of ice made.

Your ice maker is now ready for use.

– The performance of your water filter will increase with use, reaching optimum

performance after 4-5 full bins of ice.

Turn the ice maker off if:

●●

There is no water supply for several hours.

●●

You are removing the ice storage bin for a period of time.

●●

You are going on holiday/vacation.

Water filter

The water supplied to your appliance for ice making is filtered to remove impurities

through a filter located the bottom front of your appliance. Replace your filter

cartridgeevery 6months.

●●

There is a replacement indicator icon on the control panel which will appear when

the filter needs replacing.

●●

Replacement filter cartridges can be purchased online from fisherpaykel.com or by

calling Fisher & Paykel Customer Care. Details of the replacement filter cartridge are

labelled on the cartridge. Instructions on how to install your replacement water filter are

provided with the filter.

To reset the filter indicator:

●●

Press and together for 4 seconds.

●●

The on the control panel will turn off when reset.

IMPORTANT!

●●

We recommend the water filter to be used from the time of installation.

●●

Do not reset indicator before filter is changed or filter monitoring will be inaccurate.

Alarm Mute

●●

To activate, press once.

●●

The light above will illuminate to indicate the appliance is muted.

●●

If the doors are left open for 5minutes or more, the compartment light turns off

andnormal door alarms are suspended.

●●

‘Alarm Mute’ will deactivate after 20minutes.

●●

To deactivate manually, press again.

●●

Closing the door also deactivates the ‘Alarm Mute’.

OPERATING INSTRUCTIONS

Sabbath mode

When activated — the display, all alarms and lights are deactivated for 80 hours.

●●

To activate Sabbath mode, press , and together for 4 seconds.

●●

The icon on the control panel will illuminate.

●●

To deactivate manually, press , and together for 4seconds.

Note: If you turn off your appliance while in Sabbath mode, it will resume

automaticallyonce the appliance is switched on again.

Key mute

Key mute allows you to silence all button presses.

●●

To activate key mute, press for 2seconds, a single confirmation beep will be heard.

●●

Once key mute is activated, all key sounds are silenced.

●●

Door alarms and the ‘Bottle Chill’ alarm are still operational.

●●

To deactivate, press for 2seconds, a single confirmation beep will beheard.

Key lock

Key lock allows you to disable the buttons on the control panel. This is useful when

cleaning your appliance.

●●

To activate key lock, press for 2seconds.

●●

The icon on the control panel will illuminate.

●●

To deactivate, press for 2seconds.

●●

The icon will not illuminate.

Door alarms

●●

If the door is left open, the alarm will beep after 60seconds.

●●

If the door remains open, subsequent beeps will sound every 30seconds for 5minutes.

●●

If the door remains open for 5minutes or longer, an alarm will sound continuously

andthe interior compartment light(s) will turn off.

CLEANING CARE

Exterior cleaning

Toe kick grilles and filter

Your Integrated Column is fitted with a toe kick grille to protect the internal working

components. We recommend cleaning the grille and filter in conjunction with changing

your water filter cartridge (every 6months).

The condenser coils of your Integrated Column require periodic cleaning by a

Fisher&Paykel trained service technician.

●●

To maximise operating efficiency, keep ventilation openings clear of obstructions by

regularly vacuuming the flooring in front of your appliance.

●●

More frequent cleaning may be necessary for dusty homes or those with pets sheddinghair.

Interior cleaning

Do not use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated

detergents, solvents or abrasive scouring pads on any part of your appliance.

Someofthese chemicals may damage your appliance.

Clean all surfaces with a mild liquid detergent dissolved in warm water and a soft cloth.

Rinse with clean water and dry with a clean, lint-free cloth.

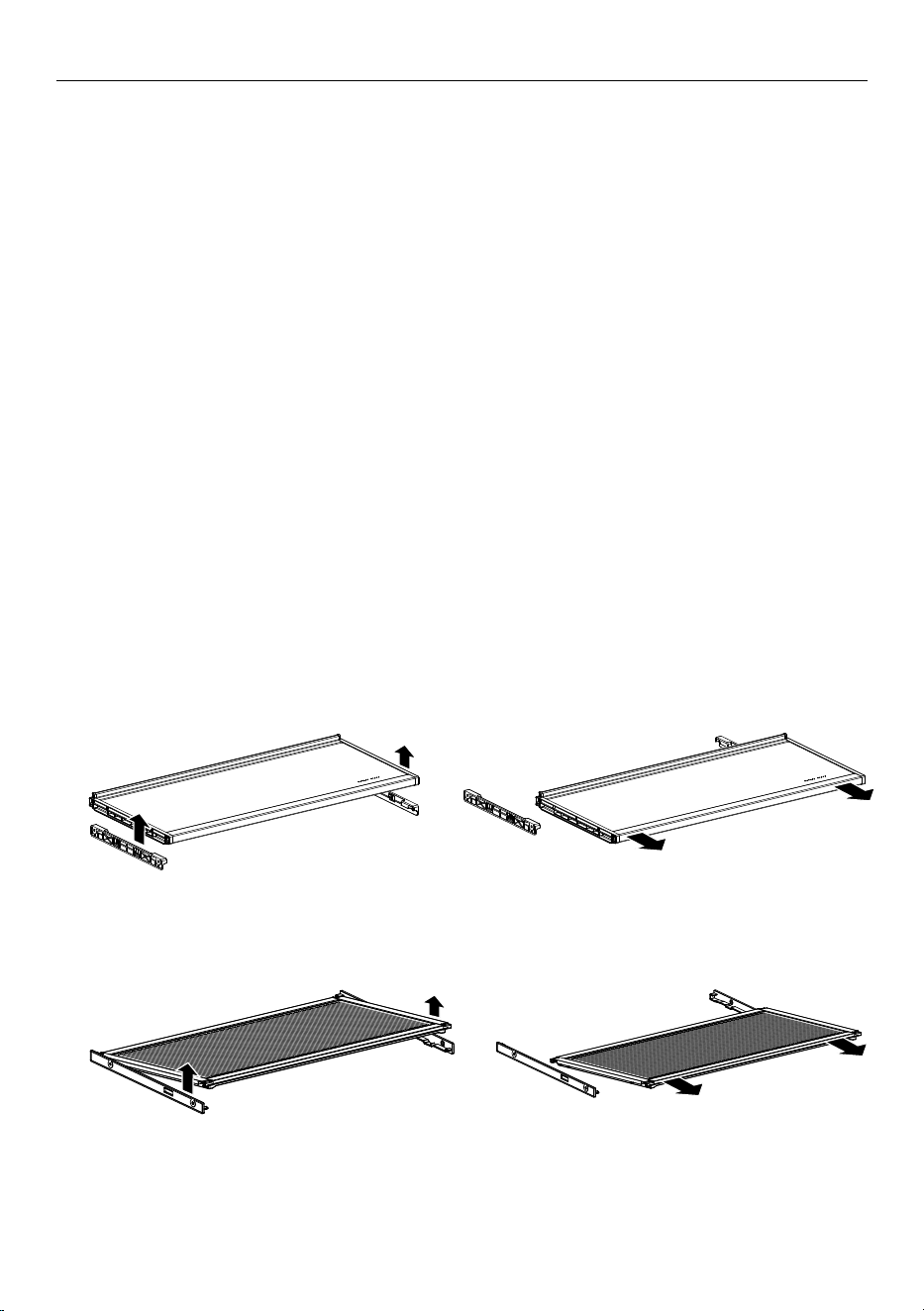

Humidity control lids (refrigerator only)

Upper compartment:

To remove, hold both sides of the shelf and lift straight up to unclip from the runners (A).

Pull the shelf towards you (B).

Lower compartment:

To remove, lift the front edge of the shelf up (C).

Pull the shelf towards you to unclip from the runners (D).

C D

Cantilever glass shelves

To remove, hold the front and back edge of the shelf firmly.

Push the shelf up vertically to dislodge from back support lugs.

Pull the shelf towards you.

CLEANING CARE

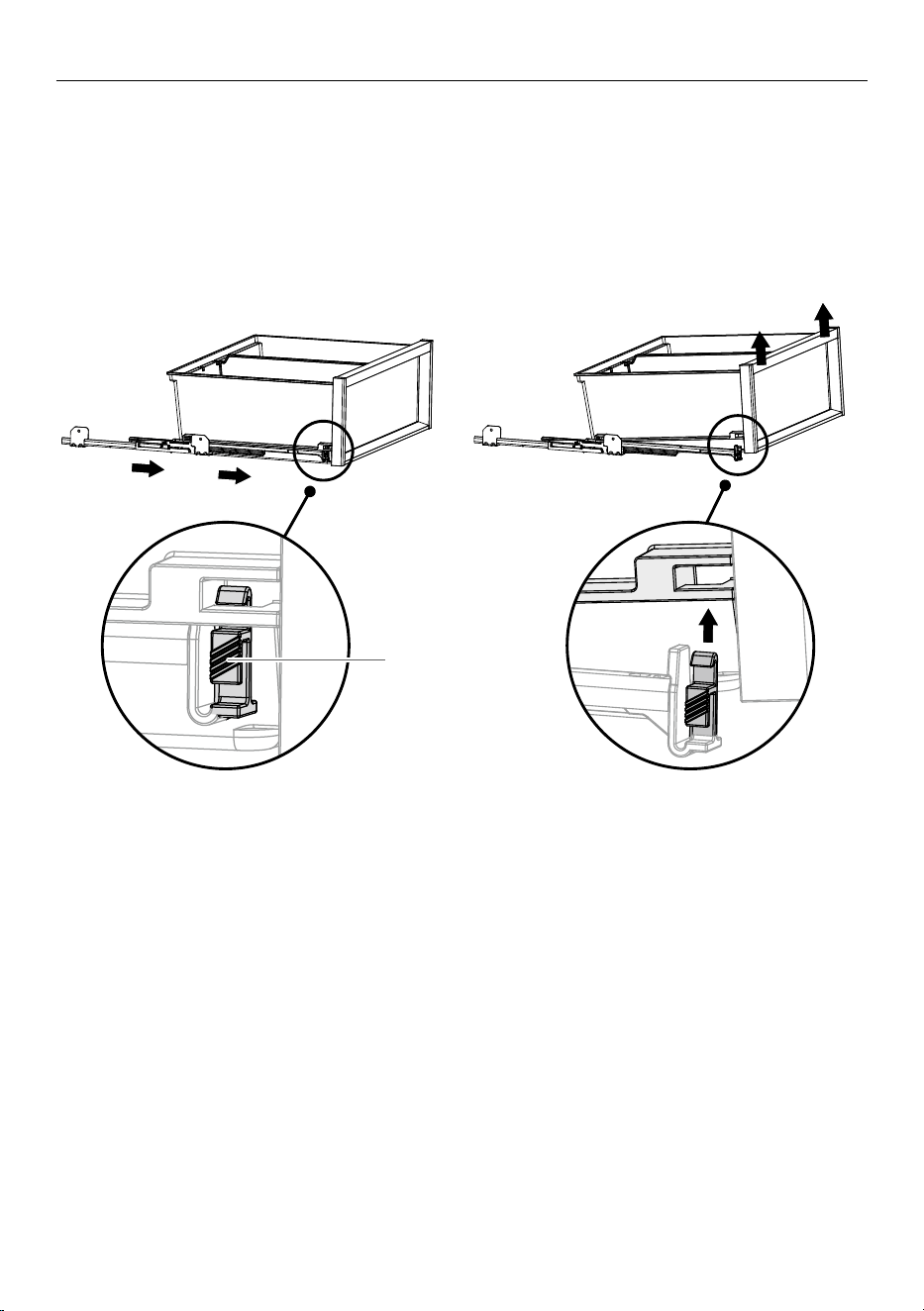

Bin

To remove a bin, extend the bin on its runners (A), and empty the bin.

Push the securing tabs on both sides of the bin corners, then push the bin firmly

upwards to dislodge from the runners (B).

Pull the bin towards you to remove. Push both runners back into the appliance.

To return the bin, extend the runners and place the bin on top of the runners.

Push the bin slowly onto the securing tabs until you feel it clip onto the runners.

Ensurethe bin tabs are clipped securely onto the runners before use.

IMPORTANT!

The runners are pre-lubricated to help open and close the bins. They do not need

to be lubricated again. Do not remove the grease from the runners to maintain its

smooth function. Do not immerse the runners in water.

Holiday/vacation (freezer only)

Before leaving:

●●

Turn the ice maker to OFF on the control panel.

●●

Shut off the water supply to the appliance.

On return:

●●

Turn on the ice maker. Discard the first full bin of ice.

Securing tab

FOOD CARE

For best food care

●●

Store only high-quality, fresh food in your appliance.

●●

Store perishable foods in the appliance immediately after purchase. Storingatroom

temperature increases the rate of deterioration and can allow harmfulmicrobialgrowth.

●●

Foods such as meat, poultry and seafood should be well wrapped or sealed in

suitablepackaging to prevent dehydration, colour deterioration, loss of flavour, and

transfer ofodour.

– We recommend storing these foods on the bottom shelf of your appliance

orinone of the bins to prevent potential spills and cross-contamination with

otherfoods.

●●

Ensure hot foods and beverages are cooled sufficiently before placing them into

theappliance. Hot items may cause other foods to warm to unsafe temperatures.

Itmayalso cause sealed items to sweat/condensate — which is undesirable.

●●

Beverages are best stored standing upright in the door shelves or on the bottle

racksprovided.

●●

Ensure raw and cooked foods are stored separately to avoid cross-contamination.

●●

Consume food items within the recommended storage times. Discard foods that

showsign of spoilage.

●●

Keep door openings to a minimum to maintain optimum storage temperatures inside

your appliance.

●●

We recommend using ‘Max Cool’ or ‘Fast Freeze’ when you are adding food items

toyour appliance, such as after grocery shopping. This feature will ensure the

food ischilled/frozen within the shortest period of time, locking in the freshness

andextending the shelf life of your food.

Items stored in your refrigerator

●●

Dairy items such as butter and cheeses should be stored in the covered door shelf

tominimise any transfer of odour or odour absorption from other foods.

●●

Eggs should be stored in their carton to avoid absorption of strong odours through

theirporous shell structure.

Items stored in your freezer

●●

We recommend cooling carbonated beverages only when the ‘Bottle Chill’ function

isactive.

– Do not store carbonated drinks without this function in the freezer.

Failuretoremove beverages could lead to freezing liquid and the likelihood

ofbottle/canexplosion.

●●

Ensure air is removed from packaging to avoid large formation of ice crystals and

prevent freezer burn.

●●

To maintain freshness and quality, we recommend defrosting foods in the refrigerator.

Ensure partially or fully defrosted foods are never re-frozen — cook immediately.

USER WARNINGS AND SOUNDS

Faults

●●

In the unlikely event a fault occurs, 4rapid beeps will be heard and the fault

will be displayed on the control panel.

– Record the fault code displayed on the control panel and contact a

Fisher&Paykeltrained and supported service technician in order to

repair thefault. You can do this by going online to fisherpaykel.com or

bycontactingourCustomer Care Centre.

Normal appliance sounds

Integrated Columns has been designed to have excellent energy ratings and

cooling performance. As a result, it can produce sounds somewhat different to your

oldappliance.

Normal operational sounds include:

●●

Low frequency ticking sound. This is the valve that controls cooling to each

compartment. This noise will only last for a few seconds at a time.

●●

Fan air flow sound. Integrated Columns has fans which change speed depending on

demand. During cooling periods, such as after frequent door openings, fans circulate

thecoldair in the appliance producing some air flow sound. This is quite normal.

●●

Cracking or popping sounds. This may occur when the automatic defrost function

isoperating.

●●

Running water sound. This is the liquid refrigerant in the system and can be heard

asaboiling or gurgling noise.

●●

An audible hissing sound after closing the freezer door. This is due to the pressure

difference between the warm air that has entered the cabinet and suddenly cooled,

andtheoutside airpressure.

●●

Humming sounds. This is the compressor running and is quite normal.

●●

Ice maker sounds:

– Motor operation (low humming).

– Running water as the ice maker and/or water tank fills.

– Water valve opening and closing (hissing sound).

– Ice being loosened from the ice moulding tray (cracking).

– Ice dropping into bin (clunking).

●●

Other sounds may be heard for the following reasons:

– Floor uneven or weak.

– Bottles or jars rattling on shelves.

TROUBLESHOOTING

If there is a problem with your appliance, please check the following points before

contacting your local Fisher & Paykel trained and supported service technician or

theCustomer Care Centre.

Product parts and accessories can be purchased through the Fisher & Paykel

CustomerCare Centre, or online at fisherpaykel.com (this service is available to

selectedmarkets only).

PROBLEM POSSIBLE CAUSES WHAT TO DO

Appliance does

not operate

No electricity at

powersocket.

Check that the plug is correctly

connected and power switched on.

Check another appliance at the

sameoutlet.

Check house fuse.

Light not

working

Light not functioning. The lighting cannot be serviced by

the user. Contact your Fisher & Paykel

dealer or trained and supported

servicetechnician.

Appliance not working. Check appliance is turned on at the wall

or at the isolating switch.

Light and

display not

working

Product in Sabbath mode.

Press

, and together for

4seconds.

Storage

compartments

too warm

Temperature setting

notcorrect.

See ‘ActiveSmart™ special features’

section of this User guide.

Frequent door openings. Minimise door openings to allow

temperature to stabilise.

Large amount of food

has been recentlyadded.

Select ‘Max Cool’ or ‘Fast Freeze’

features to assist in lowering the

temperature quickly.

Food freezing in

the refrigerator

Temperature setting is too

cold.

Increase the temperature setting. See

‘ActiveSmart™ special features’ section

of your user guide.

Food placed directly

infront of air outlets.

Move chill sensitive foods away from

theair outlets.

Unfamiliar

noises

Cabinet not stable

orlevel.

See Installation guide supplied with

thisappliance.

Freezer is defrosting. This is normal.

Ice maker

sounds

Normal ice maker

operation.

See ‘User warnings and sounds’ section.

Food Mode is

not available

Not all combinations of

food modes are available

in all compartments.

Try to select the desired Food Mode

inadifferent compartment.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES WHAT TO DO

When the appliance

door is opened

4rapid beeps

sound and a code

is displayed on the

control panel

Record the code on the control

panel and contact Customer

CareCentre.

Water in the

vegetable bins

Condensation is formed

by the water produced by

fruitand vegetables.

A small amount of condensation

is beneficial for fruit and

vegetable storage.

Wipe out water with a cloth.

Exterior of cabinet

is warm

Note: This is normal.

Condensation on

outside of appliance

Not unusual during periods

of high humidity.

Wipe dry.

Condensation/ice

inside compartment

Frequent or long door

openings.

Minimise door openings.

Door gasket leaking. Check and clean door gasket seal.

Not unusual during periods

of high humidity.

Wipe dry.

Door not closing tightly. Arrange items in the compartment

so door can close tightly.

Doors not aligned. Call a service technician.

Bin does not slide

inand out evenly

Packaging trapped. Check to ensure no food or

packaging is trapped behind

the tray/bin.

Door not closing An obstruction is blocking

door closing.

Move obstruction.

Appliance not installed

correctly.

Refer to your installation guide

supplied with this appliance to

ensure your appliance has been

installed correctly.

Freezer door will

not open

The door has been recently

opened.

Wait 30seconds and try again.

Small or large ice

cubes

Water line is kinked/

squashed.

Check the external water line is not

kinked/squashed. If it is not kinked/

squashed contact Customer Care

to arrange a technician to check

the internal water line.

Frozen food items

are soft or melting

Remove items and place in

another freezer or cooler and

callCustomer Care immediately.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES WHAT TO DO

Automatic ice

maker does

notwork

Ice maker has not been

turned on.

Switch on ice maker, see ‘Automatic

ice maker (freezer only)’ section.

Water supply turned off or

not connected.

Connect the water supply.

Freezer compartment

notworking.

Contact Customer Care Centre.

Water pressure too low. Check water pressure.

Water line kinked/squashed. Check water line for kinks/squashing.

Filter is clogged. Water filter may need replacing.

Ice cubes sticking in ice bin. Remove ice storage bin, loosen

cubes and remove clumped ice.

Replace ice storage bin.

The food mode is set to

‘SoftFreeze’.

Change the food mode from ‘Soft

Freeze’.

Ice cubes taste

tainted

Unsealed packages may be

transmitting odour/taste.

Discard ice cubes and clean ice

storage bin. See ‘Interior cleaning’

section.

Wrap or cover strong smelling foods.

Poor taste from incoming

water.

Replace filter cartridge product parts

and accessories can be purchased

through our Customer Care Centre.

Slow ice cube

freezing

Door may have been

leftajar.

Close door.

Freezer compartment

settoo warm.

Turn temperature to a colder

setting. See ‘Operating instructions’

section.

Wet ice/

iceclumping

Low water pressure. Check water pressure.

Filter is blocked. Replace filter cartridge, see ‘Water

filter’ section.

Long freezer door openings. Gently tap ice to unstick or, if large

clumps occur, empty ice bin and

make new ice.

High ambient temperature.

Ice bin left out of freezer

compartment for a length

of time.

Ice will stick together

overtime.

Ice is discoloured Water filter has not been

flushed.

Refer to your installation guide

supplied with your appliance

fordetails on how to flush your

water filter.

EUROPEAN DIRECTIVE 2012/19/EU ON

WASTEELECTRICALANDELECTRONICEQUIPMENT(WEEE)

EU This appliance is marked according to the European Directive 2012/19/EU on Waste

Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the environment

and human health, which could otherwise be caused by inappropriate handling of this

product.

The symbol marked on the serial plate, or on the documents accompanying the

product, indicates that this appliance cannot be treated as household waste. It shall

be handed over to the applicable collection point for the recycling of electrical and

electronic equipment. Disposal of the appliance shall be carried out in accordance with

the local environment regulations for waste disposal and ensure the refrigerant circuit is

not damaged.

For more detailed information about treatment, recovery and recycling of this product,

please contact your local city office, your household waste disposal service or your

Fisher & Paykel retailer/dealer from whom you purchased this product.

SERVICE & WARRANTY

For details of your manufacturer’s warranty and contacts for servicing, refer to your

separate service and warranty book provided with your appliance.

This product has been designed for use in a normal domestic (residential environment).

This product is not designed for any commercial use. Any commercial use by the

customer will affect this products manufacturer’s warranty.

Complete and keep for safe reference:

Model

Serial No.

Purchase Date

Purchaser

Dealer

Suburb

Town

Country

NZ AU GB EU

849165B 09.18

FISHERPAYKEL.COM

The product specifications in this booklet apply to the specific products

and models described at the date of issue. Under our policy of continuous

product improvement, these specifications may change at any time. You

should therefore check with your Dealer to ensure this booklet correctly

describes the product currently available.

RS7621SLK1 Fisher & Paykel Series 11 463L Integrated Column Refrigerator Left Hinge

Product's Documents

RS7621SLK1 - Fisher & Paykel - User Manual

Specifications

Fisher & Paykel RS7621SLK1 Questions and Answers
