.com
support@garvee.com
Distributed by
Insert Electric Fireplace
Product ID. Q7H6G
Scan for Support
.com
support@garvee.com
Distributed by
Insert Electric Fireplace
WARNING
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so
could result in fire,electric shock, or serious personal injury.
Warning-To reduce the risk of injury, user must read
instructions manual carefully.

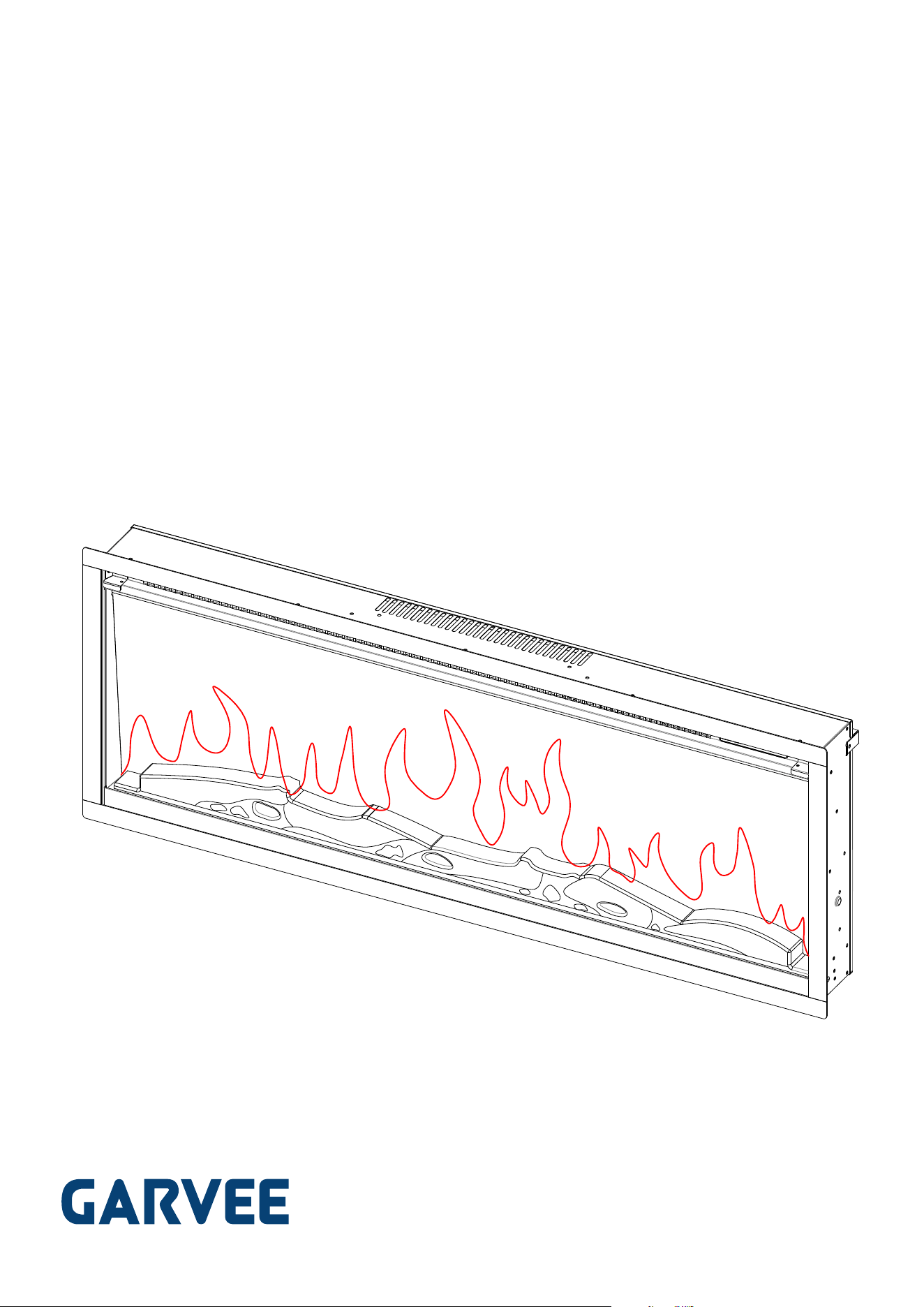

FIREPLACE HEATER
Model Number:
PHK_34VNKRBC
OWNER’S MANUAL
1

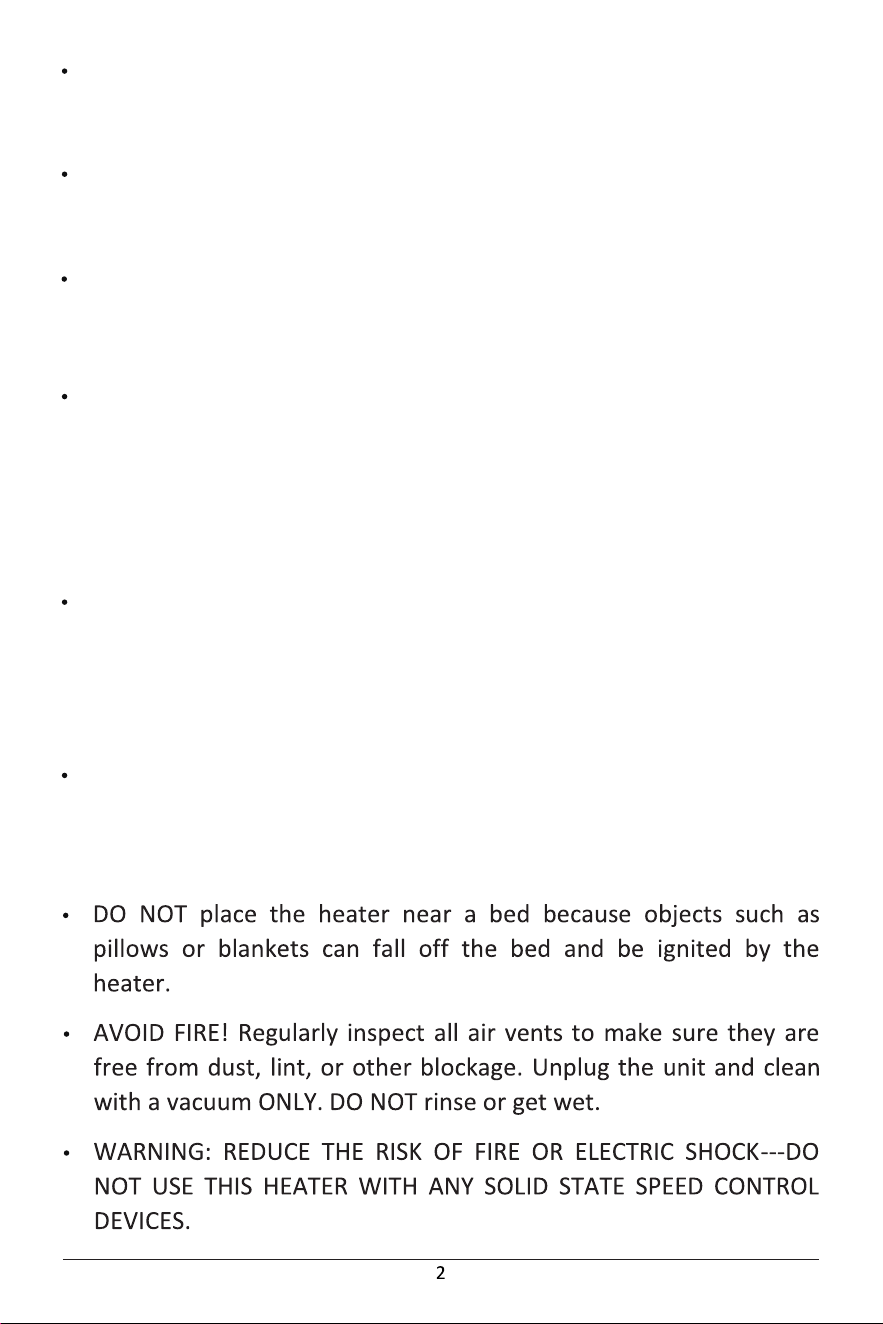

This heater is hot when in use. To avoid burns, do not let bare skin
touch hot surfaces. If provided, use handles when moving this
heater. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes, and curtains at least a 3 feet (a 0.9m)
from the front of the heater and keep them away from the sides
and rear.
Extreme caution is necessary when any heater is used by or near
children or invalids and whenever the heater is left operating and
unattended.
Always unplug heater when not in use.
Do not use outdoors
This heater is not intended for use in bathrooms, laundry areas and
similar indoor locations. Never locate heater where it may fall into
a bathtub or other water container.
Do not insert or allow foreign objects to enter any ventilation or
exhaust opening as this may cause an electric shock or fire, or
damage the heater.
To disconnect heater, turn controls to off, then remove plug from
outlet.
Connect to properly grounded outlets only.
Do not operate any heater with a damaged cord or plug or after
the heater malfunctions, has been dropped or damaged in any
manner. Discard heater, or return to authorized service facility for
examination and/or repair.
Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or similar coverings. Do not route cord under
furniture or appliances. Arrange cord away from traffic area and
where it will not be tripped over.
To prevent a possible fire, do not block air intakes or exhaust in any
manner. Do not use on soft surfaces, like a bed, where openings
may become blocked.

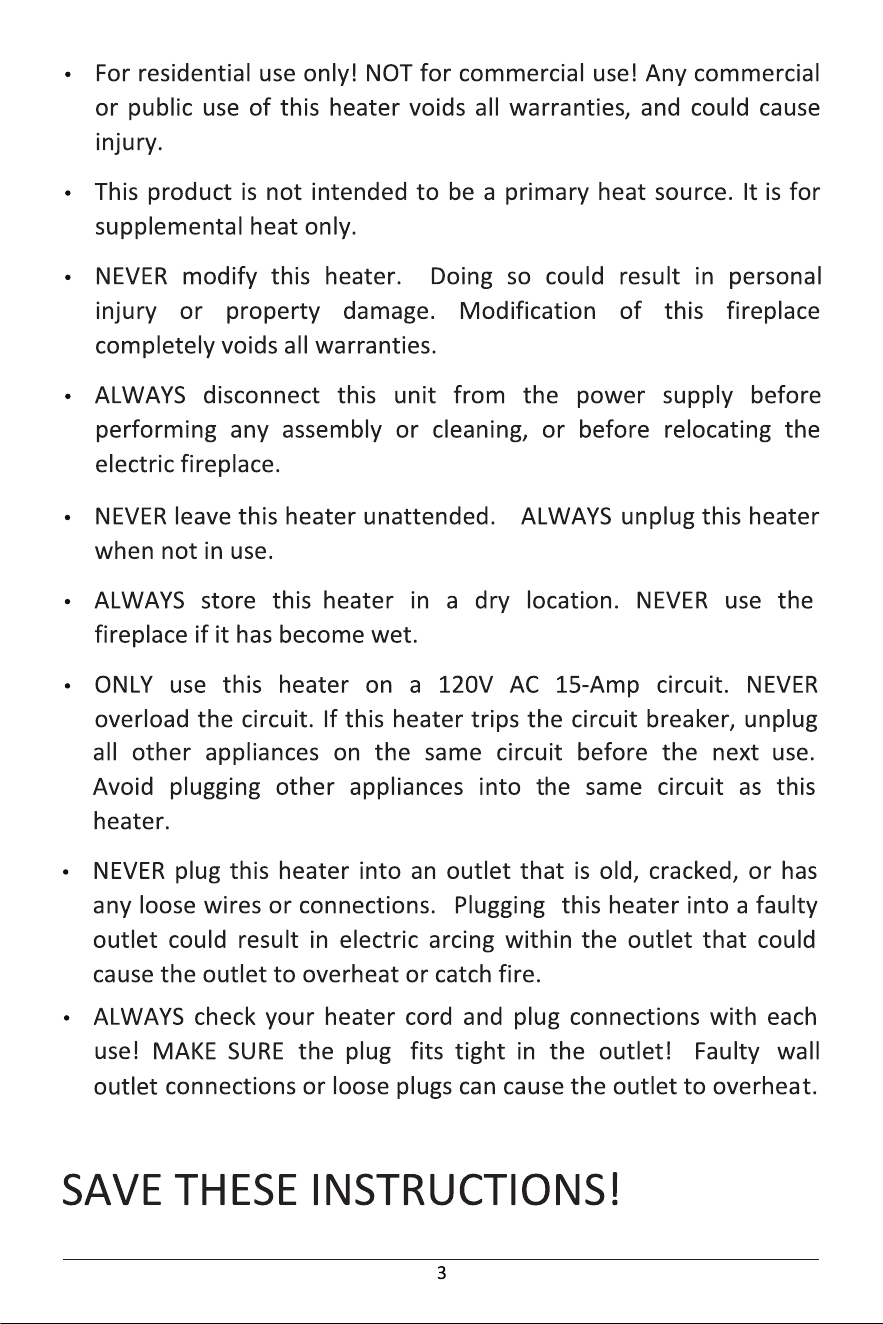

IMPORTANT SAFETY INFORMATION
This heater may include an audible (a visual) alarm to warn that
parts of the heater are getting excessively hot. If the alarm sounds
(flashes), immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may cause high
temperatures. DO NOT OPERATE THE HEATER WITH THE ALARM
SOUNDING (FLASHING).
Always plug heaters directly into a wall outlet/receptacle. Never
use with an extension cord or relocatable power tap (outlet/power
strip).
Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock,
or injury to persons.
A heater has hot and arcing or sparking parts inside. Do not use it
in areas where gasoline, paint, or flammable liquids are used or
stored.
Hyperthermia can result in death. Symptoms of hyperthermia
include high body temperature, headache, nausea, vomiting,
tiredness, dizziness, fainting, and rapid pulse. If you begin to
experience symptoms related to hyperthermia, turn off the heater
and seek medical attention.
To avoid excessive room temperatures which can cause
hyperthermia: DO NOT leave product running unattended in a
confined space around infants, or individuals with reduced physical,
sensory, or mental capabilities.
4

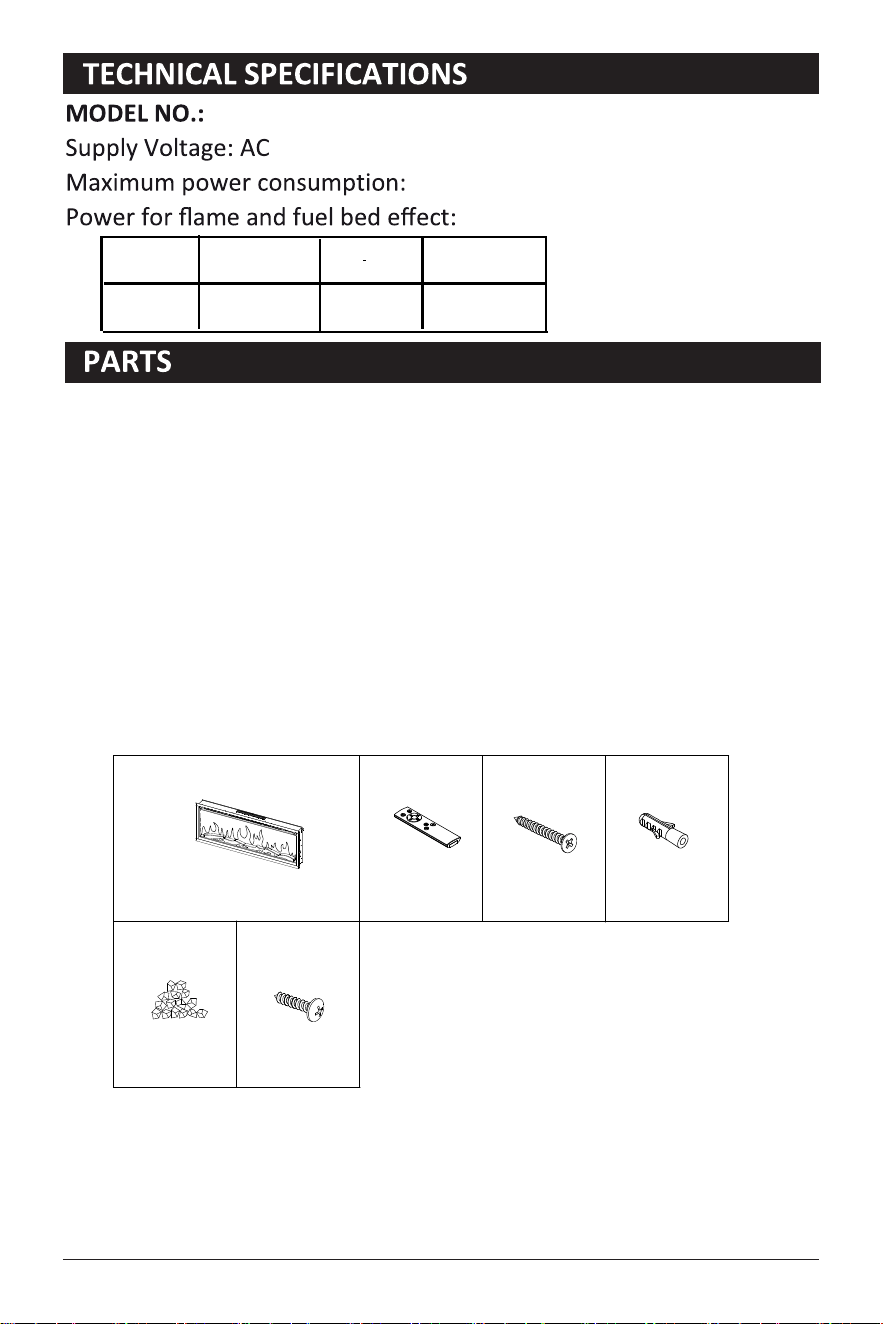

120 V 60Hz
1.5 KW
EF662B、 EF663B、 EF665B 、EF666B

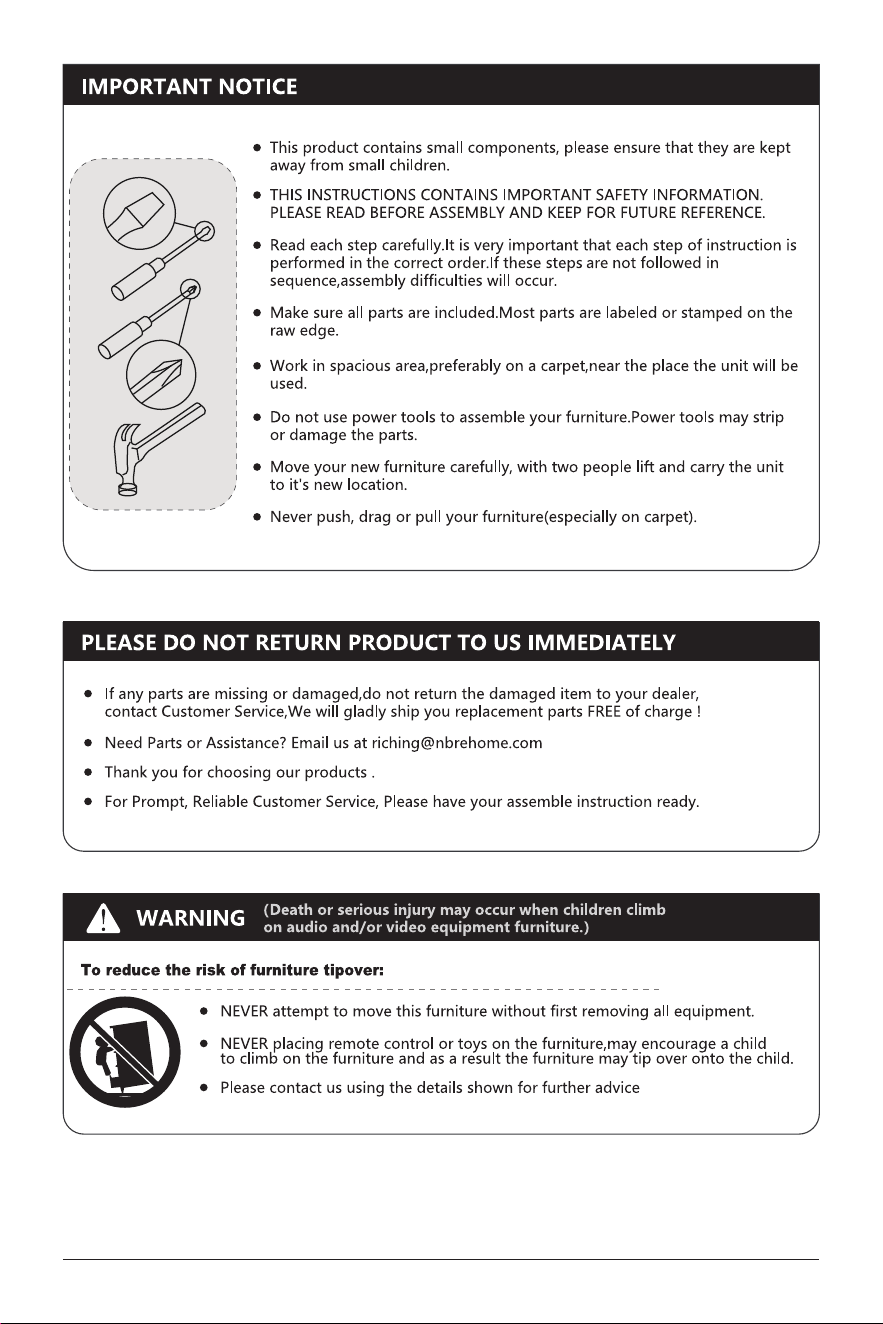

Ÿ Unpack the fire carefully, make sure that the appliance is
intact with no signs of damage caused by transport and no
part has been exposed to water. If in doubt, do not use the
appliance and contact an authorized service center.
Ÿ Keep plasc wrapping away from children.
Ÿ Save the original packaging as this may be required in the
event of service complaint with product.
Ÿ Check that all parts are removed from the packaging.
5
SCREW
ST4*30
(5PCS)
PLASTIC WALL PLUG
A. B.
F.
FIREPLACE
(1PC)
REMOTE
(1PC)
D.
E.
CRYSTALS
(1SET)
C.
SCREW
ST4*30
(4PCS)
EF662B EF663B
EF665B EF666B
9.8W
12.4W 14.3W
16.9W
(5PCS)
6
Remove the glass protective block.
G
F

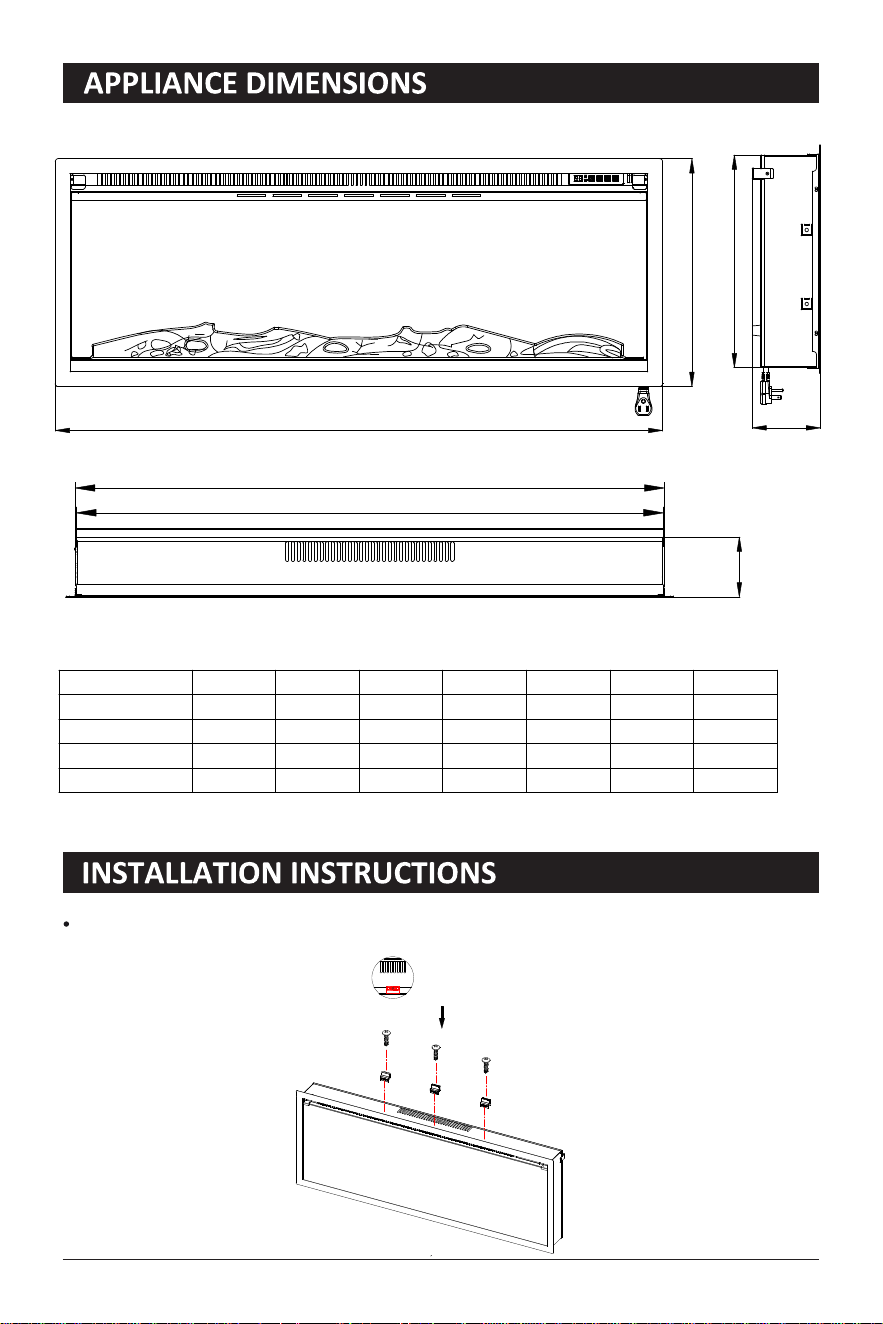

MODEL A B C D E F G
EF662B 1067 400 120 105 373 1032 1036
EF663B 1270 400 120 105 373 1235 1239
EF665B 1525 400 120 105 373 1490 1494
EF666B 1728 400 120 105 373 1693 1697
B
A
E
D
C
glass protective block
remove glass protective block

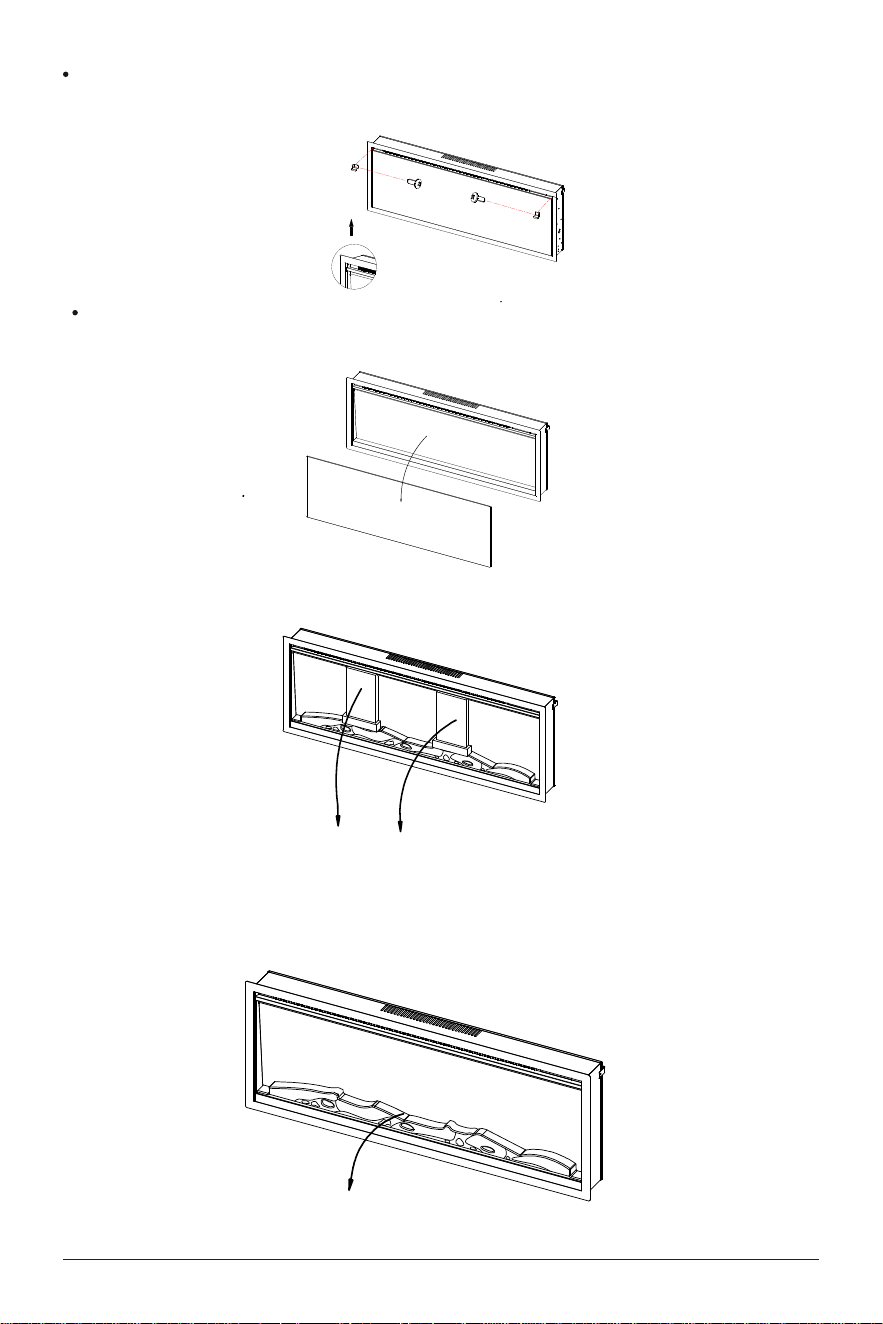

Remove the glass 、the panels and take off the fuel bed.
7
Loosen the two screws on the left and right side pressure plates of the
screen, and remove the left and right side pressure plates of the screen
remove the glass
take off the fuel bed
remove the panels
screw
M4*8
screw
M4*8
Remove the
right glass
pressure
plate
Remove
the left glass
pressure
plate

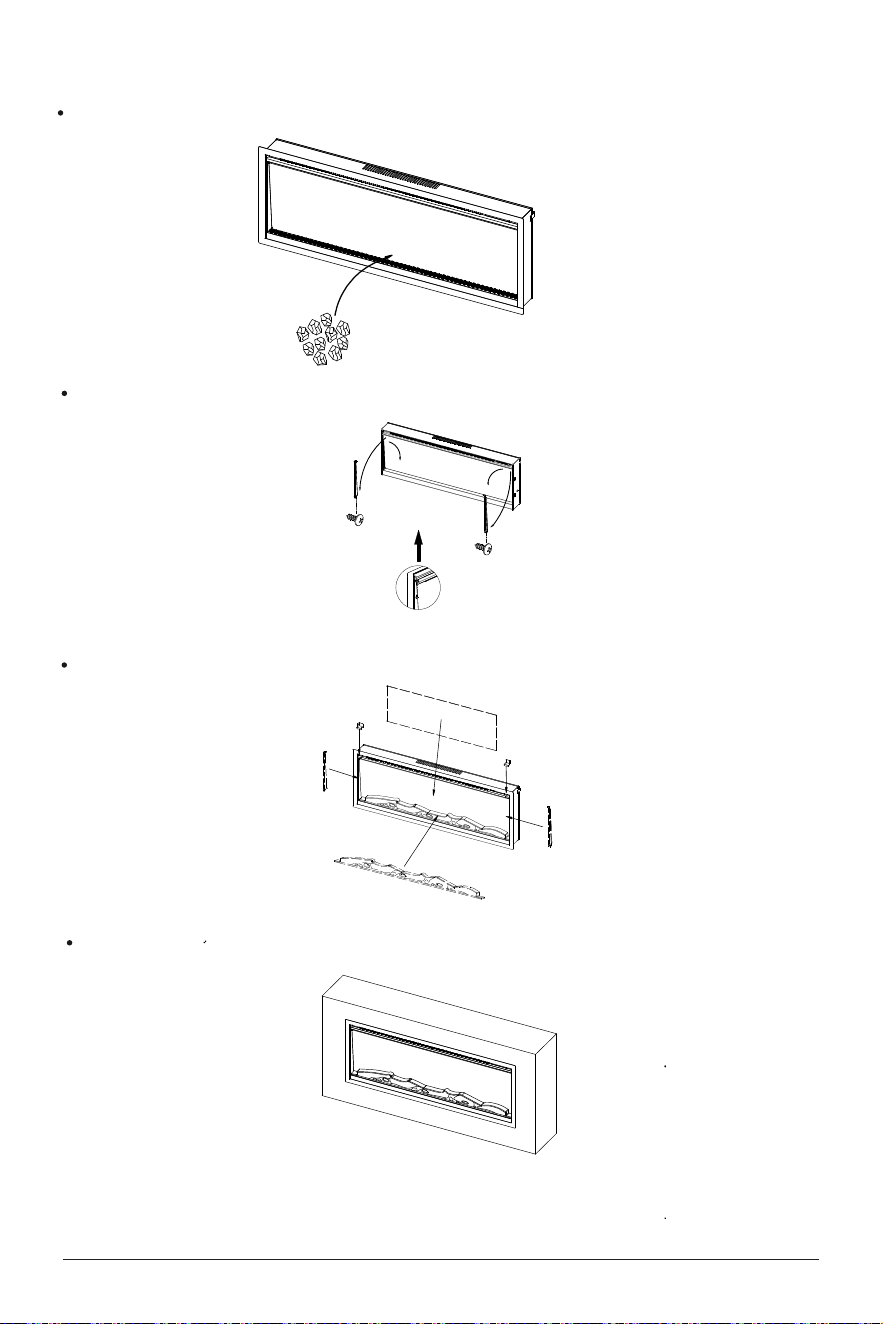

Put the crystals on the fuel bed.
Remove 4*8 screws and flip the pressure plates and take it out .
Assembly completed
Install the fireplace in the order of step 4.1、3.1、1.3、1.2
Install charcoal bed accessories
remove the screw
remove the screw
Screw
ST4*8
Screw
ST4*8
flip the left pressure plate
about 50 degrees and take it out
flip the right plate
about 50 degrees
and take it out
step 3.1
step 4.1
step 4.1
step 1.2
step 1.2
step 1.3

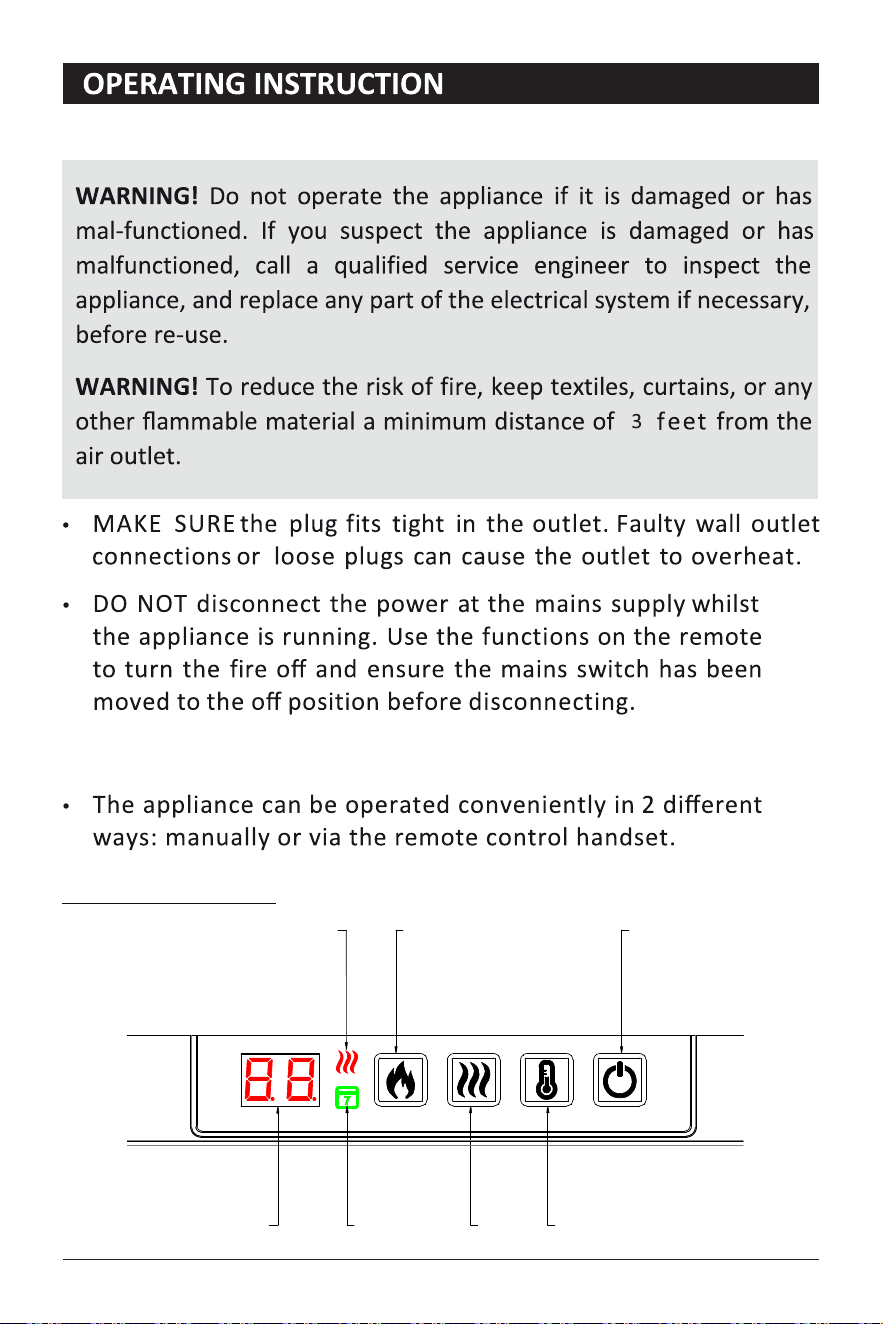

BEFORE OPERATION
OPERATION METHOD
MANUAL CONTROL
9
Flame
Heater
Stand by
Temperature
7 day timer
Heating
indication
DISPLAY
1. STAND-BY: Turns on the appliance with the last used settings including
heater. Place the appliance into standby mode with all features turned
off.
2. FLAME: Press to cycle through 9 flame colours and off setting.
3. HEATER: Press to cycle through low heater, high heater and off setting.
4. TEMPERATURE: Press to adjust the heaters response to the ambient
temperature conditions in the room. Temperature adjusts from 16 °C -
28 °C (60 °F - 84 °F) and then 58°C (99°F).

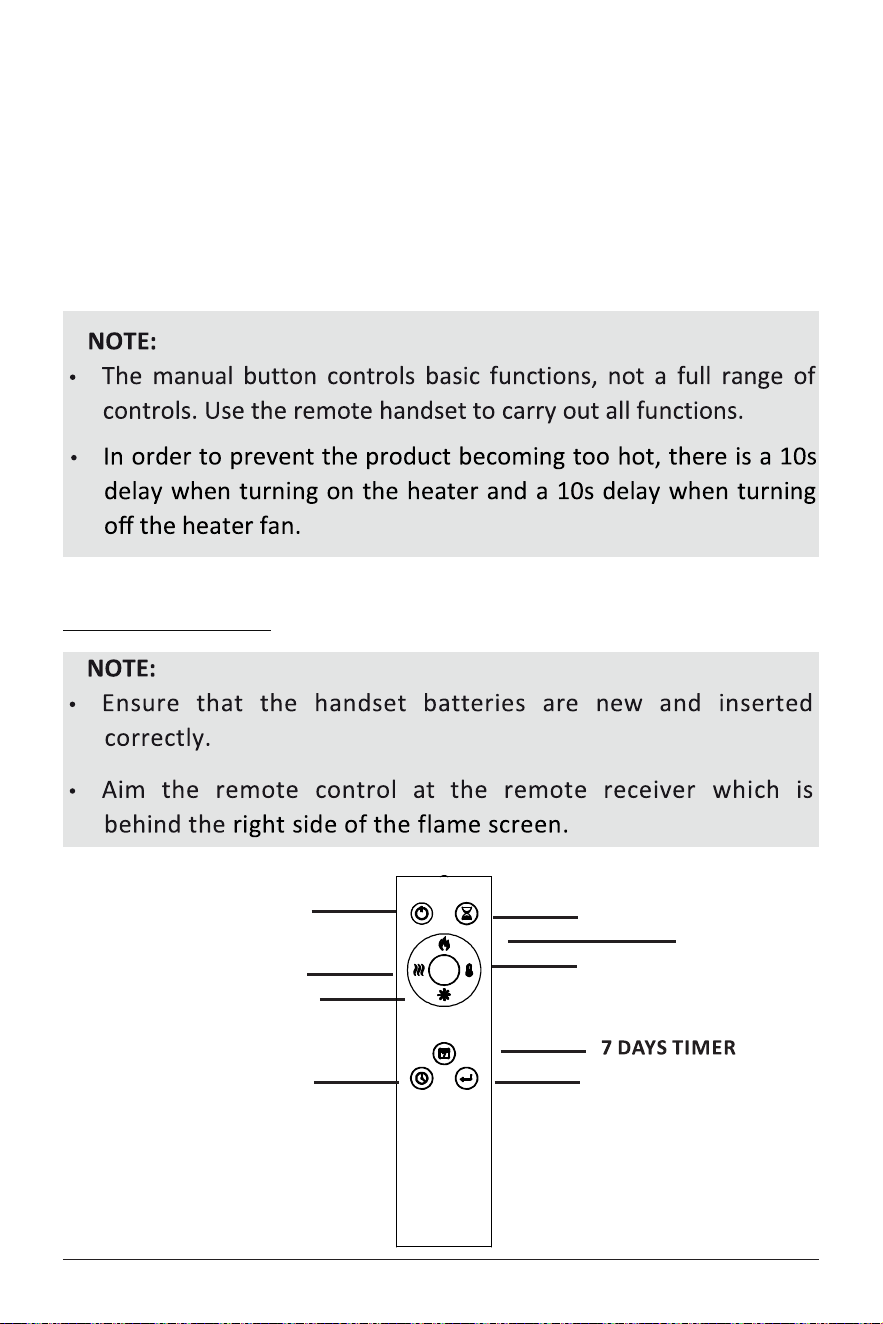

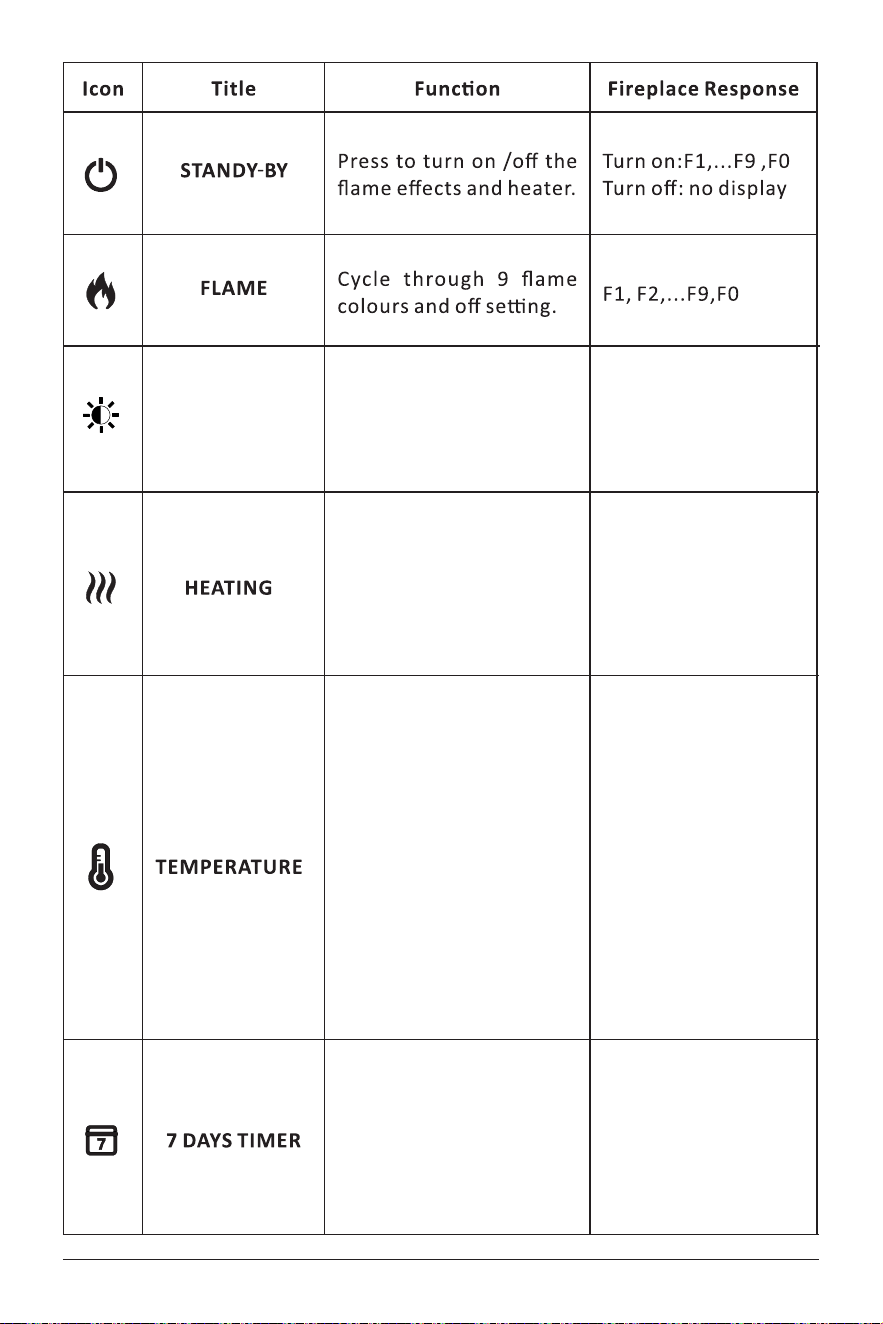

REMOTE CONTROL
FLAME
HEATER
TIMER
STAND-BY
BRIGHTNESS
TEMPERATURE
10
ENTER
TIME
FLAME
16,17,18,19,20,21,2
2,23,24,25,26,27,28
,58
in Celsius degree
60,62,64,66,68,70,7
2,74,76,78,80,82,84
, 9 9 i n Fa h re n h e i t
degree.
A d j u s t t h e h e a t e r s
response to the ambient
temperature condions
i n t h e r o o m .
Te m p e r a t u r e a d j u s t s
from 16 °C - 28 °C (60 °F -
84 °F ) a n d t he n 5 8℉
(99℉).
Hold for 3 seconds to
switch between ℃/℉.
C y c l e t h r o u g h l o w
heater, high heater and
off seng.
Lo=low heat seng
HI=high heat seng
The heater indicator
will turn off aer 10
seconds if the flame
effect is on
BRIGHTNESS
Cycle through 5 sengs
of brightness of flame
and fuel bed.
L5, L4,L3,L2,L1,L0.
11
Indicator lights on
Press to Turn on/off 7 days
mer; Keep press to start
t h e s e n g f o r 7 d a y s
mer.

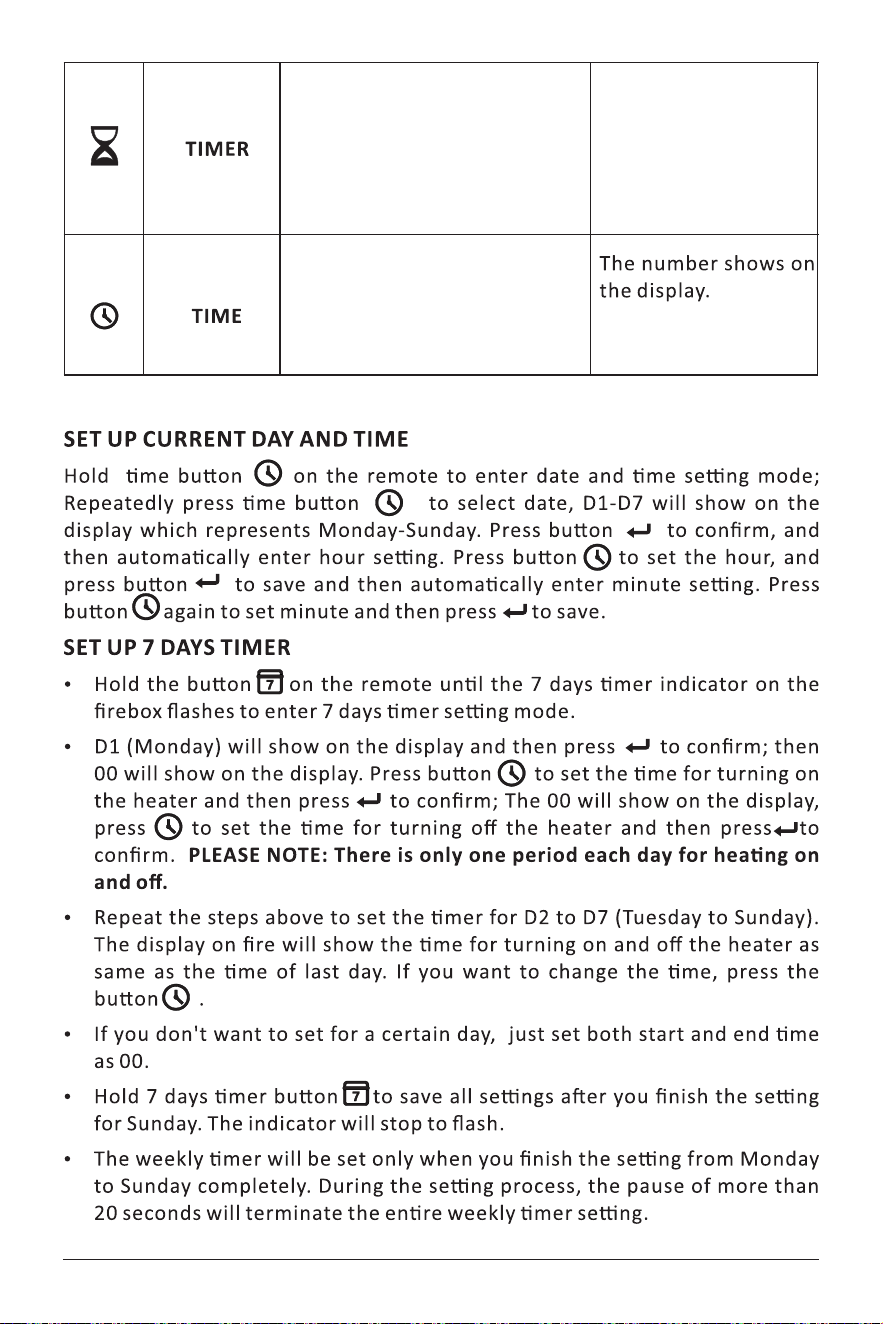

30, 1H, 2H, 3H, 4H, 5H,
6H, 7H, 8H, 9H, 0H
Set the me desired for the
fireplace to run. The mer
can be set from 0.5 hour up
to nine (9) hours in one (1)
hour increments.
12
Press to set up the heang
start and end me under 7
days mer; Keep press to
set current me.

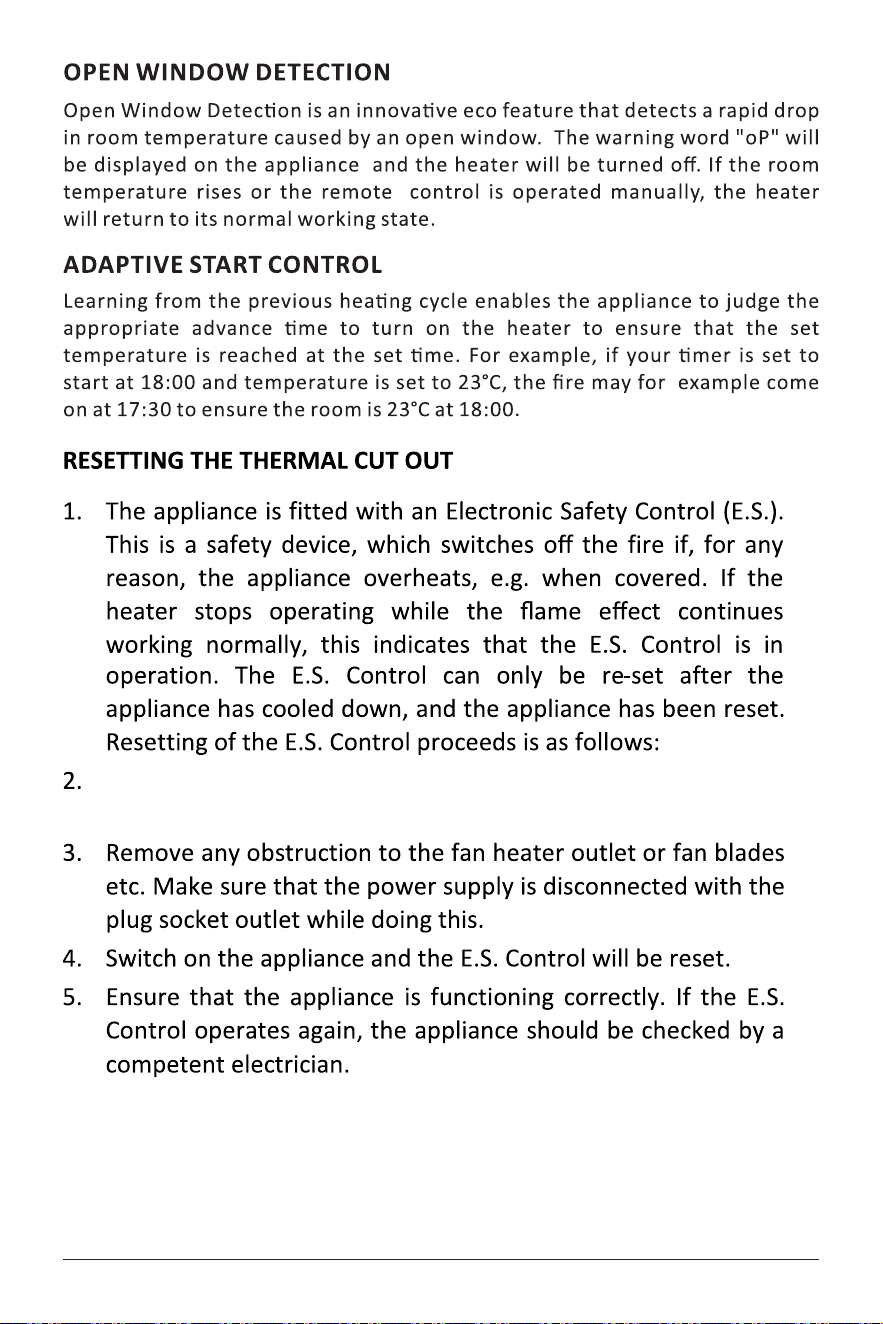

Press button STAND BY on the appliance to turn it off and leave
it off for approximately 10-15 minutes.
13

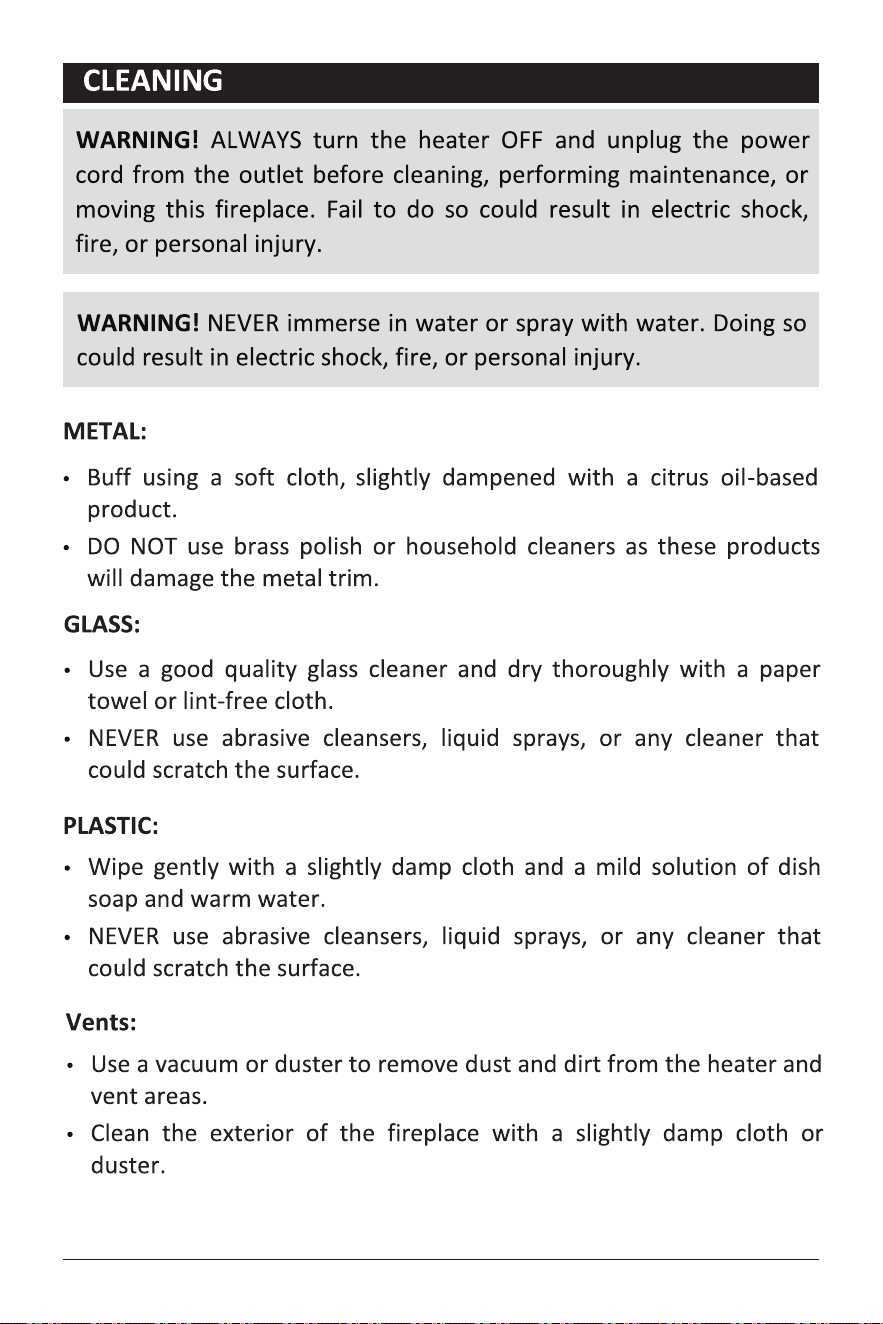

14

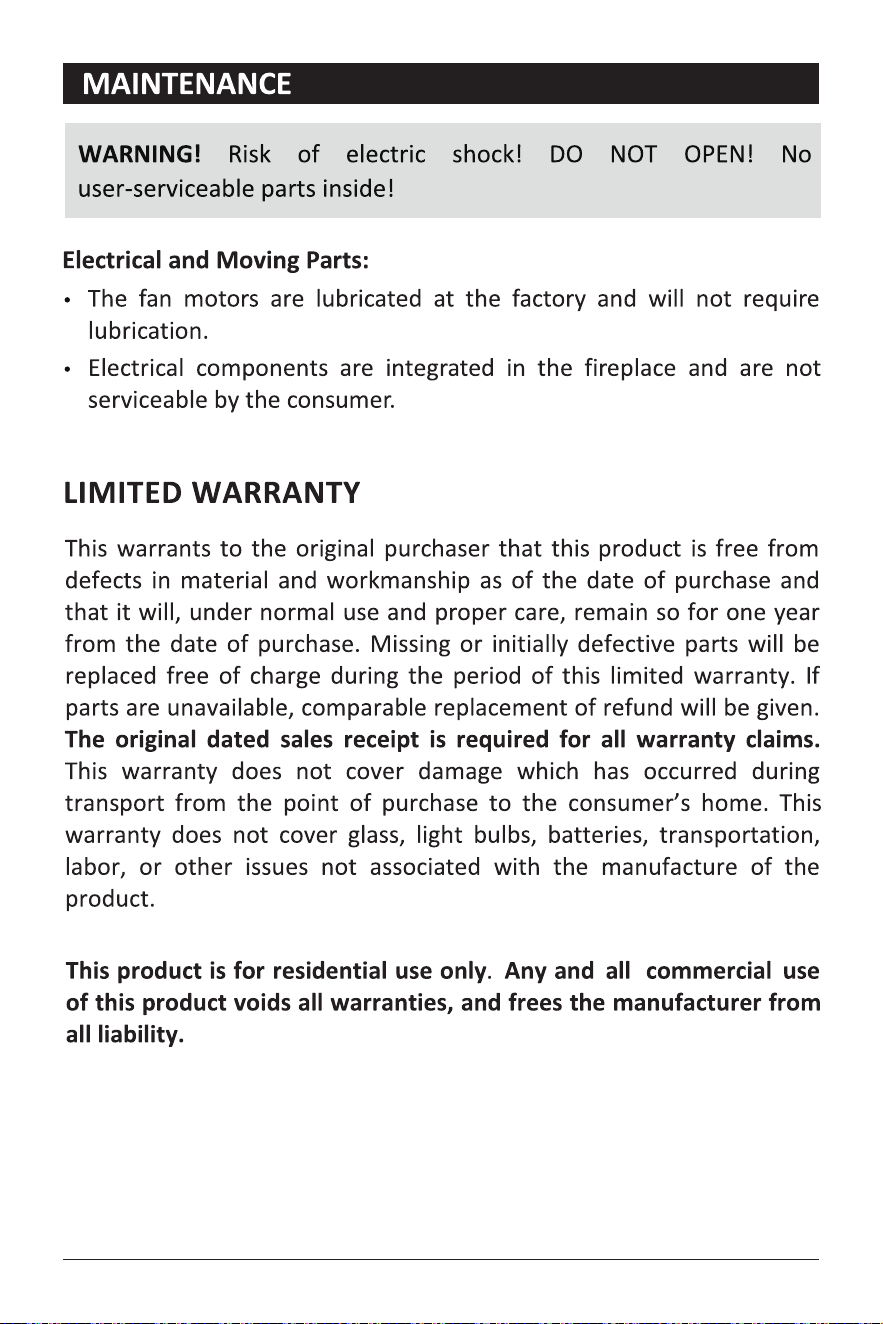

15

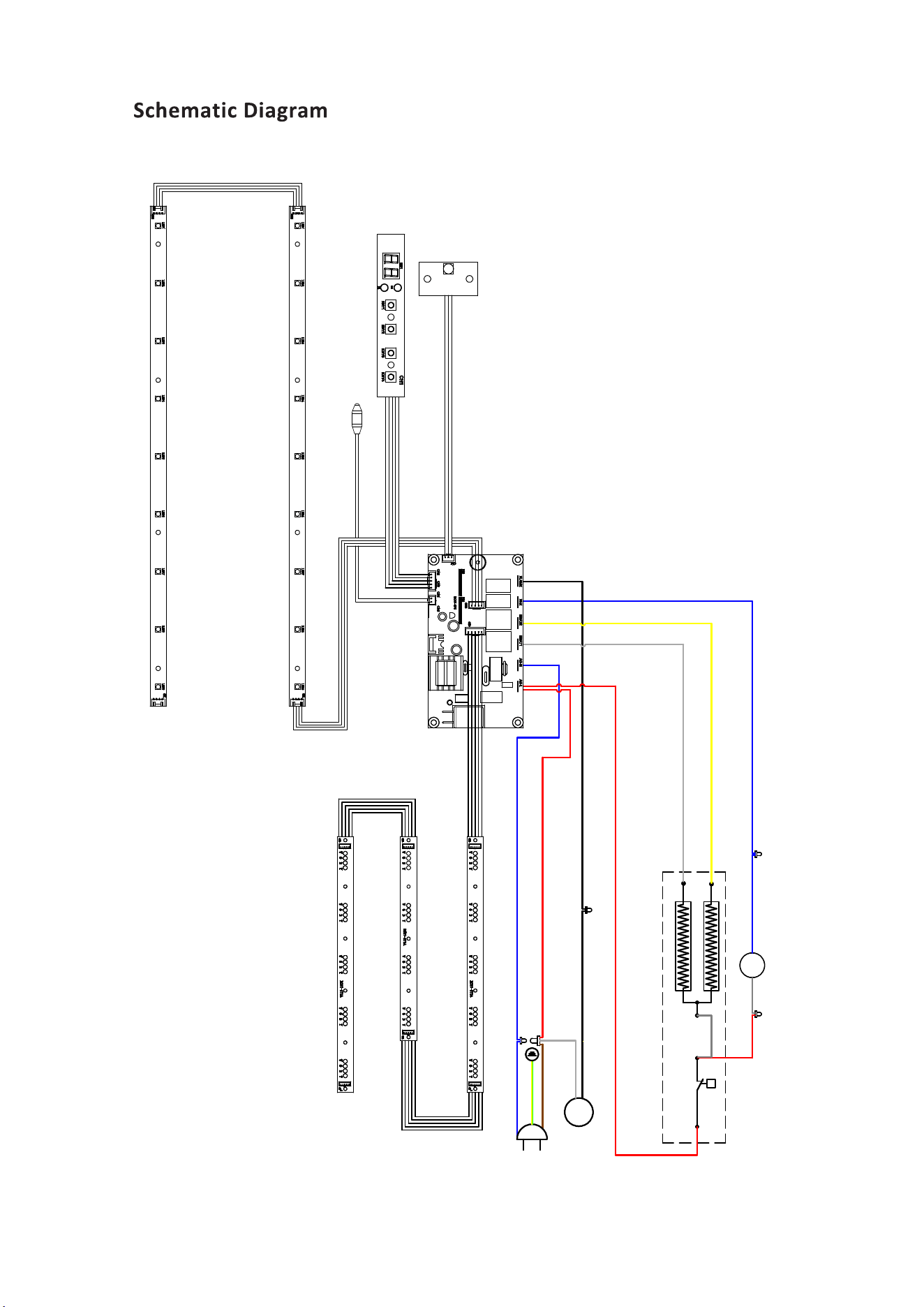

3.EF.530.05.015 A0
PCB
heater element
1
2
3
5
4
～
M
N
L
AC120V/
60Hz
button
board
receiver
board
～
M
motor
sensor
LED
board
LED
灯板
LED
board
LED
board
LED
board
θ
