Sideline® Infinity PRO Series 50”, 60”, 72”
Forte® Infinity PRO Series 40”
, Recessed Electric Fireplace
AC 110-120V 60Hz 1500W
WARNING
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
CAUTION
Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.
SIDELINE® INFINITY PRO SERIES ELECTRIC FIREPLACE HEATER
Model # : 80045, 80046, 80051, 80066
FORTE® INFINITY PRO SERIES ELECTRIC FIREPLACE HEATER
Model #: 80064
OWNER’S MANUAL
Sideline
®
and Forte
®
Infinity PRO Series Electric Fireplace
2
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Table of Contents
General Information .......................................................................................................................................................... 4
CSA Approval Listing Information ............................................................................................................................... 4
Fireplace Specifications ................................................................................................................................................ 4
Serial Number Label ..................................................................................................................................................... 5
Dimensional Drawings ................................................................................................................................................. 6

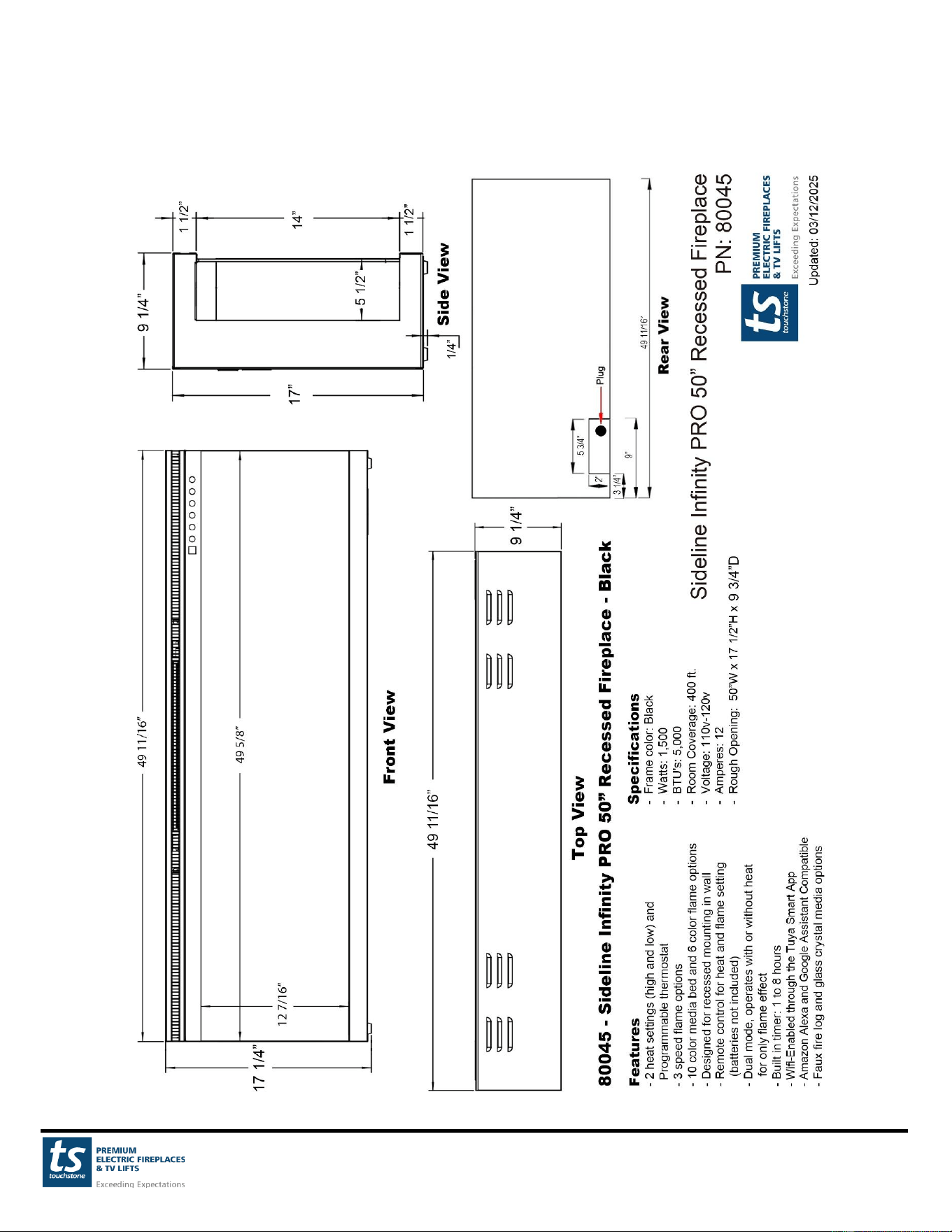

80045 – Sideline® Infinity PRO 50” Dimensions .................................................................................................... 6

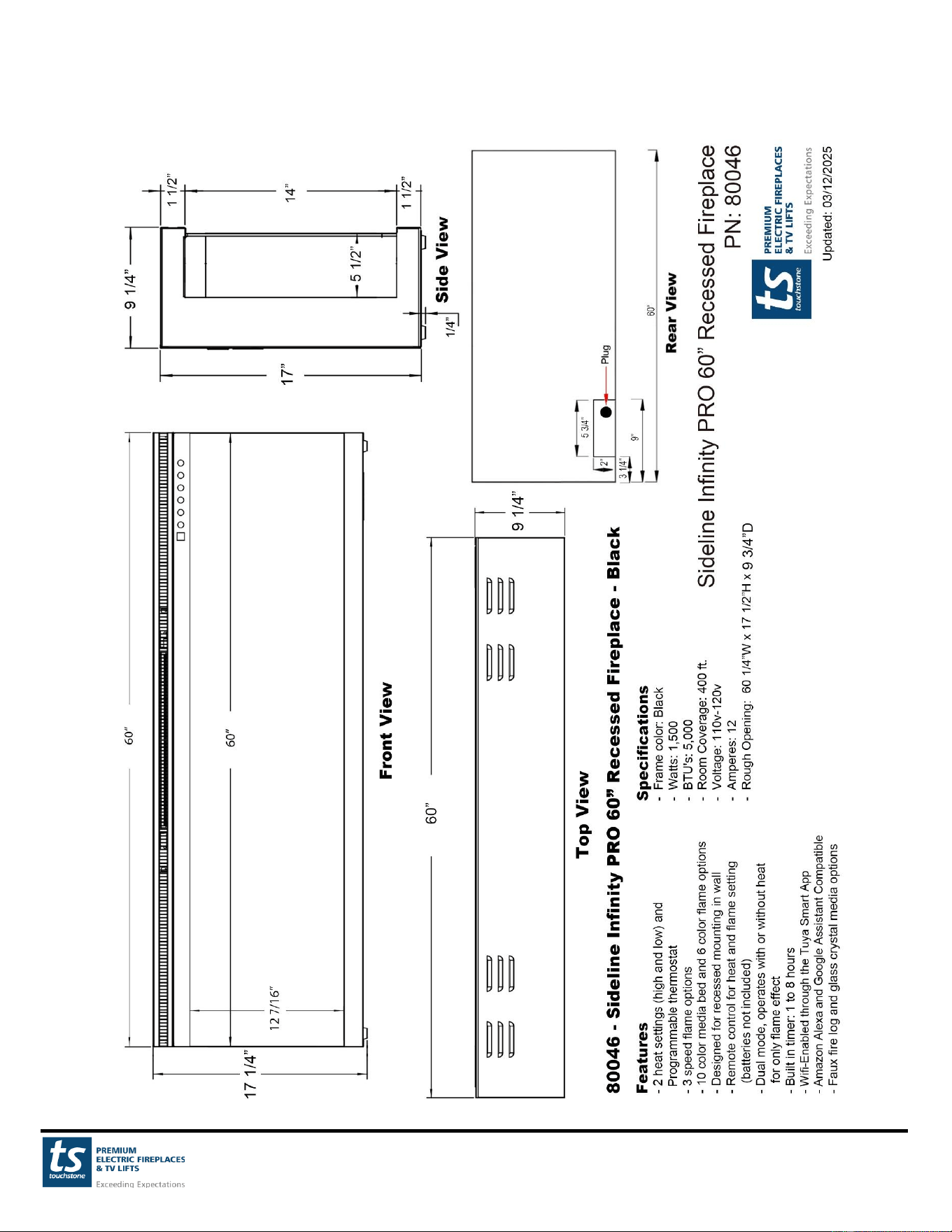

80046 – Sideline® Infinity PRO 60” Dimensions .................................................................................................... 7

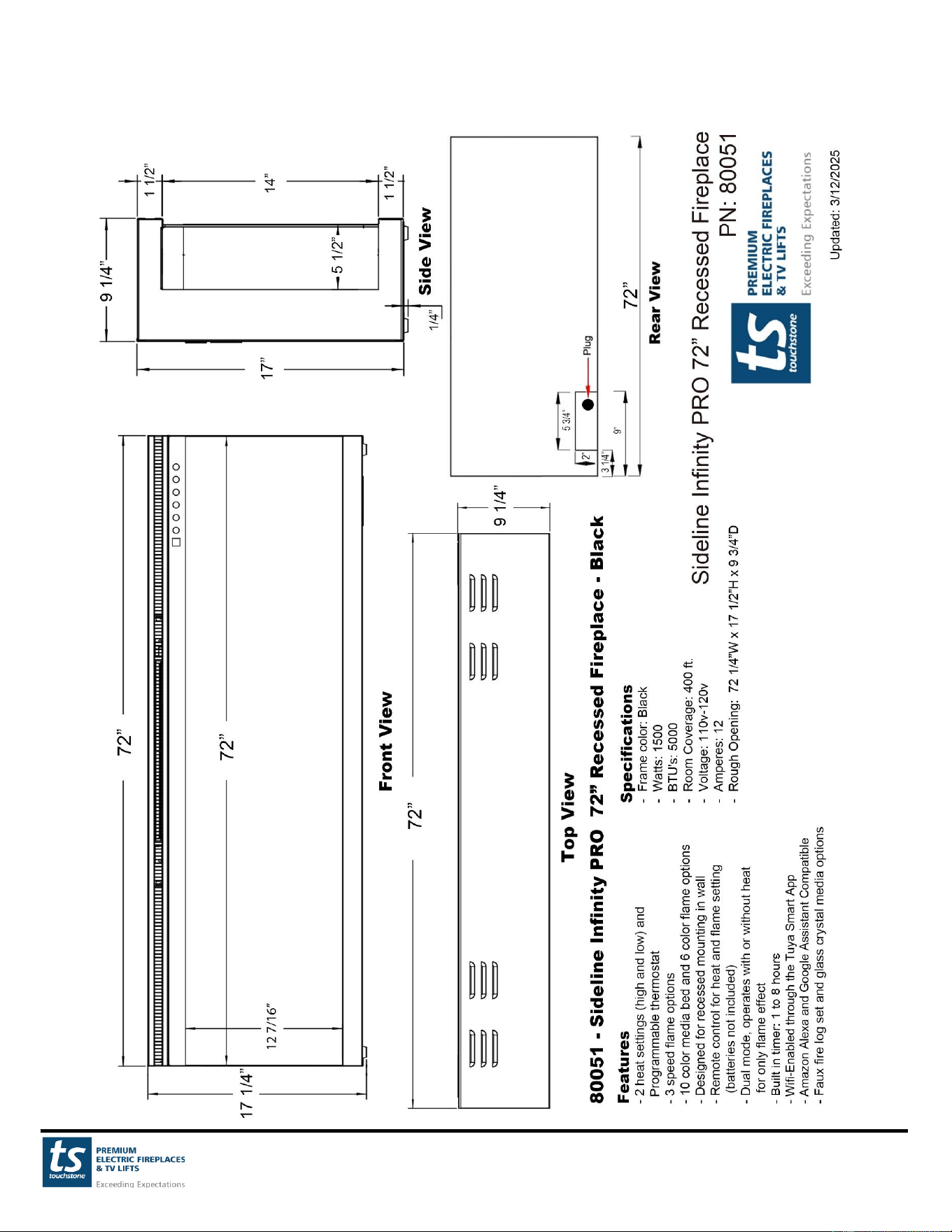

80051 – Sideline® Infinity PRO 72” Dimensions .................................................................................................... 8

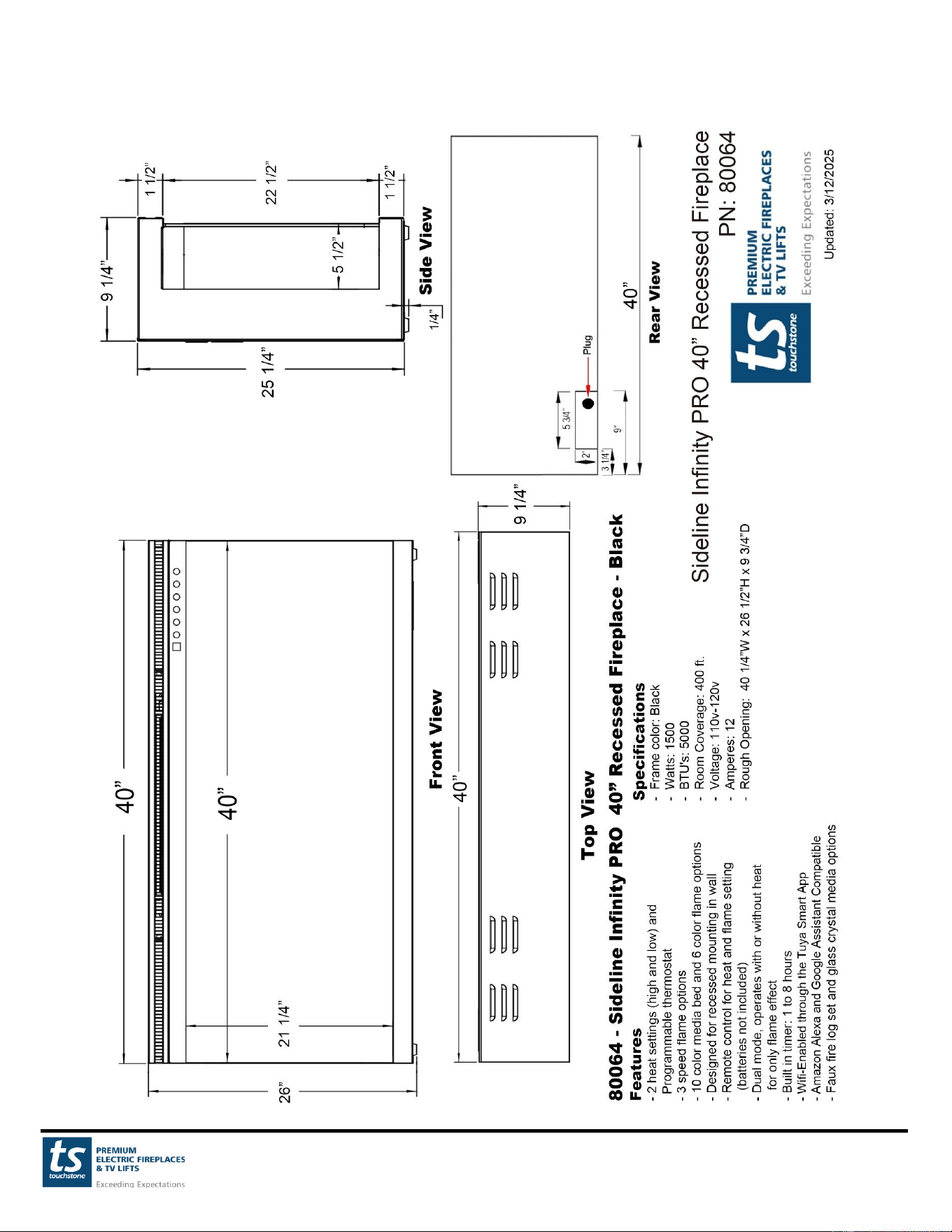

80064 – Forte® Infinity PRO 40” Dimensions......................................................................................................... 9

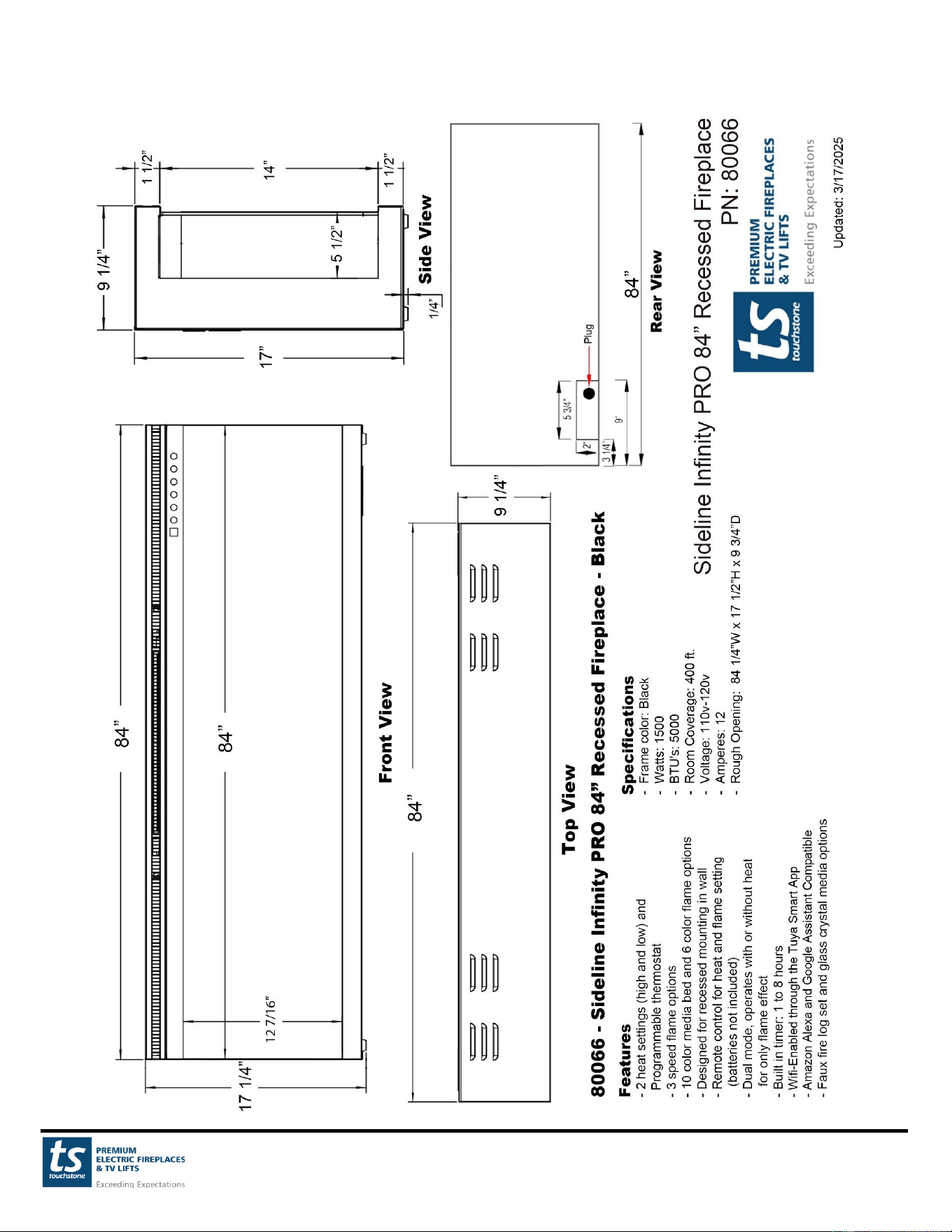

80066 – Sideline® Infinity PRO 84” Dimensions .................................................................................................. 10
Unpacking Your Fireplace .............................................................................................................................................. 11
Parts and Hardware.................................................................................................................................................... 11
Unpacking and Setup .................................................................................................................................................. 11
Wiring ......................................................................................................................................................................... 12
Hard Wire Connection ................................................................................................................................................ 13
Installation....................................................................................................................................................................... 14
Choosing Installation Location ................................................................................................................................... 14

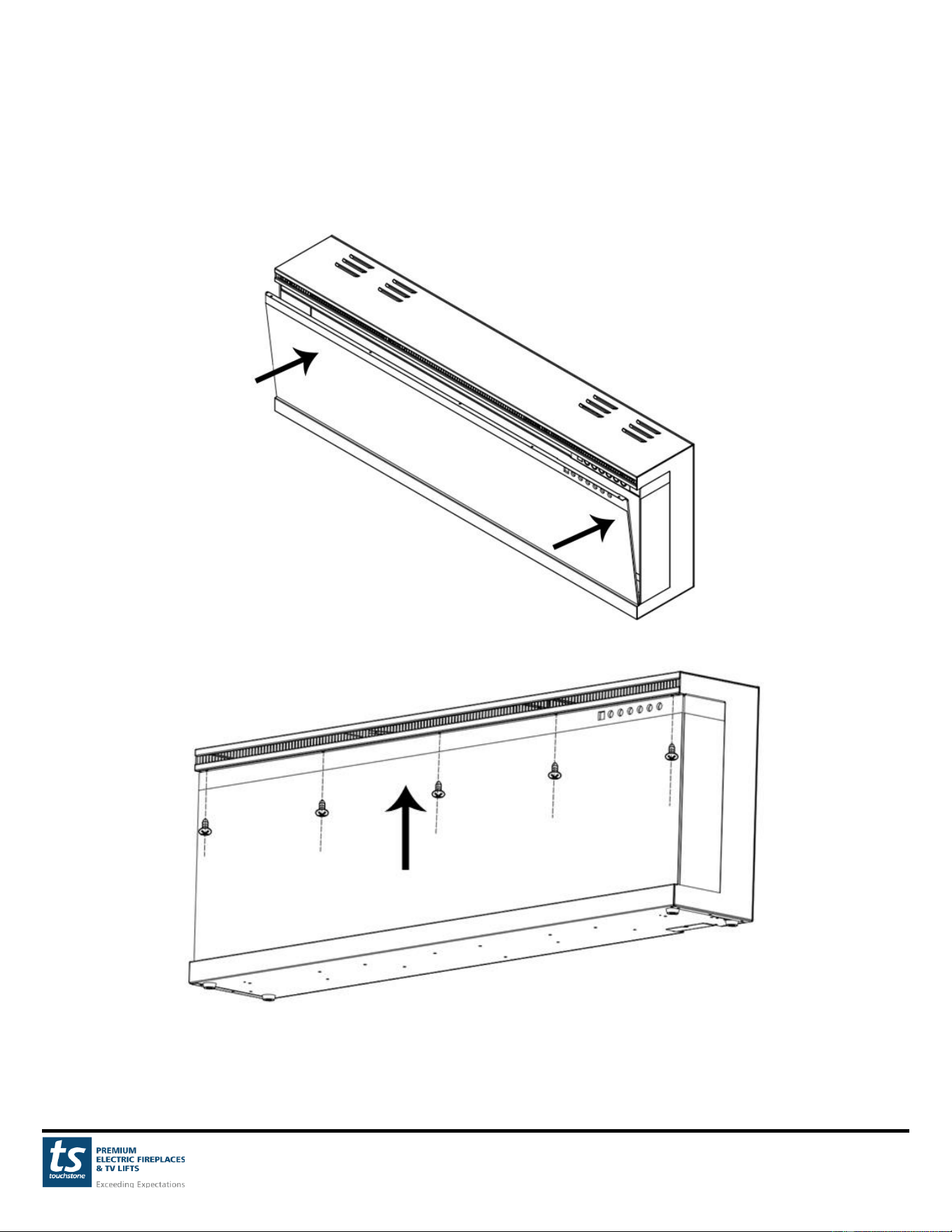

Removing The Glass Panel ......................................................................................................................................... 15
Recessed Installation Overview .................................................................................................................................. 16

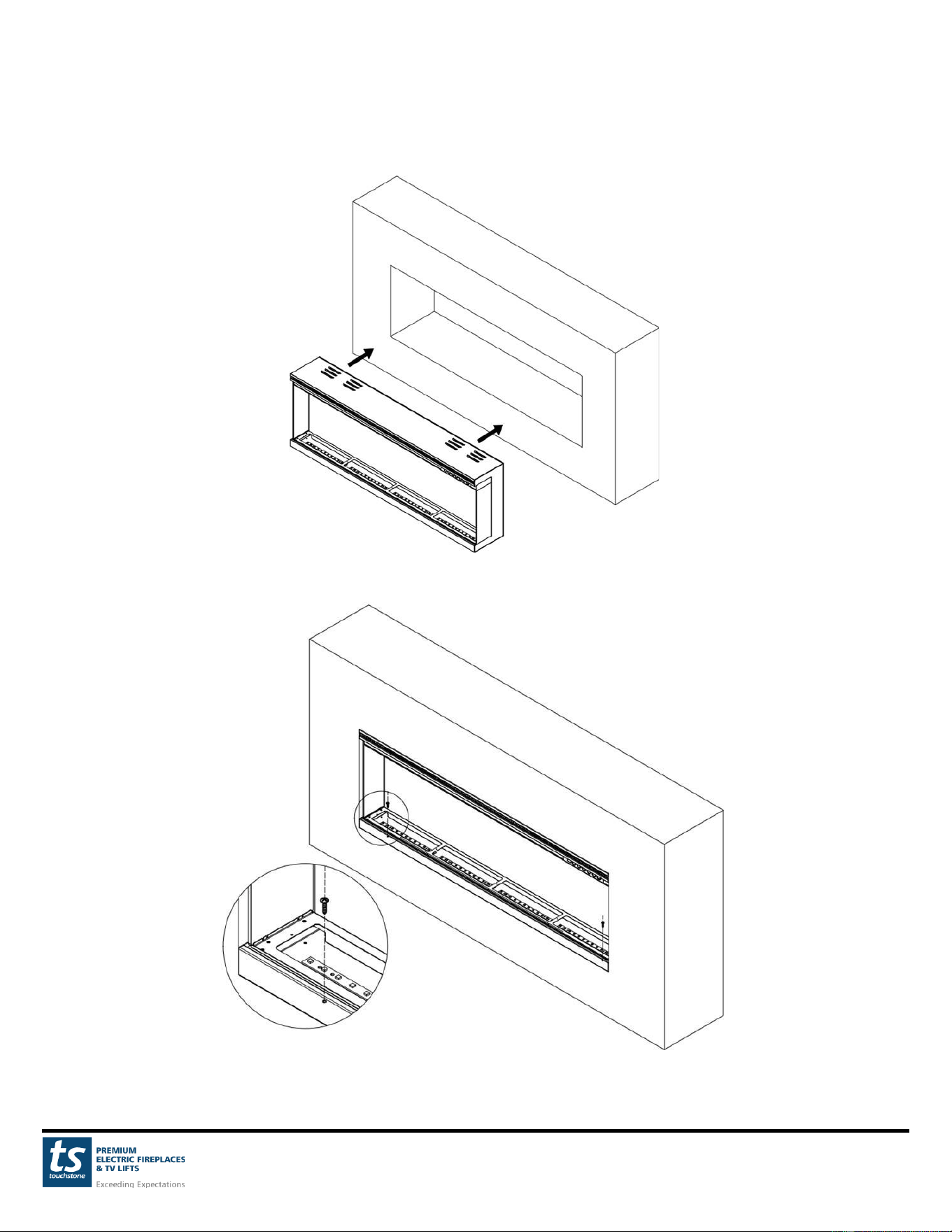

Recessed Installation................................................................................................................................................... 17
Installing the Crystal Embers and Log-set ................................................................................................................. 19
Installing Crystal Embers ........................................................................................................................................ 19
Installing the Log-set .............................................................................................................................................. 19
Reinstalling the Glass Panel ....................................................................................................................................... 20

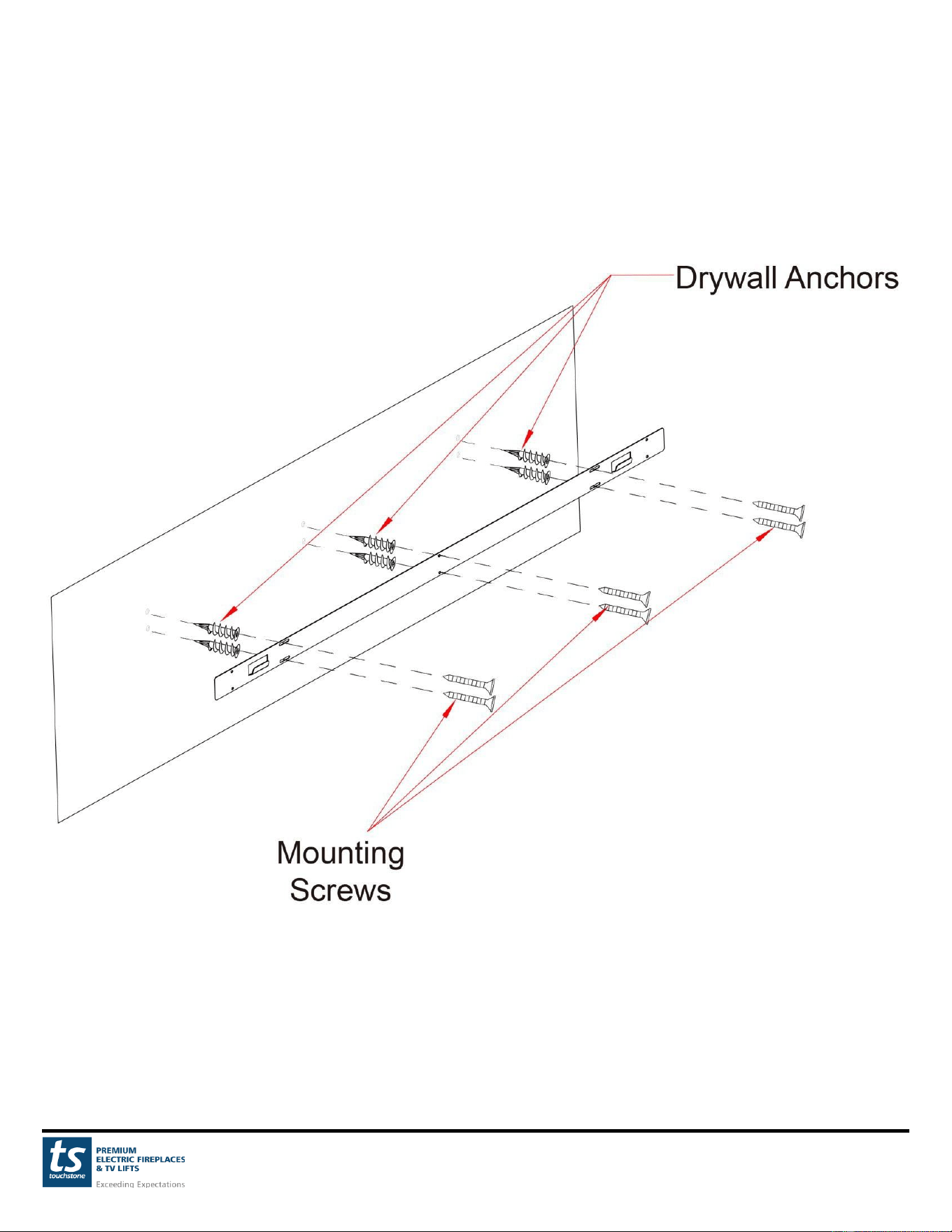

Wall Mounted Installation .......................................................................................................................................... 21
Operating Fireplace ......................................................................................................................................................... 24
Power .......................................................................................................................................................................... 24
Methods of Operation ................................................................................................................................................. 24

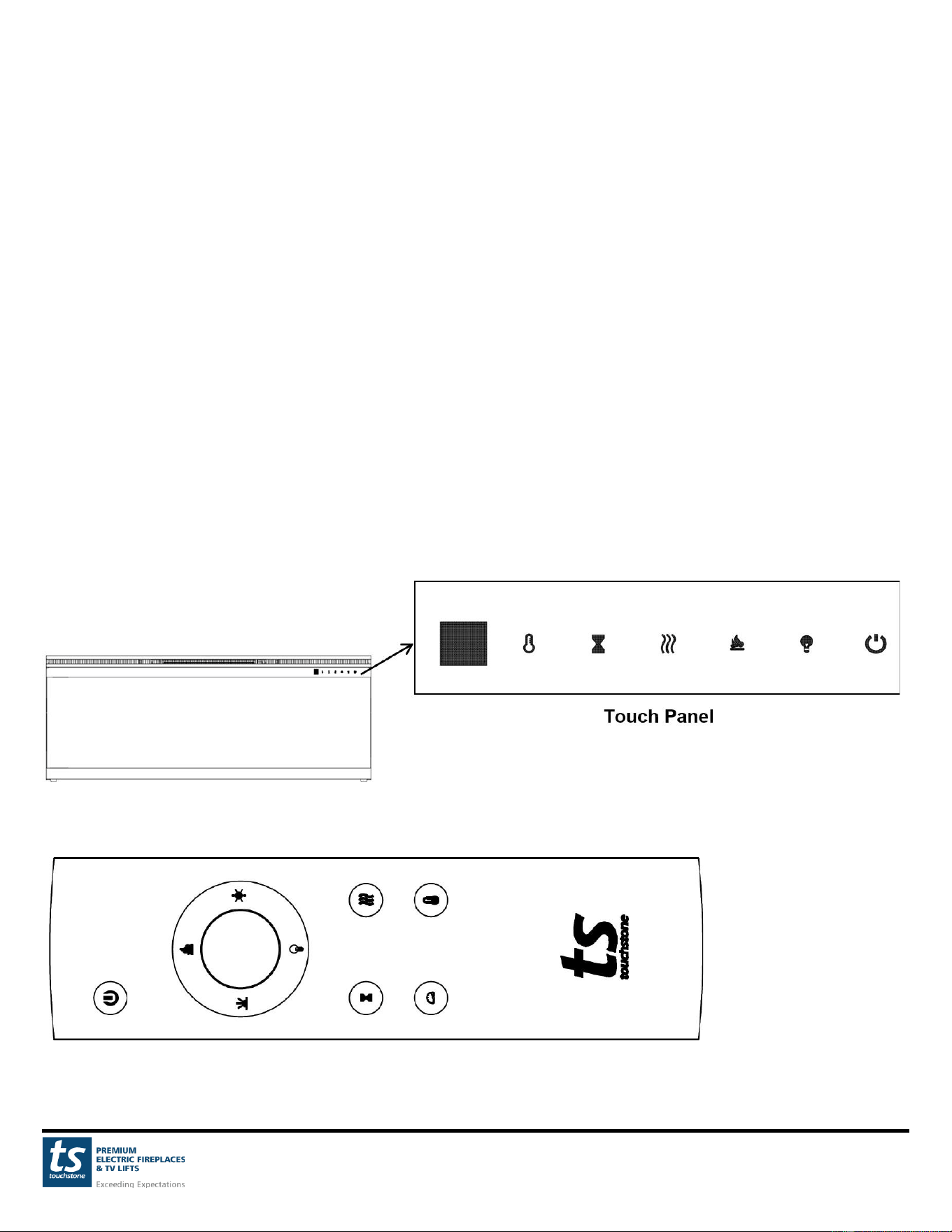

Control Panel Functions .......................................................................................................................................... 25
Wireless Remote Control Functions ....................................................................................................................... 26
Remote Control Operation .......................................................................................................................................... 28
Temperature Limiting Control .................................................................................................................................... 28
Care and Maintenance ..................................................................................................................................................... 29
Cleaning ...................................................................................................................................................................... 29
Maintenance ................................................................................................................................................................ 29
Warranty ......................................................................................................................................................................... 30
Sideline
®
and Forte
®
Infinity PRO Series Electric Fireplace
3
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
IMPORTANT SAFETY INFORMATION
WARNING!
• THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS
• Do not operate fireplace before reading and understanding operating instructions. Failure to operate
fireplace according to operating instructions could cause fire or injury.
• Risk of burns. This fireplace is HOT when in operation and heating element is ON. Power to the fireplace
should be turned off and the fireplace allowed to cool before servicing. To disconnect power to the fireplace,
turn controls to off, then remove plug from outlet.
• Do not install damaged, incomplete, or substitute components.
• Young children should be carefully supervised when they are in same room with fireplace. Toddlers, young
children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there
are at risk individuals in the house. To restrict access to the fireplace, install an adjustable safety gate to keep
toddlers, young children and other at risk individuals away from the fireplace and hot surfaces.
• Clothing and other flammable material should not be placed on or near the fireplace.
• Due to high temperatures, the fireplace should be located out of traffic and away from furniture and
draperies.
• Ensure that you have incorporated adequate safety measures to protect infants/toddlers from touching hot
surfaces.
• It is imperative that the control compartments, circulating blower, and its passageway is kept clean.
• Under no circumstances should this fireplace be modified.
• Do not use the fireplace if any part has been under water.
• Do not operate the fireplace with the glass panel removed, cracked or broken.
• Keep the packaging material out of the reach of children. As with all plastic bags, these are not toys and
should be kept away from children and infants.
• Servicing should only be done while the fireplace is disconnected from the power outlet.
• Unplug fireplace if not being used for an extended period of time.
• Do not operate this fireplace with a damaged cord or plug after the fireplace malfunctions, has been
dropped, or damaged in any manner.
• Always plug this fireplace into a wall outlet or receptacle. Never plug this fireplace into a surge
protector, extension cord, or relocatable power tap.
• Do not use outdoors.
• Never locate fireplace where it may fall into a bathtub or other water container.
• Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away
from traffic area and where it will not be tripped over.
• Connect to properly grounded outlets only.
• Do not insert foreign objects into any ventilation or exhaust opening as this may cause an electric shock, fire,
or damage to the fireplace.
• To prevent a possible fire, do not block the air intakes or exhaust in any manner. Do not use on soft
surfaces, like a carpet, where openings may be blocked.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the fireplace.
Elevated temperatures on the wall or in the air above the fireplace can cause melting, discoloration or
damage to the decorations, a TV or other electronic components.
Sideline
®
and Forte
®
Infinity PRO Series Electric Fireplace
4
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
General Information
CSA Approval Listing Information
This fireplace has been tested in accordance with the CSA Standards for fixed and location-dedicated electric room
appliances in the United States and Canada. If you need assistance during installation, please contact our technical
support department at 800-215-1990.
Note: This fireplace must be electrically wired and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition in the United States or the
Canadian Electric Code, CSA C22.1 in Canada.
Fireplace Specifications
Model Number
80045
80046
80051
Description
Sideline® Infinity PRO
50”
Sideline® Infinity PRO
60”
Sideline® Infinity PRO
72”
Voltage
120v AC
120v AC
120v AC
Watts
Max 1500W
Max 1500W
Max 1500W
Amps
15 AMP
15 AMP
15 AMP
Fireplace Width
50”
60”
72”
Fireplace Height
17 1/4”
17 1/4”
17 1/4”
Fireplace Depth
9 1/4”
9 1/4”
9 1/4”
Shipping Weight
95 lbs
111 lbs
131 lbs
Fireplace Weight
66 lbs
82 lbs
95 lbs
Model Number
80064
80066
Description
Forte® Infinity PRO
40”
Sideline® Infinity PRO
84”
Voltage
120v AC
120v AC
Watts
Max 1500W
Max 1500W
Amps
15 AMP
15 AMP
Fireplace Width
40”
84”
Fireplace Height
26”
17 1/4”
Fireplace Depth
9 1/4”
9 1/4”
Shipping Weight
106 lbs
144 lbs
Fireplace Weight
74 lbs
109 lbs
Sideline
®
and Forte
®
Infinity PRO Series Electric Fireplace
5
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317

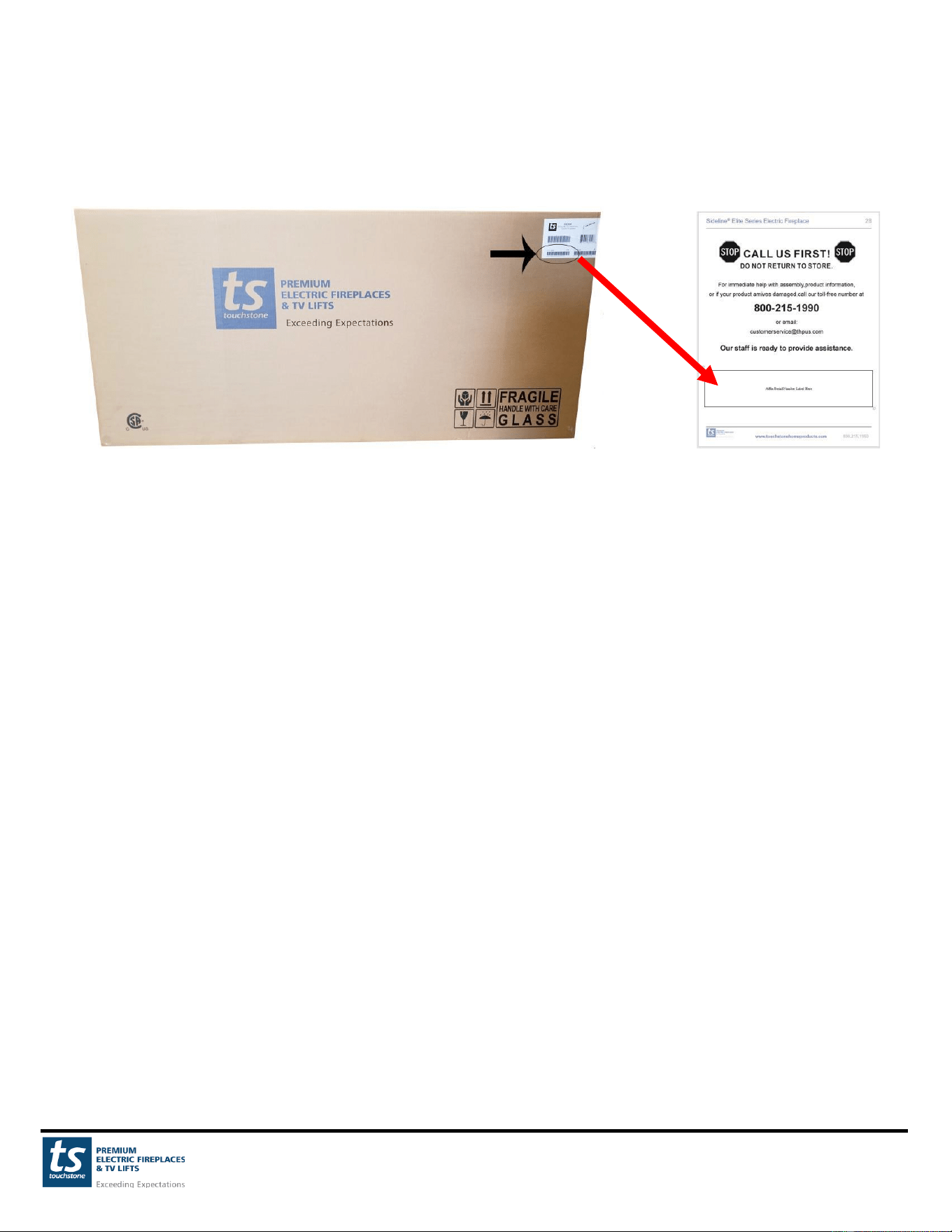

Serial Number Label
Each Touchstone Home Products Electric Fireplace contains a serial number label on the shipping box. Please
remove the shipping label and place the label on the back page of this manual for future reference.
Sideline
®
and Forte
®
Infinity PRO Series Electric Fireplace
11
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Unpacking Your Fireplace
Parts and Hardware
Tools Required
• Phillips screwdriver
• Stud finder
• Level
• Tape measure
• Electric drill
• 1/4” wood drill bit
What’s in the Box
Sideline Infinity PRO
Fireplace
Drywall anchors
B – Wood Screws
C – Drywall anchors
Remote Control
Metal Bracket
Wall Mount Bracket
(attached to back of fireplace)
Crystal Embers
(Large and Small)
Crystal Strip
(installed under faux fire log)
Unpacking and Setup
Unpacking Instructions
• Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Check the parts
list to make sure no parts are missing. If parts are missing, please contact technical support at 800-215-1990
for replacement parts.
NOTE: Dispose of plastic bag, as it may cause choking hazard with young children. Do not let children play
with plastic bag.
Sideline
®
and Forte
®
Infinity PRO Series Electric Fireplace
12
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Wiring
The Sideline® Infinity PRO series recessed fireplace can either be plugged into a grounded 3-prong outlet or
hard wire connection.
Testing the Fireplace Prior to Installation
• Before installing the fireplace, test the fireplace to make sure that it operates properly.
• Plug fireplace into approved outlet and power on fireplace. Once fireplace is tested, continue
with installation.
• If you have any problems, please contact technical support at 800-215-1990 opt 2.
3-
prong Outlet Installation
• Only use this fireplace on a 120V AC, 15-Amp grounded circuit. Never overload the circuit. If this
fireplace trips the circuit breaker, unplug all other appliances on the same circuit before the next use.
Avoid plugging other appliances into the same circuit as this fireplace.
• Always check the fireplace plug and connections before each use.
• Never plug this fireplace into an outlet that is cracked or has any loose wires or connections. Plugging
this fireplace into a faulty outlet could result in the outlet overheating or catching fire.
• Always plug this fireplace into a wall outlet or receptacle. Never plug this fireplace into a surge protector,
extension cord, or relocatable power tap.
• Make sure this plug fits securely into the outlet. Faulty wall outlet connections or loose plugs can cause
the outlet to overheat. If the outlet or faceplate is hot, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlet.

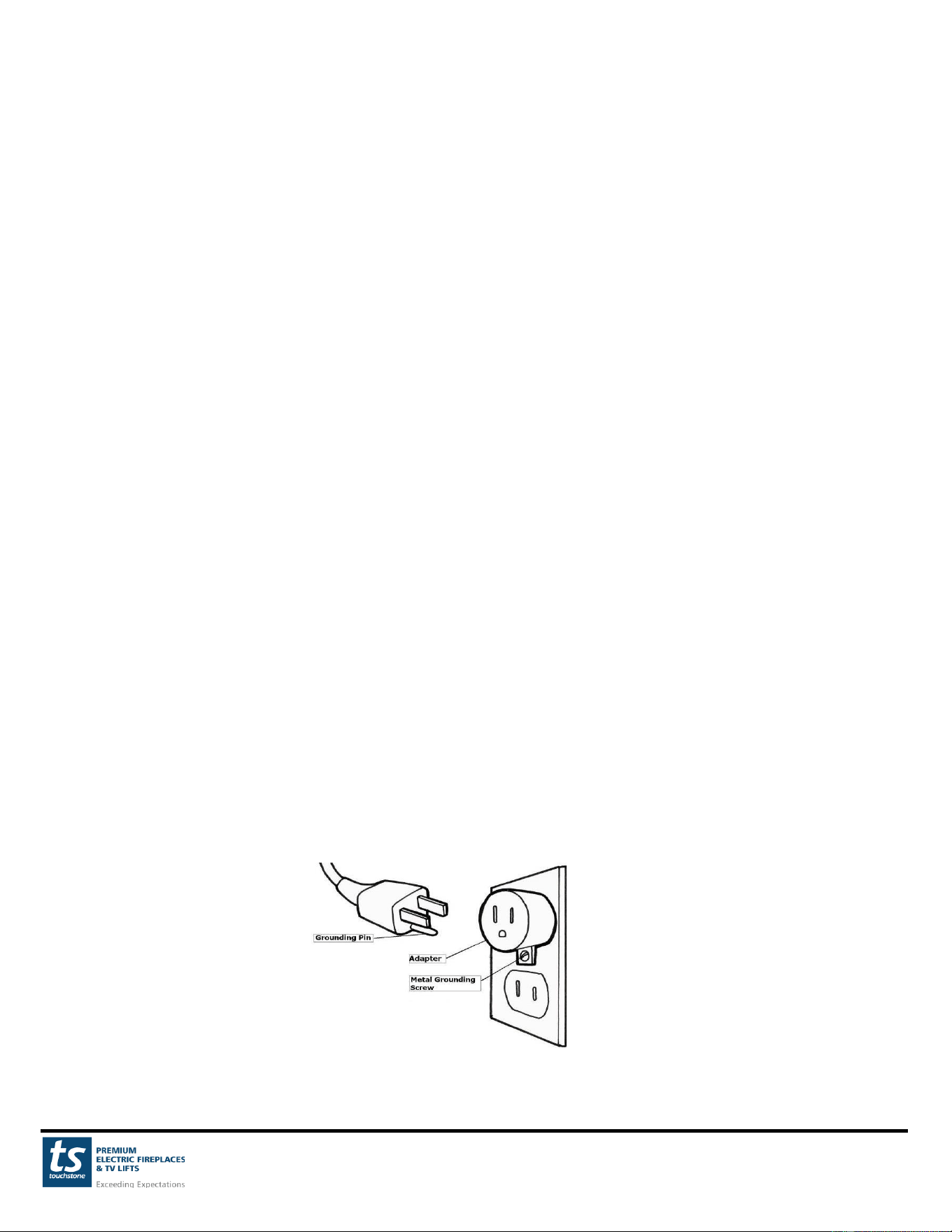

• The power cord supplied with the heater has three prongs: two flat blades (live and neutral) and one round
pin (ground). If a 3-slot receptacle is not available, an adapter MUST be used. The adapter MUST be
properly grounded to the outlet box (see figure below).
NOTE: Adapter NOT INCLUDED.
Sideline
®
Infinity PRO Series Electric
Fireplace
13
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Hard Wire Connection
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire
the appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes, if hard wired. In
the absence of local codes, use the current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United States
or the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada.

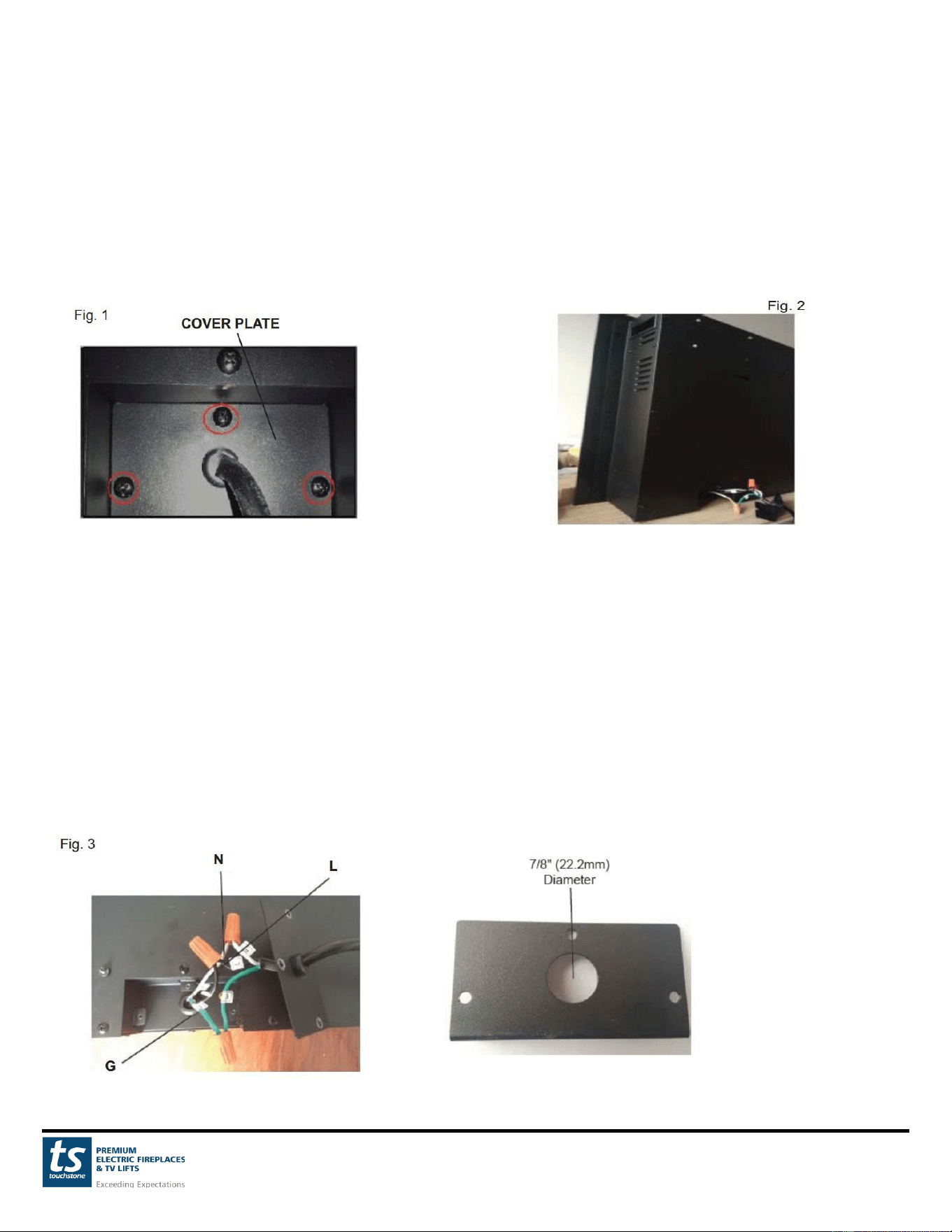

A. Remove the cover plate from the right side B. Remove the wire connectors from the power
bottom of the appliance by removing the three cord. Keep power cord, in case needed in future.
screws, as shown above. Save screws for
Installation of new cover plate.
C.
Remove the power cable and wires from the cover plate. Thread your wiring through the hole in the cover
plate for connecting to the wires in the Sideline® Infinity PRO fireplace.
D.
Using the wire connectors, connect the ground green wires (G), the common white wires (N)
together, and then the hot black wires (L) Refer to Figure 3 when complete.
E.
Reinstall the cover plate using the three screws, as shown in Figure 1.
Sideline
®
Infinity PRO Series Electric
Fireplace
14
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Installation
WARNINGS
• Due to high temperatures, keep the fireplace out of high traffic locations.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 36”
away from the front of the fireplace.
• Never install the fireplace where it may fall into a bathtub or other body of water.
• Wear safety gloves and safety glasses for protection during installation. Broken glass may cause injury or
harm.
• Prevent contact with loose insulation. Do not install the fireplace against a vapor barrier or exposed
insulation.
• Do not expose the fireplace to the elements (rain, etc).
Choosing Installation Location
Choosing Wall Location
• Measure wall location to ensure that fireplace will fit on desired wall location.
• Minimum clearances (measurements taken from front of glass panel):
Bottom of Fireplace to Floor: 6”
Top of Fireplace: 8” to mantel
Sides of Fireplace: 0”
Top of Fireplace: 8” to TV
Back of Fireplace: 0”
Top of Fireplace: 8” to ceiling
• Select a location that is not prone to moisture and is located at least 36” away from combustible materials
such as curtains, drapes, furniture, bedding, or other combustible materials.
• See Safety Information on p. 4 for warnings about safe placement, safe installation, and proper use of this
product.
Sideline
®
Infinity PRO Series Electric
Fireplace
15
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317

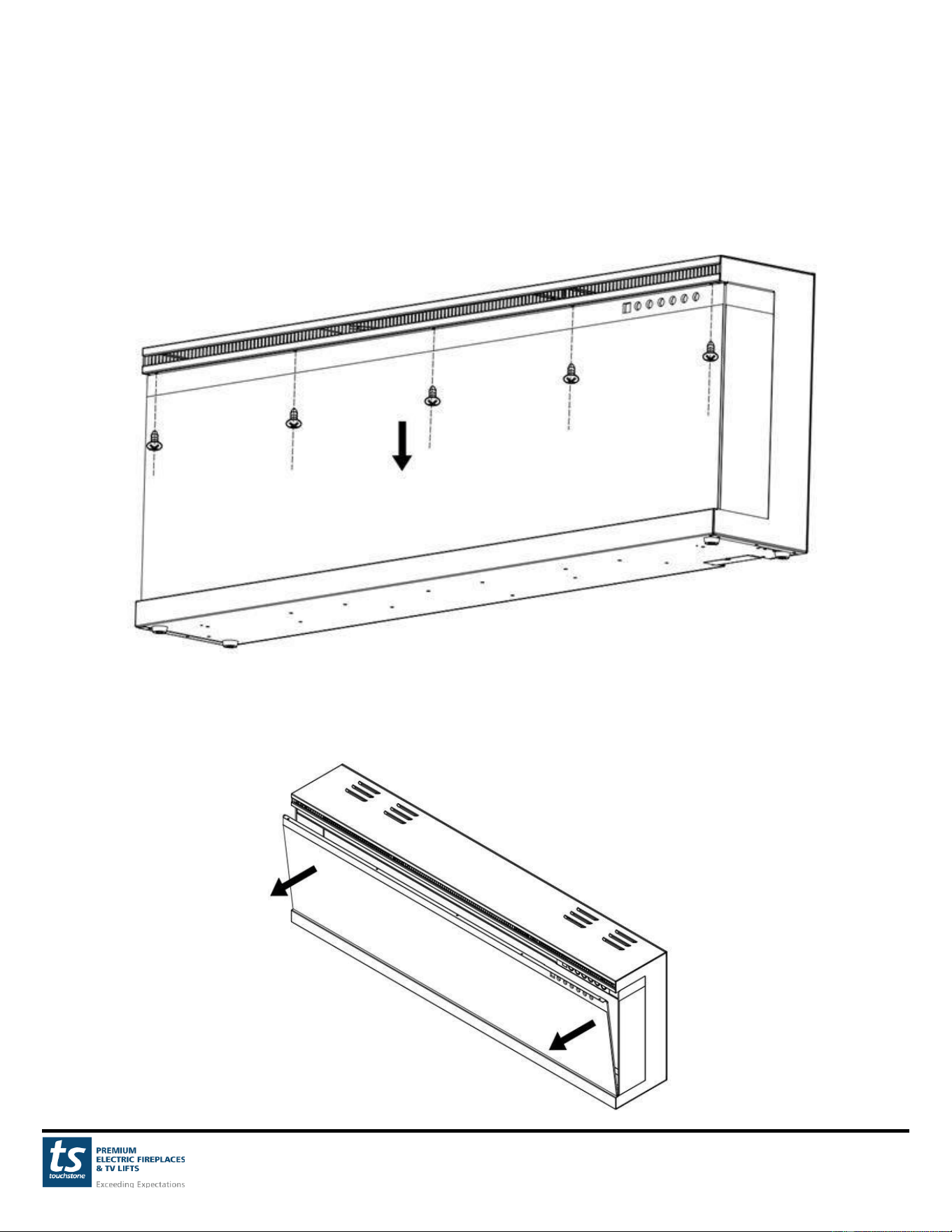

Removing The Glass Panel
Remove the glass panel prior to installation. Please remove glass panel as per instructions below:
Instructions:
1. There are 5 screws that fasten the glass panel bracket to the fireplace. Remove all 5 screws to remove the glass
panel.
2. After removing screws, tilt glass panel away from the fireplace. Lift the glass panel away from the fireplace to
remove the glass panel. Store the glass panel in a soft, dry place.
CAUTION: It is recommended that 2 people remove the glass panel to minimize chance of breakage.
Sideline
®
Infinity PRO Series Electric
Fireplace
16
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Recessed Installation Overview
The Sideline® Infinity PRO 3-sided Electric Fireplace can be installed in three different recessed configurations:
three- sided viewing, two-sided viewing, and single-sided viewing.
Three-Sided Installation:
• Glass exposed on the left, front, and right sides
• Fireplace is fully recessed into the wall with both sides open
Two-Sided Installation:
• Glass exposed on the front and left or right side.
• Fireplace is fully recessed into the wall with one side open.
Single-Sided Installation:
• Glass exposed on the front of the fireplace.
• Fireplace is fully recessed into the wall.
Sideline
®
Infinity PRO Series Electric
Fireplace
17
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Recessed Installation
• Due to many different finish materials used on walls, it is highly recommended that you consult your local
builder before you install this fireplace in the wall.
• Select a location that is not prone to moisture and is located at least 36” away from combustible materials
such as curtains, drapes, furniture, bedding, or other combustible materials.
• In order to avoid the possibility of exposed insulation or vapor barrier coming in contact with the fireplace,
it is recommended that the walls of the fireplace enclosure be “finished” (ie. Sheetrock, drywall, etc) as you
would finish any other outside wall of your home. This will ensure that clearance to combustibles is
maintained within the wall cavity.
• Never install fireplace into load-bearing walls. When recessing fireplace in a wall, recess into non-load
bearing walls ONLY!
Instructions:
1. Choose a location in the wall to install fireplace.
2. Create opening in the wall that is no more than ¼” larger than metal firebox portion of fireplace.
Rough Opening Dimensions
Model
A
(Width)
B
(Height)
C
(Depth)
80045
50”
17 ½”
9 3/4”
80046
60 ¼”
17 ½”
9 3/4”
80051
72 ¼”
17 ½”
9 3/4”
80064
84 ¼”
17 ½”
9 3/4”
80066
40 ¼”
26 ½”
9 3/4”
Sideline
®
Infinity PRO Series Electric
Fireplace
18
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Recessed Installation – cont.
3. Slide fireplace into opening in wall.
4. Once the fireplace is placed in the wall opening, secure the fireplace to the floor of the opening with 2 wood
screws provided as shown below.
The fireplace is now ready to have the crystal embers and drift wood logs placed inside of the fireplace.
Sideline
®
Infinity PRO Series Electric
Fireplace
19
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Installing the Crystal Embers and Log-set
Once the fireplace is installed in the wall, place crystal embers or fire log in the fireplace. While both options are
provided to the customer, only one option (crystals or log) should be installed.
Installing Crystal Embers
Installing the Log-set
Carefully place the wood log-set in the designed ember slot, as shown below.
1. Remove the log set from the fireplace. Once
the log set is removed, a crystal strip will be
beneath the log set.
Note: If the LED lights can clearly be seen, then
the crystal strip is missing. Please call customer
service for a replacement if missing.
2. Carefully, place crystal embers on crystal
strip as illustrated in the picture to the right.
Apply an even layer from side to side.
Sideline
®
Infinity PRO Series Electric
Fireplace
20
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Reinstalling the Glass Panel
Once completed installing crystal embers or fire log, you are now ready to reinstall the glass panel.
1. Place the glass panel back inside the fireplace and push the glass panel into place.
2. Reattach the screws holding the glass panel in place, as shown below.
Your Sideline
®
Infinity PRO Series fireplace is now ready for use!
Sideline
®
Infinity PRO Series Electric
Fireplace
21
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Wall Mounted Installation
• Due to many different finish materials used on walls, it is highly recommended that you consult your local
builder before you install this fireplace on the wall.
• Select a location that is not prone to moisture and is located at least 36” away from combustible materials
such as curtains, drapes, furniture, bedding, or other combustible materials.
Instructions
1. Select a location that is not prone to moisture and is located at least 36” away from combustible materials, such
as curtains, drapes, furniture, bedding, paper, etc.
2. With glass panel removed (see p.12 for instructions on removing glass panel), have two people hold the fireplace
against the wall to determine the final location.
3. Place the unit face down on a soft, non-abrasive surface. Remove the bracket from the back of the unit by
removing the screws holding the bracket to the back of the fireplace.
Sideline
®
Infinity PRO Series Electric
Fireplace
22
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Wall Mounted Installation – cont.
4. Mark location of bracket on wall and then mount the bracket to the wall using the supplied screws and dry wall
anchors. The hooks in the bracket MUST be pointed away from the wall, upward, and level.
Note: Mount bracket to at least 2 studs. If 2 studs cannot be used, ensure that the supplied dry wall anchors are
used to affix the bracket to the wall and the bracket is adequately secured before moving to the next step.
Sideline
®
Infinity PRO Series Electric
Fireplace
23
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Wall Mounted Installation – cont.
5. With the wall mounting bracket installed, have 2 people lift the fireplace up and insert the 2 hooks on the bracket
into the back of the fireplace. The 2 hooks on the mounting bracket will line up with the 2 holes on the back of the
fireplace. Once aligned, the hooks will insert into the holes in the back of the fireplace and lock in the down
position.
Mounting bracket installed on wall Hang fireplace on mounting bracket hooks
6. Check the fireplace for stability, ensuring that the bracket will not pull free from the wall. Once satisfied, install
crystal embers/fire log and reinstall glass panel.
Sideline
®
Infinity PRO Series Electric
Fireplace
24
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Operating Fireplace
Once the fireplace has been plugged into a grounded outlet, the fireplace is now ready for operation. Ensure that
the house circuit breakers for the power supply are turned on.
Power
Plug the power cable into a 110v 15 amp grounded outlet. Make sure the outlet is in good condition and that the
plug is not loose. NEVER exceed the maximum amperage for the circuit. DO NOT plug other appliances into the
same circuit.
Always plug this fireplace into a wall outlet or receptacle. Never plug this fireplace into a surge protector,
extension cord, or relocatable power tap.
Methods of Operation
This electric fireplace can be operated by the CONTROL PANEL, located in the upper righthand corner of the
fireplace, or by the WIRELESS REMOTE CONTROL. The operation and functions of both methods are the same.
Control Panel
Wireless Remote Control
Sideline
®
Infinity PRO Series Electric
Fireplace
25
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Method of Operation – cont.
Control Panel Functions
BUTTON
FUNCTION
ACTION & INDICATION
POWER
ON: Enables control panel functions and remote
control. Turns on flame effect.
OFF: Disables control panel functions and
remote control. Turns off flame effect.
1.
Press once. Indicator light turns on. Power turns on.
All functions enabled.
2.
Press again. Flame effect turns off. Unit goes to
standby. All functions turn off.
FLAME
COLOR
Flame Color button: Changes the color flame
effect.
NOTE: Color effect stays on until power button
is turned off. Color flame effect must be on for
heater to turn on.
NOTE: The fireplace will remember the last
flame color used when the fireplace is turned
off. Unplugging the fireplace will reset the color
to the default color.
1.
Press once to change the flame color.
2.
Press again until desired setting is reached. There is
a total of 6 different flame color combinations.
FLAME
BRIGHTNESS
Flame button: Each press of the
flame button makes flame effect
dimmer and brighter.
NOTE: Flame effect stays on until power button
is turned off. Flame effect must be on for heater
to turn on.
1. Press once to change the flame brightness.
Press again until desired flame brightness setting is
reached.
HEATER
Heater button: Turns heater on and off.
NOTE: The heater only works when the flame
effect is ON. If the flame effect is OFF, the
heater will not turn on.
NOTE: To prevent overheating, the heater
blows cool air for 10 seconds before the heater
turns on, and after it turns off.
1.
Press once. Indicator lights up.
Fan blows cool air for 10 seconds. Low heater turns
on and blows warm air.
2.
Press again. Indicator lights up.
High heater turns on and blows hot air.
3.
Press again. Heaters turn off.
The fan blows cool air for 10 seconds and then turns
off.
TIMER
Timer button: Controls timer settings to turn off
fireplace at selected time.
Settings range from 0.5 hour to 8 hours.
1.
Press once and the indicator lights up. Timer is set
to 0.5 hours.
2.
Press again until desired setting is reached.
Indicator lights will show the timer setting.
TEMP
1.
Press once: Touch panel indicator activates
2.
Press again until desired temperature is selected. The temperature rate is between 68-88 degrees F
(20-30 degrees C).
NOTE: Press and HOLD button for 5 seconds to change from C to F.
Sideline
®
Infinity PRO Series Electric
Fireplace
26
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Method of Operation – cont.
Wireless Remote Control Functions
BUTTON
FUNCTION
ACTION & INDICATION
POWER
ON: Enables control panel functions and remote
control. Turns on flame effect.
OFF: Disables control panel functions and
remote control. Turns off flame effect.
1.
Press once. Indicator light turns on. Power turns on.
All functions enabled.
2.
Press again. Flame effect turns off. Unit goes to
standby. All functions turn off.
TEMP
1.
Press once: Touch panel indicator activates
2.
Press again until desired temperature is reached. Digital display shows setting circles as below:
NOTE: Press and HOLD the button for 5 seconds to switch between °C and °F.
NOTE: If the room temperature is ABOVE the temperature listed on the display, the heater will not turn ON.
The room temperature needs to be below the temperature listed on the display for the heater to turn ON.
HEATER
Heater button: Turns heater on and off.
NOTE: The heater only works when the flame
effect is ON. If the flame effect is OFF, the
heater will not turn on.
NOTE: To prevent overheating, the heater
blows cool air for 10 seconds before the heater
turns on, and after it turns off.
1.
Press once and the indicator lights up.
Fan blows cool air for 10 seconds. Low heater turns
on and blows warm air.
2.
Press again and the indicator lights up.
High heater turns on and blows hot air.
3.
Press again and the heater turns OFF.
The fan blows cool air for 10 seconds and then turns
off.
SPEED
Flame Speed button: Controls the speed of the
flame. There are 3 flame speed settings:
01 (slowest), 02 (Medium), 03 (fastest).
1.
Press once to change the flame speed.
2.
Press again until desired setting is reached. Display
shows the setting.
NOTE: The Default setting is 03 (fastest speed)
Sideline
®
Infinity PRO Series Electric
Fireplace
27
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Method of Operation – cont.
Wireless Remote Control Functions – cont.
BUTTON
FUNCTION
ACTION & INDICATION
TIMER
Timer button: Controls timer settings to turn
off fireplace at selected time.
Settings range from 0.5 hour to 8 hours.
1. Press once and the indicator lights up. Timer is
set to 0.5 hours.
2. Press again until desired setting is reached.
Indicator lights will show the timer setting.
FLAME
BRIGHTNESS
Flame button: Each press of the
flame button makes flame effect
dimmer and brighter.
NOTE: Flame effect stays on until power
button is turned off. Flame effect must be on for
heater to turn on.
2.
Press once to change the flame brightness.
3.
Press again until desired flame brightness
setting is reached.
FLAME
COLOR
Flame Color button: Changes the color flame
effect.
NOTE: Color effect stays on until power
button is turned off. Color flame effect must be
on for heater to turn on.
NOTE: The fireplace will remember the last
flame color used when the fireplace is turned
off. Unplugging the fireplace will reset the
color to the default color.
1. Press once to change the flame color.
2. Press again until desired setting is reached. There
is a total of 6 different flame color combinations.
EMBER
LIGHTS
LED Ember light button: Changes the
color of the embers below the crystals/logs.
NOTE: Ember color effect stays on until power
button is turned off.
NOTE: The fireplace will remember the last
flame color used when the fireplace is turned
off. Unplugging the fireplace will reset the
color to the default color.
1. Press once to change the ember color.
2. Press again until desired setting is reached. There
is a total of 10 different ember color combinations.
3. Auto-cycle function: When pressing with the 11
th
time, the LED ember light will do auto-cycling
(NOTE: It will take 15 seconds to switch between
colors.)
EMBER
BRIGHTNESS
LED Ember light brightness button: Makes
the LED ember lights on bottom effect change
brightness.
NOTE: LED Ember light brightness effect
stays on until power button is turned off.
1. Press once. LED ember light color changes
brightness.
2. Press again until desired setting is reached. In
total 5 levels.
From L1 - L2 - L3 - L4 - L5
Sideline
®
Infinity PRO Series Electric
Fireplace
28
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Remote Control Operation
• This remote control uses 2 AAA batteries (Not Included).
• To improve operation of the remote control, aim the remote control at the front of the fireplace. DO NOT
PRESS the buttons too quickly. Give the unit time to respond to each command.
• NOTICE: NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion. Dispose of batteries at your local hazardous material processing center.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe temperature, the
heater will automatically TURN OFF. To reset, please do the following:
1. Unplug the power cord from the outlet.
2. Turn ON/OFF switch on the CONTROL PANEL to OFF. Wait 5 minutes for fireplace to cool down.
3. Inspect the fireplace to make sure no vents are blocked or clogged with dust or lint. If they are, use a vacuum to
clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into the outlet.
5. If the problem continues, have your outlet and wiring inspected by a professional. If the outlet is OK, please
contact our customer support department at 800-215-1990.
Sideline
®
Infinity PRO Series Electric
Fireplace
29
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Care and Maintenance
Cleaning
• ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing
maintenance, or moving the fireplace. Failure to do so could result in electric shock, fire, or personal injury.
• NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal
injury.
Metal:
• Buff using a soft cloth, slightly dampened with citrus oil-based product.
• DO NOT use brass polish or household cleaners, as these products will damage the metal trim.
Glass:
• Use a good quality glass cleaner sprayed onto a cloth or towel. Dry thoroughly with a paper towel or lint-
free cloth.
• NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
• Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Plastic:
• Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
• NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Maintenance
• RISK OF ELECTRIC SHOCK! DO NOT OPEN any panels. No user-serviceable parts inside!
• ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing
maintenance, or moving the fireplace. Failure to do so could result in electric shock, fire, or personal injury.
Electrical and Moving Parts:
• The fan motors are lubricated at the factory and will not require lubrication.
• Electrical components are integrated in the fireplace and are not serviceable by the customer.
Storage:
• Store fireplace in a clean, dry place when not in use.
Sideline
®
Infinity PRO Series Electric
Fireplace
30
www.touchstonehomeproducts.com
800.215.1990
rev. 20250317
Warranty
Touchstone Home Products®, Inc warrants our electric fireplaces to be free of defects in material and workmanship
for one year from date of purchase. Touchstone will repair or replace any fireplace or fireplace part that is deemed
defective or becomes defective during normal use within one year after the date of purchase.
Electrical components, such as fan motor, heater motor, control board, remote control, and control panel are
covered under warranty for one year from date of purchase. Touchstone Home Products® will provide replacement
parts free of charge during the first year of the warranty.
Replacement parts and fireplace units are covered under a 90-day warranty or the remainder of the original one year
manufacturer’s warranty from original date of purchase, whichever is greater.
Touchstone Home Products®, Inc does not warrant its products against damage caused by third parties.
Touchstone Home Products®, Inc does not cover damages caused by misuse, alterations, accident, lack of
maintenance, abuse or neglect. Parts installed from other manufacturers will void this warranty.
The warranty does not cover paint scratches, cosmetic blemishes, dents, corrosion, or other normal wear and tear
associated with the fireplace. Damage to fireplace or other components due to water, weather damage, long periods
of dampness, condensation, damaging chemicals or cleaners are not covered under warranty.
This warranty does not cover breakage of fireplace glass panel.
Touchstone Home Products® will not be responsible for installation, labor, or any other expenses related to the
reinstallation of a warranted part, and such expenses are not covered under warranty.
Extended warranty coverage for the fireplace is available by contacting Touchstone Home Products® directly at 1-
800-215-1990.
