INVERTER GENERATOR
EDOG01
Please read and save this manual.
1
Be sure to read the manual before using, otherwise the wrong operation will
lead to safety risks or equipment damage. As long as follow the operation of this
manual book, the company's inverter generator is safe and reliable.
Safety Warning
The personal and property safety of you and others is very important. Please
read carefully the extremely important safety warnings we have written in the
manual and the label of the generator set.
Safety warnings can alert you to potential dangers that may harm you and
others.
There are one of these three symbols: “Danger”, “Warning”, “Notice” in front of
safety warning. Details as below:
If you do not follow the instructions, your life will be in danger or you will
be seriously injured.
If you do not follow the instructions, your life could be in danger or you will
be seriously injured.
If you do not follow the instructions, you will be slightly injured.
If you do not follow the instructions, your generator set and other
property may be damaged.
2
CONTENTS
1. SAFETY INFORMATION .............................................................. 3
2. LABELS ......................................................................................... 9
3. COMPONENTS IDENTIFICATION .............................................11
4.
PRE-OPERATION CHECK
.......................................................17
5.
STARTING THE ENGINE
......................................................... 20
6.
USING THE GENERATOR
.......................................................22
7.
STOPPING THE ENGINE
.........................................................26
8.
MAINTENANCE
......................................................................... 27
9. TRANSPORTING / STORING
..................................................33
10. Troubleshooting
......................................................................... 35
11. TECHNICAL SPECIFICATIONS
...............................................36
12. ELECTRICAL DIAGRAMS
........................................................ 37
13.
SERVICE INFORMATION .......................................................... 38
3
To ensure personal and property safety, please read the following
content carefully.
1. SAFETY INFORMATION
Before use, add gasoline to the red ring in the tank!
Check the oil level before use!
TOXIC FUMES
The engine tail gas contains carbon monoxide, and it is strictly
prohibited to run the generator at the place where the indoor or the
ventilation is not good.
Ensure that adequate ventilation is provided while the generator is
in operation.
The muffler is hot when the generator is running and just stopping.
Be careful not to touch it.
FIRE
Under certain circumstances, gasoline and LPG(if equipped) is
extremely flammable and explosive.
Be sure to add gasoline in a well-ventilated place. Turn off the
engine and let it cool before filling.
When refuelling, keep away from the open fire.
If there is oil spill while refuelling, wipe the spilled gasoline
immediately.
Use in places with high fire risk should be prohibited.
4
ELECTRICAL SHOCK
Do not connect the generator to building’s electrical system, or it may
cause people to die from electric shock when they come into contact with
the wire; damage the generator or damage the home appliance.
This generator produces powerful voltage and the electricity CAN
KILL YOU.
This generator must be properly connected to an appropriate ground
to help prevent electric shock. Failure to properly ground generator can
result in electrocution, especially if the generator is equipped with a wheel
kit. Consult an electrician for local grounding requirements.
Installation should be performed by a certified electrician. Improper
installation can result in electrical shock and death.
The portable generator stator winding is isolated from the frame and
from the AC receptacle ground pin;and
Electrical devices that require a connection between one conductor
pin and the grounded receptacle pin may not function properly.
5
HOT SURFACE
Running engines generators produce heat. Severe burns can
occur on contact.
DO NOT touch generator while operating or just after stopping.
Avoid contact with hot exhaust gases.
Maintain at least three feet of clearance on all sides to ensure
adequate cooling.
Combustible material can catch fire on contact. Maintain at least
five feet of clearance from combustible materials.
Place the appliance on stable surfaces only.
The load must not exceed the power marked on the rating label of
the generator. Overloading may result in damage to, or a shorter life
of the appliance.
The motor must not be operated with excessive rotary speed. The
operation of the motor with excessive rotary speed raises the risk of
injury. Parts which affect the rotary speed must not modified or
replaced.
Do not operate or store the appliance in wet or humid surroundings
or on highly conductive surfaces such as metal coatings or steel
constructions.
6

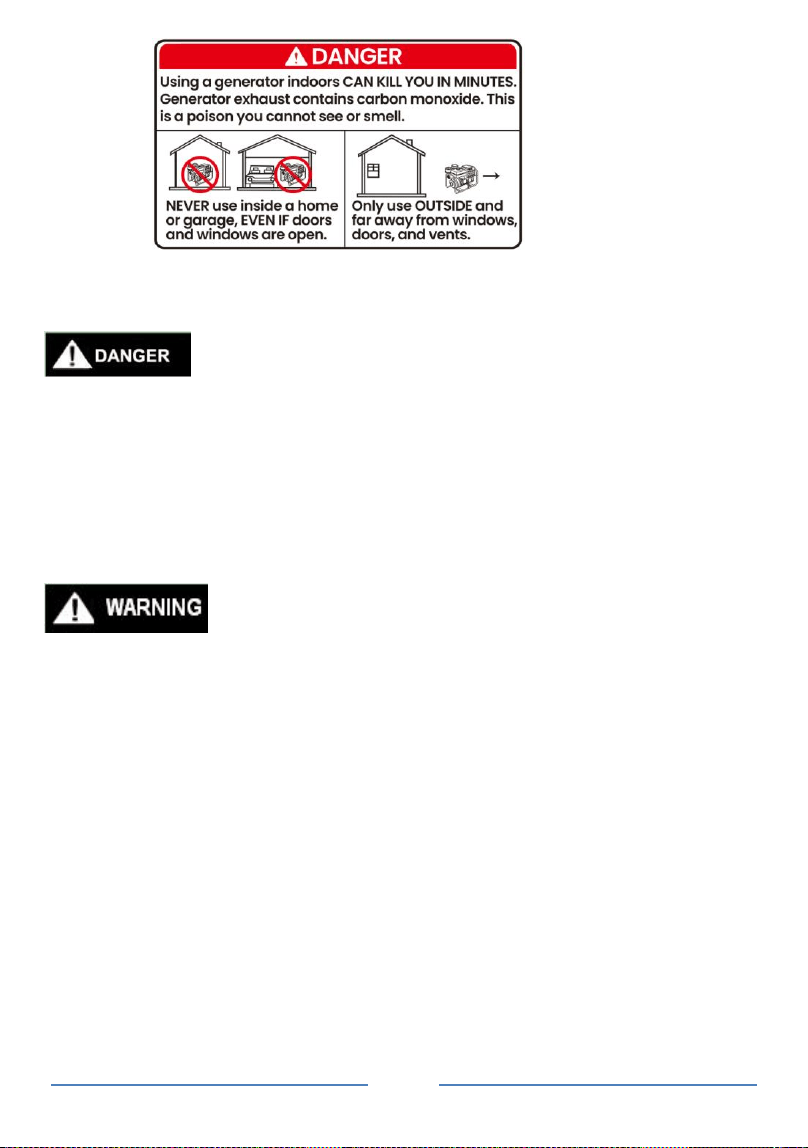

Poisonous gas!
Engine exhaust gas is poisonous; don’t operate in an unventilated
room. When installed in ventilated room, additional requirement for
fire and explosion protection shall be observed.
A pre-operation check must be performed before starting the
engine to avoid accidents or equipment damage.
Generators must operate at least one meter away from the
building and other equipment.
Please put the generator on the horizontal ground. If the generator
is tilted, it may cause gasoline overflow.
Be sure to master how to quickly shut off generators and
understand the operation of all control components.
Children and pets must stay away from the operating area. While
the engine is running, all personnel must be away from its rotating
7
parts.
If the operation is not proper, there is a potential danger to the
generator. Do not operate the generator with a wet hand.
Do not operate in the rain, snow, lest wet generator.
Maintenance of generators should be by professionals only.
It is strictly forbidden to use in an indoor or enclosed environment.
Do not use in environments with explosion hazard.
The operation and maintenance of equipment requires the use of
personal protective equipment such as gloves, earmuffs, etc.
These labels warn you of potential dangers that can cause serious
casualties. Please read carefully the label contents described in this
manual, as well as safety warnings and comments. If the label has
fallen off or cannot be seen clearly, please contact our distributor and
replace it.
Electrical safety
Before use, the generating set and its electrical equipment
(including lines and plug connections) should be checked to ensure
that they are not defective.
Protection against electrical shock depends on circuit breakers
specially matched to the generating set. If the circuit breakers require
8
replacement, they should be replaced with a circuit breaker having
identical ratings and performances characteristics
Due to high mechanical stresses, only tough rubber-sheathed
flexible cable or the equivalent should be used.
If you need extension cords, use flexible cables such as rubber
sleeves (compliant with IEC245 or corresponding
requirements).Specification: ≥14AWG/20ft.the extension lines should
be special used for power supply cord line.
The choice of protection arrangement to be carried out depending
on characteristic of the generator, running conditions and scheme of
grounded liaisons determined by the user. The user that he shall
conform to regulations of electrical safety applicable to the place
where the generating sets are used. And the requirements and the
precautions to be respected by the user in the case of re-supply by
generating sets of an installation, depending on existing protective
measures in this installation and applicable regulations.
The generator produces enough electric power to cause a serious
shock or electrocution if misused.
Using a generator or electrical appliance in wet conditions, such as
rain or snow, or near a pool or sprinkler system, or when your hands
are wet, could result in electrocution. Keep the generator dry.
If the generator is stored outdoors, unprotected from the weather,
check all electrical components on the control panel, before each use.
Moisture or ice can cause a malfunction or short circuit in electrical
components which could result in electrocution.
9
Do not connect to a building electrical system unless an isolation
switch has been installed by a qualified electrician.
Grounding
The portable generator stator winding is isolated from the frame
and from the AC receptacle ground pin;and
Electrical devices that require a connection between one
conductor pin and the grounded receptacle pin may not function
properly.
Status of the AC neutral conductor is NEUTRAL FLOATING.
Status of DC output receptacle(s) is BONDED TO FRAME.
2. LABELS
2.1 Warning labels
1)

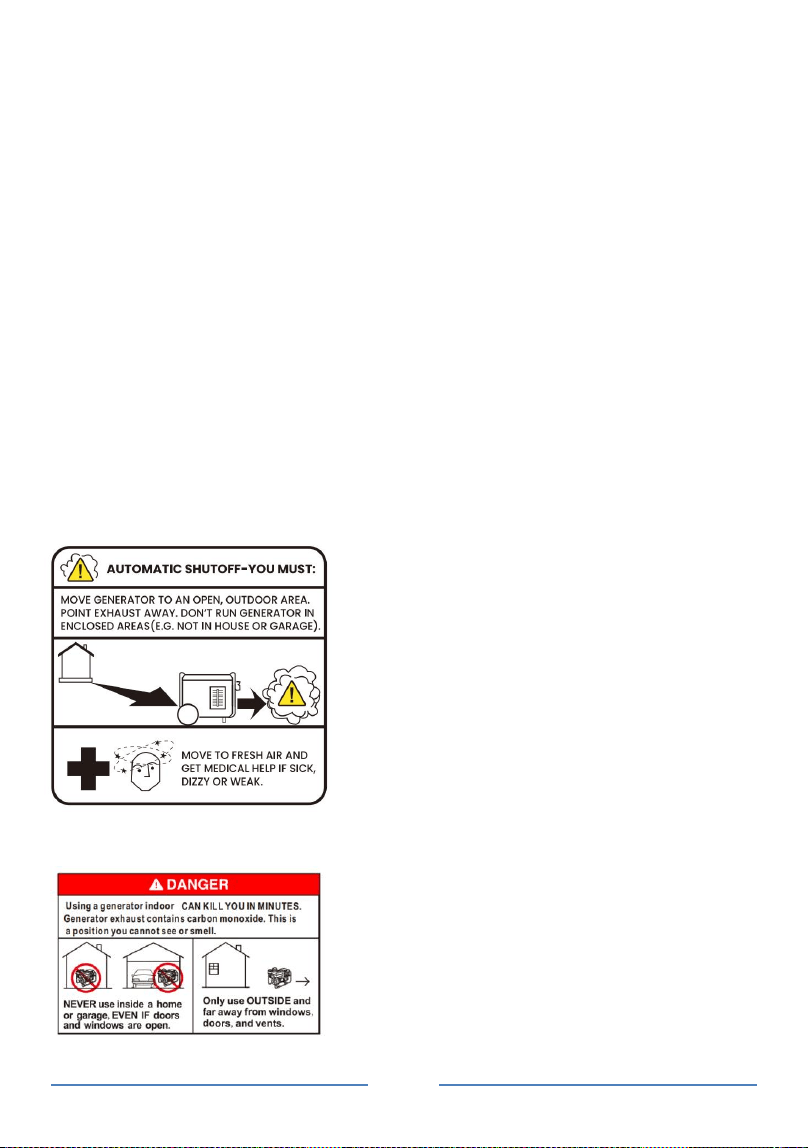

User instruction label
2) CO poisoning hazard label
10

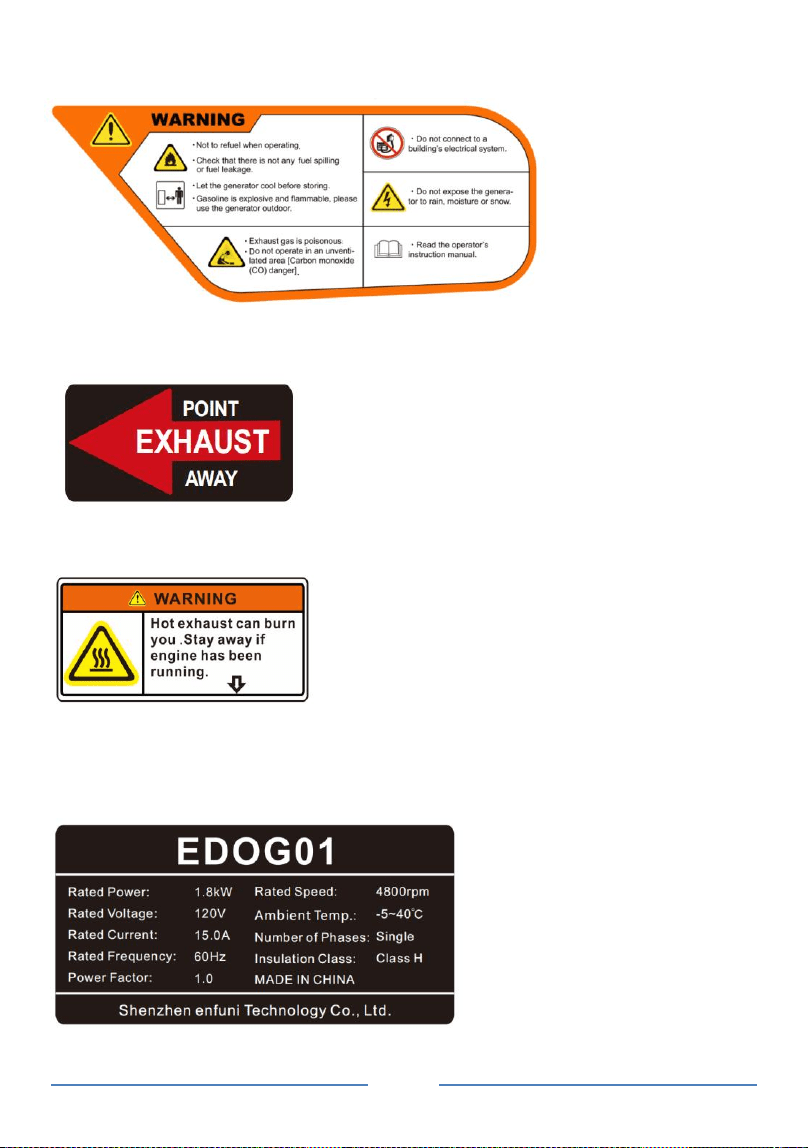

3) Warning labels
4) Direction of engine exhaust label
5) Burning hazard label
2.2 Nameplate
11

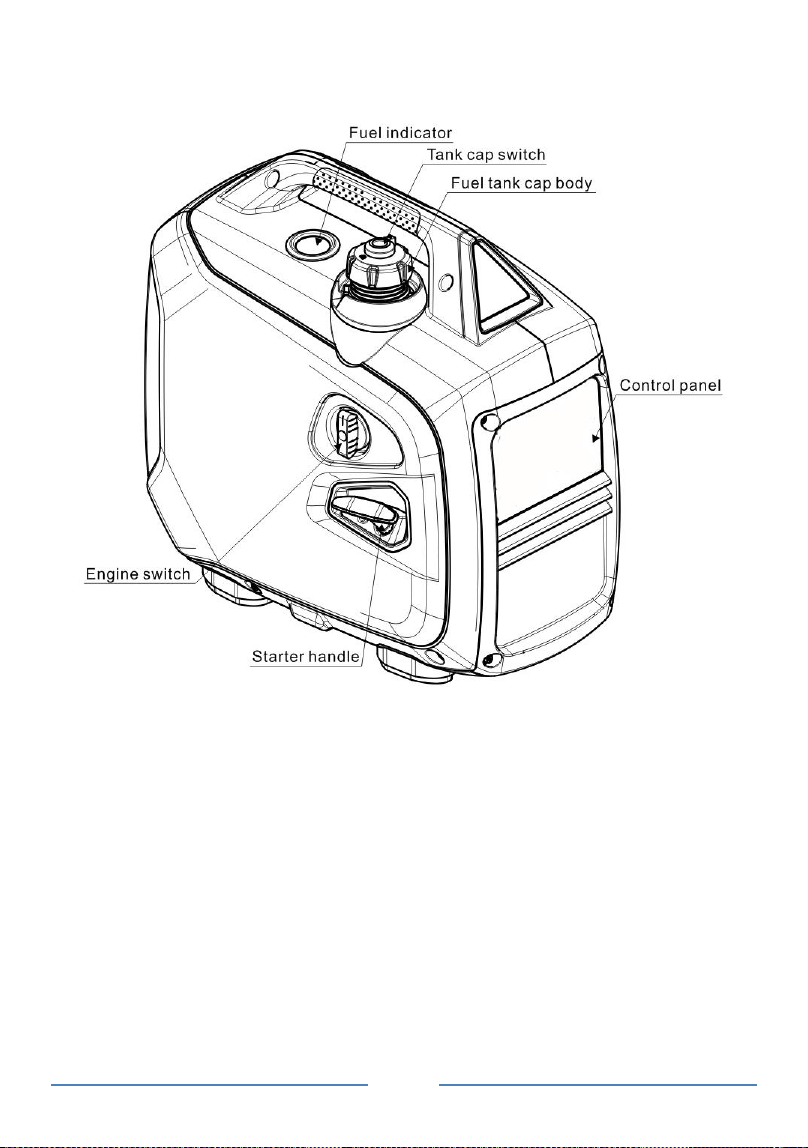

3. COMPONENTS IDENTIFICATION
12

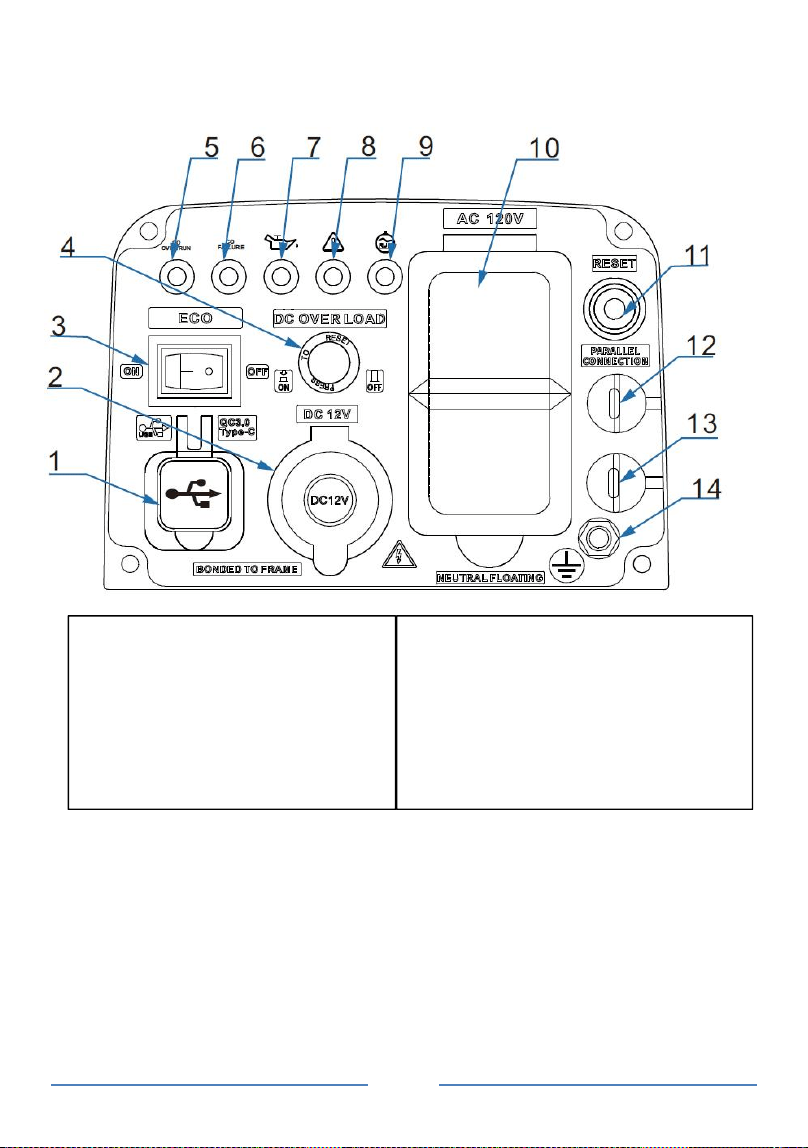

3.1 Control Panel
3.1.1 ECO switch
Energy conservation
When the energy-saving switch is in the energy-saving position, the
generator is in the energy-saving state. When disconnecting or using
low power, the engine automatically returns to a low speed state, thus
1.USB socket
2.DC Socket
3.ECO Switch
4.DC overload protector
5.CO OVERRUN light
6.CO FAILURE light
7.Low oil indicator (yellow)
8.Overload indicator (red)
9.Running indicator (green)
10.AC output socket
11.AC reset
12.Parallel socket
13.Parallel socket
14.Ground protection
13
reducing engine fuel consumption.
Full speed
When the energy-saving switch is in full-speed position, the engine
will remain in a high speed state.
In order to reduce the change of voltage, the energy saving switch
should be in the position of "full speed" when the electrical equipment
needs a large instantaneous power, or when the generator is
connected with the load of the high power apparatus at the same time.
"Full speed" means that the energy-saving state is off and the
engine is always at high speed, which is suitable for the situation
where the negative load of electrical appliances varies greatly.
3.1.2 Parallel connectors

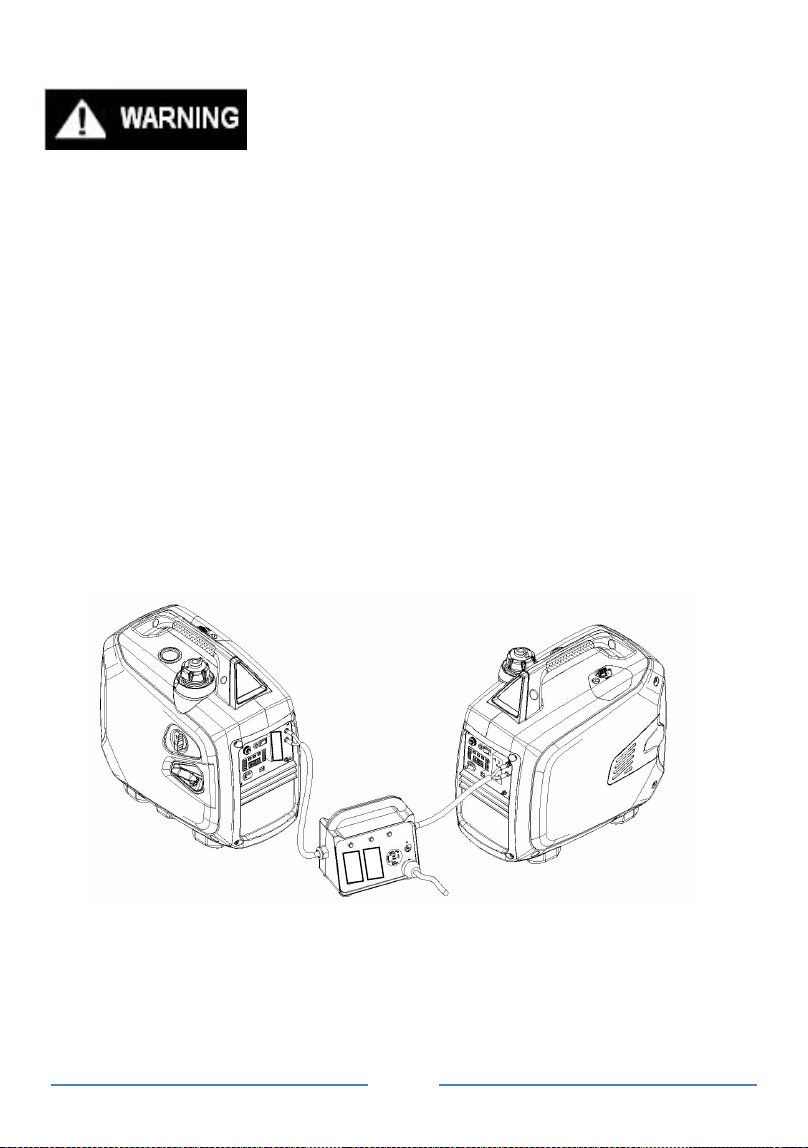

Using two same model inverter generators output with special
PARALLEL KIT by parallel connector.
Note:
Above parallel kit allows two approved inverter generators to be
connected for additional power. The parallel kit is an optional
accessory, please contact your dealer.
3.1.3 AC RESET
1) Under the condition of protection, the Overload Indicator (red) is
on, the "RESET" button can recover the output of the generator, and
unnecessary to restart engine overall.
2) Press and hold the “RESET” button for 5 seconds, until the
14
Overload Indicator (red) will be off, and Output Indicator (green) will
be on.
3) Under the non-overloading condition, the "RESET" is supposed to
be ineffective.
In the non-overload state, the output can not be recovered by
pressing the reset key.
Each time the engine is started, the number of effective operation
times of the protection cut-off switch is 5 times, otherwise the engine
needs to be restarted.
3.1.4 Indicator Light
1) CO OVERRUN light
When the CO OVERRUN light is flashing red light, the CO
concentration has reached dangerous levels, please ventilate and
leave immediately until the CO concentration drops to a safe level,
then the CO OVERRUN light will be off. If the CO concentration
reaches the set value, the CO sensor will shut down the engine.
2) CO FAILURE light
If the CO FAILURE light is flashing yellow light, the CO sensor may
need service.
■Carbon Monoxide (CO) Detection and Auto-shutoff System
1) CO technology monitors the accumulation of carbon monoxide
(CO), a poisonous gas produced by engine exhaust when the
generator is running. If CO monitors detects unsafe elevated levels of
CO gas, it automatically shuts off the engine.
15
2) DO NOT allow engine exhaust fumes to enter a confined area
through windows, doors, vents or other openings. Generators must
ALWAYS be used outdoors, far away from occupied buildings with
engine exhaust pointed away from people and buildings.
3) In the event the CO monitor detects an accumulation of carbon
monoxide, the engine will shut down and the red indicator will blink.
The indicator will continue to blink for five minutes. After this point the
generator may be restarted or if it is relocated and the monitor
determines the CO level is low, the engine may be restarted.
4) Every time the generator is started, the yellow and red CO monitor
indicator lights will blink for ten seconds. This is normal and not a
cause for alarm; the monitor is performing a self-check.
5) Should the CO monitor fail during operation, the engine will shut
down and the yellow indicator will blink. The engine cannot be
restarted until the CO monitor is serviced.
3) Low Oil Indicator (yellow)
When the Low Oil Indicator turns yellow, the engine oil is
insufficient. The generator will automatically shut down to protect the
engine from damage.
Fill engine oil to the required level before you can re-start the
engine.
Yellow light will go OFF after adding engine oil to a sufficient level.
When the yellow light is ON, the engine can not be started. Trying
to force the engine to start will damage the engine.
4) Overload Indicator (red)
The Overload Indicator (red) will turn on and glow when the AC
circuit of the generator is overloaded, or if the connected electrical
equipment is short-circuited, all AC power outputs will automatically
cut off and the generator will produce no power, but the engine will
continue to run. The Running Indicator (green) will go off at the same
time.
Turn off and disconnect all electrical devices when the Overload
Indicator (red) is on.
DO NOT exceed the rated output wattage of this generator - (refer
to Technical Specifications of this manual).
16
After overload current has been rectified and removed, press the
reset button. The Overload Indicator (red) will then go off and the
Running Indicator (green) will turn on.
5) Running Indicator (green)
The Running Indicator (green) is always ON when the generator
and its output is running correctly.
When the Running Indicator (green) goes OFF while the engine is
still running, the generator will produce no power. The AC outlets will
have no output.
When the Running Indicator (green) is OFF, the Overload Indicator
(red) will glow at the same time, this indicates the AC circuit is
overloaded. Refer to (3.1.3 AC Reset) to resolve this problem if it
happens.
17
4.
PRE-OPERATION CHECK
Before using, make sure the generator is on the horizontal floor and
do not start the engine.

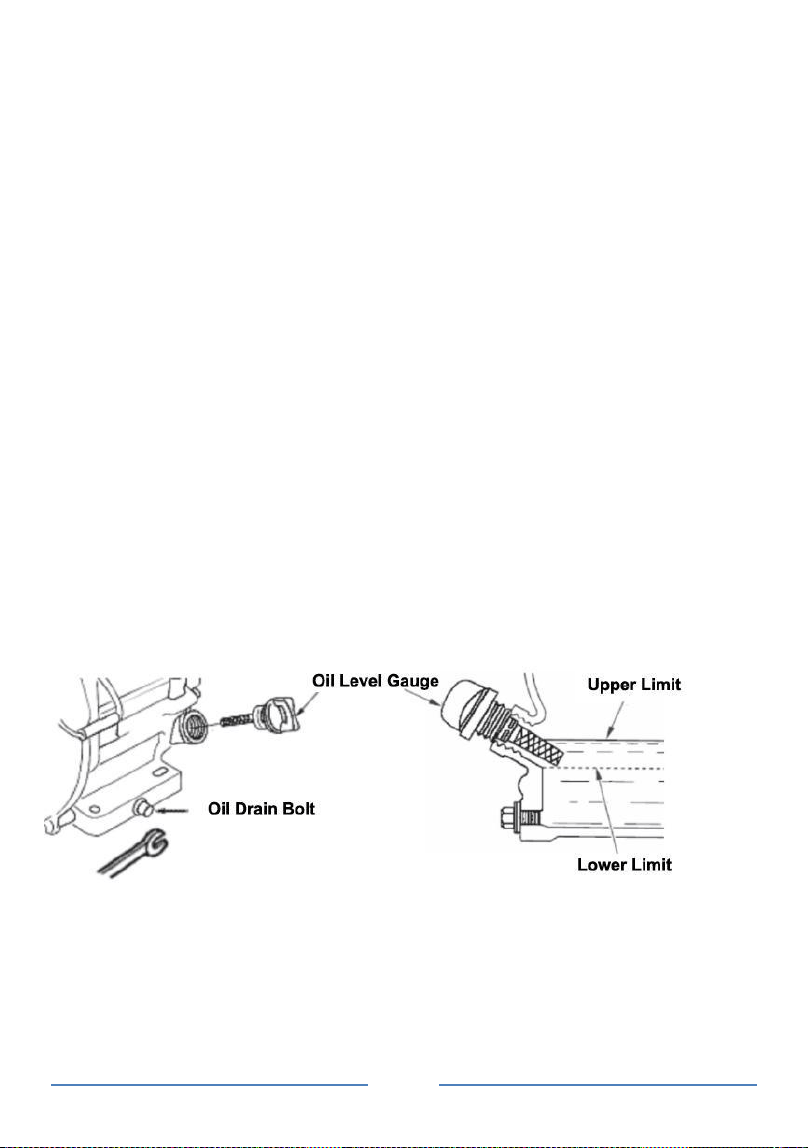

4.1 Check oil level
The generator has no oil in the engine prior to leaving the factory.
Please do not start it before filling it with enough engine oil.
1) Use high-quality 4-stroke oil that meets or exceeds the
classification of the American Petroleum Association required by
American automakers.
2) Please place the generator on the flat surface.

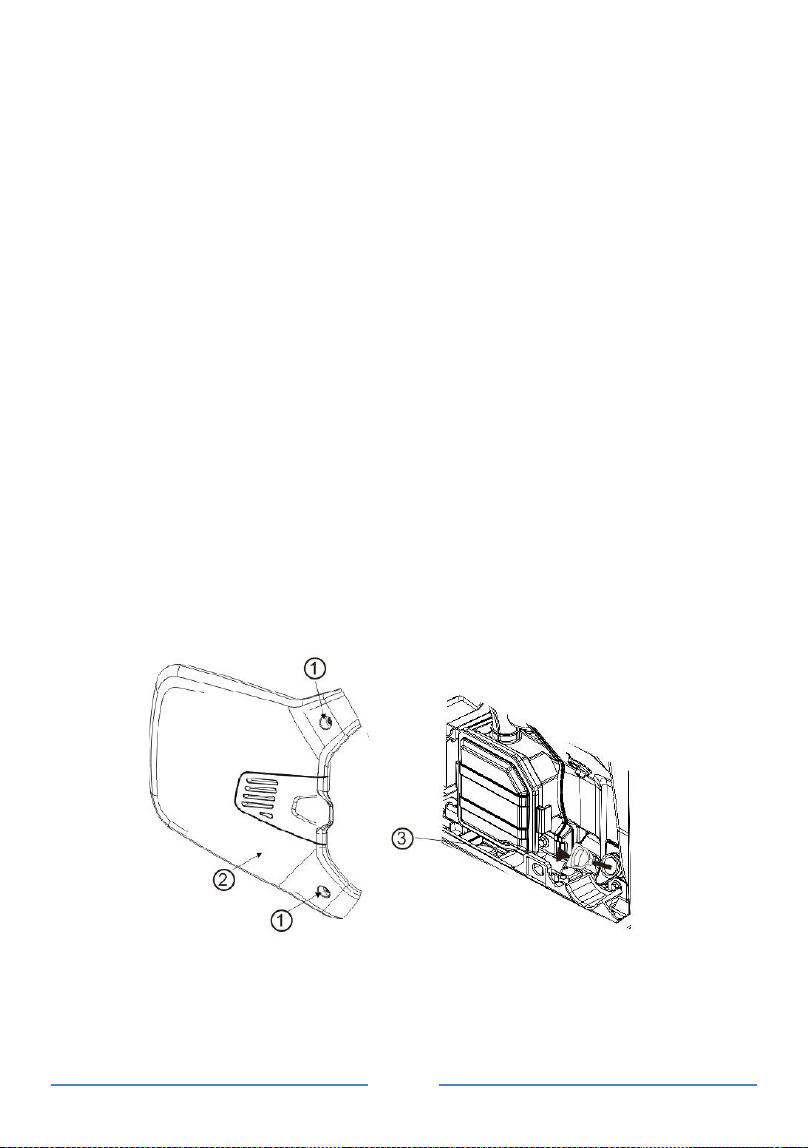

3) Rotate the knob① to “ON” position and remove oil maintenance
cover ②.
4) Open the oil cap③.
5) Fill with the recommended amount of oil and tighten the cap.
6) Re-install oil maintenance cover and rotate knob to “OFF”
position.
18
Do not use 2-stroke oil or detergents-free oil, otherwise the
engine life will be shortened.
Use high-quality 4-stroke oil that meets or exceeds the SG, SF
classification of the American Petroleum Association required by
American automakers.
Select oil suitable viscosity according to the average
temperature in your area.
The SAE viscosity grade is shown in the following table：
Environmental
temperature
Oil type
-25℃-30℃
10W-30
-15℃-40℃
15W-40
Store and use oil carefully to prevent dirt or dust from falling into
the oil. When adding oil, wipe the area around the refuelling opening.
Do not mix different specifications of oil to prevent negative effects
on oil performance.
Running the engine with low oil level can seriously damage the
engine.
19
The engine oil alarm system can automatically shut off the
engine when the oil level is lower than safety limits. However, in
order to avoid inconvenience caused by unexpected shutdown, we
recommend that you check the oil level regularly.
4.2 Check fuel
1) Please use unleaded gasoline, E10 or higher level.
2) Do not use a mixture of oil and gasoline or dirty gasoline.
3) Prevent dirt and water from entering the tank.
4) Do not use gasoline containing more than 10% ethanol or
gasoline containing methanol, otherwise the engine will be
seriously damaged.
Under certain circumstances, gasoline is extremely flammable
and explosive.
Please refuel in a well-ventilated place and shut down the engine.
Smoking or open flames are prohibited in the engine refuelling area
and gasoline storage area.
Gasoline shall not overflow the tank (the fuel level is lower than
the red level indicator). After refuelling, tighten the tank cover.
After refuelling, dry the remaining gasoline with a piece of clean
and soft cloth.
Avoid prolonged, repeated contact with gasoline or inhalation of
gasoline vapor.
Do not allow children to touch gasoline.
20
5.
STARTING THE ENGINE
●
Disconnect the electrical equipment from the alternator's AC
socket before starting the engine.
●
For initial use (long unused, start after gasoline is used up), turn
the engine switch knob to "ON" position for 10 to 20 seconds before
starting, so that gasoline can enter the engine carburetor.
●
It is strictly forbidden to use in indoor and closed environment.
5.1 Recoil start

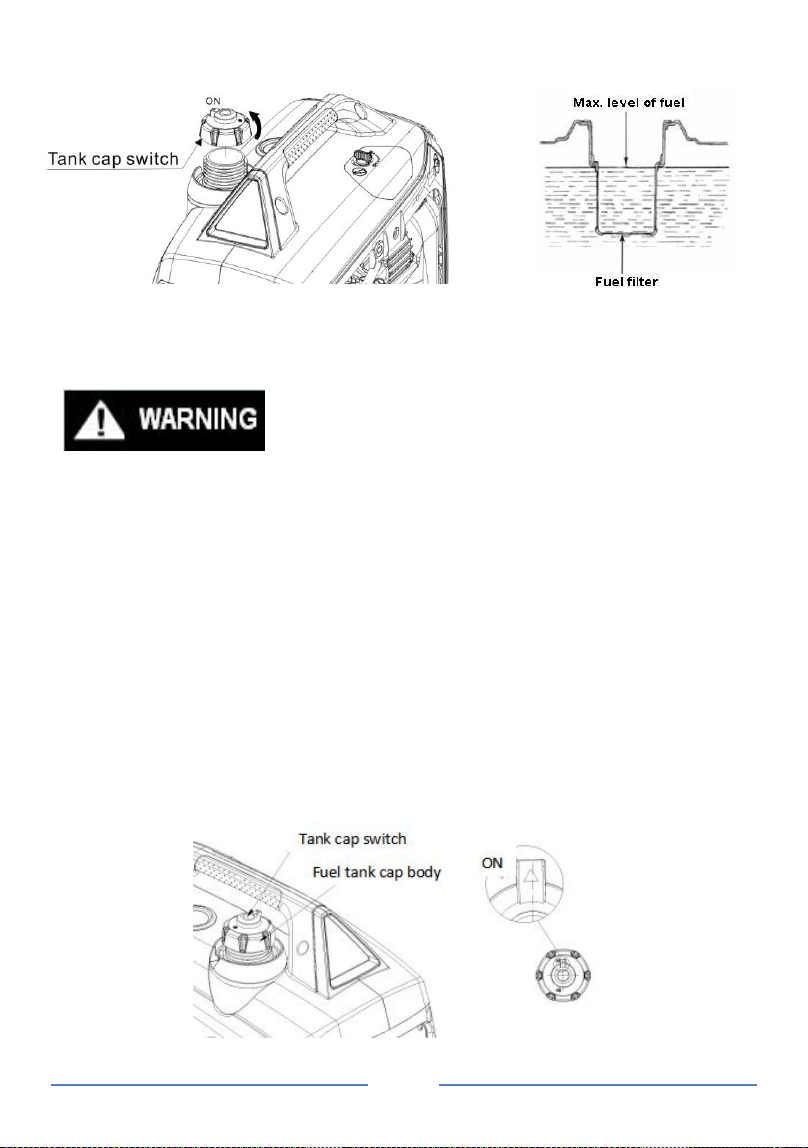

1) The tank cap switch rotates to "ON" position.
Note: When the generator is being transported, the fuel tank cover
switch shall be cranked to the position of the “OFF”.
21

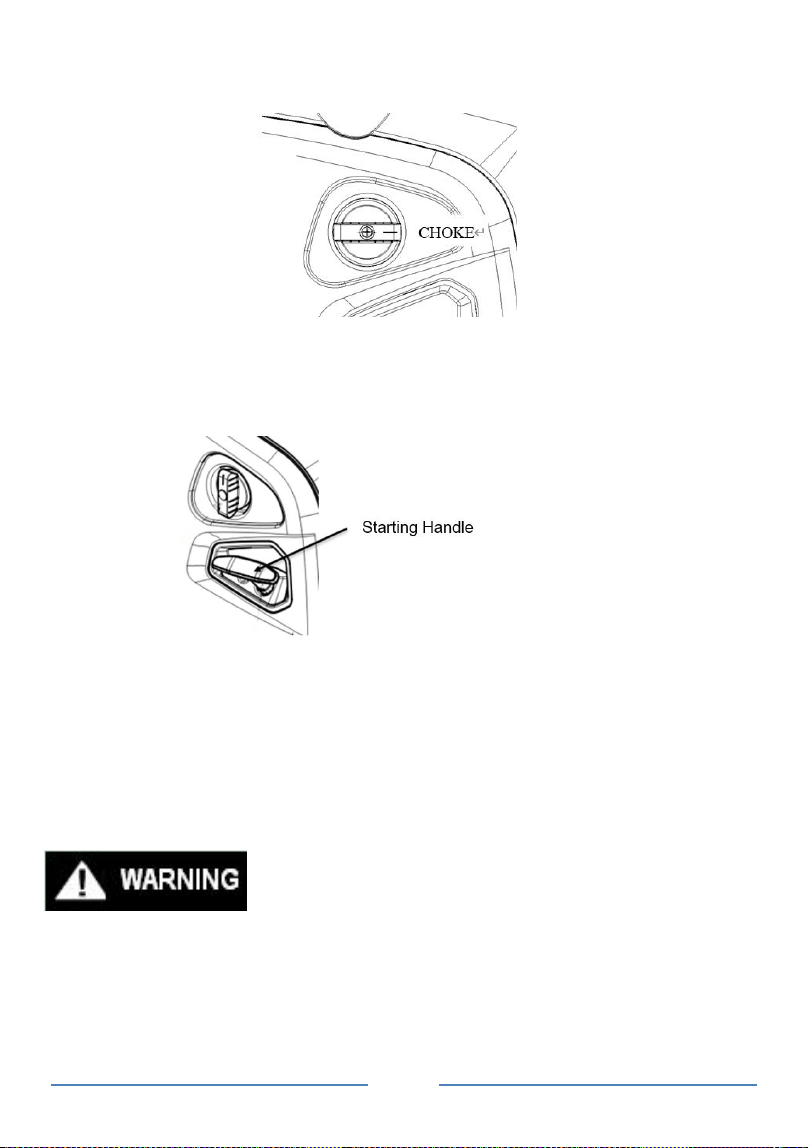

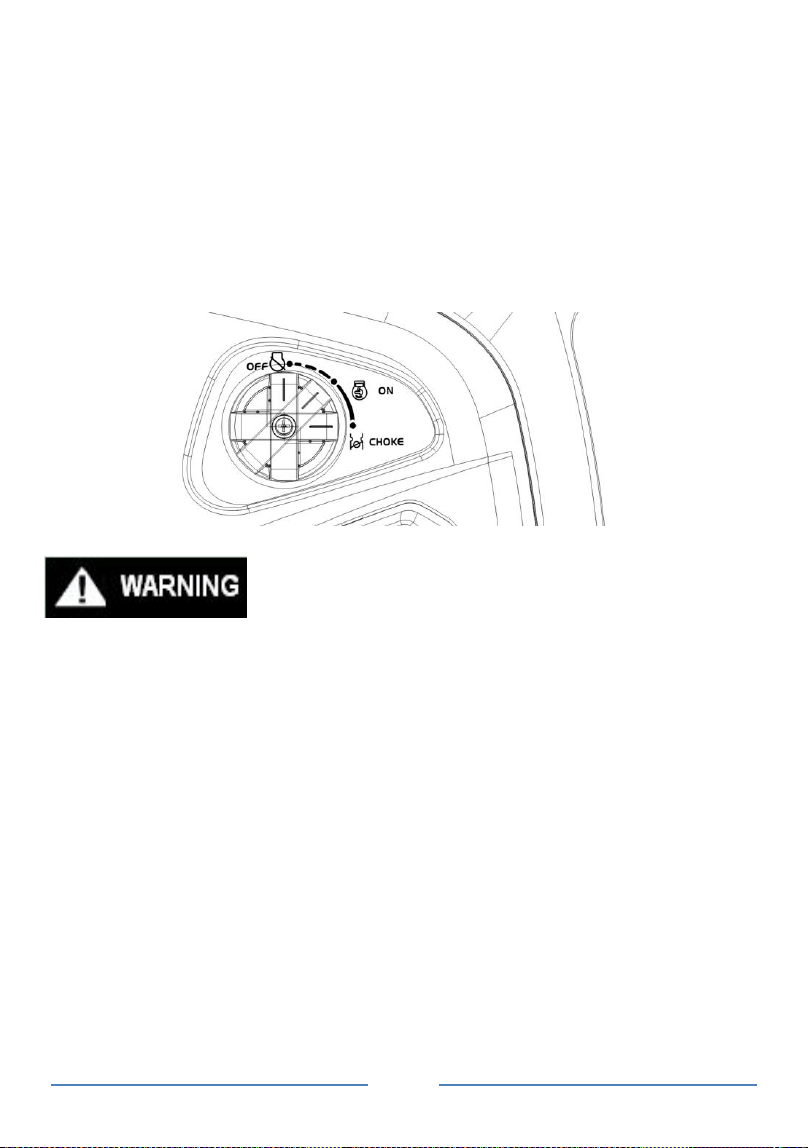

2) Turn the engine switch knob of the generator to the
"CHOKE" position.
3) When you start the engine, gently pull the starting handle
until the resistance is felt, and then pull it quickly.
Notice: When the engine is hotter or the ambient temperature is
higher, the choke does not need to be closed. The engine switch
shall be turn to “ON” position.
Notice: The dangers of injury caused by the sudden change of
rotation direction of the engine.
Pay attention to pull the starting handle, the pull angle should not
be too large, so as not to wear the housing shell.
Do not allow the starting handle to rebound and retract
automatically to avoid damage to the shell. Slowly put the starting
22
handle back.
Against the dangers of injury caused by the sudden change of
rotation direction of the engine.
If the engine fails to start after shutdown, check the tank cover
switch position, engine switch (three-in-one switch) and
operation steps, if all invalid, check the oil level.
Turn the engine switch to the running position while the engine is
running.
●
For generators above 1500 meters above sea level, please
contact our distributor to replace plateau carburetor. The plateau
carburetor cannot be used at low altitude, otherwise the engine will
be damaged by overheating.
6
USING THE GENERATOR
●
In order to prevent electric shock due to improper use, the
generator shall be grounded.
●
As a backup power source, the generator cannot be connected
to the grid company's power system.
●
Before use, the generating set and its electrical equipment
(including lines and plug connections) should be checked to ensure
that they are not defective.
●
Except for another same model generating set, the generating
set shall not be connected to other power sources, such as the
23
power company supply mains. In special cases where stand-by
connection to existing electrical systems is intended, it shall only
be performed by a qualified electrician who has to consider the
differences between operating equipment using the public
electrical network and operating the generating set.
●
The user that he shall conform to regulations of electrical safety
applicable to the place where the generating sets are used.
●
Do not overload the generator.
●
Do not connect the generator to the power grid company's
household power system, otherwise it may cause people to die from
electric shock when they come into contact with the wire; and
damage the generator or the household appliances.
●
Do not run in parallel with other model generators.
●
Do not lengthen engine exhaust pipe.
●
For extended cables, use flexible cables such as rubber sleeves
(compliant with IEC245 or corresponding requirements). Cable
length limit: 2.5mm
2
cable length 60 m; 4.0mm
2
cable length 100m.
●
Keep generators away from other wires and cables, such as
distribution networks
●
When using AC power, you can use DC power at the same time.
●
For both AC and DC sockets, note that the total power does not
exceed the sum of AC and DC power.
●
The output voltage of DC socket is 5V USB: one port is 1A,
another is 2.1A.
24
●
Before connecting the alternator output, make sure the electrical
equipment is working properly. If, during use, the electrical
equipment suddenly stops working or is not working properly, the
electrical equipment is immediately disconnected and the engine
is stopped.
6.1 AC Parallel Operation
●
Connect two same model generators with special PARALLEL
KIT according to the instructions provided.
Make sure the ECO switch is in the same position on both
generators.
25
All electric devices should be turned “OFF” and disconnected
from generators prior to starting
generator engines.
Start generator engines. Make sure the green output indicator
light comes on for each generator.
When engines have stabilized, plug in electric device to AC
receptacle and turn on first load.
Allow generator output to stabilize (engine and attached devices
run evenly) before plugging in the next load.
6.2 Rated Power in Parallel Operation:
3.4kW.
For continuous operation, do not exceed the rated output.
Note:
Only connect electric devices to the generator that are in
good working order and do not exceed the rated power supply
of the parallel generators or the desired receptacle.
A faulty appliance or power cord can create an electric shock.
Do not use electric devices that have a damaged cord or plug.
If an appliance begins to operate abnormally, becomes sluggish,
or stalls, turn off and disconnect appliance immediately. The
appliance may have a fault or its rated load capacity exceeds the
power supply of the generator.
To avoid damage to generator or electric device, do not connect
a load to the generator if its electrical rating exceeds that of the
receptacle.
Never connect generators that are different models.
The parallel cable must be removed if operating only one
generator.
26
Never disconnect or remove the parallel operation cable while
generator is still running.
7
STOPPING THE ENGINE
1) Switch off the connected electrical appliances and pull out the
plug.
2) Turn the engine switch to "OFF” position.
To stop the engine in an emergency, turn the Engine
Switch to the "OFF" position directly.
Be sure the engine switch is in the “OFF” position when
stopping, transporting and storing the generator.
Always store your generator in a dry, cool environment.
Always run your carburetor dry, prior to storage, to avoid
any gasoline to be left in the carburetor jet.
27
8
MAINTENANCE
The purpose of the maintenance and adjustment schedule is to keep
the generator in the best operating condition.
Stop the engine before performing any maintenance. If the
engine must run, be sure the area is well ventilated because of the
exhaust contains poisonous carbon monoxide gas.
To ensure the quality, please use our original spare parts or the
same quality parts when replacing damaged parts.
Regular Service Period（3）
Each
use
First month
or 10 hrs
Every 3
months or
50 hrs.
Every 6
months or
100hrs
Every
2 years or
200 hrs
Item
Engine oil
Check level
⊙
Replace
⊙
Air cleaner
Check
⊙
Clean
⊙(1)
Spark plug
Check-adjust
⊙
Replace
⊙
Spark
Collector
Clean
⊙
Valve
Clearance
Check-adjust
⊙(2)
Fuel tank&
filter
Clean
⊙
Cylinder
Clean
After every 300 hrs (2)
Fuel line
Check
Every 2 years ( Replace if necessary)(2)
28
(1) Maintenance more frequently when used in dusty areas.
(2) The maintenance items in this part need professional maintenance
tools and skills.
(3) If it is used commercially, the maintenance frequency can be
increased due to long-term use.
8.1 Change Oil
It is always best to complete an oil change while the engine is
warm, not too hot and not too cold. This will help the oil to ensure all
of it comes out quickly and completely.
When you drain the engine oil, try pulling the recoil starter gently
for several time, it can help to drain the oil quickly and cleanly.
① Remove oil level gauge and then loosen the oil drain bolt and drain
the oil.
② Install the oil drain bolt and tighten it.
③ Add engine oil to the appropriate level.
④ Install the oil level gauge.
Engine oil capacity: 0.45L
29
Note
For conforming to the environment requirement, the used oil will be
put into a sealed container and then be transported to the service
station for recycler. Do not throw it into the trash or pour it on the
ground.
For conforming to the environment requirement, the used oil will be
put into a sealed container and then be transported to the service
station for recycle. Do not throw it into the trash or pour it on the
ground.
8.2 Air Cleaner
A dirty Air Cleaner will restrict air flow into the carburetor. Please
clean and maintain the air cleaner regularly to prevent carburetor from
breaking down. If generators are often used in high dust areas, they
need to be maintained more frequently.
Do not use gasoline or low ignition point solvents for cleaning. They
are flammable and explosive under certain conditions.
Never run the generator without air cleaner, otherwise that result in
engine abrasion rapidly.

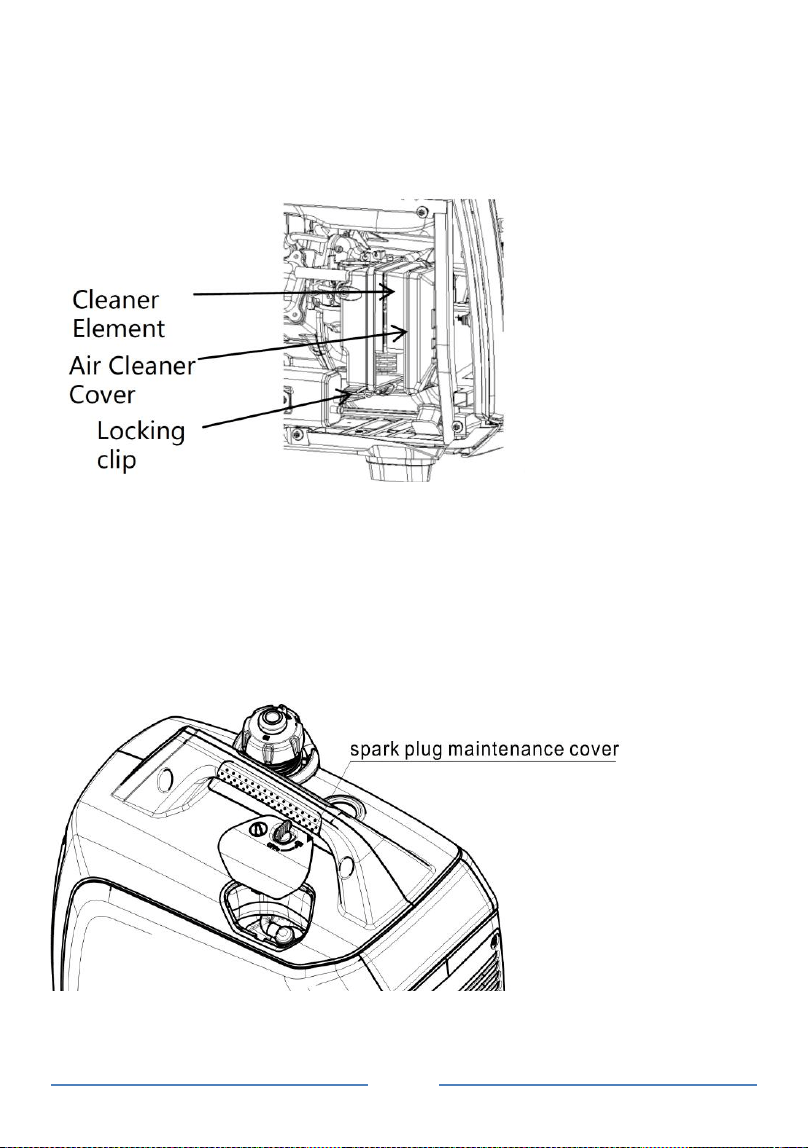

1) Open the connecting button of the air cleaner cover and open the
cover.
2) Take out the Air Cleaner element and clean it with non-flammable
or high flash point solvent (for example kerosene or motorcycle
30
engine oil),then dry it.
3) Clean the filter element with clean oil and squeeze out the any
extra oil.
4) Re-install the Air Cleaner element and cover.
8.3 Spark Plug
Recommendation Spark Plug: E5TC/E5RTC
In order to ensure normal engine operation, the Spark Plug
clearance must be appropriate, spark plug without carbon on it.
1) Remove the spark plug cap.
31
2) Use the spark plug socket wrench to remove the spark plug.
3) Check the Spark Plug visually. Replace the Spark Plug if its
insulator is cracked or chipped. Clean it with a wire brush if the Spark
Plug is still in good working condition to remove any carbon that may
be built up on it.

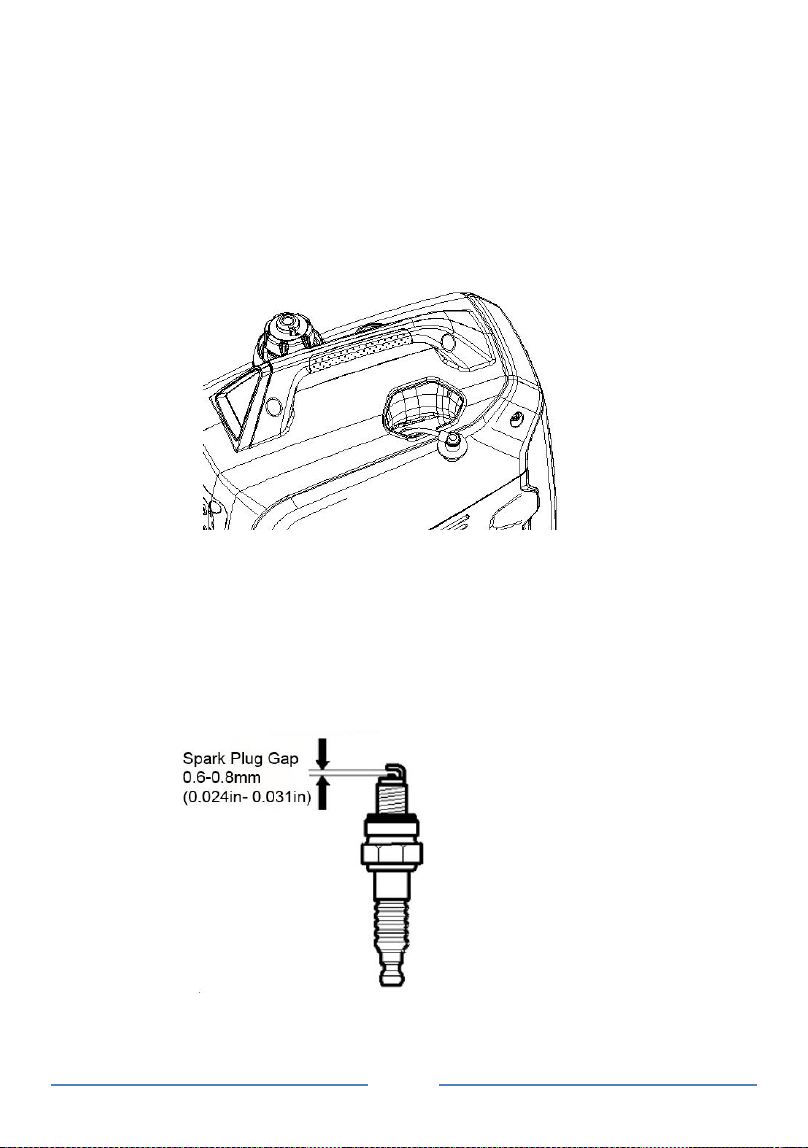

4) Measure the Spark Plug Gap with a feeler gauge. The normal
value: 0.6mm- 0.8mm (0.024in- 0.031in).
5) Check if the spark plug gasket is in good condition.
32
■
The Spark Plug must be securely tightened. Tightening in wrong
way will cause Spark Plug hot, even damage the engine. Never use a
spark plug with an improper heat range.
(1)
Install the Spark Plug carefully, by hand, to avoid cross-
threading.
(2)
A new Spark plug ,by hand ,should be tightened 1/2 turn with a
spanner, and press the washer. A used Spark plug should be
tightened 1/8 to 1/4 turn with spanner.
(3)
Re-install the spark plug cap .
(4)
Re-install the spark plug maintenance cover, and tighten the
screws.

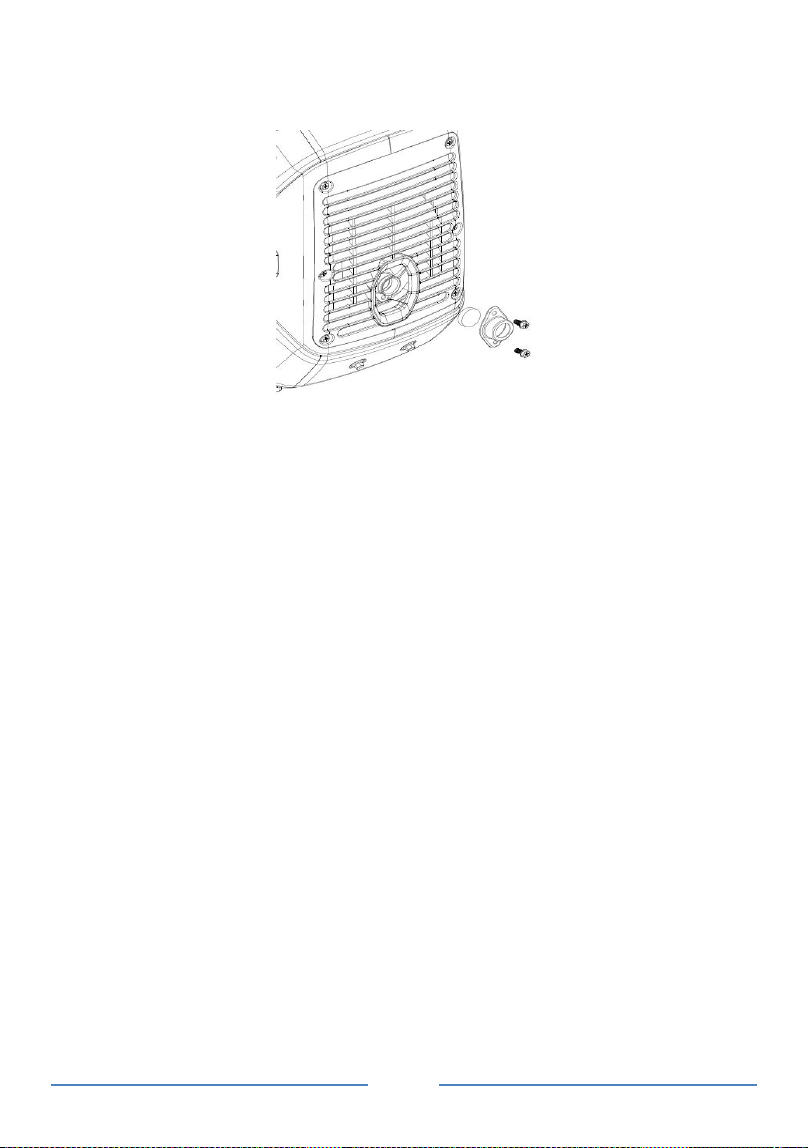

8.4 Spark Collector
The spark collector must be maintained for every 100 hours of engine
operation.
8.4.1
Loosen the six screws in the muffler cover and take off the
maintenance cover.
8.4.2
When the muffler is cooled, loosen the screws from the muffler
outlet and take off the spark collector.
8.4.3
Use a brush to clean the carbon deposits on the spark
collector. If the spark collector is damaged, and replace it.
8.4.4
Re-install the spark collector.
33
9.
TRANSPORTING / STORING
• Gasoline is explosive and flammable in the specified condition.
Fireworks are strictly prohibited near it.
• Do not overfill the fuel tank. (No residual fuel on the neck of tank).
• Do not use the generator in a transport vehicle. The generator
should be removed from the cars. And the generator should be used
under a good ventilated condition.
• Avoid direct sunlight.
• When placing a generator in an enclosed transport vehicle for a long
time, the high temperature inside the vehicle could cause fuel to
vaporize resulting in a possible explosion.
• The generator must not be transported for long time periods on
rough road. If you must drive on a road like this, drain off the gasoline
and oil beforehand.
• Storage for a long period:
1. Make sure the storage area is without excessive humidity and
dust.
34
2. Drain out of gasoline.
A. Drain off the gasoline from the fuel tank, storing it into the suitable
containers.
B. Turn the engine switch to “ON” position, and loosen the carburetor
drain screw to discharge gasoline with a suitable container.
C. Take off the Spark Plug cap, pull the Starter handle three or four
times, discharge the gasoline from the fuel pipe and carburetor.
D. Turn the engine switch to “OFF” position and tighten the drain
screw of carburetor.
E. Re-install the Spark Plug cap.
3. Change the engine oil. Unscrew the oil gauge and Oil drain bolt of
the crankcase and drain it. Then tighten the drain bolts, fill new oil to
the upper limit, and then re-install the oil gauge.
4. Remove the Spark Plug and fill 10-20ml engine oil into the cylinder.
5. Crank the engine several times to distribute the oil and re-install the
Spark Plug.
6. Pull the Starter handle slowly till resistance is felt. At this point, the
piston is coming up on its compression stroke and both intake and
exhaust valves are closed. It helps to protect the engine from internal
corrosion.
7. Place the generator set in a flat, clean and dry area.
35
10.

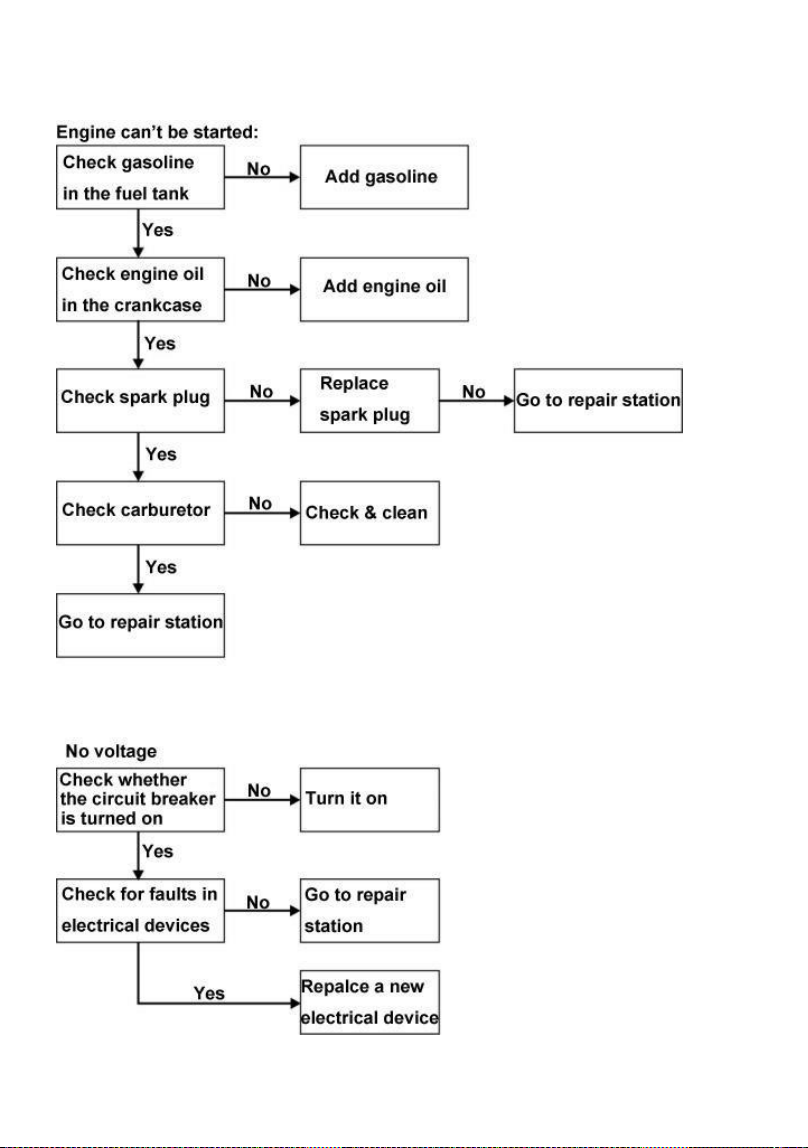

Troubleshooting
36
11.
TECHNICAL SPECIFICATIONS
Specifications
Parameters
Engine
Model
H79i
Type
4-stroke, overhead valve, single
cylinder, forced-air cooling
Engine Displacement(CC)
80
Bore*Stroke (mm)
49×43
Compression Ratio
9:1
Rated Power
（
kW/rpm
）
2.2/4800
Ignition System
TCI
Start System
Recoil start
Fuel Type
Gasoline
Oil Model
SE 10W-30
Generator
Model
EDOG01
Rated Frequency（Hz）
60
Rated Voltage（V）
120
Rated Current
（
A
）
15
Rated Speed
（
min
-1
）
4800
Rated Power
(
kW
)
1.8
Max. Power
(
kW
)
2.0
36

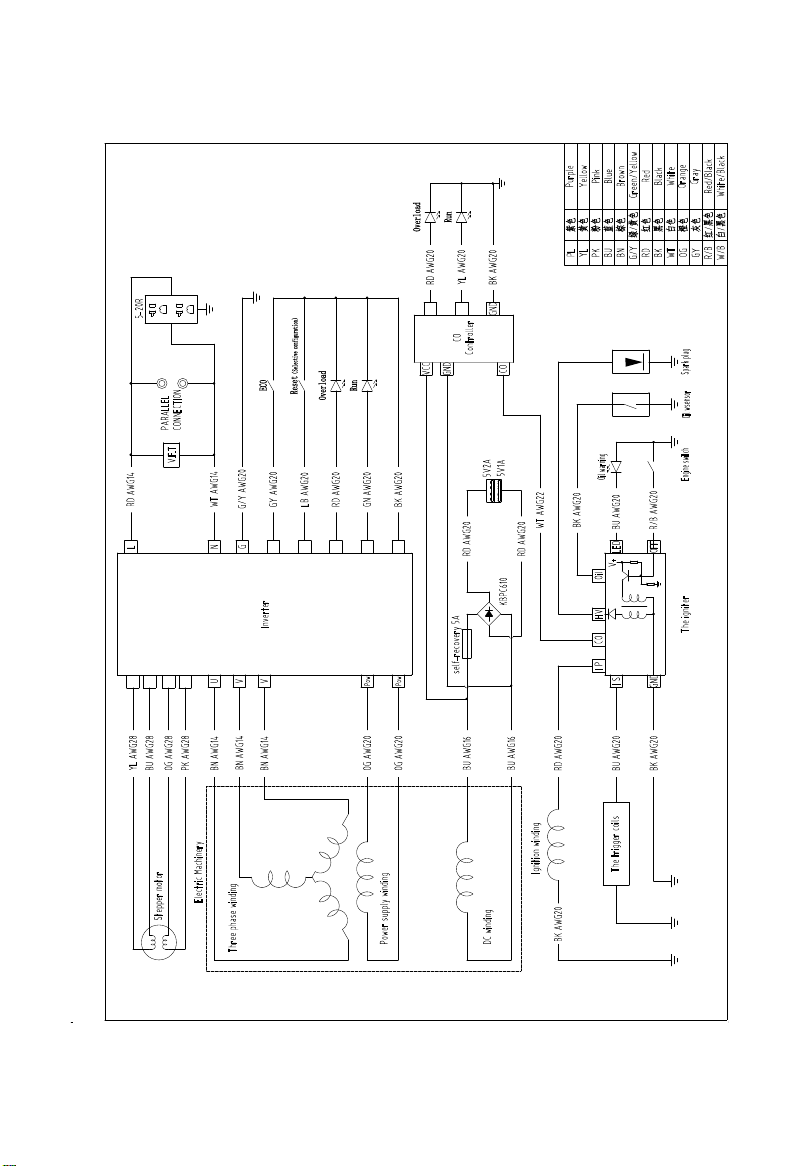

12.
ELECTRICAL DIAGRAMS
38
13.
SERVICE INFORMATION
If you are not entirely satisfied with your purchase,please feel free to
contact us using the following steps:
1. Go to Your Orders.
2. Find your order in the list.
3. Select Problem with order
4. Choose your topic from list displayed.
5. Select Contact seller.
6. You can also contact us via email,our email:
InGeneratorS[email protected]
EMISSION CONTROL SYSTEM WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The U. S. EPA and Shenzhen enfuni Technology Co., Ltd are pleased to explain the
emissions control system warranty on your model year 2025 and later small off-road
engine and equipment (equipment).
New equipment must be designed, built and equipped to meet the stringent anti-smog standards.
Shenzhen enfuni Technology Co., Ltd must warranty the emission control system on your equipment for
the period of time listed below, provided there has been no abuse, neglect or improper maintenance of
your equipment.
Your emission control system may include parts such as the carburetor, air cleaner, ignition system,
exhaust system, and other associated emission-related components.
Where a warrantable condition exists, Shenzhen enfuni Technology Co., Ltd will repair your equipment at
no cost to your including diagnosis, parts and labor.
MANUFACTURER’S WARRANTY COVERAGE
This emissions control system is warranted for two years. If any emission-related part on your equipment
is defective, the part will be repaired or replaced by Shenzhen enfuni Technology Co., Ltd.
OWNER’S WARRANTY RESPONSIBILITIES
As the equipment owner, you are responsible for the performance of the required maintenance listed in
your Owner’s Manual. Shenzhen enfuni Technology Co., Ltd recommends that you retain all your receipts
covering maintenances on your equipment, but Shenzhen enfuni Technology Co., Ltd cannot deny
warranty solely for the lack of receipts or for your failure to ensure the performance to all scheduled
maintenance.
As the equipment owner, you should however be aware that Shenzhen enfuni Technology Co., Ltd may
deny your warranty coverage if your equipment or part has failed due to abuse, neglect, improper
maintenance or unapproved modifications.
You are responsible for presenting your equipment to an Authorized Shenzhen enfuni
Technology Co., Ltd Service Dealer as soon as a problem exists. The warranted repairs
should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact:
Company: Windrider Tech Co., Ltd.
Contact Person：Austin
Tel.: 4696597752
Mail: [email protected]
Add.: 2707 Realty Road STE 100 Carrollton Texas 75006
DEFECTS WARRANTY REQUIREMENTS
Shenzhen enfuni Technology Co., Ltd warrants to the ultimate purchaser and each subsequent purchaser
that the equipment is designed, built and equipped so as to conform with all applicable regulations; and
free from defects in materials and workmanship that cause the failure of a warranted part, and is identical
in all material respects to that part as described in the application for certification.
The warranty period begins on the date the equipment is delivered to an ultimate purchaser or first placed
into service. Subject to certain conditions and exclusions as stated below, the warranty on emission-related
parts is as follows:
1.
Any warranted part that is not scheduled for replacement as required maintenance in the written
instructions supplied is warranted for the warranty period stated above. If the part fails during the period of
warranty coverage, the part will be repaired or replaced by Shenzhen enfuni Technology Co., Ltd
according to subsection (4) below. Any such part repaired or replaced under warranty will be warranted for
the remainder of the period.
2.
Any warranted part that is scheduled only for regular inspection in the written instructions supplied is
warranted for the warranty period stated above. Any such part repaired or replaced under warranty will be
warranted for the remaining warranty period.
3.
Any warranted part that is scheduled for replacement as required maintenance in the written instructions
supplied is warranted for the period of time before the first scheduled replacement date for that part. If the
part fails before the first scheduled replacement, the part will be repaired or replaced by Shenzhen enfuni
Technology Co., Ltd according to subsection (4) below. Any such part repaired or replaced under warranty
will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
4.
Repair or replacement of any warranted part under the warranty provisions herein must be performed at a
warranty station at no charge to the owner.
5.
Notwithstanding the provisions herein, warranty services or repairs will be provided at all of our distribution
centers that are franchised to service the subject engines or equipment.
6.
The equipment owner will not be charged for diagnostic labor that is directly associated with diagnosis of a
defective, emission-related warranted part, provided that such diagnostic work is performed at a warranty
station.
7.
Shenzhen enfuni Technology Co., Ltd is liable for damages to other engine or equipment components
proximately caused by a failure under warranty of any warranted part.
8.
Throughout the equipment warranty period stated above, Shenzhen enfuni Technology Co., Ltd will
maintain a supply of warranted parts sufficient to meet the expected demand for such parts.
9.
Any replacement part may be used in the performance of any warranty maintenance or repairs and must
be provided without charge to the owner. Such use will not reduce the warranty obligations of Shenzhen
enfuni Technology Co., Ltd.
10.
Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of
any non-exempted add-on or modified parts by the ultimate purchaser will be grounds for disallowing a
warranty claim. Shenzhen enfuni Technology Co., Ltd will not be liable to warrant failures of warranted
parts caused by the use of a non-exempted add-on or modified part.
WARRANTED PARTS
The repair or replacement of any warranted part otherwise eligible for warranty coverage may be
excluded from such warranty coverage if Shenzhen enfuni Technology Co., Ltd demonstrates that the
equipment has been abused, neglected, or improperly maintained, and that such abuse, neglect, or
improper maintenance was the direct cause of the need for repair or replacement of the part. That
notwithstanding, any adjustment of a component that has a factory installed, and properly operating,
adjustment limiting device is still eligible for warranty coverage. Further, the coverage under this
warranty extends only to parts that were present on the equipment purchased.
The following emission warranty parts are covered (if applicable):
1.
Air-induction system
. • Air cleaner
. • Intake manifold
2.
Fuel system
. • Cold start enrichment system (soft choke)
. • Carburetor and internal parts
. • Fuel Pump
. • Fuel Tank
3.
Ignition system
. • Spark plug(s)
. • Magneto Ignition System
4.
Exhaust systems
5.
Miscellaneous Items Used in Above System
. • Vacuum, temperature , position, time sensitive valves and switches
. • Sensors
. • Electronic control units
6.
Evaporative Emissions Control
. • Fuel Cap.
. • Fuel Line.
. • Fuel Line Fittings.
. • Vapor Hoses.
