BULLETIN NO.
54-06-2250
SERVICE PARTS LIST
CATALOG NO. 2150-20
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
M18™ RADIUS™ Site Light/Charger With ONE-KEY™
SERIAL NO.
DATE
July 2025
WIRING INSTRUCTION
J06A
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 4
Only maintenance, service, repairs, and replacements of parts as dened in the Operator's Manual
can be performed by the user.
All other repairs are to ONLY be performed by personnel authorized by MILWAUKEE TOOL.
Do not attempt to install other parts; this COULD void your tool warranty.
For service, parts, or inquiries, contact us:
• Customer Service at 1.800.SAWDUST (1.800.729.3878)
• E-Service tool repair at: www.milwaukeetool.com/e-service
• Find a local authorized MILWAUKEE service location at Milwaukeetool.com
• Find a MILWAUKEE factory Service Center Location or MILWAUKEE factory Central Repair
Center at Milwaukeetool.com. Send the following, prepaid and insured:
• Your name, address, and phone number
• Description of the issues
• Copy of the proof of purchase
• Tool, charger, and batteries involved with the issues
MILWAUKEE factory Central Repair Centers:
MILWAUKEE TOOL MILWAUKEE TOOL
Central Repair Central Repair
1401 Sycamore Avenue 2198 Southtech Drive
Greenwood, MS 38930 Greenwood, IN 46143
0
00

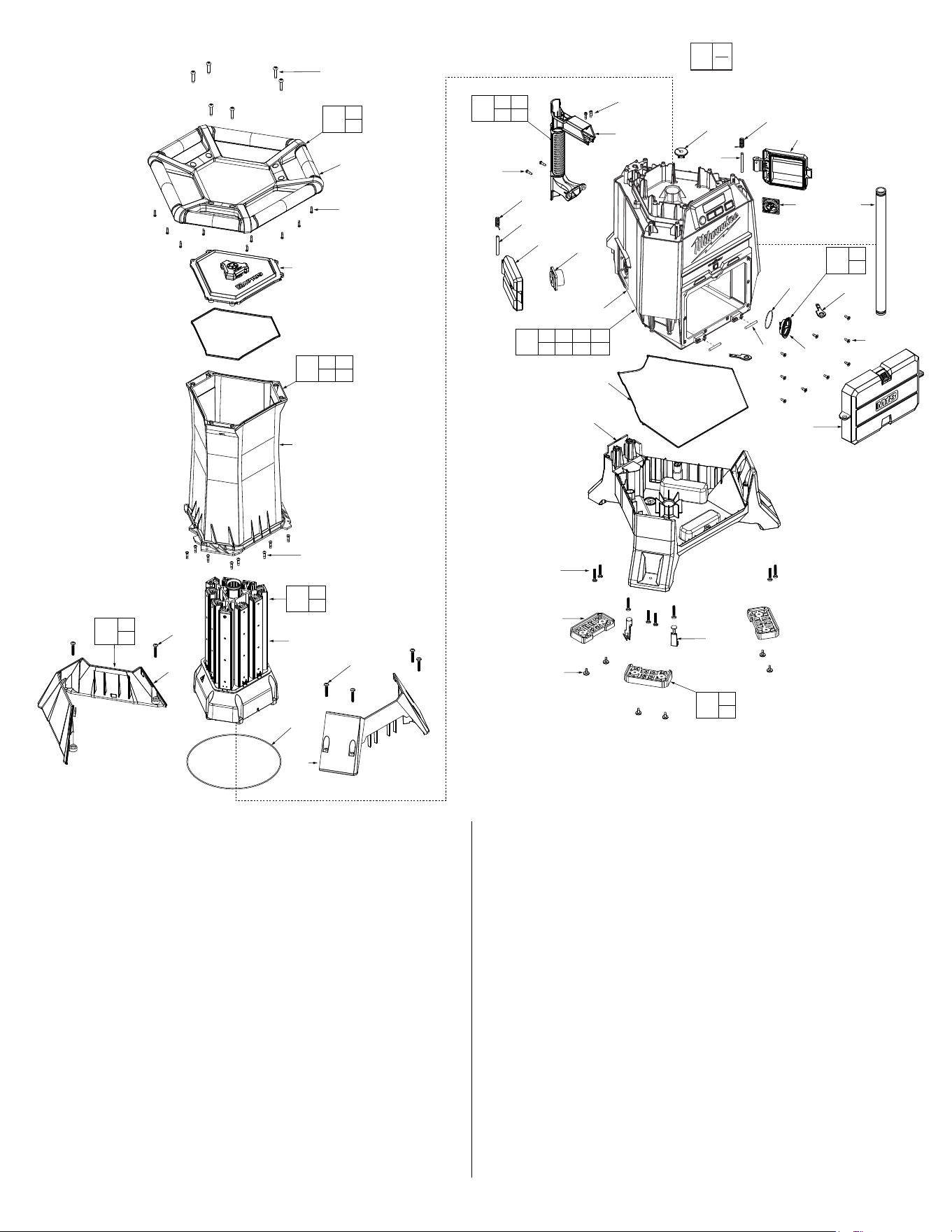

EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
2(6x)
3
4
(9x)
6
7
8
9(8x)
11
12
2(2x)
15
2(4x)
16
24
25
26
28
9(2x)
18
23
20
21
22
19
(2x)
21
27
35
(9x)
34
32
30
33
36
37
38
2
(8x)
41
42
(6x)
39
45
(2x)
23 24 27 30
31 35 43 44
29
9 18
19
17
32
33
31
41
42
40
15
16
14
11
12
10
2 6
7 8
5
3
4
1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-34-0005 Top Handle Assembly (1)
2 06-82-2250 M5 T25 Torx Screw (20)
3 --------------- Top Handle (1)
4 06-82-0190 M3 x 14 Screw (9)
5 44-06-0135 Lens Assembly (1)
6 --------------- Top Lens (1)
7 43-40-0045 Lens Cover Seal (1)
8 --------------- Lens (1)
9 06-82-0195 M4 x 12 Screw (10)
10 23-28-0025 LED Console Assembly (1)
11 --------------- LED Console (1)
12 43-40-0055 Bottom Lens Seal (1)
14 43-76-0045 Main Body Cover Kit (1)
15 --------------- Back Housing (1)
16 --------------- Front Housing (1)
17 42-62-0005 Side Handle w/ Screw (1)
18 --------------- Side Handle (1)
19 --------------- M4 T20 Torx Screw (2)
20 40-50-1040 AC Outlet Cover Spring (1)
21 44-60-0475 Pin (2)
22 23-33-0015 AC Outlet Cover (1)
23 23-33-0005 AC Outlet (1)
24 43-40-0050 Rubber Seal (1)
25 40-50-1115 AC Inlet Cover Spring (1)
26 23-33-0020 AC Inlet Cover (1)
27 23-33-0010 AC Inlet (1)
28 45-76-0035 Tube w/ O-Rings (1)
29 --------------- Base & PCBA Assy. w/ Bluetooth (1)
30 --------------- Base (1)
31 31-15-0475 Coin Cell Cover Kit (1)
32 --------------- O-Ring (1)
33 --------------- Coin Cell Cover (1)
34 42-70-0010 Metal Clip (2)
35 06-82-0200 M4 x 16 Screw (9)
36 31-21-0125 Battery Door Assembly (1)
37 43-40-0060 Bottom Case Seal (1)
38 42-20-0035 Bottom Case (1)
39 31-44-5001 Screw Cover (2)
40 14-74-0115 Rubber Boot Kit (1)
41 --------------- Rubber Boot (3)
42 --------------- M4 x 12 Screw w/ Washer (6)
43 12-20-2151 Service Nameplate (Not shown) (1)
44 10-20-2153 Warning Label (Not shown) (1)
45 44-60-0545 Battery Door Pin (2)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
