REVISED BULLETIN
SERVICE PARTS
BULLETIN NO.
STARTING
SERIAL NO.
WIRING INSTRUCTION
DATE
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
CATALOG NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

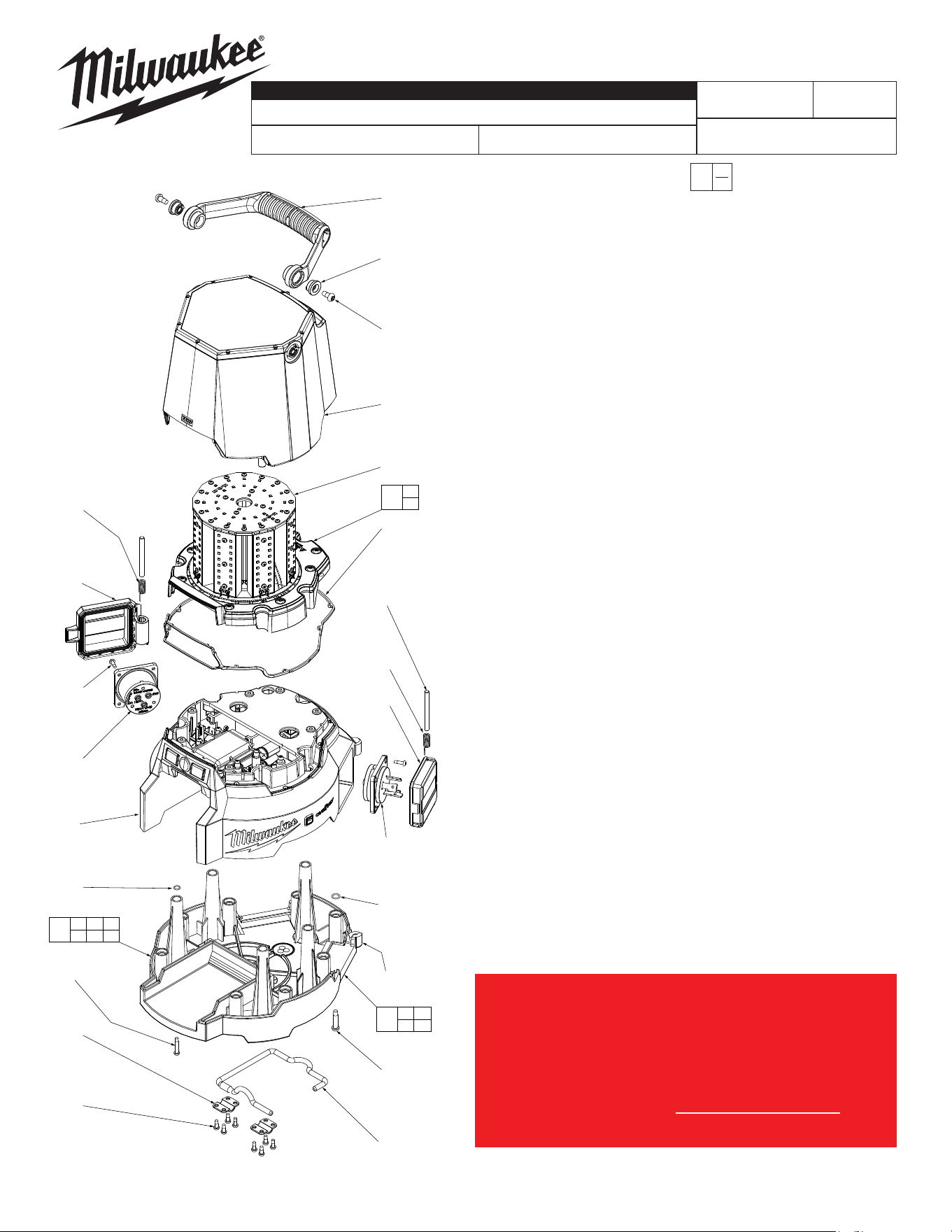

Drwg. 1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 06-82-2005 M6 X 12mm PH #3 Screw (2)
2 42-40-0165 Bushing (2)
3 43-62-0095 Handle (1)
4 -------------- Lens (1)
4 05-81-0011 M3.5 x 13.5mm PH #2 Screw (8)
6 --------------- LED Assembly (1)
7 43-40-0040 Sealing Ring (1)
8 44-06-0045 DiusedLensAssembly (1)
// 05-88-1360 M4 X 13.5mm T20 PH Screw (8)
10 44-60-5001 Cover Pin (2)
11 -------------- Bluetooth Bracket (1)
11 23-33-0071 AC Outlet Cover (1)
12 23-33-0070 AC Outlet Plug (1)
14 23-33-0072 AC Inlet Plug (1)
15 23-33-0073 AC Inner Cover (1)
15 --------------- PCBA CSL (1)
16 40-50-7001 Metal Spring Right (1)
19 44-06-0005 Lens Assembly (1)
20 --------------- Bottom Cover (1)
22 05-81-1215 M4 X 22mm T20 PH Screw (5)
22 05-88-0015 M2.3 X 7mm T8 PH Screw (12)
26 --------------- Heat Sink (1)
32 --------------- Tape (1)
33 06-82-3006 M4 X 18mm T20 PH Screw (2)
38 --------------- Hook Tube (1)
39 --------------- M4 X 0.7 Mach. Hex Screw (1)
40 22-09-0025 Coin Cell Board (1)
40 --------------- Hook Metal Cover (2)
41 --------------- M4 X 1.411 T20 TP PH Screw (8)
42 34-40-0345 O-Ring (5)
44 50-11-0025 CR2032 Battery (1)
45 31-15-0435 Coin Cell Cover (1)
49 --------------- Lens Cover (1)
50 --------------- Metal Hook (1)
51 40-50-6001 Metal Spring Left (1)
53 14-38-4005 Bottom Cover Assembly (1)
54 23-28-4007 Lens Console Assembly (1)
43-74-4006 Hook Assembly (1)
14-20-4004 DC Control Board (1)
12-20-2147 Service Nameplate (Not Shown) (1)
10-20-2147 Warning Label (Not Shown) (1)
54-06-2177
M18™ RADIUS™ LED Compact Site Light with One-Key™
2147-20
J09A
June 2020
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
FIG. NOTES
29 A clean, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any
adhesive label or nameplate must be prepared by cleaning with
isopropyl alcohol. The solvent is to be applied with a clean, lint
free applicator and the surface allowed to dry before applying the
label or nameplate.
NOTE:
Model 2146-20 M18™ RADIUS LED COMPACT SITE LIGHT
(Serial Break 'A') is designed to operate o of several dier-
ent M18 REDLITHIUM™ battery sizes from a 1.5 amp-hours to
9.0 amp-hours.
To power a 2146-20 M18™ RADIUS LED COMPACT SITE
LIGHT (Serial Break 'A') with a 48-11-1812 M18™ REDLITHI-
UM™ 12.0 amp-hour battery, 12.0 Upgrade Service Kit 14-46-
0084 must be ordered to accomodate the larger size battery.
3
2
(2x)
1
(2x)
4
6
7
10
(2x)
51
15
14
17
(8x)
20
5
(8x)
21
16
(2x)
11
12
(8x)
13
8
18
(5x)
22
(5x)
40
(2x)
41
(8x)
20 21
40 41
19
6
7
54
17 18 20
21 40 41
53
