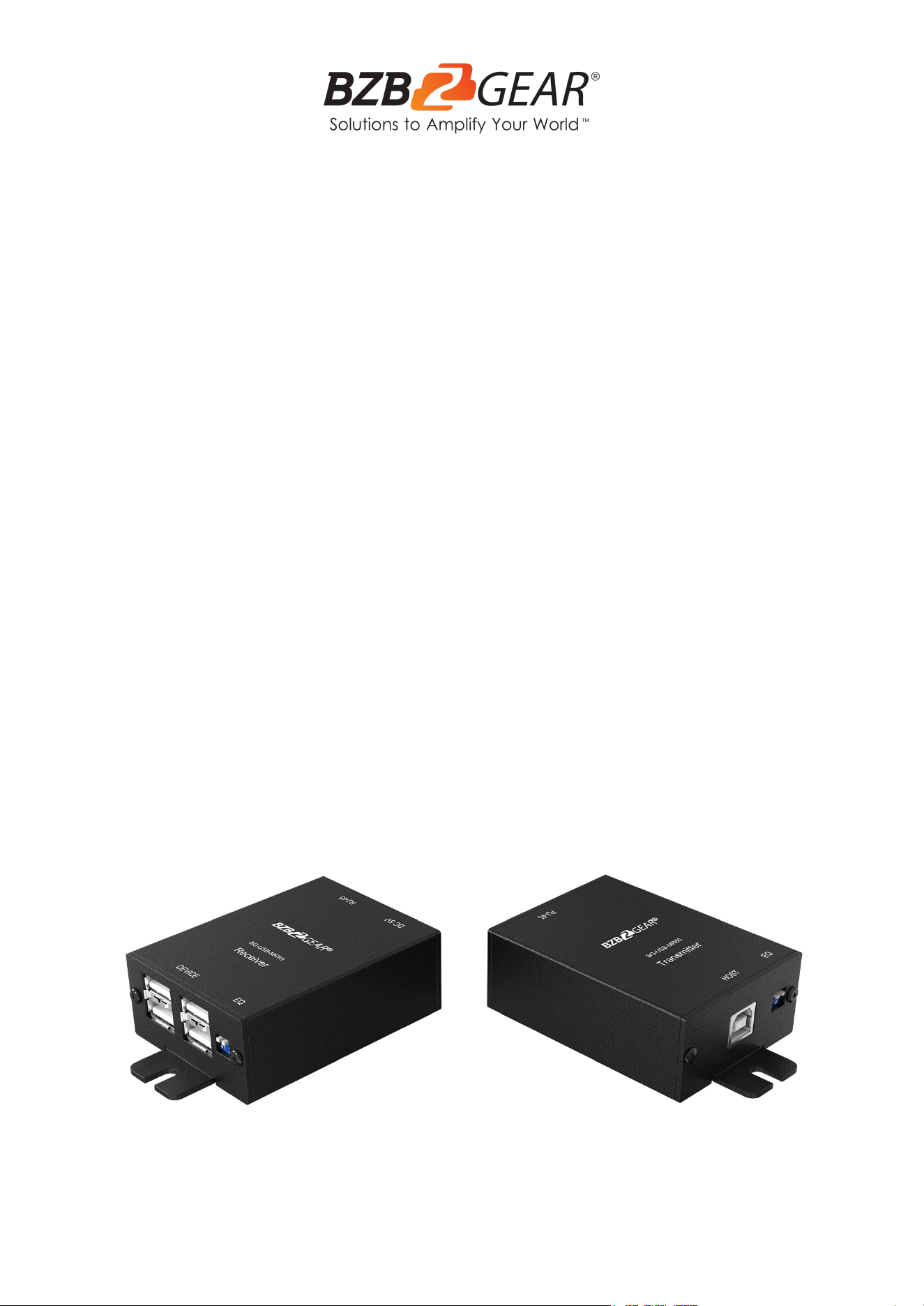

BG-USB-MR80
4-Port USB 2.0 Extender up to 260ft
User Manual
BZBGEAR BG-USB-MR80 PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-USB-MR80 PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 6
Operation Controls and Functions 7
Application Example 8
Tech Support 9
Warranty 9
Mission Statement 10
Copyright 10
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-USB-MR80 PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● Unplug this device during lightning storms
● Clean only with a soft dry microfiber cloth.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Only use accessories specified by the manufacture
● Product specifications may be subject to technical upgrades without further notice
● Do not mix up HDMI to RJ45 transmitter and RJ45 to HDMI receiver before installation.
● Do not hot plug when it is working.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-USB-MR80 PRODUCT MANUAL
Introduction
The BG-USB-MR80 is a USB 2.0 that extends USB devices up to 264 feet (80 meters) over
a single category cable. The extender consists of two units, a transmitter and a receiver.
The transmitter connects to the PC and the receiver connects to the peripheral device, such
as USB printers, cameras, Storage devices, Card-Readers, and more. The BG-USB-MR80
offers the most convenient solution for long distance USB 2.0 transmission.
Features
● Supports four USB peripheral devices
● Extends the transmission up to 264 feet (80 meters)
● USB 1.0 (low-speed), USB 1.1 (full-speed), and USB 2.0 (high-speed)
● Suspend/resume detection
● Does not require additional drivers
● Hot plug functionality
● Easy to setup
Packing List
● 1x BG-USB-MR80
● 1x 5V power adapter
● 1x User Manual
● 1х Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-USB-MR80 PRODUCT MANUAL
Technical Specifications
Technical
Transmitter
Receiver
USB compliance
USB 2.0 high speed compliant
Bandwidth
Up to 480 Mbit/s
USB over UTP
transmission
Up to 264 feet (80 meters)
Signal Equalization
2-pin dip switch at TX & RX
ESD protection
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact
discharge]
[2] Core chipset — ±8kV
PCB Stack-up
4-layer board [impedance control — differential 100W; single 50W]
Input
1x USB(Type B)
1x RJ-45
Output
1x RJ-45
4x USB(Type A)
USB connector
USB 2.0 Type A & B (High-Speed USB)
RJ-45 connector
WE/SS 8P8C with 2 LED indicators
Dip Switch
Signal level equalization
Signal level equalization
Mechanical
Transmitter
Receiver
Housing
Metal case
Dimensions
[L x W x H]
Model
3.8" x 2.1" x 1" [97 x 54 x 27mm]
3.8" x 2.1" x 1" [97 x 54 x 27mm]
Package
10.3" x 6.7" x 3" [264 x 170 x 77mm]
Carton
1'4" x 1'2" x 11.5" [430 x 358 x 291mm]
Weight
Model
3.8oz [108g]
3.5oz [99g]
Package
8oz [226g]
7.6oz [217g]
Power supply
Via USB
5V 2A DC
Power consumption
2 Watts [max]
4 Watts [max]
Operation
temperature
32~104°F / 0~40°C
Storage temperature
-4~140°F / -20~60°C
Relative humidity
20~90% RH [no condensation]
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-USB-MR80 PRODUCT MANUAL

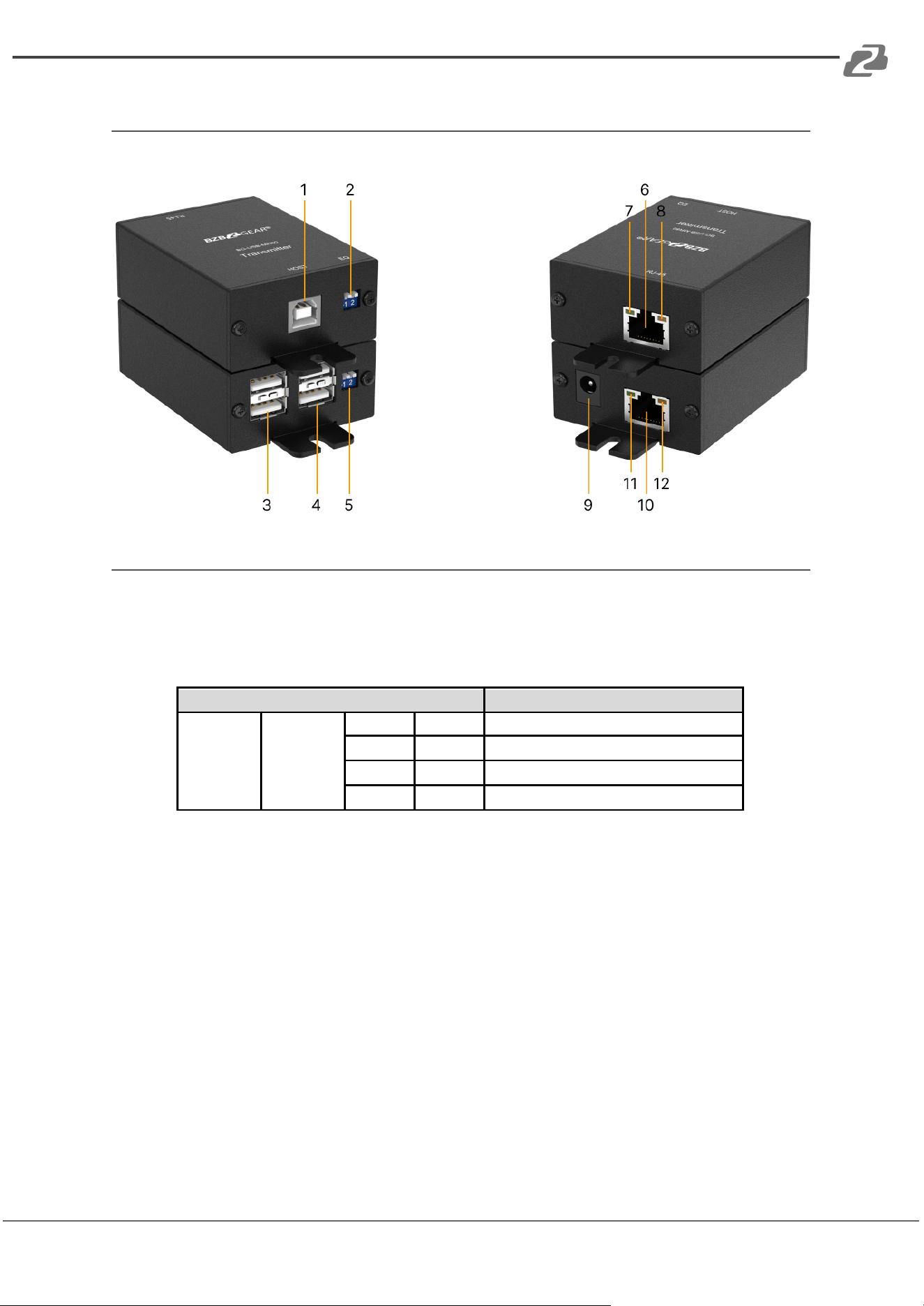

Operation Controls and Functions
Transmitter Panel
1. USB Type-B: Connect to a USB host device.
2. 2-Pin Dip Switch: Use the dip switch to adjust equalization level to control transmission
distances EQ1(strongest) - EQ3(weakest).
DIP Switch Position
Description
PIN#1
PIN#2
ON [⬇]
OFF [⬆]
EQ#1 (MAX or Strongest)
OFF [⬆]
ON [⬇]
EQ#2
OFF [⬆]
OFF [⬆]
EQ#3 (MIN or Weakest)
ON [⬇]
ON [⬇]
Reserved
6. RJ-45: Plug in a CAT-5/5e/6 cable that needs to be linked to the RJ-45 connector of the
receiver.
7. Power indicator: Illuminates green when the device is receiving power from the
receiver unit.
8. Signal indicator: Illuminates yellow when data is transmitted between devices.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-USB-MR80 PRODUCT MANUAL
Receiver Panel
3. USB 2.0 Type-A x2: Connect to USB 2.0 Devices.
4. USB 2.0 Type-A x2: Connect to USB 2.0 Devices.
5. 2-Pin Dip Switch: Use the dip switch to adjust equalization level to control transmission
distances EQ1(strongest) - EQ3(weakest).
DIP Switch Position
Description
PIN#1
PIN#2
ON [⬇]
OFF [⬆]
EQ#1 (MAX or Strongest)
OFF [⬆]
ON [⬇]
EQ#2
OFF [⬆]
OFF [⬆]
EQ#3 (MIN or Weakest)
ON [⬇]
ON [⬇]
Reserved
9. 5V DC power jack: Connect to the provided power supply.
10. RJ-45: Plug in a CAT-5/5e/6 cable that needs to be linked to the RJ-45 connector of the
transmitter.
11. Power indicator: Illuminates green when the device is powered on.
12. Signal indicator: Illuminates yellow when data is transmitted between devices.

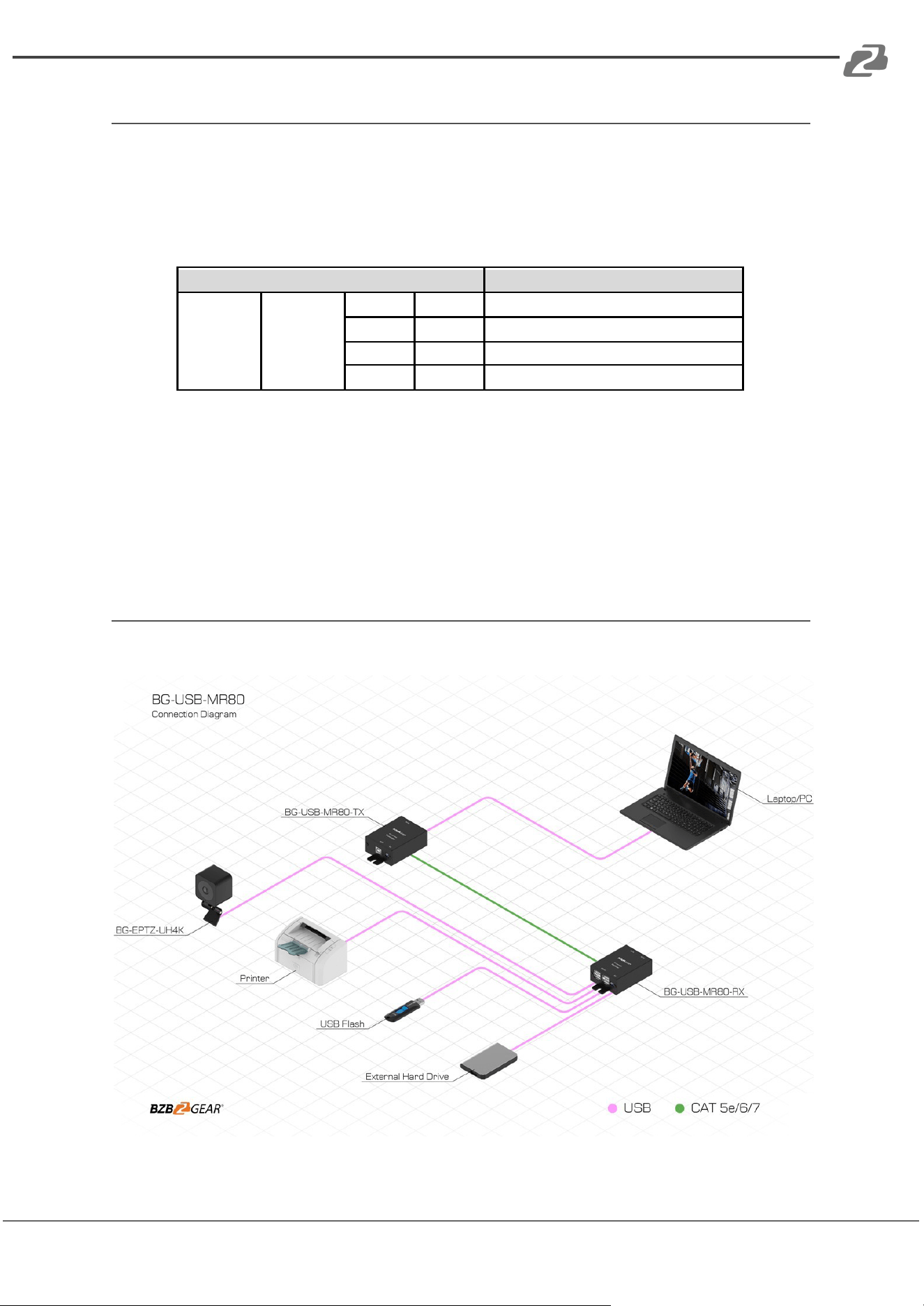

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-USB-MR80 PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-USB-MR80 PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
