Operator’s Manual
www. mechmaxx.com
WARRANTY
TABLE OF CONTENTS
TABLE OF CONTENTS
SPECIFICATIONS
SAFETY SIGNS
IMPORTANT SAFETY INFORMATION
1
2
TRANSPORTING
MOWING INSTRUCTIONS
OPERATING INSTRUCTIONS
MAINTENANCE
10
KNIFE REPLACEMENT
10
V-BELT INSTALLATION
10
STORAGE
10
LUBRICATION
10
BOLT TORQUE
13
ENGLISH TORQUE SPECIFICATIONS
13
METRIC TORQUE SPECIFICATIONS
14
SAFETY AT ALL TIMES
LOOK FOR THE SAFETY ALERT SYMBOL
BE AWARE OF SIGNAL WORDS
4
4
4
FOR YOUR PROTECTION
4
SHUTDOWN AND STORAGE
4
USE SAFETY LIGHTS AND DEVICES
4
TRANSPORT MACHINERY SAFELY
5
KEEP RIDERS OFF MACHINERY
5
PRACTICE SAFE MAINTENANCE
5
PREPARE FOR EMERGENCIES
5
WEAR PROTECTIVE EQUIPMENT
5
AVOID HIGH PRESSURE FLUIDS HAZARD
5
INTRODUCTION 5
APPLICATION
5
USING THIS MANUAL 5
TERMINOLOGY
6
DEFINITIONS 6
OWNER ASSISTANCE
6
SERIAL NUMBER PLATE 6
TRACTOR REQUIREMENTS
7
ASSEMBLY 7
TRACTOR HOOK-UP
7
DRIVELINE INSTALLATION 7
3
4
7
ASSEMBLY AND SET-UP
8
8
8
8
LEVELING THE MOWER
CUTTING HEIGHT ADJUSTMENT
3-POINT HITCH ADJUSTMENTS
9
9
9
BELT TENSION 9
OPERATING INSTRUCTIONS
9
ADJUSTMENTS
10
MAINTENANCE AND LUBRICATION
12
TROUBLESHOOTING
13
APPENDIX
15
WARRANTY
16
PARTS DIAGRAM
17
PARTS LIST
1
www. mechmaxx.com
TABLE OF CONTENTS
SPECIFICATIONS
2
www. mechmaxx.com
SPECIFICATIONS
Power Required
Model
30-60 hp 45-85 hp
NAM60H NAM68H NAM72H
Working Width 60" 68" 72"
Cutting Height Range
0.6 – 2"
PTO Turning Speed
540 rpm
Number of Flails
Flail Type
PTO Shaft
24
28
75" 78"
686 lbs
701 lbs
Hammer
T5-LF-39 , 39.25" / 46.5"
Roller Diameter 4"
Overall Width 66"
Rotor Shaft Diameter 5"
3PT Center to Center Bottom Pins 24"
3PT Top Link Pin to Bottom Pins 20"
Material Steel
Side Plate Thickness 0.25"
Number of Belts 3
Blade Swing Diameter
Finsh
Product Weight
Powder Coating
Slide Distance
659 lbs
14"
16"
3
www. mechmaxx.com
SAFETY SIGNS
The rating plate on your machine may show symbols. These represent important information about the product or instruc-
tions on its use.
SAFETY SIGNS
ENGAGE TRACTOR
CLUTCH SLOWLY
DURING START UP OR
DAMAGE WILL OCCUR.
KEEP PTO SHAFT
WITH 25°OF LEVEL
DURING OPERATION.
All driveline guards, tractor, and equipment
shields in place.
ROTATING DRIVELINE CONTACT CAN
CAUSE DEATH KEEP AWAY!
DO NOT OPERATE WITHOUT :
Do not open or remove safety shields while
engine is running.
Drivelines securely attached at both ends.
Driveline guards that turn freely on driveline.
High Pressure Fluid Hazard.
High pressure fluid leak will pierce skin.
Release pressure before working on
system.
Fluid injected into skin will injure or kill.
Detect leaks with wood or cardboard.
Wear sturdy gloves and goggles.
NEVER use fingers.
Fluid injected in skin must be surgically
removed by trained doctor immediately
or gangrene will result.
Read and understand Operator's manual
before using.
Operate with guards installed and in good
condition.
Operate only with tractor equipped with
ROPS and seatbelts.
Keep away from moving parts.
Stop engine, set brake and wait for all
moving parts to stop before dismounting.
Be sure lights and reflectors required by
law are clean and in good working order
before transporting.
Do not allow children to operate mower.
Travel with SMV and lights that follow local
codes.
Clean debris from mowing area.
Do not operate in the raised position.
Support securely before working beneath
unit.
Review safety instructions annually.
Do not permit riders on the tractor or
mower. Never carry child on tractor seat.
To Prevent Serious Injury Or Death:
PINCH POINT
HAZARD
Keep clear
GUARD MISSING
WHEN THIS IS VISIBLE
DO NOT OPERATE
ENTANGLEMENT HAZARD
BELT DRIVE:
HAND AND ARM
ENTANGLEMENT
HAZARD.
FLYING OBJECTS
HAZARD
Keep clear.
The PTO Driveline MUST be
measured and cut (if required) as
per the Owner's Manual.
Failure to do so will result in
damage to both the tractor
and the implement.
Read and understand
operators manual
before using this
machine.
ROTATING
BLADES
KEEP HANDS
AWAY
DO NOT go under frame when rotor is turning or engine
is running. Keep others away.
ROTATING KNIVES HAZARD
Disconnect & lockout power source BEFORE adjusting
or servicing.
Keep hands, feet, hair, and clothing away from moving
parts.
To prevent serious injury or death from rotating knives:
Relieve pressure before disconnecting lines.
Do Not use hands to check for leaks.
Consult physician immediatly if skin
penetration occurs.
HIGH PRESSURE FLUID
HAZARD
4
www. mechmaxx.com
SAFETY AT ALL TIMES
LOOK FOR THE SAFETY ALERT SYMBOL
BE AWARE OF SIGNAL WORDS
FOR YOUR PROTECTION
SHUTDOWN AND STORAGE
USE SAFETY LIGHTS AND DEVICES
DANGER
IMPORTANT SAFETY INFORMATION
SAFETY
Thoroughly read and understand the instructions given in
this manual before operation. Refer to the “Safety Decal”,
read all instructions noted on them.
A signal word designates a degree or level of hazard
seriousness. The signal words are:
Do not allow anyone to operate this equipment who has
not fully read and comprehended this manual and who has
not been properly trained in the safe operation of the
equipment.
The SAFETY ALERT SYMBOL indicates there is a potential
hazard to personal safety involved and extra safety
precaution must be taken. When you see this symbol, be
alert and carefully read the message that follows it. In
addition to design and configuration of equipment, hazard
control and accident prevention are dependent upon the
awareness, concern, prudence and proper training of
personnel involved in the operation, transport, mainte-
nance and storage of equipment.
• Operator should be familiar with all functions of the
unit.
• Operate implement from the driver’s seat only.
• Make sure all guards and shields are in place and
secured before operating the implement.
• Do not leave tractor or implement unattended with
engine running.
• Dismounting from a moving tractor could cause serious
injury or death.
• Do not stand between tractors and implement during
hitching.
• Keep hands, feet, and clothing away from power-driven
parts.
• Wear snug fitting clothing to avoid entanglement with
moving parts.
• Watch out for wires, trees, etc., when raising imple-
ment. Make sure all persons are clear of working area.
• Turning tractor too tight may cause implement to ride
up on wheels. This could result in injury or equipment
damage.
• Thoroughly read and understand the “safety label”
section, read all instructions noted on them.
• Lower machine to ground, put tractor in park, turn off
engine, and remove the ignition key.
• Detach and store implements in a area where children
normally do not play. Secure implement by using blocks
and supports
• Slow moving tractors, self-propelled equipment, and
towed implements can create a hazard when driven on
public roads. They are difficult to see, especially at
night.
• Flashing warning lights and turn signals are recom-
mended whenever driving on public roads. Use lights
and devices provided with implement.
Indicates an imminently hazardous situa-
tion which, if not avoids, will result in
death or serious injury. This signal word is
limited to the most extreme situations,
typically for machine components that,
for functional purpose, cannot be guard-
ed.
WARNING
Indicates a potentially hazardous situa-
tion which, if not avoided, could result in
death or serious injury, and includes
hazards that are exposed when guards are
removed. It may also be used to alert
against unsafe practices.
CAUTION
Indicates a potentially hazardous situa-
tion which, if not avoided, may result in
minor or moderate injury. It may also be
used to alert against unsafe practices.
5
www. mechmaxx.com
SAFETY
TRANSPORT MACHINERY SAFELY WEAR PROTECTIVE EQUIPMENT
AVOID HIGH PRESSURE FLUIDS HAZARD
INTRODUCTION
APPLICATION
USING THIS MANUAL
KEEP RIDERS OFF MACHINERY
PRACTICE SAFE MAINTENANCE
PREPARE FOR EMERGENCIES
• Comply with state and local laws.
• Maximum transport speed for implement is 20 mph. Do
not exceed. Never travel at a speed which does not
allow adequate control of steering and stopping. Some
rough terrain requires a slower speed.
• Sudden braking can cause a towed load to swerve and
upset. Reduce speed if towed load is not equipped with
brakes.
• Use the following maximum speed - tow load weight
ratios as a guideline:
• 20 mph when weight is less than or equal to the weight
of tractor.
• 10 mph when weight is double the weight of tractor.
• IMPORTANT: Do not tow a load that is more than double
the weight of tractor.
• Protective clothing and equipment should be worn.
• Wear clothing and equipment appropriate for the job.
Avoid loose fitting clothing.
• Prolonged exposure to loud noise can cause hearing
impairment or hearing loss. Wear suitable hearing
protection such as earmuffs or earplugs.
• Operating equipment safely requires the full attention
of the operator. Avoid wearing radio headphones while
operating machinery.
• Escaping fluid under pressure can penetrate the skin
causing serious injury.
• Avoid the hazard by relieving pressure before discon-
necting hydraulic lines.
• Use a piece of paper or cardboard, not body parts, to
check for suspected leaks. Wear protective gloves and
safety glasses or goggles when working with hydraulic
systems.
• If an accident occurs, see a doctor immediately. Any
fluid injected into the skin must be treated within a few
hours or gangrene may result.
welcomes you to the growing family of new product
owners. This implement has been designed with care and
built by skilled workers using quality materials. Proper
assembly, maintenance, and safe operating practices will
help you get years of good use from the machine.
The Flail Mowers are designed for Category 1 - three point
hitch or Quick-Hitch System mounting. These Fixed Bar
Flail Mowers are ideal for ripping, leveling, finish grading,
and backfilling applications at feedlots, outdoor arenas,
building sites, and maintenance operations on farm and
ranch lanes or roadways.
• This Operator’s Manual is designed to help familiarize
you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.
• The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
• Riders obstruct of operator’s view, they could be struck
by foreign objects or thrown from the machine.
• Never allow children to operate equipment.
• Be prepared if a fire starts.
• Keep a fist aid kit and fire extinguisher handy.
• Keep emergency numbers for doctor, ambulance, hospi-
tal and fire department near phone.
• Understand procedure before doing work. Use proper
tools and equipment. refer to Operator’s Manual for
additional information.
• Work in a clean dry area.
• Lower the implement to the ground, put tractor in park,
turn off engine, and remove key before performing main-
tenance.
• Allow implement to cool completely.
• Do not grease or oil implement while it is operation.
• Inspect all parts. Make sure parts are in good condition
and installed properly.
• Remove buildup of grease, oil or debris.
• Remove all tools and unused parts from implement
before operation.
6
www. mechmaxx.com
SAFETY
“Right” or “Left” as used in this manual is determined by
facing the direction the machine will operate while in use
unless otherwise stated.
The parts on your machine have been specially designed
and should only be replaced with genuine parts.
For prompt service always use the serial number and
model number when ordering parts from your dealer. Be
sure to include your serial and model numbers in corre-
spondence also.
Note : A special point of information that the operator
must be aware of before continuing.
Important : A special point of information related to its
preceding topic. The intention is that this information
should be read and noted before continuing.
• To order a new Operator’s or Parts Manual contact us.
TERMINOLOGY
OWNER ASSISTANCE
SERIAL NUMBER PLATE
DEFINITIONS
7
www. mechmaxx.com
SAFETY
This mower is designed with a 3-Point category I hitch.
Tractor horse power rating should not exceed 80 PTO
horse power.
1. Be certain that tractor draw bar will not interfere. Move
draw bar ahead or remove if required. Draw bar should also
be checked for clearance when unit is being raised for the
first time.
2. Align lower link arms of tractor to hitch clevises on
mower. Insert lower hitch pins into lower ball
swivels and attach linch pins.
3. Attach tractor top link to upper floating hitch on mower
with pin supplied. Secure with lock pin.
4. Adjust tractor top link in or out to place upper hitch pin
vertically above or slightly behind lower hitch pins to
allow mower flotation. The mower should be run with the
back 15 degrees lower than the front.
1. Slide driveline end with extended safety cone over
splined shaft of gearbox and secure with attaching
device.
2. Slide driveline over tractor’s splined PTO shaft and
secure with locking device of driveline.
3. Driveline should now be moved back and forth to insure
that it is secure on the PTO shaft of the tractor and
mower gearbox.
4. Attach chain from the driveline shield to one of the
upper hitch braces to ensure that the shield does not
rotate.
5. Should driveline require shortening:
a. Hold the half-shafts next to each other in the shortest
working position and mark them.
b. Shorten inner and outer guard tubes equally.
c. Shorten inner and outer sliding profiles by the same
length as the guard tubes.
d. Proper overlap is a minimum of one-half the length of
each tube, with both tubes being of equal length.
e. Round off all sharp edges and remove burrs. Grease
sliding profiles.

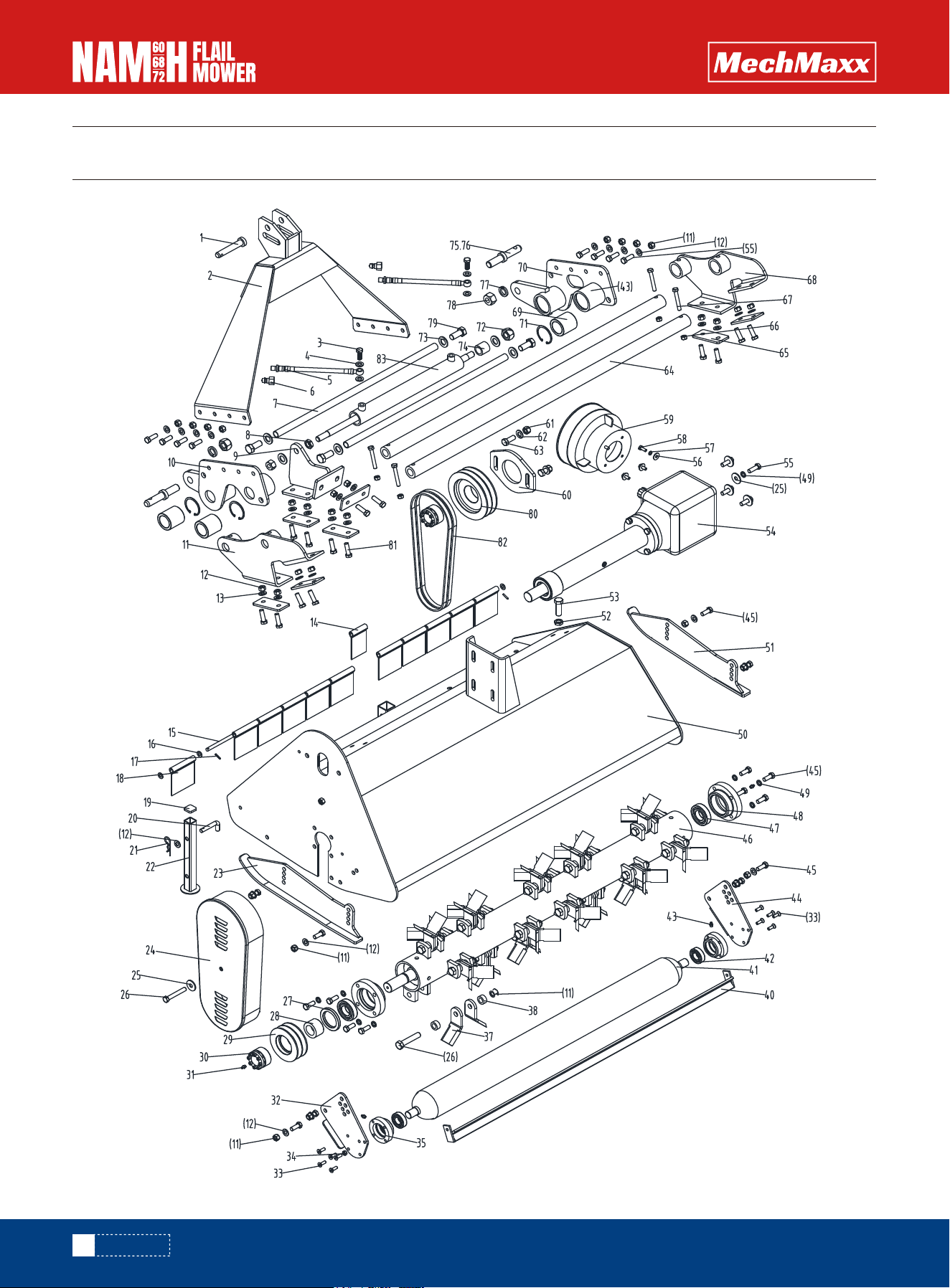

Refer to the parts illustration.
WARNING
THE GEARBOX AND TRANSMISSION ARE
SHIPPED WITHOUT OIL.
ADD OIL BEFORE FIRST USE!
CAUTION
Tractors PTO shield and all mower guards
must be in place at all times during opera-
tion!
Assembly and Set-up
TRACTOR REQUIREMENTS
ASSEMBLY
TRACTOR HOOK-UP
DRIVELINE INSTALLATION
8
www. mechmaxx.com
OPERATING INSTRUCTIONS
NOTE: Always disengage PTO before raising mower to
transport position.
1. When raising the mower to transport position, be sure
that driveline does not contact tractor or mower. Adjust
and set the tractor’s 3-point hitch lift height so that the
driveline does not contact mower deck in the fully raised
position.
2. Be sure to reduce tractor ground speed when turning,
leaving enough clearance so that the mower does not
contact obstacles such as buildings, trees or fences.
3. Select a safe ground travel speed when transporting
from one area to another. When traveling on roadways,
transport in such a way that faster moving vehicles may
pass safely.
4. When traveling over rough or hilly terrain, shift tractor
to a lower gear.
1. Clear area to be mowed of objects and debris that
might be picked up and thrown by the mower blades.
2. Grass is best cut when it is dry. Mowing wet grass can
cause plugging resulting in grass clumps behind the
mower.
3. Grass should be mowed frequently as shorter clippings
deteriorate faster.
4. If mowing extremely tall grass, it is best to raise
cutting height and mow the area, then lower cutting
height and mow a second time at the desired height.
Proper servicing and adjustments are the key to the long
life of any machine. With careful and systematic inspec-
tion of the mower, costly maintenance, time and repair
can be avoided. Before beginning to mow, the following
inspection should be performed:
1. Check oil level in gearbox.
2. Check that all plugs in gearbox have been replaced and
tightened properly.
3. Be sure all mower knives, bolts and nuts are tight.
4. Be certain all guards and shields are in place and
secure.
5. Grease driveline shaft and all other grease fittings.
6. Clear area to be mowed of rocks, branches and other
foreign objects.
7. Lower mower to ground. Set tractor throttle at approxi-
mately 1/4 open. Engage PTO to start blades rotating.
8. Operate with 540 rpm PTO tractor.
9. At first begin mowing at a slow forward speed and shift
up until the desired speed is achieved - maintaining 540
PTO rpm.
10. Mower knives will cut better at a faster blade speed
than at reduced throttle.
11. After mowing the first 50 feet, stop and check to see
that the mower is adjusted properly.
12. Do not make sharp turns or attempt to back up while
mower is on the ground.
13. Do not engage PTO with mower in the fully raised
position. Do not engage PTO at full throttle.
CAUTION
When traveling on public roads, whether
at night or during the day, use accessory
lights and devices for adequate warning to
operators of other vehicles. Comply with
all Federal, State, and local laws.
TRANSPORTING
MOWING INSTRUCTIONS
OPERATING INSTRUCTIONS
UNPACHING THE CONTAINER
9
www. mechmaxx.com
NOTE: Tractor and mowershould be on level ground.
Leveling can be adjusted at the tractor’s 3-point arms and
center link.
The machines cutting height depends upon the position of
the rear roller.
1. Remove the bolts that fix the roller on both sides.
2. Lift or lower both sides of roller in equal measurements.
3. Replace bolts and re-tighten.
The 3-point hitch system on this mower has been
designed for front to back flotation when mowing on
uneven terrain. Adjust tractor’s top center link to place
the upper hitch pin vertically above or slightly behind the
lower hitch pins. The mower should be run with the back
15 degrees lower than the front.
The hitch can also be adjusted from side to side by turning
the adjustment handle. Turn handle until you have
achieved your desired location.
The Belt tension should be checked after the first 20
hours of use. And then every 40 hours of use.
1. Tension on the belt can be adjusted with the belt
tension bolt. Turn the bolt until desired tension is
achieved. When the belt has the correct tension the
gearbox should be adjusted so that the gearbox extension
is running straight (parallel) with the flail mower. Loosen
bolts at the bottom of the gearbox and move gearbox until
gearbox extension is running straight.
2. Excessive tension on the belt may lead to premature
failure of belt and drive components.
CAUTION
Engage parking brake, shut off tractor,
remove key and disengage PTO before
making any height adjustments!
CAUTION
Excessive tension on the belt may lead to
premature failure of belt and drive compo-
nents. Excessive tension on the belt may
also lead to a safety hazard to the opera-
tor or bystanders.
CAUTION
Belt drive system under spring tension;
use care to avoid bodily harm!
ADJUSTMENTS
CONTENTS SUPPLIED
LEVELING THE MOWER
CUTTING HEIGHT ADJUSTMENT
3-POINT HITCH ADJUSTMENTS
BELT TENSION
Proper servicing and adjustment is the key to the long life
of any farm implement. With careful and systematic
inspection, you can avoid costly maintenance, time and
repair.
At the end of the working season or when the mower will
not be used for a long period, it is good practice to clean
off any dirt or grease that may have accumulated on the
mower and any of moving parts.
1. Clean as necessary.
2. Check knives for wear and replace if necessary.
3. Inspect mower for loose, damaged or worn parts and
adjust or replace as needed.
4. Store unit inside if possible for longer life.
5. Repaint parts where paint is worn orscratched to
prevent rust.
6. Replace all damaged or missing decals.

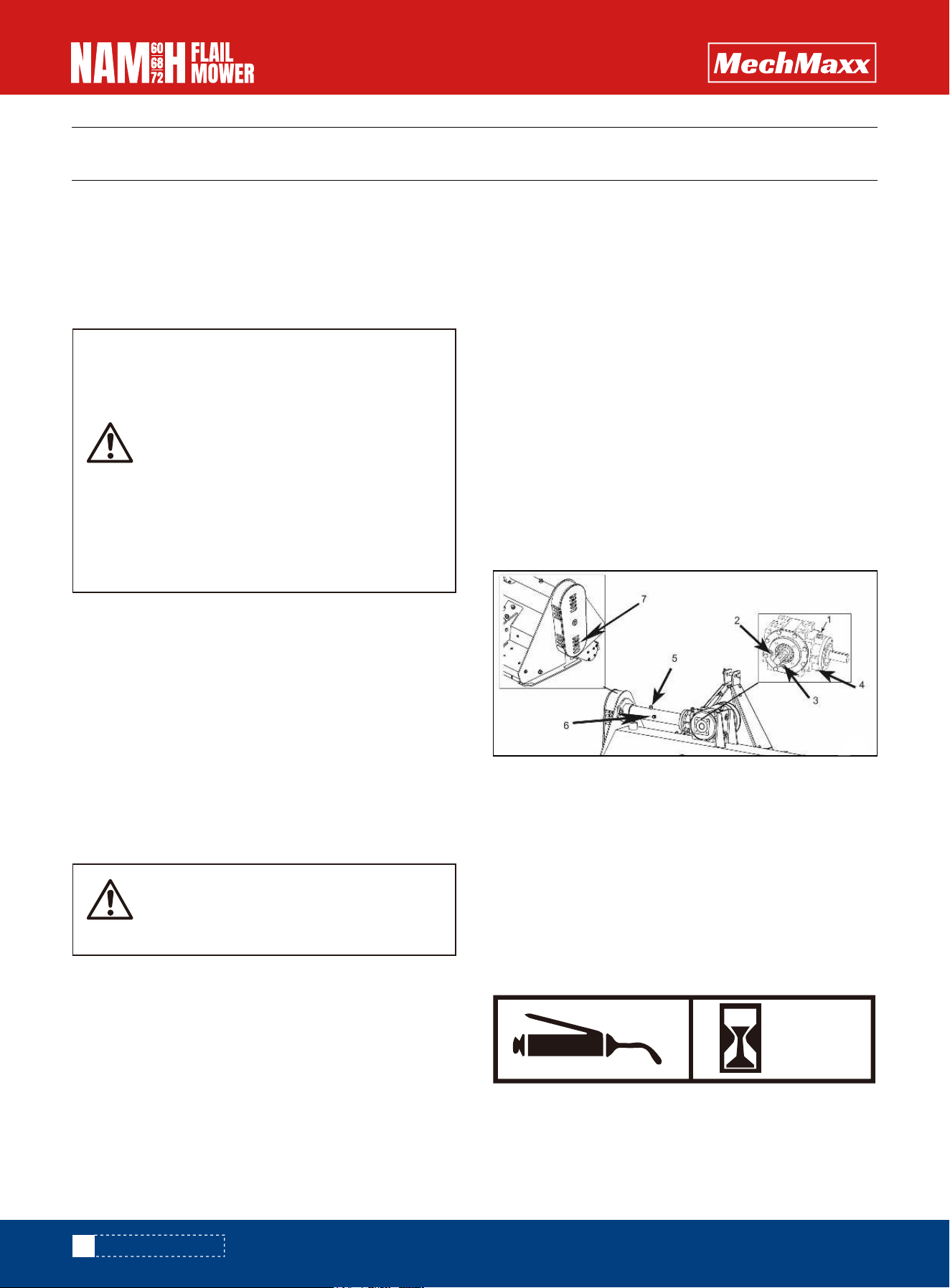

1.Cap for inlet gearbox oil.
2. Cap for gearbox oil level.
3. Cap for discharge gearbox oil.
4. Cap for discharge gearbox oil.
5. Cap for inlet transmission oil.
6. Cap for transmission oil level.
7. Bearing lubricator.
Roller Bearing (Both Ends)
Type of Lubrication: Multipurpose Grease
IMPORTANT: Make sure that the knife is the same length
as the others on the mower. This will keep the rotor
rotation balanced.
1. Remove bolt and nut.
2. Remove old knife.
3. Install new knife and existing bolt.
4. Secure with nut.
1. Remove belt guard fender and belt cover.
2. Disengage belt tension by loosening belt tension bolt
until belt can be removed.
3. With tension relieved from belt remove old belt from
pulleys.
4. Tighten belt tension bolt.
5. Reinstall belt guard and belt guard fender.
CAUTION
For safety reasons, each maintenance
operation must be performed with tractor
PTO disengaged, mower lowered com-
pletely to ground and tractor engine shut
off with ignition key removed.
After using the mower for several hours,
check all bolts to be sure they are tight
and check drive belt tension.
Replace any worn, damaged or illegible
safety decals by obtaining new decals
from dealer.
CAUTION
Belt drive system under spring tension;
use care to avoid bodily harm!
MAINTENANCE AND LUBRICATION
TO-SCALE HARDWARE
10
www. mechmaxx.com
MAINTENANCE
KNIFE REPLACEMENT
V-BELT INSTALLATION
STORAGE
LUBRICATION
25
HOURS
ASSEMBLY
11
www. mechmaxx.com

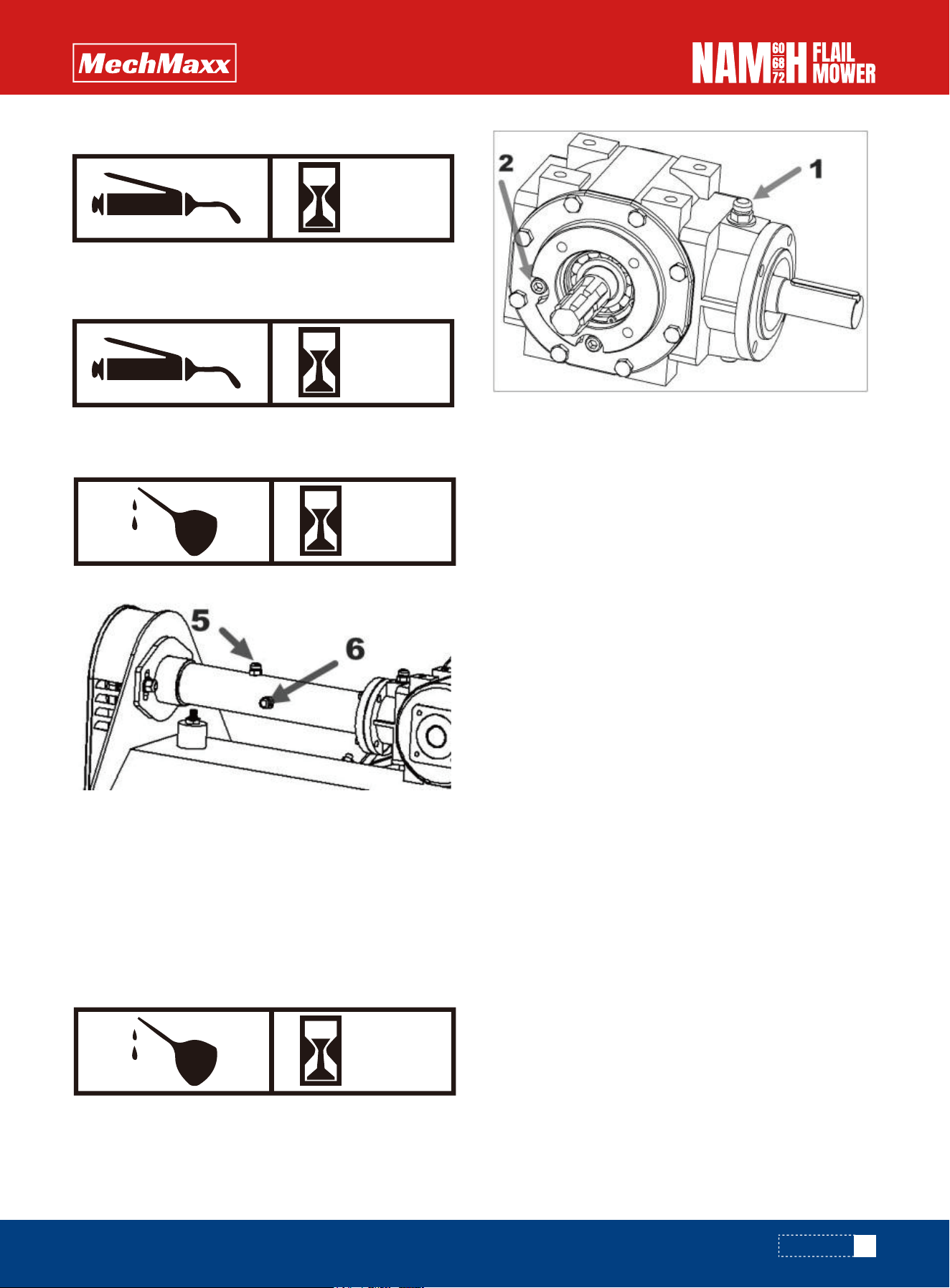

Driveline Profiles
Type of Lubrication: Multipurpose Grease
20
HOURS
Cutter Rotor Bearing (Both Ends)
Type of Lubrication: Multipurpose Grease
25
HOURS

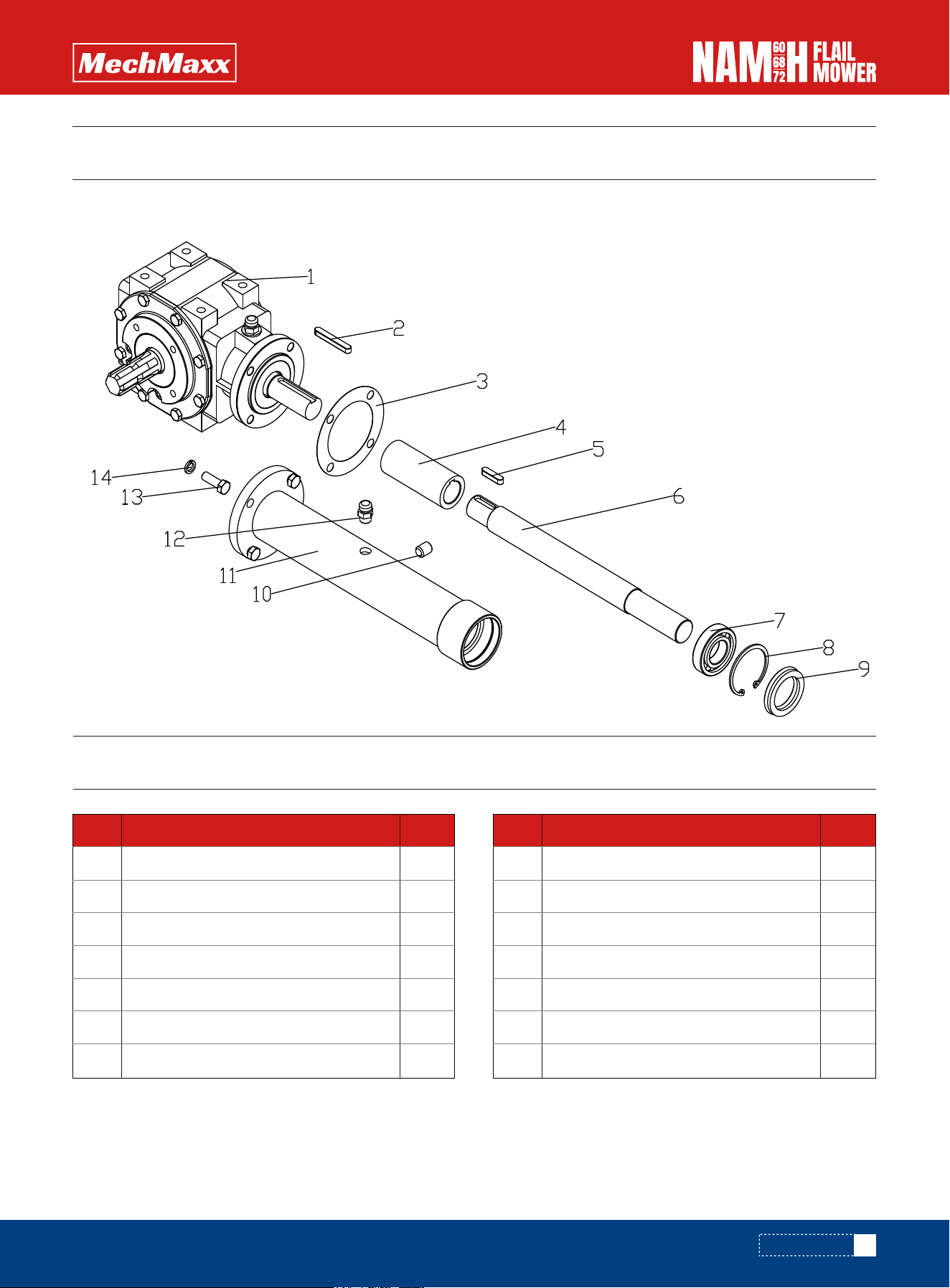

Shaft tube
Type of Lubrication: It is advisable to use SAE 85W/140
OIL or equivalent for shaft tube. Correspond to following
specifications API - GL5. Oil quantity is 0.35 Lt.
Check oil level in shaft tube by removing the plug (6). Oil
should be level with bottom of plug (6) hole. Add oil if
necessary by removing top fill plug (5) and side plug (6).
Add oil until it flows from side plug (6) hole.
Type of Lubrication: It is advisable to use SAE 85W/140
OIL or equivalent for the overdrive unit. Correspond to
following specifications API - GL5. Oil quantity is 1.2 Lt.
Check oil level in gearbox by removing the plug (2) located
on the right hand side. Oil should be level with bottom of
plug (2) hole. Add oil if necessary by removing top fill plug
(1) and side plug (2). Add oil until it flows from side plug
(2) hole.
Do not overfill!
IMPORTANT: Mower should be level when checking oil in
gearbox!
AS
REQUIRED
Gearbox
AS
REQUIRED
12
www. mechmaxx.com
ASSEMBLY
TROUBLESHOOTING
Do not try to clean rear discharge area when mower is running. Bodily harm may
occur!
CAUTION
Solution
Problem
Belt slipping
Patches of uncutgrass
Excessive vibration
Knives scalping grass
Tractor loaded down
by mower
Uneven cut
Gearbox noisy
Unplug and clean mower deck.
Remove belt guard shields and clean sheaves.
Replace belt.
Mow at full throttle (540 PTO rpm), check PTO speed and tractor engine.
Shift transmission to a lower gear.
Tighten belts.
Check lubricant level.
Replace knives.
Replace drive belt.
Replace pulleys or align.
Remove belt guard shields & clean debris from belt area & sheaves.d
Raise cutting height by adjusting roller.
Change mowing pattern.
Reduce speed turns.
Shift to a lower gear.
Level mower.
Replace missing knives.
Mow at full throttle (540 PTO rpm).
Shift to a lower gear.
Clean mower.
Replace missing knives.
13
www. mechmaxx.com
KNOW YOUR MACHINE
APPENDIX
Bolt Diameter
SAE 2
N.m lb-ft N.m lb-ft N.m lb-ft
SAE 5 SAE 8
Bolt Torque
1/4"
5/16"
3/8"
7/16"
1/2"
9/16"
5/8"
3/4"
7/8"
8
13
27
41
61
95
128
225
230
6
10
20
30
45
60
95
165
170
12
25
45
72
110
155
215
390
570
9
19
33
53
80
115
160
290
420
17
36
63
100
155
200
305
540
880
12
27
45
75
115
165
220
400
650
The tables shown below give correct torque values for various bolts and cap screws. Tighten all bolts to the torques spec-
ified unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide. Replace hardware
with the same strength.
Bolt Torque
ENGLISH TORQUE SPECIFICATIONS
KNOW YOUR MACHINE
14
www. mechmaxx.com
Bolt Diameter
8.8
N.m lb-ft N.m lb-ft
10.9
Bolt Torque
M3
M4
M5
M6
M8
M10
M12
M14
M16
M20
M24
M30
M36
0.5
3
6
10
25
50
90
140
225
435
750
1495
2600
0.4
2.2
4
7
18
37
66
103
166
321
553
1103
1917
1.8
4.5
9
15
35
70
125
200
310
610
1050
2100
3675
1.3
3.3
7
11
26
52
92
148
229
450
744
1550
2710
METRIC TORQUE SPECIFICATIONS
Torque figures indicated above are valid for non-greased or non-oiled threads and heads otherwise specified. Therefore,
do not grease or oil bolts or cap screws unless otherwise specified in this manual. When using locking elements, increase
torque values by 5%.
15
www. mechmaxx.com
OPERATION
We warrants to the original purchaser that this product will be free from defects in material and workmanship beginning
on the date of purchase by the end user according to the following schedule when used as intended and under normal
service and conditions for personal use.
This warranty is limited to the replacement of any defective part by manufacturer, and does not cover common wear
items such as blades, belts, tines, etc. We reserves the right to inspect any equipment or parts which are claimed to have
been defective in material or workmanship.
This warranty does not apply to any part or product which in judgment shall have been misused or damaged by accident
or lack of normal maintenance or care, or which has been repaired or altered in a way which adversely affects its perfor-
mance or reliability, or which has been used for a purpose for which the product not designed. Misuse also specifically
includes failure to properly maintain oil levels, grease points, and driveline shafts.
Claims under this warranty must be made to directly and all warranty adjustments must be made through.We reserves
the right to make changes in materials or design of the product at any time without notices. This warranty shall not be
interpreted to render We liable for damages of any kind, direct, consequential, or contingent to property. Furthermore, We
shall not be liable for damages resulting from any cause beyond its reasonable control. This warranty does not extend to
loss of crops, any expense or loss for labor, supplies, rental machinery or for any other reason.
No other warranty of any kind whatsoever, express or implied, is made with respect to this sale; and all implied warranties
of merchant-ability and fitness for a particular purpose which exceed the obligations set forth in this written warranty are
hereby disclaimed and excluded from this sale.
Overall Unit and Driveline: One year Parts
Gearbox: One year on all components.
Blades and Belts: Considered wear items.
WARRANTY
16
www. mechmaxx.com
OPERATION
PARTS DIAGRAM
17
www. mechmaxx.com
OPERATION
PARTS LIST
REF DESCRIPTION QTY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Pin shaft
Hanging weldment
Bolt M12X1.25X30
Washer 12
Oil pipe
Quick connector R1/2"
Supporting tube
Nut M18x1.5
Cylinder seat
Slippage bracket(R)
Connecting bracket(R)
Locking nut M12
Plain washer 12
Fender
Shaft for fender
Plain washer 10
Elastic cylindrical pin 4x22
Fender
Cover
Bent pin
R pin
Supporting frame
Base plate (L)
Belt cover
Plain washer 12
Bolt M12x1.5x80
Oil seal FB55X80X8
Oil-sealing sleeve
Small belt ptlley
1
1
2
4
2
2
2
1
1
1
1
50
53
1
1
17
2
12
1
1
1
1
1
1
5
21
1
1
1
REF DESCRIPTION QTY
30
31
32
33
34
35
37
38
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Swellable sleeve
Oil cup M8X1
Supporting for roller (R)
Hex.head bolt M8X25
Locking nut M8
Bearing
Blade
Sleeve
Mud shield
Roller weldment
Flange UC205
Oil cup M6
Supporting for roller (L)
Bolt M12x30
Blade axle weldment
Flange UC207-Z
Bearing
Spring washer 12
The cover weldment
Base plate (R)
Nut M16x1.5
Bolt M16X1.5X50
Gearbox assembly
Bolt M12x35
Plain washer 8
Spring washer 8
Bolt M8x20
Guard shade
Tension plate
2
2
1
10
12
2
40
40
1
1
2
6
1
23
1
2
2
12
1
1
1
1
1
12
4
4
4
1
1
18
www. mechmaxx.com
MAINTENANCE
2
2
2
2
7
4
4
1
4
1
4
2
6
1
2
2
2
2
4
1
14
2
1
REF DESCRIPTION QTY
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
Locking nut M14
Plain washer 14
Bolt M14x35
Guide rail
Splint
Locking nut M10
Bolt M10x70
Connecting bracket(L)
Nylon bush
Slippage bracket(L)
Circlip 60
Locking nut M18X1.5
Plain washer 18
Sleeve
Lockpin
Pin for lifting
Plain washer 22
Locking nut M22X1.5
Bolt M18X40
Big belt ptlley
Bolt M12×40
Strap SPB991
Slippage cylinder
19
www. mechmaxx.com
MAINTENANCE
GEARBOX ASSEMBLY
PARTS LIST
REF DESCRIPTION QTY
1
2
3
4
5
6
7
Gearbox assembly
Key A10X70
Paper gasket
Connected sleeve
Key A10X40
Shaft
Bearing 6207
1
1
1
1
1
1
1
REF DESCRIPTION QTY
8
9
10
11
12
13
14
Circlip 72
Oil seal 35x72x10
Retainer
Shaft tube weldment
Bolt of plug screw ZG3/8"-19
Bolt M12X35
Spring washer 12
1
1
1
1
1
4
12
20
www. mechmaxx.com
STORAGE

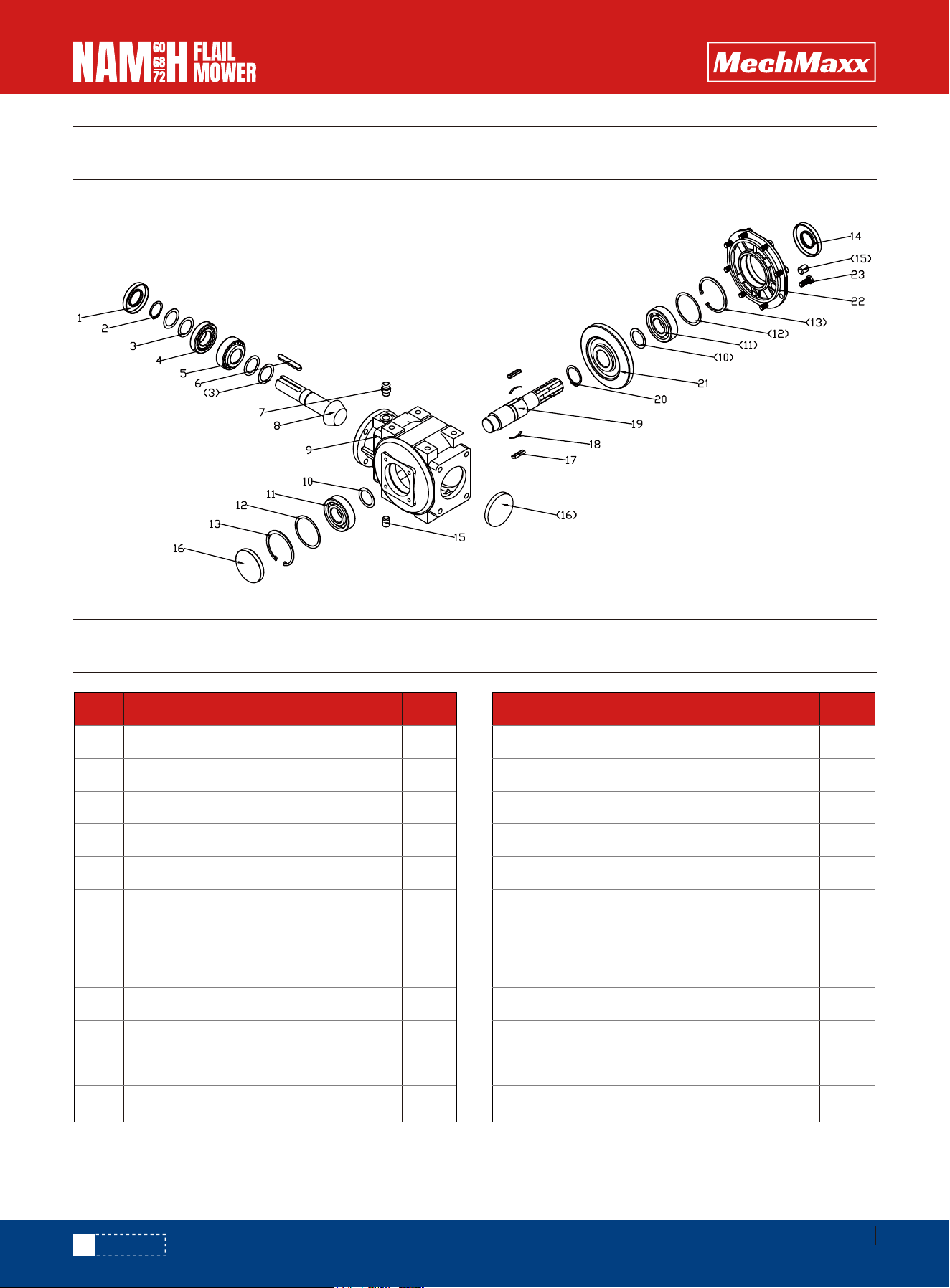

GEARBOX
PARTS LIST
REF DESCRIPTION QTY
1
2
3
4
5
6
7
8
9
10
11
12
Oil seal 35×72×10
Circlips for shaft 35
Washer (S) 0.7
Bearing 30207
Bearing 32207
Key 10X65
Bolt of plug screw ZG3/8"-19
Bevel gear shaft
Gearbox complete
Washer (S) 1
Bearing 6307
Washer (B) 0.7
Circlips for hole 80
Oil seal 35×80×10
Retainer
Seal cover
Key
Spring
Pinion shaft
Circlips for shaft 42
Bevel gear
Gearbox cover
Bolt M18x40
1
1
4
1
1
1
1
1
1
2
2
2
REF DESCRIPTION QTY
13
14
15
16
17
18
19
20
21
22
23
2
1
1
2
2
2
1
1
1
1
8
