Refrigerator

BOTTOM MOUNTED FREEZER SERIES

MDRB521MIC*

USER MANUAL

Warning notices: Before using this product, please read this manual carefully and keep it for future reference.

The design and speciﬁcations are subject to change without prior notice for product improvement.

Consult with your dealer or manufacturer for details.

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

Download the app

& activate product

THANK YOU LETTER

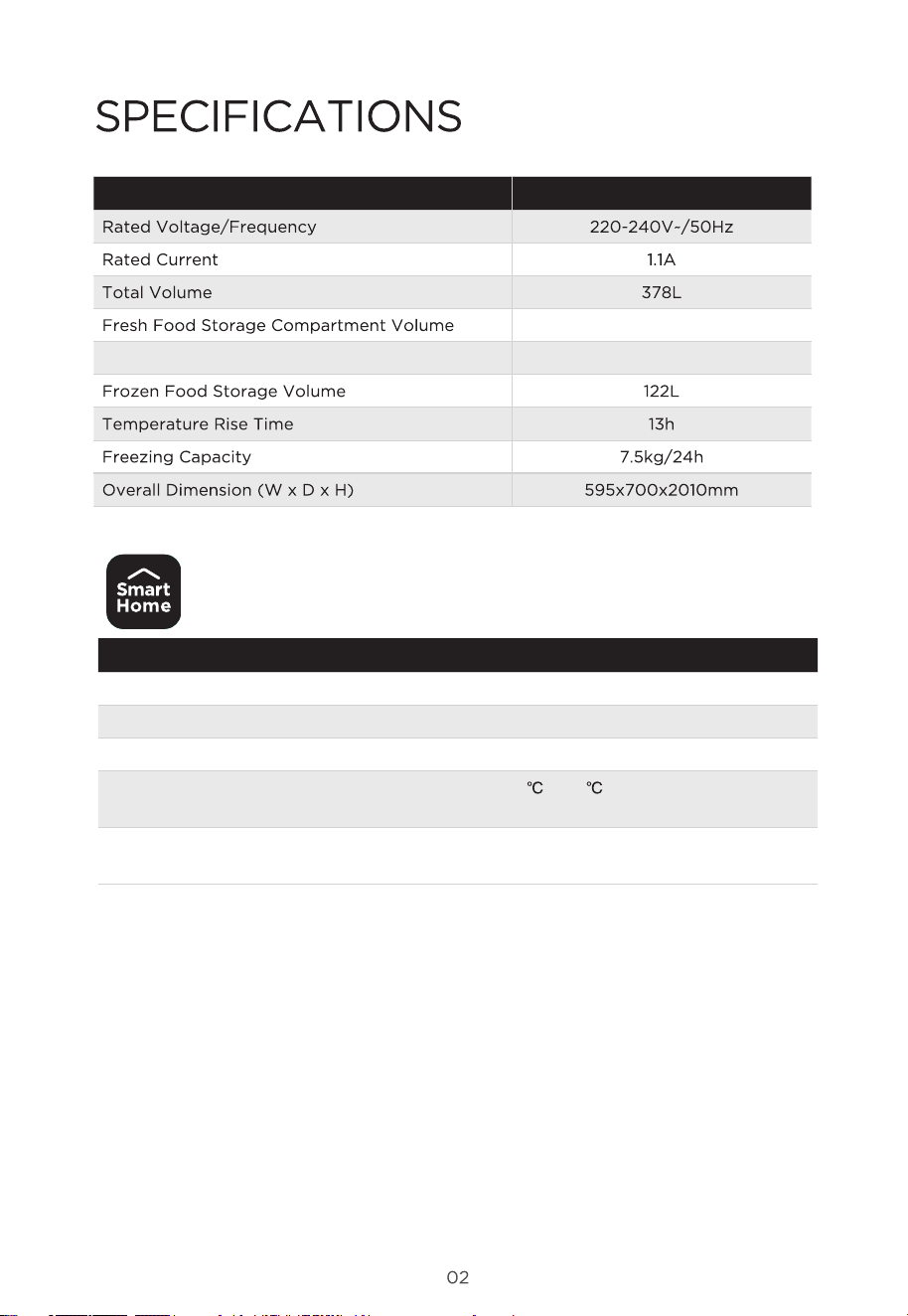

SPECIFICATIONS

PRODUCT OVERVIEW

PRODUCT INSTALLATION

OPERATION INSTRUCTIONS

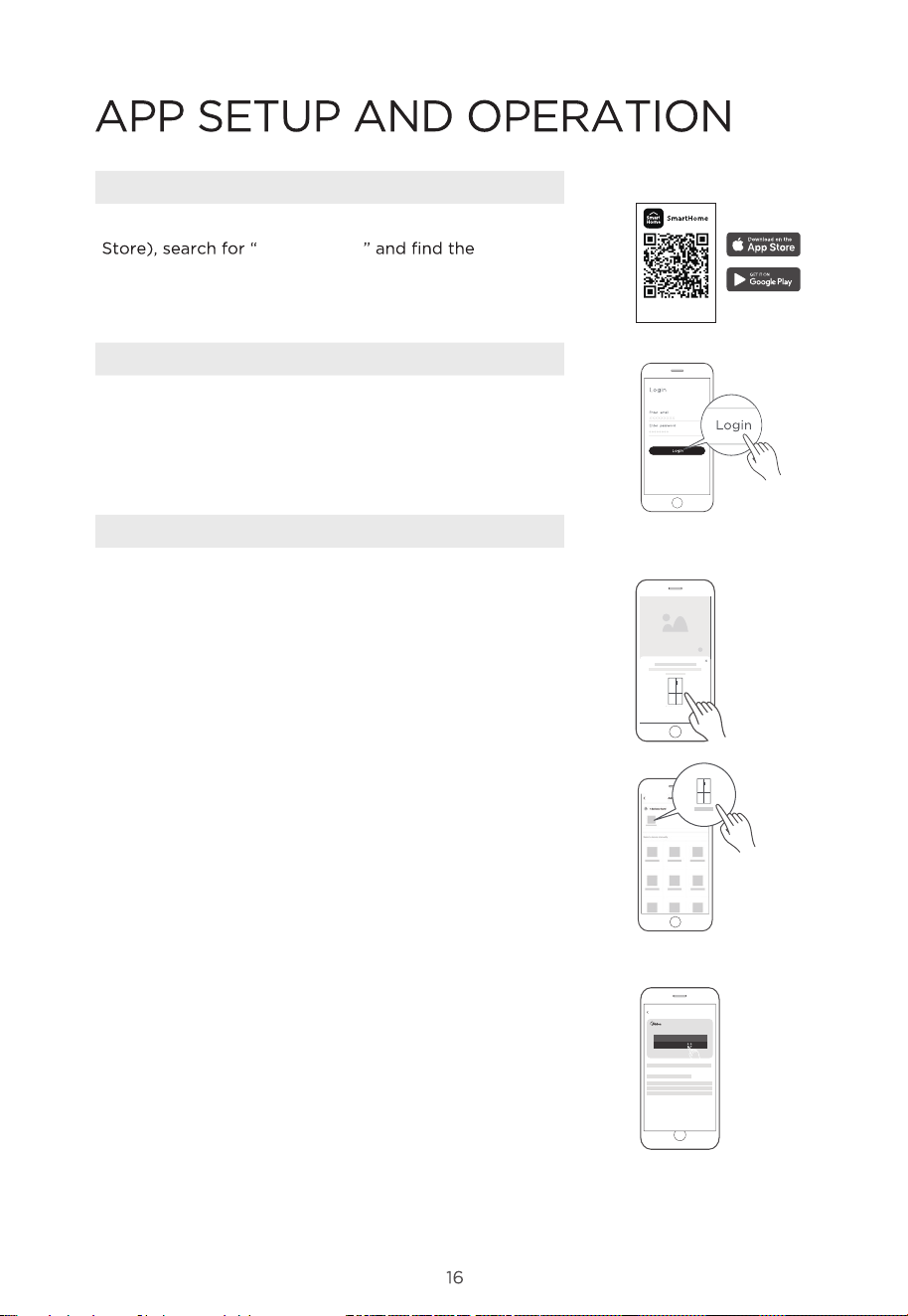

APP SETUP AND OPERATION

CLEANING AND MAINTENANCE

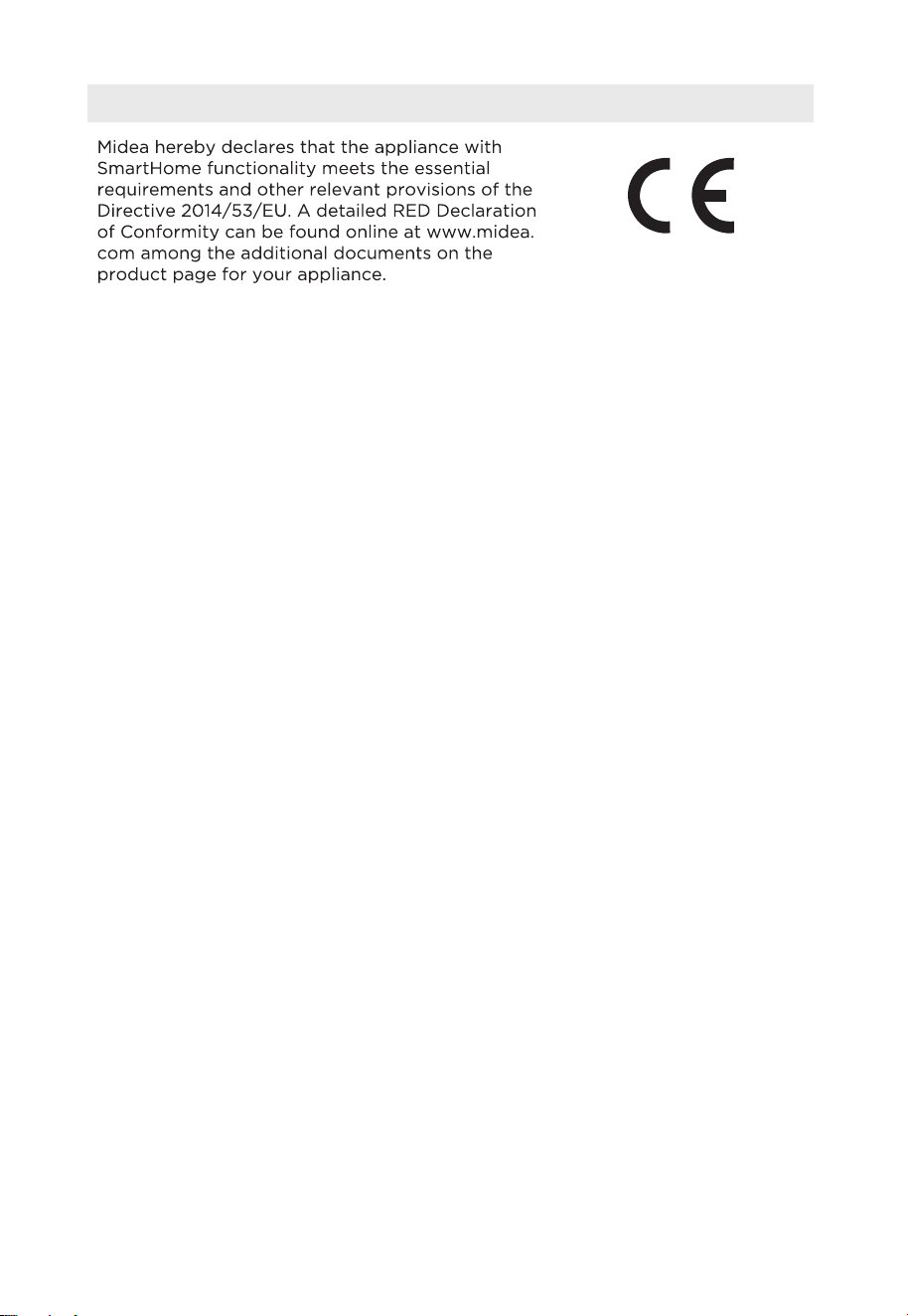

DOC AND CERTIFICATIONS

TROUBLESHOOTING

APPENDIX

Product model MDRB521MIC

Wireless Network module model MWB-S-WB01

Standard IEEE 802. 11b/g/n

Antenna Type Printed PCB antenna

Frequency Band 2400-2483.5 MHz

Operating Temperature

~ 85

Operation humidity: 10%~85%

Power Input

DC5V/500mA Maximum

Transmission power: <20dBm

Importer / Address: MIDEA HOME APPLIANCES UK LTD

Conavon Court Ground Floor, 12 Blackfriars Street, Salford,

Manchester M3 5BQ UK

Chill Compartment Volume 40L

216L

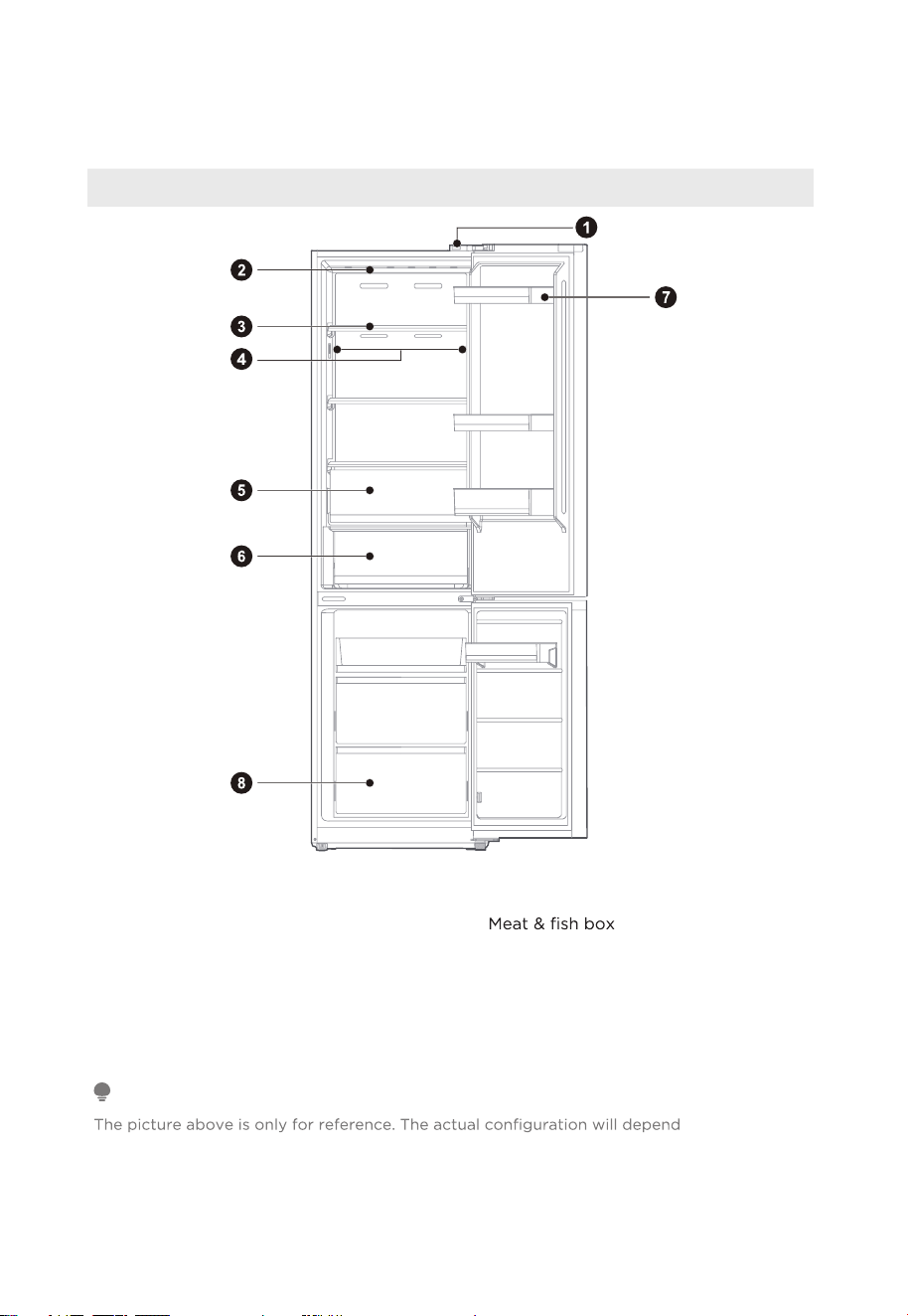

PRODUCT OVERVIEW

Names of components

Door switch

Fruits & vegetables box

LED light

Shelf

Door tray

LED light (for some models)

Drawer

ATTENTION

on the physical

product or statement by the distributor.

PRODUCT INSTALLATION

Install Instruction

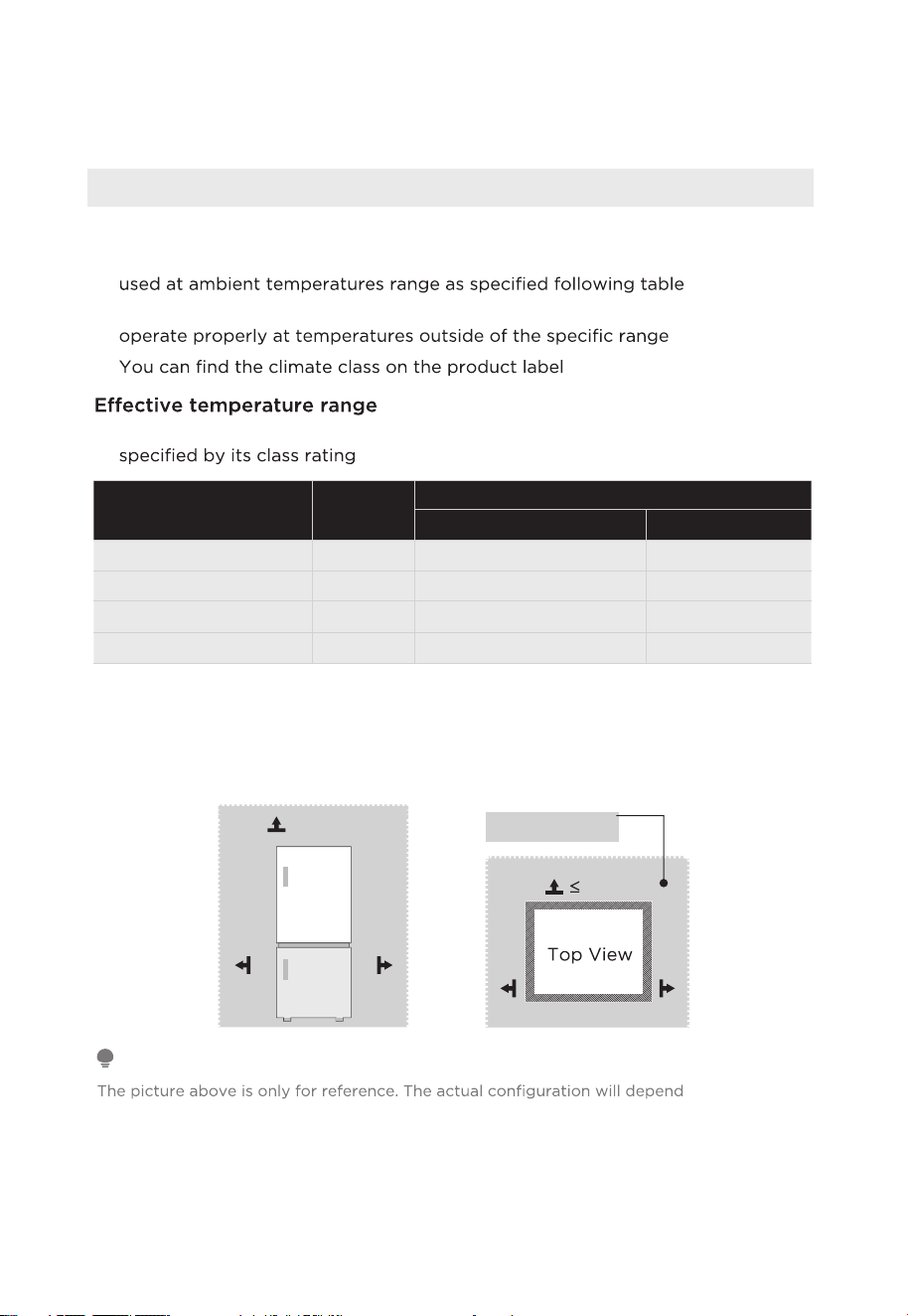

For refrigerating appliances with climate class

• Depending on the climate class, this refrigerating appliance is intended to be

• The climate class can be found on the rating plate. The product may not

•

• The product is designed to operate normally in the temperature range

Class Symbol

Ambient temperature range °C

IEC 62552 (ISO 15502) ISO 8561

Extended temperate SN + 10 to + 32 + 10 to + 32

Temperate N + 16 to + 32 + 16 to + 32

Subtropical ST + 16 to + 38 + 18 to + 38

Tropical T + 16 to + 43 + 18 to + 43

ATTENTION

on the physical

product or statement by the distributor.

>100mm

75mm

Required space

for air circulation

Dimensions and Clearances

• Keep the air circulation free around the cabinet. When installing the unit,

ensure 10cm of free space at both sides, 10cm at the top of the unit, and not

more than 7.5cm at the rear of the unit.

Width

Overall

Height

Depth

Width

doors open

125

Depth

doors open

125

B B

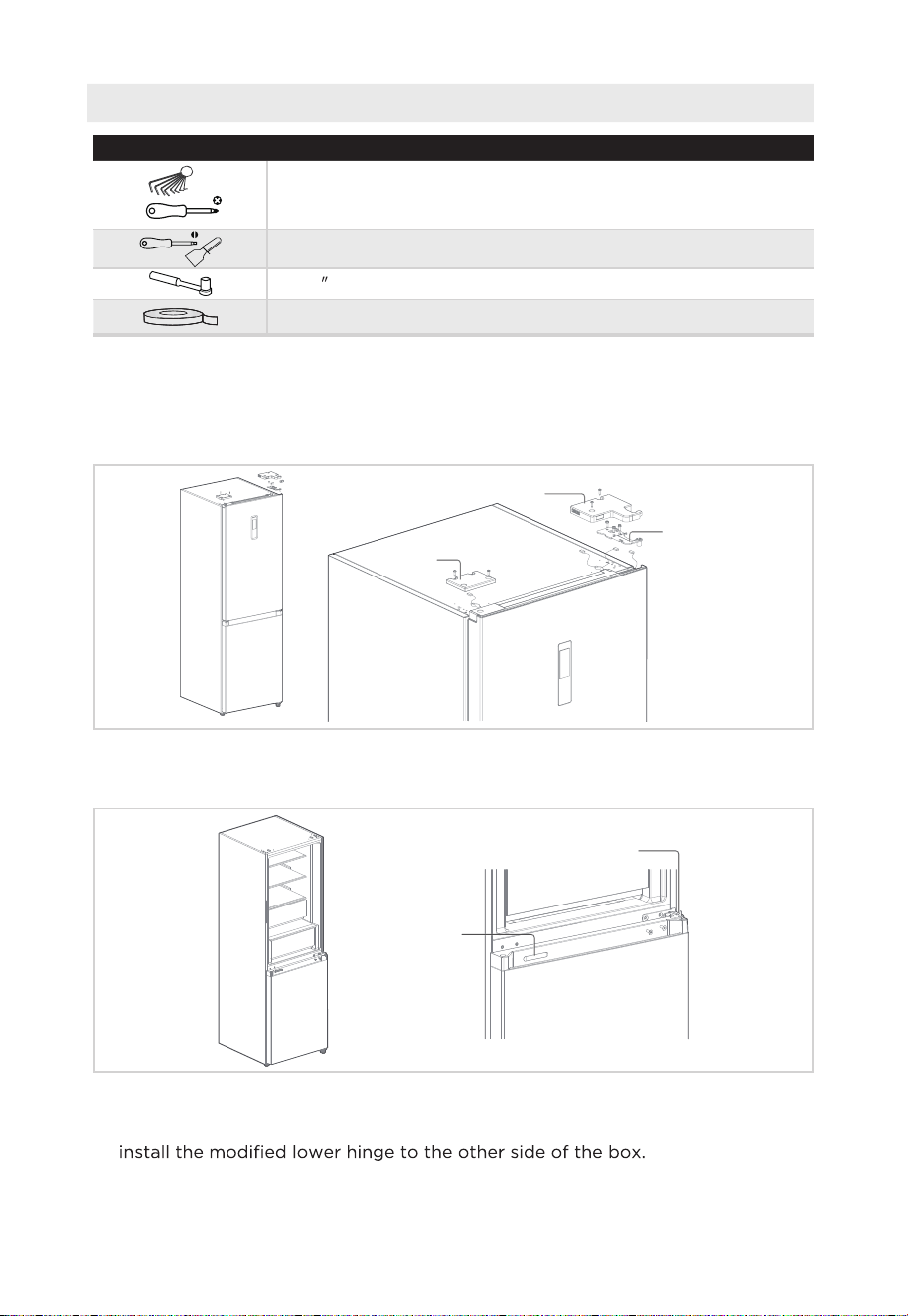

Door right-left change

List of tools to be provided by the user

Cross screwdriver

Putty knife Thin-blade screwdriver

5/16 socket spanner

Masking tape

1. Please power o this appliance before conduct this operation. Remove all food

from door shelves.

2. Remove the upper left hinge cover decorative cover, upper right hinge cover

and upper right hinge, and disconnect the right signal line (signal line terminal 1,

2) at the top of the box body.

decorative cover

upper hinge cover

upper hing

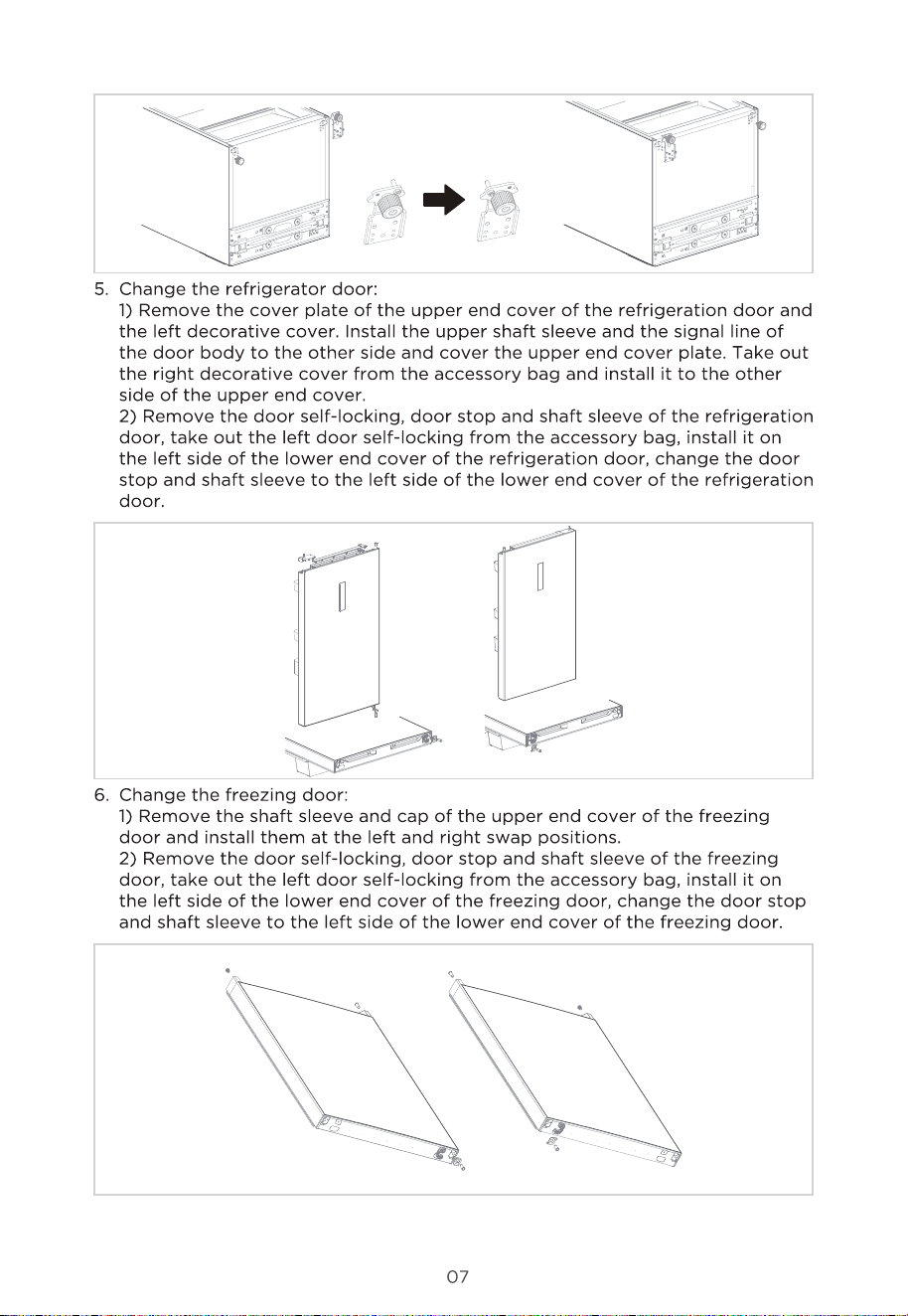

3. Remove the refrigerated door body (be careful not to lose small parts such as

the shaft sleeve and stop on the door); Remove the middle hinge and remove

the decorative cover of hinge hole on the other side.

decorative cover

middle hinge

4. Remove the freezing door body (be careful not to lose small parts such as the

shaft sleeve and stop on the door); Remove the hinge and adjust the angle.

Remove and install the lower hinge shaft to the other side of the hinge, and

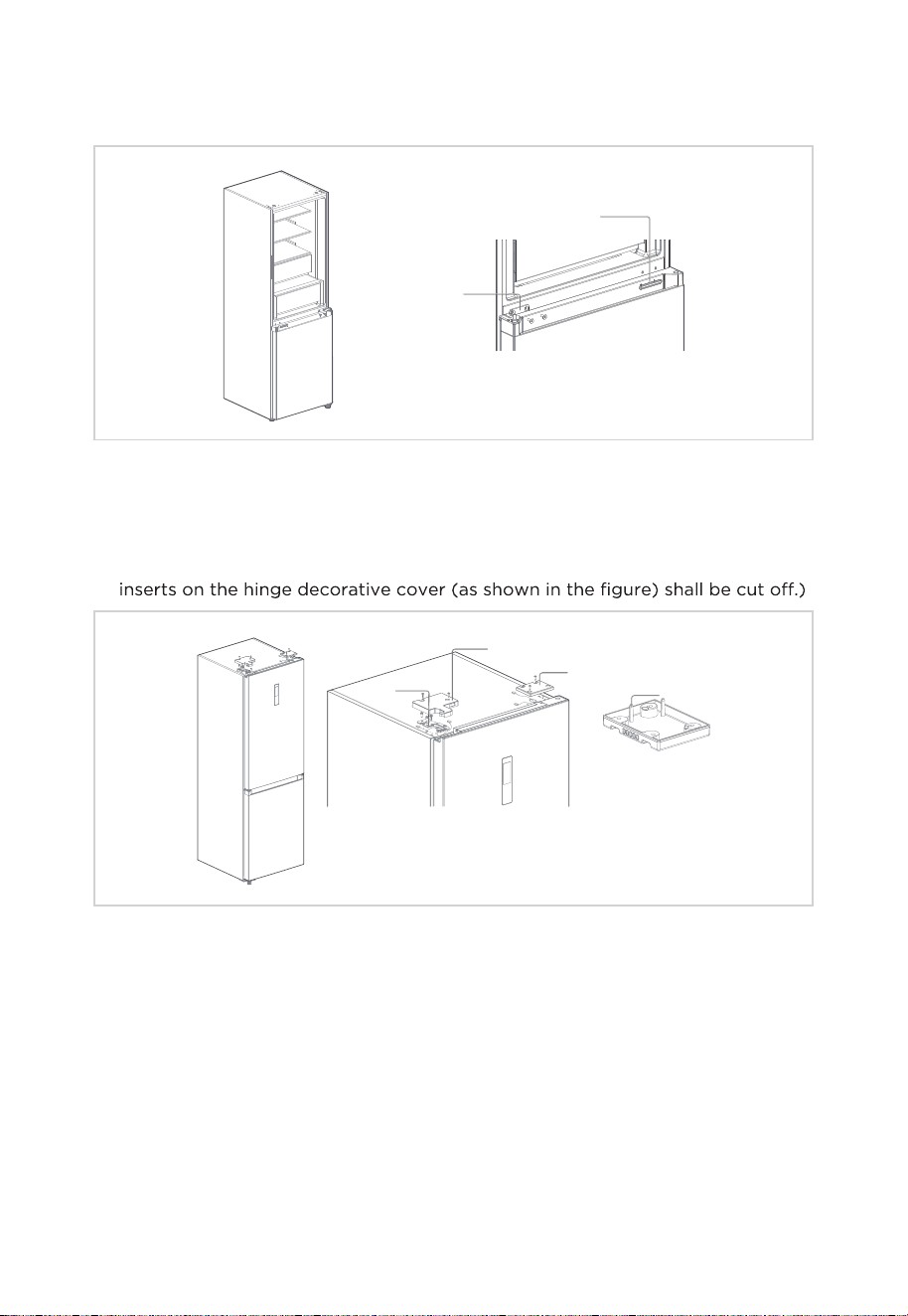

7. Install the replaced freezing door on the lower hinge, then install the middle

hinge and cover the hinge hole decorative cover.

middle hinge

decorative cover

8. Remove the upper left hinge cover and upper left hinge from the accessory

bag. Place the refrigerated door body on the middle hinge and install the

upper left hinge. Connect the refrigerator top signal line 4 to the door body

signal line 1, and connect the signal line 2 to the signal line 3. Finally, replace

the hinge decorative cover to the right side of the box body (note: when

replacing the hinge decorative cover to the right side of the box body, the two

upper hinge cover

decorative cover

inserts

upper hinge

All illustrations without guarantee. Technical changes reserved.

Leveling feet

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the u

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise

to raise the unit, clockwise

lower it.

Moving the appliance

1. Remove all food from inside the appliance.

ook at the rear or

on top of the appliance.

3. Tape parts such as shelves and the door handle to prevent from falling o

while moving the appliance.

4. Move the appliance with more than two people carefully. When transporting

the appliance over a long distance, keep the appliance upright.

5. After installing the appliance, connect the power plug into a socket out to

switch on the appliance.

ATTENTION

Precautions before operation:

Before making changes the refrigerator must be disconnected from power.

Precautions should be taken to prevent any personal injury.

Changing the light

• Any replacement or maintenance of the LED lamps is intended to be made by

ATTENTION

(G).

Connecting the appliance

After installing the appliance, connect the power plug into a socket outlet.

ATTENTION

After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you

put food into the appliance. If you add food before the appliance has cooled completely, your

food may spoil.

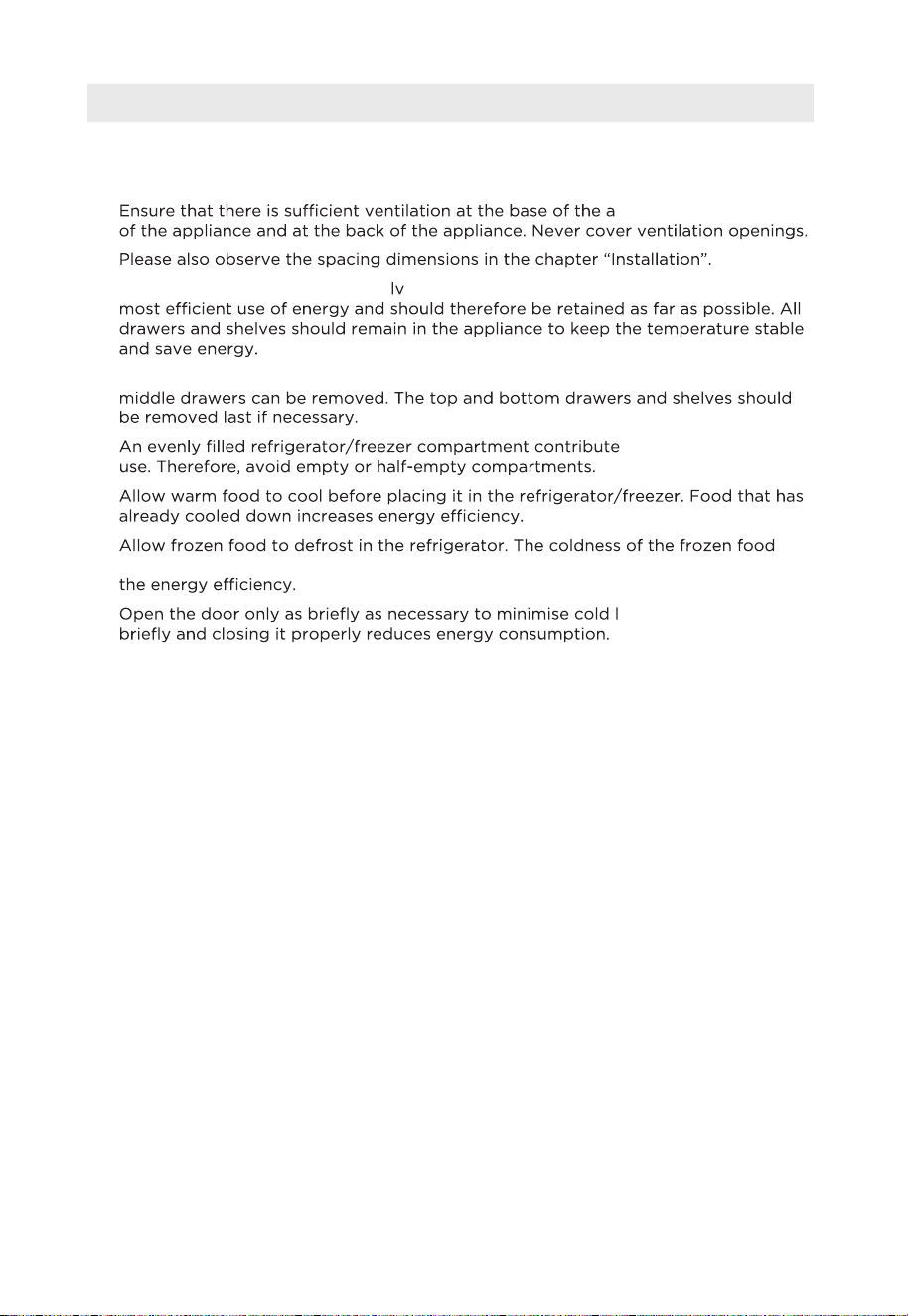

Tips for energy saving

• Do not place the appliance near cookers, radiators or other heat sources. If the

ambient temperature is high, the compressor will run more frequently and for

longer, resulting in increased energy consumption.

•

ppliance, on the sides

•

• The arrangement of drawers, she es and racks as shown in the illustration oers the

• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the

• s to optimal energy

•

reduces the energy consumption in the refrigerator compartment and thus increases

• oss. Opening the door

• The door seals of your appliance must be perfectly intact so that the doors close

properly and energy consumption is not increased unnecessarily.

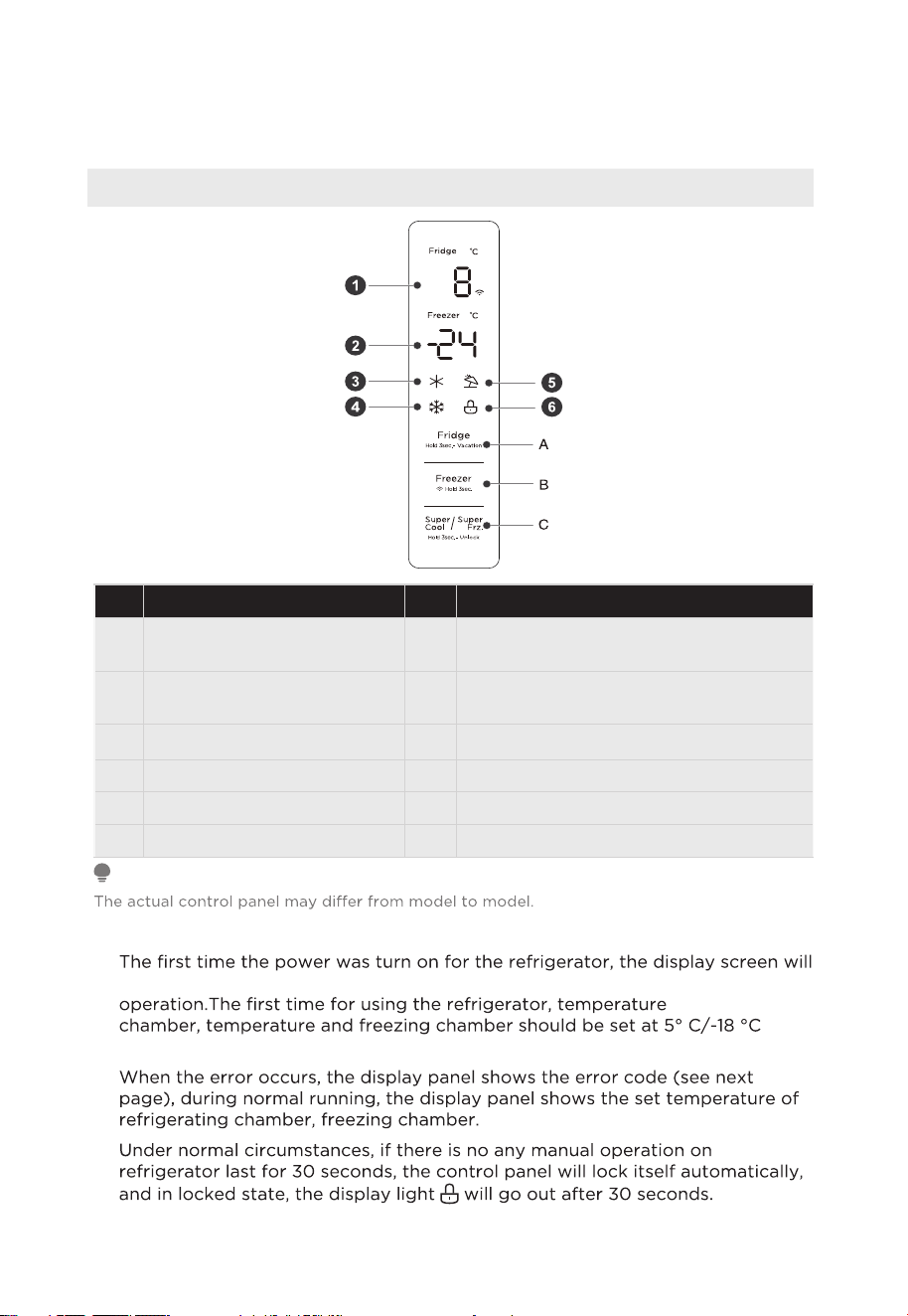

OPERATION INSTRUCTIONS

Control panel

Display Button

Refrigerating chamber

temperature display area

Temperature setting button of

refrigerating chamber

Freezing chamber

temperature display area

Temperature setting button of

freezing chamber

Quick cool icon

Super cool/super freezing button

Quick freeze icon

Vacation icon

Lock icon

ATTENTION

Display

•

total display for 3 seconds. Then the screen enters the normal display of the

s of refrigerating

respectively.

•

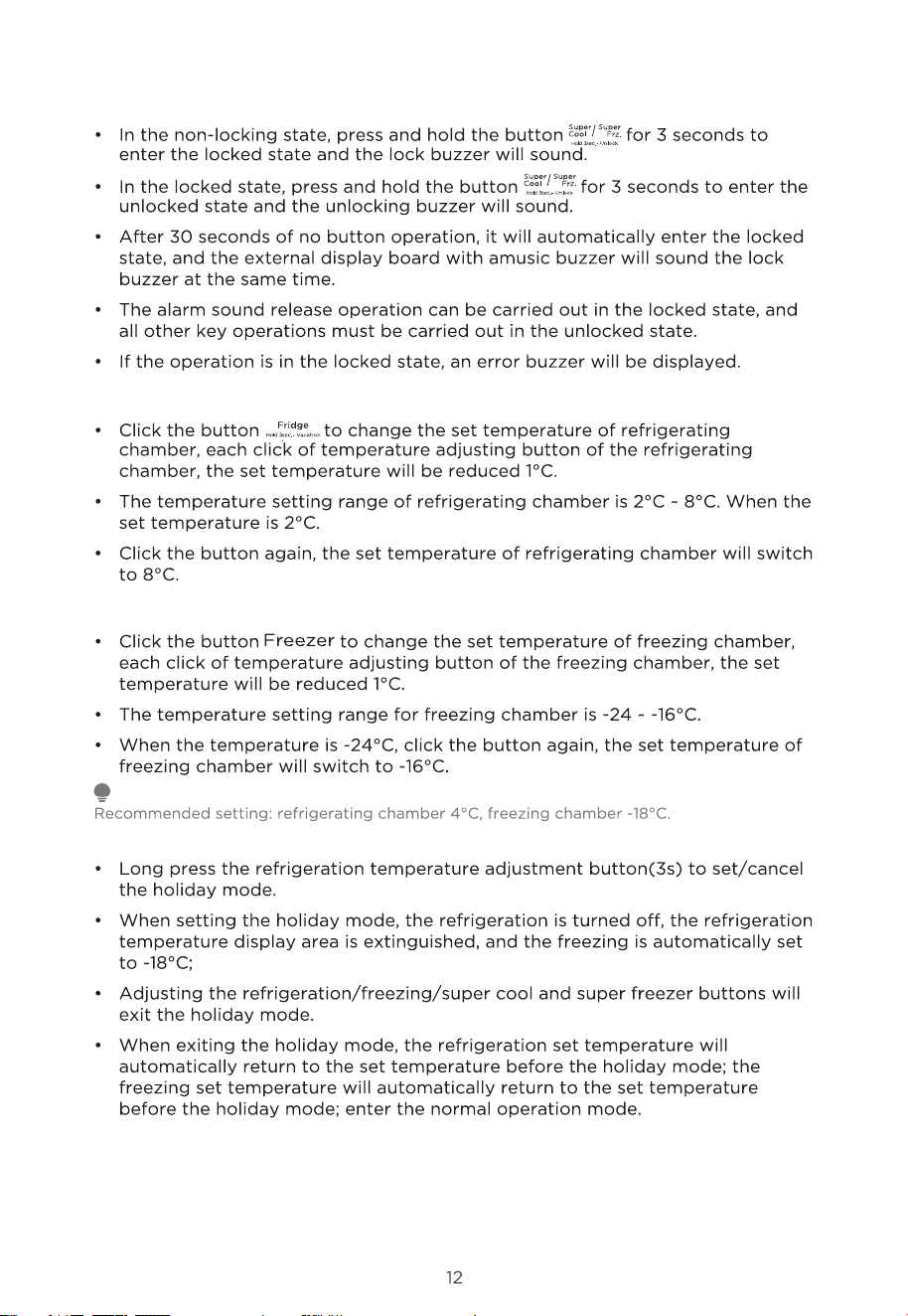

Lock / unlock

Temperature setting of refrigerating chamber

Temperature setting of freezing chamber

ATTENTION

Vacation mode

Super freeze mode

• Super cool and super freezer mode, press the button, the setting

sequence is: super cool ->super freezer -> cancel.

• When setting/cancelling the super cool mode, the corresponding super cool

• When setting the super cool mode, the refrigeration is automatically set to 2°C.

• When exiting the super-cool mode, the set temperature of the refrigerating

room will automatically return to the set temperature before the quickcooling

mode.

• When the super-freezer mode is set, the corresponding superfreezer icon is lit.

• When the super-freezer mode is set, the freezing is automatically set to -24°C

• When exiting the super-freezer mode, the set temperature of the freezer

compartment will automatically return to the set temperature before the

superfreezer mode.

• Super cool mode automatically disabled for 6h.

• Super freezer mode automatically disabled for 24h.

ATTENTION

The super-freezer function is designed to maintain the nutritional value of the food in the

freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one

time, it is recommended that the user turn on the super-freezer function and put the food in.

At this time, the freezing speed of the freezer compartment is increased, which can quickly

Opening warning and alarm control

• If the refrigerator door is open for 120 seconds without closing, the buzzer will

alarm until the refrigerator door is closed; any key will cancel the buzzer alarm.

Fault indication

• The following warnings appearing on the display indicate corresponding faults

of the refrigerator. Though the refrigerator may still have cold storage function

with the following faults, the user shall contact a maintenance specialist for

maintenance, so as to ensure optimized operation of the appliance.

Fault code Fault Description

E1 Temperature sensor failure of refrigerating chamber

E2 Temperature sensor failure of freezing chamber

E5 Freezing defrost sensor detection circuit error

E6 Communication error

E7 Ambient temperature sensor error

Tips on storing food

Freezer compartment

• The freezer is designated for the storage of food frozen at very low temperature,

long-term storage of frozen food, and for the production of ice.

• Only use the shelves in the door of the freezer to store frozen food, not for storing

hot food designated for freezing.

• Do not put fresh and frozen food next to each other. The frozen food may thaw.

•

ut them into parts

that can be used at the same time.

• Storing frozen food: instructions are usually stated on the packages, which must be

followed. If there is no information on the packaging, food should not be stored for

longer than three months from the date of purchase.

• When purchasing frozen food, make sure that it was frozen at a suitable

temperature and that the packaging is not damaged.

• Frozen food should be kept in suitable packages to retain the quality and should be

returned to the freezer compartment as soon as possible.

• If a package of frozen food shows moisture or abnormal bulging, it is probable that

it was stored at the wrong temperature and the content is spoiled.

• The storage period for frozen food depends on the room temperature, the

thermostat setting, the frequency of opening the door of the freezer, the type of

food and the time of transporting the product from the shop to the household.

Always follow the instructions printed on the packaging and never exceed the

maximum storage time stated on the package.

Cooling compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the

refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts

of the evaporator. Storing uncovered liquids results in a more frequent need for

defrosting.

•

ool down at room

temperature and then be placed so as to ensure adequate air circulation in the

refrigerator.

• Foods or food containers should not touch the back wall of the refrigerator because

they could freeze to the wall. Do not keep regularly opening the door of the

refrigerator.

•

placed in the

refrigerator, which can be used in 1–2 days.

• Fruit and vegetables without packaging can be placed in the part designated for

fresh fruit and vegetables.

ATTENTION

The optimal temperature setting of each compartment depends on the ambient temperature.

Above optimal temperature is based on the ambient temperature of 25 °C.

Order

Compartments

TYPE

Target stor-

age temp.

[°C]

Appropriate food

1 Fridge +2

≤

Eggs, cooked food, packaged food, fruits and vegetables,

dairy products, cakes, drinks and other foods not suitable

for freezing.

Four-star rating

frozen

≤

-18

With freezing capacity, fast freezing speed, caWith freezing

capacity, fast freezing speed, can quickly freeze and store

food. Suitable for frozen fresh food such as seafood (ﬁsh,

shrimp, shellﬁsh), freshwater aquatic products and meat

products. Recommended for 3 ~ 6 months, the longer the

storage time, the worse the taste and nutrition.

Three-star rating

frozen

≤

-18

With freezing capacity. Suitable for frozen fresh food such

as seafood (ﬁsh, shrimp, shellﬁsh), freshwater aquatic

products and meat products. Recommended no more than

3 months.

Two-star rating

frozen

≤

-12

Only suitable for medium-term storage of already frozen

food, e.g. ice cream. Recommended no more than 1 month.

One-star rating

frozen

≤

-6

Only suitable for refrigeration, and short-term storage of

small quantities of already frozen food. Recommended no

more than 1 week.

6 0-star -6

≤

Fresh pork, beef, ﬁsh, chicken, some packaged processed

foods, etc. (Recommended to eat within the same day,

preferably no more than 3 days).

Partially encapsulated processed foods (non-freezable

foods).

7 Chill -2

≤

Fresh/ frozen pork, beef, chicken, freshwater aquatic

products, etc. (7 days below 0°C and above 0°C is

recommended for consumption within that day, preferably

no more than 2 days).

Seafood less than 0 for 15 days, it is not recommended to

store above 0°C.

8 Fresh food 0

≤

Fresh pork, beef, ﬁsh, chicken, cooked food, etc.

(Recommended to eat within the same day, preferably no

more than 3 days)

9 Wine +5

≤

+20

Red wine, white wine, sparkling wine, etc.

ATTENTION

your purchased.

Download the SmartHome App

On an app market (Google Play Store, Apple App

SmartHome app. Download and install it on your

SmartHome

phone. You can also download the app by scanning the

QR code below.

Open the SmartHome app, and create a new account

to start (you can also register through a third-party

account). If you already have an existing account, use

the account to log in.

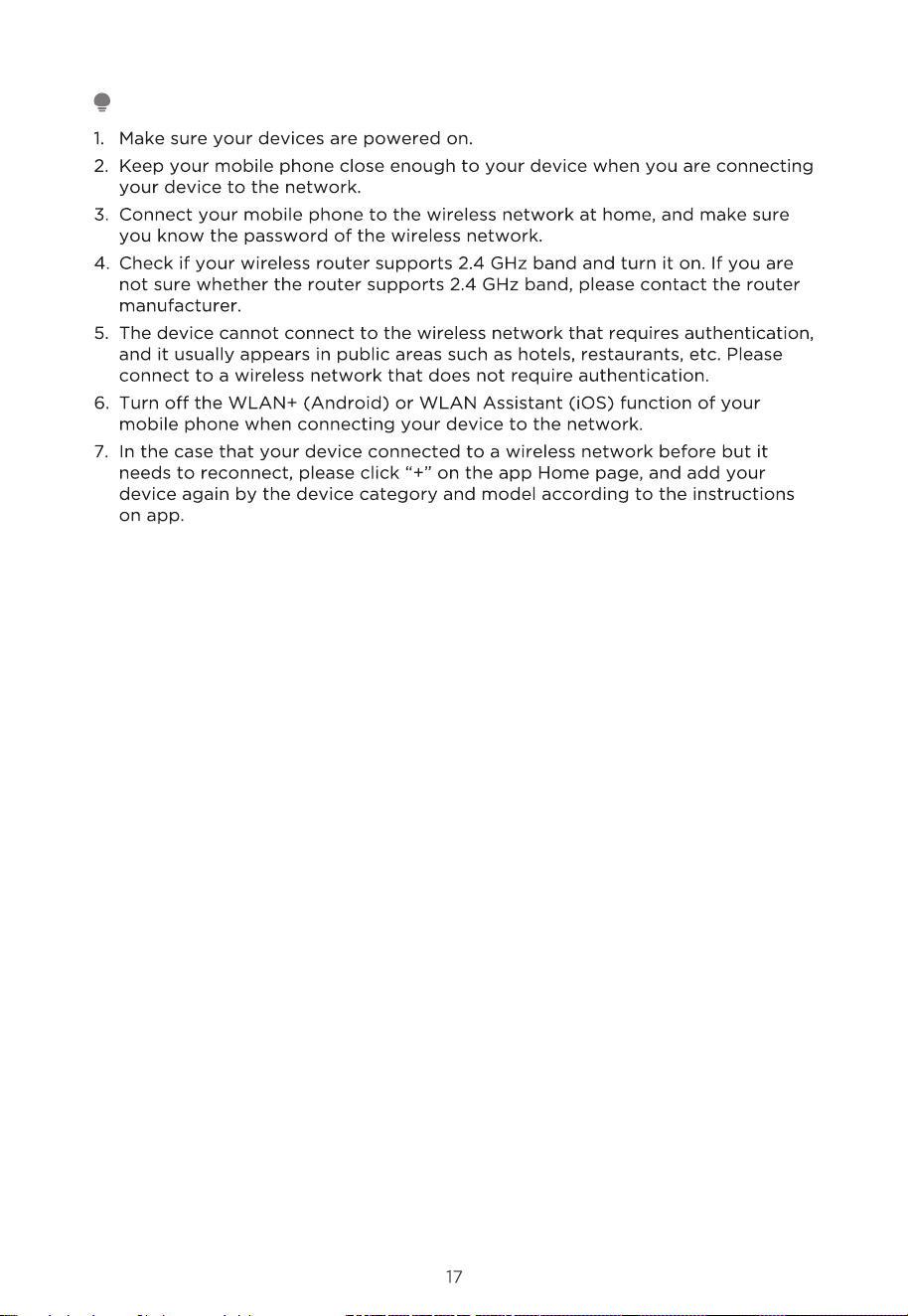

Connect your devices to SmartHome

1. Please make sure your mobile phone is connected

to a wireless network. If it is not, go to Settings

and enable wireless networks and Bluetooth.

2. Please power on your devices.

3. Open SmartHome App on your phone.

4. If a message of "Smart devices discovered

nearby" appears, click to add.

Washing machine

...

5. If no message appears, select “+” on the page and

select your device in the list of nearby devices

available. If your device is not listed, please add

your device manually by the device category and

device model.

6. Connect your device to the wireless network

according to instructions on app. If the

connection fails, please follow the instructions

provided by the app to continue with the

operation.

Add device

8:88

Download the app

& activate product

NOTE

Defrosting

• The refrigerator is made based on the air-cooling principle and thus has

automatic defrosting function. Frost formed due to change of season or

temperature may also be manually removed by disconnection of the appliance

from power supply or by wiping with a dry towel.

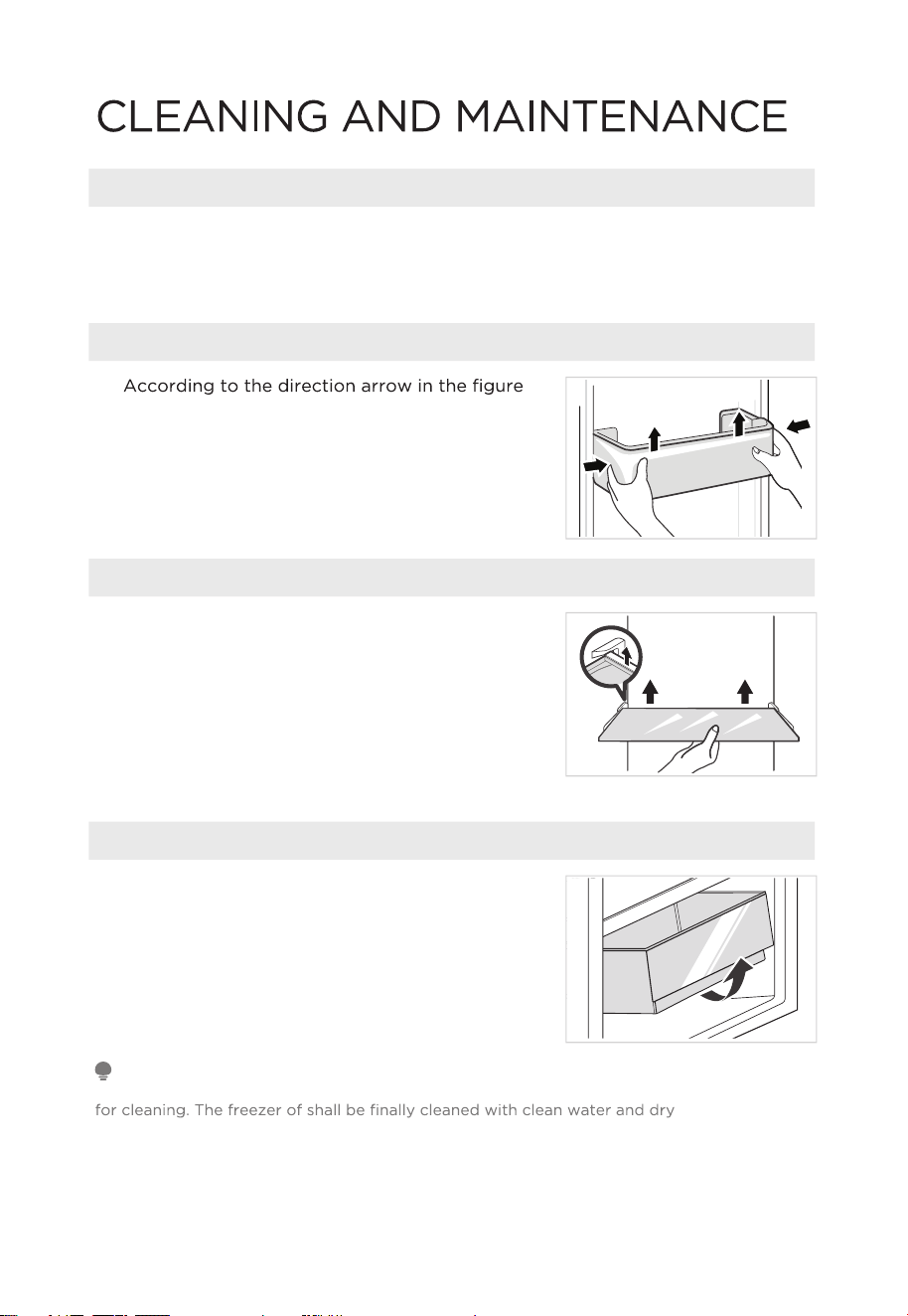

Cleaning of door tray

•

below, use both hands to squeeze the tray, and

push it upward, then you can take it out.

• After washing the tray having been taken

out, you can adjust its installing height in

accordance with your requirement.

Cleaning of glass shelf

• As the innermost part of the refrigerator liner

where contacting the shelves has a backstop,

you shall raise the shelves upward, then you

can be able to take it out.

• Adjust or clean the shelves according to your

requirement.

Cleaning the vegetable drawer

1. Remove the contents of the drawer. Hold the

handle of the vegetable drawer and pull it out

completely until it stops.

2. Lift the vegetable drawer up and remove it by

pulling it out.

ATTENTION

Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested

cloth. Open the

door for natural drying before the power is turned on. Do not use hard brushes, clean steel

balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone,

banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this

may damage the fridge surface and interior.

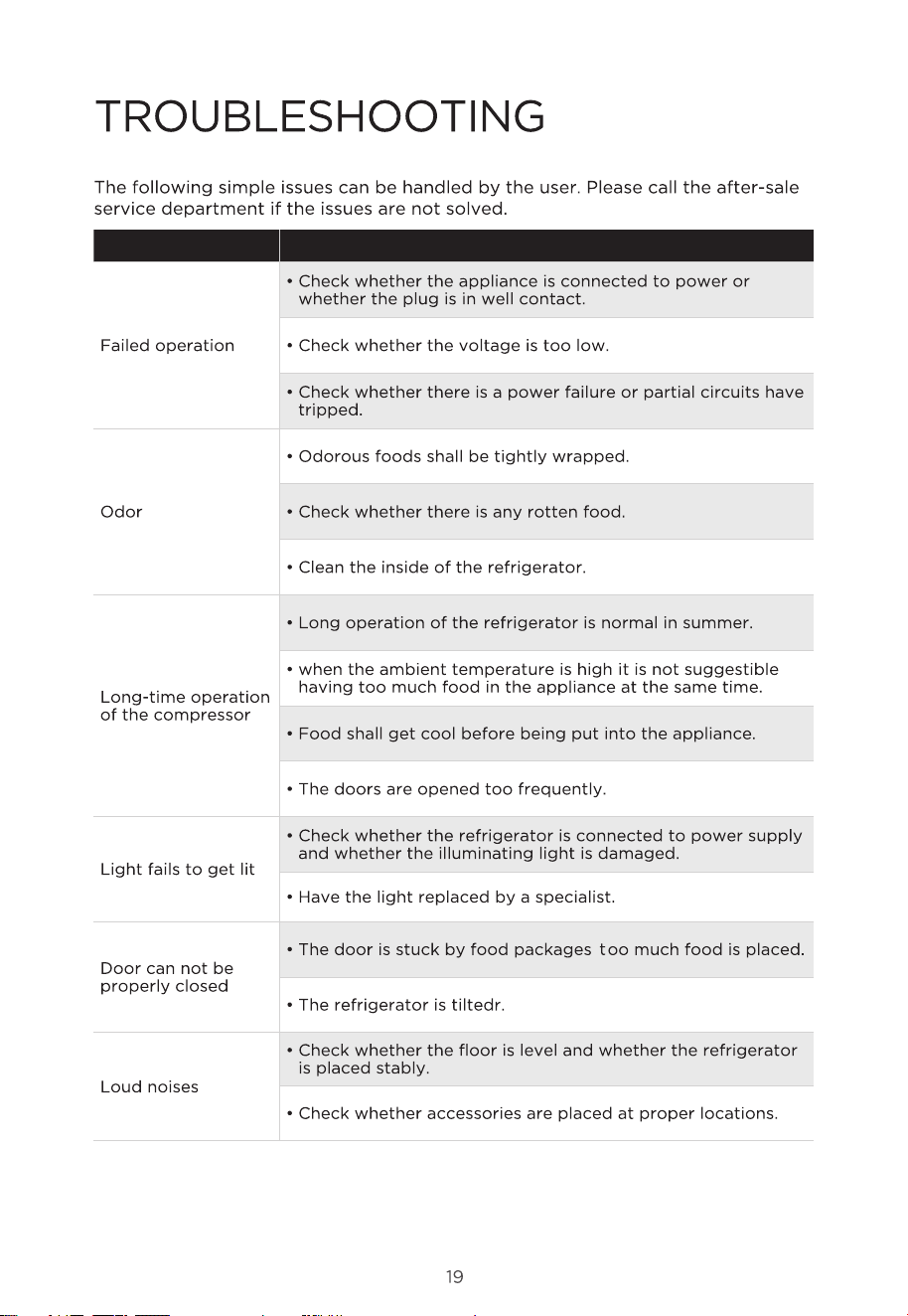

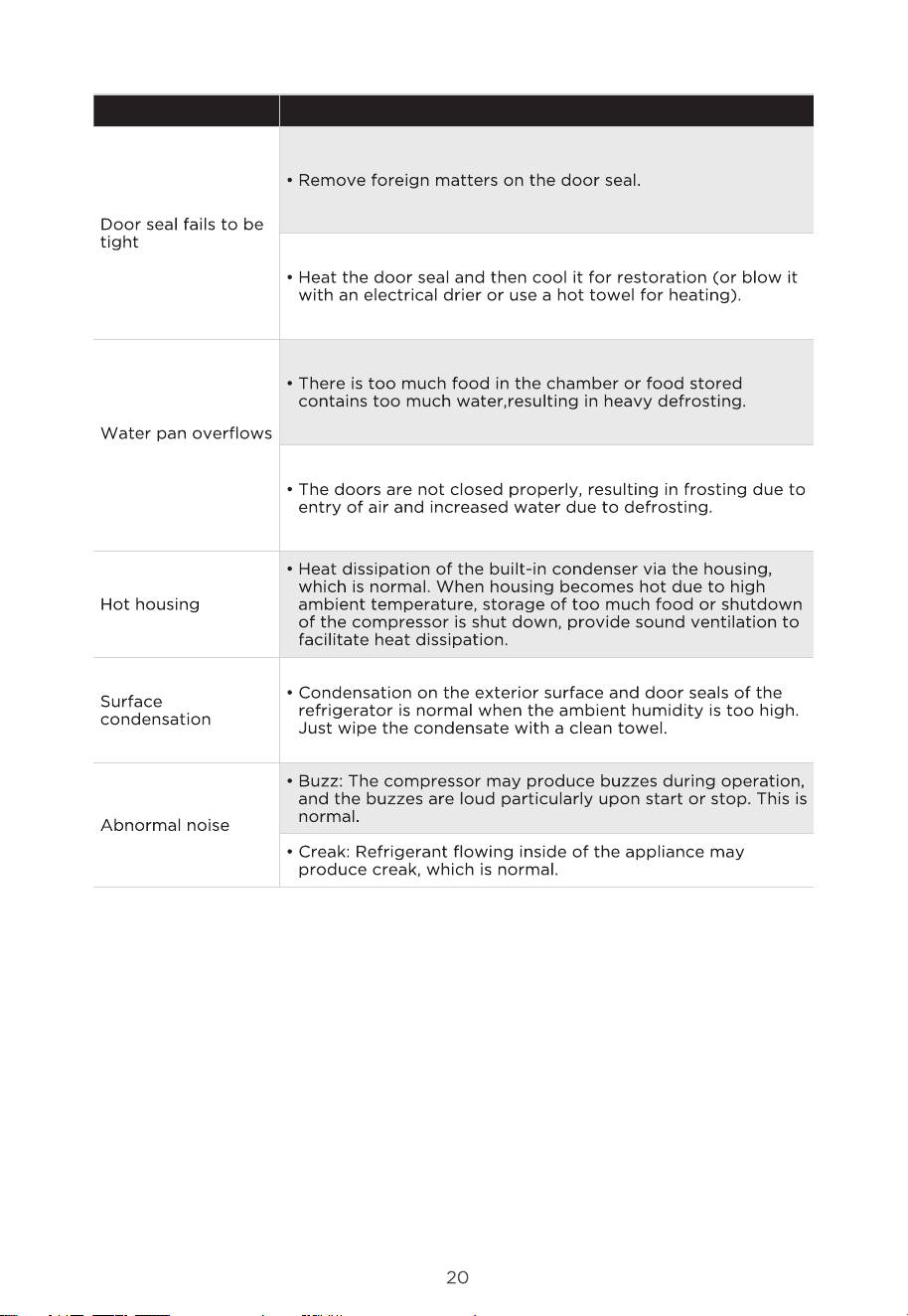

Problem Possible reason

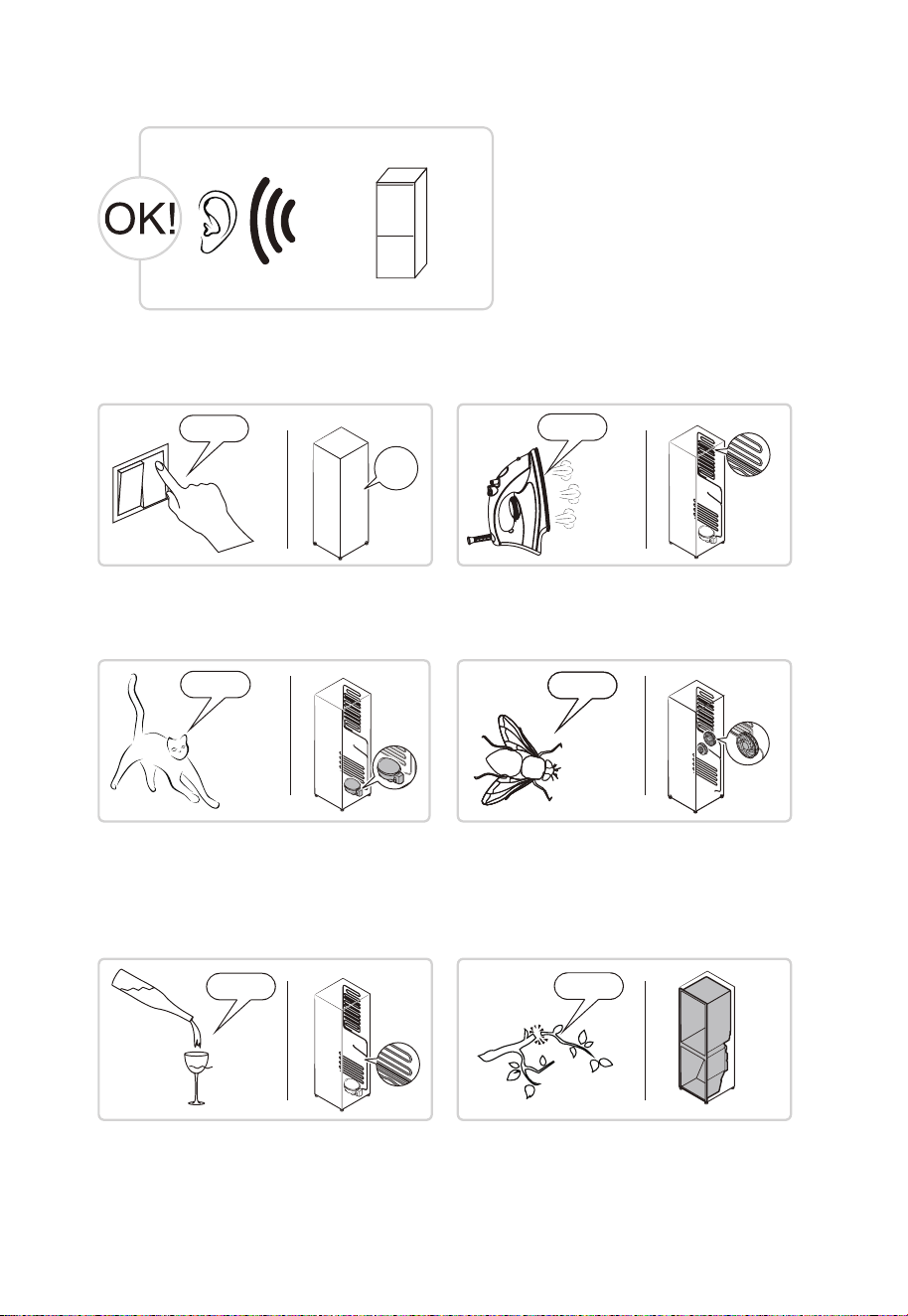

Do you hear these abnormal sounds as below? Usually these sounds are normal.

SRR

HISSS!

BLUBB!

BRRR!

CRA

CK!

CLICK:

Some electrical parts in the

refrigerator, such as electric valve will

make this noise when working. This is

normal.

HISSS:

When the refrigerant ﬂows into the

evaporator, it will make this noise. This is

normal.

CLICK！

HISSS!

BRRR:

The compressor will make this noise

when working, and the buzzes are loud

particularly upon start or stop. This is

normal.

SSSRRR:

The fan motor in the No frost

refrigerator will make this noise when

working. This is normal.

BRRR!

SSSRRR!

BLUBB:

Refrigerant ﬂowing through the

pipes in the refrigerator will make this

noise. This is normal.

CRACK

：

Cracking sound or broken

ice sound: the overall structure of the

refrigerator, air duct frost will be with the

thermal expansion and contraction of the

expansion sound, these are also normal

physical phenomenon.

BLUBB!

CRACK!

Declaration of Conformity

names match each other respectively.

Brand Midea Model Marketing Model Factory Model

Midea HD-500RWEN

MDRB521MIC46

MDRB521MIC01

CE-BCD385WX-CT

Application of Council Directives

Standards, to which Conformity Is Declared

(EU)2019/2019:2019;(EU)2021/341:2021 ;

(EU)2019/2016:2019;(EU)2021/340:2021

Test Method: EN 62552-1:2020, EN 62552-2:2020,

EN 62552-3:2020; EN 60704-1:2010+A11:2012，

EN 60704-2-14:2013+A11:2015+A1:2019

Manufacturer’s Name: Hefei Hualing Co., Ltd.

Manufacturer’s Address: No.176 JinXiu Road, Hefei Economy & Technology

Development Area, 230601, Hefei, Anhui, P.R. China

We, Hefei Hualing Co., Ltd.

hereby declare that the above-mentioned products comply with the above-mentioned

currently valid regulations and standards.

SIGNATURE: Date: January 10, 2024

2.4 GHz band:100mW max.

5 GHz band: 100mW max.

APPENDIX

Special for new European standard

The ordered parts in the following table can be acquired from Service provider

channel

Ordered part Provided by

Minimum time required for Provision

Thermostats Professional maintenance

personnel
