Broil King Regal Q 590 Pro IR Gas Grill 875 sq. in. BK688247

Product's Documents

Below are documents related to this product, you can read online or download:
Installation Instruction Other Documents
Main documentSpecificationQuestions and answersRelateds Products
BK688247 photo

Assembly Manual.

This is the main product document for model BK688247.

The file format is pdf, 20 pages, you can download this manual here .

background
ASSEMBLY MANUAL & PARTS LIST MANUEL DE MONTAGE & LISTE DE PIECES
RETAIN FOR FUTURE REFERENCE VEUILLEZ CONSERVER POUR REFERENCE ULTERIEURE
[email protected]
1-800-265-2150
20084-E59 REV D 09/20
REGAL S590 PRO IR
9589-44
9589-47
background

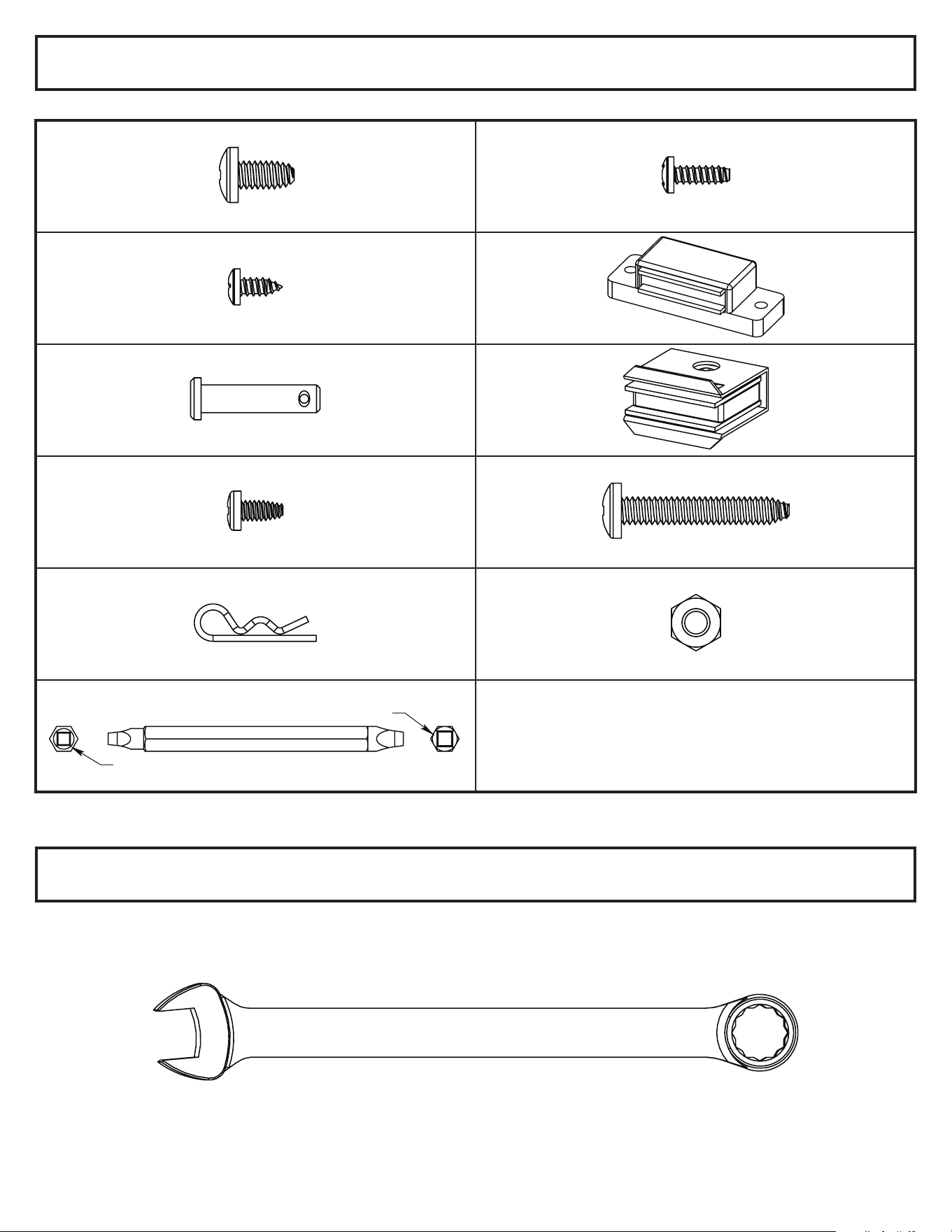

HARDWARE INCLUDED / MATERIAL INCLUS / EQUIPOS INCLUIDO
TOOLS REQUIRED / OUTILS NECESSAIRES / HERRAMIENTAS NECESARIAS
Y-12865 (26) S21124 (8)
S21125 (4) Y-12222 (2)
S21235 (2) Y-12223 (2)
Y-29304 (6) Y-11560 (4)
S21233 (2) Y-11793 (4)
7/16 [11 mm]
#3 ROBERTSON
#2 ROBERTSON
background

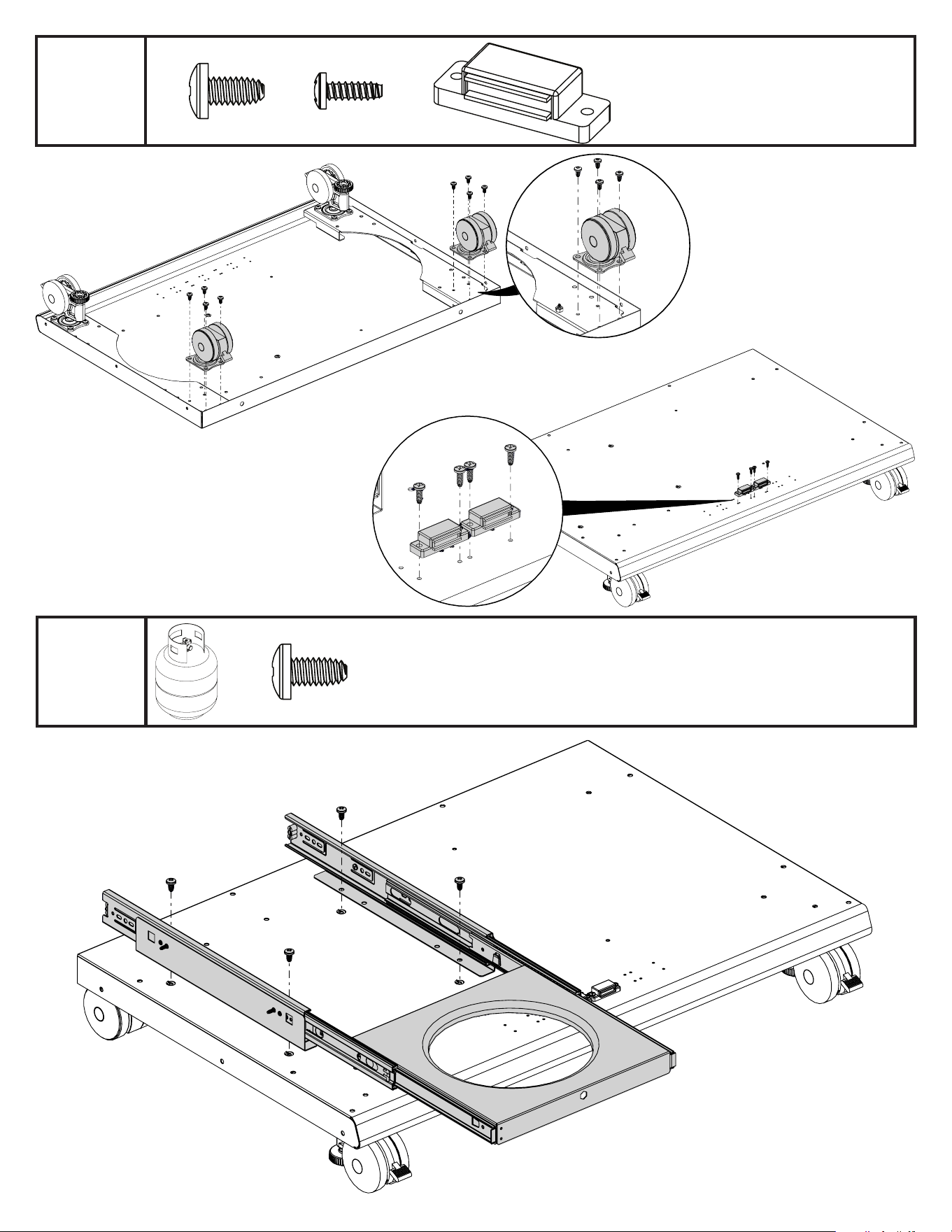

1
(8) (4) (2)
2
(4)
background

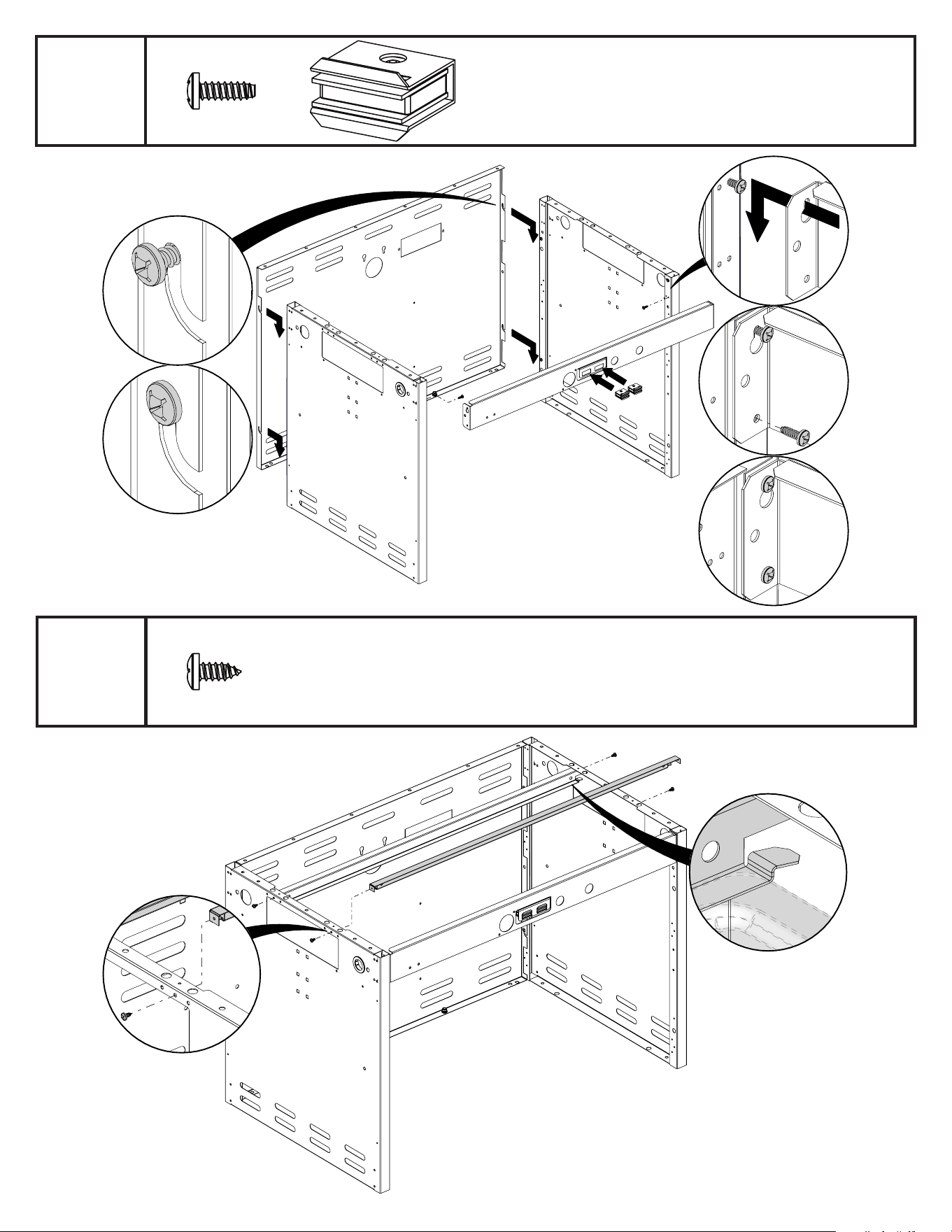

3
(2) (2)
4
(4)
background

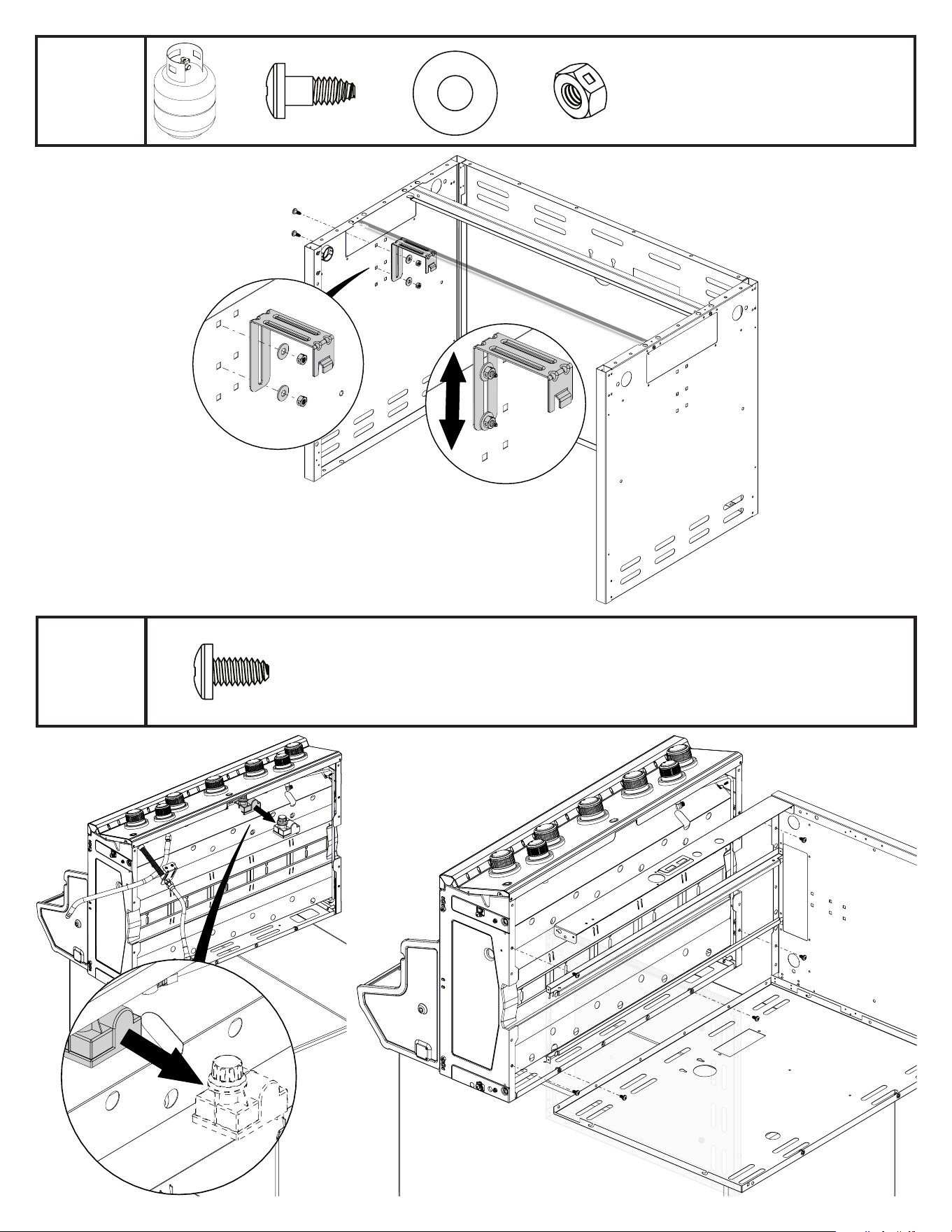

5
(2) (2) (2)
6
(6)
background

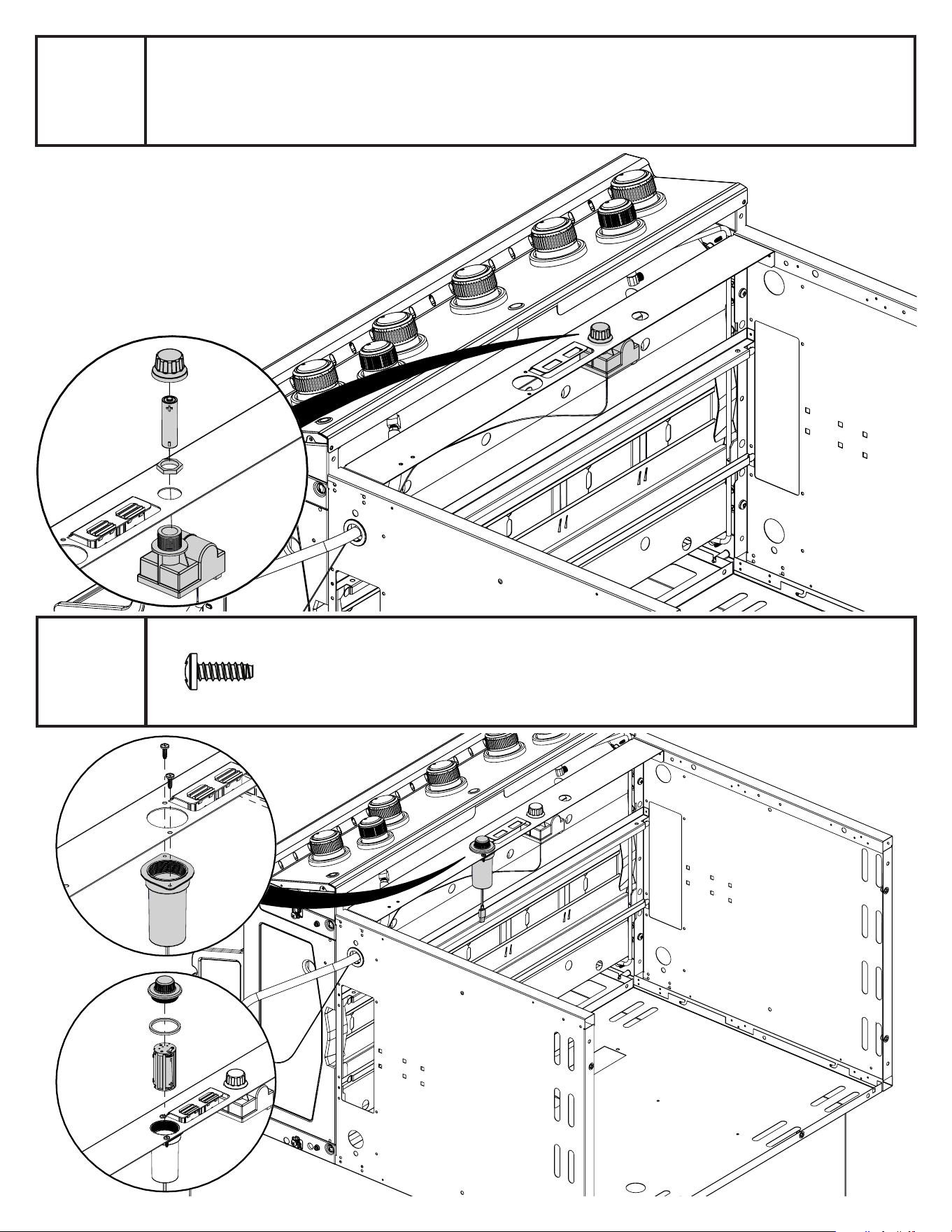

7
8
(2)
background

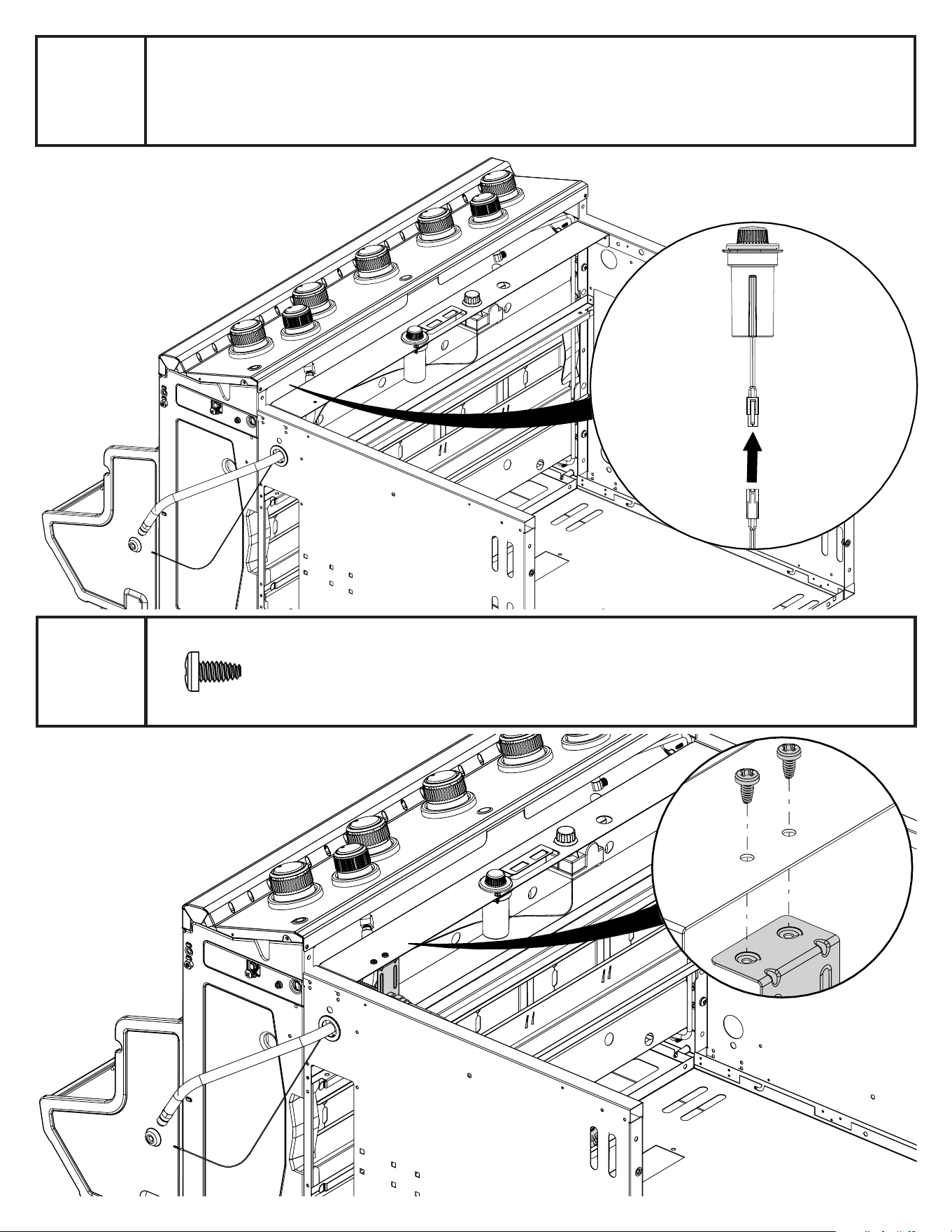

9
10
(2)
background

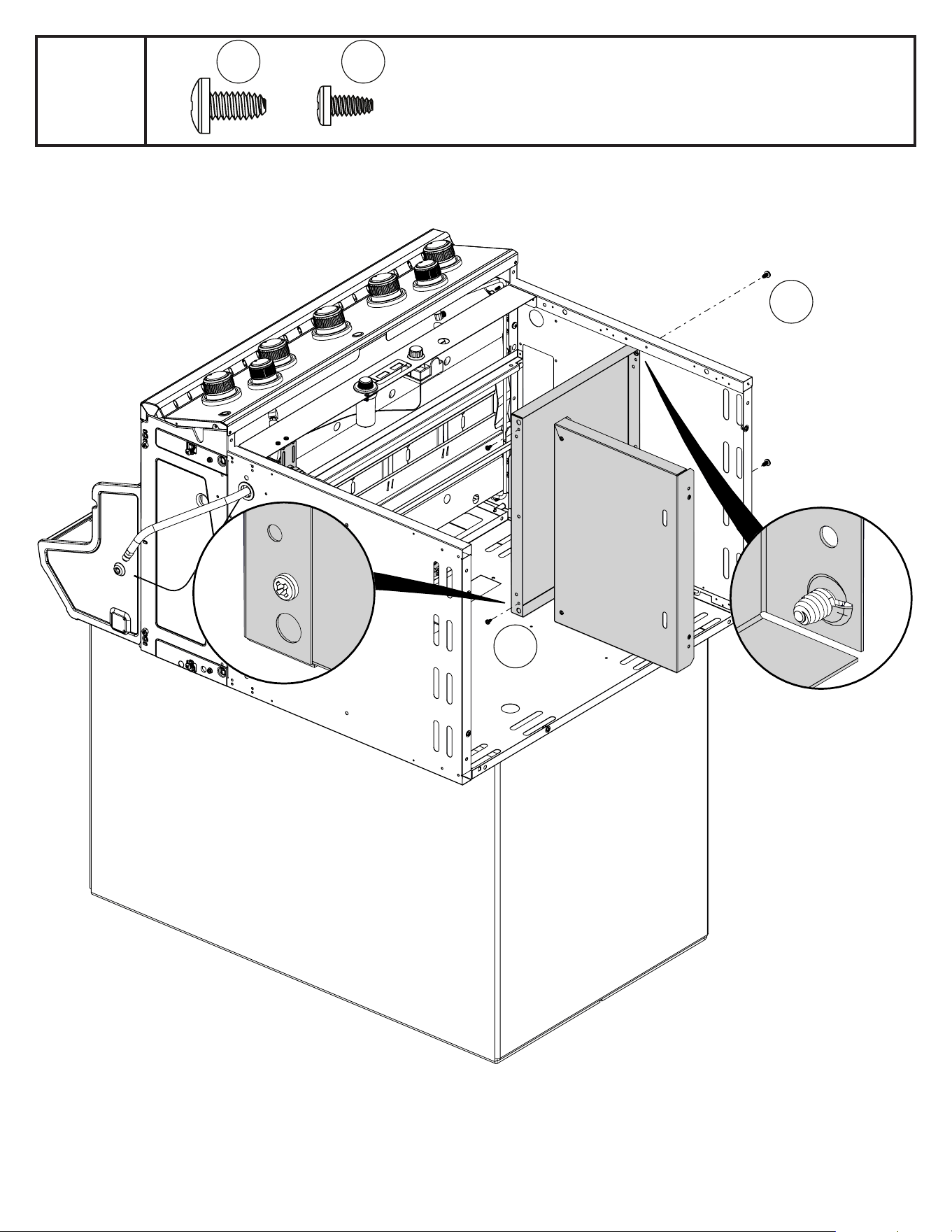

11
(2) (2)
A
B
B
A
background

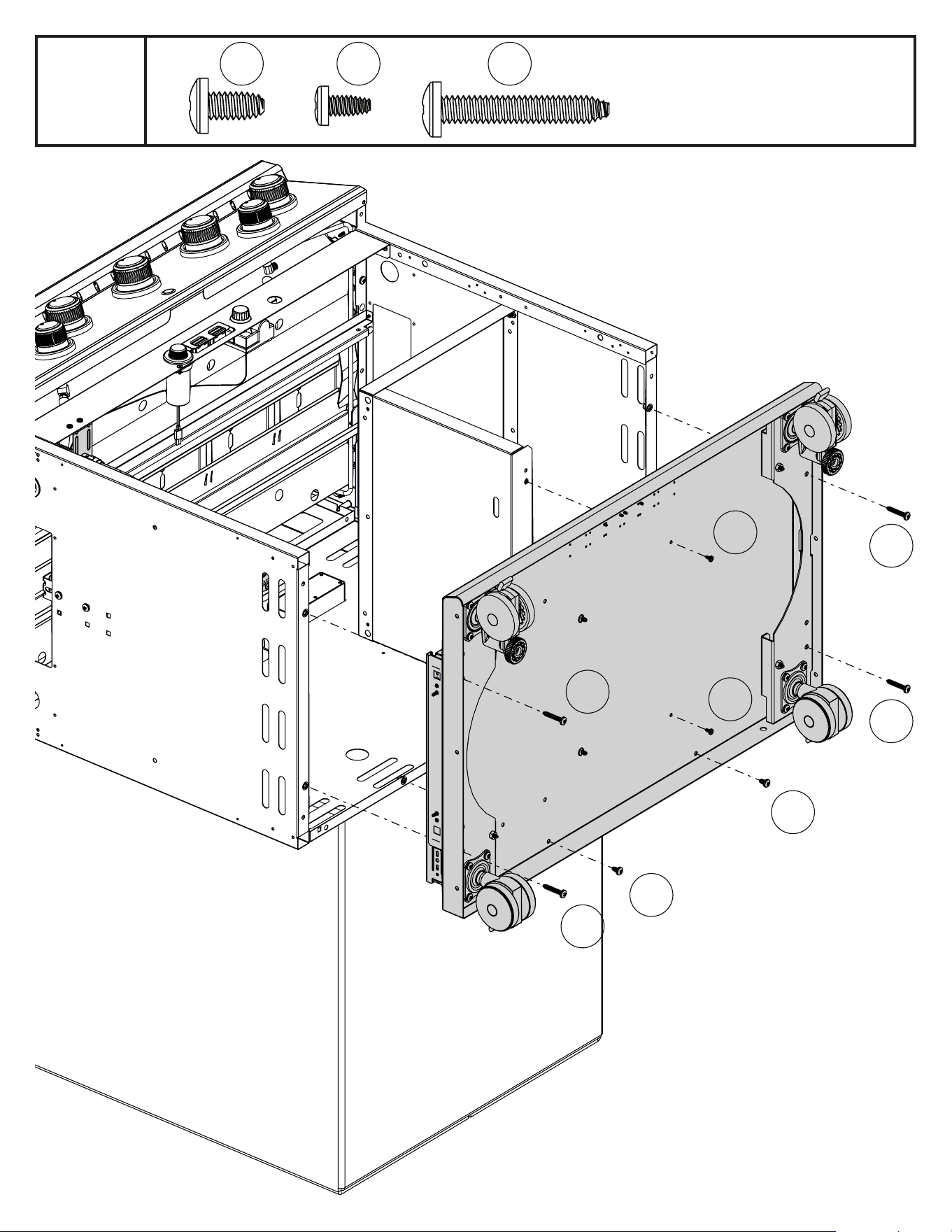

12
(2) (2) (4)
A
A
A
B
B
B
C
C
C
C
C
background

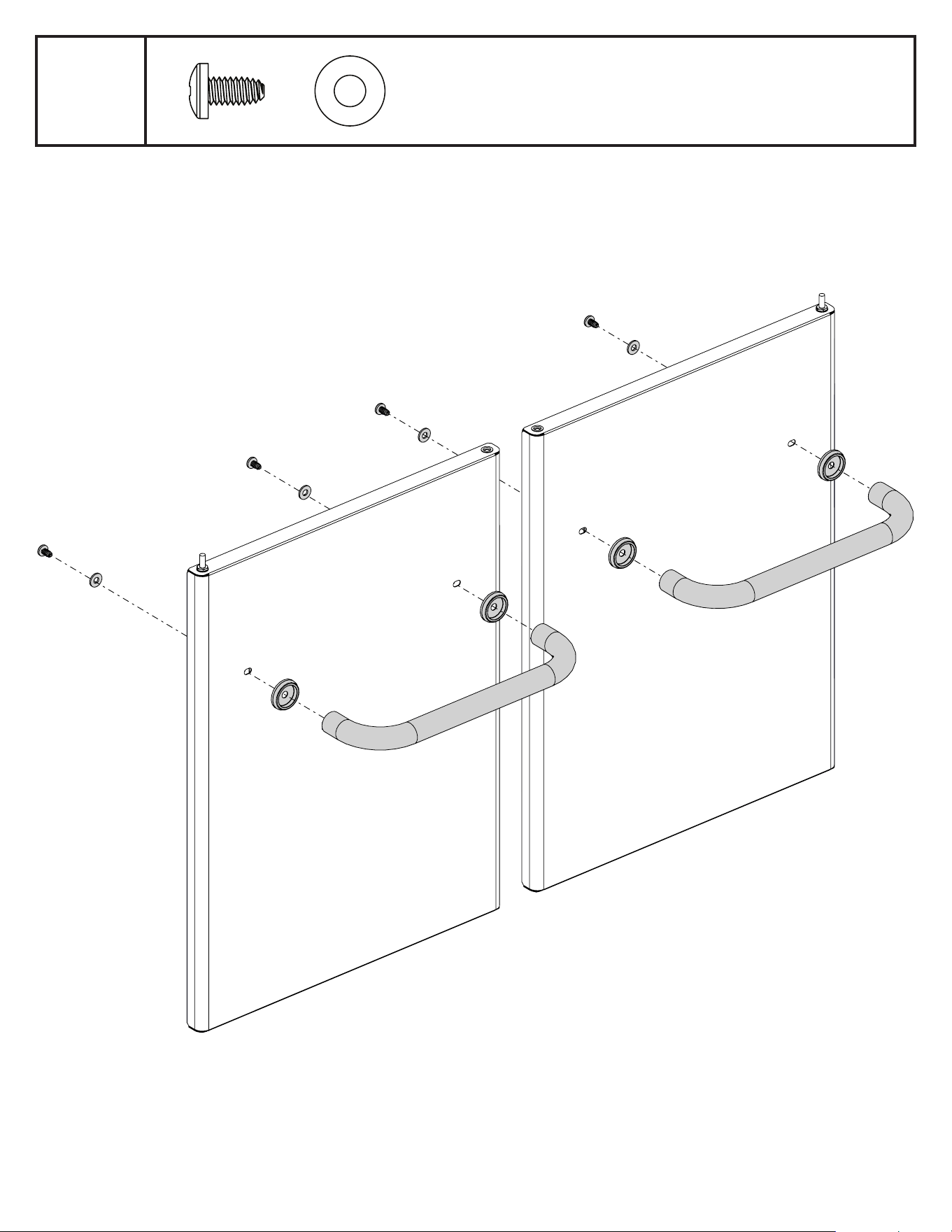

13
(4) (4)
background

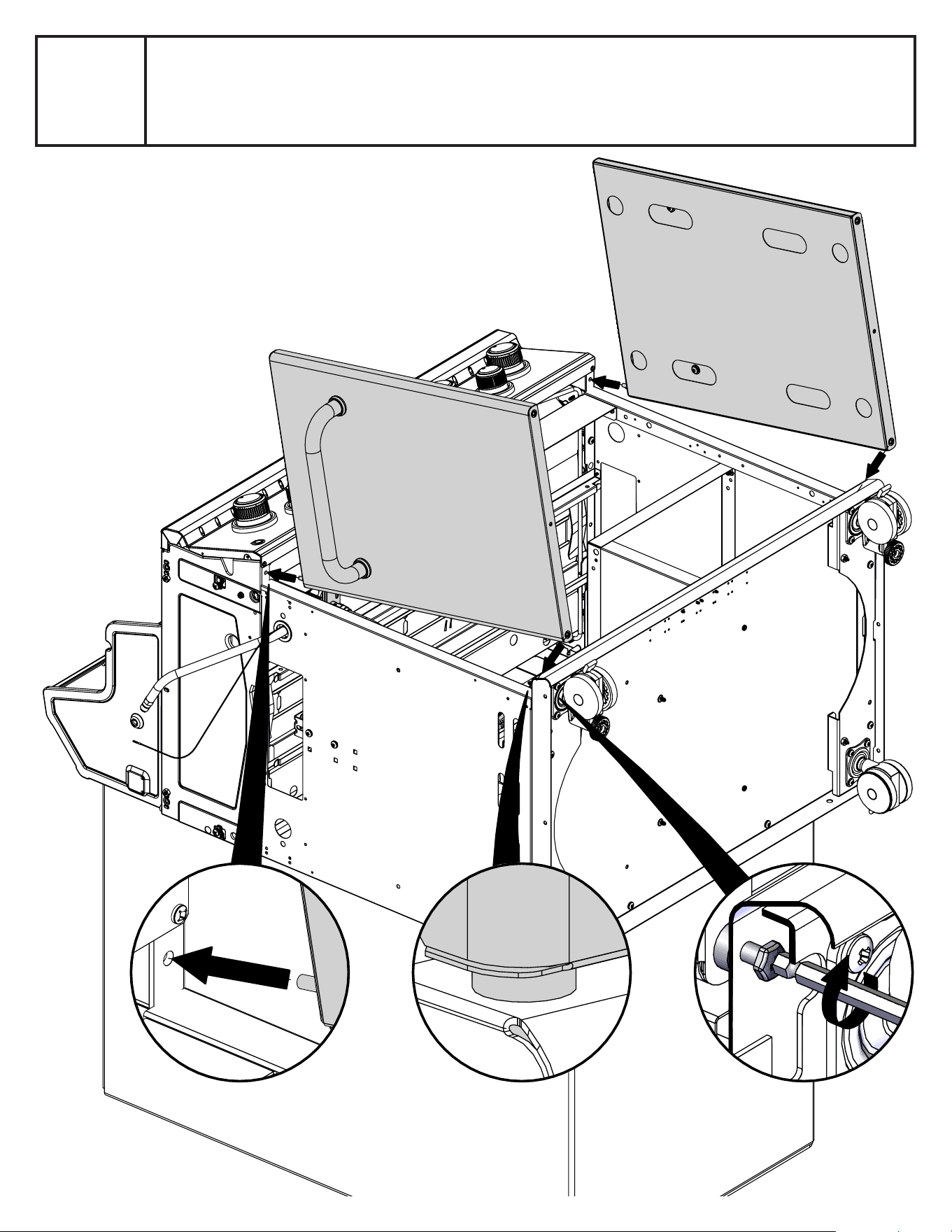

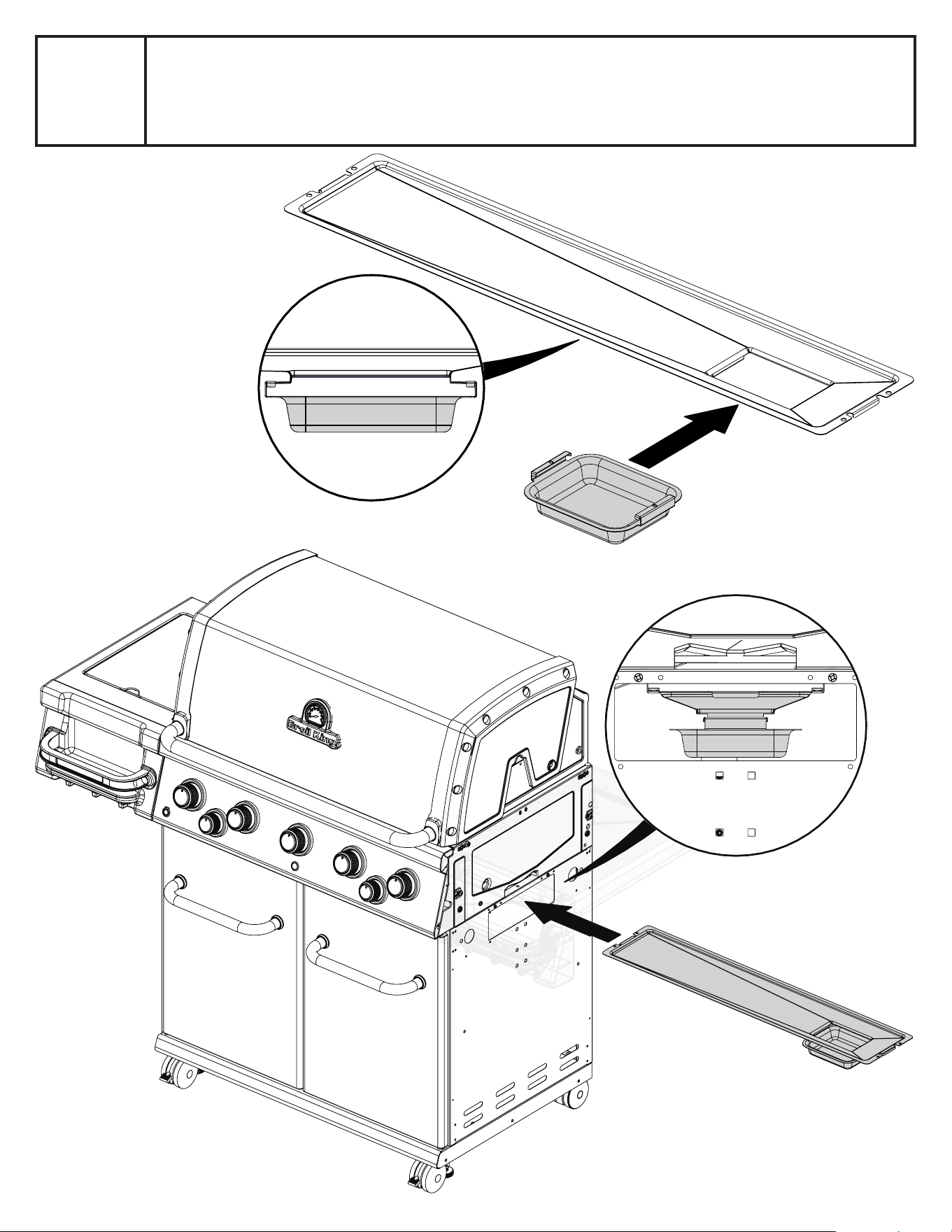

14
background

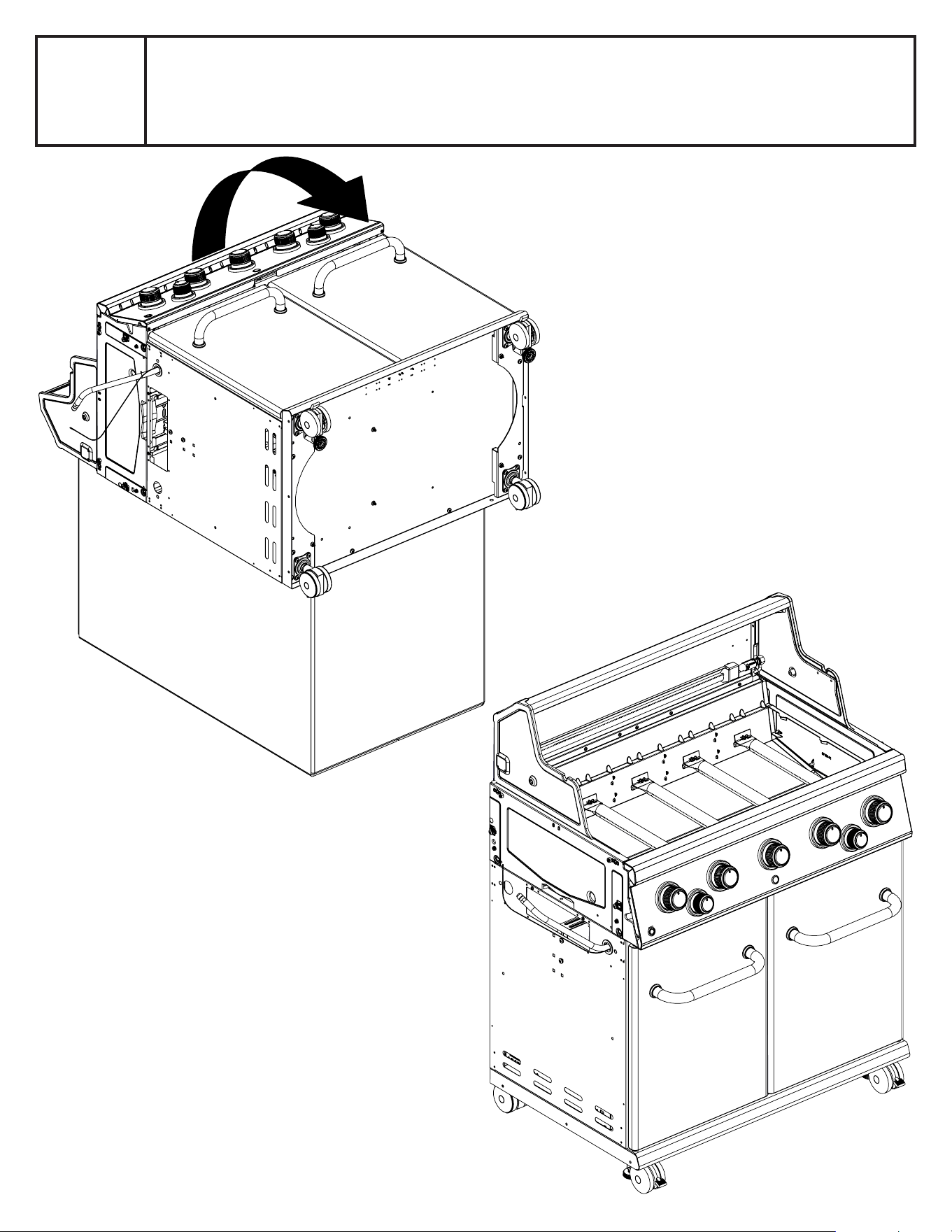

15
background

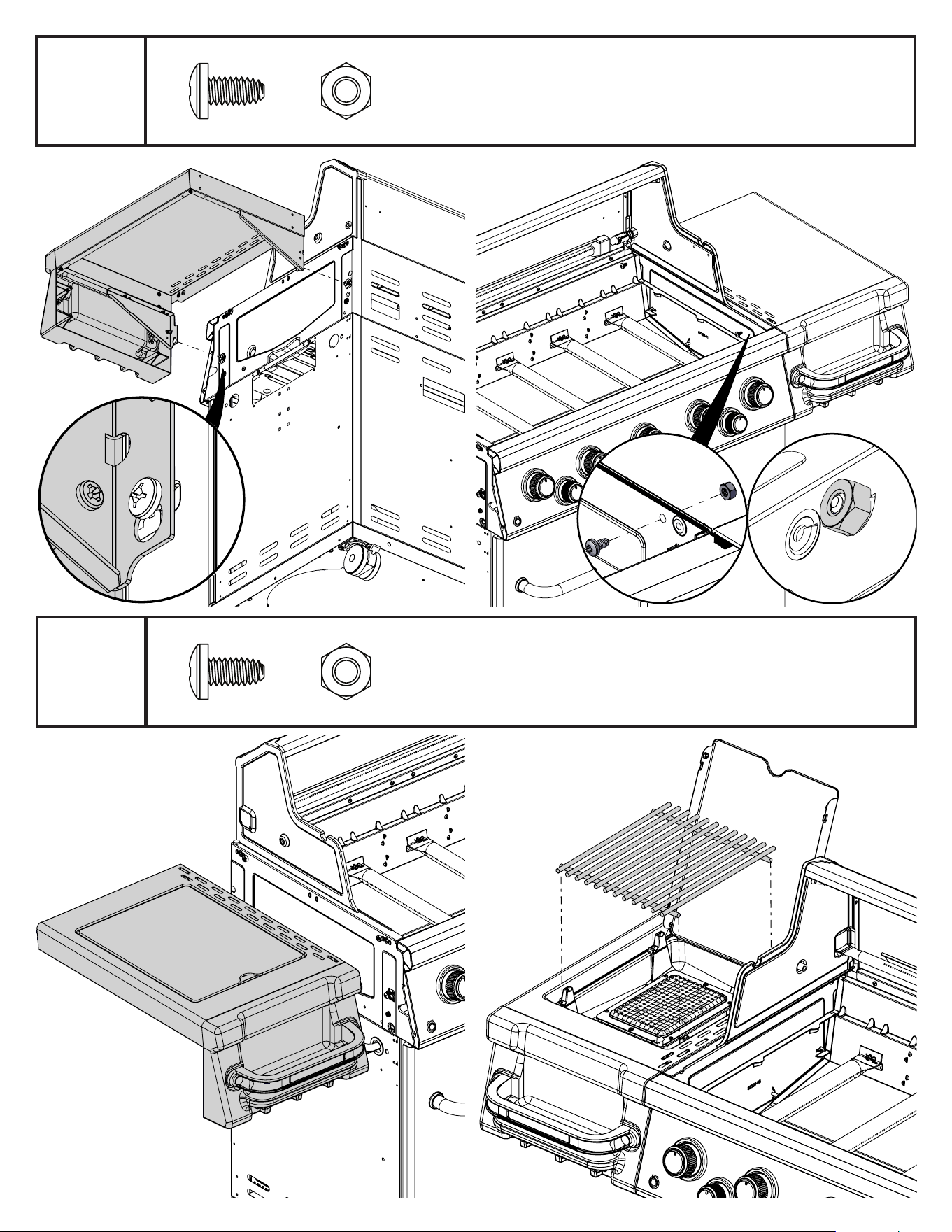

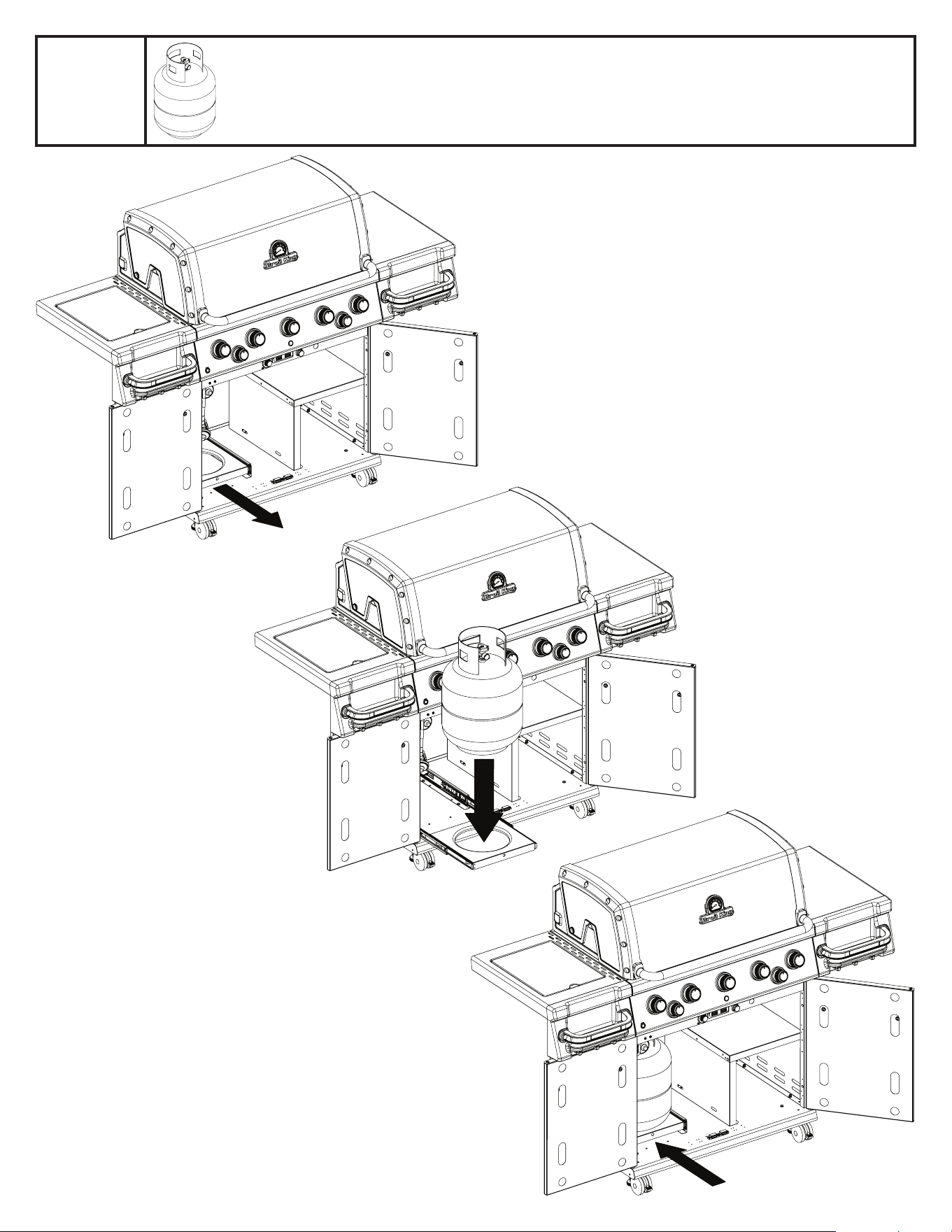

16
(2) (2)
17
(2) (2)
background

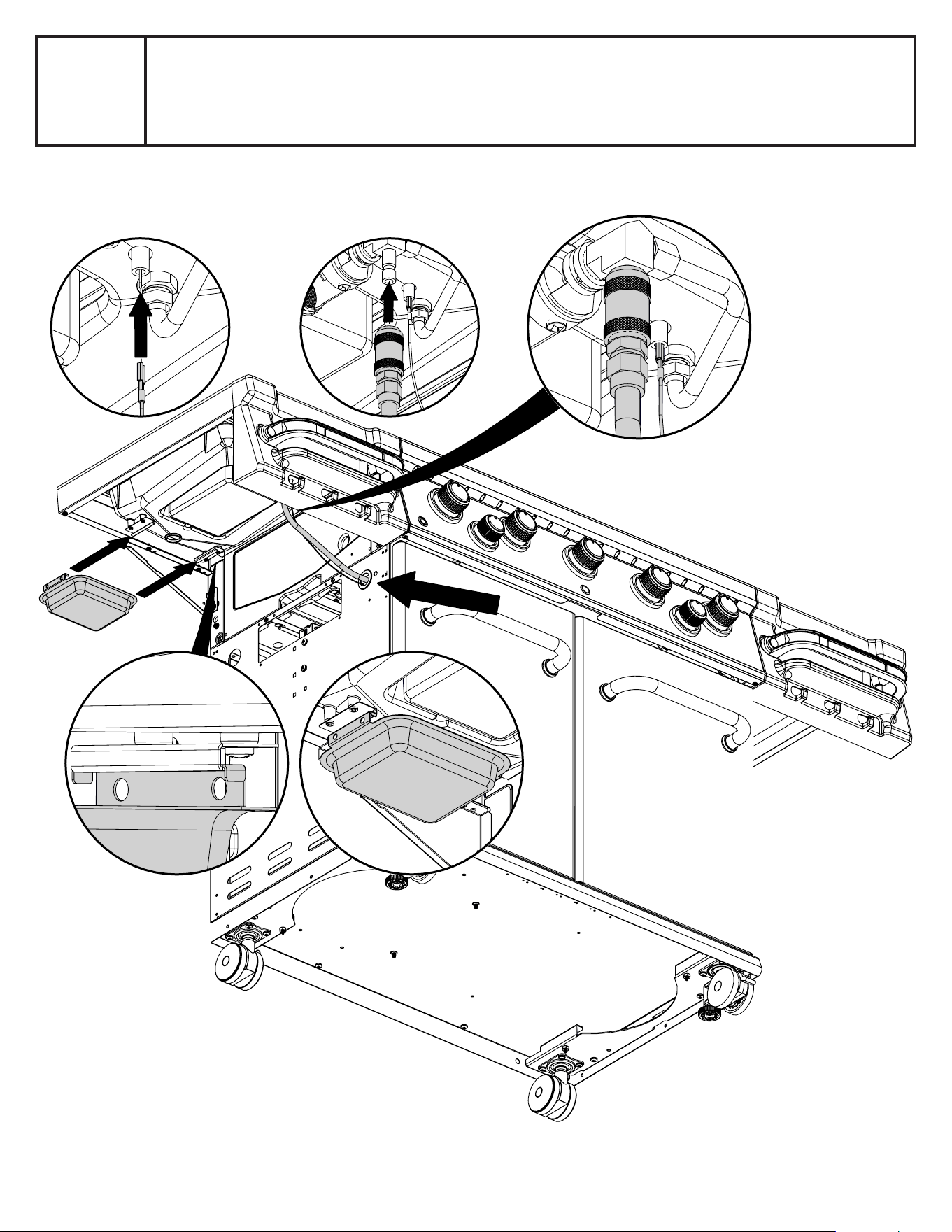

18
background

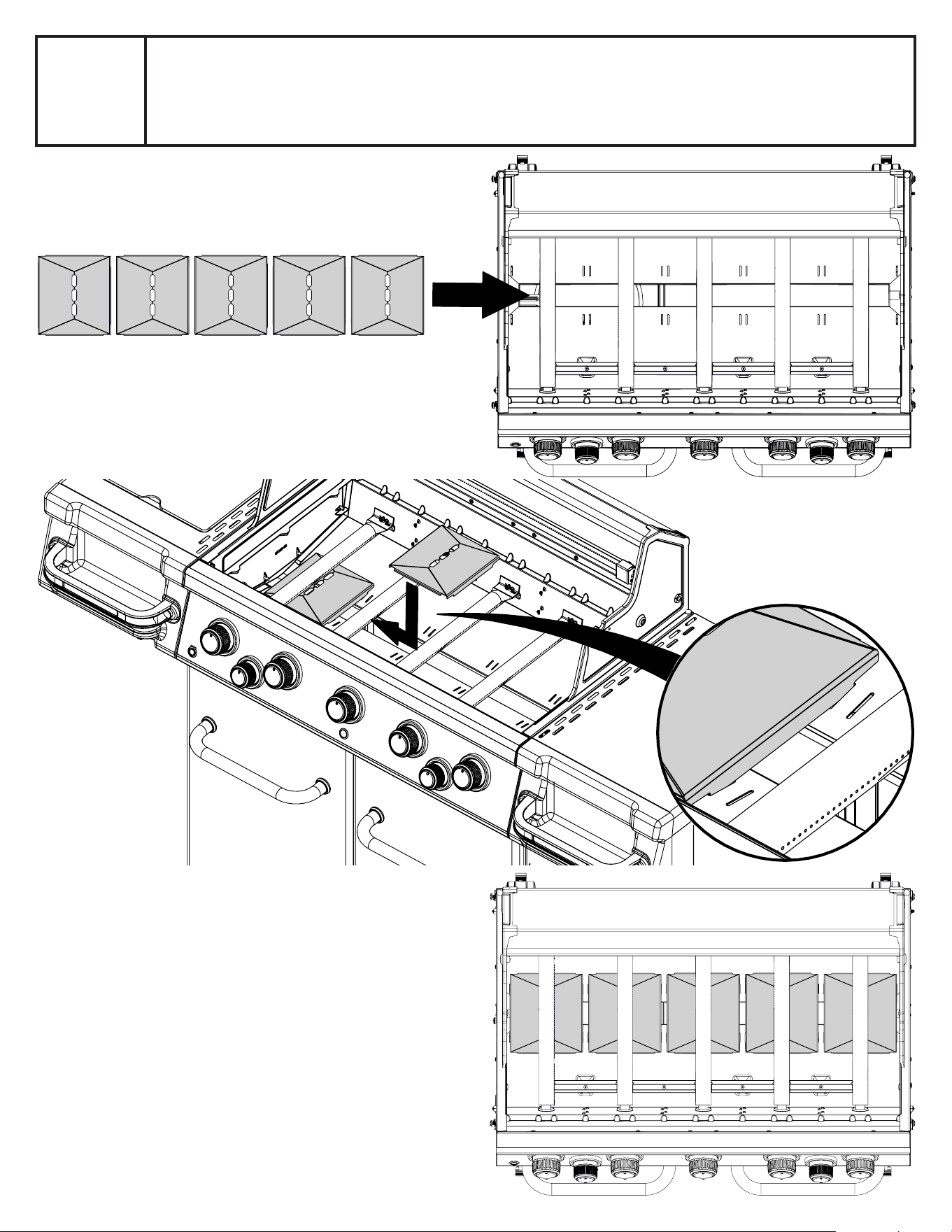

19
background

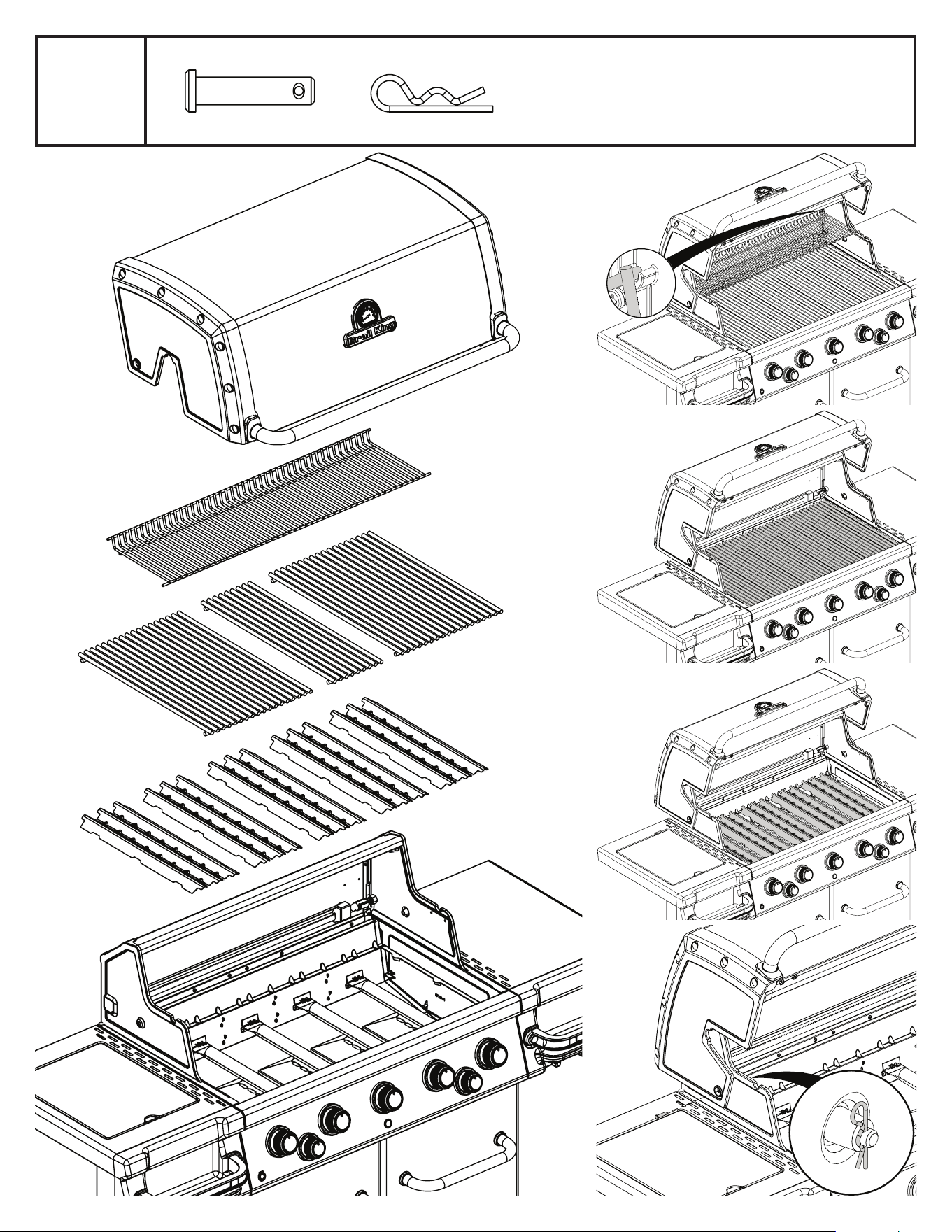

20
(2) (2)
background
21
background

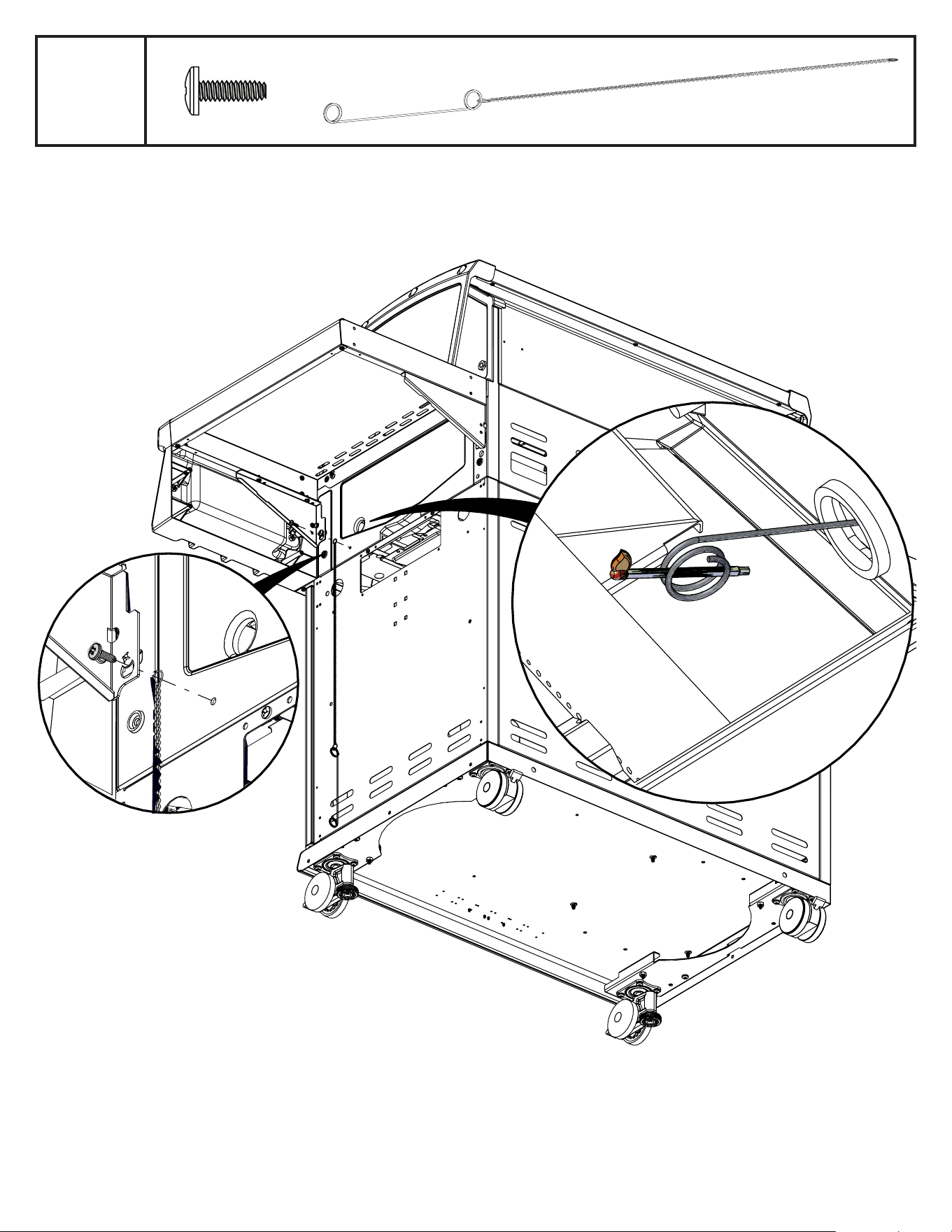

22
(1) (1)
background
23
background

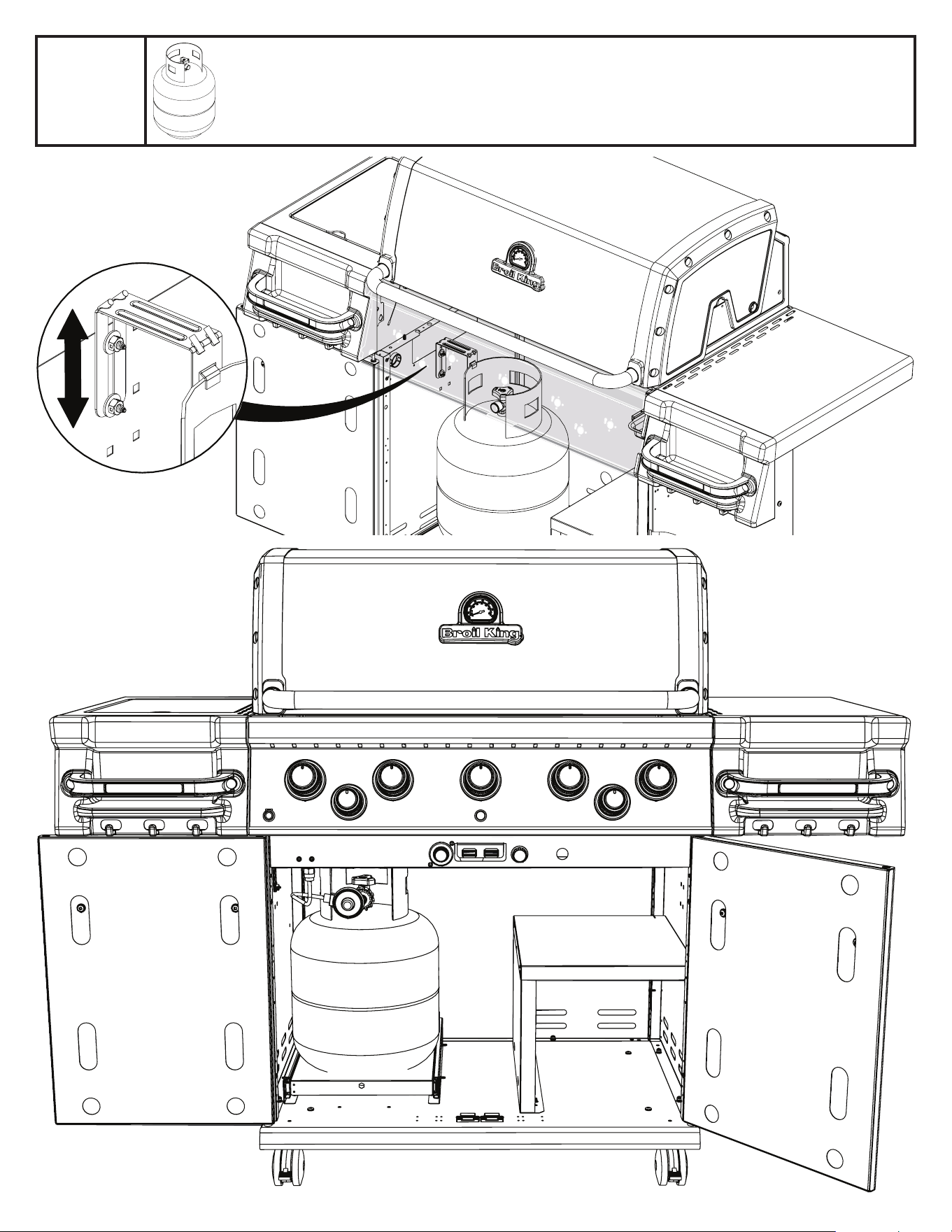

24
