Assembly Manual.

This is the main product document for model BK688244.

The file format is pdf, 20 pages, you can download this manual here .

background
ASSEMBLY MANUAL & PARTS LIST MANUEL DE MONTAGE & LISTE DE PIECES
RETAIN FOR FUTURE REFERENCE VEUILLEZ CONSERVER POUR REFERENCE ULTERIEURE
[email protected]
1-800-265-2150
20084-E59 REV D 09/20
REGAL S590 PRO IR
9589-44
9589-47
background

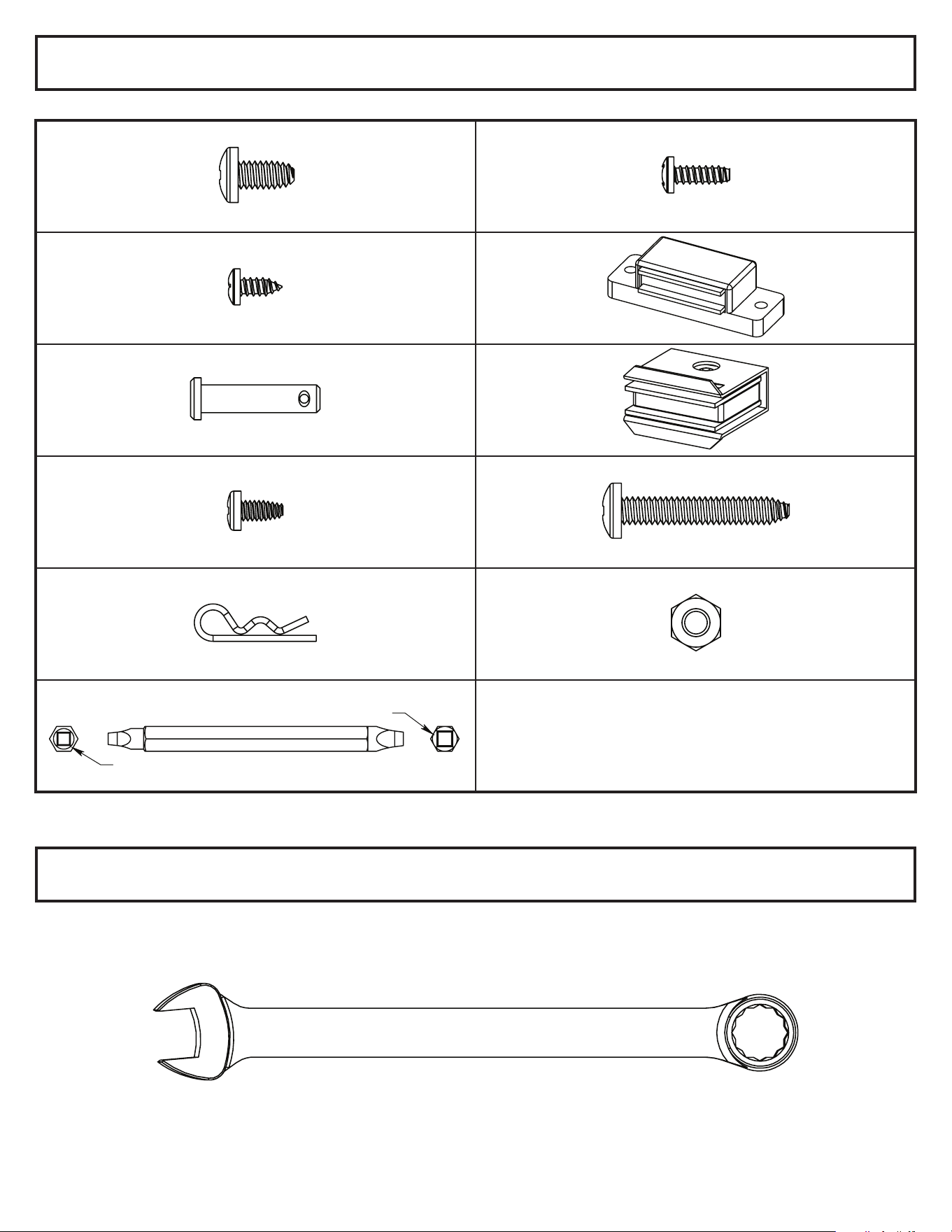

HARDWARE INCLUDED / MATERIAL INCLUS / EQUIPOS INCLUIDO
TOOLS REQUIRED / OUTILS NECESSAIRES / HERRAMIENTAS NECESARIAS
Y-12865 (26) S21124 (8)
S21125 (4) Y-12222 (2)
S21235 (2) Y-12223 (2)
Y-29304 (6) Y-11560 (4)
S21233 (2) Y-11793 (4)
7/16 [11 mm]
#3 ROBERTSON
#2 ROBERTSON
background

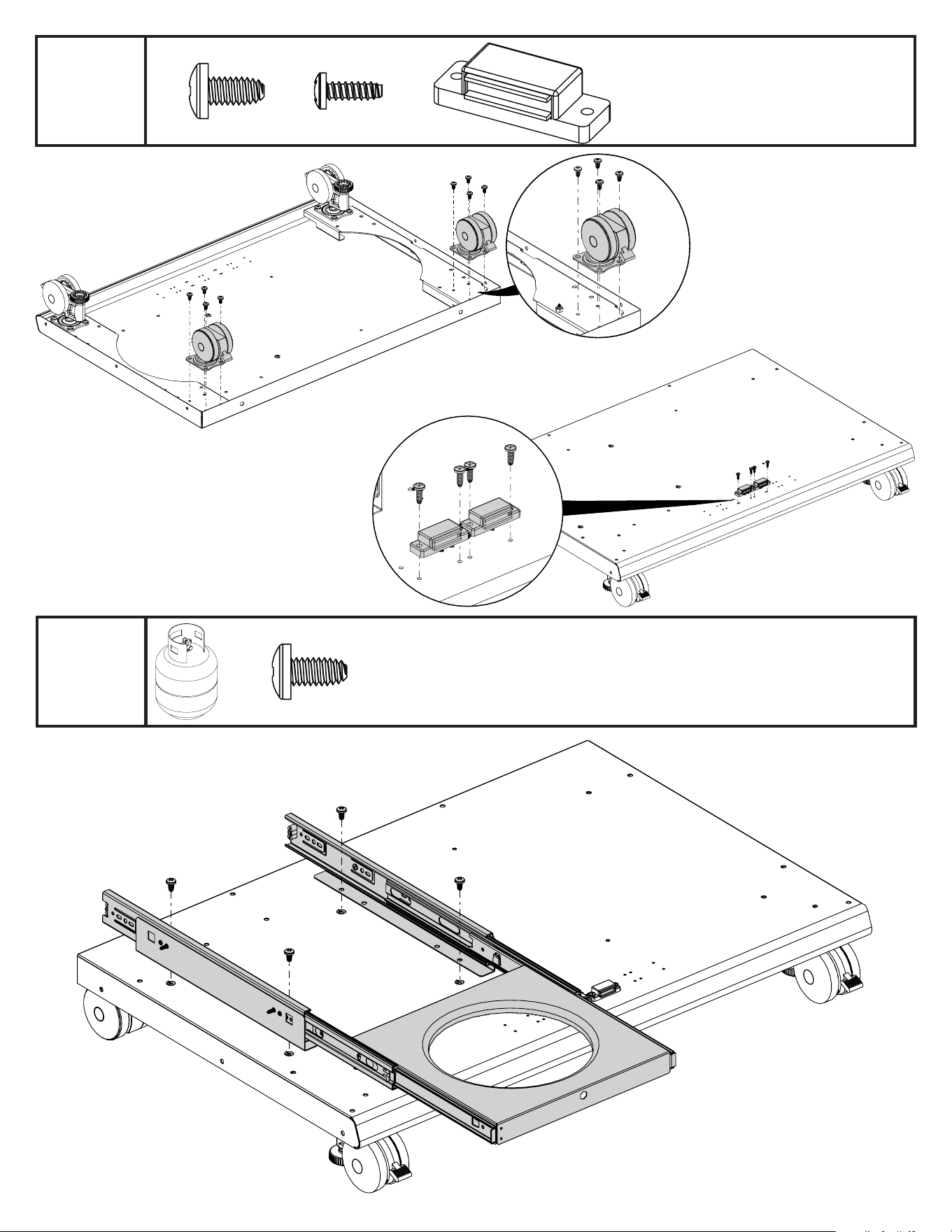

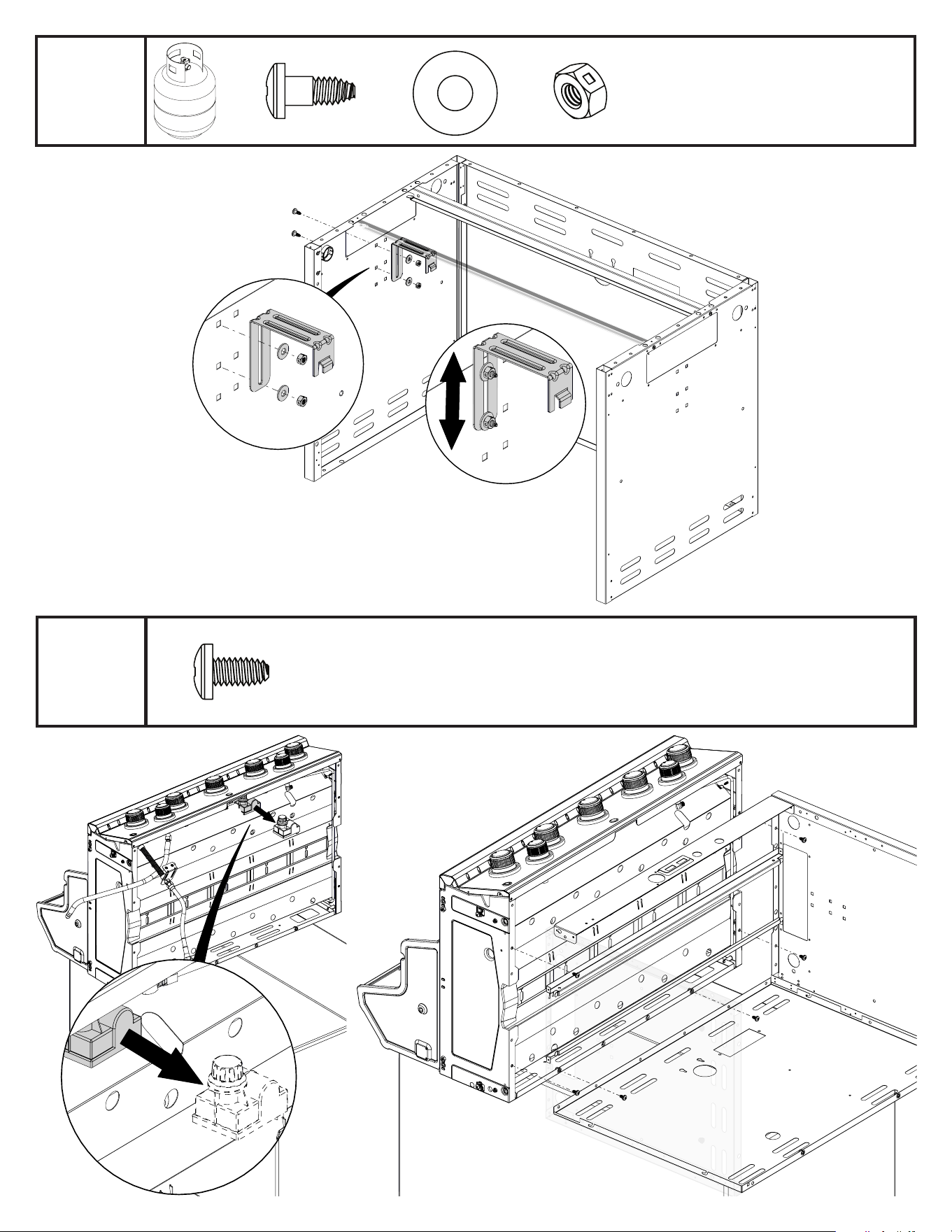

1
(8) (4) (2)
2
(4)
background

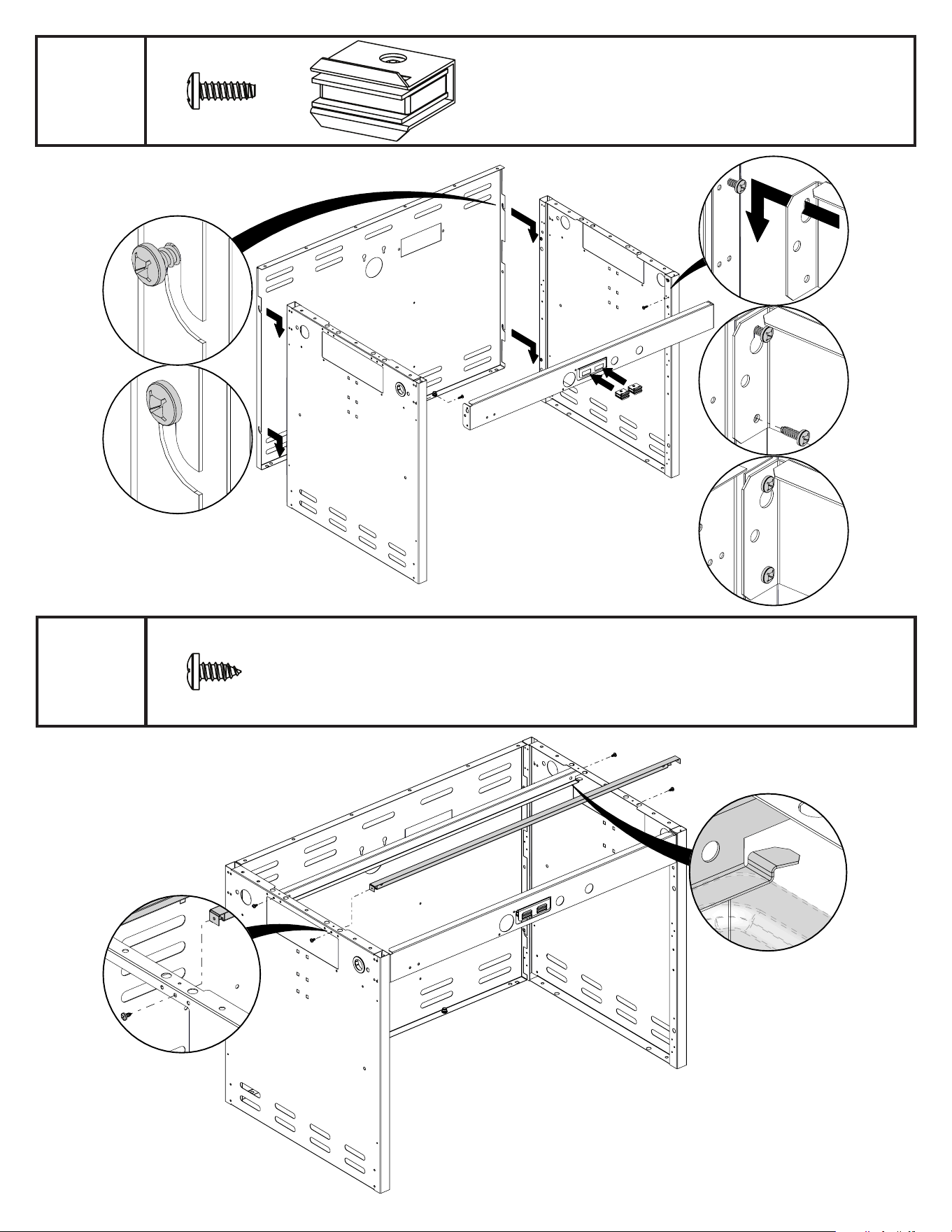

3
(2) (2)
4
(4)
background

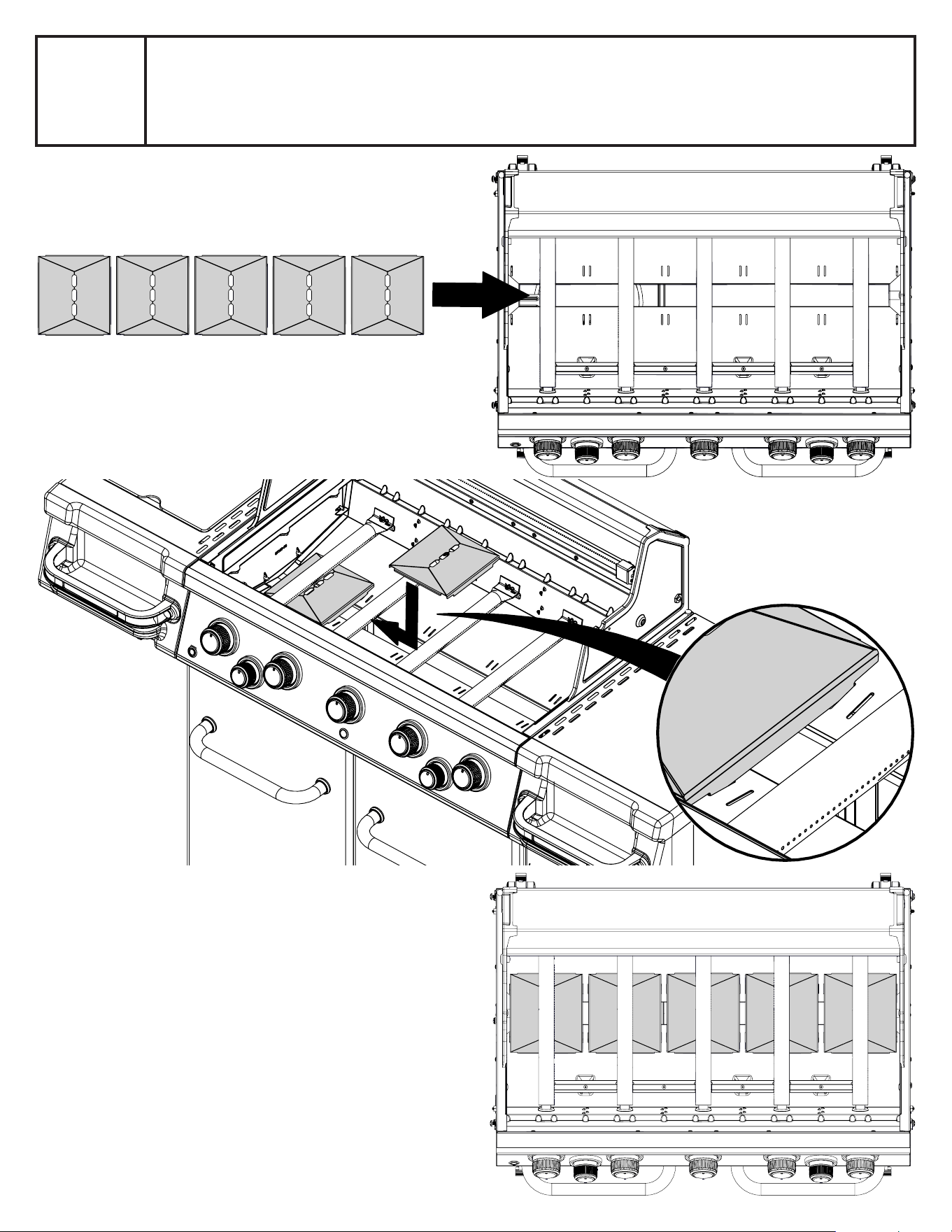

5
(2) (2) (2)
6
(6)
background

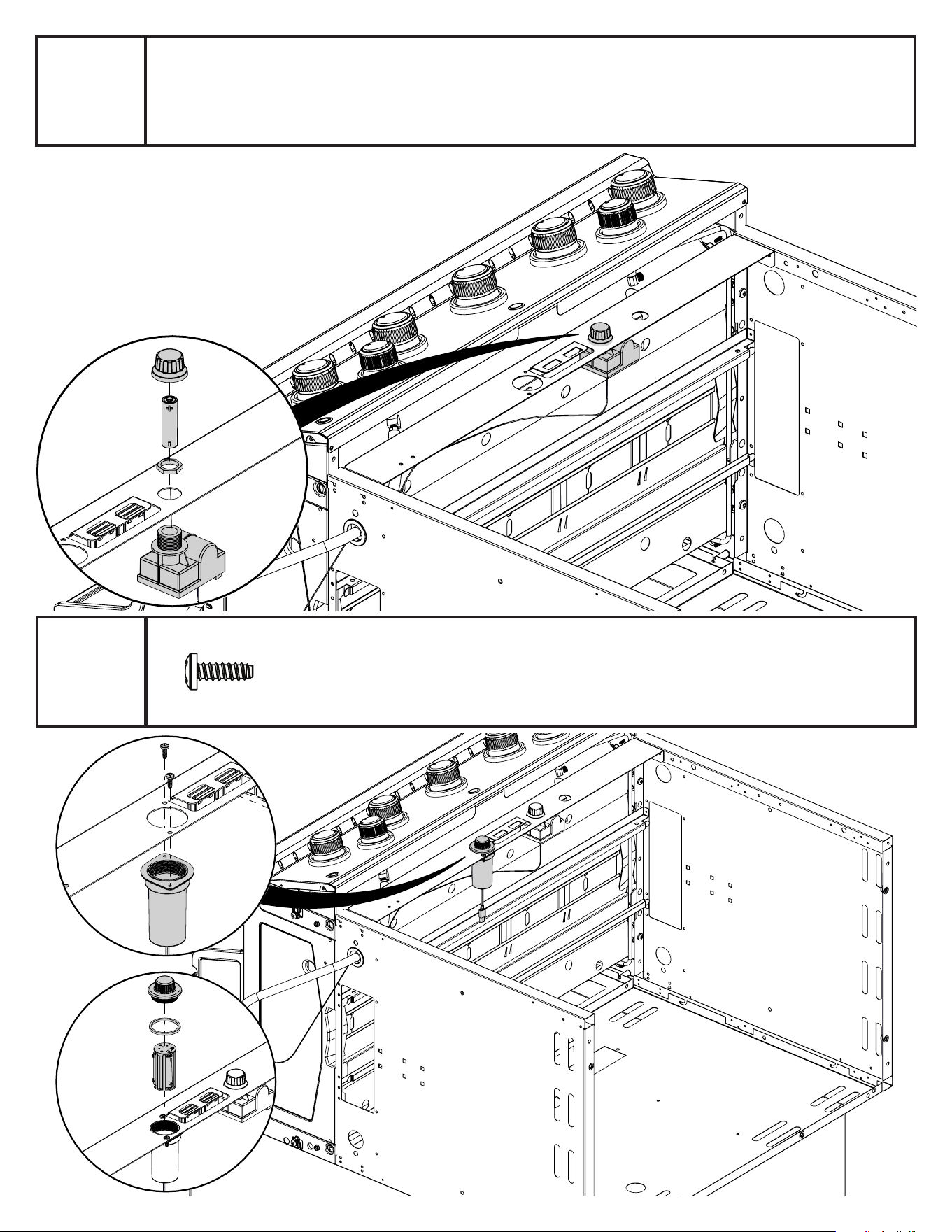

7
8
(2)
background

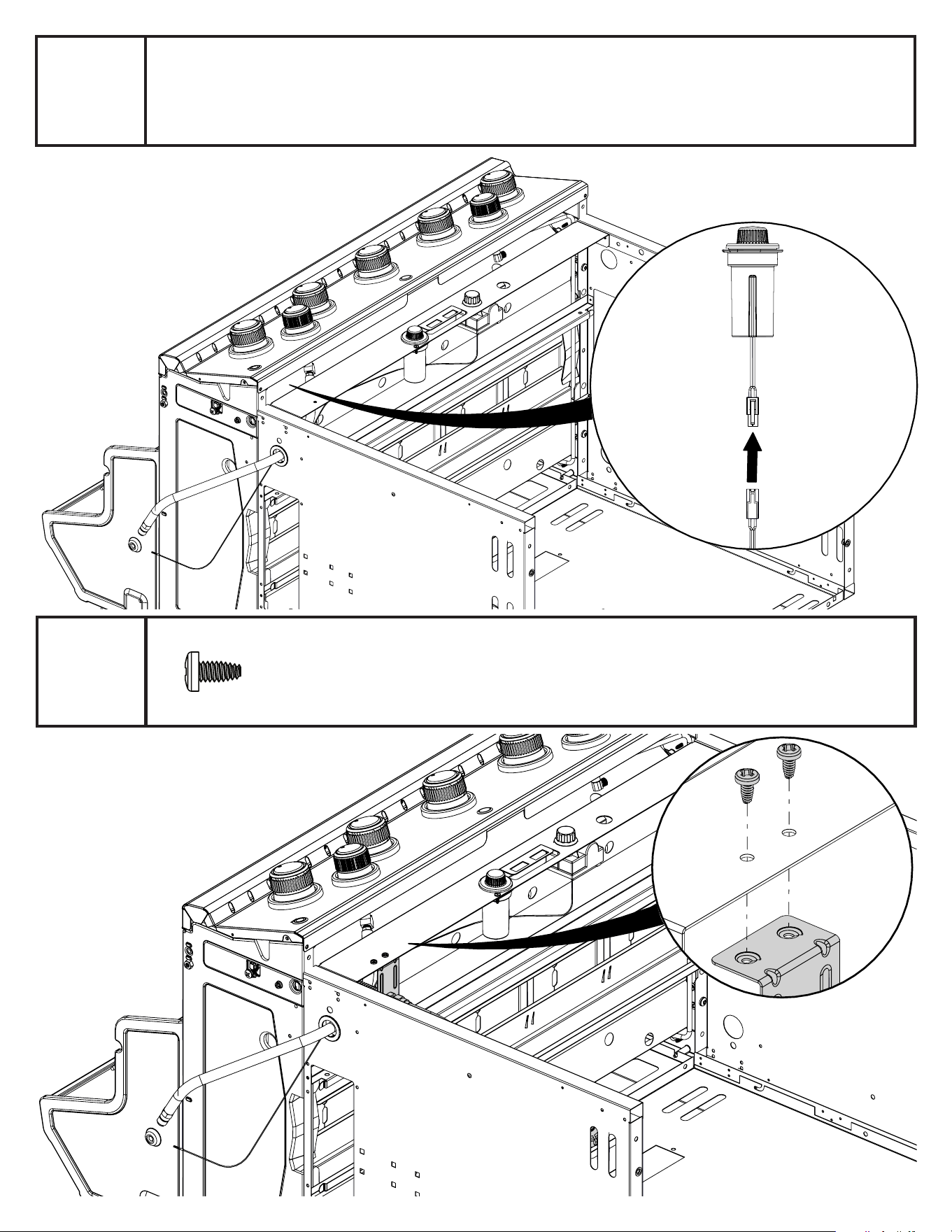

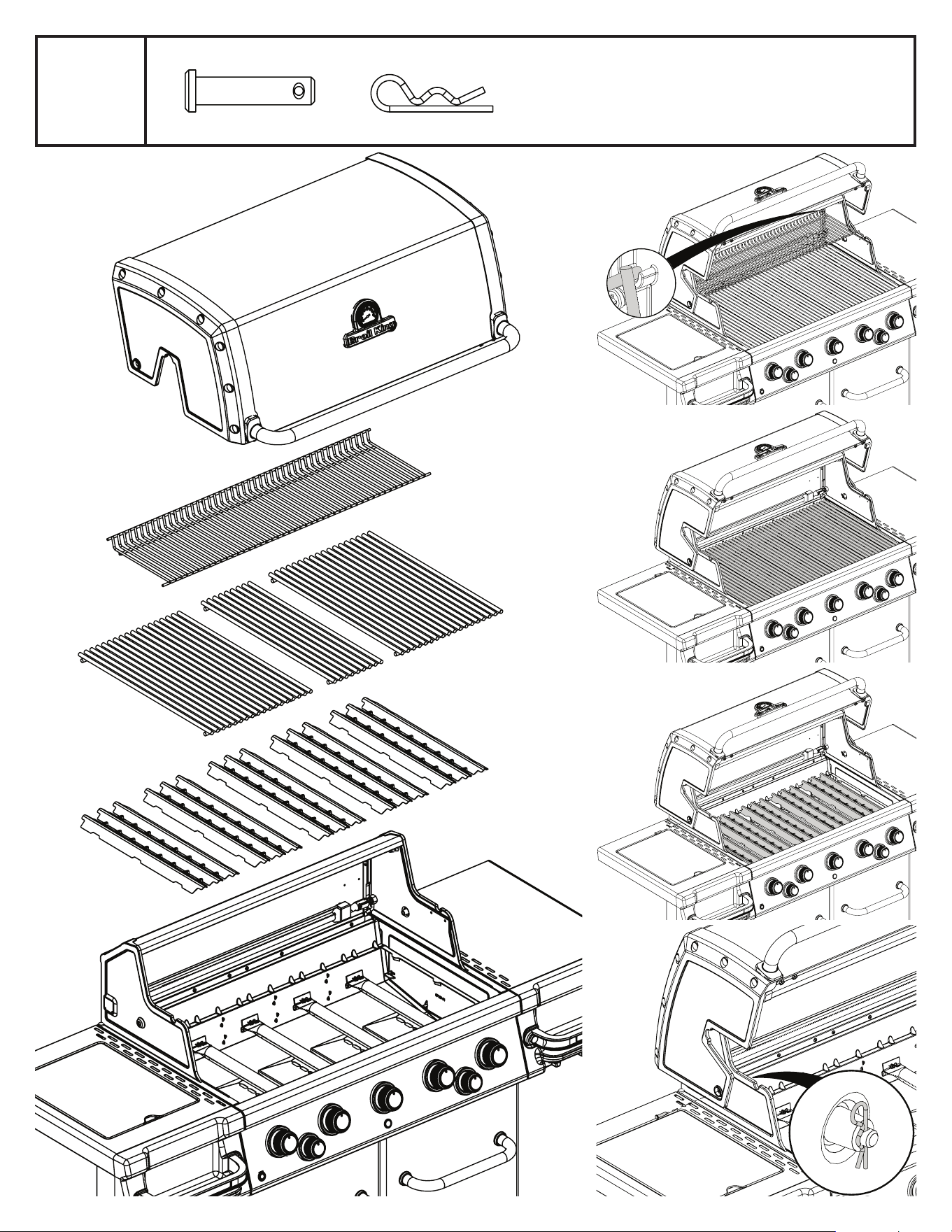

9
10
(2)
background

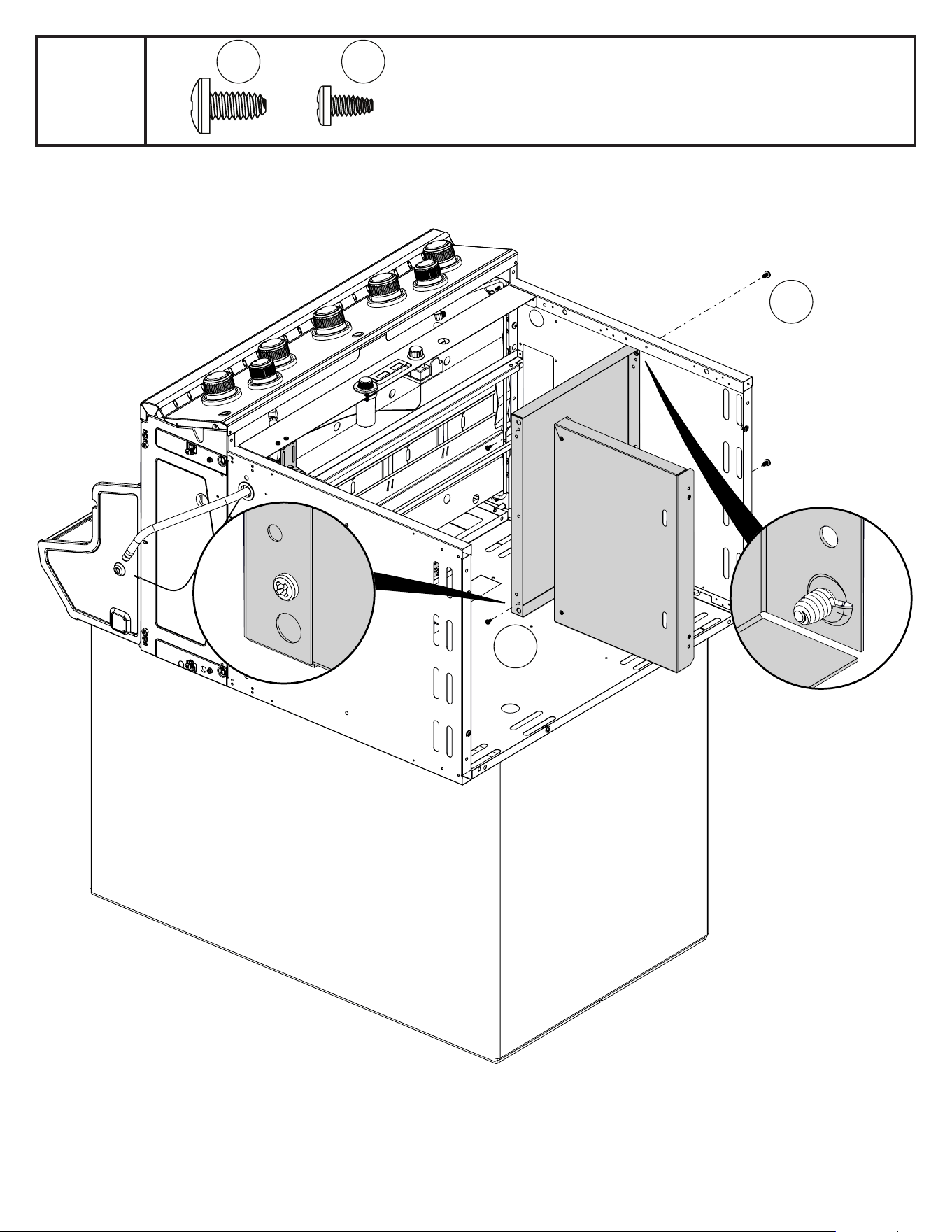

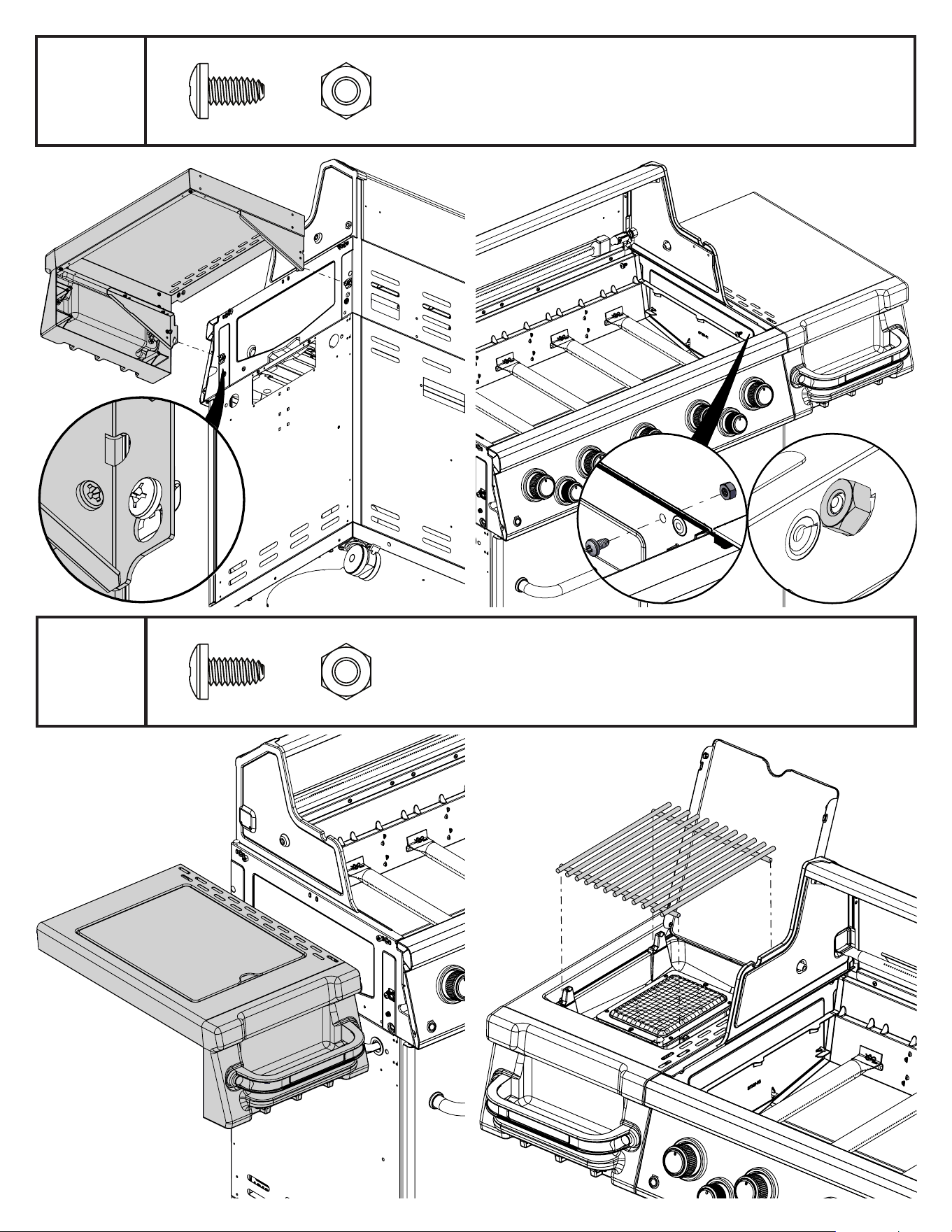

11
(2) (2)
A
B
B
A
background

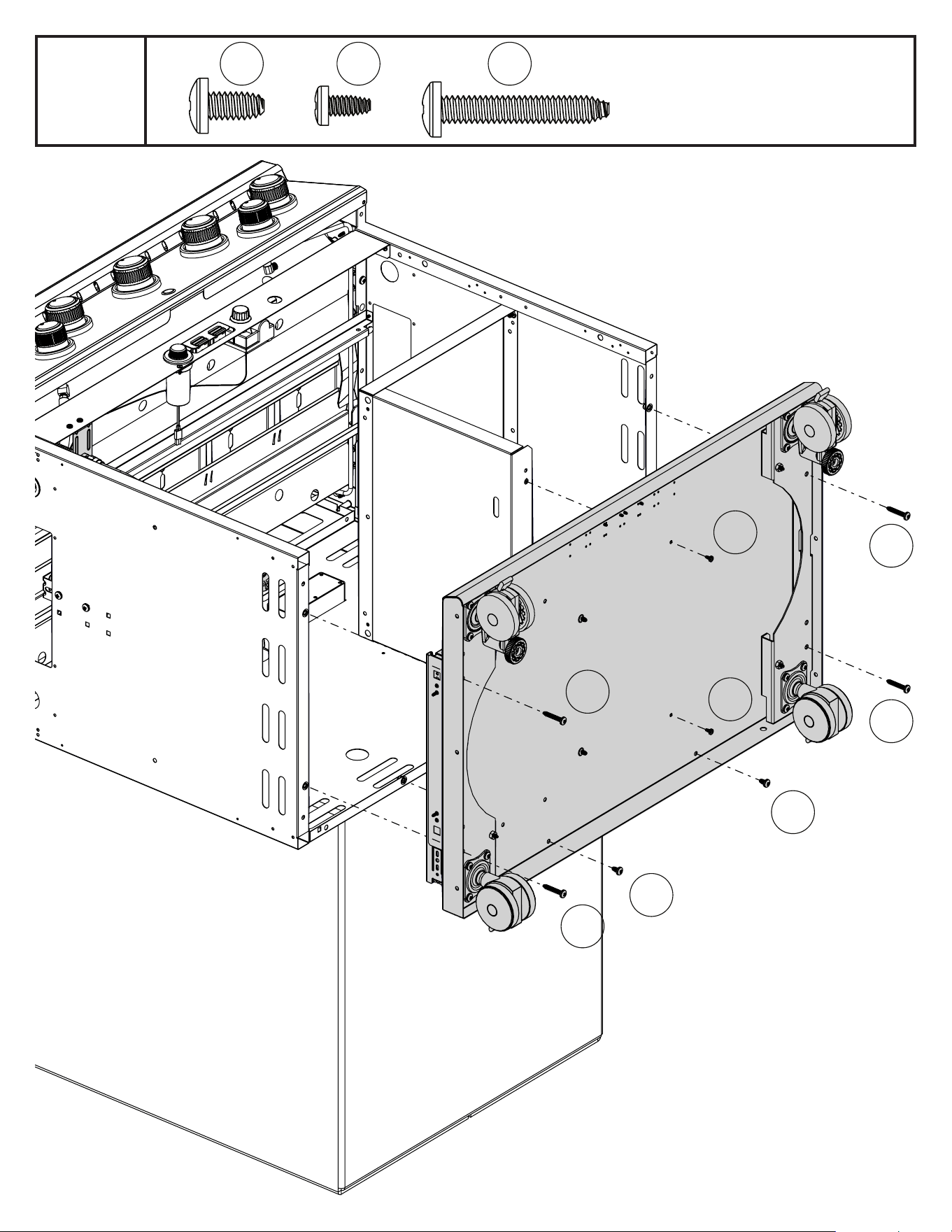

12
(2) (2) (4)
A
A
A
B
B
B
C
C
C
C
C
background

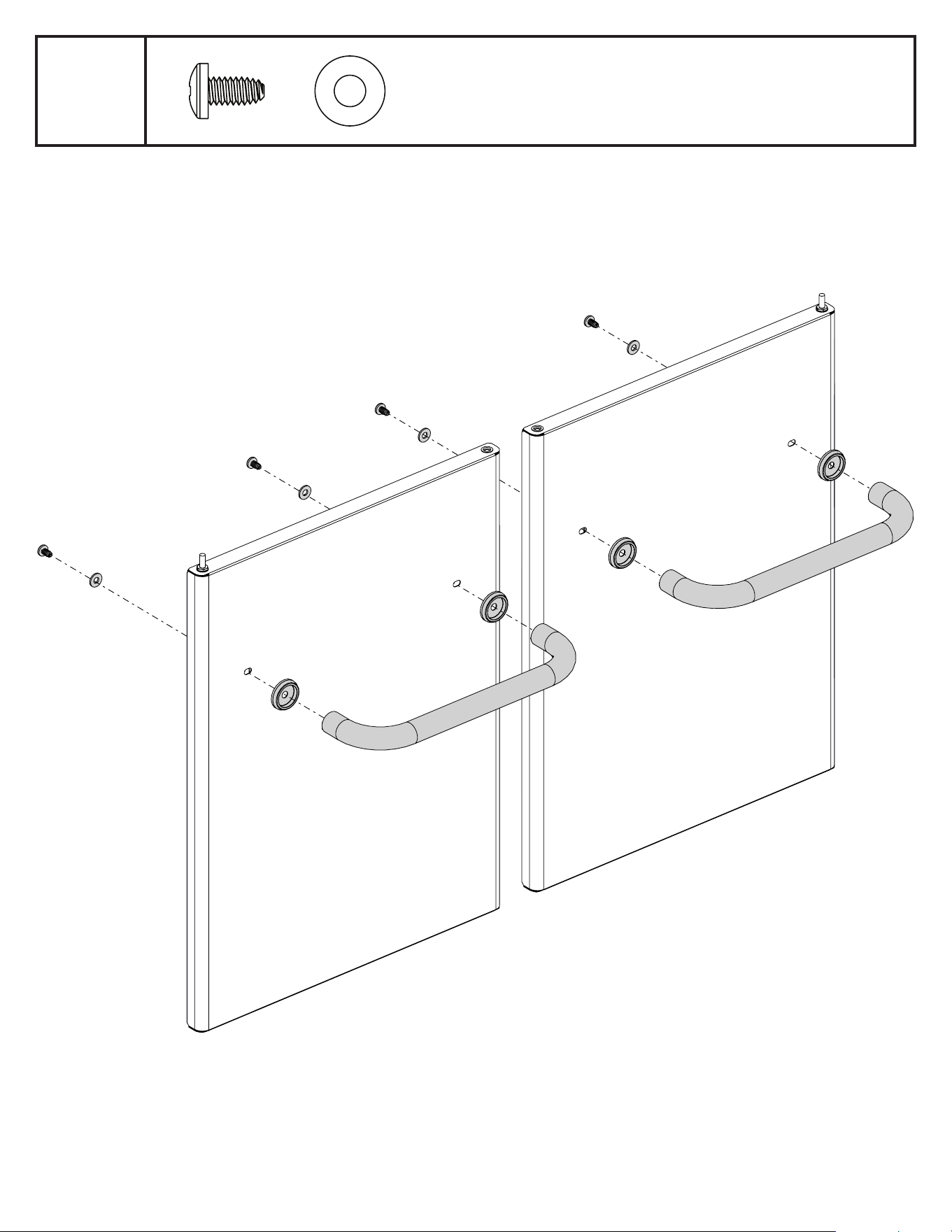

13
(4) (4)
background

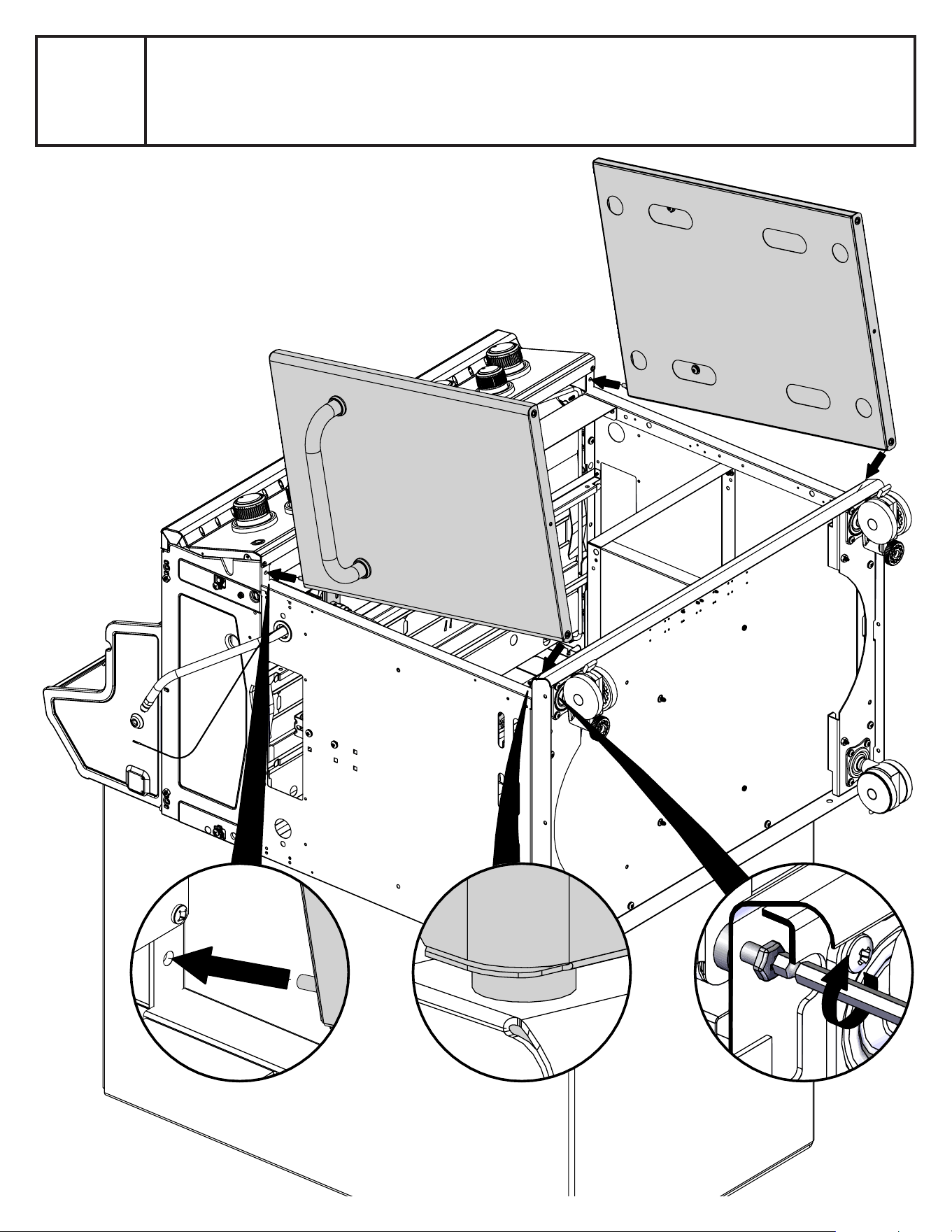

14
background

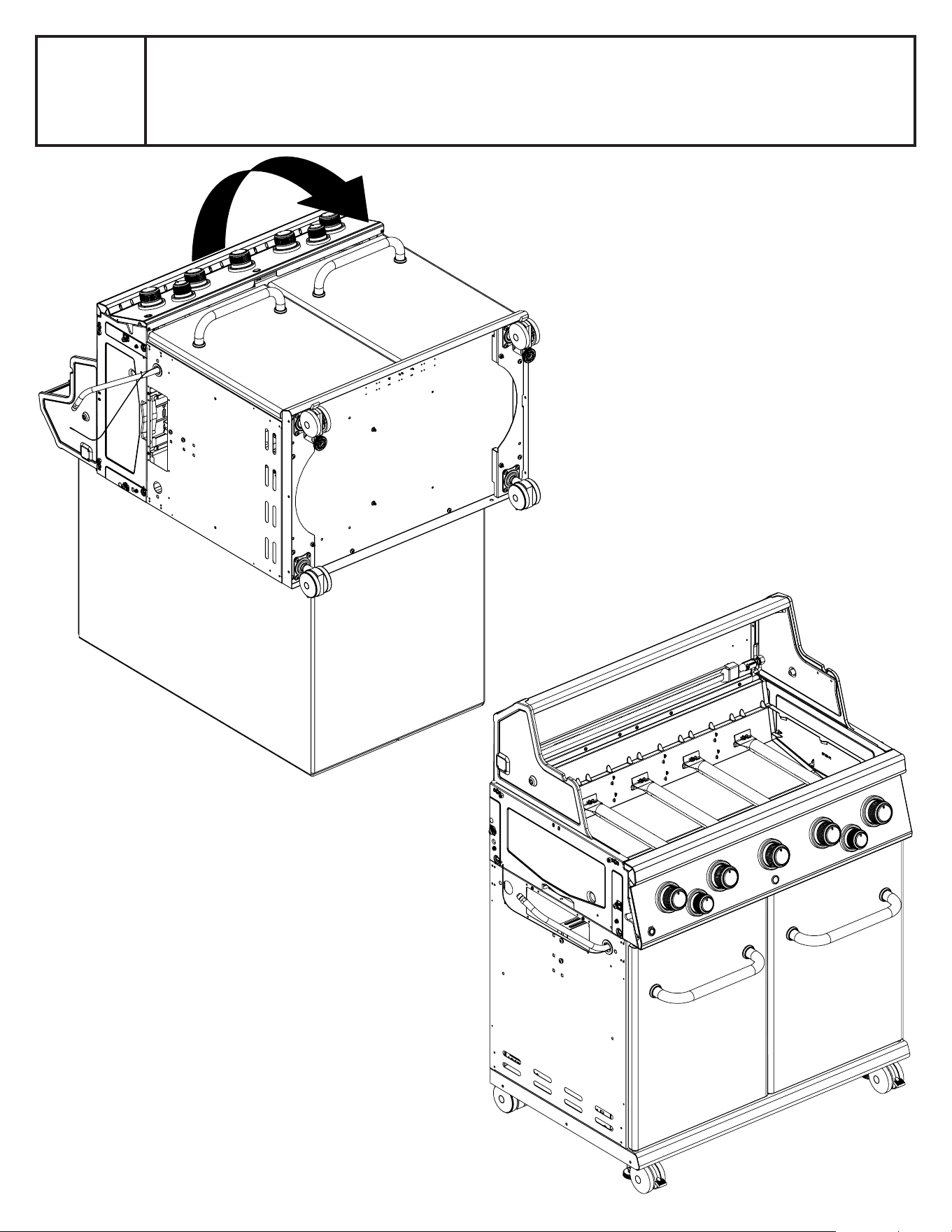

15
background
16
(2) (2)
17
(2) (2)
background

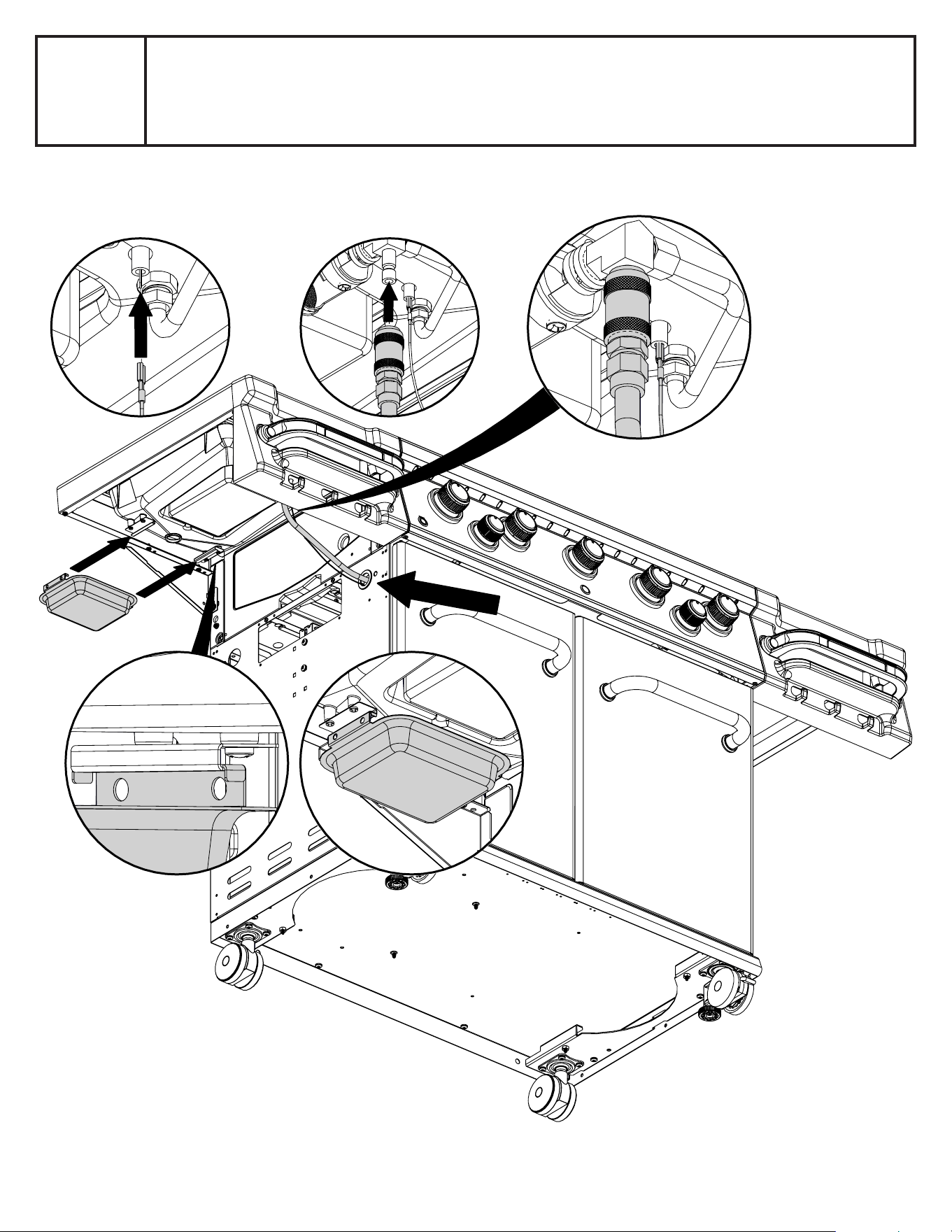

18
background
19
background
20
(2) (2)
background

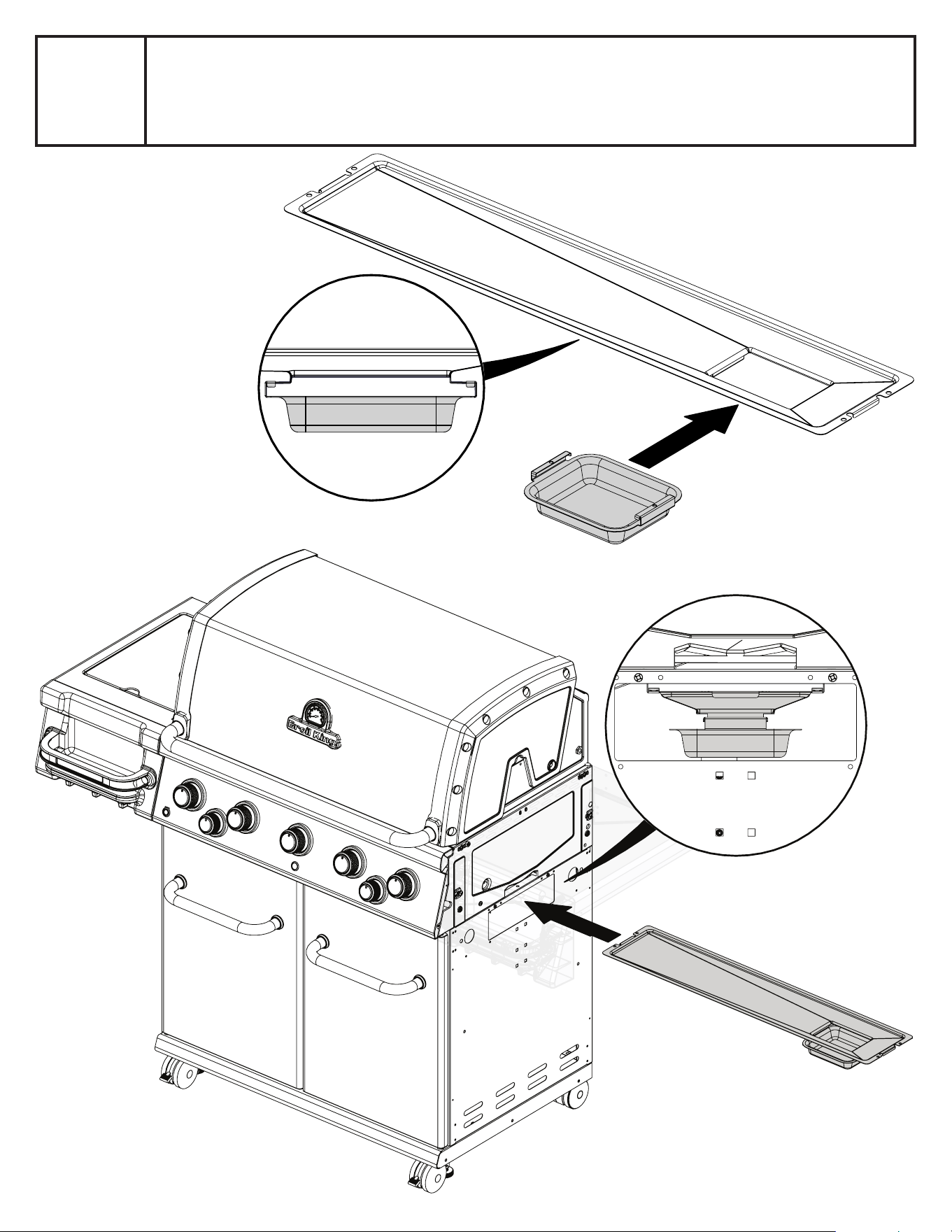

21
background

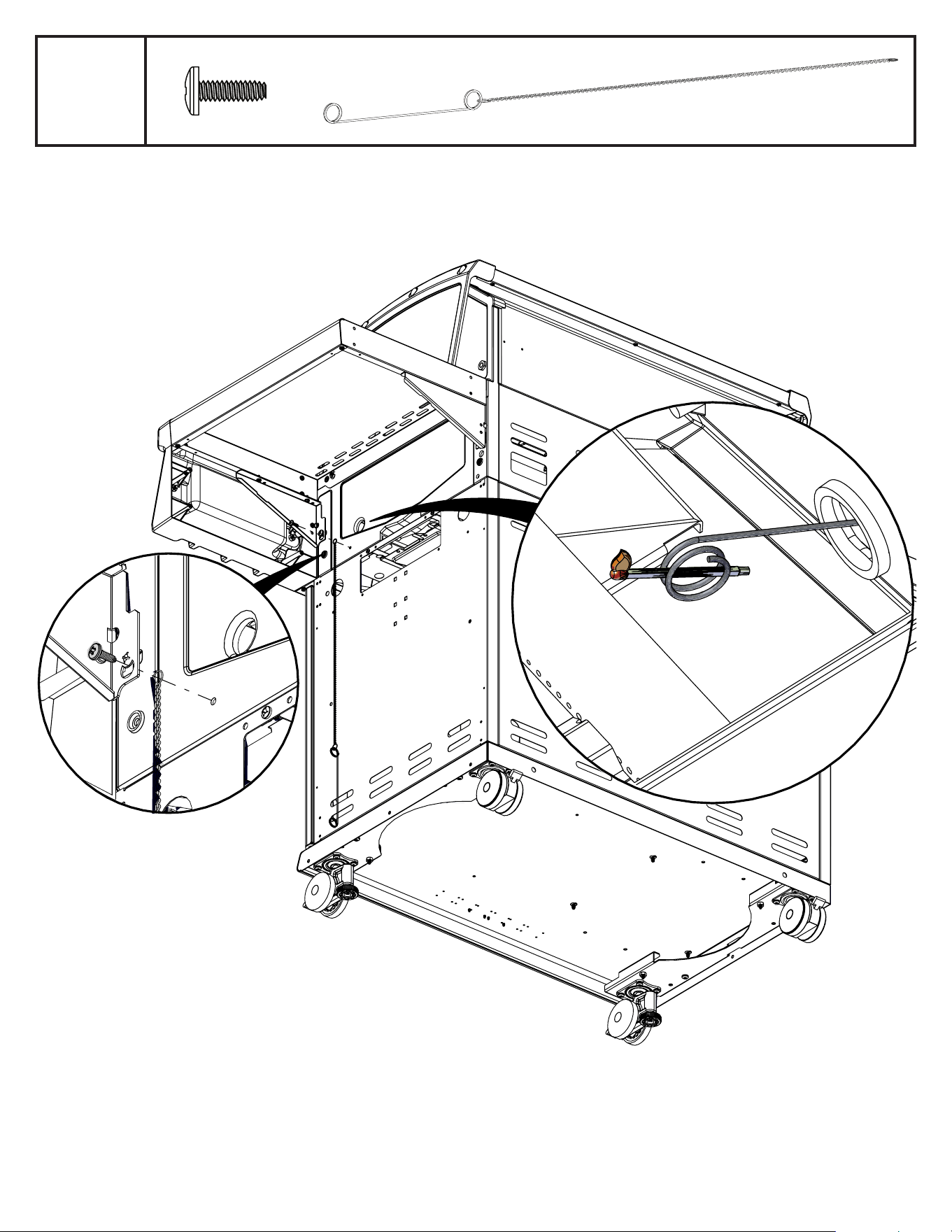

22
(1) (1)
background

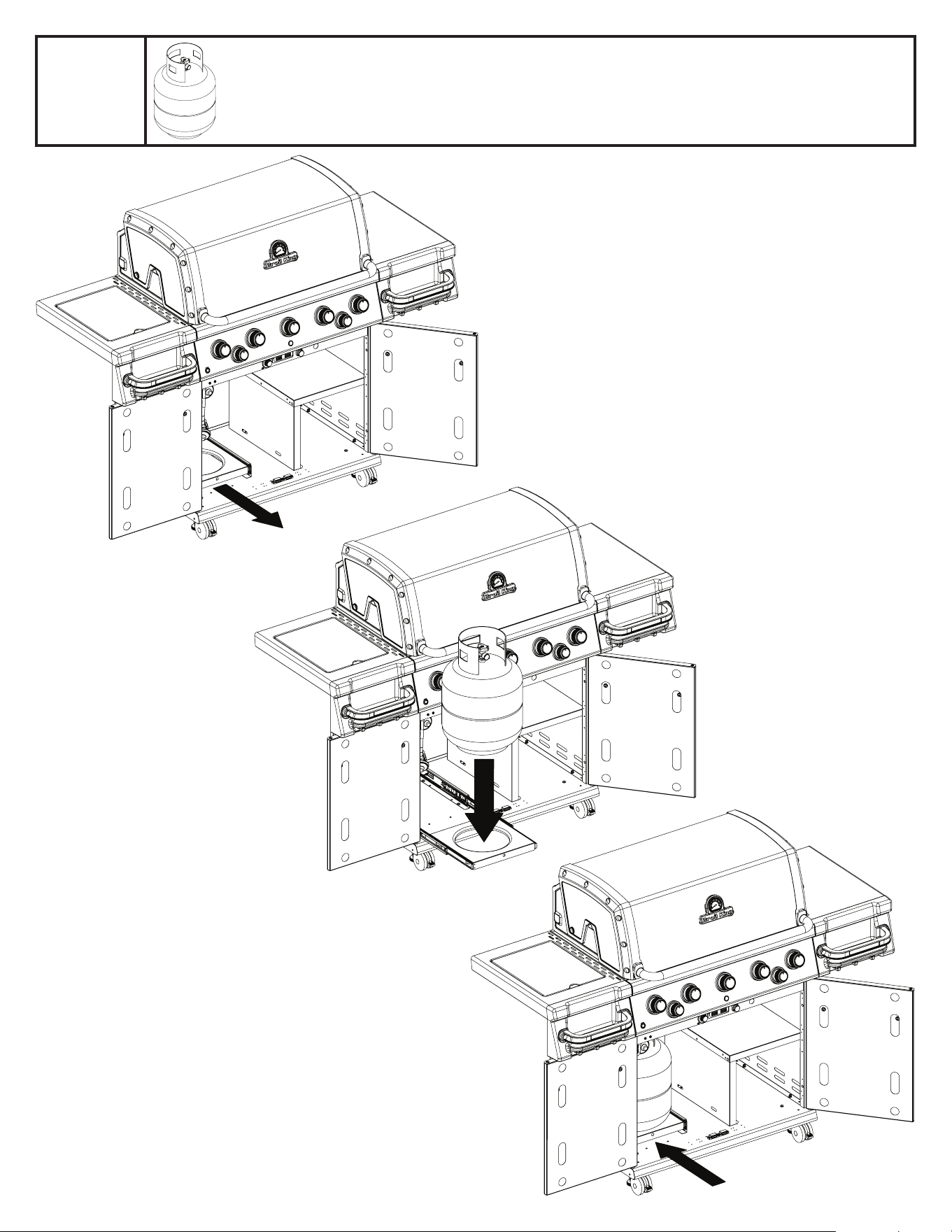

23
background

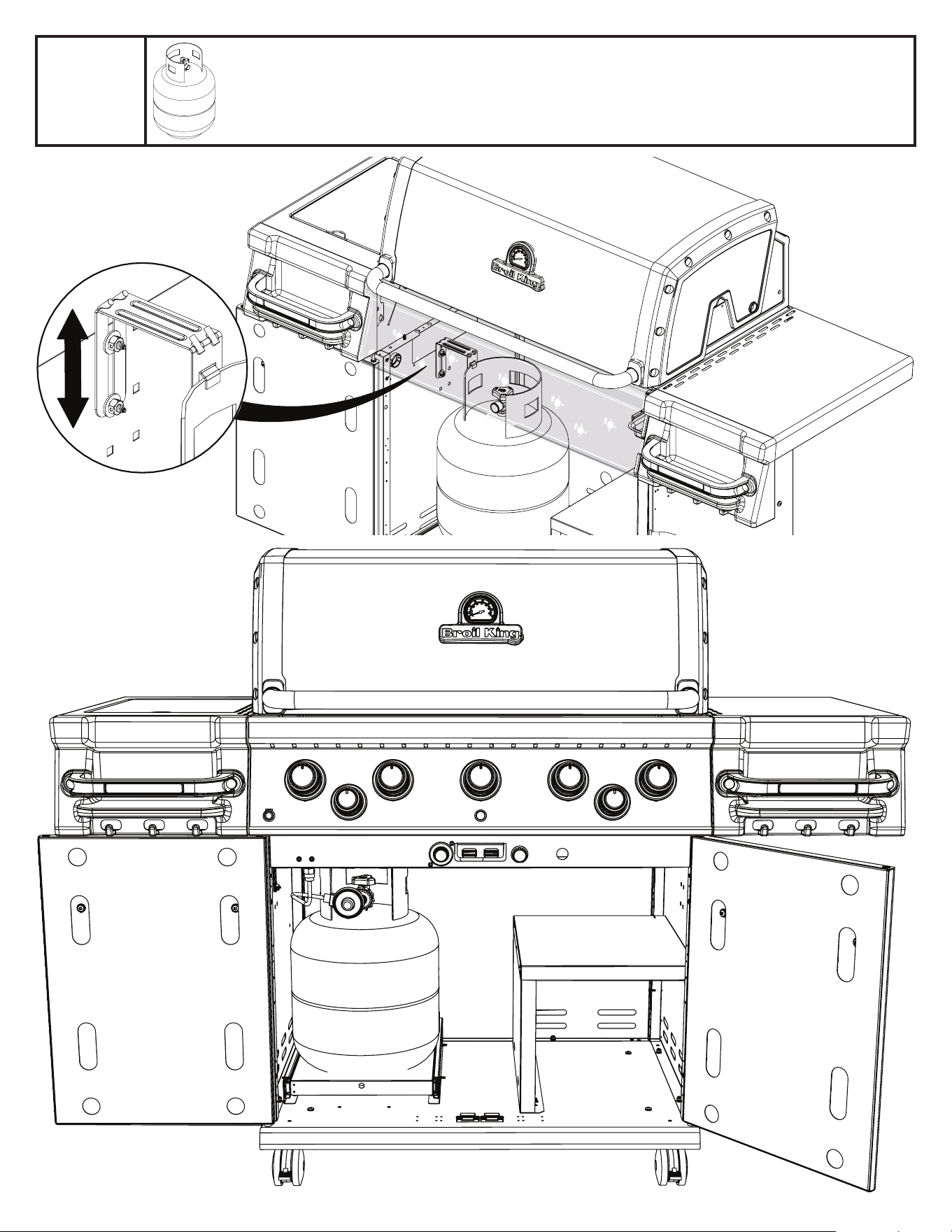

24
