INFRARED MOTION SENSOR
TECHNICAL DATA
INPUT VOLTAGE AC: 220-240V, 50/60Hz
SKU 24355
MODEL VT-8153
AMBIENT LIGHT <3-2000LUX (adjustable)
TIME DELAY
Min.10sec±3sec
Max. 15min±2min
RATED LOAD
800W (Traditional Lighting)
400W (LED Lighting)
DETECTION RANGE 360°
DETECTION DISTANCE 6m max(<24°C)
WORKING TEMPERATURE -20~+40°C
WORKING HUMIDITY <93%RH
INSTALLING HEIGHT 2.2-4M
POWER CONSUMPTION Approx 0.5W
DETECTION MOTION SPEED 0.6-1.5m/s
WARNING
• Please make sure to turn o the power before starting the installation.
• Installation should only be done by a certified electrician.
• For indoor use only.
INTRODUCTION
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions care-
fully before starting the installation and keep this manual handy for future reference. If you have any another query,
please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to
serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to
damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage
to any surface due to incorrect removal and installation of the product.
INSTRUCTION MANUAL
IP RATING IP20
COMPATIBLE WITH
V-TAC LED
RANGE [UPTO 400W]
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
INSTALLATION ADVICE
FUNCTION
• Can identify day and night: The consumer can adjust working state in dierent ambient light. It can
work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the
ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern,
please refer to the testing pattern.
• Time-Delay is added continually: When it receives the second induction signals within the first induc-
tion, it will restart to time from the moment.

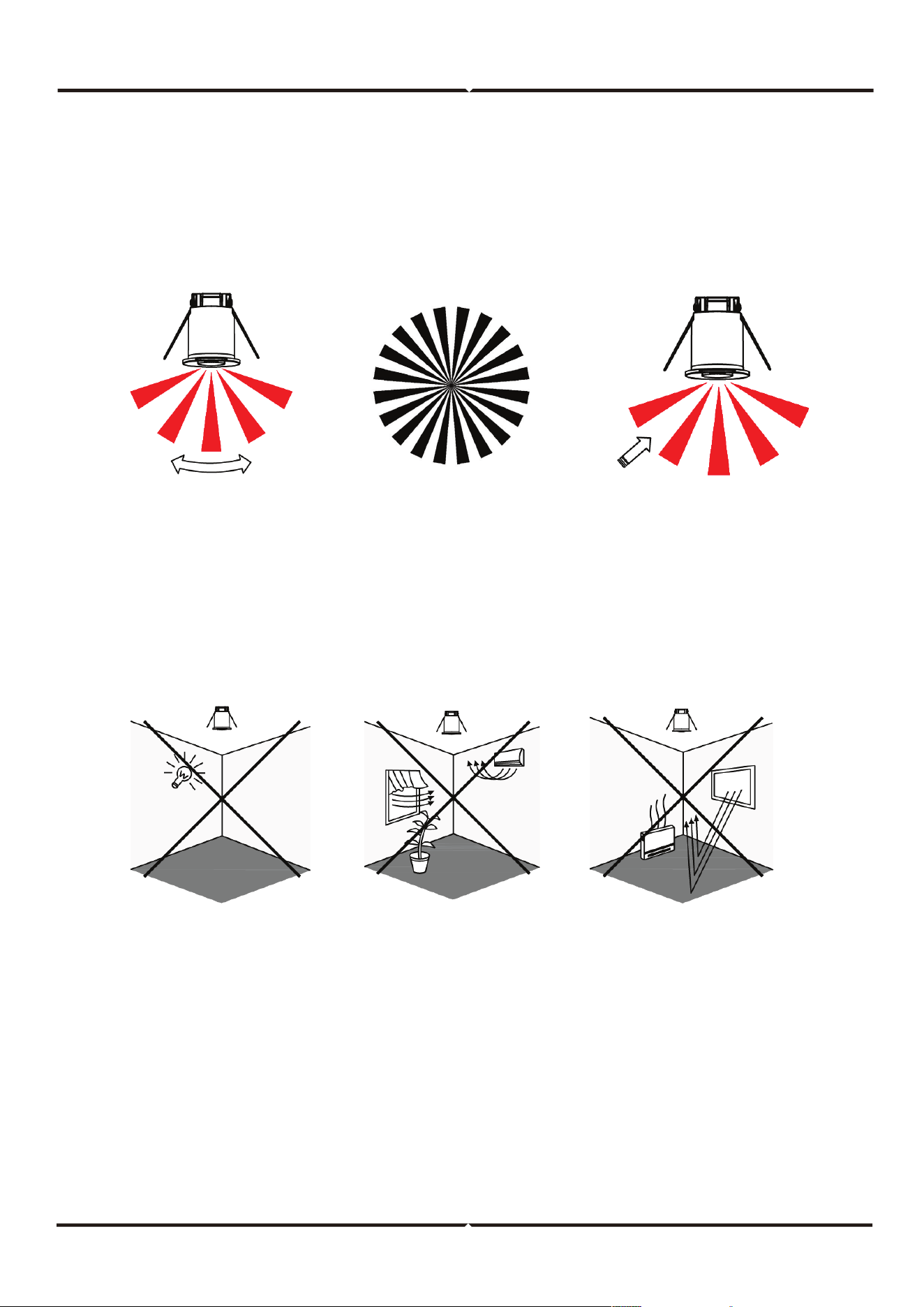

Good sensitivity Poor sensitivity
As the detector responds to changes in temperature, avoid the following situations:
• Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc.
• Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc.
• Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.
INSTALLATION INSTRUCTIONS
• Switch o the power supply.
• Remove the transparent cover.
• Connect the power wires to the sensor’s terminal according to the wiring diagram.
• Reinstall the transparent cover in its original position.
• Fold the sensor’s metal spring upward, place the sensor into the appropriate hole
or installation box, and release the spring to secure it in place.
• Aer installation is complete, turn on the power and perform a functional test.
• Turn the LUX knob clockwise on the maximum (sun). Turn the TIME knob anti-clockwise
on the minimum (10s).
• Switch on the power; the sensor and its connected lamp will have no signal at the
beginning. Aer Warm-up 30sec, the sensor can start work. If the sensor receives the
induction signal, the lamp will turn on. While there is no another induction signal any
more, the load should stop working within 10sec±3sec and the lamp would turn o.
• Turn LUX knob anti-clockwise on the minimum (3). If the ambient light is more than
3LUX, the sensor would not work and the lamp stop working too. If the ambient light is
less than 3LUX (darkness), the sensor would work. Under no induction signal condition,
the sensor should stop working within 10sec±3sec.

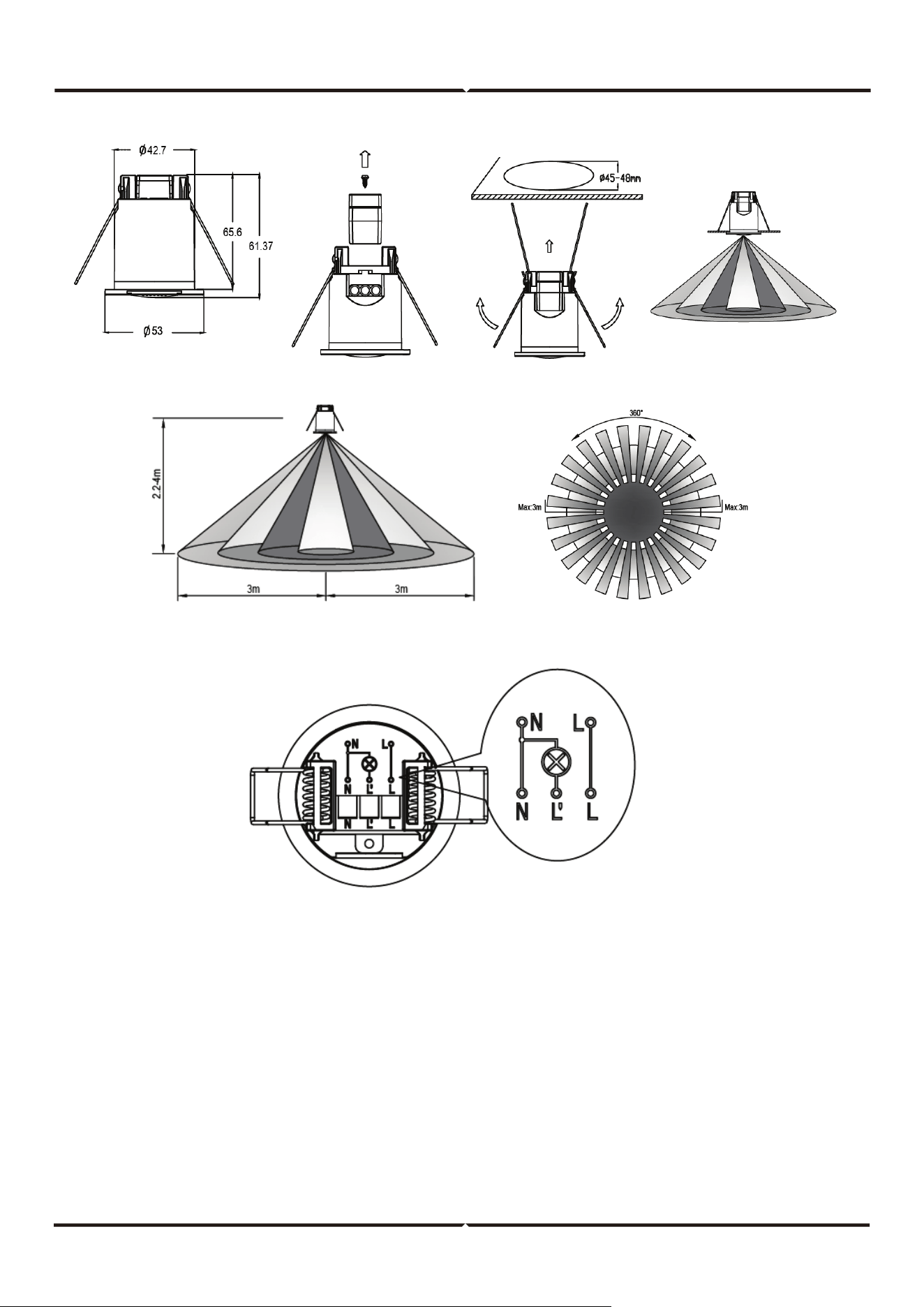

INSTALLATION DIAGRAM
SENSOR INFORMATION
TEST
CONNECTION-WIRE DIAGRAM
Height of installation: 2.2-4m
Detection Distance: Max.8m
Note: when testing in daylight, please turn LUX knob to ☼ (SUN) position, otherwise the sensor
lamp could not work!
TROUBLESHOOTING
• The load does not work
a. Please check if the connection of power source and load is correct.
b. Please check if the load is good.
c. Please check if the settings of working light correspond to ambient light.
• The sensitivity is poor
a. Please check if there is any hindrance in front of the detector to aect it to receive the signals.
b. Please check if the ambient temperature is too high.
c. Please check if the induction signal source is in the detection field.
d. Please check if the installation height corresponds to the height required in the instruction.
e. Please check if the moving orientation is correct.
• The sensor can not shut o the load automatically
a. Please check if there is continual signal in the detection field.
b. Please check if the time delay is set to the maximum position
c. Please check if the power corresponds to the instruction.
