MODEL VT-8159
SKU 24357
INPUT VOLTAGE AC: 220-240V, 50/60 Hz
RATED CURRENT 5A
RATED LOAD
Max. 500W
200W +LED
DETECTION
DISTANCE
5-6cm
WORKING
TEMPERATURE
-20°C to +50°C
IP RATING IP20
DIMENSION 78.2x35.5x20.4 mm
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INSTRUCTION MANUAL
INFRARED DOOR SENSOR
TECHNICAL DATA
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product.
V-TAC LED
RANGE (UPTO 200W)
COMPATIBLE WITH
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

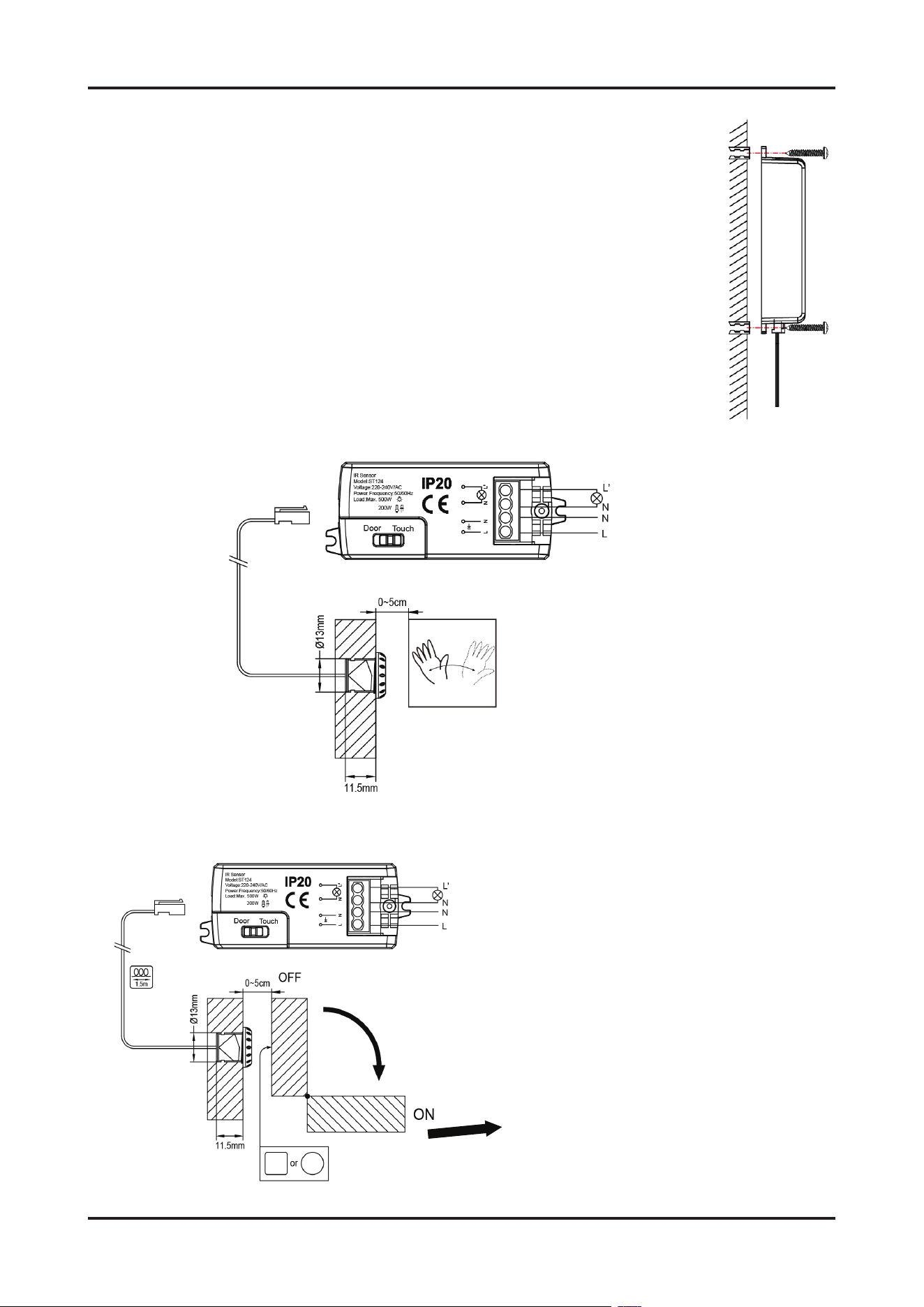

WIRING DIAGRAM
INSTALLATION INSTRUCTIONS
WARNING
1. Switch o the power.
2. Install the product on the cabinet, or any other place, where you want
to install it with two enclosed inflated screws.
3. Connect the sensor with power supply and the load as per the con-
nection-wire diagram. Then turn on the power and test it.
1. Please make sure to turn o the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. Cover or shied any adjacent live components.
4. For indoor use only.
1.When you slide the switch to the Touch position, it works via moving hand as below figure.
2.When you slide the switch to the Door position, it works via opening
and closing of the door as below figure.
1. When the door opening (>5cm),
the lights will be turned on
2. When the door opening
(<5cm) or being closed, the lights
will be turned o
To get better sensitivity, you can
paste one silver label as picture on
the door facing to the sensor
TEST
• Turn on the power supply.
• When the switch is set to Touch mode, move your hand toward the IR sensor. The
sensor will detect the motion and turn the light ON. The light will turn OFF and
remain o until another hand movement is detected by the IR sensor.
• When the switch is set to Door mode, opening the door will trigger the sensor to
detect motion and switch the light ON. The light will turn OFF once the door is
closed.
NOTE: Within the detection field, there shouldn’t be any hindered or unrest
objects aecting detection.
