CDWMT305W-UK
Please read this manual carefully before
using the dishwasher
Keep this manual for future reference.
TEL:0333 900 3303
customerservice@comfee
-appliances.com
QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.
Connected to power supplies
or
Fix the drain pipe with the back pipe of the machine.The interface
is fitted with clamps and tightened with a screwdriver.
Fix the drain pipe with
suction cups
The connection of the drain pipe: Put end of the drain into a sink or bucket.
Add water into the dishwasher’s tank
There are two ways of prompting the tank that full of water
1. Before starting:
When the tank is full of water, the machine will beep
fleetly for 3 seconds.
2. After starting :
Water is not enough, light is on;
Water is enough, light will be off and the machine will
beep fleetly for 3 seconds.
Remove the larger residue
Please remove the large residue before placing.
The power supply is 220-240V AC 50Hz
the specification of the socket is 10A 250V AC
There are two ways to add water into the tank:
1
2
Connect inlet hose to the tap;
Open the cap and add water into the dishwashers
tank manually
Note: Before adding water , you need to press power
button to turn on the diswasher
1
2
Water Inlet
Drain Pipe
Power cord
or
Close the door, select the program and start the dishwasher
Open the door, placing the dishes and adding detergent
Placing order by size and from the two sides to the middle. All cutlery
are suggested to be tilted to improve cleaning preformance.
The arm will be blocked with the improper placement of the cutlery
and cleaning effect may not be ideal.
Left Right
DO NOT place the dishwares
in the upper direction or may
affect the cleaning preformance.
Try to leave the dirty face
towards the spray arm.
The place is for adding the detergent
Pull open
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
5
INSTALLATION INSTRUCTION
30
Installation preparation
About Power Connection
Water Connection
Connection of drain hoses
30
32
31
30
33
36
TROUBLESHOOTING TIPS
Before calling for service
Error codes
Technical information
37
GETTING TO KNOW YOUR APPLIANCE
Dishwasher features
Control panel
10
10
11
USING YOUR DISHWASHER
Loading the salt into the softener
Adjusting Salt Consumption

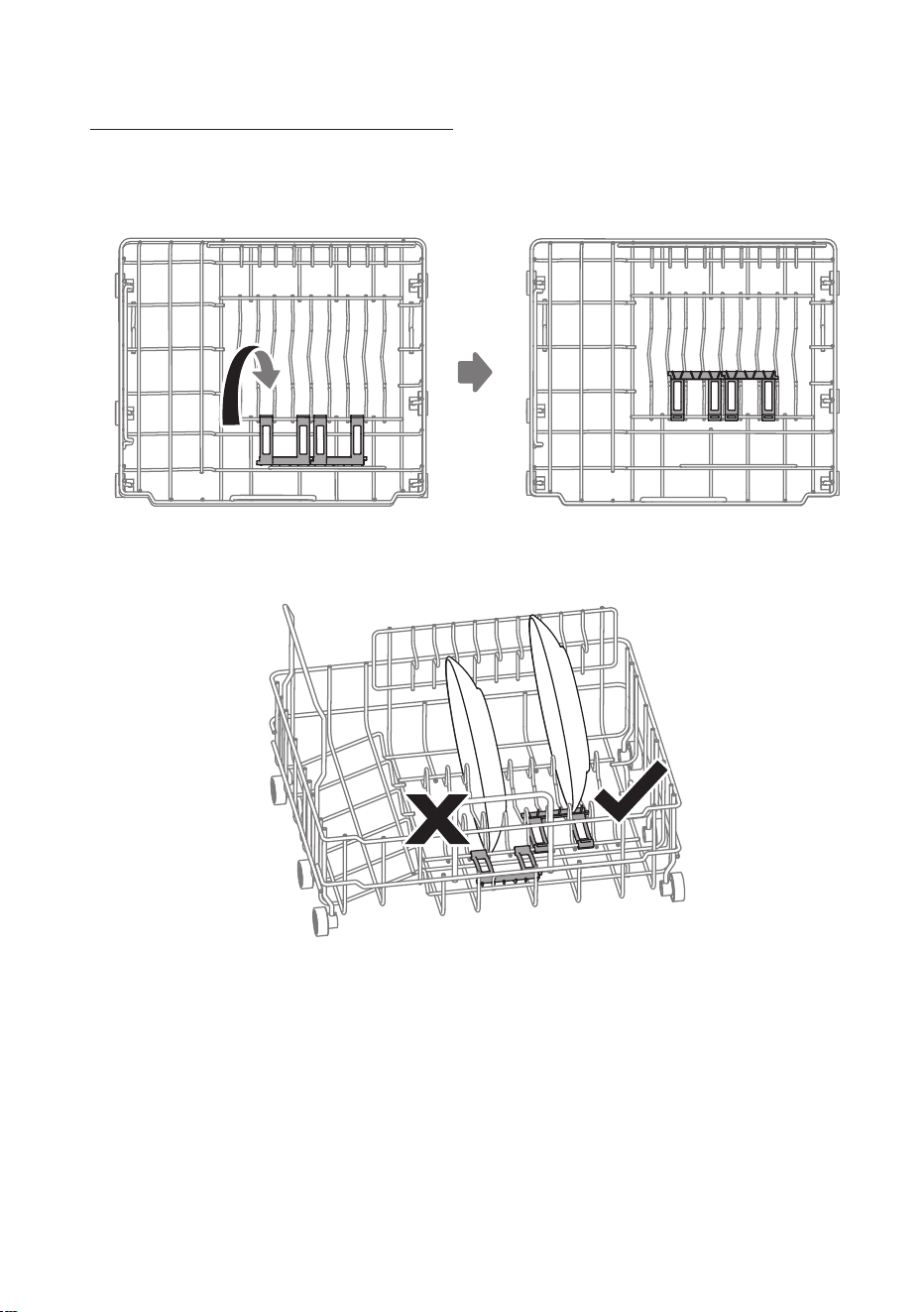

Loading the dishwasher baskets
Adding the detergent
14
13
13
15
20
22
23
23
Wash cycle table
Saving Energy
Change the program
Forget to add a dish?
At the end of the wash cycle
Forced drainage operation
24
23
MAINTENANCE AND CLEANING
Filter system
Caring for the dishwasher
26
26
27
22
33
25
Please carefully read this manual before using the dishwasher, it will help you
use and maintain the dishwasher properly .
How to keep your dishwasher in shape
29
Positioning the Appliance
30
PROGRAM SELECTION
Starting A Program
25
IMPORTANT SAFETY INSTRUCTIONS
WARNING
When using your dishwasher, follow the
precautions listed below:
Installation and repair can only be carried out by a
qualified technician
This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-farm houses;
-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be done by children without
supervision. (For EN60335-1)
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety. (For IEC60335-1)
5
6
Packaging material could be dangerous for children!
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and maintenance the
appliance .Use a soft cloth moisten with mild soap,
and then use a dry cloth to wipe it again.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
Earthing Instructions
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is
equipped with an earthing conductor plug.
The plug must be plugged into an appropriate outlet
that is installed and earthed in accordance with all
local codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
7
Do not modify the plug provided with the appliance
if it does not fit the outlet.
Have a proper outlet installed by a qualified
electrician.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points facing down or placed in a horizontal
position.
Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door
is open.
Check that there are no detergent residues after
completion of the wash cycle.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent.
8
For unmarked plastic items not so marked, check the
manufacturer's recommendations.
Use only detergent and rinse agents recommended for
use in an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
The door should not be left open, since this could
increase the risk of tripping.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance needs to be connected to the main
water valve using new hose sets. Old sets should not be
reused.
To save energy, in stand by mode, the appliance will
switch of automatically after 15 minutes without any
user interaction.
The maximum number of place settings to be washed
is 3.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is
0.04MPa.
Disposal
For disposing of package and the
appliance please go to a recycling
centre. Therefore cut off the power
supply cable and make the door closing
device unusable.
Cardboard packaging is manufactured from
recycled paper and should be disposed in the waste
paper collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which
could otherwise be caused by inappropriate waste
handling of this product.
For more detailed information about recycling of
this product, please contact your local city office
and your household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately
for special treatment is necessary.
9
GETTING TO KNOW YOUR APPLIANCE
IMPORTANT:
Before using this dishwasher for the first time and to get the best performance,
read these instructions.
Dishwasher features
Control panel
Kick board
Water bottle
Cap of water tank
Upper spray arm
Salt container
Filter
Basket
Tableware basket
The place to
Add detergent
Lower spray arm
10
Buttons
Use to sanitize your dishes and glassware. Maintains the water
temperature at 72°C.
For the heaviest soiled crockery, and normally soiled pots, pans,
dishes etc. With dried-on food.
This is standard program, it is suitable to clean normally soiled
tableware and it is the most efficient program in terms of its
combined energy and water consumption for that type of tableware.
For lightly soiled crockery and glass.
Press and hold the ECO button+ Glass button for 3 seconds
simultaneously to provides an effective cleaning of the dishwasher itself.
Control panel
Power
1
Hygiene 72°
3
Press this button to power on or power off your dishwasher.
Intensive
2
Glass
4
ECO
5
6
Self Clean
7
Rapid
8
A shorter wash for lightly soiled loads that do not need drying.
58min Wash
For normally soiled loads that need 58 min wash.
1
2 3
4 5 7
8
10
11 1315
11
6
9 12
14
Auto open
9
After washing, the door will open automatically to achieve better
drying effect. Press and hold the 58min Wash and Rapid buttons for
3seconds to open or cancel this function.The dishwasher door must
not be blocked when set to open automatically. This can disrupt door
lock functionality.
Press this button to reduce the delayed hours for washing.One
press on this button reduce the delay of the start of washing by
one hour.
Delay -
10
Digital Display
This function allows you to lock the buttons on the control panel, so
children cannot accidently start the dishwasher by pressing the
buttons on the panel. Only the Power button remains active.To lock
or unlock the buttons on the control panel, press and hold the
Delay - and Delay + buttonsfor 3 seconds simultaneously.
Child lock
12
To show the remaining time and delay time, functions,
error codes etc.
13
14
Press this button to set the delayed hours for washing.You can delay
the start of washing up to 24 hours. One press on this button delays
the start of washing by one hour.
Delay +
11
15
Control panel
Start/Pause
After completing program and function selection or delay time setting,
press this button to start or pause. When the washing program is
running, after the program is suspended by opening the door, press
any button to cancel the current program and function.
.
Screen
Salt
Water Faucet
If the indicator is lit, it means the water faucet
closed.
Child lock
If the indicator is lit, it means the child lock is on.
Self Clean
If the indicator is lit, it means the self-clean program
is running.
If the indicator is lit, it means the dishwasher is
low on dishwasher salt and needs to be refilled.
12
Light ring
Auto open
If the indicator is lit, it means the Auto open
is selected.
The color of the ring will turn red if the water temperature
is over 59 °C.
USING YOUR DISHWASHER
If your model have no water softener, you may skip this section.
NOTE
Loading the salt into the softener
Always use salt intended for use with dishwasher. The salt container is located
beneath the basket and should be filled as follows:
Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use,
especially table salt, will damage the water softener. In case of
damages caused by the use of unsuitable salt the manufacturer does
not give any warranty nor is liable for any damages caused.
Only fill with salt before running a cycle.
This will prevent any grains of salt or salty water, which may have
been spilled, remaining on the bottom of the machine for any period
of time, which may cause corrosion.
WANING
A. Remove the basket and then unscrew and remove the cap from the salt container
B. Before first wash, add 1lt. of water in the salt container of your machine.
C. Place the end of the funnel (if supplied) into the hole and introduce about, 0.13kg
of salt. It is normal for a small amount of water to come out of the salt container
D. After filling the container, screw the cap tightly back clockwise.
.
.
13
Step 2: select a certain level of salt consumption
Press the button to select the proper set according to your localRapid
environment, the sets will change in the following sequence:
H3->H4->H5->H6->H1->H2->H3.
Step 3: Exit the status of salt adjustment
Without any operation in five seconds, the machine will exit from set
mode, the machine is into standby status.
Step 1: Enter the status of salt adjustment
Close the door, within 60 seconds after power on, press buttonRapid
and hold for 5 seconds, the machine will enter setting mode.
NOTE
The salt container must only be refilled when the salt warning light in the
control panel comes on. Depending on how fully the salt dissolves, the salt
warning light may still be on even though the salt container is filled.
If there is no salt warning light in the control panel (For some Models), you
can judge when to load the salt into the softener by the cycles that the
dishwasher had run.
If there are spills of the salt, a soak or a rapid program should be run to
remove the excess salt.
Please follow the steps below for adjustment in salt consumption.
Adjusting Salt Consumption
E. Usually, the salt warning light will be cease to be illuminated within 2-6 days
after the salt container has been filled with salt.
F. Immediately after filling the salt into the salt container, a washing programme
should be started (Suggest choose rapid program). Otherwise filter system, pump
or other important parts of the machine may be damaged by salty water. It is out
of warranty.
14
There are 6 levels of salt consumption in all. It is recommended to select the level
according to below table:
1) German degree of measurement for the water hardness
2) millimol, internationel unit for water hardness
3) factory setting
Contact your local water board for information on the hardness of your water supply.
Loading the dishwasher baskets
Recommendation
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from detergent manufacturers.
For particular items, select a program with as low temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the program has ended.
15
dH=1.25 Clarke=1.78 fH=0.178mmol/l
°
°
°
1
0 - 5
6 - 11
12 - 17
18 - 22
23 - 34
35 - 55
German
German
dH
dH
German
dH
0 - 9
10 - 20
21 - 30
31 - 40
41 - 60
61 - 98
0 - 6
7 - 14
15 - 21
22 - 28
29 - 42
43 - 69
0 - 0.94
1.0 - 2.0
2.1 - 3.0
3.1 - 4.0
4.1 - 6.0
6.1 - 9.8
French French
fH fH
French
fH
Mmol/lMmol/lMmol/l
British British
ClarkeClarke
British
Clarke
WATER HARDNESS
Salt consumption
(gram/cycle)
H1
H2
H3
H4
H5
H6
0
4
8
13
20
40
No regeneration
Water softner
level
Regeneration occurs
every X program
sequence
1)
10
5
3
2
1
Not suitable for use:
Cutlery with wooden, horn, china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are
not temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Wooden items
Items made from synthetic fibres
(For the best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large food paritcles. Soften remnants of burnt food in pans. It is not
necessary to rinse the dishes under running water. Place objects in the dishwasher in
following way:
Items such as cups, glasses, pots/pans, etc. are face downwards.
Curved items, or those with recesses, should be loaded at aslant so that water can
run off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotated freely during washing.
Attention before or after loading the dishwasher baskets
Limited suitability:
Some glasses can become dull
after a large number of washes.
Silver and aluminium have a
tendency to discolour during
washing.
Glazed patterns may fade if
washed frequently.
Suitability of use in the dishwasher
Very small items should not be washed in the dishwasher as they could
easily fall out of the basket.
NOTE
Load hollow items such as cups, glasses, pans etc. with the opening facing
downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not be touched.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable energy consumption.
16
Small-size dishware will drop through the basket and block the rotation of spray arm.
Flip the dishware support inward to support the small-size dishware.
Use of the dishware support
17
Loading basket
Position the dishes and cookware so that they will not get moved by the spray of
water.
18
Loading the basket according to EN60436
1
2
3
4
5
6
7
8
9
Item
Number
Soup Plate
Medium Bowl
Melamine dessert plate
Dessert plate
Dessert bowl
Mug
Glass
Cup
Saucer
2
5
6
5
8
4
7
7
1
6
3
9
7
Loading the cutlery basket
19
Knife
Soup spoon
Tea spoon
Dessert spoon
Fork
Serving fork
Gravy ladle
1
2
3
4
5
6
7
Item
Number
3
2
2
2
4
4
7
5
6
1
For personal safety and a top quality clean, make sure place the silverware in
the basket as follows:
They do not nest together.
Place silverware with handles-down.
But place knives and other potentially dangerous utensils handles-up.
Only use detergent specifically for
dishwashers.
Never use any other detergents. This will
damage the appliance.
Dishwasher detergent is corrosive!
Keep dishwasher detergent out of
the reach of children.
WANING
Based on their chemical composition, detergents can be split in two basic types:
Conventional, alkaline detergents with caustic components.
Low alkaline concentrated detergents with natural enzymes.
The use of Normal washing program in combination with concentrated detergent
reduces pollution and is good for your dishes.
Detergent tablets of different brands dissolve at different speeds. For this reason
some detergent tablets cannot dissolve and develop their full cleaning power during
short programs. Therefore please use long programs when using detergent tablets,
to ensure the complete removal of detergent residuals.
Concentrated Detergent
Detergent Tablets
The detergent must be refilled before the start of each wash cycle following the
instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent
then conventional dishwasher. Generally, only one tablespoon of detergent is
needed for a normal wash load. More heavily soiled items need more detergent.
Always add the detergent just before starting the dishwasher, otherwise it could
get damp and will not dissolve properly.
Detergent
20
Adding the detergent
Adding detergent
21
The palce to add the detergent
85
Wash(50 °C)
Rinse
Rinse(65 °C)
Drying
29
Wash (50 °C)
Rinse
Rinse (60 °C)
6.0L
Wash (62 °C)
Rinse
Rinse (70 °C)
Drying
6.0L
6.0L
160
6.0L
Wash (55 °C)
Rinse
Rinse (60 °C)
Drying
58 6.0L
Wash(55 °C)
Rinse
Rinse(65 °C)
Drying
22
160 6.0L
65
Wash (60 °C)
Rinse
Rinse (70 °C)
0.290
0.380
0.430
0.359
0.390
0.580
11 g
11 g
11 g
11 g
11 g
11 g
Rapid
58min Wash
Glass
Self-clean
Intensive
(*EN60436)
Wash Cycle Table
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs.Consumption values and program duration are only indicative except
for the ECO program.
( ) indicates that the program uses rinse aid in the last rinse.
(*EN60436)
The ECO program is suitable to clean normally soiled tableware,
that for this use, it is the most efficient program in terms
of its combined energy and water consumption, and it is used
to assess compliance with the EU ecodesign legislation.
NOTE:
Program
Description
Of Cycle
Time
(min)
Water
(L)
Detergent
Pre/Main Wash
Energy
(kWh)
Hygiene 72°
Wash (70 °C)
Rinse
Rinse (72 °C)
Drying
115 6.0L0.590
11 g
Drying
PROGRAM SELECTION
Starting A Program
NOTE
When you press the Start/Reset button to pause during washing,the
dishwasher will beep every minute unless you press the Start/Reset
button to start.
Starting a wash cycle...
Draw out the basket(see the section entitled "Loading the Dishwasher").
Pour in the detergent (see the sectionFill the detergent).
Insert the plug into the socket. The power supply is 220-240V AC 50Hz, the
specification of the socket is 10A 250V AC.
Press the power button to turn on the appliance,
Connect the inlet hose to the tap, make sure that the water supply is turned on
to full pressure, or add water the the tank manually.
select a suitable program according to the “Wash cycle table”;
If a program is selected, the corresponding light will be lit. Then press the
Start/Pause button, the dishwasher begins to start.
Premise: You can modify the washing program, if the dishwasher just worked for
a short time. Otherwise, the detergent may have already been released, and the
appliance may have already drained the wash water in this case, the cycle
must be restarted.
Change the programme
23
Saving Energy
1. Pre-rinsing of tableware items leads to increased water and energy consumption
and is not recommended.
2. Washing tableware in a household dishwasher usually consumes less energy and
water in the use phase than hand dishwashing when the household dishwasher is
used according to the instructions.
Forget to add a dish?
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
1. Press the Start/Pause button to pause the washing.
2. After the spray arms stopped working, you can open the door completely.
3. Add forgotten dishes.
4. Close the door.
5 Press the Start/Pause button, the dishwasher will run .
NOTE
If you open the door during washing, the machine will pause. When
you and press the Start/Pause Button, the machine will keep on
working after 10 seconds.
If your model has broken remember function, the machine will go on to finish the
selected program after the power cut.
Press Start/Pause Button to pause the machine when the door is closed,
Press any Program Button for more than 3 seconds the machine will be in stand-by
state, then you can change the program to the desired cycle setting
(see the section entitled "Starting a wash program" ).
The Display window shows the state of the dishwasher:
a) Display window shows "-:--" ----------------------------------> stand by;
b) Display window shows "H:MM" and not blinking -------------> pause;
c) Display window shows "H:MM" and blinking ------------------------> run;
d) Display window shows "END" ------------------------> end.
24
It is dangerous to open the door mid-cycle,
as hot steam may scald you.
WARNING
After 5 sec
Switch Off the Dishwasher
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap.
Open the door carefully
Hot dishes are sensitive to knocks. The dishes should be allowed to cool down
around 15 minutes before removing from the appliance.
Open the dishwasher's door, leave it open and wait a few minutes before removing
the dishes. In this way they will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
It is dangerous to open the door when washing, because the hot wate
may scald you.
WANING
At the end of the Wash Cycle
When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds,
then stop. Turn off the appliance using the ON/OFF button, shut off the water supply
and open the door of the dishwasher. Wait a few minutes before unloading the
dishwasher to avoid scald, the dishes and utensils are still hot and more susceptible
to breakage. They will also dry better.
25
Forced drainage operation
In standby mode, you can press and hold Hygiene” button + Rapid” button
for 3 seconds simultaneously to drain the water tank.
pull the handle in the upward direction.
. Main filter
MAINTENANCE AND CLEANING
Filter system
26
Never use the dishwasher without filters!
Make sure the filter is properly assembled.
The performance may be affected and dishes and utensils could become
damaged.
A
Food and soil particles trapped in this filter
are pulverized by a special jet on the lower
spray arm and washed down to drain.
B.Fine filter
This filter holds soil and food residues in
the sump area and prevents it from being
deposited on the dishes during wash cycle.
WANING
The filter efficiently removes food particles from the wash water , allowing it to be
recycled during the cycle.
For best performance and results, the filter assembly must be cleaned regularly.
For this reason, it is a good idea to remove the larger food particles trapping in
the filter after each wash cycle by rinsing the filter and cup under running water.
To remove the filter assembly,rotatethefilterhandleanticlockwiseand then
Step 1: Contrarotate the filter assembly,
then lift it all up.
Step 2: Liftfine filter up from main filter.
NOTE
If do it from step1 to step 2, the filter system will be removed; while if do it
from Step 2 to Step 1, the filter system will be installed.
The entire filter assembly should be cleaned once a week.
Inspect the filters for blocking after every time the dishwasher has been used.
By unscrewing the coarse filter, you can remove the filter system. Remove any food
remnants and clean the filters under running water.
WANING
When cleaning the filters, don't knock on them. Otherwise, the filters could
be contorted and the performance of dishwasher could be decreased.
The control panel can be cleaned by using a lightly dampened cloth. After
cleaning, make sure to dry it thoroughly. For the exterior use a good appliance
polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of
the dishwasher.
WANING
Caring for the Dishwasher
Never use a spray cleaner to clean the door panel as it may damage
the door lock and electrical components.
Cleaning The Door
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do
not use a spray cleaner of any kind.
27
Protect against freezing
.
please take frost protection measures on the dishwasher in winter. Each time after
washing cycles, please operate as follows.
1. Cut off electrical power to the dishwasher
2. Turn off the water supply and disconnect the water inlet pipe from the
water valve.
3. Drain water from the inlet pipe and water valve (Use a pan to catch the water).
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water
in the sump.
NOTE
If your dishwasher cannot work because of the ice, please contact
authorised service person.
Cleaning the spray arms
The spray arms can be easily removed for periodic cleaning of the nozzles to prevent
possible clogging. Wash them under running water and carefully replace them in
their seats, checking that their rotary movement is in no way impeded.
Grasp the middle of the spray arm, pull it upwards to remove it. Wash the arms
under a jet of running water and replace it carefully to its seat. After reassembly,
check that the spray arms rotate freely. Otherwise, check that they have been
installed correctly.
28
How to keep your dishwasher in shape
After every wash
After every wash, turn off the water supply to the appliance and leave the door
slightly open so that moisture and odours are not trapped inside.
Remove the plug
Before cleaning or performing maintenance, always remove the plug from the socket.
No solvents or abrasive cleaning
To clean the exterior and rubber parts of the dishwasher, do not use solvents or
abrasive cleaning products. Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with
water an a little vinegar, or a cleaning product made specifically for dishwashers.
When not in use for a longtime
It is recommend that you run a wash cycle with the dishwasher empty and then
remove the plug from the socket, leave the door of the appliance open. This will
help the door seals to last longer and prevent odours from forming within the
appliance.
Moving the appliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely
necessary, it can be positioned on its back.
29
INSTALLATION INSTRUCTION
30
WANING
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so could result in death or
electrical shock.
The installation of the pipes and electrical equipments should be done by
professionals.
Attention
Installation preparation
The installation position of dishwasher should be near the existing water inlet tap
and drain outlet and power socket.
One side of the cabinet sink should be chosen to facilitate the connection of drain
hoses of the dishwasher.
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall
behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is
equipped with water supply and drain hoses that can be positioned to the right or
the left to facilitate proper installation.
About Power Connection
WANING
For personal safety:
Do not use an extension cord or an adapter plug
with this appliance.
Do not, under any circumstances, cut or remove
the earthing connection from the power cord.
Please look at the rating label to know the rating voltage and connect the
dishwasher to the appropriate power supply. Use the required fuse 10 amp, time
delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
Ensure the voltage and frequency of the power being corresponds to those on
the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug, replace the socket, rather than using a adaptors or the
like as they could cause overheating and burns.
Electrical Requirements
Electrical Connection
Ensure that proper earthing exists before use
Connect the cold water supply hose to a threaded 3/4(inch)
connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure that
the water is clear and free of impurities. If this precaution is
not taken, there is a risk that the water inlet can get blocked and damage
the appliance.
Please Note: If the supplied hose cloes not fit your tap, please contact your local
plumbing supply center where adapters are available for purchase.
Water Connection
31
Please look at the rating label to know the rating voltage and connect the
dishwasher to the appropriate power supply. Use the required fuse 10 amp, time
delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
Ensure the voltage and frequency of the power being corresponds to those on
the rating plate. Only insert the plug into an electrical socket which is earthed
properly. If the electrical socket to which the appliance must be connected is not
appropriate for the plug, replace the socket, rather than using a adaptors or the
like as they could cause overheating and burns.
Electrical Requirements
Electrical Connection
Ensure that proper earthing exists before use
Connect the cold water supply hose to a threaded 3/4(inch)
connector and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an
extended period of time, let the water run to make sure that
the water is clear and free of impurities. If this precaution is
not taken, there is a risk that the water inlet can get blocked and damage
the appliance.
Please Note: If the supplied hose cloes not fit your tap, please contact your local
plumbing supply center where adapters are available for purchase.
Water Connection
34
NOTE
When connecting to drinking water make sure that you connect the
appliance using a safety device against drinking water contamination
through back flow (according to DIN EN 1717). We recommend that
installation, including water supply and electrical connections, and repairs
are carried out by a qualified technician.
销往德国的机器
Connection of drain hoses
Fix the drain pipe with the back
pipe of the machine.The interface
is fitted with clamps and tightened
with a screwdriver.
The connection of the drain pipe: Put end of the drain into a sink or bucket.
If the sink is more than1000 mm higher than the floor, the excess water in hoses
cannot be drained directly into the sink. It will be necessary to drain excess water
from hoses into a bowl or suitable container that is held outside and lower than
the sink.
How to Drain Excess Water From Hoses
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid.
water leaks. Ensure that the water drain hose is not kinked or squashed.
If you need a drain hose extension, make sure to use a similar drain hose. It must
be no longer than 4 metres, otherwise the cleaning effect of the dishwasher could
be reduced.
Extension Hose
32
or
Fix the drain pipe with
suction cups
Before calling for service
Reviewing the charts on the following pages may save you from calling for service.
Problem Possible Causes What To Do
Dishwasher doesn't
start
Fuse blown, or the
circuit break tripped.
Replace fuse or reset circuit breaker.
Remove any other appliances sharing
the same circuit with the dishwasher.
Power supply is not
turned on.
Make sure the dishwasher is turned
on and the door is closed securely.
Make sure the power cord is.
properly plugged into the wall socket.
Check that the water supply is
connected properly andthe water
is turned on.
Door of dishwasher
not properly closed.
Make sure to close the door
properly and latch it.
Water not pumped
form dishwasher
Twisted or trapped
drain hose.
Filter clogged.
Kitchen sink clogged.
Check the drain hose.
Check coarse the filter.
Check the kitchen sink to make sure
it is draining well.If the problem is
the kitchen sink that is not draining,
you may need a plumber rather than
a serviceman for dishwashers.
TROUBLESHOOTING TIPS
Suds in the tub Wrong detergent.
Error code:E1;
Water pressure is low
33
Use only the dedicated dishwasher
detergent to avoid suds. If suds exist
in the washer. Open the door for
20-30 minutes to allow the foam to
evaporate. If the foam still exists in
the liner. Add 1.5L of water to the
liner, close the dishwasher door and
run a forced drain to drain it with the
water. Repeat above operation until
the foam is cleared.
Stained tub interior Detergent with
colourant may
have been used.
Make sure that the detergent has no
colourant.
White film on
inside surface
Hard water minerals. To clean the interior, use a damp
sponge with dishwasher detergent
and wear rubber gloves. Never use
any other cleaner than dishwasher
detergent otherwise, it may cause
foaming or suds.
There are rust
stains on cutlery
The affected items
resistant.
A programme
was not run after
dishwasher salt was
added. Traces of
salt have gotten
into the wash cycle.
Always run a wash programme
without any crockery after adding
salt.
The lid of the softer
is loose.
Check the softener lid is secure.
Problem Possible Causes What To Do
Avoid washing items that are not
corrosion resistant in the dishwasher
.
Knocking noise in
the dishwasher
A spray arm is
knocking against
an item in a basket
Interrupt the programme and
rearrange the items which are
obstructing the spray arm.
Rattling noise in
the dishwasher
Items of crockery
are loose in the
dishwasher.
Interrupt the programme and
rearrange the items of crockery.
Knocking noise in
the water pipes
This may be caused
by on-site installation
or the cross-section
of the piping.
This has no influence on the
dishwasher function. If in doubt,
contact a qualified plumber.
The dishes
are not clean
The dishes were not
loaded correctly.
See notes in “Loading & unloading
your dishwasher”.
The programme was
not powerful enough.
Select a more intensive programme.
34
Not enough detergent
was dispensed.
Use more detergent, or change
your detergent.
Items are blocking
the movement of
the spray arms.
Rearrange the items so that the spray
can rotate freely
.
The filter combination
is not clean or is not
correctly fitted in the
base of washcabinet.
This may cause the spray
arm jets to get blocked.
Clean and/or fit the filter correctly
Clean the spray arm jets.
Cloudiness on
glassware.
Combination of soft
water and too much
detergent.
Use less detergent if you have soft
water and select a shorter cycle to
wash the glassware and to get
them clean.
Problem Possible Causes What To Do
The dishes
are not clean.
White spots
appear on dishes
and glasses.
Add more detergent.
Black or grey
marks on dishes
Aluminium utensils
have rubbed against
dishes
Use a mild abrasive cleaner to
eliminate those marks.
The dishesare
not drying
Hard water area
can cause limescale
deposits.
Improper loading Load the dishwasher as suggested in
the directions.
Dishes are removed
too soon
Do not empty your dishwasher
immediately after washing. Open
the door slightly so that the steam
can come out. Take out the dishes
until the inside temperature is safe
to touch. Unload the lower basket
first to prevent the dropping water
from the upper basket.
35
Problem
The dishesare
not drying
Wrong program has
been selected.
With a short programme, the
washing temperature is lower,
decreasing cleaning performance.
Choose a programme with a long
washing time.
Use of cutlery with a
low-quality coating.
Water drainage is more difficult with
these items. Cutlery or dishes of this
type are not suitable for washing in
the dishwasher.
Error codes
Codes
Meanings
Possible Causes
Longer inlet time.
Not reaching required
temperature
Heating tube or thermistor anomaly, it
should be repaired by a qualified worker.
A flow meter, drain valve, or pump failure,
it should be repaired by a qualified worker.
Possible Causes What To Do
Communication anomaly
It should be repaired by a qualified worker.
Overflow. Some element of dishwasher leaks.
36
If there is a malfunction the dishwasher will display an error code. The following table
shows possible error codes and their causes.
WARNING
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water
should be removed before restarting the dishwasher.
If there is an error code that cannot be solved, please request professional
assistance.
Technical information
Height(H)
Width(W)
Depth(D1)
465mm
435 mm (with the door closed)
420mm
780 mm (with the door opened 90°)
420
W
435
H
435D2
750
37
D1
Depth(D2)
38
Product information sheet (EN60436)
Supplier's name or trade mark:
Supplier's address ( ):
Model identifier:
General product parameters:
Parameter Value
b
Parameter Value
Height
Width
Depth
47
42
44
Dimensions in cm
EEI ( )
Cleaning performance index ( )
Energy consumption in kWh
[per cycle], based on the eco
programme using cold
water fill. Actual energy
consumption will depend on
how the appliance is used.
Program duration ( ) (h:min)
Airborne acoustical noise
emissions ( ) (dB(A) re 1 pW)
Off-mode (W)
Delay start (W) (if applicable)
Minimum duration of the guarantee offered by the supplier ( ):
Rated capacity ( ) (ps)
a
a
a
a
a
Energy efficiency class ( )
Drying performance index ( )
Water consumption in litres
[per cycle], based on the eco
program. Actual water con-
sumption will depend on how
the appliance is used and on
the hardness of the water.
Type
Airborne acoustical noise
emission class ( )
Standby mode (W)
Networked standby (W)
(if applicable)
a
a
a
b
Additional information:
Weblink to the suppliers website, where the information in point 6 of Annex II to
Commission Regulation (EU) 2019/2022 ( ) ( ) is found:
( ) for the eco program.
( ) changes to these items shall not be considered relevant for the purposes of paragraph 4 of
Article 4 of Regulation (EU) 2017/1369.
( ) if the product database automatically generates the definitive content of this cell the supplier
shall not enter these data.
a
b
c
1 b
( ) Commission Regulation (EU) 2019/2022 of 1 October 2019 laying down eco design requirements
for household dishwashers pursuant to Directive 2009/125/EC of the European Parliament and of
the Council amending Commission Regulation (EC) No 1275/2008 and repealing Commission
Regulation (EU) No 1016/2010 (see page 267 of this Official Journal).
1
N/A
N/A
0,865
6,0
Desktop
( )
c
D ( )
c
55,9
1,125
0,359
2:40
58
0,49
1,00
3
CDWMT305W-UK
D
COMFEE’
5
New
Street Square,
London, United Kingdom, EC4A
3TW
https://www.comfee-appliances.com/global
12 months
TEL:0333 900 3303
customerservice@comfee
-appliances.com
