BATTERY CHARGER 25A
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER)
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 21530
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: 909.628.4900 MON-FRI 9AM TO 3PM PST
IMPORTANT SAFETY INFORMATION
1
GENERAL SAFETY WARNINGS
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to
follow the safety rules and other basic safety precautions may result in serious personal injury.
The battery charger should be used in a well ventilated area outdoors, to avoid an accumulation of gasses.
Avoid using the battery charger in wet conditions.
Remove the caps from the battery’s elements before beginning to charge.
Check the level of electrolytic liquids covers the batteries elements; otherwise add distilled water up to the
level indicated on the battery.
Do not touch the battery’s electrolytic liquid, it is very corrosive.
Clean the battery’s terminals to ensure correct contact with the pliers.
Avoid contact between the pliers when the charger is operating.
If the charger is used for a battery that remains installed on a vehicle, comply with the instructions of the
vehicles manufacturer.
Check that the charger’s features are compatible with the battery and the power supply network, a grounded
power outlet is necessary.
Do not expose the battery to rain, snow or other sources of humidity.
The appliance and battery should be used far away from any ames, sparks and do not smoke while using
the charger.
Only charge rechargeable batteries. The charging of non rechargeable batteries or other products are
prohibited.
Never attempt to charge a frozen battery.
Do not install or operate a dropped or otherwise damaged charger.
Remove watches, bracelets or anything of that nature before working on the charger.
Do not touch any uninsulated parts or components when the power is ON.
Do not obstruct the ventilation openings or the airow space.
The Battery Charger is not intended for use by children, or anyone with reduced sensory or mental
capabilities, or lack of experience and knowledge.
The battery terminal is not connected to the chassis and has to be connected rst, the other connection
is to be made to the chassis, remote from the battery and fuel kine. The battery charger from the supply
mains, then remove the chassis connection and the battery connection. If the supply cord is damaged, it
must be replaced by the manufacturer.
Do not discard this battery charge with other household wastes. Dispose it at an appropriate
recycling, collection point provided in your state or county.

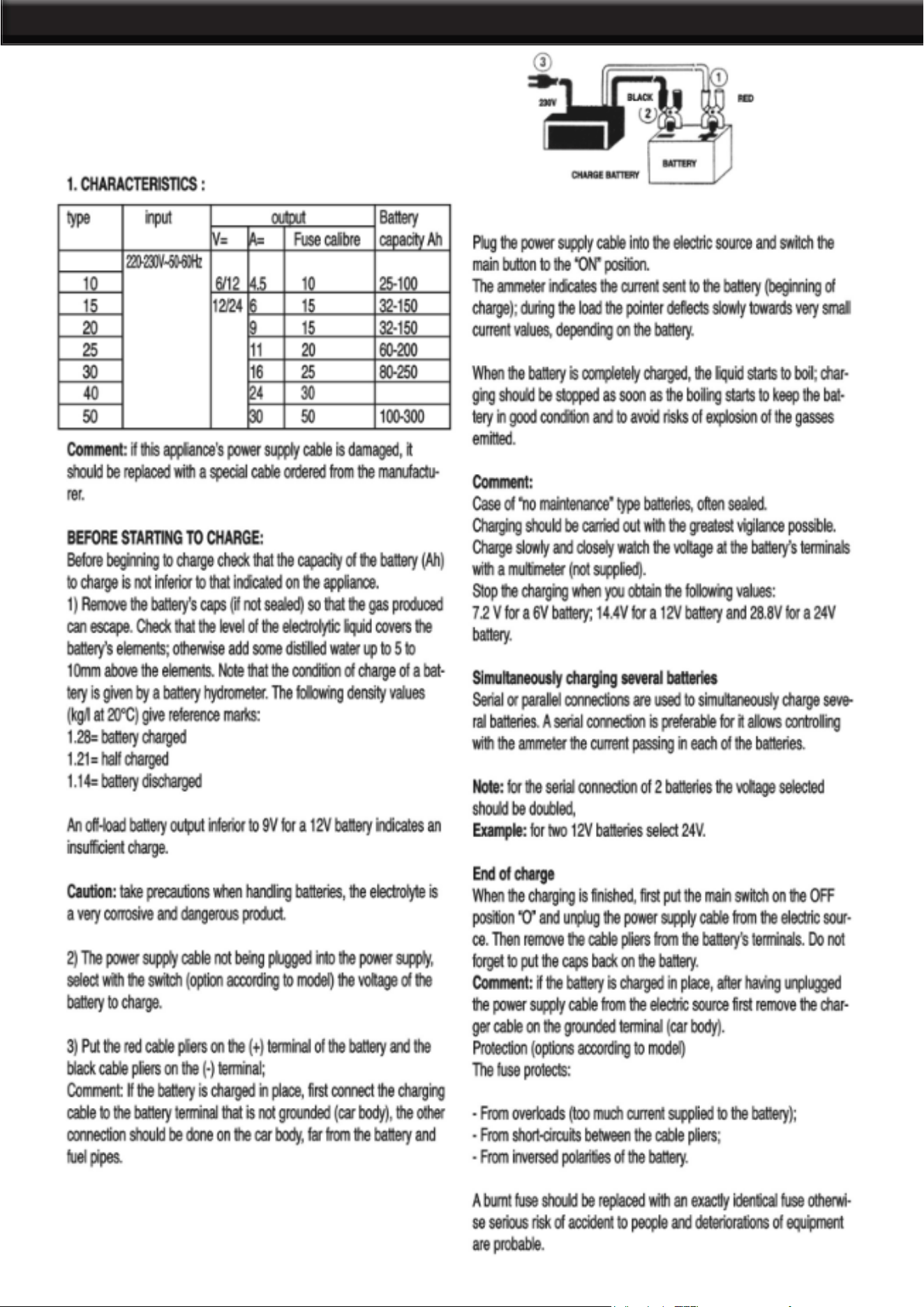

PRODUCT INFORMATION
2

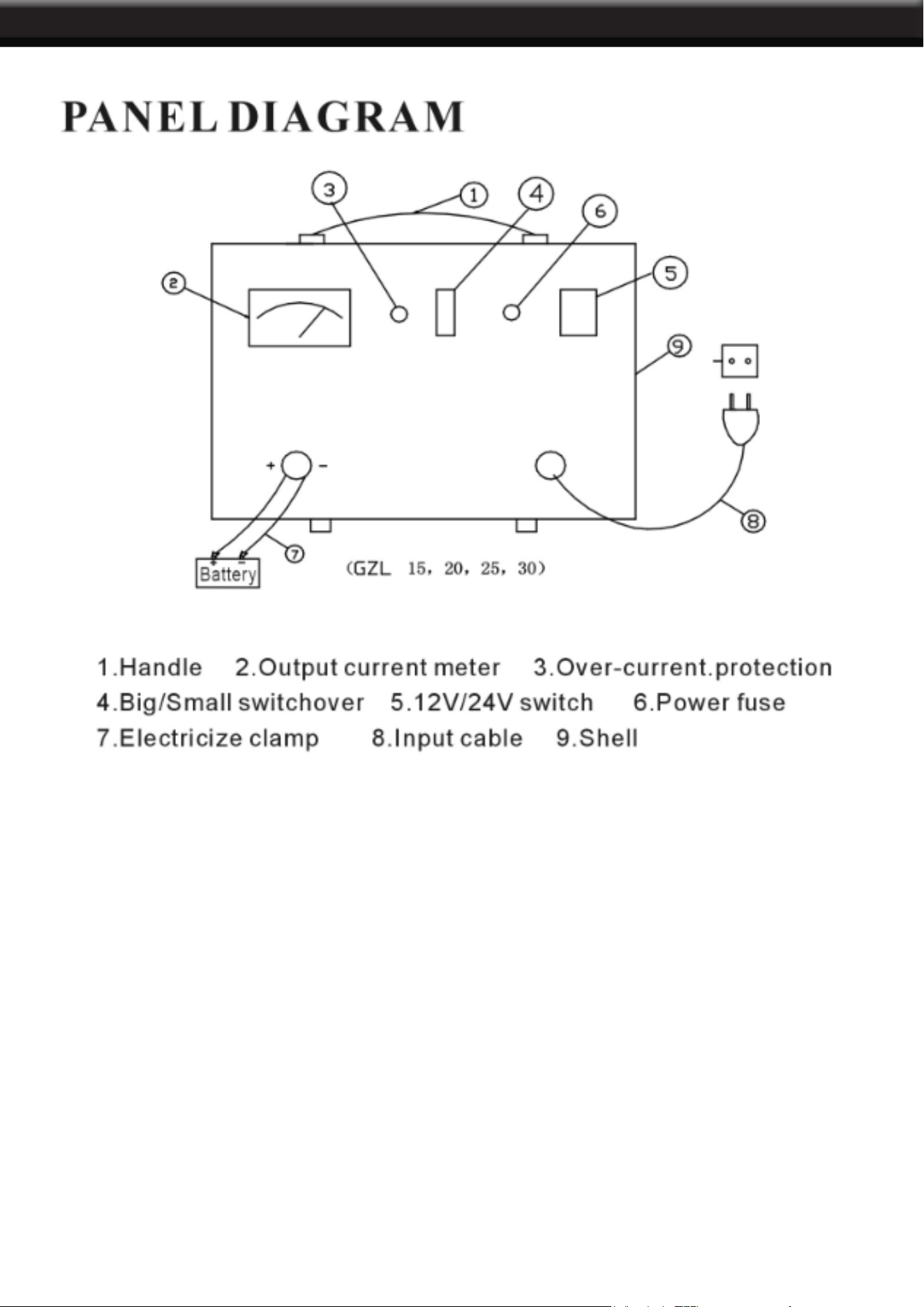

PRODUCT INFORMATION
3

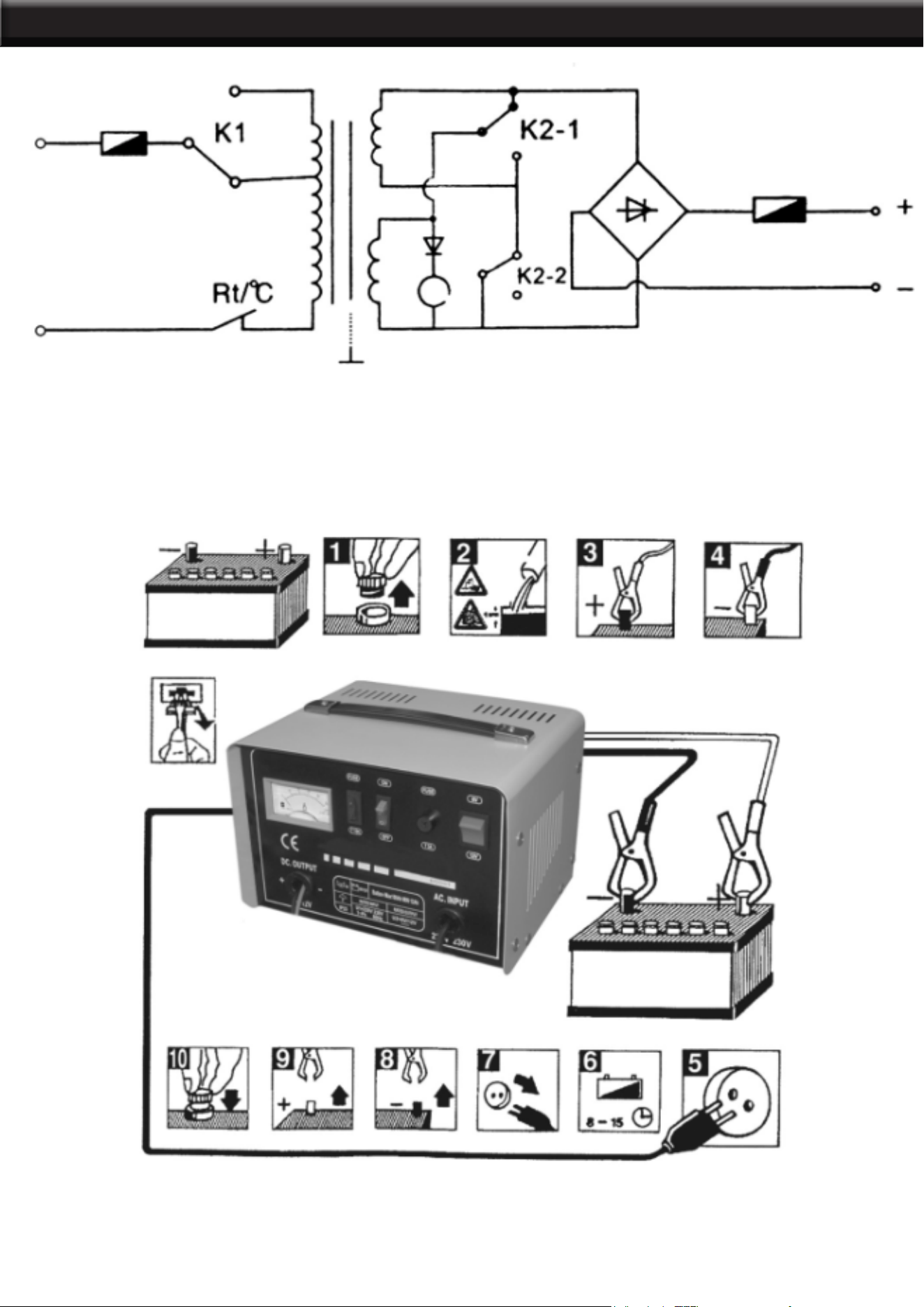

PRODUCT INFORMATION ELECTRICAL DIAGRAM
4

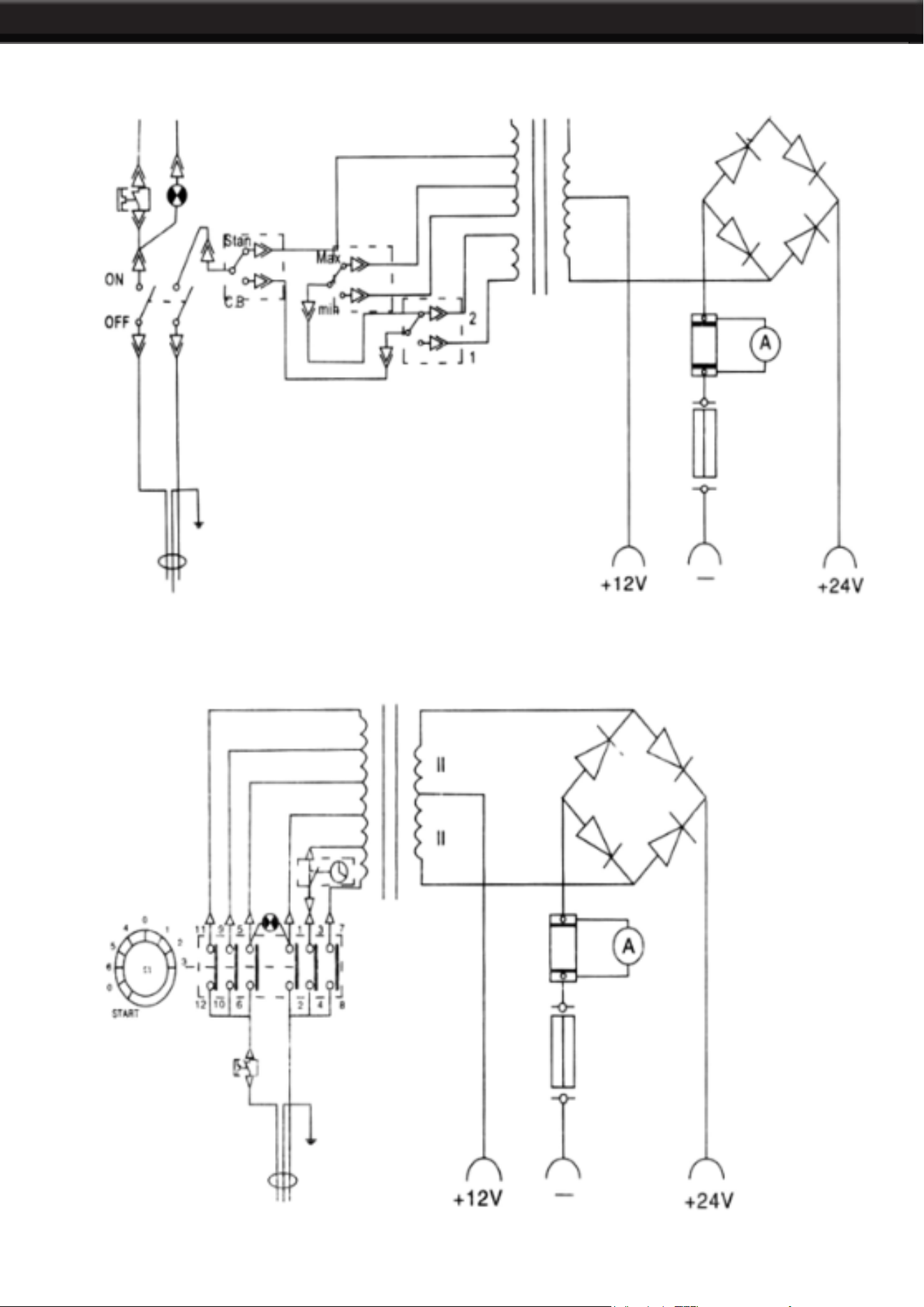

ELECTRICAL DIAGRAM
5
TROUBLESHOOTING
6
PARTS
7
PARTS
8
9
DISCLAIMER
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
PRODUCT MADE IN CHINA
