DUAL FUEL RANGE
COS-DFRP488K
USER MANUAL
READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR
THE OWNER.
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
IMPORTANT:
INSTALLER:
OWNER:
DFRP SERIES SLIDE-IN RANGE
Rev.24.10
2
THANK YOU FOR YOUR PURCHASE
Thank you for your purchase. We know that you have many brands and
products to choose from and we are honored to know that you have decided
to take one of our products into your home and hope that you enjoy it.
COSMO Appliances are designed according to the strictest safety and
performance standard for the North American market. We follow the most
advanced manufacturing philosophy. Each appliance leaves the factory after
thorough quality inspection and testing. Our distributors and our service
partners are ready to answer any questions you may have regarding how to
install, use and care for your products. We hope that this manual will help you
learn to use the product in the safest and most effective manner.
Before using this product, please read through this manual carefully. Keep this
user manual in a safe place for future reference. Please ensure that other
persons using this product are familiar with these instructions as well.
If you ha
ve any questions or concerns, please contact the dealer from whom you
purchased the product, or contact our Customer Support at:
1-888-784-3108
Reach us online at:
www.cosmoappliances.com
3
TABLE OF CONTENTS
RANGE SAFETY ................................................................................................. 4
Anti-tip Device ........................................................................................................ 7
Important Safety Instructions .............................................................................. 8
OVERVIEW ....................................................................................................... 12
Range Layout ......................................................................................................... 12
Control Panel ......................................................................................................... 14
FEATURES ......................................................................................................... 15
OPERATION ...................................................................................................... 17
Gas Surface Burners ............................................................................................. 17
Before Using the Gas Surface Burners ...................................................... 17
Using the Gas Surface Burners ................................................................... 18
Using the Proper Cookware ....................................................................... 20
Oven ....................................................................................................................... 22
Before Using the Oven ................................................................................ 22
Before Using the Oven for the First Time ................................................. 23
Oven Vent ...................................................................................................... 23
Oven Door ..................................................................................................... 24
Using Oven Racks ......................................................................................... 24
Preheating ..................................................................................................... 25

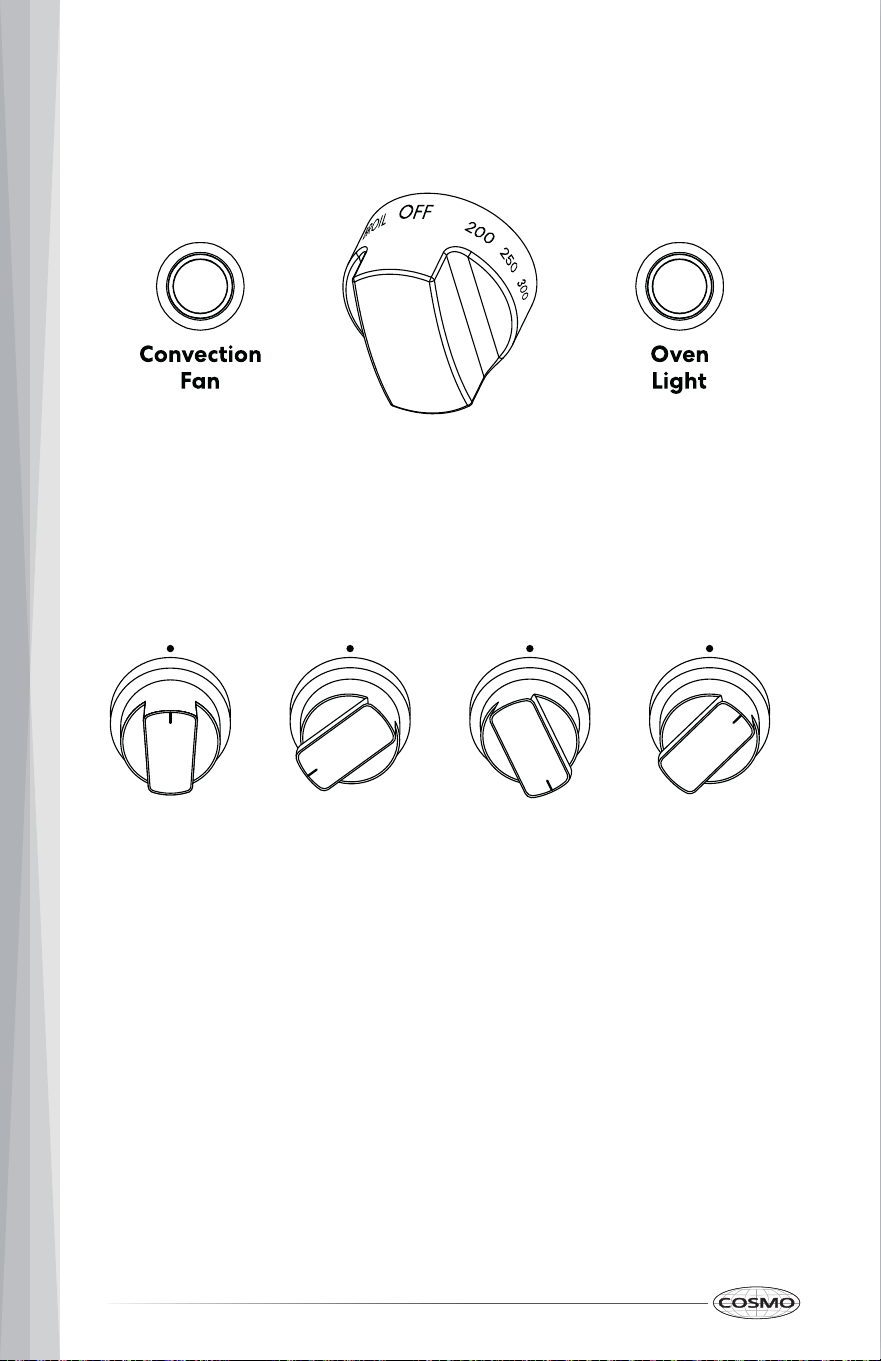

Oven Controls ............................................................................................... 26
Bake ................................................................................................................ 27
Broil ................................................................................................................. 28
Convection Bake .......................................................................................... 29
Tips and Techniques .................................................................................... 30
RANGE CARE AND MAINTENANCE ................................................................. 32
Cleaning ................................................................................................................ 32
TROUBLESHOOTING ....................................................................................... 35
Cooktop Problems................................................................................................ 35
Oven Problems ..................................................................................................... 37
Baking Problems .................................................................................................. 38
LIMITED WARRANTY....................................................................................... 40
4
RANGE SAFETY
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
In the State of Massachusetts, the following installation instructions apply:
• Installations and repairs must be performed by a qualified or licensed
contractor, plumber, or gasfitter qualified or licensed by the State of
Massachusetts.
• If using a ball valve, it shall be a T-handle type.
• A flexible gas connector, when used, must not exceed 3 feet (91.5 cm).
California Proposition 65 Warning
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on
your appliance. Always read and obey all safety messages.
WARNING
You can be killed or seriously injured if you don't
follow instructions.
This is the safety alert symbol.
This symbol alerts you to potential hazards that
can kill or hurt you and others.
All safety messages will follow the safety alert
symbol and either the word "WARNING" or
"CAUTION." These words mean:
CAUTION
A potentially hazardous situation which, if not
avoided, could result in minor or moderate
injury.
All safety messages will tell you what the potential hazard is, tell you how
to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
5
WARNING
FIRE AND EXPLOSION HAZARD
If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
WARNING
Never Operate the Top Surface Cooking Section of this Appliance
Unattended.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
• Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electrical switch.
- Do not use any phone in your building.
- Clear the room, building, or area of all occupants.
- Immediately call your gas supplier from a neighbor's phone. Follow
the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
• Failure to follow this warning statement could result in fire, explosion, or
burn hazard that could cause property damage, personal injury, or
death.
• If a fire should occur, keep away from the appliance and immediately
call your fire department.
6
WARNING
• Gas leaks cannot always be detected by smell. Gas suppliers
recommend that you use a gas detector approved by UL or CSA. For
more information, contact your gas supplier.
• Do not install a ventilation system that blows air downward toward this
cooking appliance. This type of ventilation system may cause ignition
and combustion problems with this cooking appliance resulting in
personal injury or unintended operation.
• This appliance is intended for normal residential use. It is not approved
for commercial use, outdoor installation, or any other application not
specifically allowed by this manual.
• This appliance requires connection to a 4-prong, 240VAC single-phase
(split-phase), 60Hz grounded electrical source protected by a 30- or
40-Amp circuit breaker or slow blow fuse. When installed, appliance
must be electrically grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical Code, NFPA 70 or
the Canadian Electric Code, CSA C22.1-02.
• Proper installation is the responsibility of the installer. Any adjustment
and service should be performed only by qualified range installers or
service technicians. The manufacturer is not responsible for any injury or
damage that may result from incorrect or defective installation by
unauthorized personnel.
• Product failure due to improper installation is not covered under
warranty.
7
ANTI-TIP DEVICE
TIP OVER HAZARD
Making sure the anti-tip bracket is installed:
WARNING
• Slide range forward.
• Look for the anti-tip bracket securely attached to wall.
• Slide range back and make sure rear range pin slides under the anti-tip
bracket.
• A child or adult can tip the range and be killed.
• Install anti-tip bracket to wall per installation instructions.
• Slide range back so rear range pin is under the anti-tip bracket.
• Re-engage the anti-tip bracket if range is moved.
• Do not operate the range without anti-tip bracket installed and
engaged.
• Failure to follow these instructions can result in death or serious burns to
children and adults.
Anti-tip bracket
Pin
8
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical shock, injury to persons, or
damage when using the range, follow basic precautions, including the
following:
• WARNING: TO REDUCE THE
RISK OF TIPPING OF THE RANGE,
THE RANGE MUST BE SECURED
BY PROPERLY INSTALLED ANTI-
TIP DEVICES. TO CHECK IF THE
DEVICES ARE INSTALLED
PROPERLY, SLIDE RANGE
COMPLETELY FORWARD, LOOK
FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO THE
FLOOR OR WALL, AND SLIDE
RANGE BACK SO THE REAR
RANGE FOOT IS UNDER ANTI-
TIP BRACKET.
• WARNING: NEVER use this
appliance as a space heater to
heat or warm the room. Doing
so may result in carbon
monoxide poisoning and
overheating of the oven.
• WARNING: NEVER cover an
entire rack with materials such
as aluminum foil. Doing so
blocks airflow through the oven.
Aluminum foil linings may also
trap heat, causing a fire hazard.
• Use this appliance only for its
intended purpose as described
in this manual.
• This appliance is not intended
for storage.
• CAUTION: Do not store items of
interest to children in cabinets
above a range or on the back
guard of a range – children
climbing on the range to reach
items could be seriously injured.
• Do Not Leave Children Alone –
Children should not be left alone
or unattended in area where
range is in use. They should
never be allowed to sit or stand
on any part of the range.
• Proper Installation – The
appliance, when installed, must
be electrically grounded in
accordance with local codes, or
in the absence of local codes,
with the National Electrical
Code, ANSI/NFPA 70 or the
Canadian Electrical Code, CSA
C22.1-02. In Canada, the
appliance must be electrically
grounded in accordance with
Canadian Electrical Code. Be
sure your appliance is properly
installed and grounded by a
qualified technician.
• Have the installer show you the
location of the range gas shut-
off valve and how to turn it off if
necessary.
READ AND SAVE THESE INSTRUCTIONS
9
IMPORTANT SAFETY
INSTRUCTIONS
• Storage in or on Range –
Flammable materials should not
be stored in an oven or near
surface units.
• User Servicing – Do not repair or
replace any part of the range
unless specifically recommended
in the manual. All other servicing
should be referred to a qualified
technician.
• Before performing any service,
unplug the range or disconnect
the power supply at the
household distribution panel by
removing the fuse or switching
off the circuit breaker.
• Never Leave Surface Units
Unattended at High Heat
Settings – Boilover causes
smoking and greasy spillovers
that may ignite.
• Do Not Use Water on Grease
Fires – Smother fire or flame or
use dry chemical or foam-type
extinguisher.
• Do not use any type of foil or
liner to cover the oven bottom or
anywhere in the oven, except as
described in this manual. Oven
liners can trap heat or melt,
resulting in damage to the
product and risk of shock, smoke
or fire.
• If there is a fire in the oven
during baking, smother the fire
by closing the oven door and
turning the oven off or by using
a multi-purpose dry chemical or
foam-type fire extinguisher.
• Use Only Dry Potholders – Moist
or damp potholders on hot
surfaces may result in burns
from steam. Do not let potholder
touch hot heating elements. Do
not use a towel or other bulky
cloth.
• Glazed Cooking Utensils – Only
certain types of glass,
glass/ceramic, ceramic,
earthenware, or other glazed
utensils are suitable for range-
top service without breaking due
to the sudden change in
temperature.
• Utensil Handles Should Be
Turned Inward and Not Extend
Over Adjacent Surface Units – To
reduce the risk of burns, ignition
of flammable materials, and
spillage due to unintentional
contact with the utensil, the
handle of a utensil should be
positioned so that it is turned
inward, and does not extend
over adjacent surface units.
READ AND SAVE THESE INSTRUCTIONS
10
IMPORTANT SAFETY
INSTRUCTIONS
• Placement of Oven Racks –
Always place oven racks in
desired location while oven is
cool. If rack must be moved
while oven is hot, do not let
potholder contact hot heating
element in oven.
• Use Care When Opening Door –
Let hot air or steam escape
before removing or replacing
food.
• Top burner flame size should be
adjusted so it does not extend
beyond the edge of the cooking
utensil. This instruction is based
on safety considerations.
• Wear Proper Apparel – Loose-
fitting or hanging garments
should never be worn while
using the range.
• Injuries may result from misuse
of appliance doors or drawers
such as stepping, leaning, or
sitting on the doors or drawers.
• Do Not Heat Unopened Food
Containers – Build-up of
pressure may cause container to
burst and result in injury.
• Keep Oven Vent Ducts
Unobstructed.
• Never broil with door open.
Open-door broiling is not
permitted due to overheating of
control knobs.
• Do not use replacement parts
that have not been
recommended by the
manufacturer (e.g. parts made
at home using a 3D printer).
• Maintenance – Keep range area
clear and free from combustible
materials, gasoline, and other
flammable vapors and liquids.
• Do not let cooking grease or
other flammable materials
accumulate in or near the range.
Grease in the oven or on the
cooktop may ignite.
• Clean Cooktop With Caution – If
a wet sponge or cloth is used to
wipe spills on a hot cooking
area, be careful to avoid steam
burn. Some cleaners can
produce noxious fumes if
applied to a hot surface.
• Do Not Clean Door Gasket – The
door gasket is essential for a
good seal. Care should be taken
not to rub, damage, or move the
gasket.
• Do Not Use Oven Cleaners – No
commercial oven cleaner or
oven liner protective coating of
any kind should be used in or
around any part of the oven.
• Clean Only Parts Listed in
Manual.
READ AND SAVE THESE INSTRUCTIONS
11
IMPORTANT SAFETY
INSTRUCTIONS
• Care must be taken to prevent
aluminum foil and meat probes
from contacting heating
elements.
• DO NOT TOUCH HEATING
ELEMENTS OR INTERIOR
SURFACES OF OVEN – Heating
elements may be hot even
though they are dark in color.
Interior surfaces of an oven
become hot enough to cause
burns. During and after use, do
not touch, or let clothing or other
flammable materials contact
heating elements or interior
surfaces of oven until they have
had sufficient time to cool. Other
surfaces of the appliance may
become hot enough to cause
burns – among these surfaces
are cooktop, burners, grates,
oven vent openings and surfaces
near these openings, oven
doors, windows of oven doors,
and crevices around the oven
doors.
• Proper Disposal of Your
Appliance – Dispose of or recycle
your appliance in accordance
with Federal and Local
Regulations. Contact your local
authorities for the
environmentally safe disposal or
recycling of your appliance.
For units with ventilating hood –
• Clean Ventilating Hoods
Frequently – Grease should not
be allowed to accumulate on
hood or filter.
• When flambé cooking under the
v
ent hood, turn the fan on.
For self-cleaning ranges –
• Before Self-Cleaning the Oven –
Remove broiler pan and other
utensils. Wipe off all excessive
spillage before initiating the
cleaning cycle.
• Wait for the oven to cool before
removing contents and cleaning
the oven.
• In the event of ignition inside the
oven during self-clean, turn off
the oven and wait for the fire to
extinguish. DO NOT FORCE THE
DOOR OPEN.
• If the self-cleaning mode
malfunctions, keep door closed,
turn off the appliance,
disconnect the circuit at the
circuit breaker box, and contact
a qualified service provider for
repairs.
• Some birds are extremely
sensitive to the fumes produced
during a self-clean cycle. Move
birds to another well-ventilated
room.
READ AND SAVE THESE INSTRUCTIONS
12
OVERVIEW
RANGE LAYOUT
The range you have purchased may have some or all of the items listed. The
locations and appearances of the features shown here may not match those
of your model.
1. Oven Vent
2. Grate
3. Control Panel
4. Convection Fan
5. Oven Rack
6. Door Gasket
7. Leveling Leg Cover
8. Griddle
9. Surface Burner
10. Oven Indicator Light
11. Oven Light
12. Rack Positions
13. Door Hinge
14. Oven Door Window
15. Oven Door Handle
13
WHAT'S INCLUDED
Surface burner grates (4) Surface burners and caps (8)
Griddle Oven racks (4)
• Stylish color handle & knob kits
Scan to find
available handle &
knob kits
OPTIONAL PARTS
To purchase these or any other accessories or replacement parts, please visit
www.cosmoappliances.com or reference the contact information at the end
of this manual.
14
CONTROL PANEL
COS-DFRP488K (48")
Oven Light &
Convection Fan
(30" Main)
Cooktop Oven Cooktop Oven
Oven Light
(18" Sub) &
Panel Light
Cooktop
(Sub) (Main)(Dual) (Dual)
15
FEATURES
CONVECTION FAN
The convection fan increases air movement and circulates heat within the
oven to improve heat distribution on multiple racks and enhance cooking
evenness while cooking with single or multiple racks. Cooking times may be
slightly longer for multiple racks than what would be expected for a single
rack.
• Press Convection Fan to turn the oven convection fan on or off.
NOTE:
• The convection fan turns on for Bake mode only.
OVEN LIGHT
The interior oven lights are controlled by the Oven Light buttons.
• Press Oven Light to manually turn the oven lights on or off.
PANEL LIGHT
The control panel lights above the control knobs are controlled by the Panel
Light button.
• Press Panel Light to turn the panel lights on or off.
16
OVEN INDICATOR LIGHT
The oven indicator light automatically turns on when the oven is heating. The
oven burner cycles on and off to maintain the set temperature. When the set
temperature is reached, the oven indicator light will temporarily turn off until
the heating cycle is activated to maintain the set temperature.
Oven indicator light
17
OPERATION
GAS SURFACE BURNERS
BEFORE USING THE GAS SURFACE BURNERS
Read all instructions before using.
WARNING
CAUTION
• Make sure all burners are in their correct locations and fully assembled
before attempting to operate any burner.
• Never leave the surface burners on unattended. Boilovers may cause
smoke and greasy spillovers that may ignite.
• Do not use aluminum foil to line or cover the cooktop, grates, or any
other part of the cooktop. Doing so may result in carbon monoxide
poisoning, overheating of the cooktop surfaces, or fire.
• Use the proper pan size. Do not use pans that are unstable or that can
be easily tipped. Select cookware with flat bottoms large enough to
cover burner grates.
• To avoid spillovers, make sure the cookware is large enough to contain
the food properly. This will both save cleaning time and prevent
hazardous accumulations of food, since heavy spattering or spillovers
left on the range can ignite.
• Control the top burner flame size so it does not extend beyond the edge
of the cookware. Excessive flame is hazardous.
• Do not operate the burner for an extended period of time without
cookware on the grate. The finish on the grate may discolor or chip
without cookware to absorb the heat.
• Do not attempt to disassemble any burner while another burner is on.
Damage to the product may occur.
• Be sure the burners and grates are cool before you place your hand, a
pot holder or cleaning materials on them.
18
IMPORTANT:
USING THE GAS SURFACE BURNERS
The appearance of the knobs may vary from what are shown below.
Lighting a Surface Burner
NOTE:
1. Select a burner and find its control knob.
2. Push the control knob in and turn it to the IGNITE position. The electric
spark ignition system will make a clicking noise.
• The use of a gas-cooking appliance results in the production of heat and
moisture in the room in which it is installed. Ensure that the kitchen is well
ventilated: keep natural ventilation holes open or install a mechanical
ventilation device (mechanical extractor hood).
• Prolonged intensive use of the appliance may call for additional
ventilation, for example opening of a window, or more effective
ventilation, for example increasing the level of mechanical ventilation
where present.
• When one burner on the left or the right side is turned to IGNITE,
the other 3 burners on the same side will spark. Sparking will
continue as long as the knob remains at IGNITE.
OFF position IGNITE position HI position LO position
3. Once gas is ignited, turn the control knob to adjust the flame size.
4. To turn off a burner, turn the control knob to the OFF position.
OFF
HI
LO
HI
19
Selecting a Flame Size
Watch the flame, not the control knob, as you reduce heat. Match the flame
size on a gas burner to the cookware being used for fastest heating.
NOTE:
• Never let the flames extend up the sides of the cookware. Flames larger
than the bottom of the cookware will not heat faster and may be
hazardous.
In Case of Power Failure
In case of a power failure, you can light the gas surface burners on your range
with a match. Surface burners in use when an electrical power failure occurs
will continue to operate normally.
1. Using extreme caution, hold a lit match to the burner
2. Push in the control knob, then turn the control knob to the Lo position.
3. Once gas is ignited, turn the control knob to adjust the flame size.
20
USING THE PROPER COOKWARE
Aluminum
Medium-weight cookware is recommended because it heats quickly and
evenly. Most foods brown evenly in an aluminum skillet. Use saucepans with
tight fitting lids when cooking with minimum amounts of water.
Cast-Iron
If heated slowly, most skillets will give satisfactory results.
Stainless Steel
This metal alone has poor heating properties and is usually combined with
copper, aluminum or other metals for improved heat distribution.
Combination metal skillets work satisfactorily if they are used with medium
heat as the manufacturer recommends.
Enamelware
Under some conditions, the enamel of this cookware may melt. Follow
cookware manufacturer’s recommendations for cooking methods.
Glass
There are two types of glass cookware. Those for oven use only and those for
top-of-range cooking.
Heatproof Glass Ceramic
Can be used for either surface or oven cooking. It conducts heat very slowly
and cools very slowly. Check cookware manufacturer’s directions to be sure it
can be used on gas ranges.
BALANCED PAN
UNBALANCED
PAN
CONVEX
(ROUNDED)
CONCAVE
(HOLLOW)
USE LIDS THAT
FIT PROPERLY
FLAME TOO LARGE
FOR PAN SIZE
21
NOTE:
• The flame should not extend beyond the bottom edge of the cookware.
Oversized cookware that spans two burners should be placed front to
rear, not side to side.
• Use balanced cookware that sits level on the cooktop grate without
rocking. Center the cookware over the burner.
• Use a lid that fits properly. A well-fitting lid helps shorten the cooking
time.
• Match the size of the cookware to the amount of food being cooked to
save energy when heating.
• Do not use stove top grills on the surface burners. Using a stove top grill
on the surface burner will cause incomplete combustion and can result
in exposure to carbon monoxide levels above allowable current
standards. This can be a health hazard.
• If using a wok, use only a flat-bottomed wok with diameter of 14 inches
or less. Make sure that the wok bottom sits flat on the grate.
• Do not use a wok support ring. Placing the ring over the burner or grate
may cause the burner to work improperly, resulting in carbon monoxide
levels above allowable standards. This can be hazardous to your
health.
22
OVEN
BEFORE USING THE OVEN
Read the instructions for each feature and cooking mode in this manual
carefully before using the oven.
• Do not use any type of foil or oven liner to cover the oven bottom. These
items can trap heat or melt, resulting in damage to the product and risk
of shock, smoke or fire. Damage from improper use of these items is not
covered by the product warranty.
• Foil may be used to catch spills by placing a sheet on a lower rack,
several inches below the food. Do not use more foil than necessary and
never entirely cover an oven rack with aluminum foil. Keep foil at least
1-1/2" (3.8 cm) from oven walls to prevent poor heat circulation.
• Do not cover the slotted grid of the 2-piece broiler pan with aluminum
foil. This will catch the grease and could cause fire.
• Do not use plastic wrap or wax paper in the oven.
• Do not place food, water, ice, or any dish or tray directly on the oven
floor, as this will irreversibly damage the enamel surface.
• Do not block, touch or place items around the oven vent during
cooking. Your oven is vented through ducts at the center above the
burner grate. Do not block the oven vent when cooking to allow for
proper air flow.
• In case of power failure, do not use the oven. The oven and broiler
cannot be used during a power outage. If the oven is in use when a
power failure occurs, the oven burner shuts off and cannot be re-lit until
power is restored. Once power is restored, you will need to reset the
oven cooking mode.
• As the oven heats up, the heated air in the oven may cause
condensation to appear on the oven door glass. These water drops are
harmless and will evaporate as the oven continues to heat up.
CAUTION
23
FOOD POISONING HAZARD
• Do not let food sit in oven more than one hour before or after cooking.
Doing so can result in food poisoning or sickness.
• Foods that can easily spoil such as milk, eggs, fish, meat or poultry,
should be chilled in the refrigerator first. Even when chilled, they should
not stand in the oven for more than 1 hour before cooking begins, and
should be removed promptly when finished cooking.
NOTE:
• Because the oven temperature cycles, an oven thermometer placed in
the oven cavity may not show the same set temperature on the oven.
BEFORE USING THE OVEN FOR THE FIRST TIME
Start the oven in BAKE mode at the highest available temperature setting.
Allow oven to run for 1 hour to remove any dust or impurities. There will be a
distinctive odor - this is normal. Ensure your kitchen is well ventilated during
this conditioning period.
OVEN VENT
Areas near the vent may become hot during operation and may cause burns.
Avoid placing plastics near the vent as heat may distort or melt the plastic.
Do not block the vents (air openings) of the range. They provide the air inlet
and outlet that are necessary for the range to keep cool and operate properly
with correct combustion.
It is normal for steam to be visible when cooking foods with high moisture
content.
WARNING
24
OVEN DOOR
To avoid oven door glass breakage:
CAUTION
USING OVEN RACKS
The racks have a turned-up back edge that prevents them from being pulled
out of the oven cavity.
• Do not close the oven door if the racks are not fully inserted into the oven
cavity or if bakeware extends past the front edge of an oven rack.
• Do not set objects on the glass surface of the oven door.
• Do not hit glass surfaces with bakeware or other objects.
• Do not wipe down glass surfaces until the oven has completely cooled.
Removing Racks
Replacing Racks
1. Pull the rack straight out until it
stops.
2. Lift up the front of the rack and
pull it out.
• Replace oven racks before turning the oven on to prevent burns.
• Do not cover the racks with aluminum foil, or any other material, or
place anything on the bottom of the oven. Doing so will result in poor
baking and may damage the oven bottom.
• Only arrange oven racks when the oven is cool.
1. Place the end of the rack on the
support.
2. Tilt the front end up and push the
rack in.
25
Rack Positions
For best cooking results, adjust rack so
food is placed at the center of the
oven. For most foods this will be rack
position #2 or #3. For larger foods like
roasts and turkey, move the rack
position down to #1 or #2 to keep the
food centered in the oven.
When using multiple racks
simultaneously, try to space the food
out around the oven center (rack
position #1 and #3 or #2 and #4 for
two racks).
Broiling performs best with the food
close to the broil burner - typically rack
position #4 or #5.
PREHEATING
Preheating is generally desirable, although not absolutely necessary in all
circumstances. Some foods are more robust and may have acceptable results
without preheating. These foods include large pieces of meat (whole roasts,
hams, or poultry) where the total cooking time is much longer than the time
required to preheat. These foods also include frozen potato products and
frozen processed dinners that, by their nature and design, are more robust to
baking variations. More delicate foods, such breads (including cakes, cookies,
pastries, and pizzas), desserts, soufflés, etc. will likely not have acceptable
results without proper preheating.
5
4
3
2
1
26
OVEN CONTROLS
The appearance of the knob may vary from what is shown in the manual.
Convection fan button Thermostat knob (°F) Oven light button
OFF position
Thermostat Knob
The Thermostat knob is used to select oven cooking modes.
BAKE (350°F)
position
BAKE (500°F)
position
BROIL position
Convection Fan
Light
• Push the Convection Fan button to turn the convection fan On or Off.
• Push the Light button to turn the oven lights On or Off.
OFF
BROIL350 500
27
BAKE
The Bake mode uses heat from the lower heating element to cook food. This
mode works best with food placed on a single rack. When using this mode to
prepare baked goods such as cakes, cookies and pastries, always preheat the
oven first and place food centrally near the middle or lower racks.
Setting the Bake Mode (Example: Set Bake at 350°F.)
1. Adjust oven rack levels as needed.
2. Turn the thermostat knob to select 350°F. The oven turns on and starts
preheating.
NOTE:
• Once the oven reaches the set temperature, the oven pauses
heating and the oven indicator light turns off temporarily. The oven
heating cycle will automatically resume to maintain the set
temperature, and the oven indicator light will turn on again.
3. Place the food in the oven after preheating.
4. Turn the thermostat knob to the OFF position when cooking is finished,
and remove the food from the oven.
NOTE:
• Baking time and temperature will vary depending on the
characteristics, size, and shape of the baking pan used.
• Check for food doneness at the minimum recipe time.
• Use metal bakeware (with or without a nonstick finish), heatproof glass-
ceramic, ceramic or other bakeware recommended for oven use.
• Dark metal pans or nonstick coatings will cook food faster with more
browning. Insulated bakeware will slightly lengthen the cooking time
for most foods.
28
BROIL
The Broil mode uses intense heat from the upper heating element to sear
foods. This mode works best for tender cuts of meat, fish, and thinly cut
vegetables, and is ideal for toasting, melting cheese, browning and searing
surface. Food should be placed near the upper racks, and should not be
cooked for too long on each side of the food. Preheat the oven for about 5
minutes before placing food in the oven.
Setting the Broil Mode
1. Adjust oven rack levels as needed and place the food in the oven.
2. Turn the thermostat knob to select BROIL. The oven turns on and starts
preheating.
3. Place the food in the oven after preheating for about 5 minutes.
4. Turn the thermostat knob to the OFF position when cooking is finished,
and remove the food from the oven.
NOTE:
• The broil burner is very powerful. Follow recipe directions and monitor
food closely to reduce risk of burning food.
• Always use a broiler pan and grid for excess fat and grease drainage.
This will help to reduce splatter, smoke, and flare-ups.
• Do not use a broiler pan without a grid. Oil can cause a grease fire.
• Do not cover the grid and broiler pan with aluminum foil. Doing so will
cause a fire.
29
CONVECTION BAKE
The Convection Bake mode uses heat from the lower heating element and hot
air movement from the convection fan to enhance cooking efficiency and
evenness across multiple racks. Always preheat the oven first. Baking times
may be slightly longer for multiple racks than what would be expected for a
single rack.
Setting the Convection Bake Mode
(Example: Set Convection Bake at 350°F.)
1. Adjust oven rack levels as needed.
2. Turn the thermostat knob to select 350°F, and press the Convection Fan
button. The oven turns on and starts preheating.
NOTE:
• Once the oven reaches the set temperature, the oven pauses
heating and the oven indicator light turns off temporarily. The oven
heating cycle will automatically resume to maintain the set
temperature, and the oven indicator light will turn on again.
3. Place the food in the oven after preheating.
4. Press the Convection Fan button and turn the thermostat knob to the OFF
position when cooking is finished, and remove the food from the oven
NOTE:
• The oven fan runs while convection baking.
• Use Convection Bake for faster and more even multiple-rack cooking of
pastries, cookies, muffins, biscuits, and breads of all kinds.
• Place the oven racks in positions suggested in the "Tips and Techniques"
section.
• Bake cookies and biscuits on pans with no sides or very low sides to
allow heated air to circulate around the food. Food baked on pans with
a dark finish will cook faster.
30
TIPS AND TECHNIQUES
BAKE
Baking is cooking with heated air. The lower heating element in the oven is
used to heat the air but no fan is used to circulate the heat.
Follow the recipe or convenience food directions for baking temperature, time
and rack position. Baking time will vary with the temperature of ingredients
and the size, shape and finish of the baking utensil.
• For best results, bake food on a single rack with at least 1" - 1½" (2.5 - 3
cm) space between utensils and oven walls.
• Use one rack when selecting the bake mode.
• Check for doneness at the minimum time.
• Use metal bakeware (with or without a non-stick finish), heatproof glass,
glass-ceramic, pottery or other utensils suitable for the oven.
• When using heatproof glass, reduce temperature by 25°F (15°C) from
recommended temperature.
• Use baking sheets with or without sides or jelly roll pans.
• Dark metal pans or nonstick coatings will cook faster with more browning.
Insulated bakeware will slightly lengthen the cooking time for most foods.
• Do not use aluminum foil or disposable aluminum trays to line any part of
the oven. Foil is an excellent heat insulator and heat will be trapped
beneath it. This will alter the cooking performance and can damage the
finish of the oven.
BROIL
The Broil mode uses intense heat from the upper heating element to sear
foods. The size, weight, thickness, starting temperature, and your preference
of doneness will affect broiling times.
• For best results when broiling, use a broiler pan and grid designed for
broiling.
• For proper draining, do not cover the grid with foil. The bottom of the pan
may be lined with aluminum foil for easier cleaning.
• Trim excess fat to reduce spattering. Slit the remaining fat on the edges to
avoid curling.
• Preheat the oven for about 5 minutes before placing food in the oven.
31
CONVECTION BAKE
The convection fan increases air movement and circulates heat within the
oven to improve heat distribution on multiple racks and enhance cooking
evenness while cooking with single or multiple racks. Reduce recipe baking
temperatures by 25°F (15°C). Cooking times may be slightly longer for multiple
racks than what would be expected for a single rack.
• For best results, foods should be cooked uncovered, in low-sided pans t o
take advantage of the forced air circulation. Use shiny aluminum pans fo r
best results unless otherwise specified.
• Heatproof glass or ceramic can be used. Reduce temperature by anothe r
25°F (15°C) when using heatproof glass dishes for a total reduction o f
50°F (30°C).
• Dark metal pans may be used. Note that food may brown faster whe n
using dark metal bakeware.
• The number of racks used is determined by the height of the food to be
cooked.
• Baked items, for the most part, cook extremely well in convection. Don’ t
try to convert recipes such as custards, quiches, pumpkin pie, o r
cheesecakes, which do not benefit from the convection-heating process.
Use the regular Bake mode for these foods.
• Multiple rack cooking for oven meals is
mostly done on rack positions 1, 2, 3,
and 4. All four racks can be used for
cookies, biscuits and appetizers.
- 2 Rack baking: Use positions 2 and
4 or 1 and 3.
- 3 rack baking: Use positions 1, 3
and 5 or 2, 3 and 4.
- When baking four cake layers at
the same time, stagger pans so
that one pan is not directly above
another. For best results, place
cakes on front of one rack and
back of another rack (See graphic
at right). Allow 1" - 1 ½" (2.5 – 3 cm)
air space around pans.
• Converting your own recipe can be easy. Choose a recipe that will work
well in convection.
• Reduce the temperature and cooking time if necessary. It may take som e
trial and error to achieve a perfect result. Keep track of your technique fo r
the next time you want to prepare the recipe using convection.
Rear
Placement
Front
Placement
5
4
3
2
1
32
RANGE CARE AND MAINTENANCE
CLEANING
IMPORTANT: Before cleaning, make sure all controls are off and the oven and
cooktop are cool. Always follow label instructions on cleaning products. Soap,
water and a soft cloth or sponge are suggested first unless otherwise noted.
Do not use abrasive cleaning products.
NOTE:
• Do not clean the oven door gasket. The material of the gasket cannot
withstand abrasion. It is essential for the gasket to remain intact. If you
notice it becoming worn or frayed, replace it.
EXTERIOR PORCELAIN ENAMEL SURFACES
• Food spills containing acids, such as vinegar and tomato, should be
cleaned as soon as the entire appliance is cool. These spills may affect the
finish.
Cleaning Method:
• Glass cleaner, mild liquid cleaner or nonabrasive scrubbing pad: Gently
clean around the model and serial number plate because scrubbing may
remove numbers.
EXTERIOR STAINLESS STEEL
• Rub in direction of grain to avoid damaging.
Cleaning Methods:
• Liquid detergent or all-purpose cleaner: Rinse well with clean water and
dry with soft, lint-free cloth.
• Stainless Steel Cleaner and Polish. Vinegar for hard water spots.
NOTE:
• Do not use soap-filled scouring pads, abrasive cleaners, Cooktop
Polishing Cream, steel-wool pads, gritty washcloths or some paper
towels. Damage may occur, even with one-time or limited use.
33
OVEN DOOR EXTERIOR
Cleaning Method:
• Glass cleaner and paper towels or nonabrasive plastic scrubbing pad:
Apply glass cleaner to soft cloth or sponge, not directly on panel.
PORCELAIN-COATED GRATES AND CAPS
• Clean as soon as cooktop, grates and caps are cool.
• Food spills containing acids, such as vinegar and tomato, should be
cleaned as soon as the cooktop grates and caps are cool. These spills
may affect the finish.
• To avoid chipping, do not bang grates and caps against each other or
hard surfaces such as cast iron cookware.
• Do not reassemble caps on burners while wet.
Cleaning Method:
• Nonabrasive plastic scrubbing pad and mildly abrasive cleanser.
BURNER BASE/SPREADER
Cleaning Method:
• Wash the burner base/spreader frequently with boiling water and
detergent to remove any deposits which could block the flame outlet.
• Before reinstalling, dry the burner base/spreader thoroughly so the
burner will ignite properly.
COOKTOP CONTROL KNOBS
• Pull knobs straight away from control panel to remove.
• When replacing knobs, make sure knobs are in the OFF position.
Cleaning Method:
• Soap and water or dishwasher.
NOTE:
• Do not use steel wool, abrasive cleansers or oven cleaner. Do not
soak knobs.
34
CONTROL PANEL
Cleaning Method:
• Glass cleaner and soft cloth or sponge: Apply glass cleaner to soft cloth or
sponge, not directly on panel.
NOTE:
• Do not use abrasive cleaners, steel-wool pads, gritty washcloths or
some paper towels. Damage may occur.
OVEN CAVITY
• Food spills should be cleaned when oven cools. At high temperatures,
foods react with porcelain, so staining, etching, pitting or faint white
spots can result.
Cleaning Method:
• Mild detergent and warm water.
NOTE:
• Do not use oven cleaners.
OVEN RACKS AND ROASTING RACKS
Cleaning Method:
• Steel-wool pad
2-PIECE BAKING TRAY OR BROILER PAN
Cleaning Method:
• Mildly abrasive cleanser: Scrub with wet scouring pad.
• Solution of ½ cup (125 mL) ammonia to 1 gal. (3.75 L) water: Soak for 20
minutes, and then scrub with scouring or steel-wool pad.
• Oven cleaner: Follow product label instructions.
Porcelain enamel only, not chrome
• Dishwasher
35
TROUBLESHOOTING
First try the solutions suggested here to possibly avoid the cost of a service
call.
COOKTOP PROBLEMS
PROBLEM POSSIBLE CAUSE SOLUTION
Burner will
not ignite
There is no power
to the range.
Make sure electrical plug is
plugged into a live, properly
grounded outlet. Replace the fuse
or reset the circuit breaker.
Burner will
not operate
First time use. Air
still in the gas
line.
Turn on any one of the surface
burner knobs to release air from
the gas lines.
Control knob is
not set correctly.
Push in knob before turning to a
setting.
The burner port is
clogged.
Clean burner port opening using a
stiff, nylon toothbrush or a
straightened paper clip.
Excessive
heat around
cookware on
cooktop
The cookware is
not the proper
size for the
burner.
Use cookware with a bottom
surface approximately the same
size as the cooking area and
burner. Cookware should not
extend more than 1" (2.5 cm)
outside the cooking area. Adjust
the flame so that it does not come
up around the cookware.
Burner
Flames are
uneven,
yellow
and/or noisy
Burner port(s) are
clogged.
Clean burner port opening using a
stiff, nylon toothbrush or a
straightened paper clip.
Burner caps are
not positioned
properly.
Place burner caps so that the
alignment pins are properly
aligned with the slots.
Propane gas is
being used.
The range should be converted to
LP gas by a qualified technician.
36
PROBLEM POSSIBLE CAUSE SOLUTION
Burner flame
is too high or
too low
Cooktop gas
supply is not
correct.
Ensure the range is set for the
correct gas type. It is factory set for
natural gas. If connecting to LP
gas, the burners should be
converted to LP gas with the orifice
kit supplied and the pressure
regulator converted to the LP gas
setting by a qualified technician.
The gas pressure
is not correct.
Make sure the pressure regulator is
installed correctly and the gas line
pressure is correct. See Installation
Instructions.
Burner
makes
popping
noises
The burner is wet. Allow the burner to dry before
using.
The burner cap
or gas spreader is
not positioned
correctly.
Place burner caps so that the
alignment pins are properly
aligned with the slots.
Cooking
results are
not what
expected
Using incorrect
cookware.
See the "Using The Proper
Cookware" section.
The control knob
is not set to the
proper heat level.
See the "Using The Gas Surface
Burners" section.
Unable to
maintain a
rolling boil
or will not
cook fast
enough
Using improper
cookware.
Use pans with flat bottoms and
that match the diameter of the
cooktop burner selected. Adjust
flame so that flame does not
extend beyond edge of pot. See
the "Using The Proper Cookware"
section.
Using large
cookware
without lid.
Large pots and pans can lose a lot
of heat from the top. Cover pot or
pan with a lid to retain heat better.
37
OVEN PROBLEMS
PROBLEM POSSIBLE CAUSE SOLUTION
Strong odor
when using
new oven
Manufacturing
protective
coating on the
oven surfaces.
This is normal with a new range
and will disappear after a few
uses.
Packaging
materials exist.
Double-check that all packaging
has been removed from the
appliance - check around door
sides and inside drawer.
Oven is not
heating
No power to the
range.
Check the circuit breaker or fuse
box to your house. Make sure
there is proper electrical power to
the oven.
Oven control not
turned on.
Make sure the oven temperature
has been selected.
Oven is not
cooking
evenly
Not using the
correct bakeware
or oven rack
position.
Refer to the "Using Oven Racks"
section and the cook charts for
recommended rack position.
Always reduce recipe temperature
by 25°F (15°C) when baking with
Convention Bake mode.
Recipe may perform better at a
different rack position. Try moving
the food down a rack position to
make the bottom darker. Try
moving food up a rack position to
make the top darker.
Cooling fan
continues to
run after
oven is
turned off
The electronic
components
have not yet
cooled
sufficiently.
The fan will turn off automatically
when the electronic components
have cooled sufficiently.
Oven light is
not working
properly
Light bulb loose
or burned-out.
Reinsert or replace the light bulb.
Touching the bulb with fingers
may cause the bulb to burn out.
38
PROBLEM POSSIBLE CAUSE SOLUTION
Excessive
Moisture on
door glass
Condensation
from cooking
foods with high
moisture content.
This is normal. Condensation will
evaporate as oven heats up.
Convection Bake and Convection
Roast will eliminate any moisture in
the oven.
Porcelain
Chips
Porcelain interior
is chipped by
oven racks
When removing and replacing
oven racks, always tilt racks
upward and do not force them to
avoid chipping the porcelain.
BAKING PROBLEMS
With any oven setting poor results can occur for many reasons other than a
malfunction of the oven. Check the chart below for causes of the most
common problems. Since the size, shape and material of baking utensils
directly affect the baking results, the best solution may be to replace old
baking utensils that have darkened and warped with age and use.
PROBLEM CAUSE
Food browns
unevenly
• Oven not preheated
• Aluminum foil on oven rack or oven bottom
• Baking utensil too large for recipe
• Pans touching each other or oven walls
Food too brown on
bottom
• Oven not preheated
• Using glass, dull or darkened metal pans
• Incorrect rack position
• Pans touching each other or oven walls
Food is dry or has
shrunk excessively
• Oven temperature too high
• Baking time too long
• Oven door opened frequently
• Pan size too large
39
PROBLEM CAUSE
Food is baking or
roasting too slowly
• Oven temperature too low
• Oven not preheated
• Oven door opened frequently
• Tightly sealed with aluminum foil
• Pan size too small
Pie crusts do not
brown on bottom or
crust is soggy
• Baking time not long enough
• Using shiny steel pans
• Incorrect rack position
• Oven temperature is too low
Cakes pale, flat and
may not be done
inside
• Oven temperature too low
• Incorrect baking time
• Cake tested too soon
• Oven door opened too often
• Pan size may be too large
Cakes high in middle
with crack on top
• Oven temperature too high
• Baking time too long
• Pans touching each other or oven walls
• Incorrect rack position
• Pan size too small
Pie crust edges too
brown
• Oven temperature too high
• Edges of crust too thin
40
LIMITED WARRANTY
WARRANTY AND SERVICE
TO RECEIVE WARRANTY SERVICE, YOUR PRODUCT MUST BE REGISTERED.
TO REGISTER AND REVIEW FULL WARRANTY DETAILS, VISIT:
WWW.COSMOAPPLIANCES.COM/WARRANTY
SCAN TO REGISTER
CUSTOMER SUPPORT
TO CHAT WITH US LIVE FOR ASSISTANCE, VISIT:
WWW.COSMOAPPLIANCES.COM/CHAT
SCAN TO CHAT
41
Correct disposal of this product:
This marking indicates that this appliance should not be
disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources.
IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact COSMO Customer
Support at
+1 (888) 784-3108
DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR
WARRANTY SERVICE.
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter le service des
consommateurs Cosmo Customer Support au
+1 (888) 784-3108
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el ayuda al
cliente COSMO al
+1 (888) 784-3108
(Válido solo en E.U.A.)
NECESITA UNA PRUEBA DE DE COMPRA FECHADA, NÚMERO DE MODELO Y DE
SERIE PARA EL SERVICIO DE LA GARANTÍA.
MEMO
MEMO
