INSTALLATION GUIDE | NZ AU
Bar Refrigerator
HRF40UW2, HRF90UW2, HRF90UG2, HRF115UW2,
HRF115UG2, HRF130UW2, HRF130UG2, HRF220VW
INSTALLATION GUIDE | NZ AU
Vertical Freezer
HVF90VW, HVF170VW
CONTENTS
Safety and warnings . . . ................................................................ . 4
Overview.. . . ..................................................................................... 7
Reverse door ................................................................. ........... ...12
Installation .............................................................. .....................14
Using your refrigerator ..............................................................16
Troubleshooting.............................................................. .............18
Manufacturer's warranty...........................................................19
Customer service.........................................................................21
3
4
READ AND SAVE THIS GUIDE
In the interest of your safety and to ensure the correct use, before installing and first using the
appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary
mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly
familiar with its operation and safety features. Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone using it through its life will be properly
informed on appliance use and safety. For the safety of life and property keep the precautions of these
user’s instructions as the manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
z
z
z
z
z
This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and
above and supervised.
Keep all packaging well away from children. There is risk of suffocation.
If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to
the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to
close themselves into it.
General safety
z
z
z
z
z
z
z
z
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating
appliances, unless they are approved for this purpose by the manufacture.
z
WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be
very hot.*
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural
gas with a high level of environmental compatibility, which is nevertheless flammable.
During transportation and installation of the appliance, be certain that none of the components of the
refrigerant circuit become damaged.
-avoid open flames and sources of ignition
-thoroughly ventilate the room in which the appliance is situated
It is dangerous to alter the
specifications or modify this product in any way. Any damage to the cord
may cause a short circuit, fire and/or electric shock.
*if there is a light in the compartment
SAFETY AND WARNINGS
WARNING!
This appliance contains flammable
refrigerant isobutane (R600a).
z
5
SAFETY AND WARNINGS
z
z
z
z
z
z
z
z
z
z
z
z
z
z
This appliance is intended to be used in household and similar applications such as
z
staff kitchen areas in shops, offices and other working environments;
z
farm houses and by clients in hotels, motels and other residential type environments;
z
bed and breakfast type environments;
z
catering and similar non-retail applications.
WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced
by a certified service agent or qualified service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with
the appliance supplied. This “special use lamp” is not usable for domestic lighting.*
It is hazardous for anyone other than an Authorized Service Person to service this appliance. In
Queensland – the authorized Service Person MUST hold a Gas Work Authorization for hydrocarbon
refrigerants, to carry out Servicing or repairs which involve the removal of covers.
Power cord must not be lengthened.
WARNING! Make sure that the power plug is not squashed or damaged by the back of the appliance.
A squashed or damaged power plug may overheat and cause a fire.
Make sure that you can come to the mains plug of the appliance.
Do not pull the mains cable.
If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
You must not operate the appliance without the lamp.
This appliance is heavy. Care should be taken when moving it.
Do not remove nor touch items from the Cool Zone if your hands are damp/wet, as this could cause
skin abrasions or frost/freezer burns.
WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance
Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
z
z
z
z
z
z
z
z
z
Do not put hot on the plastic parts in the appliance.
Do not place food products directly against the rear wall.
Frozen food must not be re-frozen once it has been thawed out.**
Store pre-packed frozen food in accordance with the frozen food manufacture's instructions.**
Appliance’s manufactures storage recommendations should be strictly adhered to. Refer to relevant
instructions.
Do not place carbonated of fizzy drinks in the Cool Zone as it creates pressure on the container, which
may cause it to explode, resulting in damage to the appliance.**
Ice lollies can cause frost burns if consumed straight from the appliance.**
The supply cord is damaged it must be replaced by the manufacturer, service agent or similarly qualified
persons in order to avoid a hazard.
Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the
authorised service agent.
Care and cleaning
z
z
z
z
Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
Do not clean the appliance with metal objects.
Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.**
Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the
drain is blocked, water will collect in the bottom of the appliance.***
Installation
*if there is a light in the compartment **If there is a freezer compartment. ***If there is a fresh-food storage compartment.
6
SAFETY AND WARNINGS
Important! For electrical connection carefully follow the instructions given in specific paragraphs.
z
Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is
damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
z
It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back
in the compressor.
z
Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve
sufficient ventilation follow the instructions relevant to installation.
z
Wherever possible the spacers of the product should be against a wall to avoid touching or catching
warm parts (compressor, condenser) to prevent possible burn.
z
The appliance must not be located close to radiators or cookers.
z
Make sure that the mains plug is accessible after the installation of the appliance.
Service
z
z
Any electrical work required to do the servicing of the appliance should be carried out by a qualified
electrician or competent person.
This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.
Energy saving
z
z
z
z
z
z
z
z
Don’t put hot food in the appliance;
Don’t pack food close together as this prevents air circulating;
Make sure food don’t touch the back of the compartment(s);
If electricity goes off, don’t open the door(s);
Don’t open the door(s) frequently;
Don’t keep the door(s) open for too long time;
Don’t set the thermostat on exceeding cold temperatures;
Some accessories, such as drawers, can be removed to get larger storage volume and lower energy
consumption.
Environment Protection
z
z
This appliance does not contain gasses which could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The appliance shall not be discarded together with the
urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be
disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging
the cooling unit, especially the heat exchanger. The materials used on this appliance markd by the
symbol are recyclable.
The symbol on the product or on its packaging indicates that this product may not be treated
as household waste. Instead it should be taken to the appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local council, your household waste disposal
service or the shop where you purchased the product.
Packaging materials
z
The materials with the symbol are recyclable. Dispose the packaging in a suitable collection
containers to recycle it.
Disposal of the appliance
z
z
Disconnect the mains plug from the mains socket.
Cut off the mains cable and discard it.
SAFETY AND WARNINGS
7

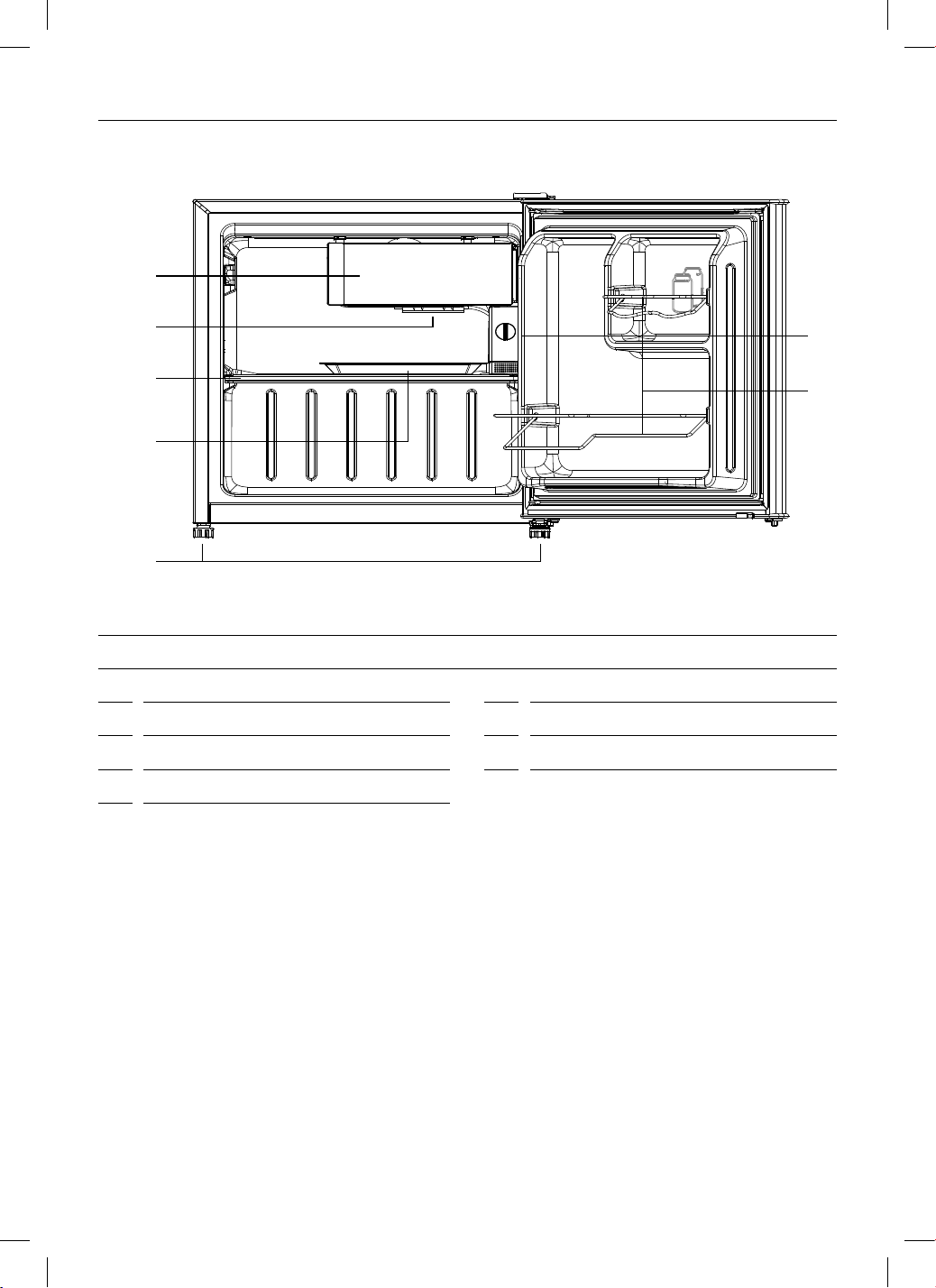

FEATURES AND ACCESSORIES (HRF40UW2)
1
Cool Zone
2
Cooling Plate
3
Shelf
4
Defrost Tray
5
Thermostat
6
Door Rack
7
Levelling Feet
1
3
2
4
5
6
7
OVERVIEW

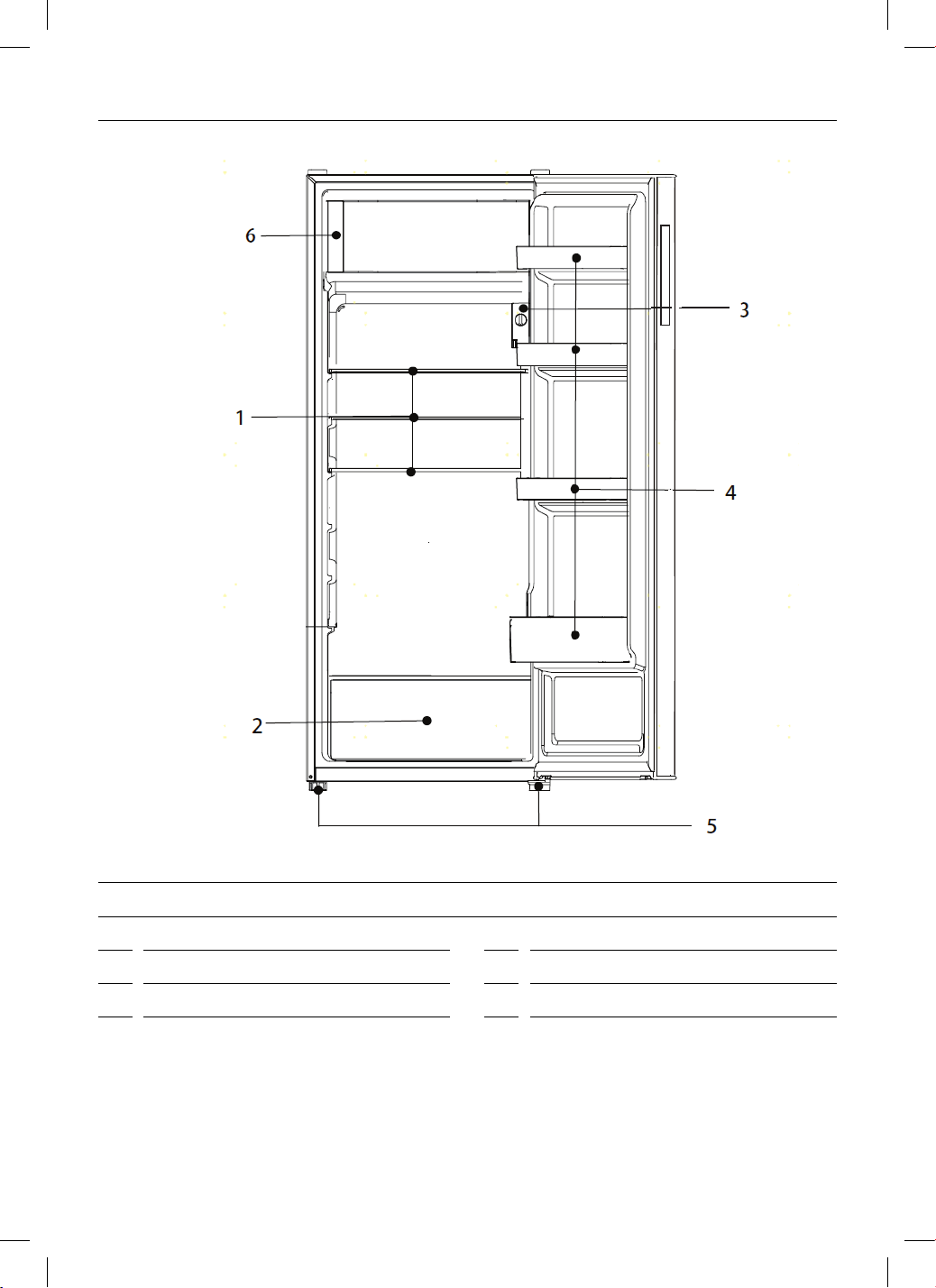

FEATURES AND ACCESSORIES (HRF90UW2/HRF90UG2)
1
Cool Zone
2
Cooling Plate
3
Tray
4
Shelves
5
Levelling Feet
6
Thermostat
7
Door Shelves
1
2
3
4
6
7
5
OVERVIEW
8
FEATURES AND ACCESSORIES (HRF130UW2/HRF130UG2)
1
Shelves
2
Drawer
3
Levelling Feet
4
Thermostat
5
Door shelves
2
1
4
5
3
OVERVIEW
9
10
FEATURES AND ACCESSORIES (HRF115UW2/HRF115UG2)
1
Shelves
2
Drawer
3
Levelling Feet
4
Thermostat
5
Door Shelves
6
Freezer
2
6
1
4
5
3
OVERVIEW
1
Shelves
2
Drawer
3
4
Thermostat
5
Door Shelves
6
Freezer
2
6
1
3
OVERVIEW
11
1
Shelves
2
Drawer
3
LeLevelling Feetvelling Feet
4
Thermostat
5
Door Shelves
6
Freezer
2
6
1
3
OVERVIEW
FEATURES AND ACCESSORIES (HRF220VW)
12
REVERSE DOOR
Tools required: Philips screwdriver, Flat head screwdriver, Hexagonal spanner.
Unplug and empty the unit, including the drain tray above the compressor (if applicable). Two people are
recommended for changing the doors. Tilt the unit backwards onto a stable surface at an angle. Avoid
laying flat to protect the refrigeration system. Keep all parts that are disassembled as they will be needed
for reassembly.

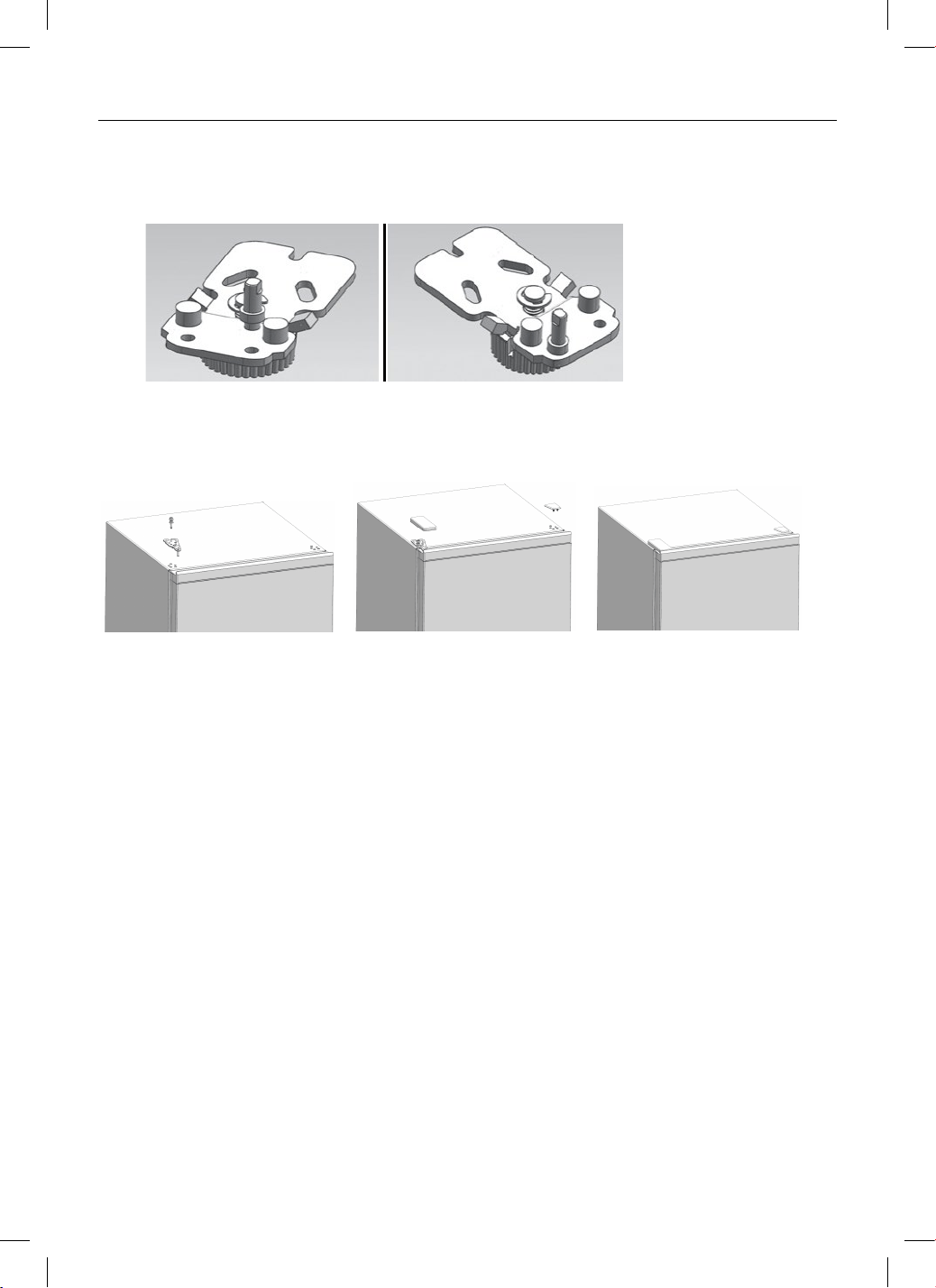

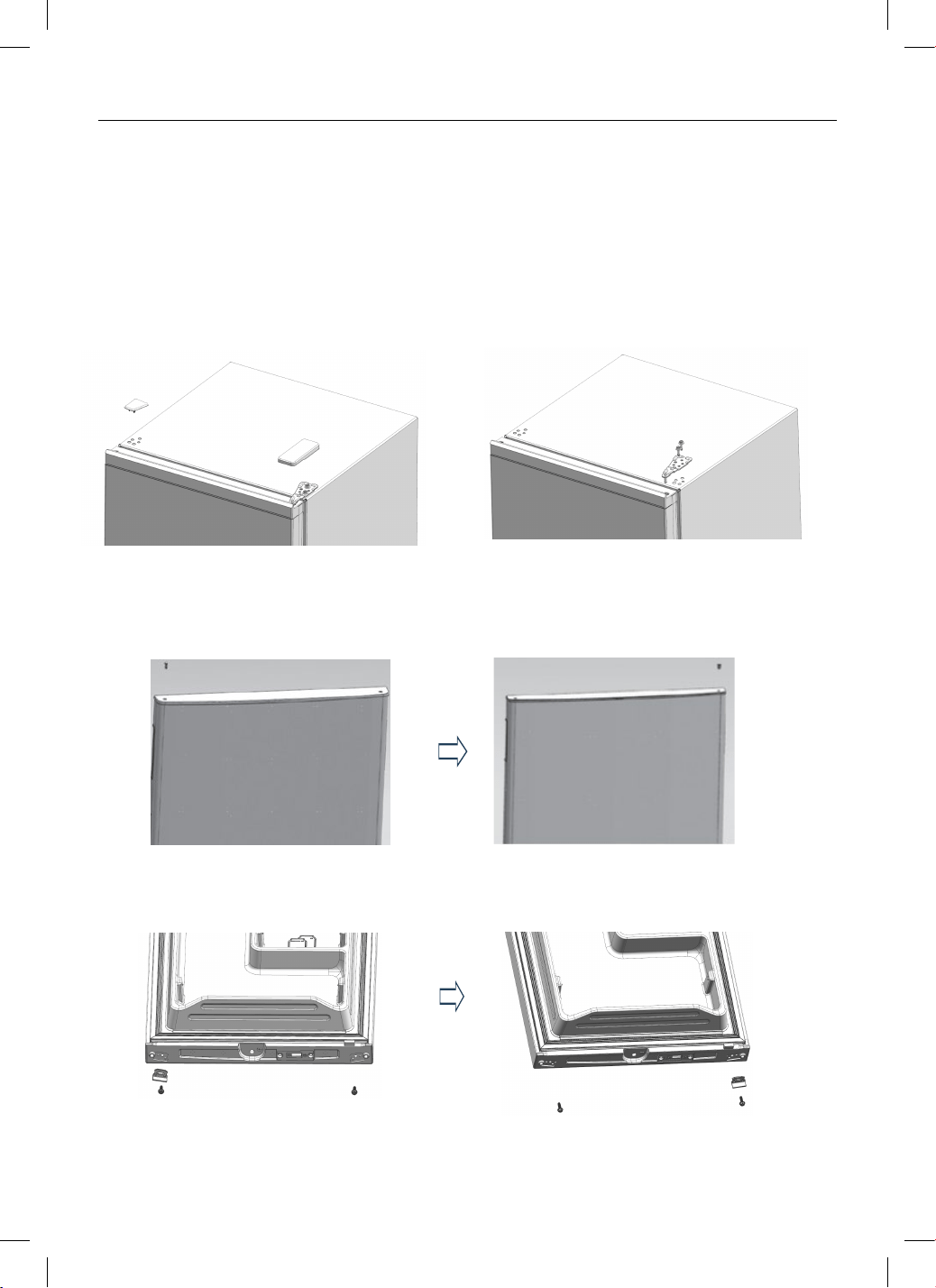

1. Remove the top left screw cover. Remove the upper hinge cover. Remove the screws that fix the upper hinge.
Remove the upper hinge.
2. Lift the door and place it on a padded surface to prevent it from scratching.
3. Move the core cover from left side to right side.
4. Loosen the screws and stop block, then install them to the opposite side and tighten securely.
REVERSE DOOR
Remove the screws, bottom hinge with adjustable feet from the bottom of the appliance.
3FBUUBDIUIFCPUUPNIJOHFUPUIFPQQPTJUFTJEF)3'+5)+5)QHHGWRSemove the
short pin from the bottom hinge. Refit the short pin to the other hole of the bottom hinge.
7. Fit the door back into place.
8. Reattach the upper hinge on the opposite side with screws and then re-fit the upper hinge
cover to the upper hinge. Attach the top cover to the opposite side.
13
INSTALLATION

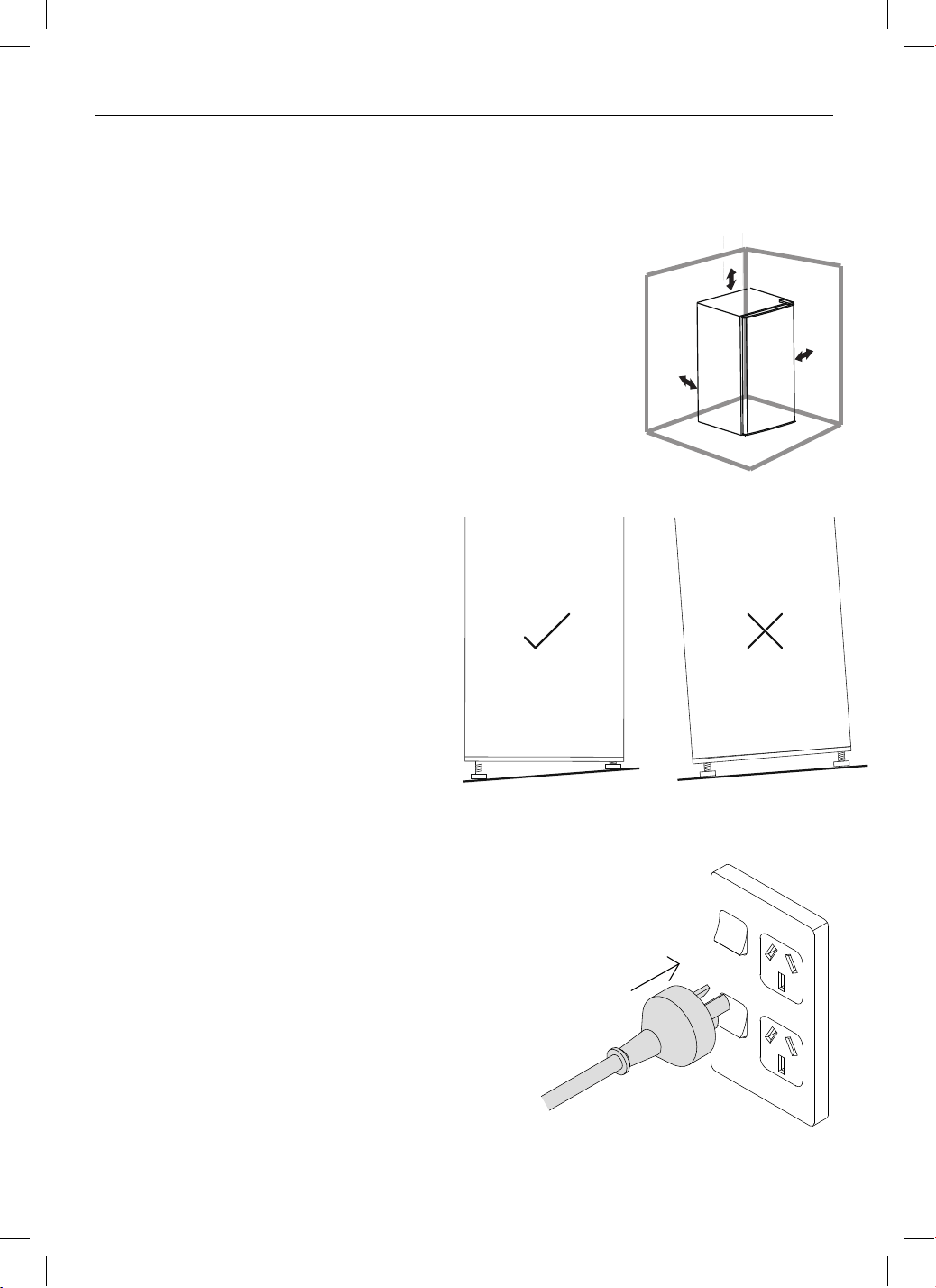

Installation Requirements
z
(QVXUHLQVWDOODWLRQORFDWLRQKDVDƫDWOHYHOƫRRUDQGHQRXJKVSDFHIRUWKHGRRUWRRSHQHDVLO\
z
Allow clearance to the right, left, back and top when installing. This will help reduce power consumption
Install appliance in a location without direct exposure to sunlight where the ambient temperature matches
the climate class on the rating plate:
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C
D
G
F
E
CLIMACLIMATE CLTE CLASASSS AMBIENT TEMPERAAMBIENT TEMPERATURETURE
SN +10°C to +32°C
N +16°C to +32°C
ST +16°C to +38°C
T +16°C to +43°C
D PP
E
590PP
F
88PP
G PP
500PP
70PP
PP
PP
HRF40*/HRF90*
HRF130*/HRF115*/HRF220*
14
INSTALLATION
Levelling the unit
If the unit is not level, the doors and door
gaskets may not seal properly.
Electrical Connection
Before plugging in, verify that the voltage and
frequency on the rating plate match your power
supply. The appliance must be earthed, and the power
plug has a contact for this purpose. If your socket is
not earthed, consult a qualified electrician to connect
the appliance to a separate earth in accordance with
current regulations. The manufacturer is not
responsible if these safety measures are not
observed. This appliance complies with E.E.C.
Directives.
Adjust the two levelling feet at the
front of the unit so that it is level.
Plug product in.
Ventilaton cross-section
To achieve sufficient ventilation of the appliance for safety reasons, the
information of the required ventilation cross sections must be observed.
5cm
15
5cm
5cm
USING YOUR REFRIGERATOR
The temperature is controlled by a thermostat.
MAX is the lowest temperature setting and can be used for
quick freezing. We recommend using MAX for short periods
before turning back to MID or MIN for regular operation.
The level of cooling can be varied between MIN and MAX
depending on the temperature required.
When the dial is set to OFF the refrigerator will not cool.
The appliance may not operate at the correct temperature
if it is installed in a warm location or if the door is opened
often.
First use
Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water
and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
To obtain the best performance do not store warm food or evaporating liquids in the refrigerator. Cover or
wrap food and position it so air can circulate freely around it.
z
Remove all stored food and store in a cool place.
z
Unplug appliance.
z
Keep the door open, and place a container or cloth underneath the appliance to collect any excess
defrosted water.
z
When defrosting is complete, dry the interior thoroughly.
z
Plug appliance back in.
z
Re-store food once the compartment has is cold.
Cool Zone (HRF40*/HRF90*)
Food can be stored in this compartment for faster and extra cooling. The temperature in the area directly
below the Cool Zone will also be quite low, so be sure not to keep delicate food items there that may be
prone to freezing damage.
Defrosting (HRF40*/HRF90*)
The cooling plate will become progressively covered with frost. This is normal, but if it gets too thick, it
will reduce the refrigeration efficiency and increase energy usage.
When the frost becomes very thick (>5mm), defrosting should be carried out. Never use sharp tools to
scrape off frost from the cooling plate as you could damage it.
Instructions for defrost as follows:
16
17
USING YOUR REFRIGERATOR
Defrosting the refrigerator compartment (HRF130*/HRF115*/HRF220*)
During normal operation, there should not be too much frost build up. In case there is excessive frost
build up (>5mm), please follow these instructions to defrost:
z
Remove stored food and store in a cool place
z
Unplug appliance
z
During defrosting, the water should drain out the back.
Note: Please ensure the drainage hole is clear so defrost
ZDWHUFDQƫRZRXW
z
Keep the door open, and place a cloth underneath the
appliance in case any excess water comes out the front.
z
When defrosting is complete, dry the interior thoroughly.
z
Plug appliance back in.
z
Re-store food once the compartment is cold.
Drainage hole
Defrosting the freezer compartment (HRF115*/HRF220*)
The freezer needs to be defrosted manually. A layer of frost will form on the surface of the freezer which
will decrease the efficiency of cooling.
If the frost layer becomes too thick (>5mm) or becomes ice, it should be defrosted following these
instructions:
z
Remove all stored food and store in a cool place.
z
Unplug appliance.
z
Keep the door open, and place a container or cloth underneath the appliance to collect any excess
defrosted water.
z
When defrosting is complete, dry the interior thoroughly.
z
Plug appliance back in.
z
Re-store food once the compartment has is cold.
TROUBLESHOOTING
Caution! Before troubleshooting, disconnect the power supply. Some sounds are normal during use e.g.
compressor running, refrigerant circulation.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Appliance does
not work
Temperature regulation dial
is set to OFF.
Set the dial to another setting to switch on the
appliance.
Mains plug is not plugged in
or is loose
Fully insert mains plug.
Fuse has blown or is
defective
Check fuse and replace if necessary
Socket is defective Mains malfunctions are to be corrected by an
electrician.
Food is too warm
The cooling setting is set
too low.
Set the cooling setting to a higher level.
Door was open for an
extended period.
Keep the door closed and check again in a few hours.
Open the door for only as long as necessary during
normal use
A large quantity of warm food
was placed in the appliance
within the last 24 hours.
Adjust the thermostat to a higher cooling setting
temporarily.
The appliance is near a heat
source.
Please follow the guidelines in the Installation section
regarding placement of the appliance.
Food is too cool/
freezing
Temperature is set too
cold.
Adjust the cooling setting of the thermostat to a lower
setting
Appliance is
making unusual
noises
Appliance is not
level.
Re-adjust the levelling feet.
The appliance is touching the
wall or other objects.
Move the appliance so it is not in contact with anything.
18
MANUFACTURER'S WARRANTY
Please read this warranty card carefully. Attach your purchase receipt to this warranty card and keep in a
safe place. You must produce both warranty card and proof of purchase in the event of a warranty repair
being required.
When you purchase any new Haier Product you automatically receive a two year Manufacturer's Warranty
covering parts and labour for servicing.
The Manufacturer undertakes to:
Repair or, at its option, replace without cost to the owner either for material or labour any part of the
Product, the serial number of which appears on the Product, which is found to be defective within TWO
YEARS from the date of purchase.
This warranty DOES NOT cover:
A Service calls which are not related to any defect in the Product. The cost of a service call will be charged
if the problem is not found to be a Product related fault. For example:
1 Correct the installation of the product.
2 Provide Instruction on use of the product or change the setup of the product.
3 Replace house fuses or correct house wiring.
4 Correcting faults) caused by the user.
5 Noise or vibration that is considered normal.
6 Water on the floor due to incorrect loading or excessive suds.
7 Blocked pumps, removal of foreign objects/substances from the machine, including the pump and
inlet house filters.
8 Correcting damage caused by pests, eg. rats, cockroaches etc.
9 Correct corrosion or discolouration due to chemical attack.
!0 Power outages or surges.
B Defects caused by factors other than:
1 Normal domestic use or
2 Use in accordance with the Product's User Guide.
C Defects to the Product caused by accident, neglect, misuse or 'Act of God'.
D The cost of repairs carried out by non-authorised repairers or the cost of correcting such
unauthorised repairs.
E Normal recommended maintenance as set out in the Product's User Guide.
F Repairs when the appliance has been dismantled, repaired or serviced by other than an AUTHORISED
CUSTOMER SERVICE CENTRE or the selling dealer.
G Pick up and delivery.
H Transportation or travelling costs involved in the repair when the product is installed outside the
AUTHORISED CUSTOMER SERVICE CENTRE'S normal service area.
This product has been designed for use in a normal domestic environment. It is not intended for
commercial use. Doing so may affect product warranty.
Service under this warranty must be provided by an Authorised Service Repairer (refer to the Customer
Care section for contact details). Such service shall be provided during normal business hours. This
warranty certificate should be shown when making any claim.
19
20
MANUFACTURER'S WARRANTY
Note:
This Warranty is an extra benefit and does not affect your legal rights and applies only to product
purchased in New Zealand and Australia. Please keep this Warranty Card in a safe place.
For Australian customers:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer
Suburb
To w n
Country
CUSTOMER SERVICE
We recommend our Haier Customer Service and the use of original spare parts.
If you have a problem with your appliance, please first check the Troubleshooting section. If you cannot find
a solution there, please contact:
z Your local dealer
z The Service & Support area
at www.haier.com.au or
www.haier.co.nz
where you can activate the service claim and also find FAQs.
To contact our Service, ensure that you have the following data available.
The information can be found on the rating plate at the door.
Model
Serial No.
21
WWW.HAIER.COM.AU
WWW.HAIER.CO.NZ
