Haier HBF130SS 113L Bar Fridge

OPERATING INSTRUCTIONS - Transcript

• Page 1 - English - : Please read this operation manual carefully before operation Keep it properly for future reference For Domestic Use Only The manufacturer keeps on developing various types of refrigerators so he has the right to modify designs products and technical data without further notice CONTENT OPERATING INSTRUCTIONS OF REFRIGERATOR MODEL HBF130 HBF130S Name of Each Part Adjusting Setting up Operation Instruction LeftRight opened door Reparing 46 Main Technical Data
• Page 2: 1Evaporator door 2Icetray 3Evaporator 4Drip tray 5Shelf 6Vegetable box 7Bottle rack 8 Knob of thermostat Name of each part 1 1 2 3 4 5 6 8 7
• Page 3 - English - : Adjusting If the floor is uneven please adjust the adjustable screws at the front of the refrigerator by using the spanner to level the refrigerator the spanner is included in the bag 2 Adjusting WARNING If the supply cord is damaged it must be replaced by the manufacturer or authorised service agent or similar qualified person in order to avoid a hazard The plug should be accessible after the appliance is positioned WARNING The appliance is not intended for use by young children or infirm persons with out supervision WARNING Young children should be supervised to ensure that they do not play with the appliance
• Page 4 - English - : The appliance cant be placed with its rear panel directly against the wallFor good air circulation the vent grille at the back of the worktop must not be blocked It should be placed on flat and firm ground lest it gives off higher noise than usual Poorly ventilated rooms are unsuitable Avoid positioning the appliance in direct sunlight or exposing to similar sources of heat Never store anything dangerous in the appliancesuch as combustibles exposives strong acid and alkalietc The appliance is not intended for use by young children or infirm persons with out supervision Young children should be supervised to ensure that they do not play with the appliance The power supply for appliance is 240V50Hz single phase It is not recommended to use extention cords Connect the appliance with a properly earthed threewire plug and socket Setting up 3 Setting up gt10cm gt10cm gt2cm
• Page 5 - English - : 4 Operating Instruction Thermostat The knob graduation 0 1 2 3 4 5 6 7 does not stand for concrete temperature The smaller the numbers the higher the temperature in the compartment and vice versa Usually its better to put the ther mostat in Pos 1 Pos 4 Pos 0 shows the power is cut off Storing food The temperature varies within the refrig erator are different due to different re frigeration distribution Thus when you store food select the best position to meet your needs The coldest position is 1 Temperature from low to high in order as 234567 Icemaking When making ice add water to the ice tray until 45 full with the grid in it and place it on the bottom of the ice chamber Twist the tray or place it briefly in warm water to remove the ice cubes NOTE Do not use a knife and the like when re moving the ice tray

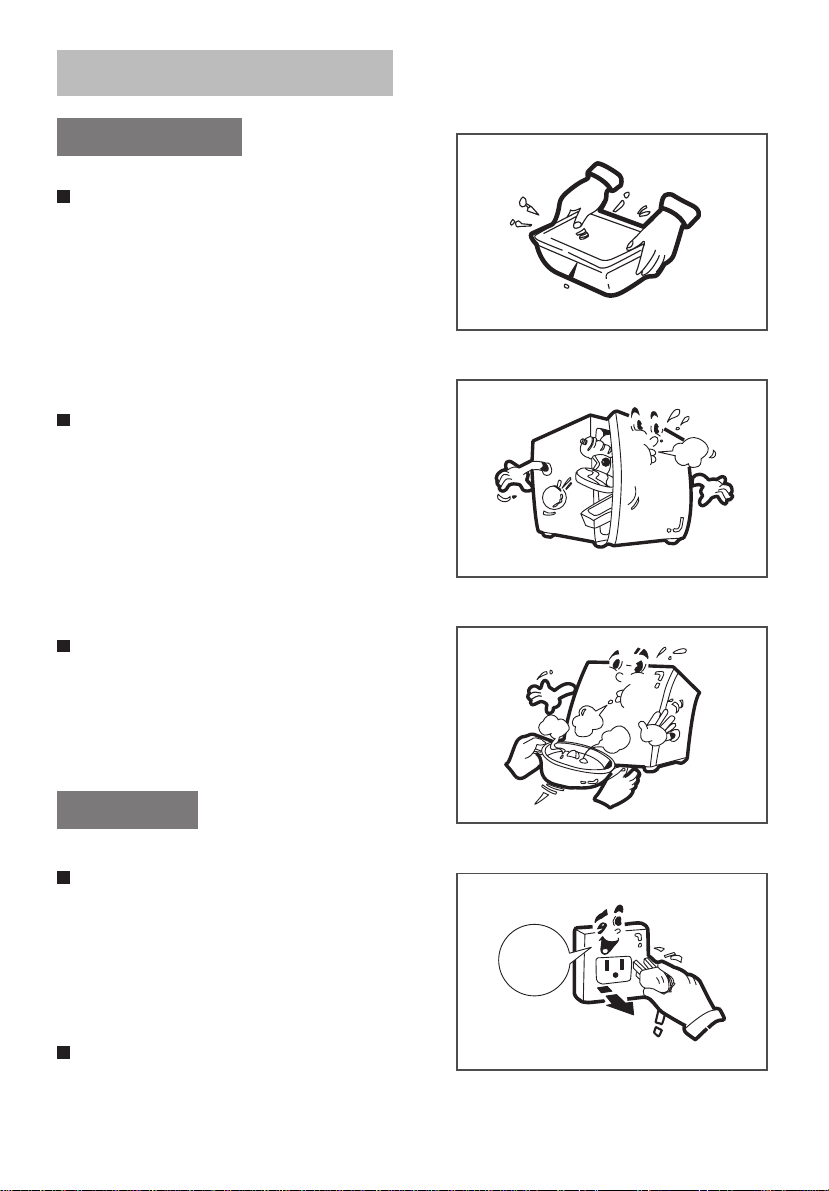

• Page 6 - English - : Operating Instructions Notes on storage Where necessary food should be packed in bags to avoid giving off strong odours or getting wet or dry Do not store food too full in the appliance Allow space among the pack ages of food for perfect refrigerating Hot food or liqiud must be cooled to room temperature before placing in refrigerator 5 Cleaning The appliance can only be cleaned when the network plug is removed Clean it with lukewarm water containing a little detergent In any case do not use hot water corrosive scouring agent or any thing rough NOTE Do not use anything rough for cleaning Put the plug out
• Page 7 - English - : Operating Instructions 6 When defrosting switch off the appliance Remove food from the ice chamber it will be defrosted automatically When the defrosting pro cess has been compeleted the driptray should be depleted Replace the food and switch on the appliance Defrosting If the appliance remains out of use for some time pull out the plug to discon nect the appliance from the power supply Clean the interior as described above to prevent odours from forming inside The appliance door should be opened as little and briefly as possible to reduce energy consumption In the event of a power failure try to keep the appliance closed to maintain the re frigeration as long as possible Note 46mm
• Page 8 - English - : LeftRightopened door 7 This product is assembled according to the rightopened door configuration The right hinge together with its mount is fixed on the right side of the door body Take out the door handle from the acces sory parts and fix it on the left side of the door body The two holes on the right side of the door body shall be stuffed with the handle hole stoppers as an item of accessory parts In case the leftopened door configuration is required this can be achieved by using accessory parts Remove the right hinge hinge mount and the lower hinge from the door body Put stoppers in the holes that occur Install the left hinge and hinge mount two items of accessory parts onto the corresponding location at the left upper corner of the refrig erator body with screws removed from the right hinge Dismantle the shaft from the lower hinge put it into the hole on the left side and fasten it securely Install the door body with the refitted lower hinge and put the lower hinge adjusting pad in place Install the door handle on the right side of the door body with screws through two holes and fasten them securely Stuff the two holes on the left side of the door body with handle hole stoppers 1 2 3 4 5 6 7
• Page 9 - English - : 8 Repairing In the event of a fault occurring during operation check first if the fault is due to an operation error You can repair the following faults yourself The appliance does not run The temperature in side the appliance is not low enough Excessive noise from the appliance 1 It is not switched on properly or the mains plug is not properly inserted in the socket 2 The thermostat knob is turned to position 0 3 Supply voltage is too low 1 The appliance is too full of food The appliance is located too close to a source of heat 3 The door is not properly closed or is opened too frequently 4 The vent grille is covered over The appliance is not standing securely on the ground If it is none of these circumstances and you are not able to repair the fault please contact a authorised service agent
