ACTIVESMART™ REFRIGERATOR
INSTALLATION GUIDE
NZ AU UK IE SG
CONTEMPORARY
FRENCH DOOR REFRIGERATOR FREEZER ICE & WATER: RF505ANUX1, RF505ANUB1
FRENCH DOOR REFRIGERATOR FREEZER NON-ICE & WATER: RF505ANX1
REFRIGERATOR FREEZER NON-ICE & WATER: RF505BRNX1, RF505BRNB1, RF505BRNQX1
REFRIGERATOR FREEZER ICE & WATER: RF505BRNUX1
CONTENTS
Registration
To register your product visit our website: fisherpaykel.com/register
Safety and warnings 5
Supplied parts 6
Before installation 6
Product dimensions 7
Cabinetry dimensions 8
Unpacking and moving your appliance 9
Water connection 10
Flushing the water filter 11

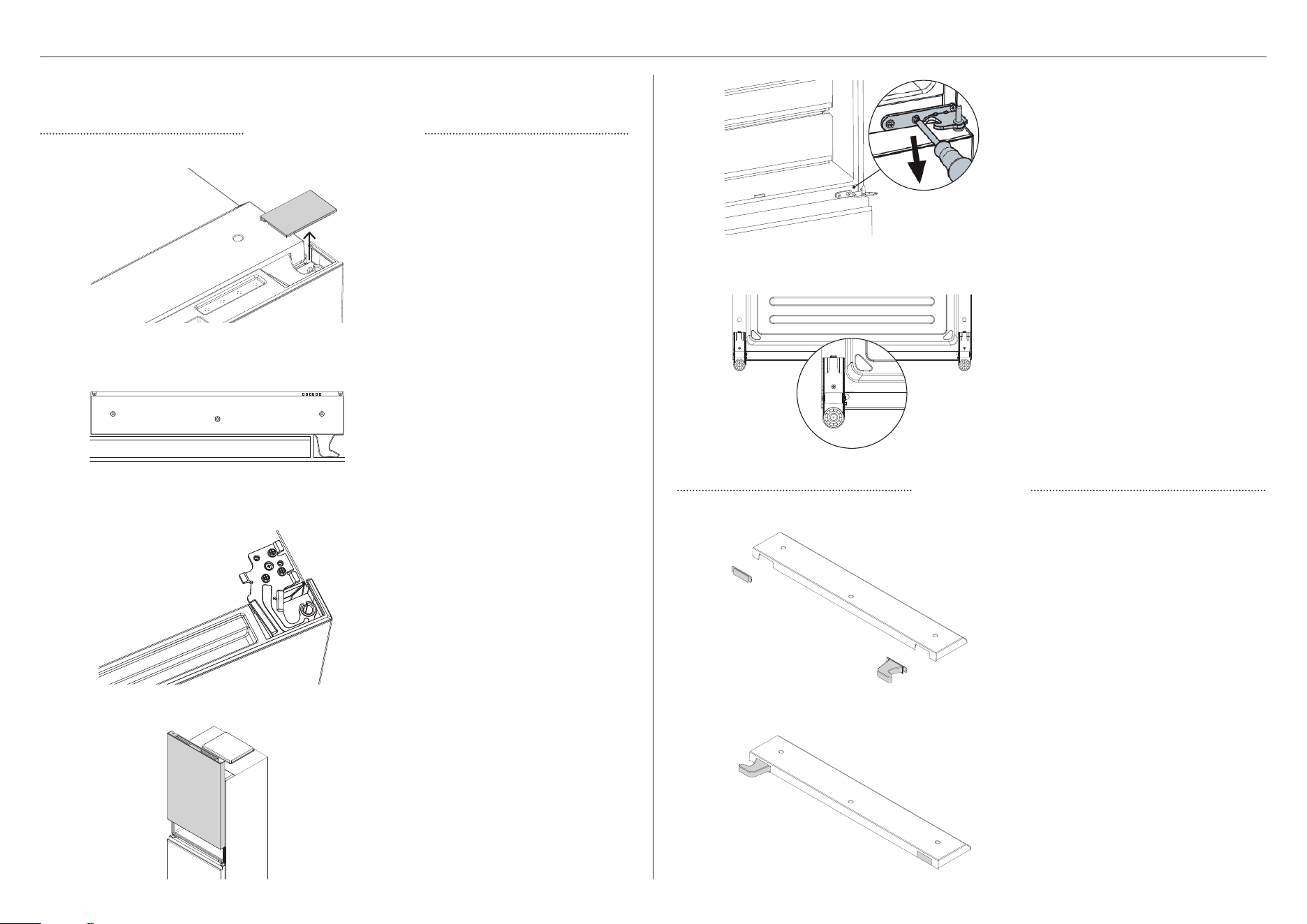

Hinge swap (optional - bottom mount non-ice & water models only) 12
Positioning your refrigerator 15
Complete installation 16
Final checklist 16
3
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
Failure to follow this advise may result in
death, electric shock, fire or injury to persons.
• Read and follow the safety and warnings
outlined in this guide before operating
this appliance.
!
WARNING!
Risk of fire/flammable material
This refrigerator contains flammable refrigerant
isobutane (R600a).
READ AND SAVE THIS GUIDE
Use this appliance only for the intended purpose as described in the user guide.
When using this appliance always exercise basic safety precautions
including the following:
z
Keep ventilation openings, in the appliance enclosure or the built-in structure, clear of
obstruction.
z
Do not damage the refrigerant circuit.
z
In case of damage to the refrigerant circuit, ventilate the area by opening all windows.
Do not operate electrical equipment or any other equipment that may produce arcs,
sparks or flames in the area. Contact your Fisher&Paykel trained and supported
service technician immediately to arrange for the appliance to be repaired.
z
It is hazardous for anyone other than a Fisher&Paykel trained and supported service
technician to service thisappliance.
z
Your refrigerator is designed to operate for many years without the need for service
checks. However, if your refrigerator is malfunctioning, have it attended to by your
Fisher&Paykel trained and supported service technician as soon as possible. All
electrical repairs must be carried out by an adequately trained service technician or
qualified electrician.
z
In Queensland the authorised service person must hold a gas work licence or
authorisation for hydrocarbon refrigerants to carry out service or repairs which involve
removal of covers.
z
It is hazardous for anyone other than a Fisher&Paykel trained and supported service
technician to service thisappliance.
z
This refrigerating appliance is not intended to be used as a built-in appliance.
Electrical
z
This appliance must be installed in accordance with the installation instructions before use.
z
To allow disconnection of the appliance from the supply after installation, incorporate a switch
in the fixed wiring in accordance with the wiring rules.
z
Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull
straight out from the outlet.
z
Do not plug in any other appliance at the same power point as your refrigerator or use extension
cords or double adapters.
z
Repair or replace immediately all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug or
appliance end.
z
If the power supply cord is damaged, it must only be replaced by your Fisher&Paykel trained and
supported service technician because special purpose tools are required.
z
When moving your appliance away from the wall, be careful not to roll over or damage the
power cord.
z
Do not use electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
z
When positioning the appliance, ensure the power cord is not trapped or damaged.
z
Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
Water Filter FWC5 – for use with FPWF2 System
z
To reduce the risk associated with choking:
z
DO NOT allow children under 3 years of age to have access to small parts during the installation
of the water filter.
z
The water connection to your Ice & water refrigerator must be installed by a qualified plumber or
Fisher&Paykel trained and supported service technician and comply with all state and local laws.
z
Installation and use MUST comply with all state and local plumbing codes. Checkwith your local
public works department for plumbing codes. You must follow their guidelines as you install the
water filtration system.
z
WARNING: To avoid serious illness or death, only connect your water filter to safe drinking water.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate
disinfection before or after the system. Systems Certified for Cyst Reduction may be used in
disinfected waters that may contain filterable cysts.
z
The water filter cartridge needs to be changed when the replacement indicator icon illuminates.
This will happen every 6 months.
z
If the water filtration system has been allowed to freeze, replace filter cartridge. Failure to replace
the disposable filter at recommended intervals may lead to reduced filter performance and failure
of the filter, causing property damage from water leakage or flooding.
z
When installing the product use new tubing supplied with the refrigerator, DO NOT reuse any
existing water connections.
z
The water system is designed to operate between 276 – 827 kpa (40 – 120psi). Do not install if water
pressure exceeds 827kPa (120psi). Max flow Rate: 1.89 litres (0.5 gallons) per minute.
z
To reduce the risk associated with property damage due to water leakage or flooding:
z
DO NOT install systems in areas where ambient temperatures may go above 38°C or
drop below 0°C.
z
DO NOT install on hot water supply lines. The water filter system is designed with a maximum
inlet temperature of 38°C.
z
DO NOT install where water hammer conditions may occur. If water hammer conditions exist,
you must install a water hammer arrester.
z
For estimated costs of replacement parts contact our customer care on +64 9 273 0660 or visit
our website at fisherpaykel.com
5

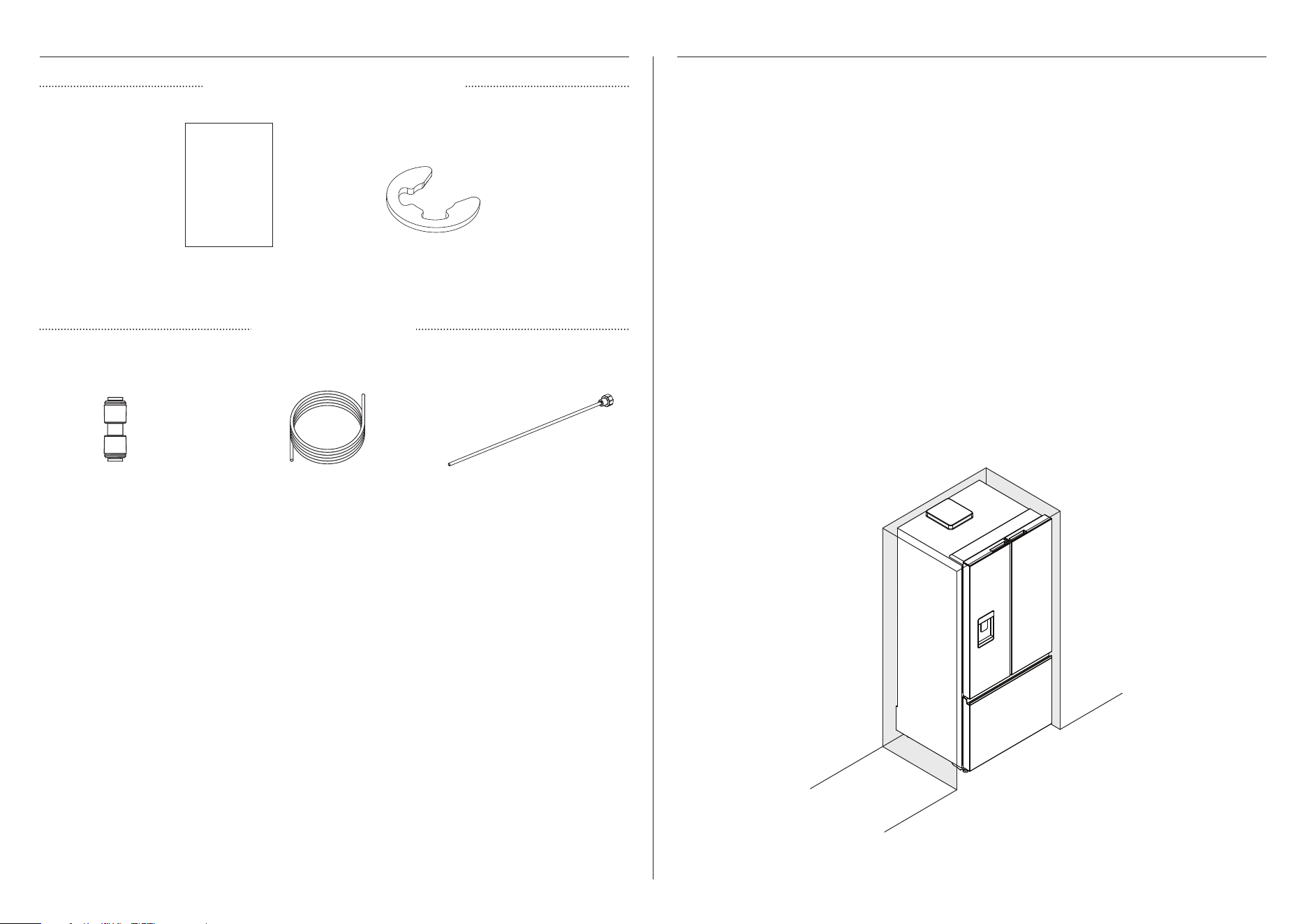

SUPPLIED PARTS
User/Installation guide (1)
MISCELLANEOUS ITEMS PACK
WATER FILTER KIT
Hose connector (2) Water hose 4m (1)
Tap adaptor brass 1/4 OD
1/2 BSP (1)
BEFORE INSTALLATION
Please follow the installation steps below to ensure your appliance operates correctly.
Before installation
Power
z
Install your appliance where the plug is easily accessible.
z
Connect your refrigerator to a separate power point. Avoid sharing the power point with
other appliances. Do not use extension cords and double adaptors as the combined
weight of two power cords can pull the double adaptor from the power outlet.
z
For power requirements, refer to the information on the serial plate located at the front
bottom right-hand side of the refrigerator when the door is open.
z
Ensure your appliance is properly grounded (earthed).
z
Connect the appliance to the electrical supply (220V – 240V 50Hz) with the
fitted plug and lead.
z
Connections to the mains supply should be in accordance with local regulations.
Ice & Water and Automatic Ice models
z
Your Ice & Water and Automatic Ice refrigerator must be installed by a qualified plumber
or Fisher&Paykel trained and supported service technician as incorrect plumbing can
lead to water leaks.
z
Fisher&Paykel Appliances does not accept responsibility for damage (including water
damage) caused by faulty installation or plumbing.
Hinge spacer (4)
USER GUIDE
6
7
h
b
PLAN
E
D
C
g
f
PROFILE
b
FRONT
A
PRODUCT DIMENSIONS MM
A Overall height of product 1725
B Overall width of product 790
C Overall depth of product 707
D Depth with door open – from rear of fridge – 90° rotation
z
French Door 1350
z
Bottom-mount 1435
E Depth with door open – from flush with door – 90° rotation
z
French Door 652
z
Bottom-mount 735
F Height to top of chassis 1669
G Height to top of housing 1725
H Depth of chassis 620
Actual product dimensions may vary by ± 2 mm
PRODUCT DIMENSIONS

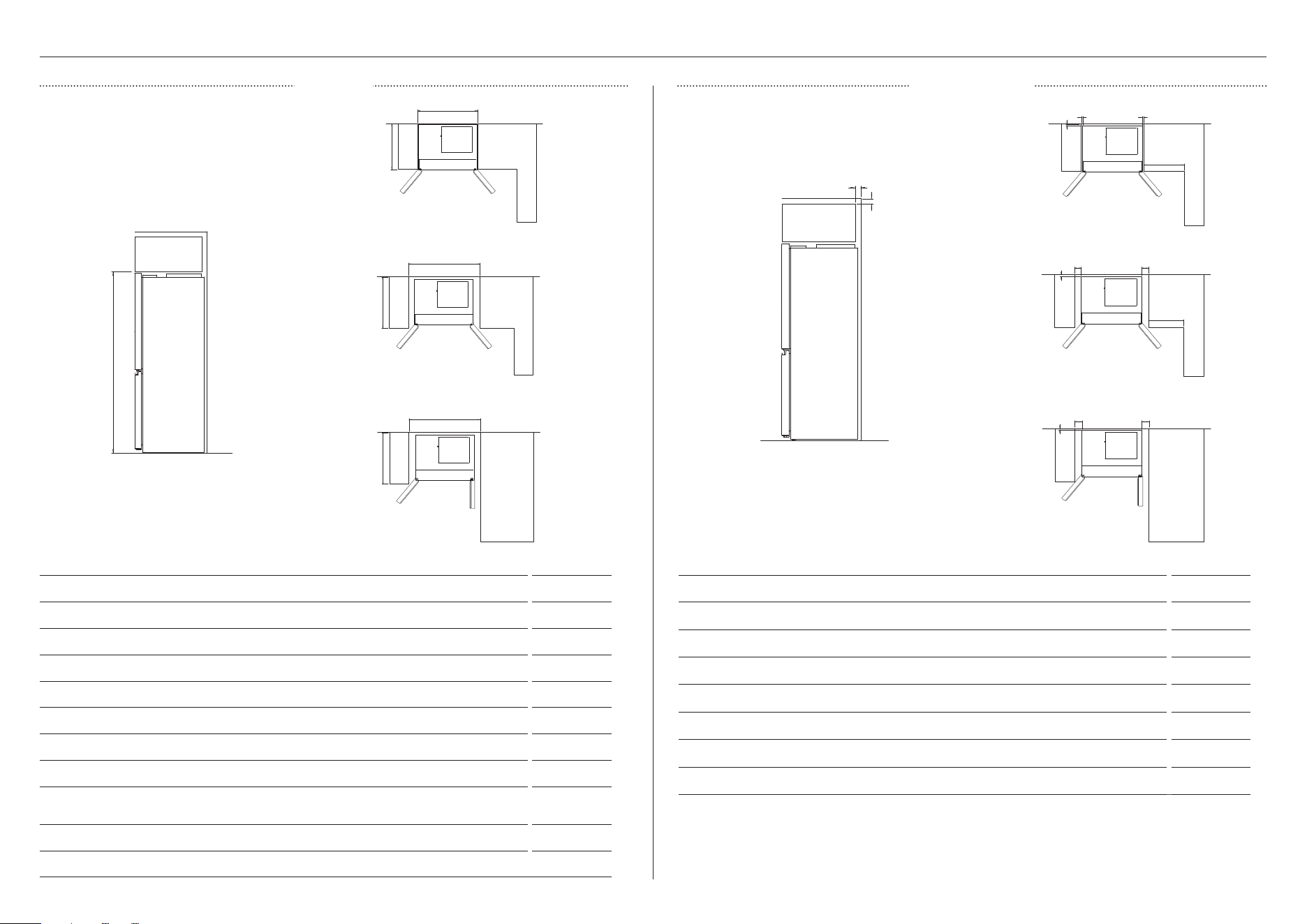

CABINETRY DIMENSIONS

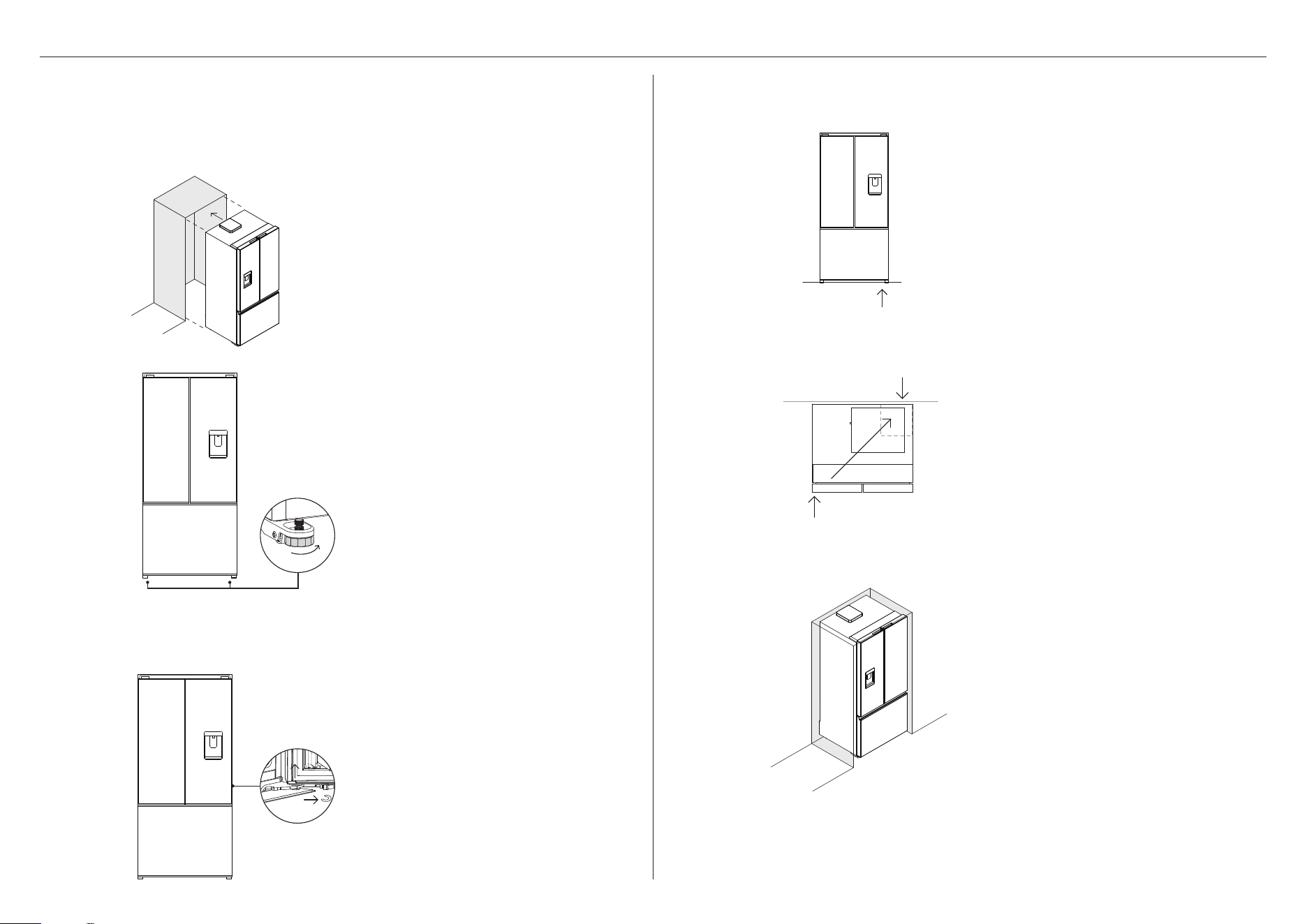

CUTOUT CLEARANCES
CABINETRY DIMENSIONS (incl. minimum air clearances) MM
A Inside height of cavity 1735
Flush with refrigerator chassis – full door rotation
B Inside width 830
C Inside depth 659
Flush with refrigerator door – full door rotation
D Inside width 950
E Inside depth flush to flat door 737
Flush with refrigerator door – 90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
F Inside width 910
G Inside depth flush to flat door 737
MINIMUM CLEARANCE DIMENSIONS MM
A Side clearance 20
B Side clearance – hinge side flush with door – full rotation 80
C Side clearance – hinge side flush with door – 90° rotation 60
D Rear clearance 30
E Vent
(above refrigerator cabinet or around top of cupboard) 50
F Door clearance – hinge side flush with chassis – full rotation 540
G Door clearance – hinge side flush with door – full rotation 460
a
e
e
Flush with refrigerator chassis
Flush with refrigerator door – full door rotation
Flush with refrigerator door – 90° door rotation
A A
f
d
g
d
bb
d
cb
Flush with refrigerator chassis
Flush with refrigerator door – full door rotation
Flush with refrigerator door – 90° door rotation
d
e
f
g
B
c
8

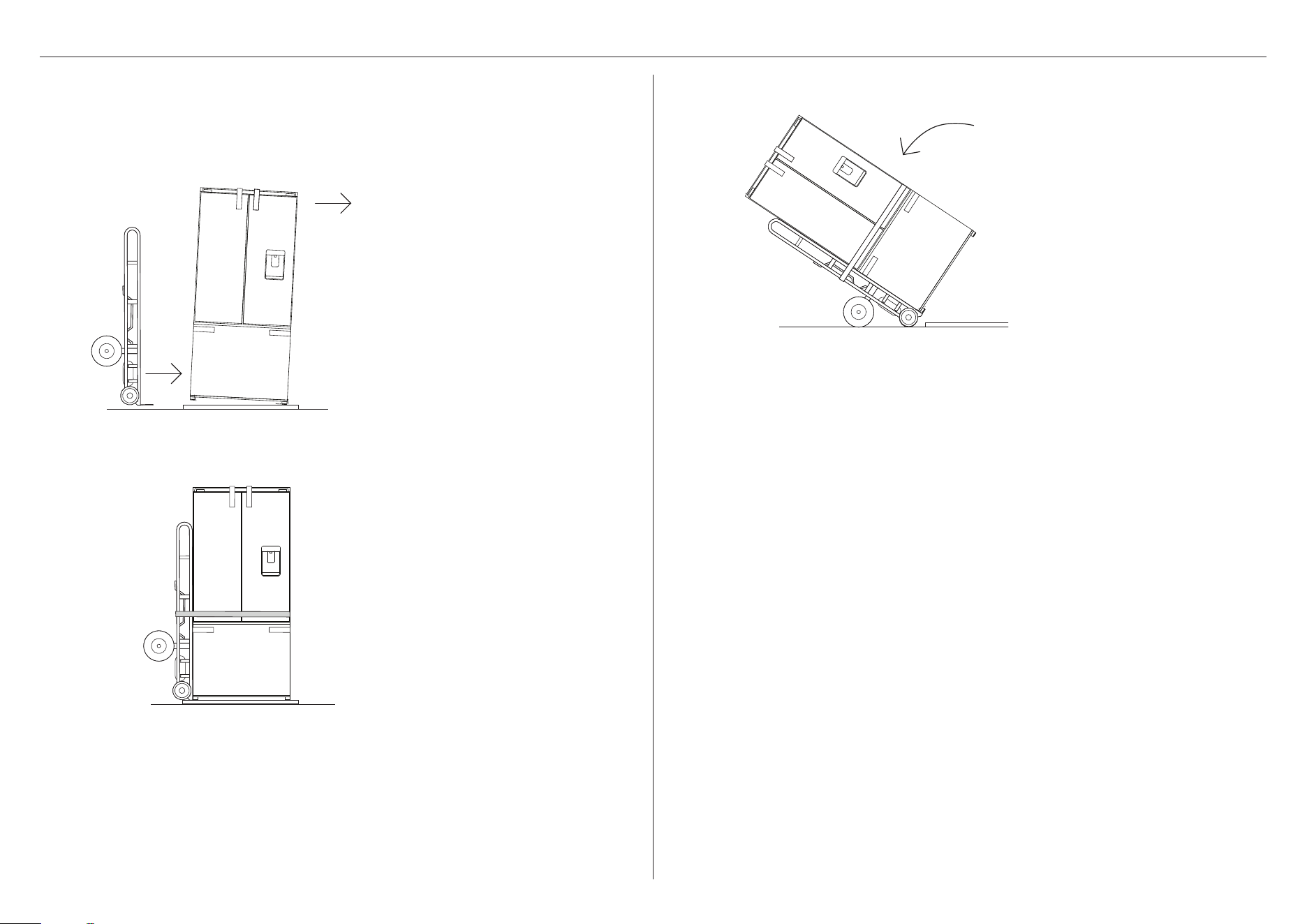

UNPACKING AND MOVING YOUR APPLIANCE
Check that your appliance is the correct model as per your order.
Follow the steps below to move your appliance to the install location. Be careful when
tilting the appliance forward/backward. Tape the door shut to prevent opening while
moving the appliance.
Model drawings may differ from your appliance.
1
2
Tilt the appliance slightly forward and
Insert the hand truck between pallet
and appliance.
Restrain the appliance with a strap.
3
Tilt backward to load appliance onto
hand truck and push to install location.
9

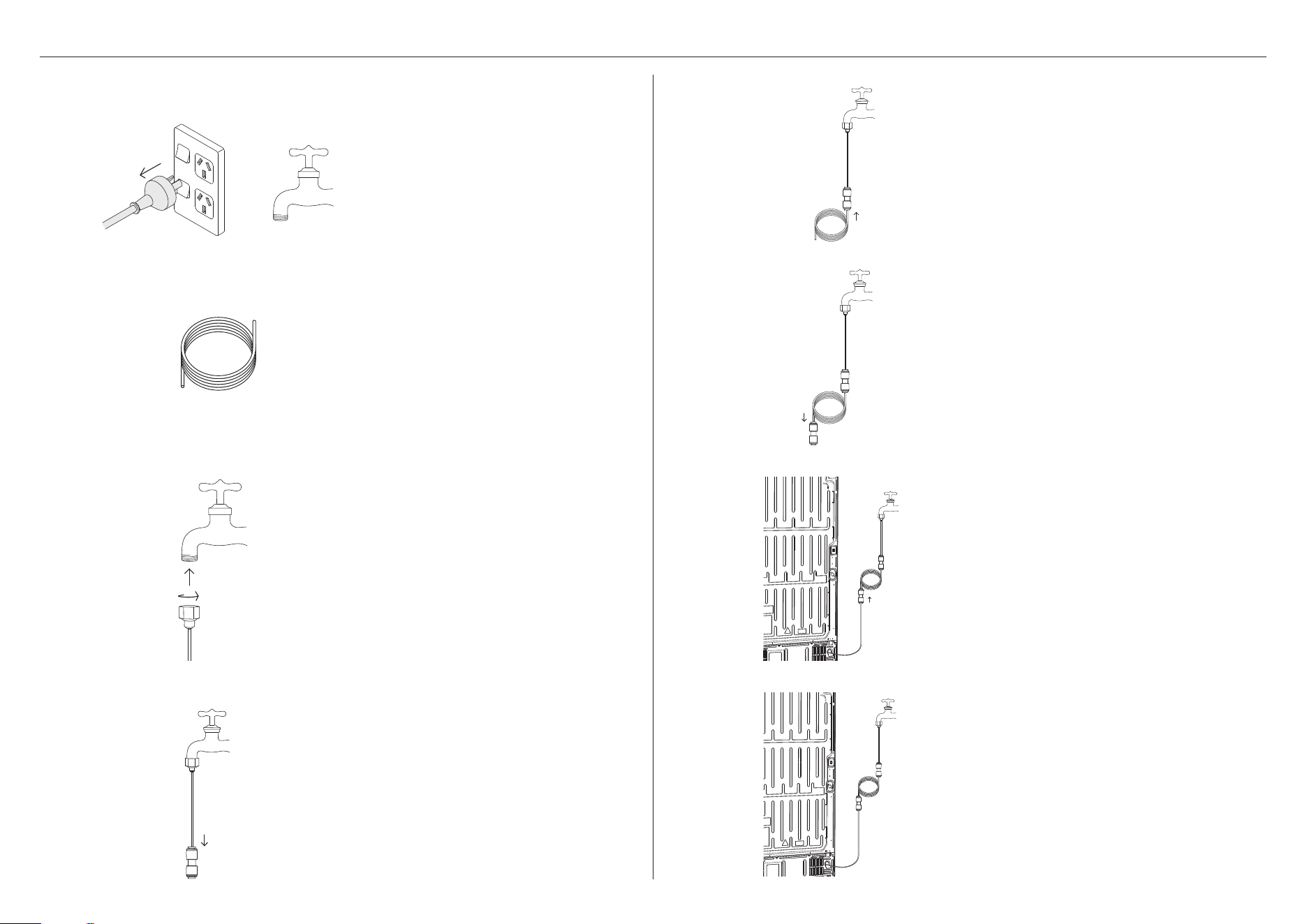

WATER CONNECTION
Ensure the refrigerator is not plugged
into a power supply. Locate the isolation
tap for cold water connection (tee and
tap fitting not supplied).
1
2
3
4
Fasten the tap adaptor with short tube
to the isolation tap. Tighten by hand
and tighten one additional turn with a
spanner. Take care not to overtighten.
Insert the end of tap adaptor short tube
into one end of the first hose connector
as far as possible.
Locate the water filter kit to complete
the water connection installation.
Insert one end of the water hose into
the other end of hose connector as far
as possible.
Insert the other end of the water
hose into one end of the second hose
connector as far as possible.
5
6
7
Connect the other end of the second
hose connector to the hose attached to
the back of the product.
Push the hose as far as possible into the
connector.
8
Check the connections, turn on the
water supply and check for leaks.
10
FLUSHING THE WATER FILTER
ICE & WATER MODELS
Once your ice maker is turned on the first bin of ice may be discoloured. This is not harmful
and normal during the flushing process. Discard the first full bin of ice made. Your ice maker is
now ready for use.
The performance of your water filter will increase with use, reaching optimum performance
after two to three full bins of ice.
Carry out the above steps after a holiday/vacation or extended periods of not using ice.

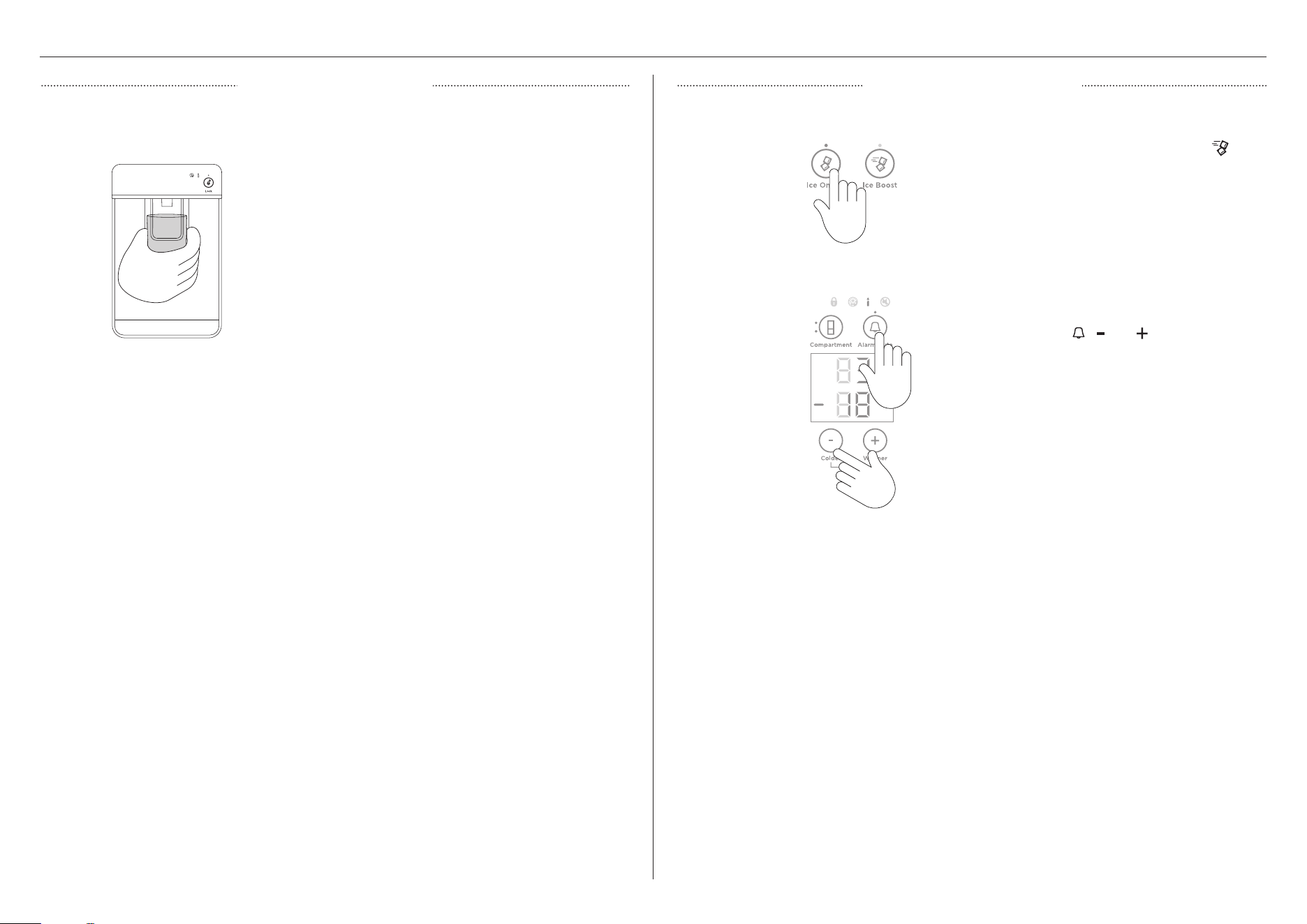

AUTOMATIC ICE MODELS
Press the , and together for
4 seconds then close the doors. The ice
tray will empty the water into the bin
below. The ice tray will only empty after
the doors are closed.
Repeat to remove dust in the ice
tray collected during manufacture
and transport.
Empty the water, dry the bin and return
it correctly.
2
To turn your ice maker on press .
The light above the button
will illuminate.
1
Press the water dispenser pad to dispense 1L
of water.
Wait for 3 minutes before dispensing again.
Repeat this cycle 8 times. At least 8L of
water needs to be flushed through the
system. This prevents excessive dripping of
water from your dispenser.
NOTE: There may be carbon residue
dispensed together with water. This is not
harmful, and normal during flushing process.
To flush through the water dispenser:
11
HINGE SWAP (OPTIONAL - BOTTOM MOUNT NON-ICE & WATER MODELS ONLY)
The hinge position can be adjusted to change the door swing from the right to the left if
required. Before beginning, ensure the product is unplugged from the power supply.
1
Unclip the top endcap cover and lift out
to remove.
2
Remove all five screws and lift out the
trim cover.
3
Unscrew the upper hinge.
4
Lift the upper door carefully off the
hinges and set aside.
Remove lower door and set aside.
Lay the product on its back to remove
the lower feet/hinge.
5
6
1
2
Remove the decorative component from
the front of the left hinge, and the hook
from the right hinge.
Refit the decorative component to the
right hinge cover and the supplied hook
onto the left hinge cover.
Unscrew the middle hinge of the upper
door.
REMOVAL OF PARTS
HINGE SWAP
12
HINGE SWAP (OPTIONAL - BOTTOM MOUNT NON-ICE & WATER MODELS ONLY)
4
3
5
6
7
8
1
2
Remove the doorstop from the
underside the top of the door. Refit on
the opposite side.
Move the non-hinge top cover to the
right hand side of the upper door.
Remove the blanking plugs and install on
the right hand side of the middle beam.
Swap the positions of the blanking plugs
on the top of the lower door.
Remove the lower doorstop and refit on
the opposite side.
Swap the lower hinge.
Install the reassembled lower hinge onto
the bottom of the left hand side of the
refrigerator.
Install the freezer door onto the
refrigerator.
RE-INSTALL OPPOSITE HINGE DOORS
13
Rotate the middle hinge 180° and install
on the left hand side of the middle
beam.
Reinstall the top endcap.
Install hinge cover onto product.
Ensure all screws are tightened and
sealing around the doors has been
achieved.
Install the top refrigerator door onto the
middle hinge.
Install the supplied upper left hinge onto
the product and secure.
3 7
4
5
6
HINGE SWAP (OPTIONAL - BOTTOM MOUNT NON-ICE & WATER MODELS ONLY)
14
POSITIONING YOUR REFRIGERATOR
Your Fisher&Paykel ActiveSmart™ refrigerator is fitted with front and rear rollers to allow
you to easily move your refrigerator forward and backward. Avoid moving your refrigerator
sideways to prevent damaging the rollers or the floor coveringsurface.
Your refrigerator will arrive with the front feet wound up to assist with moving the product
into its final location.
1
2
Roll the refrigerator into its final
position ensuring there is the correct
air gap between the product and
surrounding cabinetry. See minimum
clearance in cabinetry dimensions table.
Adjust the front feet down until the
refrigerator is leaning backward with
the front approximately 10mm higher
than the back. This will ensure a good
door closing action.
Levelling of refrigerator doors
Open the door that is out of alignment.
Lift the door upwards.
Clip the spacer onto the centre
hinge pin.
Close the door to recheck alignment.
1
What to do if your product is unstable
Gently push the refrigerator back until
the rear rollers contact the floor.
Measure the gap under the front foot,
which has come off the floor.
Obtain some solid packing material
(hardwood, plastic,etc) which fits firmly
into the gap under the foot.
1
2
3
Wind both front feet up and roll the
product out ofposition.
Place the packing material in the
location diagonally opposite the front
roller that lifts off the floor.
Ensure the packing material stays in
place when the product is pushed back
into position.
Roll the refrigerator back into position
and adjust front feet. Check alignment
and door closing action are satifactory.
Make small adjustments to the front
feet where necessary.
15
COMPLETE INSTALLATION
Before placing food in the fresh food or freezer compartments
z
Remove all internal packaging.
z
Clean the inside of the appliance with a mix of warm water and a small amount of liquid
detergent. Use a soft cloth to remove dust collected during manufacture and transport.
z
Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each compartment
to cool to the appropriate temperature.
z
The appliance may have an odour on its initial operation, this will go when the refrigerator
and freezer have cooled sufficiently.
FINAL CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Ensure that:
Check all parts are installed.
Ensure the appliance is level.
Ensure all internal and external packaging is removed from the appliance before use.
Ensure the water filter is installed and the has been flushed.
Complete and keep for safe reference:
Model
Serial No.
Purchase Date
Purchaser
Dealer Address
Installer’s Name
Installer’s Signature
Installation Company
Installation Date
16
The integrated FPWF2 water filter system is
Certified by IAPMO R&T to NSF/ANSI 42, 53,
401 and NSF P473 for the reduction of the
contaminants enumerated on the Performance
Data Sheet and at www.iapmo.org, and to
NSF/ANSI 372 for Low Lead content.
Fisher & Paykel Appliances, P.O. Box 58546,
Botany, Auckland 2013, New Zealand
432957B 10.25
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2025. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
