BG-8K-KVM22A
8K60 Dual Monitor 2x1 HDMI KVM Switch with USB 3.0 & Hotkey
Control
User Manual
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 9
IR Pin Definition 11
IR Remote Control 11
Dual-Mode Function 12
Hotkey Switch Function 13
Keyboard & Mouse Hotkey Function 13
Keyboard Hotkeys 13
Mouse Hotkeys 13
ASCII Commands 14
Connection Diagram 16
Troubleshooting 17
Tech Support 18
Limited Product Warranty Terms 18
Mission Statement 18
Copyright 18
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
Introduction
The BG-8K-KVM22A is a high-performance 2×1 HDMI KVM switch designed to
seamlessly share two monitors, USB peripherals, and other devices between two
computers. Supporting resolutions up to 8K@60Hz and 4K@120/144Hz, as well as
HDMI 2.1 and HDCP 2.3 compliance, it delivers stunning visuals with zero latency.
Its dual-monitor support, hotkey switching, and virtual interaction feature allow
users to control multiple PCs efficiently, even waking a PC from standby to reduce
switching time.
With versatile control options including front-panel buttons, IR remote, and
keyboard/mouse hotkeys, the BG-8K-KVM22A ensures smooth operation across
Windows, Mac, and Linux systems with no drivers required. Integrated USB 3.0
ports enable high-speed sharing of peripherals such as printers, webcams, and
storage devices, making this compact and robust KVM switch ideal for professional
workstations, creative studios, and high-resolution gaming setups.
Features
● HDMI 2.1 & HDCP 2.3 Compliance: Supports the latest HDMI standards for
high-resolution video and secure content.
● Ultra-High Resolution: Handles up to 8K@60Hz, 4K@120/144Hz, and
1080P@240Hz for crystal-clear visuals.
● Advanced HDMI Protocols: Supports VRR, ALLM, QMS, QFT, and SBTM for
smooth gaming and video playback.
● HDR & Dolby Support: Pass-through for HDR, HDR10, HDR10+, Dolby Vision, and
HLG content.
● Dual Monitor KVM: Control two computers using just one set of keyboard, mouse,
and monitors.
● Fast & Seamless Switching: Quick video and peripheral switching via hotkeys,
front panel, or IR remote.
● EDID Emulation: Each input port provides correct EDID information for reliable
display performance.
● Hot-Plug Support: Connect or disconnect devices at any time without rebooting.
● Auto Switching: Automatically switches between active computers for
convenience.
● Zero Latency Design: Advanced hardware and software ensure no delay in video or
USB transmission.
● USB 3.0 Peripheral Sharing: Share printers, webcams, storage, and other USB
devices at 5Gbps.
● Compact & Flexible: Sleek design for easy installation in professional or home
setups.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
Packing List
● 1 × BG-8K-KVM22A 8K60 2×1 Dual Monitor HDMI KVM Switcher
● 1 × IR Remote
● 1 × 3-pin 3.81mm Phoenix Connector (male)
● 1 × Fixed Frequency 38KHz IR Receiver Cable (1.5 m)
● 2 × USB 3.0 Cables (Type A to Type B, 1.8 m)
● 4 × HDMI Cables (male to male, 1.5 m)
● 2 × Mounting Ears
● 4 × Machine Screws (KM3×4)
● 1 × 12V/1A Multinational Locking Power Supply
● 1 × User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
Specifications
Technical Specifications
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
Video Bandwidth
40 Gbps
Audio Latency
No Latency
Video Latency
No Latency
Video Resolution
Up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
IR Level
5 Vp-p
IR Frequency
Fixed frequency 38 kHz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8/10/12bit
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats
HDMI IN/OUT
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X,
DSD
L/R OUT
PCM 2.0CH
ESD Protection
Standard
IEC 61000-4-2: ±8 kV (Air-gap discharge) & ±4 kV (Contact
discharge)
Connection Specifications
Input Ports
4 × HDMI input [Type A, 19-pin female]
Output Ports
2 × HDMI output [Type A, 19-pin female], 1 × L/R audio output
[3.5 mm Stereo Mini-jack]
Control Ports
1 × RS-232 [3-pin 3.81 mm Phoenix connector], 1 × IR EXT
[3.5 mm Stereo Mini-jack], 1 × USB HOST [USB Type B], 4 × USB
DEVICES [USB Type A]
Mechanical Specifications
Housing
Metal Enclosure
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
Color
Black
Dimensions (W×D×H)
8.7 in × 3.9 in × 1.2 in / 220 mm× 100 mm × 30 mm
Weight
1.4 lbs / 626 g
Power Supply Specifications
Input
AC 100–240 V, 50/60 Hz
Output
DC 12 V/1 A (US/EU standard, CE/FCC/UL certified)
Power Consumption
Typical: 7.2 W, Standby: 0.72 W
Operating Conditions
Operating
Temperature
32–104 °F / 0–40 °C
Storage Temperature
-4–140 °F / -20–60 °C
Relative Humidity
20–90 % RH (non-condensing)
Recommended HDMI Cable
Video Resolution
8K60 / 8K30 / 4K120, 4K60, 1080P
HDMI Cable Type
Ultra HDMI 2.1 cable (8K), standard HDMI cable for 4K/1080P
HDMI Cable Length
3 m/10 ft (8K), 5 m/16 ft (4K60), 10 m/33 ft (1080P)
Note
Use of “Premium High Speed HDMI” cable is highly recommended
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
Operation Controls and Functions

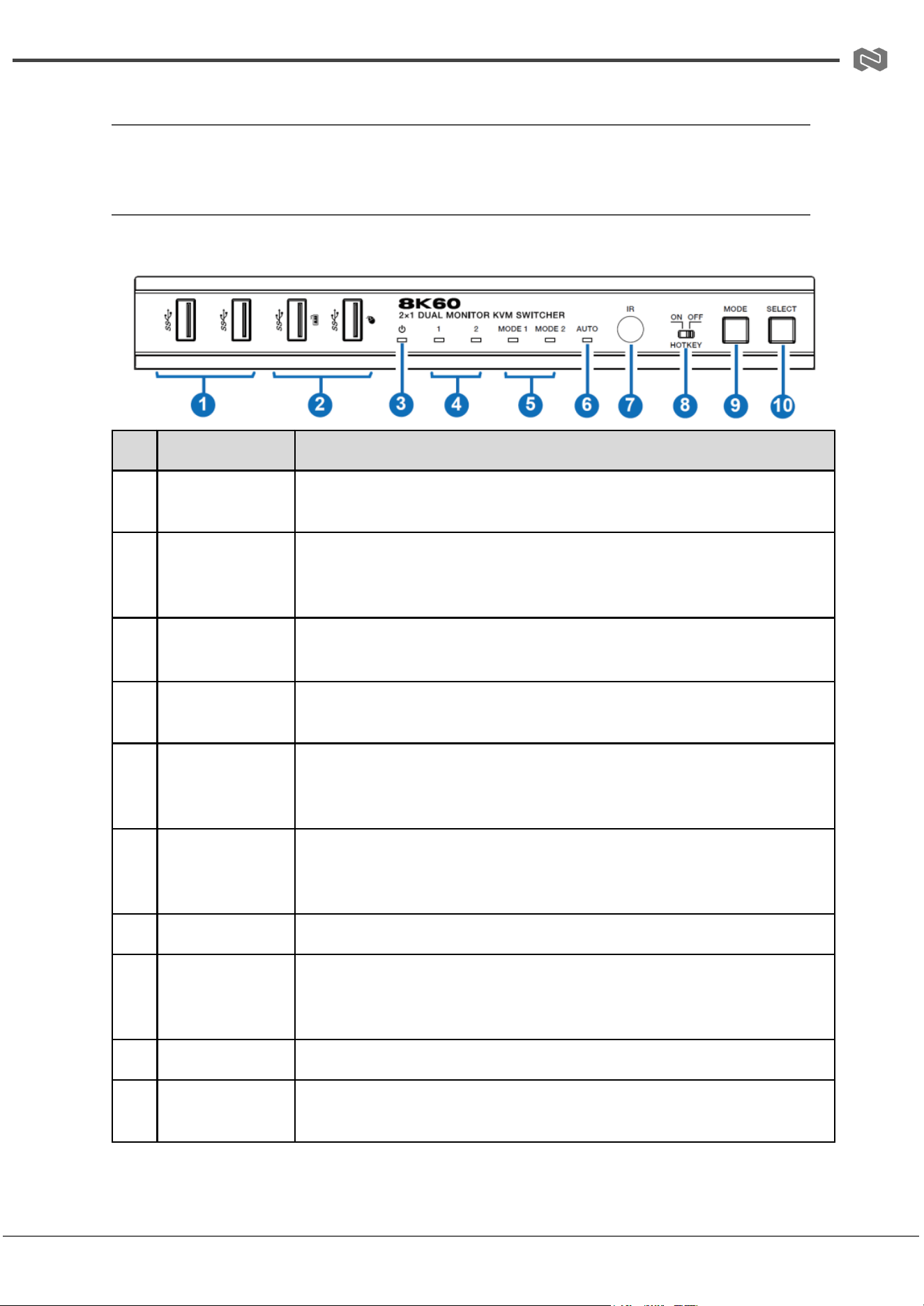

Front Panel
No.
Name
Function Description
1
USB 3.0 Ports
USB 3.2 Gen 1 device ports for connecting peripherals such as USB
flash drives, cameras, printers, and other USB devices.
2
USB 3.0 Ports
(Hotkey Mode)
When the Hotkey switch is set to OFF, these ports support USB 3.2
Gen 1 devices. When the Hotkey switch is set to ON, these ports
support USB 1.1 keyboard and mouse only for hotkey switching.
3
Power LED
Lights green when the unit is operating normally and red when the
unit is in standby mode.
4
Input Channel
LED 1 / 2
The corresponding LED lights green when HDMI input port 1 or 2 is
selected as the active input source.
5
MODE 1 / 2
LED
Lights when MODE 1 or MODE 2 is selected via the front panel
MODE button or the M1/M2 button on the IR remote. Refer to
Dual-Mode Function section for details.
6
AUTO LED
Lights green when auto-switching is enabled. The input channel
automatically switches when an input source is connected or
disconnected.
7
IR Window
Receives IR control signals from the included IR remote control.
8
HOTKEY
Switch
Enables or disables hotkey switching mode.
ON: Connected keyboard and mouse support hotkey switching.
OFF: Hotkey switching is disabled.
9
MODE Button
Press to toggle between MODE 1 and MODE 2.
10
SELECT Button
Press to manually switch between HDMI input channels.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL

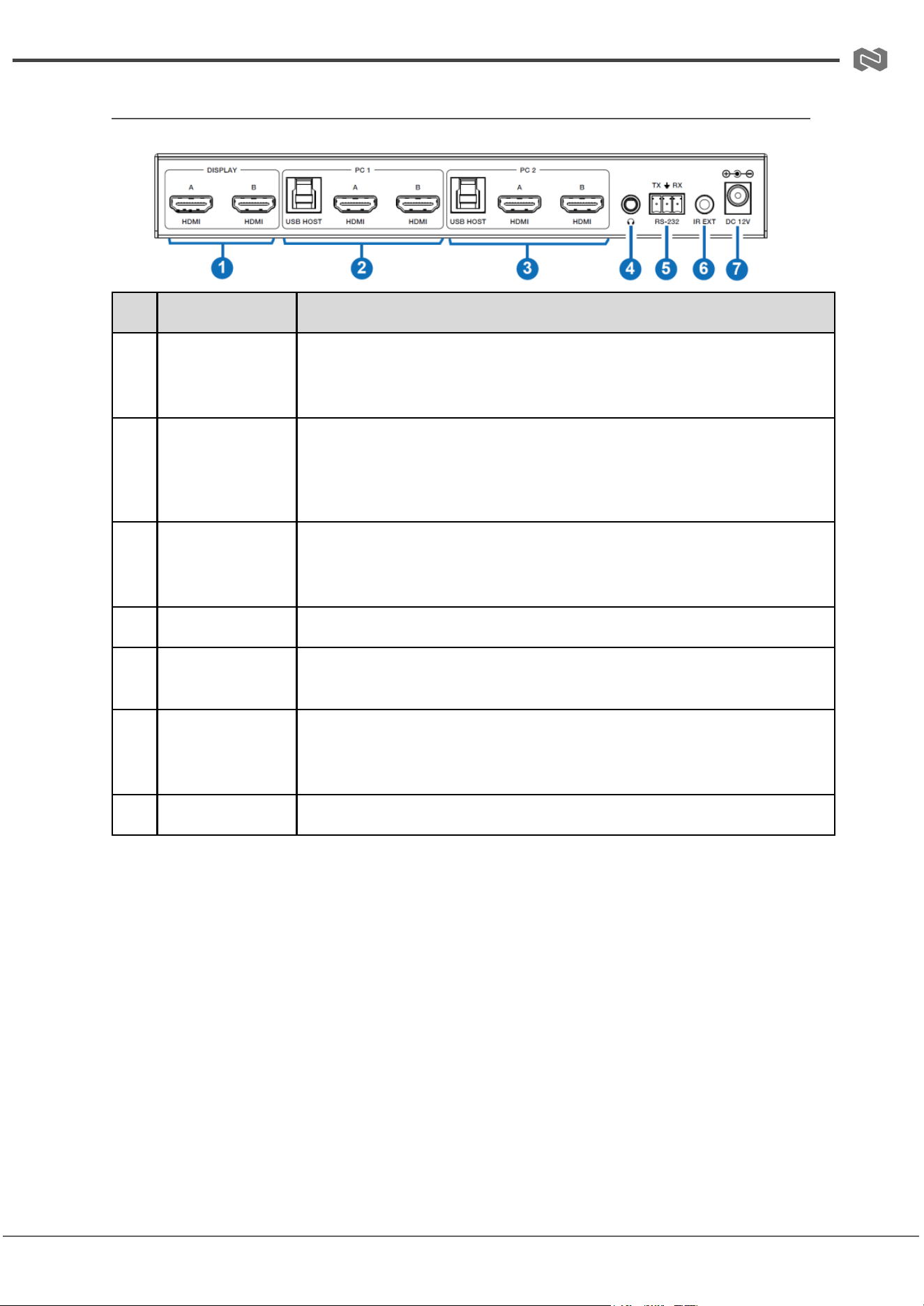

Rear Panel
No.
Name
Function Description
1
DISPLAY HDMI
A/B Ports
HDMI output ports for connecting HDMI display devices such as
TVs or monitors using HDMI cables.
2
PC 1 Ports
USB HOST: USB host port for connection to PC 1; also supports
MCU firmware upgrades.
HDMI A/B: HDMI input ports for connecting PC 1 or other HDMI
source devices.
3
PC 2 Ports
USB HOST: USB host port for connection to PC 2.
HDMI A/B: HDMI input ports for connecting PC 2 or other HDMI
source devices.
4
L/R Audio Port
3.5 mm analog stereo audio output port.
5
RS-232 Port
3-pin Phoenix connector for connection to a PC or control system
for serial control and firmware upgrades.
6
IR EXT Port
External IR input port for connecting the included 38 kHz IR receiver
cable. Use this port when the front IR window is blocked or the unit
is installed out of IR line-of-sight.
7
DC 12V
DC 12 V / 1 A power input port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL

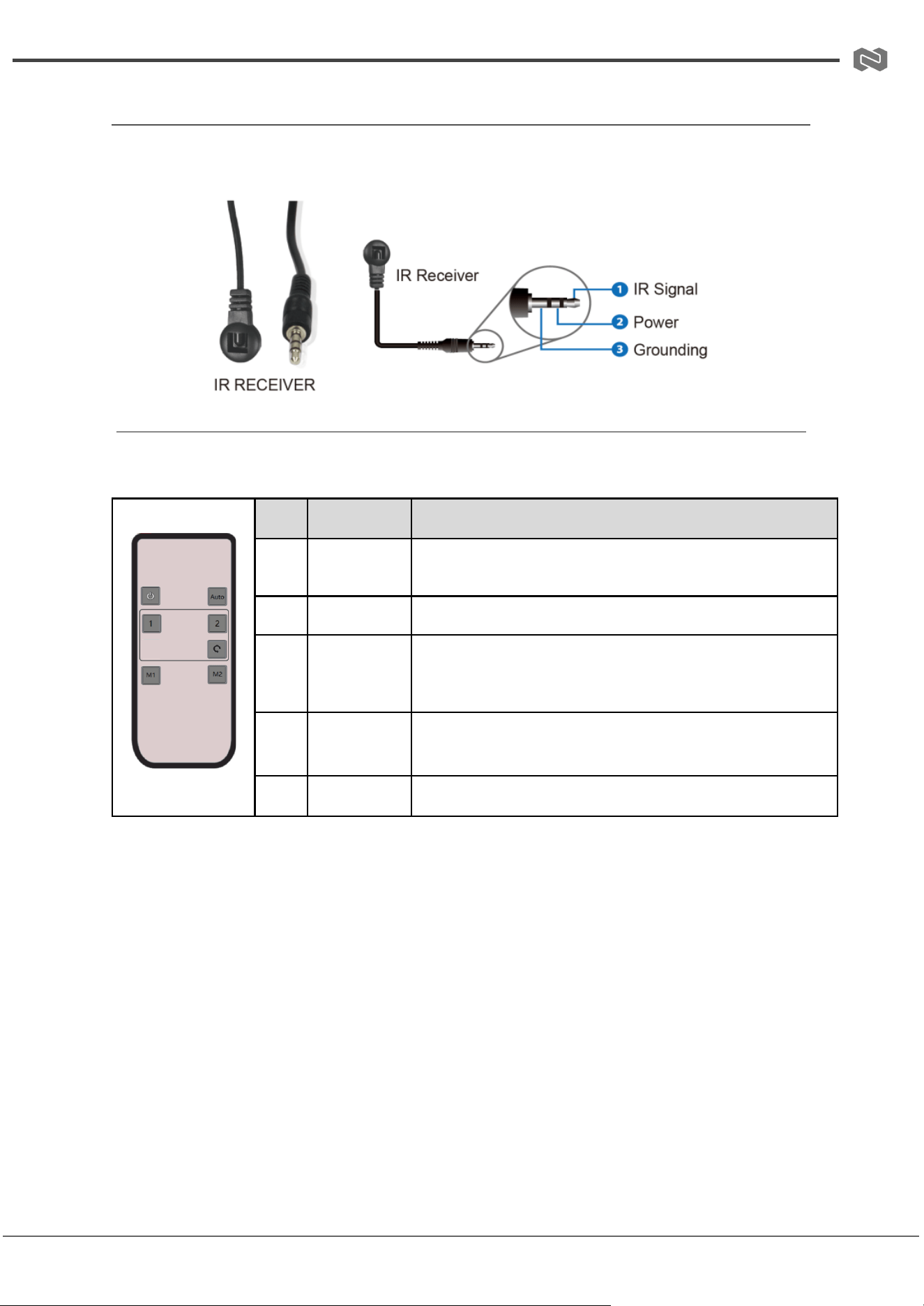

IR Pin Definition
The pin assignment for the IR receiver is shown below:
IR Remote Control
No.
Button
Function Description
1
Power
Powers on the switcher or places it into standby
mode.
2
AUTO
Enables or disables the auto-switching function.
3
1 / 2
Selects HDMI input port 1 or 2 as the active input
channel. The corresponding channel LED on the front
panel will light green.
4
⟳ (Cycle)
Cycles through the available HDMI input channels
sequentially.
5
M1 / M2
Selects MODE 1 or MODE 2 operation.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL

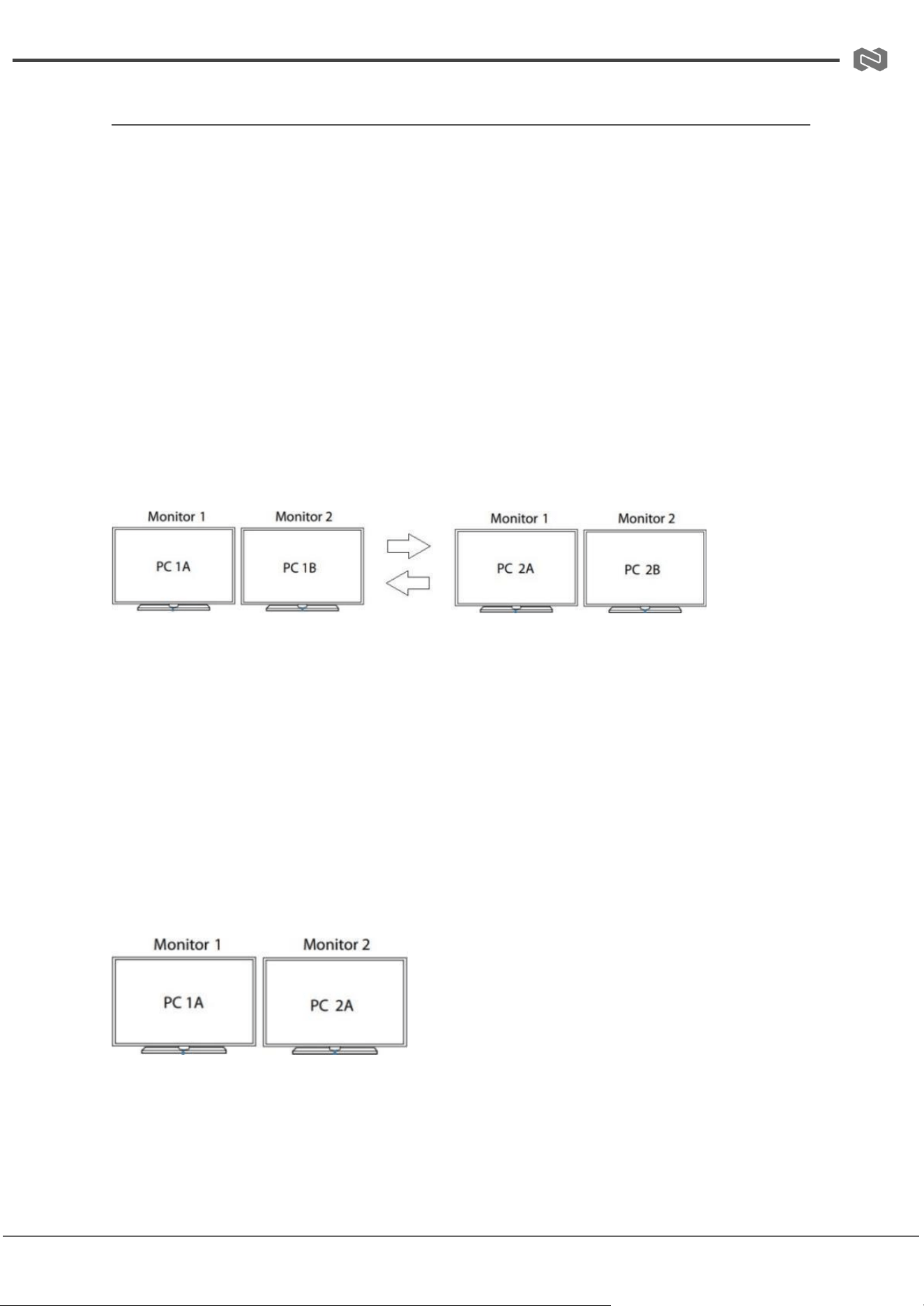

Dual-Mode Function
The BG-8K-KVM22A supports two operating modes to accommodate different
dual-monitor workflows: MODE 1 (Single PC Mode) and MODE 2 (Dual PC Mode).
MODE 1: Single PC Mode
In this mode, both HDMI outputs (A and B) display video from the same selected
computer—either PC 1 or PC 2. Outputs A and B are routed to the corresponding HDMI
inputs (PC 1 A/B or PC 2 A/B), and all connected USB devices automatically follow the
selected PC host. Users can switch between PC 1 and PC 2 using the SELECT button on
the front panel, the 1/2 button on the IR remote, or supported keyboard/mouse hotkeys.
EDID management is handled independently for each display: the EDID from the monitor
connected to Output A is copied to Input 1A or 2A, and the EDID from the monitor
connected to Output B is copied to Input 1B or 2B, ensuring proper resolution and
compatibility for both displays.
MODE 2: Dual PC Mode
In this mode, each HDMI output is assigned to a dedicated computer. Output A is fixed to
PC 1 (Input A), and Output B is fixed to PC 2 (Input A), allowing two computers to be
displayed simultaneously on separate monitors. While video routing remains fixed, users
can switch control of the connected USB devices between PC 1 and PC 2 using the
SELECT button, the 1/2 button on the IR remote, or keyboard/mouse hotkeys.
EDID is automatically managed per output: the EDID from the monitor connected to Output
A is copied to PC 1 Input A, and the EDID from the monitor connected to Output B is
copied to PC 2 Input A, ensuring stable and correct video output for both systems.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
Hotkey Switch Function
The HOTKEY switch on the front panel enables or disables keyboard and mouse hotkey
control.
● HOTKEY OFF:
Hotkey switching is disabled. The two USB ports labeled USB 3.0 (Hotkey Mode)
operate as standard USB 3.2 Gen 1 device ports and support peripherals such as
storage devices and cameras.
● HOTKEY ON:
Hotkey switching is enabled. The two USB ports labeled USB 3.0 (Hotkey Mode)
support USB 1.1 keyboard and mouse only, allowing hotkey commands to control
input and USB switching.
Keyboard & Mouse Hotkey Function
When hotkey mode is enabled, the switcher can be controlled using the following keyboard
and mouse hotkey commands.
Keyboard Hotkeys
Function
Hotkey Combination
Switch to Input 1
Ctrl + Ctrl + 1 or Scroll Lock + Scroll Lock + 1
Switch to Input 2
Ctrl + Ctrl + 2 or Scroll Lock + Scroll Lock + 2
Switch to Next Input
Ctrl + Ctrl + Page Up or Scroll Lock + Scroll Lock + Page Up
Switch to Previous
Input
Ctrl + Ctrl + Page Down or Scroll Lock + Scroll Lock + Page
Down
Enable / Disable
Buzzer
Ctrl + Ctrl + F12 or Scroll Lock + Scroll Lock + F12
Mouse Hotkeys
● Double-click mouse scroll wheel, then click Right Button: Switch to next input
● Double-click mouse scroll wheel, then click Left Button: Switch to previous input
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
ASCII Commands

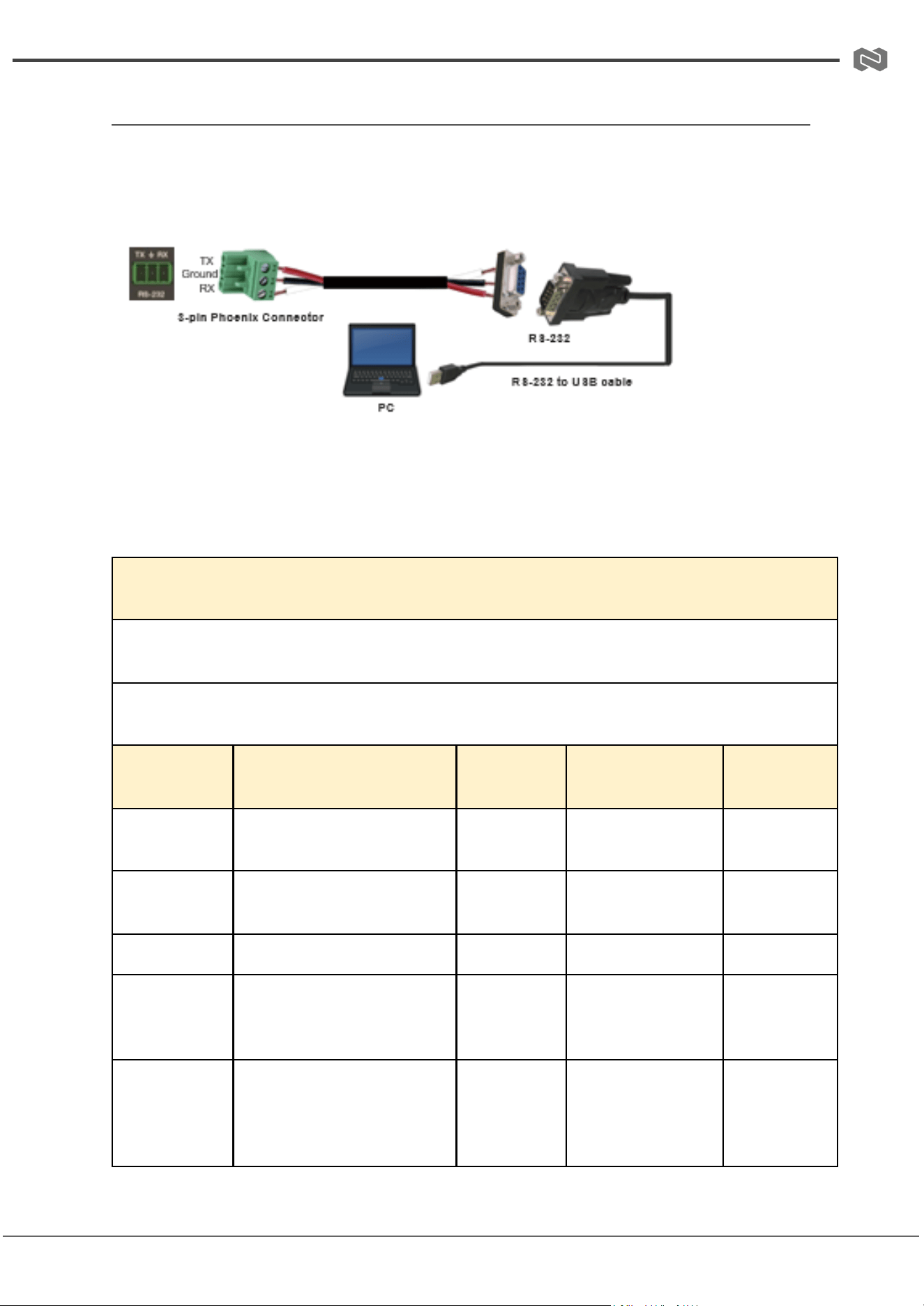

The product supports control via ASCII commands through the RS-232 interface. To use
this function, connect the RS-232 port of the unit to a PC using a 3-pin Phoenix connector
cable and an RS-232–to–USB adapter.
After completing the connection, open a serial command tool on the PC (such as a terminal
or serial control utility) and send ASCII commands to control the switcher.
The list of supported ASCII commands for this product is provided below.
ASCII Commands
Baud rate: 115200 (default), Data bits: 8, Stop bits: 1, Check bit: 0
x = Parameter 1, z = Parameter 2, ! = Delimiter
Command
Code
Function Description
Example
Feedback
Default
Setting
Parameter
Definition
x = Parameter 1, z =
Parameter 2, ! = Delimiter
—
—
—
help!
List all supported
commands
help!
—
—
status!
Get current device status
status!
—
—
r type!
Get device model
r type!
2×1 dual monitor
KVM HDMI 2.1
switcher
—
r fw version!
Get firmware version
r fw version!
mcu fw version:
vx.xx.xx
kvm fw version:
vx.xx.xx
—
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
power z!
Power on/off device (z =
0~1)
0 = power off, 1 = power
on
power 1!
power on
—
r power!
Get current power state
r power!
power on
—
reboot!
Reboot the device
reboot!
reboot…
—
reset!
Restore factory default
settings
reset!
reset to factory
defaults
—
s auto switch
x!
Enable/disable auto switch
(x = 0~1)
0 = disable, 1 = enable
s auto
switch 1!
auto switch:
enable
auto switch:
enable
r auto switch!
Get auto switch status
r auto
switch!
auto switch:
enable
—
s beep z!
Enable/disable buzzer (z =
0~1)
0 = off, 1 = on
s beep 1!
beep on
beep off
r beep!
Get buzzer status
r beep!
beep on
—
s output
mode z!
Set output mode (z = 1~2)
1 = MODE 1, 2 = MODE 2
s output
mode 1!
output mode: 1
—
r output
mode!
Get output mode
r output
mode!
output mode: 1
—
s input/usb z!
Set input or USB host (z =
1~2)
1 = input 1, 2 = input 2
s input/usb
1!
input/usb: 1
input/usb: 1
r input/usb!
Get input or USB host
status
r input/usb!
input/usb: 1
—
s output x
stream z!
Enable/disable output
stream
x = 0 (all), 1 (output 1), 2
(output 2)
z = 0 disable, 1 enable
s output 1
stream 1!
output 1 stream:
enable
output 1
stream:
enable
output 2
stream:
enable
r output x
stream!
Get output stream status
r output x
stream!
output 1 stream:
enable
—
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL

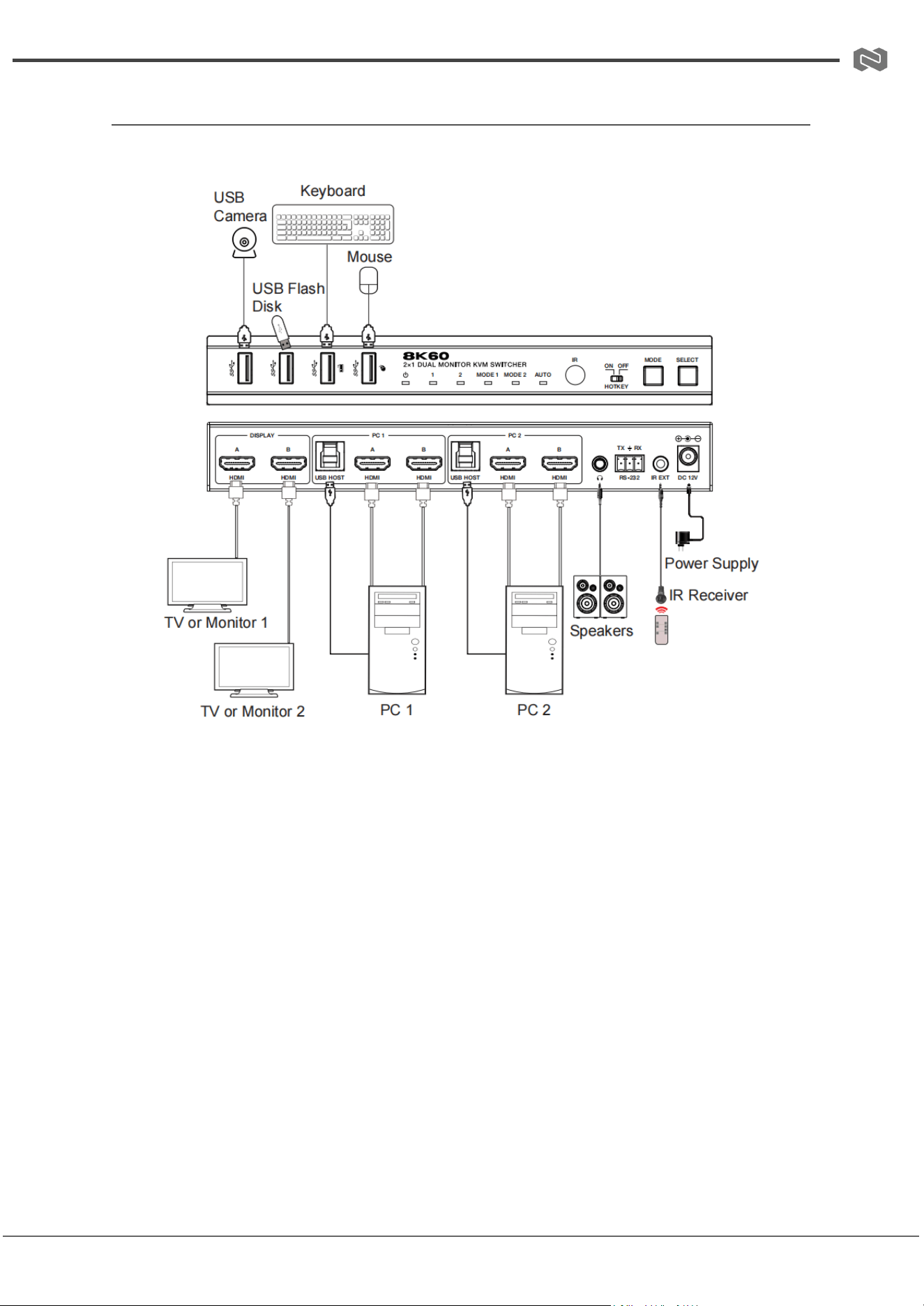

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 17
BZBGEAR BG-8K-KVM22A PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 18
