BG-8K-KVM21A
8K60 HDMI 2.1 2x1 KVM Switch with USB 3.0, Hotkey Switching &
IR Control
User Manual
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 9
IR Pin Definition 11
IR Remote Control Functions 11
Hotkey Operation 12
Keyboard Hotkey Commands 12
Mouse Hotkey Commands 13
ASCII Command Control (RS-232) 14
Connection Diagram 17
Troubleshooting 18
Tech Support 19
Limited Product Warranty Terms 19
Mission Statement 20
Copyright 20
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
Introduction
The BG-8K-KVM21A 2×1 HDMI 2.1 KVM Switch allows you to control two
computers using a single keyboard, mouse, and display while delivering
uncompromised performance for high-resolution workflows. It supports ultra-wide
resolutions up to 8K@60Hz, 4K@120Hz/144Hz, and 1080p@240Hz, along with USB
3.0 data transmission up to 5Gbps for fast and reliable peripheral sharing. With full
support for HDR formats, VRR, and HDCP 2.3, it is ideal for professional AV, content
creation, and high-end gaming environments that demand zero latency and
seamless switching.
Designed for speed and convenience, the switcher features virtual interaction
technology that can automatically wake connected PCs from standby, significantly
reducing switching time. Users can switch sources instantly using front-panel
buttons, keyboard/mouse hotkeys, or the included IR remote, with no drivers
required. Broad OS compatibility—including Windows, macOS, and Linux -
combined with EDID emulation and plug-and-play operation ensures reliable
performance across a wide range of systems and applications.
Features
● HDMI 2.1 & HDCP 2.3 Compliance: Ensures full compatibility with next-generation
sources and protected content.
● Ultra-High Resolution Support: Delivers up to 8K@60Hz, 4K@120Hz/144Hz, and
1080p@240Hz for ultra-wide and high-refresh displays.
● Advanced HDMI 2.1 Gaming Features: Supports VRR, ALLM, QMS, QFT, and SBTM
for smooth, tear-free, low-latency performance.
● HDR Pass-Through: Preserves HDR, HDR10, HDR10+, Dolby Vision, and HLG for
accurate color and contrast.
● 2×1 KVM Functionality: Control two computers using a single keyboard, mouse, and
display.
● USB 3.0 Peripheral Sharing: Share USB devices such as keyboards, mice, webcams,
storage, and printers with data speeds up to 5Gbps.
● Seamless Fast Switching: Provides instant video and USB switching with zero latency.
● Virtual Interaction Technology: Automatically wakes connected PCs from standby to
reduce switching time.
● Multiple Switching Methods: Switch sources via front-panel buttons, keyboard/mouse
hotkeys, or included IR remote.
● EDID Emulation per Input: Maintains stable resolution and display settings for each
connected computer.
● Auto Switching Support: Automatically switches to the active or newly connected
source.
● Hot-Plug Support: Safely connect or disconnect devices without powering down the
system.
● Wide OS Compatibility: Works with Windows, macOS, and Linux with no drivers
required.
● Zero-Latency Hardware Design: Advanced hardware and firmware ensure real-time
video and USB performance.
● Compact, Install-Friendly Design: Small form factor with included mounting ears for
flexible installation.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
Packing List
● 1 × 8K60 HDMI 2.1 2×1 KVM Switcher
● 1 × IR Remote
● 1 × Fixed-Frequency 38kHz IR Receiver Cable (1.5 m)
● 2 × HDMI Cables (Male-to-Male, 1.5 m)
● 2 × USB 3.0 Cables (USB-A to USB-B, 1.8 m)
● 2 × Mounting Ears
● 4 × Machine Screws (KM3 × 4)
● 1 × 12V / 1A Multinational Locking Power Supply
● 1 × 3-Pin 3.81 mm Phoenix Connector (Male)
● 1 × User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
Specifications
Technical Specifications
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
Video Bandwidth
40Gbps
Audio Latency
No Latency
Video Latency
No Latency
Video Resolution
Up to 8K@60Hz, 4K@120Hz/144Hz, 1080p@240Hz
IR Level
5Vp-p
IR Frequency
Fixed Frequency 38kHz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8 / 10 / 12-bit
HDR Support
HDR, HDR10, HDR10+, Dolby Vision, HLG
CEC
Supported
Audio Formats Specifications
HDMI IN/OUT
LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS,
DTS-EX, DTS-96/24, DTS-HD High Res, DTS-HD Master Audio,
DTS:X, DSD
L/R Audio Output
PCM 2.0CH
ESD Protection
IEC 61000-4-2
±8kV (Air Discharge), ±4kV (Contact Discharge)
Connections
HDMI Inputs
2 × HDMI Type-A (19-pin, Female)
HDMI Output
1 × HDMI Type-A (19-pin, Female)
Analog Audio Output
1 × L/R Audio (3.5mm Stereo Mini-Jack)
Control Ports
1 × RS-232 (3-Pin 3.81mm Phoenix), 1 × IR EXT (3.5mm)
USB Host
1 × USB Type-B
USB Device Ports
4 × USB Type-A
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
Technical Specifications
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
Mechanical Specifications
Housing
Metal Enclosure
Color
Black
Dimensions (W × D × H)
6.9 × 3.9 × 1.2 in / 175 × 100 × 30 mm
Weight
1.1 lbs / 506 g
Power Specifications
Power Supply
AC 100–240V, 50/60Hz
Power Output
DC 12V / 1A (US/EU, CE/FCC/UL Certified)
Power Consumption
Typical: 7W / Standby: 0.7W
Environmental Specifications
Operating Temperature
32–104°F / 0–40°C
Storage Temperature
−4–140°F / −20–60°C
Relative Humidity
20–90% RH (Non-Condensing)
Recommended HDMI Cable
8K60 / 8K30 / 4K120
Ultra High Speed HDMI 2.1 Cable, up to 2 m (6.6 ft)
4K60
HDMI Cable, up to 5 m (16 ft)
1080p
HDMI Cable, up to 10 m (33 ft)
Cable Recommendation
Premium High Speed HDMI cable highly recommended
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL

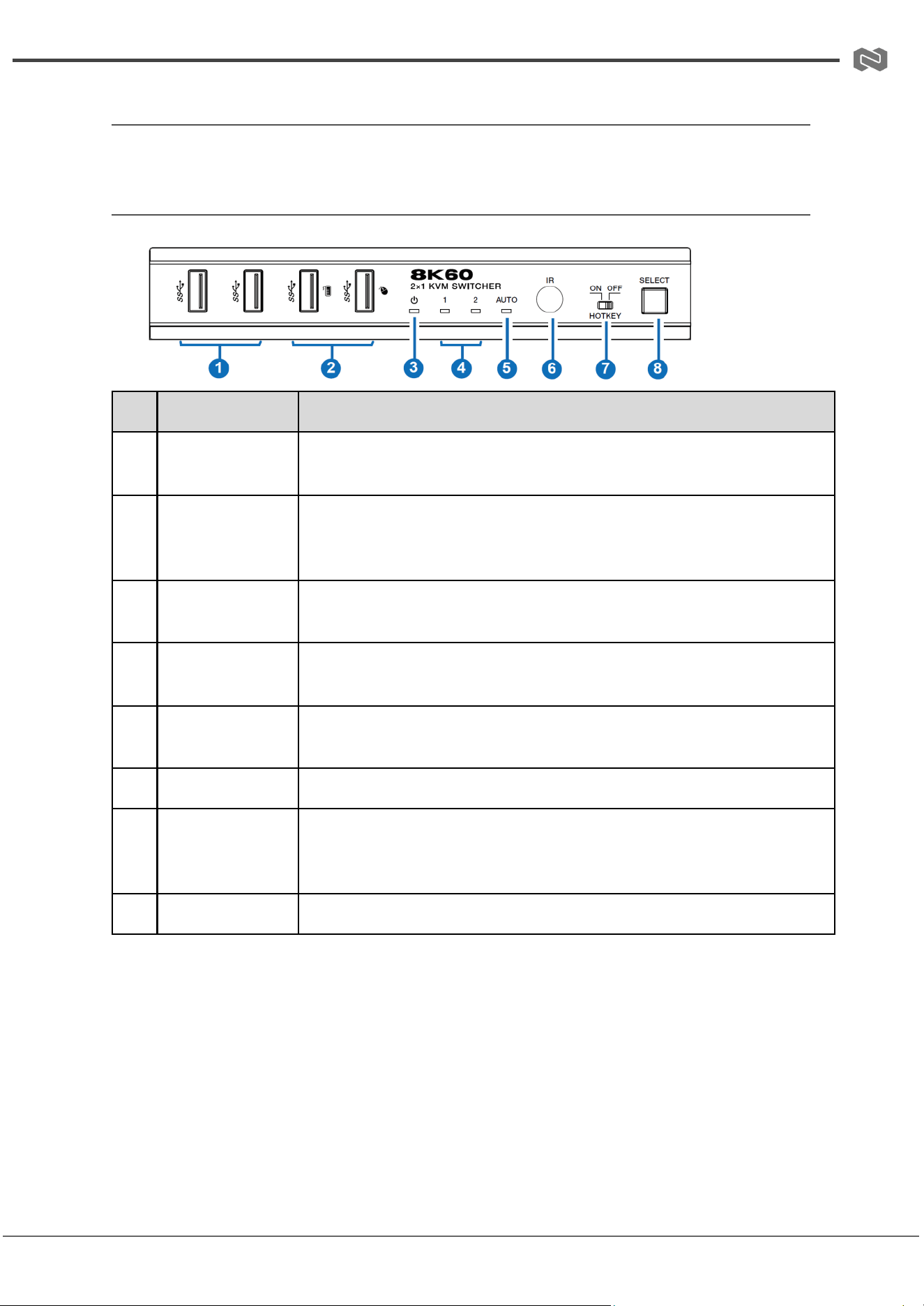

Operation Controls and Functions
Front Panel
No.
Name
Function Description
1
USB 3.0 Ports
USB 3.2 Gen 1 device ports for connecting peripherals such as flash
drives, cameras, printers, and other USB devices.
2
USB 3.0 Ports
(Hotkey Mode)
In Hotkey OFF mode, these ports support USB 3.2 Gen 1 devices.
In Hotkey ON mode, these ports support USB 1.1 keyboard and
mouse only for hotkey switching.
3
Power LED
Lights green when the unit is powered on and operating; lights red
when the unit is in standby mode.
4
Input Channel
LEDs (1 / 2)
The corresponding LED lights green when HDMI input 1 or 2 is
selected as the active input source.
5
AUTO LED
Lights green when auto-switching is enabled; turns off when
auto-switching is disabled.
6
IR Window
Receives signals from the included IR remote control.
7
Hotkey Switch
Enables or disables hotkey switching mode.
ON: Connected keyboard and mouse support hotkey switching.
OFF: Hotkey switching is disabled.
8
Select Button
Press to manually switch between HDMI input channels.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL

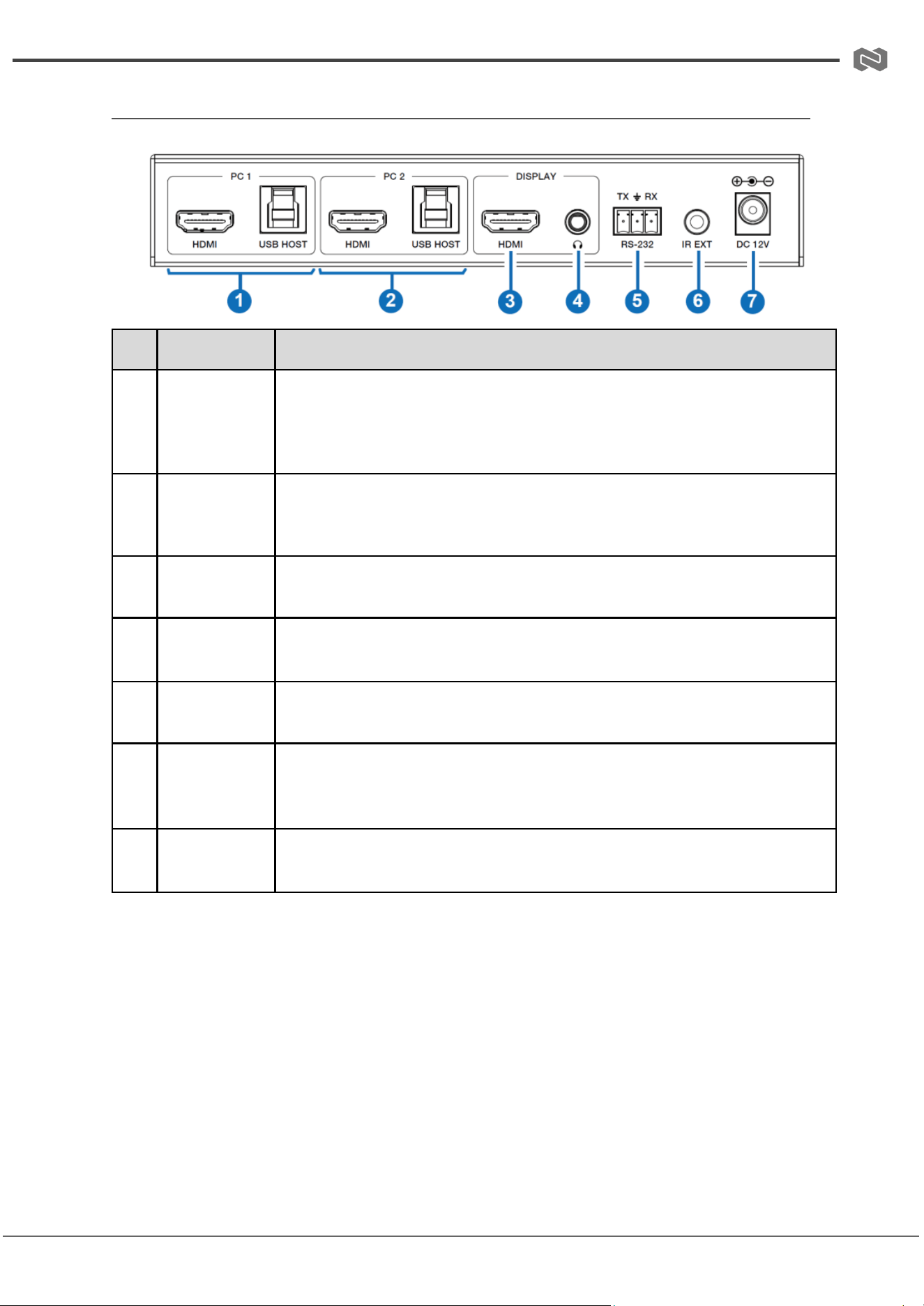

Rear Panel
No.
Name
Function Description
1
PC 1 Ports
HDMI: HDMI signal input port for connecting a PC or other HDMI
source.
USB HOST: USB host port connected to PC 1; also used for firmware
upgrades.
2
PC 2 Ports
HDMI: HDMI signal input port for connecting a PC or other HDMI
source.
USB HOST: USB host port connected to PC 2.
3
Display
HDMI Port
HDMI signal output port for connecting an HDMI display such as a TV
or monitor.
4
L/R Audio
Port
3.5mm analog stereo audio output port.
5
RS-232 Port
3-pin Phoenix connector for connection to a PC or control system;
supports serial control and firmware upgrades.
6
IR EXT Port
External IR receiver input for the included 38kHz IR receiver cable;
allows IR control when the front IR window is blocked or out of line of
sight.
7
DC 12V
Power Input
DC 12V / 1A power input port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL

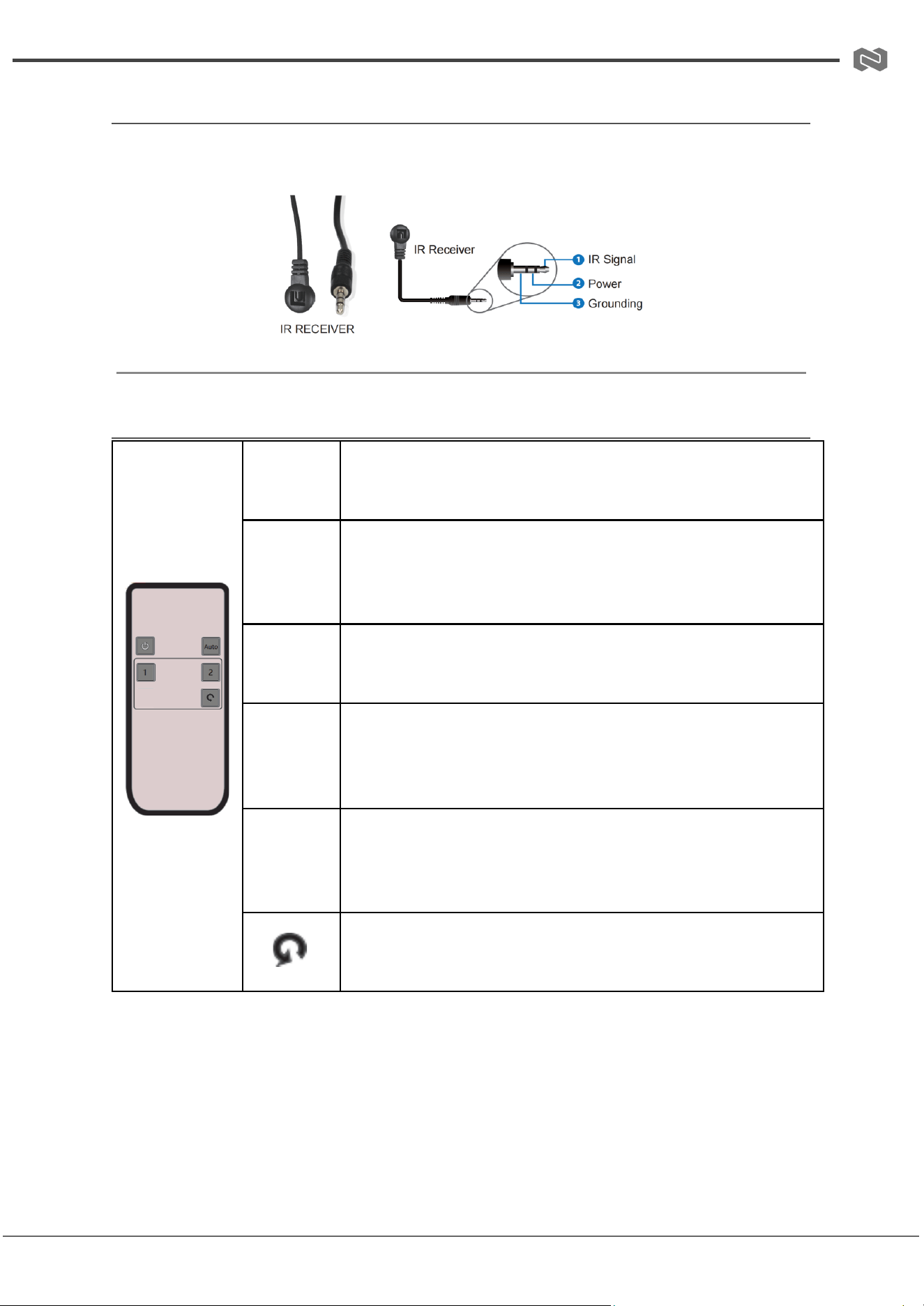

IR Pin Definition
The pin definition for the external IR receiver is shown below:
IR Remote Control Functions
Button
Function Description
Power
Press to power on the switcher or place it into standby
mode.
Auto
Press to enable or disable the auto-switching function.
1
Press to select HDMI Input 1 as the active input; the
corresponding front-panel LED lights green.
2
Press to select HDMI Input 2 as the active input; the
corresponding front-panel LED lights green.
Press to cyclically switch between HDMI input channels.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
Hotkey Operation
Hotkey Switch Function
The Hotkey switch on the front panel enables or disables keyboard and mouse hotkey
control.
● Hotkey OFF:
Hotkey control is disabled. The two USB ports (Hotkey Mode) operate as standard
USB 3.2 Gen 1 ports, supporting high-speed USB peripherals.
● Hotkey ON:
Hotkey control is enabled. The two USB ports (Hotkey Mode) support USB 1.1
keyboard and mouse only, allowing input switching via hotkeys.
Note: Enable Hotkey mode only when using a keyboard and mouse for
switching control.
Keyboard Hotkey Commands
When Hotkey mode is enabled, use the following keyboard combinations to control the
switcher:
Function
Hotkey Combination
Switch to HDMI Input 1
Scroll Lock → Scroll Lock → 1 or Ctrl → Ctrl → 1
Switch to HDMI Input 2
Scroll Lock → Scroll Lock → 2 or Ctrl → Ctrl → 2
Switch to Next Input
Scroll Lock → Scroll Lock → Page Up or Ctrl → Ctrl → Page Up
Switch to Previous
Input
Scroll Lock → Scroll Lock → Page Down or Ctrl → Ctrl → Page
Down
Enable / Disable
Buzzer
Scroll Lock → Scroll Lock → F12 or Ctrl → Ctrl → F12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
Mouse Hotkey Commands
The switcher also supports mouse-based hotkey control when Hotkey mode is enabled:
● Switch to Next Input: Double-click the mouse scroll wheel, then click the right
mouse button
Switch to Previous Input: Double-click the mouse scroll wheel, then click the left mouse
button
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
ASCII Command Control (RS-232)
The product supports ASCII command control via the RS-232 interface, allowing
integration with PCs and third-party control systems.

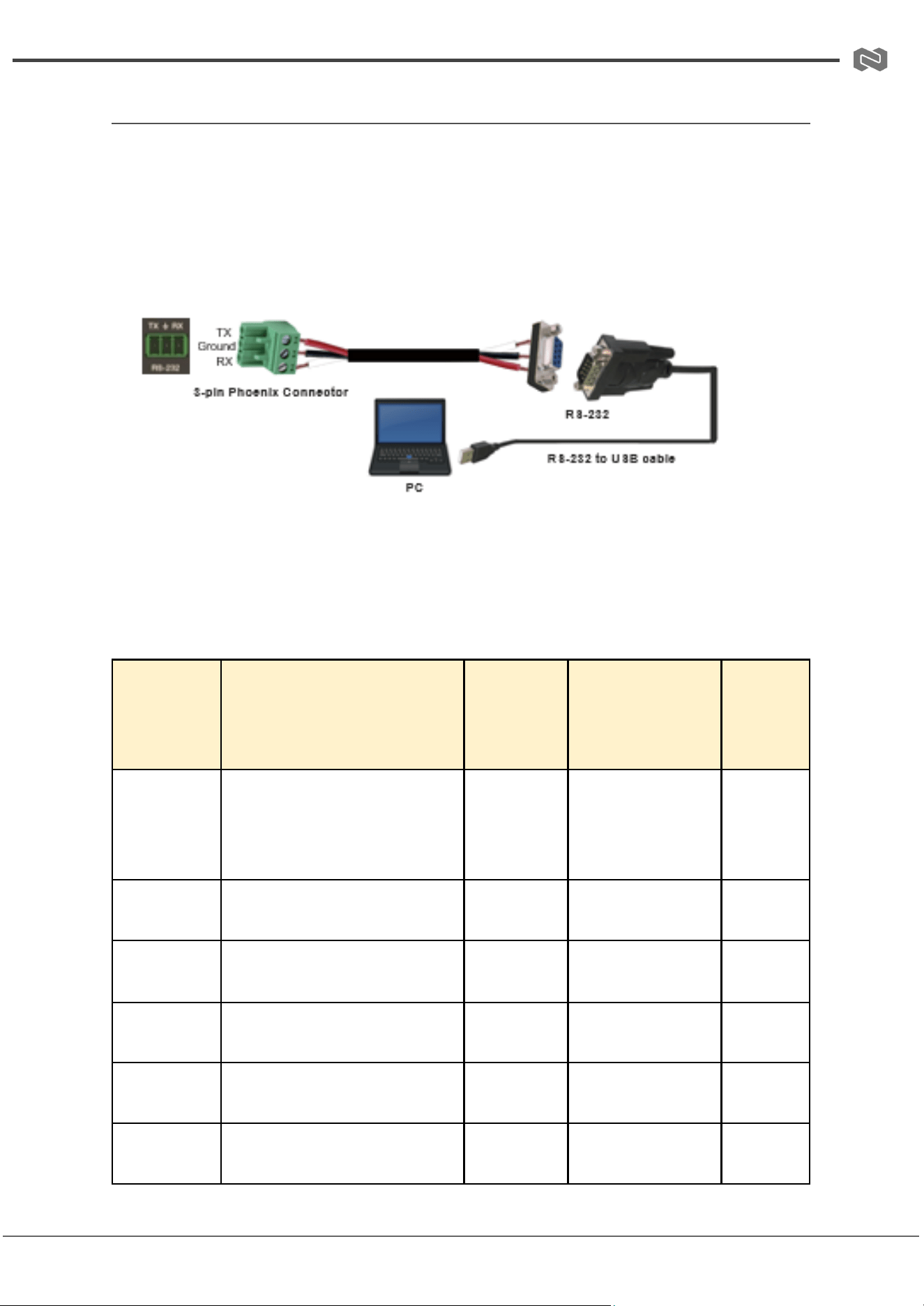

To establish communication, connect the unit’s RS-232 port to a PC using a 3-pin Phoenix
connector cable and an RS-232–to–USB adapter. Ensure the following signal connections
are observed:
Once the hardware connection is complete, launch a serial command/terminal
application on the PC and send ASCII commands to control the unit.
The supported ASCII command set for this product is listed in the table below.
Parameter
/
Command
Function Description
Example
Feedback
Default
Setting
Serial Port
Protocol
Baud rate: 115200 (default),
Data bits: 8, Stop bits: 1,
Check bit: 0
—
—
—
x
Parameter 1
—
—
—
z
Parameter 2
—
—
—
!
Delimiter
—
—
—
help!
List all available commands
help!
—
—
status!
Get device current status
status!
—
—
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
r type!
Get device model
r type!
2x1 KVM
HDMI2.1 switcher
—
r fw version!
Get firmware version
r fw
version!
MCU FW version:
vx.xx.xxKVM FW
version: vx.xx.xx
—
power z!
Power on/off the device
(z=0~1)
power 1!
power on
power on
r power!
Get current power state
r power!
power on
—
reboot!
Reboot the device
reboot!
reboot…
—
reset!
Reset to factory defaults
reset!
reset to factory
defaults
—
s output 1
stream x!
Enable/disable output 1
stream (x=0~1)
s output 1
stream 1!
output 1 stream:
enable
output 1
stream:
enable
r output 1
stream!
Get output 1 stream status
r output 1
stream!
output 1 stream:
enable
—
s auto
switch x!
Enable/disable auto switch
(x=0~1)
s auto
switch 1!
auto switch:
enable
auto
switch:
enable
r auto
switch!
Get auto switch status
r auto
switch!
auto switch:
enable
—
s output 1
in source x!
Route input x to output 1
(x=1~2)1=input12=input2
s output 1
in source 1!
output1 -> input1
—
r output 1 in
source x!
Get output 1 selected input
source
r output 1
in source!
output1 -> input1
—
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
s beep z!
Enable/disable buzzer
(z=0~1)
s beep 1!
beep on
beep off
r beep!
Get buzzer state
r beep!
beep on
—
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL

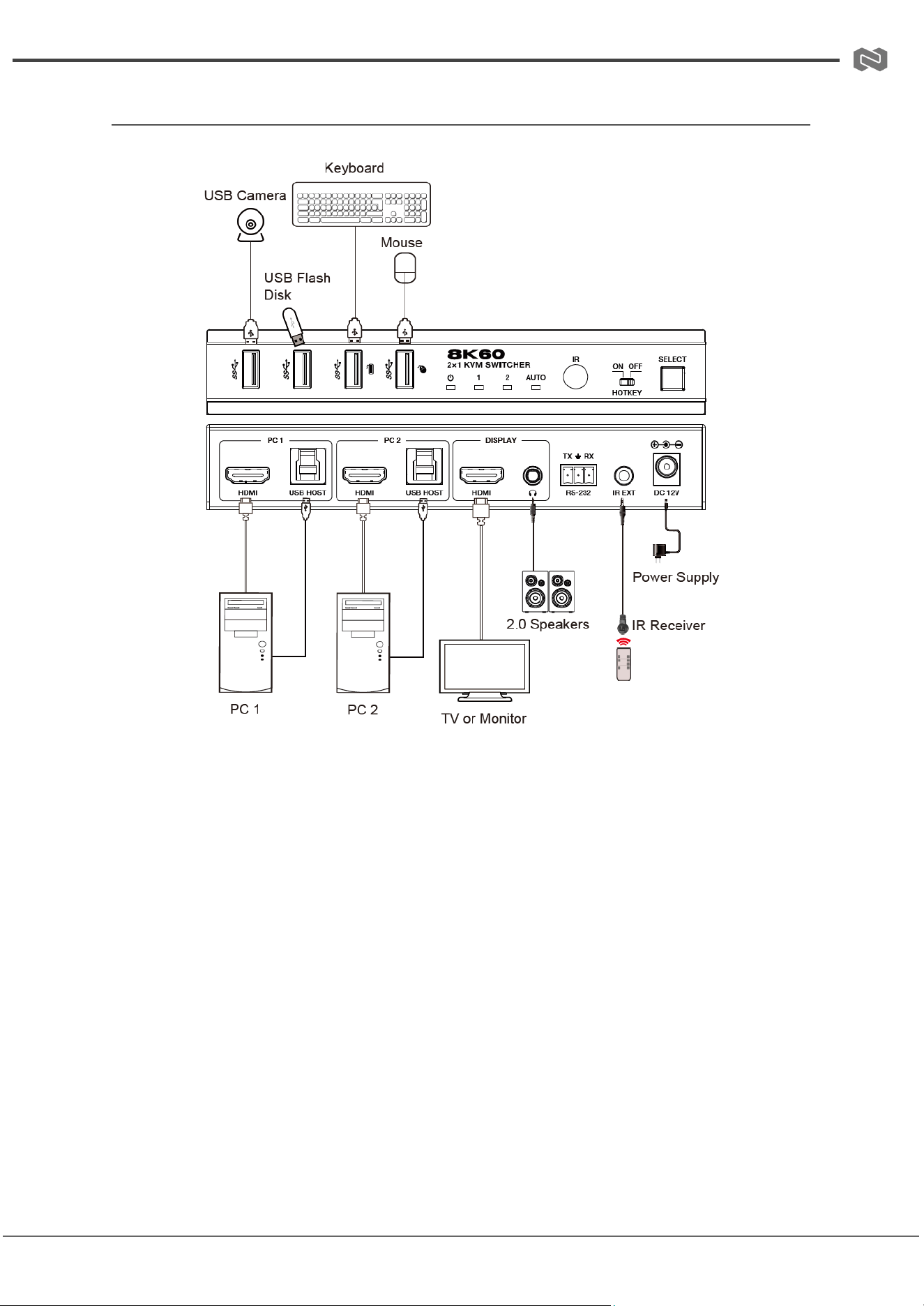

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 17
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 18
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 19
BZBGEAR BG-8K-KVM21A PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 20
