STA-9X
The NuPrime Sound
Quick Start Guide
Stereo Connec�on
Mono Connec�on
Recommended System
Features
3
4
5
8
10
11
12
14
15
16
17
........................................................................................................................................
................................................................................................................................................
..............................................................................................................................
..............................................................................................................................
..............................................................................................................................
......................................................................................................................
..........................................................................................................................
Introduc�on
Introduc�on

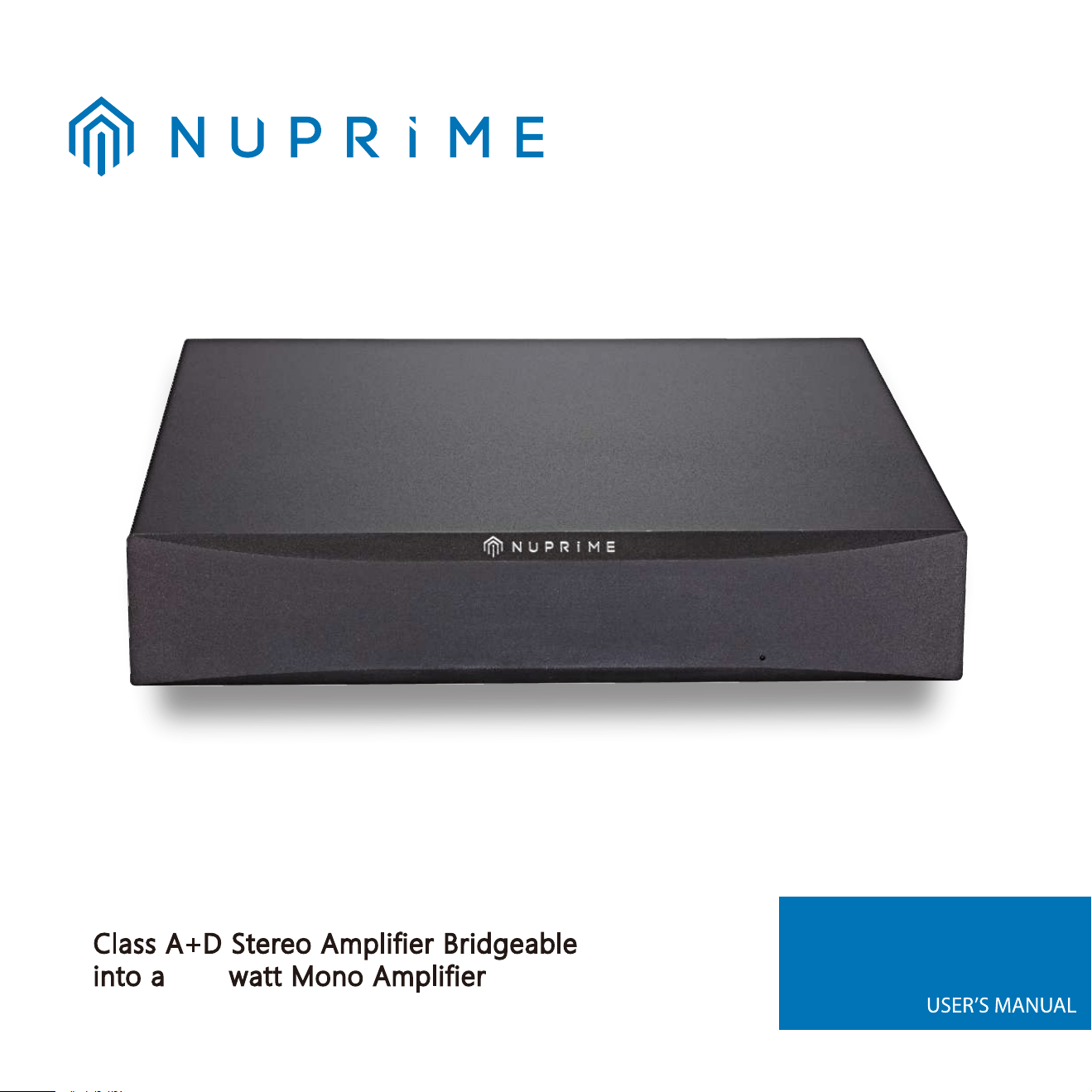

The NuPrime STA-9X, a 2 X 130W Class A+D stereo amp, bridgeable into a 330W mono amp, is designed
with enhanced even-order harmonic circuitry that mimics the most a�rac�ve features of tubed and
Class-A amp sound without incurring their drawbacks and limita�ons. The STA-9X's frequency response
to 50 kHz elevates vocals into emo�onal experiences; similarly, instrumental upper registers mimic a
live performance's shimmering heights.
The STA-9X amplifier improved upon the ULCAM (Ultra Linear Class A Module)+Class D design of STA-9
with the design concept from AMG-STA. By joining a robust high impedance singled-ended non-nega�ve
feedback amplifier circuit in the preamp stage with a dual feedback Class-D power stage, the STA-9X
sounded warm and dynamic with remarkable speed and clarity. NuPrime amplifier improves on
tradi�onal Class-D switching design by using a self-oscilla�ng circuit to generate pulse-width modula�on.
STA-9X switches at a frequency of 750kHz, well beyond the compact disc's 44.1kHz sampling rate.
Most class-D amps switch at 300kHz or lower.
Comple�ng the ensemble is NuPrime's new linear power supply with its high-efficiency toroidal
transformer for reduced high-frequency noise and strengthened low-frequency performance. The
damping effect of the NuPrime proprietary isola�on feet absorbs and cancels vibra�ons that degrade
audio performance. The overall result is unprecedented transient speed and an almost shocking level
of dynamic impact.
In summary, NuPrime STA-9X has a sound characteris�c that is spacious, transparent, dynamic,
luxuriously textured with extended high-frequency.
Features
• Improved over STA-9, the STA-9X Single End Non-Nega�ve Feedback Class A and Dual Feedback
Class D amplifier design derives from AMG STA. This design allows STA-9X to produce more details
and higher resolu�on than STA-9.
• Stereo mode bridgeable into mono mode.
• Enhanced even-order harmonic (H2) circuitry creates warmth and natural sound characteris�c.
• Highly reliable under no-load condi�on and enhanced short circuit protec�on.
• 130% higher output current drive capability than STA-9 allows low impedance speakers to have
be�er dynamic and power.
• Opera�ng at 750 kHz switching frequency, it produces high resolu�on with extended frequency
. • A new linear power supply with a high-efficiency toroidal transformer reduces high-frequency
noise and strengthened low-frequency performance.
• The signal path avoids cross-linking capacitors, thus achieving a frequency response at the DC level
for pure musical enjoyment.
The NuPrime Sound
• Vast soundstage
• Wide, lightning-fast dynamics
• Ultra-low distor�on and noise
• Music emerges from a pris�ne background, with delicate details and nuances intact
In summary, NuPrime’s sonic character stands well apart from – and indeed above – the so�, cushy
sound we o�en associate with most tubed amplifica�on or the dry, clinically edgy sound we o�en
associate with solid-state and switching technology. Rarely does an amp achieve an ideal balance of
richly textured �mbres and harmonics, bo�om-end authority, startling dynamics, exquisite low-level
detail, and a fully revealed, fully dimensional soundstage against a backdrop of mile-deep silence.
Specifica�ons:
• Power: 2 X 130W / 1 X 330W @ 8 Ohms
• Peak Output Power: 2 X 170W / 1 X 370W @ 8 Ohms
• Input Impedance: 47k Ohms
• Gain: x 28.5
• Signal to Noise Ra�o: > 90dB at 1W, 10W, 100W
• THD+N: 0.005% (Stereo) / 0.005% (Mono)
• Frequency Response: 10Hz to 50kHz
• Worldwide AC voltage: (115 VAC / 230 VAC) with Voltage
Select Switch
• AC Fuse: Slow-blow, 3A, 250VAC
• Dimension: 235 mm W x 281 mm D x 60 mm H
(including feet)
• Weight: 4 kg
• Color: Black or Silver
• Inputs:
• RCA: Un-Balanced input x 1
• XLR: Balanced input x 1
• TRIGGER IN (12V)
• Outputs:
• Stereo Speaker Out x 1
• Mono Speaker Out x 1
• TRIGGER OUT (12V)
Quick Start Guide

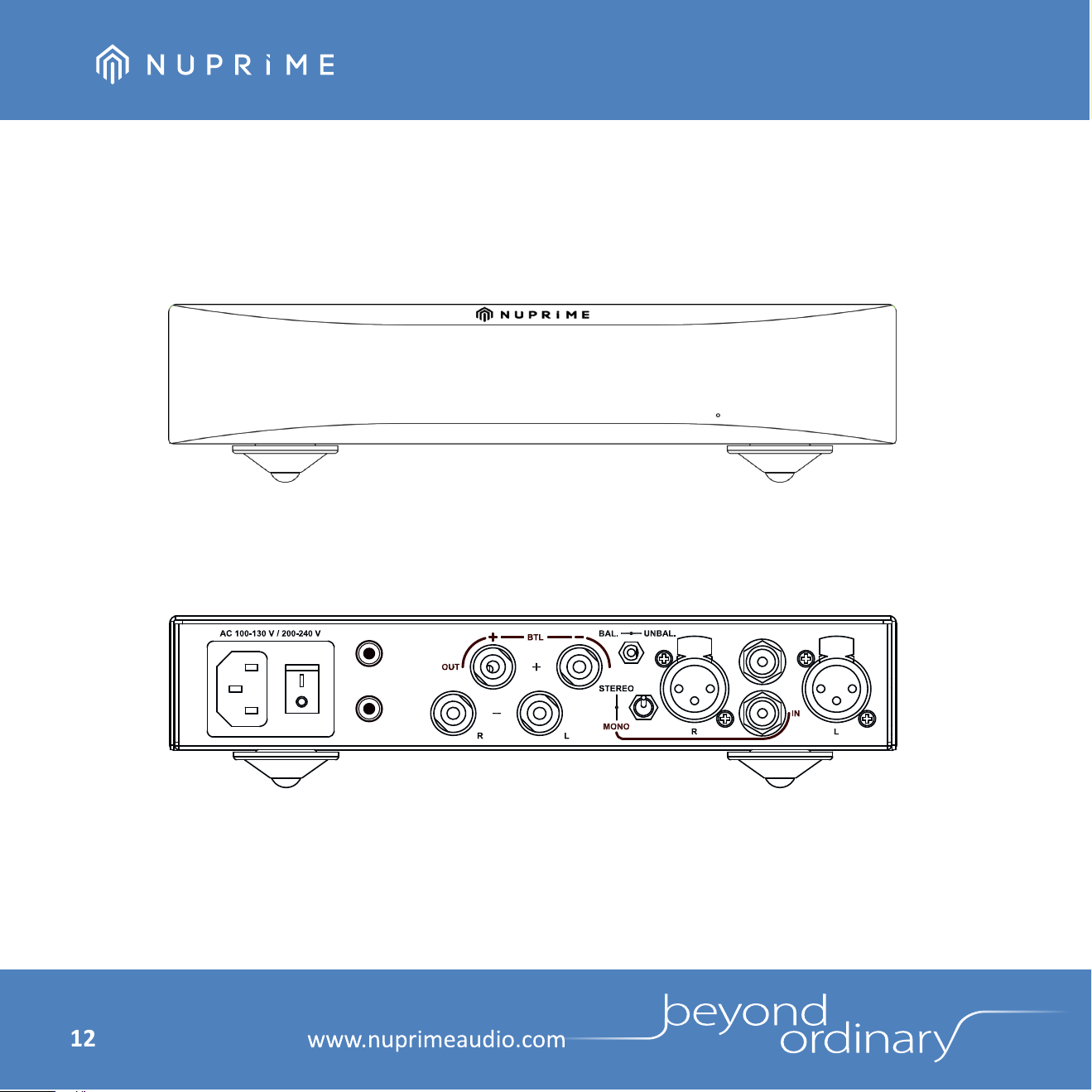

Front Panel View:
Trigger
OUT
Trigger
IN
Back Panel View:
Inputs:
RCA: Un-Balanced input x 1
XLR: Balanced input x 1
Outputs:
Stereo Speaker Out x 1
or
Mono Speaker Out x 1
AC Inlet Voltage Selector:
Make sure that the AC voltage selector switch at the bo�om of the unit is switched to the appropriate
voltage for your country. All STA-9X are shipped with the switch set to 230V AC in order to prevent
accidental damage.
Turn ON the AC power switch at the rear of the unit. The STA-9X will now be in standby mode. Blue
LED indicator lights up on the front panel.

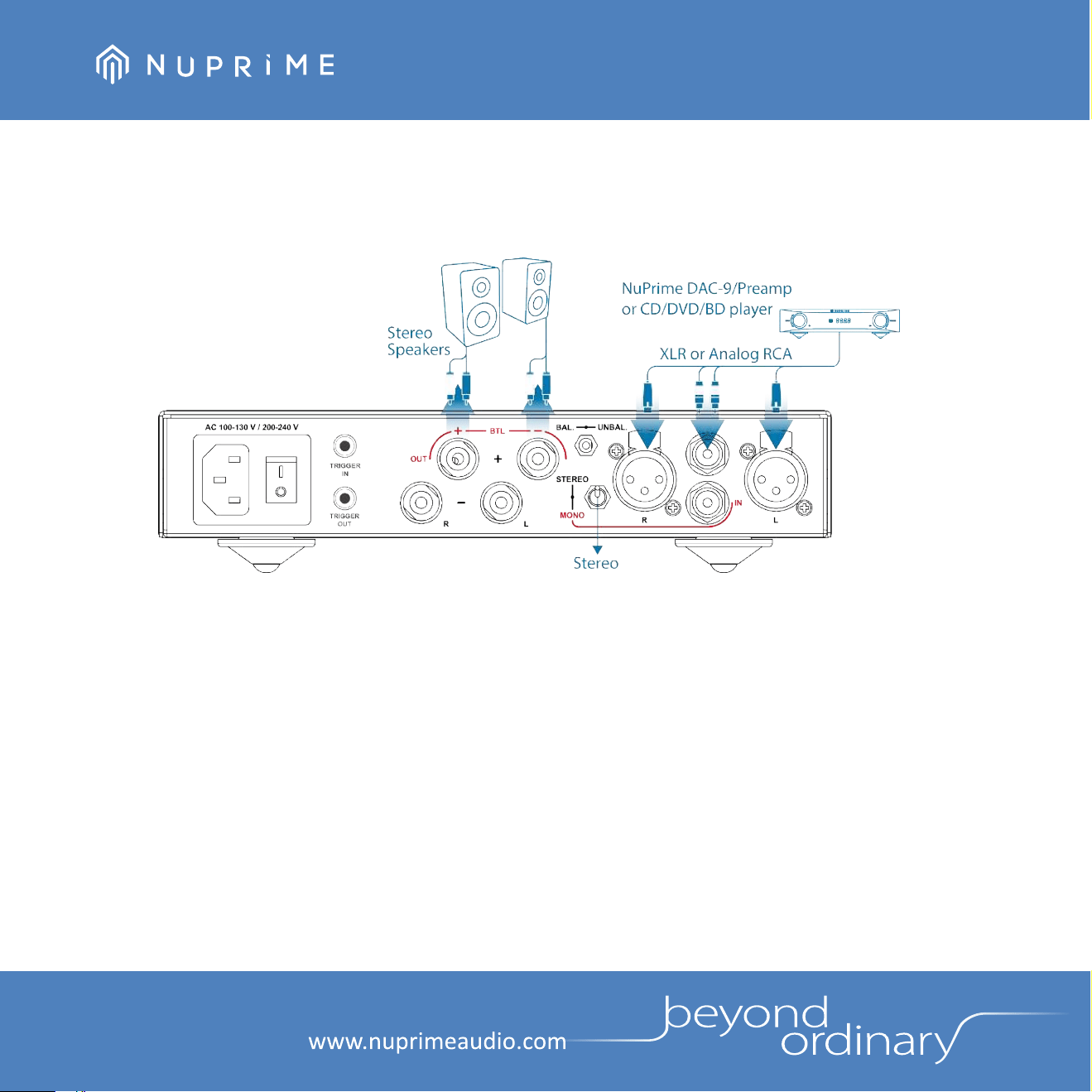

Stereo Connec�on:
1. Toggle the Stereo/Mono switch to STEREO.
2. Choose either XLR balance or RCA Unbalance connec�on from the source.
3. Connect speakers to the output terminals.
14

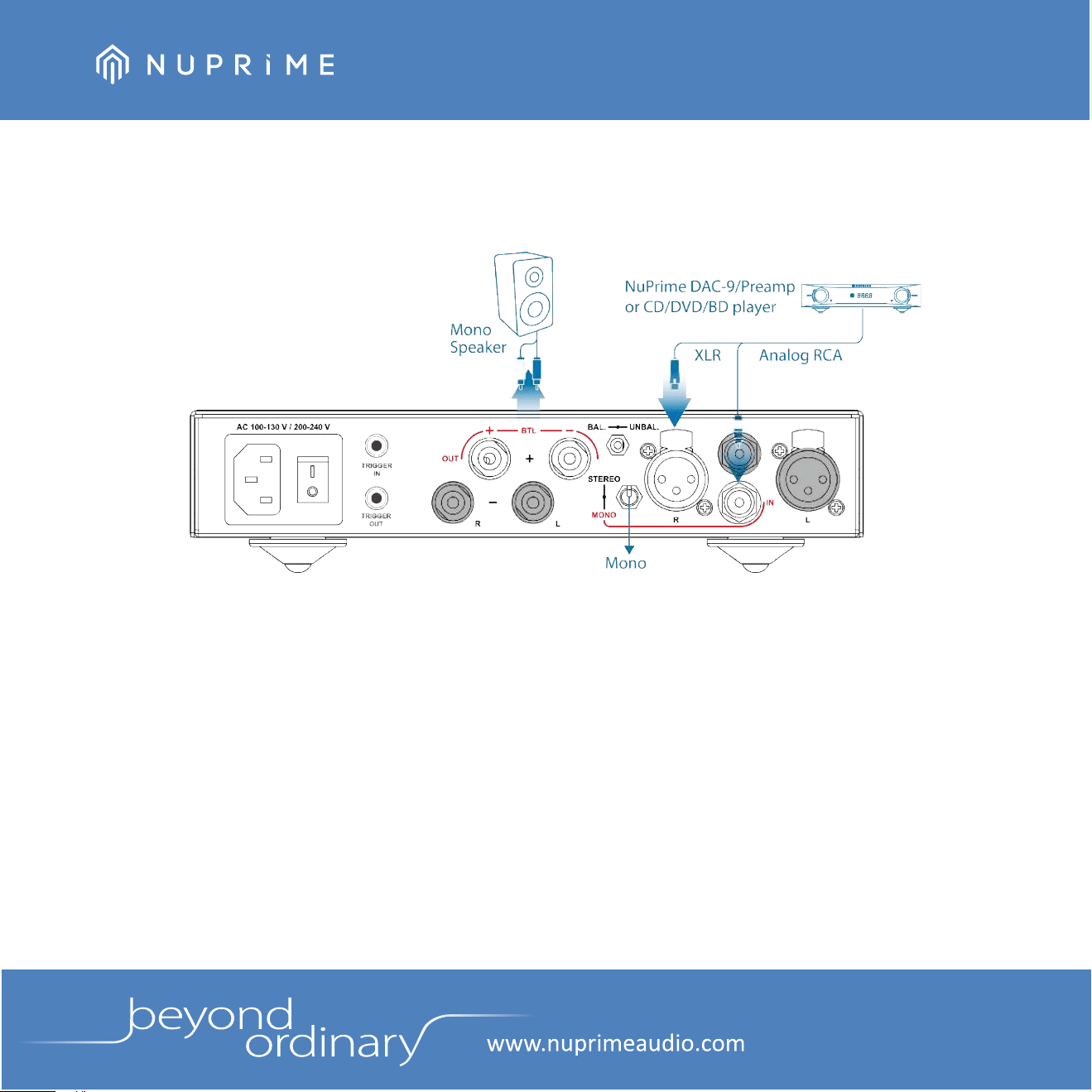

Mono Connec�on:
1. Toggle the Stereo/Mono switch to MONO.
2. Choose either XLR balance or RCA Unbalance connec�on from the source.
(Gray-out inputs do not work under MONO mode)
3. Connect mono speaker to the output terminals.
(Gray-out output terminals do not work under MONO mode)
15

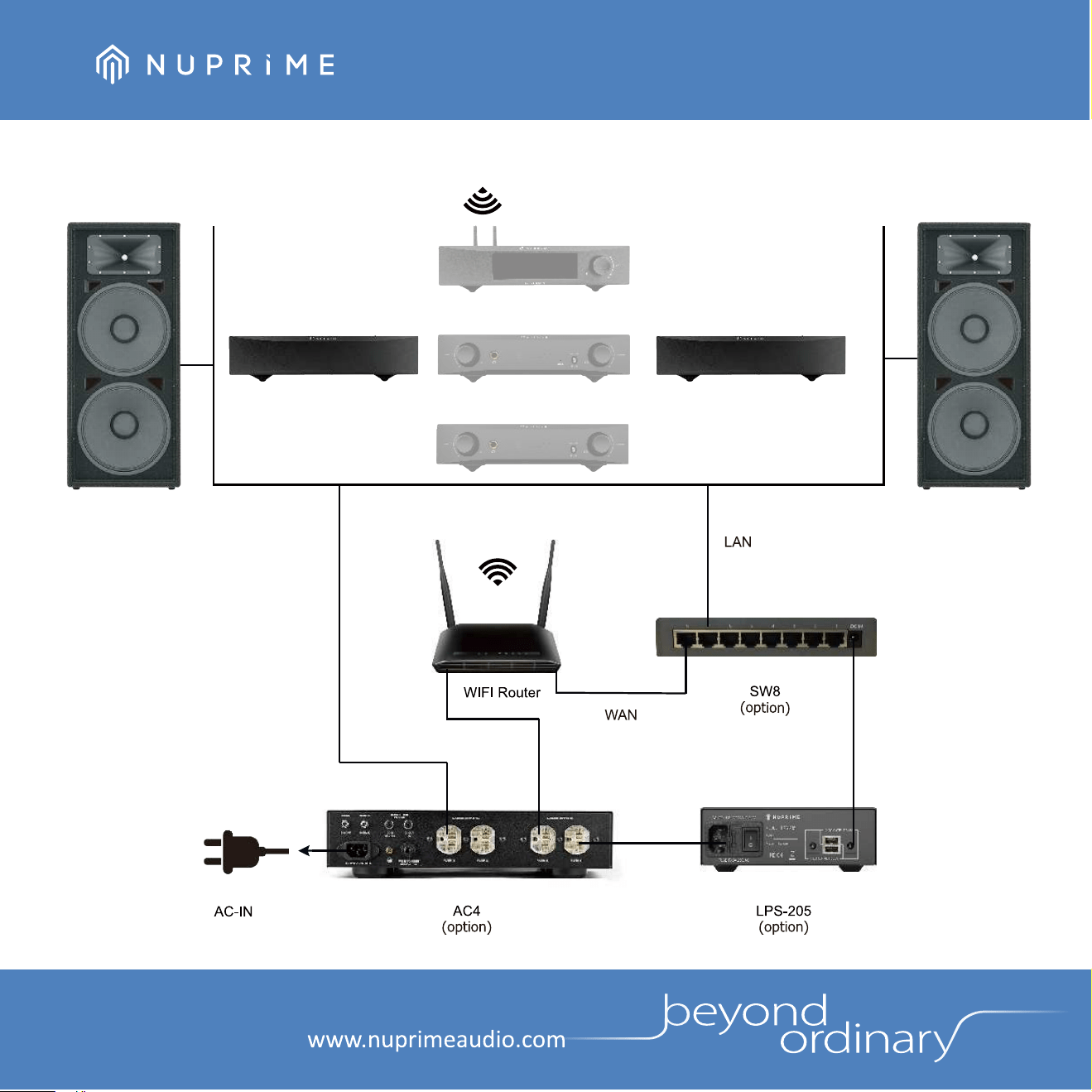

STREAM-9+DAC9X+STA-9X+PRA-9
