Microwave Oven
User Manual
Models:
SMBI24
BEFORE USE, PL
EASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS
Model Number:
Serial Number:
Felix Storch, Inc.
ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
CONTENT
IMPORTANT SAFETY INSTRUCTIONS
GROUNDI
NG INSTRUCTIONS
INSTALLATIO
N GUIDE
PRECAU
TIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
SPECIFICA
TIONS
PART NAMES
COOKING
UTENSILS GUIDE
CONTROL
PANEL
OPERAT
ION INSTRUCTIONS
CLEANING
AND CARE
LIMITED W
ARRANTY
1
2
2
2
3
3
4
5
6 - 10
11
14
WARNING! To reduce the risk of burns, electric shock, fire,
injury or exposure to excessive microwave energy:
1. Read
all instructions before using the appliance.
2. Read and follow the PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY section.
3. This appliance must be grounded. Connect only to a
properly grounded outlet. See the GROUNDING
INSTRUCTIONS section.
4. Do not operate the oven when empty.
5. Install this appliance only in accordance with the
INSTALLATION INSTRUCTIONS provided.
6. Some products such as whole eggs and sealed
containers (e.g. closed glass jars) can explode and
should not be heated in this oven.
7. Use this appliance only for its intended use as described
in this manual. Do not use corrosive chemicals or vapors
in this appliance. This type of oven is specifically
designed to heat, cook, or dry food. It is not designed
for industrial or laboratory use.
8. HOT CONTENTS CAN CAUSE SEVERE BURNS. DO
NOT ALLOW CHILDREN TO USE THE MICROWAVE.
Use caution when removing hot items.
9. To reduce the risk of fire in the oven cavity:
a) Do not overcook food. Carefully attend appliance
when paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c) If materials inside the oven should ignite, keep oven
door closed, turn oven off, and disconnect the power
cord or shut off power at the fuse or circuit breaker
panel.
d) Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in the
cavity when not in use.
10. Liquids, such as water, coffee, or tea can overheat
beyond the boiling point without appearing to be
boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the microwave oven is not always present. THIS COULD
RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID. To reduce the risk of
injury to person:
a) Do not overheat the liquid.
b) Stir the liquid both before and halfway through
heating it.
c) Do not use straight-sided containers with narrow
necks.
d) After heating, allow the container to stand in the
microwave oven for a short time before removing the
container.
e) Use extreme care when inserting a spoon or other
utensil into the container.
11. Do not heat oil or fat for deep-frying. It is difficult to
control the temperature of oil in microwave oven.
12. Do not cover or block any openings on the appliance.
13. Do not store or use this appliance outdoors. Do not use
this product near water, (e.g. near a kitchen sink, in a wet
basement, near a swimming pool, or similar locations).
14. Do not operate this appliance if it has a damaged cord
or a plug, if it is not working properly, or if it has been
damaged or dropped.
15. Do not immerse cord or plug in water. Keep cord away
from heated surface. Do not let cord hang over edge of
table or counter.
16. This appliance should be serviced only by qualified
service personnel, contact nearest authorized service
facility for examination, repair, or adjustment.
17. When cleaning surfaces of door and oven that comes
together on closing the door, use only mild, nonabrasive
soaps, or detergents applied with a sponge or soft cloth.
18. This equipment has been tested and found to comply
with Part 18 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept
any interference received, including interference that
may cause undesired operation.
CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance could
void the user's authority to operate the product.
19. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
1
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by
providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a
grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
WARNI
NG! Improper use of the grounding plug can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as
to whether the appliance is properly grounded, and if it is necessary to use an extension cord, use only a 3-wire extension
cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating
of the extension cord shall be equal to or greater than the electrical rating of the appliance.
ELECTR
ICAL REQUIREMENTS
The electrical requirements are a 120 volt 60 Hz, AC only, 20 amp. It is recommended that a separate circuit serving only the
oven be provided. The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall outlet properly
installed and grounded.
POWER
CORD
1. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a
longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3. If long cord or extension cord is used：
a) The m
arked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of
the appliance.
b) The extension cord must be a grounding-type 3-wire cord, and The longer cord should be arranged so that it will
not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.
INSTALLATION GUIDE
1. Make sure that all the packing materials are removed from the inside of the door.
2. This microwave oven must be placed on a flat.
3. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
4. Make sure that the power cord is undamaged and does not run under the oven or over any hot or sharp surface.
5. The socket must be readily accessible so the microwave oven can be easily unplugged in an emergency.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to
microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven’s front face and the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
3. Do not operate the oven if it is damaged. It is very important that the oven door closes properly and that there is no
damage to the
a) Door (including any bent)
b) Hinges and latches (broken or loosened)
c) Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except qualified service personnel.
2
1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Shaft
5. Door Release Button
6. Control Panel
7. Wave Guide
DO NOT remove the mica plate
covering the wave guide
8. Glass Tray
Power Consumption
120V/60Hz, 1500W(microwave)
Output
1000W
Operation Frequency
2450 MHz
Outside Dimensions(H x W x D)
17” × 24
3
/
16”
× 18
15
/
16
“
Oven Capacity
1.2 cu. ft.
Net Weight
Approx 36.4lbs
SPECIFICATIONS
PART NAMES
3
This section lists which utensils can be used in this microwave, which have limited use for short periods, and
which should not be used in this microwave.
RECO
MMENDED
• MICROWAVE BROWNING DISH — Use to
brown the exterior of small items such as steaks,
chops, or pancakes. Follow the directions
provided with your browning dish.
• MICROW
AVEABLE PLASTIC WRAP — Use to
retain steam. Leave a small opening for some
steam to escape and avoid placing it directly on
the food.
• PAPE
R TOWELS AND NAPKINS — Use for
short-term heating and covering; these absorb
excess moisture and prevent spattering. Do not
use recycled paper towels, which may contain
metal and could ignite.
• GLAS
S AND GLASS-CERAMIC BOWLS AND
DISHES — Use for heating or cooking.
• PAP
ER PLATES AND CUPS — Use for
short-term heating at low temperatures. Do not
use recycled paper, which may contain metal
and could ignite.
• WAX P
APER — Use as a cover to prevent
spattering.
• THERM
OMETERS — Use only those labeled
"Microwave Safe" and follow all directions.
Check the food in several places. Conventional
thermometers may be used on microwave food
once the food has been removed from the oven.
LIMITED
USE
• ALUMINUM FOIL — Use narrow strips of
aluminum foil to shield certain areas of food
from overcooking. However, use caution: too
much foil can cause arcing and damage the
microwave. Always ensure that the foil is kept at
least 1 inch (2.54 cm) away from the oven walls
and ceiling.
• CERA
MIC, PORCELAIN, AND STONEWARE —
Use if they are labeled "Microwave Safe". If they
are not labeled, test them to make sure they can
be used safely.
• PLAST
IC — Use only if labeled "Microwave
Safe". Other plastics can melt.
NOT
RECOMMENDED
• GLASS JARS AND BOTTLES — Glass is too thin
and can shatter, causing damage and injury.
• PAPE
R BAGS — Paper bags in the microwave
pose a fire hazard. Popcorn bags are an
exception and are designed for microwave use.
• STY
ROFOAM PLATES AND CUPS — These may
melt and leach chemicals into food.
• PLA
STIC STORAGE AND FOOD CONTAINERS
— Containers such as margarine tubs and
takeout containers may warp or melt.
• MET
AL UTENSILS — Metal utensils can
damage your oven. Always remove metal before
cooking.
Not
e: Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and
microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used.
COOKING UTENSILS GUIDE
4

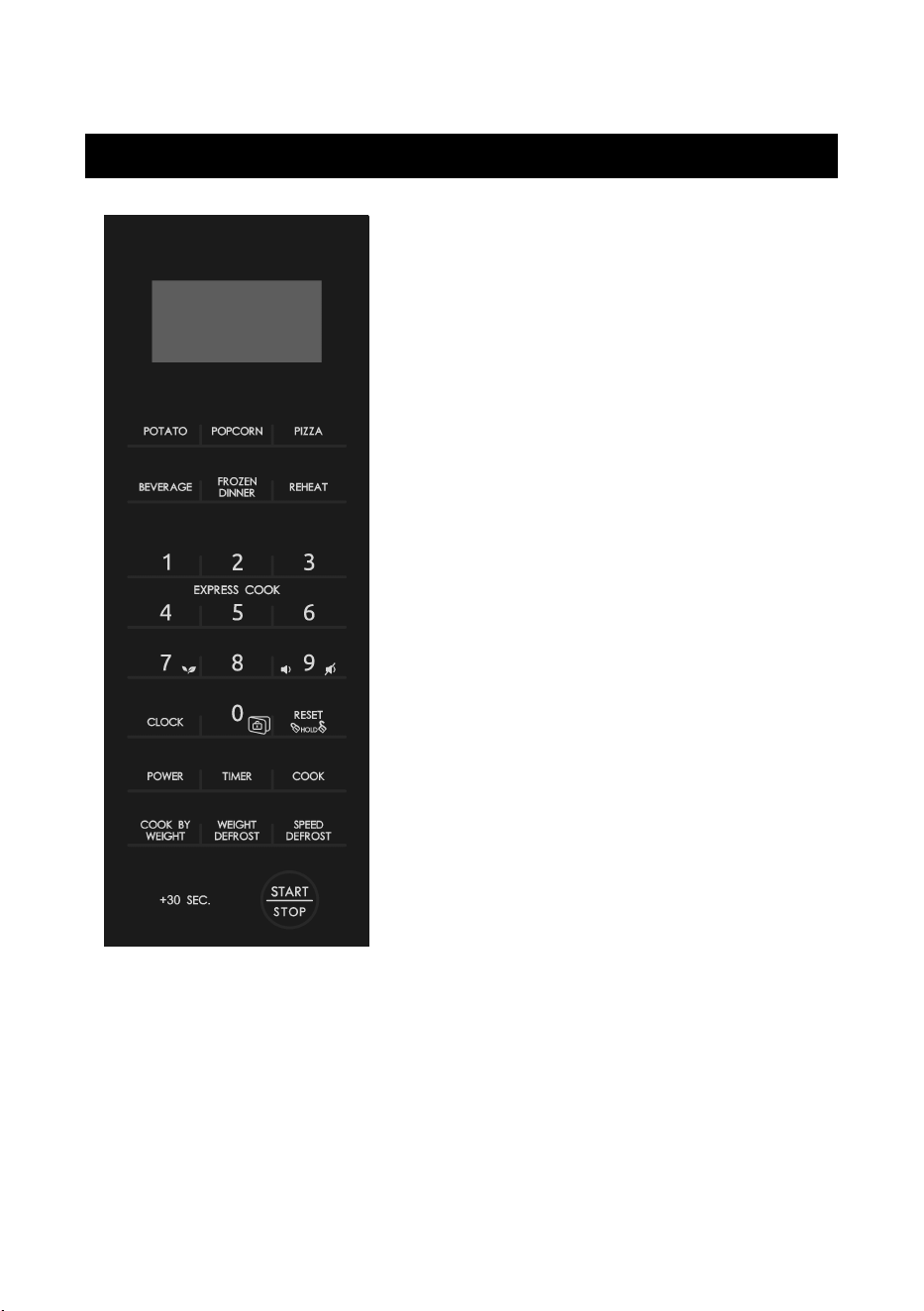

CONTROL PANEL
DISPLAY SCREEN
Time, power and indicators are displayed.
AUTO COOK MENUS
Instant settings to cook common foods.
NUMBER BUTTONS (0-9)
• Press to set time, food weight, or servings.
• Press number buttons (1 – 6) to set express cooking.
• Press 0 to set electromagnetic lock.
• Press 7 to set power saving function
• Press 9 to set mute function
CLOCK
Press to set time on the clock.
RESET
Clear all previous settings before cooking.
It is also used to set the child lock function.
POWER
Press to select the power level.
TIMER
Press to set timer function.
COOK
Press to set cooking program.
COOK BY WEIGHT
Press to cook food based on weight.
WEIGHT DEFROST
Press to defrost food based on weight.
SPEED DEFROST
Press to defrost food based on time.
+ 30 SEC.
• Press repeatedly to set the cooking time and start
immediately at full power
• Press to add cooking time.
START/STOP
Press to start and stop cooking process.
5
Initial Power-On:
When the oven is first plugged in, a beep will sound, and the display screen will flash [1:01] and [CLOCK].
The system will return to standby mode if nothing is pressed within 30 seconds.
During Cooking:
• To pause cooking press, START/STOP.
• To resume press, START/STOP again.
• To cancel cooking while paused, press RESET.
After Cooking Is Complete:
• The display will show [0000].
• A beep will sound every two minutes until a button is pressed, or the door is opened.
Valid & Invalid Operation:
• Press a valid action button and the oven will beep once to confirm.
• Press an invalid button and the oven will beep twice to indicate that the action is not recognized.
Child Safety Lock Function:
• To activate while in standby mode:
1. Press and hold 0 for 2 seconds, the display screen will show [U-O].
2. Press 7, then press 9. The display screen will show [L-F].
After 1 second, the system will return to standby mode, and the lock will activate.
• To d
eactivate while in standby mode:
1. Press and hold 0 for 2 seconds, the display screen will show [L-F].
2. Press 7, then press 9. The display screen will show [U-O].
After 1 second, the system will return to standby mode, and the lock will deactivate.
NOTE:
• I
f the lock is not set within 10 seconds, the setup will be unsuccessful, and the oven will return to
standby mode.
• The lock is enabled by default and will remain unchanged after a power outage.
• When the lock is deactivated, the door can be opened and closed normally.
OPERATION INSTRUCTIONS
6
Using the Safety Lock Function:
A. In Standby Mode:
The oven door can be opened and closed normally.
B. Duri
ng Cooking:
During the cooking process, the door is locked and cannot be opened.
1. Press 0 or START/STOP to pause cooking and deactivate the lock function.
2. If the door remains closed, the lock will:
- Reactivate automatically after 10 seconds.
- Deactivate automatically after 30 minutes.
3. Press 0, then open the door.
The lock will not need to be reactivated until the next cooking cycle.
C. Cooki
ng Process Ends:
Once cooking is complete, the oven will beep four times and the screen will flash [0000] and [L-F]
1. Press 0 to deactivate the lock function.
2.
If the door remains closed, the lock will:
- Reactivate automatically after 10 seconds.
- Deactivate automatically after 30 minutes.
3. Press 0, then open the door. The lock will not need to be reactivated until the next cooking cycle.
4. Press RESET, and the screen will display [L-F]
If
no action is taken, the display will show [Loc] after 30 seconds. After 30 minutes or if the door is opened,
the oven will return to standby mode, and the display will show the time.
NOTE
: If the lock is already deactivated, pressing 0 will only make an error sound.
Setting the Clock:
The clock can be set in a 12- or 24-hour cycle. While in standby mode:
1. Press CLOCK once to select a 12- hour cycle.
2. Press CLOCK again to select a 24- hour cycle.
3. Use the number pad to set the time.
4. Press CLOCK or START/STOP to confirm.
NOTE
: To display the time while cooking, press CLOCK.
Setting the Timer:
1. Press TIMER.
2. Use the number pad to set the timer (maximum: 99 minutes and 99 seconds)
3. Press START/STOP to confirm.
NOTE
: The oven will beep when the countdown ends. Press TIMER to display the countdown for 5
seconds. Press RESET when the countdown is displayed to cancel.
7
Express Cooking:
In standby mode, press a number from 1 to 6 to start cooking for 1 to 6 minutes, respectively, at full
power.
+30 Sec. Function:
Use this feature to cook food at 100% power.
• In standby mode, press START/+30 SEC. to begin cooking for 30 seconds at full power.
• During cooking, press START/+30 SEC. to increase 30 seconds with each press
• The cooking time can be increased up to a maximum of 99 minutes and 99 seconds.
NOTE
: This function does not work when using auto cook, cook by weight, weight defrost, or speed
defrost.
Microwave Cooking:
1. In standby mode, press POWER repeatedly to select power level.
2. Use number pad to enter the cooking time. (maximum: 99 minutes and 99 seconds)
3. Press START/STOP to confirm.
Press POWER to select power level:
NOTE
: During cooking, you can check the current cooking power level by pressing POWER.
Speed Defrost:
1. Press SPEED DEFROST.
2. Use number pad to enter defrosting time. (maximum of 99 minutes and 99 seconds)
3. Press START/STOP to confirm.
NOTE
: The oven will pause during defrosting and beep to remind you to turn the food. After turning,
close the door and press START/STOP to resume.
Weight Defrost:
1. Press WEIGHT DEFROST.
2. Use the number pad to enter the weight. (The weight ranges from 4 oz to 64 oz.)
3. Press START/STOP to confirm.
NOTE
: During cooking, the system will pause and sound beep to remind user to turn food over, and then
press START/STOP to resume.
Press POWER
Power (Display)
Press POWER
Power (Display)
Once
100% (P100)
7 times
40% (P-40)
Twice
90% (P-90)
8 times
30% (P-30)
3 times
80% (P-80)
9 times
20% (P-20)
4 times
70% (P-70)
10 times
10% (P-10)
5 times
60% (P-60)
11 times
0% (P-00)
6 times
50% (P-50)
8
Cook by Weight:
1. Press COOK BY WEIGHT.
2. Use the number buttons (1 - 3) to select the food code.
Code
Food
Weight
1
Beef
4 - 96 oz
2
Mutton
4 - 96 oz
3
Pork
4 - 72 oz
3. Use number pad to enter the weight.
4. Press START/STOP to confirm.
NOTE
: During cooking, the system will pause and sound beep to remind user to turn food over, and then
press START/STOP to resume.
Multistage Cooking:
Your oven can be programmed for up to 3 automatic cooking sequences.
These can include a combination of Speed Defrost with one or two microwave cooking programs, or two
microwave cooking programs. Speed Defrost can only be set as the first stage.
A. S
peed defrost with one or two-stage microwave cooking programs:
1. Place the food in the oven, then close the door.
2. Press SPEED DEFROST.
3. Use number pad to enter the defrosting time.
4. Press COOK.
5. Enter the first microwave cooking program. (Do not press START/STOP yet).
6. Press COOK.
7. Enter the second microwave cooking program.
8. Press START/STOP to begin.
NOTE
: Steps 6 and 7 are not necessary if you just need one microwave cooking program.
B. Tw
o-stage microwave cooking programs:
Some recipes require different stages of cooking at different temperatures.
1. Enter the first microwave cooking program. (Do not press START/STOP yet.)
2. Press COOK.
3. Enter the second microwave cooking program.
4. Press START/STOP to begin.
9
Auto Cook:
For the following foods or cooking modes, you don’t need to program the cooking time or power. Select
the food type and set the weight or servings.
1. In standby mode, press the corresponding menu button once or repeatedly to set food weight or
servings.
2. Press START/STOP to begin.
Auto Cook Menu:
Mute Function:
• To Activate:
In any mode (except Child Lock), press and hold 9 for 3 seconds. The display will show [OFF] for 3 seconds,
and the oven will enter mute mode.
• To Deacti
vate:
In standby mode, press and hold 9 for 3 seconds. A beep will sound, and the display will show [ON] for 3
seconds. The mute function is now turned off.
Power Saving:
• To Activate:
In standby mode, press and hold 7 for 3 seconds. A beep will sound and the display will turn off. The oven
will enter power saving mode.
To wake up the display, press any button and then open or close the door. If there is no operation within
10 seconds, the display screen will turn off.
• To Deactivate:
While in power saving mode, press and hold 7 for 3 seconds. A beep will sound, and the oven will return
to normal operation.
Button Adhesion Protection:
In
any mode, if any button on the control panel is held for 1 minute, the program stops working
immediately, the screen will display [FAIL] and the oven will beep. If the button continues to be held, the
beep will sound once a minute. During this time, none of the buttons will function. After
troubleshooting, press RESET to return to standby mode.
Food
Note
Potato (8 oz/serving, 1-2 servings)
The results of auto cook may vary based on factors such
as the shape and size of the food, your personal
preference for doneness, and how the food is
positioned in the oven. If the result isn't quite to your
liking, feel free to adjust the cooking time as needed.
Popcorn (3.5 oz)
Pizza (6 oz, 11 oz, 16 oz)
Beverage (200 ml/cup, 1-3 cups)
Frozen Dinner (9 oz, 18 oz)
Reheat (7 oz-28 oz)
10
1. Turn off the oven and unplug the power cord from the wall when cleaning.
2. Keep the inside of the oven clean. Wipe food splatters or spilled liquids off the oven walls with
a damp cloth. Mild detergents may be used for stubborn dirt. Avoid harsh cleaners or sprays.
They can damage or stain the door surface.
3. The outside of the oven should be cleaned with a damp cloth. To prevent damage to the
operating parts inside the oven, water should not be allowed to seep into the ventilation
openings.
4. Wipe the door and window on both sides. Wipe the door, window, seals, and adjacent areas
frequently with a damp cloth. Do not use abrasive cleaner.
5. Keep the control panel dry. Clean with a soft, damp cloth. Leave oven door open to prevent the
oven from accidentally turning on.
6. If steam gathers on the door, wipe with a soft cloth. This is normal, especially in high-humidity
conditions.
7. Remove the glass tray periodically and clean it with warm soapy water or in a dishwasher.
8. Clean the roller ring and oven floor regularly to reduce noise. Wash the roller ring in mild,
soapy water or a dishwasher. Reinstall the roller ring properly after cleaning.
9. To eliminate odors, microwave a cup of water with lemon juice and it’s peal for 5 minutes. Wipe
the interior and dry with a soft cloth.
10. If the light bulb burns out, please contact customer service to have it replaced.
11. Clean the oven regularly and remove food deposits to maintain performance and extend the
unit's life. Failure to do so could lead to surface deterioration and safety issues.
12. Do not dispose of this appliance with household waste. Please take it to a designated
disposal center.
CLEANING AND CARE
11
NOTES
12
13
90 DAY LIMITED WARRANTY
Warranty coverage is available within the 48 contiguous United States, along with select areas of Alaska, Hawaii, and
Canada. For locations not covered, consumers can either contact a local provider or coordinate with Felix Storch, Inc.
to find nearby service options, which may qualify for partial reimbursement.
The warranty for this appliance is valid for 90 days from the date of purchase, provided the appliance is operated
and maintained according to the instructions included with the product. The warrantor will cover the cost of factory-
specified parts and repair labor needed to correct defects in materials or workmanship. Service must be performed
by a designated service company.
All parts are warranted for 90 days against manufacturing defects. Plastic parts, shelves, and cabinets are produced
to commercially acceptable standards but are not covered for damages incurred during handling or for breakage.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to
replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters)
are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by
warrantor.
4. Replacement parts or repair labor costs for units operated outside the 48 contiguous United States, along
with select areas of Alaska, Hawaii, and Canada.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed
in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS
PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
WARNING:
This product can expose you to
chemicals including Nickel (Metallic) which
is
known to the State
of California to cause cancer.
For
more information go to www.P65Warnings.ca.gov
Note:
Nickel is a component in all stainless steel and some other metallic compositions.
LIMITED WARRANTY
If you experience any issues with your appliance, please contact our Customer Service
facility at 800-932-4267 (Ext. 513) between 9:00 AM and 5:00 PM ET or visit our
website
summitappliance.com/support at any time.
We will do our best to answer your questions.
F
elix
Storch,
I
nc.
An ISO
9001:2015 registered company
770 Garrison Ave
Bronx, New York 10474
www.summitappliance.com
Revised: 2025-10-22
