MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
SERVICE PARTS LIST
BULLETIN NO.
PN0015481
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
REVISED BULLETIN
DATE
Apr. 2026

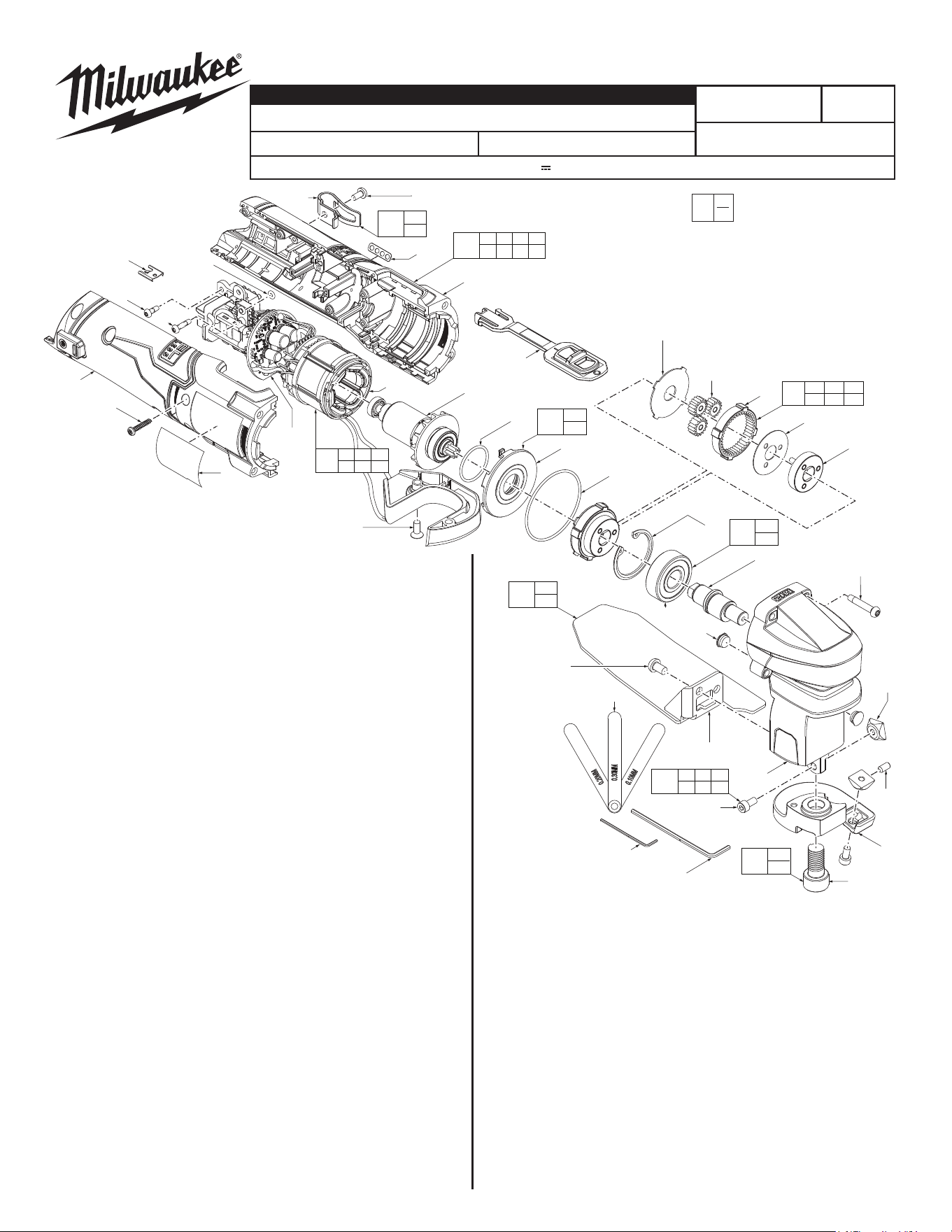

M12 FUEL™ 16 Gauge Scroll Shear
WIRING INSTRUCTION
See Page 2
CATALOG NO. 2487-20 SERIAL NO. S44A
NAMEPLATE SPECIFICATIONS: 12 V 3 600 SPM
3d
3a
6
1q
(4x)
2
4a
1ff
1dd
1y
1z
1aa
1bb
(3x)
1cc
1v
1ee
1x
3c
3k
(5x)
1k
(2x)
3f
3j
3g(2x)
3h
3b
1h
1a
1e
1c
(2x)
1n
(2x)
5
1d
1b
(2x)
1w
1ee
1ff
10
1h
1j
17
1a
1e
18
3c
3d
14
1v
1w
11
1b 1c 1d
21 22 23
20
12
3a 3b 3e 3f
3k 5 6
3
3e
21
23
22
4b
1j
(2x)
1k 3g 3h
4a 4b
4
1y 1z 1aa
1bb 1cc
19
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1a --------------- M10 x 20mm CH Hex Recess Screw (1)
1b 05-81-2001 M4 x 8mm CH Hex Recess Screw (2)
1c --------------- Shear Blade (2)
1d --------------- M4 x 8mm Hex Set Screw (1)
1e --------------- Blade Foot (1)
1h --------------- Hand Guard (1)
1j 05-85-0012 M5 x 8mm Pan Hd. T-25 Screw (2)
1k 06-82-9277 M4 x 10mm Flat Hd. T-20 Screw (2)
1n 45-06-2002 Rubber Cover (2)
1q 05-81-1210 M4 x 22mm Pan Hd. T-20 Screw (4)
1v --------------- Shaft (1)
1w --------------- Ball Bearing (1)
1x 34-80-0210 Retaining Ring (1)
1y --------------- Carrier (1)
1z --------------- Carrier Washer (1)
1aa --------------- Ring Gear (1)
1bb --------------- Planet Gear (3)
1cc --------------- Washer (1)
1dd 34-40-0330 O-Ring (large) (1)
1ee --------------- Motor Holder (1)
1 34-40-2006 O-Ring(small) (1)
2 14-50-2001 Rotor Assembly (1)
3 31-44-2002 Handle Housing Kit (1)
3a --------------- Housing Support (1)
3b --------------- Housing Cover (1)
3c --------------- #6-32 Pan Hd. Torx Screw (1)
3d --------------- Belt Clip (1)
3e 31-92-0052 Slide Switch Button (1)
3f 42-70-0058 Housing Connection Clip (1)
3g 06-82-0062 M3 x 8mm T-10 Silver Screw (2)
3h 06-82-1087 M3 x 12mm T-10 Blk Screw (1)
3j 34-40-0089 Trigger Switch O-Ring (1)
3k 06-82-7210 M3 x 16mm Pan Hd. T-10 Screw (5)
4 14-20-2003 Electronics Assembly (1)
4a --------------- Stator (1)
4b --------------- PCBA Assembly (1)
5 12-20-2003 Service Nameplate (1)
6 10-20-2933 Gauge Label (1)
10 14-46-1003 Motor Holder w/ O-Ring Kit (1)
11 45-08-2000 Eccentric Shaft and Bearing Assembly (1)
12 14-30-2000 Gearcase with Piston Assembly (1)
14 14-46-2476 Belt Clip Kit (1)
FIG. NOTES
5,6 A clean, dry surface is essential for proper performance for
any adhesive system. The area intended for application of
any adhesive label or nameplate must be prepared by clean-
ing with isopropyl alcohol. The solvent is to be applied with
a clean, lint free applicator and the surface allowed to dry
before applying the label or nameplate.
17 43-54-1002 Hand Guard Kit (1)
18 30-82-0100 Foot Kit (1)
19 32-65-0021 Gear Assembly (1)
20 48-44-2771 Blade Accessory Kit (1)
21 49-96-0035 2mm Hex Key (1)
22 49-96-0027 3mm Hex Key (1)
23 --------------- Feeler Gauge (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).

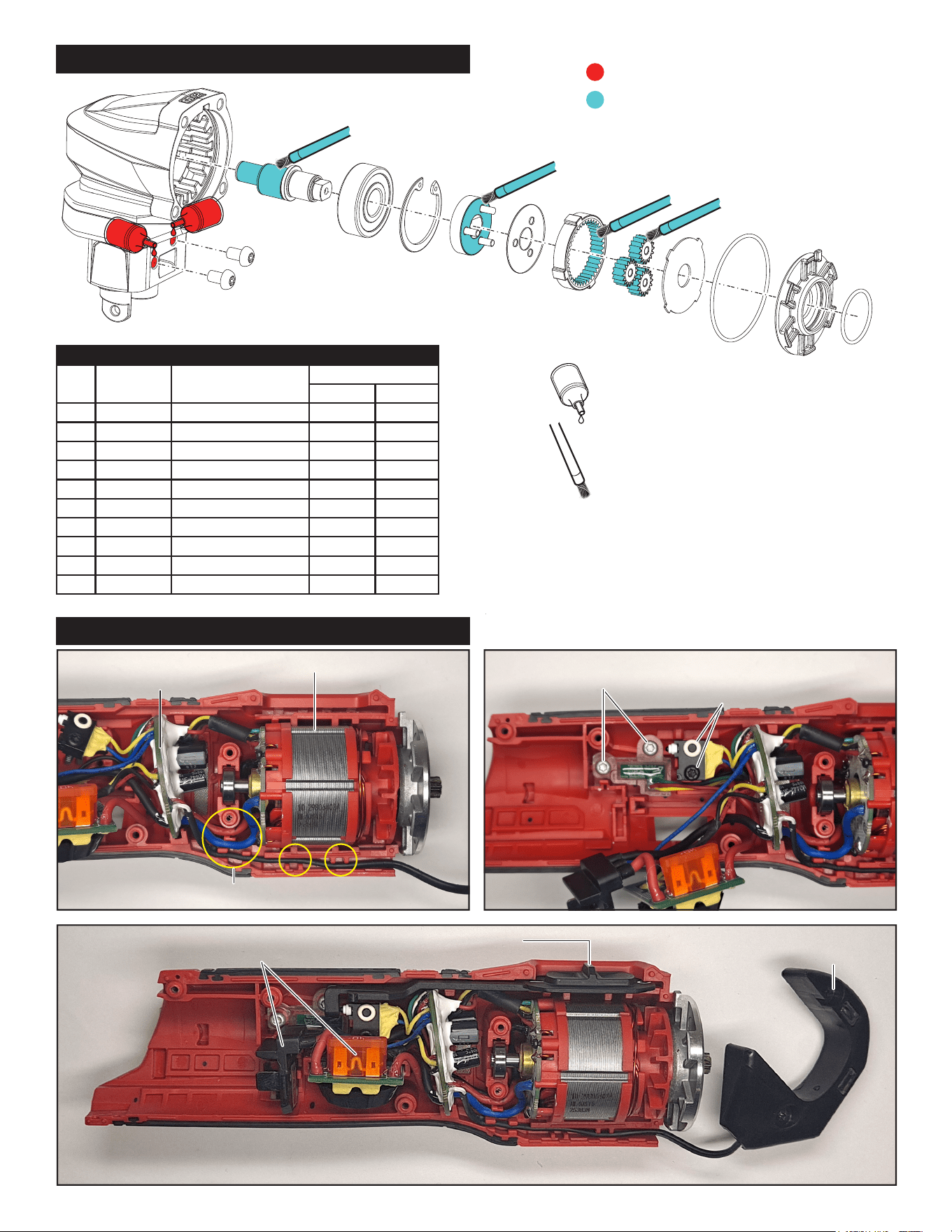

WIRE ROUTING
2. Tuck red, blue and black wires into traps as shown above.
6. Install slide switch button (fig.3e)
into appropriate slot as shown.
8. Lens assembly to be installed
onto gearcase with two screws
(fig.1k).
5. Install speed wheel and terminal
into appropriate slots as shown.
7. Before fastening housing cover to support, be sure all components are fully seated
in position and all wires are tucked into traps and won’t interfere with screw holes.
1. Place the PCBA Assembly (fig.4b) and Stator (fig.4a)
into slots in Housing Support.
3. Fasten the on-off switch
with two screws (fig.3g).
4. Fasten the power indicator lens
with screw (fig.3h) and add
rubber O-ring (fig.3j).
LUBRICATION
NOTE
Regarding parts to receive thread locking sealant:
Place one to two drops of the recommended Loctite
thread locking sealant (or the equivalent) to the
threads of parts shown prior to installation.
®
NOTE
Regarding parts to be lubricated:
Apply a light coating of grease to all highlighted parts
shown prior to installation. Reference the key above
for grease types.
= Red Loctite 263 Thread Sealant, 44-22-0130
= Type “J” Grease, 49-08-4220
SCREW TORQUE SPECIFICATIONS
FIG. PART NO. WHERE USED
SEAT TORQUE
kgf-cm lb-in
1a --------------- Foot 300±30 260±26
1b 05-81-2001 Blade/Piston 36±5 31±4
1d --------------- Blade 3.5±0.5 3.0±0.4
1j 05-85-0012 Hand Guard 40±4 35±3
1k 06-82-9277 LED 8±1 7±1
1q 05-81-1210 Gearcase 15±1.5 13±1.3
3c --------------- Belt Clip 9-12 8-10
3g 06-82-0062 Power Indicator Lens 6-8 5-7
3h 06-82-1087 Switch 3.5±0.5 3.0±0.4
3k 06-82-7210 Housing 8-10 7-9
