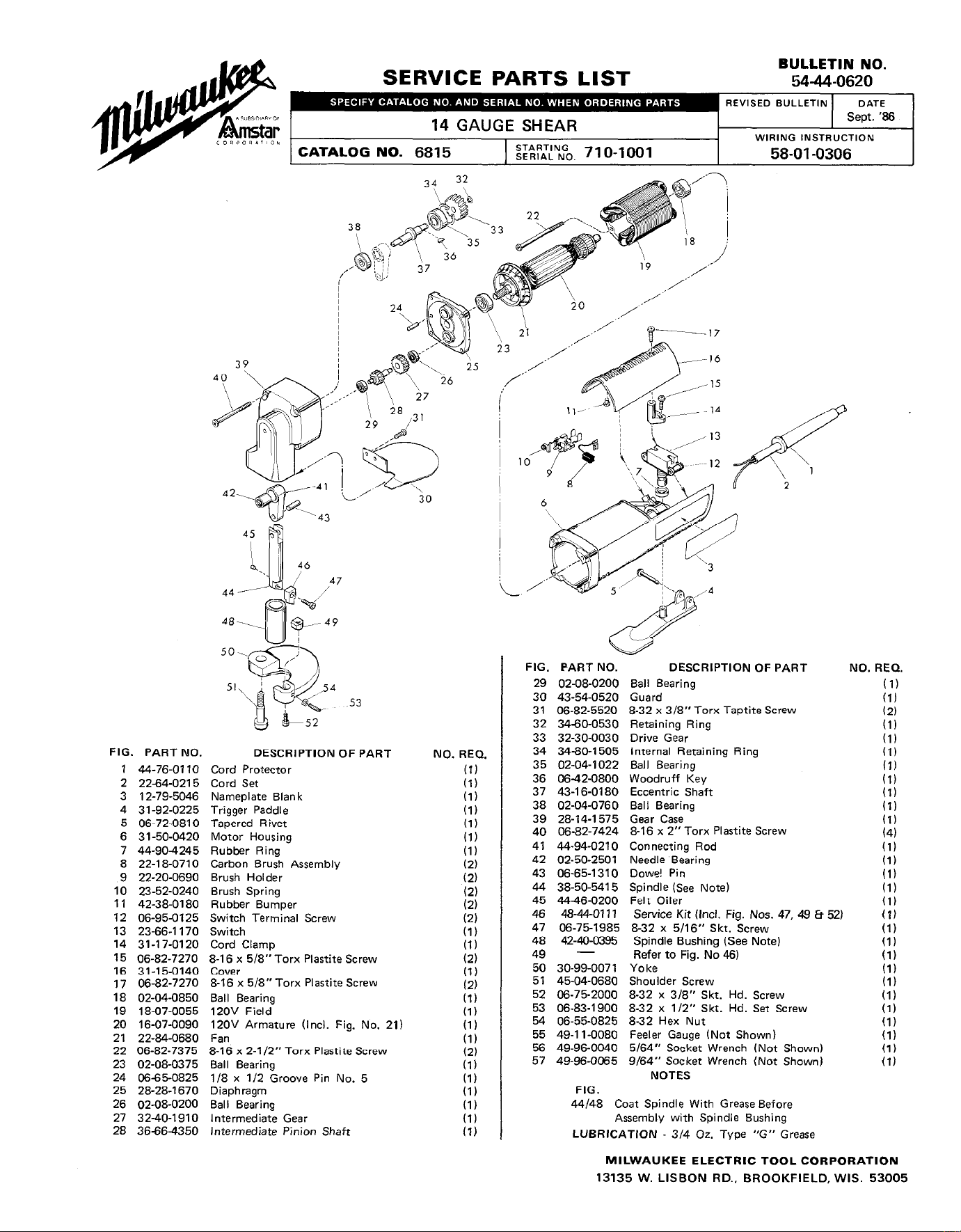

SERVICE PARTS LIST
BULLETIN NO.
54-44-0620
\ 2’1 ,:’ f----- 17
FIG. PART NO.
1 44-76-0110
2 22-64-0215
3 1 z-79-5046
4 3 I-92-0225
5 06-72-0810
6 3 I-50-0420
7 44-904245
8 22-18-0710
9 22-20-0690
10 23-52-0240
11 42-38-0180
12 06-95-0125
13 23-66-l 170
14 31-17-0120
15 06-82-7270
16 31-15-0140
17 06-82-7270
18 02-04-0850
19 18-07-0055
20 16-07-0090
21 22-84-0680
22 06-82-7375
23 02-08-0375
24 06-65-0825
25 28-28-l 670
26 02-08-0200
27 32-40-1910
28 36864350
DESCRIPTION OF PART
Cord Protector
Cord Set
Nameplate Blank
Trigger Paddle
Tapered Rivet
Motor Housing
Rubber Ring
Carbon Brush Assembly
Brush Holder
Brush Spring
Rubber Bumper
Switch Terminal Screw
Switch
Cord Clamp
8-l 6 x 5/8” Torx Plastite Screw
Cover
8-16 x 5/8” Torx Plastite Screw
Ball Bearing
12OV Field
12OV Armature (Incl. Fig. No. 21)
Fan
8-16 x 2-l/2” Torx Plastite Screw
Ball Bearing
l/8 x l/2 Groove Pin No. 5
Diaphragm
Ball Bearing
Intermediate Gear
Intermediate Pinion Shaft
NO. REQ.
(1)
(I)
(I)
(1)
(I)
(1)
(I)
(2)
(2)
(2)
(2)
(2)
(I)
(1)
(2)
(1)
(2)
(I)
(I)
(1)
(I)
(2)
(1)
(I)
(I)
(I)
(1)
(1)
FIG. PART NO.
29
02-08-0200
30
43-54-0520
31 06-82-5520
32
34-60-0530
33
32-30-0030
34
34-80-l 505
35
02-04-I 022
36
06-42-0800
37
43-l 6-0180
38
02-04-0760
39
28-14-1575
40
06-82-7424
41 44-94-0210
42
02-50-2501
43
06-65-l 3 10
44
38-50-5415
45
4446-0200
46
48-44-0111
47
06-75-1985
48
42-40-0395
49
-
50 30-99-007 1
51 45-04-0680
52 06-75-2000
53 06-83-I 900
54
06-55-0825
55 49-l l-0080
56 49-96-0040
57 49-96-0065
FIG.
DESCRIPTION OF PART
NO. REQ.
Ball Bearing
(1)
Guard
(1)
8-32 x 3/8” Torx Taptite Screw
(2)
Retaining Ring
(1)
Drive Gear
(I)
Internal Retaining Ring
(1)
Ball Bearing
(1)
Woodruff Key
(1)
Eccentric Shaft
(I)
Ball Bearing
(1)
Gear Case
(I)
8-16 x 2” Torx Plastite Screw
(4)
Connecting Rod
(1)
Needle Bearing
(I)
DOWP! Pin
(I)
Spindle (See Note)
(I)
Felt Oiler
(1)
Service Kit (Incl. Fig. Nos. 47, 49 & 52)
(1)
8-32 x 5/16” Skt Screw
Spindle Bushing (See Note)
(1)
(I)
Refer to Fig. No 46)
(I)
Yoke
(1)
Shoulder Screw
(I)
8-32 x 3/8” Skt. Hd. Screw
(I)
832 x l/2” Skt. Hd. Set Screw
(1)
832 Hex Nut
(1)
Feeler Gauge (Not Shown)
(I)
5/64” Socket Wrench (Not Shown)
(I)
g/64” Socket Wrench (Not Shown)
(1)
NOTES
44/48 Coat Spindle With Grease Before
Assembly with Spindle Bushing
LUBRICATION - 3/4 Oz. Type “G” Grease
