TEMPSTARTEMPSTAR
INSTALLATION, OPERATION,INSTALLATION, OPERATION,
AND SERVICE MANUALAND SERVICE MANUAL
TempStar Manual • 07610-003-61-42-Z
TEMPSTARTEMPSTAR
® ®
SERIES DOOR-TYPE DISHMACHINESSERIES DOOR-TYPE DISHMACHINES
®®
MANUFACTURER'S LIMITED WARRANTY
(APPLICABLE ONLY IN THE UNITED STATES AND CANADA)
WARRANTY REGISTRATION:
To register your Jackson Dishmachine’s warranty go to jacksonwws.com/warranty or call 1-888-800-5672. Failure to
register the Dishmachine will void the warranty.
ONE YEAR LIMITED PARTS AND LABOR WARRANTY
For a period of one (1) year from date of original installation of a new Jackson Dishmachine (but in no event to exceed
eighteen (18) months from date of shipment from Jackson’s factory), Jackson WWS, Inc. (Jackson) will repair or replace,
at its discretion, any original part that proves defective in materials or workmanship at the time the Dishmachine was
purchased; provided that (i) the Dishmachine has not been altered, (ii) the Dishmachine has been properly installed,
maintained, and operated under normal use conditions and in accordance with the applicable installation, operation and
service manual available on the Jackson website, and (iii) a warranty claim is reported to a Jackson Authorized Service
Agency within the warranty period. This warranty includes replacement with Jackson specied genuine replacement
parts, purchased directly from a Jackson Authorized Parts Distributor or Service Agency. Use of generic replacement
parts may create a hazard and shall void this warranty.
THIS WARRANTY DOES NOT APPLY OUTSIDE THE UNITED STATES AND CANADA.
Jackson will pay the labor to repair or replace a defective original part as a part of the warranty, provided that a Jackson
Authorized Service Agency performs the labor. Any repair or replacement work by anyone other than a Jackson
Authorized Service Agency is the sole responsibility of the purchaser. Labor coverage is limited to regular hourly rates;
Jackson will not pay overtime premiums or emergency service charges.
Accessory components (such as table limit switches, pressure regulators, and drain water tempering kits) that are not
installed by Jackson at the factory and are shipped with the Dishmachine carry only a (1) one-year parts warranty. Labor
to repair or replace these components is not included in the warranty or covered by Jackson. Booster heaters not
manufactured by Jackson are not covered by this warranty but are warranted by their respective manufacturers.
This warranty is void if any defect or failure is a direct result from shipping, handling, re, water, accident, alteration,
modication, misuse, abuse, ood, acts of God, burglary, casualty, attempted repair by unauthorized persons, use of
replacement parts not authorized by Jackson, improper installation, installation not in accordance with local electrical and
plumbing codes, if the serial number has been removed or altered, if the Dishmachine is used for any purpose other than
originally intended, or if the equipment is installed for residential use.
Jackson does not authorize any other entity or person, including, without limitation, any entity or person who deals in
Jackson Dishmachines, to change this warranty or create any other obligation in connection with Jackson Dishmachines.
TRAVEL LIMITATIONS:
Jackson limits warranty travel time to the customer site within 50 miles of the Jackson authorized service agent’s ofce
and during regular business hours. Jackson will not pay for travel time and mileage that exceeds these limits, or any fees
such as those for air or boat travel without prior authorization.
REPLACEMENT PARTS WARRANTY:
For a period of (90) ninety days from the date of installation by a Jackson Authorized Service Agency (but in no event to
exceed (180) one-hundred-eighty days from the date of purchase from a Jackson Authorized Parts Distributor or Service
Agency), Jackson will repair or replace, at its discretion, any Jackson genuine replacement parts that prove defective
in materials or workmanship at the time the replacement parts were installed. This warranty does not include paying
the labor to repair or replace the replacement part. This warranty is subject to all conditions, exclusions and limitations
applicable to the Dishmachine.
MANUFACTURER'S LIMITED WARRANTY (CONT.)
(APPLICABLE ONLY IN THE UNITED STATES AND CANADA)
PRODUCT CHANGES:
Jackson reserves the right to make changes in design and specication of any component of the Dishmachine as
engineering or necessity requires.
DISCLAIMER OF WARRANTIES:
THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, THAT ARE NOT SET FORTH
HEREIN, OR THAT EXTEND BEYOND THE DURATION HEREOF.
LIMITATION OF REMEDIES AND LIABILITIES:
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR
REPLACEMENT AS PROVIDED HEREIN.
UNDER NO CIRCUMSTANCES WILL JACKSON BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR FOR DAMAGES IN THE NATURE OF PENALTIES. JACKSON’S LIABILITY ON ANY CLAIM OF ANY
KIND WITH RESPECT TO THE GOODS OR SERVICES COVERED HEREUNDER SHALL IN NO CASE EXCEED THE
PRICE OF THE GOODS OR SERVICES OR PART THEREOF WHICH GIVES RISE TO THE CLAIM.
ITEMS NOT COVERED:
THIS WARRANTY DOES NOT COVER (1) ADJUSTMENTS INCLUDING, BUT NOT LIMITED TO, TIMER CAMS,
THERMOSTATS, DOORS, TANK HEATER ADJUSTMENTS OR CLUTCHES; (2) AIR FREIGHT OR OVERNIGHT
FREIGHT; (3) ANY AMOUNT EXCEEDING ORIGINAL PURCHASE PRICE; (4) CLEANING OF DRAIN VALVES,
GAS LINES, RINSE/WASH NOZZLES, STRAINERS, SCREENS, OR SPRAY PIPES; (5) CLEANING OR DELIMING
OF THE DISHMACHINE OR ANY COMPONENT INCLUDING, BUT NOT LIMITED TO, WASH ARMS, RINSE
ARMS AND STRAINERS; (6) CONDITIONS CAUSED BY THE USE OF INCORRECT (NON-COMMERCIAL)
GRADE DETERGENTS; (7) CORROSION FROM CHEMICALS DISPENSED IN EXCESS OF RECOMMENDED
CONCENTRATIONS; (8) COSMETIC DAMAGE, INCLUDING BUT NOT LIMITED TO, SCRATCHES, DENTS, CHIPS,
AND OTHER DAMAGE TO THE DISHMACHINE FINISHES, UNLESS SUCH DAMAGE RESULTS FROM DEFECTS IN
MATERIALS AND WORKMANSHIP AND IS REPORTED TO JACKSON WITHIN (30) THIRTY DAYS FROM THE DATE
OF INSTALLATION; (9) DAMAGE CAUSED BY LABOR DISPUTE; (10) DAMAGES RESULTING FROM IMPROPER
CONNECTION TO UTILITY SERVICE; (11) DAMAGES RESULTING FROM WATER CONDITIONS, INADEQUATE OR
EXCESSIVE WATER PRESSURE, ACCIDENTS, ALTERATIONS, IMPROPER USE, ABUSE, HANDLING, OVERLOADS,
TAMPERING, IMPROPER INSTALLATION OR FAILURE TO FOLLOW MAINTENANCE AND OPERATING
PROCEDURES; (12) DISCOLORATION, RUST OR OXIDATION OF SURFACES RESULTING FROM CAUSTIC
OR CORROSIVE ENVIRONMENTS, INCLUDING, BUT NOT LIMITED TO, HIGH SALT CONCENTRATIONS, HIGH
MOISTURE OR HUMIDITY, OR EXPOSURE TO CHEMICALS; (13) ELECTRIC BOOSTERS, FEED LINES, FLEX HOSE,
FUSES, GARBAGE DISPOSALS, OR GAS PILOTS; (14) EXCESSIVE LIME, MINERAL, OR ALKALINE BUILDUP; (15)
EXPENSES DUE TO DISCONNECTION, DELIVERY, RETURN AND REINSTALLATION; (16) FAILURE OF ELECTRICAL
COMPONENTS DUE TO CONNECTION OF CHEMICAL DISPENSING EQUIPMENT INSTALLED BY OTHERS; (17)
FAILURE OF FACILITY WATER HEATER TO MAKE TEMPERATURE; (18) FAILURE TO MAINTAIN WATER HARDNESS
LOWER THAN 3.0 GRAINS, PH BETWEEN 7.0 AND 8.5 AND TOTAL DISSOLVED SOLIDS BELOW 250 PPM; (19)
FAILURE TO COMPLY WITH LOCAL ELECTRICAL BUILDING CODES; (20) LEAKS OR DAMAGE RESULTING FROM
SUCH LEAKS CAUSED BY THE INSTALLER, INCLUDING THOSE AT MACHINE TABLE CONNECTIONS, OR BY
CONNECTION OF CHEMICAL DISPENSING EQUIPMENT INSTALLED BY OTHERS; (21) OPENING OR CLOSING OF
UTILITY SUPPLY VALVES OR SWITCHING OF ELECTRICAL SUPPLY CURRENT; (22) PERFORMANCE OF REGULAR
MAINTENANCE AND CLEANING AS OUTLINED IN THE OPERATOR’S GUIDE; (23) REMOVAL OR REINSTALLATION
OF INACCESSIBLE DISHMACHINES OR BUILT-IN FIXTURES THAT INTERFERE WITH SERVICING, REMOVAL OR
REPLACEMENT OF THE DISHMACHINE; (24) REPLACEMENT WEAR ITEMS INCLUDING, BUT NOT LIMITED TO,
CURTAINS, DRAIN BALLS, DOOR GUIDES, GASKETS, O-RINGS, SEALS, SQUEEZE TUBES, AND BEARINGS; (25)
RESIDENTIAL USE; (26) USE WITH UTILITY SERVICE OTHER THAN THAT DESIGNATED ON THE RATING PLATE.
iv
REVISION HISTORY
Revision Date Made by Process Details
A 11-11-08 ARL 8045 Release to Production.
B 4-22-09 ARL 8094 Added new NSF rating.
C 6-22-09 JC 8114 Removed NSF Rating from steam heated machine.
D 7-24-09 ARL 8104 Added information regarding electrical eld conversion.
E 2-2-10 RLC N/A Added information about Fused Universal Timer pg. 19.
F 1-10-13 RLC 8252 Updated schematic and control box assembly for rotary switch/Removed EnergyStar Logo.
G 3-7-13 RLC NDB-219 Updated Jackson logo and company name.
H 12-17-13 MHH N/A Corrected part number for “right false panel kit,” pg. 43. Removed “STOP” warning page, pg. 3.
I 5-28-14 MHH 8287 New bearing and P/N on rinse arm assy, pg. 41.
J 11-17-14 KAP N/A Updated Drain Quench Image on pg. 45. Added Drain Quench Miscellaneous Parts on pg. 55.
K 1-6-15 KAP N/A
Updated part number for O-ring and Diaphragm on pg. 39. P/N 06401-003-07-42 was replaced by P/N
4810-200-03-18.
L 1-14-15 KAP QOF-386
Removed regulator and added Y-Strainer to the assemblies on pgs. 4, 36, and 38. Paragraph content
was changed on pg. 7. Changed the PSI ow on pg. 15
M 3-2-15 KAP QOF-386 Updated wire colors on schematic pgs. 49, 50, 51, 52, and 53.
N 4-6-15 KAP N/A Inserted note pertaining to corner installation pg. 5.
P 5-8-15 KAP N/A
Added: VER operating capacities on pg. 2, pressure regulator option dimensions on pg. 5, VER
Machine Dimensions on pg. 6, VER pipe line size on pg. 9, door interlock items on pg. 23, thermister to
rinse tank assembly on pg. 30, VER plumbing pgs. 41 and 42, VER and energy recovery assembly pg.
46, solid state BB/LT schematic on page 58 and 60. Updated tub and tub assembly thermostats on pgs.
25-28 and schematic pgs. 54 and 55.
Q 6-25-15 KAP N/A Updated Schematic on pgs. 65 and 67.
- 8-25-15 KAP N/A Updated P/N for item #5 on pg. 25.
- 10-13-15 KAP N/A Updated P/N for solenoid valve. Changed P/N from 04820-002-01-32 to 04820-002-01-56.
R 11-9-15 JH N/A Corrected P/N for item #33 on pg. 34.
S 11-30-15 JH N/A Added delime instructions.
T 1-11-16 JH QOF-386
Changed item 12 on pg. 35 to 05700-003-07-76. Added 05700-004-23-78 and 05700-004-23-79 to view
(pg. 31) and parts list (pg. 32).
U 3-14-17 JH N/A

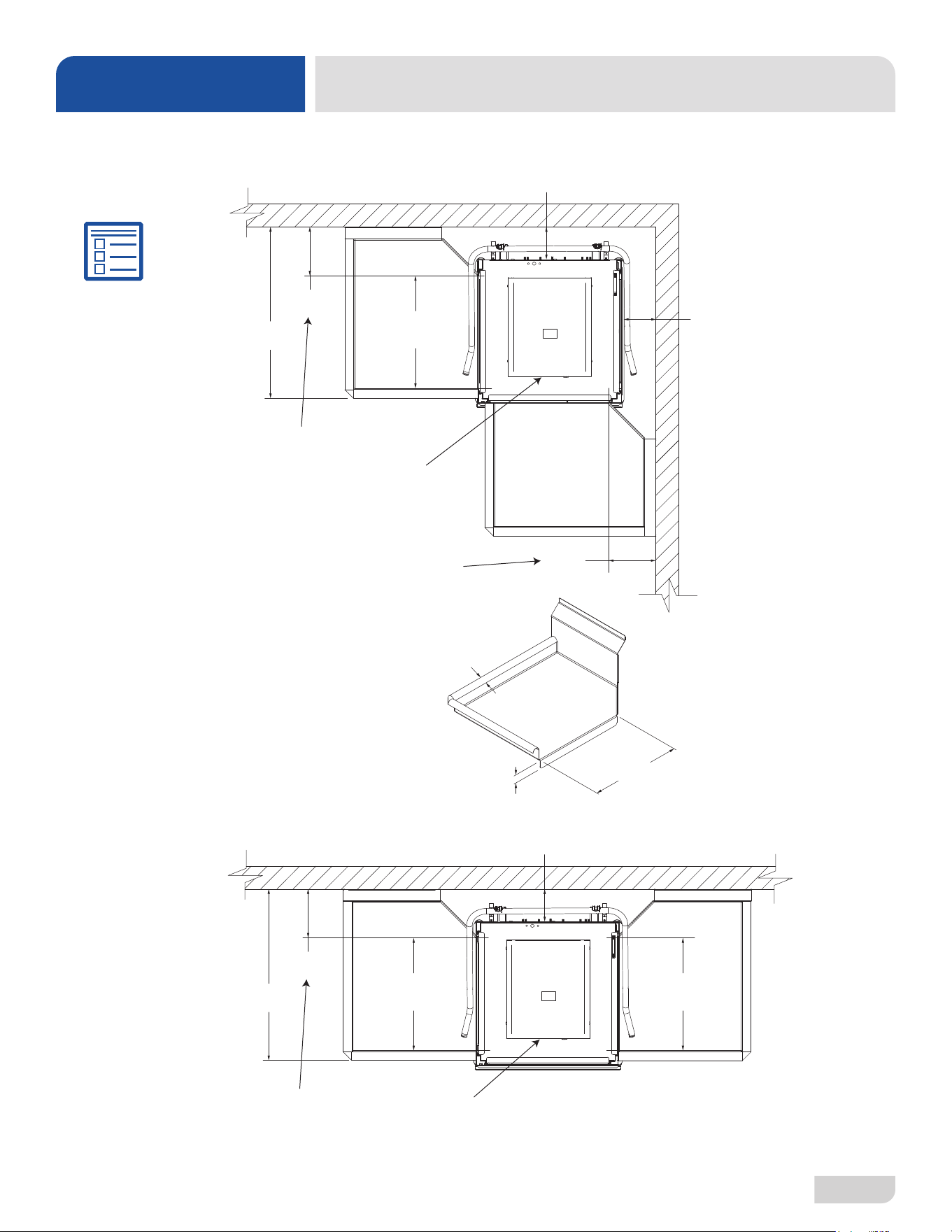

Added dimensions for notch cut into table on corner installations pg. 4. Corrected total amps and typical
electrical circuit for 230 V, 50 Hz, 1 Phase LT/NB machines on pg. 7 to 35 A and 40 A, respectively.
Corrected P/N for item 6 on pgs. 36 and 39. Changed item 19 to item 17 in Tube Length Chart on pg.
51. Changed valve (item 15) view and P/N to 04810-003-71-56 on pgs. 51 and 52. Changed valve
(item 7) view and P/N to 04810-003-71-56 on pg. 53. Removed views that showed pressure regulator
in certain locations. Created Plumbing Options, pg. 54, with the pressure regulator and arrestor as
options. Added wash arm end-cap as item #21 to pg. 58. Added external device wiring instructions.
Added instructions for programming new exhaust fan timer. Added rinse arm bearing replacement
instructions. Updated schematics. Changed name of delime switch throughout from NORMAL/DELIME
to AUTO/MANUAL. Updated Delime Instructions and added instructions for low-temp machine. Added
water level probe cleaning to the Shutdown and Cleaning section. Updated to new manual format.
Audited and corrected all P/Ns in the manual.
V 9-24-18 JH
8392
8480
8533
8536
8567
8576
8599
Added: links to exhaust fan timer instructions, Chemical Connections section, Motor Rotation section,
new exhaust fan timer, fuses, page for new rinse tank, new phase conversion kit, list of applicable kits,
and new rinse tank schematics. Changed: steam pressure to 10-30 PSI, P/N for contactor item #4 on
pg. 25, rinse arm bearing assembly, rinse arm bearing kit P/N. Replaced thermostat and components
with solid state thermostat and components. Updated: electrical requirements, pgs. 6-7, motor P/Ns,
heater P/Ns, plumbing to new rinse tank plumbing, VER plumbing to new rinse tank plumbing, pg. 54-
55 with new view and parts list.
W 3-24-21 JH N/A
Removed LT from manual. Added 50 Hz models to Electrical Requirements section. Added VER
System Assembly section. Included resistance-to-temperature table. Changed gauge P/N on VER
System page and added item #21. Updated drain water tempering kit P/N on Kits page.
X 7-5-22 JH 8748

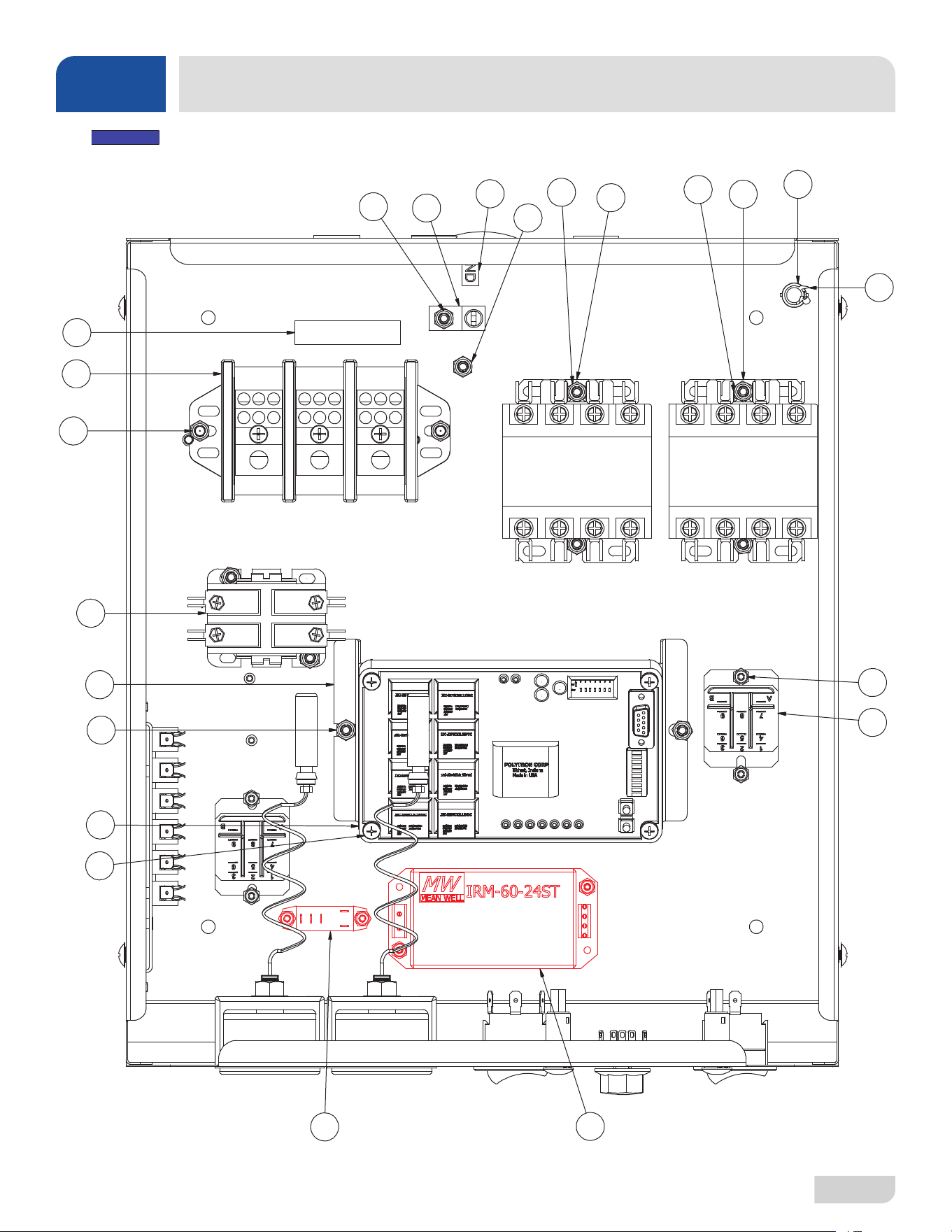

Added power supply and relay to Control Box pages (used on machines with door interlock and VER
machines with DC fans). Added DC fan to VER System pages with note on models affected.
Updated applicable schematics to show AC and DC fans.
Y 4-11-23 JH
8893
22-1424
Added FL and FL-VER models. Inserted scaltrol graphic into Water Supply Connection section.
Updated latent and sensible heat values. Changed P/N of relay for door interlock. Updated plumbing
section to identify all parts. Updated schematics.
Z 8-22-23 JH N/A
Added: thermistor and union to booster, new door interlock, and links to previous revisions (LLC vs.
oat). Updated note on VER fans.
v
The manufacturer provides
technical support for all of
the dishmachines detailed
in this manual. We strongly
recommend that you refer to
this manual before making a
call to our technical support
staff. Please have this manual
open when you call so that our
staff can refer you, if necessary,
to the proper page. Technical
support is not available
on holidays.
Contact technical support toll-
free at 1-888-800-5672.
Technical support is available
for service personnel only.
TempStar
®
Door-type dishmachine; ENERGY STAR
®
qualied,
electrically-heated, high-temp, hot-water sanitizing,
with booster heater.
TempStar
®
FL
Door-type dishmachine; front-loading,
ENERGY STAR
®
qualied, electrically-heated,
high-temp, hot-water sanitizing, with booster heater.
TempStar
®
NB
Door-type dishmachine; electrically-heated,
high-temp, hot-water sanitizing,
with no rinse booster.
TempStar
®
S
Door-type dishmachine; steam-heated,
high-temp, hot-water sanitizing.
TempStar
®
VER
Door-type dishmachine; electrically-heated,
high-temp, hot-water sanitizing, with booster heater
and ventless energy recovery system.
NOMENCLATURE
vi
TABLE OF CONTENTS
GUIDES
Symbols ...................................................................................................................................... 1
Abbreviations & Acronyms .......................................................................................................... 1
SPECIFICATIONS

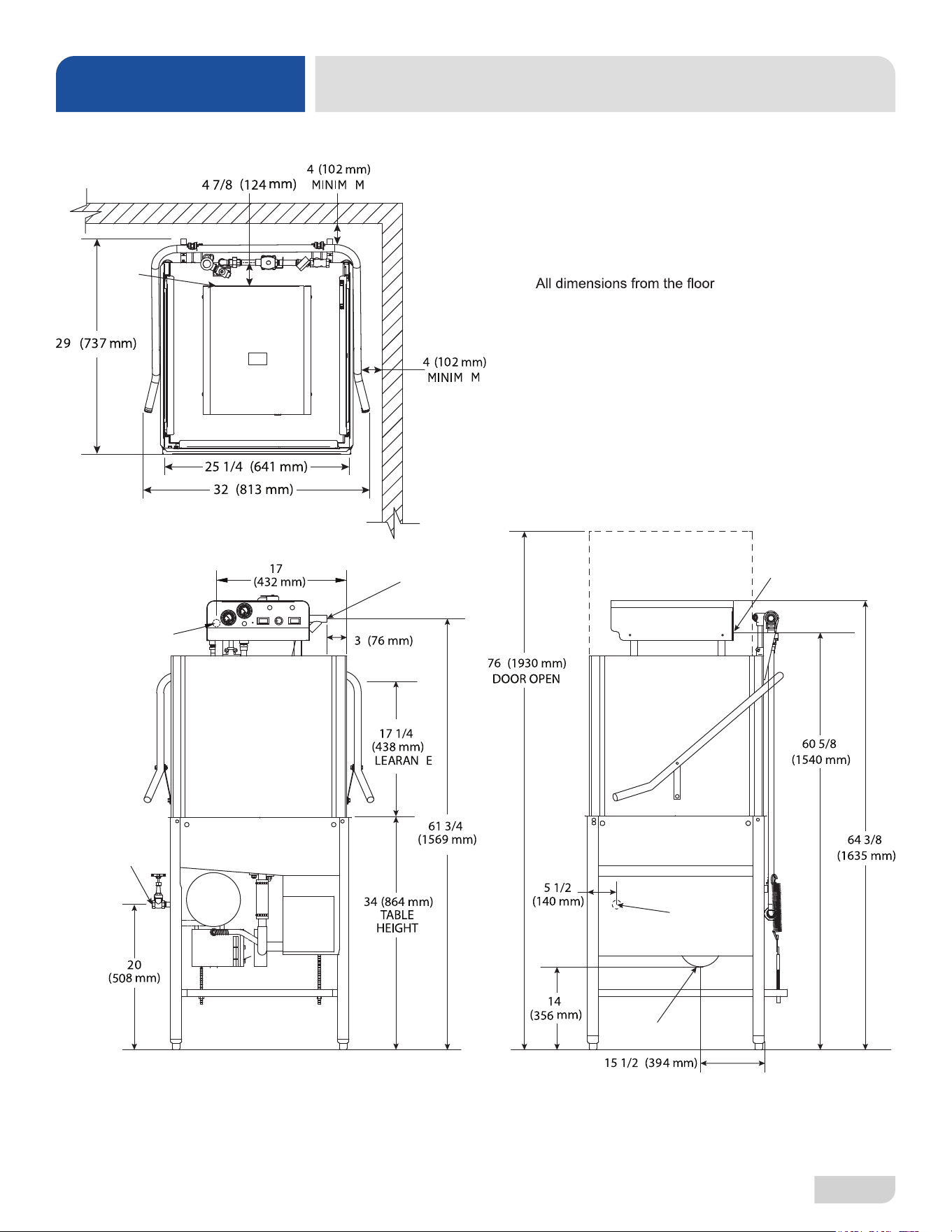

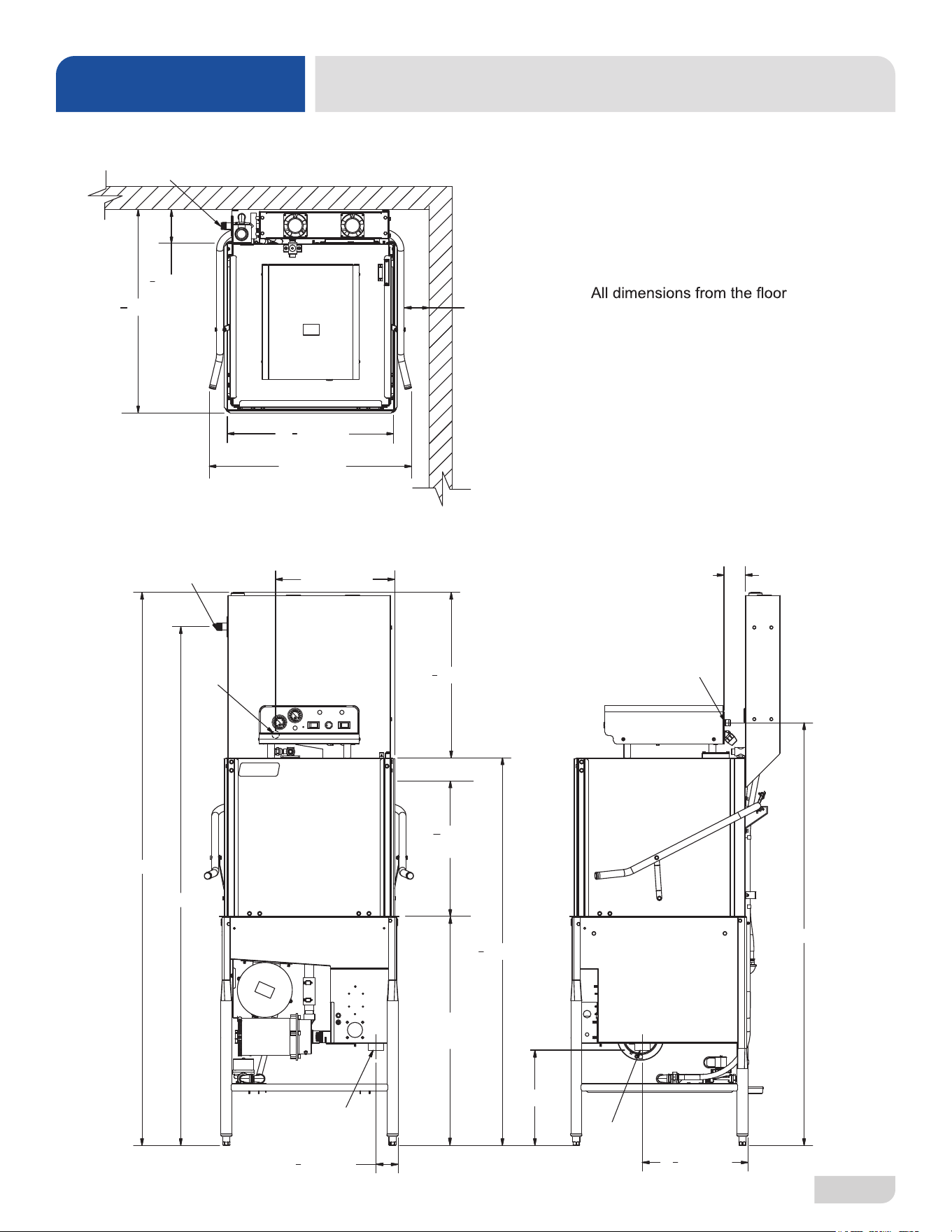

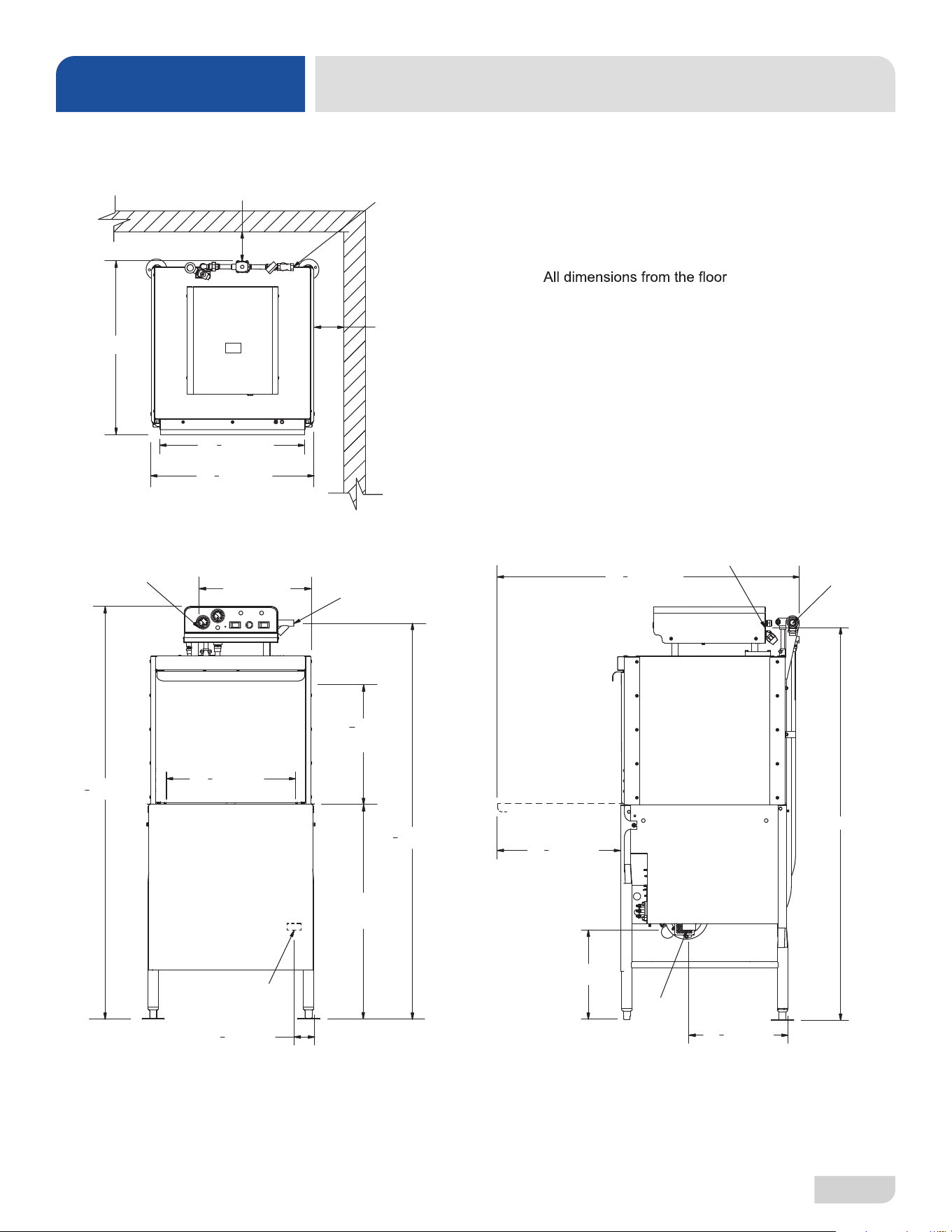

TempStar/NB/S Dimensions ....................................................................................................... 2
TempStar FL Dimensions ........................................................................................................... 3
TempStar VER Dimensions ........................................................................................................ 4
TempStar FL-VER Dimensions .................................................................................................. 5
Table Dimensions ....................................................................................................................... 6
Operating Parameters ................................................................................................................ 7
Electrical Requirements ............................................................................................................. 8
INSTALLATION
Installation Instructions ............................................................................................................. 10
Inspection ..................................................................................................................10
Unpacking..................................................................................................................10

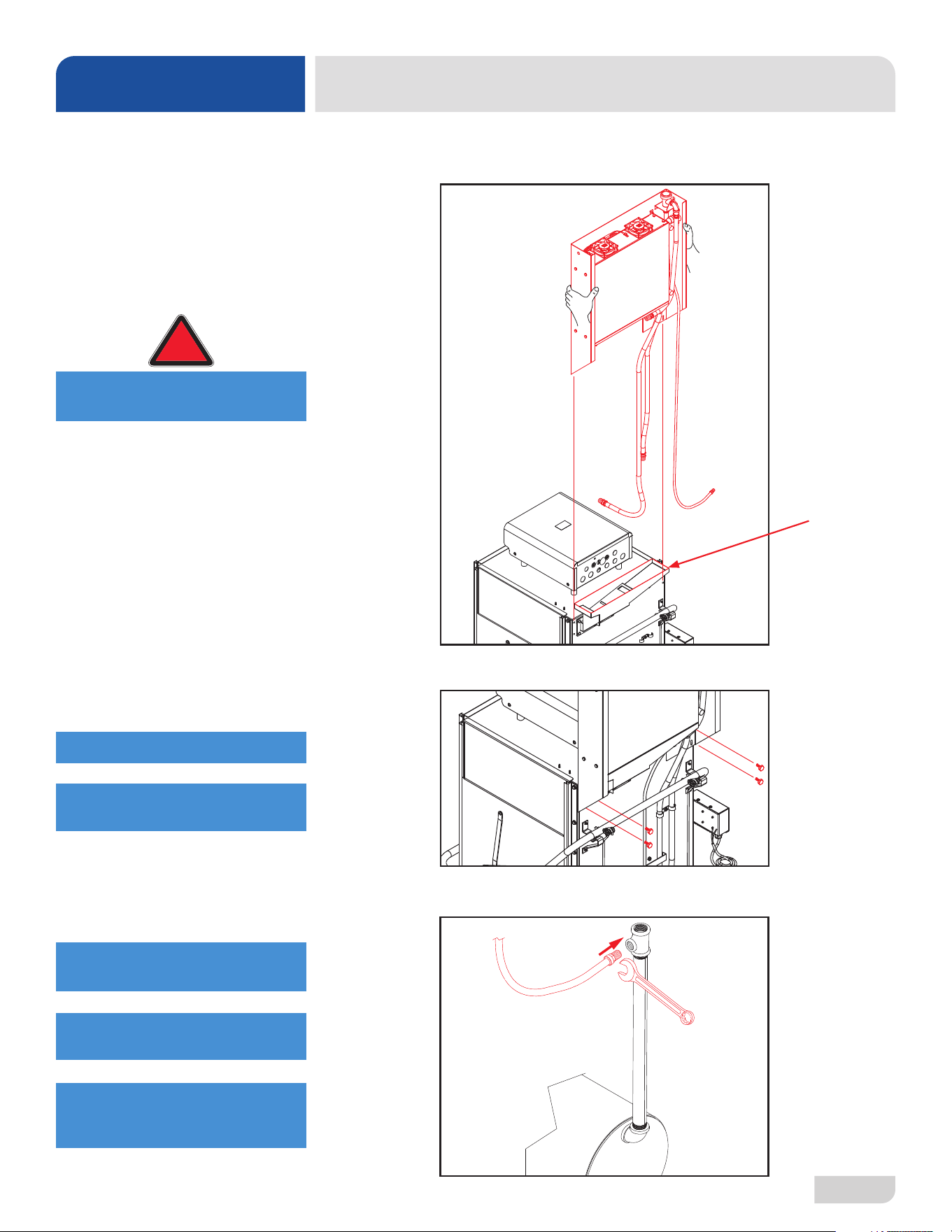

VER System Assembly ..............................................................................................10
Leveling .....................................................................................................................14

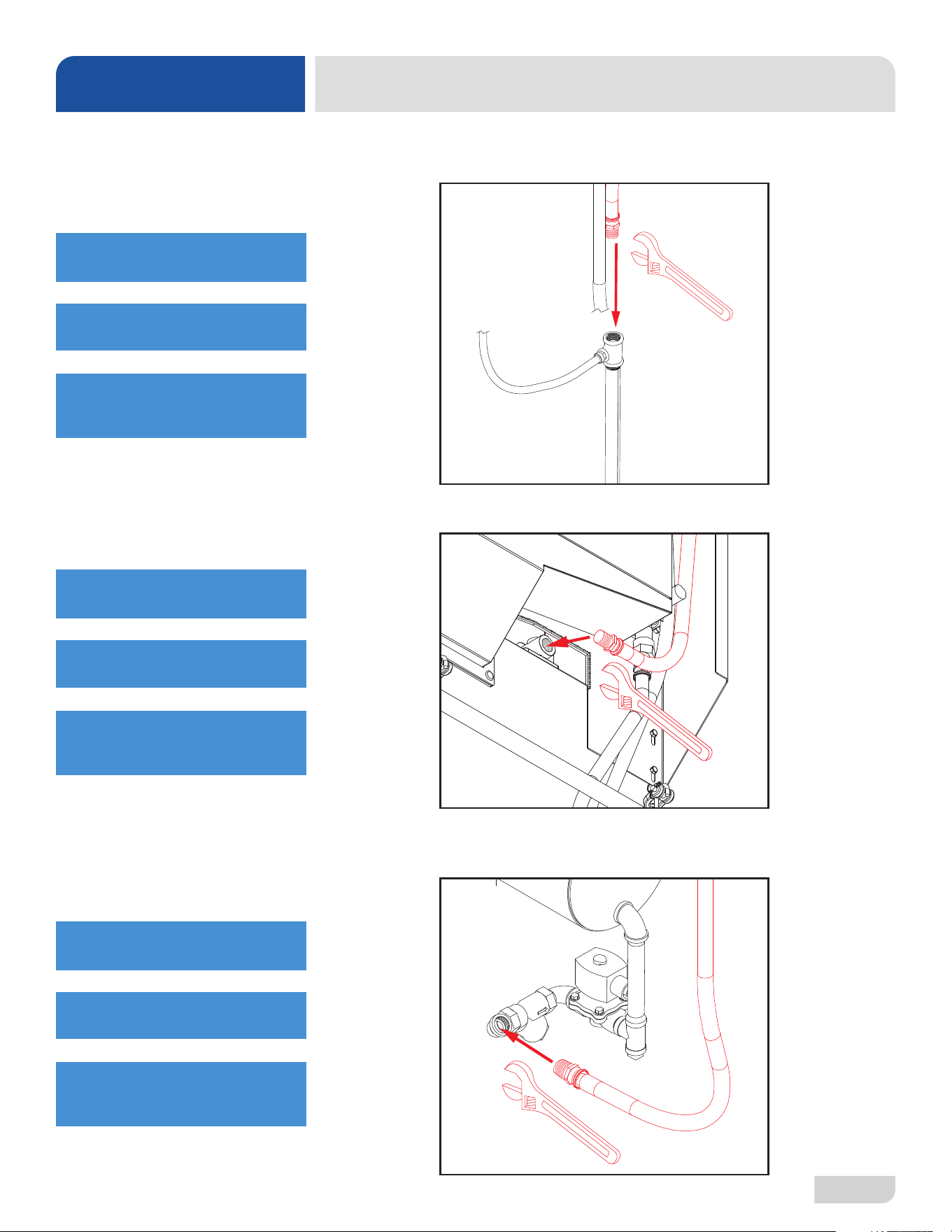

Plumbing....................................................................................................................14
Water Supply Connection .......................................................................................... 14
Steam Line Connection .............................................................................................15

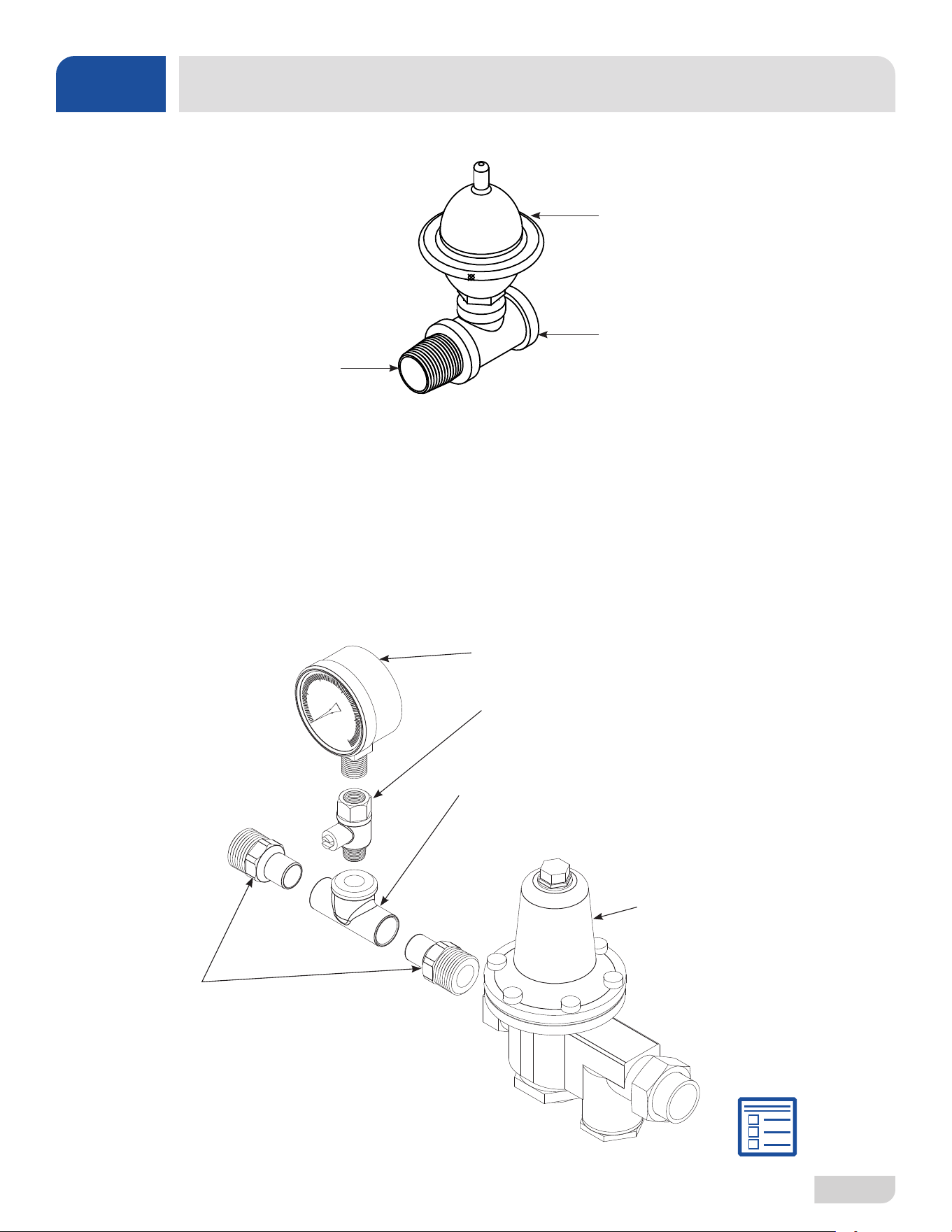

Pressure Regulator....................................................................................................15
Shock Absorber .........................................................................................................15
Connecting the Drain Line .........................................................................................15

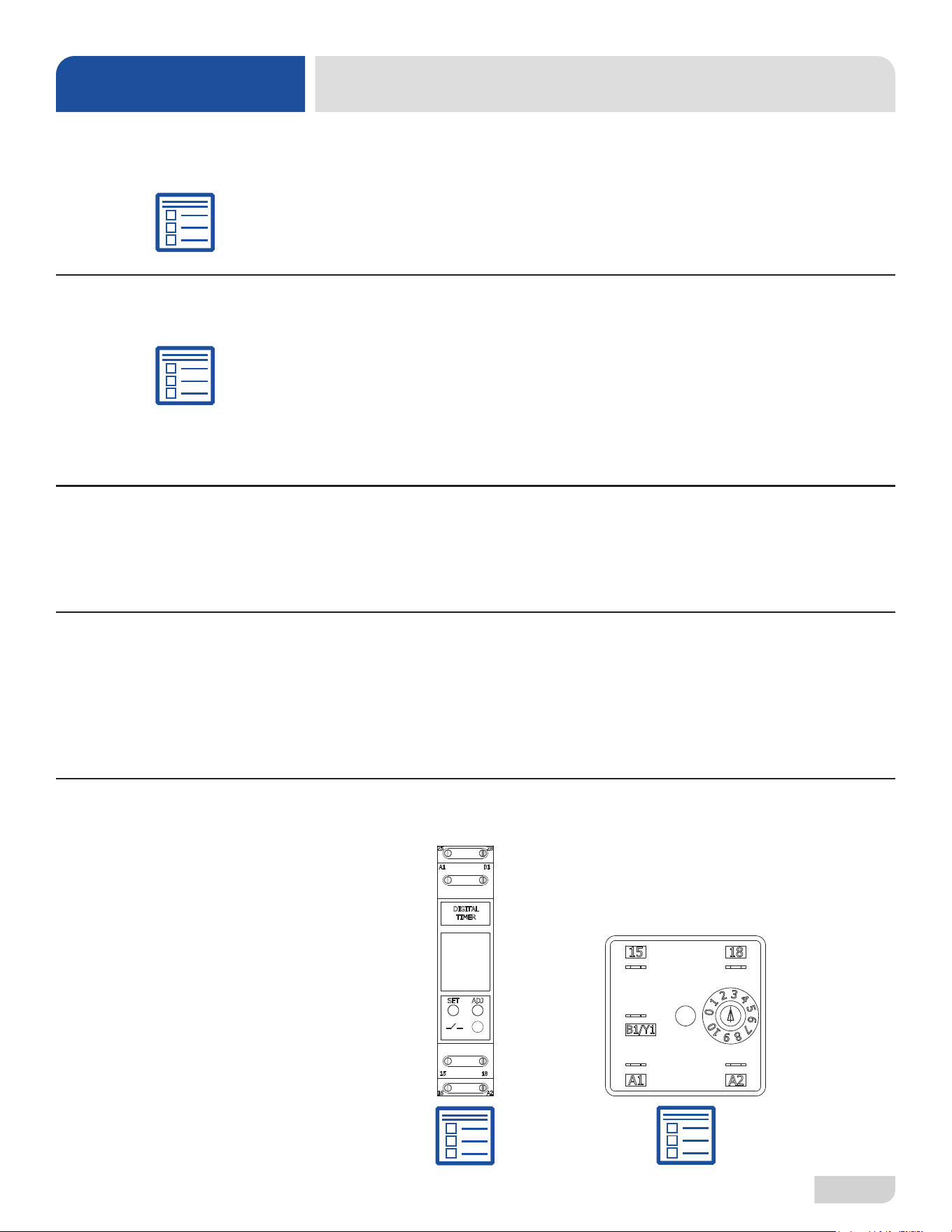

Exhaust Fan Timer ....................................................................................................15

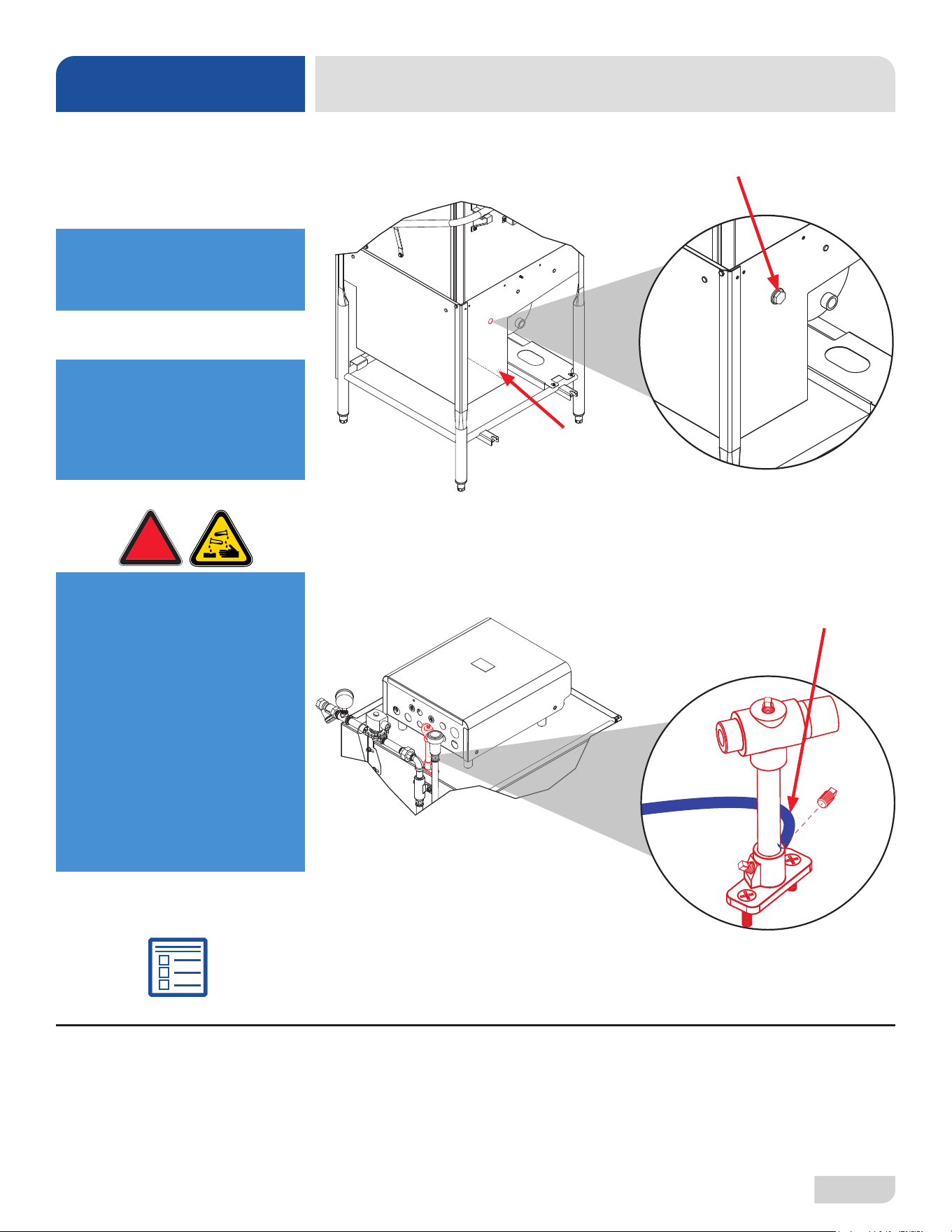

Chemical Connections...............................................................................................16
Plumbing Check ........................................................................................................16

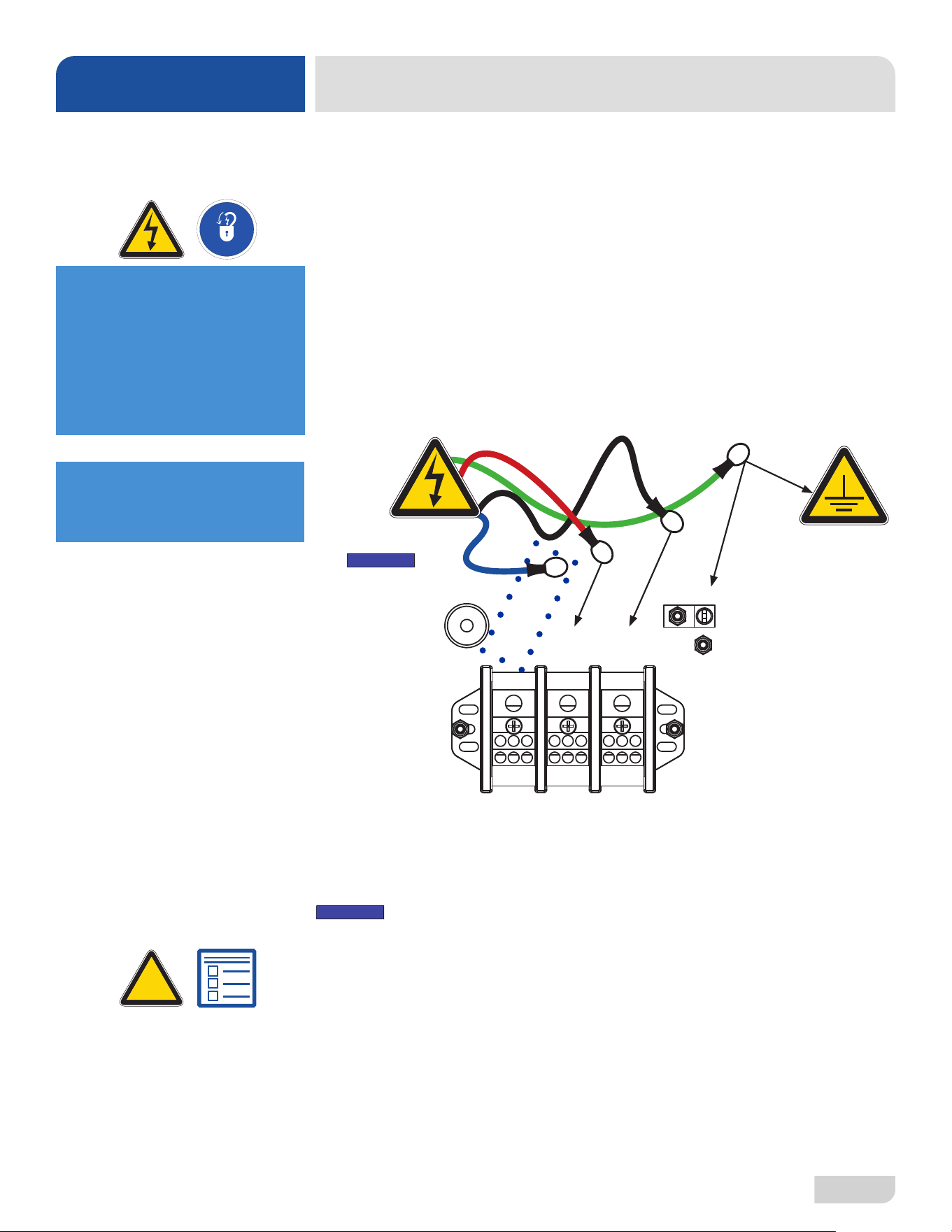

Electrical Power Connections ....................................................................................17

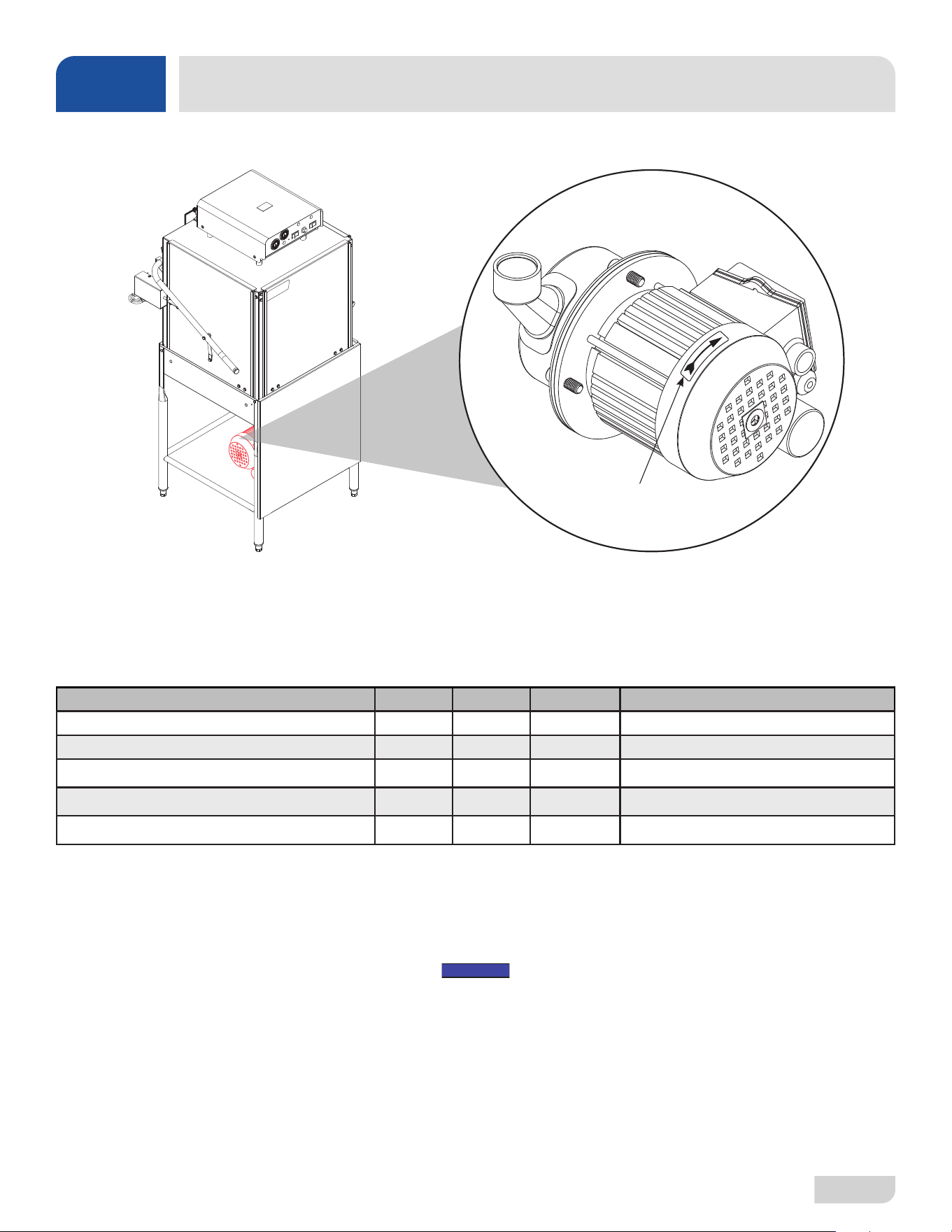

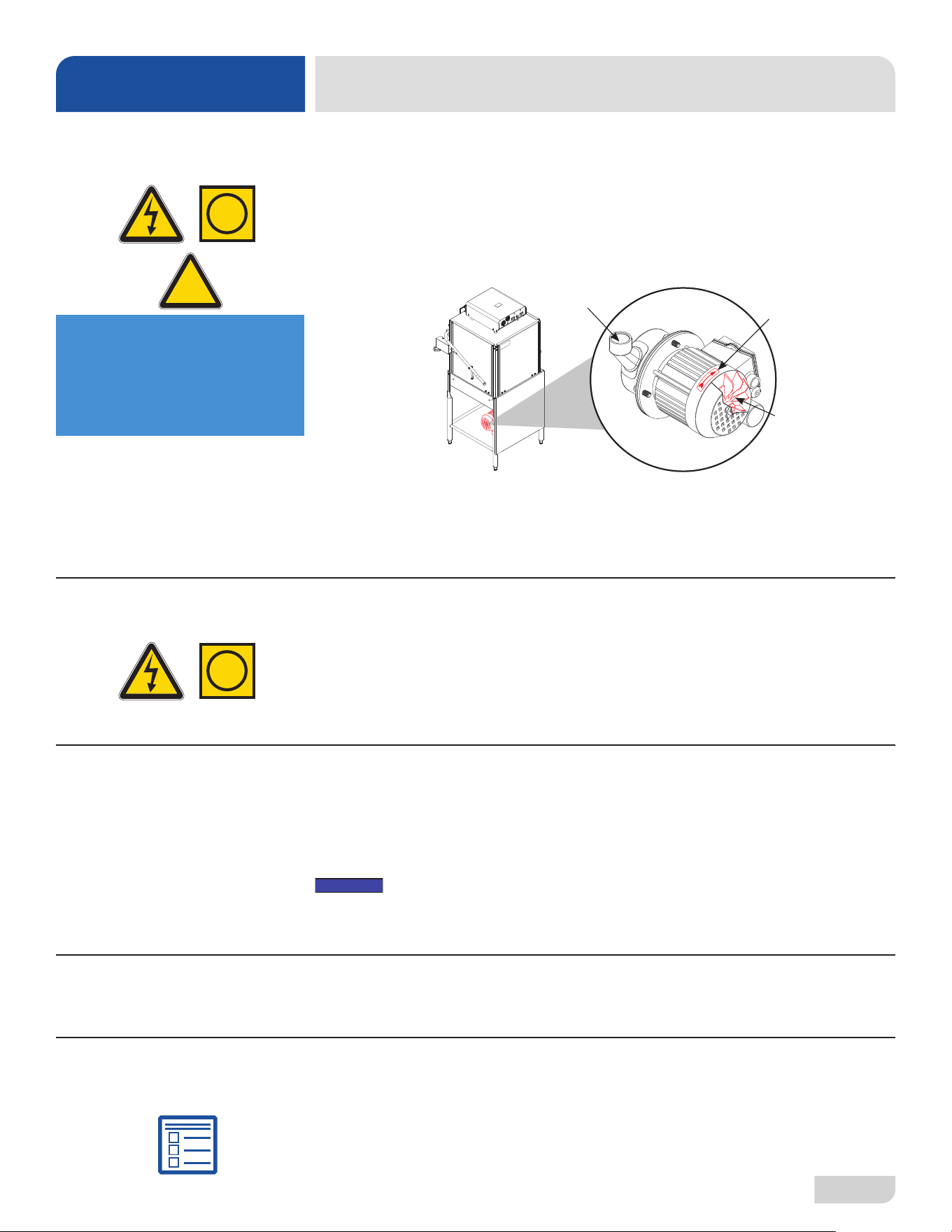

Motor Rotation ...........................................................................................................18
Voltage Check ...........................................................................................................18
Surrounding Area ......................................................................................................18
Temperature Setpoints ..............................................................................................18
False Panel/Corner Install .........................................................................................18
OPERATION
Operating Instructions .............................................................................................................. 19
Preparation ................................................................................................................ 19

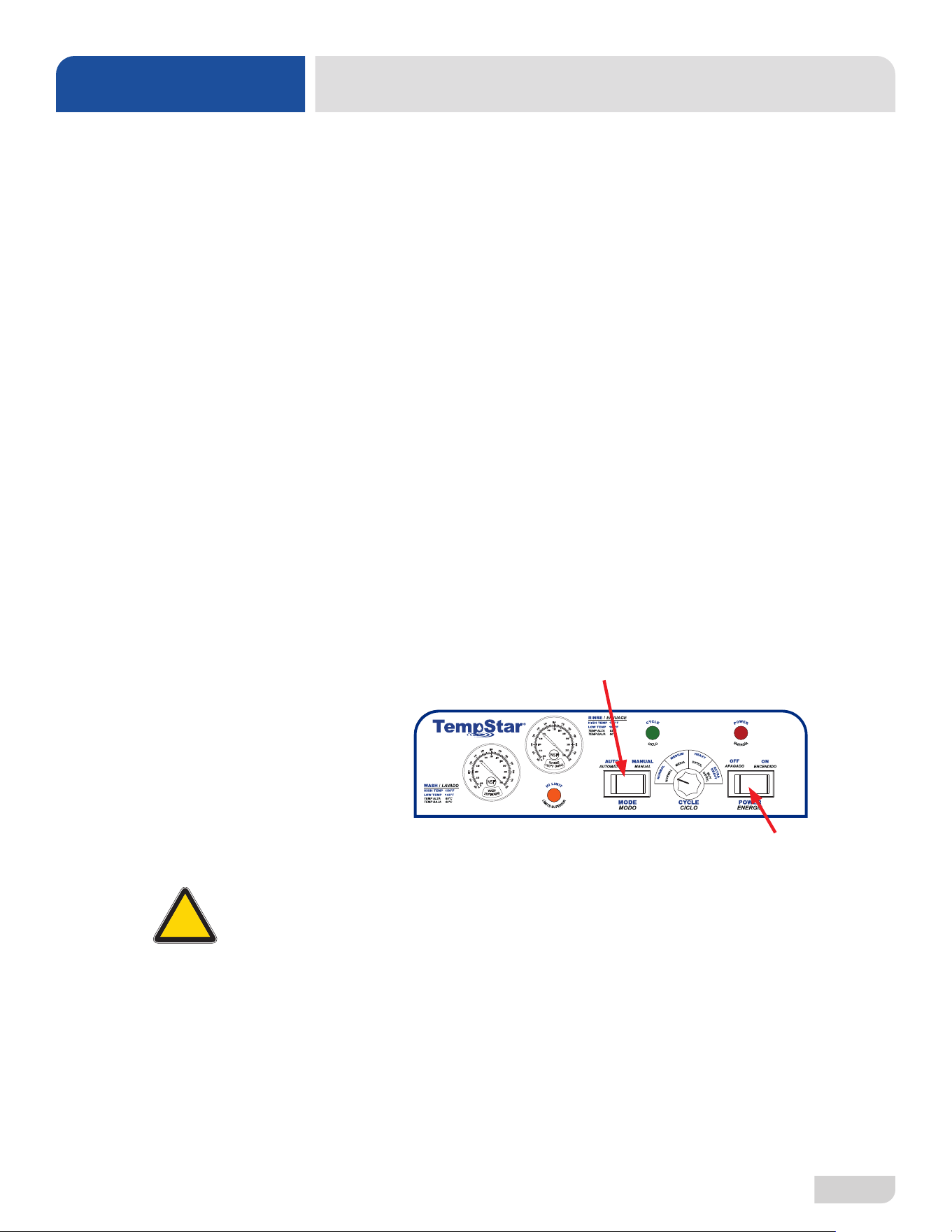

Power Up ................................................................................................................... 19
Filling the Wash Tub .................................................................................................. 19
Ware Preparation ...................................................................................................... 19
Daily Machine Preparation ........................................................................................ 19
Warm-Up Cycles ....................................................................................................... 20
Washing a Rack of Ware ........................................................................................... 20
Operational Inspection............................................................................................... 20
vii
OPERATION
Shutdown & Cleaning ................................................................................................ 20

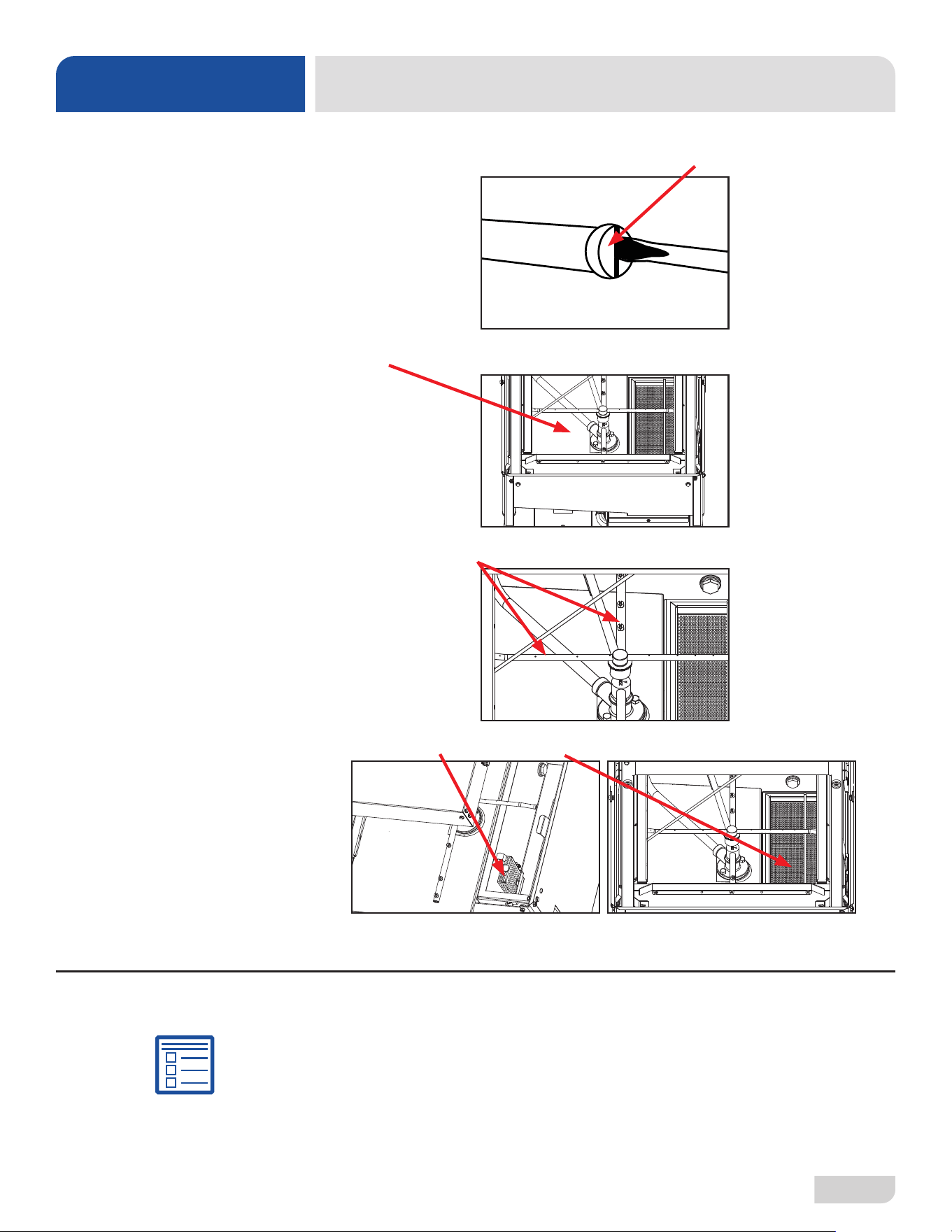

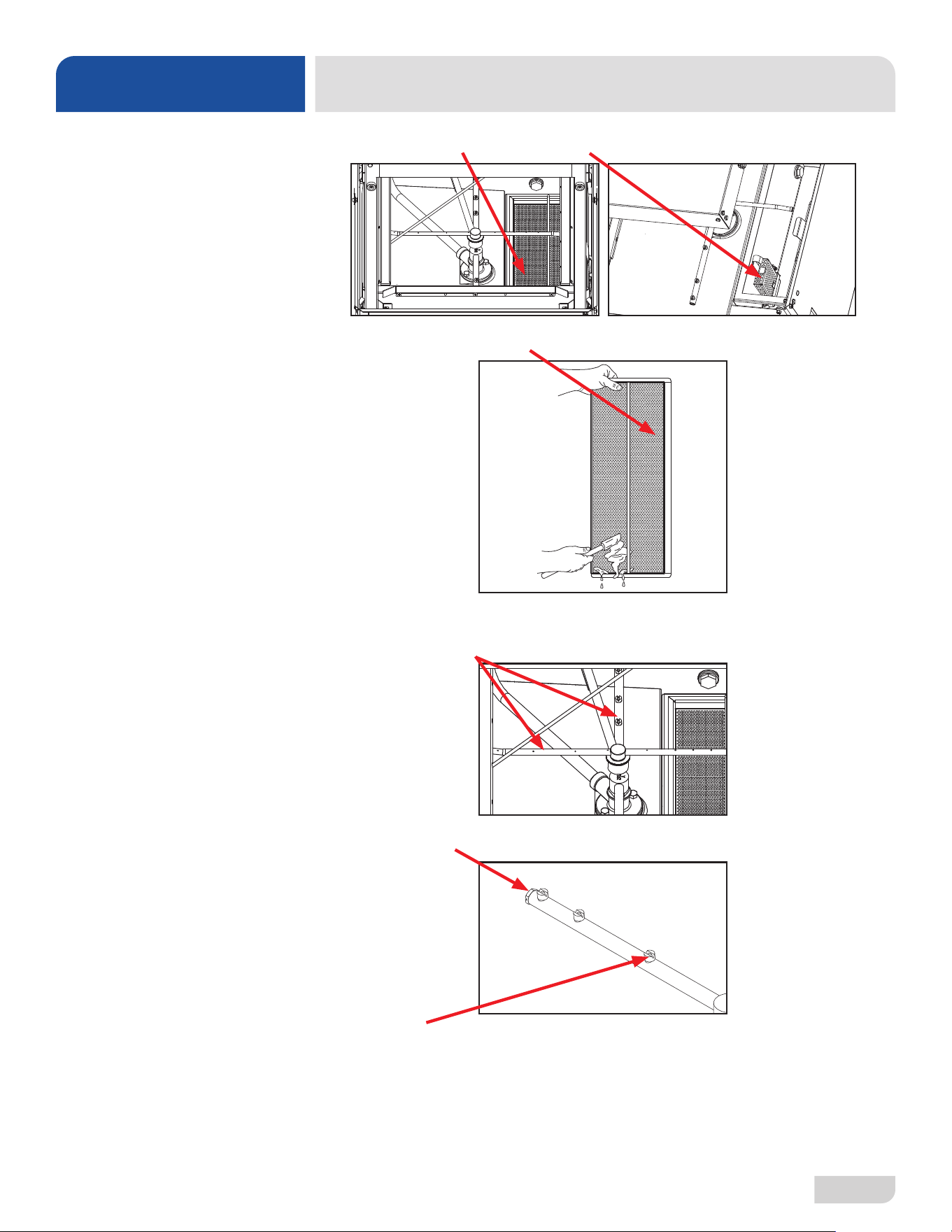

VER Coil Cleaning ..................................................................................................... 22
Detergent Control ..................................................................................................................... 23
Deliming ................................................................................................................................... 24
MAINTENANCE
Preventative Maintenance ........................................................................................................ 25
TROUBLESHOOTING
Troubleshooting ........................................................................................................................ 26
PARTS

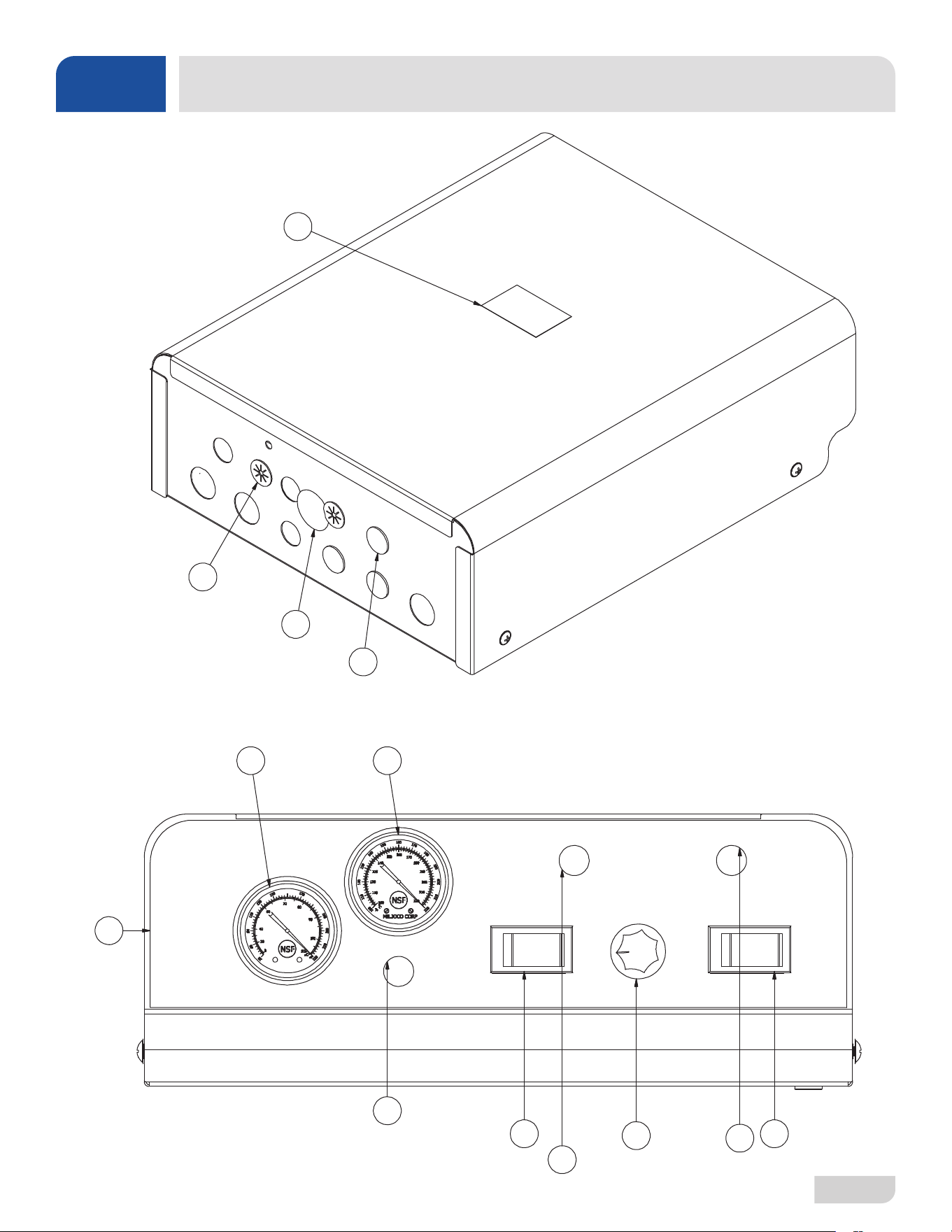

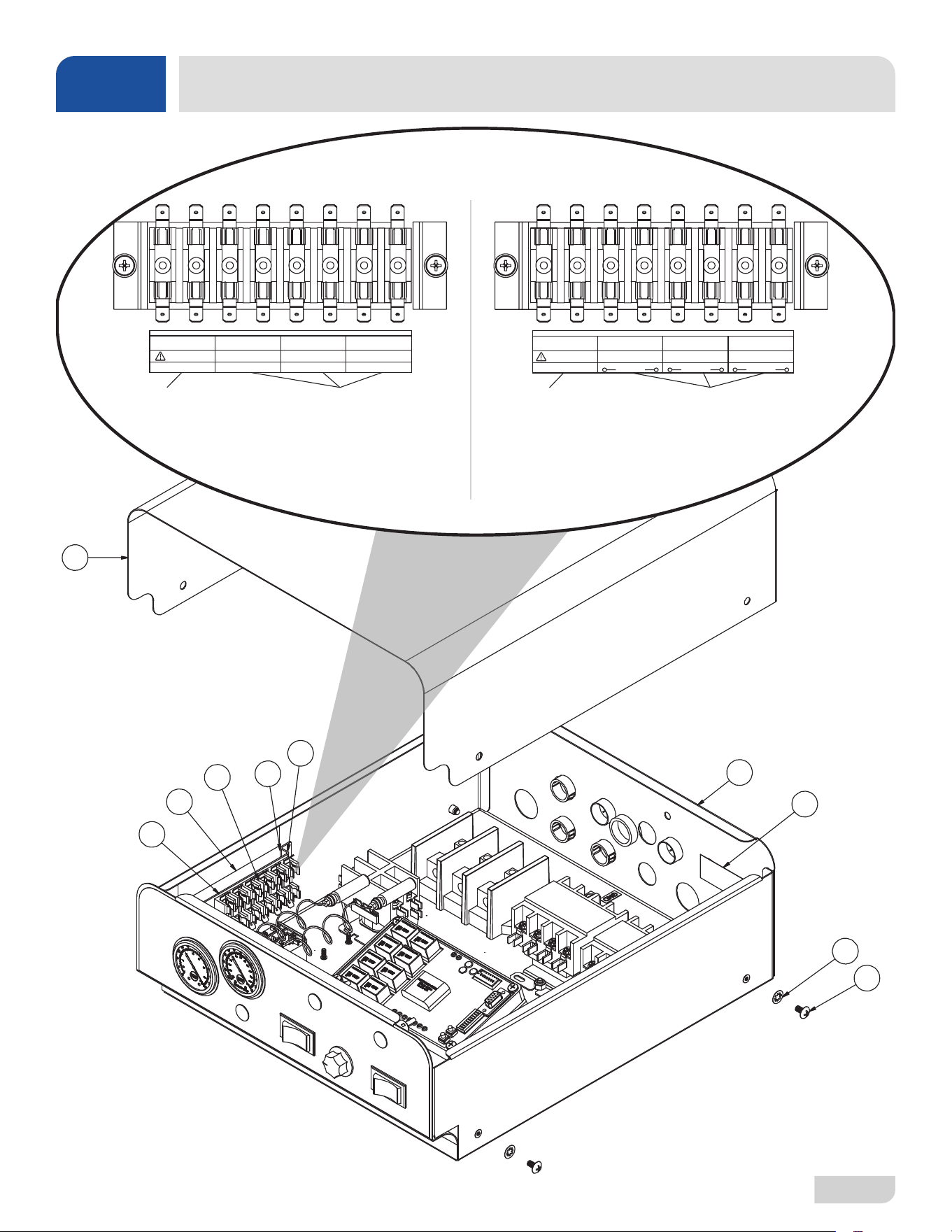

Control Box ............................................................................................................................... 28
Hood ......................................................................................................................................... 33
Hood - FL/FL-VER .................................................................................................................... 34

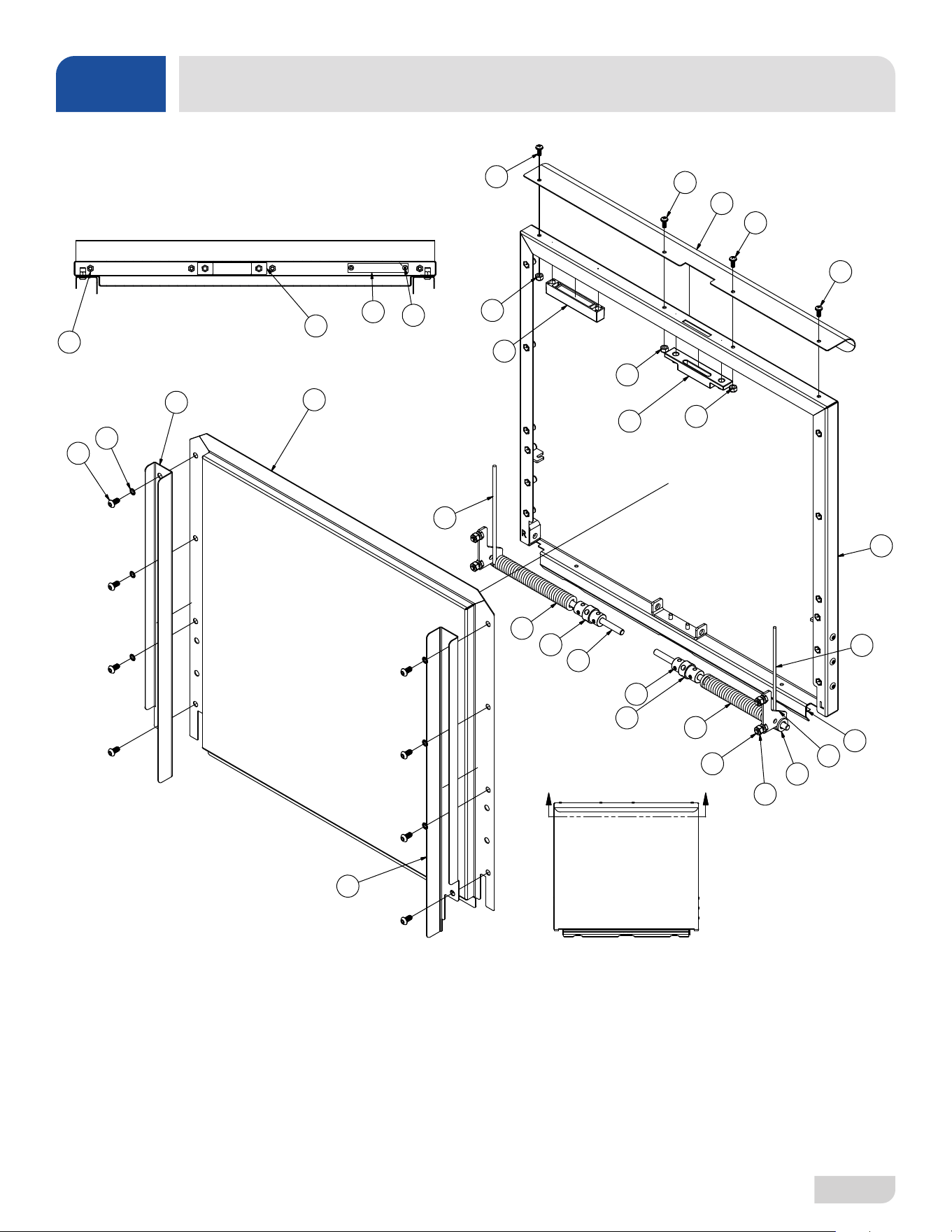

Door & Arm ............................................................................................................................... 35
Door - FL/FL-VER .................................................................................................................... 38

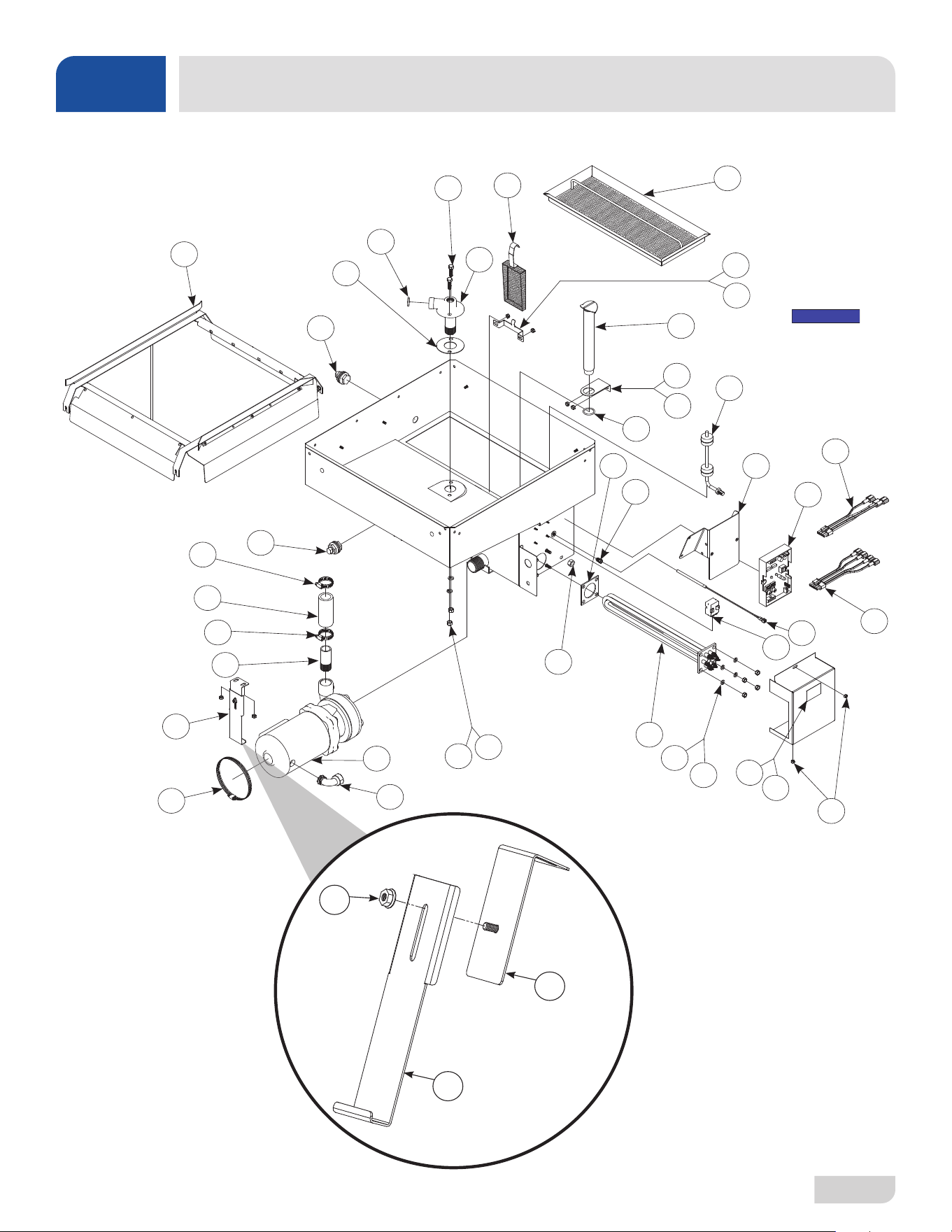

Tub ........................................................................................................................................... 40
Steam Tub ................................................................................................................................ 43

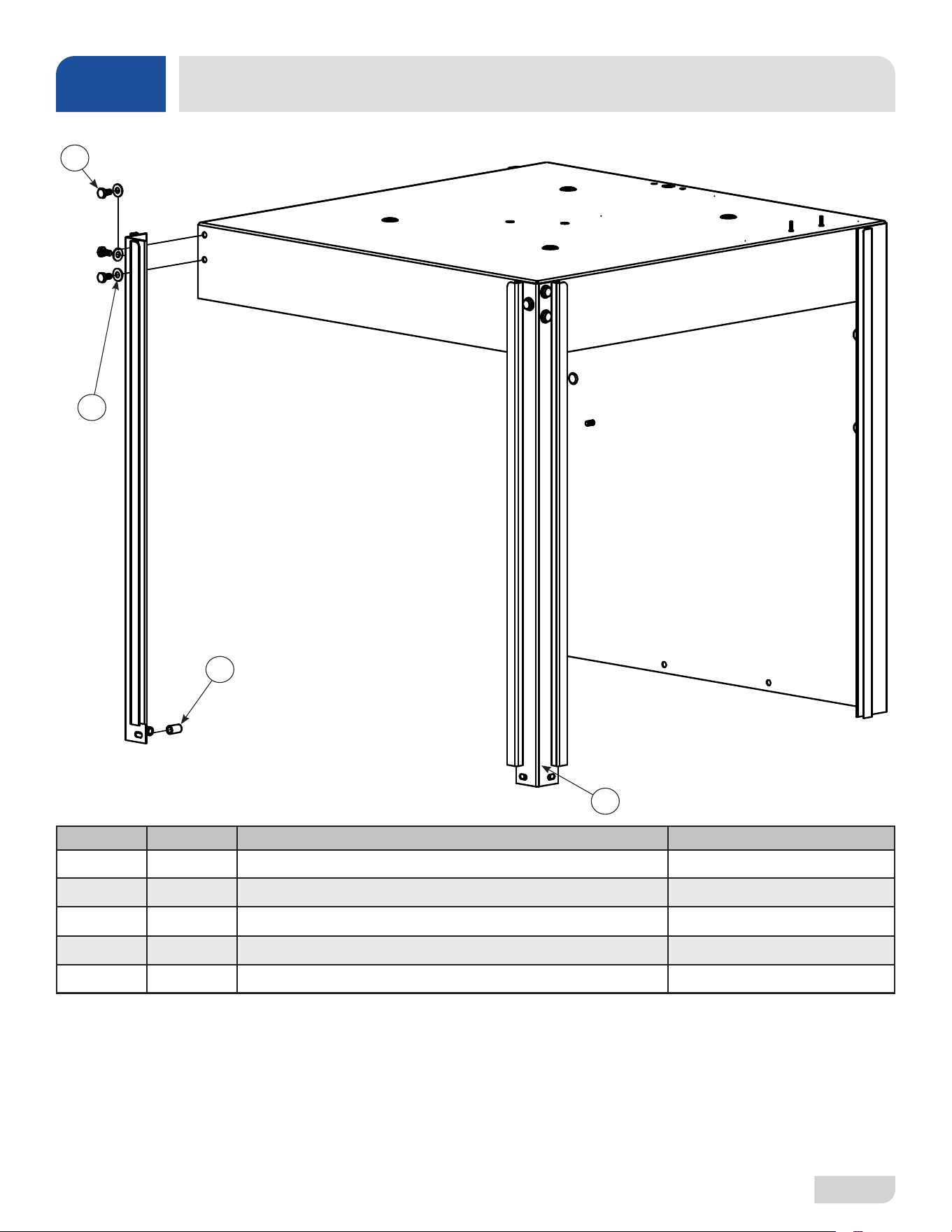

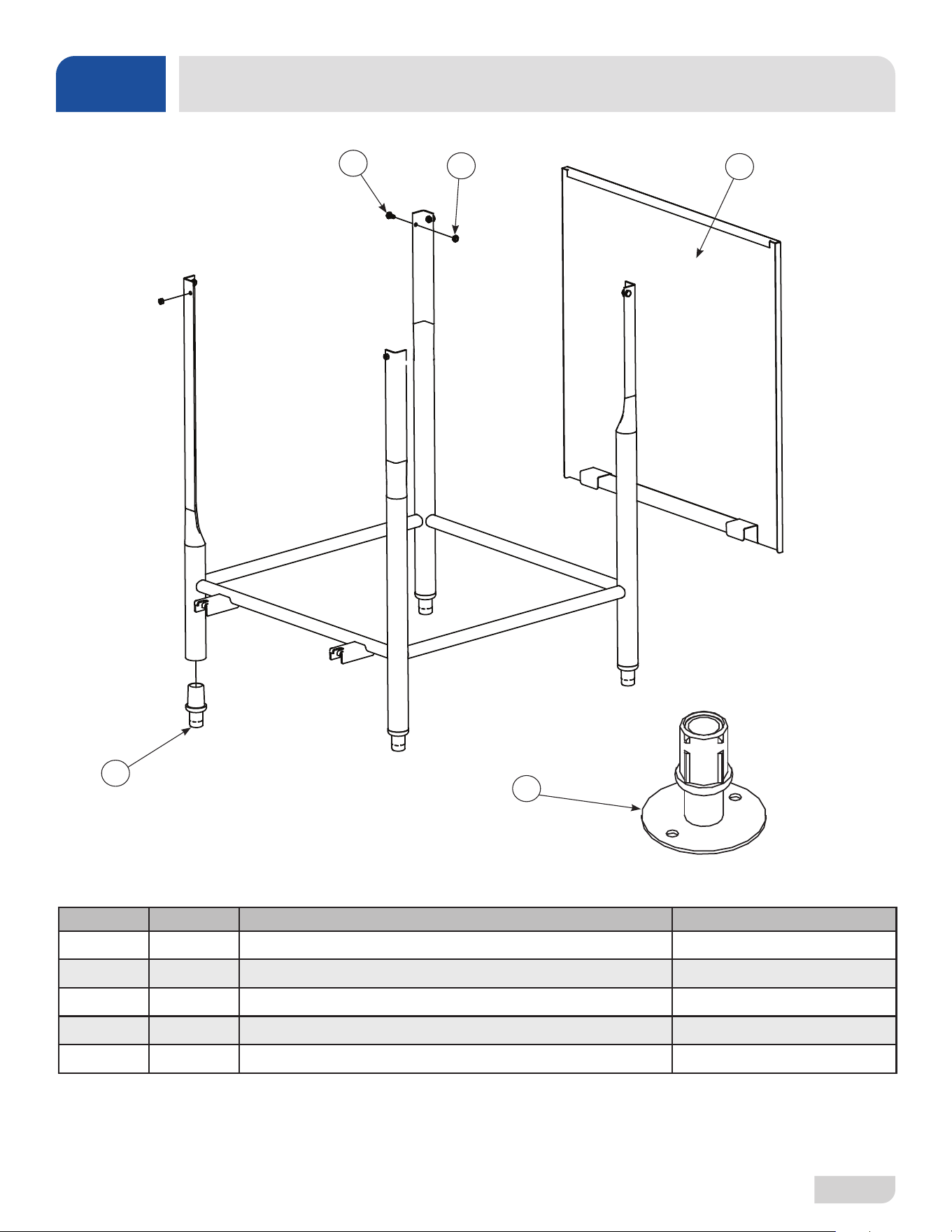

Frame ....................................................................................................................................... 46
Rinse Tank ................................................................................................................................ 47

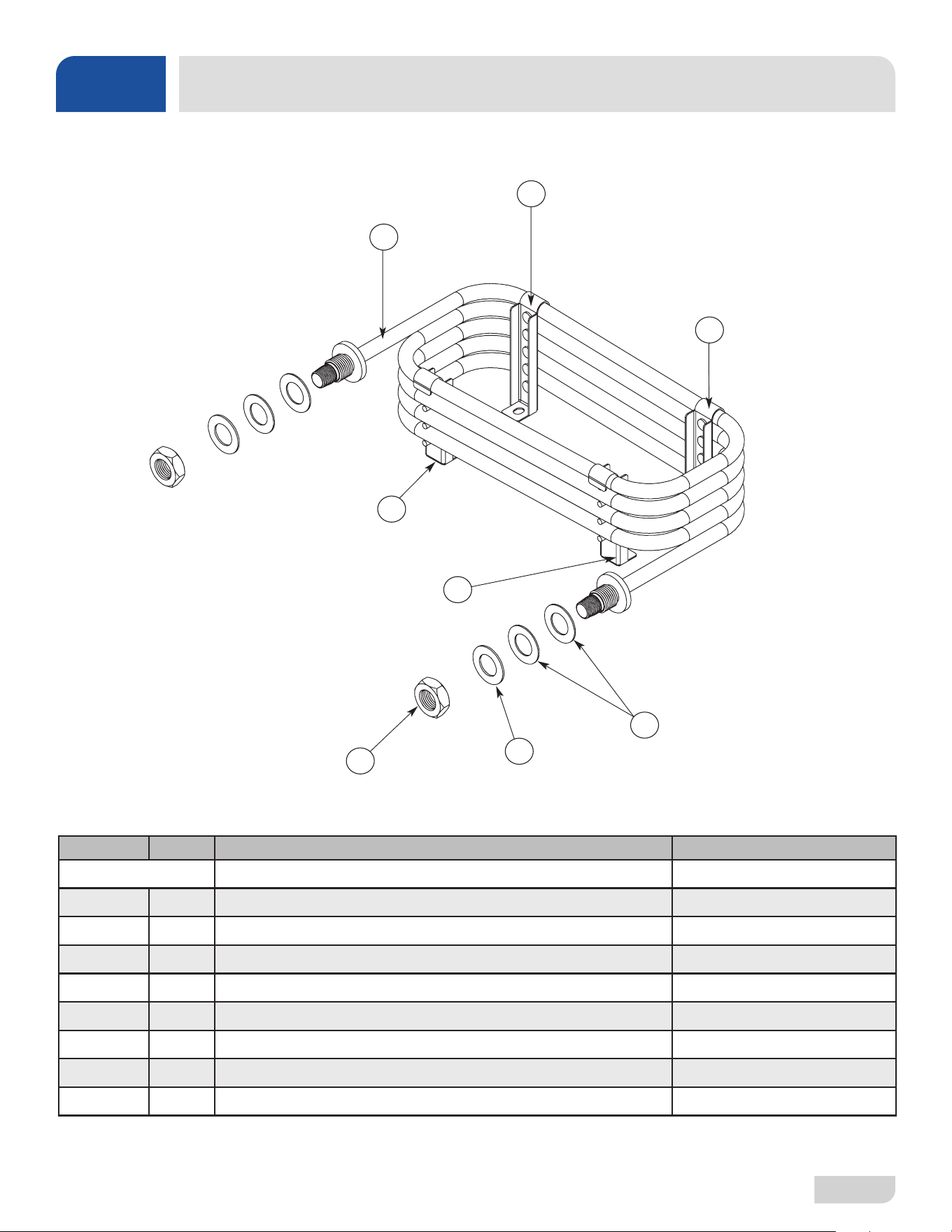

Steam Coil ................................................................................................................................ 48

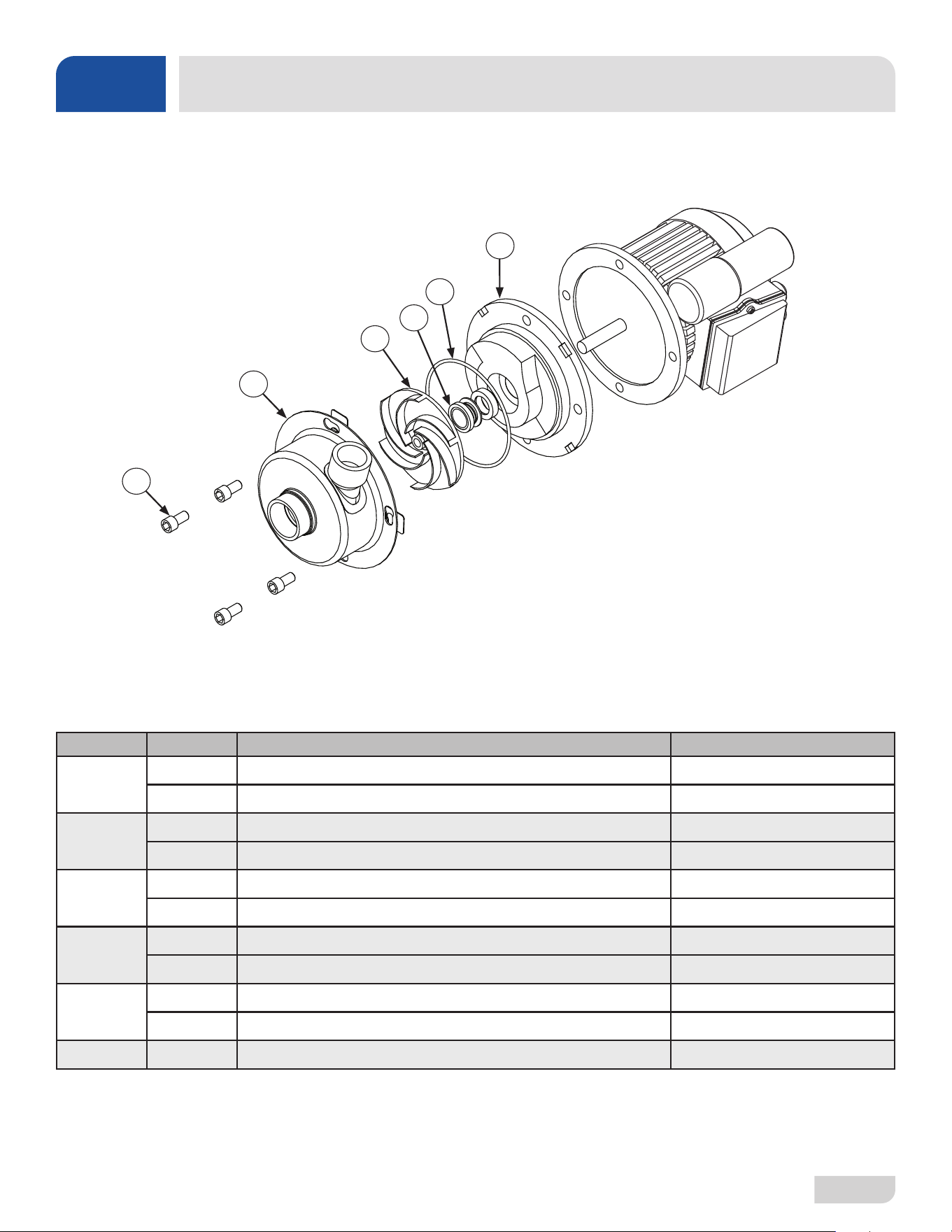

Motors ...................................................................................................................................... 49

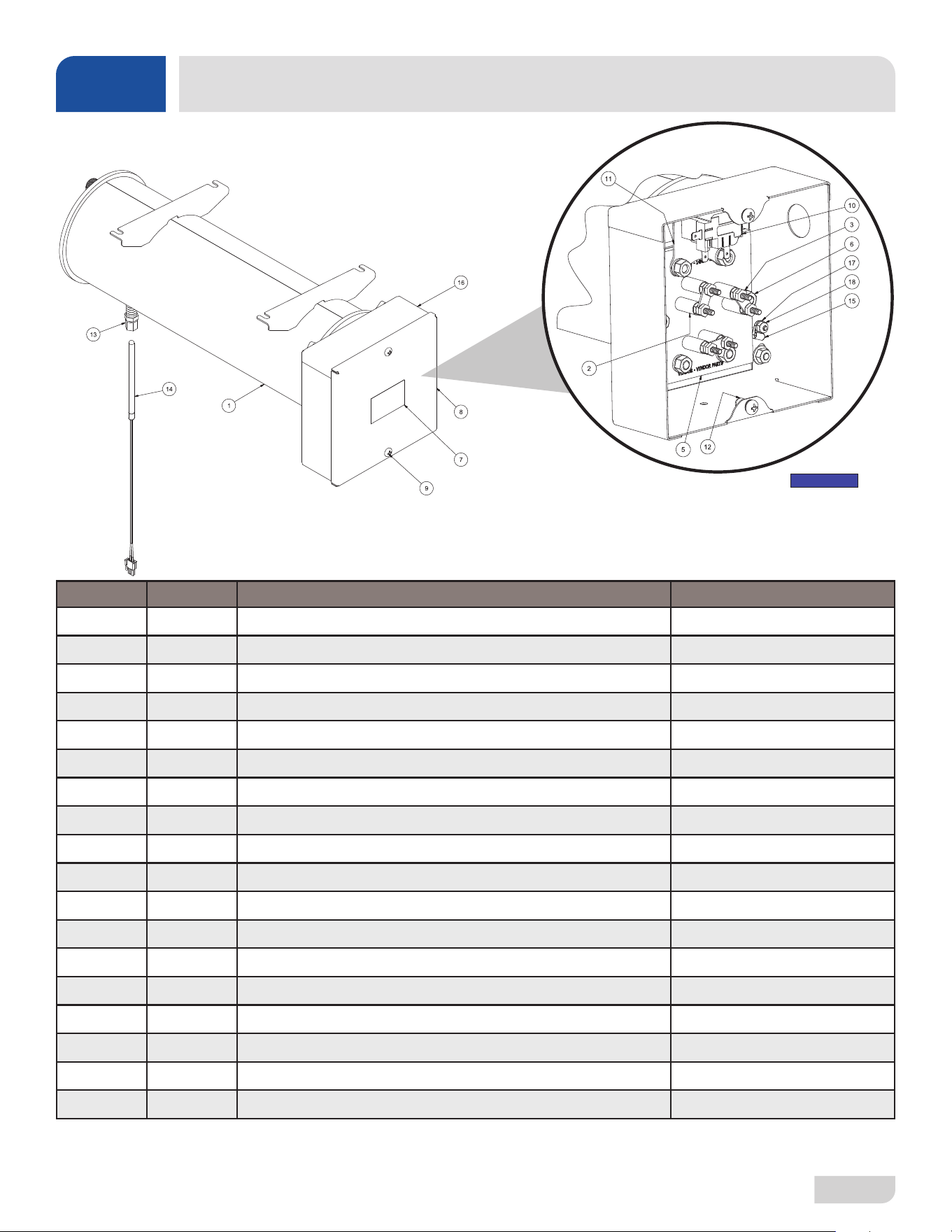

Heaters ..................................................................................................................................... 51
TempStar/FL Plumbing ............................................................................................................. 53
Plumbing - NB Models .............................................................................................................. 55
Plumbing - Steam Models ........................................................................................................ 56
Plumbing - VER/FL-VER .......................................................................................................... 58

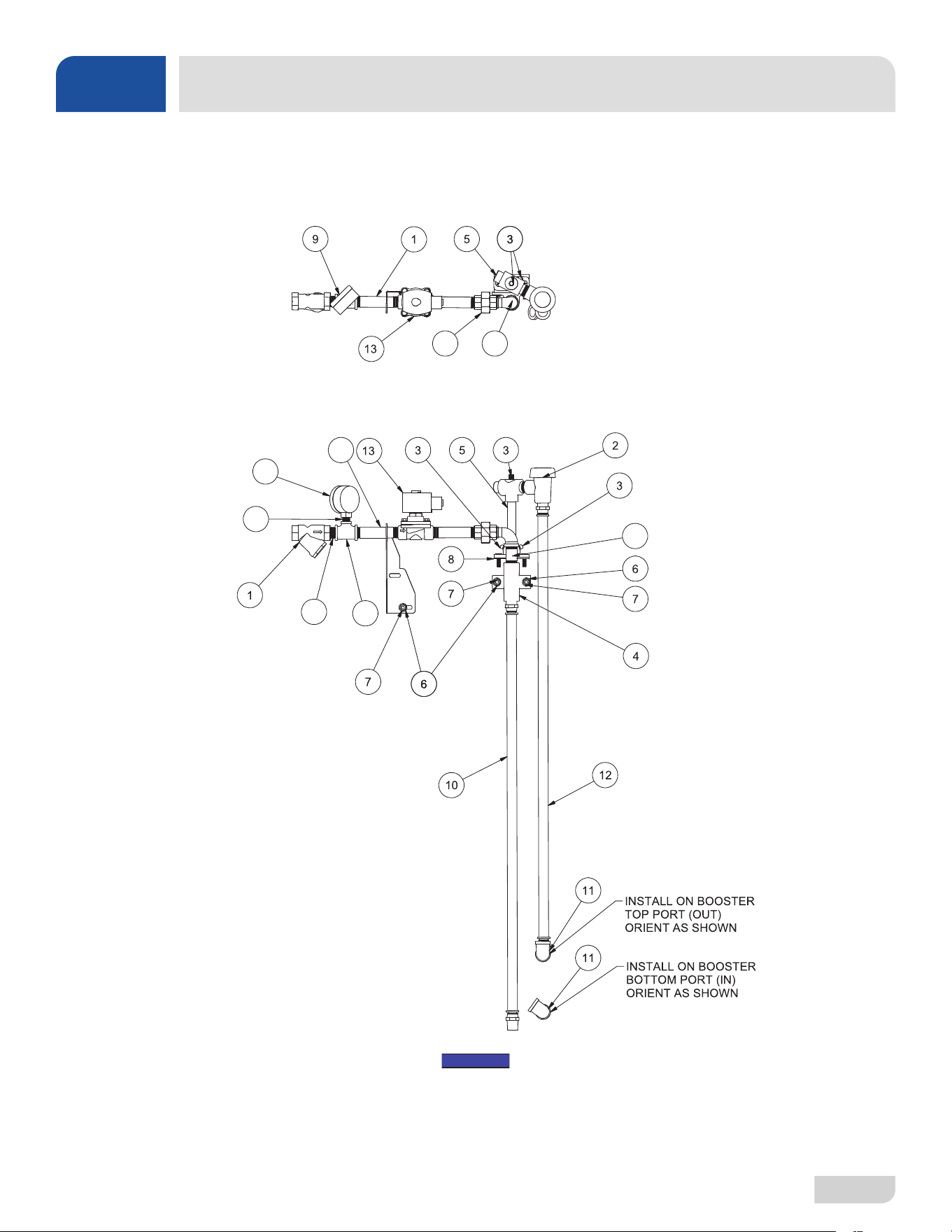

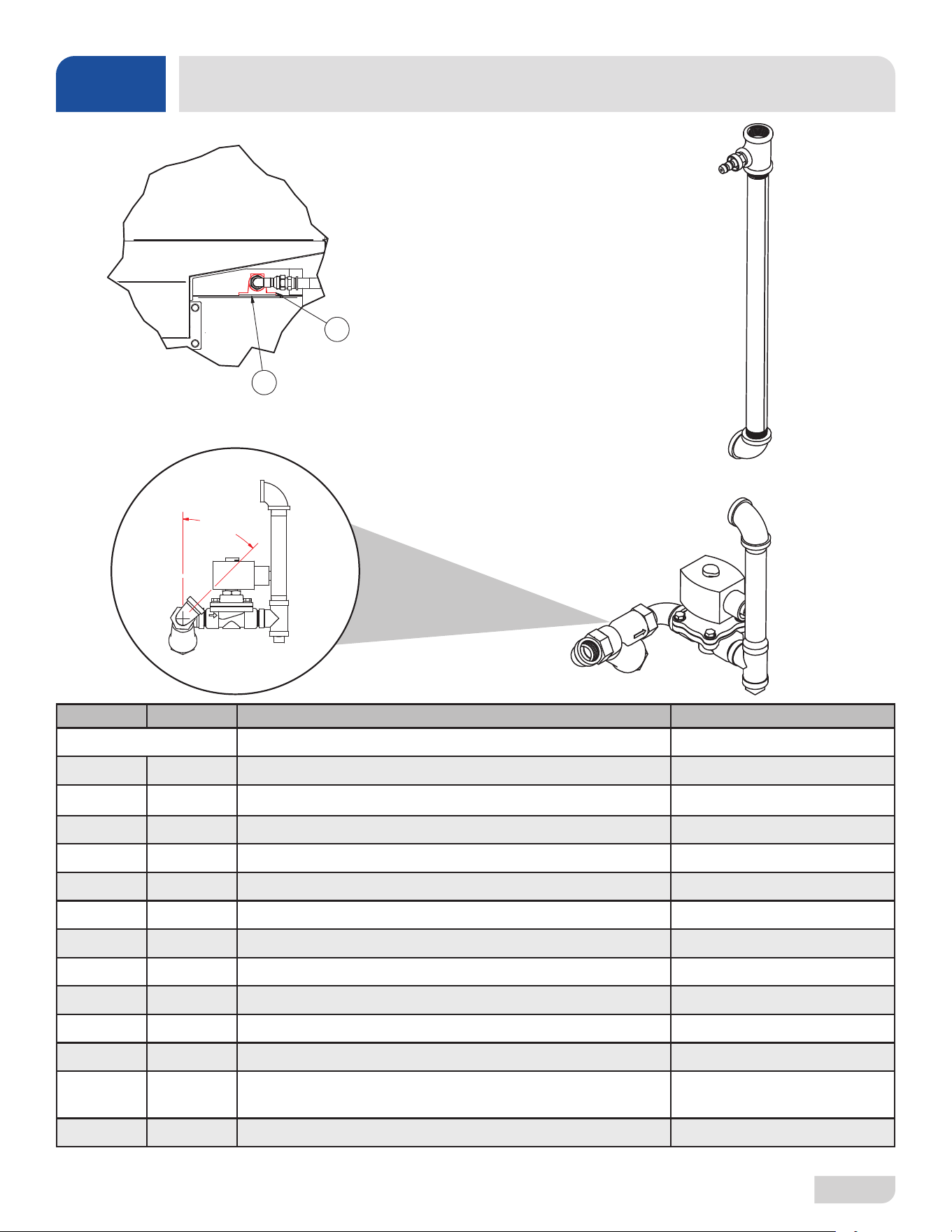

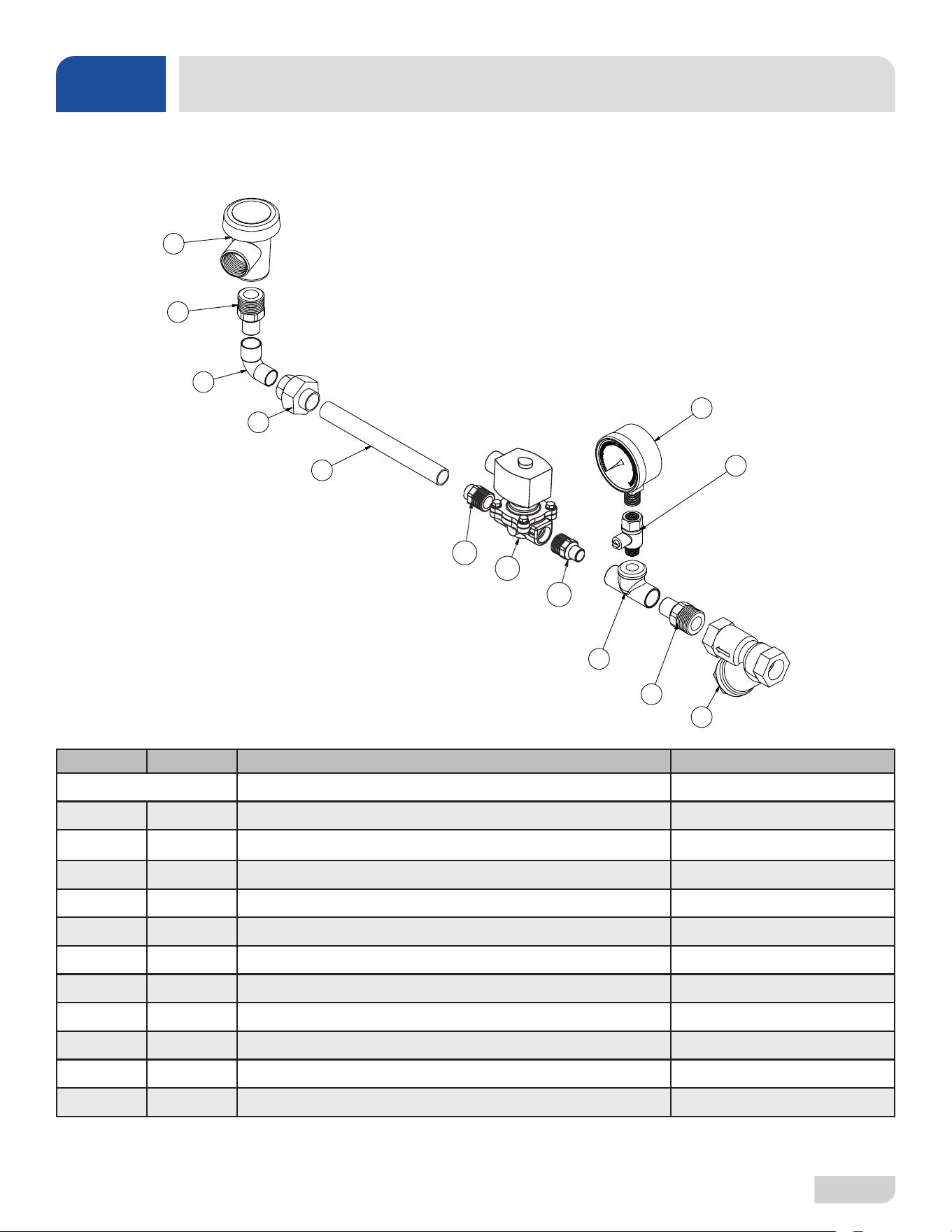

Plumbing Options ..................................................................................................................... 59

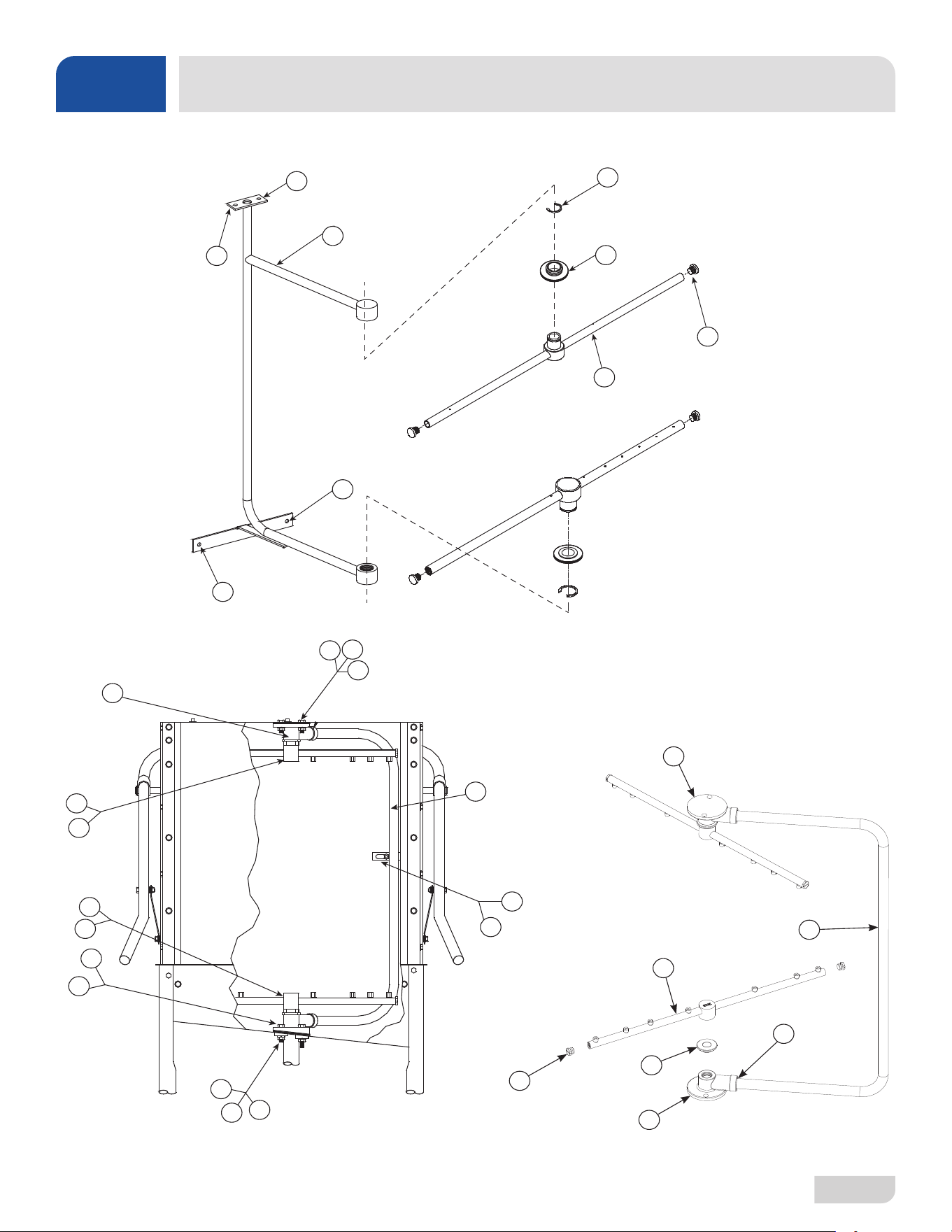

Wash & Rinse Assemblies ........................................................................................................ 60

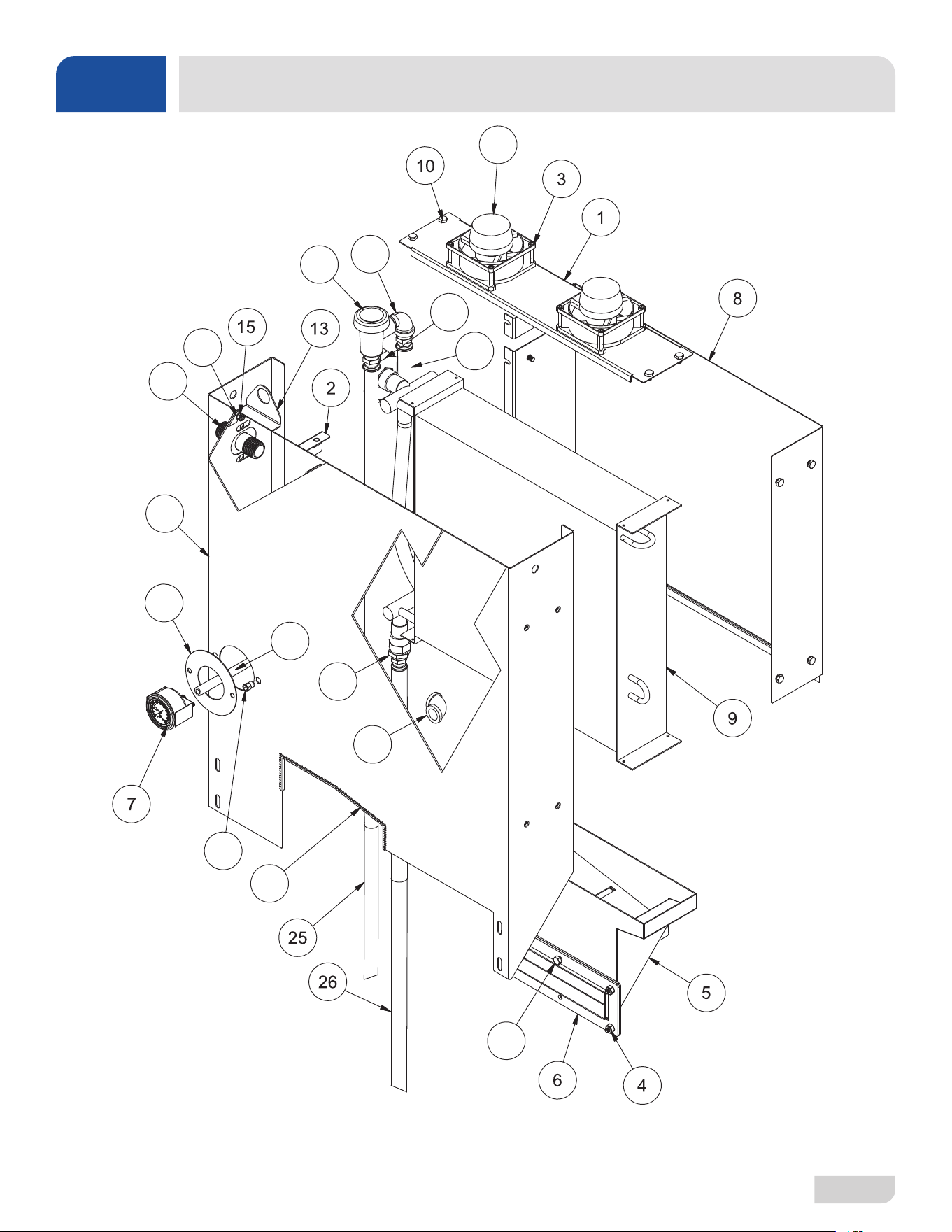

VER System ............................................................................................................................. 62

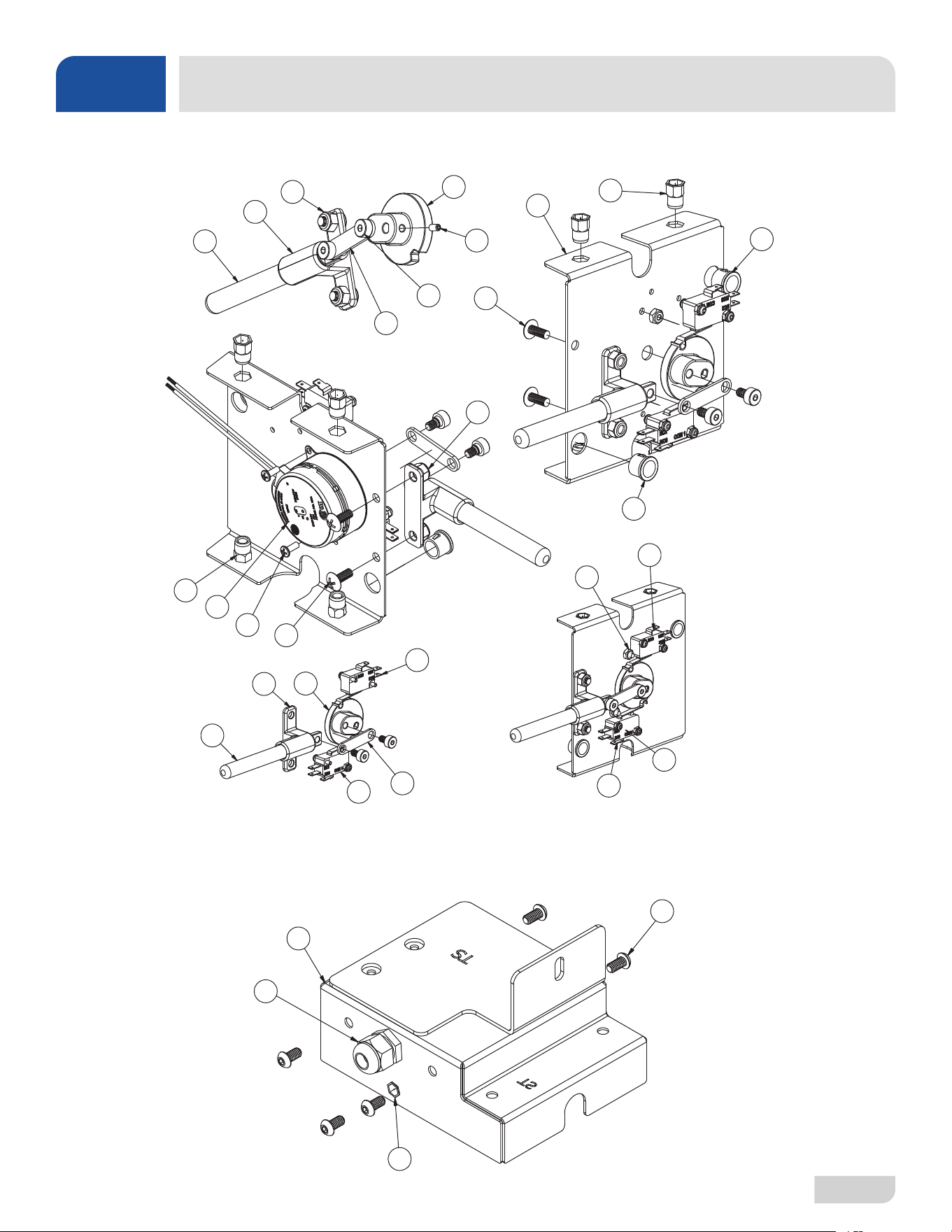

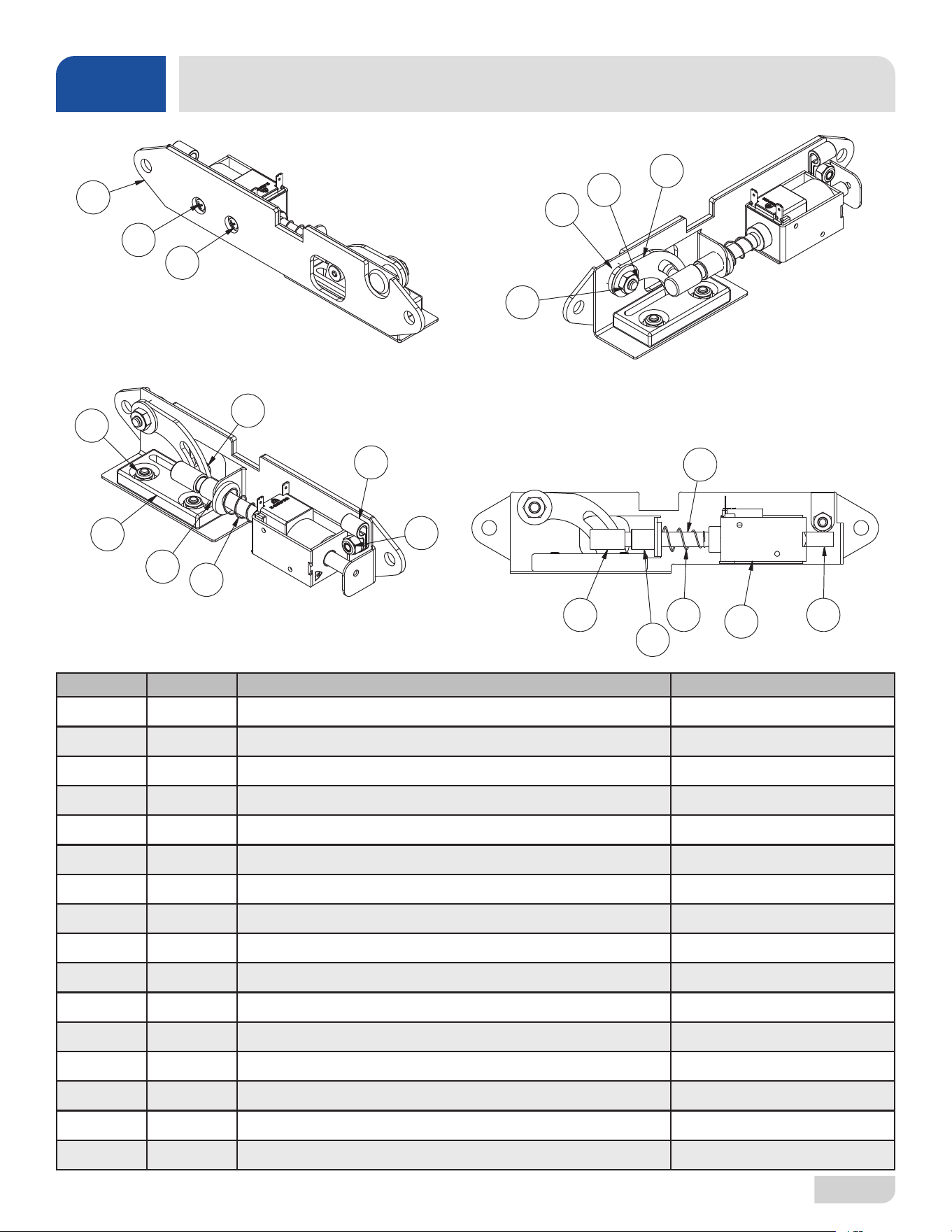

VER Door Interlock ................................................................................................................... 64
FL-VER Door Interlock ............................................................................................................. 66

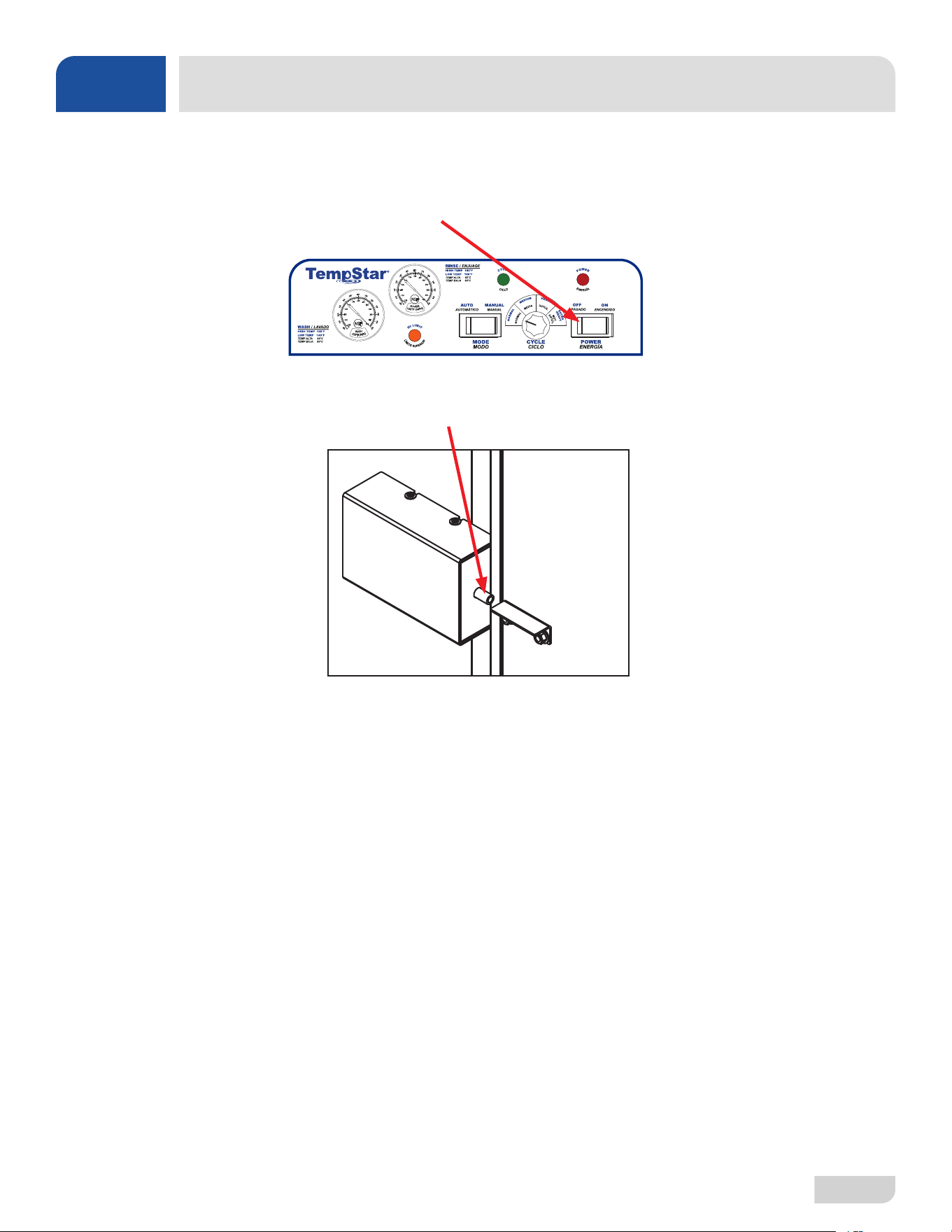

VER Door Interlock Override .................................................................................................... 67

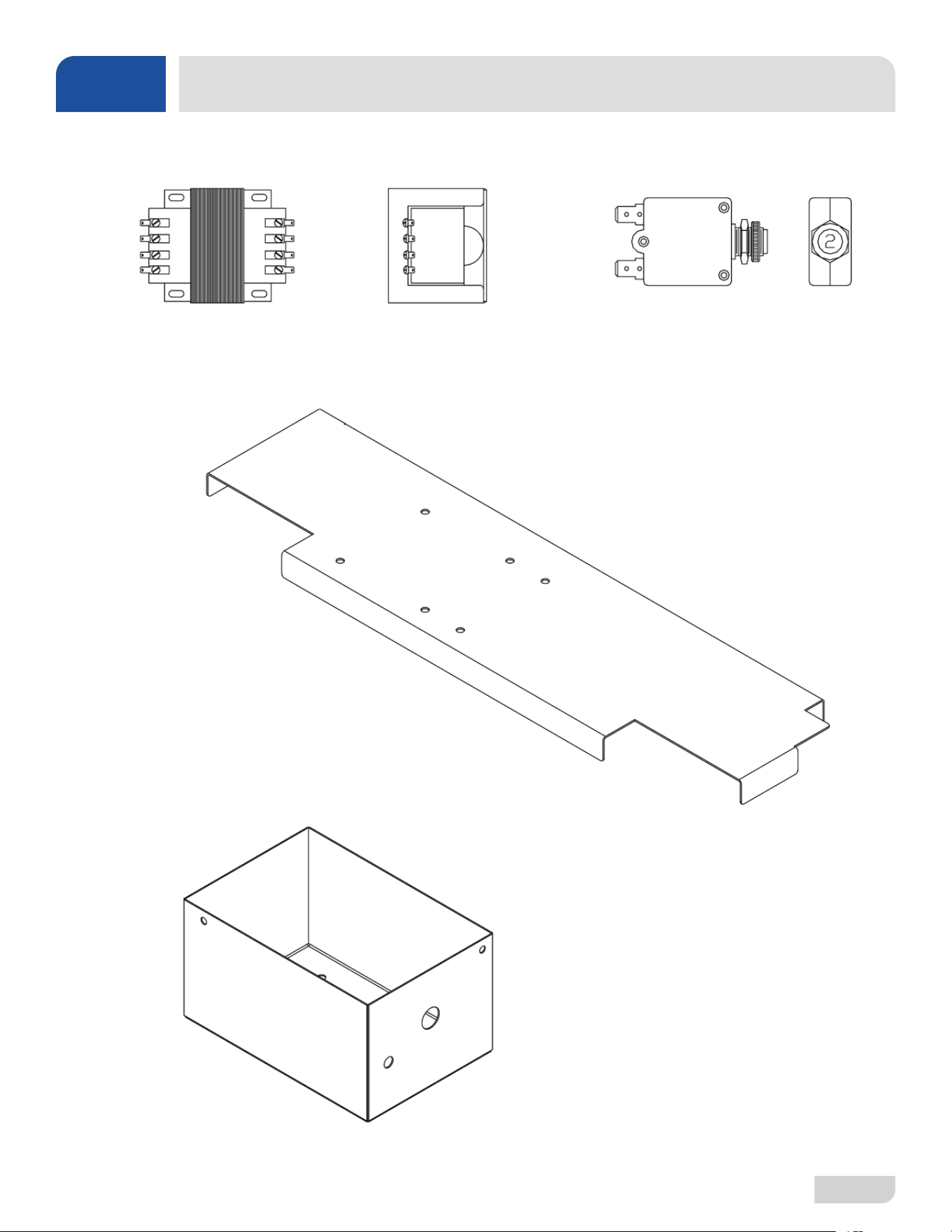

460 V Machine Transformer Mounting Box .............................................................................. 68
Kits ........................................................................................................................................... 69
SCHEMATICS

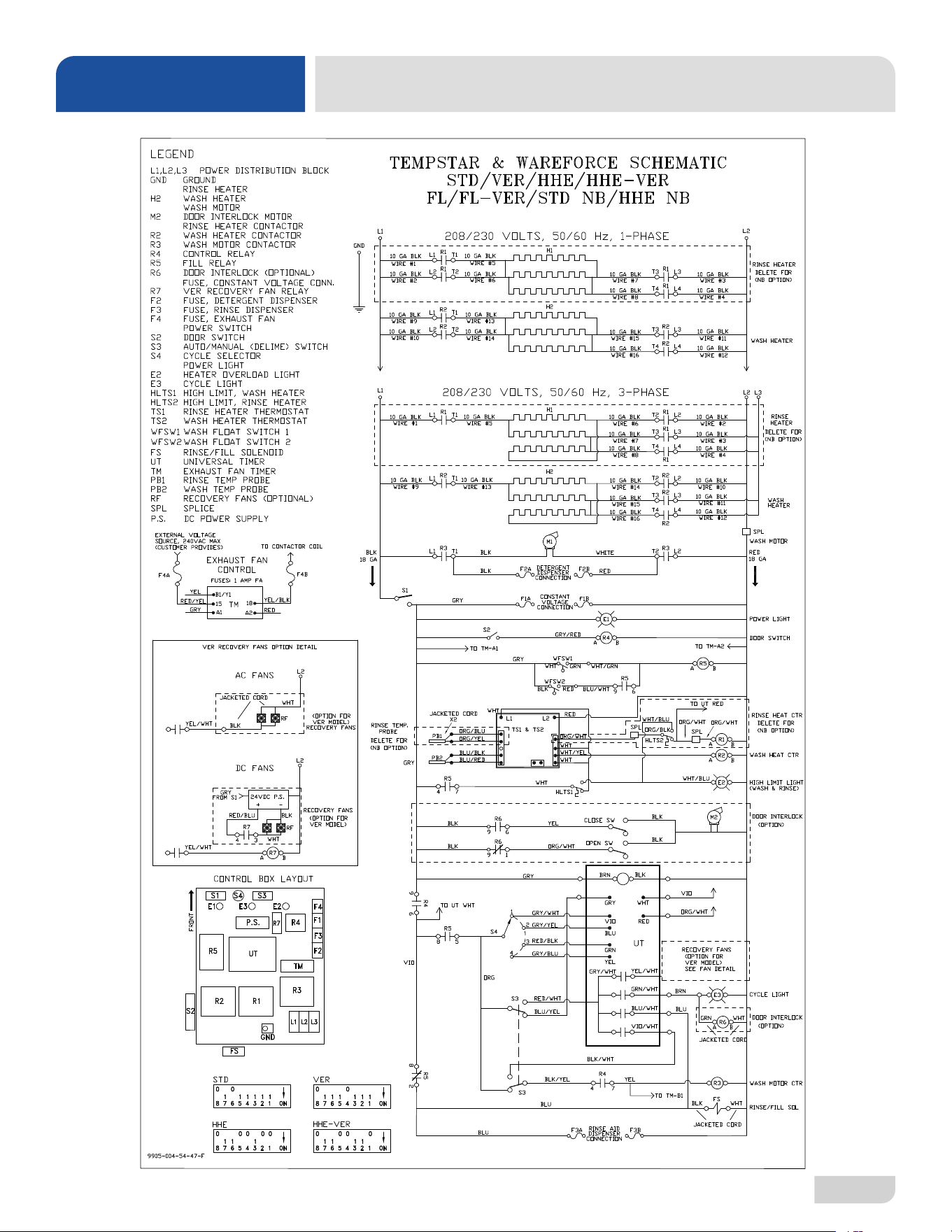

208-230 V ................................................................................................................................. 70
460 V ........................................................................................................................................ 71
NB, 208-230 V .......................................................................................................................... 72
NB, 460 V ................................................................................................................................. 73
Steam, 208-230 V .................................................................................................................... 74
SDI Options .............................................................................................................................. 75
TABLE OF CONTENTS
1
07610-003-61-42-Z
GUIDES
GUIDES
SYMBOLS
ABBREVIATIONS & ACRONYMS
ANSI - American National Standards Institute
Btu/Hr - British Thermal Units per Hour
CFM - Cubic Feet per Minute
GHT - Garden Hose Thread
GPH - Gallons per Hour
GPM - Gallons per Minute
GPG - Grains per Gallon
HP - Horsepower
Hz - Hertz
ID - Inside Diameter
kW - Kilowatts
MCA - Minimum Circuit Ampacity
MOP - Maximum Overcurrent Protection
NFPA - National Fire Protection Association
NPT - National Pipe Thread
OD - Outside Diameter
PRV - Pressure Regulating Valve
PSI - Pounds per Square Inch
V - Volts
!
CAUTION
!
WARNING
NOTICE
- Risk of Injury to Personnel
- Risk of Damage to Equipment
- Risk of Electrical Shock
- Lockout Electrical Power
- Reference Data Plate
- Important Note
i
- Caustic Chemicals
- Instructions Hyperlink
07610-003-61-42-Z
2
LEGEND
A - Water Inlet (1/2” NPT)
B - Electrical Connection Point
C - Drain (1 1/2” NPT)
can be increased 1 1/8" using the
machine's adjustable feet.
A
B
B
C
C
C
B
U
U
D - Optional Steam Connection (3/4” NPT)
D
D
SPECIFICATIONS

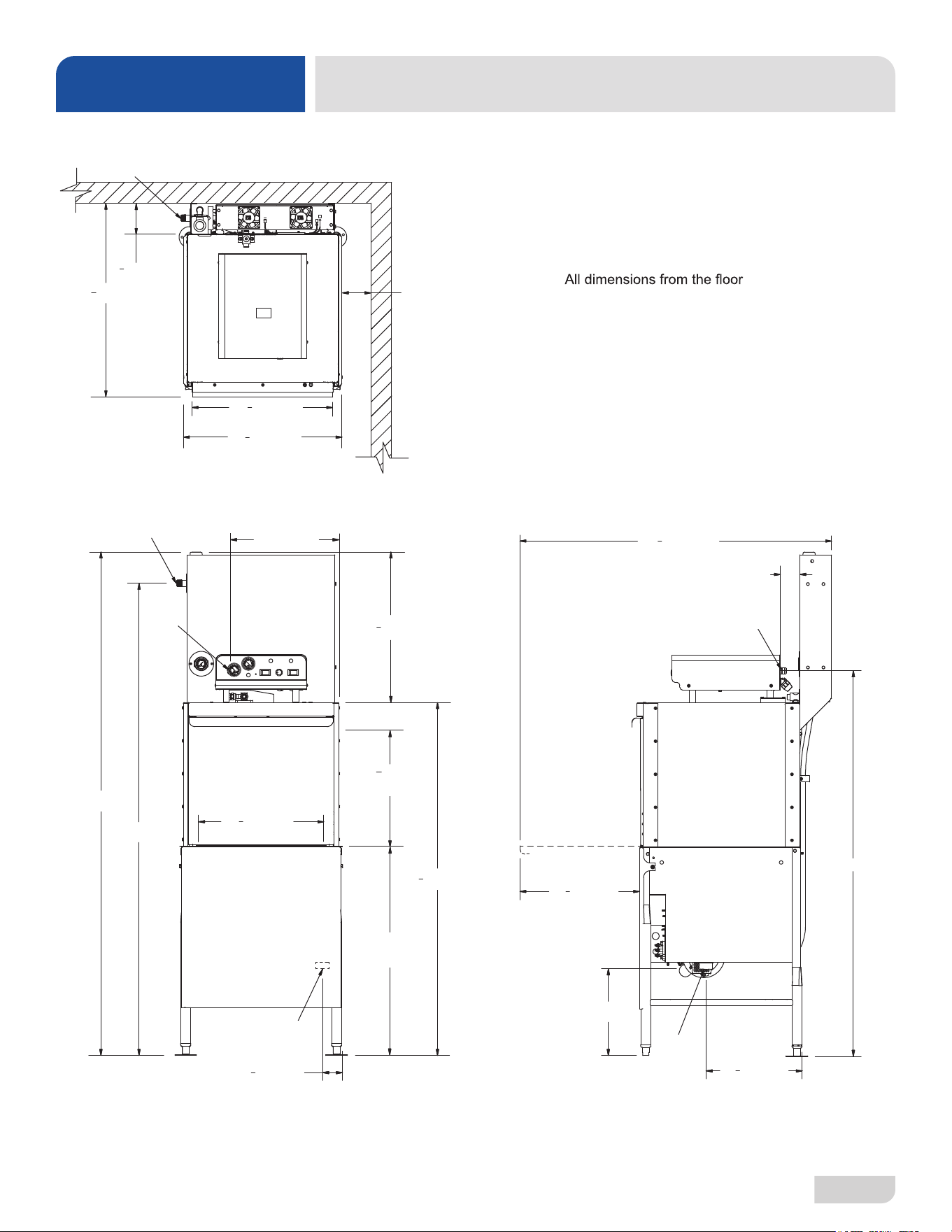

TEMPSTAR/NB/S DIMENSIONS
3
07610-003-61-42-Z
61
3
4
(1569 mm)
64 (1635 mm)
14 (356 mm)
4
3
4
(120 mm)
15
1
2
(394 mm)
C
A
A
LEGEND
A - Drain (1 1/2" NPT)
B - Water Inlet (3/4" NPT)
C - Electrical Connection
4 (102 mm)
MINIMUM
28 (711 mm)
23
1
2
(597 mm)
26 (668 mm)
can be increased 1 1/8" using the
machine's adjustable feet.
15
5
8
(397 mm)
CLEARANCE
A
A
A
A
B
B
34 (864 mm)
TABLE HEIGHT
20
3
4
(527 mm)
OPENING
3
8
19
5
8
(500 mm)
DOOR OPEN
47
5
8
(1210 mm)
3
8
B
C
17 (432 mm)
C
60 (1527 mm)
4 (102 mm)
MINIMUM
Lorem ipsum
SPECIFICATIONS
TEMPSTAR FL DIMENSIONS
07610-003-61-42-Z
4
SPECIFICATIONS
TEMPSTAR VER DIMENSIONS
57
3
4
(1468 mm)
24
1
4
(616 mm)
82 (2083 mm)
17 (432 mm)
77 (1956 mm)
14 (356 mm)
4
3
4
(120 mm)
3 (79 mm)
15
1
2
(394 mm)
60 (1527 mm)
C
A
B
C
A
LEGEND
A - Drain (1 1/2" NPT)
B - Water Inlet (3/4" NPT)
C - Electrical Connection
5
1
4
(134 mm)
4 (102 mm)
MINIMUM
30
7
8
(785 mm)
25
1
4
(641 mm)
32 (813 mm)
can be increased 1 1/8" using the
machine's adjustable feet.
17
1
4
(438 mm)
CLEARANCE
A
A
A
A
C
A
C
B
B
34 (864 mm)
TABLE HEIGHT
5
07610-003-61-42-Z
SPECIFICATIONS
TEMPSTAR FL-VER DIMENSIONS
57
3
4
(1468 mm)
1
4
(616 mm)
82 (2083 mm)
77 (1956 mm)
14 (356 mm)
4
3
4
(120 mm)
15
1
2
(394 mm)
C
A
A
LEGEND
A - Drain (1 1/2" NPT)
B - Water Inlet (3/4" NPT)
C - Electrical Connection
5
1
4
(134 mm)
4 (102 mm)
MINIMUM
32
1
4
(819 mm)
23
1
2
(597 mm)
26 (668 mm)
can be increased 1 1/8" using the
machine's adjustable feet.
15
5
8
(397 mm)
CLEARANCE
A
A
A
A
B
B
34 (864 mm)
TABLE HEIGHT
24
20
3
4
(527 mm)
OPENING
3
8
19
5
8
(500 mm)
DOOR OPEN
50
3
4
(1289 mm)
17 (432 mm)
C
3 (79 mm)
60 (1527 mm)
C
A
C
07610-003-61-42-Z
6
30
(762 mm)
8 7/16
(214 mm)
20 1/2”
(521 mm)
OPENING
4 (102 mm) MIN
ALIGN WITH TABLE -
DISTANCE CAN VARY
4 (102 mm) MIN
ALIGN WITH TABLE -
DISTANCE CAN VARY
8 7/16
(214 mm)
Distance from wall
to rear rack rail.
Distance from wall
to right rack rail.
Control Panel
1 1/4”
[32 mm]
1 3/8”
[35 mm]
20 1/2”
[521 mm]
OPENING
30
(762 mm)
8 7/16
(214 mm)
20 1/2”
(521 mm)
OPENING
4 (102 mm) MIN
ALIGN WITH TABLE -
DISTANCE CAN VARY
Distance from wall
to rear rack rail.
Control Panel
20 1/2”
(521 mm)
OPENING
CORNER INSTALLATION
STRAIGHT-THROUGH INSTALLATION
TABLE DIMENSIONS
SPECIFICATIONS
For corner
install instructions:
CORNER INSTALLATION
STRAIGHT-THROUGH INSTALLATION
7
07610-003-61-42-Z
PERFORMANCE/CAPABILITIES
Operating Capacity:
TempStar/FL/NB/S
Racks per Hour 63 (58*) (41**)
Dishes per Hour 1575
Glasses per Hour 2268
VER/FL-VER
Racks per Hour 41 (39*) (30**)
Dishes per Hour 1025
Glasses per Hour 1476
Minimum Operating Cycle (seconds):
TempStar/FL/NB/S
Wash Time 40
Rinse Time 13
Dwell Time 4
Total Cycle Time 57
VER/FL-VER
Wash Time 40
Rinse Time 13
Dwell Time 4
Condensate Removal 30
Total Cycle Time 87
Tank Capacity (Gallons/Liters):
Wash Tank 8.0/30.3
Rinse Tank 2.0/7.6
Steam Requirements:
Coil Size 3/4"
Steam Flow Pressure (PSI) 10-30
Consumption at 15 PSI (lbs/hr) 45
OPERATING PARAMETERS
SPECIFICATIONS
WATER REQUIREMENTS
TempStar/FL/VER/FL-VER
Minimum Wash Temperature (°F/°C) 150/66
Minimum Rinse Temperature (°F/°C) 180/83
Inlet Water Temperature:
12 kW Rinse Heater (°F/°C) 140/60
14 kW Rinse Heater (°F/°C) 110/44
VER/FL-VER (°F/°C) 40-90/4.4-32.2
Flow Pressure (PSI) 10 ± 2
Water Line Size 1/2”
Water Line Size (VER) 3/4"
Drain Line Size 1 1/2”
NB
Minimum Wash Temperature (°F/°C) 150/66
Minimum Rinse Temperature (°F/°C) 180/83
Inlet Water Temperature (°F/°C) 180/83
Flow Pressure (PSI) 10 ± 2
Water Line Size 1/2”
Drain Line Size 1 1/2”
S
Minimum Wash Temperature (°F/°C) 150/66
Minimum Rinse Temperature (°F/°C) 180/83
Inlet Water Temperature (°F/°C) 180/83
Flow Pressure (PSI) 10 ± 2
Water Line Size 3/4”
Drain Line Size 1 1/2”
ENERGY SPECIFICATIONS
VER/FL-VER
Latent Heat 6326 Btu/Hr
Sensible Heat 4685 Btu/Hr
Always refer to the machine data plate for specic electrical and water requirements. The material provided on
this page is for reference only and is subject to change without notice.
NOTICE
i
*Racks per hour calculated with NSF-suggested load time of :05 for door-type dishmachines (straight-through).
**Racks per hour for FL and FL-VER calculated with NSF-suggested load time of :30 for front-opening dishmachines.
07610-003-61-42-Z
8
ELECTRICAL REQUIREMENTS
SPECIFICATIONS
TempStar/FL 70° Rise (14 kW) & VER/FL-VER
Local codes may require more stringent protection than what is displayed here and on the data plate. Always verify with
your electrical service contractor that your circuit protection is adequate and meets all applicable national and local codes.
Numbers in this manual are for reference and may change without notice. On three-phase machines, imbalanced wild leg
goes to L3. Also see the Motor Rotation section.
Volts Phase Freq
Wash
Motor
Wash
Heater
Rinse
Heater
Total Load MCA MOP
208 3 60 Hz 5.0 A 11.4 A 29.2 A 45.6 A 46.9 A 50 A
230 3 60 Hz 5.0 A 12.6 A 32.3 A 49.9 A 51.2 A 55 A
460 3 60 Hz 1.24 A 6.3 A 16.1 A 23.7 A 24.0 A 25 A
208 1 60 Hz 5.0 A 19.7 A 50.6 A 75.3 A 76.6 A 80 A
230 1 60 Hz 5.0 A 21.8 A 55.9 A 82.7 A 84.0 A 90 A
208 3 50 Hz 7.8 A 11.4 A 29.2 A 48.4 A 50.3 A 55 A
230 3 50 Hz 7.8 A 12.6 A 32.3 A 52.6 A 54.6 A 60 A
380 3 50 Hz 1.7 A 8.3 A 21.3 A 31.3 A 31.7 A 35 A
415 3 50 Hz 1.7 A 7.6 A 14.6 A 23.8 A 24.3 A 25 A
208 1 50 Hz 7.8 A 19.7 A 50.6 A 78.0 A 80.0 A 85 A
230 1 50 Hz 7.8 A 21.8 A 55.9 A 85.5 A 87.4 A 95 A
TempStar/FL 40° Rise (12 kW)
Volts Phase Freq
Wash
Motor
Wash
Heater
Rinse
Heater
Total Load MCA MOP
208 3 60 Hz 5.0 A 11.4 A 25.0 A 41.4 A 42.7 A 45 A
230 3 60 Hz 5.0 A 12.6 A 27.7 A 45.3 A 46.6 A 50 A
460 3 60 Hz 1.24 A 6.3 A 13.8 A 21.4 A 21.7 A 25 A
208 1 60 Hz 5.0 A 19.7 A 43.3 A 68.0 A 69.3 A 70 A
230 1 60 Hz 5.0 A 21.8 A 47.9 A 74.7 A 76.0 A 80 A
208 3 50 Hz 7.8 A 11.4 A 25.0 A 44.2 A 46.1 A 50 A
230 3 50 Hz 7.8 A 12.6 A 27.7 A 48.0 A 50.0 A 55 A
380 3 50 Hz 1.7 A 8.3 A 31.6 A 41.6 A 42.0 A 45 A
415 3 50 Hz 1.7 A 7.6 A 21.6 30.9 A 31.3 A 35 A
208 1 50 Hz 7.8 A 19.7 A 43.3 A 70.8 A 72.8 A 80 A
230 1 50 Hz 7.8 A 21.8 A 47.9 A 77.5 A 79.4 A 85 A
i
9
07610-003-61-42-Z
ELECTRICAL REQUIREMENTS
SPECIFICATIONS
TempStar NB
Volts Phase Freq
Wash
Motor
Wash
Heater
Total Load MCA MOP
208 3 60 Hz 5.0 A 11.4 A 16.4 A 17.7 A 20 A
230 3 60 Hz 5.0 A 12.6 A 17.6 A 18.9 A 20 A
460 3 60 Hz 1.24 A 6.3 A 7.5 A 7.8 A 15 A
208 1 60 Hz 5.0 A 19.7 A 24.7 A 26.0 A 30 A
230 1 60 Hz 5.0 A 21.8 A 26.8 A 28.1 A 30 A
208 3 50 Hz 7.8 A 11.4 A 19.2 A 21.1 A 25 A
230 3 50 Hz 7.8 A 12.6 A 20.4 A 22.3 A 30 A
380 3 50 Hz 1.7 A 8.3 A 10.0 A 10.4 A 15 A
415 3 50 Hz 1.7 A 7.6 A 9.3 A 9.7 A 15 A
208 1 50 Hz 7.8 A 19.7 A 27.5 A 29.4 A 35 A
230 1 50 Hz 7.8 A 21.8 A 29.6 A 31.5 A 35 A
TempStar S
Volts Phase Freq
Wash
Motor
Total Load MCA MOP
208 3 60 Hz 5.0 A 5.0 A 6.3 A 15 A
230 3 60 Hz 5.0 A 5.0 A 6.3 A 15 A
460 3 60 Hz 1.24 A 1.24 A 1.6 A 15 A
208 1 60 Hz 5.0 A 5.0 A 6.3 A 15 A
230 1 60 Hz 5.0 A 5.0 A 6.3 A 15 A
Local codes may require more stringent protection than what is displayed here and on the data plate. Always verify with
your electrical service contractor that your circuit protection is adequate and meets all applicable national and local codes.
Numbers in this manual are for reference and may change without notice. On three-phase machines, imbalanced wild leg
goes to L3. Also see the Motor Rotation section.
i
07610-003-61-42-Z
10
INSTRUCTIONS
INSTALLATION
Before installing the machine, check packaging and machine for damage. If packaging
is damaged, the machine might also be damaged. If there is damage to both
packaging and machine, do not throw away the packaging. The machine has been
inspected and packed at the factory and is expected to arrive in new, undamaged
condition. However, rough handling by carriers or others might result in damage to the
machine while in transit. If so, do not return the machine to the manufacturer. Instead,
contact the carrier and ask them to send a representative to the site to inspect the
damage and complete an inspection report. You must contact the carrier and the
dealer within 48 hours of receiving the machine.
Unpack the machine and ensure there are no missing parts. If an item is missing,
contact the manufacturer immediately. VER system for VER/FL-VER models ships
in separate packaging and must be installed before proceeding with machine
installation.
1. Ensure hoses are connected to VER system.
2. Locate bag inside the machine with four 1/4-20 bolts. These secure VER system
to the machine.
INSPECTION
UNPACKING
Do not throw away
packaging if damage is
evident!
VER SYSTEM
ASSEMBLY
Short
Red
Hose
Gauge
Hose
Long
Red
Hose
Blue
Hose
Locate bolts in bag
inside the machine.
11
07610-003-61-42-Z
INSTRUCTIONS
INSTALLATION

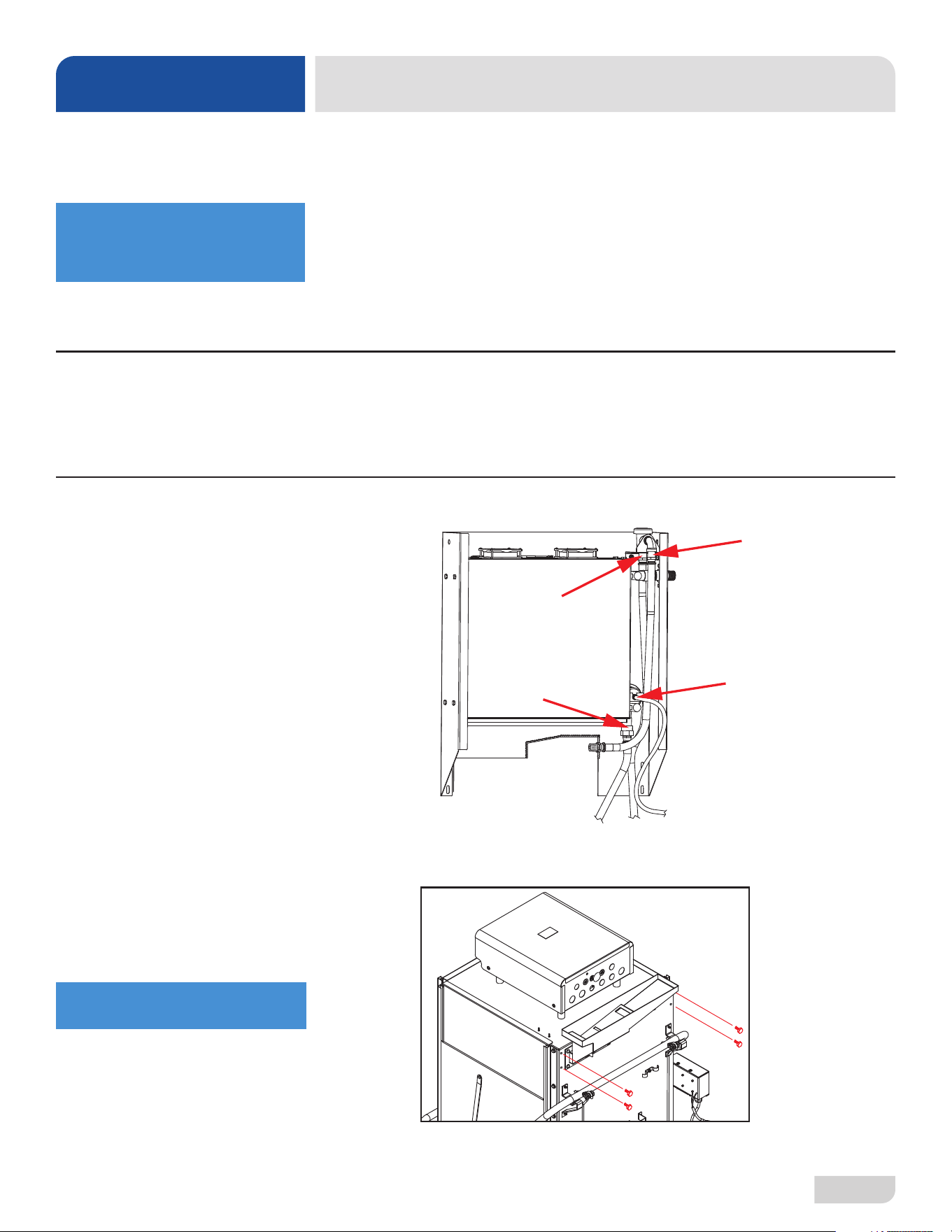

3. Lift VER system up and over lower air inlet, then align and slide into lower air
inlet. VER system slides inside lower air inlet at the seam.
4. Install four 1/4-20 bolts located in Step 1 with 7/16 wrench.
5. Use 9/16 wrench to connect gauge hose to side of tee on plumbing from
booster.
7/16 wrench used in this step.
Bolts located in Step 1
used in this step.
WARNING! Use proper lifting
techiques or use a lifting aid.
!
WARNING
9/16 wrench used
in this step.
Apply thread tape to threads of
hose before connecting.
Hose is cut-to-length and
will only reach intended
connection point.
Lower
Air
Inlet
Seam
VER SYSTEM
ASSEMBLY
07610-003-61-42-Z
12
INSTRUCTIONS
INSTALLATION
6. Use adustable wrench to connect long red hose to top of tee on plumbing from
booster.
7. Use adustable wrench to connect short red hose to rinse injector.
8. Use adustable wrench to connect blue hose to coupling on plumbing going to
booster.
Adjustable wrench used
in this step.
Apply thread tape to threads of
hose before connecting.
Hose is cut-to-length and
will only reach intended
connection point.
Adjustable wrench used
in this step.
Apply thread tape to threads of
hose before connecting.
Hose is cut-to-length and
will only reach intended
connection point.
Adjustable wrench used
in this step.
Apply thread tape to threads of
hose before connecting.
Hose is cut-to-length and
will only reach intended
connection point.
VER SYSTEM
ASSEMBLY
13
07610-003-61-42-Z
INSTRUCTIONS
INSTALLATION

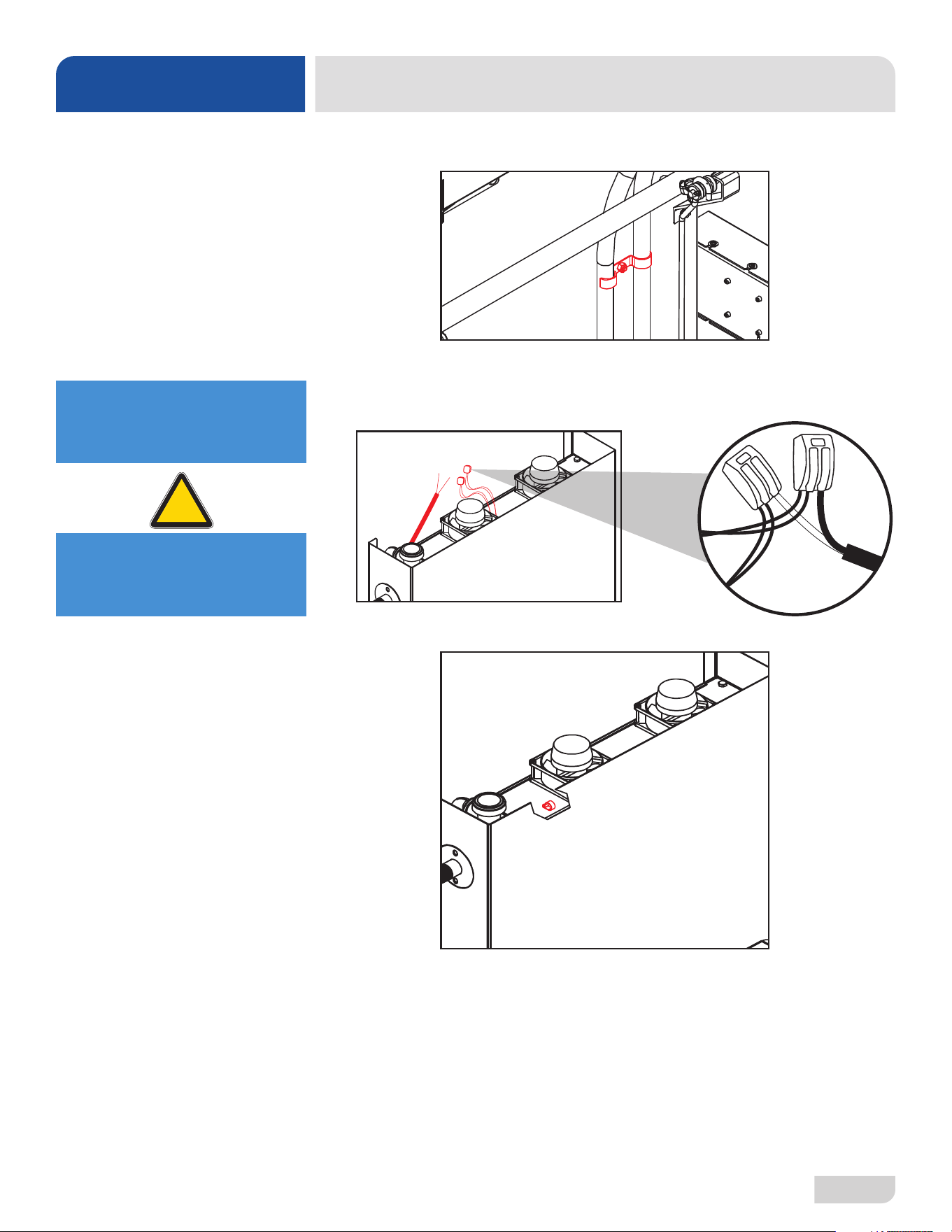

9. Tidy hoses by sliding them under clamps.
10. Locate wire connectors at top of VER system (near fans) and connect black
wire and white wire from machine control box (located in black cord routed from
control box), black in one connector and white in the other.
11. Tidy wires and lock them in place with p-clamp on top of VER system.
12. VER system is now assembled.
CAUTION! Fan wires must be
connected to black wire and
white wire before proceeding
with machine installation!
!
CAUTION
Black wire and white wire
are shipped disconnected on
end shown, but are already
connected inside control box.
VER SYSTEM
ASSEMBLY
07610-003-61-42-Z
14
The machine must be level in its operating location to prevent damage to the machine
during operation and to ensure best results. The machine comes with four adjustable
bullet feet, which can be turned using a pair of channel locks (or by hand if the
machine can be raised safely). Ensure that the machine is level from side-to-side and
front-to-back before making any connections.
Plumbing connections must comply with all applicable local, state, and national
plumbing codes. The plumber is responsible for ensuring the incoming water line is
thoroughly ushed before connecting it to any component of the machine. It is very
important to remove all foreign debris from the water line that might potentially get
trapped in the valves or cause an obstruction. Any valves that are fouled as a result of
foreign matter left in the water line—and any expenses resulting from this fouling—are
not the responsibility of the manufacturer.
A water hardness test must be performed to determine if a water treatment system
needs to be installed.
If water hardness tests at greater than 3 GPG, install the Scaltrol Water Treatment
system (see the Plumbing Options page) into the water line before the machine’s
incoming water connection point. A water shut-off valve should be installed to allow
access for service.
If water hardness tests at lower than 3 GPG, install the water supply line directly to
the machine’s incoming water connection point. A water shut-off valve should be
installed to allow access for service.
LEVELING
PLUMBING
A water hardness test
MUST be performed.
WATER SUPPLY
CONNECTION:
WATER HARDNESS
GREATER THAN
3 GPG
WATER SUPPLY
CONNECTION:
WATER HARDNESS
LOWER THAN 3 GPG
Plumber MUST ush the
incoming water line!
INSTRUCTIONS
INSTALLATION

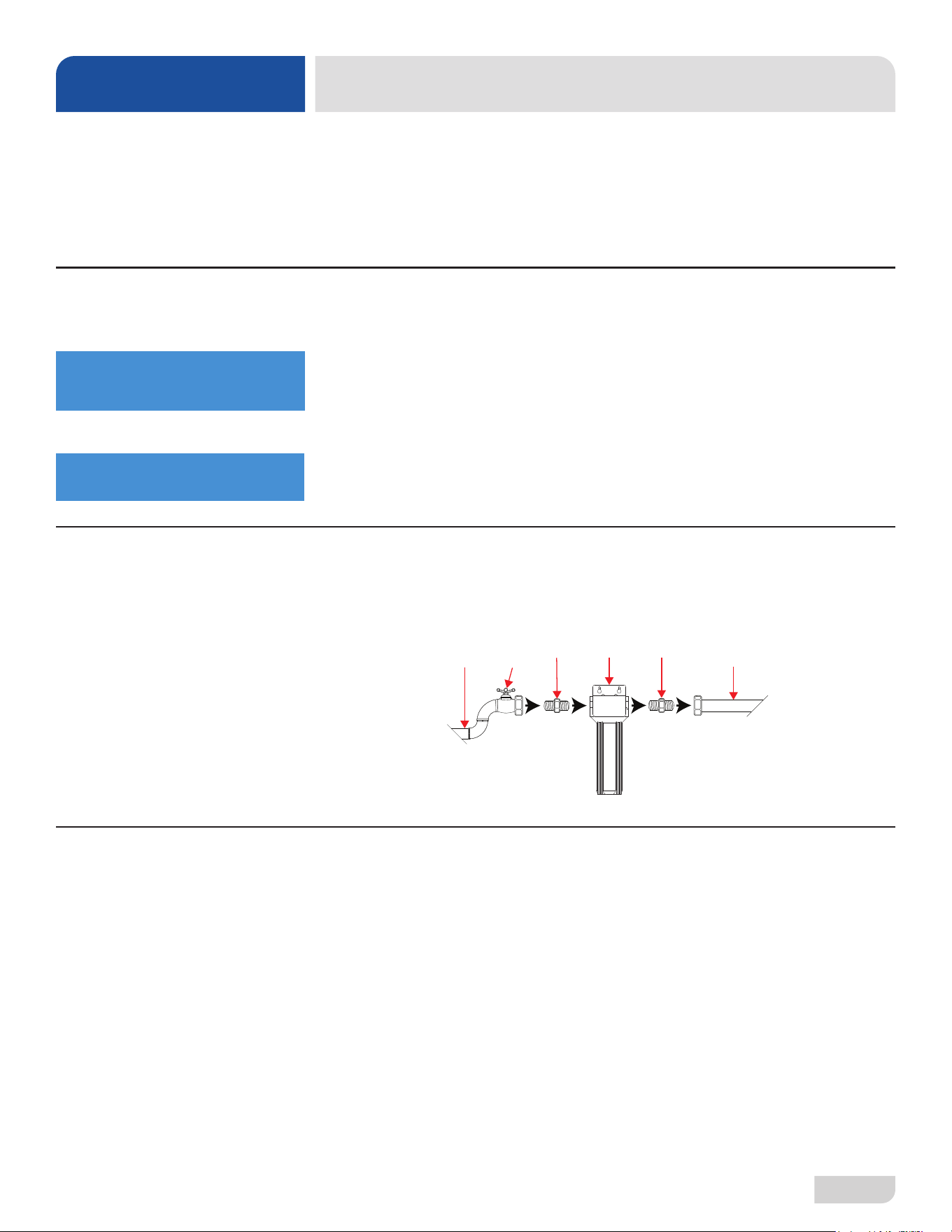

Shut-off
Valve
Adapter AdapterScaltrol Machine
Water Line
Facility
Water Line
* *
*Adapters needed will vary.
15
07610-003-61-42-Z
PRESSURE
REGULATOR
SHOCK ABSORBER
CONNECTING THE
DRAIN LINE
Steam model comes with lines to connect the source steam. Connect all steam
lines to the machine as all applicable codes provide. See machine data plate for
information concerning steam ow pressure. Click here or on the instructions icon for
the Steam Booster manual.
The manufacturer recommends installation of a pressure regulating valve (PRV)
in the incoming water line to ensure proper owrate at all times and offers these
devices as options (see the Plumbing Options page). The PRV comes standard on
the TempStar VER but ships inside the machine. Click here for install instructions.
Do not confuse static pressure with ow pressure. Static pressure is the line
pressure in a “no ow” condition (all valves and services are closed). Flow pressure
is the pressure in the ll line when the ll valve is opened during the cycle.
The manufacturer also recommends installation of a shock absorber in the incoming
water line and offers these devices as options (see the Plumbing Options page).
This prevents line hammer/hydraulic shock—induced by the solenoid valve as it
operates—from causing damage to the equipment.
The machine's drain is a gravity-discharge drain. All piping from the 1 1/2” NPT
connection on the wash tank must be pitched (1/4” per foot) to the oor or sink drain.
All piping from the machine to the drain must be a minimum 1 1/2” NPT and must not
be reduced. There must also be an air-gap between the machine drain line and the
oor sink or drain. If a grease trap is required by code, it should have a ow capacity
of 5 GPM.
Determine which exhaust fan timer is on the machine (located in the control box)
and click the instructions icon below that timer to access programming instructions.
STEAM LINE
CONNECTION
EXHAUST FAN
TIMER
INSTRUCTIONS
INSTALLATION
07610-003-61-42-Z
16
INSTRUCTIONS
INSTALLATION
CHEMICAL
CONNECTIONS
PLUMBING CHECK
Slowly turn on water supply to the machine after incoming ll line and drain line
have been installed. Check for any leaks and repair as required. All leaks must be
repaired before operating the machine.
Detergent
Connect detergent by removing bulkhead tting on back of the machine and
replacing it with appropriate dispensing equipment.
Chemical connections
should be made by
chemical supplier.
Rinse-aid
Connect rinse-aid by removing brass plug at base of rinse injector and replacing it
with appropriate dispensing equipment. See Plumbing - VER page for a depiction of
VER rinse injector.
Rinse-aid
Using deionized water or
other aggressive uids
will result in corrosion and
failure of components and
will void the warranty.
WARNING! Some of the
chemicals used in
dishwashing can cause
chemical burns if they
come in contact with skin.
Wear protective gear when
handling these chemicals.
If any skin comes in
contact with these
chemicals, immediately
follow the instructions
provided with the
chemicals for treatment.
!
WARNING
Dispenser Electrical Connections
Electrical connections for chemical dispensers are made on a fuse block inside
control box. Click here for a depiction of fuse block and connection locations.
Detergent Probe
Installs Here
17
07610-003-61-42-Z
INSTRUCTIONS
INSTALLATION
Electrical and grounding conductors must comply with applicable portions of
National Electric Code ANSI/NFPA 70 (latest edition) and/or other electrical codes.
Data plate is located on right side of the machine. Refer to data plate for machine
operating requirements, machine voltage, total amperage, and serial number.
1. Open control box by using a phillips screwdriver to remove four screws on front
cover of control box.
2. Install 3/4” conduit into pre-punched holes in back of control box.
3. Route power wires and connect to power block and grounding lug.
4. Install service wires (L3 for 3-Phase only) to appropriate terminals as they are
marked on terminal block.
5. Install grounding wire into lug provided.
6. Tighten connections.
“DE-OX” or similar anti-oxidation agent should be used on all power
connections.
CAUTION! Improperly connecting external devices can cause damage to the
machine and/or electrical infrastructure! Click here for a wiring guide.
ELECTRICAL POWER
CONNECTIONS
Disconnect electrical
power supplies and
lockout/tagout in
accordance with
appropriate procedures
and codes at the
disconnect switch.
!
CAUTION
L1
L2
L3
Ground
3
Φ
NOTICE
If necessary, see
Heaters page for
phase conversion kit.
Imbalanced
wild leg goes
to L3.
NOTICE
07610-003-61-42-Z
18
INSTRUCTIONS
INSTALLATION
Ensure power switch is in "OFF" position and apply power to the machine. Check
incoming power at terminal block and ensure it corresponds with voltage listed
on data plate. If not, contact a qualied service agency. Do not run the machine
if voltage is too high or too low. Shut off service breaker and advise all proper
personnel of the location of breaker and any problems. Replace control box cover
and tighten-down screws.
This is a commercial dishmachine and reaches temperatures that can exceed
those generated by a residential machine. Surrounding countertops, cabinets, ooring
material, and subooring material must be designed and/or selected with these
higher temperatures in mind.
Any damage to surrounding area caused by heat/moisture to materials that
are not recommended for higher temperatures will not be covered under
warranty or by the manufacturer.
The temperature setpoints on the machine have been set at the factory. They should
only be adjusted by an authorized service agent.
The manufacturer offers an optional False Panel Kit for corner installations. See the
Kits page for kit part number. Click here for false panel/corner install instructions.
TEMPERATURE
SETPOINTS
SURROUNDING
AREA
NOTICE
VOLTAGE CHECK
i
FALSE PANEL/
CORNER INSTALL
On 3-Phase machines only, correct pump motor rotation must be veried before
the machine is operated. Failure to do so can result in damage to the machine and
components.
1. Follow Filling the Wash Tub section.
2. Locate wash pump motor and identify arrow decal which shows correct motor
rotation (if no decal is present, correct rotation is away from pump volute).
3. Flip mode switch to "MANUAL" and start the machine.
4. Observe rotation of motor fan and quickly stop the machine.
5. If rotation is incorrect, disconnect electrical power and reverse L1 and L2
connections at terminal block shown in section above.
MOTOR ROTATION
i
CAUTION! On 3-Phase
machines only, correct
pump motor rotation
must be veried
before operation!
!
CAUTION
Pump Volute
Motor Fan
Arrow Decal
19
07610-003-61-42-Z
OPERATING INSTRUCTIONS
OPERATION

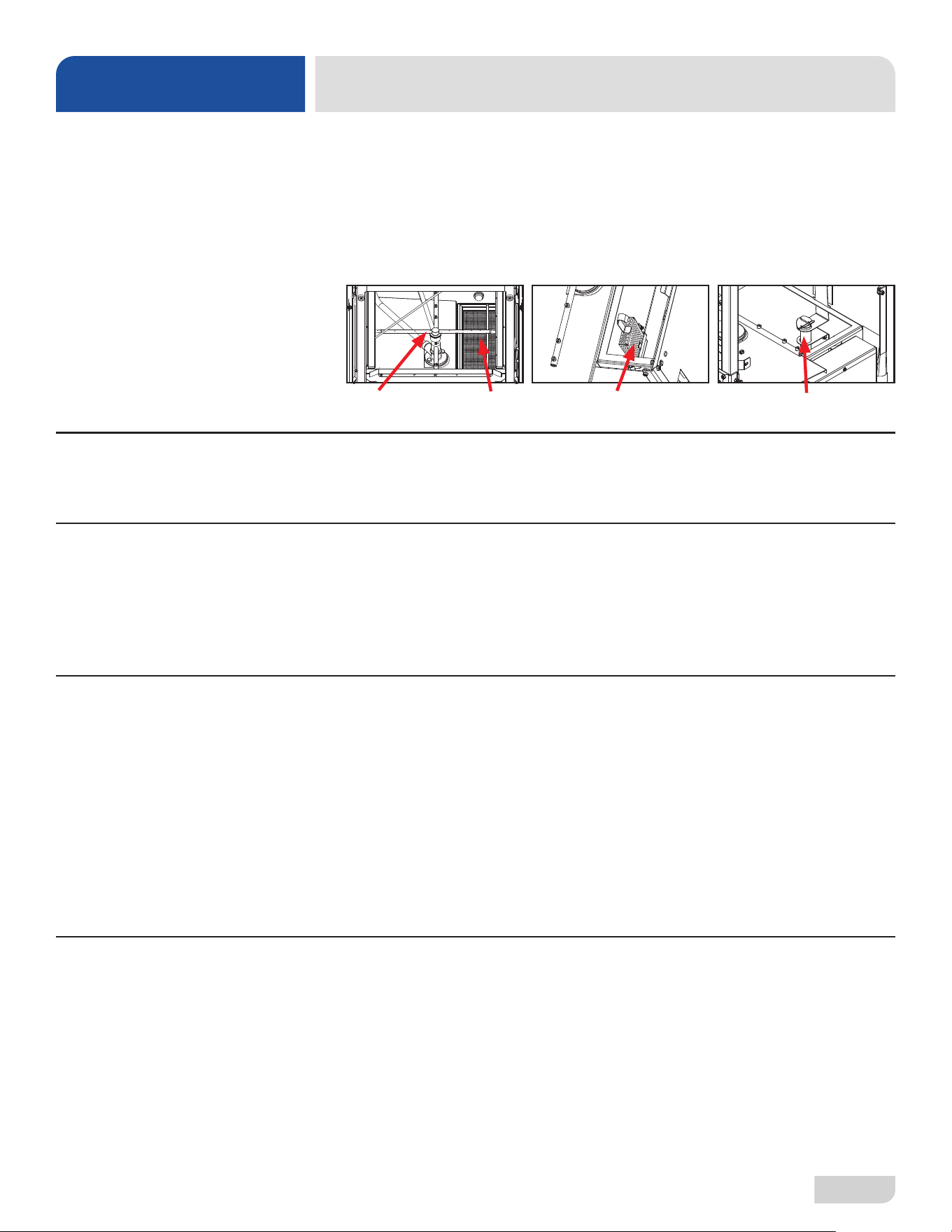

Before operating the machine, verify the following:
1. Tank is clean and free of debris.
2. Wash arms, rinse arms, sump strainer, and scrap screen are all installed
correctly.
3. Standpipe is installed.
To energize the machine, turn on power at service breaker. Voltage should have
been previously veried. If not, verify voltage.
Ensure mode switch is in "AUTO" position, and place power switch into "ON"
position. The machine will ll automatically and shut-off when appropriate level
is reached (just below scrap screen). Wash tub must be completely lled before
operating wash pump to prevent damage to components. Once wash tub is lled,
the machine is ready for operation.
Proper ware preparation will help ensure good results and fewer re-washes. If not
prepared properly, ware might not come out clean and efciency of the machine
will be reduced. Putting unscraped dishes into the machine affects its performance,
so scraps should always be removed from ware before being loaded into a rack.
Pre-rinsing and pre-soaking are good ideas, especially for silverware and casserole
dishes.
Place cups and glasses upside-down in racks so they don't hold water during the
cycle. The machine sanitizes as well as cleans. To do this, ware must be properly
prepared before being placed in the machine.
Refer to Preparation section and follow instructions there. Afterward, ensure
chemicals are supplied to the machine. If not, contact chemical supplier.
PREPARATION
POWER UP
WARE
PREPARATION
FILLING THE
WASH TUB
DAILY MACHINE
PREPARATION
Standpipe
Wash & Rinse Arms, Scrap Screen
Sump Strainer
07610-003-61-42-Z
20
OPERATING INSTRUCTIONS
OPERATION
For rst operation of each day, it might be necessary to run the machine through
three cycles to ensure all cold water is out of the system and to verify that the
machine is operating correctly. To cycle the machine, ensure power is on and tub
has lled to correct level. Lift and close door and cycle light will illuminate. The
machine will start, run through cycle, and shut-off automatically. Repeat this two
more times. The machine is now ready.
To wash a rack, open door completely (avoiding hot water that might drip) and slide
rack into the machine.
Close door and the machine will start automatically. Once cycle is complete, open
door and remove rack of clean ware. Replace with a rack of soiled ware and close
door. Repeat this process.
Based on use, scrap screen might become clogged with soil and debris as workday
progresses. Operators should regularly inspect scrap screen to ensure it has not be-
come clogged. If clogged, it will reduce washing capability of the machine. Instruct
operators to clean-out scrap screen at regular intervals or as required by workload.
Do NOT beat strainers to remove debris.
1. Turn machine off by flipping power switch to “OFF.”
2. Open door and allow steam/heat to escape.
3. Remove standpipe and allow tub to drain.
WARM-UP CYCLES
WASHING A
RACK OF WARE
OPERATIONAL
INSPECTION
SHUTDOWN &
CLEANING
!
WARNING
WARNING! Wash tank
water will be hot!
21
07610-003-61-42-Z
OPERATING INSTRUCTIONS
OPERATION
4. Remove scrap screen and sump strainer.
5. Use a hand-scraper to scrape foodsoil into a trash basket.
6. Rinse with pre-rinse hose and replace.
7. Remove all wash and rinse arms.
8. Remove end-caps from the arms.
9. Clean nozzles with a brush.
10. Use a small wire or toothpick to remove remaining debris or lime deposits from
nozzles.
11. Flush arms with water.
SHUTDOWN &
CLEANING
07610-003-61-42-Z
22
OPERATING INSTRUCTIONS
OPERATION
12. Replace end-caps and ensure they are tight.
13. Spray or wipe out interior of the machine.
14. Replace wash and rinse arms.
15. Ensure sump strainer and scrap screen are clean and securely in place.
16. Use stainless steel polish to clean and protect outside of the machine.
Coil on VER model must be inspected periodically. If the coil is greasy, dirty, or
there is scale build-up, click here for cleaning instructions.
SHUTDOWN &
CLEANING
VER COIL CLEANING
23
07610-003-61-42-Z
DETERGENT CONTROL
OPERATION
Detergent usage and water hardness are two factors that contribute greatly to how
efciently the machine will operate. Using detergent in proper amounts can become
a source of substantial savings. A qualied water treatment specialist can determine
what is needed for maximum efciency from the detergent.
1. Hard water greatly affects performance of the machine, causing amount of
detergent required for washing to increase. If the machine is installed in an area
with hard water, the manufacturer recommends installation of water treatment
equipment.
2. Deposited solids from hard water can cause spotting that will not be removed
with a drying agent. Treated water will reduce this occurence.
3. Treated water might not be suitable for use in other areas of operation and it
might be necessary to install a water treatment system for the water going to the
machine only. Discuss this option with a qualied water treatment specialist.
4. Machine operators should be properly trained on how much detergent is to be
used per cycle. Meet with a water treatment specialist and detergent vendor to
discuss a complete training program for operators.
5. The machine requires chemicals be provided for proper operation and sanitization
and require installation of third-party chemical feeders to introduce these
chemicals to the machine. Contact a chemical supplier with any questions.
6. Water temperature is an important factor in ensuring the machine functions
properly. The machine's data plate details what the minimum temperatures must
be for the incoming water supply, the wash tank, and the rinse tank. If minimum
requirements are not met, there is a possibility that dishes will not be clean or
sanitized.
7. Instruct machine operators to observe the required temperatures and to report
when they fall below the minimum allowed. A loss of temperature can indicate a
larger problem.
DETERGENT
CONTROL
i
See Water Supply
Connection section for
more information
on water treatment.
07610-003-61-42-Z
24

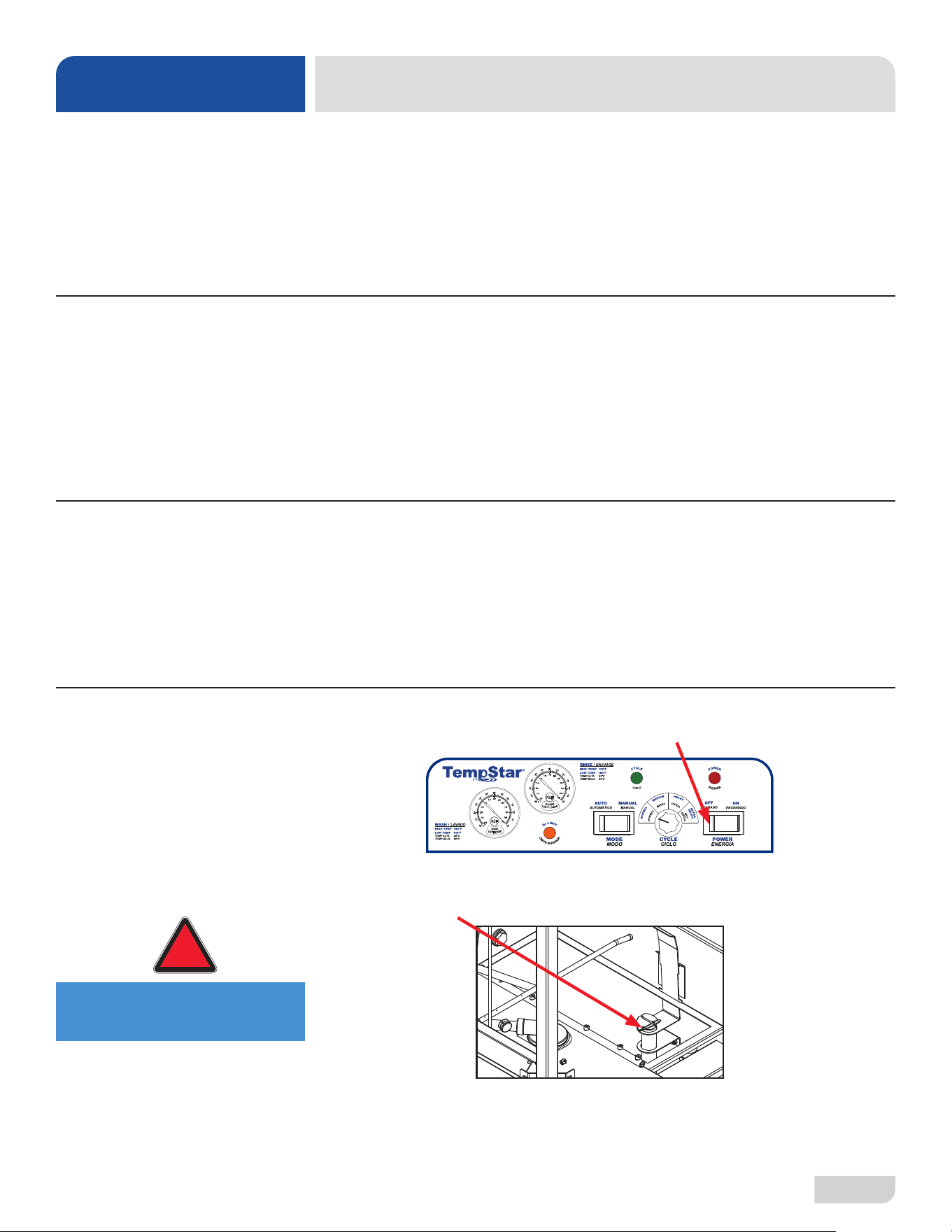

DELIMING
OPERATION
To delime the machine, follow steps below. Tank capacities of the machine can be
found on Operating Parameters page.
1. Remove rinse arms and place in sink with deliming solution.
2. Disconnect or turn off chemical feeder pumps.
3. Add deliming solution per chemical supplier’s instructions.
4. Close door and turn the machine on in "MANUAL" mode.
5. Run the machine for length of time recommended by chemical supplier.
6. Flip mode switch to "AUTO" to shut the machine off.
7. Open door and step away for ve minutes.
8. Inspect inside of the machine. If the machine is not delimed, run again.
9. When clean, drain and re-ll the machine.
10. Run two cycles in "AUTO" to remove residual deliming solution.
11. Drain and re-ll the machine.
12. Flush rinse arms with water and replace.
CAUTION! The machine is not recommended for use with deionized water or other
aggressive uids. Using deionized water or other aggressive uids will result in corrosion and
failure of components and will void the warranty.
DELIMING
Mode Switch
Power Switch
!
CAUTION
25
07610-003-61-42-Z
PREVENTATIVE MAINTENANCE
MAINTENANCE
The manufacturer highly recommends that any maintenance and repairs not specically
discussed in this manual be performed only by qualied service personnel.
WARNING! Unqualied personnel performing maintenance on the machine may void
the warranty, lead to larger problems, or cause harm to the operator.
Following operating and cleaning instructions in this manual will result in the most
efcient results from the machine. As a reminder, here are some steps to take to ensure
the machine is being used the way it was designed to work:
1. Ensure water temperatures match those listed on machine data plate. A loss of
temperature can indicate a larger problem.
2. Ensure all strainers are clean and securely in place before operating the machine.
When cleaning out strainers, do NOT beat them on waste cans. Wipe out strainers
with a rag and rinse with water if necessary. Use a toothpick to dislodge any
stubborn debris.
3. Ensure all wash and rinse arms are secure in the machine before operating.
4. Ensure standpipe is in position before operating.
5. Remove as much soil from dishes by hand as possible before loading into racks.
6. Do not overll racks.
7. Ensure glasses are placed upside-down in rack.
8. Ensure all chemicals being injected into the machine are at correct concentrations.
9. Clean the machine at end of every day/shift per Shutdown and Cleaning section.
10. Follow all safety procedures, whether listed in this manual or put forth by local,
state, or national codes/regulations.
PREVENTATIVE
MAINTENANCE
i
CAUTION!
Do NOT beat strainers to
remove debris!
!
CAUTION
!
WARNING
RESISTANCE-TO-TEMPERATURE VALUES
R (kΩ) °F
11.58 69.8
10.37 75.2
9.30 80.6
7.78 89.6
3.05 140.0
2.54 150.8
2.18 159.8
1.58 179.6
1.45 185.0
1.33 190.4
1.16 199.4
0.96 212.0
07610-003-61-42-Z
26
OBSERVATION POSSIBLE CAUSE REMEDY
Machine will not ll after
door is closed.
Power “ON” light is
illuminated.
1. Faulty rinse solenoid valve.
2. Faulty door switch.
3. Fouled/faulty high-level probe.
1. Repair or replace valve as required.
2. Verify wiring of switch; if correct, replace switch.
3. Clean probe if fouled. If clean and still not working,
replace.
Machine will not ll after
door is closed.
Power “ON” light is
NOT illuminated.
1. Service breaker tripped.
2. Machine not connected to
power source.
3. Faulty power source.
1. Reset. If breaker trips again, contact an electrician to
verify amp draw of the machine.
2. Verify the machine has been properly connected to
power source.
3. Verify wiring of switch; if correct, replace switch.
Machine will not run
after door is closed.
Power “ON” light is
illuminated and the
machine is lling.
1. Timer is faulty.
2. Wash motor faulty/damaged.
3. Wash motor contactor faulty.
1. Verify timer is receiving power. If so, replace timer
assembly.
2. Verify wash motor is getting power. If so, replace motor.
3. Check for continuity; if contacts are open, replace
contactor.
Machine runs
continuously in the wash
cycle.
1. Machine is in Delime mode.
2. Timer motor is faulty.
3. Cam timer jammed by
obstruction.
1. Flip mode switch to "AUTO."
2. Verify timer is rotating. If not, verify motor is receiving
power. If so, replace motor and/or timer assembly.
3. Remove obstruction.
Wash or rinse heater
does not work.
1. Faulty heater element.
2. Faulty heater contactor.
3. Misadjusted/faulty
thermostat(s).
1. Check element for continuity; if open, replace heater.
2. Replace contactor.
3. Verify operation and setting of thermostats, replace if
necessary.
Machine lls slowly
and/or rinse is weak.
1. Clogged or obstructed rinse
arms.
2. Low incoming water pressure.
3. Y-strainer is clogged.
1. Remove and clean rinse arms.
2. Adjust water pressure regulator to ensure there is
10 ± 2 PSI ow.
3. Clean out Y-strainer.
Rinse water not
reaching required
temperature.
1. Faulty rinse heater.
2. Mis-adjusted/faulty
thermostat(s).
3. Rinse thermometer is
defective.
1. Check element for continuity; if open, replace heater.
2. Verify operation and setting of thermostats, replace if
necessary.
3. Replace thermometer.
WARNING! Inspection, testing, and repair of electrical equipment should only be performed by a
qualied service technician. Many tests require the machine have power to it and live electrical
components be exposed. USE EXTREME CAUTION WHEN TESTING THE MACHINE.
!
WARNING
TROUBLESHOOTING
TROUBLESHOOTING
27
07610-003-61-42-Z
TROUBLESHOOTING
TROUBLESHOOTING
OBSERVATION POSSIBLE CAUSE REMEDY
Machine doesn’t
drain when power
switch is ipped to
"OFF."
1. Drain clogged.
2. Standpipe not removed before
draining.
1. Remove obstruction.
2. Remove standpipe and run drain cycle again.
Incorrect water
pressure displayed
during Fill or Rinse
modes.
1. Water turned off. 1. Turn water on.
Wash water is not
reaching required
temperature.
1. Faulty wash heater.
2. Misadjusted/faulty thermostat(s).
3. Wash thermometer is defective.
1. Check element for continuity; if open, replace heater.
2. Verify operation and setting of thermostats, replace if
necessary.
3. Replace thermometer.
Door will not close
completely.
1. Improper spring tension.
2. Obstruction in door channel.
3. Door panels are not square with
frame.
1. Adjust spring tension as required by loosening (not
removing) spring bolt nuts and adjusting tension. Tighten
nuts back when done.
2. Remove obstruction.
3. Adjust frame to accommodate the door panels.
Water leaks at wash
pump.
1. Wash pump seal defective.
2. Petcock or pump drain (if
equipped) not shut/tight.
3. Loose hoses (hose clamps) on
the wash pump.
1. Replace seal.
2. Close or tighten.
3. Tighten hose clamps.
Will not rinse during
autocycle.
1. Defective rinse solenoid.
2. Faulty timer.
3. No water to the machine.
1. Repair or replace rinse solenoid as required.
2. Replace timer.
3. Verify there is water at 10 ± 2 PSI connected to the
machine.
Dishes are not
coming clean.
1. Machine temperatures are not up
to minimum requirements.
2. No detergent/too much
detergent.
1. Verify incoming water, rinse water, and wash water
match required temperatures as listed on machine data
plate.
2. Adjust detergent concentration as required for amount of
water held by the machine.
WARNING! Inspection, testing, and repair of electrical equipment should only be performed by a
qualied service technician. Many tests require the machine have power to it and live electrical
components be exposed. USE EXTREME CAUTION WHEN TESTING THE MACHINE.
!
WARNING
29
07610-003-61-42-Z
CONTROL BOX
PARTS
12
13
34
8
7
9
18
32 33
31
39
40
16
07610-003-61-42-Z
30
17
20
19
21
25
27
38
26
24
11
CONTROL BOX
PARTS
Fuses
208/230 V or 460 V
Fuse,1 A, Fast-acting
05999-004-47-87
Littelfuse P/N - 0312001.HXP
Qty - 2 (2 per output)
Fuse, 3 A, Slow-acting
05999-004-44-34
Littelfuse P/N - 0313003.HXP
Qty - 6 (2 per output)
Fuse,1 A, Fast-acting
05999-004-47-87
Littelfuse P/N - 0312001.HXP
Qty - 2 (2 per output)
Fuse, 200 mA, Slow-acting
05999-004-44-33
Littelfuse P/N - 0313.200HXP
Qty - 6 (2 per output)
WARNING: DISCONNECT POWER TO MACHINE BEFORE SERVICING
INPUT L1
(EXTERNAL)
OUTPUT TO
EXT. RELAY
CONSTANT VOLTAGE
CONNECTION
RINSE-AID DISPENSER
CONNECTION
DETERGENT
DISPENSER
CONNECTION
LIVE WHEN MACHINE
POWER SWITCH IS ON
LIVE WHEN RINSE
VALVE IS OPEN
LIVE WHEN WASH
PUMP MOTOR IS ON
L1 OUT
L2 OUT
FUSE: 3 AMP SLOW-ACTING
L1 OUT
L2 OUT
FUSE: 3 AMP SLOW-ACTING
L1 OUT
L2 OUT
FUSE: 3 AMP SLOW-ACTING
MAXIMUM LOAD
1 AMP , 240/120 V
AC
EXHAUST FAN
CONTROL
WARNING: DISCONNECT POWER TO MACHINE BEFORE SERVICING
INPUT L1
(EXTERNAL)
OUTPUT TO
EXT. RELAY
CONSTANT VOLTAGE
CONNECTION
RINSE-AID DISPENSER
CONNECTION
DETERGENT
DISPENSER
CONNECTION
MAXIMUM LOAD
LIVE WHEN MACHINE
POWER SWITCH IS ON
LIVE WHEN RINSE
VALVE IS OPEN
LIVE WHEN WASH
PUMP MOTOR IS ON
FUSE: 200 mA SLOW-ACTING
1 AMP , 240/120 V
AC
240 VAC OUT
FUSE: 200 mA SLOW-ACTING
240 VAC OUT
FUSE: 200 mA SLOW-ACTING
240 VAC OUT
EXHAUST FAN
CONTROL
31
07610-003-61-42-Z
CONTROL BOX
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Timer Bracket 05700-003-02-08
2 8 Locknut, 6-32 05310-373-03-00
3 2 Contactor, 4-Pole 05945-109-01-69
4 1 Terminal Block 05940-011-48-27
5 14 Locknut, 10-24 05310-373-01-00
6 1 Contactor, Wash Motor 05945-002-74-20
7 1 Light, Green 05945-111-44-43
8 1 Light, Red 05945-111-44-45
9 1 Light, Yellow 05945-111-44-44
10 1 Ground Lug 05940-200-76-00
11 3 Tricnut, 6-32 05340-118-04-00
12 3 Plug, 1/2” 05975-011-47-81
13 2 Grommet, 7/8” Split 05975-200-40-00
14 1 Bushing Snap 05975-210-05-00
15 1 Clamp, Hose 1/4" - 1/3" 05975-002-61-43
16 1 Decal, Warning-Disconnect Power 09905-100-75-93
17 1 Cover, Top Mount Control Box 05700-002-23-03
18 1 Decal, Control Box 09905-003-97-36
19 4 Lockwasher, Int. Tooth #10 05311-273-03-00
20 4 Screw, 10-32 x 3/8” Phillips Truss Head 05305-173-12-00
21 1 Decal, Copper Conductors 09905-011-47-35
22 1 Decal, Ground 09905-011-86-86
23 1 Decal, L1, L2 09905-002-78-67
24 1 Bracket, Fuse Strip 05700-002-42-03
25 1 Fuse Holder, 6-pole 05920-002-42-13
26 2 Screw, 6-32 x 3/8” with Tooth Washer 05305-002-25-91
27
1 Decal, Dispenser Connection 09905-003-34-09
1
Decal, Dispenser Connection (460 V)
09905-004-43-81
28 1 Timer, Universal 05945-003-33-09
29 4 Locknut, 10-32 05310-373-02-00
30 4 Screw 10-32 x 1” 05305-002-19-42
07610-003-61-42-Z
32
ITEM QTY DESCRIPTION PART NUMBER
31 1 Switch, Rotary Selector 05930-003-97-61
32 1 Switch, Operation 05930-301-53-00
33 1 Switch, Power 05930-011-49-55
34 1 Dome Plug 05975-002-29-94
35* 1 Power Supply, In 100-240 V DC, 1.8 A, Out 24 V, 2.5 A* 05950-004-81-79*
36* 1 Relay, 10 A, 220 V* 05945-004-84-93*
37 2 Relay, 240 V 05945-002-47-74
38 1 Control Box Weldment 05700-003-30-14
39 1 Temperature Gauge, 96” 06685-004-31-46
40 1 Temperature Gauge, 48” 06685-004-31-47
41 1 Transformer, 460 V Machine Only (Not Shown) 05950-111-65-93
42 1 Fuse Holder, Single, 460 V Machine Only (Not Shown) 05920-011-72-89
43 1 Fuse, 1 A, Bussman P/N FNQ-R-1, 460 V Machine Only (Not Shown) 05920-002-67-23
44 1
Pump Contactor
, 460 V Machine Only (Not Shown) 05945-002-65-00
45 1
Overload, 4NK0AKY 1.7-2.6
, 460 V Machine Only (Not Shown) 05945-002-65-02
CONTROL BOX
PARTS
*Power supply and relay used only on machines with door interlock and VER machines with DC fans.
Machines before
21D393474 have a
different control box.
Click here to open
earlier manual.
NOTICE
33
07610-003-61-42-Z
HOOD
PARTS
1
2
3
ITEM QTY DESCRIPTION PART NUMBER
1 2 Hood Support 05700-002-78-99
2 6 Bolt, 1/4-20 x 1/2” 05305-274-21-00
3 6 Washer, Flat, SS, 1/4-20 05311-174-01-00
4 4 Spacer, Sleeve Hood 05700-003-55-15
5 6 Locknut, 1/4-20 with Nylon Insert (Not Shown) 05310-374-01-00
4
07610-003-61-42-Z
34
1
2
8
6
3
5
7
4
3
6
3
3
4
9
10
11

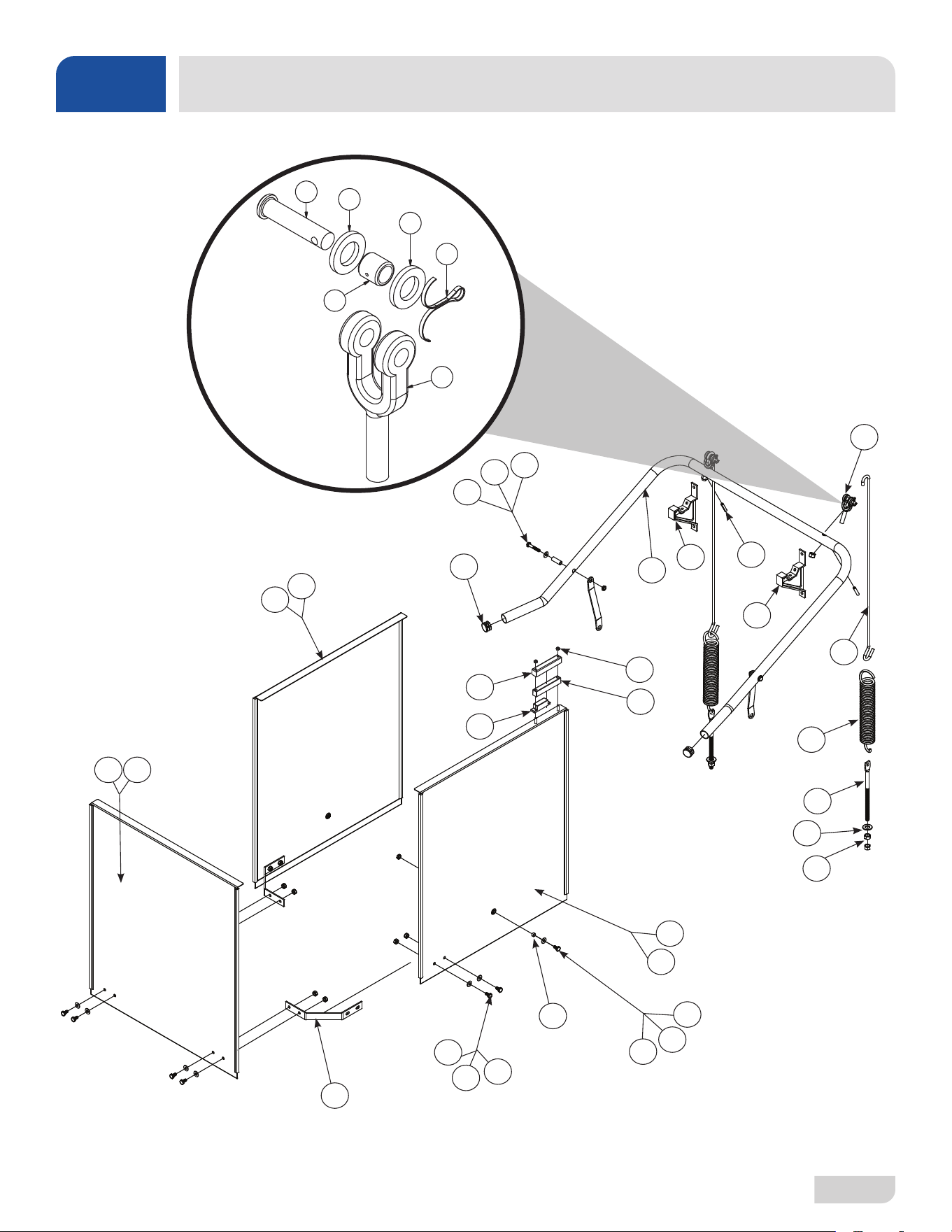

HOOD - FL/FL-VER
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Upright, Right 05700-004-81-53
2 1 Upright, Left 05700-004-81-54
3 4 Bracket, Upright Upper 05700-004-76-36
4 2 Cap, Upright 05700-004-79-65
5 1 Bracket, Manifold Position 05700-011-34-63
6 2 Guide Block, Stop 09330-004-77-73
7 1 Bracket, Conduit EL-104106
8 20 Screw, 1/4-20 x 1/2" Button Head Hex 05305-004-62-33
9 40 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00
10 20 Washer, 1/4-20 05311-174-01-00
11 1

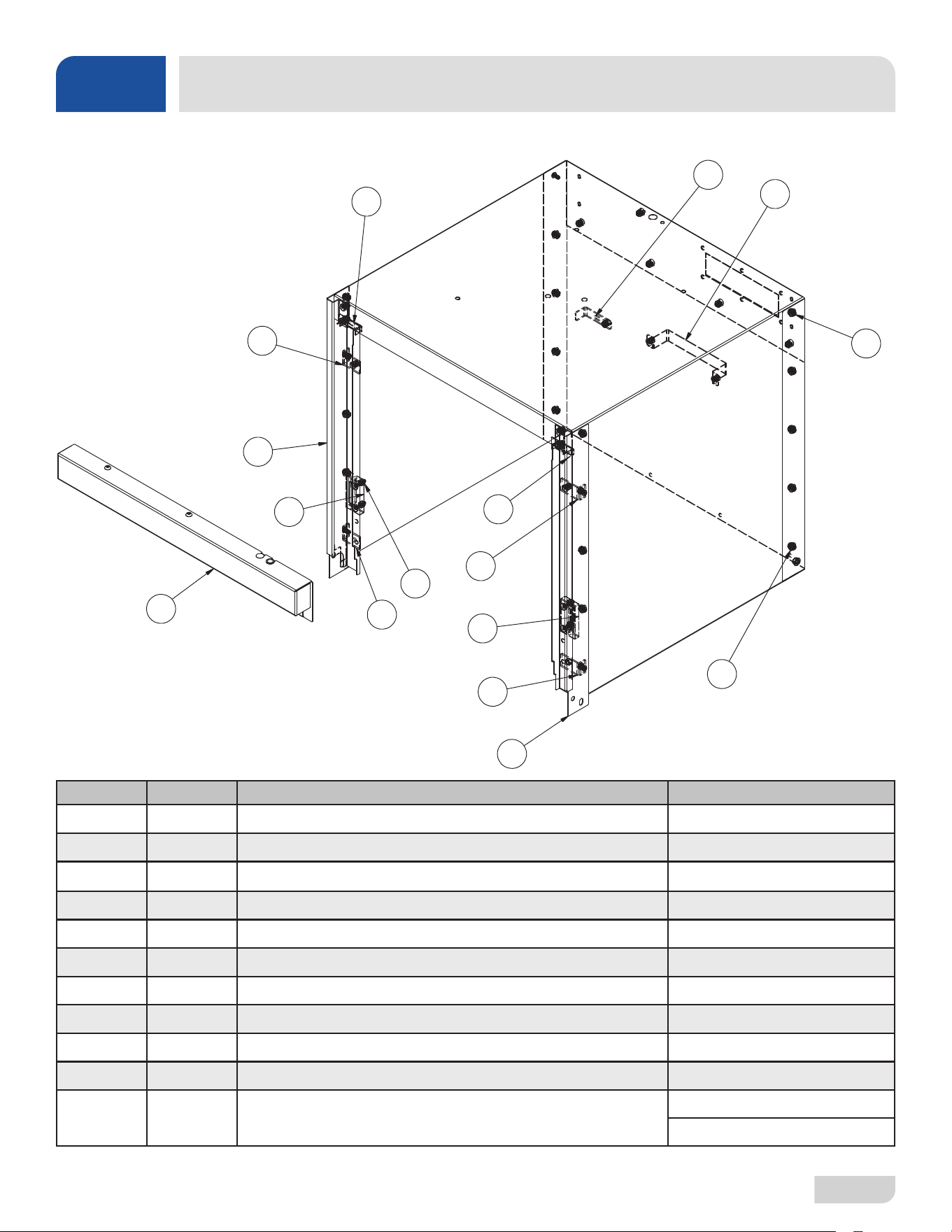

Upper Dress with Door Interlock
Upper Dress without Door Interlock
05700-005-06-44
05700-005-06-43
35
07610-003-61-42-Z
DOOR & ARM
PARTS
14
11
12
10
1
2
3
4
5
6
7
8
16
15
18
24
18
17
11
12
19
20
11
12
19
22
1823
26
26
3c
3d
3d
3a
3e
3b
30
29
07610-003-61-42-Z
36
DOOR & ARM
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Cantilever Arm 05700-031-50-67
2 2 Spring Pin, 1/4" x 1 1/8" 05315-407-06-00
3 2 Yoke Assembly 05700-000-75-77
3a 1 Cotter Pin 05315-207-01-00
3b 1 Yoke 05700-000-75-78
3c 1 Clevis Pin, 5/16” x 1 3/8” 05315-700-01-00
3d 2 Nylon Washer 05311-369-03-00
3e 1 Bushing 03120-100-03-00
4 2 Rod, Spring 05700-003-67-39
5 2 Spring 05340-109-02-00
6 2 Bolt, Cantilever Hanger Eye 3/8-16 05306-956-05-00
7 2 Washer, 3/8" ID x 7/8" OD 05311-176-02-00
8 4 Nut, 3/8-16 S/S Hex 05310-276-01-00
9 2 Connector, Cantilever Arm 05700-011-90-99
10 2 Screw, 1/4-20 x 1 1/2" 05305-274-23-00
11 4 Washer, 1/4" 05311-174-01-00
12 4 Locknut, 1/4-20 Hex with Nylon Insert Low Prole 05310-374-02-00
13 2 Sleeve, Cantilever Arm 05700-000-85-69
14 2 Plug, Cantilever Arm 05340-011-35-00
15 1 Magnet, Reed Switch 05930-111-51-68
16 2 Locknut, 8-32 Hex with Nylon Insert 05310-272-02-00
17
1 Door, Right Side (Complete Assembly) 05700-004-07-47
1 Door, Right Side (Weldment with Studs) 05700-002-29-85
18 6 Guide, Door 05700-111-33-59
19 2 Screw, 1/4-20 x 1/2" 05305-274-02-00
20 2 Spacer, PB Bolt 05700-000-29-40
21 4 Locknut, 1/4-20 Hex with Nylon Insert (Not Shown) 05310-374-01-00
22 2 Door Connector Bracket 05700-021-33-39
23
1 Door, Front with Decal (Complete Assembly) 05700-002-30-89
1 Door Only, Front 05700-002-67-71
37
07610-003-61-42-Z
ITEM QTY DESCRIPTION PART NUMBER
24
1 Door, Left Side (Complete Assembly) 05700-002-30-87
1 Door, Left Side (VER, Complete Assembly) 05700-004-24-32
1 Door Only, Left Side 05700-002-29-86
1 Door Only, Left Side (VER) 05700-004-24-34
25 1 Door Connecting Plate (Not Shown) 05700-002-20-78
26 2 Bracket, Cantilever Arm Support 09515-003-15-64
27 1 Wear Button, 1/2" Dia. UHMW (Not Shown) 05700-011-88-01
28 1 Door Interlock Bracket (Not Shown) 05700-004-23-17
29 1 Cover, Door Magnet 05700-004-07-39
30 1 Switch, Door/Cycle 05930-003-05-84
DOOR & ARM
PARTS
07610-003-61-42-Z
38
DOOR - FL/FL-VER
PARTS
SECTION A-A
AA
16
14
15
18
13
12
13
13
17
15
14
17
17
19
6
7
21
7
1
2
9
8
2
6
5
5
20
11
10
3
4
18
13
39
07610-003-61-42-Z
DOOR - FL/FL-VER
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Bracket, Door, Right 05700-004-74-35
2 1 Bracket, Door, Left 05700-004-74-36
3 1 Guide, Rack, Right 05700-004-72-81
4 1 Guide, Rack, Left 05700-004-72-82
5 1 Spring, Door Torsion, Right 05340-004-74-71
6 1 Spring, Door Torsion, Left 05340-004-77-89
7 2 Yoke, Spring Rod 09515-004-74-76
8 2 Washer, Nylon 05311-369-03-00
9 4 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00
10 9 Screw, 1/4-20 x 1/2" Button Head Hex 05305-004-62-33
11 7 Washer, Lock 1/4" 05311-004-23-67
12 1 Door Handle 05700-005-05-48
13 4 Screw, 10-32 x 1/2" Pan with Washer 05305-002-32-37
14 1 Latch Receiver 09515-005-05-30
15 1 Magnet, 3/8" x 2 1/2" 05930-111-51-68
16 2 Screw, 8-32 x 1/4" Pan 05305-172-09-00
17 6 Locknut, 10-32 with Nylon Insert 05310-373-02-00
18 1 Bracket, Splash Shield 05700-005-05-57
19 1 Panel, Door Outer 05700-005-05-58
20 1 Panel, Door Inner 05700-005-05-59
21 4 Set Screw, 8-32 x 5/8" 05305-004-77-87
41
07610-003-61-42-Z
ITEM QTY DESCRIPTION PART NUMBER
1 1 Track Assembly 05700-002-01-00
2 2 Bulk Head Plug 04730-609-05-00
3 1 Wash Motor See Motors page.
4 1 Gasket 05700-111-35-03
5 1 O-ring 05330-111-35-15
6 4 Bolt, Hex 3/8-16 x 1 1/4" Long 05305-276-10-00
7 1 Lower Wash Manifold 05700-031-46-00
8 1 Sump Strainer 05700-002-16-13
9 1 Bracket, Sump Strainer 05700-001-22-24
10 8 Locknut, 1/4-20 with Nylon Insert 05310-374-02-00
11 1 Scrap Screen 05700-003-07-76
12 1 Standpipe 05700-001-25-69
12a 1 Support, Ball Stop Lift (Not Shown) 05700-002-91-55
12b 1 Ball Stop Lift (Not Shown) 05700-002-91-54
13 1 Overow Support Bracket 05700-001-27-55
13a 1 Shim, Overow Support (Not Shown) 05700-002-96-48
14 1 O-ring 05330-400-05-00
15 2 Clamp, Hose 1 5/16” to 2 1/4” 04730-719-01-37
16 1 Discharge Hose 05700-011-88-24
17 1 Nipple 05700-021-34-84
18 1 Pump Support Bracket Assembly 05700-002-00-46
18a 1 Nut, 1/4-20 Hex Nut 05310-011-66-49
18b 1 Pump Support Adjustable Bracket 05700-002-20-41
18c 1 Bracket, Pump Support 05700-002-68-31
19 1 Clamp, Hose 5 5/8" to 6" 04730-011-34-90
20 1 Connector, 1/2” 05975-111-01-00
21 4 Nut, 3/8-16 Hex 05310-276-01-00
22 4 Lockwasher 3/8” 05311-276-01-00
23 1 Heater See Heaters page.
24 1 Nut, Float Switch 05310-011-72-58
25 1 Thermostat, Elan Electric Dual 06685-004-17-27
TUB
PARTS
07610-003-61-42-Z
42
ITEM QTY DESCRIPTION PART NUMBER
26 4 Lockwasher, 5/16", Split 05311-275-01-00
27 4 Nut, Hex, 5/16-18 05310-275-01-00
28 4 Locknut, 10-24 with Nylon Insert 05310-373-01-00
29 1 Cover, Wash Heater 05700-031-47-57
30 1 Decal, Warning-Disconnect Power 09905-004-08-16
31 1 Harness, 5-Connector 05700-004-23-78
32 1 Thermostat Mounting Bracket 05700-004-22-17
33 1 Wash Heater Gasket 05330-011-47-79
34 1 Probe, Thermistor 4” 06685-004-17-26
35 1 Thermostat, High Limit 05930-004-33-12
36 1 Fitting, 1/4" Imperial Brass 05310-924-02-05
37 1 Harness, 4-Connector 05700-004-23-79
38 1 Float Switch 06680-121-70-71
TUB
PARTS
Machines before
21D393474 did not
have a oat. Click
here to open earlier
manual.
NOTICE
43
07610-003-61-42-Z
11
10
9
12
14
10
13
28
26
27
24
21
22
20
3
19
18
17
15
15
16
2
1
2
4
5
6
8
29
23
25
31
32
30
34
33
7

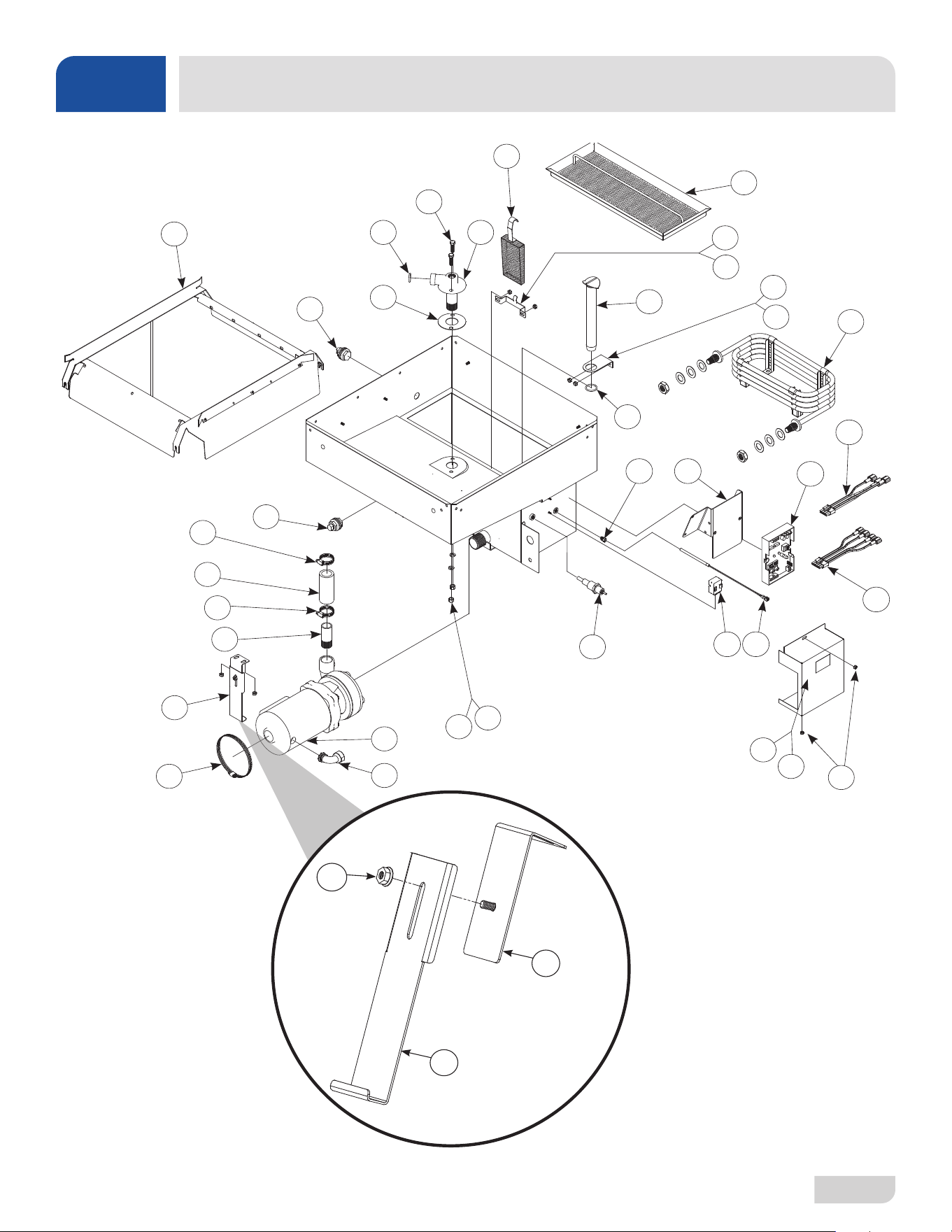

STEAM TUB
PARTS
18b
18c
18a
07610-003-61-42-Z
44
STEAM TUB
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Track Assembly 05700-002-01-00
2 2 Bulk Head Plug 04730-609-05-00
3 1 Wash Motor See Motors page.
4 1 Gasket 05700-111-35-03
5 1 O-ring 05330-111-35-15
6 4 Bolt, Hex 3/8-16 x 1 1/4" Long 05305-276-10-00
7 1 Lower Wash Manifold 05700-031-46-00
8 1 Sump Strainer 05700-002-16-13
9 1 Bracket, Sump Strainer 05700-001-22-24
10 8 Locknut, 1/4-20 with Nylon Insert 05310-374-02-00
11 1 Scrap Screen 05700-003-07-76
12 1 Standpipe 05700-001-25-69
12a 1 Support, Ball Stop Lift (Not Shown) 05700-002-91-55
12b 1 Ball Stop Lift (Not Shown) 05700-002-91-54
13 1 Overow Support Bracket 05700-001-27-55
13a 1 Shim, Overow Support (Not Shown) 05700-002-96-48
14 1 O-ring 05330-400-05-00
15 2 Clamp, Hose 1 5/16” to 2 1/4” 04730-719-18-00
16 1 Discharge Hose 05700-011-88-24
17 1 Nipple 05700-021-34-84
18 1 Pump Support Bracket Assembly 05700-002-00-46
18a 1 Nut, 1/4-20 Hex Nut 05310-011-66-49
18b 1 Pump Support Adjustable Bracket 05700-002-20-41
18c 1 Bracket, Pump Support 05700-002-68-31
19 1 Clamp, Hose 5 5/8" to 6" 04730-011-34-90
20 1 Connector, 1/2” 05975-111-01-00
21 4 Nut, 3/8-16 05310-276-01-00
22 4 Lockwasher 3/8” 05311-276-01-00
23 1 Fitting, 1/4" Imperial Brass 05310-924-02-05
45
07610-003-61-42-Z
ITEM QTY DESCRIPTION PART NUMBER
24 1 Probe, High Water 06680-200-02-68
25 1 Thermostat, High Limit 05930-004-33-12
26 1 Cover, Wash Heater 05700-031-47-57
27 1 Decal, Warning-Disconnect Power 09905-004-08-16
28 2 Locknut, 10-24 with Nylon Insert 05310-373-01-00
29 1 Steam Coil 05700-031-41-37
30 1 Probe, Thermistor 4” 06685-004-17-26
31 1 Thermostat Mounting Bracket 05700-004-22-17
32 1 Thermostat, Electric Dual 06685-004-17-27
33 1 Harness, 5-Connector 05700-004-23-78
34 1 Harness, 4-Connector 05700-004-23-79
STEAM TUB
PARTS
Click here for the Steam Booster manual.
07610-003-61-42-Z
46
FRAME
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 4 Bolt, 1/4-20 x 1/2” 05305-274-02-00
2 4 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-02-00
3 1 Front Panel 05700-002-36-65
4 4 Bullet Foot 05340-108-01-03
5 4 Flanged Bullet Foot (Optional) (Back feet on FL/FL-VER) 05340-002-34-86
2
1
3
5
6
47
07610-003-61-42-Z
RINSE TANK
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Tank, Rinse 05700-004-50-86
2 1 Heater, Rinse See Heaters page.
3 6 Lockwasher, Split 5/16” 05311-275-01-00
4 1 Fitting, 1/4”, Brass Nut/Sleeve 05310-924-02-05
5 1 Gasket, Rinse Heater 05330-200-02-70
6 6 Nut, Hex 5/16-18 05310-275-01-00
7 1 Decal, Warning-Disconnect Power 09905-100-75-93
8 1 Cover, Heater 05700-004-51-34
9 2 Screw 05305-004-27-82
10 1 Thermostat, High-limit 05930-004-33-12
11 1 Bracket, High-limit Thermostat 05700-004-36-84
12 2 Nut, 1/4-20 05310-004-23-96
13 1 Union, 1/4" 05700-001-16-52
14 1 Thermistor Probe 06685-004-34-58
15 1 Clamp, Wire 1/8", P-clip 05975-601-10-15
16 1 Cover Door, New Rinse Tank 05700-004-52-21
17 1 Washer, Flat 05311-173-02-00
18 1 Locknut, Hex 8-32 05310-272-02-00
Complete Assemblies
208-230 V, 14 kW 70
◦
Rise - 05700-004-43-33
208-230 V, 12 kW 40
◦
Rise - 05700-004-52-19
460 V, 14 kW 70
◦
Rise
- 05700-004-53-22
460 V, 12 kW 40
◦
Rise
- 05700-004-53-21
Machines before
18C355287 have a
different rinse tank.
Click here to open
earlier manual.
NOTICE
07610-003-61-42-Z
48
ITEM QTY DESCRIPTION PART NUMBER
Complete Steam Coil Assembly 05700-002-08-62
1 1 Steam Coil 05700-021-41-38
2 1 Stand C, Steam Coil Support 05700-002-08-52
3 1 Stand D, Steam Coil Support 05700-002-08-53
4 4 Gasket, Steam Coil 05700-001-17-86
5 2 Washer, Steam Coil 05700-001-17-87
6 2 Adapter, Steam Coil Nut 05310-011-17-85
7 1 Stand A, Steam Coil Support 05700-002-08-50
8 1 Stand B, Steam Coil Support 05700-002-08-51
1
3
4
5
6
7
8
2
STEAM COIL
PARTS
49
07610-003-61-42-Z
MOTORS
PARTS
MODEL VOLTS Hz PHASE WASH MOTOR ASSEMBLY
All 208 60 1 06105-004-24-80
1
All 208 60 3 06105-004-24-80
1
All 230 60 1 06105-004-24-80
1
All 230 60 3 06105-004-24-80
1
All 460 60 3 06105-121-64-21
2
The models covered in this manual come supplied with various wash motor assemblies (a wash motor assembly includes
the wash motor and the pump end), depending on the characteristics of the machine. To ensure you order the correct
wash motor assembly for the model you are servicing, please refer to the following table:
When servicing a wash motor, it is important to refer to the wiring schematic found on the motor to ensure the motor is wired correctly.
Different manufacturers of motors might not use the same wire color codes and your new motor might not connect using the same
wires. Always refer to the wiring diagrams on the motor you are installing. If the motor you are installing has had the schematic
removed, contact the manufacturer immediately for technical support.
NOTICE
1
Use P/N 06105-004-32-04 to order the motor only.
2
Use P/N 06105-002-62-71 to order the motor only.
See Motor
Rotation section.
Complete Assemblies
(See next page for parts.)
07610-003-61-42-Z
50
MOTORS
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1
1 Seal Plate, 208/230 V 05700-002-81-87
1 Seal Plate, 460 V 05700-002-06-22
2
1 Case O-ring, 208/230 V 05330-002-81-83
1 Case O-ring, 460 V 05330-002-87-02
3
1 Mechanical Seal, 208/230 V 05330-002-34-22
1 Mechanical Seal, 460 V 05330-002-87-16
4
1 Impeller Assembly, 208/230 V 05700-002-81-86
1 Impeller Assembly, 460 V 05700-002-06-19
5
1 Pump Casing 208/230 V 05700-002-85-01
1 Pump Casing 460 V 05700-002-06-20
6 1 Case Capscrew, 208/230 V 05305-002-81-88
Parts
(See previous page for complete assemblies.)
The models covered in this manual come supplied with various wash motors (see previous page), depending on the
characteristics of the machine. To ensure you order the correct parts for the model you are servicing, please refer to the
following table:
1
2
3
5
6
4
51
07610-003-61-42-Z
PARTS
HEATERS
Volts Hz Phase Wash Heater Rinse Heater (12 kW) Rinse Heater (14 kW)
208 50 1 04540-121-47-39 04540-121-47-40 04540-121-63-38
208 50 3 04540-121-47-39 04540-121-47-40 04540-121-63-38
208 60 1 04540-121-47-39 04540-121-47-40 04540-121-63-38
208 60 3 04540-121-47-39 04540-121-47-40 04540-121-63-38
230 50 1 04540-121-47-39 04540-121-47-40 04540-121-63-38
230 50 3 04540-121-47-39 04540-121-47-40 04540-121-63-38
230 60 1 04540-121-47-39 04540-121-47-40 04540-121-63-38
230 60 3 04540-121-47-39 04540-121-47-40 04540-121-63-38
380 50 3 04540-002-44-31 04540-002-44-32 04540-121-63-38
415 50 3 04540-002-43-09 04540-002-43-10 N/A
440 50 3 04540-121-65-99 04540-100-01-15 04540-121-63-39
460 60 3 04540-121-65-99 04540-100-01-15 04540-121-63-39
TempStar
Volts Hz Phase Wash Heater Rinse Heater (14 kW)
208 50 1 04540-121-47-39 04540-121-63-38
208 50 3 04540-121-47-39 04540-121-63-38
208 60 1 04540-121-47-39 04540-121-63-38
208 60 3 04540-121-47-39 04540-121-63-38
230 50 1 04540-121-47-39 04540-121-63-38
230 50 3 04540-121-47-39 04540-121-63-38
230 60 1 04540-121-47-39 04540-121-63-38
230 60 3 04540-121-47-39 04540-121-63-38
380 50 3 04540-002-44-31 04540-121-63-38
415 50 3 04540-002-43-09 N/A
440 50 3 04540-121-65-99 04540-121-63-39
460 60 3 04540-121-65-99 04540-121-63-39
TempStar VER
07610-003-61-42-Z
52
Volts HZ Phase Wash Heater Rinse Heater (12 kW) Rinse Heater (14 kW)
208 50 1 04540-121-47-39 04540-003-58-27 04540-003-58-28
208 50 3 04540-121-47-39 04540-003-58-27 04540-003-58-28
208 60 1 04540-121-47-39 04540-003-58-27 04540-003-58-28
208 60 3 04540-121-47-39 04540-003-58-27 04540-003-58-28
230 50 1 04540-121-47-39 04540-003-58-27 04540-003-58-28
230 50 3 04540-121-47-39 04540-003-58-27 04540-003-58-28
230 60 1 04540-121-47-39 04540-003-58-27 04540-003-58-28
230 60 3 04540-121-47-39 04540-003-58-27 04540-003-58-28
PARTS
HEATERS
TempStar with Round-Flanged Rinse Heater
Heater Phase Conversion Kit
06401-004-00-22
Volts Hz Phase Wash Heater
208 50 1 04540-121-47-39
208 50 3 04540-121-47-39
208 60 1 04540-121-47-39
208 60 3 04540-121-47-39
230 50 1 04540-121-47-39
230 50 3 04540-121-47-39
230 60 1 04540-121-47-39
230 60 3 04540-121-47-39
380 50 3 04540-002-44-31
415 50 3 04540-002-43-09
440 50 3 04540-121-65-99
460 60 3 04540-121-65-99
TempStar NB
53
07610-003-61-42-Z
PARTS
TEMPSTAR/FL PLUMBING
Complete Plumbing Assembly
05700-004-54-52
When servicing plumbing components, take care not to damage the threads of each individual item. Damaged threads can cause leaks and loss of
pressure, which could adversely affect the performance of the machine. It is strongly recommended that thread tape—used in conservative amounts—be
applied to threads when joining components together. Do not use thread-sealing compounds, sometimes referred to as “pipe dope.” Compounds can be
ejected from the threads during the tightening process and become lodged in key components, rendering them useless, including solenoid valves and
pressure gauge ball valves.
NOTICE
14
15
16
17
18 19
20
21
Top View
Back View
07610-003-61-42-Z
54
PARTS
TEMPSTAR/FL PLUMBING
ITEM QTY DESCRIPTION PART NUMBER
1 1 Y-strainer, 1/2" 04730-217-01-10
2 1 Vacuum Breaker, 1/2" Brass 04820-003-06-13
3 3 Plug, Rinse Injector, 1/8” Brass 04730-209-07-37
4 1 Casting, 1/2" Flanged Coupling 05700-004-47-97
5
1
1
Rinse Injector
Gasket, Rinse Injector (Not Shown)
05700-002-56-75
05330-111-42-81
6 3 Washer, 1/4-20 Hex with Nylon Insert 05311-174-01-00
7 3 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00
8 1 Gasket, Rinse Manifold 05330-003-75-91
9 1 Decal, 10 PSI 09905-004-50-73
10 1 Hose, 1/2" x 31" Blue 05700-004-54-56
11 2 Elbow, 1/2" 90-degree Brass 04730-011-42-96
12 1 Hose, 1/2" x 33" Red 05700-004-51-62
13 1 Solenoid Valve, 1/2" 04810-003-71-56
14 2 Nipple, 1/2" x 4" Brass 04730-207-04-00
15 1 Nipple, 1/2" Brass 04730-207-15-00
16 1 Tee, 1/2" x 1/2" x 1/4" 04730-002-22-56
17 1 Nipple, 1/2" x 2" Brass 04730-207-19-00
18 1 Union, 1/2" x 1/2" Brass 04730-003-62-44
19 1 Elbow, 1/2" 90-degree Street Brass 04730-206-08-00
20 1 Ball Valve, 1/4" Bronze 04810-011-72-67
21 1 Pressure Gauge 06685-111-88-34
55
07610-003-61-42-Z
PARTS
PLUMBING - NB MODELS
5
7
2
1
2
3
6
4
8
9
10
11
2
ITEM QTY DESCRIPTION PART NUMBER
Complete Assembly 05700-003-60-73
1 1 Tee, Brass, 1/2" x 1/2" x 1/4" 04730-411-25-01
2 3 Adapter, 1/2” 04730-011-59-53
3 1 Y-Strainer, 1/2” 04730-217-01-10
4 1 Ball Valve, Bronze, 1/4" 04810-011-72-67
5 1 Adapter, 1/2” 04730-401-03-01
6 1 Pressure Gauge, 0-100 PSI 06685-111-88-34
7 1 Valve, Solenoid, 1/2" 208-240 V 04810-003-71-56
8 1 Vacuum Breaker, 1/2" 04820-003-06-13
9 1 Tube, Copper 1/2” x 5 3/4" 05700-002-91-03
10 1 Union, 1/2” 04730-412-05-01
11 1 Elbow, 1/2” 90-Degree 04730-406-31-01
7
5
13
11
12
6
12
11
9
6
8
11
15
2
1
2
3
14
4
10
5
7
07610-003-61-42-Z
56

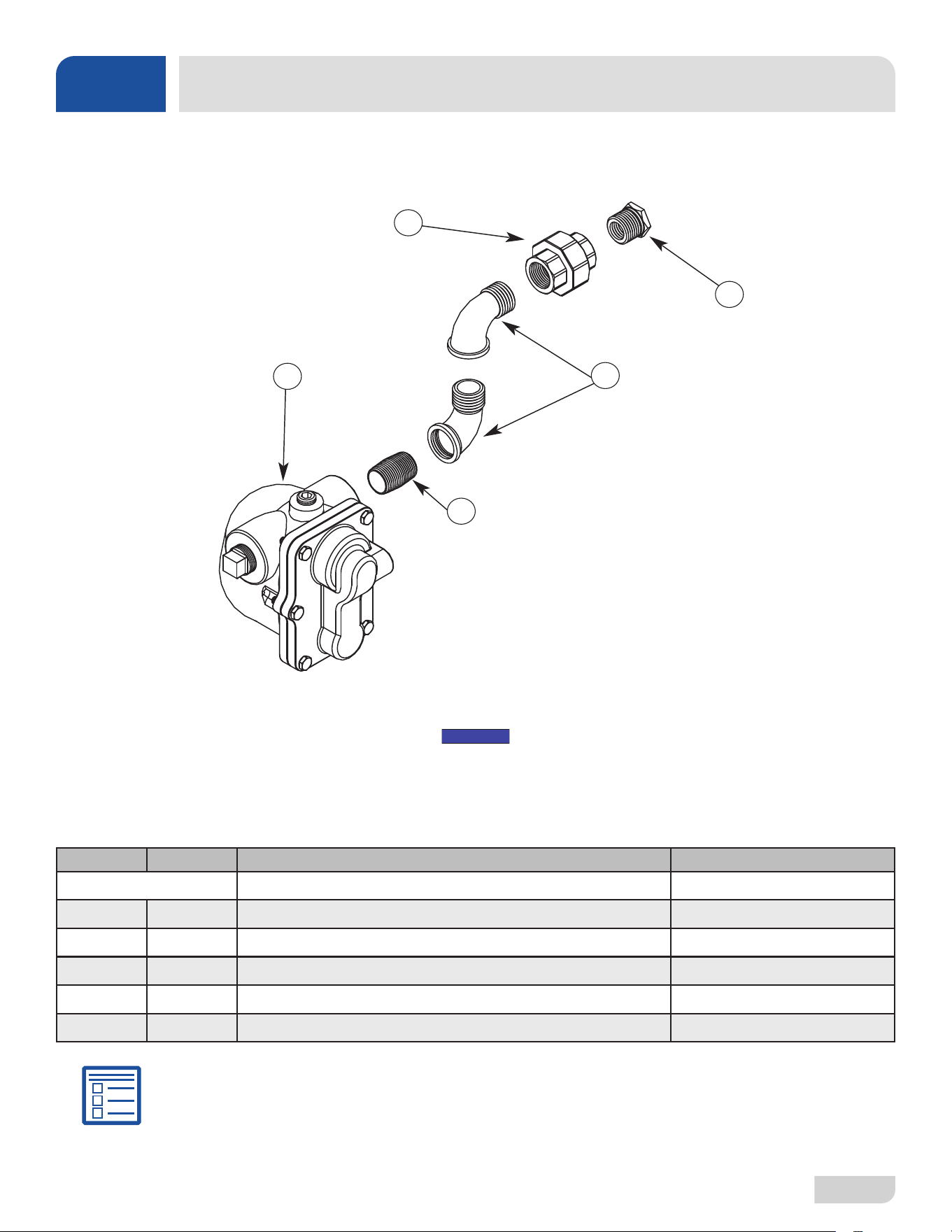

PLUMBING - STEAM MODELS
PARTS
ITEM QTY DESCRIPTION PART NUMBER
Complete Assembly 05700-002-01-55
1 1 Union, 3/4’’, Black Iron 04730-912-01-00
2 1 Bushing, Reducing, 3/4’’ to 1/2’’ 04730-911-02-34
3 2 Elbow, 3/4” 90-degree Street 04730-011-87-37
4 1 Nipple, Close, 3/4’’, Black Iron 04730-907-01-00
5 1 Steam Trap, 3/4” 06680-500-02-77
1
2
3
4
5
When servicing plumbing components, take care not to damage the threads of each individual item. Damaged threads can cause leaks and loss of
pressure, which could adversely affect the performance of the machine. It is strongly recommended that thread tape—used in conservative amounts—be
applied to threads when joining components together. Do not use thread-sealing compounds, sometimes referred to as “pipe dope.” Compounds can be
ejected from the threads during the tightening process and become lodged in key components, rendering them useless, including solenoid valves and
pressure gauge ball valves.
NOTICE
Click here for the Steam Booster manual.
57
07610-003-61-42-Z

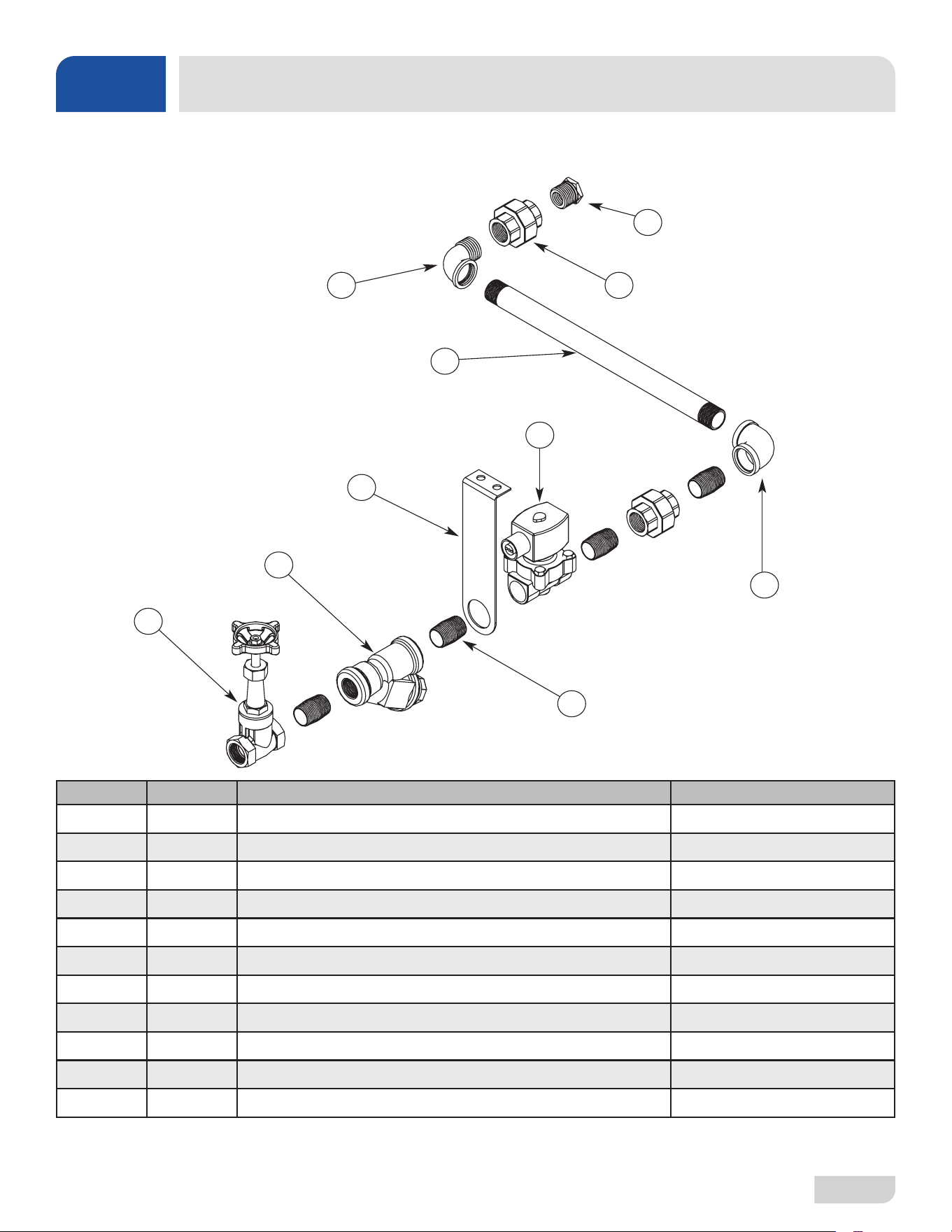

ITEM QTY DESCRIPTION PART NUMBER
Complete Assembly 05700-002-01-60
1 1 Bushing, Reducing, 3/4’’ to 1/2’’ 04730-911-02-34
2 2 Union, 3/4’’, Black Iron 04730-912-01-00
3 1 Elbow, 3/4”, Black Iron 04730-906-10-34
4 4 Nipple, Close, 3/4’’, Black Iron 04730-907-01-00
5 1 Gate Valve, 3/4” 04820-100-19-00
6 1 Y-Strainer, 3/4”, Black Iron 04730-217-01-32
7 1 Bracket, Steam Plumbing Support 05700-002-01-63
8 1 Solenoid Valve, Steam Plumbing, 220 V 04820-002-01-56
9 1 Black Iron Pipe, 3/4” 05700-002-20-83
10 1 Elbow, 3/4” 90-degree Street 04730-011-87-37
1
2
3
8
7
5
6
4
9
10
PLUMBING - STEAM MODELS
PARTS
07610-003-61-42-Z
58
PARTS
PLUMBING - VER/FL-VER
APPROX.
45°
ITEM QTY DESCRIPTION PART NUMBER
Complete Assembly 05700-004-53-48
1 2 Elbow, 1/2", 90-degree Street Brass 04730-206-08-00
2 2 Nipple, 1/2" Close Brass 04730-207-15-00
3 1 Valve, Solenoid, 1/2" 208-240 V 04810-003-71-56
4 1 Y-Strainer, 1/2” 04730-217-01-10
5 2 Elbow, 1/2" 90-degree Brass 04730-011-42-96
6 1 Tee, 1/2" x 1/2" x 1/4" 04730-002-22-56
7 1 Fitting, 1/4" Barb x 1/4" Swivel 04730-011-95-41
8 1 Nipple, 1/2" x 1/4" Brass, Low PSI 05700-004-53-43
9 1 Tee, 1/2" Brass 04730-211-27-00
10 1 Nipple, 1/2" x 6" Brass 04730-003-62-38
11 1 Plug, 1/2" Brass Pipe 04730-209-03-00
12*
1
3
Rinse Injector, VER
Plug, Rinse Injector, 1/8” Brass (Not Shown)
09515-004-22-73
04730-209-07-37
13* 1 Gasket, Rinse Injector 05330-111-42-81
*These items are not included in the complete plumbing assembly and must be ordered separately.
BACK OF
MACHINE
*
*
59
07610-003-61-42-Z
PRESSURE REGULATING VALVE OPTION*
Water Arrestor, 1/2”
06685-100-05-00
Tee, 1/2” x 1/2” x 1/2”
04730-211-27-00
Nipple, 1/2”, Close, Brass
04730-207-15-00
SHOCK ABSORBER (WATER ARRESTOR) OPTION
Pressure Gauge, 0-100 PSI
06685-111-88-34
Ball Valve, 1/4" Bronze
04810-011-72-67
Water Pressure Regulator, 1/2”
04820-100-04-07
Water Pressure Regulator, 3/4” (VER)
06685-011-58-22
Tee, Brass, 1/2" x 1/2" x 1/4"
04730-002-22-56
Adapter, 1/2"
04730-011-59-53
PARTS
PLUMBING OPTIONS
*PRV comes standard on the TempStar VER but ships inside the machine. Click here for install instructions.
WATER TREATMENT OPTION
Replacement Cartridge
(inspect at least every 6 months)
RSC-100
Scaltrol System
04730-003-05-76
07610-003-61-42-Z
60
PARTS
WASH & RINSE ASSEMBLIES
10
17
14
13
12
11
10
10
10
9
16
15
5
7
7
6
10
18
3
2
6
8
9
16
3
1
1
4
2
9
16
FINAL RINSE ARMS & MANIFOLD
WASH ARMS & MANIFOLD
19
*
*
61
07610-003-61-42-Z
*Rinse Arm Bearing Kit
(Includes items 11 and 12)
06401-004-57-50
PARTS
WASH & RINSE ASSEMBLIES
ITEM QTY DESCRIPTION PART NUMBER
1 1 Upper Manifold 05700-031-34-82
2 4 Nut, 3/8-16 Hex 05310-276-01-00
3 4 Lockwasher, 3/8" 05311-276-01-00
4 2 Bolt, Hex 3/8-16 x 7/8" 05306-011-36-95
5 2 O-ring 05330-111-35-15
6 1 Positioning Bracket, Manifold Tube 05700-011-34-63
7 1 Tube, Wash Manifold 05700-131-15-07
8 2 Gasket, Manifold 05700-111-35-03
9 1 Wash Arm 05700-004-13-13
10 5 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00
11* 2 Clip, Retaining, Rinse Head Bushing 05340-112-01-11
12* 2 Bearing Assembly, Rinse Arm 05700-004-54-71
13 2 Rinse Arm 05700-003-58-94
14 4 Rinse Arm End-cap 04730-111-60-41
15 1 Lower Wash Manifold 05700-031-46-00
16 2 Bearing Assembly 05700-021-35-97
17 1 Rinse Manifold Assembly 05700-021-47-61
18 2 Bolt, Hex 3/8-16 x 1 1/4" 05305-276-10-00
19 4 Wash Arm End-cap 05700-003-31-59
07610-003-61-42-Z
62
PARTS
VER SYSTEM
18*
24
23
12
11
16
17
14
21
22
20
19
27
28
29
63
07610-003-61-42-Z
PARTS
VER SYSTEM
ITEM QTY DESCRIPTION PART NUMBER
1 VER System, Complete Assembly 05700-004-53-47
1 1 Plate, Fan Mounting 05700-004-18-07
2 1 Upper Shroud 05700-004-18-06
3 8 Screw, 6-32 x 1 3/4" 05305-004-19-80
4 4 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00
5 1 Exhaust Box 05700-004-18-04
6 1 Gasket, Heat Exchanger 05330-004-18-22
7 1 Gauge 06680-004-19-78
8 1 Coil Box, Back 05700-004-18-03
9 1 Coil, Heat Exchanger 04420-004-19-61
10 12 Bolt, 1/4-20 x 3/8" Hex 05305-274-20-00
11 1 Vacuum Breaker, 1/2" Brass 04820-003-06-13
12 1 Elbow, 1/2", 90-degree Street Brass 04730-206-08-00
13 1 Bracket, Vacuum Breaker 05700-004-18-91
14 1 Shroud, Heat Exchanger 05700-004-18-92
15 6 Locknut, 10-24 Hex with Nylon Insert 05310-373-01-00
16 6 Washer, Flat 05311-173-02-00
17 1 Inlet, Cold Water 05700-004-19-01
18* 2
Fan, 85-236 V AC*
Fan, 24 V DC*
05999-004-19-46*
05999-004-81-80*
19 2 Screw, 1/4-20 x 5/8” Hex Head 05305-274-24-00
20 1 Edge Protector 05700-004-25-62
21 1 Ring, Pressure Gauge 05700-004-35-70
22 4 Nut, 1/4-20 05310-004-23-96
23 1 Bracket, Water Inlet 05700-004-41-27
24 1 Hose, 1/2" x 24" Red 05700-004-19-89
25 1 Hose, 1/2" x 38" Red 05700-004-31-81
26 1 Hose, 1/2" x 48" Blue 05700-004-48-23
27 1 Bushing, 3/4" x 1/2" 04730-002-56-27
28 1 Elbow, 1/2", 90-degree Brass 04730-011-42-96
29 1 Hose, 1/4" x 30" Black 05700-004-63-75
*Conrm fans are AC or DC before ordering.
07610-003-61-42-Z
64
PARTS
VER DOOR INTERLOCK
1
14
10
15
15
7
2
7
5
4
3
16
13
8
6
11
10
14
12
4
5
3
9
2
7
7
12
18
17
14
19
Complete Interlock Assembly
05700-004-97-05
Complete Interlock Box Assembly (includes above)
05700-004-97-06
65
07610-003-61-42-Z
PARTS
VER DOOR INTERLOCK
ITEM QTY DESCRIPTION PART NUMBER
1 1 Plate, Interlock 05700-004-97-10
2 1 Link, Interlock Connector 05700-004-71-37
3 1 Interlock Cam 05700-004-71-39
4 1 Interlock Guide 05700-004-71-50
5 1 Pin, Interlock 05700-004-71-49
6 1 Motor, Interlock 06105-004-70-04
7 2 Switch, Interlock 05930-004-71-36
8 1 Set Screw, 6-32 x 1/4" 05305-004-71-42
9 2 Shoulder Screw, 10-32 05305-004-71-40
10 2 Screw, 10-32 x 1/2" 05305-011-39-36
11 2 Screw, 6-32 x 3/8" 05305-171-02-00
12 2 Locknut, 10-32 with Nylon Insert 05310-373-02-00
13 5 Locknut, 4-40 05310-279-06-00
14 8 Insert, Threaded Hex 1/4-20 05310-004-23-96
15 2 Bushing, Lock 05975-210-05-00
16 2 Locknut, 6-32 with Nylon Insert 05310-373-03-00
17 1 Box, Door Interlock 05700-004-99-16
18 1 Fitting 05975-011-49-03
19 6 Screw, 1/4-20 x 1/2" Button Head Hex 05305-004-62-33
07610-003-61-42-Z
66
PARTS
FL-VER DOOR INTERLOCK
ITEM QTY DESCRIPTION PART NUMBER
1 1 Bracket, Solenoid Guide 05700-005-05-41
2 2 Screw, 6-32 x 1/8" 05305-004-51-01
3 1 Locknut, 1/4-20 Low Prole with Nylon Insert 05310-374-02-00
4 1 Bushing, Door Interlock Latch Pivot 09330-005-06-56
5 1 Washer, 1/4-20 x 3/4" OD 05311-011-76-30
6 1 Latch, Door Interlock 05700-005-05-38
7 3 Locknut, 10-24 Hex with Nylon Insert 05310-373-01-00
8 1 Block, Latch Guide 09330-005-05-43
9 1 Bushing, Door Interlock Pin 09330-005-06-57
10 1 Spring, Conical Compression 05340-004-47-53
11 1 P-clamp, 1/4" ID 05975-002-61-42
12 1 Pin, Door Interlock 09515-005-05-36
13 1 Screw, 10-32 05305-005-05-44
14 1 Solenoid Rod, Door Interlock 09515-005-05-56
15 1 Solenoid 05999-004-47-49
16 1 Bushing, Interlock Pin Cap 09330-005-06-58
7
10
11
5
6
3
2
2
13
8
1
4
9
16
9
15
1410
12
7
FL-VER Door Interlock Assembly
05700-005-05-42
67
07610-003-61-42-Z
PARTS
VER DOOR INTERLOCK OVERRIDE
The following instructions are for models equipped with the Door Interlock option. These instructions should only be
used if the door interlock fails to unlatch and the door won't open.
1. Turn machine off by ipping the power switch to "OFF."
2. If this doesn’t disengage the interlock rod, push the rod back by hand.
3. The door should now open.
4. Contact a qualied service agency to have the interlock serviced.
07610-003-61-42-Z
68
PARTS
460 V MACHINE TRANSFORMER MOUNTING BOX
460 V Transformer
05950-111-65-93
2 A Circuit Breaker
05925-111-64-18
Transformer Mounting Box
05700-002-10-01
Transformer Mounting Box Top
(Not Shown)
05700-000-78-53
Transformer Mounting Bracket
05700-031-62-82
69
07610-003-61-42-Z
PARTS
KITS
Call 1-880-800-5672 to order kits for TempStar models and use the part numbers below:
DESCRIPTION PART NUMBER
VER Door Interlock Kit 06401-004-03-23
Door Magnet Cover Kit 06401-004-07-73
Drain Water Tempering Kit 06401-004-85-80
Exhaust Fan Contactor Kit 05700-004-35-35
False Panel Kit 05700-002-75-59
Phase Conversion Kit 06401-004-00-22
Fans Conversion Kit, AC to DC 06401-004-83-93
TempStar Go Box* 06401-003-62-04
*The Go Box is a kit of the most-needed parts to successfully complete a repair in the rst call 90% or more of the time.
07610-003-61-42-Z
70
SCHEMATICS
208-230 V
71
07610-003-61-42-Z

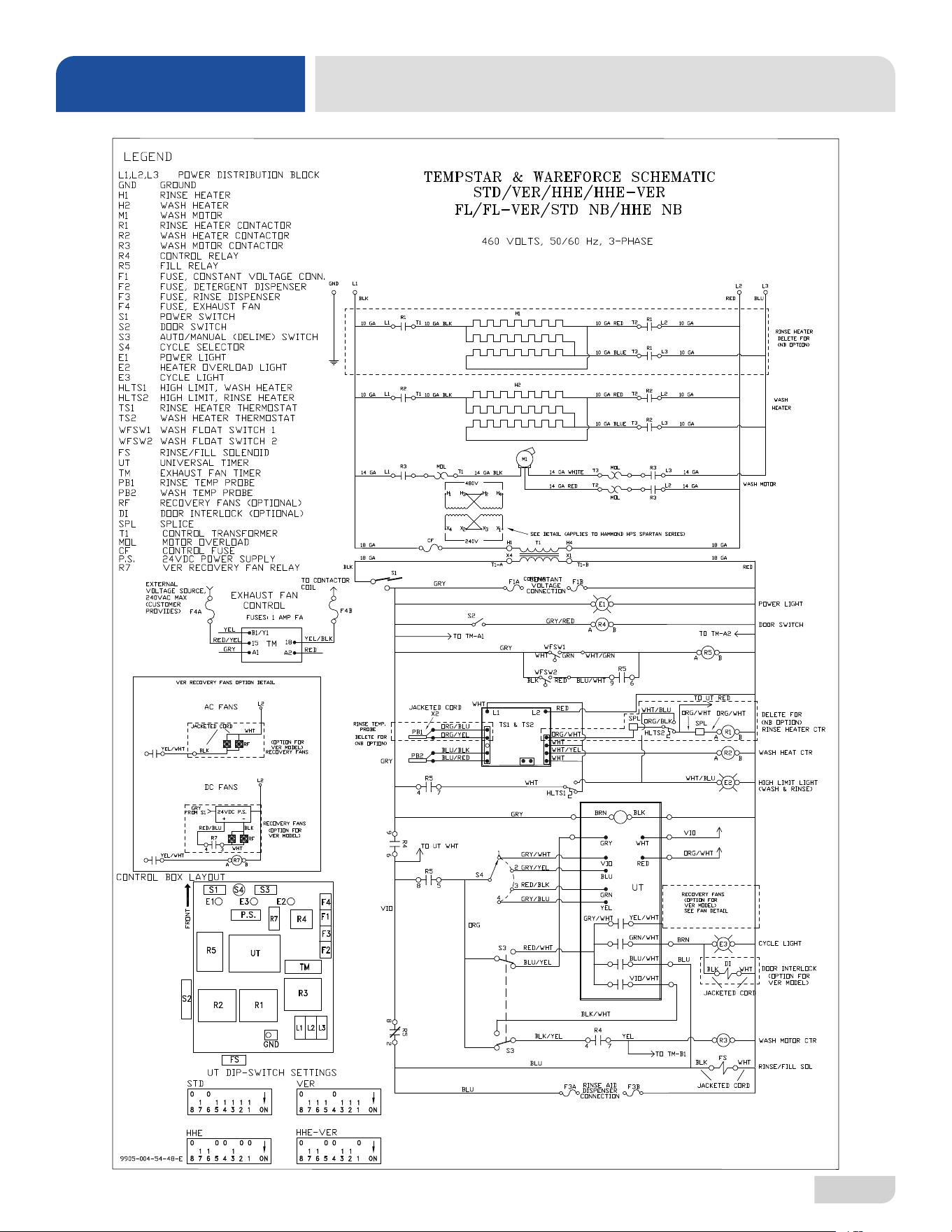

SCHEMATICS
460 V
07610-003-61-42-Z
72

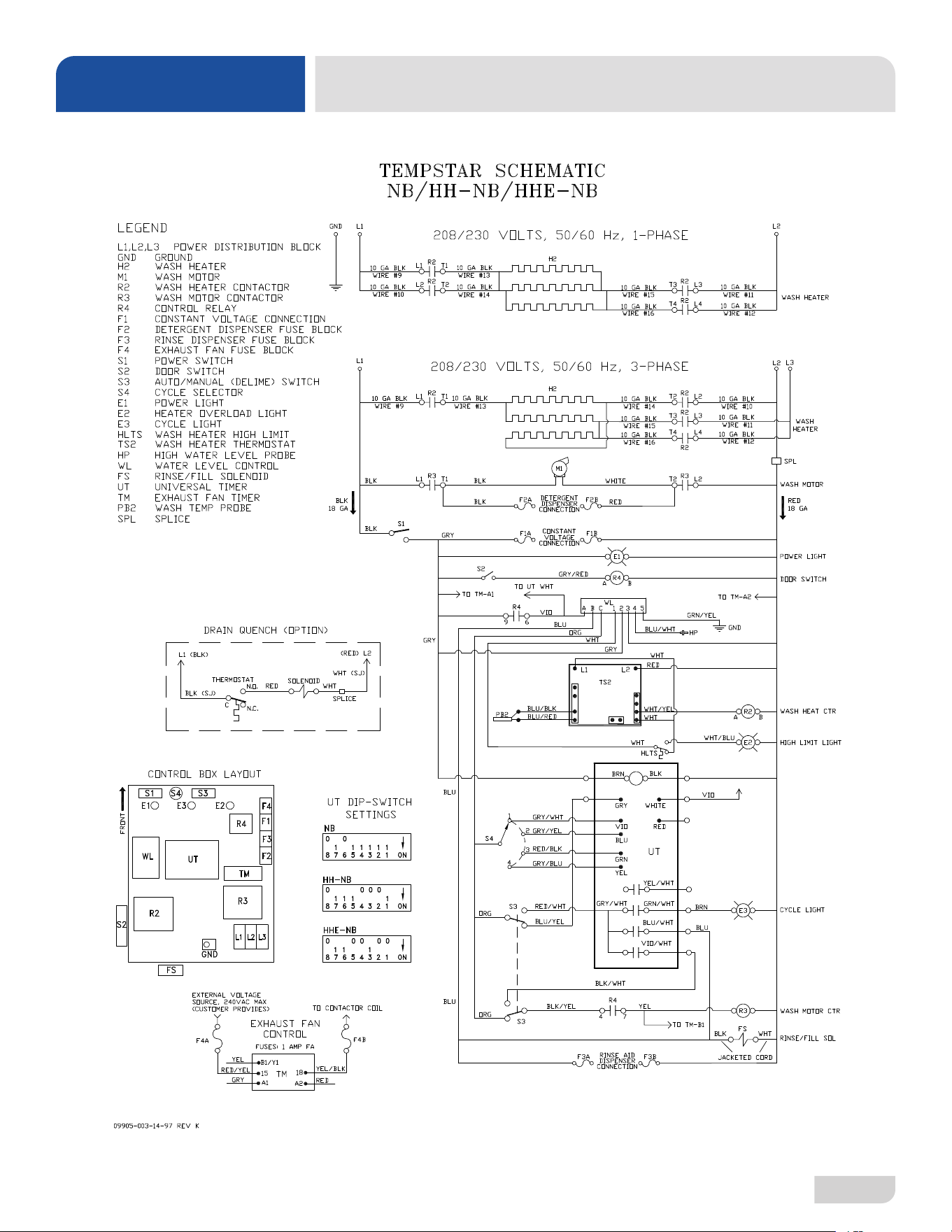

SCHEMATICS
NB, 208-230 V
73
07610-003-61-42-Z

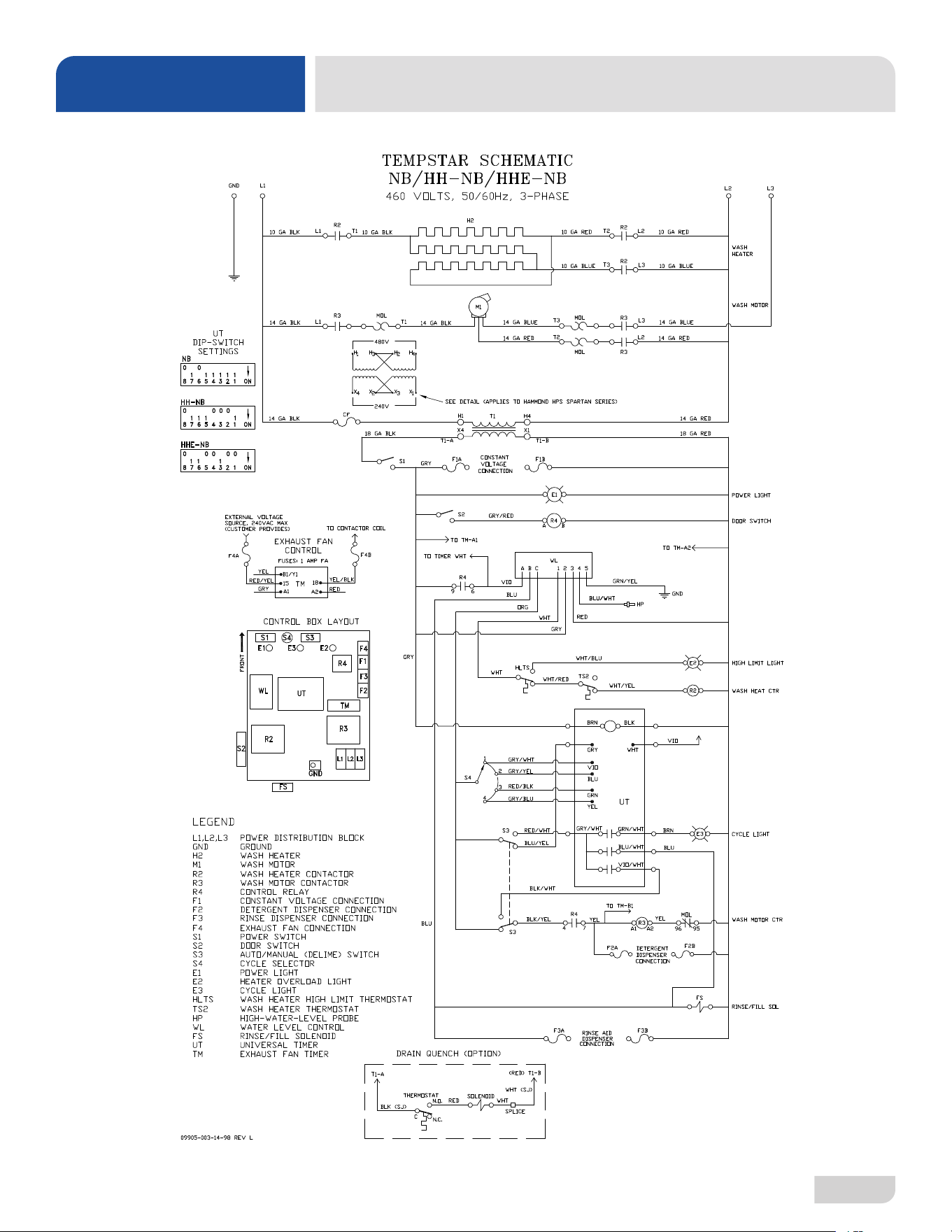

SCHEMATICS
NB, 460 V
07610-003-61-42-Z
74

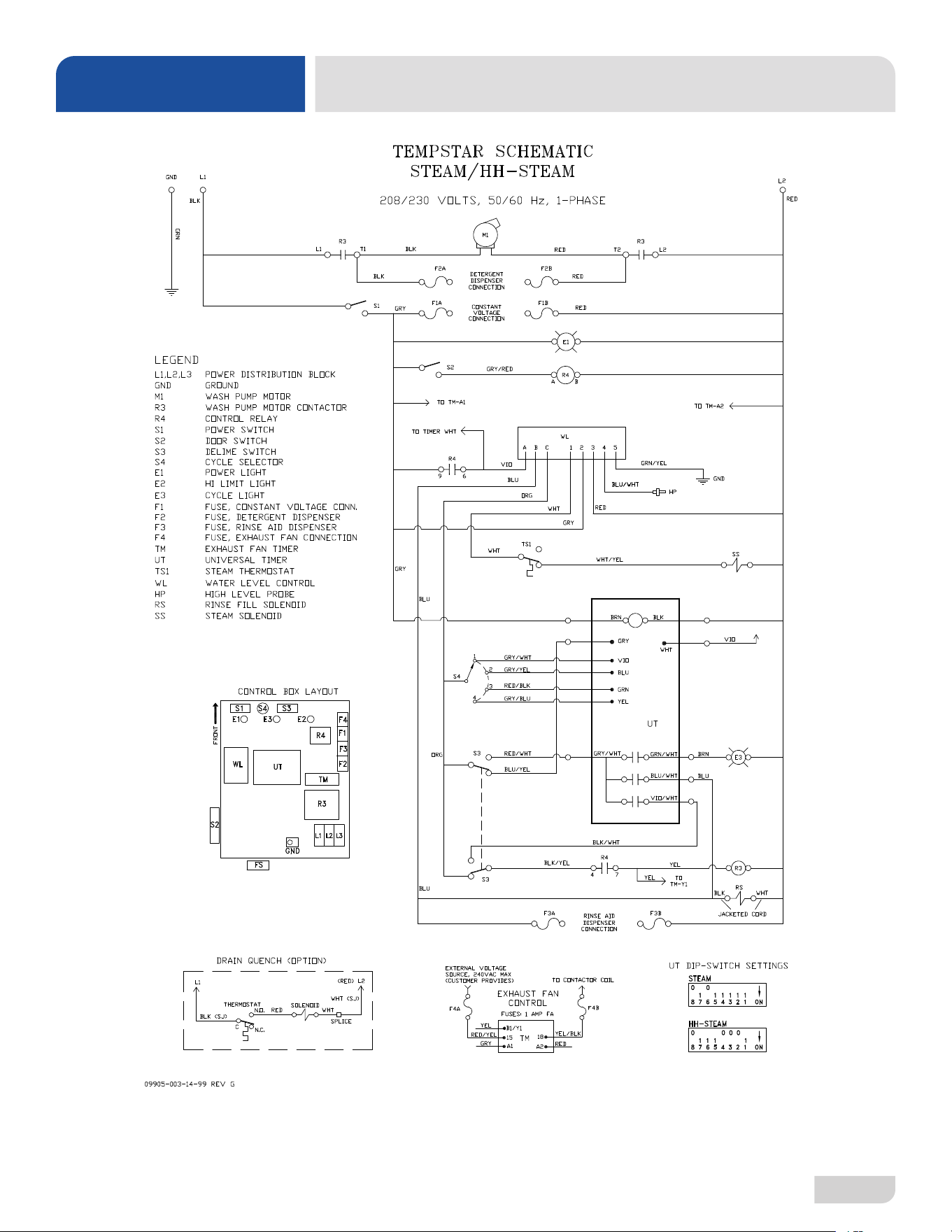

SCHEMATICS
STEAM, 208-230 V
75
07610-003-61-42-Z

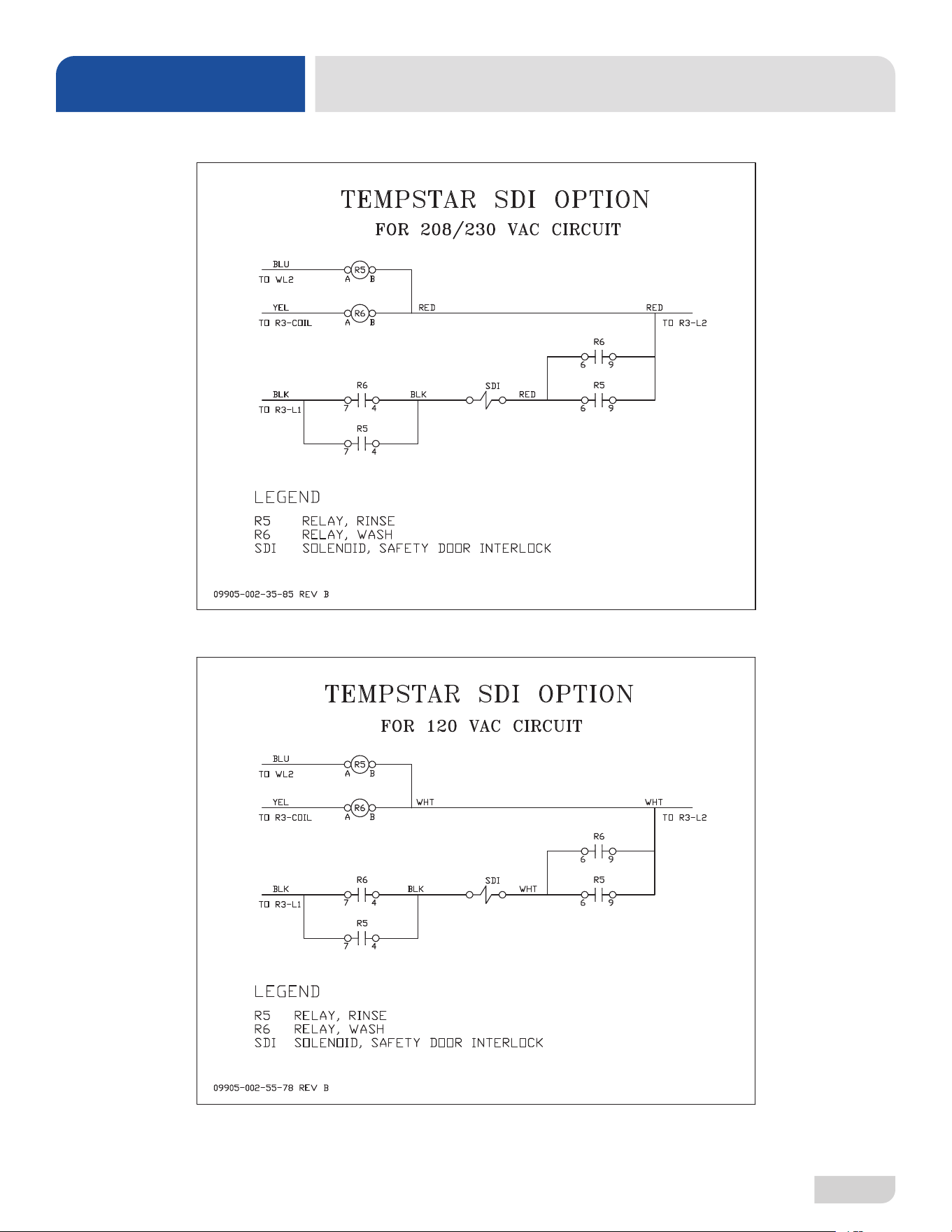

SCHEMATICS
SDI OPTIONS
TempStar Manual • 07610-003-61-42-Z
Jackson WWS, Inc. • 6209 N. US Hwy 25E • Gray, KY 40734 USA
1.888.800.5672 • www.jacksonwws.com
