DELTA 5-EDELTA 5-E
INSTALLATION, OPERATION,INSTALLATION, OPERATION,
AND SERVICE MANUALAND SERVICE MANUAL
Delta 5-E Manual • 07610-003-37-08-R
DELTADELTA
®®
SERIES GLASSWASHER DISHMACHINESSERIES GLASSWASHER DISHMACHINES
®®
MANUFACTURER'S LIMITED WARRANTY
(APPLICABLE ONLY IN THE UNITED STATES AND CANADA)
WARRANTY REGISTRATION:
To register your Jackson Dishmachine’s warranty go to jacksonwws.com/warranty or call 1-888-800-5672. Failure to
register the Dishmachine will void the warranty.
ONE YEAR LIMITED PARTS AND LABOR WARRANTY
For a period of one (1) year from date of original installation of a new Jackson Dishmachine (but in no event to exceed
eighteen (18) months from date of shipment from Jackson’s factory), Jackson WWS, Inc. (Jackson) will repair or replace,
at its discretion, any original part that proves defective in materials or workmanship at the time the Dishmachine was
purchased; provided that (i) the Dishmachine has not been altered, (ii) the Dishmachine has been properly installed,
maintained, and operated under normal use conditions and in accordance with the applicable installation, operation and
service manual available on the Jackson website, and (iii) a warranty claim is reported to a Jackson Authorized Service
Agency within the warranty period. This warranty includes replacement with Jackson specied genuine replacement
parts, purchased directly from a Jackson Authorized Parts Distributor or Service Agency. Use of generic replacement
parts may create a hazard and shall void this warranty.
THIS WARRANTY DOES NOT APPLY OUTSIDE THE UNITED STATES AND CANADA.
Jackson will pay the labor to repair or replace a defective original part as a part of the warranty, provided that a Jackson
Authorized Service Agency performs the labor. Any repair or replacement work by anyone other than a Jackson
Authorized Service Agency is the sole responsibility of the purchaser. Labor coverage is limited to regular hourly rates;
Jackson will not pay overtime premiums or emergency service charges.
Accessory components (such as table limit switches, pressure regulators, and drain water tempering kits) that are not
installed by Jackson at the factory and are shipped with the Dishmachine carry only a (1) one-year parts warranty. Labor
to repair or replace these components is not included in the warranty or covered by Jackson. Booster heaters not
manufactured by Jackson are not covered by this warranty but are warranted by their respective manufacturers.
This warranty is void if any defect or failure is a direct result from shipping, handling, re, water, accident, alteration,
modication, misuse, abuse, ood, acts of God, burglary, casualty, attempted repair by unauthorized persons, use of
replacement parts not authorized by Jackson, improper installation, installation not in accordance with local electrical and
plumbing codes, if the serial number has been removed or altered, if the Dishmachine is used for any purpose other than
originally intended, or if the equipment is installed for residential use.
Jackson does not authorize any other entity or person, including, without limitation, any entity or person who deals in
Jackson Dishmachines, to change this warranty or create any other obligation in connection with Jackson Dishmachines.
TRAVEL LIMITATIONS:
Jackson limits warranty travel time to the customer site within 50 miles of the Jackson authorized service agent’s oce
and during regular business hours. Jackson will not pay for travel time and mileage that exceeds these limits, or any fees
such as those for air or boat travel without prior authorization.
REPLACEMENT PARTS WARRANTY:
For a period of (90) ninety days from the date of installation by a Jackson Authorized Service Agency (but in no event to
exceed (180) one-hundred-eighty days from the date of purchase from a Jackson Authorized Parts Distributor or Service
Agency), Jackson will repair or replace, at its discretion, any Jackson genuine replacement parts that prove defective
in materials or workmanship at the time the replacement parts were installed. This warranty does not include paying
the labor to repair or replace the replacement part. This warranty is subject to all conditions, exclusions and limitations
applicable to the Dishmachine.
MANUFACTURER'S LIMITED WARRANTY (CONT.)
(APPLICABLE ONLY IN THE UNITED STATES AND CANADA)
PRODUCT CHANGES:
Jackson reserves the right to make changes in design and specication of any component of the Dishmachine as
engineering or necessity requires.
DISCLAIMER OF WARRANTIES:
THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, THAT ARE NOT SET FORTH
HEREIN, OR THAT EXTEND BEYOND THE DURATION HEREOF.
LIMITATION OF REMEDIES AND LIABILITIES:
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR
REPLACEMENT AS PROVIDED HEREIN.
UNDER NO CIRCUMSTANCES WILL JACKSON BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR FOR DAMAGES IN THE NATURE OF PENALTIES. JACKSON’S LIABILITY ON ANY CLAIM OF ANY
KIND WITH RESPECT TO THE GOODS OR SERVICES COVERED HEREUNDER SHALL IN NO CASE EXCEED THE
PRICE OF THE GOODS OR SERVICES OR PART THEREOF WHICH GIVES RISE TO THE CLAIM.
ITEMS NOT COVERED:
THIS WARRANTY DOES NOT COVER (1) ADJUSTMENTS INCLUDING, BUT NOT LIMITED TO, TIMER CAMS,
THERMOSTATS, DOORS, TANK HEATER ADJUSTMENTS OR CLUTCHES; (2) AIR FREIGHT OR OVERNIGHT
FREIGHT; (3) ANY AMOUNT EXCEEDING ORIGINAL PURCHASE PRICE; (4) CLEANING OF DRAIN VALVES,
GAS LINES, RINSE/WASH NOZZLES, STRAINERS, SCREENS, OR SPRAY PIPES; (5) CLEANING OR DELIMING
OF THE DISHMACHINE OR ANY COMPONENT INCLUDING, BUT NOT LIMITED TO, WASH ARMS, RINSE
ARMS AND STRAINERS; (6) CONDITIONS CAUSED BY THE USE OF INCORRECT (NON-COMMERCIAL)
GRADE DETERGENTS; (7) CORROSION FROM CHEMICALS DISPENSED IN EXCESS OF RECOMMENDED
CONCENTRATIONS; (8) COSMETIC DAMAGE, INCLUDING BUT NOT LIMITED TO, SCRATCHES, DENTS, CHIPS,
AND OTHER DAMAGE TO THE DISHMACHINE FINISHES, UNLESS SUCH DAMAGE RESULTS FROM DEFECTS IN
MATERIALS AND WORKMANSHIP AND IS REPORTED TO JACKSON WITHIN (30) THIRTY DAYS FROM THE DATE
OF INSTALLATION; (9) DAMAGE CAUSED BY LABOR DISPUTE; (10) DAMAGES RESULTING FROM IMPROPER
CONNECTION TO UTILITY SERVICE; (11) DAMAGES RESULTING FROM WATER CONDITIONS, INADEQUATE OR
EXCESSIVE WATER PRESSURE, ACCIDENTS, ALTERATIONS, IMPROPER USE, ABUSE, HANDLING, OVERLOADS,
TAMPERING, IMPROPER INSTALLATION OR FAILURE TO FOLLOW MAINTENANCE AND OPERATING
PROCEDURES; (12) DISCOLORATION, RUST OR OXIDATION OF SURFACES RESULTING FROM CAUSTIC
OR CORROSIVE ENVIRONMENTS, INCLUDING, BUT NOT LIMITED TO, HIGH SALT CONCENTRATIONS, HIGH
MOISTURE OR HUMIDITY, OR EXPOSURE TO CHEMICALS; (13) ELECTRIC BOOSTERS, FEED LINES, FLEX HOSE,
FUSES, GARBAGE DISPOSALS, OR GAS PILOTS; (14) EXCESSIVE LIME, MINERAL, OR ALKALINE BUILDUP; (15)
EXPENSES DUE TO DISCONNECTION, DELIVERY, RETURN AND REINSTALLATION; (16) FAILURE OF ELECTRICAL
COMPONENTS DUE TO CONNECTION OF CHEMICAL DISPENSING EQUIPMENT INSTALLED BY OTHERS; (17)
FAILURE OF FACILITY WATER HEATER TO MAKE TEMPERATURE; (18) FAILURE TO MAINTAIN WATER HARDNESS
LOWER THAN 3.0 GRAINS, PH BETWEEN 7.0 AND 8.5 AND TOTAL DISSOLVED SOLIDS BELOW 250 PPM; (19)
FAILURE TO COMPLY WITH LOCAL ELECTRICAL BUILDING CODES; (20) LEAKS OR DAMAGE RESULTING FROM
SUCH LEAKS CAUSED BY THE INSTALLER, INCLUDING THOSE AT MACHINE TABLE CONNECTIONS, OR BY
CONNECTION OF CHEMICAL DISPENSING EQUIPMENT INSTALLED BY OTHERS; (21) OPENING OR CLOSING OF
UTILITY SUPPLY VALVES OR SWITCHING OF ELECTRICAL SUPPLY CURRENT; (22) PERFORMANCE OF REGULAR
MAINTENANCE AND CLEANING AS OUTLINED IN THE OPERATOR’S GUIDE; (23) REMOVAL OR REINSTALLATION
OF INACCESSIBLE DISHMACHINES OR BUILT-IN FIXTURES THAT INTERFERE WITH SERVICING, REMOVAL OR
REPLACEMENT OF THE DISHMACHINE; (24) REPLACEMENT WEAR ITEMS INCLUDING, BUT NOT LIMITED TO,
CURTAINS, DRAIN BALLS, DOOR GUIDES, GASKETS, O-RINGS, SEALS, SQUEEZE TUBES, AND BEARINGS; (25)
RESIDENTIAL USE; (26) USE WITH UTILITY SERVICE OTHER THAN THAT DESIGNATED ON THE RATING PLATE.
i
Revision Date Made by Process Details
A 5-25-07 MAW N/A Release to Production

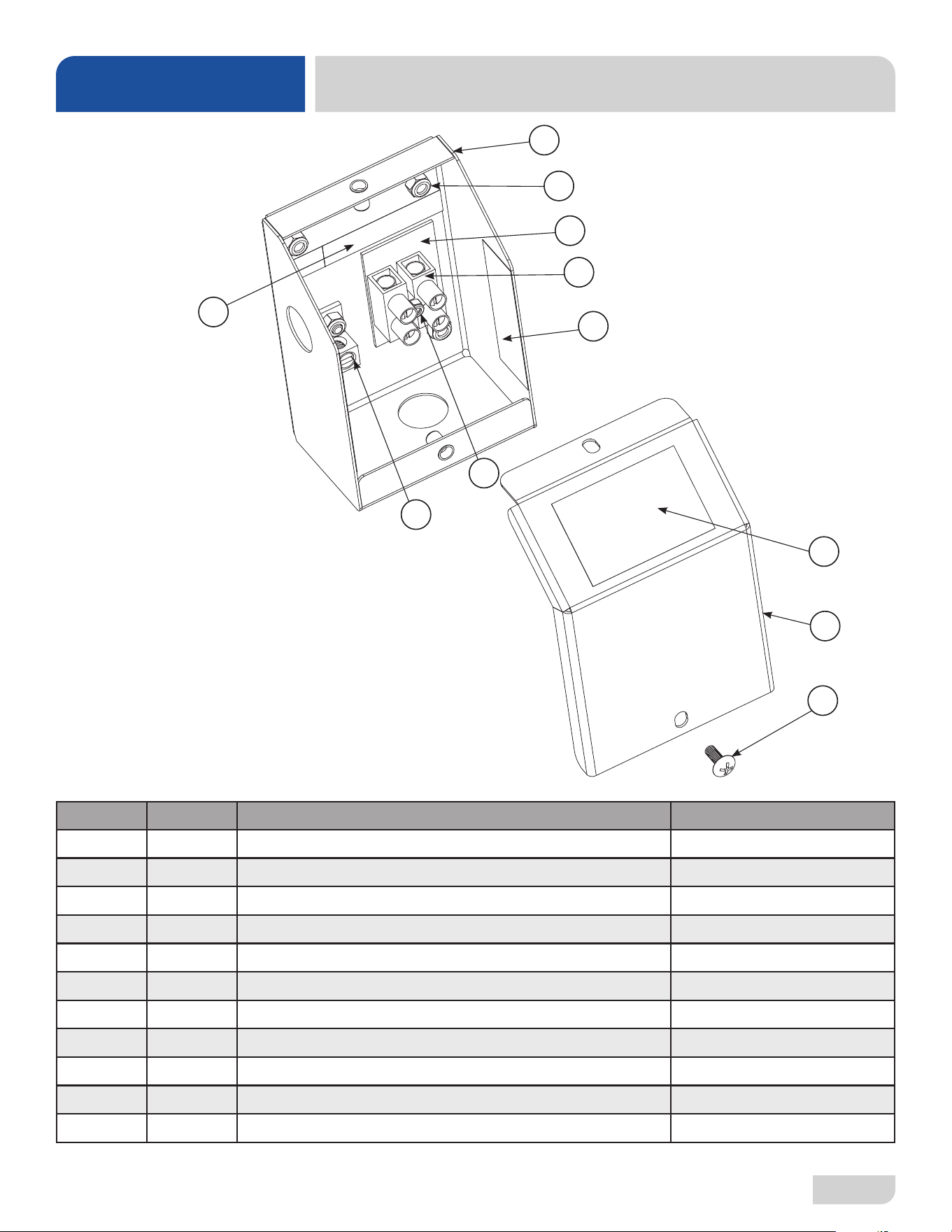

24 10-4-07 MAW 7934 Changed cover on power junction box.
10 5-20-09 ARL QOF-339 Updated programming page diagram.
B 4-26-12 RLC QOF-386 Updated location of door switch on schematic.
C 4-27-12 RLC QOF-386 Added EnergyStar logo.
D 3-08-13 RLC QOF-219 Updated company logo.
E 1-23-14 MHH QOF-238
Added wiring change schematics. Removed “Stop” page. Updated warranty infor-
mation.
F 3-12-14 MHH 8293
Removed page on programming chemical feeder pumps. Updated drawings for
control box assembly, motor & pump assembly and incoming plumbing assembly.
Added schematics and harness connections.
G 12-15-15 JH N/A
Removed Delta 5D and all references to it. Changed P/N 05330-100-01-10 to
05330-011-61-34, item #3 on pg. 32.
H 4-22-16 JH N/A
Changed drain connection information to 2 1/2” and changed NPT to “No Hub
Connection” on pg. 2.
J 5-9-16 JH 8380
Changed Booster Tank Assembly view and applicable P/Ns to show thermostat
change, pg. 32. Added schematic 09905-003-36-56-E to show thermostat change,
pg. 37. Removed earlier versions. Changed Harness Connections diagram to
show thermostat change, pg. 38.
K 1-3-17 JH N/A Updated to new manual format. Audited and corrected all P/Ns in the manual.
L 1-6-20 JH 8709
Corrected water line size to 1/2” on Operating Specs page. Removed unnecessary
information from Electrical Requirements page and corrected motor HP. Updated
Chemical Feeder Pump Components page. Changed complete motor assembly
P/N on Motor page. Updated schematic to latest revision.
M 9-15-21 JH 8756
Replaced CAM timer with electronic cycle timer. Changed stand pipe P/N on Tub
page.
N 12-13-21 JH N/A Updated water consumption per Energy Star 3.0 report.
P 5-6-22 JH
22-1197
22-1202
Updated Chemical Feeder Pumps section with black dot roller. Added in-line fuse
for drain solenoid. Updated schematic.
Q 12-13-22 JH
8896
8899
8901
Added timer bracket to control box section. Updated peri-pumps with black
components. Corrected item numbers and added splash shields in Tub section.
Revised discharge hose assembly in Frame & Motor section. New door assembly.
Updated schematic.
R 3-8-24 JH 8924 Updated Inlet Plumbing section.
REVISION HISTORY
ii
Delta 5-E
Glasswasher dishmachine; low-temperature, chemical-
sanitizing, with a sustaining heater and detergent,
rinse-aid, and sanitizer chemical feeder pumps.
NOMENCLATURE
The manufacturer provides
technical support for all of
the dishmachines detailed
in this manual. We strongly
recommend that you refer to
this manual before making a
call to our technical support
sta. Please have this manual
open when you call so that our
sta can refer you, if necessary,
to the proper page. Technical
support is not available on
holidays.
Contact technical support toll
free at 1-888-800-5672.
Technical support is available
for service personnel only.
iii
GUIDES

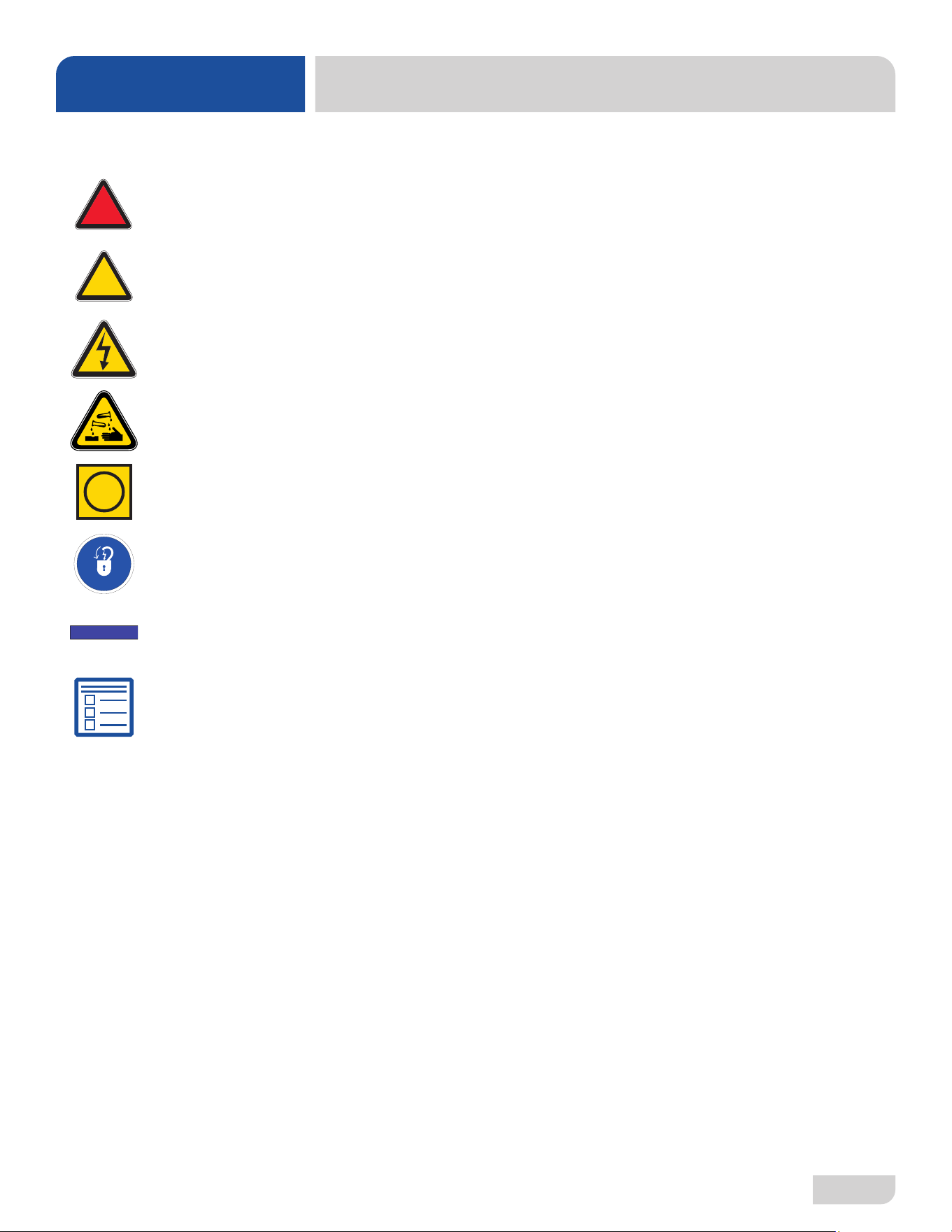

Symbols .......................................................................................................................1
Abbreviations & Acronyms ..........................................................................................1
SPECIFICATIONS

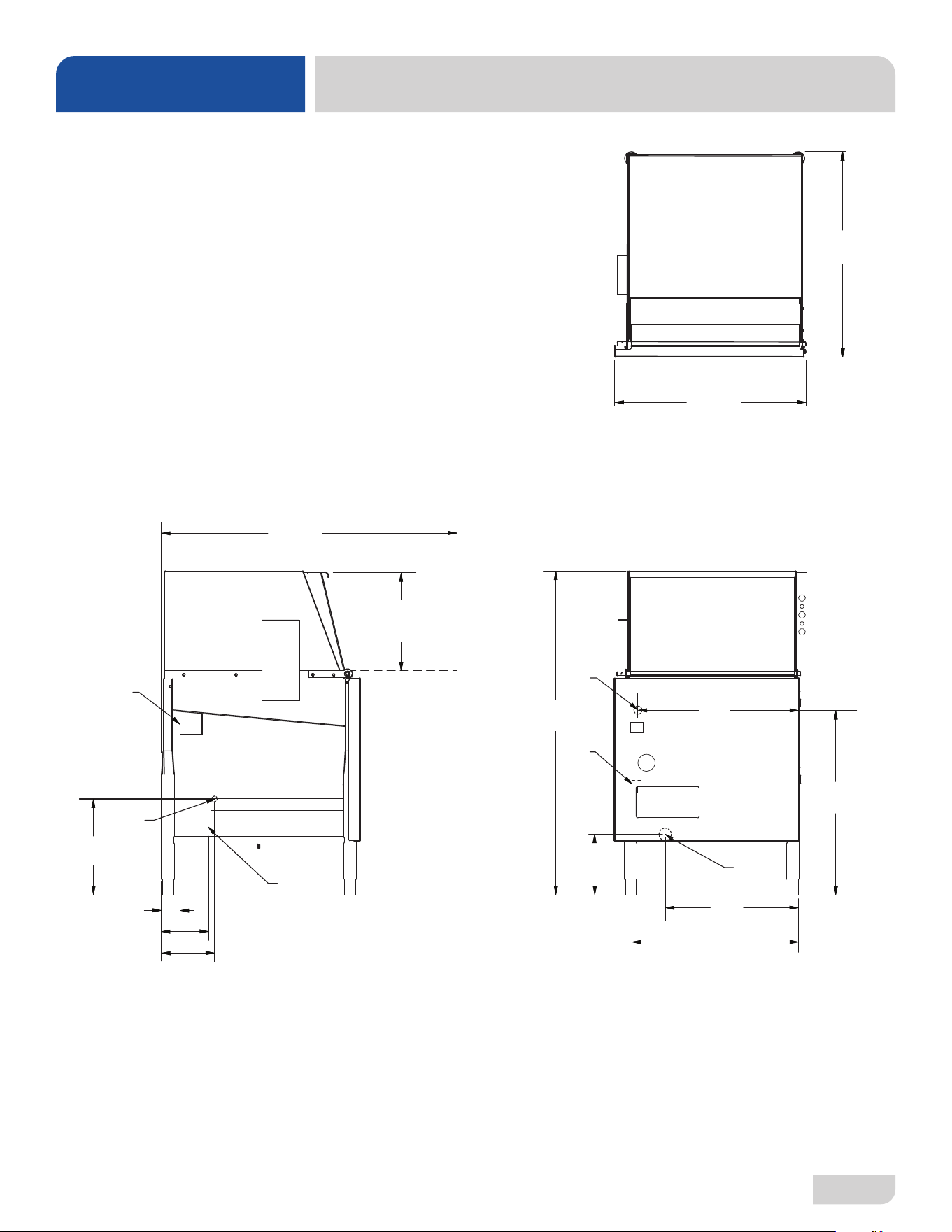

Machine Dimensions ...................................................................................................2
Operating Specifications ..............................................................................................3
Electrical Requirements ...............................................................................................4
INSTALLATION
Installation Instructions ................................................................................................5
Inspection ..........................................................................................................5
Unpacking .........................................................................................................5
Leveling .............................................................................................................5
Facility Hot Water Heater .................................................................................5
Plumbing ...........................................................................................................5
Water Supply Connections ...............................................................................6

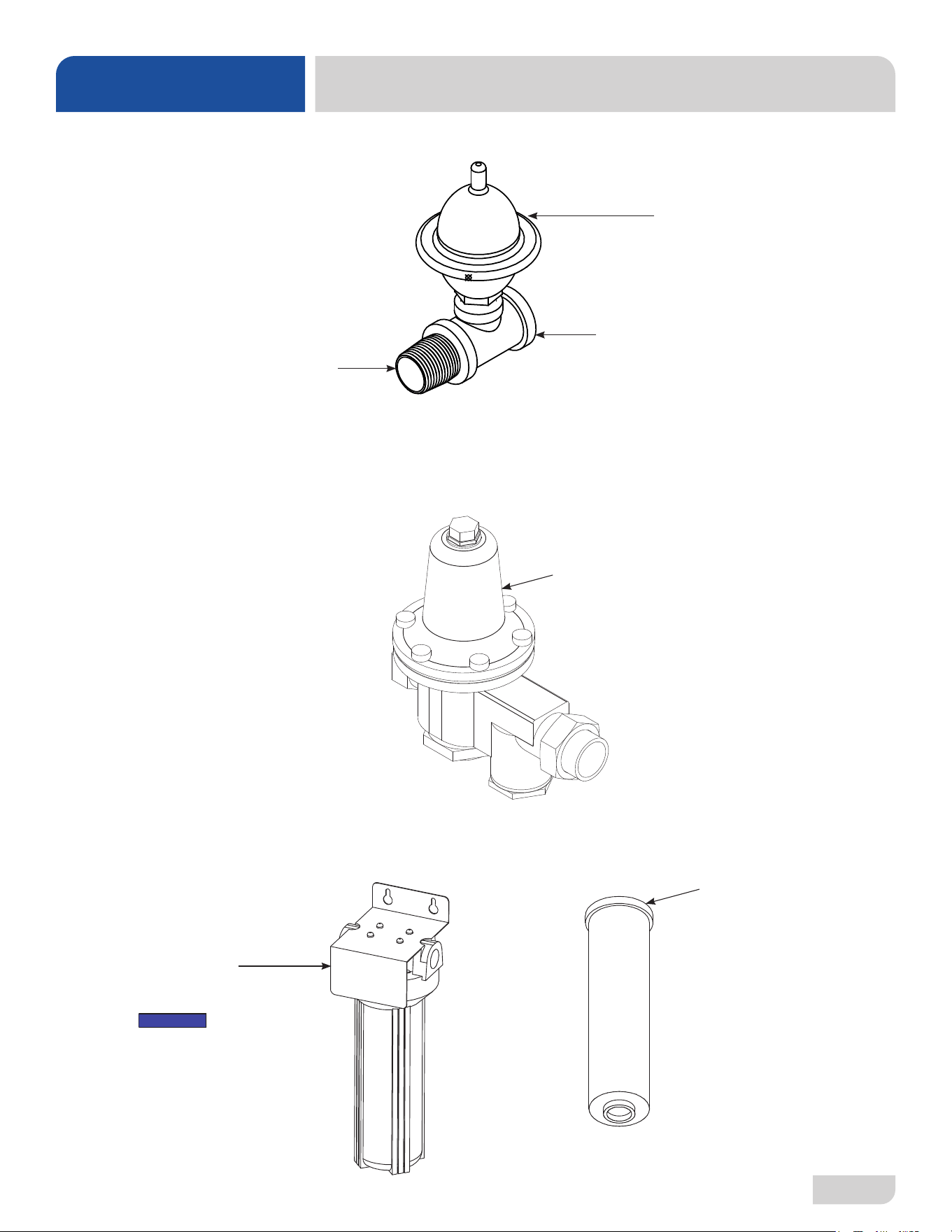

Pressure Regulator ...........................................................................................6
Shock Absorber ................................................................................................6
Drain Line .........................................................................................................6
Plumbing Check ................................................................................................6
Electrical Power Connections ...........................................................................7
Voltage Check ..................................................................................................7
Surrounding Area ..............................................................................................7
Temperature Setpoints .....................................................................................7
Chemical Feeder Equipment ............................................................................8
Preparing Chemical Feeder Pumps .................................................................8
Priming Chemical Feeder Pumps .....................................................................8

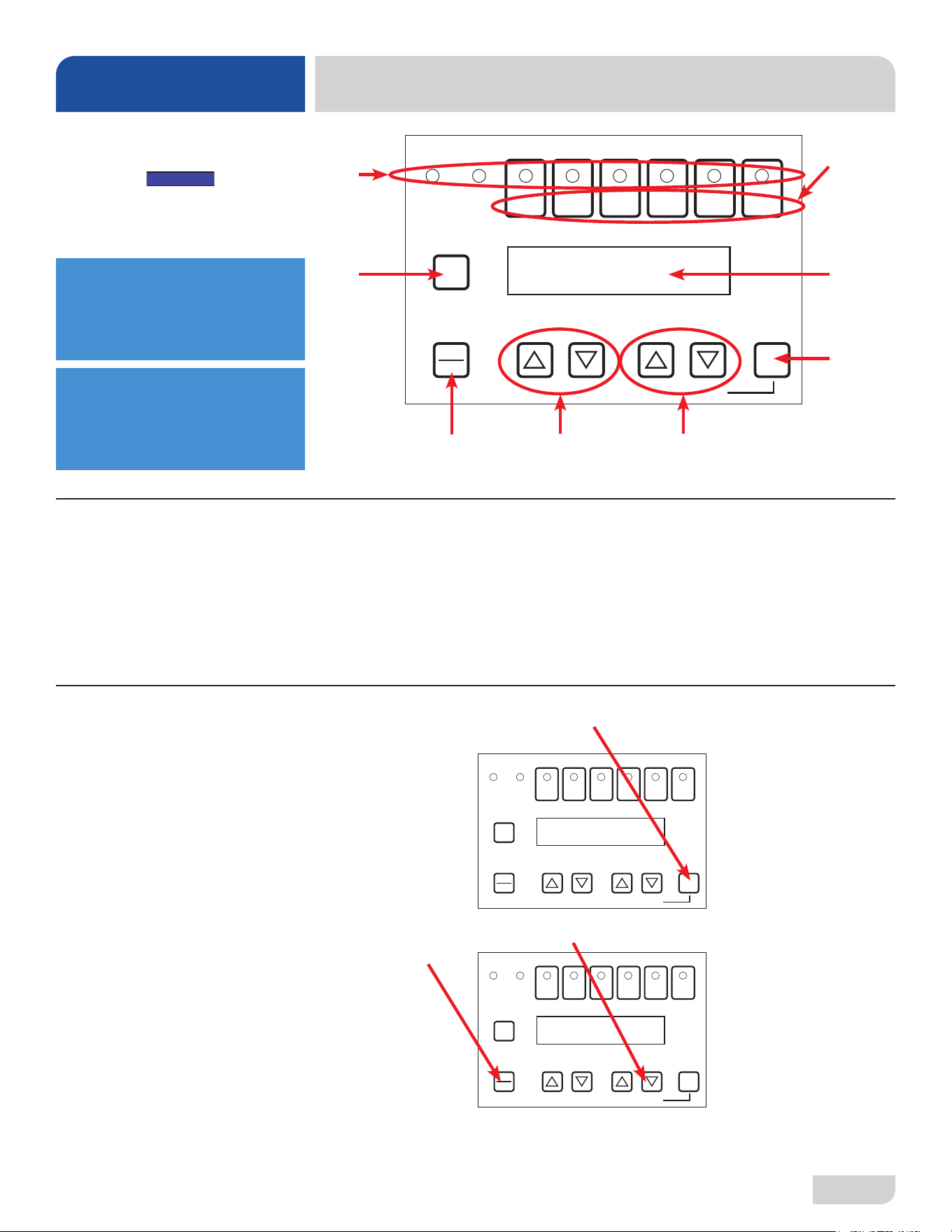

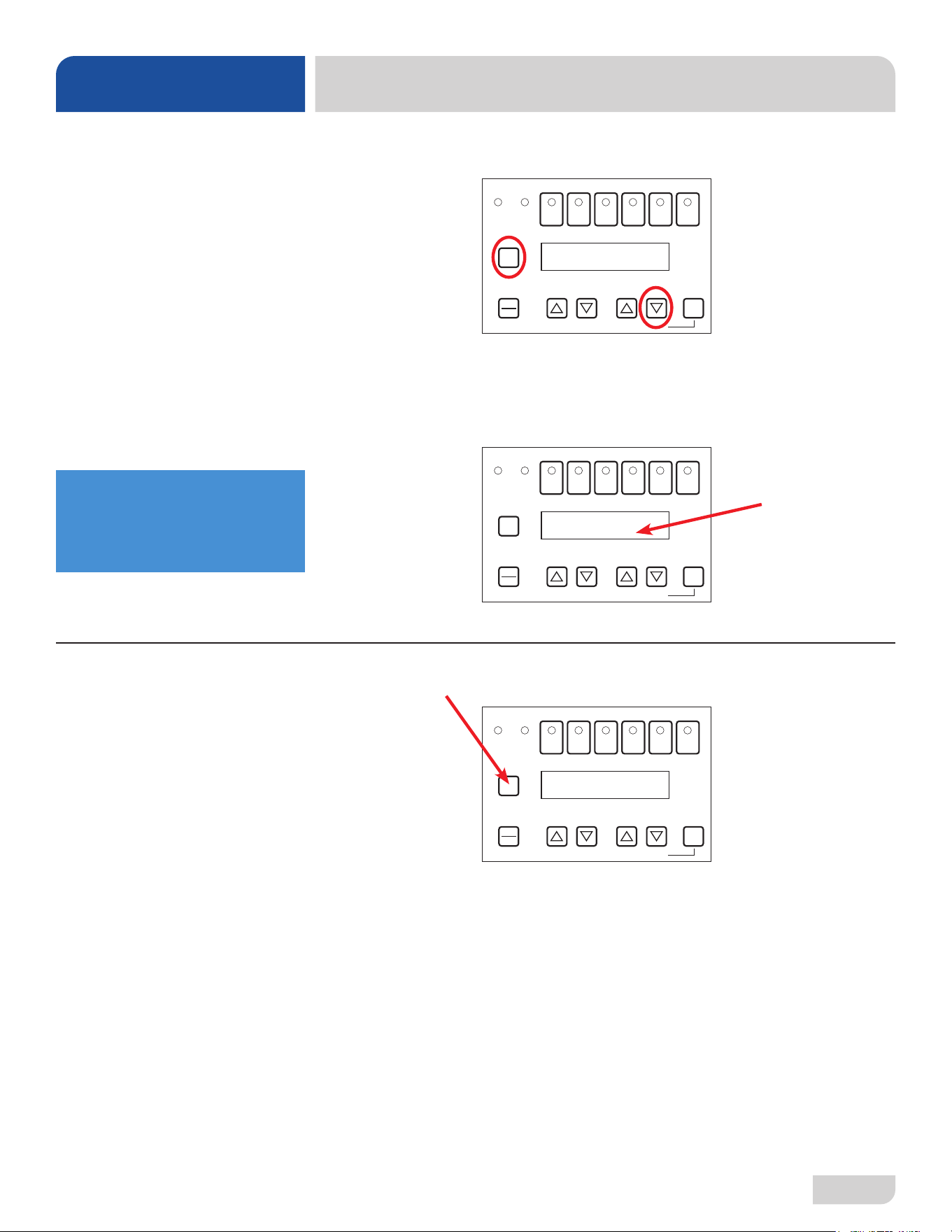

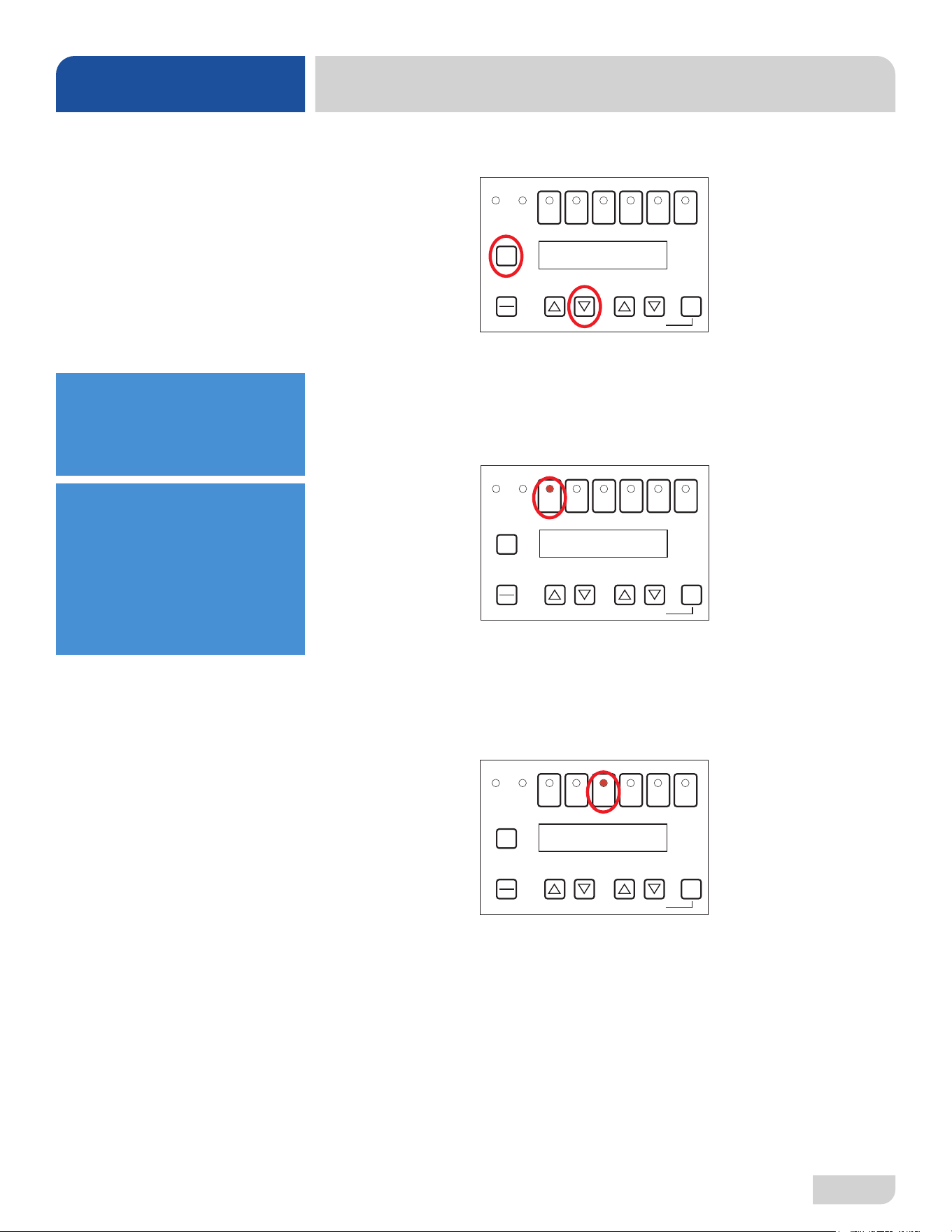

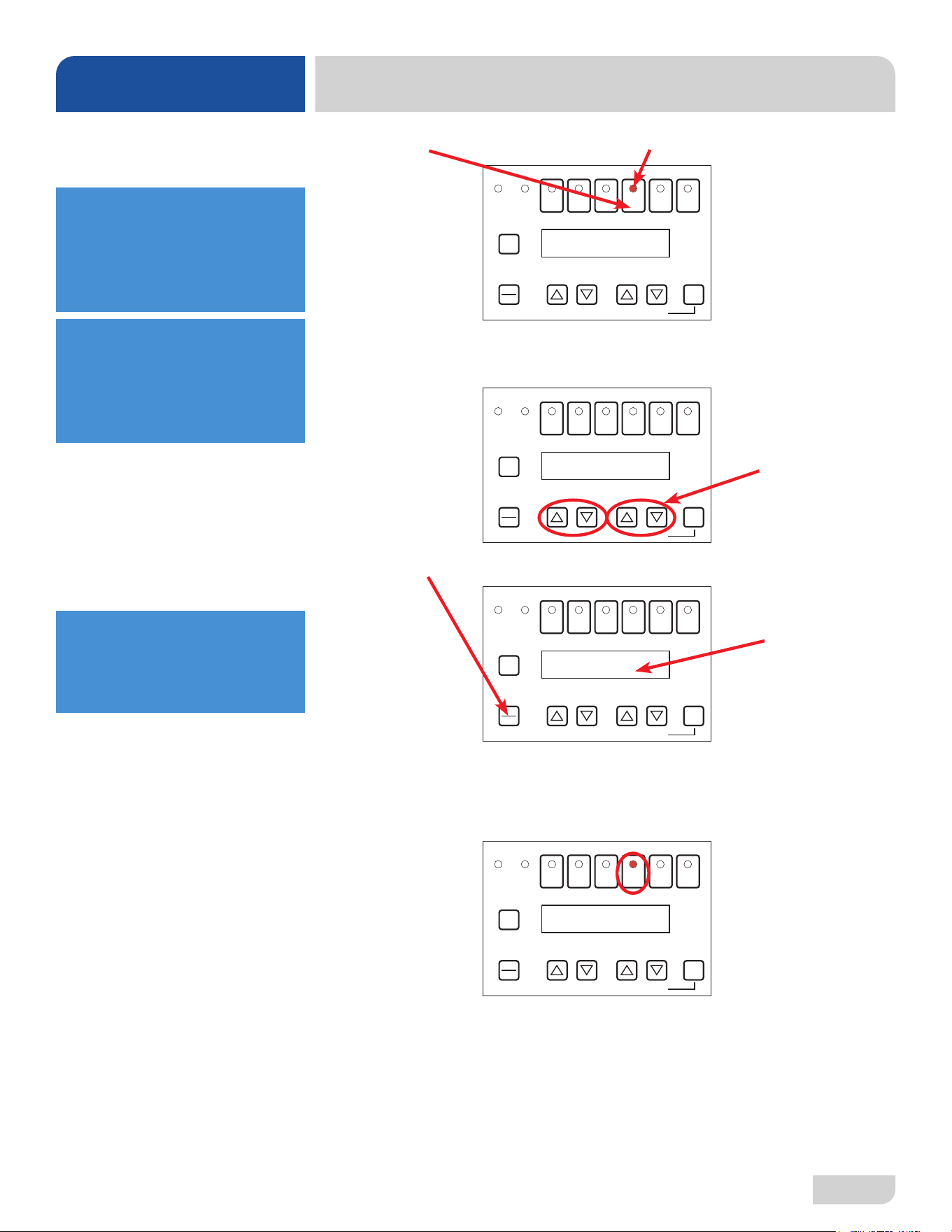

Cycle Timer Instructions ...................................................................................9
OPERATION
Operation Instructions .................................................................................................13
Preparation .......................................................................................................13
Power Up ..........................................................................................................13
Initial Start-up ....................................................................................................13
Ware Preparation ..............................................................................................15
Daily Start-up ....................................................................................................15
Washing a Rack of Ware ..................................................................................15
Operational Inspection ......................................................................................16
Shutdown & Cleaning .......................................................................................16
Detergent Control ........................................................................................................17
Deliming .......................................................................................................................18
TABLE OF CONTENTS
1
TABLE OF CONTENTS
MAINTENANCE
Preventative Maintenance ...........................................................................................19
TROUBLESHOOTING
Troubleshooting ........................................................................................................... 20
PARTS SECTION

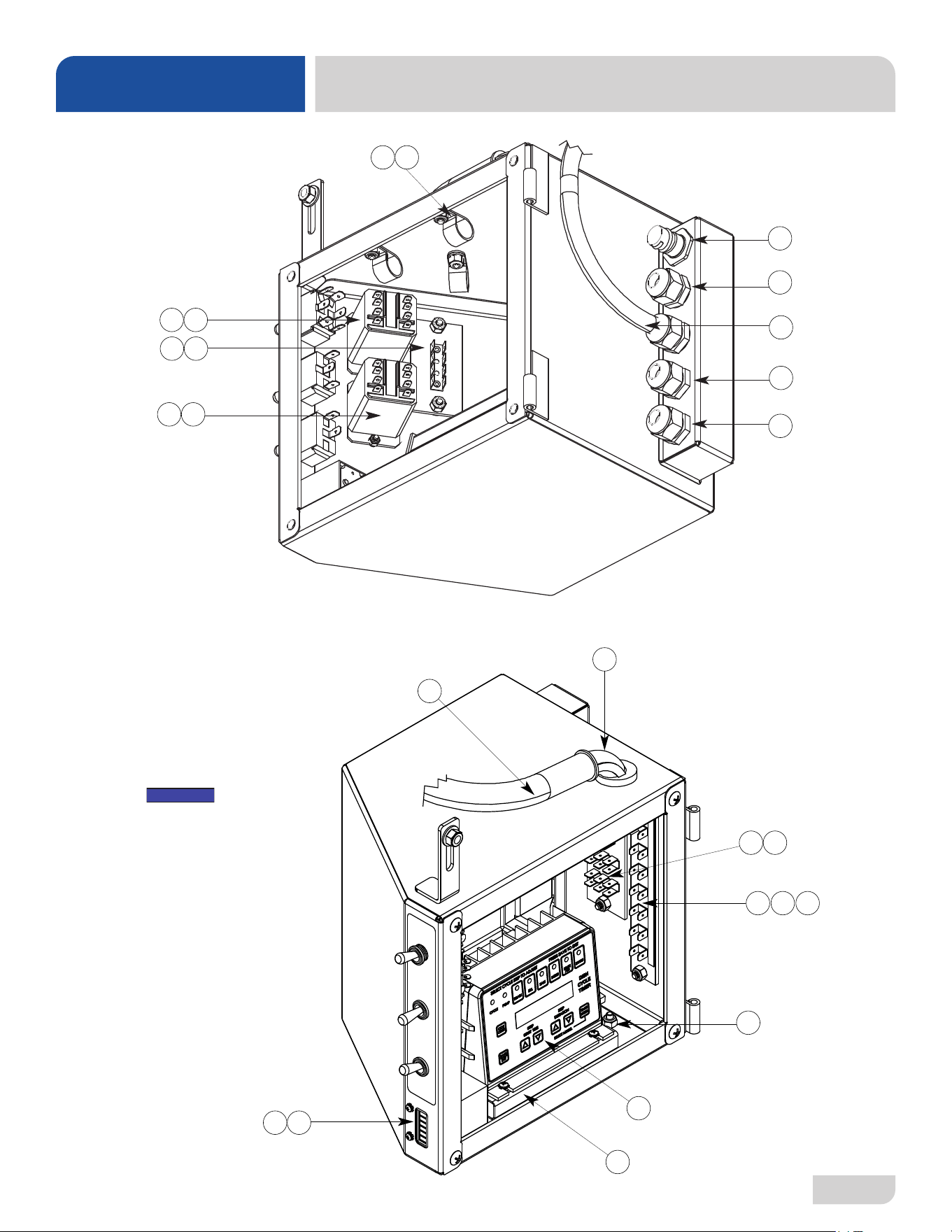

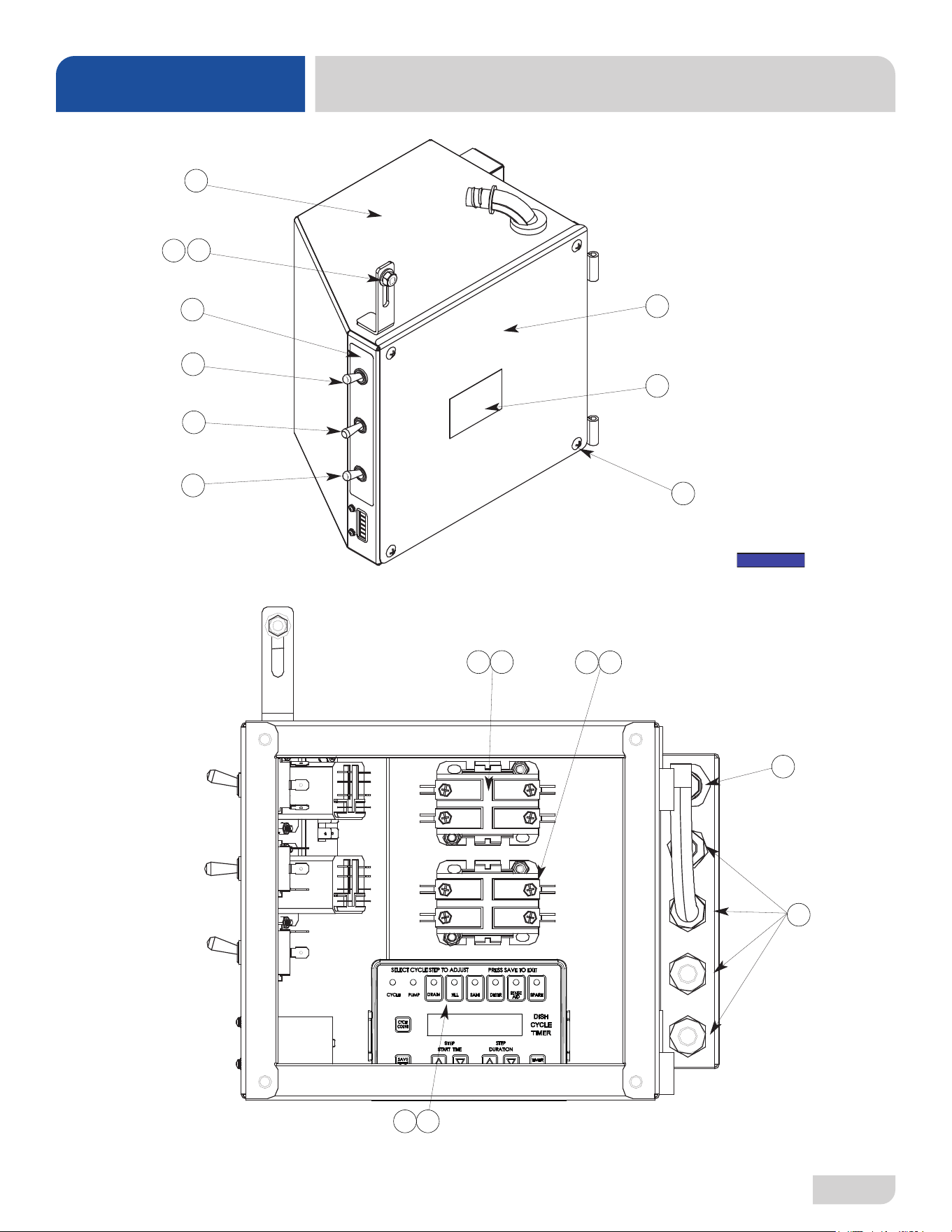

Control Box .................................................................................................................. 22

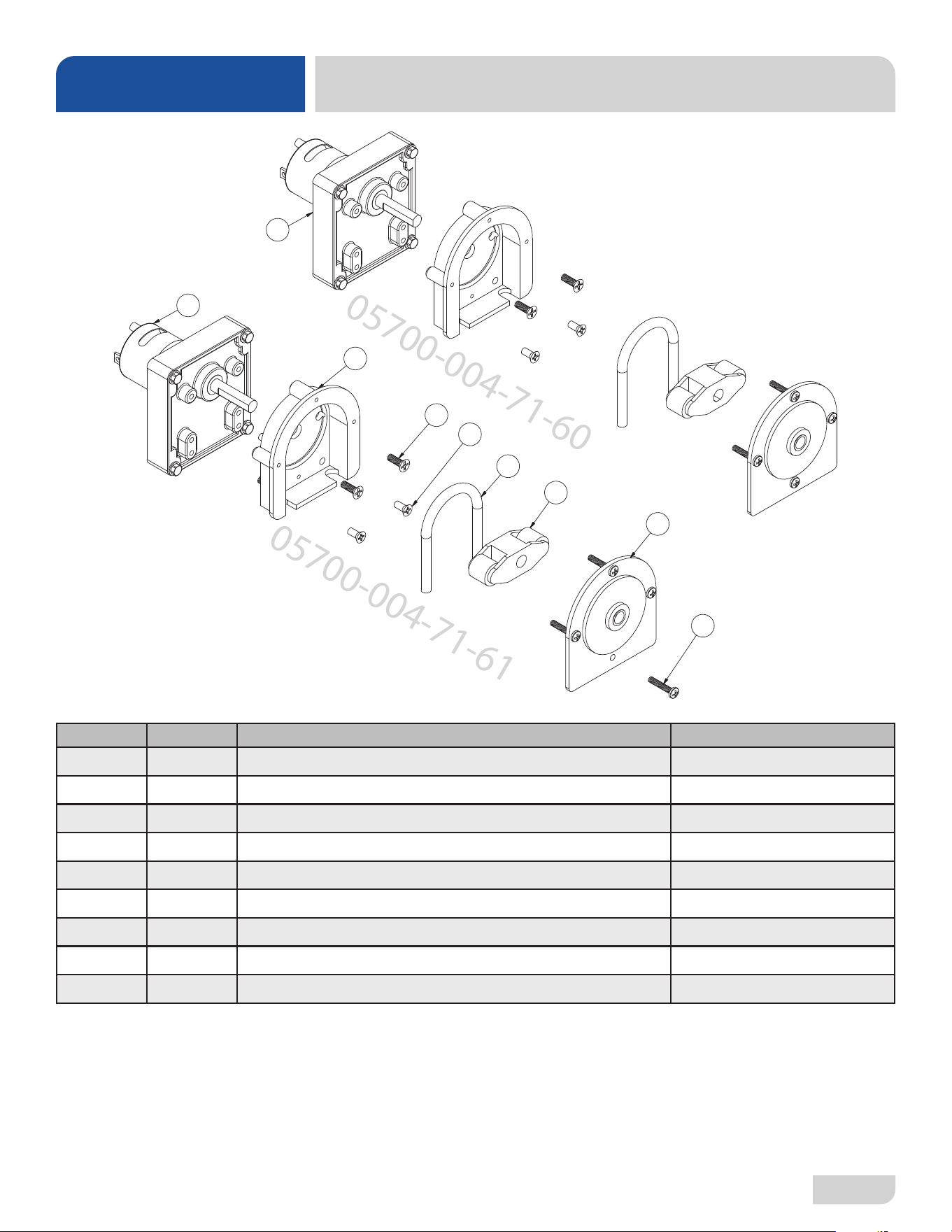

Chemical Feeder Pump Components .........................................................................25

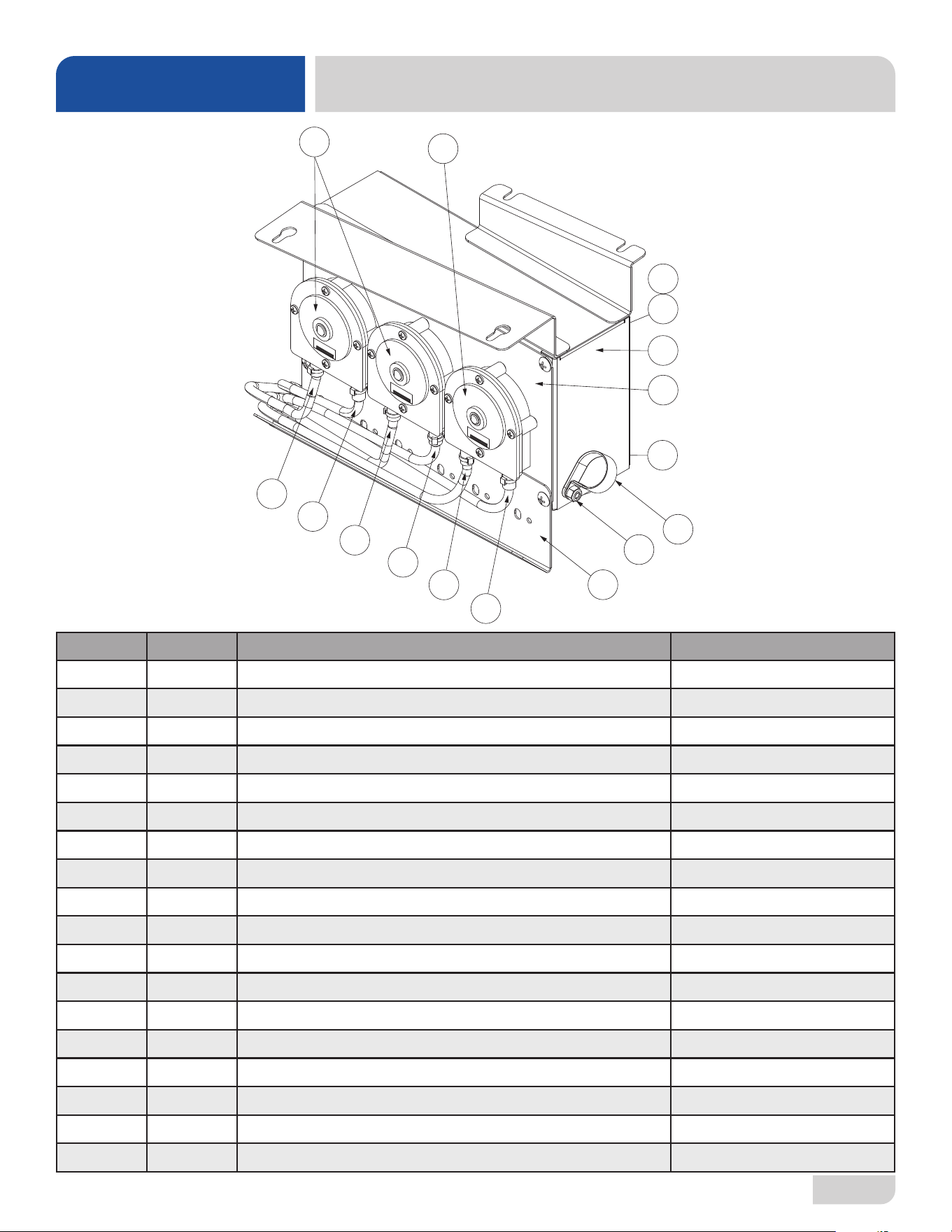

Peri-pump Box ............................................................................................................. 26
Electrical Connection Box ............................................................................................27

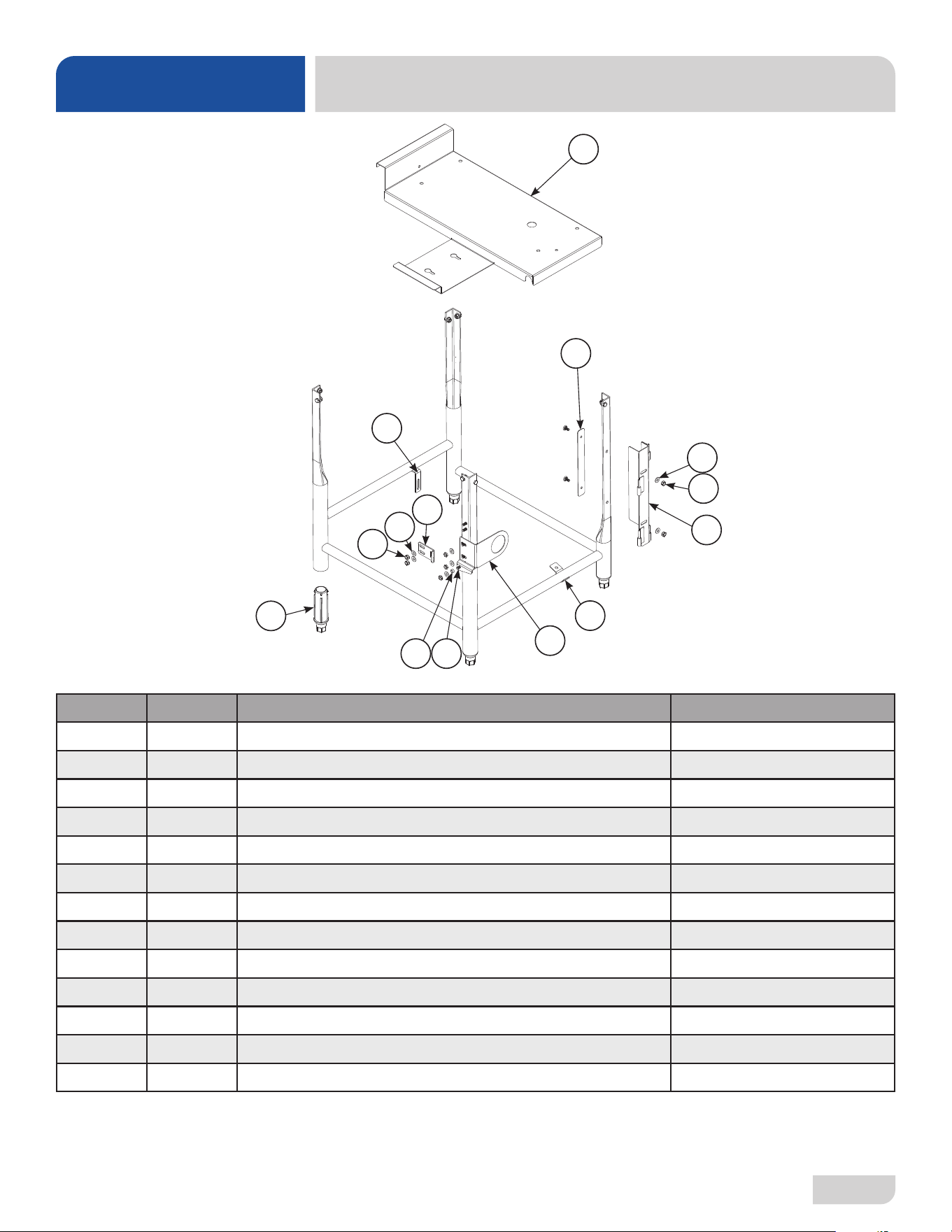

Frame ..........................................................................................................................28

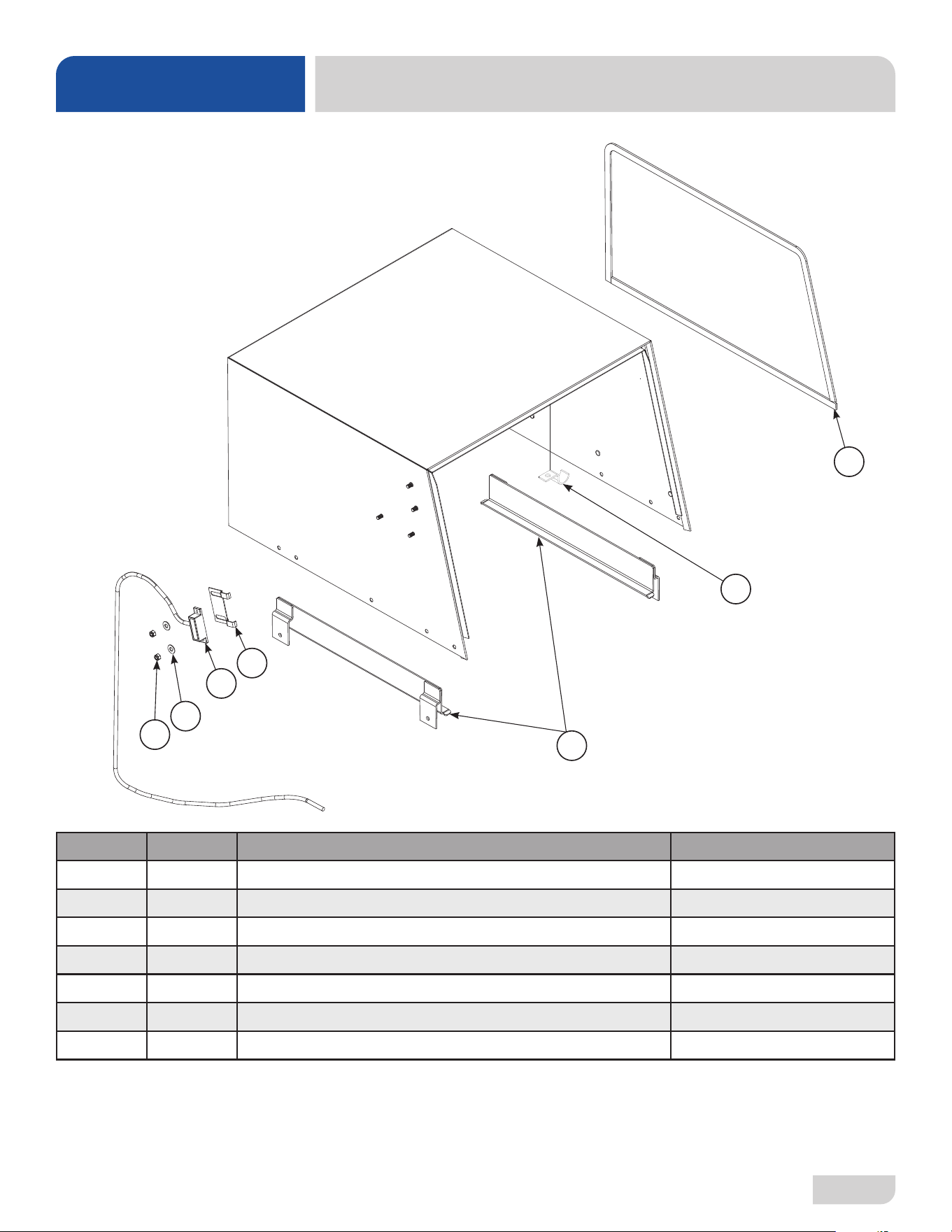

Hood ............................................................................................................................29

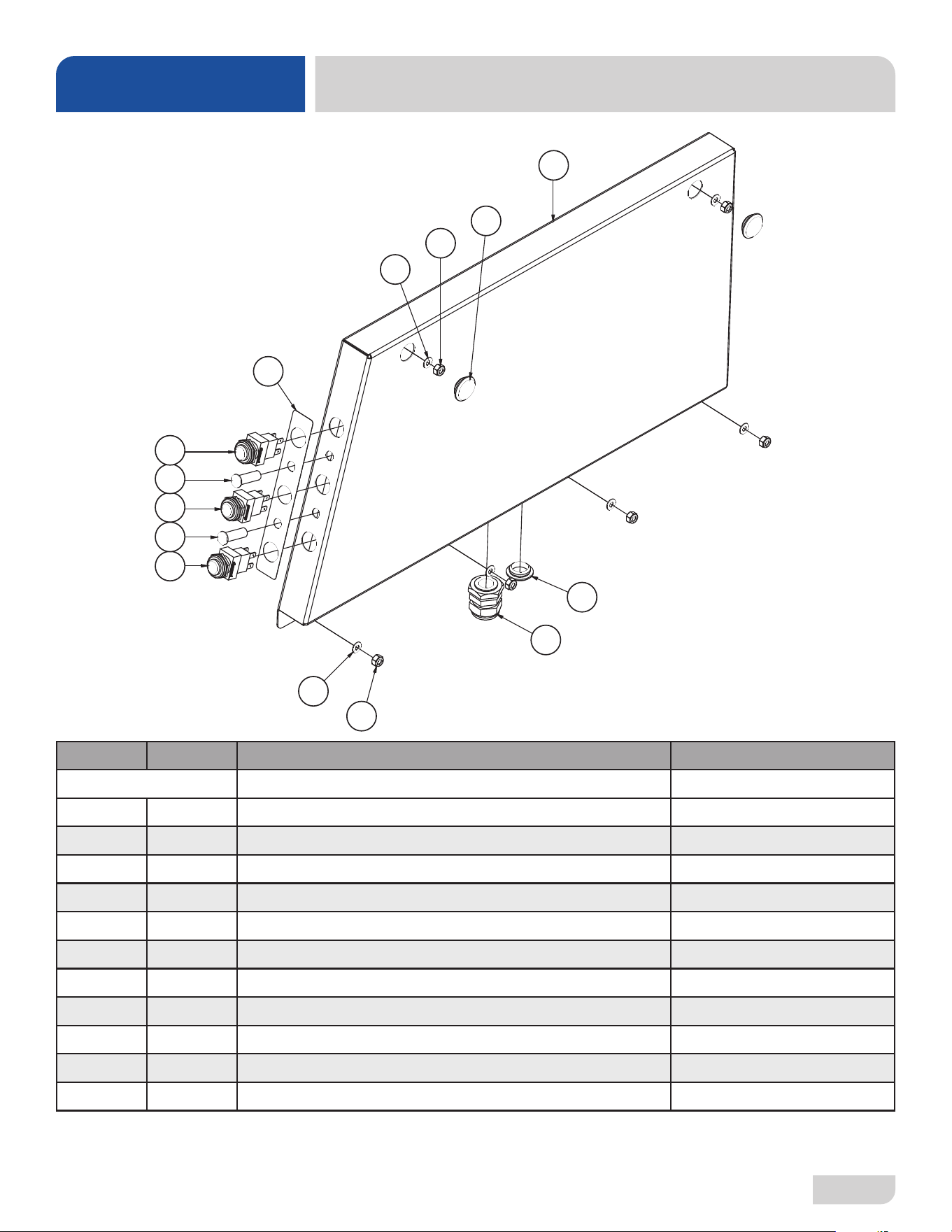

Switch Panel ................................................................................................................ 30

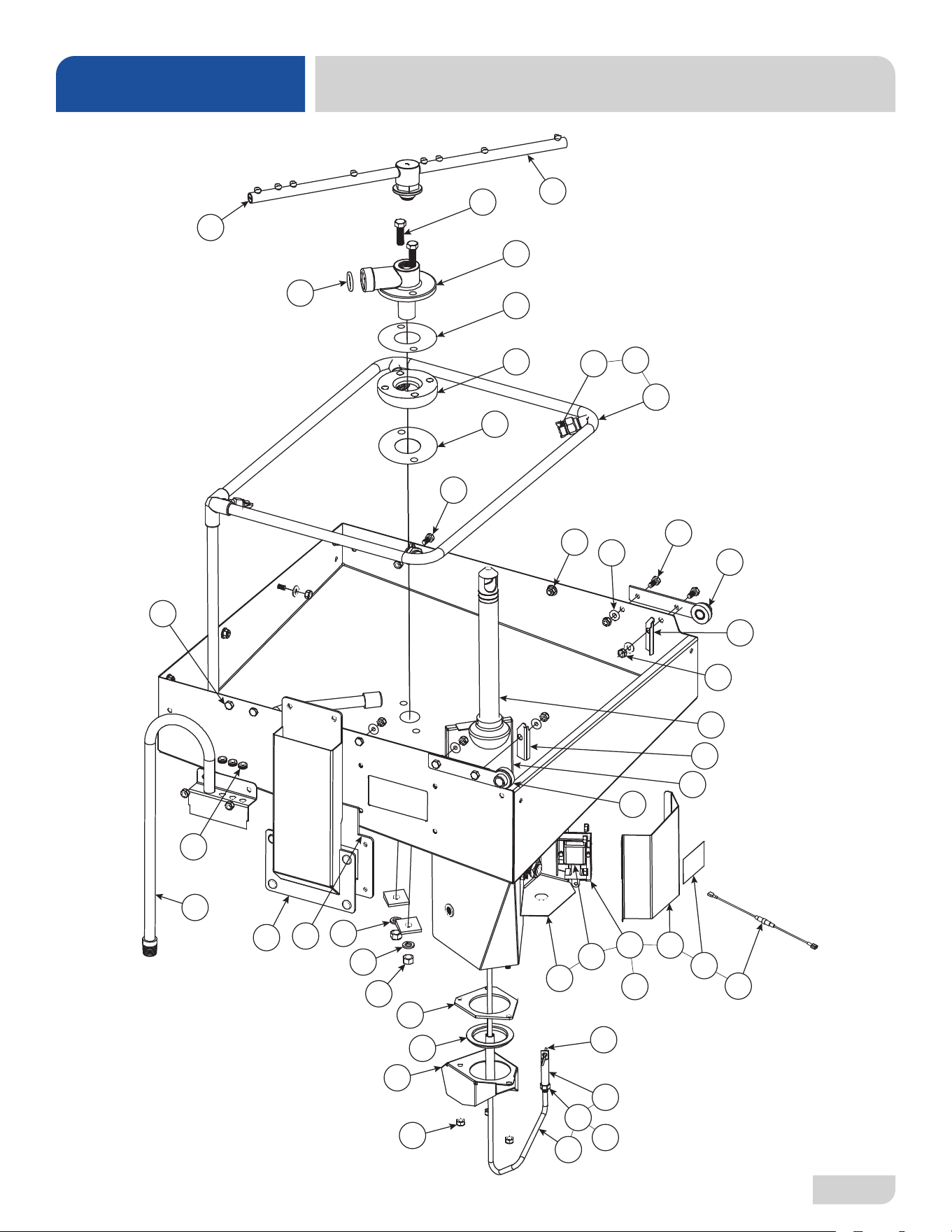

Tub ...............................................................................................................................31

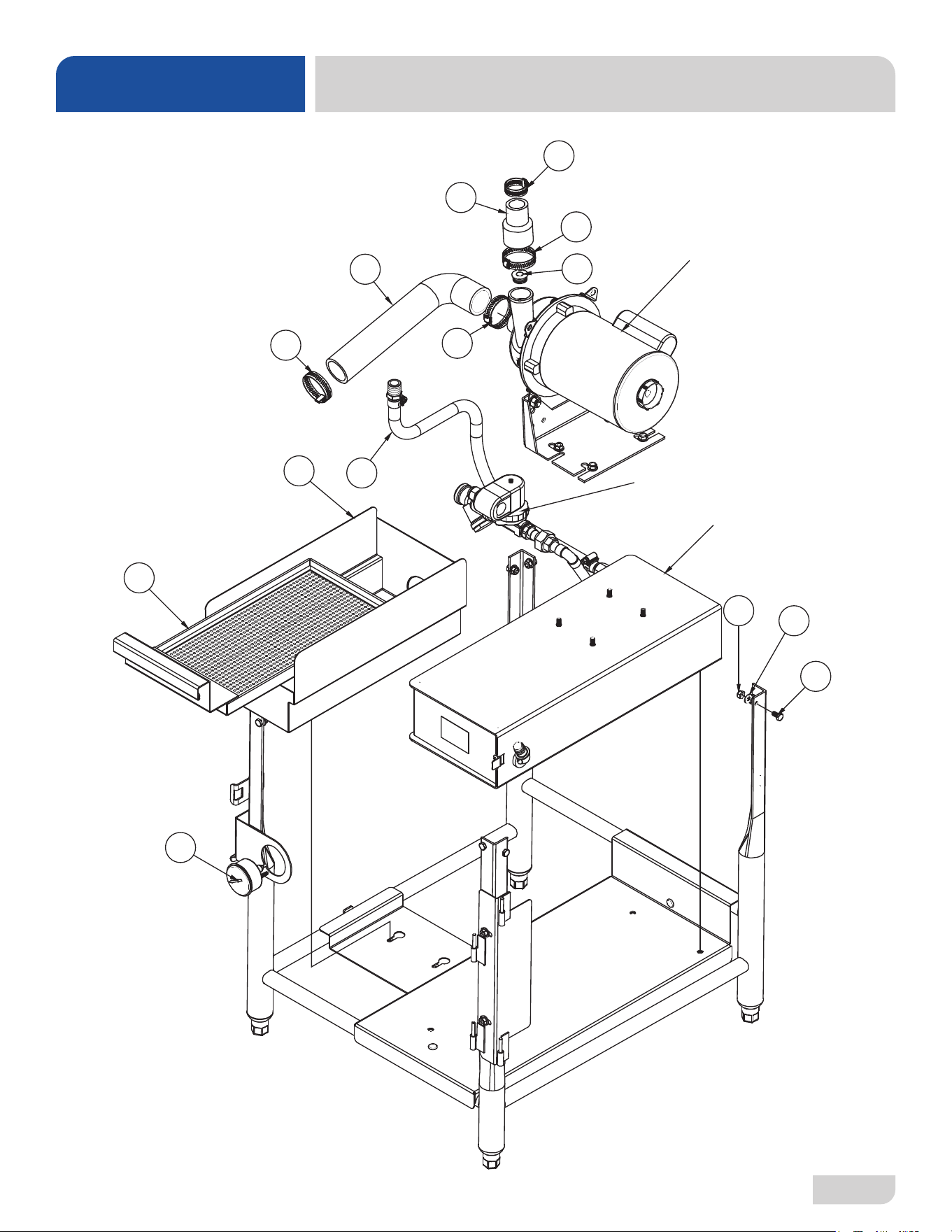

Frame & Motor .............................................................................................................34

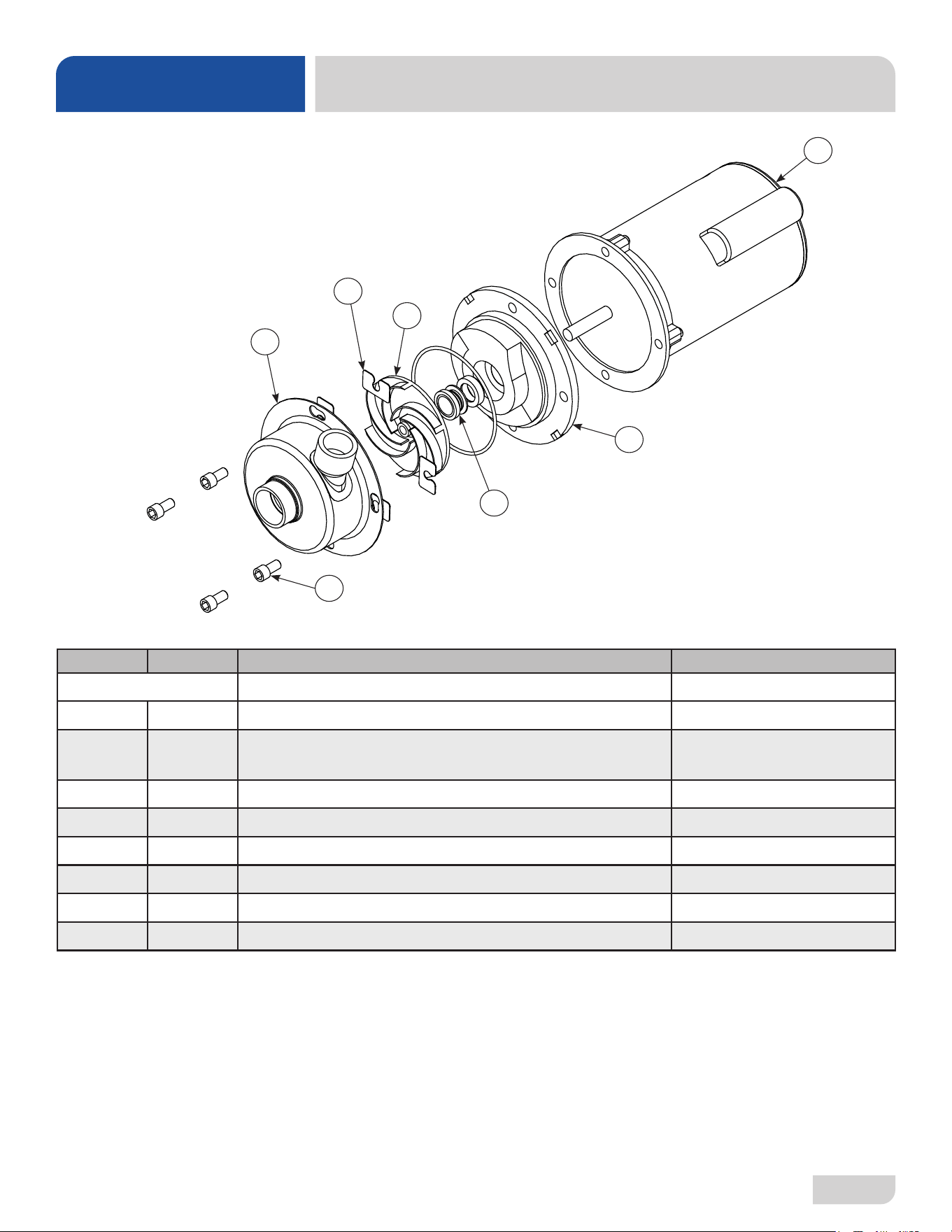

Motor ............................................................................................................................36

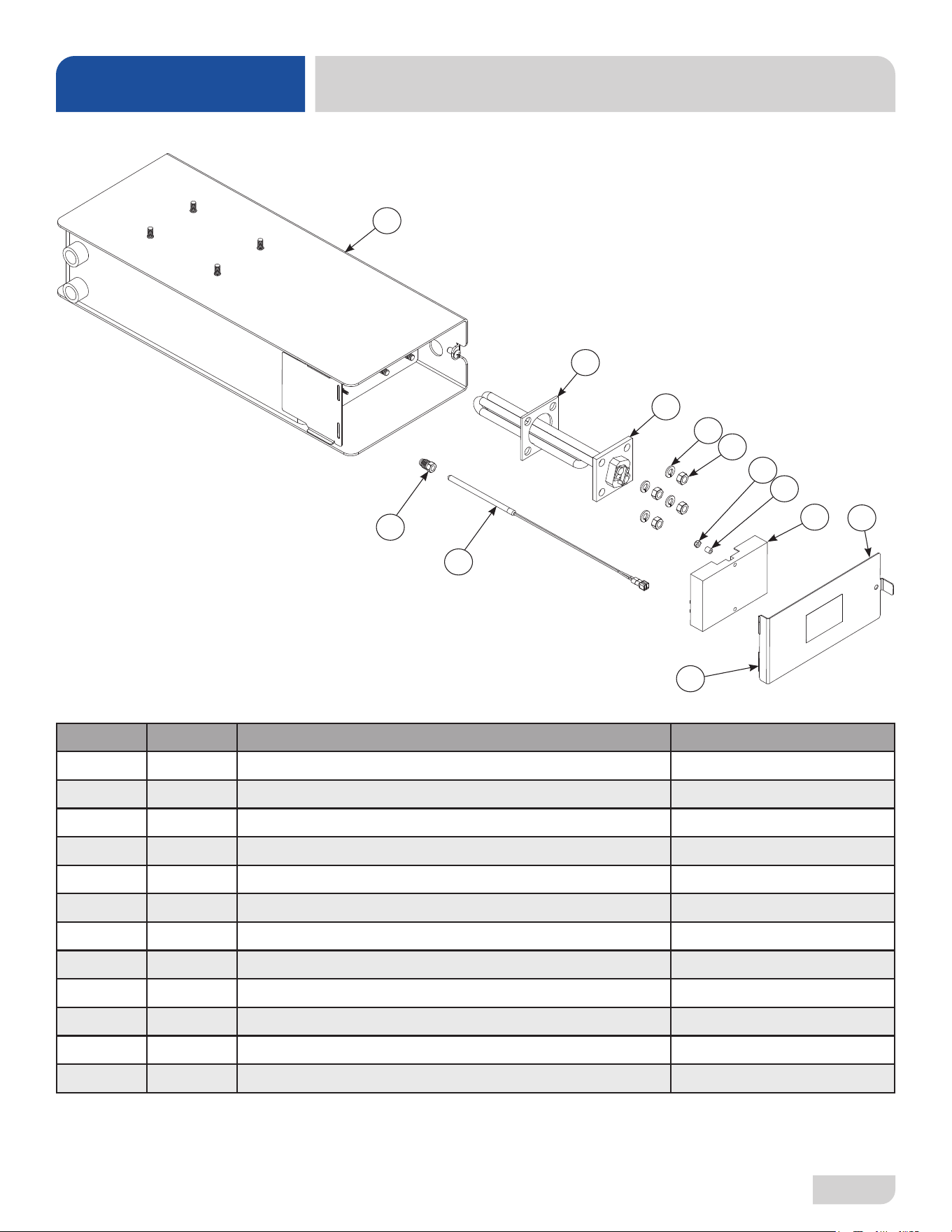

Sustaining Heater ........................................................................................................37

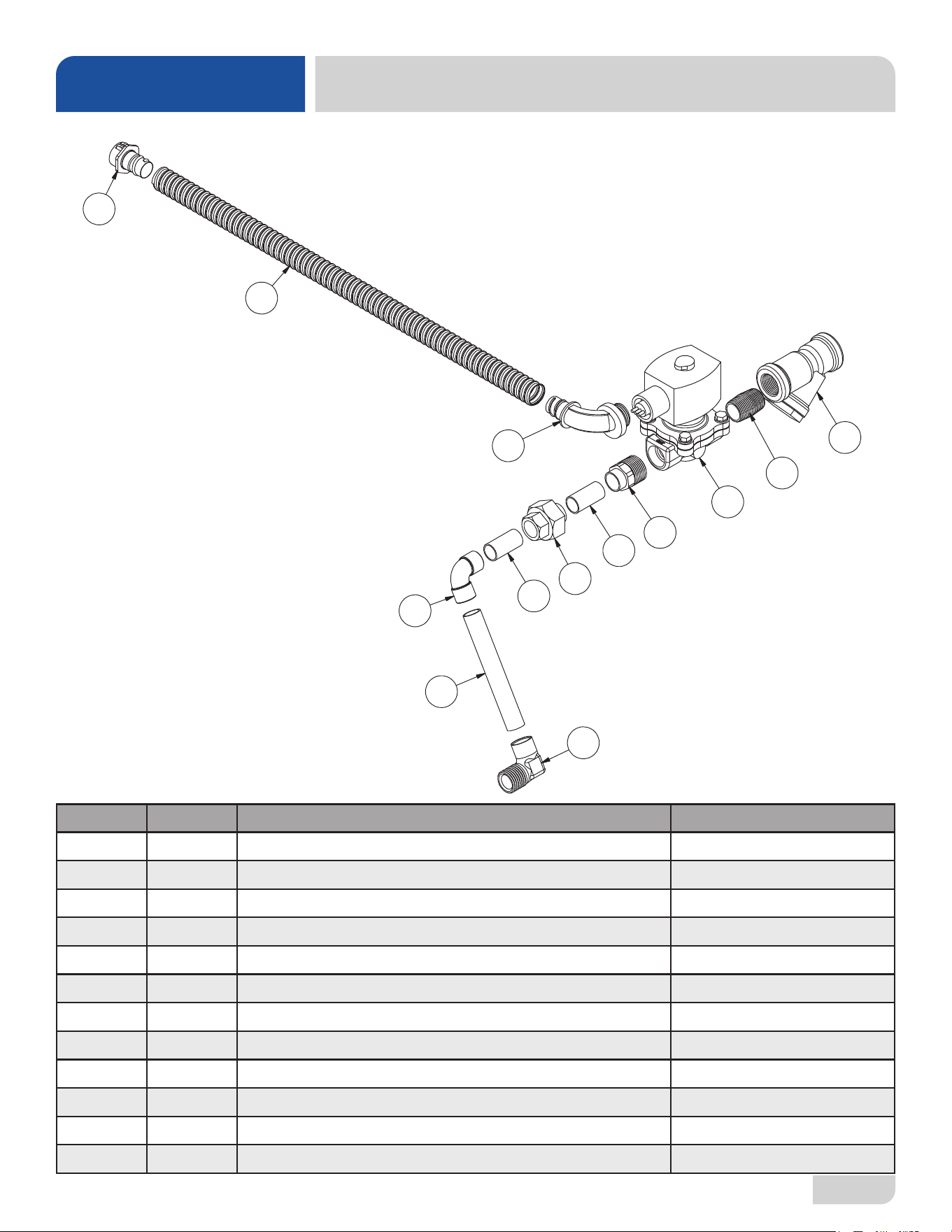

Inlet Plumbing .............................................................................................................. 38
Plumbing Options ........................................................................................................39

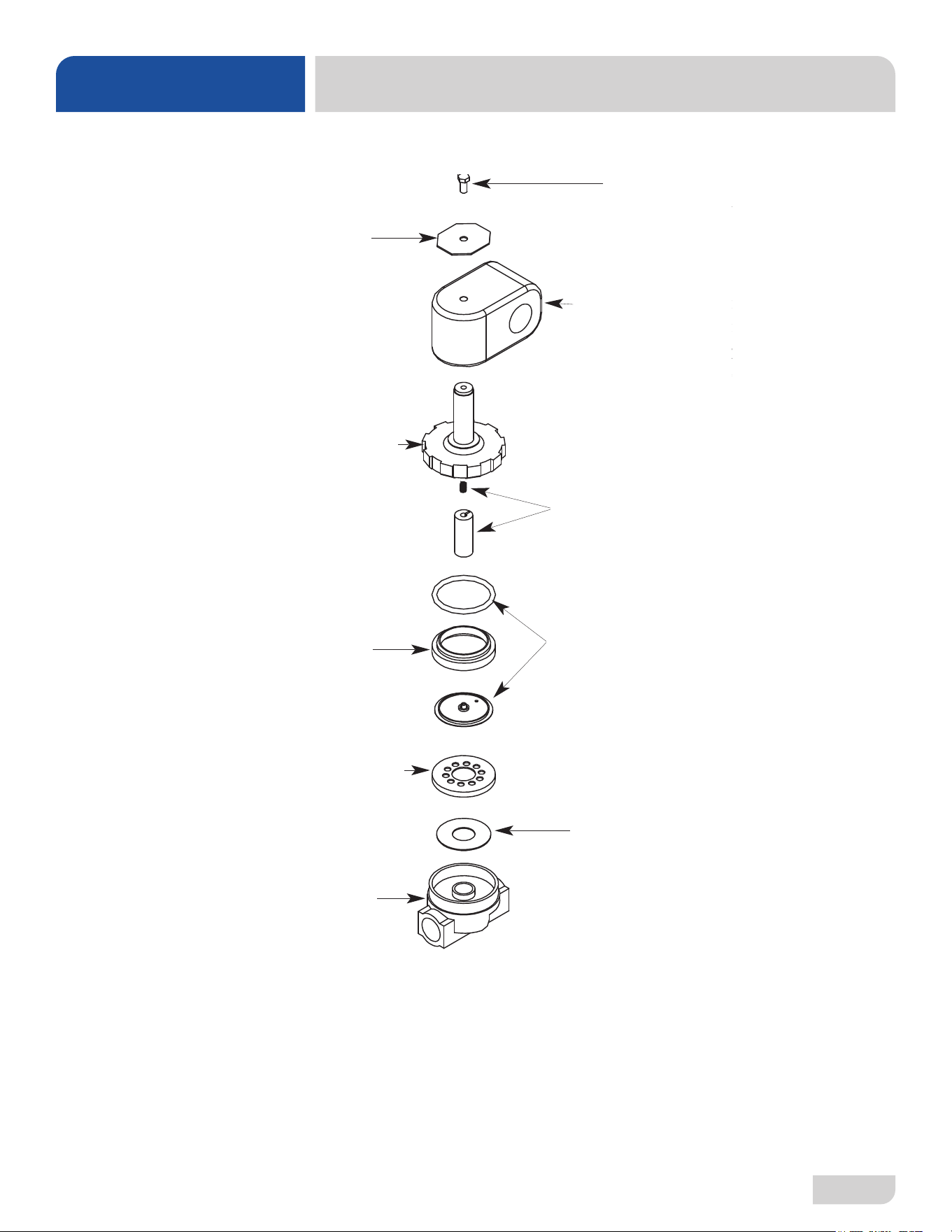

Solenoid Valve Repair Kits .......................................................................................... 40

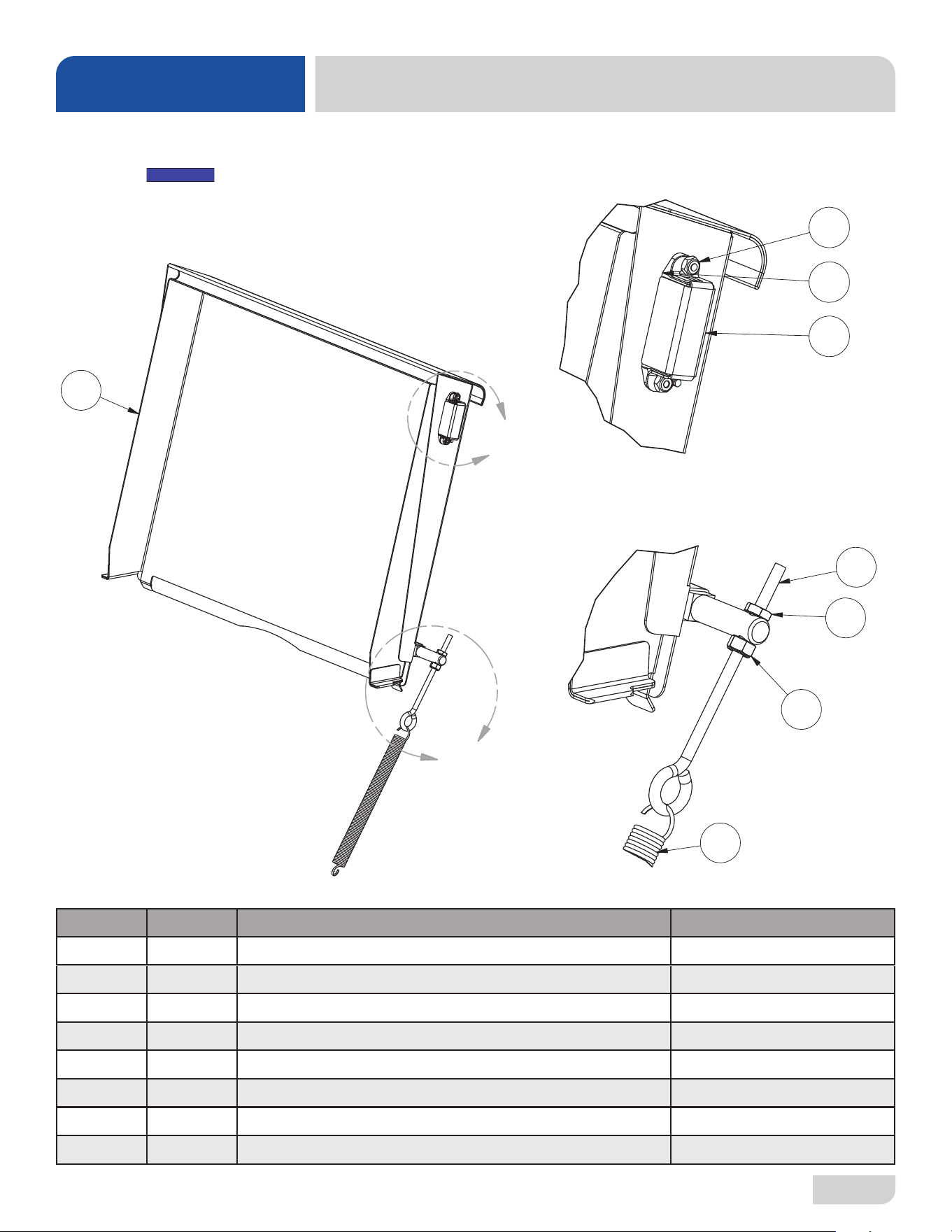

Door .............................................................................................................................41

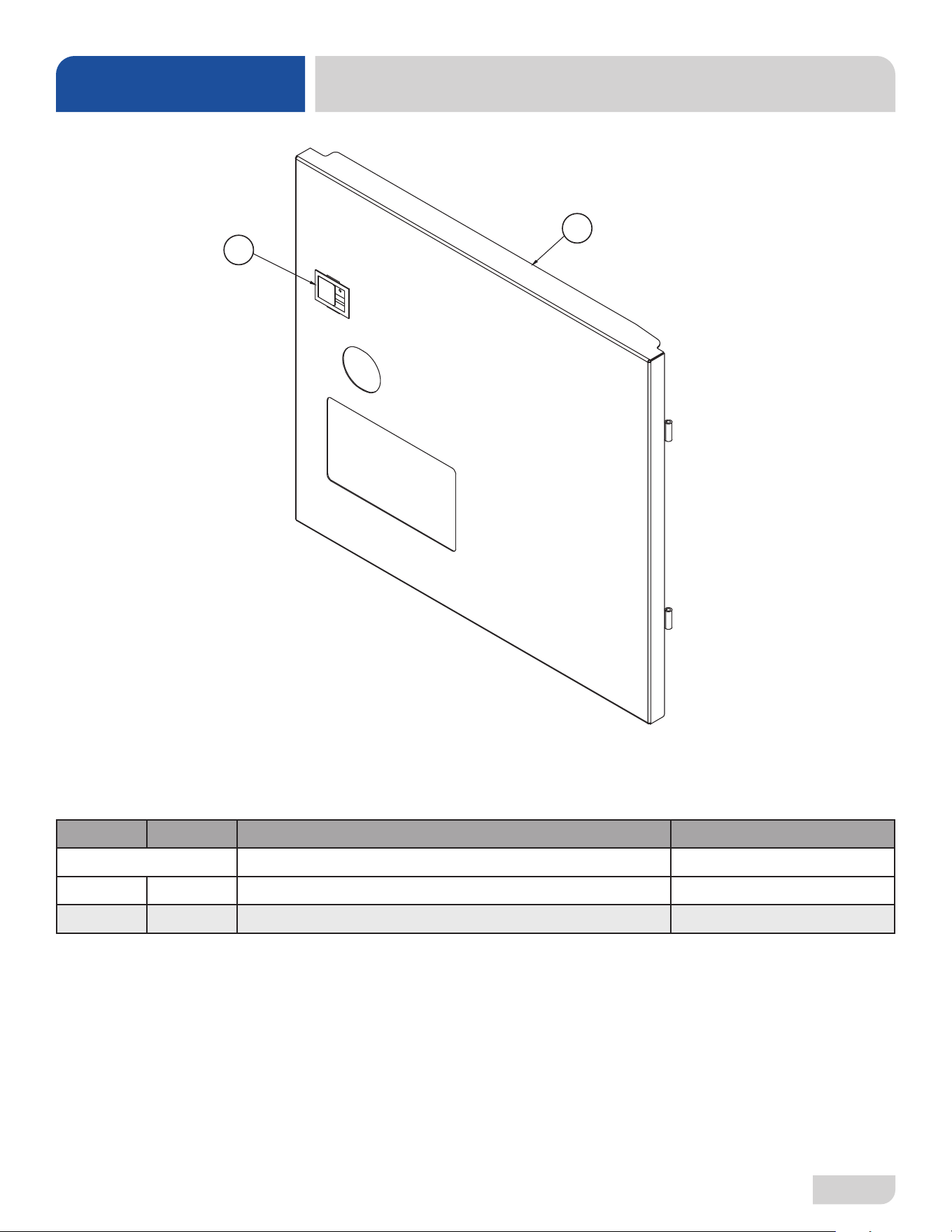

Front Panel ..................................................................................................................42
SCHEMATICS

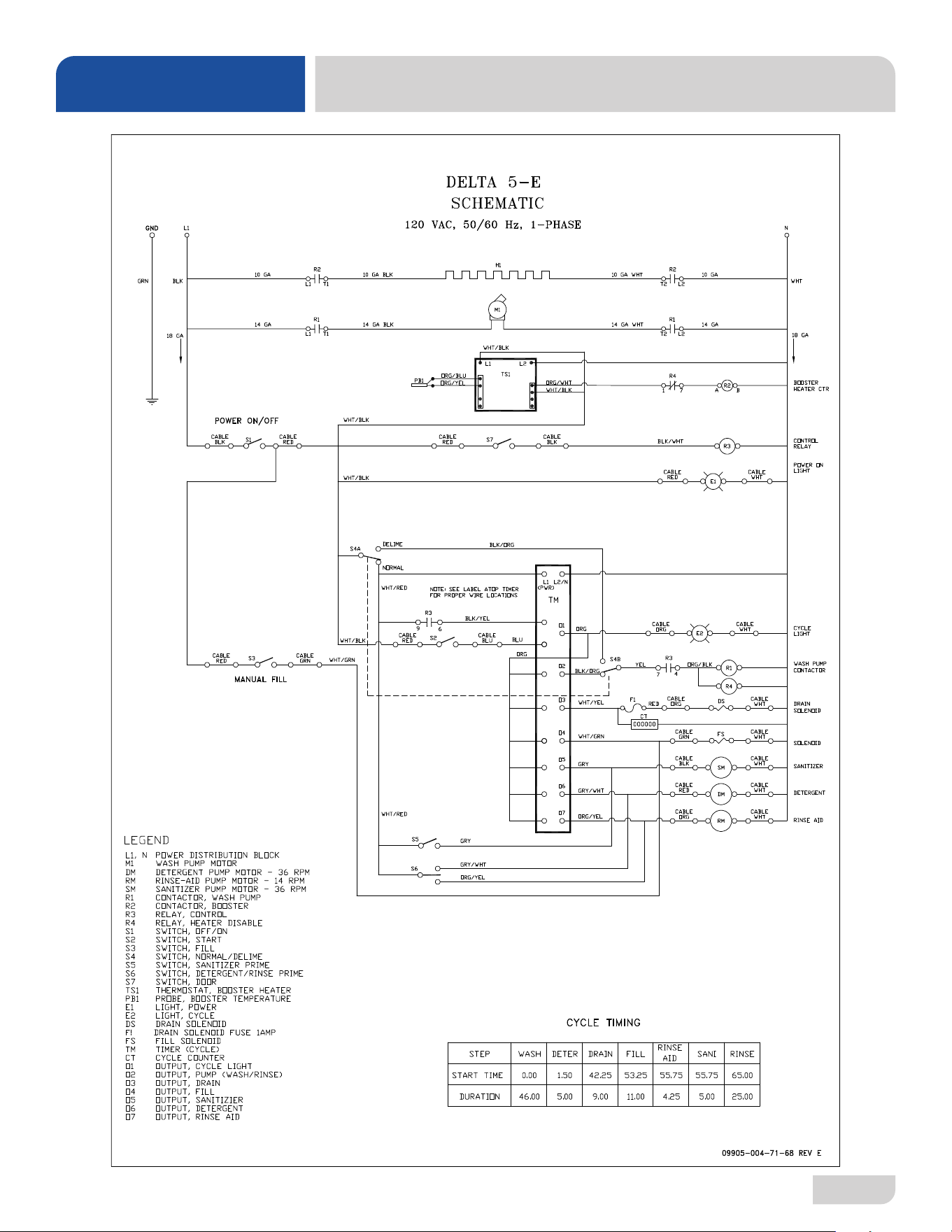

Delta 5-E 115 V, 60 Hz, 1-Phase ................................................................................43

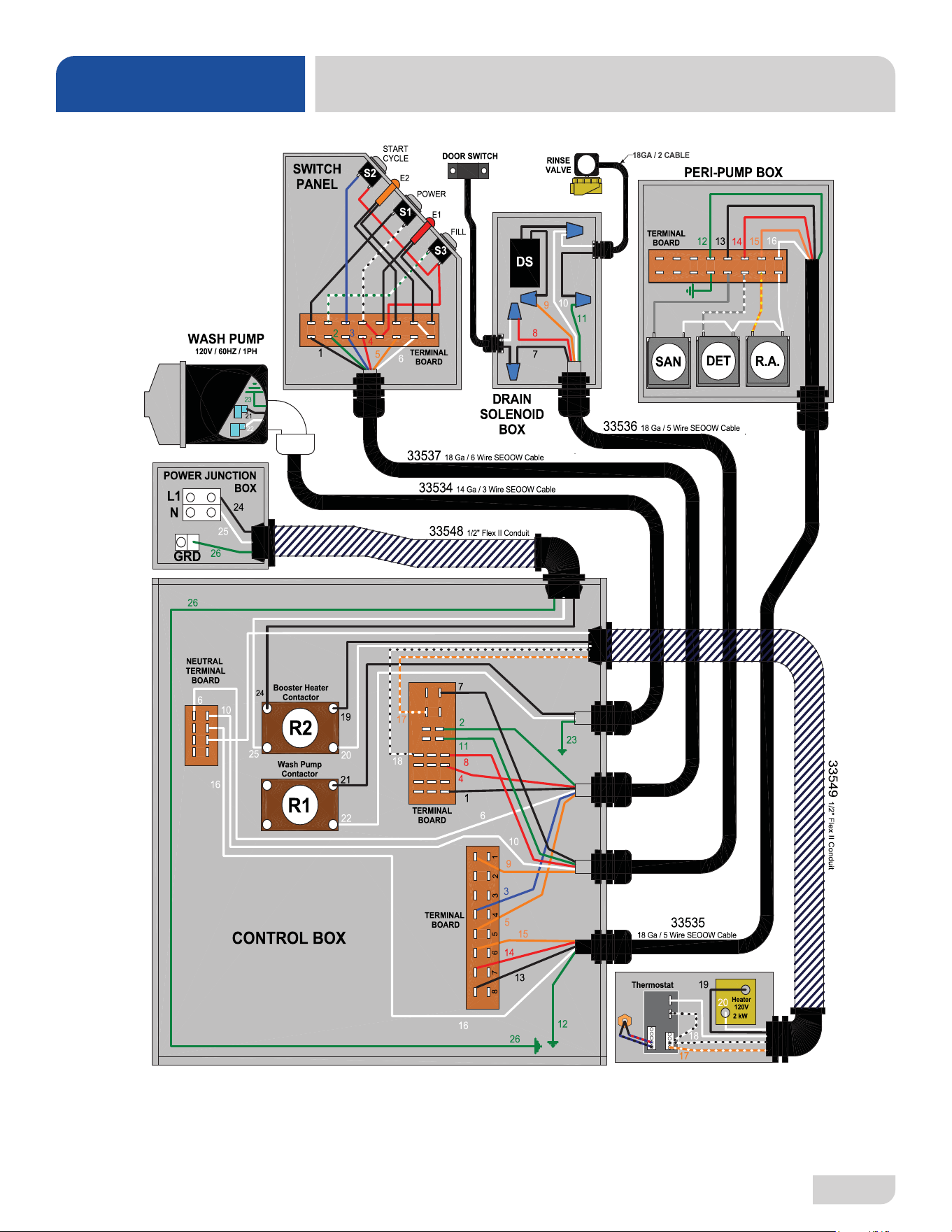

Delta 5-E Harness Connections ..................................................................................44
iv
07610-003-37-08-R
1
GUIDES
GUIDES
SYMBOLS
ABBREVIATIONS & ACRONYMS
ANSI - American National Standards Institute
GHT - Garden Hose Thread
GPG - Grains per Gallon
GPM - Gallons per Minute
HP - Horse Power
Hz - Hertz
ID - Inside Diameter
kW - Kilowatts
MCA - Minimum Circuit Ampacity
MOP - Maximum Overcurrent Protection
NFPA - National Fire Protection Association
NPT - National Pipe Thread
OD - Outside Diameter
PRV - Pressure Regulating Valve
PSI - Pounds per Square Inch
V - Volts
!
CAUTION
!
WARNING
NOTICE
- Risk of Injury to Personnel
- Risk of Damage to Equipment
- Risk of Electrical Shock
- Lockout Electrical Power
- Reference Data Plate
- Important Note
i
- Caustic Chemicals
- Instructions Hyperlink
07610-003-37-08-R
2
MACHINE DIMENSIONS
SPECIFICATIONS
21 1/4
(540 mm)
17
(432 mm)
20
(508 mm)
21 1/4
(540 mm)
7 3/4
(197 mm)
39
(991 mm)
6 3/4 (171 mm)
6 (152 mm)
12 1/4
(311 mm)
36 3/4
(933 mm)
WITH DOOR OPEN
24 1/2
(622 mm)
25 1/4
(641 mm)
3 (76 mm)
11 1/2
(292 mm)
CLEARANCE
C
A
B
LEGEND
A - Water Inlet (1/2” NPT)
B - Drain Connection (2” NPT)
C - Electrical Connection
All dimensions from the floor can be increased
2 3/4” using the machine’s adjustable feet.
C
A
B
07610-003-37-08-R
3
OPERATING SPECIFICATIONS
SPECIFICATIONS
Operating Capacity:
Racks per Hour (without load time) 39
Dishes per Hour 975
Glasses per Hour 1404
Gallons per Rack 1.15
Gallons per Hour 44.85
Operating Cycles (Seconds):
Wash Time 46
Rinse Time 25
Dwell Time 21
Total Cycle Time 92
Wash Tank Capacity (Gallons): 1.2
Water Temperatures (°F):
Minimum Wash Temperature 120
Minimum Rinse Temperature 120
(140 °F is recommended for both.)
Other Water Requirements:
Water Line Size (NPT) 1/2"
Drain Line Size (NPT) 2"
Flow Pressure (PSI) 20 A 5
Minumum Chlorine Required (PPM): 50
Always refer to the machine data plate for specic electrical and water requirements.
The material provided on this page is for reference only and is subject to change
without notice.
OPERATING SPECS
NOTICE
i
07610-003-37-08-R
4
Electrical Requirements:
Wash Motor HP 1
Sustaining Heater kW 2
All electrical ratings provided in this manual are for reference only. Always
refer to the machine data plate to get exact electrical information for this
machine. All electrical work performed on machines should be done in
accordance with applicable local, state, territorial, and national codes.
Work should only be performed by qualied electricians and authorized
service agents.
*The Delta 5-E is designed so the wash motor is never running when the
sustaining heater is on. Total Load is based on the higher of the two loads.
Delta 5-E
Electrical Characteristics
VOLTS 115
PHASE 1
FREQ 60
WASH
MOTOR
AMPS
10.0 A
SUST.
HEATER
AMPS
16.0 A
TOTAL
LOAD
16.0 A*
MCA 18.5 A
MOP 25 A
NOTICE
i
ELECTRICAL REQUIREMENTS
SPECIFICATIONS
07610-003-37-08-R
5
Before installing the machine, check packaging and machine for damage. Damaged
packaging might be an indication of damage to the machine. If there is any type
of damage to both packaging and machine, do not throw away the packaging. The
machine has been inspected at the factory before shipping and is expected to arrive
in new, undamaged condition. However, rough handling by carriers or others might
result in damage to the machine while in transit. If this occurs, do not return the
machine to the manufacturer. Instead, contact the carrier and ask them to inspect the
damage and complete an inspection report.
Contact the carrier within 48 hours of receiving the machine as well as the dealer that
sold you the machine.
The machine should be unpacked and removed from the pallet before installing. Open
the front door and remove all materials from inside. Once unpacked, verify there are no
missing parts. If a part is missing, contact the manufacturer immediately.
The machine is designed to operate while level. This is important to prevent any
damage to the machine during operation and to ensure the best possible results.
The machine comes equipped with adjustable bullet feet which can be turned using
a pair of pliers. Verify the unit is level from front-to-back and side-to-side before
making any electrical or plumbing connections.
The manufacturer does NOT endorse “Tankless On-demand” water heaters for use
with their machines. The manufacturer DOES endorse, and highly recommends,
the standard “Tank” style water heaters, sized to properly handle the water heating
requirements of the facility.
All plumbing connections must be made to adhere to local, state, territorial, and
national codes. The installing plumber is responsible for ensuring the incoming
water lines are ushed of debris before connecting to the machine. Note that chips
and materials from cutting processes can become lodged in the solenoid valves
and prevent them from opening or closing. Any valves that are found to be fouled
or defective because of foreign matter left in the water line, and any subsequent
damage, are not the responsibility of the manufacturer.
A water hardness test must be performed. If water hardness is higher than 3 GPG,
install a water softener or install the optional Scale Prevention System (SPS). See
next section and Plumbing Options page for more information on the SPS.
INSTRUCTIONS
INSTALLATION
INSPECTION
LEVELING
UNPACKING
Do not throw away
packaging if damage is
evident!
FACILITY HOT
WATER HEATER
PLUMBING
A water hardness test
must be performed.
CAUTION! The plumber
must ush the incoming
water line!
!
CAUTION
07610-003-37-08-R
6
WATER SUPPLY
CONNECTIONS:
WATER HARDNESS
HIGHER THAN
3 GPG
WATER SUPPLY
CONNECTIONS:
WATER HARDNESS
LOWER THAN
3 GPG
PRESSURE
REGULATOR
SHOCK ABSORBER
DRAIN LINE
PLUMBING CHECK
If water hardness is higher than 3 GPG and a water softener is not being used,
install the optional SPS into the water line between the facility water line and the
machine water line (installed at the factory). See the Plumbing Options page for more
information on the SPS. Observe proper inlet/outlet water directions. A water shut-o
valve should be installed before installing the SPS to allow access for service.
If water hardness is lower than 3 GPG, install the water supply line (1/2” ID pipe
size minimum) to the machine’s incoming water connection point using copper pipe
(or order the 1/2” ID exible hose kit oered by manufacturer). A water shut-o valve
should be installed before installing the SPS to allow access for service.
The manufacturer has an optional water pressure regulator (see Plumbing Options
page) to accommodate areas where water pressure uctuates or is higher than the
recommended pressure. Take care not to confuse static pressure with ow pressure:
static pressure is line pressure in a “no ow” condition (all valves and services are
closed); ow pressure is the pressure in the ll line when the valve is opened during
the cycle.
It is suggested that the optional shock absorber (see Plumbing Options page) be
installed on the incoming water line. This prevents water hammer (hydraulic shock)
from causing damage to the equipment.
The machine drain requires a minimum 2” NPT piping that is pitched at least 1/4” per
foot. There must also be an air-gap between the machine drain line and the floor sink
or drain. If a grease trap is required by code, it should have a flow capacity of
5 GPM.
After installing the incoming ll line and drain line, slowly turn on the water supply to
the machine. Check for any leaks and repair as required. All leaks must be
repaired before operating the machine.
Take care not to confuse
static pressure with
ow pressure.
INSTRUCTIONS
INSTALLATION

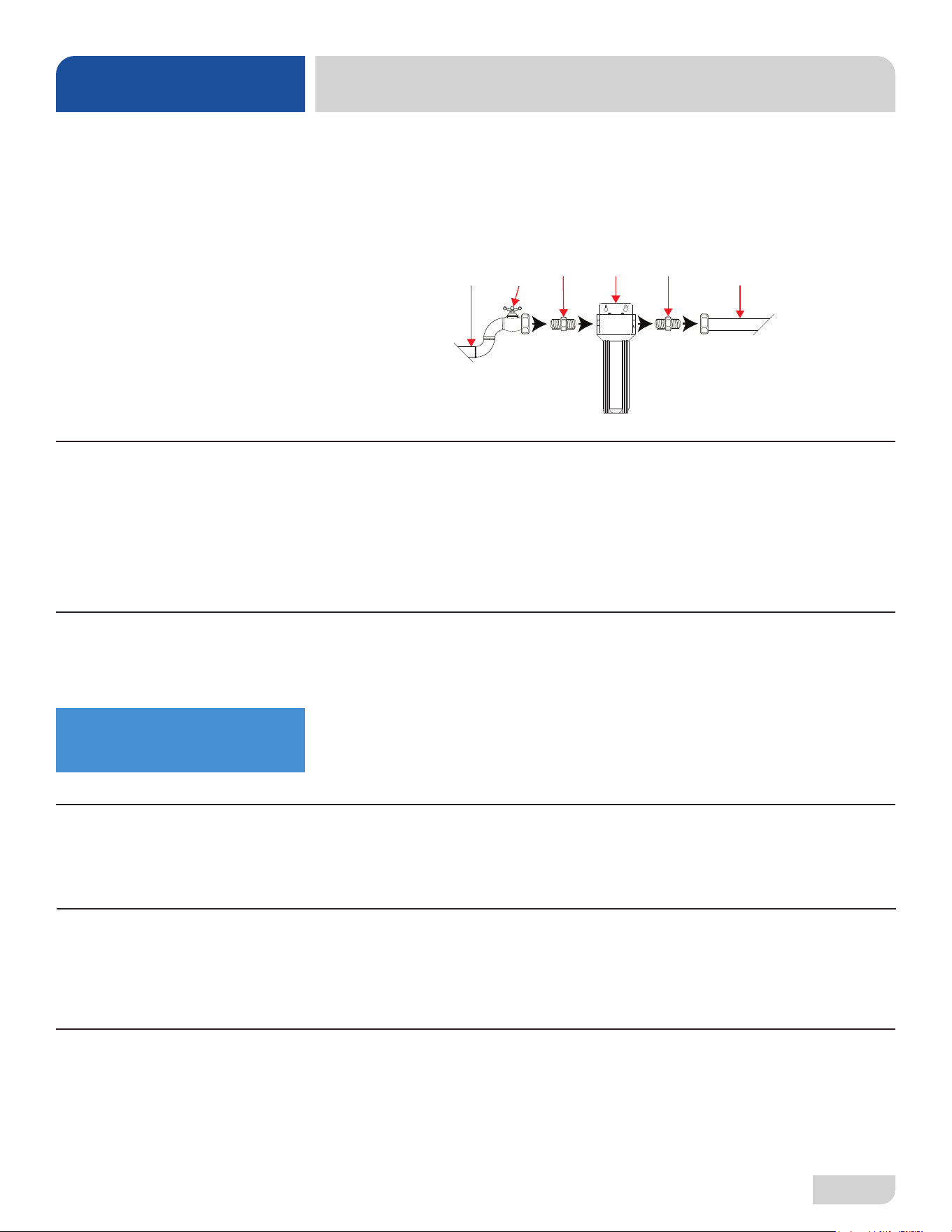

Shut-off
Valve
Adapter AdapterSPS Machine
Water Line
Facility
Water Line
* *
*Adapters needed will vary.
Example
07610-003-37-08-R
7

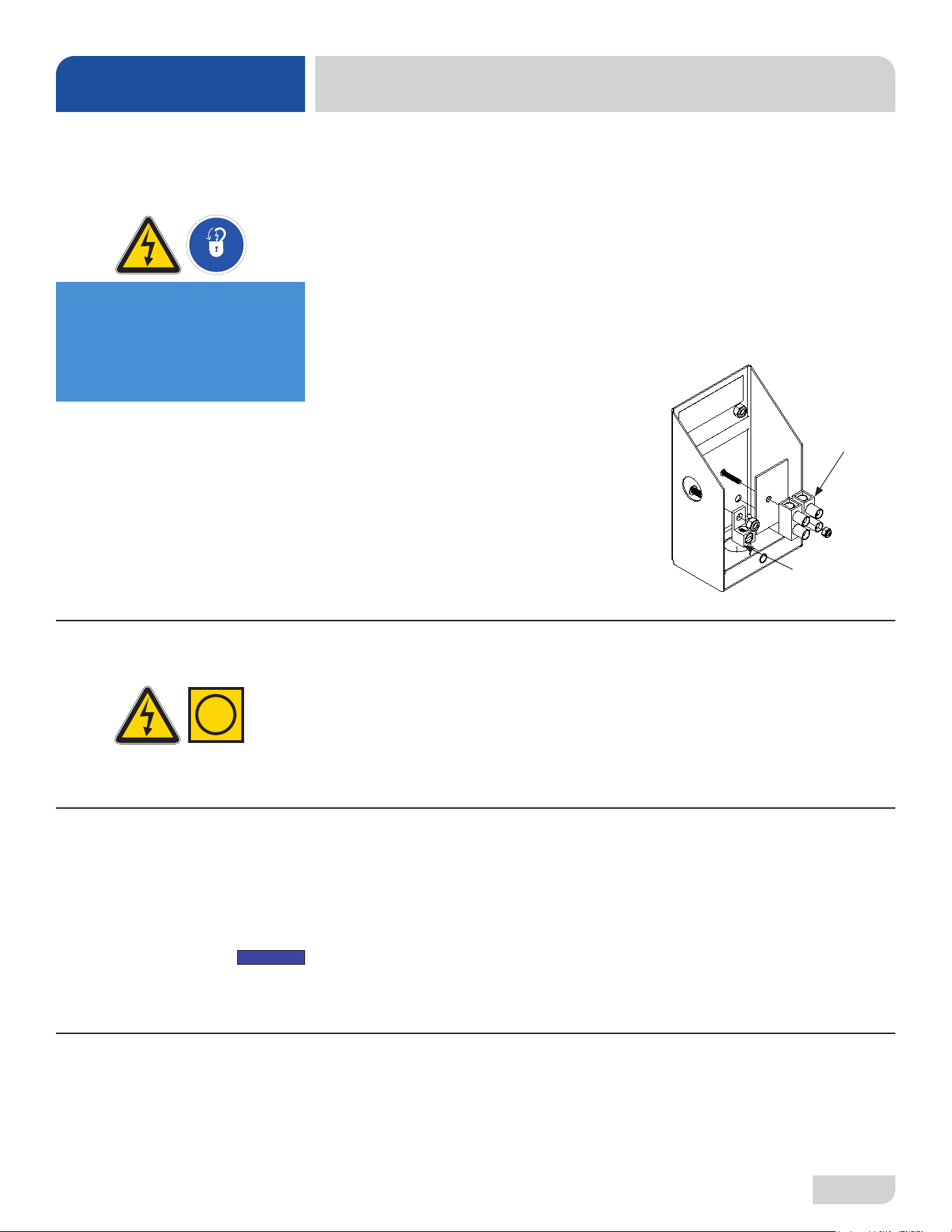

Ground Lug
Power Block
INSTRUCTIONS
INSTALLATION
Electrical and grounding conductors must comply with the applicable portions of the
National Electric Code ANSI/NFPA 70 (latest edition) and/or other electrical codes.
The data plate is located behind the door of the machine. Refer to the data plate for
machine operating requirements, machine voltage, total amperage, and serial number.
Remove the connection box lid to install the incoming power lines. Install 1/2” conduit
into the pre-punched holes in the back of the control box. Route power wires and
connect to power block and grounding lug. Install the service wires to the appropriate
terminals as they are marked on the terminal block. Install the grounding wire into
the lug provided. It is recommended that “DE-OX” or
another similar anti-oxidation agent be used on all
power connections.
Apply power to the machine. Check the incoming power at the terminal block and
ensure it corresponds with the voltage listed on the data plate. If not, contact a
qualied service agency to examine the problem. Do not run machine if voltage is
too high or too low. Shut o the service breaker and advise all proper personnel of
the location of the breaker and any problems. Replace the connection box lid and
tighten-down the screws.
This is a commercial machine and reaches temperatures that can exceed those
generated by a residential machine. Therefore, any surrounding countertops, cabinets,
ooring material, and suboor material must be designed and/or selected with these
higher temperatures in mind.
Any damage to surrounding area that is caused by heat and/or moisture to materials
that are not recommended for higher temperatures will not be covered under warranty
or by the manufacturer.
The temperature setpoints on this unit have been set at the factory. They should
only be adjusted by an authorized service agent.
TEMPERATURE
SETPOINTS
SURROUNDING
AREA
VOLTAGE CHECK
ELECTRICAL POWER
CONNECTIONS
Disconnect electrical
power at the breaker or
disconnect switch and
tag-out in accordance with
procedures and codes.
i
NOTICE
07610-003-37-08-R
8
This equipment is not recommended for use with deionized water or other aggressive uids.
Use of deionized water or other aggressive uids will result in corrosion and failure of
materials/components and will void the manufacturer's warranty.
CAUTION! Chorine-based sanitizers can damage the machine if the chemical
solution is too strong. Contact the chemical supplier for information.
This machine is supplied with detergent, rinse-aid, and sanitizer chemical feeder
pumps.
Locate the open ends of the chemical tubes with the tube stieners and place each
one in the appropriate container.
• Red Tubing = Detergent
• Blue Tubing = Rinse-aid
• White Tubing = Sanitizer

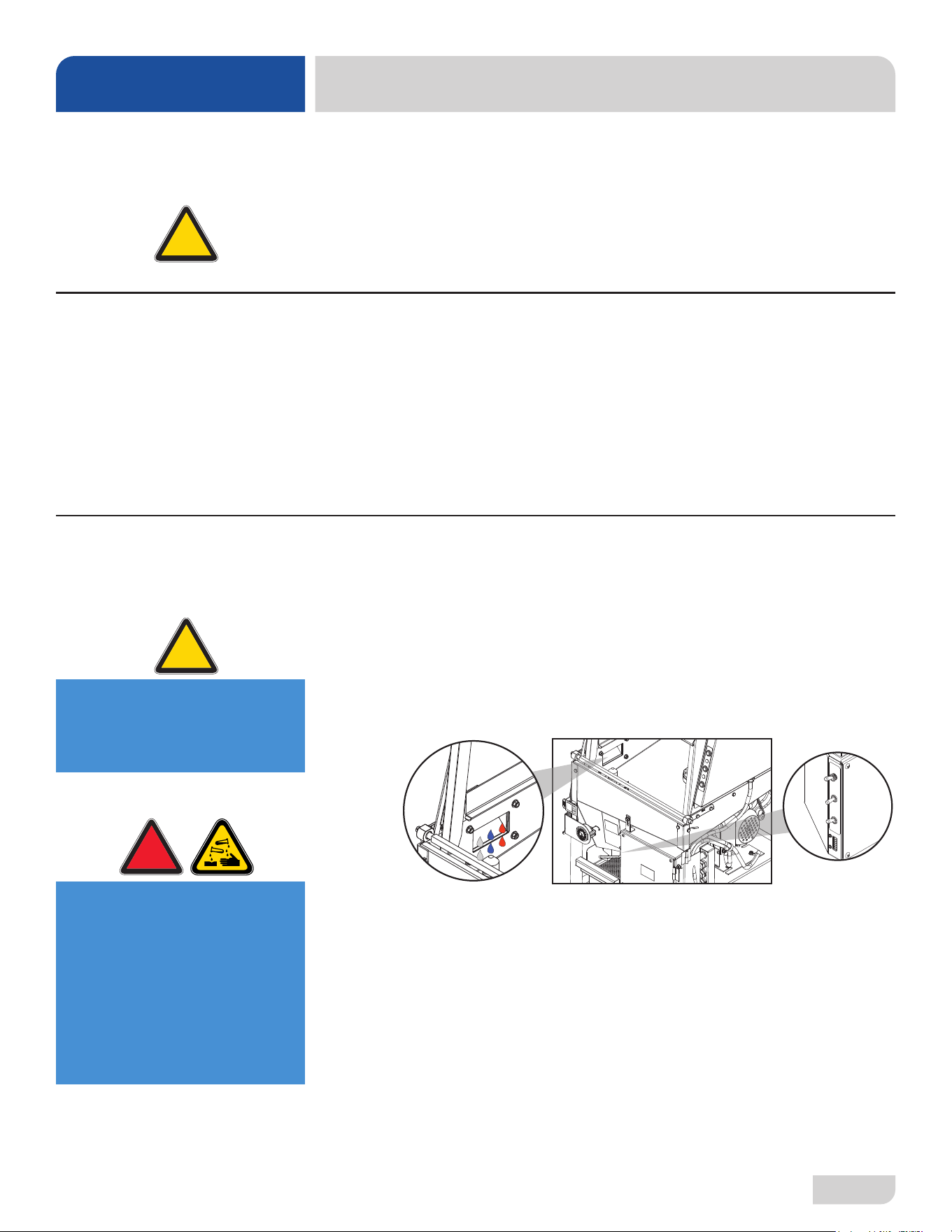

Chemical feeder pumps need priming when the machine is rst installed or if the
chemical lines have been removed and air was allowed to enter.
1. Verify proper chemical tube stiener inlet is in proper container.
2. Use prime switches located on the panel inside the door to prime each pump.
The switches are clearly marked with the type of chemical.
3. To prime pumps, hold the switch until the chemical can be observed entering the
sump.
4. Detergent is dispensed as required during the wash cycle by the timer. The
amount of detergent might need to be adjusted depending on water quality and
type of detergent.
5. Rinse-aid is dispensed as required into the nal rinse. The amount of rinse-aid
might need to be adjusted depending on water hardness and results.
6. Sanitizer is dispensed into the final rinse. The amount of sanitizer might need to
be adjusted depending on the concentration.
CHEMICAL FEEDER
EQUIPMENT
PRIMING CHEMICAL
FEEDER PUMPS
WARNING! Some
dishwashing chemicals
might cause chemical
burns. Wear protective
gear when handling these
chemicals. If any skin
contact occurs, follow the
instructions provided
with the chemicals.
PREPARING
CHEMICAL FEEDER
PUMPS
INSTRUCTIONS
INSTALLATION
!
WARNING
!
CAUTION
CAUTION! Water must
be in the sump and wash
tank before dispensing
chemicals.
!
CAUTION
07610-003-37-08-R
9
CYCLE TIMER INSTRUCTIONS
INSTALLATION
Machines with serial numbers
before 21H396817 have the old
CAM timer. See previous manual.
NOTICE
The display will read "JACKSON WWS" and the rmware version when powered on.
This is the Default/Home screen.
• If inactive for 15 seconds the blue backlight will turn o.
• If inactive for 30 seconds the display will turn o.
• Inactivity timer will reset if any button is pushed.
• Push any button while inactive and the display will turn on and show the
Home screen.
1. With the display on, press TIMER MODEL. Display will show "SELECT MODEL"
and the currently-active model.
2. Select correct model using ARROW buttons under STEP DURATION.
3. Press SAVE/EXIT.
OVERVIEW
The timer accepts user
input and provides
feedback on the status
of the dishmachine.
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
LEDs
Adjustable
Cycle
Steps
• Drain
• Fill
• Sanitizer
• Detergent
• Rinse Aid
• Spare
Display
Select
Model
Change Cycle
Step Duration
Change Cycle
Step Start Time
Cycle steps are the
dierent sub-cycles
(ll, drain, etc.) of
the total wash cycle.
Save and Exit
Check
Cycle
Count
POWERING ON
SELECTING MODEL
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
SELECT MODEL:
CONS XL-E
SELECT MODEL:
DELTA 5
Model
DELTA 5
07610-003-37-08-R
10
CYCLE TIMER INSTRUCTIONS
INSTALLATION
1. Press button for step being changed. The LED for that step will come on.
2. Change STEP START TIME or STEP DURATION using ARROW buttons
(adjustments are made in 0.25-second increments).
3. Press SAVE/EXIT to save the change and exit.
4. Repeat with other steps as needed.
5. To review current settings for a given step, press button for that step during IDLE.
Its current STEP START TIME and STEP DURATION will be displayed.
CHANGING CYCLE
STEP TIMES
The rst two steps
(CYCLE and PUMP)
are xed and can't be
adjusted. All other steps
are adjustable.
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
Change is also saved if
inactive for 10 seconds
or any other button is
pressed.
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
Timing of the total wash
cycle begins when START
is pressed. Machine
returns to IDLE after one
full cycle.
START DURATION
1.50 5.00
START DURATION
2.00 5.75
START DURATION
2.00 5.75
JACKSON WWS
SW v30013M
"M" = Modifed Timing
"F" = Factory Defaults
Hold ARROW buttons
for rapid change (slew).
07610-003-37-08-R
11
CYCLE TIMER INSTRUCTIONS
INSTALLATION
1. Press and hold CYCLE COUNT button and DOWN ARROW button (under STEP
DURATION) simultaneously for 3–4 seconds.
2. Resets all settings to factory defaults for the active model. Cycle count is
unaected by the reset.
3. Firmware version on the Home screen shows "F" at the end, indicating the timer
is now set to factory defaults for the active model.
1. Press CYCLE COUNT button. Cycle count will show on display.
RESETTING TO
FACTORY DEFAULTS
CHECKING CYCLE
COUNT
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
START DURATION
1.50 5.00
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
JACKSON WWS
SW v30013F
Firmware version
changes, so number will
be dierent depending on
when timer was installed.
CYCLE COUNT:
12
"M" = Modifed Timing
"F" = Factory Defaults
07610-003-37-08-R
12
CYCLE TIMER INSTRUCTIONS
INSTALLATION
1. Press and hold CYCLE COUNT button and DOWN ARROW button (under STEP
START TIME) simultaneously for 3–4 seconds.
2. Press and hold the DRAIN button. The DRAIN output stays on while the button
is held. The output turns o when the button is released. Repeat for the other
seven buttons (use SAVE/EXIT to activate CYCLE output, use CYCLE COUNT
to activate PUMP output). Second row of display shows outputs and inputs that
are active.
3. Plant test mode can also be used to prime chemicals if the machine has no
priming function. Open door and press and hold the SANI button until sanitizer
is seen entering the wash sump/tank and no air is in the line.
4. Repeat for DETER and RINSE AID buttons.
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
PLANT TEST MODE
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
Outputs
Cycle
Wash
Drain
Fill
Sani
Deter
Rinse
Spare
Inputs
DoorClosed
Start
After 15 seconds of no
button being pressed,
the timer exits
the plant test mode.
If more than one input
is on, the rst letters
of each will show
(e.g. "Drain-DH" indicates
the DRAIN output and
DoorClosed and Heavy
inputs are on).
PLANT TEST
Drain-DoorClosed
SELECT CYCLE STEP TO ADJUST PRESS SAVE TO EXIT
CYCLE PUMP DRAIN FILL SANI DETER SPARE
CYCLE
COUNT
SAVE
EXIT
START TIME DURATION
TIMER
MODEL
SELECT MODEL
RINSE
AID
STEP STEP
DISH
CYCLE
TIMER
PLANT TEST
Deter-Start
PLANT TEST
-DoorClosed
07610-003-37-08-R
13

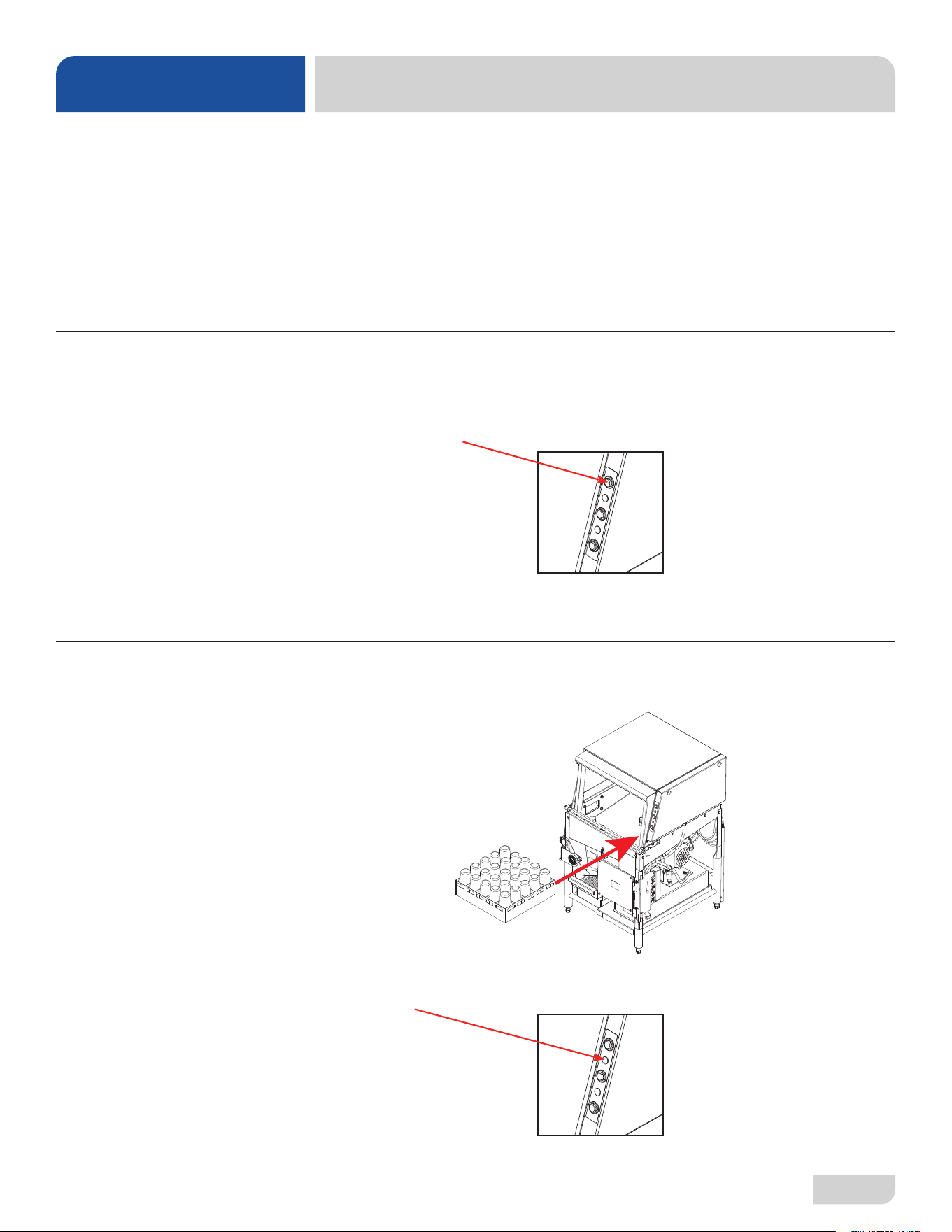

Before operating the machine, verify the following:
• Strainers are clean and in place.
• Drain stopper is installed.
• Wash/rinse arm is screwed securely into place and end-caps are tight.
• Wash/rinse arm rotates freely.
To energize the machine, turn on power at the service breaker. The voltage should
have been previously veried as correct. If not, the voltage must be veried before
energizing the unit.
Before the heater element can be energized, the heater tank must be initially lled
with water.
1. Press and hold FILL button until water overows into the wash strainer, then
release the button.
2. The heater tank is now lled with water.
3. Turn o the machine by pressing the ON/OFF button.
INSTRUCTIONS
OPERATION
PREPARATION
POWER UP
INITIAL
START-UP
CAUTION! Damage to
the heater element will
occur if the element is not
submerged in water.
!
CAUTION
07610-003-37-08-R
14

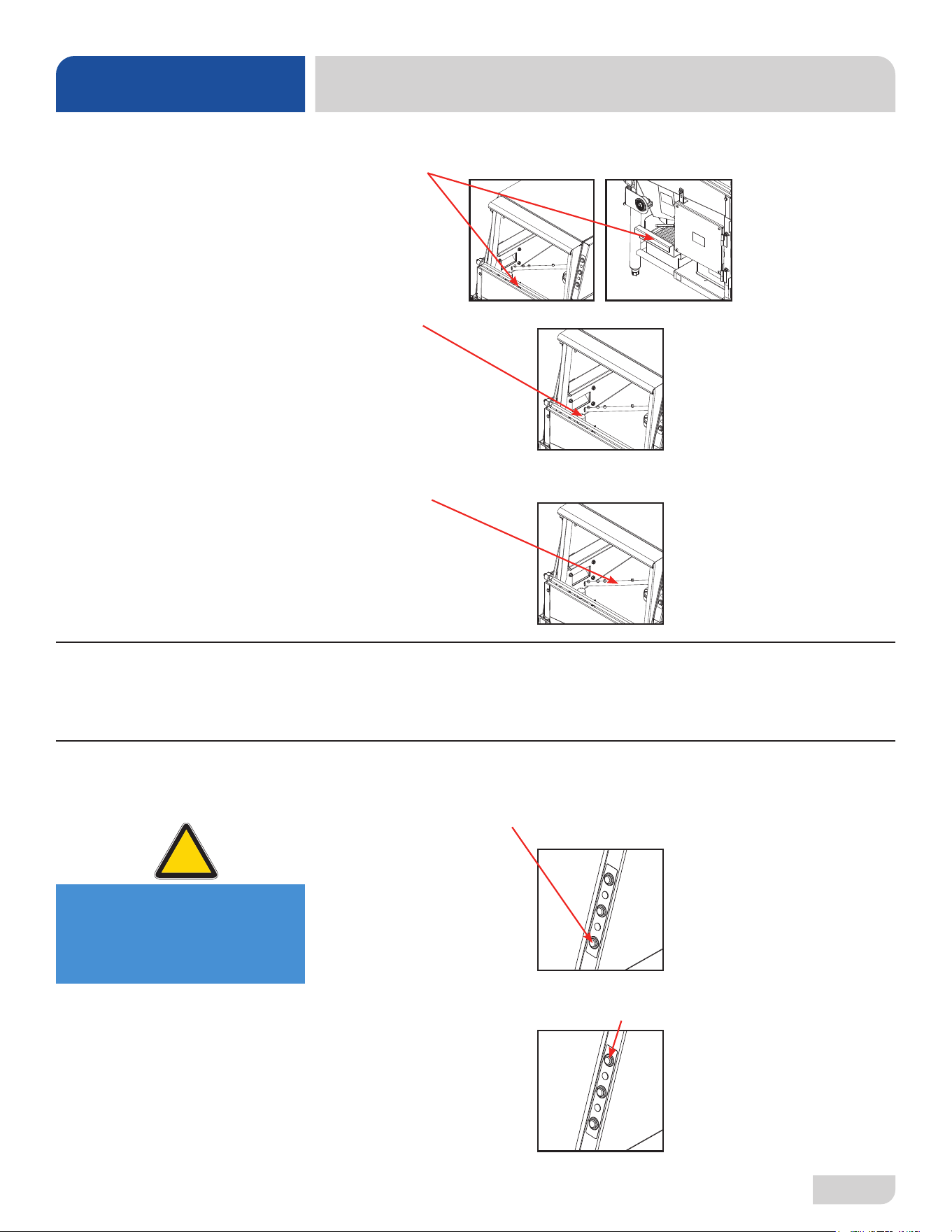

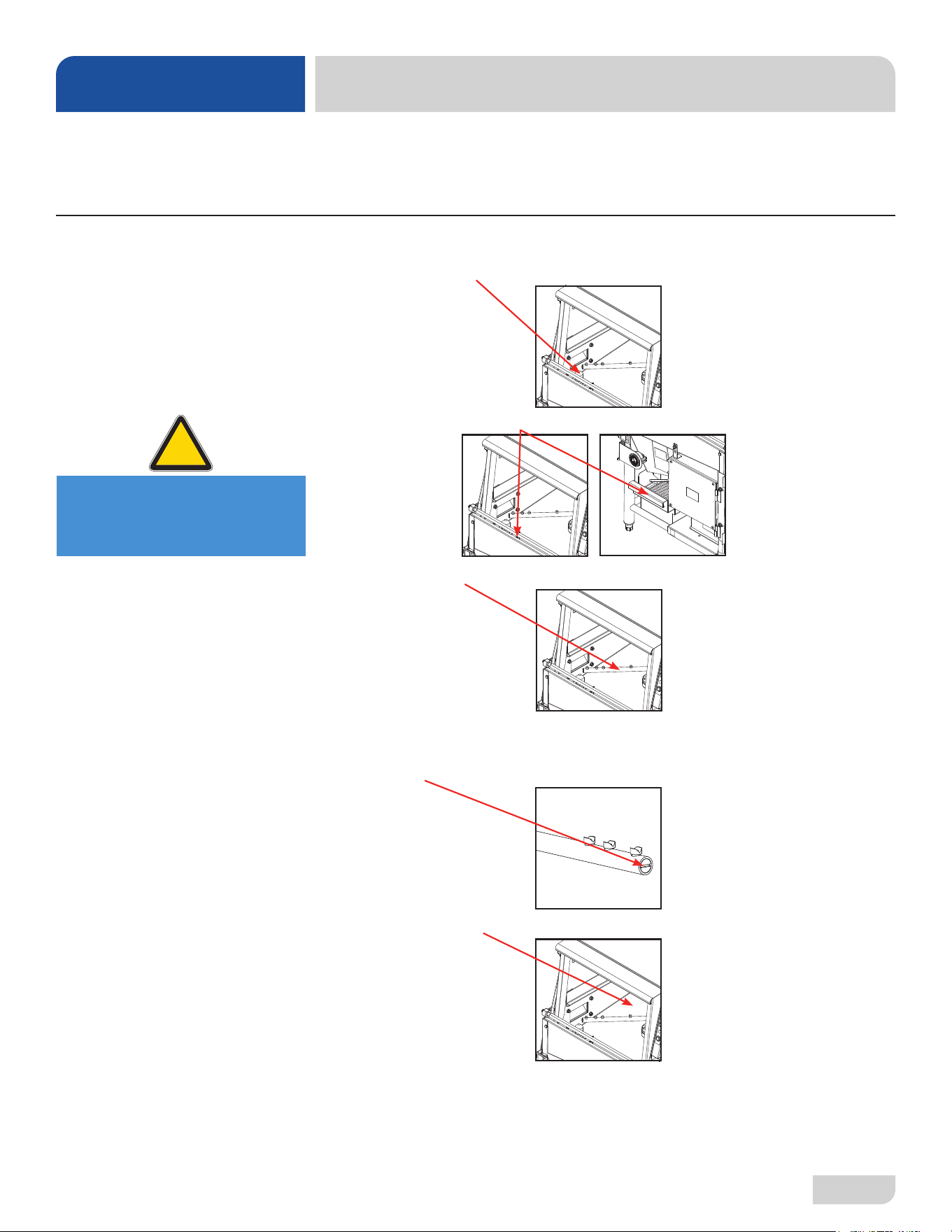

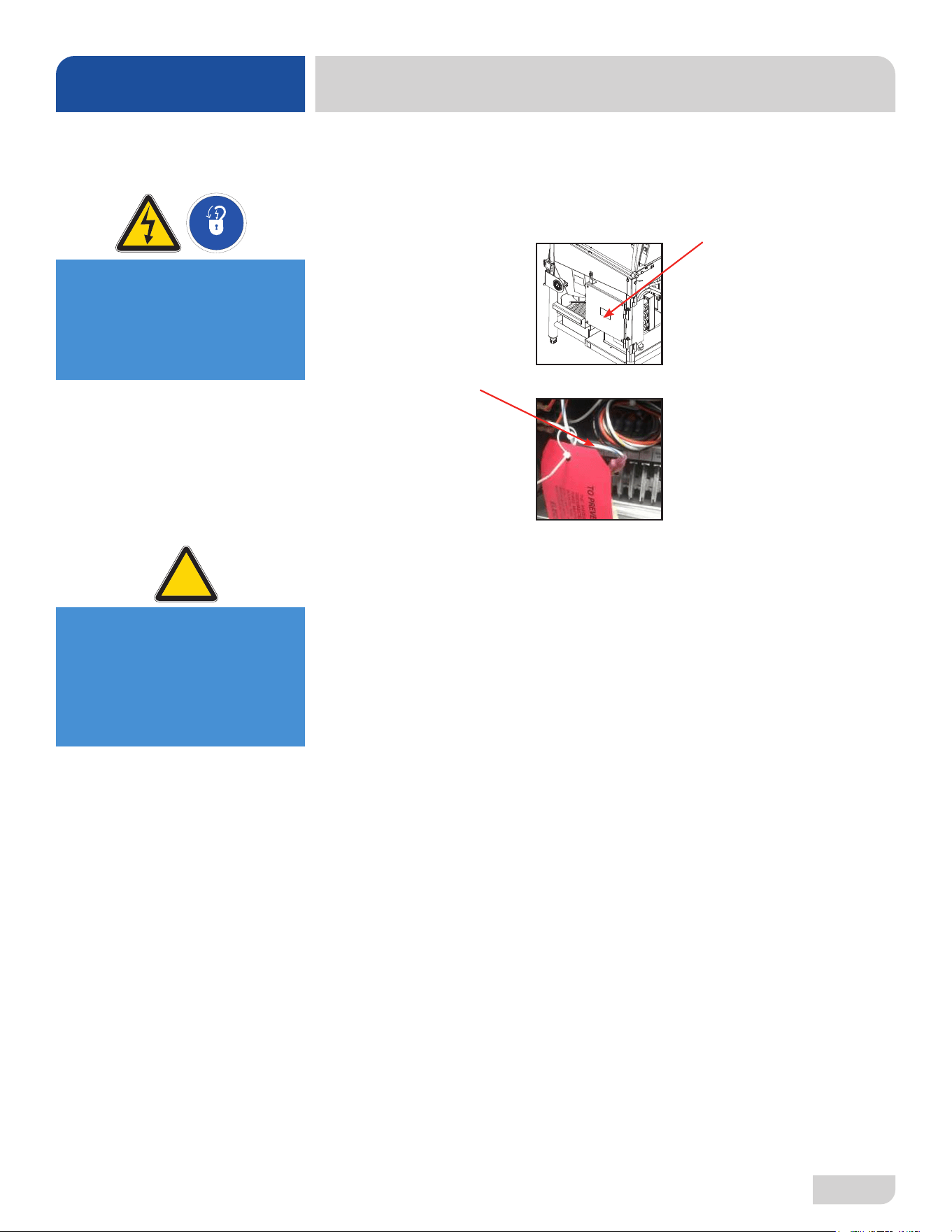

After lling the heater tank, the heater element must be enabled. The machine is
shipped from the factory with the heater element disabled. This is done to ensure
that the heater element is not damaged by energizing the element without the
element being submerged in water. To enable the heater element:
1. Disconnect electrical power and remove the control box cover.
2. Connect the tagged white/blue wires.
3. Replace the control box cover and reconnect electrical power.
4. Press the ON/OFF button. The heater element will energize to sustain water
temperature.
If the water level is not between the lines on the drain stopper, it will require
adjustment. Check to ensure that the recommended water pressure is being
supplied to the machine ( 20 A 5 PSI). If the water pressure is correct, the timer
needs adjustment. See Cycle Timer Instructions section.
The machine runs a complete cycle to drain and ll. If the machine fails to drain, the
water will build-up inside the tub. After the initial ll, the rinse water for the current
cycle will mix with the wash water for the next cycle.
INSTRUCTIONS
OPERATION
INITIAL
START-UP
CAUTION! Water must
be in the sump while the
machine is running to
avoid running the pump
dry and causing damage
to the pump seal.
!
CAUTION
Disconnect electrical
power at the breaker or
disconnect switch and
tag-out in accordance with
procedures and codes.
07610-003-37-08-R
15
INSTRUCTIONS
OPERATION
WASHING A
RACK OF WARE
WARE
PREPARATION
DAILY
START-UP
Proper preparation of ware is essential for the smooth and ecient operation of the
machine, resulting in fewer rewashes and less detergent used. Any ware loaded
inside the machine should have all solid food waste and scraps removed. Ware
should be sprayed-down before being placed in the machine.
Place cups and glasses upside-down in racks so they do not hold water during the
cycle. Presoak atware in warm water to assist in removal of stuck-on material.
Load plates and saucers in the same direction.
1. Ensure items in the Preparation section have been veried.
2. Verify chemical levels are correct.
3. Ensure power is on and the tub has lled to the correct level.
4. Push START button: the unit will start, run through the cycle, and shut o
automatically.
5. Repeat this two more times.
6. The machine is now ready for operation.
1. Open door.
2. Place a rack of ware into the machine.
3. Press and hold START button until the cycle starts (about two seconds).
4. After cycle light goes o, the cycle is complete.
5. Open door and remove the rack.
07610-003-37-08-R
16
As the workday progresses, operators should regularly inspect the strainers to
ensure they have not become clogged. If the strainers become clogged, it will
reduce the washing capability of the machine.
1. Turn machine off by pushing ON/OFF button.
2. Remove drain stopper and allow tub to drain.
3. Remove and clean the strainers.
4. Unscrew wash/rinse arm from its manifold.
5. Verify nozzles and arm are free from obstruction. If clogged, remove end-caps,
clean nozzles with a brush, and flush with fresh water.
6. Replace end-caps and tighten with screwdriver.
7. Spray or wipe out interior of machine.
8. Replace wash/rinse arm.
9. Ensure all strainers are clean and securely in place.
10. Replace drain stopper.
11. Use stainless steel polish to protect outside of machine.
INSTRUCTIONS
OPERATION
OPERATIONAL
INSPECTION
SHUTDOWN &
CLEANING
CAUTION! Do NOT beat
strainers to remove
soil and debris!
!
CAUTION
07610-003-37-08-R
17
INSTRUCTIONS
OPERATION
DETERGENT
CONTROL
i
Detergent usage and water hardness are two factors that greatly contribute to the
machine's operating eciency. Using the proper amount of detergent can become a
source of substantial savings. A qualied water-treatment specialist can determine
what is needed for maximum eciency from the detergent.
• Hard water greatly aects the performance of the machine, causing the amount
of detergent required for washing to increase. If the machine is installed in an
area with hard water, the manufacturer recommends the installation of water
treatment equipment.
• Deposited solids from hard water can cause spotting that will not be removed
with a drying agent. Treated water will reduce this occurence.
• Treated water might not be suitable for use in other areas of operation and it
might be necessary to install a water treatment system for the water going to the
machine only. Discuss this option with a qualied water treatment specialist.
• Properly train operators on how much detergent is to be used per cycle. Meet
with a water treatment specialist and chemical supplier to discuss a complete
training program for operators.
• Water temperature is an important factor in ensuring the machine functions
properly, and the machine's data plate details what the minimum temperatures
must be for the incoming water supply, the wash tank, and the rinse tank. If
minimum requirements are not met, it's possible that dishes will not be clean or
sanitized.
• Instruct operators to observe the required temperatures and to report when they
fall below the minimum allowed. A loss of temperature can indicate a larger
problem.
07610-003-37-08-R
18

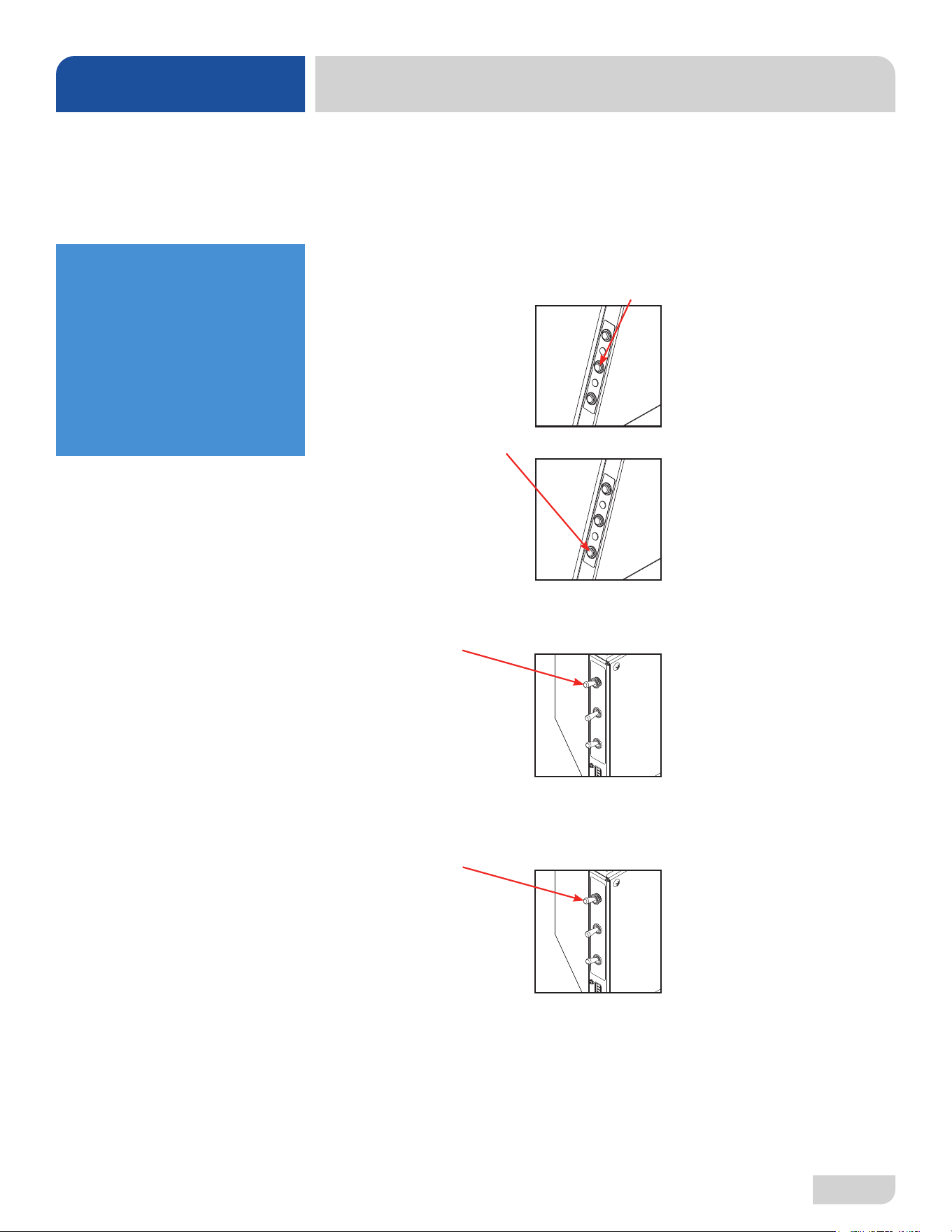

To maintain the machine at its optimum performance level, lime and corrosion
deposits must be removed. The frequency for deliming will be based on
water conditions. A deliming solution is available from your chemical supplier. Read
and follow all instructions on the label.
To delime the machine:
1. Turn the machine on by pressing the ON/OFF button.
2. Press and hold the FILL button until water overflows into the wash strainer.
3. Add deliming solution per supplier’s instructions.
4. Close door.
5. Flip NORMAL/DELIME switch to DELIME.
6. Run machine the period of time recommended by chemical supplier.
7. Wait ve minutes, then inspect inside of the machine. If the machine is not
delimed, run again.
8. Flip NORMAL/DELIME switch to NORMAL.
9. Run two cycles to remove residual deliming solution.
DELIMING
If this machine is
equipped with the SPS
and lime is
becoming a frequent
problem, the cartridge
needs to be replaced.
See the Plumbing
Options page to order a
replacement.
INSTRUCTIONS
OPERATION
07610-003-37-08-R
19
PREVENTATIVE MAINTENANCE
MAINTENANCE
The manufacturer highly recommends that any maintenance and repairs not specically
discussed in this manual only be performed by qualied service personnel.
Performing maintenance on the machine may void a warranty.
By following the operating and cleaning instructions in this manual, users should get
the most ecient results from the machine. As a reminder, here are some steps to
ensure that the machine is used properly:
• Ensure water temperatures match those listed on the machine data plate
(behind the door).
• Remove as much soil as possible from ware before loading into racks.
• Ensure all strainers are in place and free of soil and debris before operating the
machine. To clean strainers, wipe them out with a rag and rinse under a faucet.
A toothpick can be used to dislodge any stubborn debris. Do not beat strainers
on waste cans; once bent they will not work properly.
• If hard water is present, install a water softener or SPS into the water line
connecting to the machine (see Plumbing section).
• Ensure wash/rinse arm is secure in the machine before operating.
• Ensure the drain stopper is in place before operating.
• Do not overll racks.
• Ensure glasses are placed upside-down in the rack.
• Ensure all chemicals being injected into the machine have been veried at the
correct concentrations.
• Clean out the machine at the end of every workday per the Shutdown and
Cleaning section.
• Follow all safety procedures, whether listed in this manual or put forth by local,
state, or national codes/regulations.
PREVENTATIVE
MAINTENANCE
i
CAUTION! Do NOT beat
strainers to remove
soil and debris!
!
CAUTION
07610-003-37-08-R
20
PROBLEM POSSIBLE CAUSE REMEDY
Water overow
from bottom of
door.
1. Clogged drain.
2. Machine not level.
3. Excessive inlet pressure.
4. Detergent foaming.
5. Wash/rinse arm end-cap missing.
6. Excessive ll time.
1. Remove obstruction.
2. Level machine or increase height to the front.
3. Install pressure reducing valve or adjust if one is present.
Ensure ow meets data plate specication.
4. Reduce detergent quantity.
5. Replace.
6. Adjust timer ll time (see Initial Start-up section).
Wash motor
doesn’t
operate on
delime wash.
1. Loose or broken wires.
2. Defective delime switch.
3. Defective motor starting relay.
1. Reconnect or replace wires in motor.
2. Verify delime switch triggers input on PLC. If not, check
wiring/replace membrane.
3. Replace.
Motor operates
on delime
wash but not
on automatic.
1. Defective circuit in delime switch.
2. Loose or broken wires.
1. Replace switch.
2. Tighten and/or replace.
No water comes
through the
arm when the
“FILL” switch is
depressed.
1. Water not turned on.
2. Defective solenoid valve.
1. Turn water on.
2. Replace solenoid valve.
Little or no
water coming
through the rinse
assemblies.
1. Limed-up rinse heads or piping.
2. Low water pressure.
1. Delime rinse heads.
2. Increase pipe size to machine. Adjust pressure
regulator.
Rinse water runs
continuously
with breaker
turned o.
1. Defective plunger in solenoid valve.
2. Defective diaphragm in solenoid valve.
1. Replace.
2. Replace diaphragm.
TROUBLESHOOTING
TROUBLESHOOTING
07610-003-37-08-R
21
PROBLEM POSSIBLE CAUSE REMEDY
Wash
temperature
not at required
reading.
1. Check that white/blue wires are
connected.
2. Defective thermometer.
3. Defective thermostat.
4. Sustaining heater defective.
5. Defective heater contactor (R2).
6. Incoming inlet water temperature
below required minmum.
7. Defective heater delay relay (R4)
1. See Initial Start-up section.
2. Replace.
3. Adjust or replace thermostat.
4. Replace heater element.
5. Replace.
6. Adjust.
7. Replace.
Rinse water
not at
required
temperature
range.
1. Check that white/blue wires are
connected.
2. Defective thermometer.
3. Defective thermostat.
4. Incoming rinse water does not meet
minimum criteria indicated on
machine data plate
1. See Initial Start-up section.
2. Replace.
3. Adjust or replace thermostat.
4. Adjust as required.
No indication of
pressure.
1. Water turned o.
2. Pressure gauge defective.
1. Turn water on.
2. Replace pressure gauge.
TROUBLESHOOTING
TROUBLESHOOTING
07610-003-37-08-R
24
CONTROL BOX
PARTS
ITEM QTY DESCRIPTION PART NUMBER
Complete Control Box Assembly 05700-003-36-55
1 1 Control Box Weldment 05700-003-09-42
2 1 Control Box Cover 05700-003-30-54
3 1 Decal, Warning - Disconnect Power 09905-004-08-16
4 4 Screw, 10-32 x 1/2’’ Long, Phillips Tusshead 05305-011-39-36
5 1 Decal, Peri-pump Prime 09905-003-32-56
6 1 Switch, Delime/Normal 05930-301-21-18
7 1 Detergent/Rinse-aid Pump Prime Switch 05930-011-35-27
8 1 Sanitizer Pump Prime Switch 05930-111-38-21
9 1 Locknut, 1/4-20 SS Hex with Nylon Insert 05310-374-01-00
10 1 Washer, 1/4-20 SS 05311-174-01-00
11 2 Contactor 05945-109-05-69
12* 1 Timer, Electronic Cycle 05700-004-88-53
13 4 Fitting, Conduit, Heyco 1/2’’ 05975-011-49-03
14 1 Fitting, 1/2’’ Straight Snap-in 05975-003-33-27
15 5 Clamp, 5/8” Nylon 04730-011-39-01
16 2 Relay, 2-Pole 05945-111-35-19
17 1 Terminal Board 05940-021-94-85
18 1 Harness, Switch Panel 05700-003-35-37
19 1 Fitting, 1/2’’ 90-Degree Snap-in 05975-003-33-28
20 1 Conduit, 1/2” x 40” 05700-003-35-48
21 1 Cycle Counter 05990-111-35-38
22 2 Screw, 4-40 x 1/4” Phillips Pan Head 05305-002-32-38
23 1 Terminal Board 05940-002-78-97
24 1 Terminal Board 05940-001-97-91
25 1 Decal, Terminal Board 8-Position 09905-003-09-30
26 16 Locknut, 10-24 SS Hex with Nylon Insert 05310-373-01-00
27 6 Locknut, 6-32 SS Hex with Nylon Insert 05310-373-03-00
28 1 Harness, Wash Pump 05700-003-35-34
29 1 Harness, Drain Solenoid 05700-003-35-36
30 1 Harness, Peri-pump 05700-003-35-35
31 1 Conduit, 1/2” x 17” (not shown) 05700-003-35-49
32 1 Bracket, Timer 05700-004-88-57
*Machines with serial numbers
before 21H396817 have the old
CAM timer. See previous manual.
NOTICE
07610-003-37-08-R
25
CHEMICAL FEEDER PUMP COMPONENTS
PARTS
0
5
7
0
0-
004-71-6
1
8
1
6
2
7
3
4
5
0
5
7
00-
004-71-6
0
9
ITEM QTY DESCRIPTION PART NUMBER
1 2 Pump Housing 04320-111-37-09
2 4 Screw, 8-32 x 3/8" Phillips 05305-011-37-07
3 1 Roller, Plastic 04320-002-82-28
4 2 Pump Cover 04320-111-37-08
5 8 Screw, 6-32 x 3/4" Phillips 05305-011-37-05
6 4 Screw, 8-32 x 1/2" Phillips 05305-011-37-06
7 1 Tube, Squeeze, 8" 05700-003-22-89
8 1 Motor, 14 RPM 04320-111-35-13
9 1 Motor, 36 RPM 04320-111-35-14
07610-003-37-08-R
26
PERI-PUMP BOX
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 2 Peri-pump Assembly, 36 RPM 05700-004-71-60
2 1 Peri-pump Assembly, 14 RPM 05700-004-71-61
3 1 Drip Channel 05700-003-32-89
4 1 Peri-pump Box 05700-003-32-00
5 1 Peri-pump Box Cover 05700-003-33-80
6 1 Fitting, Conduit, Heyco 1/2’’ (behind box) 05975-011-65-51
7 1 Clamp, 5/8” Nylon (inside box) 04730-011-39-01
8 1 Clamp, 1” Nylon 04730-002-41-88
9 5 Screw, 10-32 x 1/2’’ 05305-011-39-36
10 3 Locknut, 10-24 SS Hex w/Nylon Insert 05310-373-01-00
11 3 Tube Stiffener (not shown) 05700-002-66-49
12 1 Tubing, 1/4’’ OD x 60” Long, Blue 05700-002-52-34
13 1 Tubing, 1/4’’ OD x 60” Long, White 05700-002-52-33
14 1 Tubing, 1/4’’ OD x 60” Long, Red 05700-011-63-18
15 1 Terminal Board (inside box) 05940-001-97-91
16 1 Tubing, 1/4” OD x 120” Long, Blue 05700-011-37-17
17 1 Tubing, 1/4” OD x 120” Long, White 05700-011-37-13
18 1 Tubing, 1/4” OD x 120” Long, Red 05700-011-37-15
1
2
17
14
13
12
16
18
3
10
8
5
4
6
4
15
07610-003-37-08-R
27
ELECTRICAL CONNECTION BOX
PARTS
1
2
3
4
8
5
9
6
7
ITEM QTY DESCRIPTION PART NUMBER
1 1 Box, Power Junction Weldment 05700-003-30-58
2 1 Terminal Block Spacer 05700-011-40-05
3 1 Terminal Block 05940-500-09-61
4 1 Locknut, 6-32 with Nylon Insert 05310-373-03-00
5 5 Locknut, 10-24 with Nylon Insert 05310-373-01-00
6 1 Lug, Ground 05940-200-76-00
7 1 Decal, Power Connection 09905-011-47-64
8 1 Decal, Warning to Disconnect Power 09905-004-08-16
9 1 Screw, 10-32 x 1/2’’ Long, Phillips Trusshead 05305-011-39-36
10 2 Decal, Copper Conductors Only 09905-011-47-35
11 1 Cover, Solenoid Box 05700-003-46-72
10
11
07610-003-37-08-R
28
FRAME
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 4 Adjustable Foot 05340-002-14-55
2 1 Plate, Hinge Weldment 05700-003-10-11
3 1 Washer, Hinge Weldment 05700-002-54-62
4 1 Spacer, PB Bolt 05700-000-29-40
5 1 Clamp, Pipe 05700-000-35-05
6 8 Washer, 1/4-20 SS 05311-174-01-00
7 1 Keeper, Door Panel Latch 05700-003-09-31
8 4 Locknut, 1/4-20 SS Hex with Nylon Insert 05310-374-01-00
9 5 Nut, Hex 1/4-20 05310-274-01-00
10 1 Heater Mounting Plate Weldment 05700-002-51-93
11 1 Bracket, Temperature Gauge 05700-003-14-53
12 1 Bolt, 1/4-20 x 1/2” 05305-274-02-00
13 1 Bracket, Manifold Position Tube 05700-011-34-63
1
2
3
7
4
8
5
6
9
10
6
12
11
13
07610-003-37-08-R
29
HOOD
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Switch, 115 V Reed 05930-002-36-80
2 1 Bracket, Limit Switch 05700-021-71-18
3 4 Locknut, 10-24 with Nylon Insert 05310-373-01-00
4 2 Clamp, Pipe 5/8” 05700-000-35-06
5 2 Rack Rail Weldment 05700-002-45-67
6 2 Washer, 1/4”-20 I.D. 05311-174-01-00
7 1 Gasket, Switch Panel 05330-100-10-00
7
4
5
3
6
1
2
07610-003-37-08-R
30
SWITCH PANEL
PARTS
ITEM QTY DESCRIPTION PART NUMBER
Complete Switch Panel Assembly 05700-003-24-38
1 1 Switch Panel Weldment 05700-003-24-36
2 2 Switch, Prime Assembly 05700-003-14-91
3 1 Switch, On/Off Assembly 05700-003-14-92
4 1 Light, Amber 05945-504-06-18
5 1 Light, Red 05945-504-07-18
6 1 Decal, Switch Panel 09905-003-08-63
7 1 Fitting, .25-.546 05975-011-65-51
8 3 Plug, 3/4” Hole 04730-011-60-21
9 6 Locknut, 10-24 with Nylon Insert 05310-373-01-00
10 6 Washer 05311-176-02-00
11 1 Terminal Board (not shown) 05940-001-97-91
1
2
3
4
8
5
9
6
7
10
8
9
10
2
07610-003-37-08-R
31
13a
13
9
1
2
23
25
25a
25b
22
23
21
15
14
21
28a
28b
28c
28d
28e
28
4
5
3
6
16a
16b
16c
16
17
12
11
10
24
26
20
18
23
7
2
8
28f
19
6
29
30
TUB
PARTS
07610-003-37-08-R
32
TUB
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Lower Manifold Weldment 05700-002-45-51
2 2 Manifold Gasket 05700-111-35-03
3 1 Drain Seat Insert 05700-004-37-18
4 1 Spillway Gasket 05700-111-34-52
5 1 Spillway Weldment 05700-003-52-13
6 23 Locknut, 1/4-20 SS Hex with Nylon Insert 05310-374-01-00
7 1 Manifold O-Ring 05330-111-35-15
8 1 Modified Casting Wedge 09515-011-46-61
9 2 Bolt, 3/8-16 x 1 1/4” SS 05305-276-10-00
10 2 Washer, 3/8” Bevel-Square Iron 05311-011-35-36
11 2 Lockwasher, 3/8” 05311-276-01-00
12 2 Nut, 3/8-16 SS Hex 05310-276-01-00
13
13a
1
1
Complete Wash Arm Assembly
Wash Arm End-cap
05700-021-39-23
05700-003-31-59
14 1 Sump Strainer 05700-002-60-50
15 1 Stand Pipe 05700-004-19-51
16
16a
16b
16c
1
1
1
1
Complete Drain Link Assembly
Drain Link
Nut, Hex, 5/16-18
Drain Link Connector
05700-002-45-52
05700-002-40-83
05310-275-01-00
05700-002-38-10
17 1 Hair Pin, 1/8” to 1” 05315-011-60-09
18 1 Fill Tube Weldment 05700-002-45-61
19 18 Washer, 1/4-20 ID 05311-174-01-00
20 3 Chemical Tube Grommet 05325-002-42-65
21 2 Complete Door Pivot Plate Assembly 05700-003-54-46
22 3 Bolt, 1/4-20 x 1/2” 05305-274-02-00
23 6 Screw, 1/4-20 x 5/8” 05305-274-24-00
24 1 Air-gap Weldment 05700-003-23-48
25
25a
25b
1
1
4
Halo Assembly
Halo Weldment
Spray Nozzle and Receptacle
05700-003-23-49
05700-003-16-64
04730-002-55-61
26 1 Gasket, Air-gap 05330-003-24-17
07610-003-37-08-R
33
ITEM QTY DESCRIPTION PART NUMBER
27 2 Clamp, 1” Nylon (not shown, located on tub bottom) 04730-002-41-88
28
28a
28b
28c
28d
28e
28f
1
1
1
4
1
1
1
Drain Solenoid Box Assembly
Solenoid Box Weldment
Drain Solenoid, 115 V
Locknut, 10-24 with Nylon Insert
Solenoid Box Cover
Decal, Warning to Disconnect Power
Fuse Holder Assembly, In-line
Fuse, In-line 1 A (not shown)
05700-003-09-61
05700-003-35-88
04810-200-11-00
05310-373-01-00
05700-003-30-25
09905-004-08-16
05920-004-55-23
05920-004-55-14
29 1 Splash Shield, Right 05700-005-03-84
30 1 Splash Shield, Left 05700-005-03-85
TUB
PARTS
07610-003-37-08-R
34
FRAME & MOTOR
PARTS
5
6
8
9
7
12
4
11
1
10
11
2
11
3
See Sustaining
Heater
Page
See Motor Page
See Inlet
Plumbing
Page
07610-003-37-08-R
35
FRAME & MOTOR
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Discharge Tube Connector 05700-011-70-34
2 1 Pump Suction Hose 05700-002-40-82
3 1 Discharge Hose Assembly 05700-002-45-58
4 1 Wash Restrictor 05700-002-84-69
5 1 Accumulator Strainer Weldment 05700-003-33-25
6 1 Accumulator Weldment 05700-002-51-95
7 8 Bolt, 1/4-20 x 1/2” 05305-274-02-00
8 18 Locknut, 1/4-20 SS Hex with Nylon Insert 05310-374-01-00
9 18 Washer, 1/4-20 SS 05311-174-01-00
10 1 Hose Clamp, 13/16” to 1 1/2” 04730-719-06-09
11 3 Hose Clamp, 1 1/16” to 2 1/4” 04730-719-18-00
12 1 Gauge, Thermometer 06685-111-68-48
07610-003-37-08-R
36
ITEM QTY DESCRIPTION PART NUMBER
Complete Pump & Motor Assembly 06105-004-28-95
1 1 Motor Only 06105-004-32-03
2 1
Case O-Ring
Seal Plate
05330-002-81-83
05700-002-81-87
3 1 Mechanical Seal 05330-002-34-22
4 4 Case Capscrew 05305-002-81-88
5 1 Pump Casing 05700-002-85-01
6 1 Shim Kit 05700-002-82-58
7 1 Impeller Assembly 05700-002-81-86
8 1 Drain Plug (not shown) 04730-002-81-89
1
7
2
6
5
3
4
MOTOR
PARTS
07610-003-37-08-R
37
SUSTAINING HEATER
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Heater Tank 05700-003-25-40
2 1 Heater Gasket 05330-011-61-34
3 1 Sustaining Heater 04540-002-45-13
4 4 Lockwasher, Split 5/16” 05311-275-01-00
5 4 Nut, Hex 5/16-18 05310-275-01-00
6 2 Nut, Lock 6-32 Hex with Nylon Insert 05310-373-03-00
7 2 Spacer, 1/4” OD x 9/32” 09330-004-34-91
8 1 Thermostat, Elan Electric (Dual) 06685-004-17-27
9 1 Cover, Heater Box 05700-004-34-90
10 1 Decal, Warning to Disconnect Power 09905-004-08-16
11 1 Probe, Thermistor 06685-004-17-26
12 1 Probe Fitting, Thermostat 05310-924-02-05
1
7
2
6
5
3
4
8
9
10
11
12
07610-003-37-08-R
38
INLET PLUMBING
PARTS
ITEM QTY DESCRIPTION PART NUMBER
1 1 Y-Strainer 04730-217-01-10
2 1 Nipple, Close, 1/2’’ NPT, Brass 04730-207-15-00
3 1 Elbow, 1/2” 04730-406-01-01
4 1 Elbow, 90-Degree (CU to MSPS) 04730-406-32-01
5 1 Union, 1/2’’ 04730-412-05-01
6 1 Adaptor, 1/2’’ Fitting (CU to Male) 04730-401-03-01
7 1 Tube, Copper, 1/2’’ x 4 1/4” 05700-001-01-60
8 2 Tube, Copper, 1/2’’ x 1 1/4” 05700-001-08-28
9 1 Valve, Solenoid, 1/2’’ NPT, 115 V 04810-003-71-55
10 1 Fitting, 1/2”, 90-Degree 05975-003-35-32
11 1 Conduit, 1/2” Flex 05975-003-33-36
12 1 Fitting, 1/2”, Straight 05975-003-33-27
12
11
10
9
2
1
6
8
5
8
3
7
4
Complete Inlet Plumbing Assembly
05700-002-45-57
07610-003-37-08-R
39
PLUMBING OPTIONS
PARTS
PRESSURE REGULATOR OPTION
Water Arrestor, 1/2”
06685-100-05-00
Tee, 1/2” x 1/2” x 1/2”
04730-211-27-00
Nipple, 1/2” NPT, Brass
04730-207-15-00
SHOCK ABSORBER (WATER ARRESTOR) OPTION
Water Pressure Regulator, 1/2”
05700-100-04-07
Water Arrestor Repair Kit
(Plunger & O-ring)
06401-003-06-23
Replacement Cartridge
(inspect at least every 6 months)
04730-003-28-04
SPS System
04730-003-28-03
Replacement Test Strip
(not shown)
06401-003-28-06
Must be installed vertically. The provided
bracket is secured to the wall. Observe
proper inlet/outlet water directions (ow
directions are molded into the top of the
head). Line pressure should be released
before changing cartridges. Machine
should be delimed before installation.
NOTICE
SCALE PREVENTION SYSTEM (SPS) OPTION
07610-003-37-08-R
40
SOLENOID VALVE REPAIR KITS
PARTS
Complete 110 Volt Solenoid Valve Assembly, 1/2”
04810-100-12-18
Coil & Housing only, 1/2”
06401-003-07-43
Complete 220 Volt Solenoid Valve Assembly, 1/2”
04810-100-09-18
Coil & Housing only, 1/2”
06401-003-07-44
Water Hammer Arrestor Assembly
05700-002-64-67
Water Hammer
Arrestor, 1/2" NPT
06685-100-05-00
Tee, 1/2” x 1/2” x 1/2”
04730-211-27-00
Close Nipple, 1/2”
04730-207-15-00
Complete Vacuum Breaker Assembly, 1/2” NPT
04820-003-06-13
Cap Screw
Data Plate
Cap
Cap Retainer
O-Ring
Plunger
Body
Components of Repair
Kit 06401-003-06-23
Screw
Data Plate
Coil and Housing
Valve Bonnet
Spring position is moved
for clarity. Goes below
the plunger.
Valve Body
Mesh Screen
Screen Retainer
Diaphragm
Retainer
Spring & Plunger Kit
06401-003-07-40
O-Ring & Diaphragm
06401-003-07-41
07610-003-37-08-R
41
ITEM QTY DESCRIPTION PART NUMBER
1 1 Magnet 05930-002-88-42
2 1 Magnet Cover 05700-004-07-38
3 2 Locknut, 6-32 SS Hex with Nylon Insert 05310-373-03-00
4 1 Bolt, 1/4-20 Eye 05306-002-55-59
5 1 Nut, Hex 1/4-20 05310-274-01-00
6 1 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00
7 1 Spring, Door 05340-011-44-58
8 1 Door 05700-005-05-96
DOOR
PARTS
Complete Door Assembly
05700-005-05-95
A
B
A
B
3
2
1
4
5
6
7
8
Machines with serial numbers
before 22H409822 have the old
door. See earlier manual.
NOTICE
07610-003-37-08-R
42
FRONT PANEL
PARTS
ITEM QTY DESCRIPTION PART NUMBER
Complete Panel Assembly 05700-003-09-53
1 1 Panel Weldment 05700-003-09-54
2 1 Handle 05340-001-96-30
1
2
07610-003-37-08-R
43
DELTA 5-E 115 V, 60 HZ, 1-PHASE
SCHEMATICS
07610-003-37-08-R
44
Probe
SUSTAINING HEATER
DELTA 5-E HARNESS CONNECTIONS
SCHEMATICS
45
Jackson WWS, Inc. • 6209 N. US Hwy 25E • Gray, KY 40734 USA
1.888.800.5672 • www.jacksonwws.com
Delta 5-E Manual • 07610-003-37-08-R
