120V AC; 60 Hz; Maximum power 1200-Watts
All electric. No wood or charcoal. No gas. No venting required.
JACKSON ELECTRIC FIREPLACE INSERT
Models: EF-TI23
OWNER’S MANUAL
2
WARNING
Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
CAUTION
Keep this owner’s manual for future reference. If you sell or give this product
away, make sure this manual accompanies this product.
IMPORTANT SAFETY INFORMATION!
WARNING
l Read all instructions before using this heater!
l This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of
the heater, and keep them away from the sides and rear.
l Extreme caution is necessary when any heater is used by or near children or pets and
whenever the heater is left operating and unattended.
l DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions,
or has been dropped or damaged in any manner. Discard heater, or return to authorized
service facility for examination and/or repair.
l DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs, runners,
or similar coverings. DO NOT route power cord under furniture or appliances. Arrange power
cord away from traffic area, and where it will not be tripped over.
l Connect to properly grounded outlets ONLY.
l DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening, as
this may cause electric shock or fire, or damage the heater.
l To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. Doing so could
cause a fire. DO NOT use on soft surfaces, like a bed, where openings may become blocked.
l A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
l Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
l ALWAYS plug heaters directly into a wall outlet/receptacle. NEVER use with an
extension cord or relocatable power tap (outlet/power strip).
l DO NOT place the heater near a bed because objects such as pillows or blankets can fall off
the bed and be ignited by the heater.
l NEVER use this heater in bathrooms, laundry rooms, or any other location where the heater
could fall into a bathtub or pool, become damp, or come in contact with water.
l AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
blockage. Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.
3
l Use only the electric insert with included mantel. NEVER use a mantel from another maker.
l NEVER use this electric fireplace insert unless it is properly installed in the correct mantel.
l AVOID INJURY FROM TIPPING! Anchor the TV, or other items, to the wall with the anti-
tip kits supplied by the manufacturer.
l NEVER sit, stand, or climb on this electric fireplace. Doing so could cause the unit to tip
over, resulting in serious personal injury or property damage.
WARNING
l For residential use only! NOT for commercial use! Any commercial or public use of this
heater voids all warranties, and could cause injury.
l This product is not intended to be a primary heat source. It is for supplemental heat only.
l INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
l Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
l NEVER modify this heater. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
l ALWAYS turn this heater off before unplugging it from the outlet.
l ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
l NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
l ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.
l Place the heater near a wall outlet so an extension cord is not needed. If an extension cord is
needed, the gauge of the cord must be at least 14AWG, and the rating must be at least
1875-watts. NEVER use a smaller gauge cord with a lower rating. Doing so may result in
fire or electric shock.
l ONLY use this heater on a 120V AC 15-amp grounded circuit. NEVER overload the circuit.
If this heater trips the circuit breaker, unplug all other appliances on the same circuit before the
next use. Avoid plugging other appliances into the same circuit as this heater.
l NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within the
outlet that could cause the outlet to overheat or catch fire.
l ALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it has
not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
4
l The power cord supplied with the heater has three
prongs: two flat blades (live and neutral) and one
round pin (ground). If a 3-slot receptacle is not
available, an adapter MUST be used. The adapter
MUST be properly grounded to the outlet box (see
figure at right). [NOTE: Adapter NOT INCLUDED.]
l SAVE THESE INSTRUCTIONS!
PREPARATION
This insert has a front panel made of GLASS! ALWAYS use extreme caution when
handling glass. Failure to do so could result in personal injury or property damage.
NOTE: Remove all parts and hardware from the carton and place them on a clean, soft, dry surface.
Check the parts list to make sure nothing is missing. Dispose of packaging materials properly. Please
recycle whenever possible.
Tools required for installation: Phillips screwdriver (Not included)

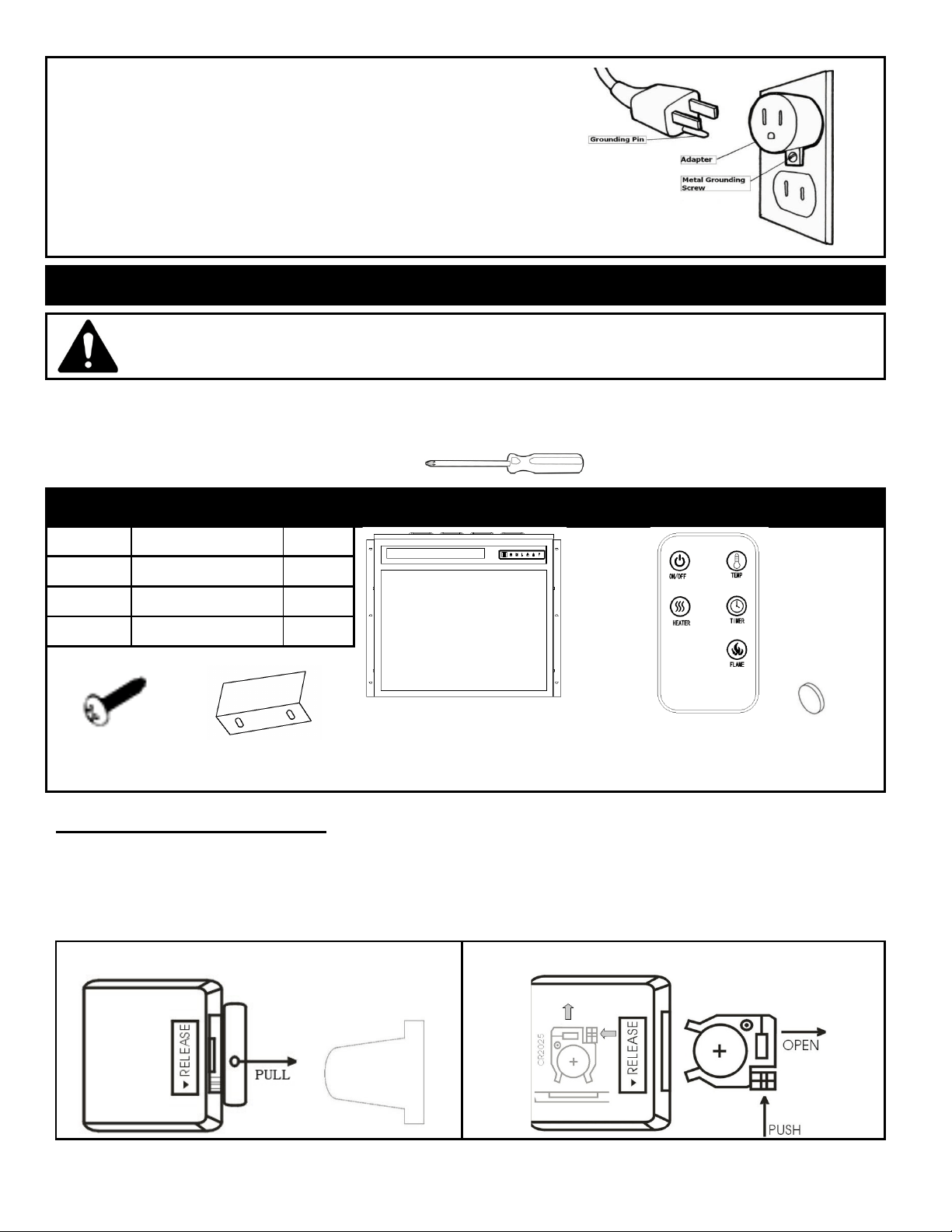

ELECTRIC INSERT: PARTS & HARDWARE
Item
Description
Qty
B
A The remote control operates with one 3V
CR2032 Lithium Cell Battery (included).
A
Fireplace Insert
1
B
Remote Control
1
C
Screws
6*
C D
Remote Control Set-up
l Fig. 1: Remove the plastic sheet from the end of the remote control to allow the battery to
touch the electrical contacts. If the sheet is not removed, the remote control will not work.
l Fig. 2: To install or replace the battery, press the button to allow the battery case to slide out.
Position the battery according the drawing, and slide the case back in to the remote.
Fig. 1
Fig. 2
CR2032
5
NEVER dispose of batteries in fire. Failure to observe this precaution may result in an
explosion. Dispose of batteries at your local hazardous material processing center.
ALWAYS replace the battery in the remote control with the same type of battery.
Failure to do so may result in personal injury or property damage.
ALWAYS unplug this fireplace heater before assembly or cleaning, or before
relocating. Failure to do so could result in electric shock, fire, or personal injury.

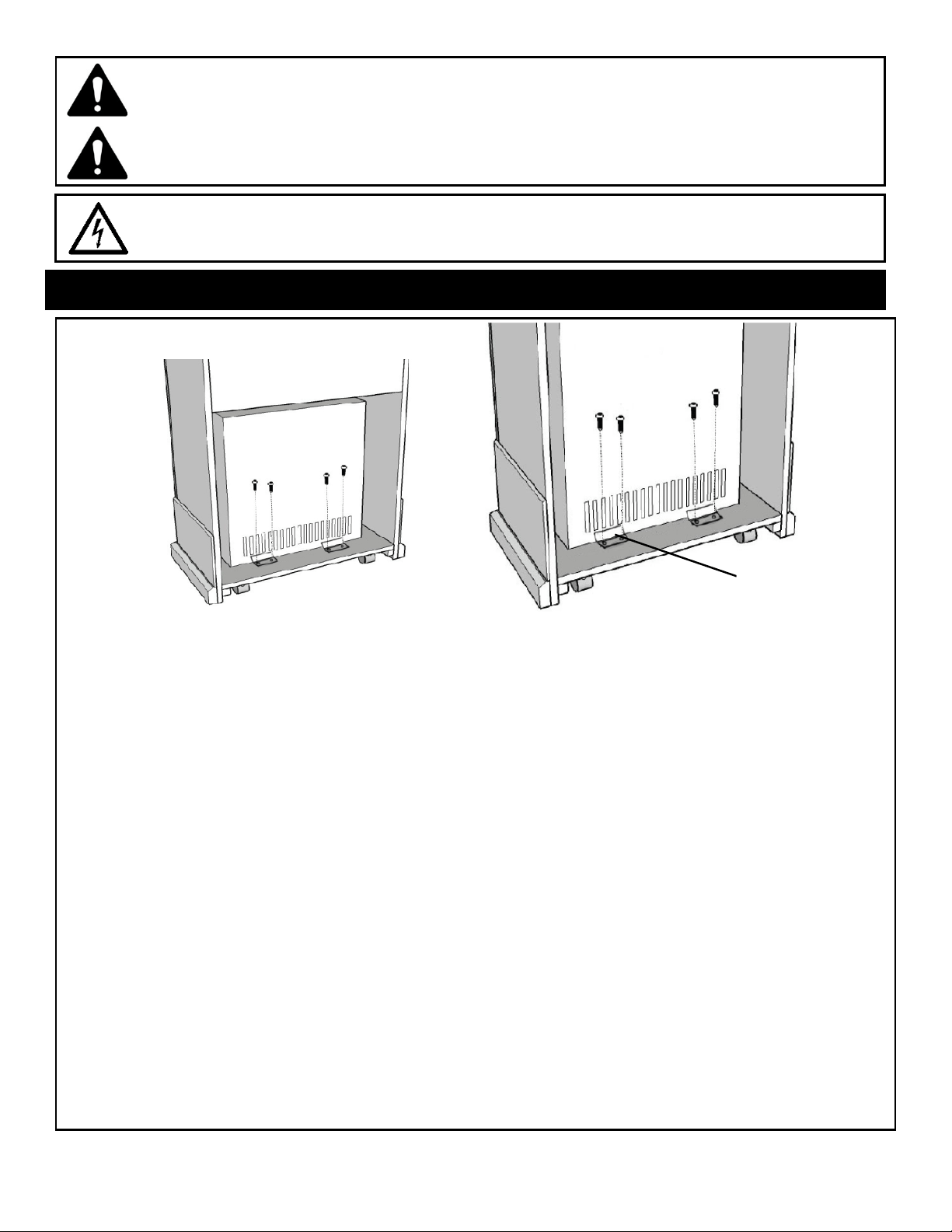

ELECTRIC INSERT INSTALLATION INTO MANTEL
NOTE: DO NOT attempt to install the insert from the front of the mantel - it will not fit.
STEP 3. With the help of an adult assistant, lift the insert (A) carefully into the back of the mantel.
DO NOT drag the unit across the mantel base or insert shelf, as it could scratch the wood surface.
From the front of the mantel, check to make sure the fireplace insert is properly aligned.
Align the holes in the bottom bracket on the insert with the pre-drilled holes in the mantel. Thread
one wood screw (D) through each set of holes. Tighten each screw securely with a screwdriver. DO
NOT OVERTIGHTEN.
A
c
c
D
6
OPERATION
Read and understand this entire owner’s manual, including all safety information,
before plugging in or using this product. Failure to do so could result in electric shock,
fire, serious injury, or death.
Power
Make sure the ON/OFF switch, located on the control panel, is in the OFF position. Plug the power
cord into a 120V AC, 15-amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages
2 and 3). Make sure the outlet is in good condition and that the plug is not loose. NEVER exceed the
maximum amperage for the circuit. DO NOT plug other appliances into the same circuit.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature (239°F / 115°C), the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF. Wait 15 minutes.
3. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint. If they are,
use a vacuum to clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into the outlet.
5. If it switches off again, UNPLUG THE HEATER RIGHT AWAY! Have the outlets, wiring, and
breaker box inspected by a professional. Make necessary repairs before using the heater
again.
7
MOBILE PHONE CONTROL FUNCTIONS

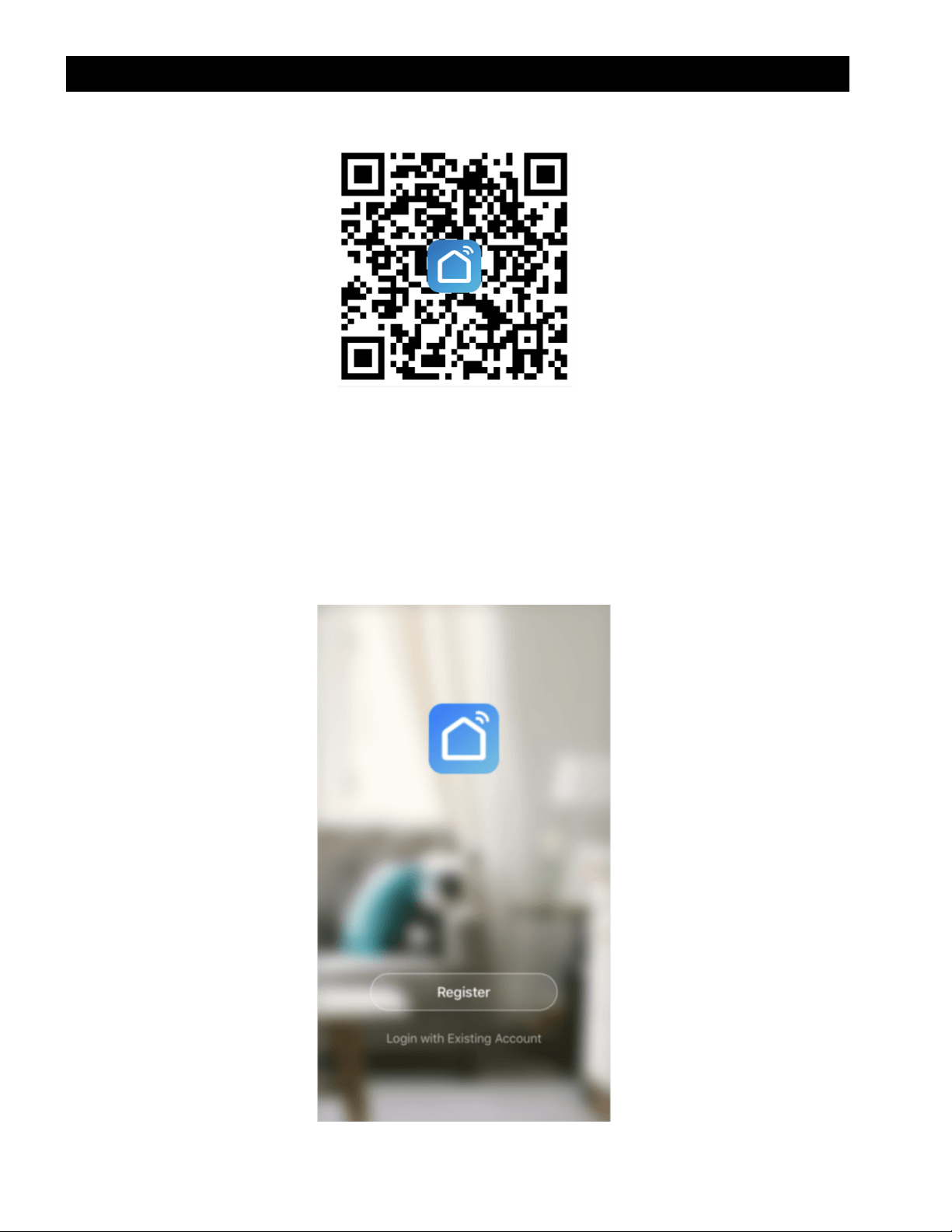

Step1. Scan below QR code and download the “Smart Life” app on your mobile phone.
Step2. Open the Smart Life app and Log in.
If you have existing account, log in directly. Or you need to log in with your wechat / QQ account, or
register follow below steps.
1. Click “Register”
2. Agree the Privacy Policy
3. Choose your country and input your mobile phone number or email, click” Get Verification Code”
8
4. The verification code will be sent to your mobile phone or email box, check and enter the right
code in 60 seconds, or it will need to be resent
5. Set the password. It should contain 6 to 20 characters, including letters and digits. Then you have
registered successfully
Step 3. Add Device
1. Make sure the room which your fireplace in has wi-fi
2. Make sure your mobile phone has connected the room’s wi-fi or hotspot
3. Click “Add Device
4. Choose “Small Home Appliance”, and choose “Heater”

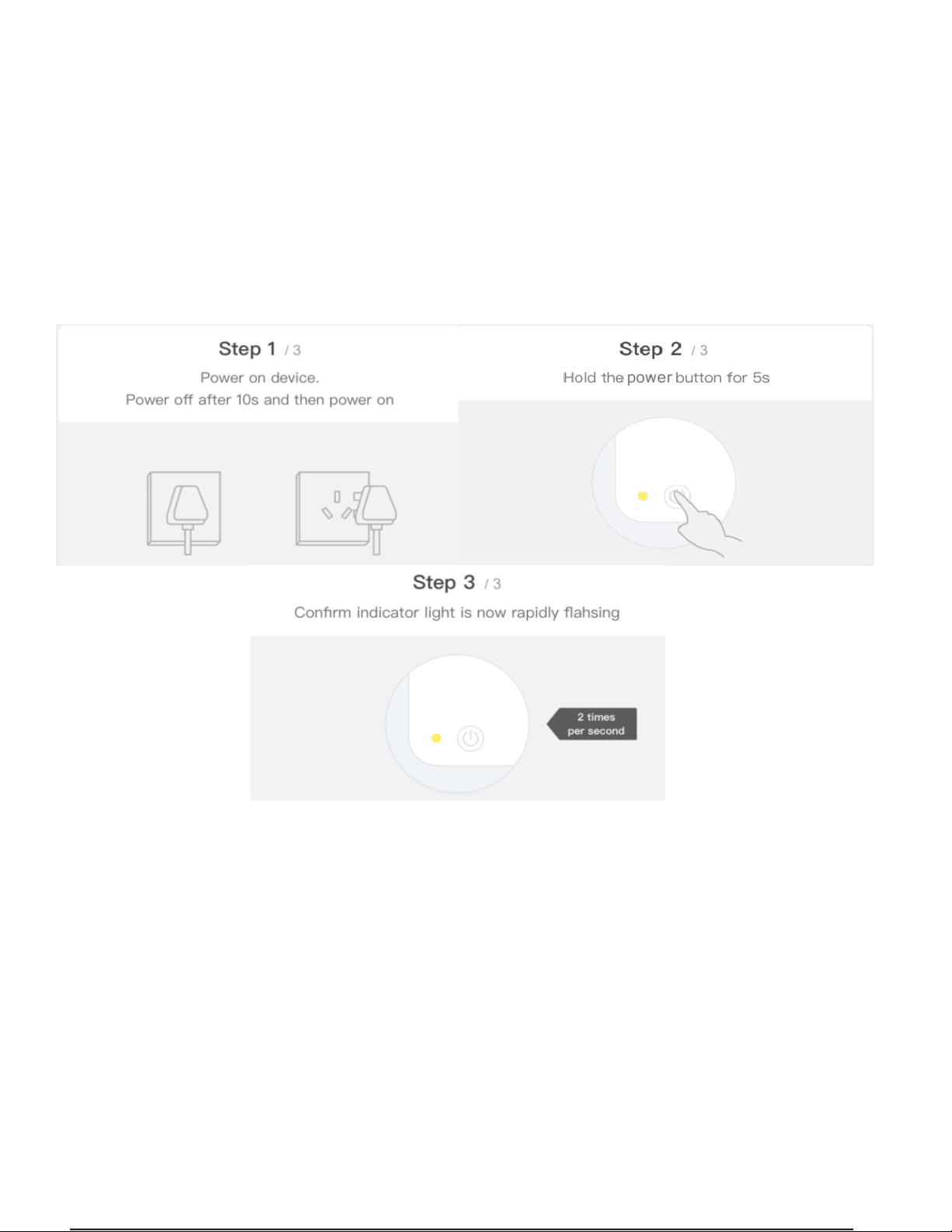

5. Power on the fireplace, and confirm the power light rapidly blinks (2 times per second)
Notice: If the power light doesn’t flash, click “Help”, and follow the below 3 steps.
6. Enter the room’s wi-fi name and password, or hotspot’s name and password. Make sure the
fireplace and mobile phone have connected using the same wi-fi or hotspot. Then click “confirm”.
Notice: After you add the device successfully, your mobile phone can control the fireplace from
anywhere with wi-fi or another network. But you should keep the fireplace always connected to the
room’s wi-fi or hotspot. If the fireplace is off the network, the power light will be flashing.
7. Put your mobile phone near the fireplace, and wait for it to connect to the fireplace automatically.
When it runs to 100%, you have connected successfully.
Notice: When the fireplace is out of network, the power light will be always bright. Please connect
the fireplace with network following step 3.
9

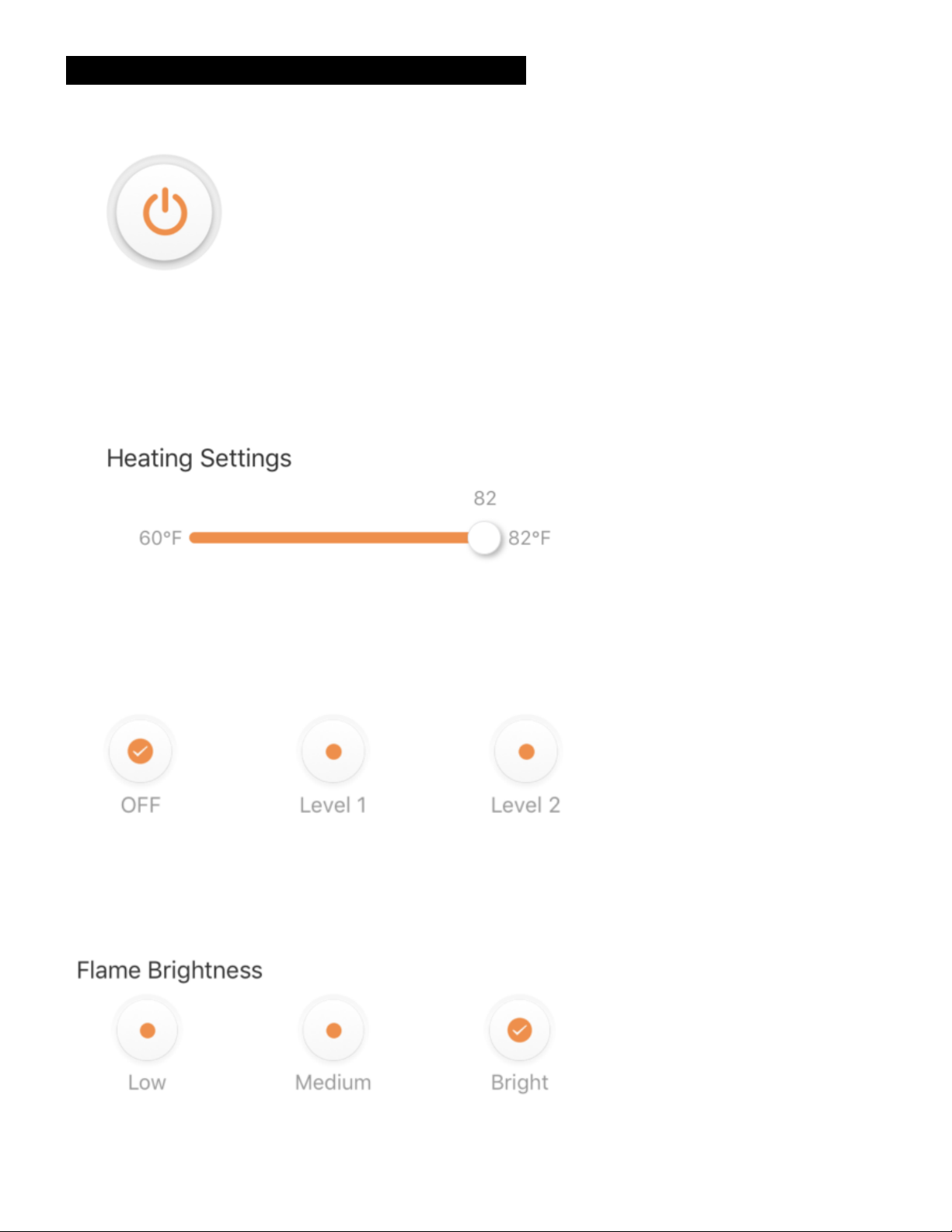

How to control the fireplace on the app
Power button: Press once to turn on the fireplace. Press again to turn off the fireplace.
Heat Settings:
1. Click “Add Device
Slide your finger to adjust the temperature from 60 F - 82 F.
2. Press the “level 1” button, the heater will start to operate, 750W (LOW HEAT) heater turns on and
the fan starts to blow warm air. Press the “Level 2” Button 1,500W (HIGH HEAT) heater turns on
and blows hot air. Press “off” button, the heater turns OFF. The fan will continue to blow to allow
heater to cool down, and then turns off.
Flame Brightness:
Slide your finger to adjust the flame brightness. Three levels: Low, Medium and Bright.
10

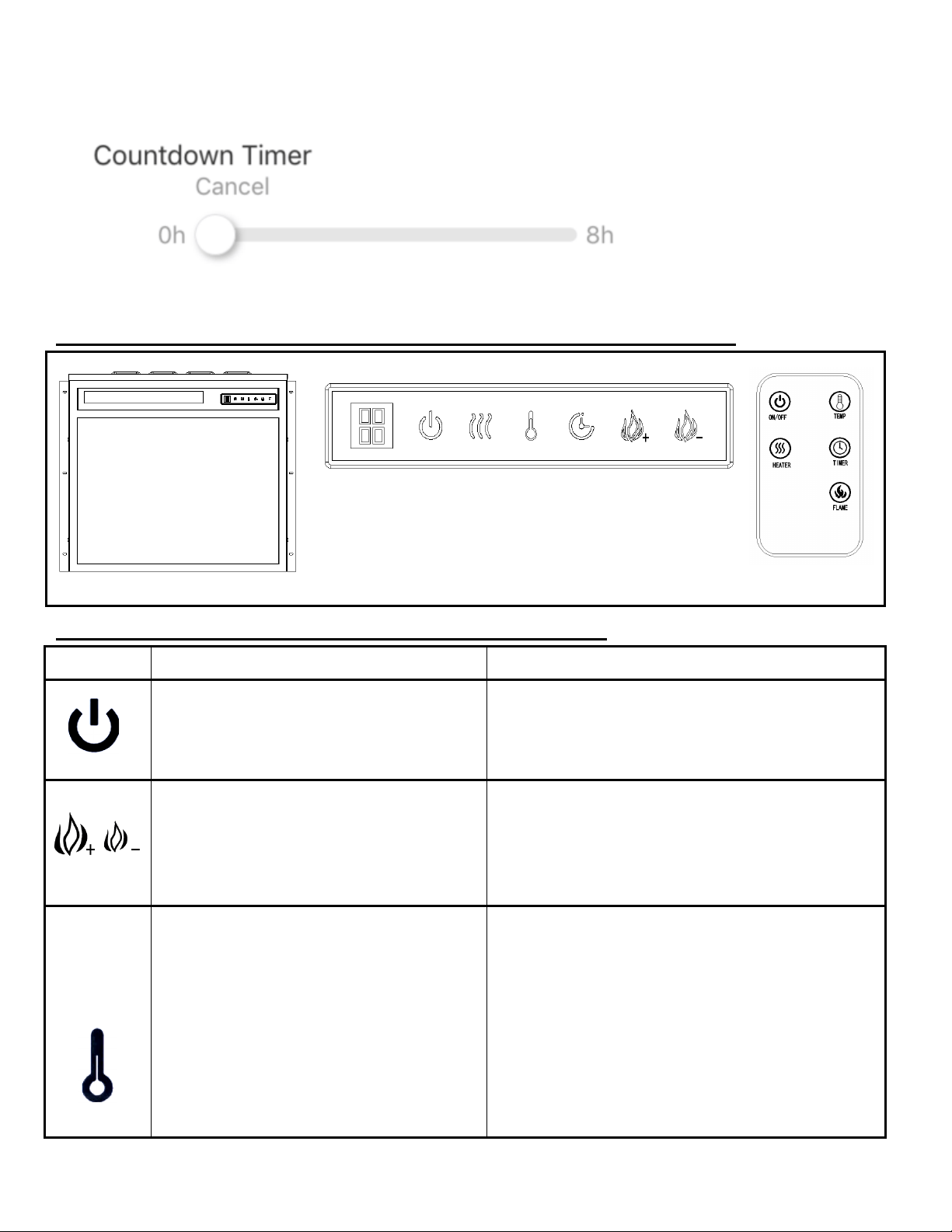

Timer:
Slide your finger to set the timer function from 0h to 8h.
Control Panel, Heat Enabling Switch, and Remote Control
Control Panel
Remote Control
Control Panel and Remote Control’s Operation
BUTTON
OPERATION
NOTES / INDICATONS
ON/OFF
Press the POWER button to turn the
fireplace on and off.
The POWER button turns the flame
effect on and off
The power must be turned ON for the control
panel and remote control to work.
When the fireplace is turned on, after being
turned off, the previous settings will resume.
FLAME
Press to cycle the flame effect from
High, to Medium, to Low, and then
back to High.
Press the POWER button to turn off
the flame effect.
The power must be turned on for the flame
effect to work.
The ember effect automatically varies
between light and dark to simulate real
embers. It cannot be controlled.
TEMP
Press to set the thermostat.
The set temperature appears in the
control panel digital display.
The thermostat will automatically turn
the heater on and off to maintain the
set temperature.
Settings start at 68°F, then increase
by 60°F up to 82°F.
Press again to turn the heater off. The
digital display will go dark.
The flame effect must be on for the heater to
turn on. If off, the heater will not turn on.
The heater will only turn on when the
thermostat setting is higher than room
temperature. When the room temperature
reaches the thermostat setting, the heater will
turn off.
To prevent overheating, the fan blows cool air
for 8-10 seconds before the heater turns on,
and after the heater turns off.
11
HEAT
Press to turn the heater on and off,
then turn on or off the heating function.
Note: The flame effect must be on for
the heater to work
Turn on the heating function and
the fan blows hot air.
The fan may continue to blow air
for a short time to cool the fireplace after
turning off the heating function.
TIMER
The TIMER will turn the fireplace off
after a certain amount of time.
Press the TIMER button to select from
the following settings:
00 (off), 1H, 2H, 3H, 4H, 5H, 6H, 7H,
8H.
Once at 8H, press the button again to
return to 00 (off).
The timer settings will appear in the digital
display.
NOTICE
To improve operation, DO NOT press the buttons too quickly. Give the unit time
to respond to each command.
WARNING
NEVER leave heater unattended during operation! Failure to do so
could result in personal injury or property damage.
NOTICE
When the heater is first turned on, a slight odor may be present. This is normal
and should not occur again unless the heater is not used for a long period of time.
CARE AND MAINTENANCE
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result
in electric shock, fire, or personal injury.
Cleaning
NEVER immerse in water or spray with water. Doing so could result in electric
shock, fire, or personal injury.
Wood:
• Wipe gently with a slightly damp cloth.
• NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Metal:
• Buff using a soft cloth, slightly dampened with a citrus oil-based product.
• DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
• Use a good quality glass cleaner and dry thoroughly with a paper towel or lint-free cloth.
• NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
• Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
• Clean the exterior of the fireplace with a slightly damp cloth or duster.
12
Maintenance
Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result
in electric shock, fire, or personal injury.
Electrical and Moving Parts:
• The fan motors are lubricated at the factory and will not require lubrication.
• Electrical components are integrated in the fireplace and are not serviceable by the consumer.
Storage:
• Store heater in a clean dry place when not in use.
WARNING! No servicing should be performed by the consumer. DO NOT repair or
service the unit yourself. For service, call a certified electrician.
TROUBLESHOOTING GUIDE
PROBLEM
SOLUTION
There is no power to the unit.
1. Make sure the power cord is plugged into a working 120-V
AC electrical outlet.
2. Check for a tripped circuit breaker, or a blown fuse.
3. If the unit had been working, but then turned off by itself, the
temperature limiting control must be reset. Please see
instructions on Page 5.
The control panel doesn’t work.
Make sure the ON/OFF switch on the control panel is turned on.
The flame effect does not work.
Make sure the ON/OFF switch on the control panel is turned on.
The flame effect does not turn
off when I press the flame button.
The flame effect stays on until the ON/OFF switch is turned off.
The heater does not work.
1. Make sure the heat enable switch on the side of the insert is
turned ON. If not, the heater will not turn on.
2. Make sure the ON/OFF switch on the control panel and the
flame effect are both turned on. The heater will not work
unless the flame effect is on.
3. Make sure the thermostat is not set too low. If the thermostat
is set lower than room temperature, the heater will not turn
on.
Hot air does not blow when the
heater is first turned on.
The fans blow cool air before the heating elements turn on, and
after they turn off, to prevent overheating. This is normal.
13
The remote control does not
work.
1. Make sure the battery is properly installed, and the plastic
tab is removed.
2. Make sure the ON/OFF switch on the control panel is turned
on. The remote control will not work unless the ON/OFF
switch on the control panel is turned on.
3. Remove objects that may be in the way. Aim the remote
control at the receiver in the center of the front panel.
4. Don’t press the remote control’s buttons too quickly. Give the
unit time to respond to your commands.
The power cord, or the outlet
faceplate, is hot.
Turn the heater off immediately. Wait for the cord to cool and
unplug the heater. See the warnings on Page 4 for possible
causes. Call an electrician to examine your home’s wiring.
The thermostat (TEMP button)
does not work.
1. Make sure the heater is turned on. The thermostat will not
work unless the heater is turned on.
2. Make sure the thermostat is not set too low. If the thermostat
is set lower than room temperature, the heater will turn off.
3. If the thermostat was overridden by the heater button, press
the temp button to restart the thermostat.
FAQ - FREQUENTLY ASKED QUESTIONS
Question
Answer
Can I leave the heater
running overnight?
No. This heater is not intended to be a primary heat source. It is
designed to provide supplemental heat, and should not be left
running continuously for more than eight hours.
Is the fireplace safe to use on
carpet?
Yes. However, please note the warnings on Pages 2 and 3 about
the safe placement of the heater. The vents must NEVER be
blocked, and must always be kept clear. Use on the carpet may
require additional cleaning of the vents with a vacuum.
How much does it cost each
month to run the heater?
Example: 1500 Watts equals 1.5 Kilowatt Hours (KWH). Contact
your utility to find out the cost per KWH. Then, use this formula: 1.5
x ($0.00/KWH) = $0.00 per hour. For example: If the utility charges
$0.20 per KWH, then the cost is 1.5 x $0.20 = $0.30 per hour. If
you run the heater 5 hours per day, the cost will be 5 x $0.30 =
$1.50/day. 30 days x $1.50 = $45.00/month.
Should the motor be loud
when the heater is running?
No. The flame effect motors and heater blowers are not silent, but
they should not be loud. Since these motors are not serviceable
by the consumer, the product will need to be returned to the store.
Can I get replacement parts
for my electric heater?
Some parts can be replaced. Please contact our Customer
Service representative to check availability.
14
LIMITED WARRANTY
This warrants to the original purchaser that this product is free from defects in material and
workmanship as of the date of purchase and that it will, under normal use and proper care, remain so
for 1 year from the date of purchase. Missing or initially defective parts will be replaced free of charge
during the period of this limited warranty. If parts are unavailable, comparable replacement or refund
will be given. The original dated sales receipt is required for all warranty claims. This warranty does
not cover damage which has occurred during transport from the point of purchase to the consumer’s
home. This warranty does not cover glass, lightbulbs, or batteries.
This product is for residential use only. Any and all commercial use of this product voids all
warranties, and frees the manufacturer from all liability. Read and fully understand all assembly and
operating instructions, and all safety information and warnings, before use. The following will void this
warranty: damage caused by tampering with, modifying, or altering the electric fireplace in any
manner; damage due to incorrect assembly, improper care, misuse, or abuse; damage from being
used with the wrong power source; water damage; damage caused from the electric fireplace being
used outdoors; damage caused from the electric fireplace being used for excessive periods of time;
damage caused by the electric fireplace being used in any commercial application; damage from use
as a primary heat source; other misuse and abuse not specifically listed herein.
This product is not intended to be used as a primary heat source. e-Flame USA, it’s directors,
officers, or agents, will not be liable to the purchaser or any third party, whether in contract, in tort, or
on any other basis, for any indirect, special, punitive, exemplary, consequential, or incidental loss,
cost, or damage arising out of or in connection with this sale, maintenance, use, or inability to use this
product, even if e-Flame USA, or its directors, or agents have been advised of the possibility of such
losses, costs, or damages that exceed the purchase price of the product. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to the purchaser. This limited warranty gives you specific legal rights, and you may
also have other rights, which vary from state-to-state.
Thank you for purchasing this product! If you have any questions about the assembly or operation of
this product, are missing any parts, or have defective parts, please email us at info@eflameusa.com.
