USE AND CARE GUIDE
3-LIGHT LED VANITY LIGHT
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Item #1006325174
Model #SMA030EKTDG18D& SMA030EKTDG18B
THANK YOU
We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
lighting xture.
2
Table of Contents
Table of Contents.......................................................2
Safety Information.....................................................2
Warranty.....................................................................2
What is covered .....................................................2
What is not covered ...............................................2
Tools Required ..................................................... 3
Hardware Included ................................................3
Pre-Installation..........................................................3
Planning Installation ..............................................3
Installation ..............................................................4
Package Contents ................................................. 4

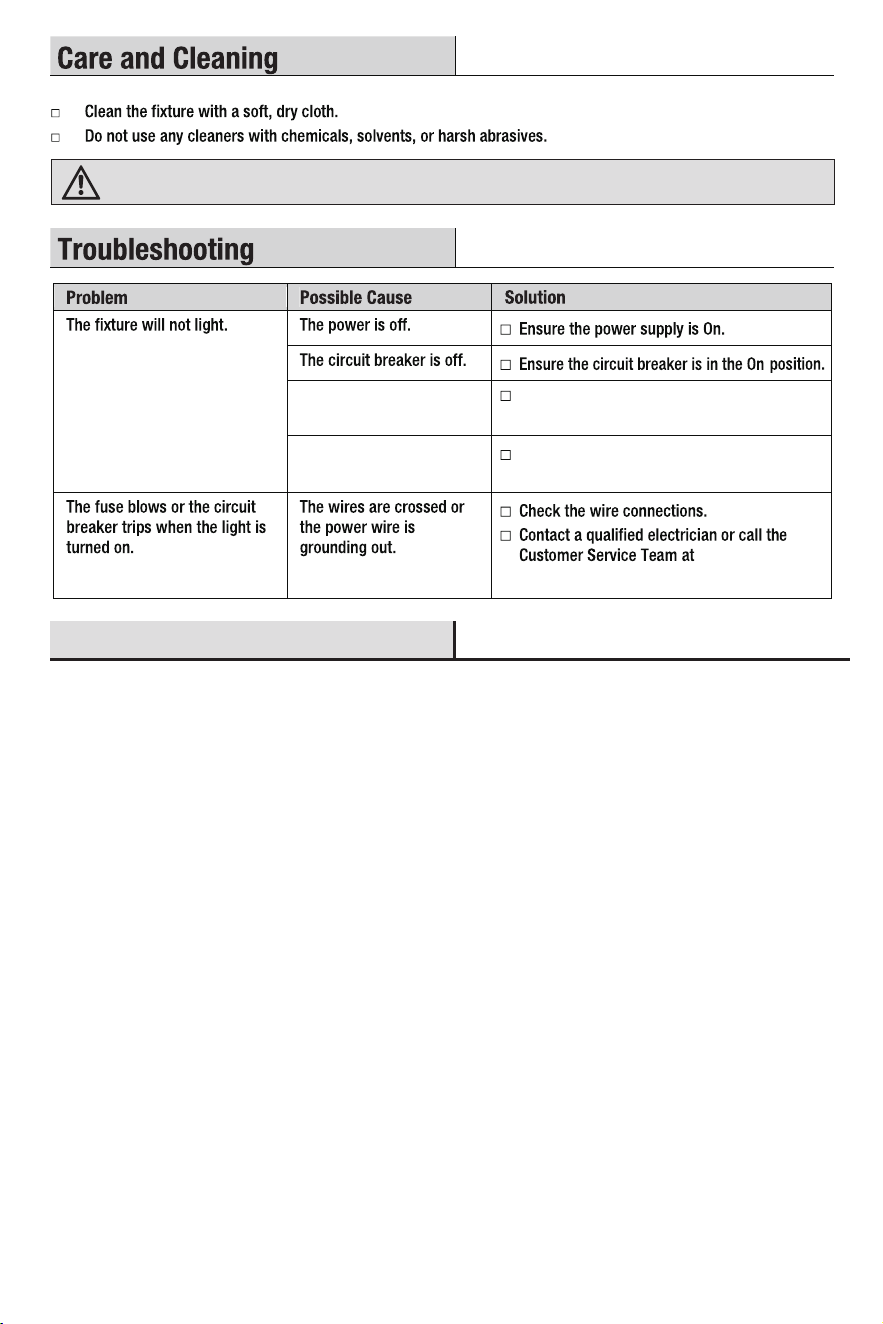

Care & Cleaning .........................................................6
Troubleshooting .........................................................6
Dimmer Compatibility............................................. 6

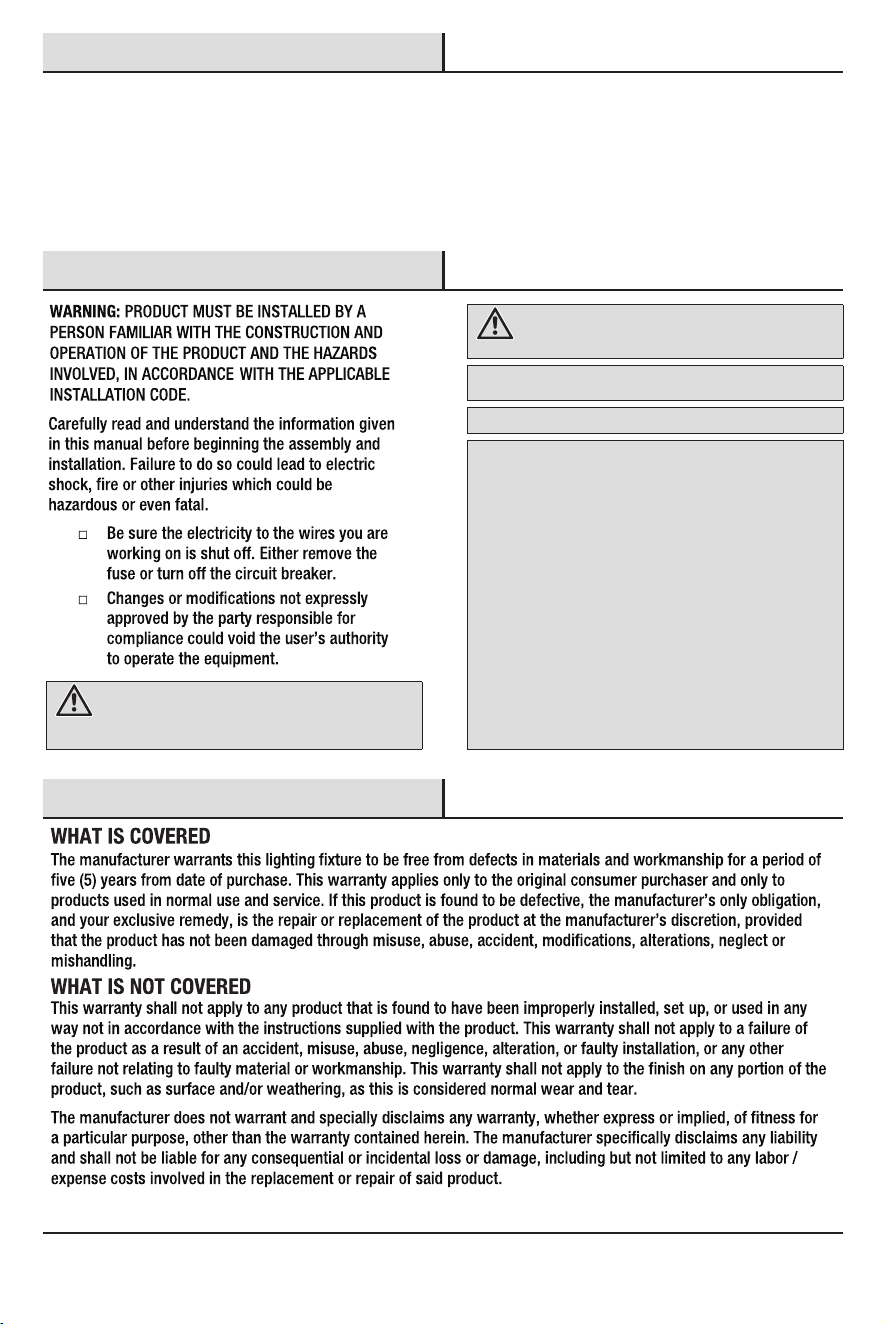

Safety Information
WARNING: Risk of re or electric shock. Lighting xture
installation requires knowledge of luminaire electrical
systems. If not qualied, do not attempt installation.
Contact a qualied electrician.
WARNING: To prevent wiring damage or abrasion, do not
expose wiring to edges of sheet metal or other sharp
objects.
NOTICE: Do not make or alter any open holes in an enclosure of
wiring or electrical components during installation.
NOTICE: Handle glass shade with care due to potential breakage.
Warranty
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HAMPTONBAY.com.
NOTICE: This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
□ This device may not cause harmful interference, and
□ This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
3 HAMPTONBAY.com
Please contact 1-855-HD-HAMPTON for further assistance.

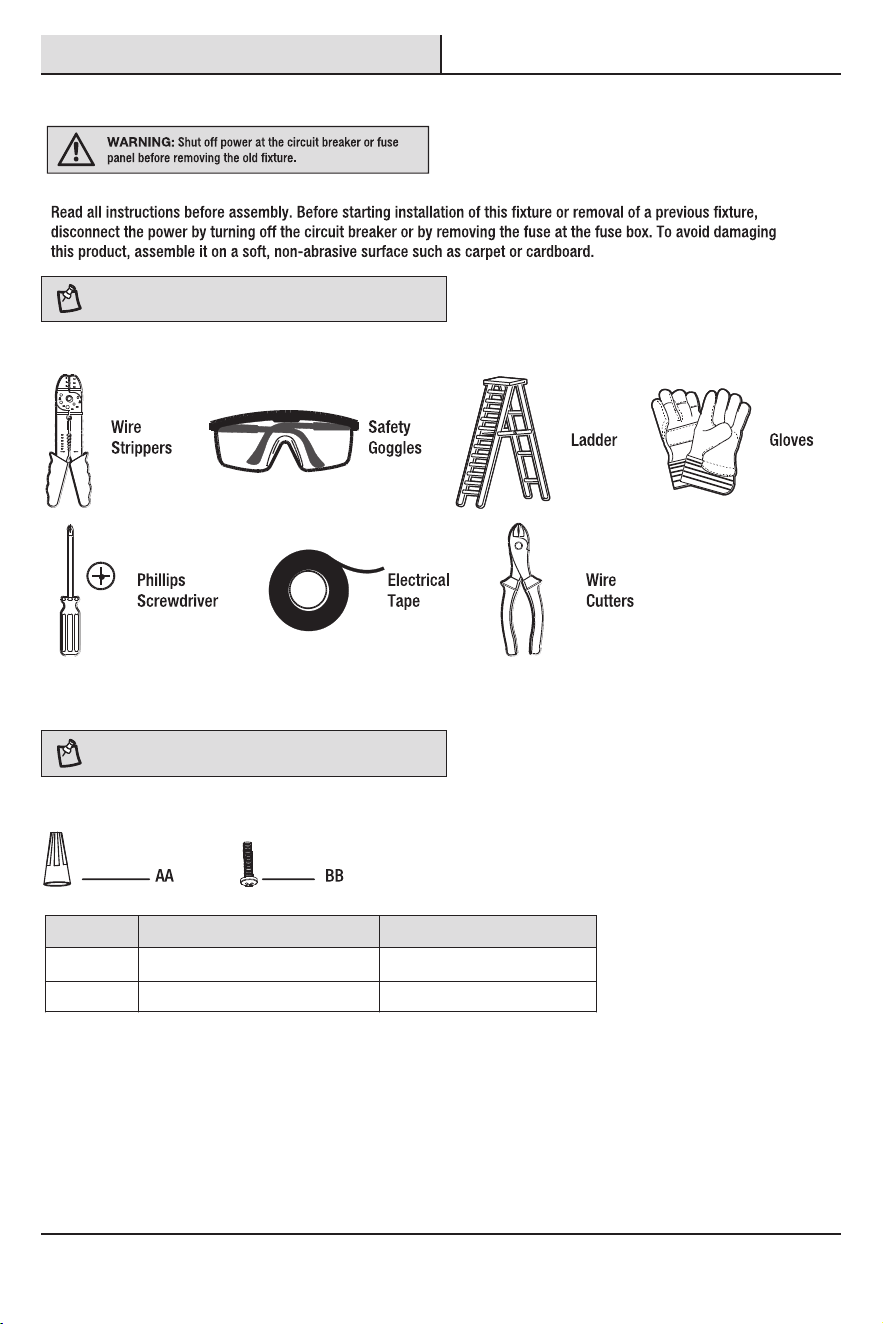

Pre-Installation
PLANNING INSTALLATION
TOOLS REQUIRED
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
NOTE:
Keep your receipt and these instructions for proof of purchase.
Part Description Quantity
AA Wire nut 3
2BB Junction box screw
4
Pre-Installation (continued)

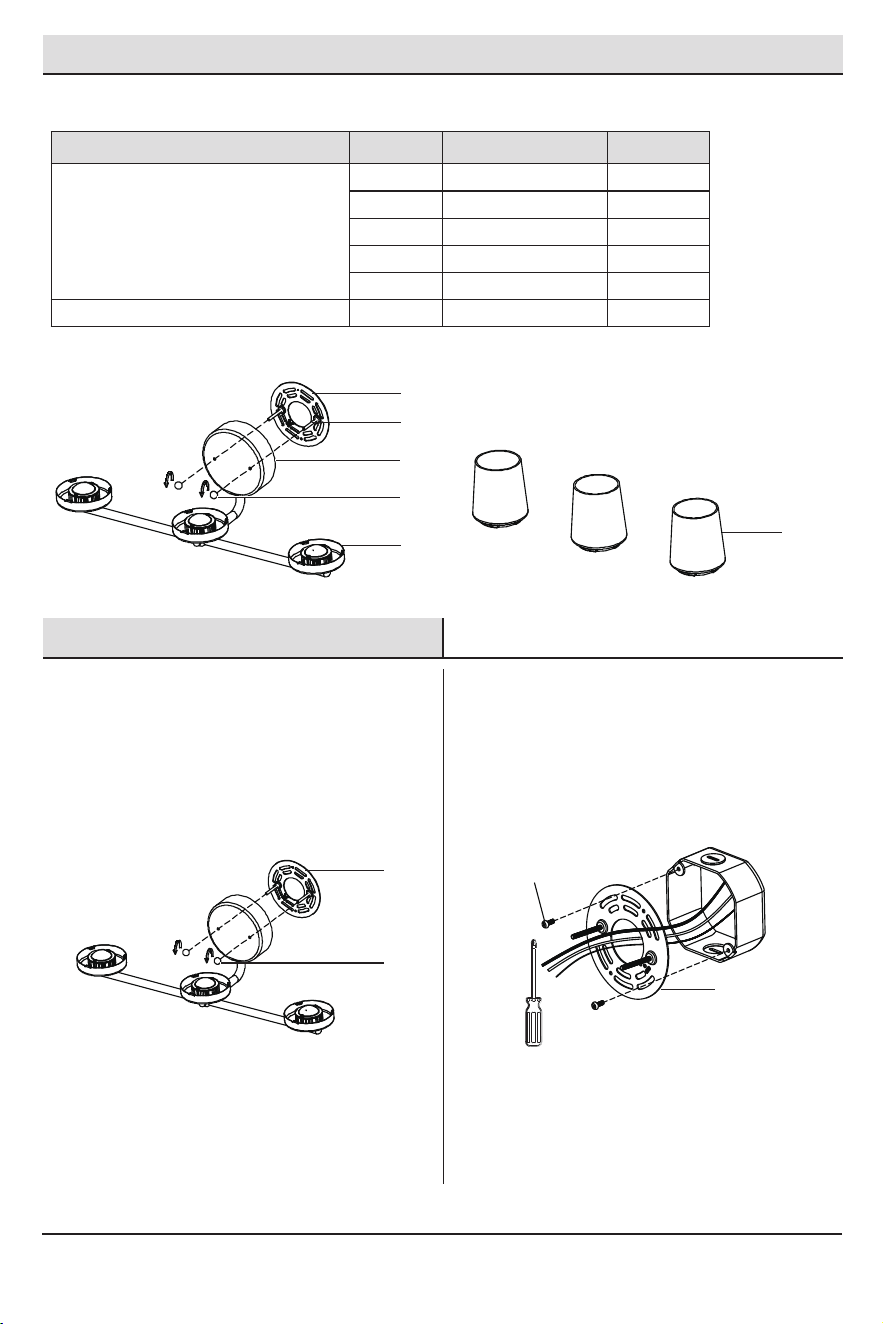

PACKAGE CONTENTS
Part Description Quantity
A Mounting plate
Fixture Body (Parts A, B, C, D, E, and F
are a group assembly)
1
1B Mounting screw
1C Mounting Deck
2D Locking Nut
3E Glass Shade Holder
3F Glass Shade
Item
Glass Shade
Installation
1
Loosen the Lock Nuts
□ Loosen the two locking nuts (D) and separate
the xture body and mounting plate (A).
2
Mount the Mounting Plate
□ Put the mounting plate (A) onto the junction
box (not included) and x with junction box
screws (BB).
A
D
A
A
B
E
F
C
D
BB
5 HAMPTONBAY.com
Please contact 1-855-HD-HAMPTON for further assistance.

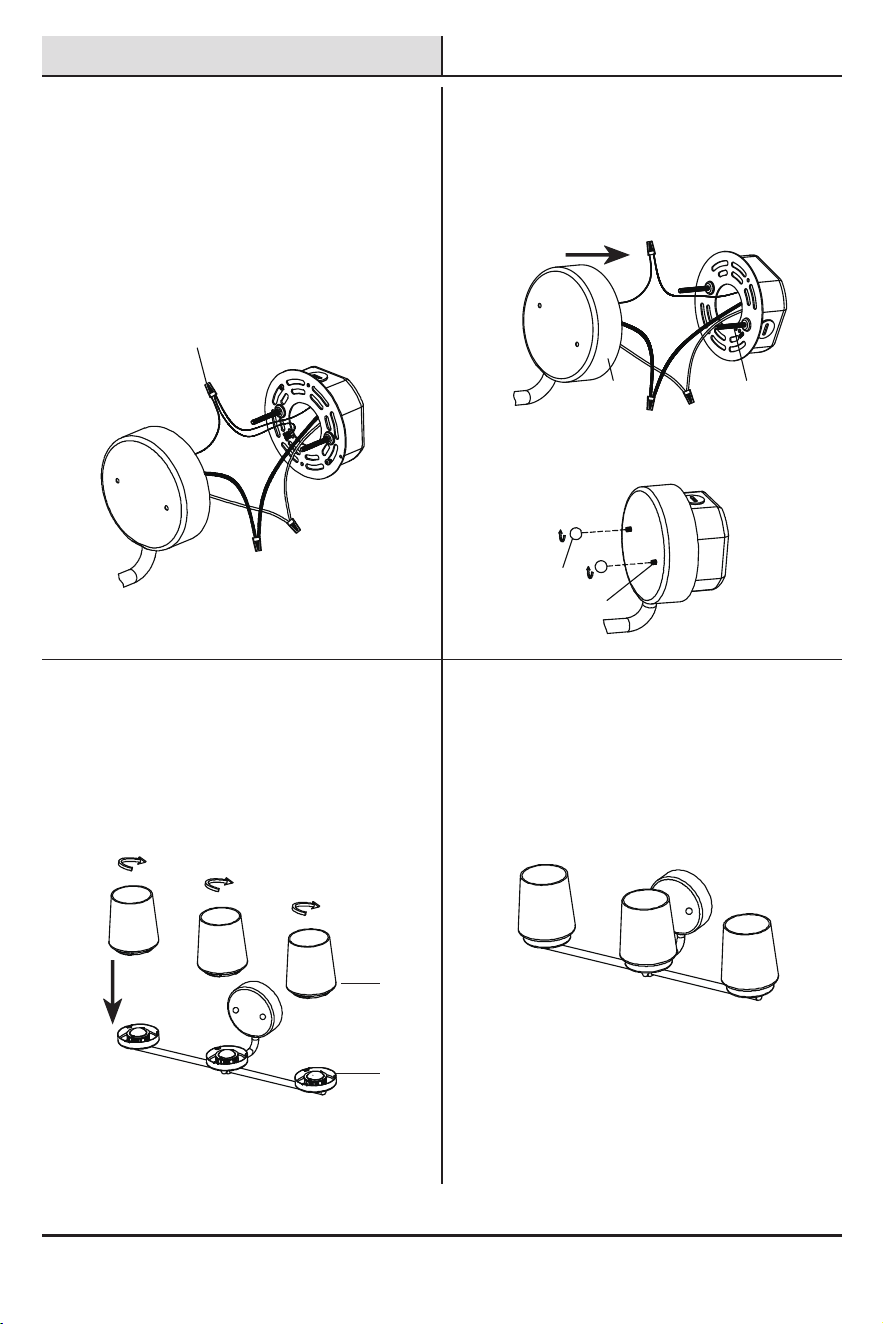

Installation
65
Install the Shade
□ Align the slots on the glass shade (F) with the
buckle point on the inside of the glass shade
holder (E). Turn the shade (F) clockwise
carefully and make sure it locks into place.
Turn on the Light
□ Restore power to the junction box and turn on
the light.
AA
F
E
4
Mount the Fixture Body
□
□
Align the keyholes on the back of mounting
deck (C) with the pre-assembled mounting
screws (B).
3
Connect the wires
□
□
Connect the black and white wires of the
xture with two wires of the same color from
the junction box. Secure together using wire
nuts (AA).
Connect the copper grounding wire of the
xture with the one from the junction box.
Secure together using a wire nut (AA).
D
B
B
Screw locking nuts (D) onto the
mounting screws (B) to secure the xture body.
C
1-855-HD-HAMPTON
A wire is not properly
connected.
Check to ensure proper wire connections
are made. Contact a qualied electrician.
Test the switch or contact a qualied
electrician to replace switch.
The switch is defective.
WARNING: Shut off power at the circuit breaker or fuse panel before cleaning the xture.
Dimmer Compatibility
LUTRON: DVCL-153PR-WH, CTCL-153PDH-WH, TGCL-153PH-WH, MACL-153MH-WH, MSCL-OP153MH-WH,
DV-600PR-WH S-600PH-WH, White/Blanco MS-OPS2MH-WH Occupancy Sensor, MACL-153MR-WH, MACL-
153MH-LA, TGCL-153PR-WH, MRF2-6CL-WH, MACL-153M-WH, SCL-153P-WH, DVWCL-153PH-LA, DVF-103P-WH
LEVITON: R62-06674-P0W, C22-6672-1LW, R50-IPL06-10M, LEVITON 6631 120V 600W, R68-6674-POT,
R08-TSL06-1KT, M02-DSL06-3PW, DDMX1-BLZ, DW6HD-1BZ, DW1KD-1BZ, HZ6HD-1BZ, DZ1KD-1BZ, DL6HD-1BZ,
DL1KD-1BZ, DH6HD-1BZ, DH1KD-1BZ
LEGRAND: HCL453PTCCCV6 120V 450W 60HZ
COOPER: AAL06-C1, SAL06P-LA-K, Cat.No.SAL06P
For a complete list of compatible dimmers, please visit HAMPTONBAY.COM
FOR USE WITH DIMMER MODELS:
FCC compliance information is listed as below:
Responsible party: Leedarson America, Inc.
Responsible party address: 300 Technology Court SE Suite 100, Smyrna, GA 30082
Telephone number: (678) 293-8382
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
