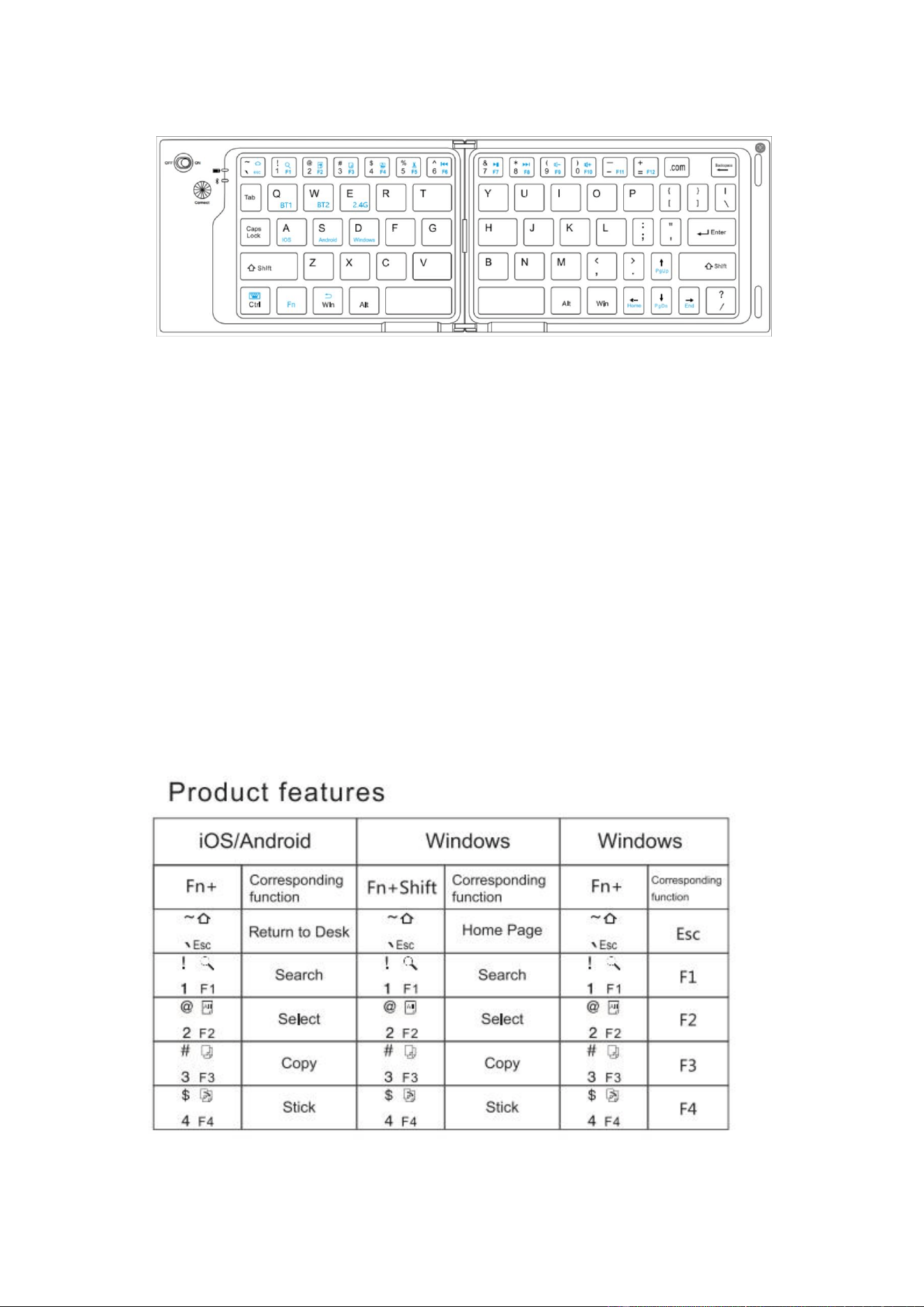

III: Methods for Using Multimedia Function
Usage Instructions
This keyboard is a portable folding keyboard with dual-mode and two-channel functions.
I. 2.4G Usage Method
1. Turn on the keyboard power.
2. Press the combination key FN + 2.4G briefly, insert the USB into the computer, and wait for
about 2 seconds to start using it.
Note: If the receiver does not respond, press the pairing key briefly, reinsert the USB into the
computer, and you can start using it.
II. Bluetooth Connection
1. Turn on the power.
2. Press the combination key FN + BT1 briefly, then press the pairing key "connect".
3. Open the device search for BT5.4 keyboard, and click the corresponding Bluetooth name to
start using it.
Note: This keyboard has one Bluetooth channels BT1 and one 2.4G channel. After a successful
connection, you can switch between different devices by pressing FN + BT1/2.4G.
s
IV: Product Specifications and Parameters
Key count: 66 keys
Key lifespan: 5 million times
Power: 402030/150 3.7V 5MA
Material: ABS
Process: Full-color injection molding
Logo: Silk screen printing
Color: White and orange, Purple and white, Black and gray
Folded size: 147*92*18.4mm
Unfolded size: 294.5*92*9.2mm
Weight: 137g
Charging port: TC

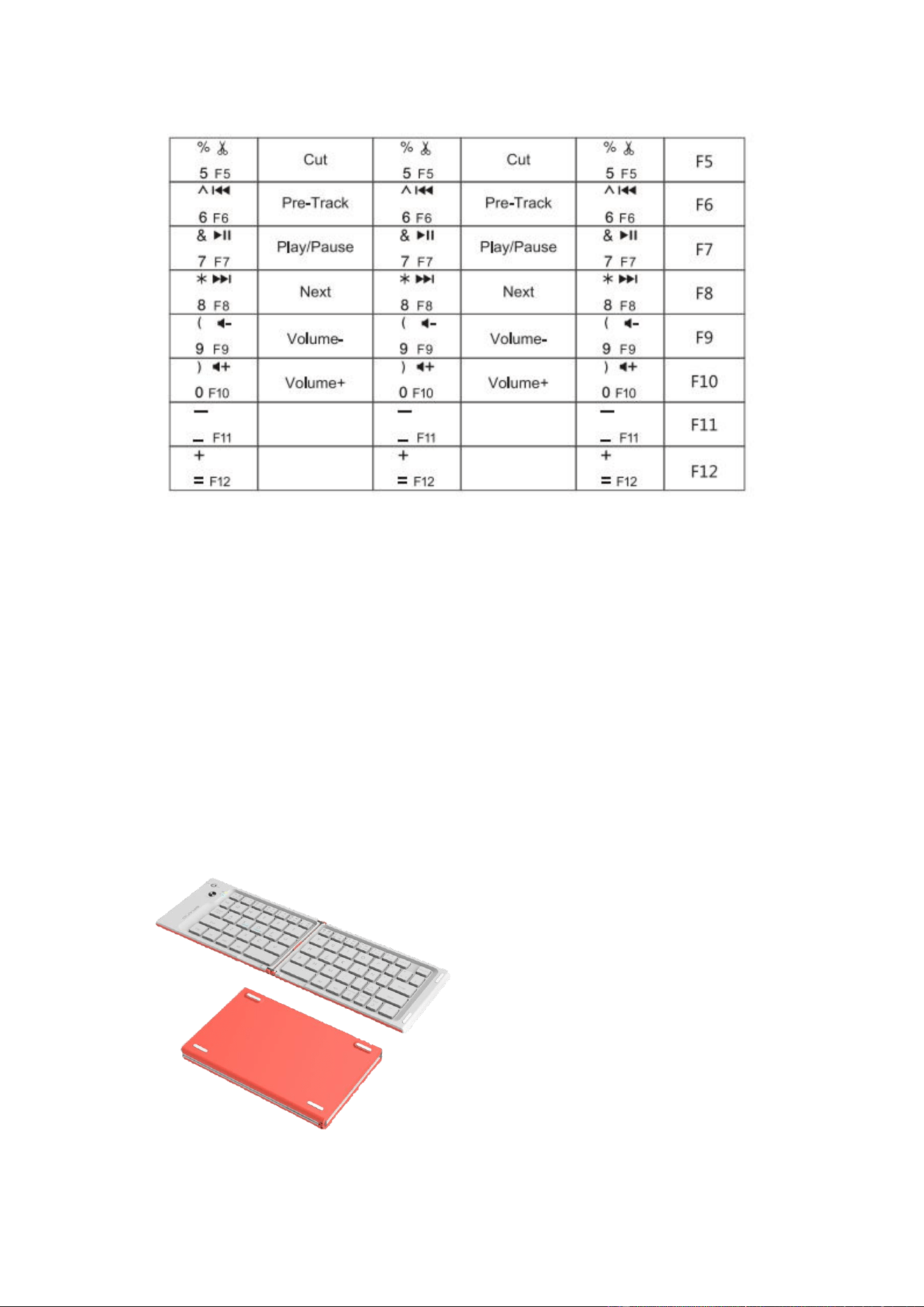

V: Product Display Diagram
FCC Caution:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction.
