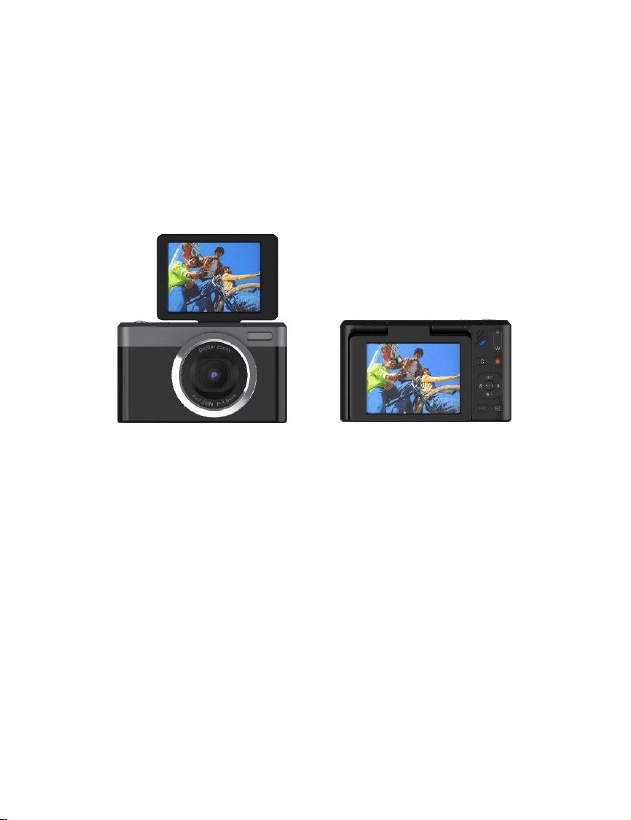

Digital Camera DC292
User Manual
WARNING
To reduce the risk of fire or electric shock:
1. Do not expose the unit to rain or moisture.
2. Do not place objects filled with liquids, such as vases, on
the apparatus.
3. Do not expose the batteries to excessive heat, such as
sunshine, fire or the like.
4. Do not ingest batteries, chemical burn hazard.
5. Keep new and used batteries away from children. If the
battery compartment does not close securely, stop using
the product and keep it away from children.
6. If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate
medical attention.
CAUTION
If the battery is mishandled, the battery pack can burst,
causing a fire or even
chemical burns. Observe the following cautions:
Do not disassemble.
Do not crush and do not expose the battery pack to any
shock or force such as hammering, dropping or stepping on
it.
Do not short-circuit the battery or allow metal objects to
come into contact with the battery terminals.
Do not expose the battery to high temperatures above 60°C
(140°F) such as in direct sunlight or in a car parked in the
sun.
Do not incinerate or dispose of in fire.
Do not handle damaged or leak lithium-ion batteries.
Keep the battery pack out of reach of small children.
Keep the battery pack dry.
Replace the battery with the specified type only. Otherwise,
bursting, fire or injury may result.
Dispose of used batteries according to the instructions.
Use a nearby wall outlet (wall socket) when using the AC
Adapter/Battery charger.
If any malfunction occurs, disconnect the plug from the wall
outlet immediately to disconnect from the power source. If
you use the product with a charge lamp, note that the
product is not disconnected from the power source even if
the lamp turns off.
Do not use the AC adapter/Battery charger, placing it in a
narrow space, such as between a wall and furniture. If
static electricity or electromagnetism causes data transfer
to discontinue midway (fair), restart the application or
disconnect and reconnect the communication cable (USB,
etc.) again.
About the camera
System requirement
Users can transfer videos and photos to computers with the
following configurations:
Intel Pentium 2.0GHz or higher/ Microsoft Windows XP or
higher operating system 2GB RAM 40GB or more available
disk memory/ Standard USB interface /1GB GPU or higher
1920x1080 pixels or higher resolution.

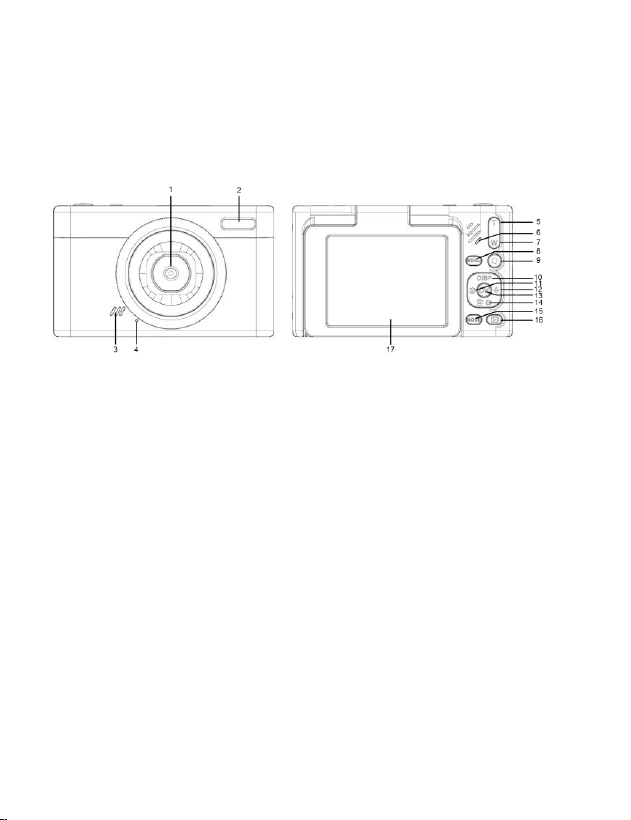

Parts and controls
Front and Rear Side View
1. Lens
2. Fill light
3. Speaker
4. MIC
5. Digital zoom in
6. Indicator
7. Digital zoom out
8. Menu
9. Fast video recording
10. Up
11. Left
12. Right

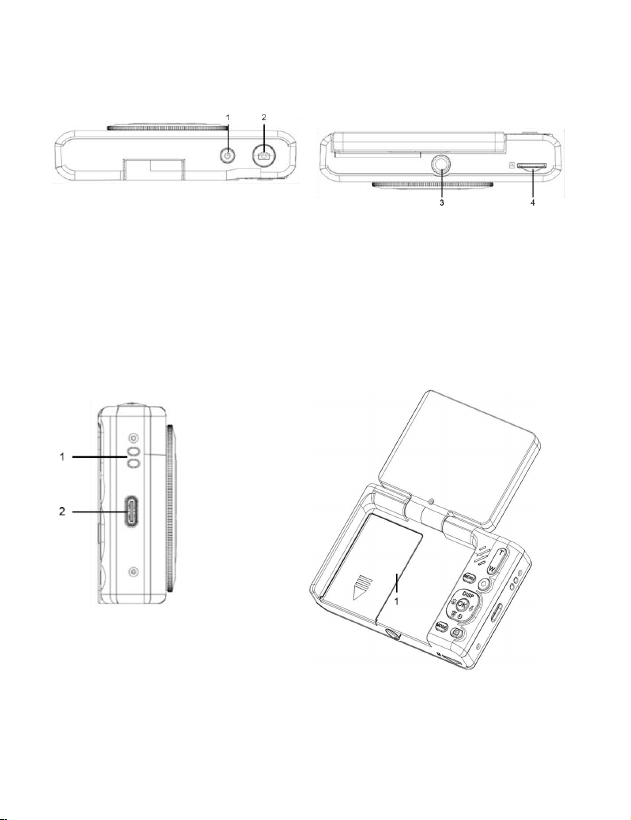

Top and Bottom Side View
Left Side View Oblique View
1. Power
2. Shutter
3. Tripod hole
4. TF card slot
1. Lanyard hole
2. Type-C
1. Removable battery

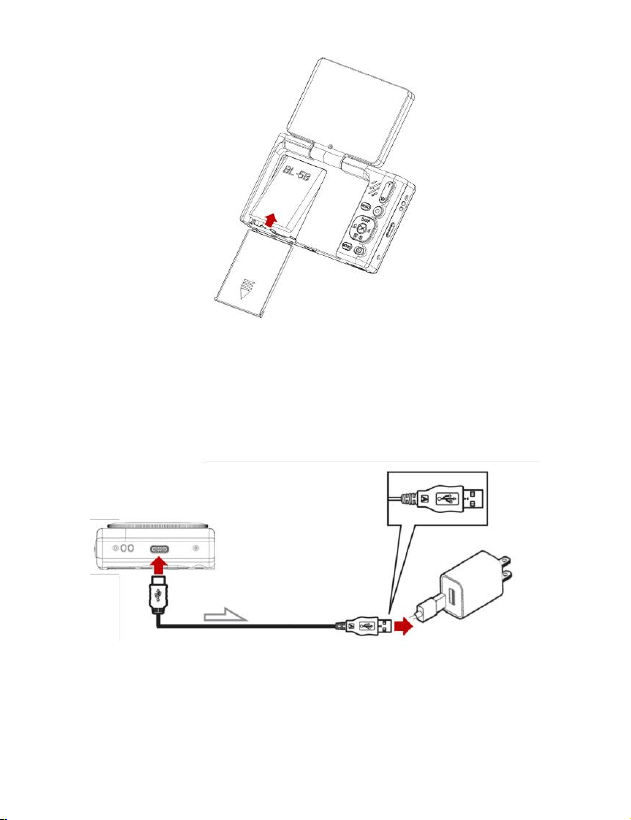

Charging the battery
1. Open the battery cover and insert the battery in the
direction shown in the following picture, then close the
battery cover.
2. You can use supplied USB cable to charge your
camera via an adapter (Adapter spec: 5V/1A ~ 5V/2A).
The charging indicator will be turned on in red when
the battery is in charge.
The charging indicator will be turned off automatically
when the battery is fully charged.
Normally it takes around 2.5 hours to fully charge the
battery.
When the battery is fully charged, the battery is around
60 minutes for recording.
Power on/off the camera
Press the power button, the camera will turn on
automatically.
Press and hold the power button for 3 seconds to power off
the camera.

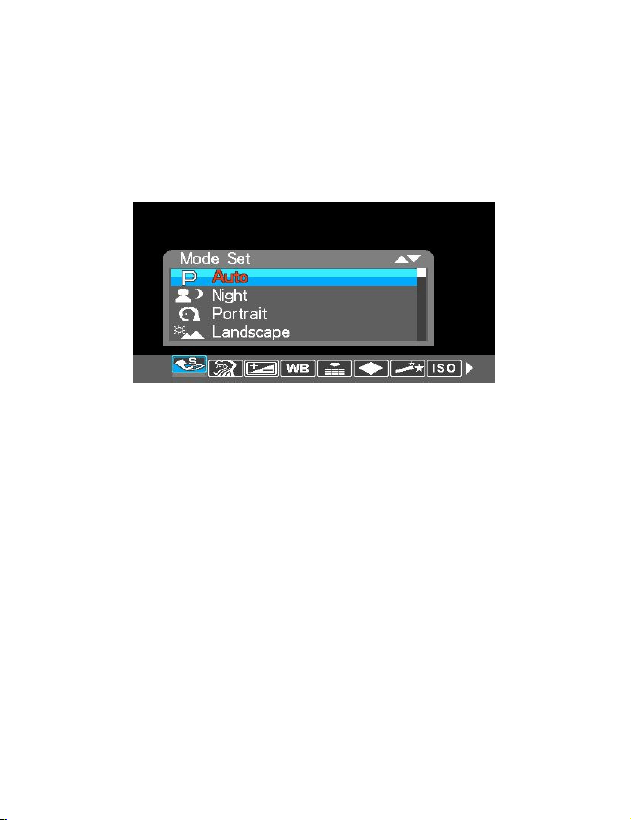

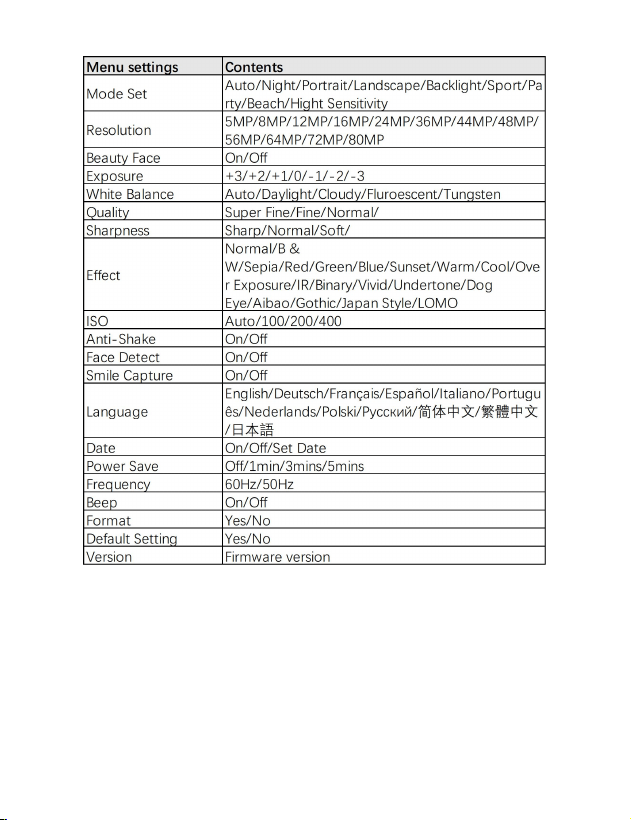

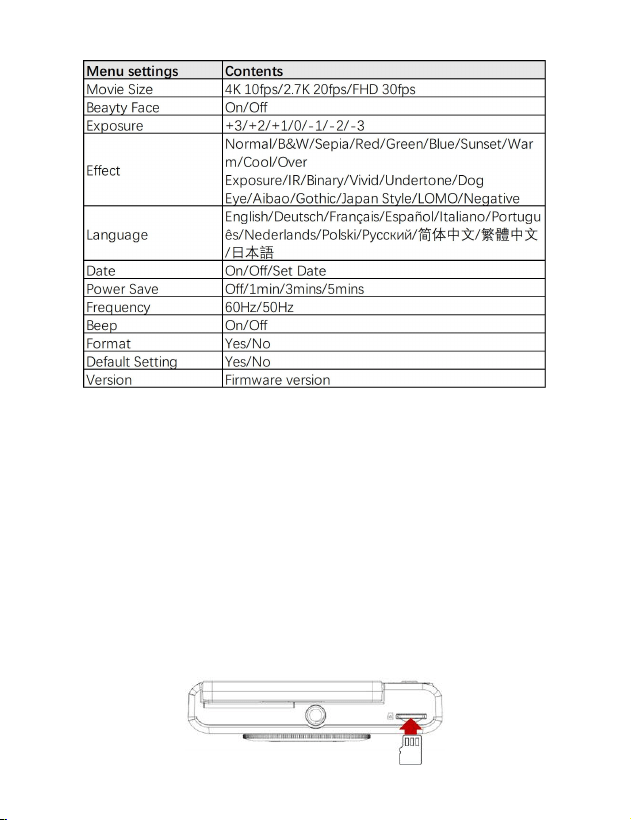

Set the camera
Users can make custom settings of the camera.
After the camera is turned on, press the Menu button to
enter the Settings menu. Photo and Video modes each
have their own settings.
In photo mode
In Video mode
Insert and format the memory card
A class 10 or higher speed memory card is recommended
to normal use.
1. Insert the memory card into the TF card slot until you
hear a “Click”.
2. Push the memory card in and it will automatically pop
out.
Format the memory card
It is recommended to format the memory card before the
first use.
To format the memory card, press the menu key to open
the menu system. Then press right button to find format
and select “Yes”, press “OK” to confirm format the memory
card.
Format the memory card will erase all the data stored on it
and the data will be irrecoverable. Save your important data
on PC before formatting.
Using the camera
After the camera is turned on, it defaults to photo mode,
users can press the “Mode” button to switch different
modes.
In photo mode, press the “Shutter” button to take a photo,
and the photo will be automatically saved to the memory
card.
In video mode, press the “Shutter” button to start recording,
press it again to stop video recording.
In video mode, press the “Right” button can quickly turn
on/off the fill light.
In photo mode, the fill light has three flash modes and
press the “Right” button can quickly switch between the
three modes.
Note: When the fill light is in automatic flash mode, it will
only flash when taking photos in a relatively dark
environment.
When switch to forced flash mode, the fill light will always
be on.

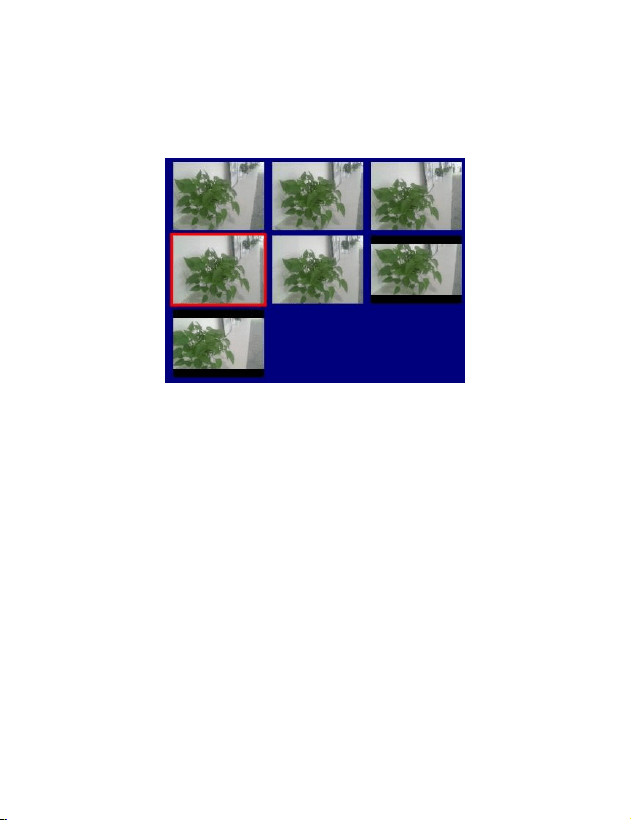

Playback
Press the playback button to enter the media library.
Then press “Left/Right/Up/Down” button to view the
video/image stored in the camera memory card.
Press the “OK” button to play/pause the video.
Long press the “Down“ button to delete video/photo file.”
Press the “Mode” button to exit video/photo playback.

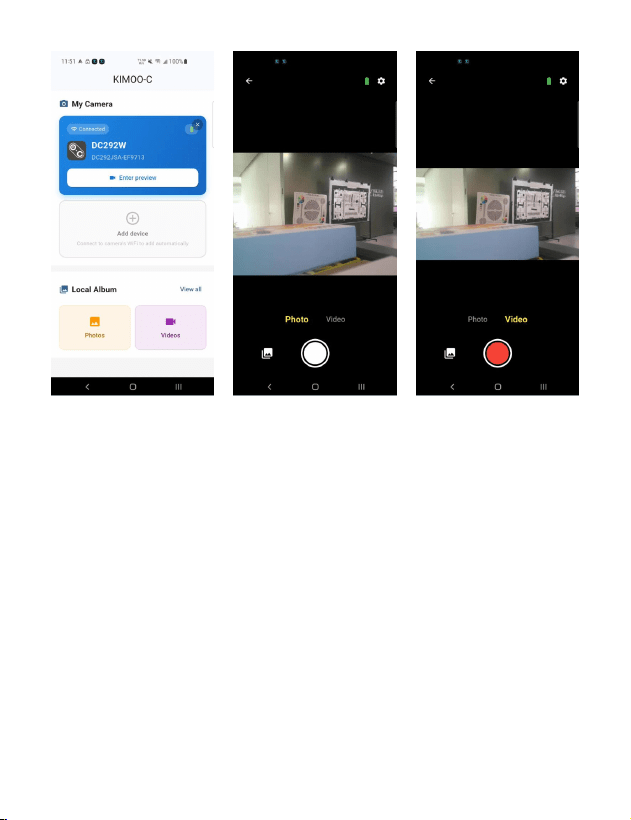

Connect to Kimoo-C APP
Scan above QR code to download the Kimoo-C APP

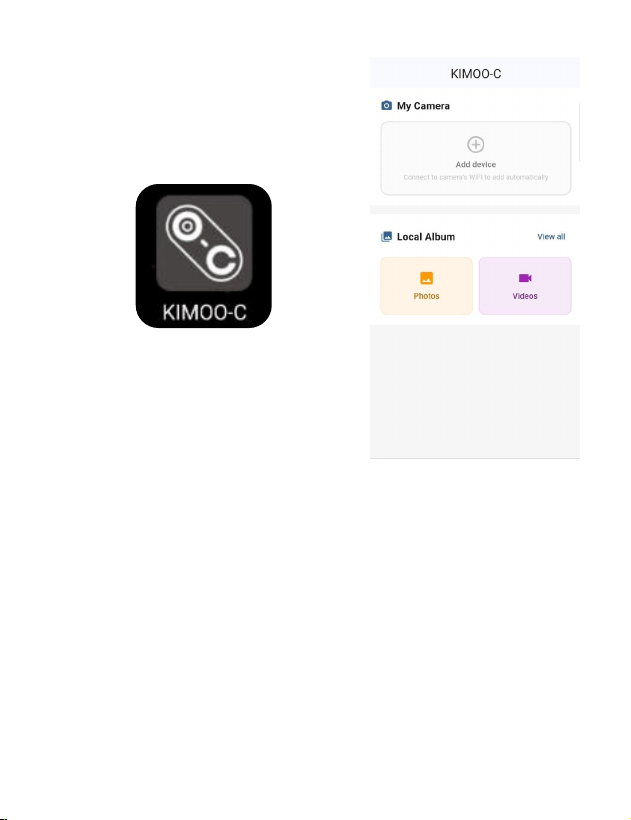

Open the Kimoo-C app. No registration or login is required.

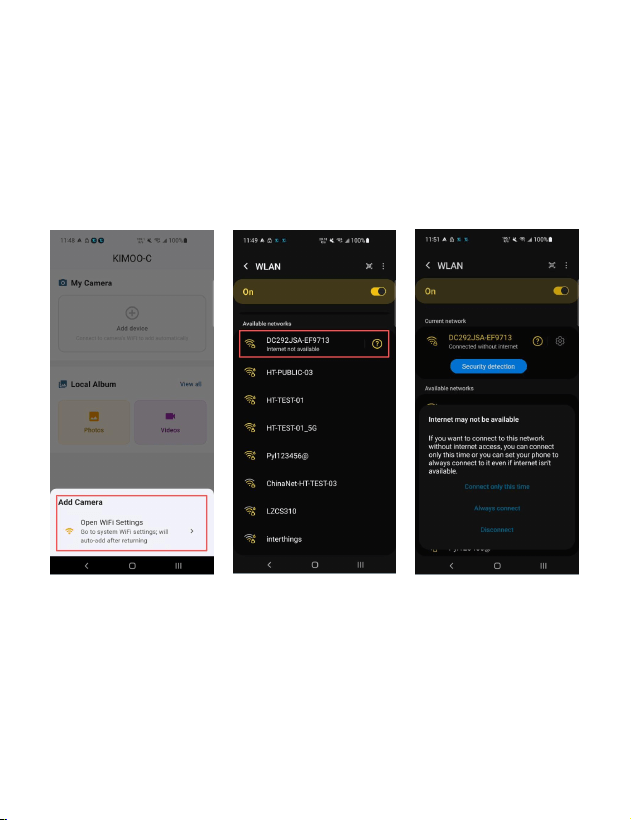

Long-press the “OK” button on the DC292 to enable Wi-Fi
mode. Open the Kimoo-C app, tap “Add Device,” and follow
the on-screen instructions to connect your smartphone to
the DC292’s Wi-Fi network. The default Wi-Fi password is
12345678.
Once connected, you can use your smartphone to preview
the camera feed, take photos, and record videos. You can
also play back or delete files stored on the DC292’s SD
card through the “Camera Album” in the app.

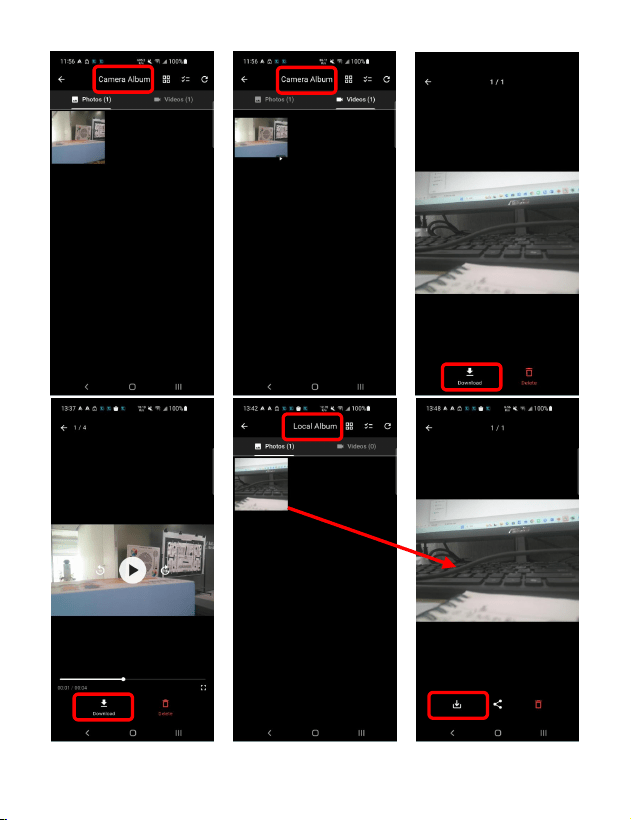

Downloaded photos and videos from the Camera Album to
the Local Album for playback, even when the camera is
disconnected from the Kimoo-C app. The Local Album files
can also be downloaded to Phone Album.
Save to Local Album
Save to Phone Album
Save to Local Album
Video

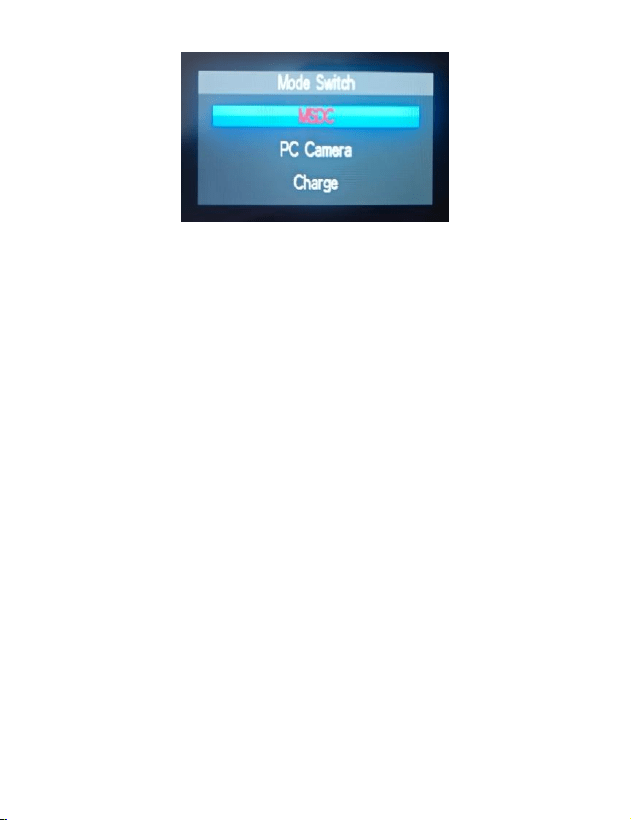

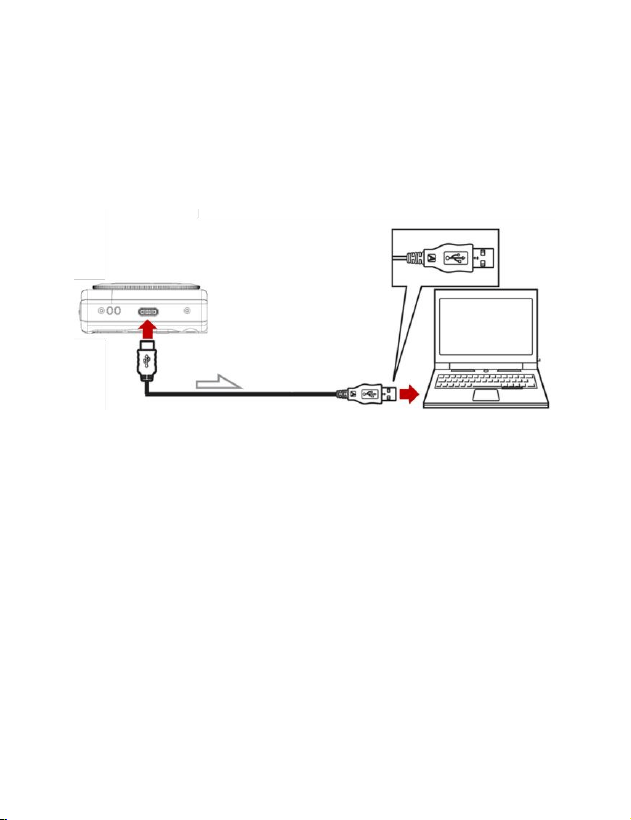

Connect to computer
1. Connect the Type-C USB port of the camera and the
USB port of the computer with supplied USB cable.
2. Press power button to turn on the camera, the camera
screen will display the available options.
Press the “Up/Down” button to select the desired
option, then press “OK” button to confirm the option.
MSDS Mode
Select “MSDS” Mode and the computer will display the
camera's memory card drive.
You can transfer files from the storage to the computer on
the computer.
PC Camera
Select the “Camera” mode, the camera can be used as a
webcam, live streaming, etc.
Note: When the camera is used as a webcam, only the
digital zoom button can be operated on the camera, and
other functions cannot be used.
Camera cleaning and maintenance
(1) If you do not use the camera for a long time, take out
the camera battery and place it in a dust-free, dry
environment with a temperature no higher than 30 ℃.
(2) In order to extend the service life of the battery, please
discharge it completely before storage.
(3) Please fully discharge the battery at least once every 3
months after it has been fully charged.
(4) If there is dust or dirt on the lens or screen, gently wipe
it with a clean, soft lens cleaning cloth.
(5) As this machine is a precision instrument, please do not
drop it or suffer from strong impact or vibration.
Troubleshooting:
If you encounter problems with the camera, please refer to
this section:
1. The camera cannot be turned on after installing the
battery
(1) The battery power is insufficient, please replace the
battery with a new one or charge the battery.
(2) The battery is installed in reverse, please confirm that
the battery is installed in the correct way.
(3) The battery insulating paper is not removed.
2. The battery is not charging
(1) If the red light of the charging indicator flashes, the
battery is not in place, or the contact is poor. Please re-
install the battery until the indicator light is on (the indicator
light goes out when the battery is fully charged)
(2) The charging indicator light is off, and the charger is not
plugged in properly. Please check whether the charger is
connected normally
(3) The ambient temperature is lower than 10 C, which may
lead to slow charging
or failure to charge.
3. Camera crashes
Quickly pressing each button of the camera may cause the
camera to freeze. After it crashes, unplug the battery and
reboot.
Tip: When the camera is recording or taking pictures, do
not quickly press the camera button. Under normal
circumstances, the camera will display a waiting1con
4. The memory card cannot be recognized:
(1) Please check whether the memory card complies with
Micro SD card (class10),
the maximum is not more than 128G.
(2) Please check whether the memory card is inserted
backwards.
(3) When the memory card is used on the camera for the
first time, it is recommended to format it first.
Additional notes
(1) Do not insert any object into the slot except the memory
card.
(2) After the power is turned on, the camera may show an
unstable image about for a few seconds, but this is not a
fault.
(3) Due to the optical properties of the lens, there may be
color dispersion (magnification of chromatic aberration) at
the edges of the image. This is not a camera fault.
(4) It is normal for the memory card to get hot after a long
period of use.
(5) It is normal for the camera's screen to heat up after a
long period of use.
FCC Requirement
Any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician
for help.
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
