QUICK START GUIDE
Read me before use!
IPC295,HUVIPC412E
Keep manual and all relevant information for future reference.

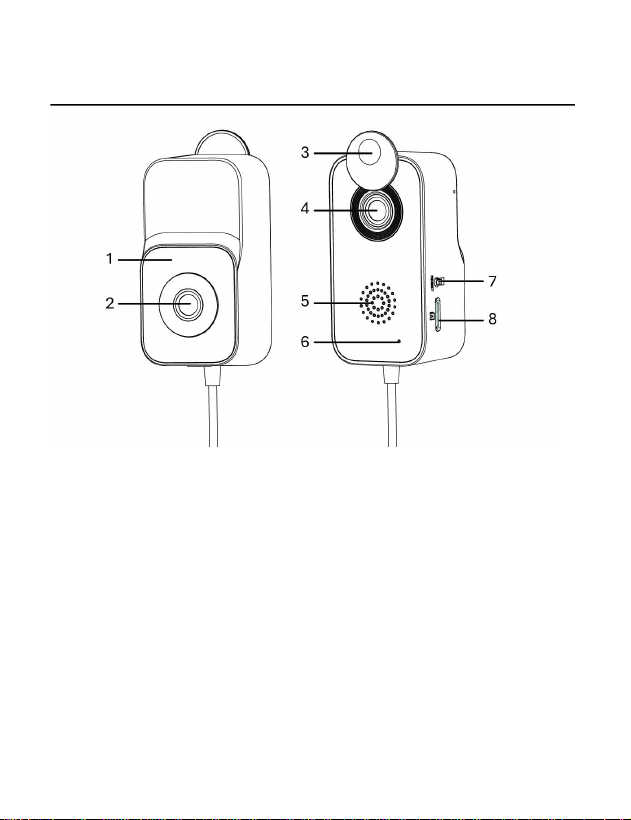

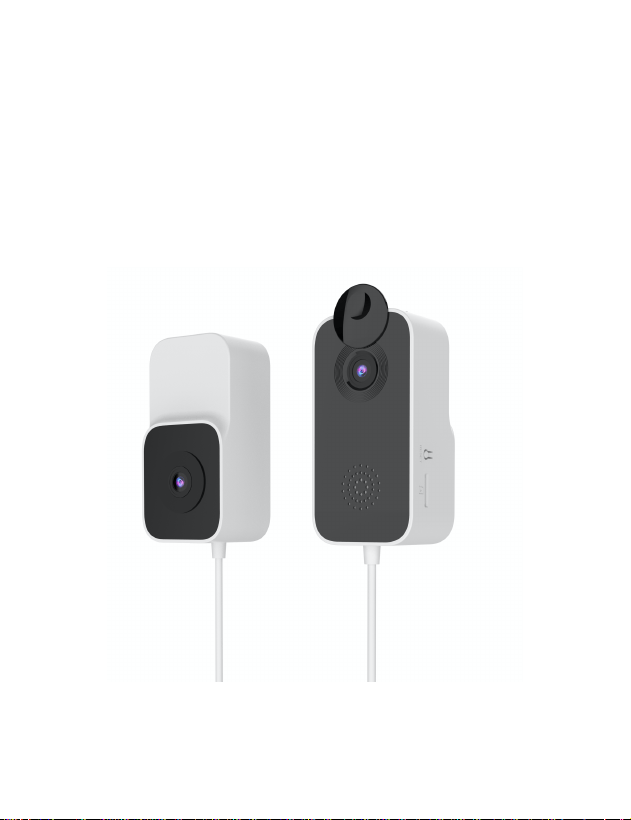

Description of the camera
1. Magnetic surface (for mounting the camera on window via sticker)
2. Color night vision lens (for outside view)
3. Privacy cover for indoor lens (rotate clockwise to cover the lens)
4. Color night vision lens (for inside view)
5. Speaker
6. Microphone
7. Reset
8. Micro SD card slot (up to 256GB)
About the camera
1. Power on the camera
To power on the camera, use a 5V (1A~2A) adapter (not included) to
connect camera with supplied power cable.
The indicator will turn on in blue color with a voice prompt, which means
camera is ready for connection.
2. Micro SD card
To save the events into local storage, the camera needs a max.
8GB~256GB (Class 10 or higher) micro SD card.
Please format the memory card before using.
3. Reset
If the device is not able to be connected to the app, you may need to reset
the camera.
Hold and press the reset button for 5 seconds, the camera will be
restarted and you will hear the “welcome” voice announcement, which
means the reset is succeed and the camera is ready to connect.
4. Installation the camera
Connect the camera with App to check the signal before mounting the
camera.

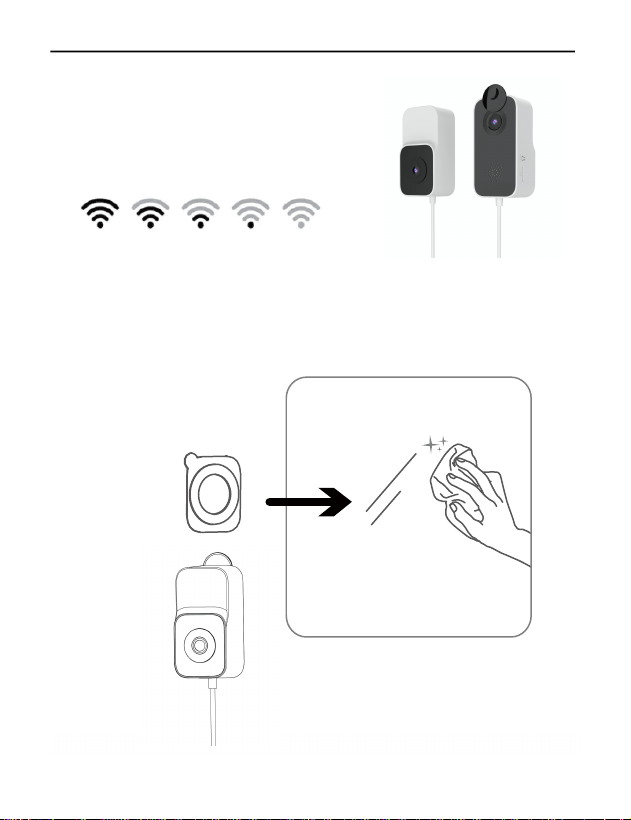

Installation the camera:
1. Check that you have a strong Wi-Fi
signal (at least two bars) where the
smart camera is to be installed.
2. Wipe the window glass before sticking the window sticker.
Setup with the App
1. Download and Install the app:
Download and install the HALOWatch app by scanning the QR code for
the Apple Store or Google Play Store.
HALOWATCH

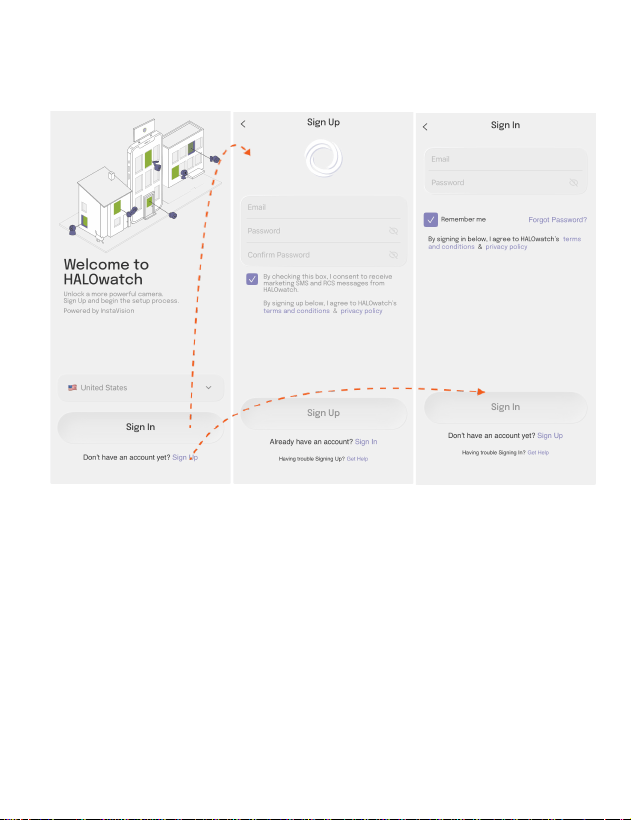

2. Account Registration:
Open the app and register a new account or log in to an existing account.

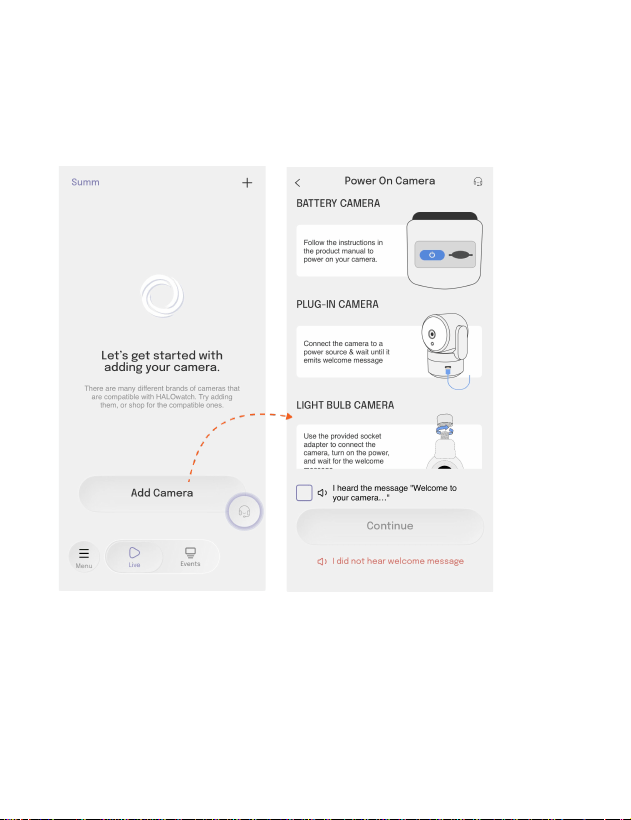

3. Add Camera:
Navigate to the Home Page within the app. Locate and select "Add
Camera" then go through preparation instructions to power on your
camera properly.

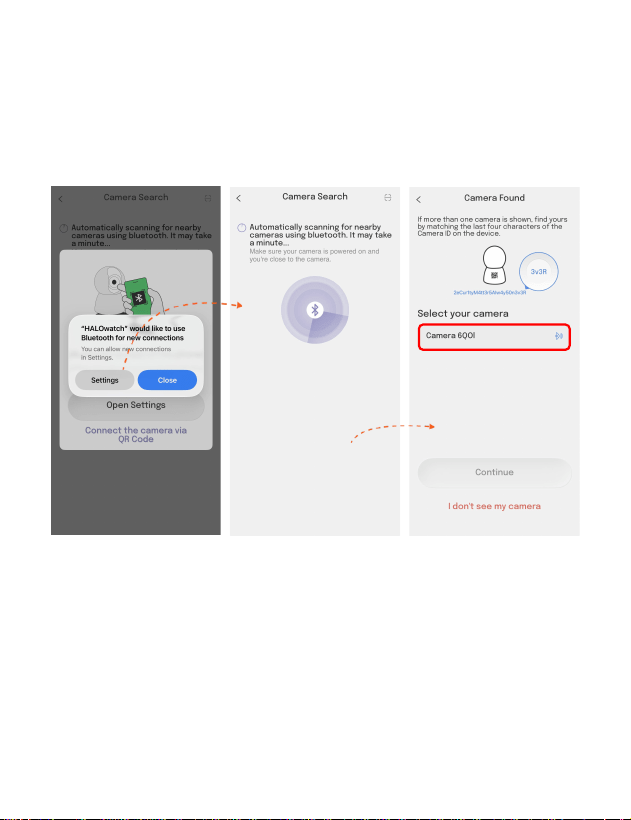

4. Bluetooth Access:
Follow the on-screen instructions to enable Bluetooth access, which is
required for device discovery.
Do not skip this step. Ensure Bluetooth access is enabled as instructed,
allowing the app to discover the device via BLE.

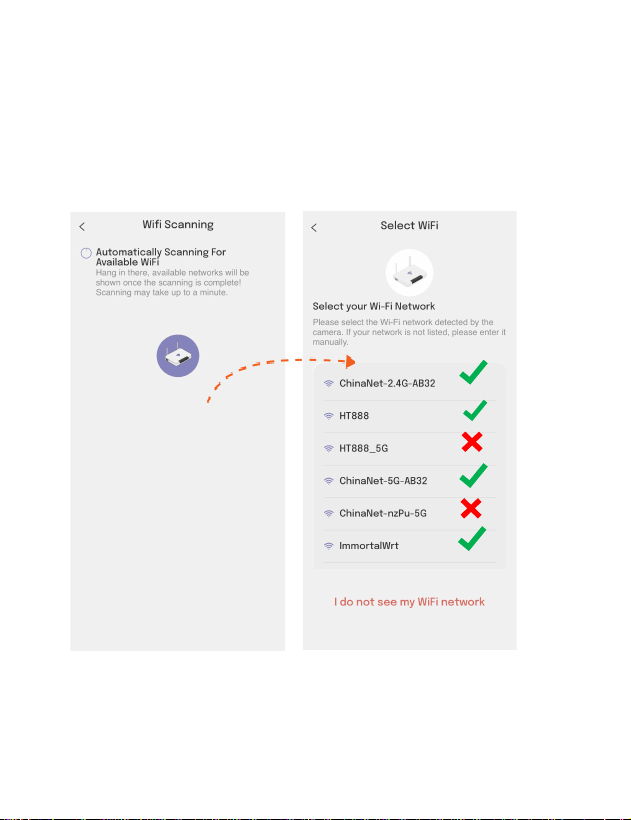

5. Connect to Wi-Fi:
The app will automatically scan for nearby 2.4 GHz &5 GHz Wi-Fi routers.
Note: This camera only supports 2.4GHz Wi-Fi, if your smartphone
connects to a 5GHz Wi-Fi please switch to 2.4GHz then connect with
camera.

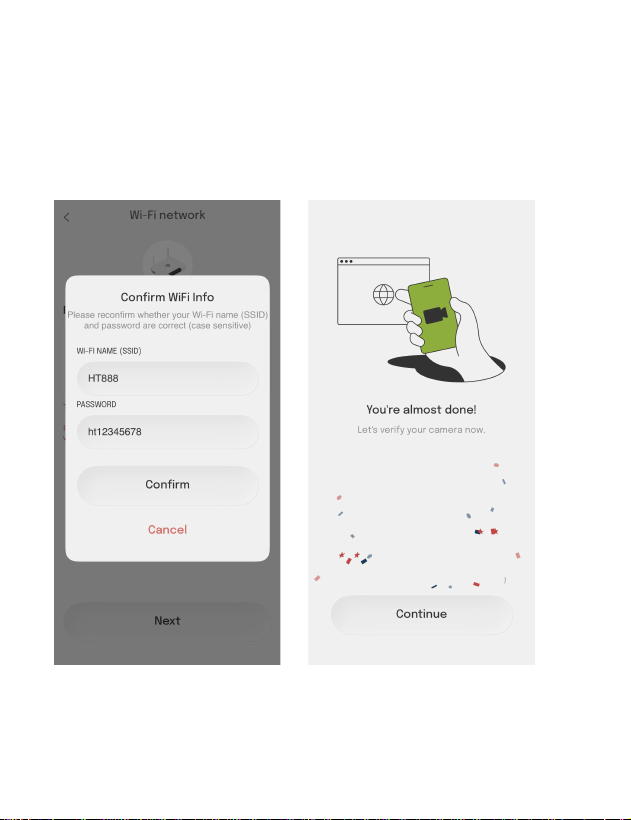

6. Input Wi-Fi Credentials:
Enter the password for your selected Wi-Fi network. Click "Next" to
initiate connection. Wait a few seconds for the device to connect to the
internet. You'll hear a notification sound from the device indicating
successful progress.

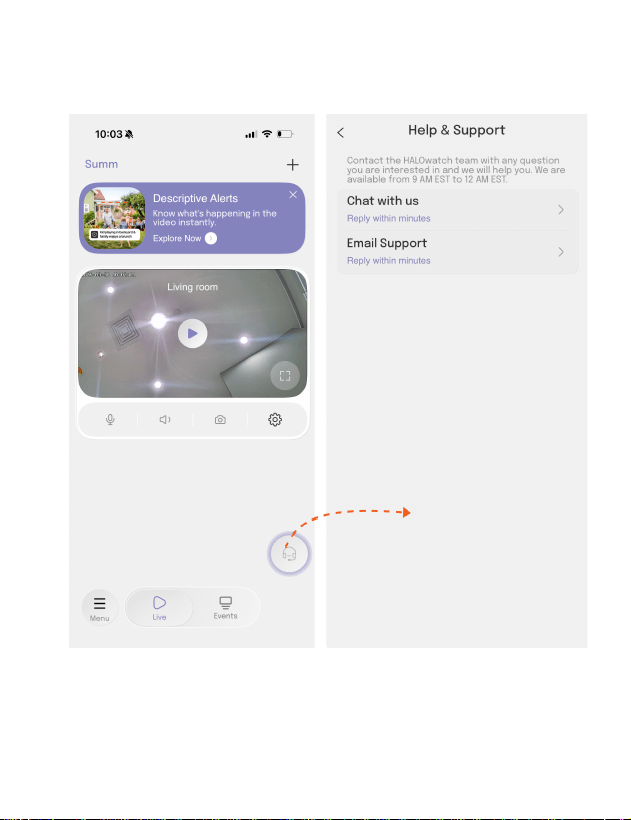

7. Live view and app support
Hear and talk to the camera with the app.
If you have any questions or suggestions, find the support icon as
following to chat or e-mail with us.
FCC Statement
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment
.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of thefollowing
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20cm between the radiator & your body. This transmitter must
not be co-located or operating in conjunction with any other antenna or transmitter.
