Digital Camera
User manual
Read before use！
Keep the manual and all relevant information for future reference.
Contents
WARNING ...........................................................................................................1
CAUTION ......................................................................................................1
About the camera .......................................................................................2
System requirements ....................................................................................2
Parts and controls .........................................................................................2
Charging the battery.....................................................................................5
Power on/off the camera ............................................................................6
Set the camera.............................................................................................6
Insert and format the memory card .........................................................8
Format the memory card ..............................................................................8
Using the camera ........................................................................................9
Focus function..............................................................................................11
Fully automatic focus...................................................................................11
Manual focus................................................................................................11
Fixed focus ...................................................................................................11
Fill light........................................................................................................11
Playback .........................................................................................................12

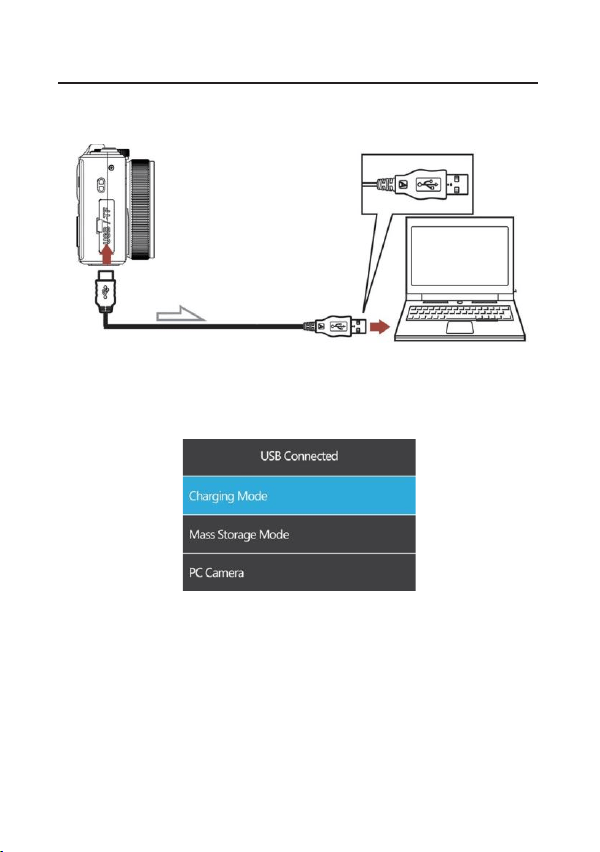

Connect to computer..................................................................................13
Charging mode.............................................................................................13
Mass Storage mode......................................................................................13
PC camera....................................................................................................14
WIFI APP User Guide.................................................................................14
Camera cleaning and maintenance...............................................................15
Troubleshooting..................................................................................................16
Additional notes ...........................................................................................16
1
WARNING
To reduce the risk of fire or electric shock:
1. Do not expose the unit to rain or moisture.
2. Do not place objects filled with liquids, such as vases, on the apparatus.
3. Do not expose the batteries to excessive heat, such as sunshine, fire or the like.
4.Do not ingest batteries, chemical burn hazard.
5.Keep new and used batteries away from children. If the battery compartment does
not close securely, stop using the product and keep it away from children.
6.If you think batteries might have been swallowed or placed inside any part of the
body, seek immediate medical attention.
CAUTION
If the battery is mishandled, the battery pack can burst, causing a fire or even
chemical burns. Observe the following cautions:
Do not disassemble.
Do not crush and do not expose the battery pack to any shock or force such as
hammering,dropped or stepping on it.
Do not short circuit and do not allow metal objects to come into contact with the
battery terminals.
Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or
in a car parked in the sun.
Do not incinerate or dispose of in fire.
Do not handle damaged or leaking lithium ion batteries.
2
Keep the battery pack out of the reach of small children.
Keep the battery pack dry.
Replace the battery with the specified type only. Otherwise, bursting, fire or injury
may result.
Dispose of used batteries according to the instructions.
Use a nearby wall outlet(wall socket) when using the AC Adapter/Battery charger.
If any malfunction occurs, disconnect the plug from the wall outlet immediately
to disconnect from the power source. If you use the product with a charge lamp,
note that the product is not disconnected from the power source even if the
lamp turns off.
Do not use the AC adapter/Battery charger placing in a narrow space, such as
between a wall and furniture.
If static electricity or electromagnetism cause data transfer to discontinue midway
(fair), restart the application or disconnect and reconnect the communication cable
(USB, etc.) again.
3
About the camera
System requirement
Users can transfer videos and photos to computers with the following
configurations:
Intel Pentium 2.0GHz or higher/ Microsoft Windows XP or higher operating
system 2GB RAM 40GB or more available disk memory/ Standard USB interface /
1GB GPU or higher 1920x1080 pixels or higher resolution.
Parts and controls

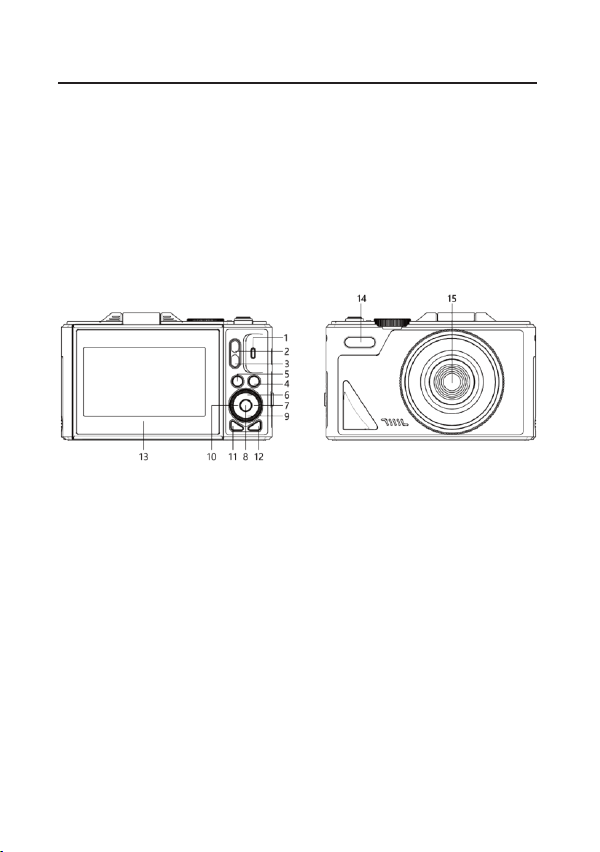

Rear view Front view
1: Charging/working indicator light
2: Digital zoom in
3: Digital zoom out
4: Delete button
5: Playback button
6: Up button/shortcut button for fill light
7: Right button
8: OK button
9: Down button
10: Left button
11: DISP button
12: Menu button
13: Display screen
14: Fill light
15: Lens
4

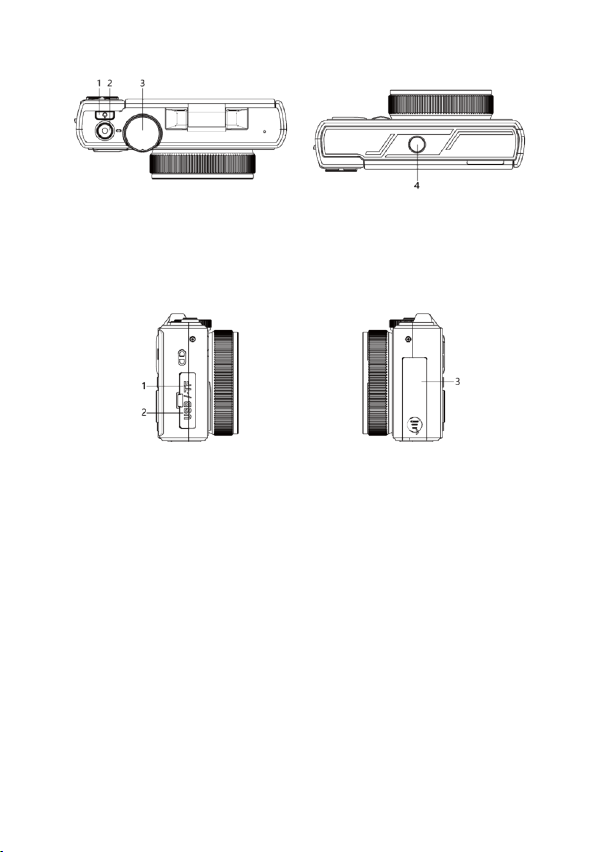

Top side view Bottom side view
1：POWER button
2：Photo button
3：Mode Dial
4:Tripod hole
Left side view Right side view
1: Memory card slot
2: Type-C USB interface
3: Battery compartment
5
Buttons/ Indicators Functions
POWER
Power on / off
Take photo
Pause of recording
Mode dial
Switch shooting mode
T
digital zoom in
W
Digital zoom out
Indicator light
Working / Charging indicator light
Playback button
Open/Exit Media Playback
Upward
Up
Turn on/off the fill light
Right
Rightward
Downward
Down
Delete photo/video
Left
Leftward
OK
Confirm
DISP
Turn on/off the display
MENU
Open / Close menu settings
USB cable charging
USB
Connect the computer with USB cable
6

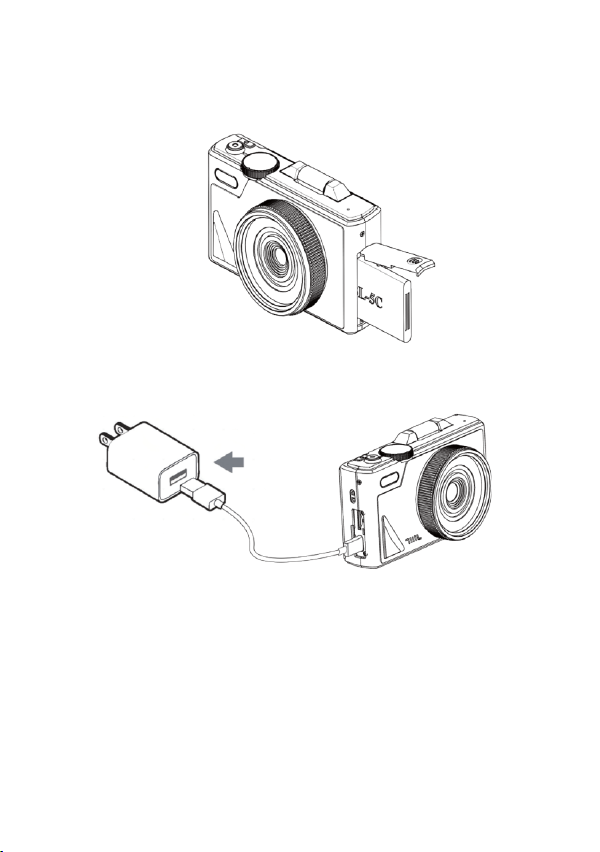

Charging the battery
1.Power off your camera, open the battery cover, and insert the battery in the
direction shown in the following picture, then close the battery cover.
2.You can use supplied USB cable to charge your camera via an adapter
(5V/1A~5V/2A) .
* The charging indicator will be turned on in red when the battery is in charging.
* The charging indicator will be turned off automatically when the battery is fully
charged.
Normally it takes around 2 hours to full charging of the battery.
When the battery is fully charged, the battery life is around 60 minutes for
recording.
7

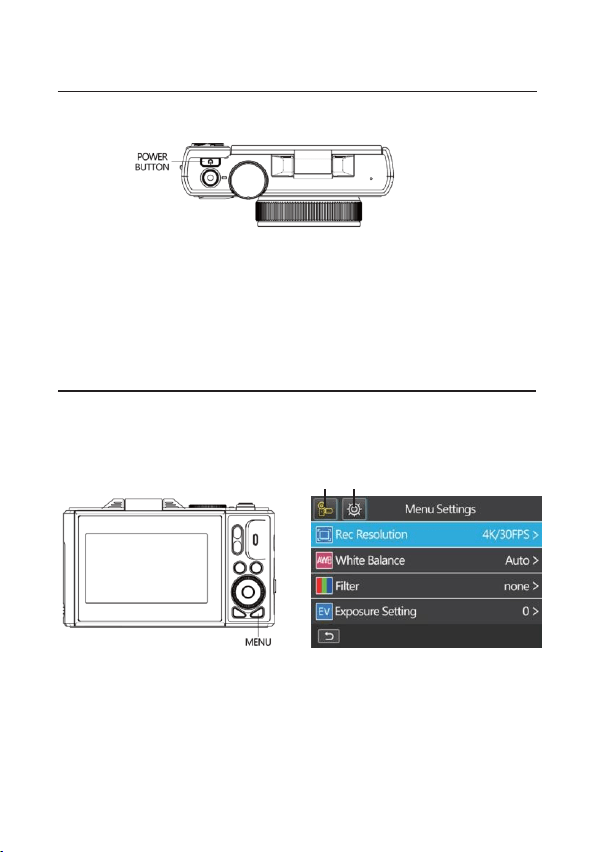

Power on/off the camera
Press the power button, the camera will turn on automatically.
To turn off the camera, press and hold the power button for 3 seconds.
Note: When you turn on the camera for the first time, you need to press and hold
the power button to turn it on.
When there is no battery in the battery compartment, you need to press and hold the
power button to turn on the camera after you put the battery in.
Set the camera
You can make custom settings of the camera.
After the camera is turned on, press the menu button to open the menu settings.
Menu Settings
1 2
1 :Sub-menu for current mode
2 :System settings
8
Sub-menu
Menu content
Image Rotation
Turn On/Turn Off
Icon Display
Turn On/Turn Off
Video Focus Mode
Auto focus/Manual focus/Fixed focus
Wi-Fi
Turn On/Turn Off
APP Usage Guide
Scan the QR code to view the tutorial
Light Source Frequency
Auto/50Hz/60Hz
LED Indicator
Turn On/Turn Off
Auto Screen Saver
Turn Off/30s/1Minute/2Minute
Auto Power Off
Turn Off/3Minute /5Minute /10Minute
Display Brightness
High/Middle/Low
Button Prompt
High/Middle/Low/Turn Off
Startup Music
Turn On/Turn Off
Language
Simplified Chinese/Traditional
Chinese/English/ Japanese/Korean/
Russian/German/French/Italian/
Spanish/Portuguese/Thai
Time Format
YYYY/MM/DD MM/DD/YYYY
DD/MM/YYYY
Time Set
hour minute second
Date Set
year month day
Format
(Micro SD Card)Format/Cancel
Device Info
Product model and version number
Factory Reset
Confirm/Cancel
9

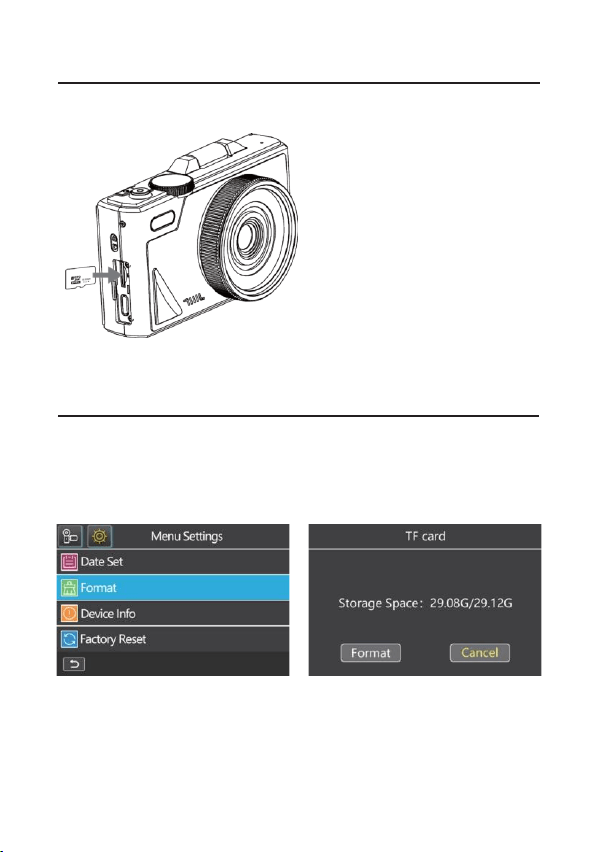

Insert and format the memory card
A class 10 or higher speed memory card is recommended to normal use.
1.Insert the memory card into the memory card slot until you hear a "click".
Insert the memory card in the direction
shown in the diagram, paying attention
to the edges and corners.
2.To remove the memory card:Push the memory card in and it will automatically
pop out.
Format the memory card
It is recommended to format the memory card before the first use.
To format the memory card, press the menu button to open the menu system.Then
press the left or right button to switch to system settings. Press Up or Down to find
"Format" and press OK to get the sub-menu. Select "Format" to format the memory
card.
Note:If the memory card is not native format, the screen will pop-up a prompt:
“Unsupported file system,do you want to format？” please format the memory card
as above operation.
Formatting the memory card will erase all the data stored on it and the data will be
irrecoverable. Save your important data on PC before formatting.
10
Using the camera
After the camera is turned on, it defaults to video shooting mode.
Rotate the mode dial to select the desired mode
icon
Mode
illustrate
Take a single photo normally
Auto
Automatically cycle take photos after a specified
number of seconds
Timed
Take a single photo after a specified number of
seconds
Burst
Take a specified number of photos in succession
Video
Normal recording mode
Slowly
Slow motion shooting
Lapse
Compress time to record video
Loop
Recording infinite loop
Video+Photo
During the recording video, you can capture
according to the set capture interval single photo
11
Note: The camera supports setting the corresponding mode menu in different modes.
After selecting the desired mode, press the menu button to open the menu and
select the desired setting if desired.
Press the photo button to take a photo, and the photo will be automatically saved to
the memory card.
In video recording mode, press the photo button to start recording, and then press
to end recording. You can also press the power button to pause/continue recording
while recording.

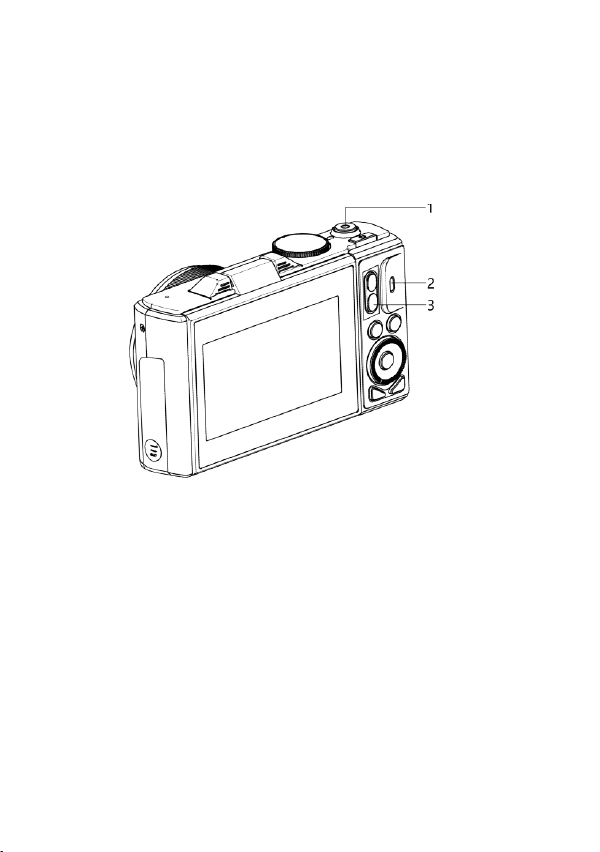

1: Photo button (video start/end button)
Press to start recording, then press to end recording
2: Indicator light
The working indicator light flashes when recording
3: Digital zoom button
T button digital zoom zoom in/W button digital zoom zoom out
12
Focus function
This function includes 3 focus modes: automatic focus/manual focus mode/fixed focus.
Press menu button Open the menu, then press the left/right button to switch to system
settings, press the up/down button to find "Video Focus Mode", press OK button to
enter focus mode. Select the mode you need.
Fully automatic focus
In this mode, you only need to keep the camera steady when taking pictures or videos,
and the camera will automatically focus. Once done, press the capture button.
Manual focus
In this mode, when taking a photo or recording a video, half-press the photo button and
the focus frame will appear on the display until the camera focuses clearly.
Then press the photo button all the way down to take the clearest photo or start
recording with the clearest image.
Fixed focus
In this mode, you need to press the shooting button halfway to focus when taking
pictures or videos, and the screen will clearly show the image of the object being
shot, and then press the shooting button to the end. If you release the capture button to
take pictures or record videos, the pictures and videos will not be clear.
Fill light
In video mode, pressing the up button can quickly turn on or off the fill light.
In photo mode, the fill light has three flash modes and pressing the up button can
quickly switch between the three modes.
Note: When the fill light is in automatic flash mode, it will only flash when taking
photos in a relatively dark environment. When switched to forced flash mode, the
fill light will always be on.
13

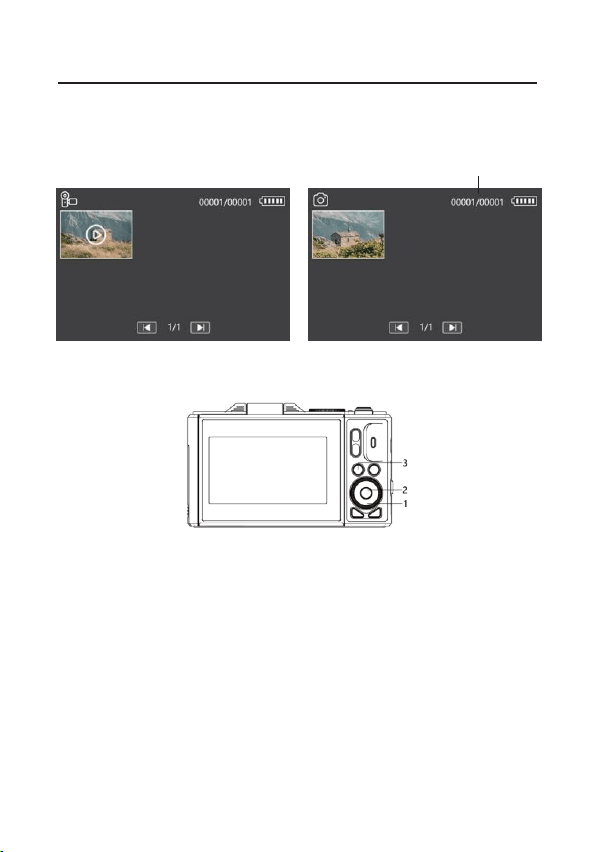

Playback
Press the playback button to enter the media library. Select the video or photo file
you want to view, then press the OK button to enter the corresponding file to view
the video and image stored in the camera memory card.
Current/total number of images
Figure 1: Video playback Figure 2: Photo playback
1:Press the down button to delete a photo/video.
Note: Once deleted, it cannot be recovered.
2: Press the OK button to play/pause the video
3: Press the playback button to exit video/photo playback
14
Connect to computer
1. Connect the Type-C USB port of the camera and the USB port of the computer
with supp lied USB cable.
2. The camera will turn on automatically and the screen will display the available
options.
Press the Up/Down button to select the desired option, then press the OK button to
confirm the option.
Charging Mode
Select the charging mode, the camera supports the function of recording normally.
Power off the camera would be fully charged faster then keep powering on.
Mass Storage Mode
Select “Mass Storage Mode” and the computer will display the camera’s
memory card drive. You can transfer files from the storage to the computer on the
computer.
14
PC Camera
Select the “PC Camera” mode, the camera can be used as a webcam, live
streaming, etc.
Note: When the camera is used as a webcam, only the digital zoom button can be
operated on the camera and other functions cannot be used.
WIFI APP User Guide
P
ress the MENU button to enter the menu, press the left/right button to enter the
system settings, then press the up/down button to find the "APP Usage Guide"
submenu bar, and finally press OK to scan and view the tutorial. To download WiFi,
you can scan the QR code on the right below.
WIFI APP User Guide QR Code
WIFI APP Download QR Code
15
Camera cleaning and maintenance
(1) If you do not use the camera for a long time, take out the camera battery and
place it in a dust-free, dry environment with a temperature no higher than 30 ℃ .
(2) In order to extend the service life of the battery, please discharge it completely
before storage.
(3)Please fully discharge the battery at least once every 3 months after it has been
fully charged.
(4) If there is dust or dirt on the lens or screen, gently wipe it with a clean, soft lens
cleaning cloth.
(5) As this machine is a precision instrument, please do not drop it or suffer from
strong impact or vibration.
Troubleshooting:
If you encounter problems with the camera, please refer to this section.
1. The camera cannot be turned on after installing the battery
(1) The battery power is insufficient, please replace the battery with a new one or
charge the battery.
(2) The battery is installed in reverse, please confirm that the battery is installed in
the correct way.
(3) The battery insulating paper is not removed.
2. The battery is not charging
(1) If the red light of the charging indicator flashes, the battery is not in place or
the contact is poor. Please re-install the battery until the indicator light is on (the
indicator light goes out when the battery is fully charged)
(2) The charging indicator light is off and the charger is not plugged in properly.
Please check whether the charger is connected normally.
(3) The ambient temperature is lower than 10℃, which may lead to slow charging
or failure to charge.
16
3. Camera crashes
Quickly pressing each button of the camera may cause the camera to freeze. After
it crashes, unplug the battery and reboot.
Tip: When the camera is recording or taking pictures, do not quickly press the
camera button. Under normal circumstances, the camera will display a waiting
icon.
4. The memory card cannot be recognized:
(1) Please check whether the memory card complies with Micro SD card (class10),
(2) Please check whether the memory card is inserted backwards.
(3) When the memory card is used on the camera for the first time, it is
recommended to format it first.
Additional notes
(1)Do not insert any object into the slot except the memory card.
(2)After the power is turned on, the camera may show an unstable image about for
a few seconds, but this is not a fault.
(3)Due to the optical properties of the lens, there may be color dispersion
(magnification of chromatic aberration) at the edges of the image. This is not a
camera fault.
(4)It is normal for the memory card to get hot after a long period of use.
(5)It is normal for the camera’s screen to heat up after a long period of use.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment
The devices has been evaluated to meet general RF exposure requirementÿ the device can be used in portable exposure
condition without restriction
