Xindun WONDER2 MPPT Solar Regulator 12V 24V 48V 10A 20A 30A User Manual

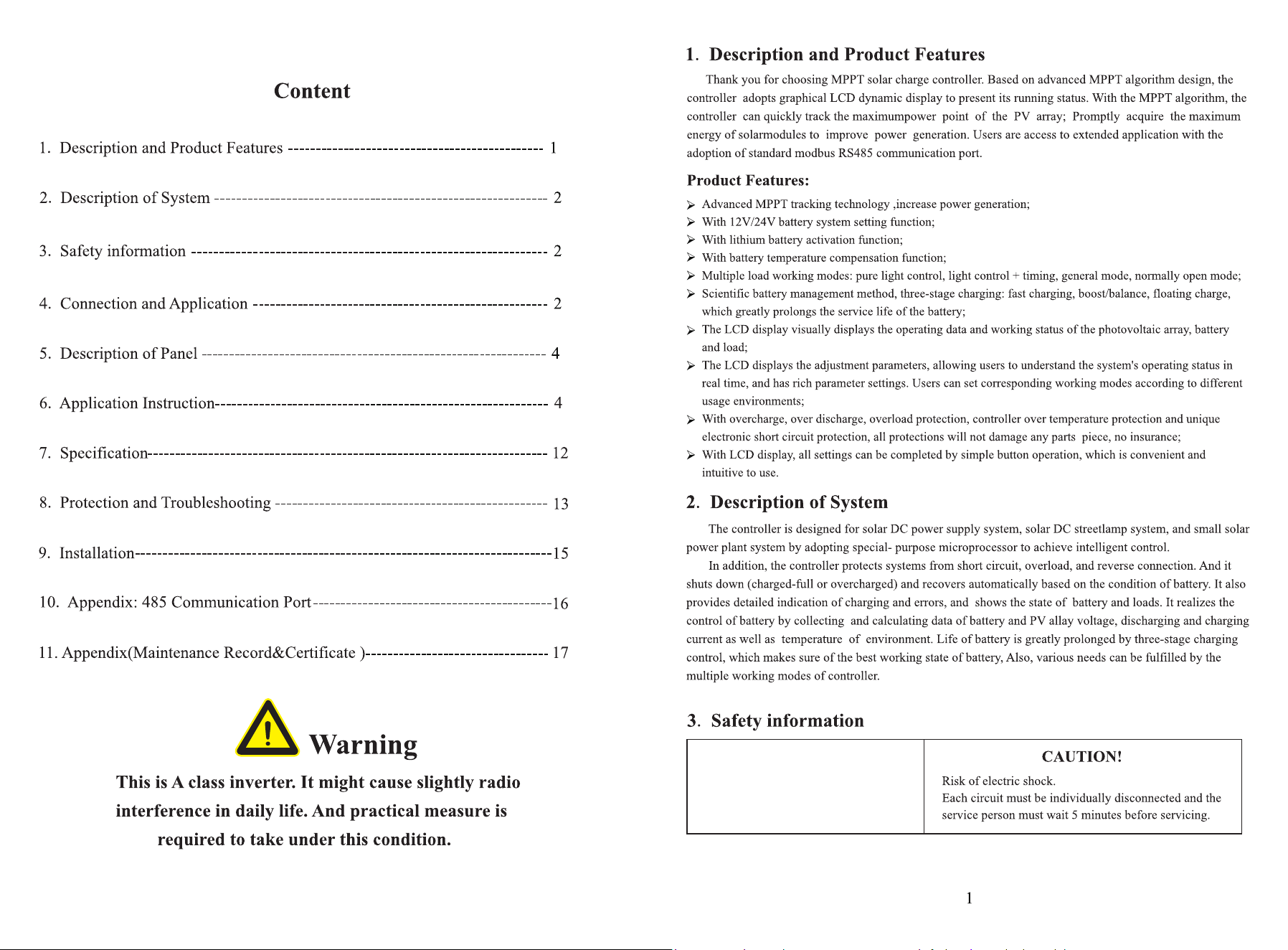

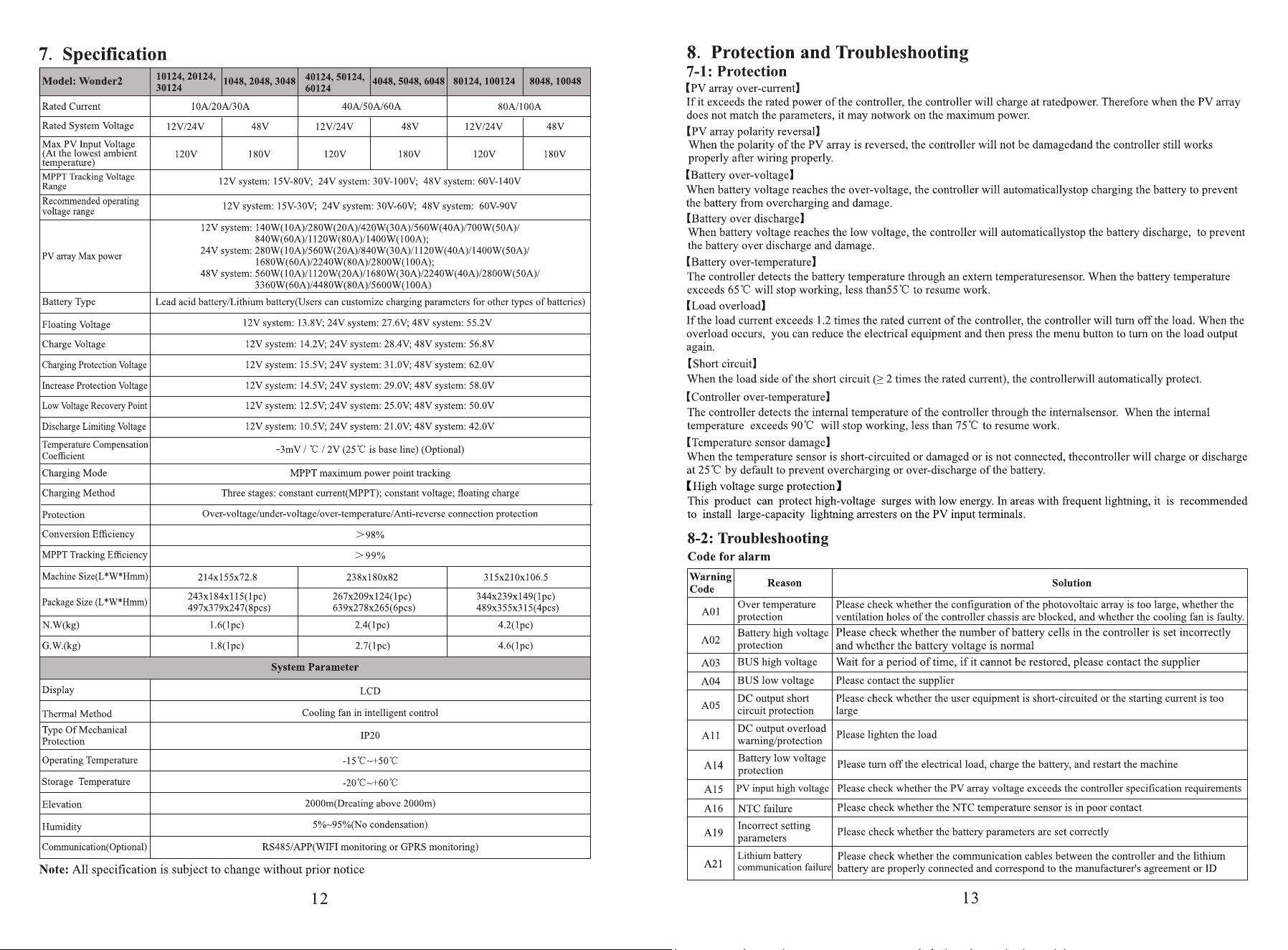

Specifications

Model: WONDER2

Rated Current: 10A/20A/30A

Rated System Voltage: 12V/24V

Max PV Input VoltageVoc At the lowest ambient temperature: 120V

MPPT Tracking Voltage Range: 12V system: 15V-80V; 24V system: 30V-100V; 48V system: 60V-140V

Recommended operating voltage range: 12V system: 15V-30V; 24V system: 30V-60V; 48V system: 60V-90V

PV array Max power: 12V system: 140W10A/280W20A/420W30A/560W40A/700W50A/840W60A/1120W80A/1400W100A; 24V system: 280W10A/560W20A/840W30A/1120W40A/1400W50A/1680W60A/2240W80A/2800W100A; 48V system: 560W10A/1120W20A/1680W30A/2240W40A/2800W50A/3360W60A/4480W80A/5600W100A

Battery Type: Lead acid battery/Lithium batteryUsers can customize charging parameters for other types of batteries

Floating Voltage: 13.8V/Single battery

Charge Voltage: 14.2V/Single battery

Charging Protection Voltage: 15V/Single battery

Promote recovery voltage: 13.8V/Single battery

Recovery voltage after low voltage disconnect: 12.5V/Single battery

Discharge Limited voltage: 10.5V/Single battery

Charging Method: Three stages: constant currentMPPT; constant voltage; floating charge

Temperature Compensation Coefficient: -3mV / ℃ / 2V 25℃ is base line Optional

Charging Mode: MPPT maximum power point tracking

Conversion Efficiency: >98%

MPPT Tracking Efficiency: >99%

Type Of Mechanical Protection: IP20

Operating Temperature: -15℃~+50℃

Storage Temperature: -20℃~+60℃

Humidity: 5%~95%No condensation

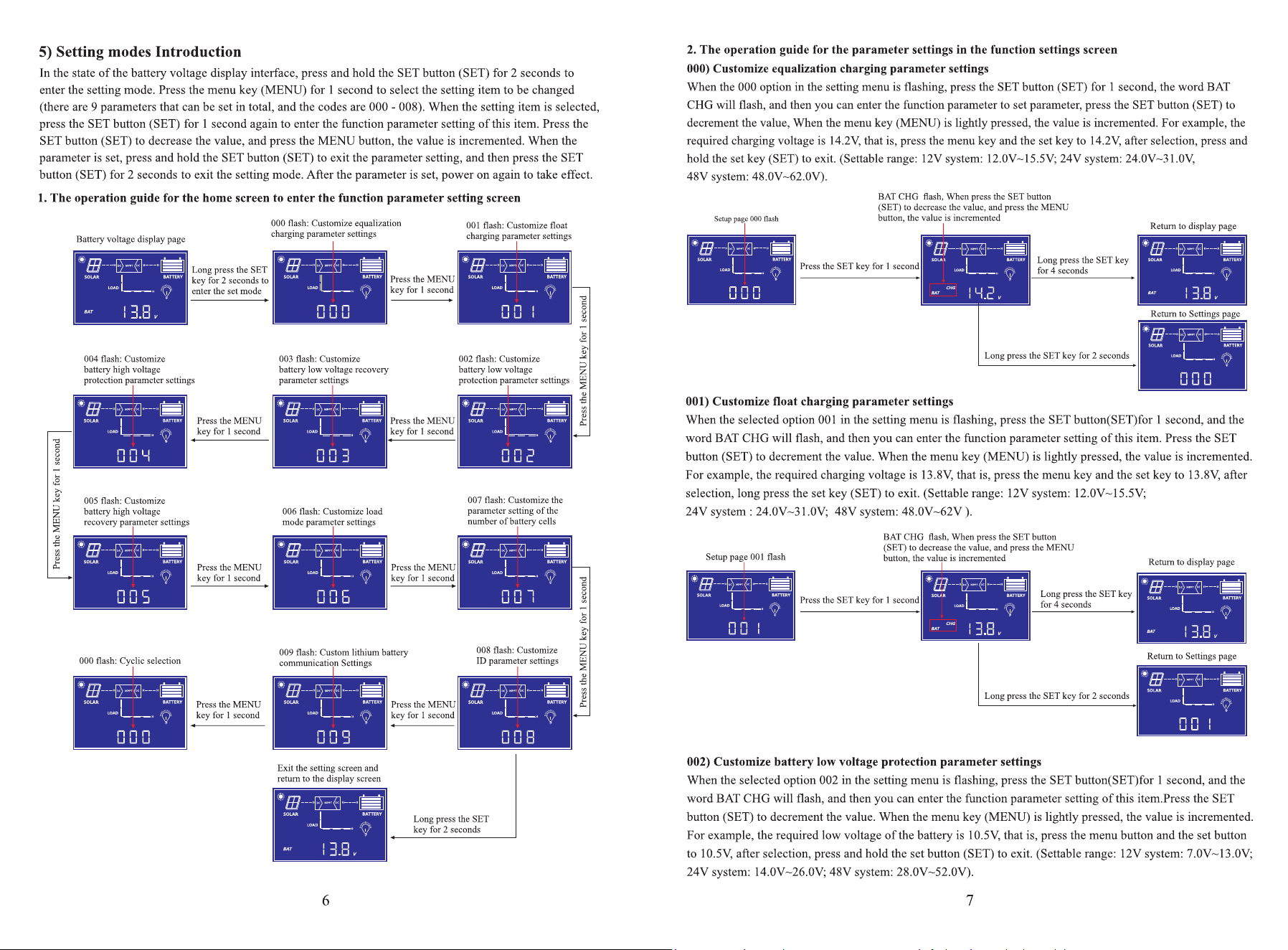

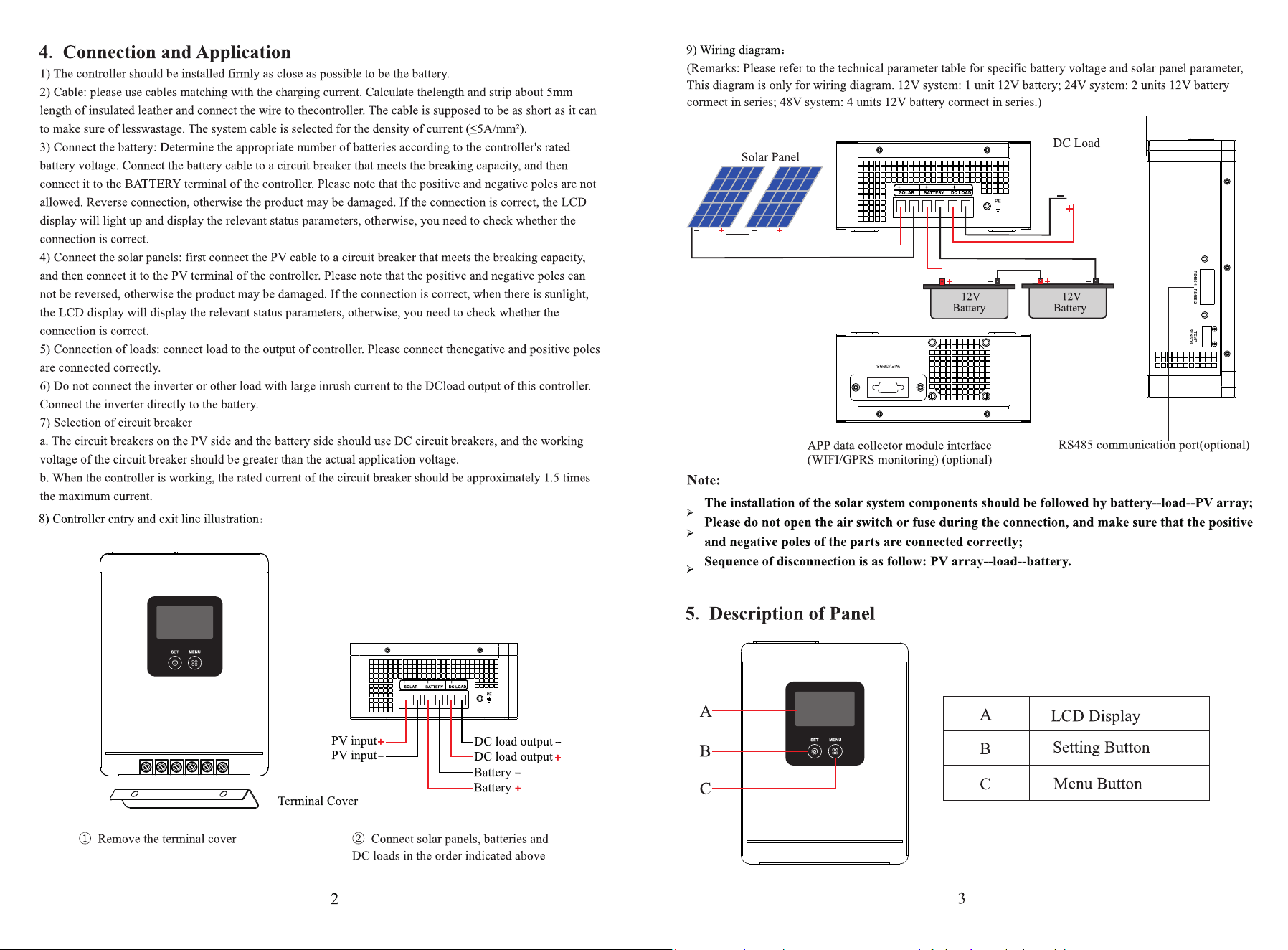

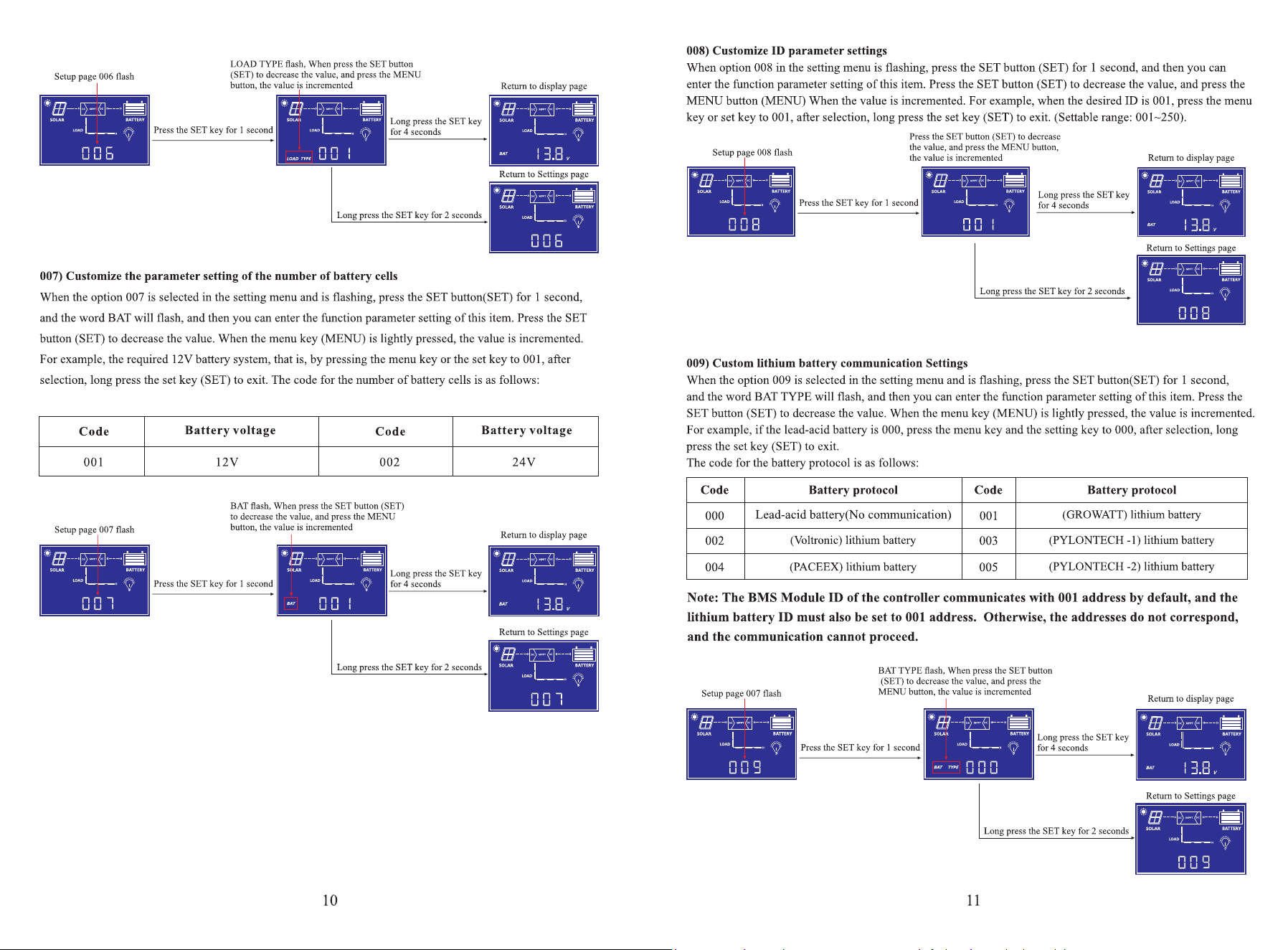

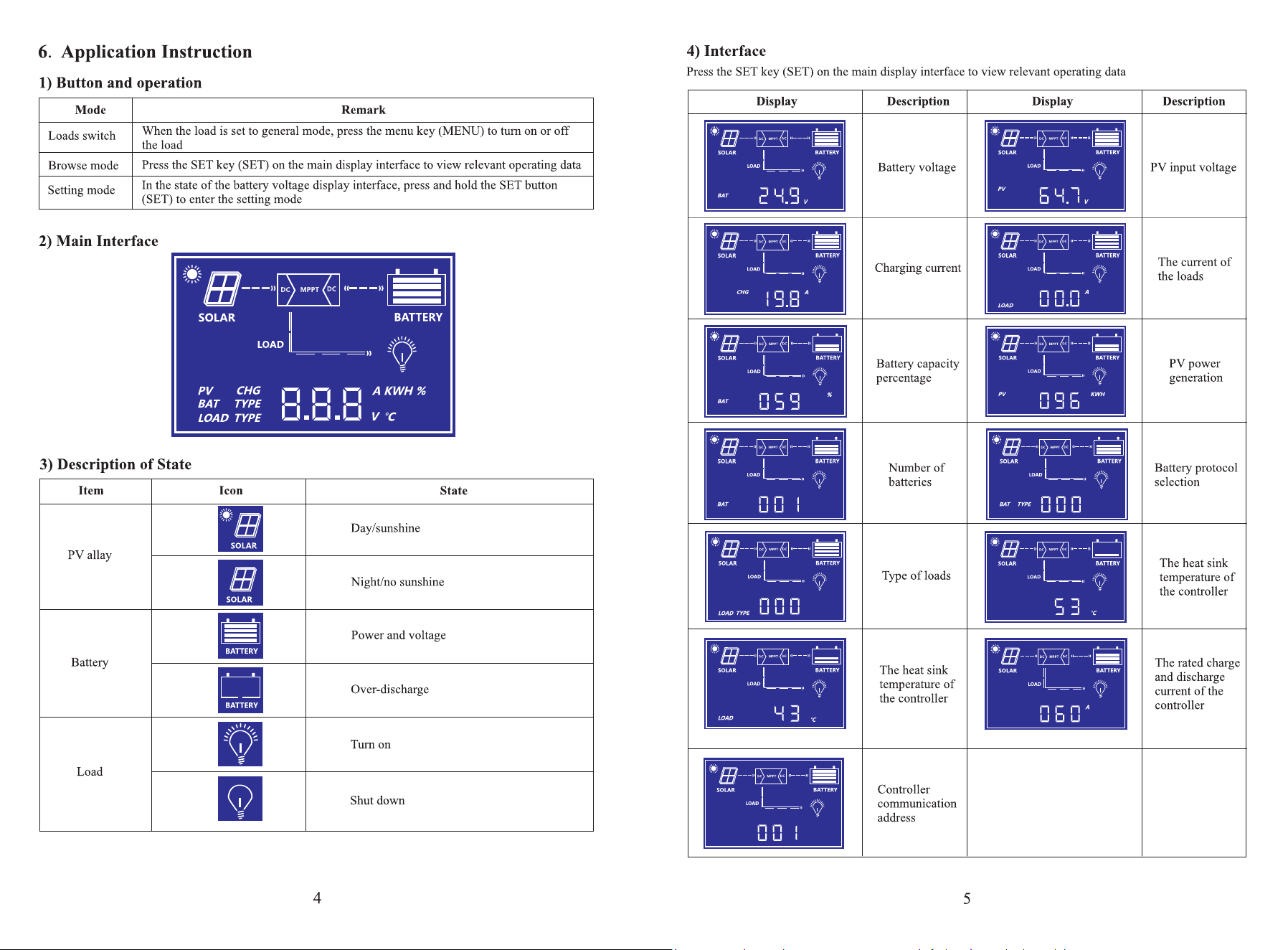

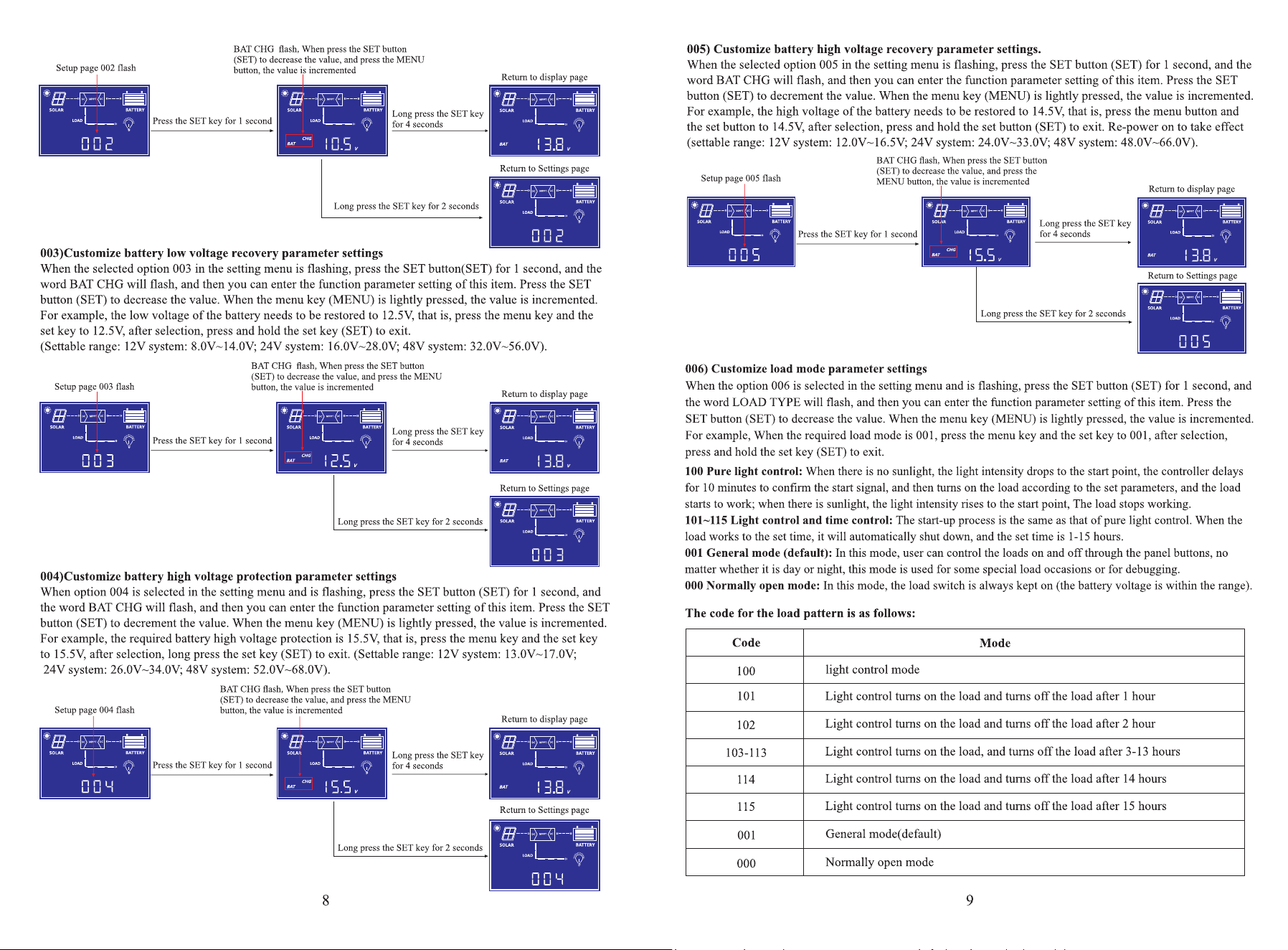

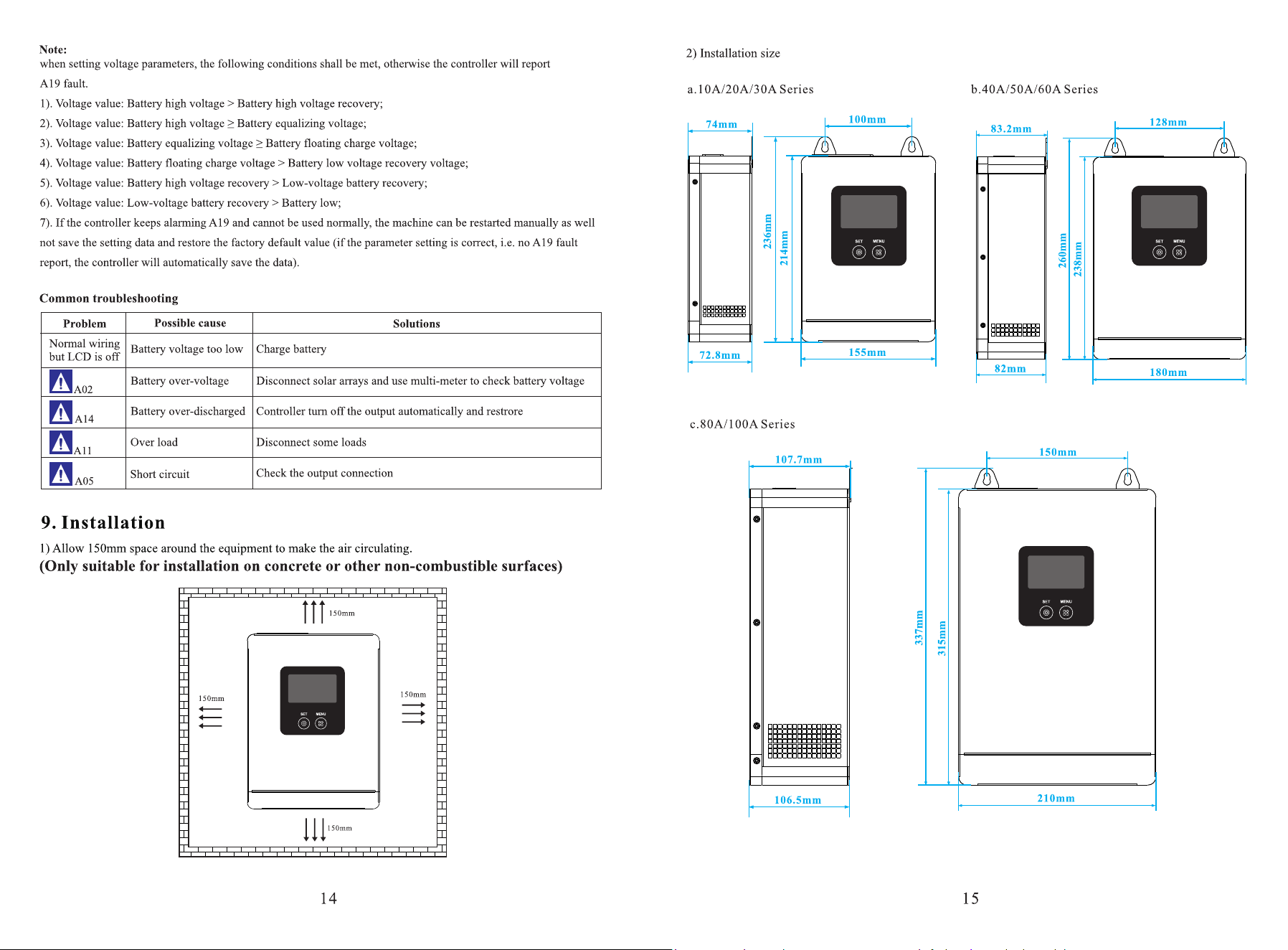

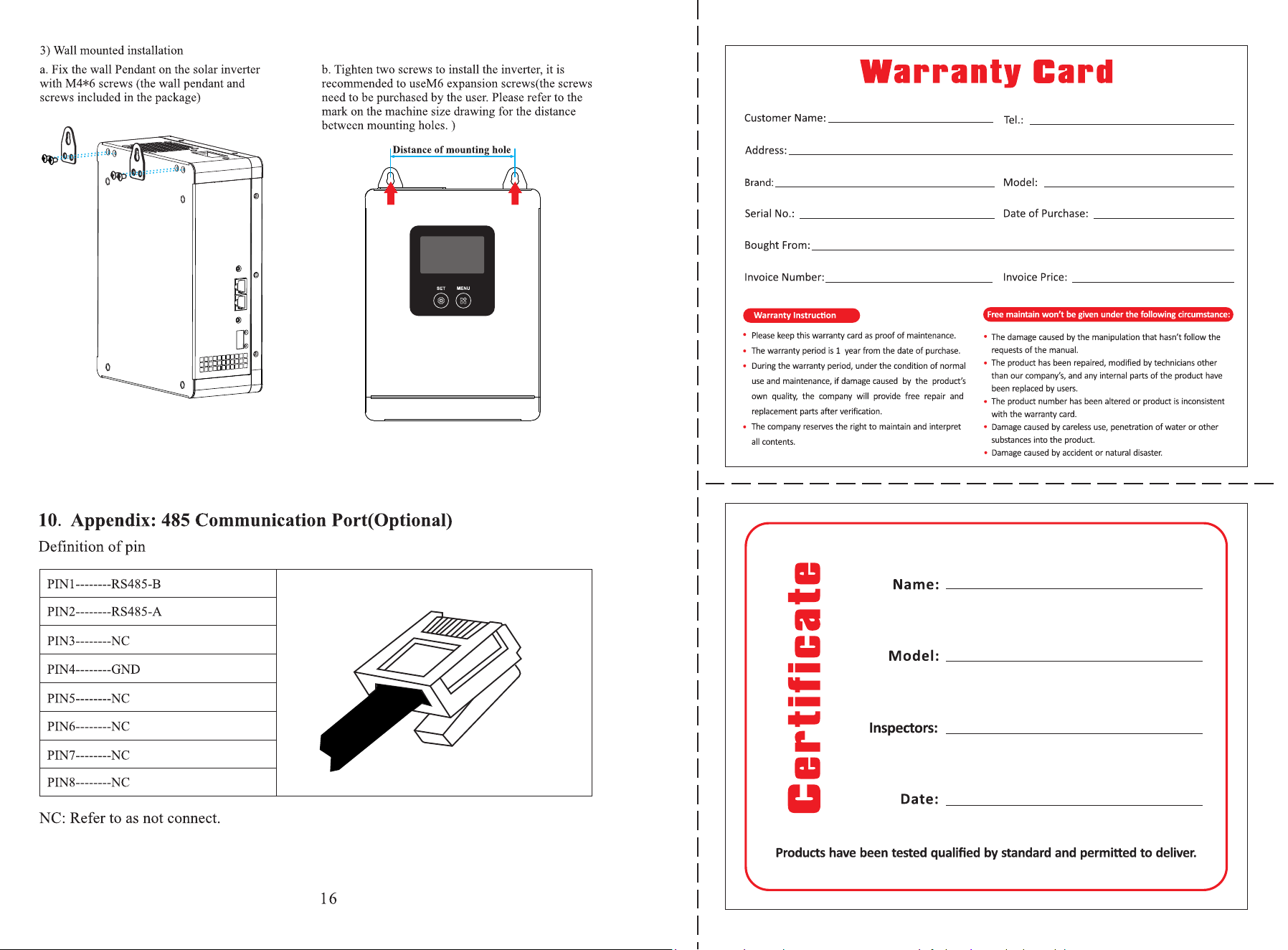

Machine SizeL*W*Hmm: 214*155*72.8

Package SizeL*W*Hmm: 243*184*115（1pc） 497*379*247 8pcs

Indexed Terms: MPPT Solar Charge Controller
