Xindun HDSX-T HDSX 3 Phase Hybrid Solar Inverter 3Kw 5Kw User Manual

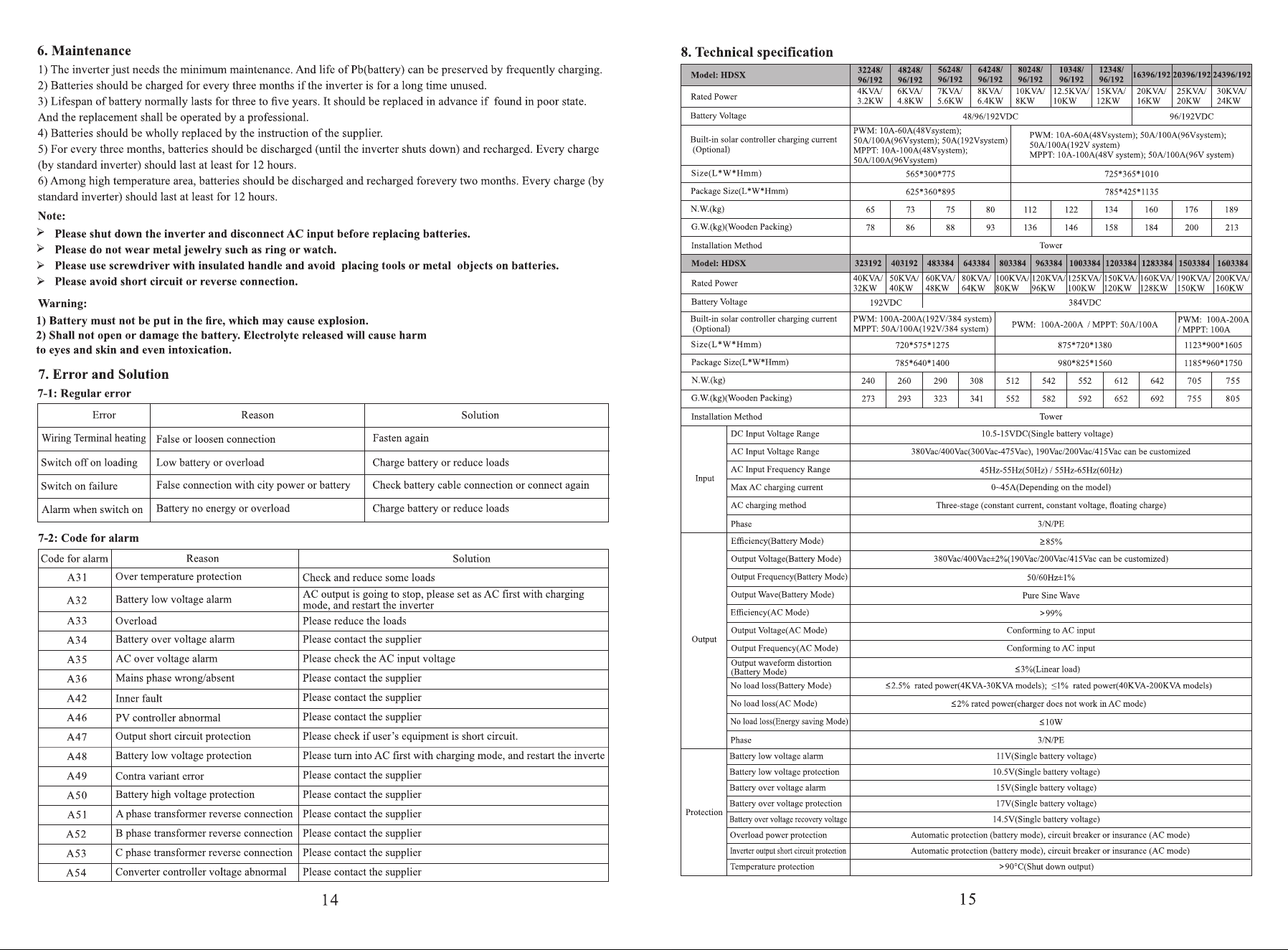

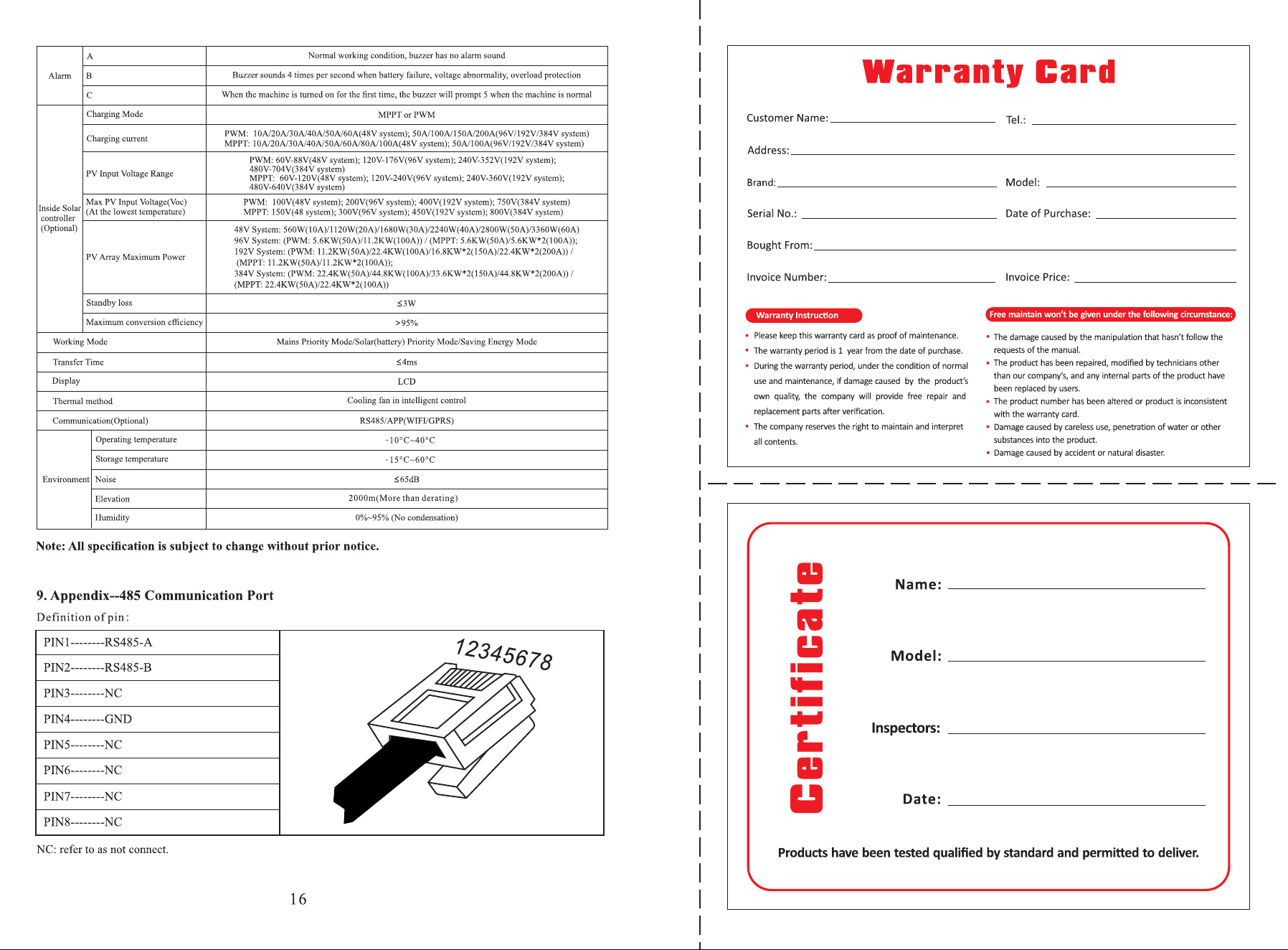

Specifications

Model: HDSX-T

Rated Power: 4KVA/3.2KW

Peak Power（20ms: 9.6KVA

Start Motor: 3HP

Battery Voltage: 48/96/192VDC

Built-in solar controller charging current Optional: PWM: 10A-60A（48V System; 50A/100A（96V System; 50A（192V System MPPT: 10A-100A（48V System; 50A/100A（96V System

AC Input Voltage Range: 380Vac/400Vac±10%customized 190Vac/200Vac

AC Input Frequency Range: 45Hz-55Hz（50Hz）/ 55Hz-65Hz（60Hz）

Max AC charging current: 0-45ADepending on the model）

AC charging method: Three-stage constant current, constant voltage, floating charge

Output VoltageBattery Mode: 380Vac/400Vac±2%customized 190Vac/200Vac

Output FrequencyBattery Mode: 50/60Hz ±1%

Output VoltageAC Mode: Conforming to AC input

Output FrequencyAC Mode: Conforming to AC input

Battery Type: VRLA Battery

Customize battery: Charging and discharging parameters of different types of batteries can be customized according to user requirements charging and discharging parameters of different types of batteries can be set through the operation panel

Battery undervoltage protection: 10.5V（Single battery voltage）

Battery overvoltage alarm: 15V（Single battery voltage）

Battery overvoltage protection: 17V（Single battery voltage）

Battery overvoltage recovery voltage: 14.5V（Single battery voltage）

Overload power protection: Automatic protection battery mode, circuit breaker or insurance AC mode

PV Input Voltage Range: PWM: 60V-88V48V System; 120V-176V96V System; 240V-352V192V System; 480V-704V384V System MPPT: 60V-120V48V System; 120V-240V96V System; 240V-360V192V System; 480V-640V384V System

Max PV Input VoltageVoc At the lowest temperature: PWM: 100V48V System; 200V96V System; 400V192V System; 750V384V System MPPT: 150V48V System; 300V96V System; 450V192V System; 800V384V System

PV Array Maximum Power: 48V System: 560W10A/1120W20A/1680W30A/2240W40A/2800W50A/3360W60A 96V System: PWM: 5.6KW50A/11.2KW100A / MPPT: 5.6KW50A/5.6KW*2100A; 192V System: PWM: 11.2KW50A/22.4KW100A/16.8KW*2150A/22.4KW*2200A / MPPT: 11.2KW50A/11.2KW*2100A; 384V System: PWM: 22.4KW50A/44.8KW100A/33.6KW*2150A/44.8KW*2200A / MPPT: 22.4KW50A/22.4KW*2100A

SizeL*W*Hmm: 565*300*775

Packing SizeL*W*Hmm: 625*360*895

Installation Method: Tower

Output WaveBattery Mode: Pure Sine Wave

EfficiencyAC Mode: >99%

No load lossBattery Mode: ≤2.5% rated power（4KVA-30KVA models）；≤1% rated power（40KVA-200KVA models）

No load lossAC Mode: ≤2%rated power（ charger does not work in AC mode）

No load lossEnergy saving Mode: ≤10W

Temperature protection: >90°C（Shut down output）

Maximum conversion efficiency: >95%

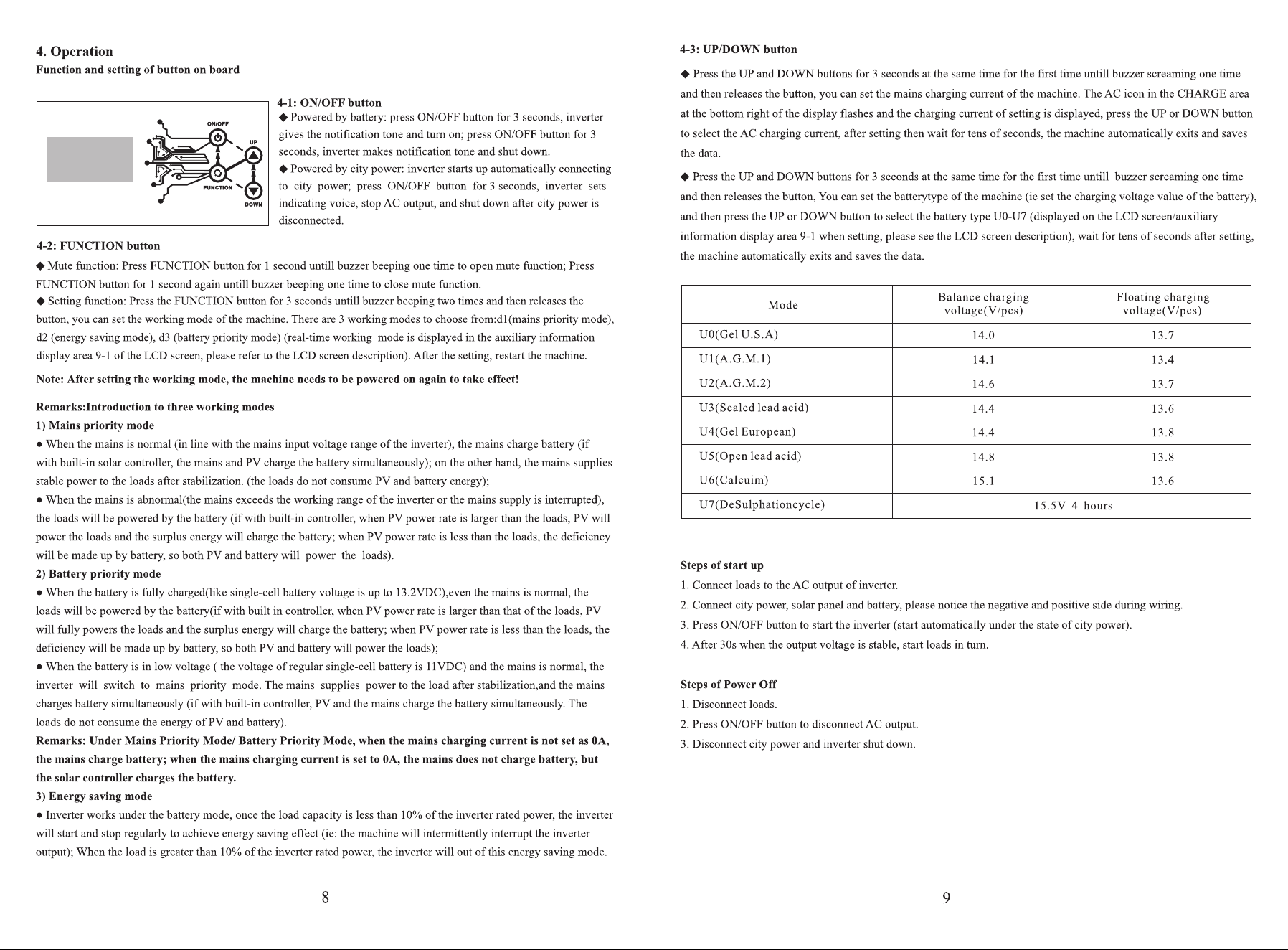

Working Mode: Battery First/AC First/Saving Energy Mode

Transfer Time: ≤4ms

Storage temperature: -15℃~60℃

Noise: 2000m（More than derating）

Humidity: 0%~95% ,No condensation
