48-59-1809
M18™ PACKOUT™ SIX BAY RAPID CHARGER
Mar. 2025
PN0001531
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
M76B
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

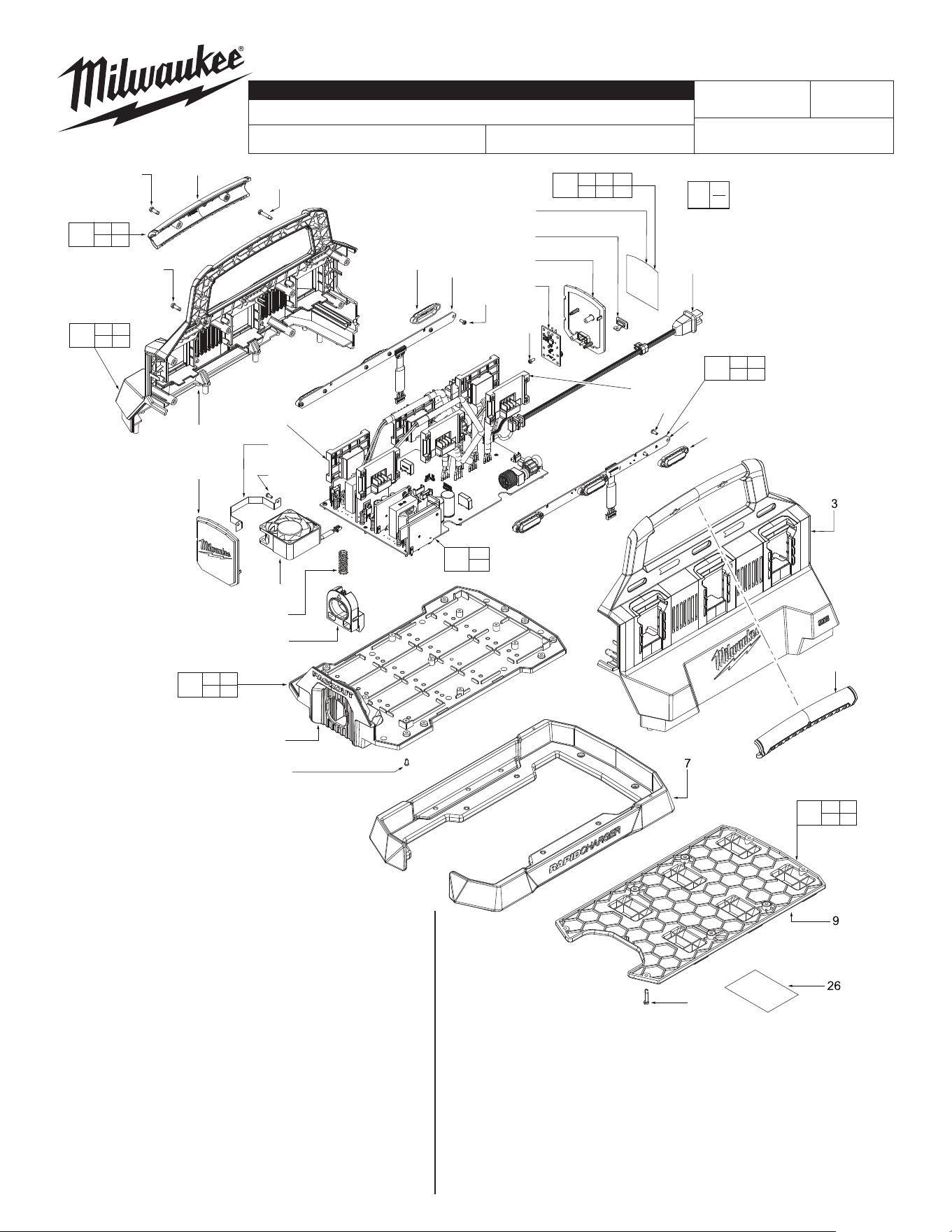

Drwg. 1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 23-28-0026 LED Lens (6)
2 22-68-0305 Rubber Cover (1)
3 --------------- Top Housing Left (1)
4 --------------- Top Housing Right (1)
5 43-84-1055 Back Badge (1)
6 43-84-0034 Front Badge (1)
7 28-06-0032 Base (1)
8 31-50-0074 Bottom Housing (1)
9 --------------- Cleats (1)
10 22-64-0122 Power Cord Kit (1)
11 22-40-0175 Terminal Holder (1)
12 06-82-0027 M3 x 7mm PH T-10 Screw (25)
13 06-82-0011 M4 x 36mm PH T-20 Screw (15)
14 40-50-0391 Spring (1)
15 14-20-4015 PCBA (1)
16 05-74-0197 M4 x 12mm PH T-20 Screw (6)
17 22-80-0630 USB Board (1)
18 22-84-1020 Fan Assembly (1)
19 --------------- Handle Cover Right (1)
20 --------------- Handle Cover Left (1)
21 42-36-0088 Locker (1)
22 --------------- LED Board Left (1)
23 --------------- LED Board Right (1)
24 42-36-0089 Fan Bracket (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
25 10-20-9112 Service Nameplate (1)
26 12-25-0619 Warning Label (1)
27 31-44-0274 Handle Grip Kit (1)
28 14-20-4020 USB PCBA Kit (1)
29 31-44-0308 Top Housing Kit (1)
30 45-58-0286 Packout Cleat Kit (1)
31 31-76-0024 Packout Locker Kit (1)
32 14-20-4025 Main PCBA Service Kit (1)
33 22-09-0114 LED Board Kit (1)
SERIAL NO.
= Part number change from
previous service parts list.
