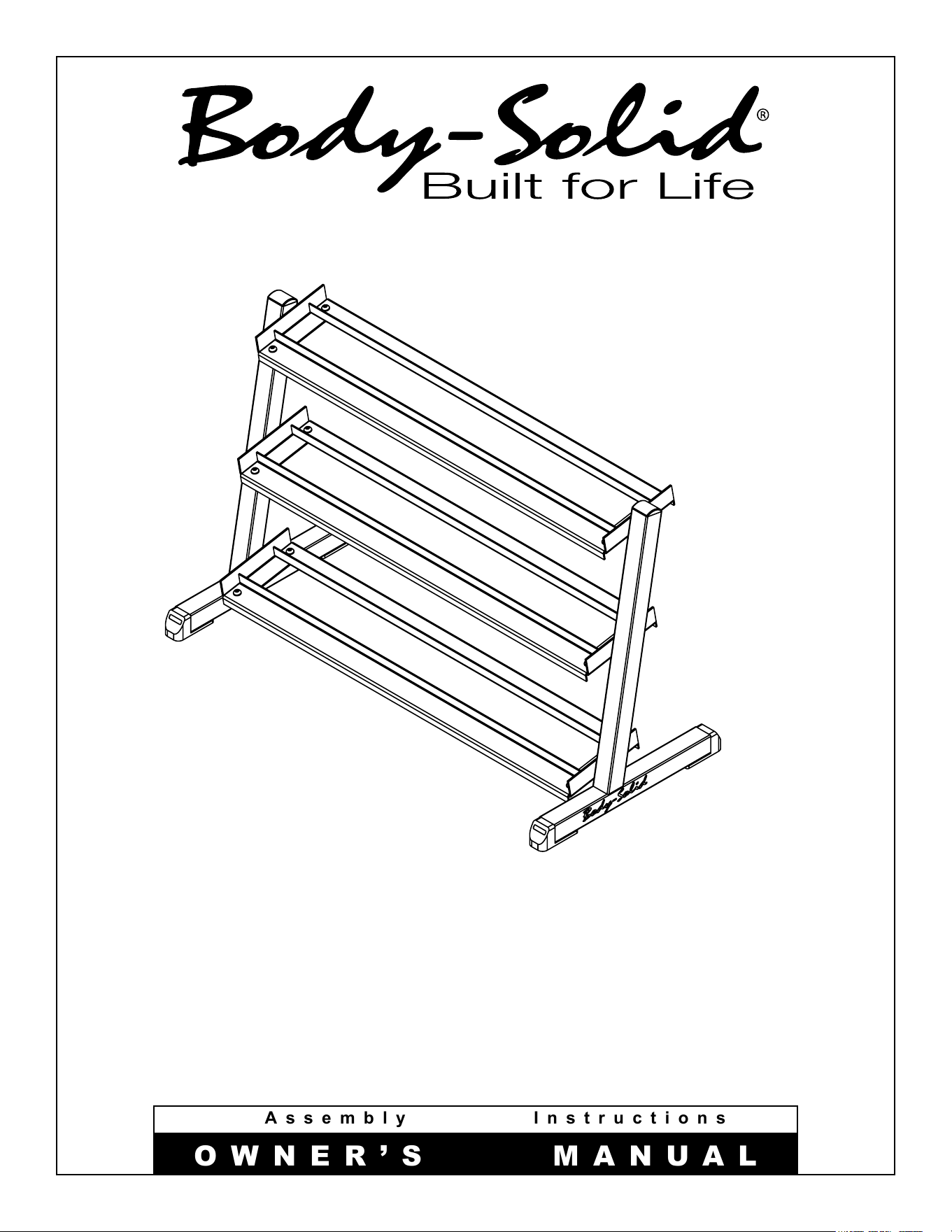

Body-Solid GDR48B 3-Tier Dumbbell Rack User Manual

Assembly Instructions

OWNER’S MANUAL

V. GDR48-190604

GDR48

Warning, Safety & Maintenance

Be sure that all users carefully read and understand all

warning, safety and maintenance labels on the machine

before each use. Failure to do so may result in death or

serious injury.

It is imperative that you retain this Owner’s Manual and be

sure all warning labels are legible and intact. Replacement

Owner’s Manuals and warning labels are available from your

local Body-Solid dealer.

If you have any questions about the operation, set up or

maintenance of this machine please call our customer service

department at 1 (800) 556-3113.



#DWRULE-4

Table of Contents

• SAFETY INSTRUCTIONS.............................. PAGE 4

• PREPARATION............................................... PAGE 5

• HARDWARE ILLUSTRATION......................... PAGE 6

• PART / HARDWARE LIST............................... PAGE 7

• ASSEMBLY INSTRUCTIONS......................... PAGE 8

• EXPLODED VIEW.......................................... PAGE 13

• CONTACT PAGE............................................ PAGE 14

Important Safety Instructions

Beforebeginninganytnessprogram,youshouldobtainacompletephysicalexaminationfromyourphysician.

Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.

Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.

Antes de comenzar cualquier programma de ejercicios, deberias tener un examen sico con su doctor.

When using exercise equipment, you

should always take basic precautions,

including the following:

m ReadallinstructionsbeforeusingtheGDR48.

Theseinstructionsarewrittentoensureyoursafety

andtoprotecttheunit.

m Do not remove any safety labels from the

machine.

m Donotallowchildrenonorneartheequipment.

m Usetheequipmentonlyforitsintendedpurpose

asdescribedinthisguide.Donotuseaccessory

attachmentsthatarenotrecommendedbythe

manufacturer.Suchattachmentsmightcause

injuries.

m Wearproperexerciseclothingandshoesforyour

workout,nolooseclothing.

m Keephands,limbs,looseclothing,andlonghairwell

outofthewayofallmovingparts.

m Usecarewhengettingonoro󰀨theunit.

m Donotoverexertyourselforworktoexhaustion.

m Ifyoufeelanypainorabnormalsymptoms,stop

yourworkoutimmediatelyandconsultyour

physician.

m Neveroperateunitwhenithasbeendroppedor

damaged.Returntheequipmenttoaservice

centerforexaminationandrepair.

m Neverdroporinsertobjectsintoanyopeningin

theequipment.

m Alwayschecktheunitanditscablesbeforeeach

use.Makesurethatallfastenersandcablesare

secureandingoodworkingcondition.

m Donotusetheequipmentoutdoorsornearwater.

Personal Safety During Assembly

m Beforebeginningassembly,pleasetakethetime

toreadtheinstructionsthoroughly.

m Readeachstepintheassemblyinstructionsand

followthestepsinsequence.Donotskipahead.

Ifyouskipahead,youmaylearnlaterthatyou

havetodisassemblecomponentsandthatyou

mayhavedamagedtheequipment.

m Assembleandoperatethe GDR48onasolid,

levelsurface.Locatetheunitafewfeetfromthe

wallsorfurnituretoprovideeasyaccess.

TheGDR48 isdesignedforyourenjoyment.By

followingtheseprecautionsandusingcommonsense,

youwillhavemanysafeandpleasurablehoursof

healthfulexercisewithyourProClubLine3 Tiers 48”

Dumbbell Rack.

Afterassembly,youshouldcheckallfunctionsto

ensurecorrectoperation.Ifyouexperienceproblems,

rstrechecktheassemblyinstructionstolocateany

possibleerrorsmadeduringassembly.Ifyouareunable

tocorrecttheproblem,callthedealerfromwhomyou

purchasedthemachineorcall1-800-556-3113forthe

dealernearestyou.

Obtaining Service

PleaseusethisOwner’sManualtomakesurethatall

partshavebeenincludedinyourshipment.When

orderingparts,youmustusethepartnumberand

descriptionfromthisOwner’sManual.Useonly

Body-Solidreplacementpartswhenservicingthis

machine.Failuretodosowillvoidyourwarrantyand

couldresultinpersonalinjury.

Forinformationaboutproductoperationorservice,

checkouttheo󰀩cialBody-Solidwebsiteat

www.bodysolid.comorcontactanauthorized

Body-SoliddealeroraBody-Solidfactory-authorized

servicecompanyorcontactBody-Solidcustomer

serviceatoneofthefollowing:

Toll Free: 1-800-556-3113

Phone: 1-708-427-3555

Fax: 1-708-427-3556

Hours: M-F 8:30-5:00 CST

E-Mail: [email protected]

Or write to: Body-Solid, Inc.

Service Department

1900 S. Des Plaines Ave.

Forest Park, IL 60130 USA

Retain this Owner’s Manual for future

reference. If you need to order replacement

parts please be prepared to provide the

following information when contacting us so

that we can assist you better.

1. Model Number

2. Place of Purchase

3. Serial Number (S/N)

4. Part # and Description

Preparation

ThankyouforpurchasingtheGDR48.ThisProductispartoftheBody-Solidlineofqualitystrengthtraining

machines,whichletsyoutargetspecicmusclegroupstoachievebettermuscletoneandoverallbody

conditioning. To maximize your use of the equipment please study this Owner’sManual thoroughly.

Body-Solidcontinuallyseekswaystoimprovetheperformance,specicationsandproductmanualsinordertoensurethatonly

superiorproductsarereleasedfromourfactories.Pleasetakethetimetocarefullyreadthroughthismanualthoroughly.Instructions

containedinthisdocumentarenotintendedtocoveralldetailsorvariationspossiblewithBody-Solidequipment,ortocoverevery

contingencythatmaybemetinconjunctionwithinstallation,operation,maintenanceortroubleshootingoftheequipment.Even

thoughwehavepreparedthismanualwithextremecare,neitherthepublishernortheauthorcanacceptresponsibilityforanyerrors

in,oromissionfrom,theinformationgiven.Shouldadditionalinformationberequired,orshouldsituationsarisethatarenotcovered

bythismanual,themattershouldbedirectedtoyourlocalBody-Solidrepresentative,ortheServiceDepartmentatBody-SolidInc.

inForestPark,Illinois.

Required Tools

Thebasictoolsthatyoumustobtainbeforeassembling

theGDR48includebutarenotlimitedto:

m StandardWrenchSet

m MetricWrenchSet

m AdjustableWrench

Installation Requirements

Followtheseinstallationrequirementswhenassembling

theGDR48:

SetuptheGDR48onasolid,atsurface.Asmooth,

atsurfaceunderthemachinehelpskeepitlevel.A

levelmachinehasfewermalfunctions.

Provideamplespacearoundthemachine.Open

spacearoundthemachineallowsforeasieraccess.

Insertallboltsinthesamedirection.Foraesthetic

purposes,insertallboltsinthesamedirectionunless

specied(intextorillustrations)todootherwise.

Leaveroomforadjustments.Tightenfastenerssuchas

bolts,nuts,andscrewssotheunitisstable,butleave

roomforadjustments.Donotfullytightenfasteners

untilinstructedintheassemblystepstodoso.

Fill out and mail the warranty card.

Assembly Tips

Readall“Notes”oneachpagebeforebeginningeach

step.

WhileyoumaybeabletoassembletheGDR48usingthe

illustrationsonly,importantsafetynotesandothertips

areincludedinthetext.

Somepiecesmayhaveextraholesthatyouwillnotuse.

Useonlythoseholesindicatedintheinstructionsand

illustrations.

NOTE: Withsomanyassembledparts,proper

 alignmentandadjustmentiscritical.While

 tighteningthenutsandbolts,besuretoleave

 roomforadjustments.

CAUTION: Obtainassistance!Ifyoufeellikeyoucan’t

 assembletheGDR48byyourselfthendo

 notattempttodosoasthiscouldresultin 

 injury.Reviewtheinstallationrequirements 

 beforeproceedingwiththefollowingsteps.

YourS/N#can

befoundhere

↑

GDR48 Hardware Illustration

Part#2  FLATWASHERM10      QTY.24

Part#1  BUTTONHEADCAPSCREWM10x20mm   QTY.12

Part#3  NYLONLOCKNUTM10      QTY.12





























































































































































































































































































































































































GDR48 Parts &Hardware List

Part# Qty Description

LEFT UPRIGHT

RIGHT UPRIGHT

BRACKET

M10x20mmBUTTONHEADCAPSCREW

M10 FLAT WASHER

M10 NYLON LOCK NUT

TOP CAP

FOOT CAP

STEP

Be careful to assemble all components

in the sequence they are presented.

NOTE:

Wrench tighten ALL hardware at the end of STEP 1A. Some components may be

pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench

tighten to fully go on.

1A. AttachBrackets(C)tobothUprights(A & B)using:

12 - (#1) M10x20mm Button Head Cap Screw

24 - (#2) M10 Flat Washer

12 - (#3) M10 Nylon Lock Nut

STEP

AboveshowsStep1assembledandcompleted.

STEP

Be careful to assemble all components

in the sequence they are presented.

2A. InserttwoTopCaps(#4)intotheUprights(A & B).

2B. InsertfourFootCaps(#4)intotheUprights(A & B).

STEP

AboveshowsStep2assembledandcompleted.

Notes

GDR48 Exploded View

1900S.DesPlainesAve.

ForestPark,IL60130

Phone:(708)427-3555

Fax:(708)427-3556

Hours:M-F8:30-5:00CST

www.bodysolid.com

PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW

S/N#009547-��-��-��-��

GDR48

Body-Solid GDR48B 3-Tier Dumbbell Rack
