1
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Installation Manual
Installation and Appliance Setup
NOTICE: DO NOT discard this manual!
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer’s
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certied kit is used.
• DO NOT store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
Models:
JASPER30IN
CAUTION! Risk of Fire! DO NOT store instruction manuals inside replace cavity. High temperatures
could cause a re.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
2
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Table of Contents
Installation Standard Work Checklist .................... 3
1 Product Specic and Important Safety Information
A. Appliance Certication ............................4
B. Glass Specications .............................. 4
C. BTU Specications ............................... 4
D. High Altitude Installations .......................... 4
E. Non-Combustible Materials Specication. . . . . . . . . . . . . . 4
F. Combustible Materials Specication .................4
G. Electrical Codes ................................. 4
H. California ......................................4
2 Getting Started
A. Design and Installation Considerations ...............5
B. Good Faith Wall Surface ..........................7
C. Tools and Supplies Needed ........................7
D. Inspect Appliance and Components ..................7
3 Appliance / Fireplace Requirements and
Clearances

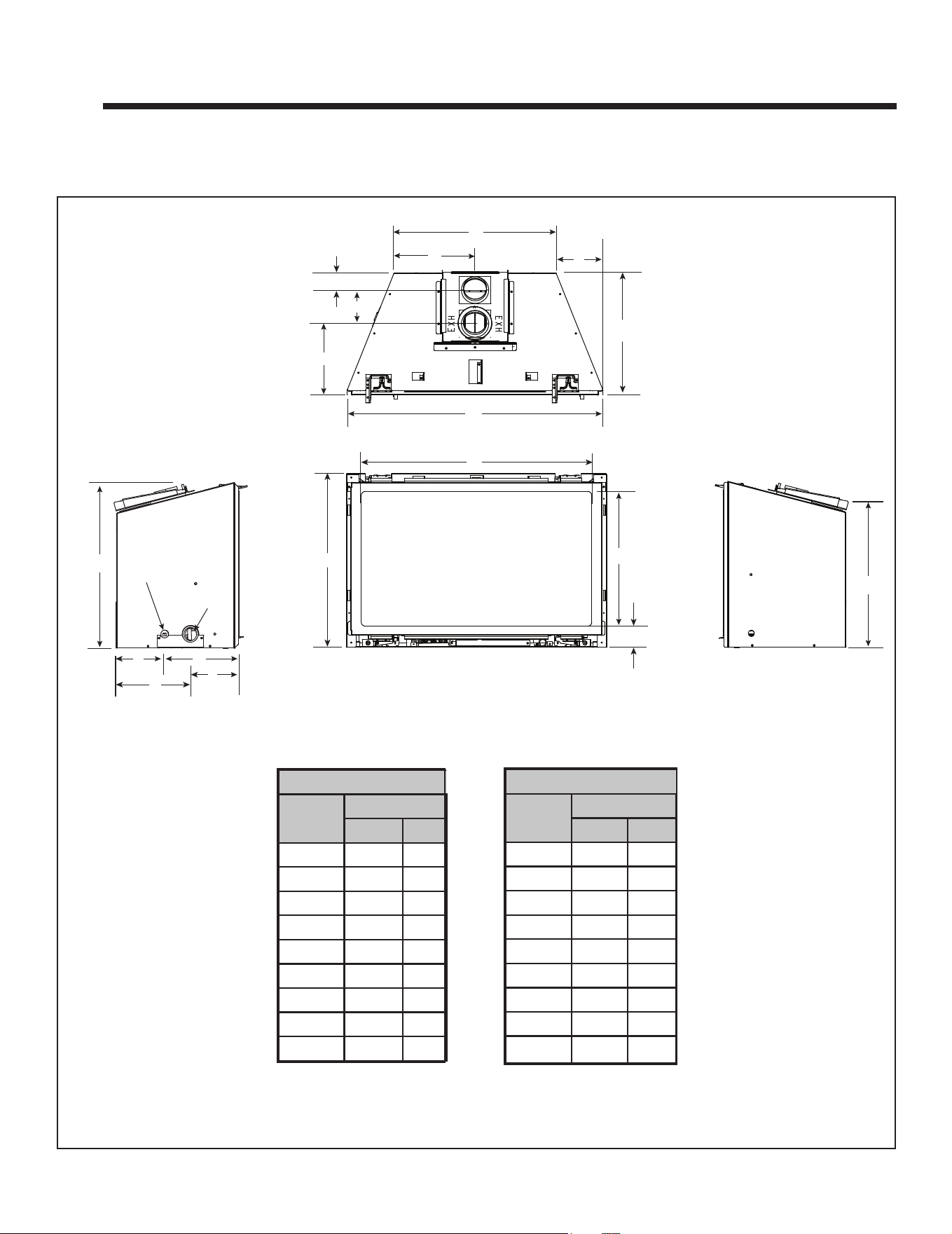

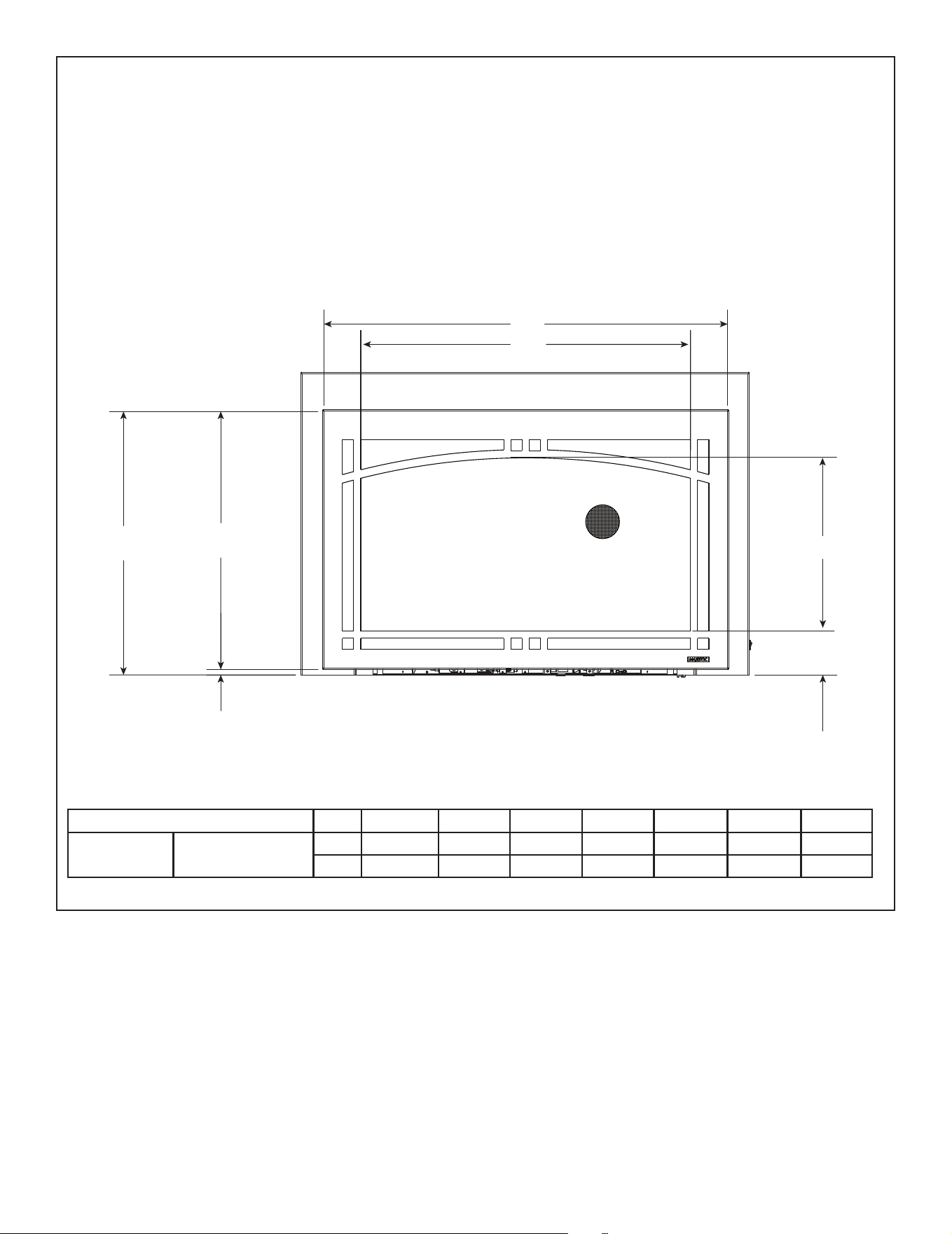

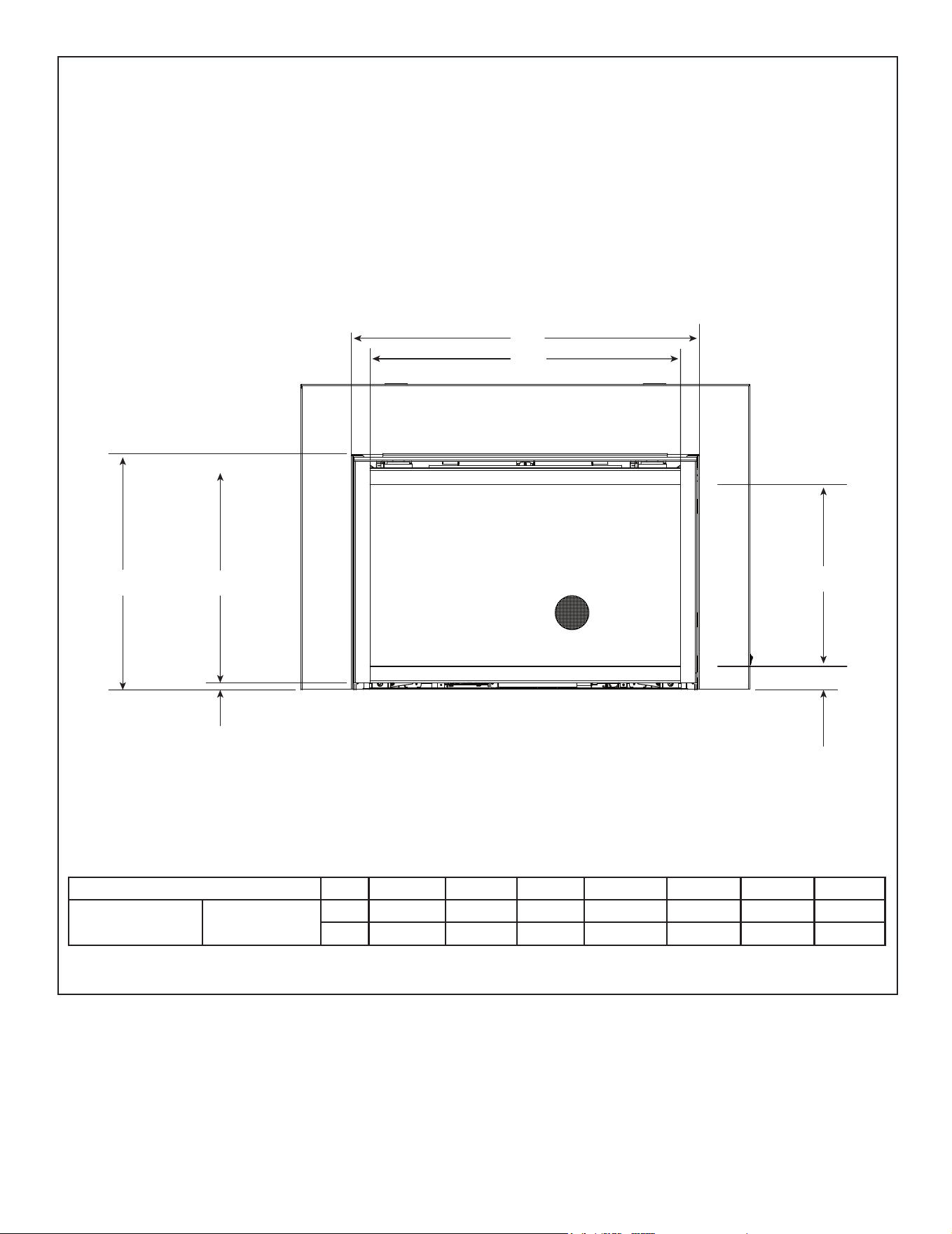

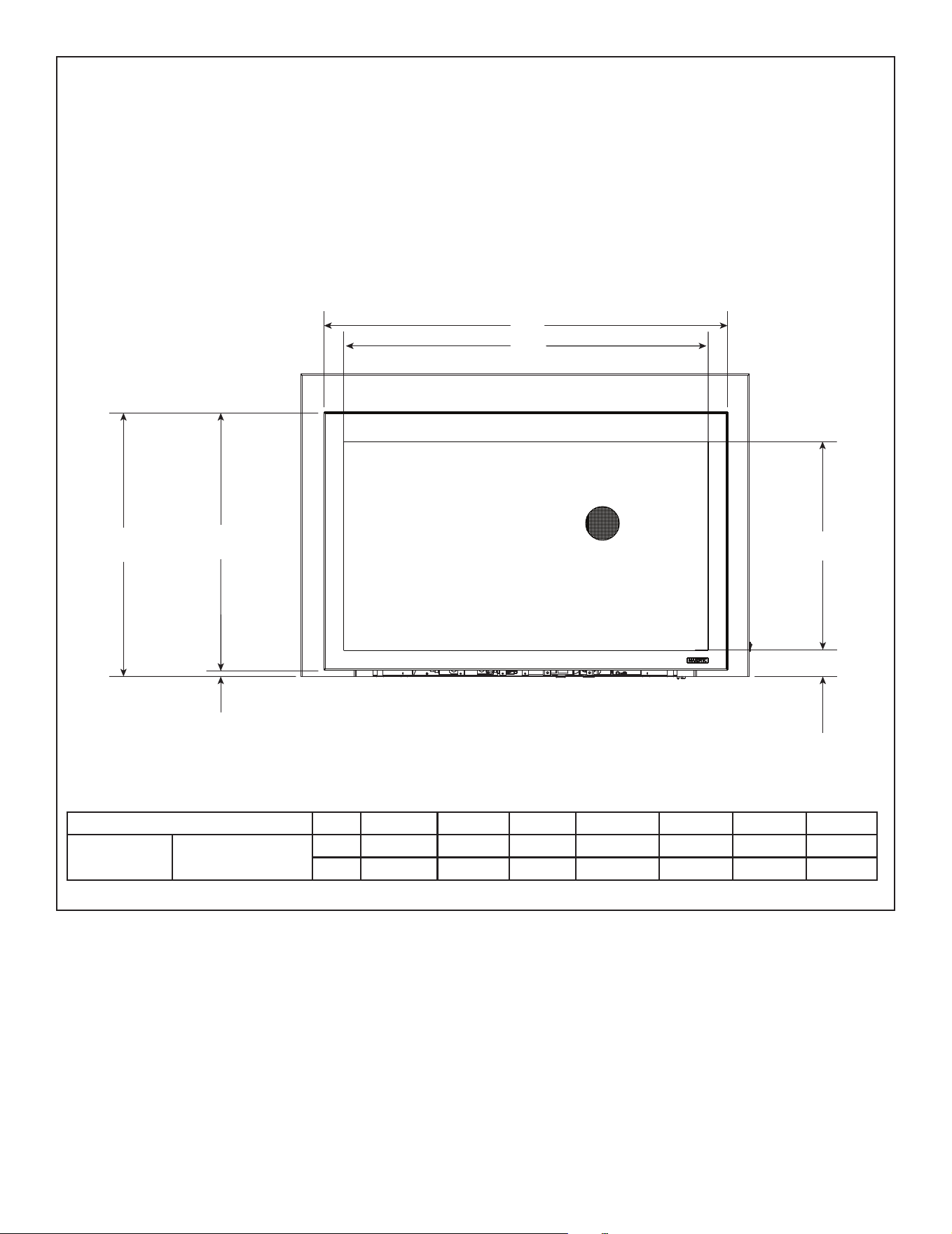

A. Appliance/Decorative Barrier Front Dimension Diagrams . 8
B. Minimum Fireplace Opening ......................12
C. Zero Clearance Wall Extension ....................14

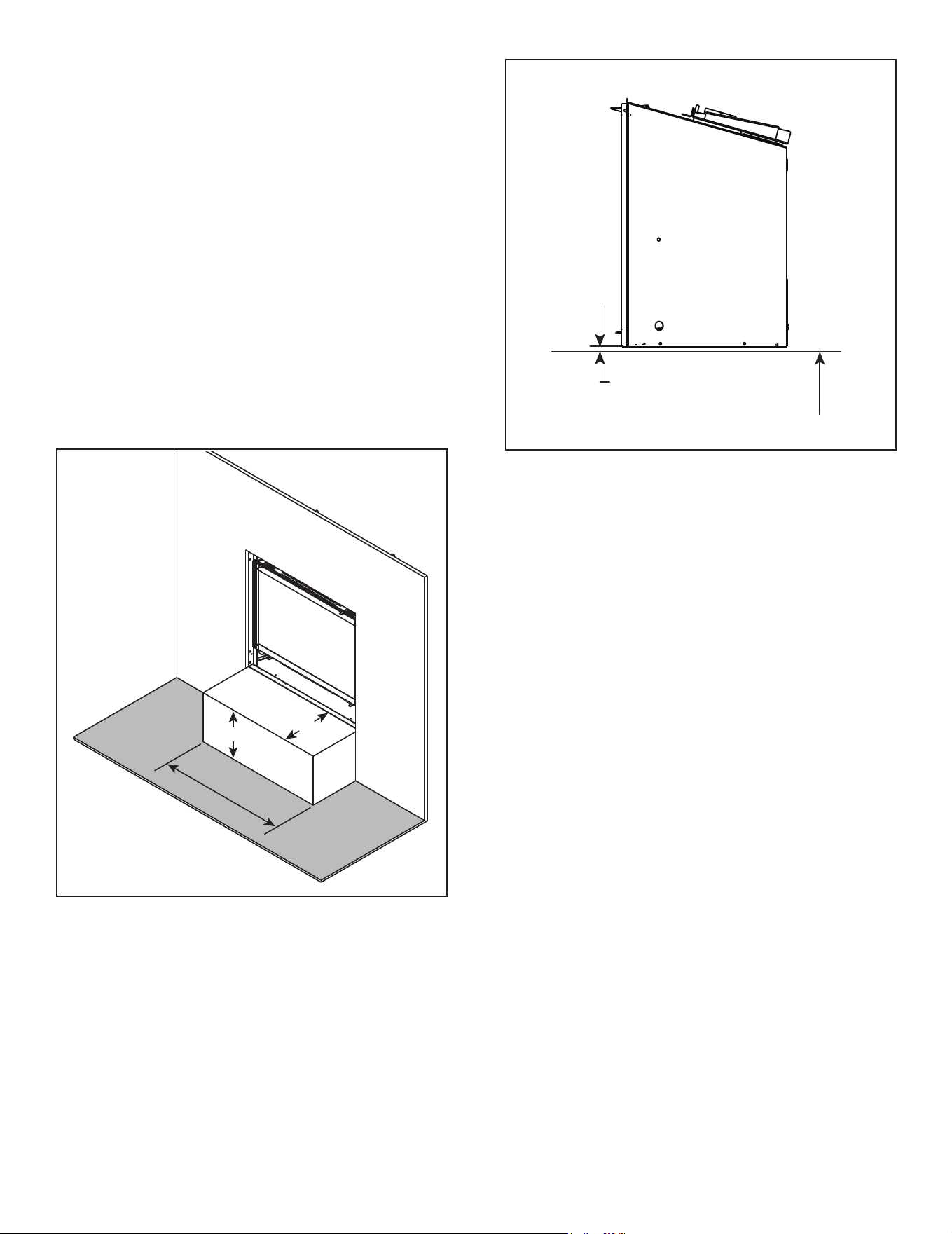

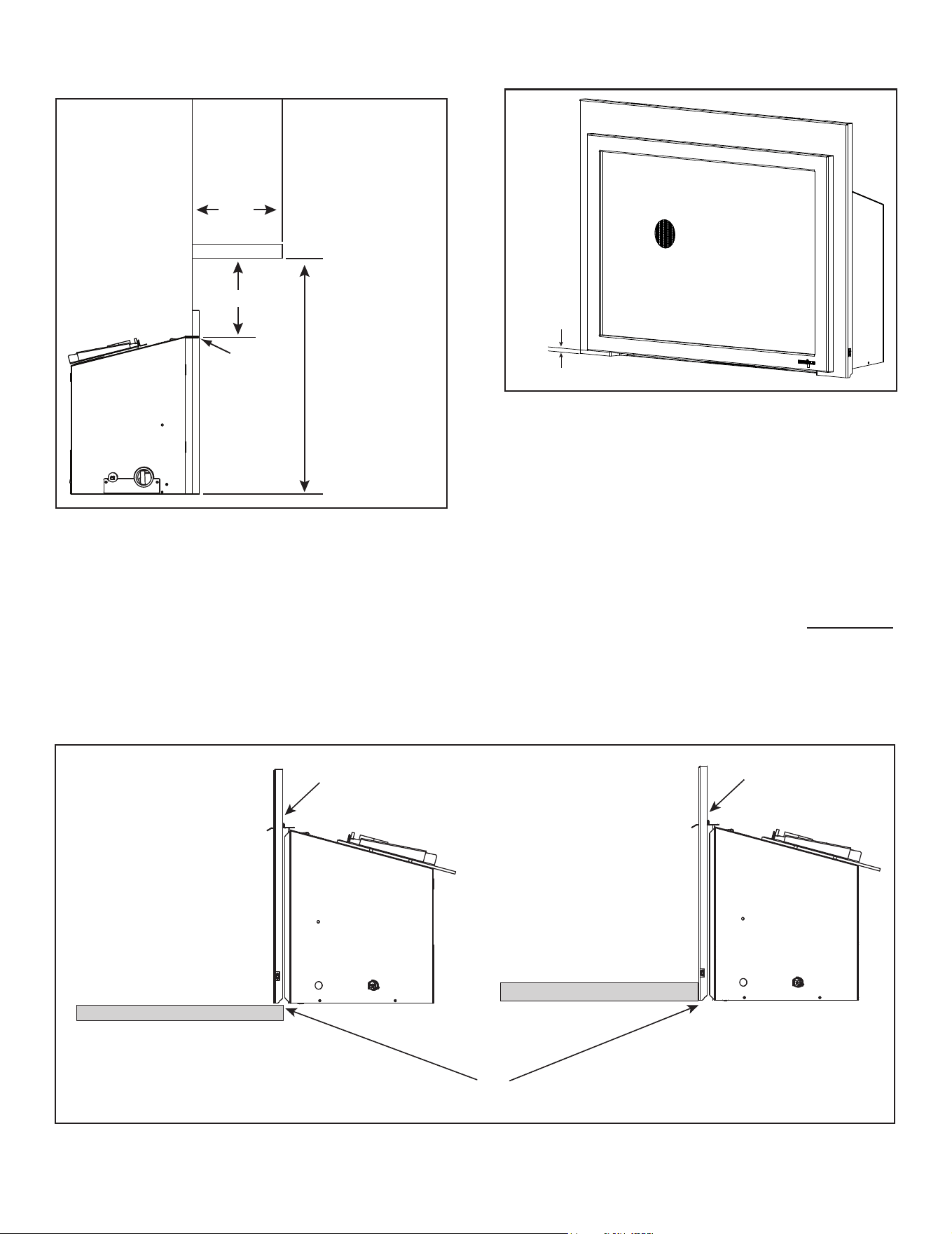

D. Mantel, Wall Projections, & Hearth Extensions ........16
E. Hearth Extension / Vinyl Flooring ................... 17
4 Installation Preparation
A. Cleaning ......................................19
B. Flue Damper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
C. Gas Line ...................................... 19
D. Fireplace Conversion Notice ......................19
E. Electrical Outlet Box ............................. 19
5 Installing Vent Pipe and Appliance

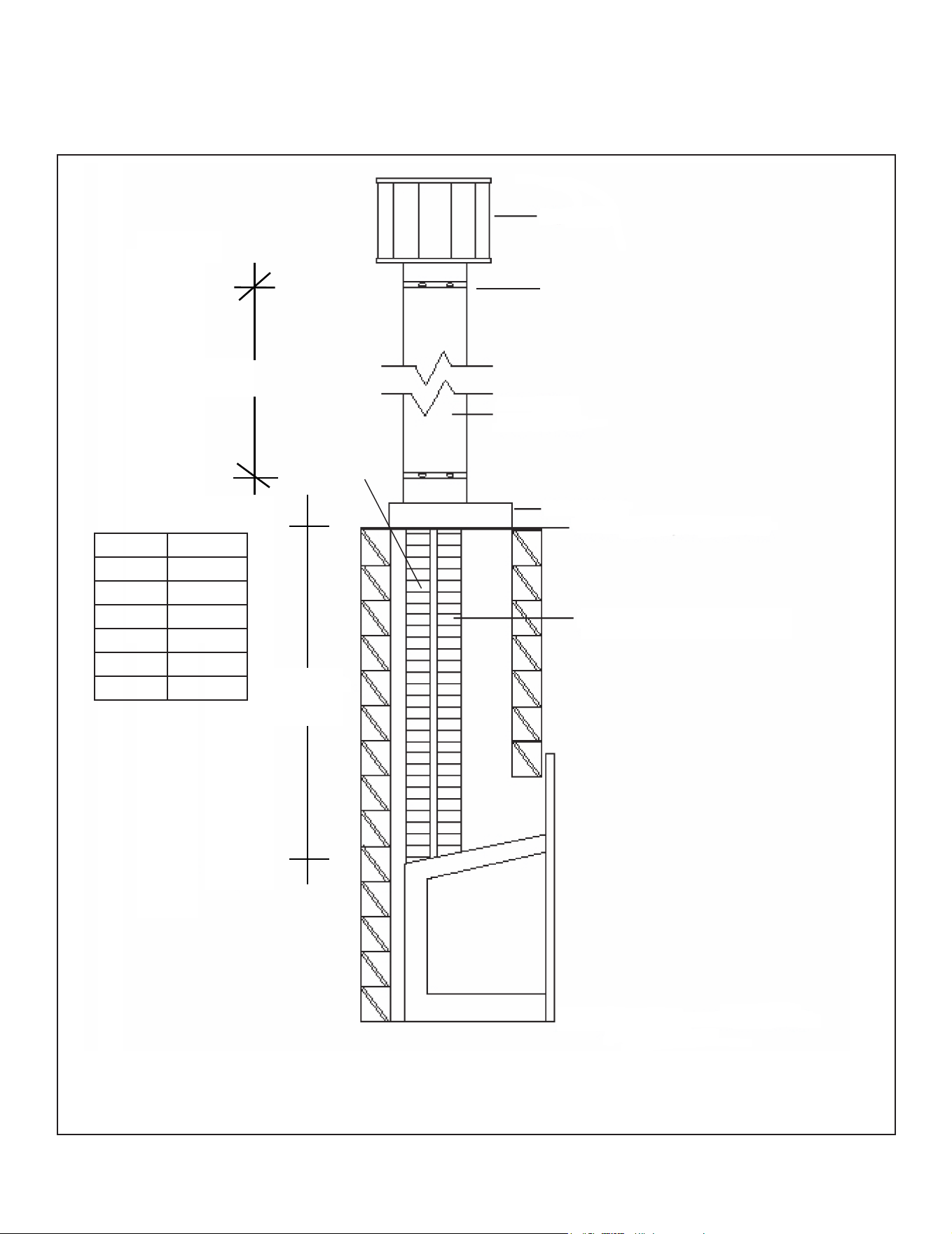

A. Vent Limits .................................... 20

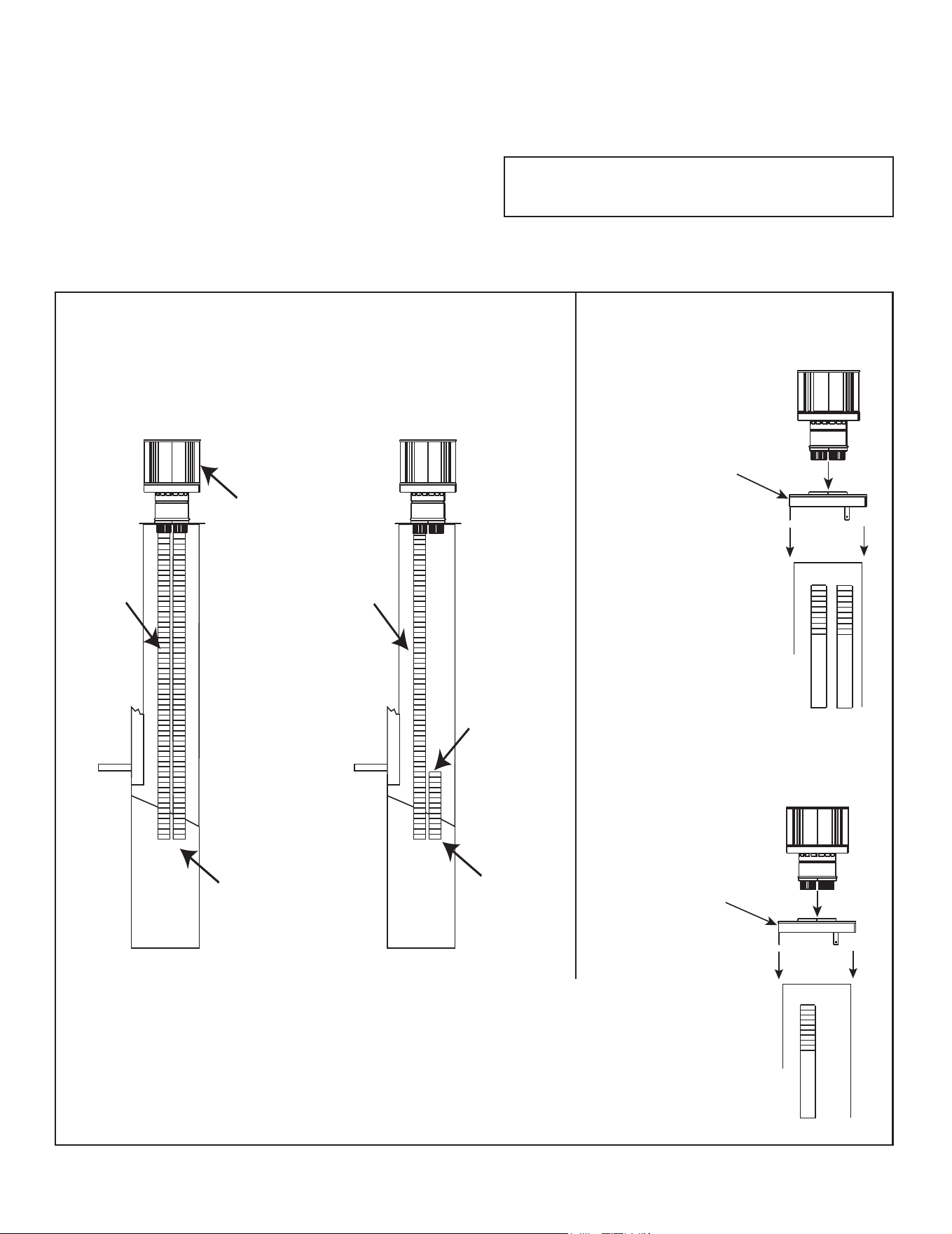

B. Using Vertical Restrictor .......................... 21
C. Venting Components ............................22
D. Connecting to SLP ..............................23
E. Connecting Vent Pipe ............................24

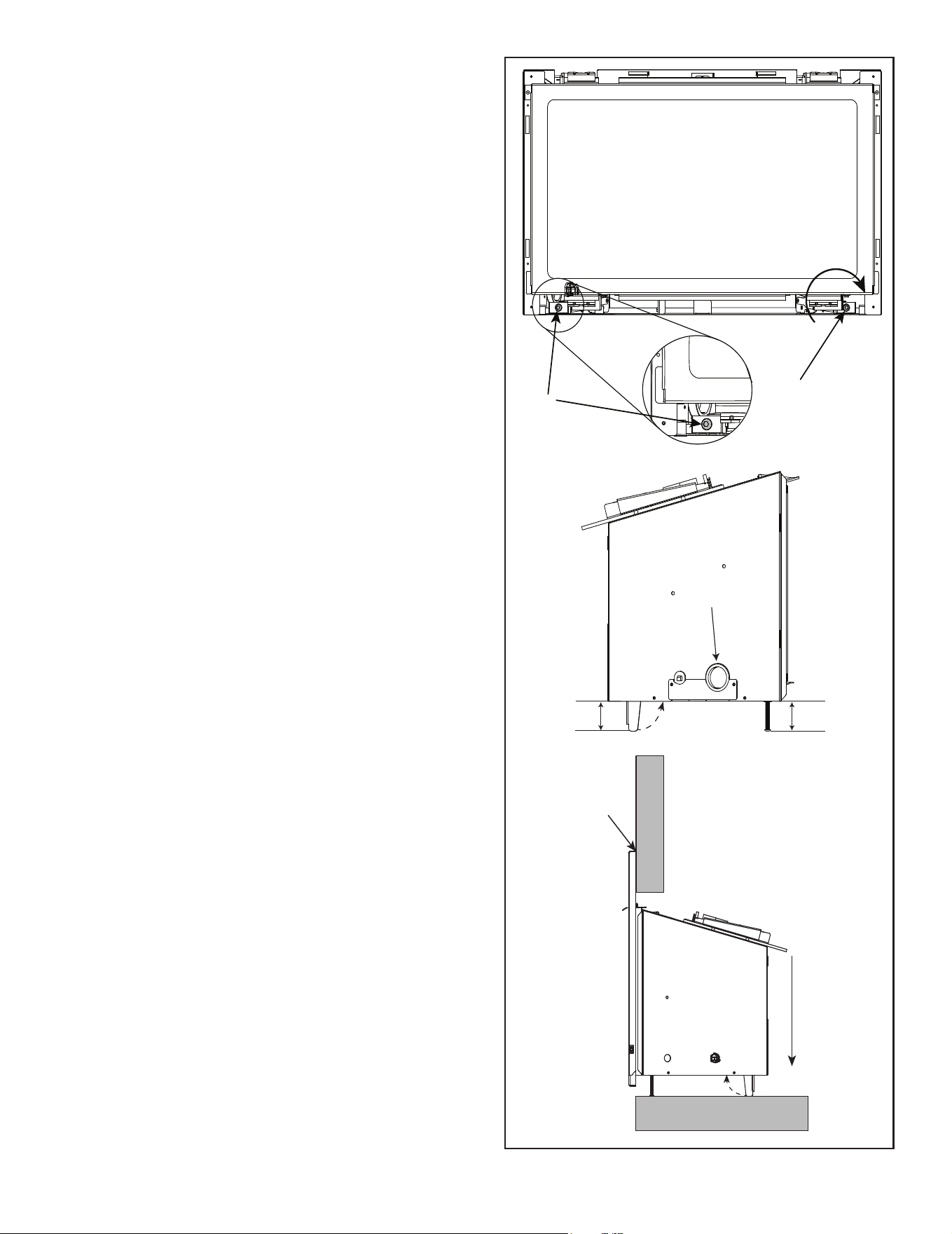

F. Placing, Securing and Leveling the Appliance ......... 25
G. Installing Termination Cap ........................ 26
6 Electrical Information
A. General Information .............................27

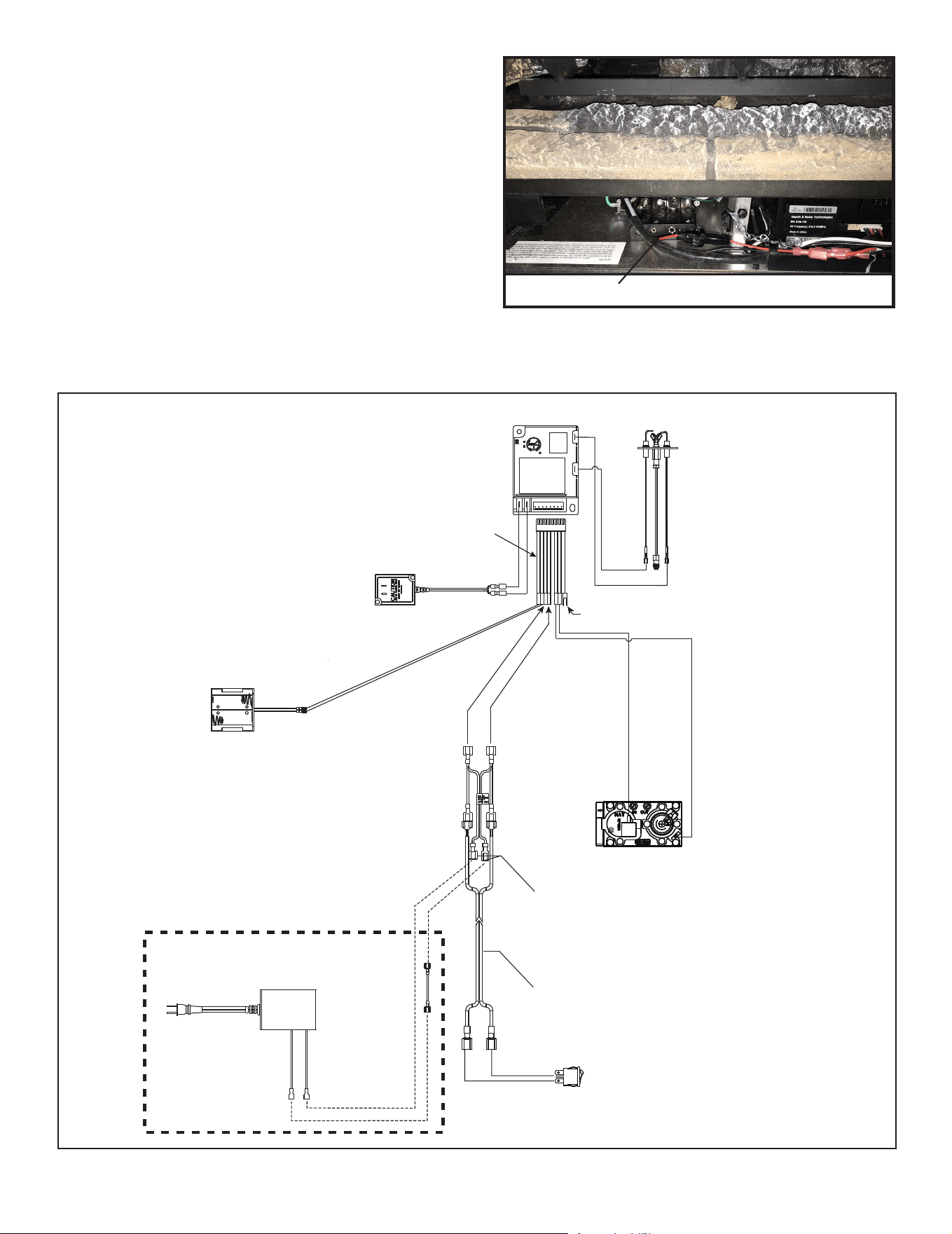

B. Wiring Requirements ............................27

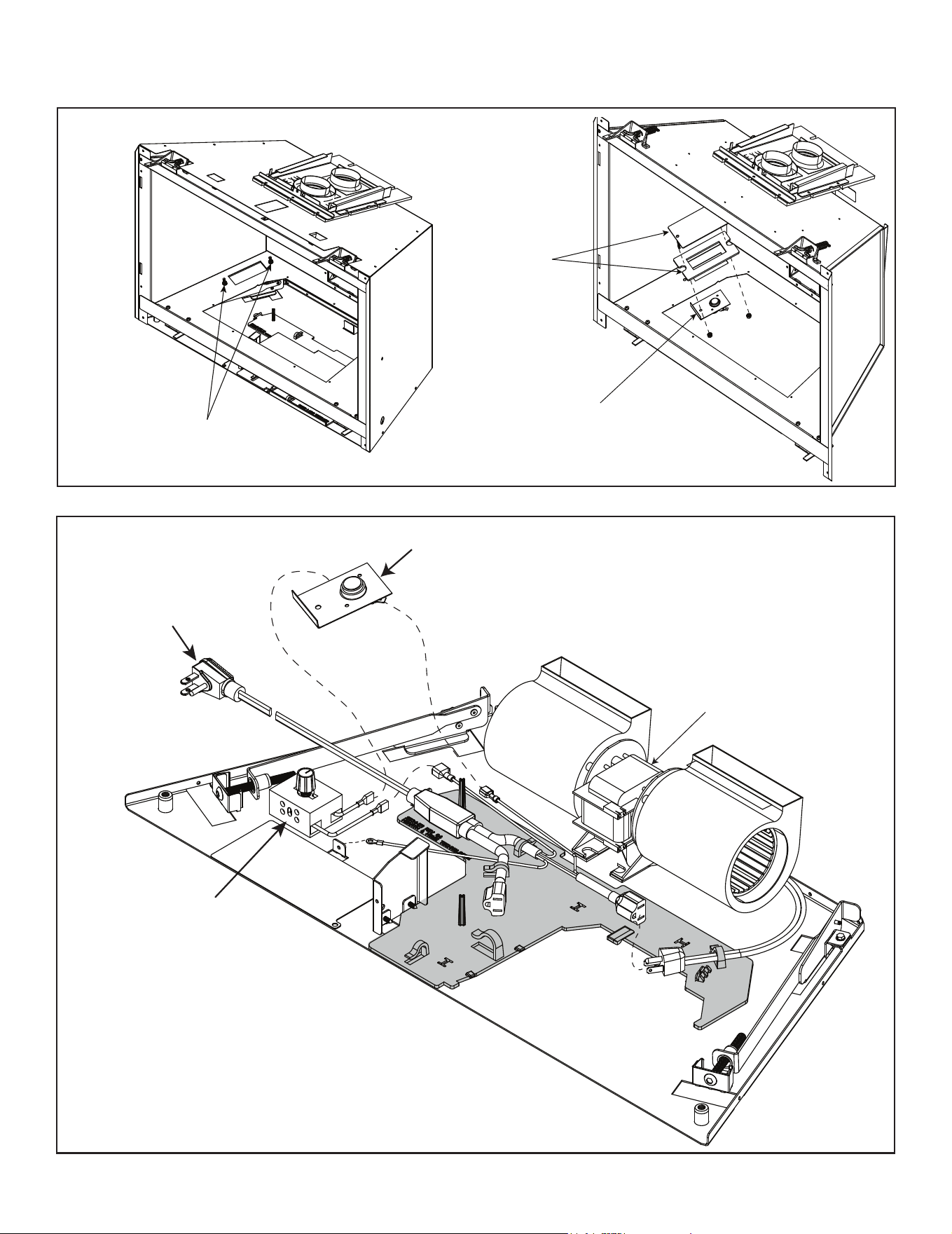

C. Installation / Service for Optional Fan ...............29
7 Gas Information
A. Fuel Conversion ................................31
B. Gas Pressure ..................................32
C. Gas Connection ................................32
D. High Altitude Installations ......................... 33
E. Air Shutter Setting ..............................33
F. Service / Replace Appliance Gas Valve ..............33
8 Finishing
A. Mantel, Wall Projections & Hearth Extensions .........34
B. Hearth Extension ...............................35
9 Appliance Setup
A. Fixed Glass Assembly ...........................37
B. Remove the Shipping Materials .................... 38
C. Clean the Appliance ............................. 38
D. Accessories ...................................38
E. Place the Lava Rock ............................ 39
F. Ember Placement ...............................39

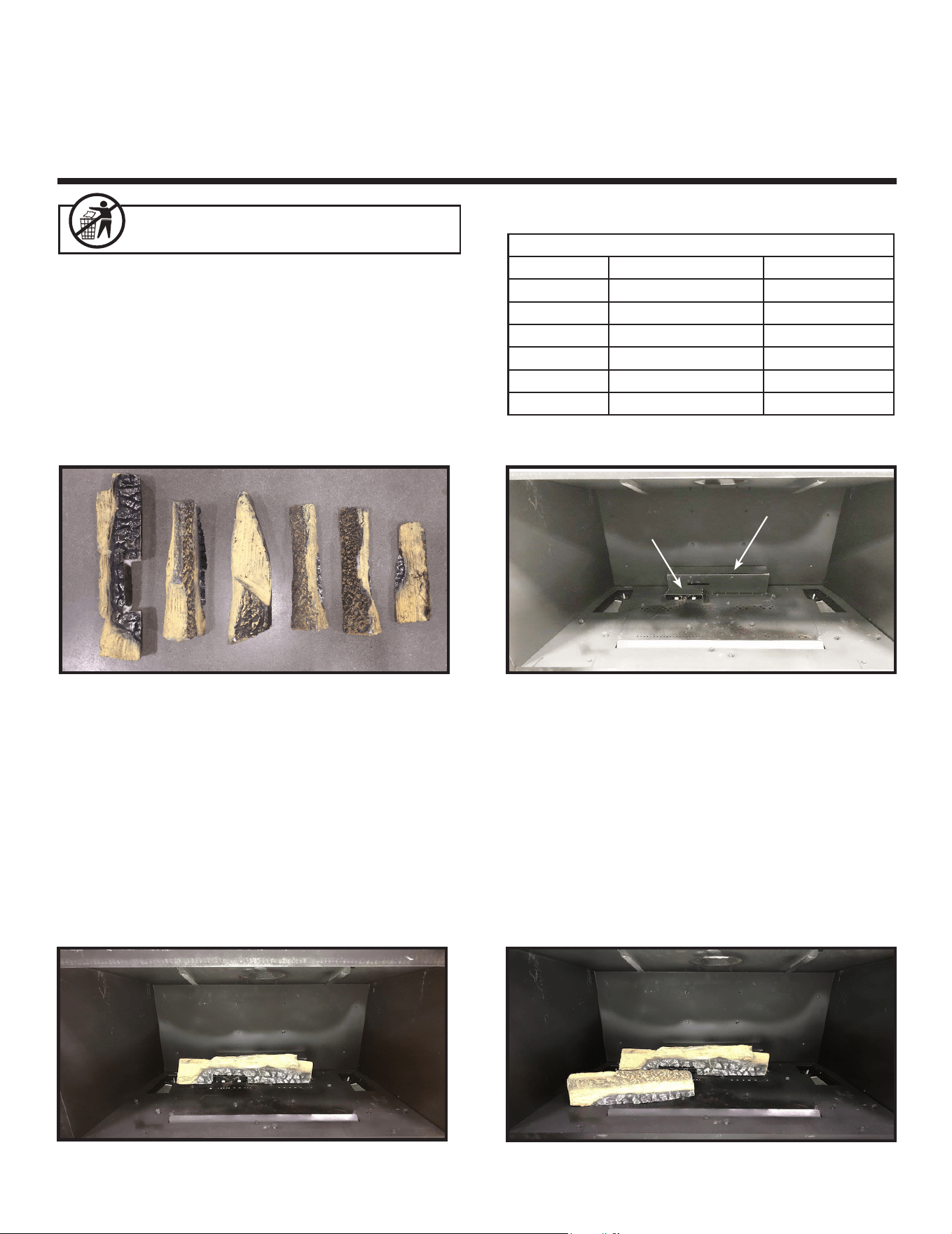

G. Install the Log Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . 40

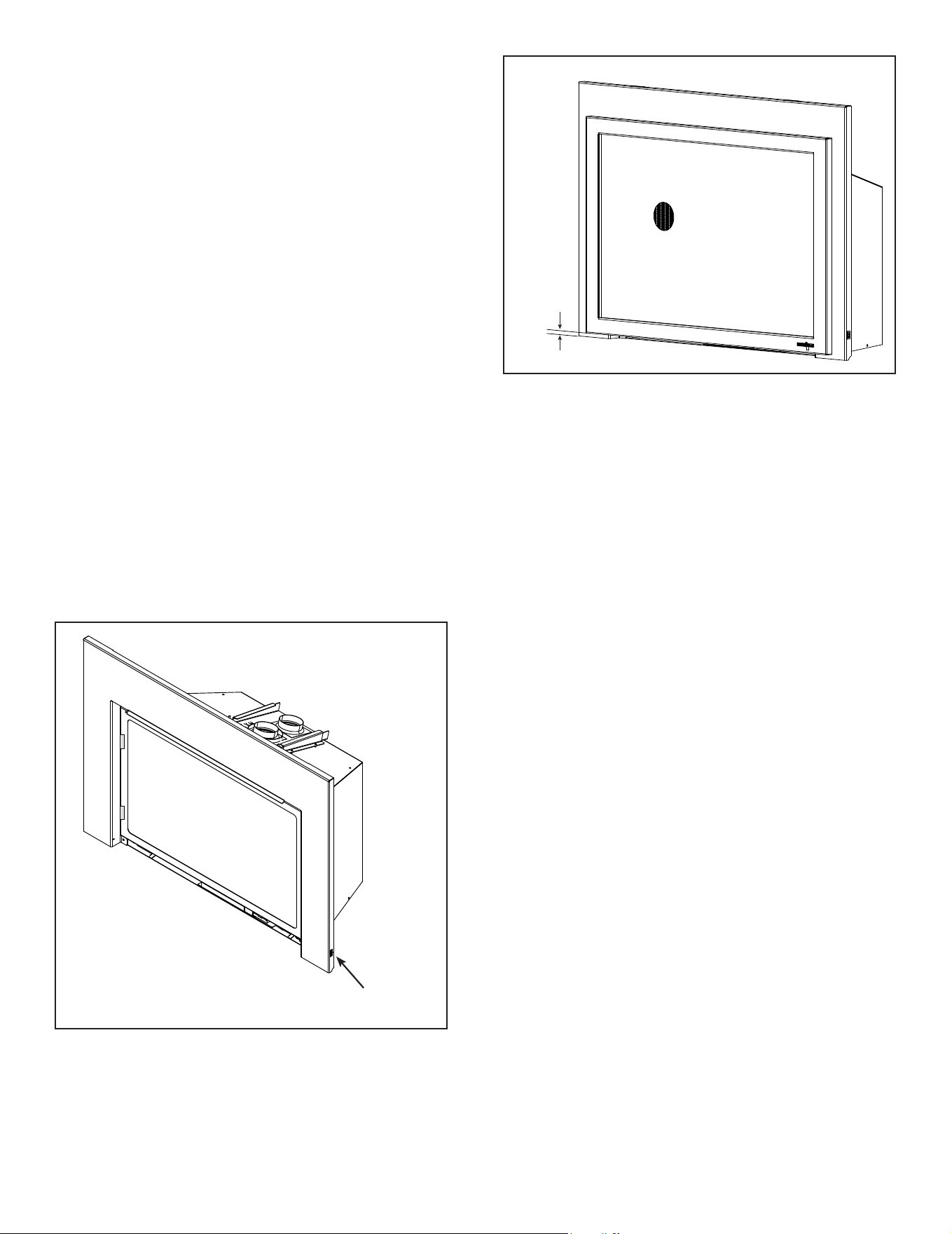

H. Install Decorative Barrier Front and Surround .........42
10 Reference Materials

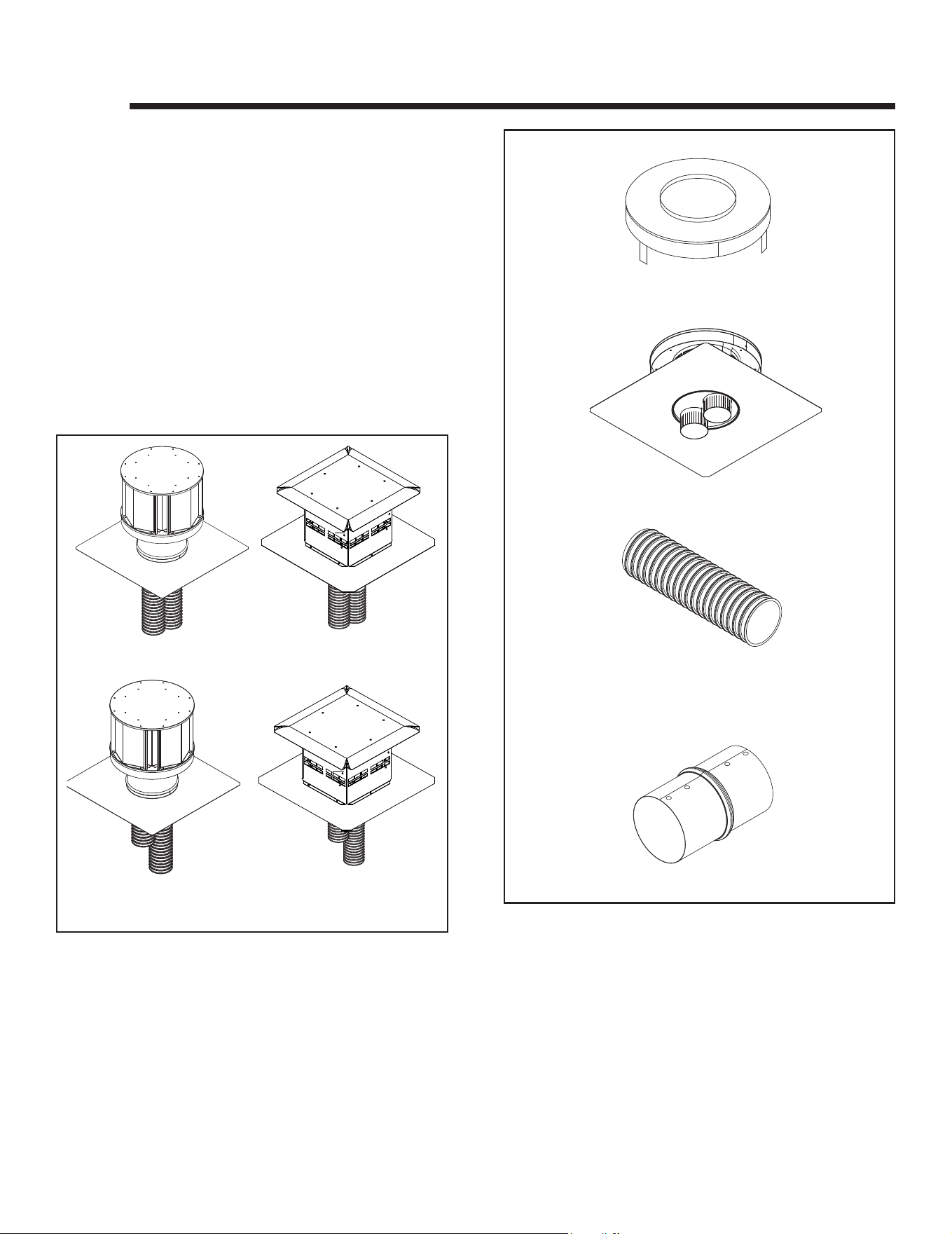

A. Vent Components ...............................43
B. Accessories ...................................44
= Contains updated information.
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Note: The term “recommend” or “recommended” does not indicate a requirement. It is a best practice suggested by Hearth
& Home Technologies
®
.
3
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Installation Standard Work Checklist
Customer:
Lot/Address:
Model (circle one): JASPER30IN
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer) (Date)
Appliance Install YES IF NO, WHY?
Verify replace is clean and remove/block open damper/modify
damper for vent pipe clearance (Section 4). ___________________________
Locate multi-purpose tool (Section 2). ___________________________
Appliance is leveled and secured (Section 5.F). ___________________________
Venting/Chimney Section 5
Exhaust and inlet ex vent pipe are properly formed and routed through
existing replace damper. ___________________________
Exhaust and inlet ex vent pipe are properly installed to the correct collars,
sealed and secured to top slide plate and to the termination cap. ___________________________
Vertical restrictors are properly set (if applicable). ___________________________
Exterior roof ashing installed and sealed. ___________________________
Termination cap installed, secured and sealed to top slide plate. ___________________________
Electrical Section 6
Unswitched power (110-120 VAC) provided to the appliance. ___________________________
Switch wires properly installed. ___________________________
Gas Section 7
Proper appliance for fuel type. ___________________________
Was a conversion performed? ___________________________
Leak check performed and inlet pressure veried. ___________________________
Veried proper air shutter setting for installation type. ___________________________
Finishing Section 8
Combustible materials not installed in non-combustible areas. ___________________________
Veried all clearances meet installation manual requirements. ___________________________
Mantels and wall projections comply with installation manual requirements. ___________________________
Appliance Setup Section 9
All packaging and protective materials removed (inside & outside of appliance). ___________________________
Refractories, logs, media and embers installed correctly. ___________________________
Glass assembly and glass seal plate installed and secured. ___________________________
Accessories installed properly. ___________________________
Surround and decorative front properly installed. See instructions shipped
with appliance front. ___________________________
Manual bag and all of its contents are removed from inside/under
the appliance and given to party responsible for use and operation. ___________________________
Fireplace warning plate is attached to the existing woodburning replace. ___________________________
Started appliance and veried no gas leaks exist. ___________________________
2546-982 11/18
= Contains updated information.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your le.
• That this checklist remain visible at all times on the appliance until the installation is complete.
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could
lead to a re or explosion.
ATTENTION INSTALLER:
Follow this Standard Work Checklist
4
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
A. Appliance Certication
E. Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750 ºC shall be considered
non-combustible materials.
F. Combustible Materials Specication
Materials made of or surfaced with wood, compressed pa-
per, plant bers, plastics, or other material that can ignite
and burn, whether ame proofed or not, or plastered or
unplastered shall be considered combustible materials.
G. Electrical Codes
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• A 110-120 VAC circuit for this product must be pro-
tected with ground-fault circuit-interrupter protection,
in compliance with the applicable electrical codes,
when it is installed in locations such as in bathrooms
or near sinks.
1 1
Product Specic and Important Safety Information
This product is listed to ANSI standards for “Vented Gas
Fireplace Heaters” and applicable sections of “Gas Burn-
ing Heating Appliances for Manufactured Homes and
Recreational Vehicles”, and “Gas Fired Appliances for
Use at High Altitudes”.
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
B. Glass Specications
This appliance is equipped with ceramic glass. Replace
glass only with ceramic glass. Please contact your dealer
for replacement glass.
C. BTU Specications
MODELS: JASPER30IN
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Heater
STANDARD: ANSI Z21.88-2019 CSA 2.33-2019
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Input ratings are certied without a eduction
of input rate for elevations up to 4500 feet (1370 m)
above sea level. Please consult provincial and/or
local authorities having jurisdiction for installations at
elevations above 4500 feet (1370 m).
Check with your local gas utility to determine proper
orice size.
H. California
WARNING: This product and the fuels used to
operate this product (liquid propane or natural
gas), and the products of combustion of such fuels, can
expose you to chemicals including benzene, which is
known to the State of California to cause cancer and
reproductive harm. For more information go to: www.
P65Warnings.ca.gov.
Models
(U.S. or Canada)
Maximum
Input
BTU/h
Minimum
Input
BTU/h
Orice
Size
(DMS)
JASPER30IN (NG) (0-2000 FT) 30,000 21,000 37
JASPER30IN
(Propane)
(0-2000 FT) 28,000 19,600 52
5
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
2 2
Getting Started
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
service technician, service agency or your dealer.
Installation and service of this appliance should be performed by
qualied personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certied professionals.

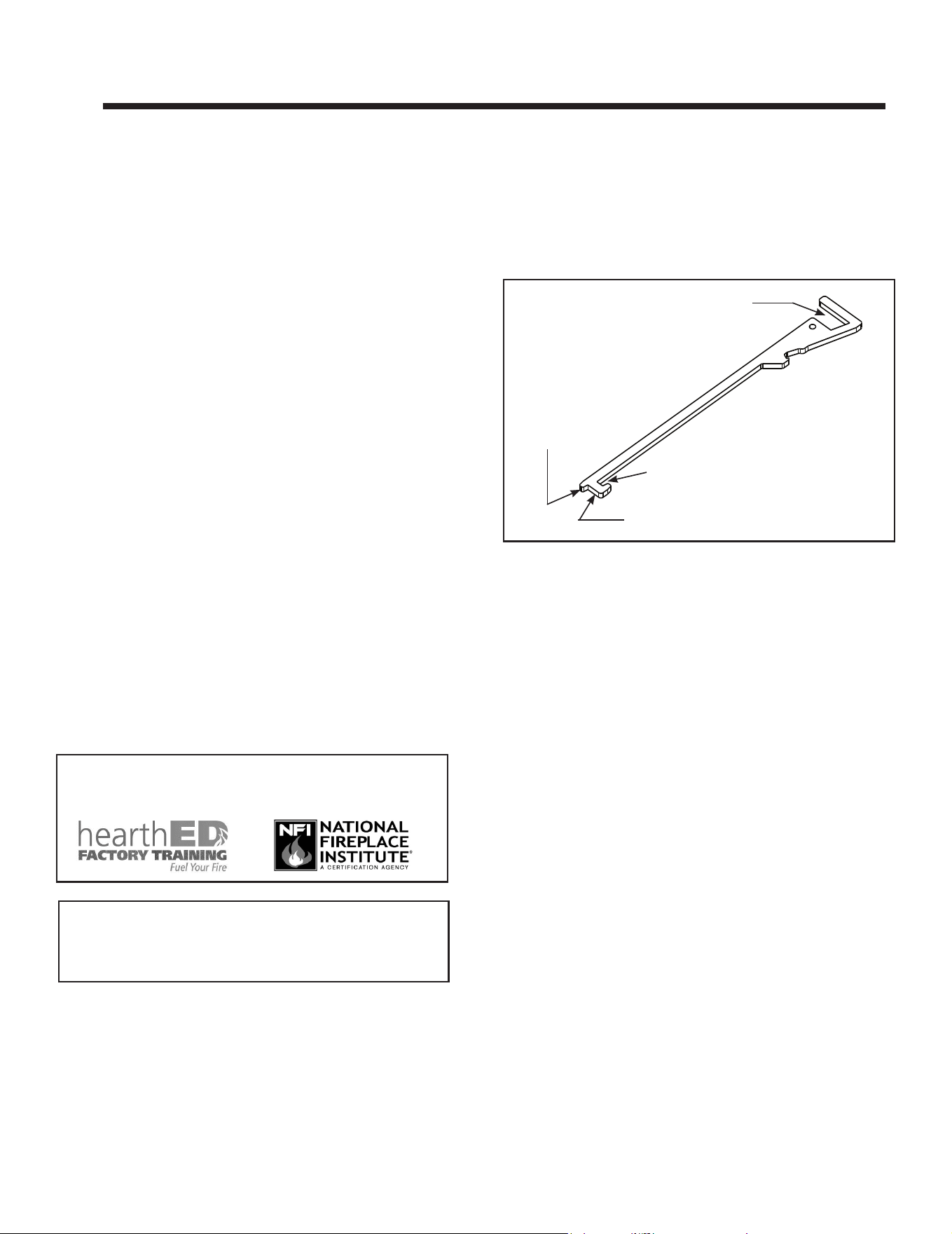

Figure 2.1 Multi-Purpose Tool
GAS SHUT-OFF
DISENGAGE
SLIDE PLATE
ENGAGE
SLIDE PLATE
GLASS CLIPS
Multi-Purpose Tool
• See Figure 2.1 for multi-purpose tool functions and
features.
• See Figure 2.2 for multi-purpose tool shipping location.
• See Figure 2.3 for multi-purpose tool storage location
options.
A. Design and Installation Considerations
WARNING! Risk of Fire or Explosion! Read all instruc-
tions before starting the installation.
Gas inserts are designed for installations into solid fuel
masonry or UL127 listed factory built replaces. No ad-
ditional outside air source is required.
Installation MUST comply with local, regional, state and na-
tional codes and regulations. Consult insurance carrier, local
building inspector, re ofcials or authorities having jurisdic-
tion over restrictions, installation inspection and permits.
Prior to installing the gas insert:
• Ensure chimney is constructed of non-combustible
materials.
• Ensure chimney is clean and in good working order.
• Ensure that all chimney cleanouts t properly to prevent
air leakage into chimney.
• Ensure combustible mantel and surround clearances
comply with insert requirements.
• Ensure all joints are properly engaged and the chimney
is properly secured.
• Determine minimum replace size. See Section 3.A and
3.B.
• Determine gas supply piping requirements.
• Determine electrical wiring requirements.
• Determine nishing details.
• Determine whether optional accessories—devices such
as a wall switch or remote control—are desired.
6
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21

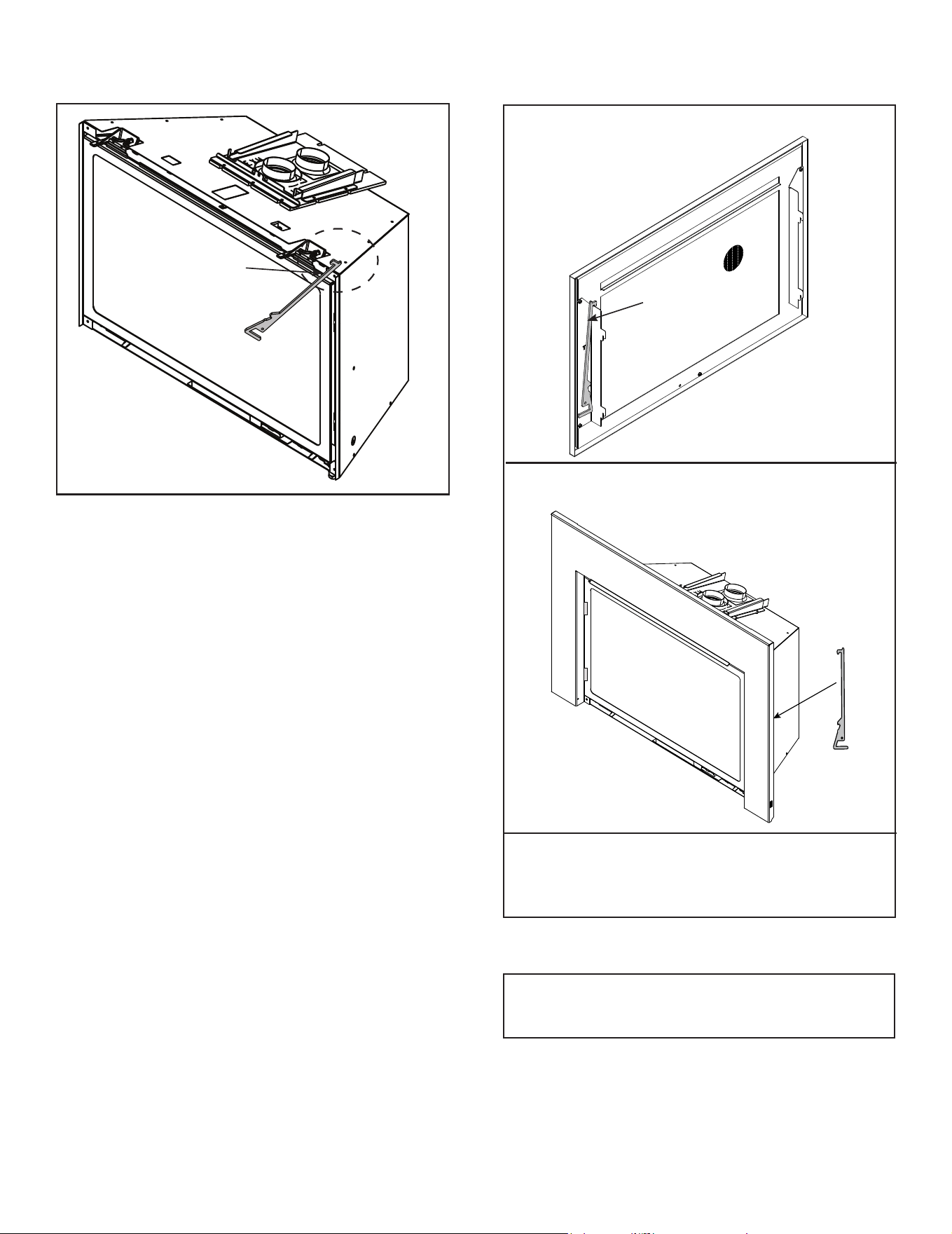

Figure 2.3 Multi-Purpose Tool Storage Options
OPTION B
OPTION A
MULTI-PURPOSE TOOL
MULTI-PURPOSE
TOOL SHIPPED ZIP-
TIED IN THIS AREA OF
THE APPLIANCE
Figure 2.2 Multi-Purpose Tool shipping Location
OPTION C
Multi-purpose tool can be stored in appliance manual
bag.
Multi-purpose tool can be
stored behind the surround.
Multi-purpose tool can be
stored behind the appliance
front.
Multi-Purpose Tool - Shipping Location
Multi-Purpose Tool - Storage Options
NOTE: This is not an option for
all Inside Fit (INFIT) fronts.
• Remove multi-purpose tool by cutting and discarding
zip-tie.
• See Figure 2.3 for multi-purpose tool storage.
• See Figure 2.1 for multi-purpose tool features / functions.
DO NOT store appliance manual bag in or around
the appliance.
7
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
D. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The vent system components, decorative barrier fronts
and surrounds are shipped in separate packages.
• If packaged separately, the log set must be installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benet.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
Hearth & Home Technologies disclaims any responsibility for,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modication of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Any such action may cause a re hazard.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualied service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Pliers
Hammer Phillips screwdriver
Voltmeter Electric drill and bits (1/4 in.)
Gloves Safety glasses
Level Reciprocating saw
Manometer Flat blade screwdriver
Stove cement / Aluminum foil tape
3/16 in. Allen wrench (Rear Leveling Legs)
Elongated pressure taps (Recommended)
Noncorrosive leak check solution
Caulking material (300 ºF minimum continuous exposure
rating)

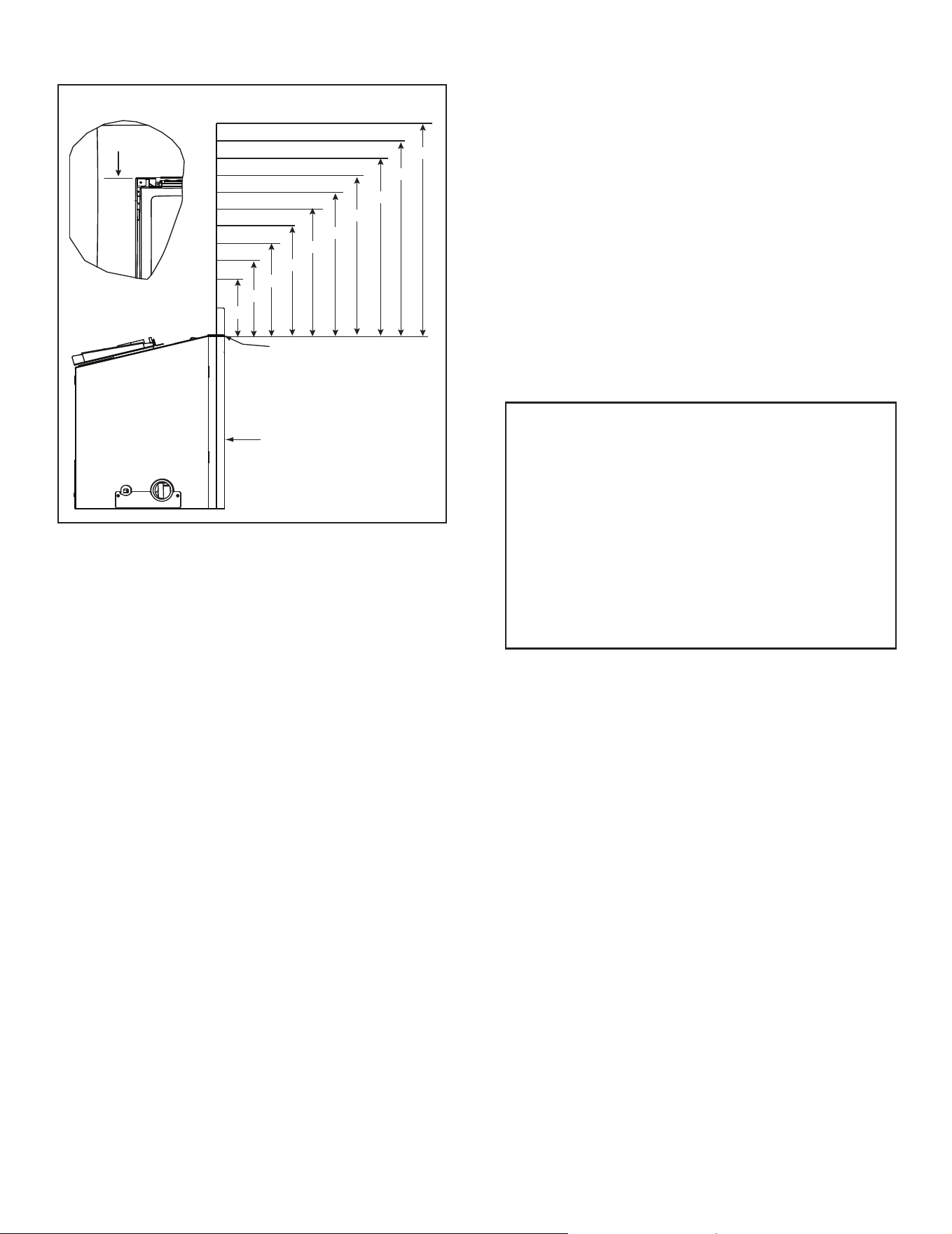

Figure 2.4 Good Faith Wall Surface Temperatures Above Appliance
B. Good Faith Wall Surface
NOTICE: Temperatures listed above are taken with a
temperature measuring probe as prescribed by the test
standard used for appliance certication. Temperatures
on walls or mantels taken with an infrared thermometer
may yield increased temperatures of up to 30 ºF or more
depending on the thermometer settings and material
characteristics being measured. Use appropriate nishing
materials that are able to withstand these conditions. For
additional nishing guidelines. See Section 8.
MEASUREMENTS FROM TOP
OF THE SURROUND OPENING
CEILING
APPLIANCE SURROUND
SURROUND
OPENING
18 IN.
22 IN.
16 IN.
12 IN.
24 IN.
28 IN.
34 IN.
40 IN.
46 IN.
52 IN.
151 ºF
138 ºF
135 ºF
127 ºF
125 ºF
120 ºF
115 ºF
110 ºF
108 ºF
106 ºF
If installing a television (TV) above the appliance, see
Section 3 of the appliance Owner’s Manual.
8
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
3 3
Appliance / Fireplace Requirements and Clearances
A. Appliance/Decorative Barrier Front Dimension Diagrams
Dimensions are actual appliance dimensions. Use for reference only. For additional clearances refer to Section 3.D and 3.E.
Figure 3.1 Appliance Dimensions
*Note: Location G is the appliance depth measurement, for installation depth reference Location E on
Figure 3.8.
F
K
J
GAS LINE
ACCESS
C
D
E
R
I
A
H
B
G
O
N
P
Q
ELECTRICAL
ACCESS
L
M
TOP VIEW
LEFT SIDE
RIGHT SIDE
FRONT VIEW
MODEL DIMENSIONS
Location
30 in.
IN MM
A 19-5/8 499
B 31-1/8 791
C 27-1/2 699
D 15-15/16 405
E 20-3/4 527
F 20-1/8 511
G* 14-1/2 369
H 9-13/16 249
I 18-15/16 481
MODEL DIMENSIONS
Location
30 in.
IN MM
J 5-11/16 144
K 5-7/8 149
L 9 229
M 8-3/4 222
N 2-1/8 54
O 4-1/16 103
P 5-3/4 146
Q 8-3/4 222
R 2-7/16 62
9
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Figure 3.2 Decorative Barrier Front Dimensions - Inside Fit
DECORATIVE BARRIER FRONTS - INSIDE FIT
F
D
A
B
C
G
E
* NOTICE: 1/2 inch gap must be maintained
or components will overheat.
*
A B C D E F G
JASPER30IN INFIT-30
in. 27-5/8 16-1/16 1-7/8 30-5/8 20-1/2 20 1/2
mm 702 408 48 778 521 508 13
IMPORTANT! This replace requires an installed decorative barrier front to prevent direct contact with the hot
viewing glass. DO NOT operate the replace with the barrier removed.
Decorative barrier front must be ordered at time of replace purchase. If decorative barrier front is not present,
contact dealer.
10
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Figure 3.3 Decorative Barrier Front Dimensions - Clean Screen
F
D
A
B
C
G
E
*
DECORATIVE BARRIER FRONTS - CLEAN SCREEN
A B C D E F G
JASPER30IN CSFI30
in. 32-3/8 18-5/8 3-1/8 36 23-1/2 23 1/2
mm 822 473 79 914 597 584 13
* NOTICE: 1/2 inch gap must be maintained
or components will overheat.
11
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Figure 3.4 Decorative Barrier Front Dimensions - CONTEMPORARY ARCH
DECORATIVE BARRIER FRONTS - CONTEMPORARY ARCH
A B C D E F G
JASPER30IN CASFI30
in. 29-1/16 15-3/8 3-7/8 36 23-1/2 23 1/2
mm 738 391 98 914 597 584 13
F
D
A
B
C
G
E
*
12
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21

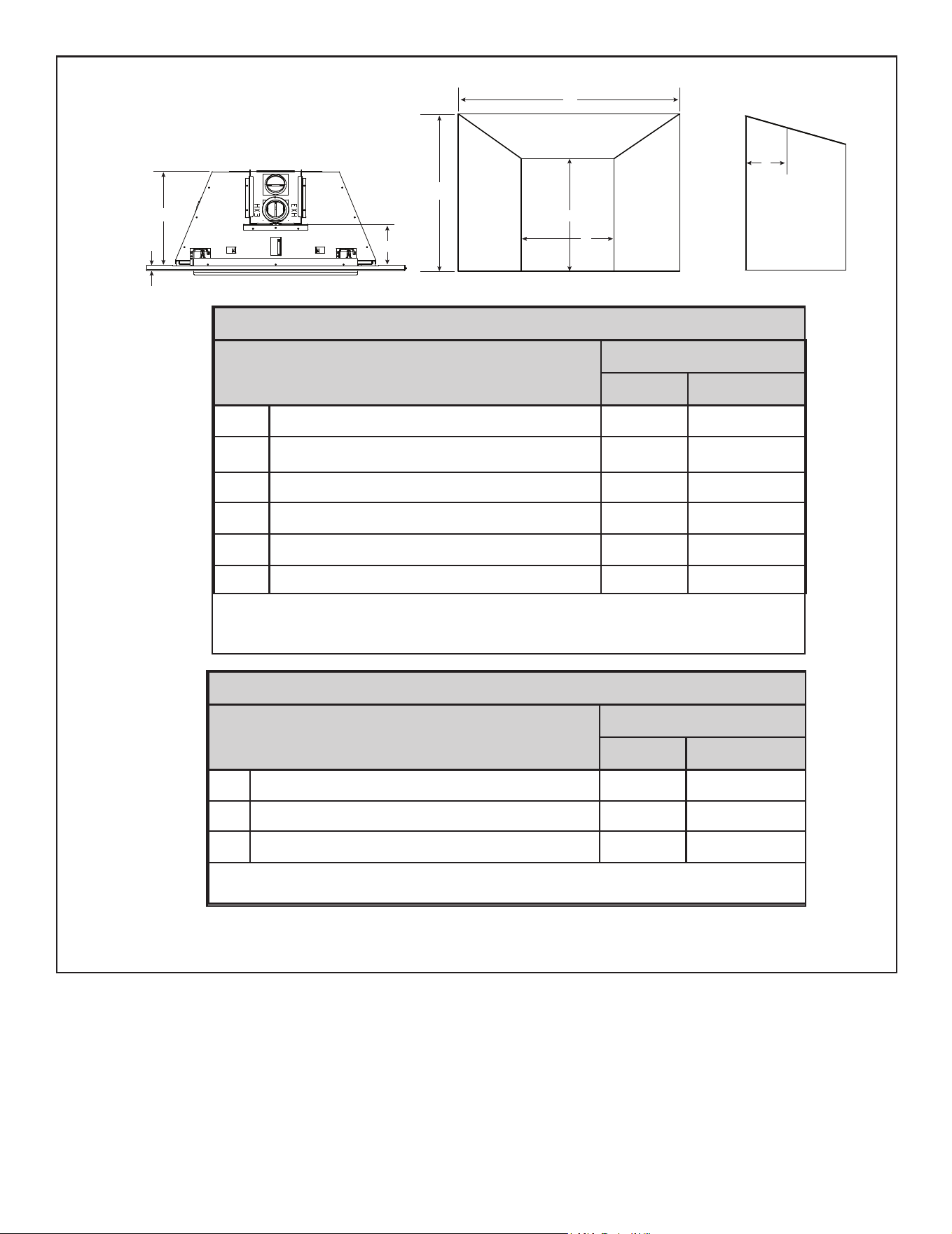

B. Minimum Fireplace Opening
Minimum replace opening requirements for a standard 3/4
inch deep surround are shown in Figure 3.7. For smaller
openings, a custom surround is available.
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of trafc and away from furniture and draperies.
For Installation into a Zero Clearance Wood burning re-
place:
• The brick (refractory), glass doors, screen rails, screen
mesh and log grates can be removed from a factory
built rebox in order to gain minimum gas insert opening
requirements.
• Any smoke shelves, shields and bafes may be removed
from the factory built rebox if attached with mechanical
fasteners.

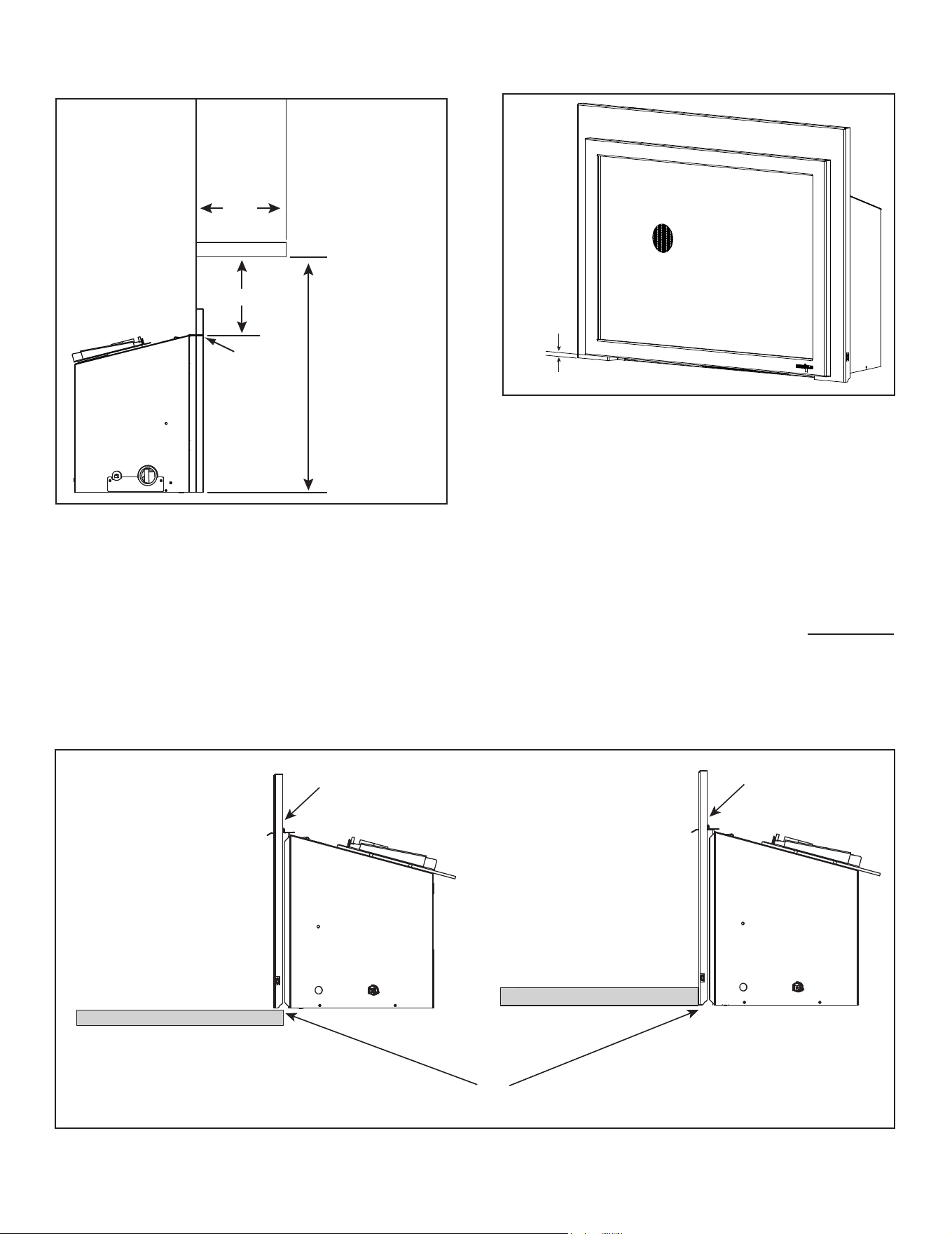

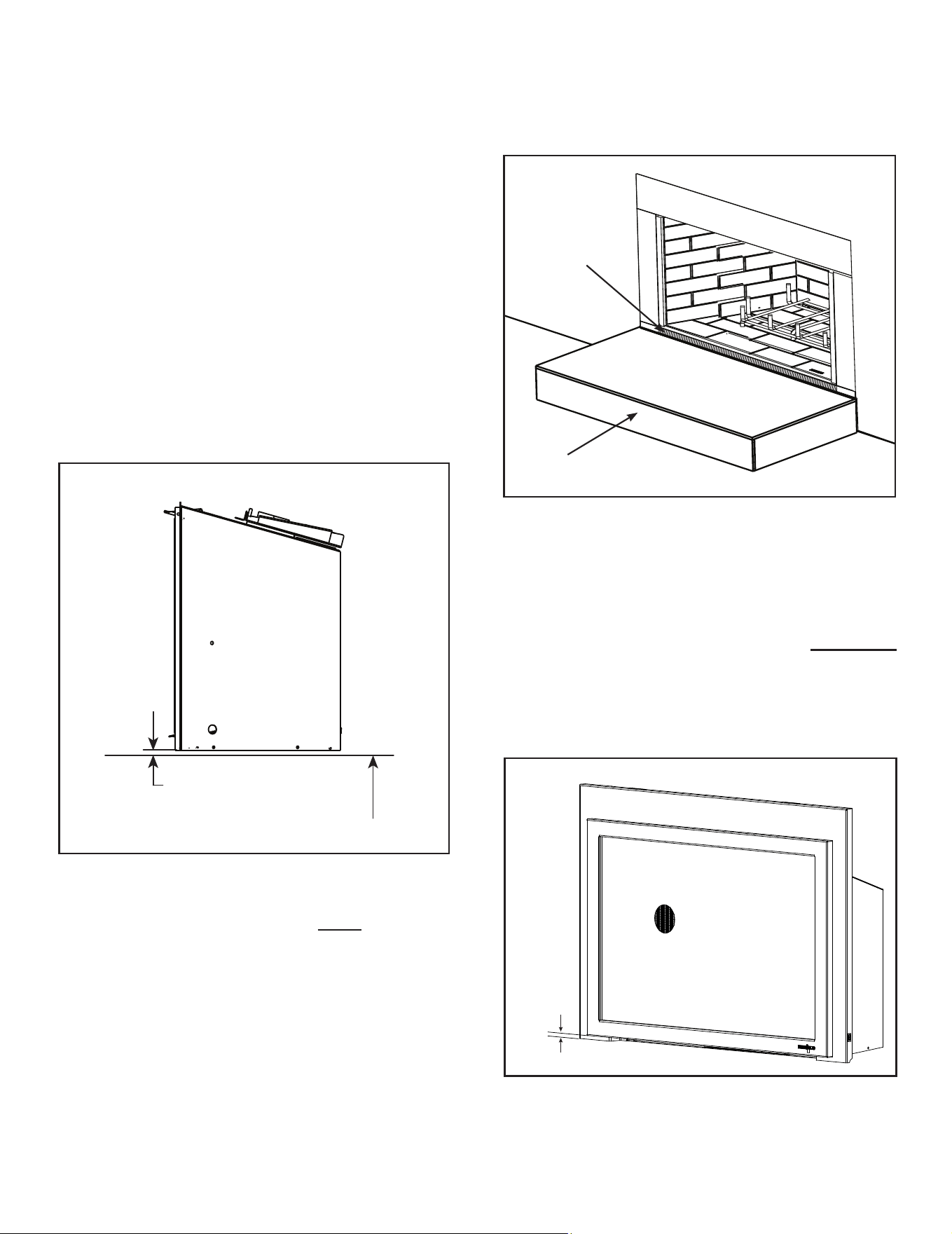

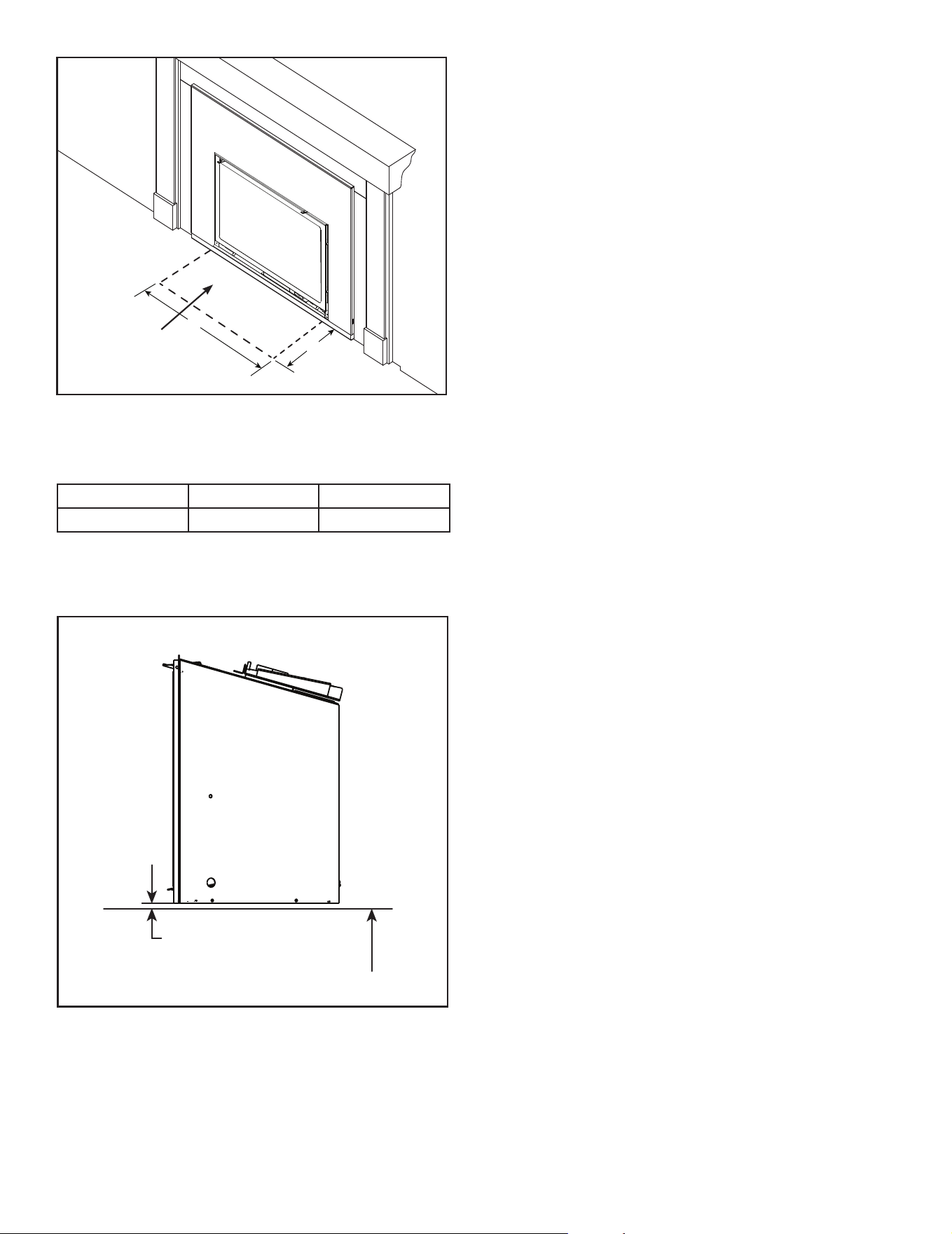

Figure 3.5 Solid Fuel Floor Clearance
SIDE VIEW
MINIMUM 1/4 IN. REQUIRED
COMBUSTIBLE FLOOR UNDERNEATH APPLIANCE
• The appliance may not be placed directly on the base of
the outer wrap, a 1/4 inch airspace MUST be provided
between the insert and the oor of the outer wrap. Use
the leveling legs to raise the insert a minimum of 1/4 inch.
The original replace may never be returned to solid
fuel in this condition. The sidewalls and top structure
of the rebox may not be altered with the exception of
removable bafes and dampers.
1/2 in.
NOTICE: 1/2 inch gap must be maintained or components
will overheat.
Figure 3.7 Minimum Required 1/2 in. Gap
• The metal oor of the solid fuel rebox may be removed
to facilitate the installation of the insert.
• A metal lip protuding above the hearth pad of the solid
fuel rebox may be removed. See Figure 3.7.

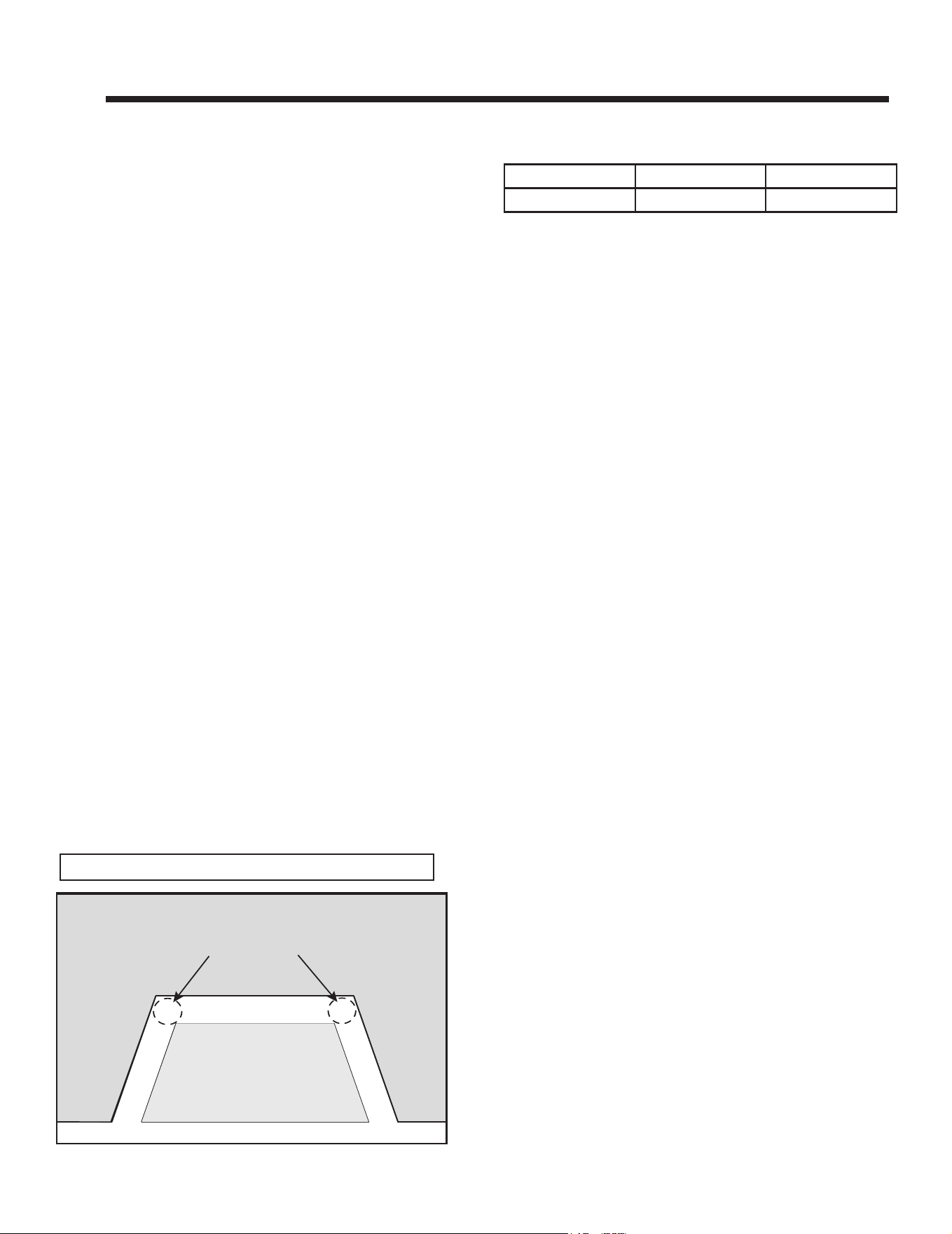

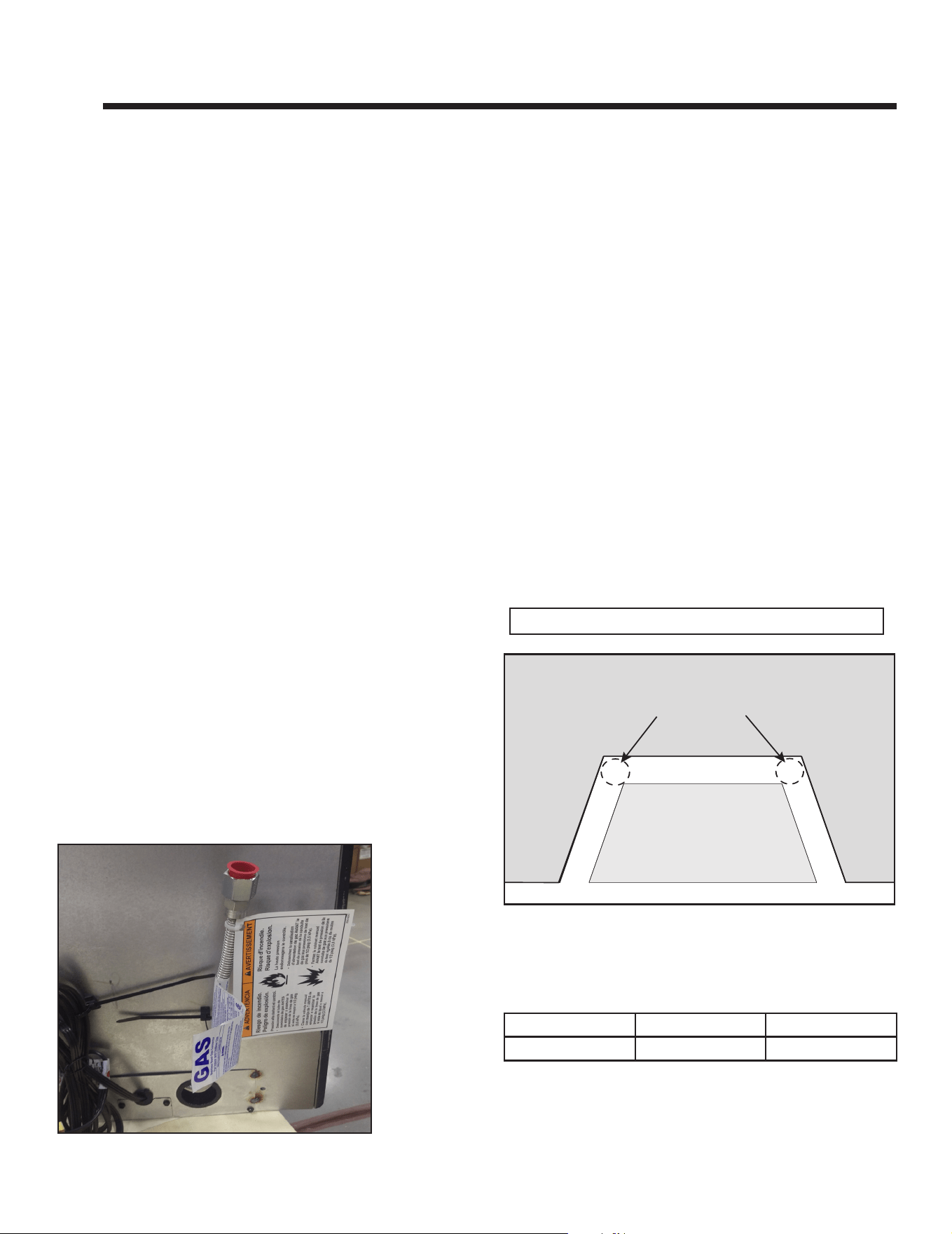

Figure 3.6 Solid Fuel Firebox
HEARTH PAD
ACCEPTABLE
TO REMOVE
• Cutting of any sheet metal parts of the replace in which
the gas replace insert is to be installed is prohibited,
except the oor and front lip as tested for and as noted
above. See Section 4.C for gas line exception.
• A minimum 1/4 inch gap from the bottom of the appliance
to the metal oor of the solid fuel rebox is REQUIRED.
See side view in Figure 3.5.
• Manufactured gas inserts can be installed as a zero
clearance wall extension appliance. See Section 3C for
clearance detail.
13
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Figure 3.8 Firebox Opening - Standard Surround - 3/4 in.
Custom Surrounds
Custom surrounds are available. See your dealer for information. Standard surrounds are 3/4 inches deep. Custom
surrounds are available up to 3 inches deep. A 3 inch deep surround would reduce the unit opening depth (E*) by 2-1/4
inches (3 in. - 3/4 in. = 2-1/4 in).
On Site Custom Surrounds
On site custom surrounds are available. See your dealer for information. On site custom surrounds are ush and have
no depth. A ush surround would increase the unit opening depth (E*) by 3/4 inch.
In addition to these dimensions, also reference Section 3.D and 3E.
TOP VIEW
FRONT VIEW SIDE VIEW
*Unit depth is measured to the back of the surround to give the depth needed for installation.
F
D
C
A
B
F
E
7/8 in.
(Standard)
2 in.
(Deep)
MINIMUM FIREBOX OPENING
Location
30 inch
Inches Millimeters
A Opening Width - Rear 20-1/8 511
B Opening Width - Front 31-5/8 803
C Opening Height - Front 21 533
D Opening Height - Rear 19-3/16 487
E* Unit Opening Depth 15 381
F Venting Depth - Front 7-5/8 194
Note: Dimensions assume 1/4 inch clearance on all sides.
Note: If exhaust collar on insert and replace damper do not line up, add 4 inches (102 mm)
to minimum replace height for bends in vent pipe.
2 INCH DEEP SURROUND MINIMUM FIREBOX OPENING
Location
30 inch
Inches Millimeters
B Alternate Opening Width - Front 31 787
C Alternate Opening Height - Front 21 533
E Alternate Unit Opening Depth 14 356
Note: 2 inch deep surrounds, in medium size black nish have been created as standard
accessory. Sku Names: MI30-4230D-BK, MI35-4432D-BK
14
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21

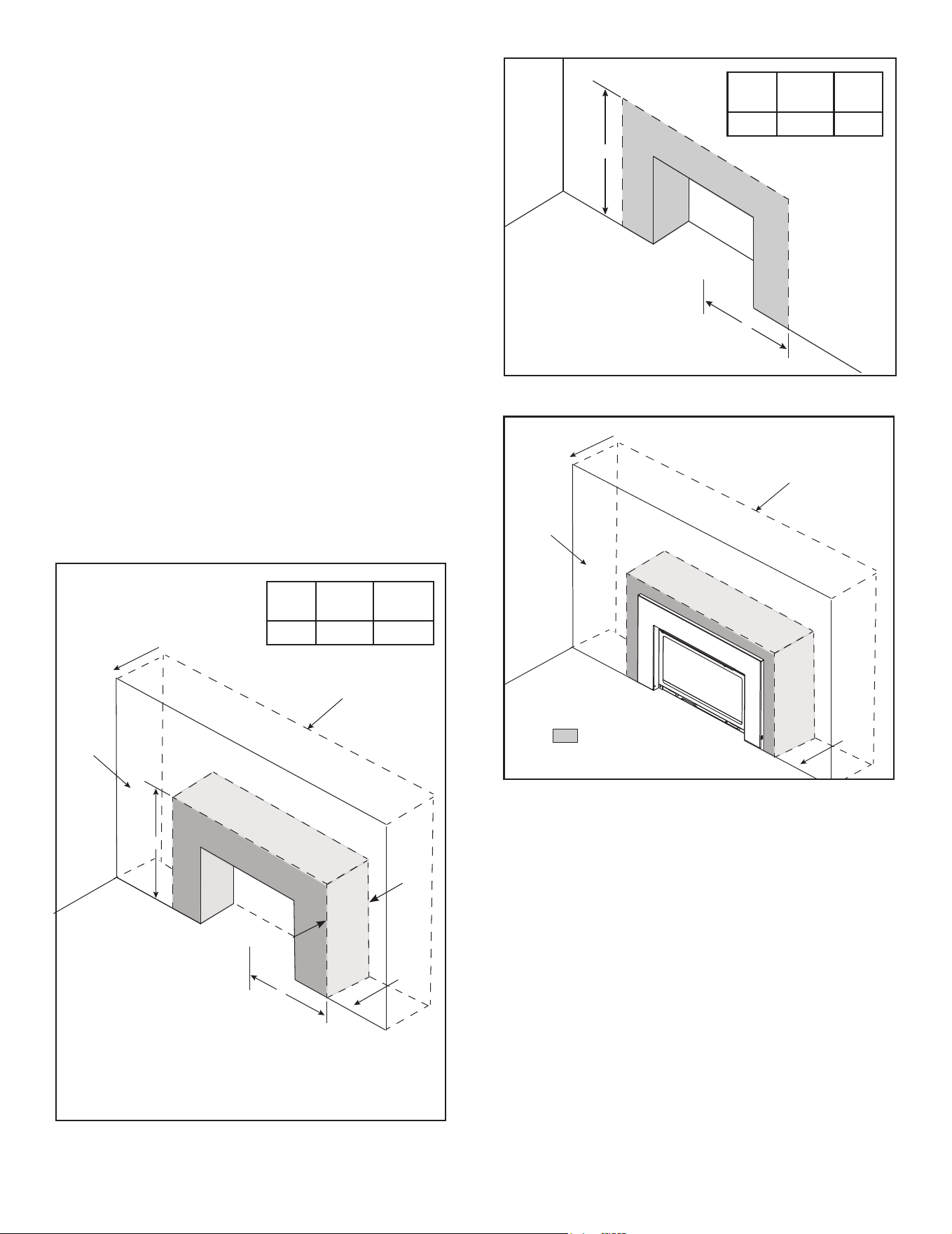

C. Zero Clearance Wall Extension
Figure 3.10 Non-Combustible Facing Requirement
Figure 3.9 Non-Combustible Framing Requirement
Figure 3.11 Non-Combustible Framing / Facing Requirement
WARNING! Risk of Fire! Comply with all minimum clear-
ances to combustibles as specied. Framing or nishing
material closer than the minimums listed must be construct-
ed entirely of noncombustible materials (i.e., steel studs,
concrete board, etc).
Combustible facings must not extend behind the insert
surround. See Section 1.E and 1.F.
Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 ºC.
• Facing and/or nishing materials must not interfere with
air ow through decorative barrier fronts.
• Facing and/or nishing materials must never overhang
into the glass opening.
• Observe all clearances when applying combustible
materials.
• Maximum depth of wall extension is 12 inches. This
may be limited by the ex pipe’s ability to connect to the
starting collar.
• Covering combustible materials with non-combustible
materials does not qualify material as non-combustible.
WARNING! Risk of Fire! DO NOT apply combustible
materials beyond the minimum clearances. Comply with
all minimum clearances to combustibles as specied in
this manual. Overlapping materials could ignite and will
interfere with proper operation of decorative barrier fronts.
FLOOR
x
Y
NON-COMBUSTIBLE ZONE
C
L
EXISTING MASONRY WALL
NEW WALL
FACE
WALL EXTENSION
FLOOR
x
Y
NON-COMBUSTIBLE ZONE
C
L
12 in. max.
DEPTH
A non-combustible wall extension can be used to cover
an existing masonry surface. Wall extensions are typically
used to improve cosmetics.
Surrounds MUST overlap wall extension.
FLOOR
EXISTING MASONRY WALL
NEW WALL
FACE
WALL EXTENSION
NON-COMBUSTIBLE ZONE
UNIT
X
(min)
Y
(min)
30 in. 33-1/2 56
UNIT
X
(min)
Y
(min)
30 in. 33-1/2 56
X - Minimum - measure from
center of rebox opening.
Y - Minimum - measure from
the bottom of the appliance.
X - Minimum - measure from
center of rebox opening.
Y - Minimum - measure from
the bottom of the appliance.
15
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
FACING
STEEL STUD
END VIEW
MASONRY
WALL
STEEL STUD
SIDE VIEW
SEAL
TRANSITION
12 in.
MAXIMUM
APPLIANCE

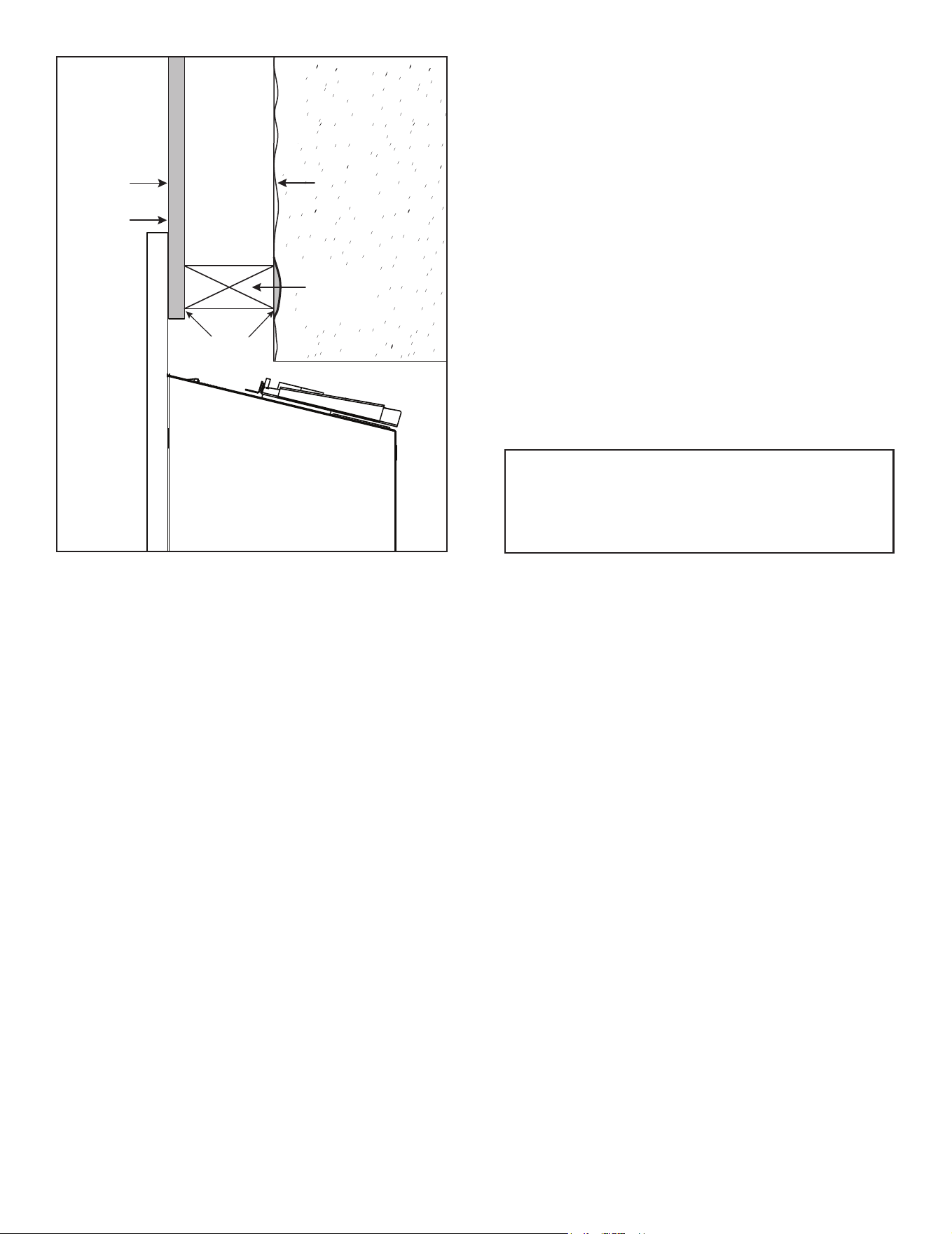

Figure 3.12 Transition Sealing Detail for Wall Extensions (Side View)
Painting
If desired nishing includes a painted wall, a high-quality
100% acrylic latex paint with a high-quality latex primer
base coat are recommended around the appliance to limit
discoloration. Oil-based or standard acrylic paints may
be more prone to discoloration due to heat exposure.
Drywall Joint-Crack Prevention and Repair
Drywall joints around the replace will be affected by ex-
posure to elevated temperatures, along with other envi-
ronmental, structural factors due to new construction, and
methods used to install and nish the drywall. If a crack
does emerge adjacent to the replace, it can be perma-
nently repaired by lling it with a paintable latex caulk,
followed by repainting.
Some movement of the screws used to secure the non-
combustible board to the appliance/surround framing is
expected. If a blemish begins to show over a screw head,
sand the surface to remove the blemish and repaint.
Wall Extension
Wall extension must be sealed to existing masonry
wall. See Figure 3.12. Framing studs may not sit ush
against existing masonry wall. In order to keep heat
from escaping behind the wall this transition must be
sealed.
• Seal with a high temperature silicone 300 °F.
and / or
• Packing insulation into voids between the masonry wall
and steel studs is acceptable.
Note: Combustible materials may be used to seal wall
extension to existing masonry wall as long as it is out-
side the non-combustible zone.
NOTE: Concealed sections of 3 in. ex pipe must
be contained inside existing masonary replace
ue vent or installed into an existing wood burn-
ing vent system.
16
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
INTERIOR WALL
TOP VIEW
MANTEL LEG OR WALL PROJECTIONS
SURROUND OPENING
∞
18 in.
12 in.
12 in.
1/4 in. GAP
6 in.
6 in.
4 in.
2 in.

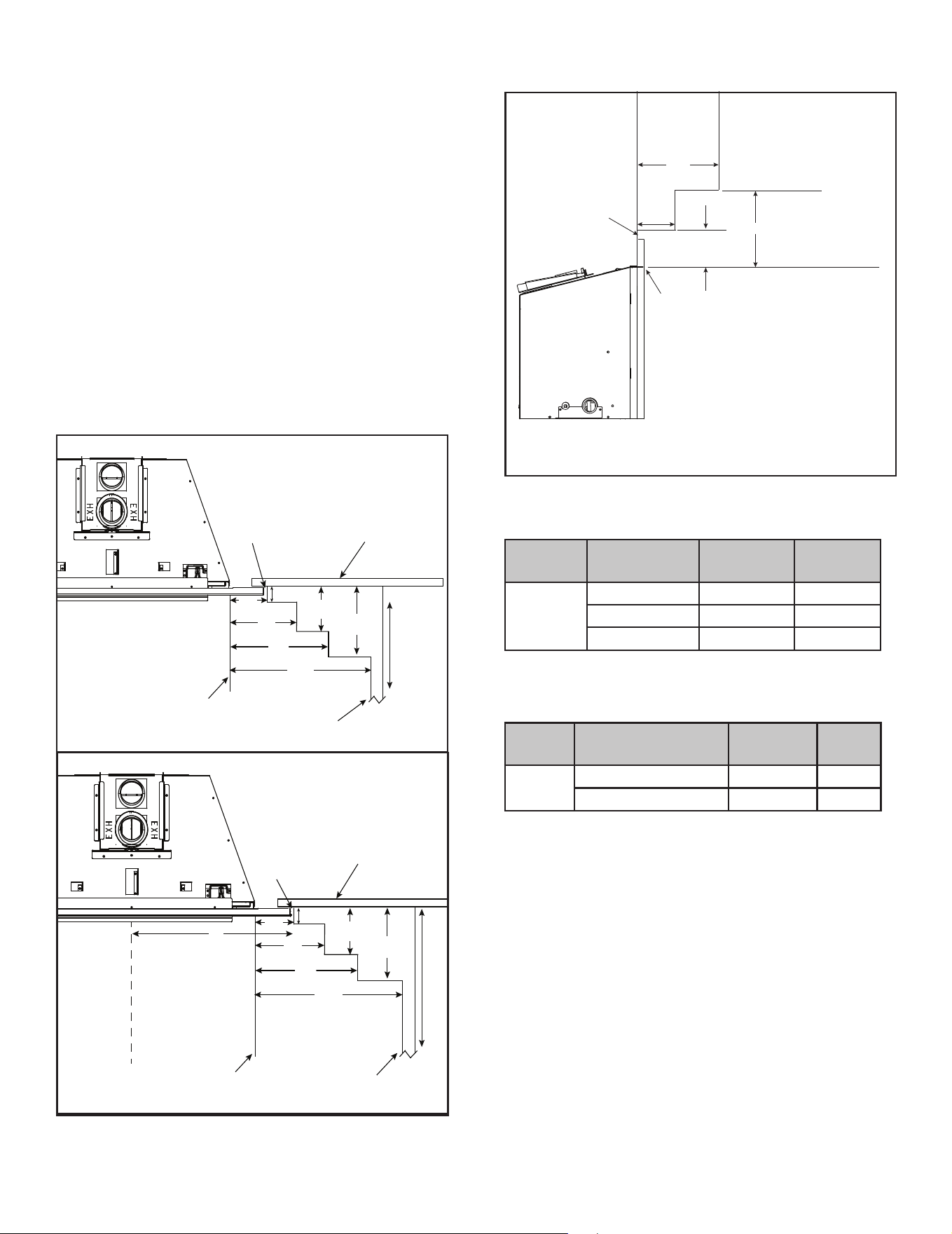

D. Mantel, Wall Projections, & Hearth
Extensions
WARNING! Risk of Fire! Comply with all minimum clear-
ances to combustibles as specied. Framing or nishing
material closer than the minimums listed must be construct-
ed entirely of noncombustible materials (i.e., steel studs,
concrete board, etc).
Clearance to combustible material under the insert is 1/4
inch (6 mm).
• Use leveling legs to raise insert minimum 1/4 inch (6
mm) above combustible material or outer wrap of factory
built rebox.
Combustible facings must not extend behind the insert
surround. For non-combustible material specications
refer to Section 1.E and 1.F.
Mantel Legs or Wall Projections

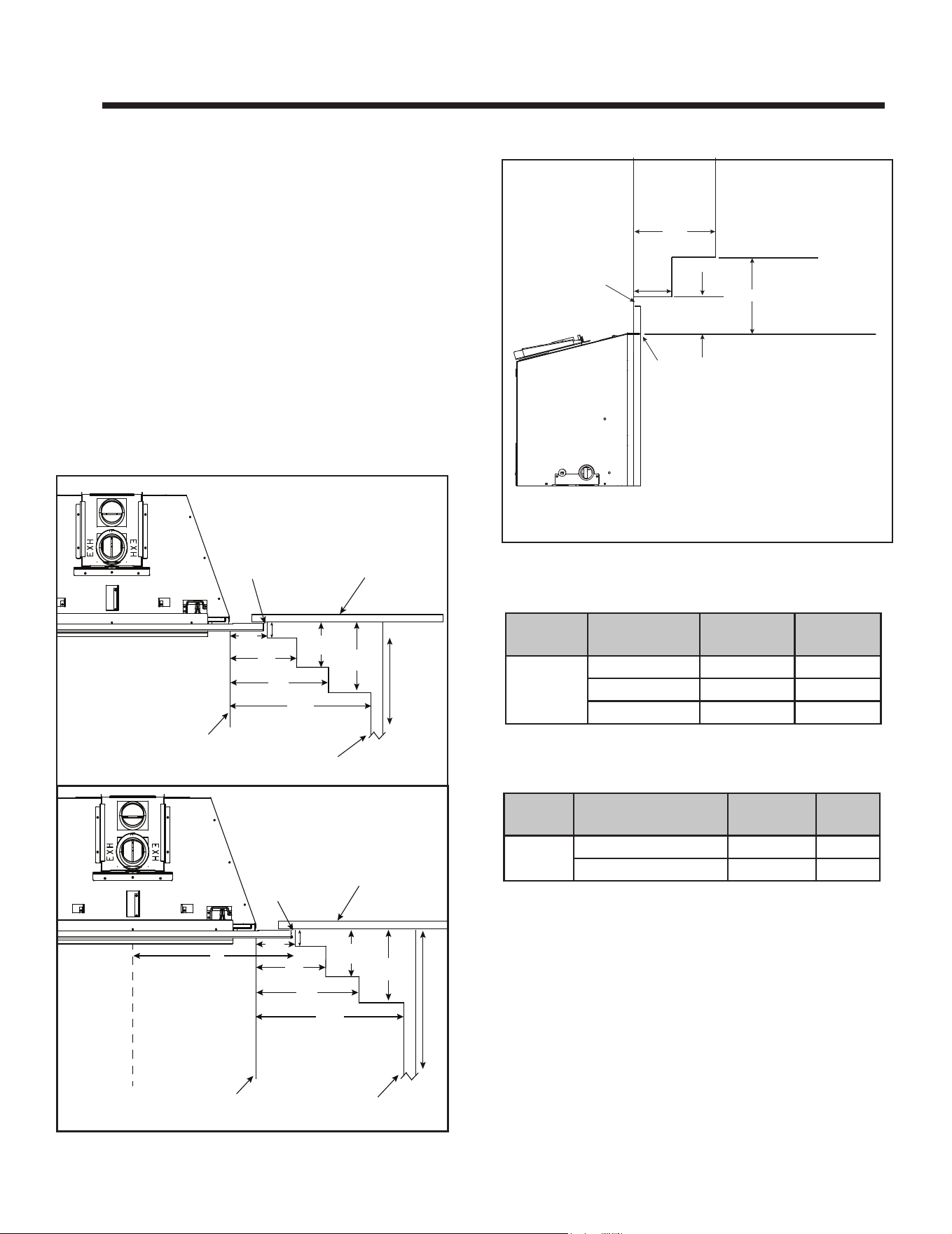

Figure 3.13 Clearances to Mantel Legs or Wall Projections
(Acceptable on both sides of surround opening)
Figure 3.14 Minimum Vertical and Maximum Horizontal
Dimensions- Non-Combustible
Mantels or Wall Projections - Non-Combustible
Combustible
1/4 in. gap
SURROUND
OPENING
6 in.
12 in.
12 in.
*B
*SEE TABLE
1 or 2
Note: Measurement is taken from top of the surround
opening.
INTERIOR WALL
TOP VIEW
MANTEL LEG OR
WALL PROJECTIONS
SURROUND OPENING
1/4 in. Gap
A
*
C
L
*SEE TABLE
1 or 2
∞
18 in.
12 in.
12 in.
6 in.
6 in.
4 in.
2 in.
Non-Combustible
Unit Size
Surround
Model
A B
30 in.
MI30-4027 20-7/16 in. 6-9/16 in.
MI30-4230 21-7/16 in. 9-9/16 in.
MI30-4432 22-7/16 in. 11-9/16 in.
Table 1 Mantel Leg or Wall Projection Minimum Dimension
needed when Installing a Standard Surround
Note: All numbers in Tables 1 and 2 include the 1/4 in. gap on
surround edge.
Unit
Size
Front Model A B
30 in.
INFIT 16-13/16 in. 1-1/4 in.
CSFI, CASFI 18-9/16 in. 2-1/2 in
Table 2 Mantel Leg or Wall Projection Minimum Dimension
needed when Installing a Custom Surround. Front Model
Determines the Minimum Size of the Custom Surround
17
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Mantels - Combustible
Figure 3.15 Minimum Vertical and Maximum Horizontal
Dimensions - Combustible
E. Hearth Extension / Vinyl Flooring
1/2 in.
Figure 3.16 Minimum Required 1/2 in. Gap to Bottom of Front
Measurement to bottom
of appliance:
= 32-3/4 IN. (30")
Measurement
from surround
opening.
12 in.
12 in.
• All ooring and hearth material must remian below the
bottom of the surround. See Figure 3.17.
• Combustible ooring may be located in front of
the appliance. See Figure 3.18 for vinyl ooring
recommendations.
• 1/2 inch gap under the bottom of the front must be
maintained. See Figure 3.16.
• A minimum 1/4 inch gap from the bottom of the appliance
to the metal oor of the solid fuel rebox is REQUIRED.
See side view in Figure 3.19.
• Combustible flooring underneath the appliance is
acceptable with a 1/4 inch gap. See Figure 3.19.
SURROUND
Flooring & Hearth Material
SURROUND
YES
NO
Flooring & Hearth Material
Flooring & hearth material must remain below the bottom of surround
Figure 3.17 Flooring & Hearth Material
18
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Figure 3.19 Solid Fuel Floor Clearance
SIDE VIEW
MINIMUM 1/4 IN. REQUIRED
COMBUSTIBLE FLOOR UNDERNEATH APPLIANCE
12 IN. MIN.
APPLIANCE WIDTH MIN.
12 IN. MIN.
VINYL
Figure 3.18 Vinyl Flooring Recommendations
Vinyl Flooring
Vinyl ooring is sensitive to heat. To avoid damage to
the vinyl ooring, a 12 inch minimum x 12 inch mini-
mum hearth is recommended when using vinyl ooring
up to the wall. See Figure 3.18. If no hearth is used,
it is recommended to provide a minimum of 24 inches
of clearance in front of the appliance to the vinyl oor-
ing OR the bottom of the appliance should be raised a
minimum of 24 inches off of the oor to allow the vinyl
ooring to be installed up to the wall.
NOTICE: Clearances that do not meet the minimum
guidelines could result in damage or buckling to the vinyl
ooring and is done at the installer’s risk.
Hearth and Home Technologies does not recommend
adhesive based vinyl ooring products due to thermal ex-
pansion during operation. Floating style ooring can be
used, but it will reach temperatures up to 110 °F (based
on ambient temperature of 70 °F). Consult the manufac-
turer’s ooring specications to ensure compatibility.
19
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
4 4
Installation Preparation
D. Fireplace Conversion Notice
The replace conversion notice is included in the appliance
manual bag. Permanently attach the label with the follow-
ing warning to the inside lower back of the replace rebox
into which the insert is being installed. Silicone or mechani-
cal fasteners may be required to properly secure the label.
WARNING! Risk of Fire! This replace has been con-
verted for use with a gas replace insert only and cannot
be used for burning wood or solid fuels unless all original
parts have been replaced, and the replace re-approved
by the authority having jurisdiction.
E. Electrical Outlet Box
An outlet box may be installed in a bottom back corner of
the existing solid fuel masonry or factory built replace
to power the appliance. Each unit ships standard with a
cord assembly to permit blowers or other optional acces-
sories to be used. The accessories plug into the new out-
let box or may be routed out onto the hearth to a nearby
outlet.
ELECTRICAL OUTLET LOCATIONS
MASONRY
MASONRY
APPLIANCE
RECOMMENDED
NOTICE: DO NOT wire 110-120 VAC to wall switch.
Figure 4.2 Electrical Outlet Detail
Figure 4.1
Appliance Cord Length (approximate)
Appliance Size Left Side Right Side
30 in. 10 ft. 3 in. 7 ft. 6 in.
Prepare the existing solid fuel masonry or factory built
non-combustible rebox for installation.
A. Cleaning
Prior to installing the gas insert:
• Ensure that the woodburning replace cavity is clean
and free of ash, soot, and other debris.
B. Flue Damper
Fully lock the solid fuel replace’s ue damper in the open
position, OR completely remove it.
C. Gas Line
Note: If the factory built replace has no gas access hole
provided, an access hole of 1 inch (25 mm) diameter or
less may be drilled through the lower sides or bottom of the
rebox in a proper workmanship - like manner. This access
hole must be plugged with non-combustible insulation after
the gas supply line has been installed.
• If the gas access hole of the factory-built replace is not
accessible or prohibits the installation due to its location,
an access hole may be drilled through the lower side,
back or bottom of rebox.
• The lower sides, back, or bottom is considered the lower
half of the factory-built rebox.
• Install gas line to the factory provided ex line. See
Figure 4.1.
• Check local codes and gas line sizing requirements
following NFPA54. See Section 7.
• It is recommended that extra length of gas line be
installed within the existing wood burner or masonry
replace to allow removal of the insert for future servicing
needs.
20
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
WARNING! Risk of Fire/Explosion/Asphyxiation! Do
NOT connect this gas appliance to a chimney ue serving
a separate solid fuel or gas burning appliance.
• Could impair safe operation of this appliance or other
appliances connected to the ue.
• Vent this appliance directly outside.
• Use separate vent system for this appliance.

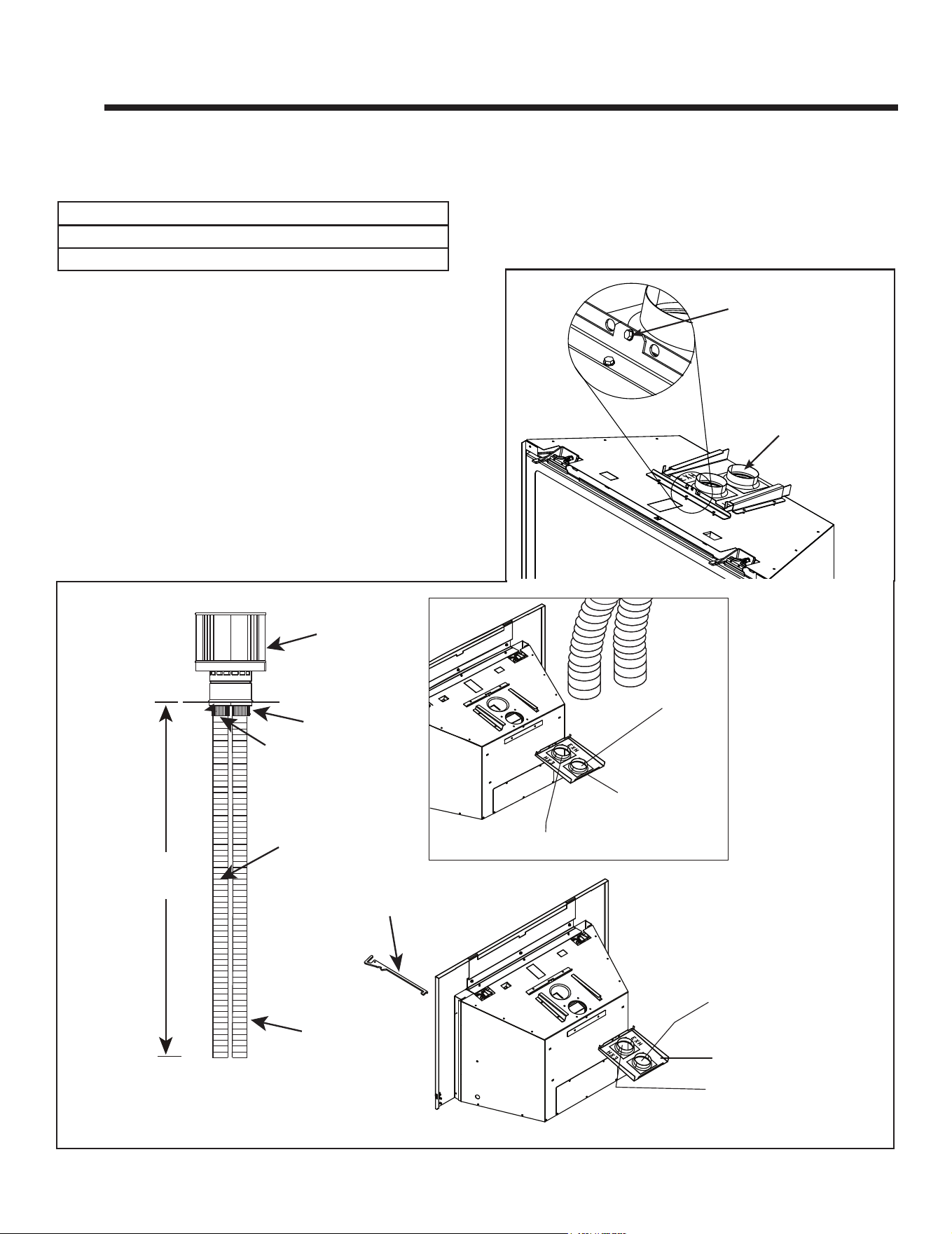

A. Vent Limits
The abbreviations listed in this vent table key are used in
the vent diagrams.
Description
Minimum Vertical Run Length 10 ft.
Maximum Vertical Run Length 50 ft.
CAUTION! ALL vent specications MUST be followed.
This product is tested and listed to these specications.
Appliance performance will suffer if specications are not
followed.
5 5
Installing Vent Pipe and Appliance
EXHAUST
AIR
VENT PIPE
EXHAUST STARTING COLLAR
COLLAR SLIDE PLATE ASSEMBLY
EXHAUST STARTING COLLAR
INLET AIR STARTING COLLAR
COLLAR SLIDE PLATE ASSEMBLY
INLET AIR STARTING COLLAR
INLET AIR
VENT PIPE
V = 10 FT. MINIMUM
50 FT. MAXIMUM
NOTE: TO ACHIEVE OPTIMUM PERFOR-
MANCE OF INSERT, MINIMIZE OR AVOID
BENDS IN EXHAUST VENT PIPE.
EXHAUST
COLLAR
INLET
COLLAR
MULTI-PURPOSE TOOL
TERMINATION
CAP
(SEE FIGURE 2.1)
Figure 5.1
BE SURE SLIDE
PLATE SCREW IS
FULLY TIGHTENED.
COLLAR SLIDE
PLATE ASSEMBLY
INSTALLED.
21
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21

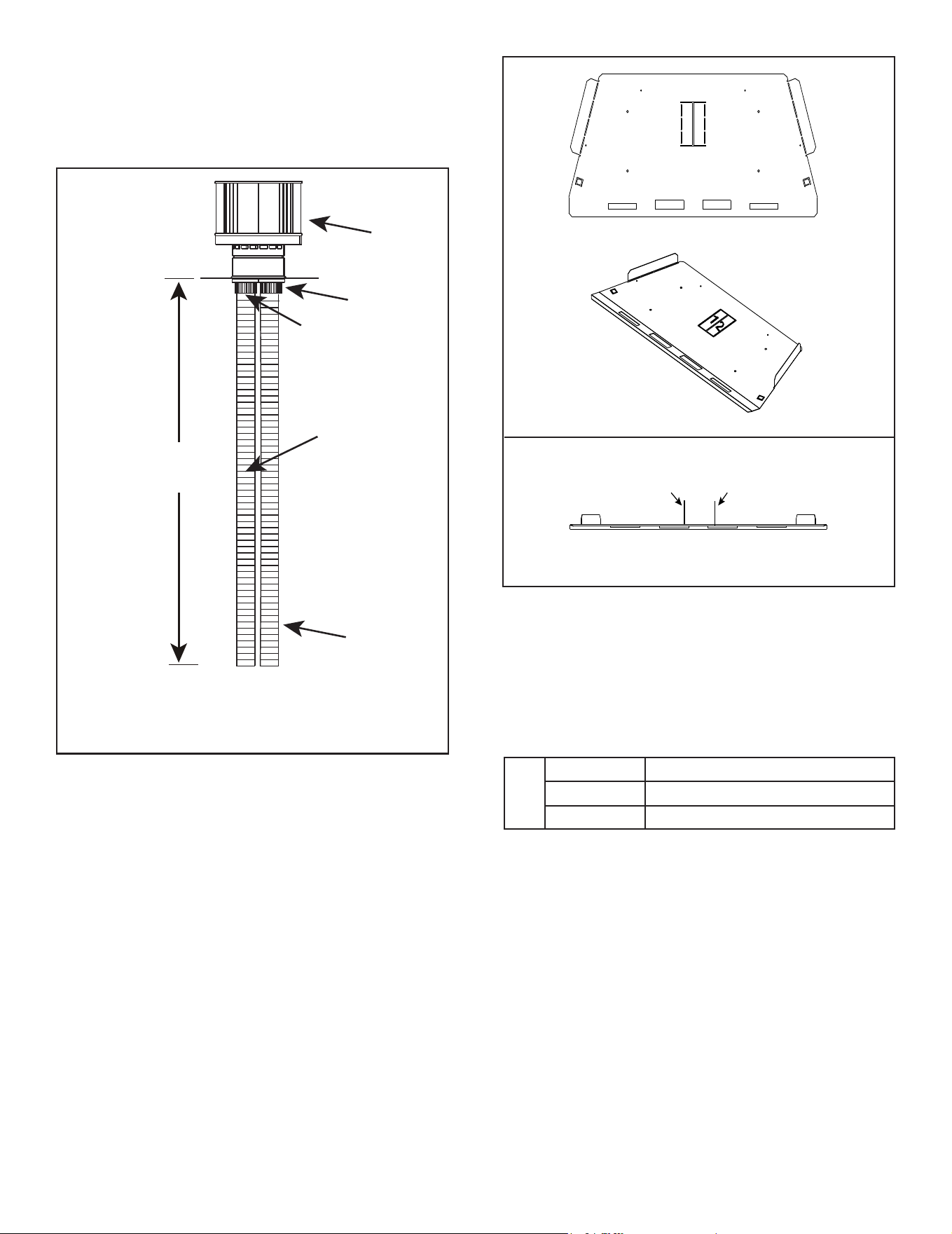

B. Using Vertical Restrictor
EXHAUST
AIR
VENT PIPE
TERMINATION
CAP
INLET AIR
VENT PIPE
V = 10 FT. MINIMUM
50 FT. MAXIMUM
NOTE: TO ACHIEVE OPTIMUM PERFOR-
MANCE OF INSERT, MINIMIZE OR AVOID
BENDS IN EXHAUST VENT PIPE.
EXHAUST
COLLAR
INLET
COLLAR
V=
10 ft. - 25 ft. No adjustment needs to be done.
26 ft. - 35 ft. Open 1 restrictor opening.
36 ft. - 50 ft. Open both restrictor openings.
1 2
FRONT VIEW SHOWS RESTRICTORS IN THE OPEN POSITION AND BENT AT 90º
RESTRICTOR DOORS
Figure 5.3 Firebox Bafe
To open restrictors, push the restrictor doors upward.
The restrictor doors should be bent at a 90°. See Figure
5.3.
Figure 5.2 Min. / Max. Venting Requirement
When 25+ feet of vertical venting is used, vertical restric-
tors will need to be adjusted. See Figure 5.2 and 5.3.
Opening restrictors will help reduce cold start or sooting
issues (cycling).
22
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Note: The LINK-DV4-30B and LINKSQ-DV4-30 systems
REQUIRE this insulation.
To prevent odors and cold air drafts, it may be necessary to
place non-combustible insulation or eld fabricated metal
plates around the vent pipe ues as they go through the
damper.
Figure 5.4
C. Venting Components
CAUTION! Risk of Cuts/Abrasions/Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
The vertical vent termination system installed on this model
includes:
• One length of 3-inch exible vent pipe for exhaust air
(included with vent kit).
• One length of 3-inch exible vent pipe for combustion
air (included with vent kit).
• One vertical termination cap (included with vent kit).
EXHAUST
AIR
VENT PIPE
TERMINATION
CAP
LINK-DV30B
LINKSQ-DV30
Installation*
LINK-DV4-30B
LINKSQ-DV4-30
Installation**
INLET AIR
VENT PIPE
WARNING:
DO NOT BLOCK
THIS PIPE END!
INLET AIR
VENT PIPE
EXHAUST
AIR
VENT PIPE
OPTIONAL LINK-ZC-ADPB
FOR USE WITH CLASS A
WOODBURNING PIPE
LINK-DV4-30B
LINKSQ-DV4-30
Installation**
Masonry
Factory Built
Wood Burning
Remove 18 inch x 18 inch
ashing on cap by removing
3 screws. Connect both the
LINK-ZC-ADPB to Class A
Pipe and the termination cap
to the LINK-ZC-ADPB with
self tapping screws.
OPTIONAL LINK-ZC-ADPB
FOR USE WITH CLASS A
WOODBURNING PIPE
LINK-DV30B
LINKSQ-DV30
Installation*
Note: Untwist the
pipe while extend-
ing it, to achieve
full 30’ length.
OR
*LINK-DV30B/LINKSQ-DV30: This installation may perform better and allow less cold air inltration in
negative pressure settings.
**LINK-DV430B/LINKSQ-DV4-30:
• This installation may be more susceptible to cold air inltration and the effects of negative pressure
on the appliance’s performance.
• Depending on the chimney cleanliness, consider using the full length intake so as to lessen
the possibility of sense rod contamination and ame rectication issues.
Note: Untwist the
pipe while extend-
ing it, to achieve
full 30’ length.
OR
23
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Figure 5.5 Optional SLP Venting Conguration - Vertical Termination
SLP-TVHW
SLP 6-5/8 Ø
COLINEAR TO COAXIAL
ADAPTER DV-46DVA-GK
FLEXIBLE FLUE
SLP
3 in
Flex
Must adhere to pipe clearances.
NOTE: 3 in. sections
of flex pipe must be
enclosed to existing
masonary replace ue
vent or installed into an
existing wood burning
vent system.
Four 45 degree elbows can be used in the vertical section of SLP venting to avoid structural members such as
oor joist or trusses. Maximum total vent run is 50 ft. 90 degree elbows may NOT be used.
D. Connecting to SLP
Terminating horizontally is not allowed.
Vertical terminations are measured to top of chimney.
This appliance is listed for use with LINK-DV systems
and components only. It is permissible to extend venting
above existing chimney (within specied maximum ver-
tical limits) using SLP series 6-5/8 inch gas direct-vent
pipe. Connection is made using DV-46DVA-GK.
LINK-DV30B/LINKSQ-DV30: This installation
may perform better and allow less cold air in-
ltration in negative pressure settings.
LINK-DV430B/LINKSQ-DV4-30:
• This installation may be more susceptible to
cold air inltration and the effects of negative
pressure on the appliance’s performance.
• Depending on the chimney cleanliness,
consider using the full length intake so
as to lessen the possibility of sense rod
contamination and ame rectication
issues.
Flex Min SLP
5 ft. 8 ft.
6 ft. 7 ft.
7 ft. 6 ft.
8 ft. 5 ft.
9 ft. 4 ft.
10 ft. N/A
Up to four 45 degree elbows may be used as long as the minimum venting requirements are met per the above
chart.
INLET AIR
VENT PIPE
EXHAUST AIR VENT PIPE
24
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21

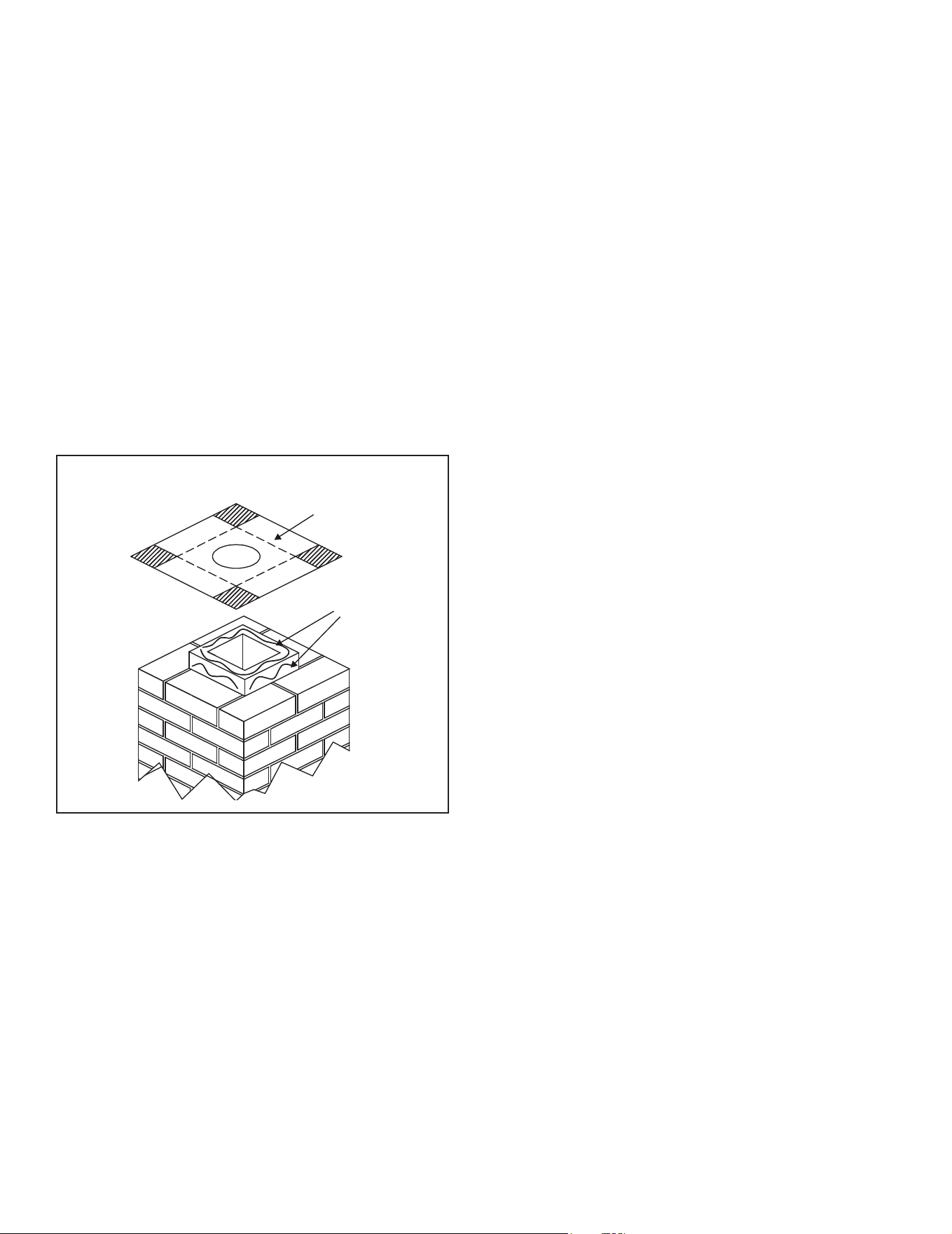

Figure 5.6
CUT AND BEND
FLASHING AS NEEDED
TO FIT CHIMNEY
SEALANT
ADHESIVE
• Trim chimney top plate to minimize excess overhang or
bend over ue tile. See Figure 5.6.
• Place 3/8 inch bead of 300 ºF minimum continuous
exposure rating silicone on ue tile top.
E. Connecting Vent Pipe
Reference instructions in the termination kit.
• Install the 3 in. exible vent pipe(s) down through the
chimney.
• Secure the exhaust exible vent pipe to the exhaust
starting collar on top of the appliance with three screws.
See Figure 5.1.
For best results in cold climate be sure 3 in. ex is ush
and tight to the collar slide plate assembly. Seal with
stove cement or aluminum foil tape. Do not use silicone.
• Use 3 screws to attach the section of inlet air vent to the
inlet air starting collar on the collar slide plate assembly.
See Figure 5.1. NOTE: The collar slide plate assembly
may be removed from appliance to aid installation and
service.
For best results in cold climate be sure 3 in. ex is ush
and tight to the collar slide plate assemby. Seal with
stove cement or aluminum foil tape. Do not use silicone.
25
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
WARNING! Risk of Fire! Only an approved Hearth &
Home Technologies surround may be used to cover inte-
gral grills on solid fuel burning replaces. No other com-
ponents such as shrouds, sheetmetal plates, etc., may be
used to seal off vents.
WARNING! Risk of Explosion! Failure to position the
parts in accordance with these diagrams or failure to use
only parts specically approved with this appliance may
result in property damage or personal injury.
Figure 5.7 Leveling Leg Detail
3/16 in.
ALLEN BOLT
3/16 in.
ALLEN BOLT
RAISE
2 in.
2 in.
GAS LINE
ACCESS
W
A
L
L
FLOOR
REDUCE GAP
ABOVE SURROUND
LOWER REAR
LEVEL LEGS
TO REDUCE
GAP ABOVE
SURROUND
NOTE: Use Allen bolts to
adjust rear level legs.
F. Placing, Securing and Leveling the
Appliance
WARNING! Risk of Explosion/Combustion Fumes!
Connect vent sections per installation instructions.
• Connect exhaust vent pipe ONLY to exhaust starting
collar and termination cap center collar.
• Connect inlet air vent ONLY to inlet air collar on
appliance and either the termination cap inlet air collar
OR terminate within chimney.
• DO NOT allow vent to sag below connection point to
appliance.
• Install insert (without surround attached) into existing
replace while pulling collar slide plate assemby forward.
• Install gas line into hole provided on side. See Figure
5.7.
• Secure collar slide plate assemby to appliance by
securing with #8 screw. See Figure 5.1.
• Level the appliance from side to side and front to back.
Adjust leveling legs to desired vertical position so
appliance is level. Use the leveling bolts included with
the manual bag.
• Position any excess exible vent pipe back up into
chimney without sagging. Twist and push flex vent
together to shorten.
• Attach surround. Follow instructions for surround
installation included with the front.
• Push insert into the opening so that it tightly overlaps
the replace opening.
26
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21

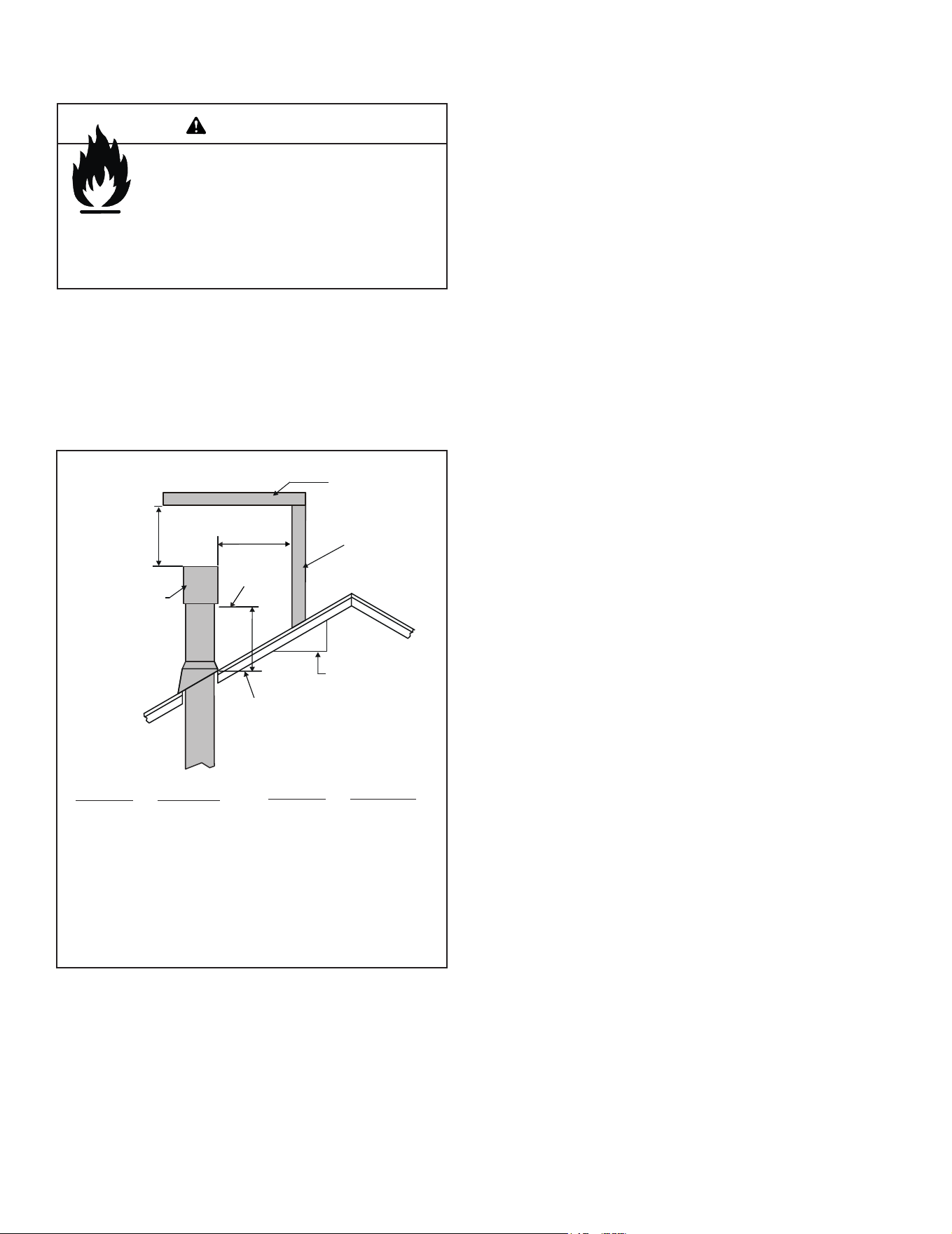

G. Installing Termination Cap
Roof Pitch H (Min.) Ft.
Flat to 6/12....................1.0*
Over 6/12 to 7/12 ........ 1.25*
Over 7/12 to 8/12 .......... 1.5*
Over 8/12 to 9/12 .......... 2.0*
Over 9/12 to 10/12 ........ 2.5*
Over 10/12 to 11/12 ..... 3.25
Figure 5.8 Minimum Height from Roof to Lowest Discharge
Opening
Roof Pitch H (Min.) Ft.
Over 11/12 to 12/12 ....... 4.0
Over 12/12 to 14/12 ....... 5.0
Over 14/12 to 16/12 ....... 6.0
Over 16/12 to 18/12 ....... 7.0
Over 18/12 to 20/12 ....... 7.5
Over 20/12 to 21/12 ....... 8.0
HORIZONTAL
OVERHANG
VERTICAL
WALL
GAS DIRECT VENT
TERMINATION CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
2 FT.
MIN.
20 INCHES MIN.
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
* H minimum may vary depending on regional snowfall.
Refer to local codes.
CAUTION! Risk of Cuts/Abrasions/Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
For installation of termination cap see minimum vent
heights for various pitched roofs. See Figure 5.8.
Fire Risk.
Maintain vent clearance to combustibles as
specied.
• DO NOT pack air space with insulation or other
materials.
Failure to keep insulation or other materials away
from vent pipe may cause overheating and re.
WARNING
27
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
A. General Information
WARNING! Risk of Shock or Explosion! DO NOT wire
110-120 VAC to the valve or to the appliance wall switch.
Incorrect wiring will damage controls.
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• This appliance comes with a 110-120 VAC cord assembly.
This is required for proper operation of the appliance
(IntelliFire Ignition). An outlet box may be installed in
a bottom back corner of the existing solid fuel masonry
or factory built replace to plug in the cord assembly,
or the supplied power cord may be routed out onto the
hearth to a nearby outlet.
• A 110-120 VAC circuit for this product must be protected
with ground-fault circuit-interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.
• Low voltage and 110-120 VAC voltage cannot be shared
within the same wall box.
Accessories Requirements
• This appliance may be used with a wall switch, wall
mounted thermostat and/or a remote control.
• An outlet box wired with 2 receptacles is recommend-
ed if both the optional fan and optional remote are
used. In this case plug the optional remote into the
unused receptacle.
Wiring for optional Hearth & Home Technologies approved
accessories should be done now to avoid reconstruction.
Follow instructions that come with those accessories.
6 6
Electrical Information
Electrical Service and Repair
WARNING! Risk of Shock! Label all wires prior to dis-
connection when servicing controls. Wiring errors could
cause improper and dangerous operation. Verify proper
operation after servicing.
WARNING! Risk of Shock! Replace damaged wire with
type 105º C rated wire. Wire must have high temperature
insulation.
B. Wiring Requirements
IntelliFire Ignition System Wiring
WARNING! Risk of Shock or Explosion! DO NOT wire
IPI controlled appliance power cord to a switched circuit.
Incorrect wiring will override IPI safety lockout.
• Refer to Figure 6.2, IntelliFire Pilot Ignition (IPI) Wiring
Diagram.
• This appliance is equipped with an IntelliFire control valve
which operates on a 3 volt system.
• Ensure the 3-volt AC transformer is plugged into the
supplied cord assembly to supply power to the unit OR
install two D cell batteries (not included) into the battery
pack before use
• Refer to Service Parts section of appliance Owner’s
Manual for replacement part information.
ON/OFF Switch
• An ON/OFF switch is included with the appliance
surround and should be attached to the side of the
surround. (See Installation instructions shipped with the
appliance front).
• If desired an additional wall switch or thermostat may
be added to system.
Figure 6.1 Electrical Outlet Detail
NOTICE: DO NOT wire 110-120 VAC to wall switch.
ELECTRICAL OUTLET LOCATIONS
MASONRY
MASONRY
APPLIANCE
RECOMMENDED
Appliance Cord Length (approximate)
Appliance Size Left Side Right Side
30 in. 10 ft. 3 in. 7 ft. 6 in.
28
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Figure 6.2 IntelliFire Pilot Ignition (IPI) Wiring Diagram
TRANSFORMER
3 VAC
BLACK
RED
BATTERY PACK
ORANGE
GREEN
VALVE
WHITE
ORANGE
IGNITION MODULE 3 VAC
INTERMITTENT PILOT IGNITOR
I
S
GROUND TO
FIREPLACE
CHASSIS
TO WIRED OUTLET
TO CORD ASSEMBLY
110-120 VAC
PLUG
WALL SWITCH OR
REMOTE CONTROL
BRN
BRN
ON/OFF
SWITCH
NOTE: 1/4 IN. FEMALE SPADE
CONNECTORS CONNECT TO
THE REMOTE WIRE ASSEMBLY
REMOTE WIRE
ASSEMBLY
(LOCATED ON SIDE
OF SURROUND)
SMART-STAT-HNG
REMOTE
WIRES
(TO BROWN)
(Optional)
750-500 (NG)
2155-501 (P)
2206-299
2550-013 (NG)
2550-014 (LP)
593-592
593-593A
593-594A
2103-013
593-590A
2206-107
NOTICE: Batteries should only be used as a power source
in the event of an emergency power outage. Batteries
should not be used as a primary long-term power source.
Battery polarity must be correct when installing batteries.
DO not store batteries in the battery pack when the
appliance is powered by the 3-volt transformer connected
to permanent electrical service. Store battery pack in
apppliance manual bag when not in use.
Battery Pack
Battery pack is not factory installed in appliances. See
appliance manual bag for battery pack. Battery pack
may be installed without batteries during normal opera-
tion. See Figure 6.3 for battery pack location.
Figure 6.3 Battery Pack Installed
BATTERY PACK
When operating appliance under battery power, battery
pack MUST be moved outside of the appliance.
29
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
On units already installed, removal of decorative barrier
front and gas insert may be required.
Option 1:
• Detach exible liner from top of unit if insert is installed by
removing the collar slide plate screw. See Figure 5.1.
• Remove the ve screws on the rear cover plate. See
Figure 6.4.
• Install and wire the fan per instruction shipped with the
fan. Figures 6.6 and 6.7 also shows additional details.
• Reinstall the rear cover plate back on the unit.
• Reattach exible liner and replace collar slide plate
screw. See Figure 5.1.

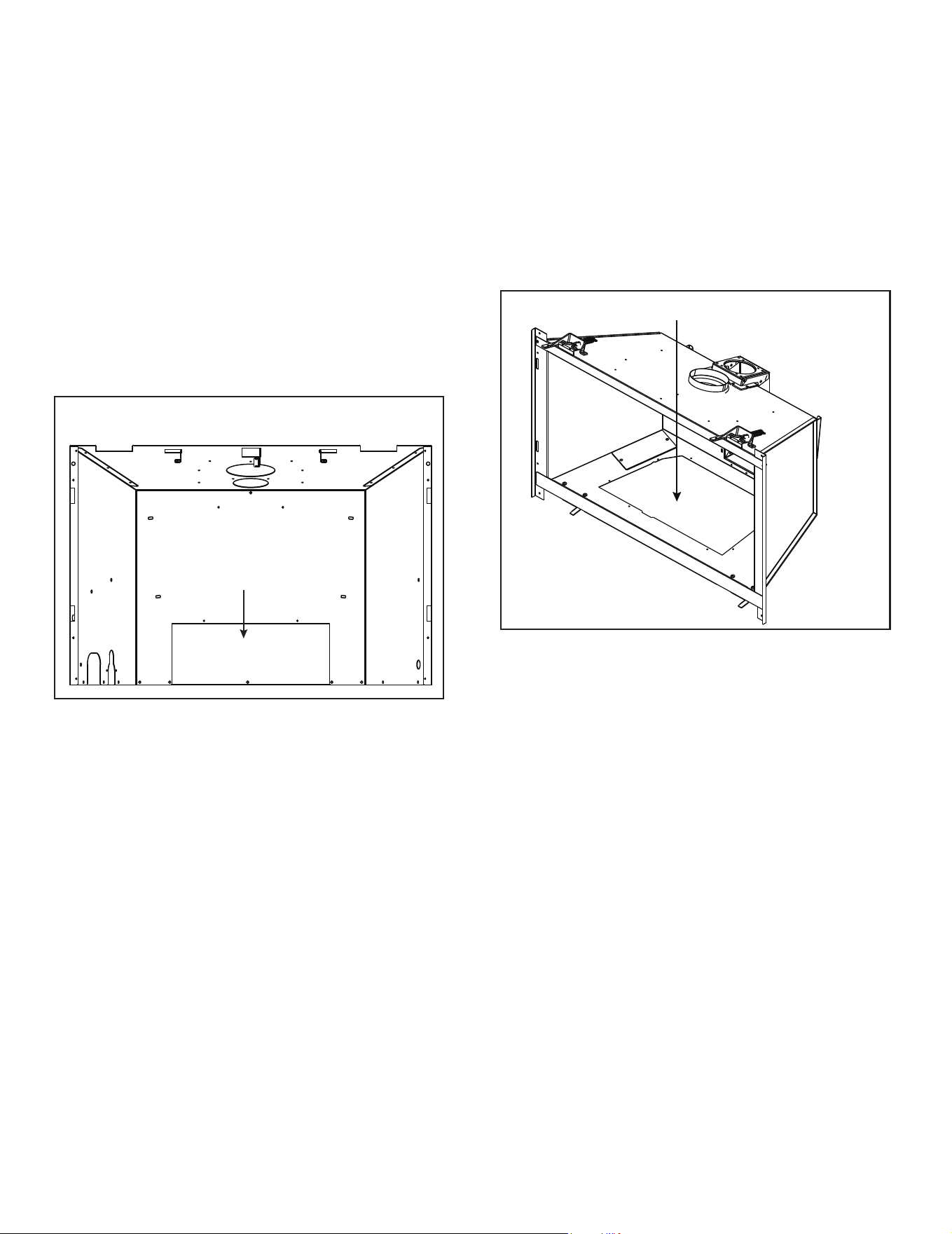

Figure 6.4 Cover Plate Removed (Option 1)
INSTALL FAN
OPTION 1
OPTION 2
Figure 6.5 Through Valve Plate Opening (Option 2)
INSTALL FAN
Option 2:
• Remove appliance front, glass, logs, base pan assem-
bly, burner assembly and valve plate assembly. See
Figure 6.5.
• Install and wire the fan per instruction shipped with the
fan. Figures 6.6 and 6.7 also shows additional details.
• Reinstall valve plate assembly, burner assembly, base
pan assembly, logs and appliance glass and front.
C. Installation / Service for Optional Fan
REAR COVER PLATE
30
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
CORD ASSEMBLY
TEMPERATURE
SENSOR
FAN
RHEOSTAT
SET RHEOSTAT TO DESIRED SPEED
LOCATE RHEOSTAT AS SHOWN
ON FRONT / LEFT SIDE OF BASEPAN
Optional Fan (GFK-160A)
Install fan as shown below.
REMOVE TWO (2) 3/8 in. KEPS NUTS
REMOVE PLATE ASSEMBLY & GASKET
ROTATE PLATE
ASSEMBLY &
GASKET 180°
ATTACH TEMP SENSOR
TO UNDERSIDE AND
SECURE KEPS NUTS
Figure 6.7 Fan Wiring Diagram
Figure 6.6 Install Temperature Sensor
31
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
A. Fuel Conversion
• Make sure the appliance is compatible with available gas
types.
• Conversions must be made by a qualified service
technician using Hearth & Home Technologies specied
and approved parts.
• Reference the following diagrams for gas shut off detail
and component access.
• Reference Section 9.A to remove xed glass assembly.
7 7
Gas Information

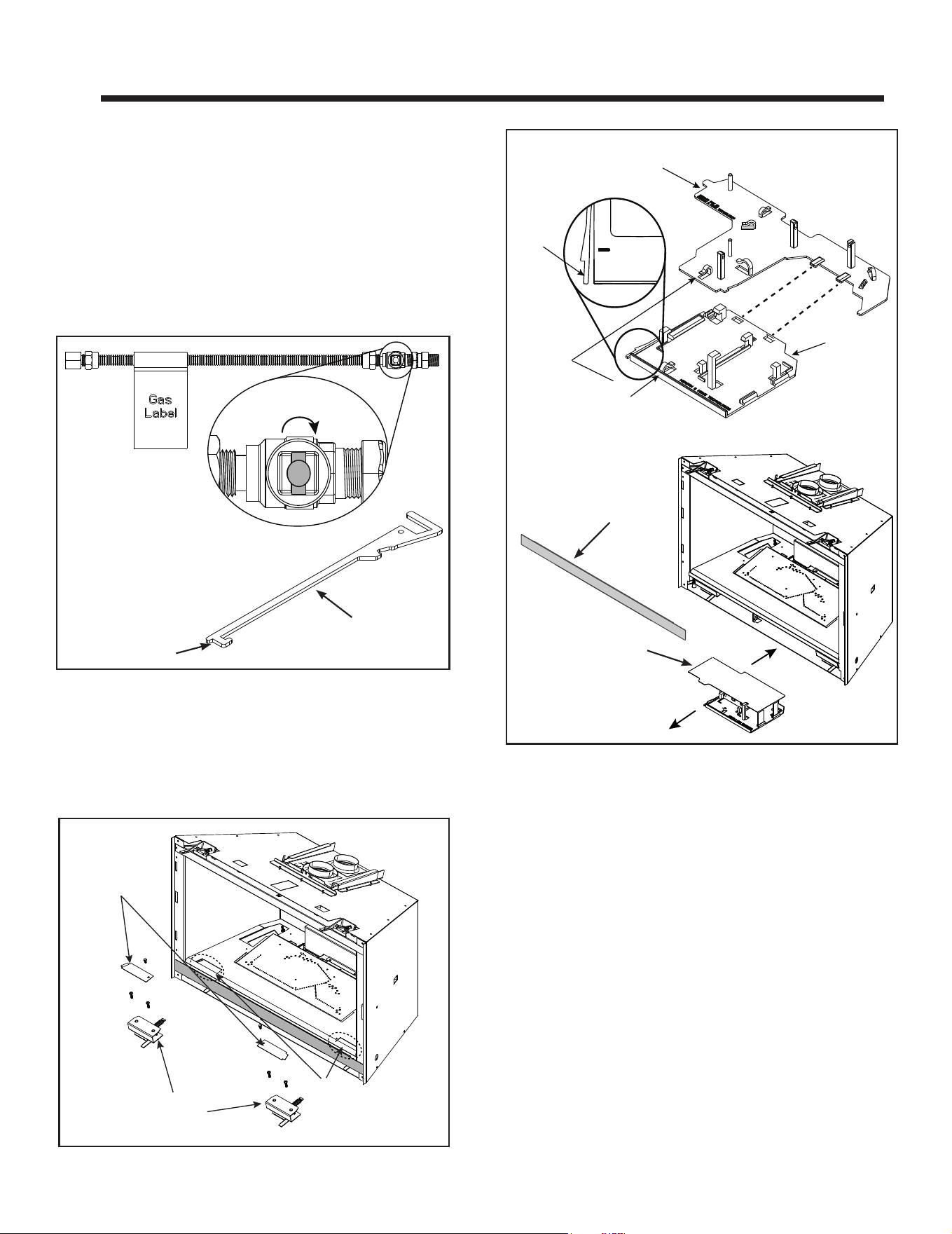

Figure 7.1 Gas Shut-off
GLASS CLIP
ASSEMBLIES
GLASS
CLIP ASSEMBY
SCREW ACCESS
COVER
PLATES
Figure 7.2 Glass Clip Assembly Removal
• Glass clip assemblies can be removed for additional
component accessibility.
• Use multi-purpose tool to assist with gas shutoff. See
Figure 7.1. The gas ball valve is in the “OFF” position
from manufacturer.
WARNING! Glass seal plate must be properly installed.
Risk of elevated component temps and carbon monoxide
exposure.
OFF POSITION
(TURN KNOB CLOCKWISE)
NOTE: Use the Multi-Purpose
Tool to assist with gas shut-off.
MULTI-PURPOSE TOOL
GAS SHUT OFF
Figure 7.3 Component Tray
GLASS SEAL PLATE
COMPONENT TRAY
WITH HEAT SHIELD
PRESS
TAB TO
RELEASE
UNCLIP
WIRES
COMPONENT
TRAY
COMPONENT
TRAY RECEIVER
NOTE: The gas ball
valve is in the “OFF
position from
manufacturer.
CAUTION: Be sure to reinstall the component heat shield
before ring the appliance. Components will overheat
without heat shield.
CAUTION: Any wires removed from the wire clips during
appliance installation or service must be re-installed in the
wire clips.
32
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
WARNING! Risk of Fire or Explosion! High pressure
will damage valve. Low pressure may cause explosion.
• Verify inlet pressures. Verify minimum pressures when
other household gas appliances are operating.
• Install regulator upstream of valve if line pressure is
greater than 1/2 psig.
Gas Pressure Natural Gas Propane
Minimum inlet pressure 5.0 in. w.c. 11.0 in. w.c.
Maximum inlet pressure 10.0 in. w.c. 13.0 in. w.c.
Manifold pressure 3.5 in. w.c. 10.0 in. w.c.
Note: Have the gas supply line installed in accordance with
local codes, if any. If not, follow ANSI Z223.1. Installation
should be done by a qualied installer approved and/or
licensed as required by the locality. (In the Commonwealth
of Massachusetts installation must be performed by a
licensed plumber or gas tter).
Note: A listed (and Commonwealth of Massachusetts ap-
proved) 1/2 in. (13 mm) T-handle manual shut-off valve
and exible gas connector are connected to the 1/2 in. (13
mm) control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
Fire Risk.
Explosion Hazard.
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
WARNING
B. Gas Pressure
• Optimum appliance performance requires proper input
pressures.
• Gas line sizing requirements will be determined in ANSI
Z223.1 National Fuel Gas Code in the USA and CAN/
CGA B149 in Canada.
• Pressure requirements are:
C. Gas Connection
• Refer to Reference Section 3 for location of gas line
access in appliance.
• The gap between supply piping and gas access hole
may be caulked with caulk with a minimum of 300
ºF continuous exposure rating or stuffed with non-
combustible, unfaced insulation to prevent cold air
inltration.
• Ensure that gas line does not come in contact with outer
wrap of the appliance. Follow local codes.
• Pipe incoming gas line to the factory supplied ex line.
See Figure 7.4.
• Connect incoming gas line to the 1/2 in. (13 mm)
connection on manual shutoff valve.
WARNING! Risk of Fire or Explosion! Support control
when attaching pipe to prevent bending gas line.
• A small amount of air will be in the gas supply lines.
WARNING! Risk of Fire or Explosion! Gas build-up dur-
ing line purge could ignite.
• Purge should be performed by qualified service
technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as sparks
or open ames.
Light the appliance. It will take a short time for air to purge
from lines. When purging is complete the appliance will
light and operate normally.
WARNING! Risk of Fire, Explosion or Asphyxiation!
Check all ttings and connections with a non-corrosive
commercially available leak-check solution. DO NOT use
open ame. Fittings and connections could have loos-
ened during shipping and handling.
WARNING! Risk of Fire! DO NOT change valve settings.
This valve has been preset at the factory.

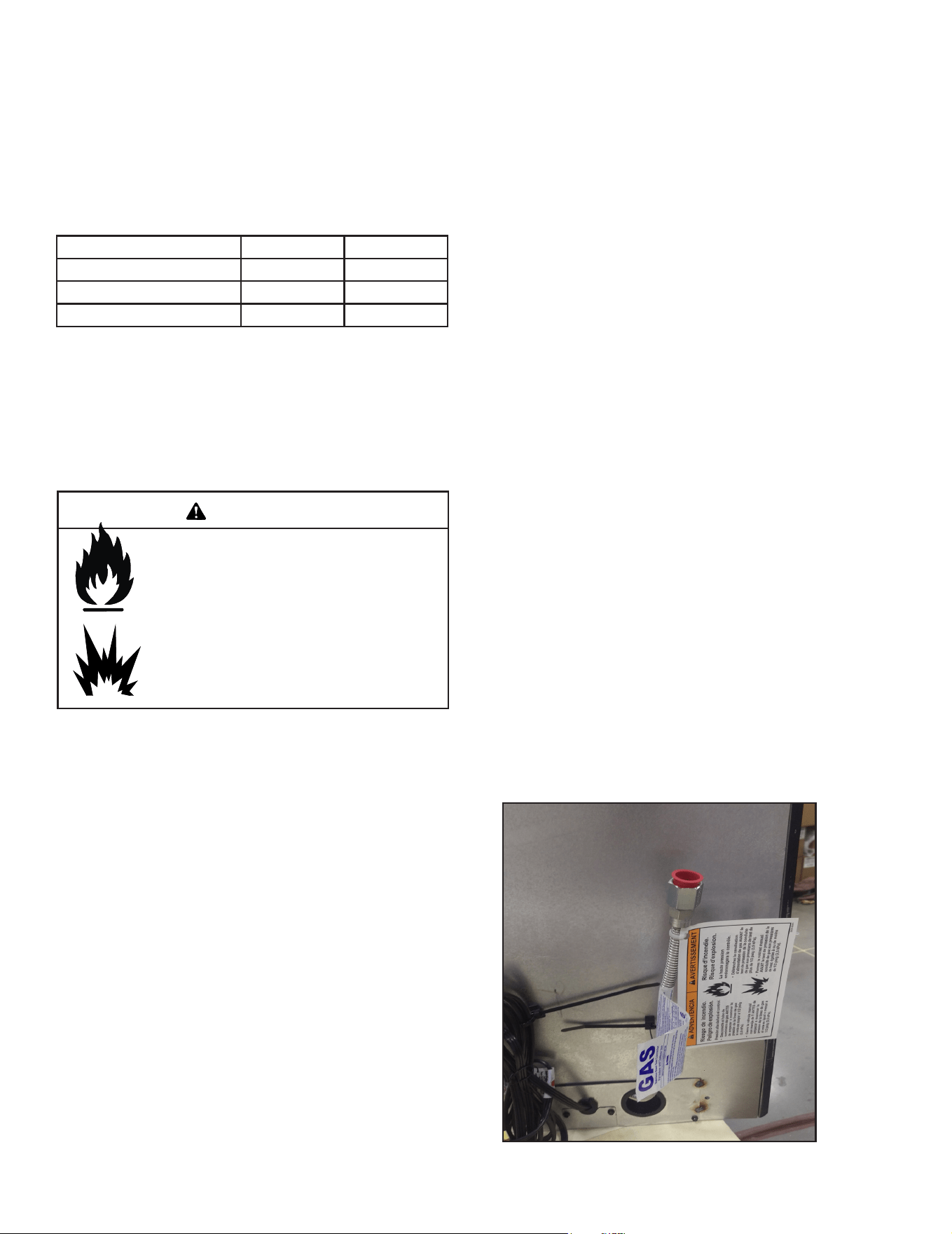

Figure 7.4
33
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Input ratings are certied without a reduction
of input rate for elevations up to 4500 feet (1370 m)
above sea level. Please consult provincial and/or
local authorities having jurisdiction for installations at
elevations above 4500 feet (1370 m)
Check with your local gas utility to determine proper
orice size.
E. Air Shutter Setting
Air shutter settings should be adjusted by a qualied ser-
vice technician at the time of installation. The air shutter
is set at the factory for minimum vertical vent run. Adjust-
ing air shutter may be desired for longer vent runs. See
Figure 7.5.
NOTICE: If sooting occurs, provide more air by opening
the air shutter.

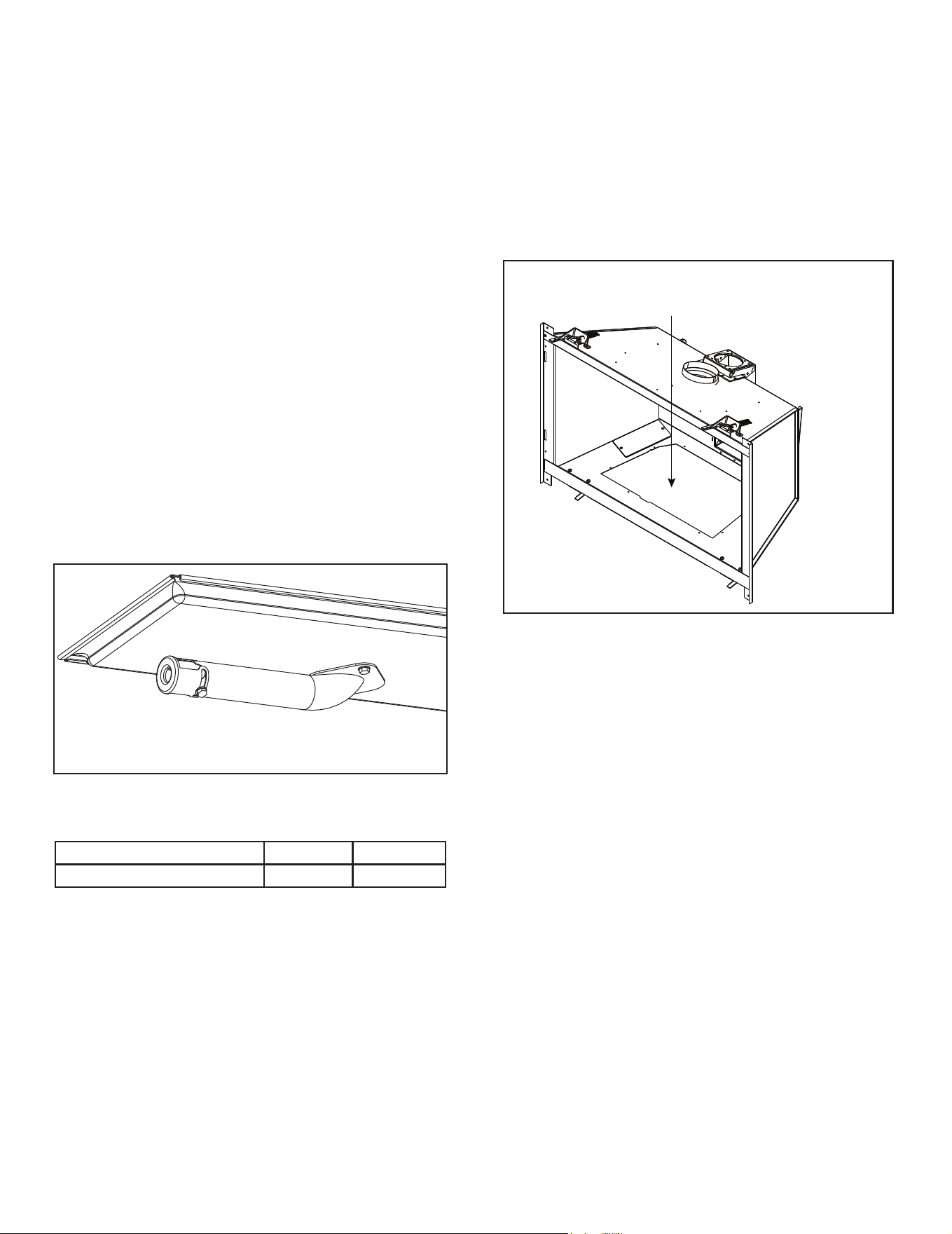

Figure 7.5 Air Shutter
Air Shutter Settings
NG Propane
JASPER30IN 3/8 in. Full Open
F. Service / Replace Appliance Gas Valve
Figure 7.6 Gas Valve Detail
SERVICE / REPLACE
APPLIANCE GAS VALVE
• See Figure 7.6.
• Remove appliance front, glass, logs, base pan assem-
bly, burner assembly and valve plate assembly. See
Figure 7.6.
• Service/Replace gas valve.
• Reinstall valve plate assembly, burner assembly, base
pan assembly, logs and appliance glass and front.
34
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
8 8
Finishing
A. Mantel, Wall Projections & Hearth
Extensions
WARNING! Risk of Fire! Comply with all minimum clear-
ances to combustibles as specied. Framing or nishing
material closer than the minimums listed must be construct-
ed entirely of noncombustible materials (i.e., steel studs,
concrete board, etc).
Clearance to combustible material under the insert is 1/4
inch (6 mm).
• Use leveling legs to raise insert minimum 1/4 inch (6
mm) above combustible material or outer wrap of factory
built rebox.
Combustible facings must not extend behind the insert
surround. For non-combustible material specications
refer to Section 1.E and 1.F.
Mantels or Wall Projections - Non-Combustible
Figure 8.2 Minimum Vertical and Maximum Horizontal
Dimensions- Non-Combustible
1/4 in. gap
SURROUND
OPENING
6 in.
12 in.
12 in.
*B
*SEE TABLE
1 or 2
Note: Measurement is taken from top of the surround
opening.
Mantel Legs or Wall Projections
Figure 8.1 Clearances to Mantel Legs or Wall Projections
(Acceptable on both sides of surround opening)
INTERIOR WALL
TOP VIEW
MANTEL LEG OR
WALL PROJECTIONS
SURROUND OPENING
1/4 in. Gap
A
*
C
L
*SEE TABLE
1 or 2
∞
18 in.
12 in.
12 in.
6 in.
6 in.
4 in.
2 in.
INTERIOR WALL
TOP VIEW
MANTEL LEG OR WALL PROJECTIONS
SURROUND OPENING
∞
18 in.
12 in.
12 in.
1/4 in. GAP
6 in.
6 in.
4 in.
2 in.
Non-Combustible
Unit Size
Surround
Model
A B
30 in.
MI30-4027 20-7/16 in. 6-9/16 in.
MI30-4230 21-7/16 in. 9-9/16 in.
MI30-4432 22-7/16 in. 11-9/16 in.
Table 1 Mantel Leg or Wall Projection Minimum Dimension
needed when Installing a Standard Surround
Note: All numbers in Tables 1 and 2 include the 1/4 in. gap on
surround edge.
Table 2 Mantel Leg or Wall Projection Minimum Dimension
needed when Installing a Custom Surround. Front Model
Determines the Minimum Size of the Custom Surround
Unit
Size
Front Model A B
30 in.
INFIT 16-13/16 in. 1-1/4 in.
CSFI, CASFI 18-9/16 in. 2-1/2 in
35
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Mantels - Combustible
Figure 8.3 Minimum Vertical and Maximum Horizontal
Dimensions - Combustible
B. Hearth Extension
1/2 in.
Figure 8.4 Minimum Required 1/2 in. Gap
Measurement to bottom
of appliance:
= 32-3/4 IN. (30")
Measurement
from surround
opening.
12 in.
12 in.
• All ooring and hearth material must remian below the
bottom of the surround. See Figure 8.5.
• Combustible ooring may be located in front of the
appliance. Exception - no vinyl / adhesive ooring. See
Figure 8.6.
• 1/2 inch gap under the bottom of the front must be
maintained. See Figure 8.4.
• A minimum 1/4 inch gap from the bottom of the appliance
to the metal oor of the solid fuel rebox is REQUIRED.
See side view in Figure 8.7.
• Combustible flooring underneath the appliance is
acceptable with a 1/4 inch gap. See Figure 8.7.
SURROUND
Flooring & Hearth Material
SURROUND
YES
NO
Flooring & Hearth Material
Flooring & hearth material must remain below the bottom of surround
Figure 8.5 Flooring & Hearth Material
36
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Y
X
Figure 8.6 Hearth - Combustible Material Exception
NO VINYL /
ADHESIVE FLOORING
Figure 8.7 Solid Fuel Floor Clearance
SIDE VIEW
MINIMUM 1/4 IN. REQUIRED
COMBUSTIBLE FLOOR UNDERNEATH APPLIANCE
Vinyl / Adhesive Flooring - Minimums
Appliance Size Depth (X) Width (Y)
30 in. 16 in 30-3/4 in.
37
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
9 9
Appliance Setup

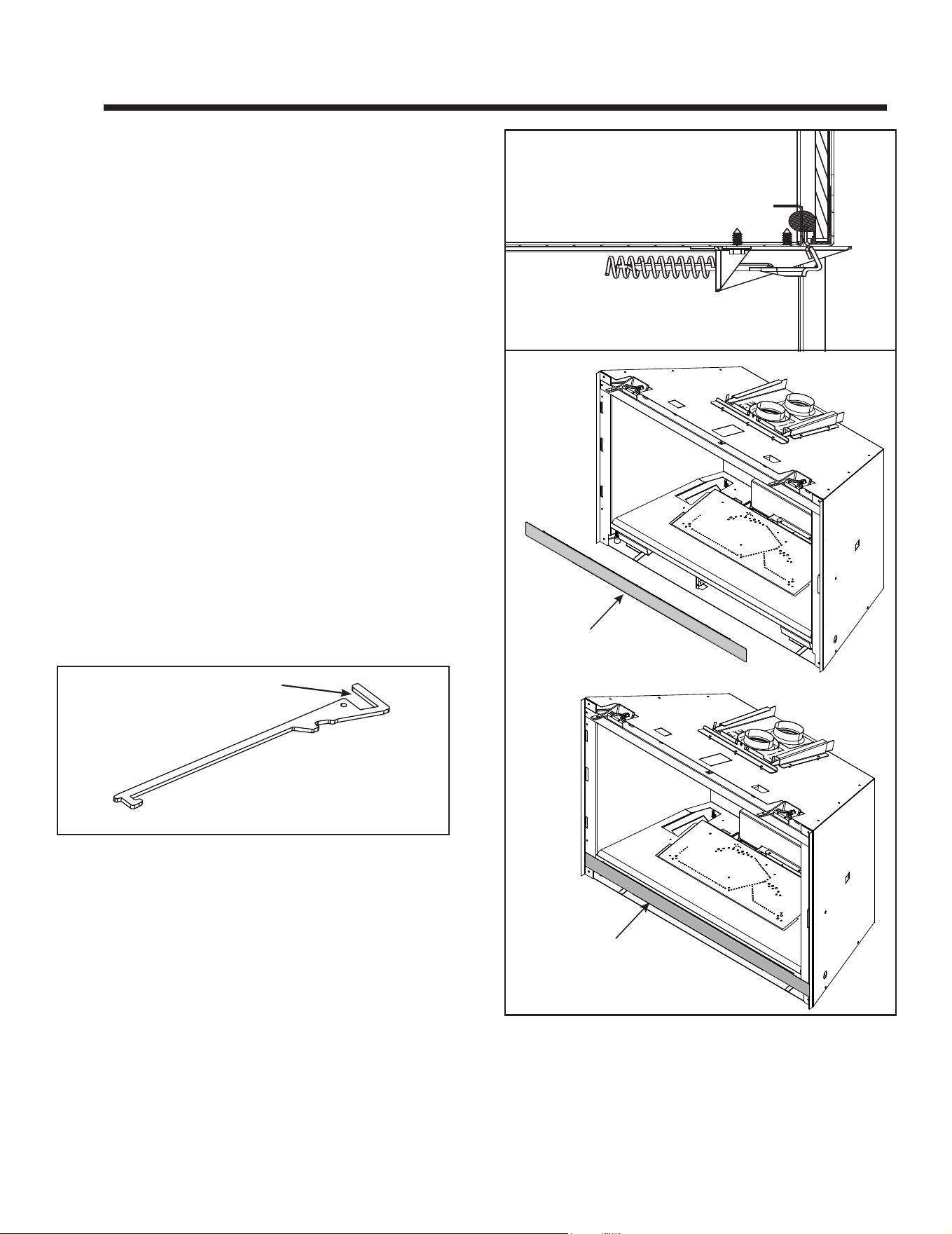

A. Fixed Glass Assembly
WARNING! Risk of Asphyxiation! Handle xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT strike, slam or scratch glass.
• DO NOT operate replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
Removing Fixed Glass Assembly
CAUTION! Handle xed glass assembly with care.
Glass is breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• DO NOT clean glass while it is hot
• The glass assembly fastens to the replace in four
places. Four of the fastening mechanisms are spring-
loaded glass latches. An example of the glass latch is
shown in Figure 9.2.
• To release glass assembly, use the supplied multi-
purpose tool to pull the two bottom spring-loaded
latches forward and allow them to retract away from
the glass assembly. Tilt the bottom of the glass
assembly outward until the top latches disengage.
Replacing Fixed Glass Assembly
• Tilt the top of the glass assembly toward replace and
slide glass assembly upward to engage
top latches. Verify top latches are fully engaged and
then fasten the two bottom latches using the supplied
multi-purpose tool.
• Reinstall door or decorative barrier front.
Figure 9.2 Glass Seal Plate
GLASS SEAL PLATE
GLASS SEAL
PLATE INSTALLED
Figure 9.1 Multi-PurposeTool
GLASS CLIPS
WARNING! Glass seal plate must be properly installed.
Risk of elevated component temps and carbon monoxide
exposure.
Note: Appliance is shipped with glass seal plate in the
installed position.
38
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
B. Remove the Shipping Materials
Remove shipping materials from inside or underneath the
rebox.
Note: Remove the zip ties from the appliance that hold
the electrical cord, gas exline and multi-purpose tool in
place for shipping.
C. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the rebox or underneath in the control cavity.
D. Accessories
Install approved accessories per instructions included
with accessories. Contact your dealer for a list of ap-
proved accessories.
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional acces-
sories with this appliance. Using non-listed accessories
could result in a safety hazard and will void the warranty.
39
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
F. Ember Placement
WARNING! Risk of Explosion! Follow ember placement
instructions in manual. Replace ember material annually.
Improperly placed embers interfere with proper burner op-
eration.
Ember material is shipped with this gas appliance. To place
the ember material:
• Embers CANNOT be placed directly over burner ports
that are indicated in Figure 9.3 or in pilot area as indicated
in Figure 9.3.
• Embers may be placed on the ports in areas indicated in
Figure 9.3. These embers must be placed loosely over
the port holes, not pressed down on or into the holes.
Create a single layer, no more than 1/4 inch thick.
• Failure to follow this procedure will likely cause lighting
and sooting problems.
• Save the remaining ember materials for use during
appliance servicing. The embers provided should be
enough for 3 to 5 applications.
E. Place the Lava Rock
WARNING! Risk of Explosion! Follow lava rock place-
ment instructions in manual. DO NOT place lava rock on
burner. Improperly placed lava rock interferes with proper
burner operation.
Lava rock is shipped with this gas appliance. To place the
lava rock:
• Lava rock CANNOT be placed on the burner.
• Place lava rock in front of and to the sides of the burner.
See Figure 9.3.

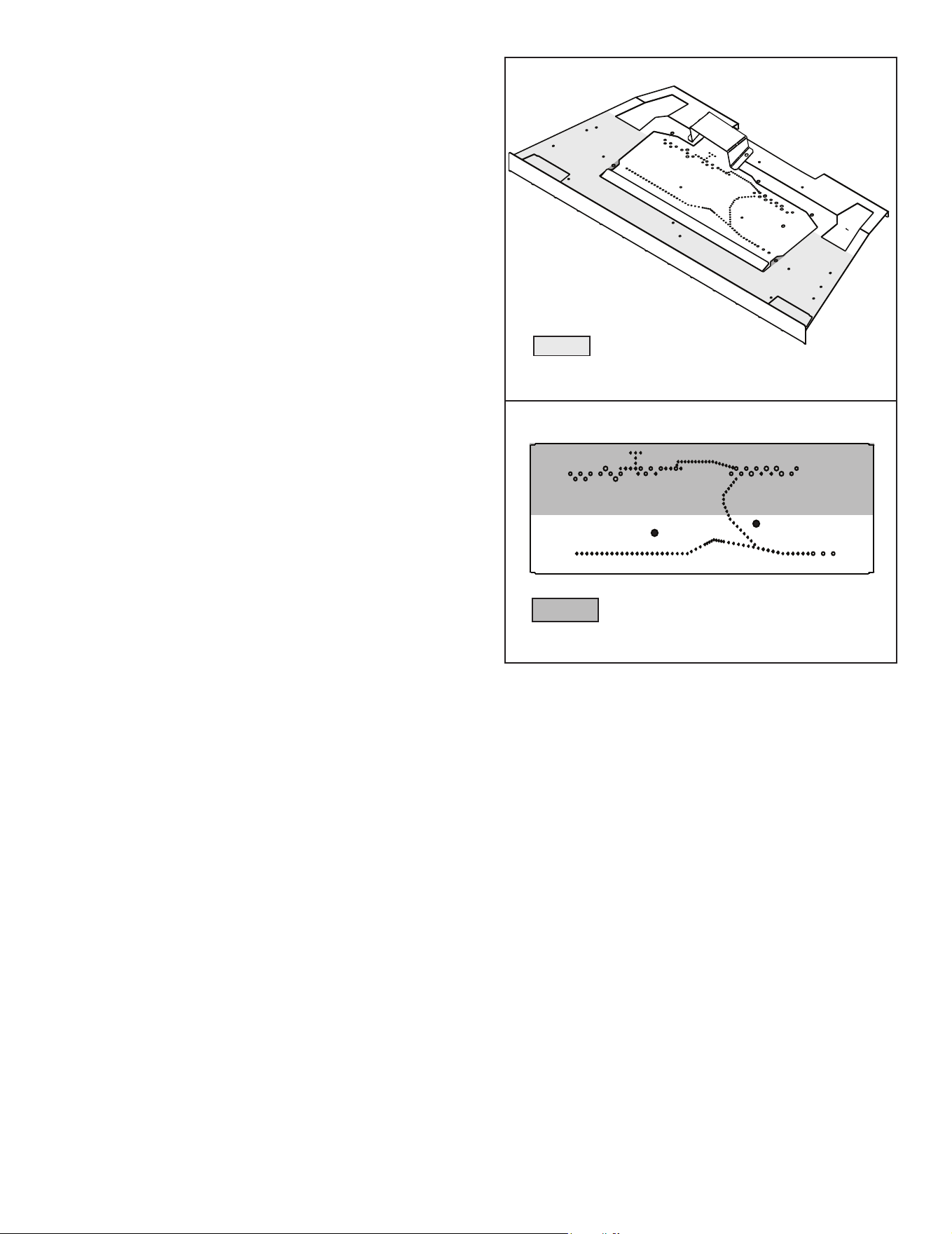

Figure 9.3 Placement of Lava Rock and Embers
LAVA ROCK ZONE
NO EMBERS
40
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
G. Install the Log Assembly
Log Set Assembly: LOGS-2546
Models: JASPER30IN
LOG PLACEMENT INSTRUCTIONS
Figure 1. Log Identication
Figure 4. Log #2 Installed
Figure 3. Log #1 Installed
CAUTION: Logs are fragile, handle with care.
NOTICE: To simplify the installation process,
positively identify each individual log before beginning
installation.
Figure 2. Empty Firebox with Shoulder Screw Locations
LOG #1: Locate the cutout of Log #1 and place over the pilot hood. Make sure log is pushed tightly against the air scoop.
See Figure 3.
LOG #2: With the burnout area of Log #2 facing out, locate shoulder screws B and C on the basepan in Figure 2 and place
log behind them. Slide log left until it contacts shoulder screw A. Log #2 should be contacting all three shoulder screws A,
B, & C. See Figure 4.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
Leave this manual with party responsible for use and
operation.
Lava Rock: The JASPER30IN comes standard with lava rock. Refer to the appliance installation manual for instructions
on how to properly install the lava rock in the appliance.
PILOT HOODPILOT HOOD
AA
AIR SCOOPAIR SCOOP
BB
CC
DD
EE
FF
HH
11
22
11
AA
BB
CC
11
22
33
44
55
II
GG
66
JASPER30IN SRV LOGS
LOG ID SRV PART # MOLDED LOG #
1 SRV2546-711 46-1
2 SRV2546-712 46-2
3 SRV2546-713 46-3
4 SRV2542-718 46-8
5 SRV2542-718 46-8
6 SRV2542-717 46-7
41
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21

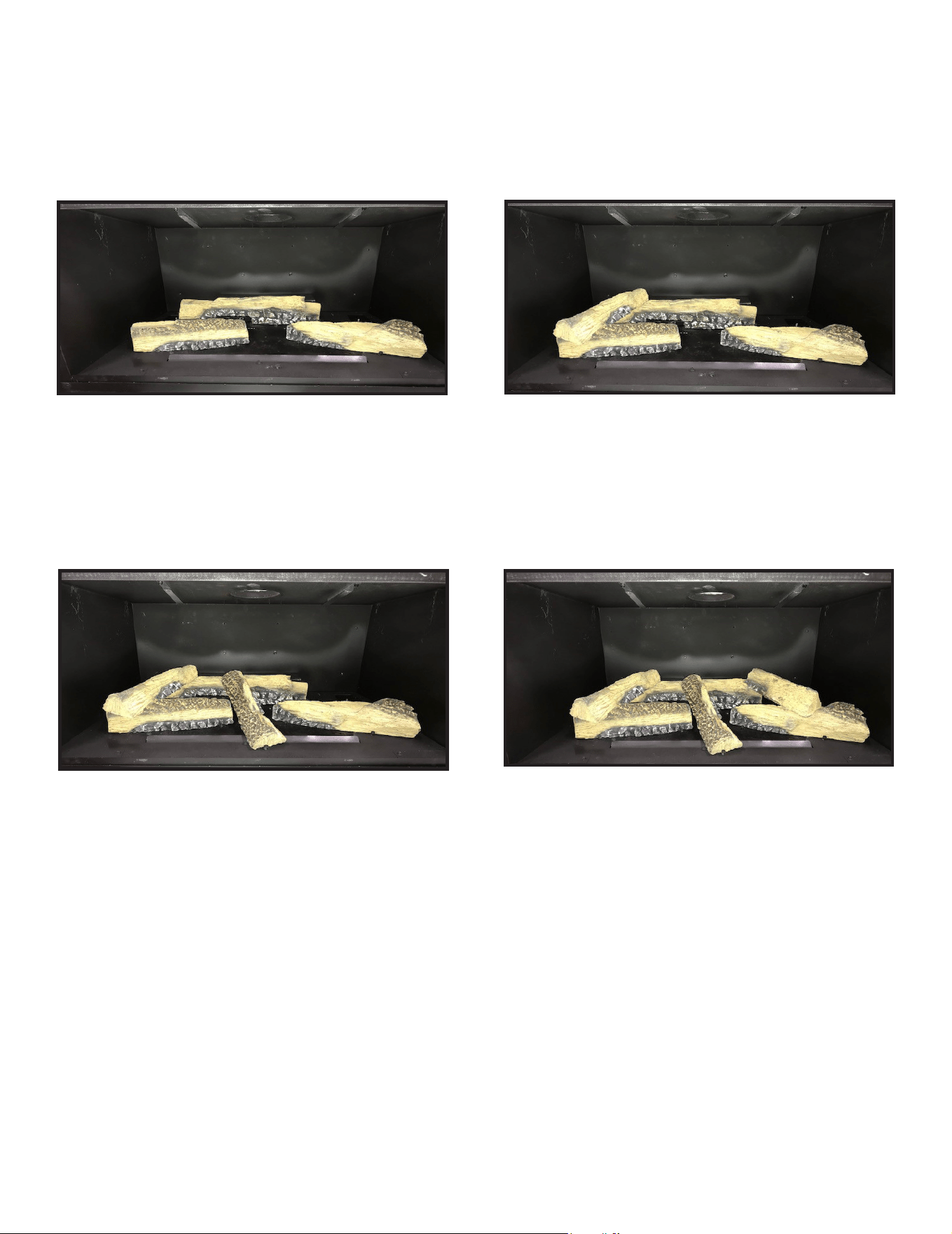

Figure 8. Log #6 Installed
LOG #3: With the burnout area of Log #3 facing out, locate the shoulder screws F and H on the basepan in Figure 2 and
place log behind them. Slide log right until it contacts shoulder screw I. Log #3 will contact all three shoulder screws, F, H
and I. See Figure 5.
LOG #4: With the burnout area of Log #4 facing right, place log on at spot of Log #1 and Log #2. Slide Log #4 back until
it contacts back of rebox. See Figure 6.
LOG #5: With the burnout area of Log #5 facing right, place the larger end of the log between shoulder screws D and E
indicated in Figure 7. Lean Log #5 between Log #2 and Log #3 so that it rests on the at spot of Log #1. See Figure 7.
Figure 5. Log #3 Installed
Figure 7. Log #5 Installed
Figure 6. Log #4 Installed
33
FF
HH II
LOG #6: Locate the larger end of Log #6 and rest it on the at spot of Log #3. Lean the other end of Log #6 back so that it
rests on the at spot of Log #1. See Figure 8.
44
11
22
11
33
22
55
11
33
66
DD
EE
2546-935
42
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
H. Install Decorative Barrier Front and
Surround
A decorative barrier front and surround is required to
complete this installation. Installation instructions are
included with the decorative barrier front and surround.
Consult your dealer for a list of decorative barrier front
and surround options.
WARNING! Risk of Fire! Install ONLY doors or fronts
approved by Hearth & Home Technologies. Unapproved
doors or fronts may cause replace to overheat.
This fireplace has been supplied with an integral
barrier to prevent direct contact with the xed glass
panel. DO NOT operate the replace with the barrier
removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
For more information refer to the instructions supplied with
your decorative barrier front.
See Figure 9.4 for ON-OFF Switch Detail. The ON-OFF
Switch included with the surround needs to be wired to the
appliance. Reference front/surround instructions (included
with the decorative barrier front) and wiring diagram in
Figure 6.2.
Figure 9.4 Surround ON/OFF Switch
NOTICE: 1/2 inch gap must be maintained or components
will overheat.
ON/OFF SWITCH
1/2 in.
Figure 9.5 Required 1/2 in. Gap
NOTE: For on site custom surround details, see instruc-
tions included with the surround.
43
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
10 10
Reference Materials
A. Vent Components
Direct Vent Flex Liner Kits (see Figure 10.1)
LINK-DV30B: Masonry 3 inch ex liner kit. Expands to 30
feet. Includes: two liners, termination cap and ashing.
LINK-DV4-30B: Masonry 3 inch ex liner kit. Expands to 30
feet and 4 feet respectively. Includes: two liners, termination
cap and ashing.
LINKSQC-DV30, LINKSQB-DV30: Masonry 3 inch ex liner
kit. Expands to 30 feet. Includes: two liners, termination
cap and ashing.
LINKSQC-DV4-30, LINKSQB-DV4-30: Masonry 3 inch
ex liner kit. Expands to 30 feet and 4 feet respectively.
Includes: two liners, termination cap and ashing.
Figure 10.1 Direct Vent Flex Liner Kits
Figure 10.2 Direct Vent Flex Liner Accessory Kits
Direct Vent Flex Liner Accessory Kits. See Figure 10.2.
LINK-ZC-ADPB: Zero clearance chimney adapter
DV-46DVA-GK: Adapter kit - It is permissible to use DV-
46DVA-GK to connect colinear ex vent to SLP vent pipe
to extend the run.
FLEX3-30: One 3 inch exible liner expands to 30 feet.
FLEX-CNCT: Connector kit - 3 inch liner to 3 inch liner,
one connector per kit.
LINK-DV30B
LINK-ZC-ADPB
DV-46DVA-GK
FLEX-CNCT
LINK-DV4-30B
LINKSQC-DV30 (COPPER)
LINKSQB-DV30 (BLACK)
LINKSQC-DV4-30 (COPPER)
LINKSQB-DV4-30 (BLACK)
Reference price book for SLP
components.
Note: No Horizontal Termi-
nation allowed.
FLEX3-30
95070310 (FLEX LINER 3X10)
95070325 (FLEX LINER 3X25)
44
Majestic • JASPER30IN Installation Manual • 2546-980 Rev. N • 12/21
Printed in U.S.A. - Copyright 2021
Majestic, a brand of Hearth & Home Technologies
7571 215
th
Street West, Lakeville, MN 55044
www.majesticproducts.com
Please contact your Majestic dealer with any questions or concerns.
For the location of your nearest Majestic dealer,
please visit www.majesticproducts.com.
Remote Controls, Wall Controls and Wall
Switches
Follow the instructions supplied with the control installed
to operate your replace:
For safety:
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
See your dealer if you have questions.
B. Accessories
Install approved accessories per instructions included
with accessories. Contact your dealer for a list of ap-
proved accessories.
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional acces-
sories with this appliance. Using non-listed accessories
could result in a safety hazard and will void the warranty.
Optional Fan
If desired, a fan may be added. Contact your dealer to
order the correct fan. Follow instructions supplied with
the fan to install your fan. See your dealer if you have
questions.
Optional Refractory
If desired, a refractory kit may be added. Contact your
dealer to order the correct refractory kit. Follow instruc-
tions supplied with the refractory kit to install your refrac-
tory. See your dealer if you have questions.
