1Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Installation Manual
Installation and Appliance Setup
CAUTION! Risk of Fire! DO NOT store instruction manuals inside replace cavity.
High temperatures could cause a re.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
NOTICE: DO NOT discard this manual!
• DO NOT store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
Models:
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer’s
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certied kit is used.
Decorative barrier front must be ordered separately at
time of appliance purchase. See Section 3.A.
ECHEL36IN-C
ECHEL36STIN-C
ECHEL48IN-C
ECHEL48STIN-C
ECHEL60IN-C
ECHEL72IN-C
ECHELON-C
SERIES
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
2
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Note: The term “recommend” or “recommended” does not indicate a requirement. It is a best practice suggested by
Hearth & Home Technologies
®
.
Table of Contents
Installation Standard Work Checklist ....................3
1 Product Specic and Important Safety Information
A. Appliance Certication ............................4
B. Glass Specications ..............................4
C. BTU Specications ...............................4
D. High Altitude Installations .......................... 4
E. Non-Combustible Materials Specication. . . . . . . . . . . . . . 5
F. Combustible Materials Specication .................5
G. Electrical Codes .................................5
H. California ......................................5
I. Requirements for the Commonwealth of Massachusetts . . 6
2 Getting Started
A. Design and Installation Considerations ...............7
B. Good Faith Wall Surface ..........................8
C. Tools and Supplies Needed .......................10
D. Inspect Appliance and Components .................10
3 Framing and Clearances

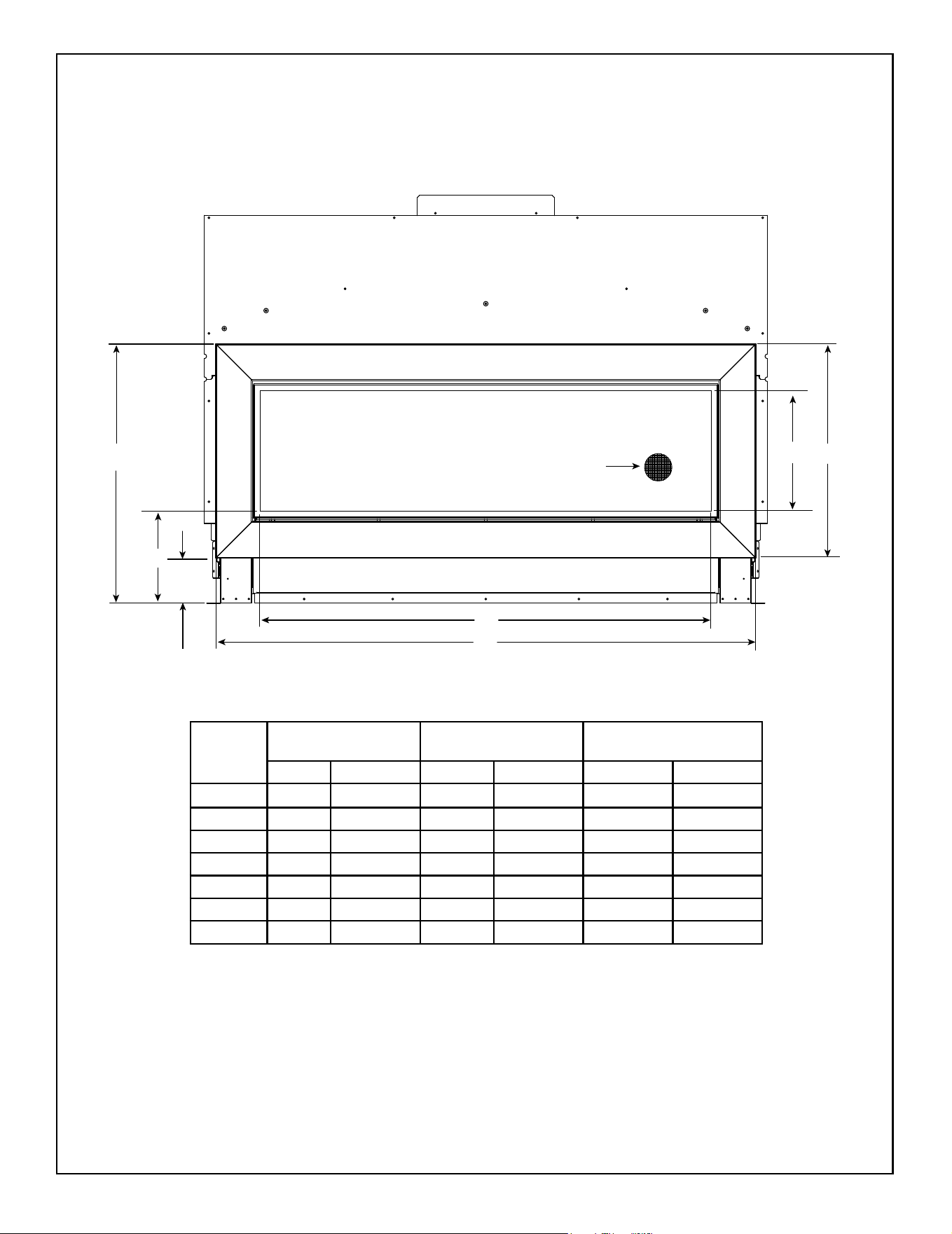

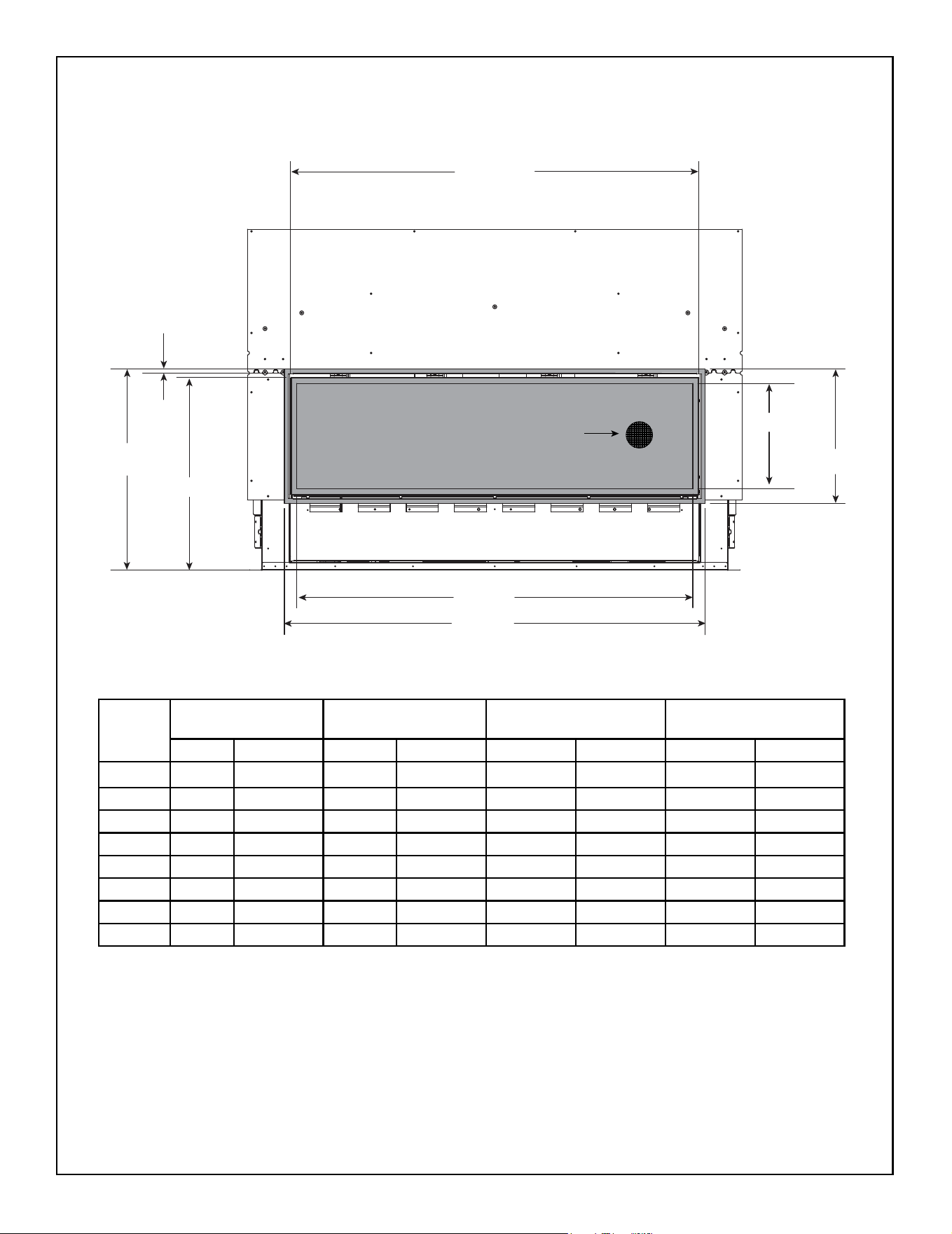

A. Appliance/Decorative Barrier Front Dimension Diagrams 11
B. Appliance Location and Clearances to Combustibles ...16
C. Constructing the Appliance Chase .................. 26
D. Floor Protection ................................27
E. Vinyl Flooring ..................................27
4 Termination Location and Vent Information
A. Approved Pipe .................................28
B. Vent Termination Minimum Clearances .............. 28
C. Vent Terminal Clearances ........................30
D. Use of Elbows .................................31

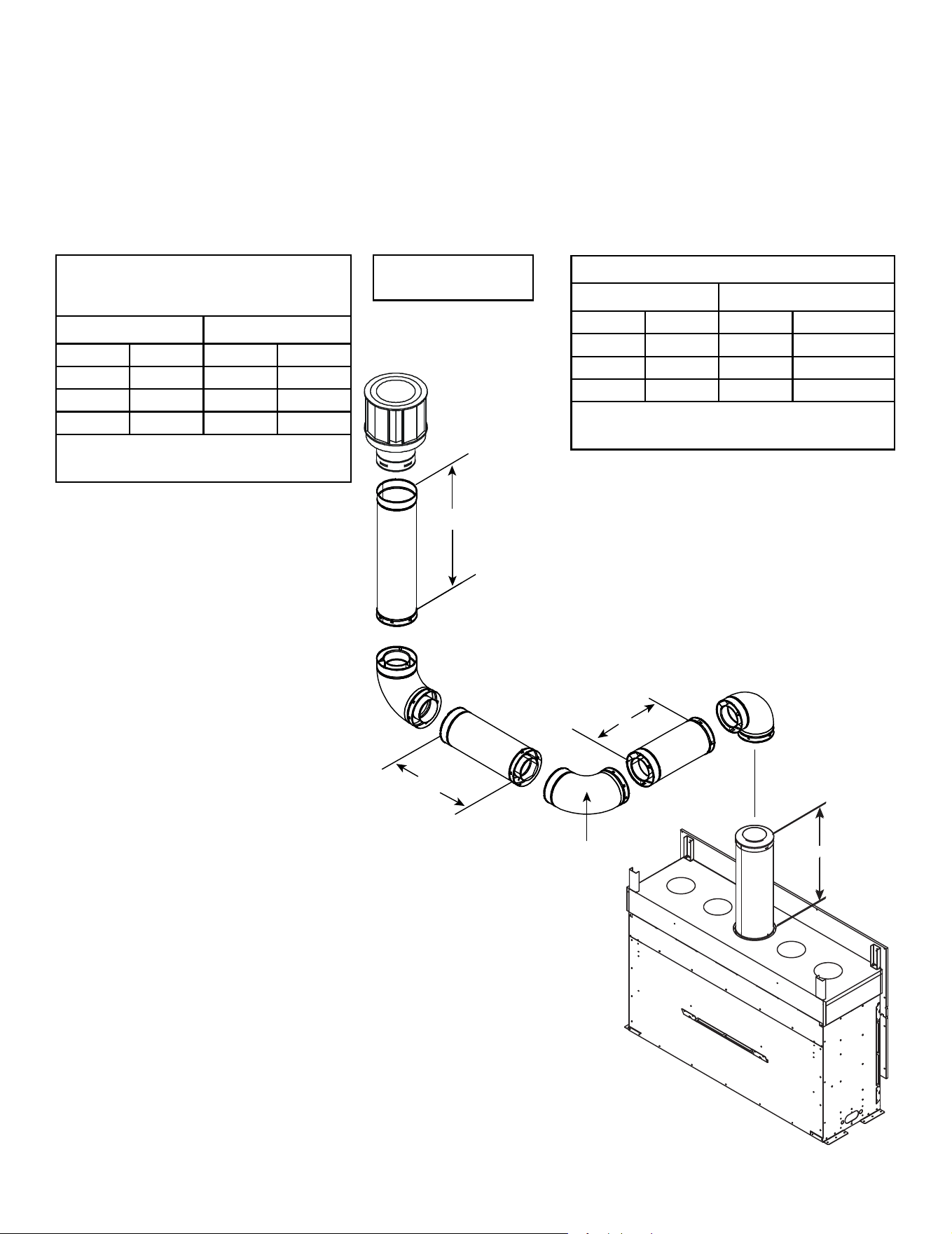

E. Vent Diagrams .................................32
5 Vent Clearances and Vent Framing
A. Vent Clearances to Combustibles .................. 40
B. Wall Penetration Framing/Firestops .................41
C. Ceiling Firestop/Floor Penetration Framing ...........42
D. Install Attic Insulation Shield .......................42
6 Appliance Preparation
A. Top Stando Preparation .........................43
B. Prepare For Heat Management ....................44
C. Securing and Leveling the Appliance ................ 45
D. Installing Non-Combustible Facing Material .......... 46
7 Venting
A. Assemble Vent Sections (DVP Pipe Only) ...........47
B. Assemble Slip Sections ..........................49
C. Secure the Vent Sections .........................49
D. Disassemble Vent Sections ....................... 50
E. Vertical Termination Requirements ..................51
F. Horizontal Termination Requirements ...............52
8 Electrical Information
A. General Information .............................54
B. Wiring Requirements ............................56
9 Gas Information
A. Fuel Conversion ................................58
B. Gas Pressure .................................. 58
C. Gas Service Access .............................58
D. Gas Connection ................................60
E. High Altitude Installations .........................60
F. Air Shutter Setting ..............................61
10 Finishing
A. Facing Material .................................62
B. Drywall Installation .............................. 63
C. Decorative Barrier Fronts .........................66
D. Mantel and Wall Projections .......................71
11 Appliance Setup
A. Fixed Glass Assembly Removal and Replacement .....74
B. Remove the Shipping Materials/Install Bottom Glass
Shield ........................................74
C. Clean the Appliance .............................75
D. Install Glass Refractory (Optional) .................75
E. Install Log Set or Stones (Optional) ................75
F. Install Media (Included) ..........................75
G. IntelliFire Touch
®
Control System Setup ..............78
H. Install Decorative Barrier Front. . . . . . . . . . . . . . . . . . . . . 78
12 Reference Materials
A. Vent Components Diagrams ......................79
B. Accessories ...................................87
= Contains updated information.
3Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Installation Standard Work Checklist
Customer:
Lot/Address:
Model
(circle one): ECHEL36IN-C ECHEL36STIN-C ECHEL48IN-C
ECHEL48STIN-C ECHEL60IN-C ECHEL72IN-C
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer) (Date)
Appliance Install Sections 3 and 6 YES IF NO, WHY?
Veried that the chase is insulated and sealed. (Pg. 26) ___________________________
Required factory included non-combustible board is installed. (Pg 46) ___________________________
Standos bent up into installation position and secured. (Pg. 43) ___________________________
Veried clearances to combustibles. (Pg. 16-25) ___________________________
Fireplace is leveled and secured. (Pg. 45) ___________________________
Veried clearance to header. (Pg. 18-19) _____________________________
Heat management system(s) and/or power vent properly installed. ___________________________
Venting/Chimney Sections 4,5 and 7
Venting conguration complies to vent diagrams. (Pg 32-39) ___________________________
Venting installed, locked, and secured in place with proper clearance. ___________________________
(May need to order separately.)
Firestops installed. (Section 5) ___________________________
Attic insulation shield installed. (Pg 42) ___________________________
Exterior wall/Roof ashing installed and sealed. (Section 7) ___________________________
Terminations installed and sealed. (Section 7) ___________________________
Electrical Section 8 (Pg 54-57)
Unswitched power (110-120 VAC) provided to the appliance. ___________________________
Switch wires properly installed. ___________________________
Gas Section 9 (Pg 58-61)
Proper appliance for fuel type. ___________________________
Was a conversion performed? ___________________________
Leak check performed and inlet pressure veried. ___________________________
Veried proper air shutter setting for installation type. ___________________________
Finishing Section 10 (Pg 62-73)
Combustible materials not installed in non-combustible areas. ___________________________
Veried all clearances meet installation manual requirements. ___________________________
Finishing done correctly using inside t or overlap t method. ___________________________
Bottom nishing template and nishing guards removed. ___________________________
Mantels and wall projections comply with installation manual requirements. ___________________________
Appliance Setup Section 11 (Pg 74-78)
All packaging and protective materials removed (inside & outside of appliance). ___________________________
Refractories and media installed correctly. ___________________________
Glass assembly installed and secured. ___________________________
Accessories installed properly. ___________________________
Decorative barrier front properly installed. (May need to order separately.) ___________________________
Manual bag and all of its contents are removed from inside/under
the appliance and given to party responsible for use and operation. ___________________________
Started appliance and veried no gas leaks exist. ___________________________
Lights work in all switched positions (if so equipped). ___________________________
Component heat shield is installed. (Pg. 56) ___________________________
2608-982 Rev. F 4/23
= Contains updated information.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your le.
• That this checklist remain visible at all times on the appliance until the installation is complete.
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions can
lead to a re or explosion.
Install ONLY components and accessories approved by Hearth & Home Technolo-
gies. Unapproved components and accessories could cause replace to overheat.
ATTENTION INSTALLER:
Follow this Standard Work Checklist
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
4
This product is listed to ANSI standards for “Vented
Gas Fireplace Heaters” and applicable sections of “Gas
Burning Heating Appliances for Manufactured Homes
and Recreational Vehicles”, and “Gas Fired Appliances
for Use at High Altitudes”. Also Certied for Installation in
a Bedroom or a Bedsitting Room.
A. Appliance Certication
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
1 1
Product Specic and Important Safety Information
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Input ratings are certied without a
reduction of input rate for elevations up to 4500 feet
(1370 m) above sea level. Please consult provincial
and/or local authorities having jurisdiction for
installations at elevations above 4500 feet (1370 m).
Check with your local gas utility to determine proper
orice size.
C. BTU Specications
MODEL: ECHEL36IN-C ECHEL36STIN-C
ECHEL48IN-C ECHEL48STIN-C
ECHEL60IN-C ECHEL72IN-C
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Heater
STANDARD: CSA / ANSI Z21.88-2019 • CSA 2.33-2019
Models
(U.S. or Canada)
Maximum
Input BTU/h
Minimum
Input
BTU/h
Orice
Size
(DMS)
ECHEL36IN-C
(NG)
(0-2000 FT) 30,000 17,500 #36
ECHEL36IN-C
(Propane)
(0-2000 FT) 27,000 15,000 #52
ECHEL36STIN-C
(NG)
(0-2000 FT) 30,000 17,500 #36
ECHEL36STIN-C
(Propane)
(0-2000 FT) 27,000 15,000 #52
ECHEL48IN-C
(NG)
(0-2000 FT) 40,000 21,000 .124
ECHEL48IN-C
(Propane)
(0-2000 FT) 34,000 20,000 #50
ECHEL48STIN-C
(NG)
(0-2000 FT) 40,000 21,000 .124
ECHEL48STIN-C
(Propane)
(0-2000 FT) 34,000 20,000 #50
ECHEL60IN-C
(NG)
(0-2000 FT) 50,000 28,000 #28
ECHEL60IN-C
(Propane)
(0-2000 FT) 37,500 20,000 #49
ECHEL72IN-C
(NG)
(0-2000 FT) 58,000 30,000 #23
ECHEL72IN-C
(Propane)
(0-2000 FT) 45,000 25,000 #46
B. Glass Specications
This appliance is equipped with 5 mm ceramic glass. Re-
place glass only with 5 mm ceramic glass. Please contact
your dealer for replacement glass.
5Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
E. Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in
a Vertical Tube Furnace at 750 ºC shall be considered
non-combustible materials.
F. Combustible Materials Specication
Materials made of or surfaced with wood, compressed pa-
per, plant bers, plastics, or other material that can ignite
and burn, whether ame proofed or not, or plastered or
unplastered shall be considered combustible materials.
G. Electrical Codes
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• A 110-120 VAC circuit for this product must be pro-
tected with ground-fault circuit interrupter protection,
in compliance with the applicable electrical codes,
when it is installed in locations such as in bathrooms
or near sinks.
H. California
WARNING: This product and the fuels used to
operate this product (liquid propane or natural
gas), and the products of combustion of such fuels, can
expose you to chemicals including benzene, which is
known to the State of California to cause cancer and
reproductive harm. For more information go to: www.
P65Warnings.ca.gov.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
6
I. Requirements for the Commonwealth of
Massachusetts
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven (7)
feet above nished grade in the area of the venting, in-
cluding but not limited to decks and porches, the following
requirements shall be satised:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas tter
shall observe that a hard wired carbon monoxide detector
with an alarm and battery back-up is installed on the oor
level where the gas equipment is to be installed. In addi-
tion, the installing plumber or gas tter shall observe that
a battery operated or hard wired carbon monoxide detec-
tor with an alarm is installed on each additional level of
the dwelling, building or structure served by the side wall
horizontal vented gas fueled equipment. It shall be the
responsibility of the property owner to secure the services
of qualied licensed professionals for the installation of
hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fu-
eled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
oor level.
In the event that the requirements of this subdivision can
not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply
with the above requirements; provided, however, that dur-
ing said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accor-
dance with the above provisions shall comply with NFPA
720 and be ANSI/UL 2034 listed and IAS certied.
Signage
A metal or plastic identication plate shall be permanent-
ly mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with the
exhaust vent terminal for the horizontally vented gas fu-
eled heating appliance or equipment. The sign shall read,
in print size no less than one-half (1/2) in. in size, “GAS
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB-
STRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizon-
tally vented gas fueled equipment shall not approve the
installation unless, upon inspection, the inspector ob-
serves carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.
Exemptions
The following equipment is exempt from 248 CMR 5.08(2)
(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA 54 as adopted by the Board; and
• Product Approved side wall horizontally vented gas fu-
eled equipment installed in a room or structure separate
from the dwelling, building or structure used in whole or
in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting
system design or venting system components with the
equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system
shall include:
• Detailed instructions for the installation of the venting
system design or the venting system components; and
• A complete parts list for the venting system design or
venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall
horizontally vented gas fueled equipment does not pro-
vide the parts for venting the ue gases, but identies
“special venting systems”, the following requirements
shall be satised by the manufacturer:
• The referenced “special venting system” instructions
shall be included with the appliance or equipment in-
stallation instructions; and
• The “special venting systems” shall be Product Ap-
proved by the Board, and the instructions for that sys-
tem shall include a parts list and detailed installation
instructions.
A copy of all installation instructions for all Product Ap-
proved side wall horizontally vented gas fueled equip-
ment, all venting instructions, all parts lists for venting
instructions, and/or all venting design instructions shall
remain with the appliance or equipment at the completion
of the installation.
See Gas Connection section for additional Common-
wealth of Massachusetts requirements.
Note: The following requirements reference various
Massachusetts and national codes not contained in this
document.
7Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
2 2
Getting Started
A. Design and Installation Considerations
WARNING! Risk of Fire or Explosion! Read all instruc-
tions before starting the installation.
Majestic direct vent gas appliances are designed to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside. No
additional outside air source is required.
Installation MUST comply with local, regional, state and
national codes and regulations. Consult insurance carrier,
local building inspector, re ocials or authorities having
jurisdiction over restrictions, installation inspection and
permits.
Before installing, determine the following:
• Where the appliance is to be installed.
• The vent system conguration to be used. If Passive
Heat will be installed, consider location of discharge
opening in relation to venting and other construction
materials.
• Gas supply piping requirements.
• Provisions for optional heat management system(s).
• Electrical wiring requirements.
• Framing and nishing details.
• Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
service technician, service agency or your dealer.
Installation and service of this
appliance should be performed
by qualied personnel. Hearth &
Home Technologies recommends
NFI certied professionals.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
8
B. Good Faith Wall Surface
NOTICE: Surface temperatures listed above are taken with
a temperature measuring probe as prescribed by the test
standard used for appliance certication. Temperatures
on walls or mantels taken with an infrared thermometer
may yield increased temperatures of up to 30 °F (17 °C) or
more depending on the thermometer settings and material
characteristics being measured. Use appropriate nishing
materials that are able to withstand these conditions. For
additional nishing guidelines, see Section 10.

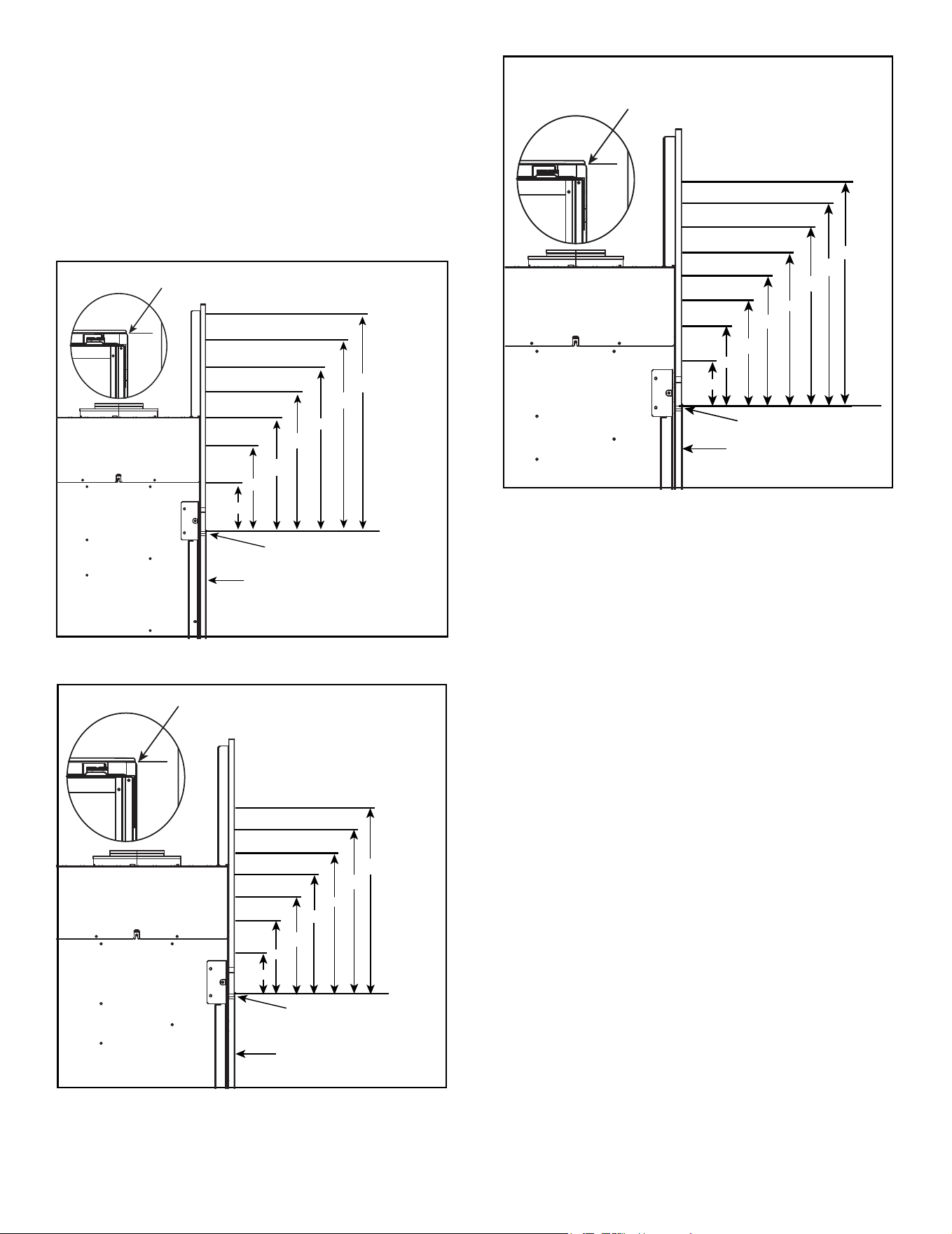

Figure 2.2 Good Faith Wall Surface Temperatures Above Appliance
(ECHEL60IN-C, ECHEL72IN-C)
MEASUREMENTS FROM

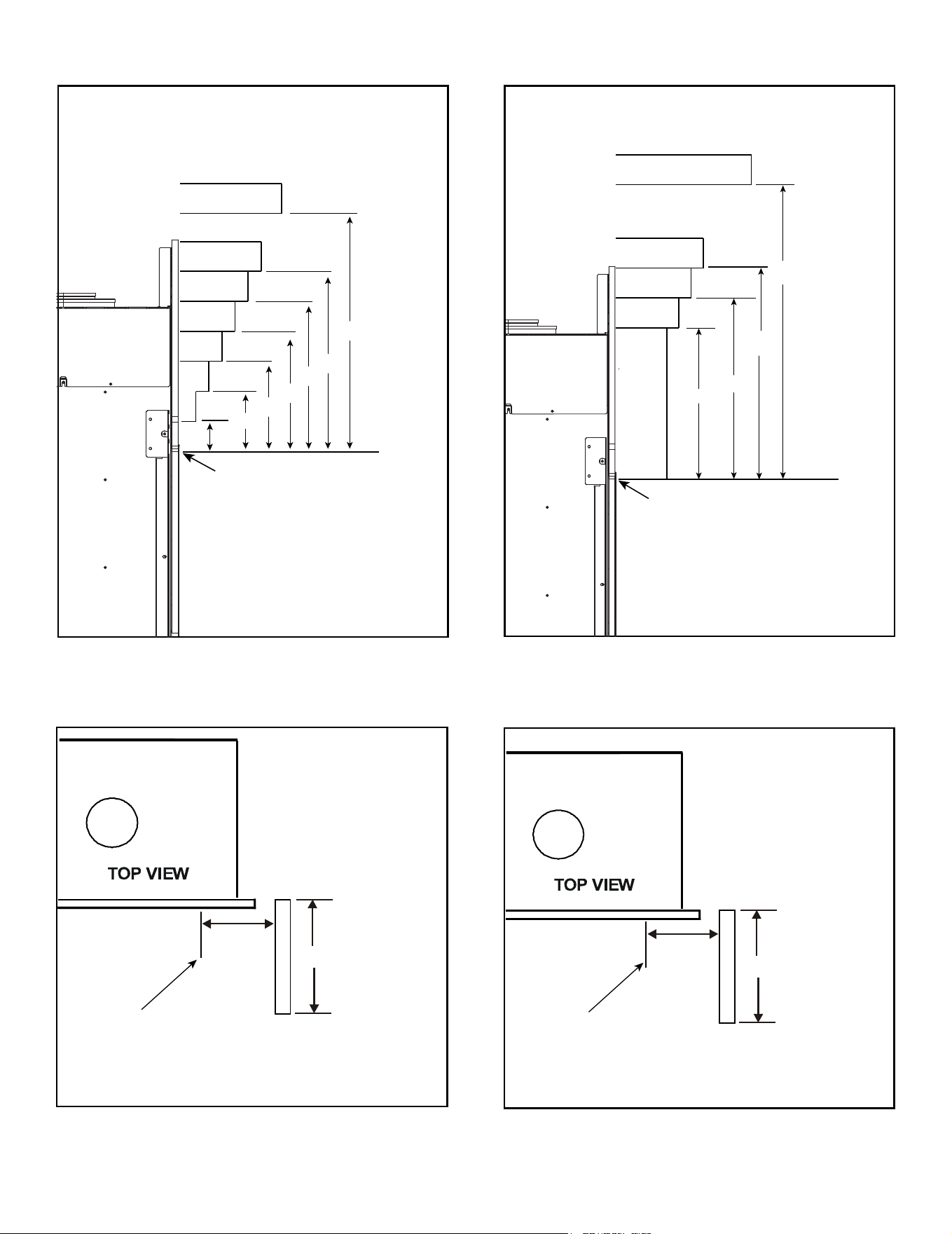

TOP EDGE OF THE OPENING
6 in.
18 in.
24 in.
30 in.
36 in.
42 in.
12 in.
245°F
APPLIANCE FRONT
190°F
155°F
140°F
135°F
125°F
125°F
FIREPLACE
OPENING
FACTORY-SUPPLIED NON-COMBUSTIBLE
BOARD SHOWN INSTALLED.
Figure 2.3 Good Faith Wall Surface Temperatures Above Appliance
with Passive Heat Kit Installed
Figure 2.1 Good Faith Wall Surface Temperatures Above Appliance
(ECHEL36IN-C/ECHEL36STIN-C, ECHEL48IN-C, ECHEL48STIN-C)
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
6 in.
18 in.
24 in.
30 in.
36 in.
48 in.
42 in.
12 in.
144°F
APPLIANCE FRONT
120°F
115°F
105°F
95°F
95°F
95°F
95°F
FIREPLACE
OPENING
FACTORY-SUPPLIED NON-COMBUSTIBLE
BOARD SHOWN INSTALLED.
OPTIONAL PASSIVE HEAT KIT INSTALLED
APPLIANCE FRONT
MEASUREMENTS FROM
TOP EDGE OF THE FIREPLACE
OPENING
6 in.
18 in.
24 in.
30 in.
36 in.
42 in.
12 in.
170°F
155°F
145°F
140°F
130°F
125°F
125°F
FACTORY-SUPPLIED NON-COMBUSTIBLE
BOARD SHOWN INSTALLED.
FIREPLACE
OPENING
The ECHELON-C models may be installed with or without
optional heat management systems, including the Pas-
sive Heat kit. The installation of a heat management sys-
tem will aect certain aspects of the appliance installation
including framing dimensions and clearances to combus-
tibles. Note that Figure 2.3 in this section refers to the
wall surface temperatures when the Passive Heat kit is
installed.
If installing a television (TV) above the appliance, see
Figure 2.4. For installations with the Passive Heat kit,
refer to Section 10, Figure 10.19.
9Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

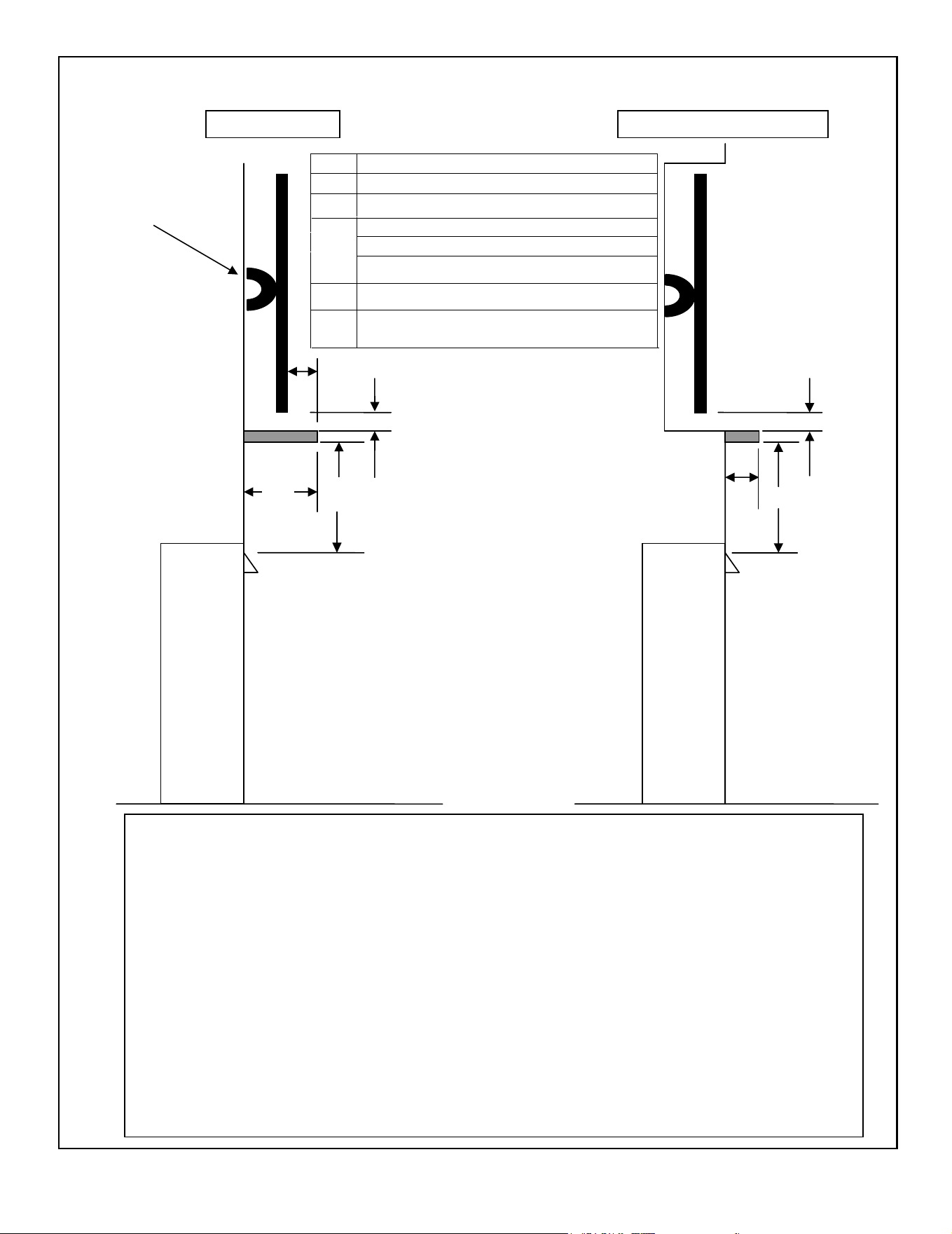

Figure 2.4 Good Faith TV Guidelines
Good Faith Guidelines for TV Installations Above Appliance
Item Minimum Dimensions
A 2.5 inches
B 2 inches minimum to 3 inches maximum
C
COMBUSTIBLE: 23 inches:ECHEL36IN/STIN-C & 48IN/STIN-C
D Wall Brkt + TV Thickness + 2.5 inches
B
B
A
Appliance
TV
Mantel
A
C
Notes:
1. These are good faith recommended clearances only and not a guarantee of compliance with all TV
manufacturers’ maximim allowable operating temperatures.
a. Increase “A” dimension.
TV Wall
Bracket
D
E
TV on the wall
TV recessed into the wall
NON-COMBUSTIBLE 18 inches: ALL SIZES
COMBUSTIBLE: 27 inches: ECHEL60IN-C & 72IN-C
E
COMBUSTIBLE: 46 inches ECHEL36/48/60IN-C & 36/48STIN-C
58 inches ECHEL72IN-C
Appliance
2. Since every home has unique air flow characteristics and maximum allowable operating temperatures
can vary from manufacturer to manufacturer and from model to model, actual TV temperatures should
be validated at the time of each installation. TVs should not be used in situations where the actual TV
temperature exceeds the manufacturers’ maximum allowable operating temperatures identified in the
TV’s technical specifications. Contact the TV’s manufacturer directly if you cannot locate this
information or have questions regarding the information.
3. Mantel height and depth must conform to mantel requirements specified in the fireplace installation
manual.
4. “C” and “E” dimensions taken from the top of the hood or fireplace opening.
5. Suggestions on how to further reduce TV temperatures:
b. Increase “C” and “E” dimension, however, increasing “B” dimension beyond maximum recommended
typically results in higher temperatures.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
10
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Hand Tools Tape measure
Level Framing material
Manometer Framing square
Voltmeter Electric drill and bits (1/4 in.)
Plumb line Safety glasses/Gloves
Wrenches Reciprocating saw
1/4 in. nut driver
Non-corrosive leak check solution
1/2 - 3/4 in. length, #6 or #8 Self-drilling screws
Caulking material (300 ºF minimum continuous exposure
rating)
D. Inspect Appliance and Components
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualied service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative barrier
fronts may be shipped in separate packages.
• If packaged separately, the media, refractory, and/or
optional log kits must be installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• This product is factory-equipped with an IntelliFire Touch
®
remote control, which was paired to the appliance at the
factory. This specic remote control needs to remain with
the contents of the manual bag. Do not install batteries
in the remote control until performing the nal appliance
setup and checklist.
Hearth & Home Technologies disclaims any responsibility for,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modication of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the logs/media (as applicable) or
the glass assembly.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
11Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
3 3
Framing and Clearances
A. Appliance/Decorative Barrier Front Dimension Diagrams
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.

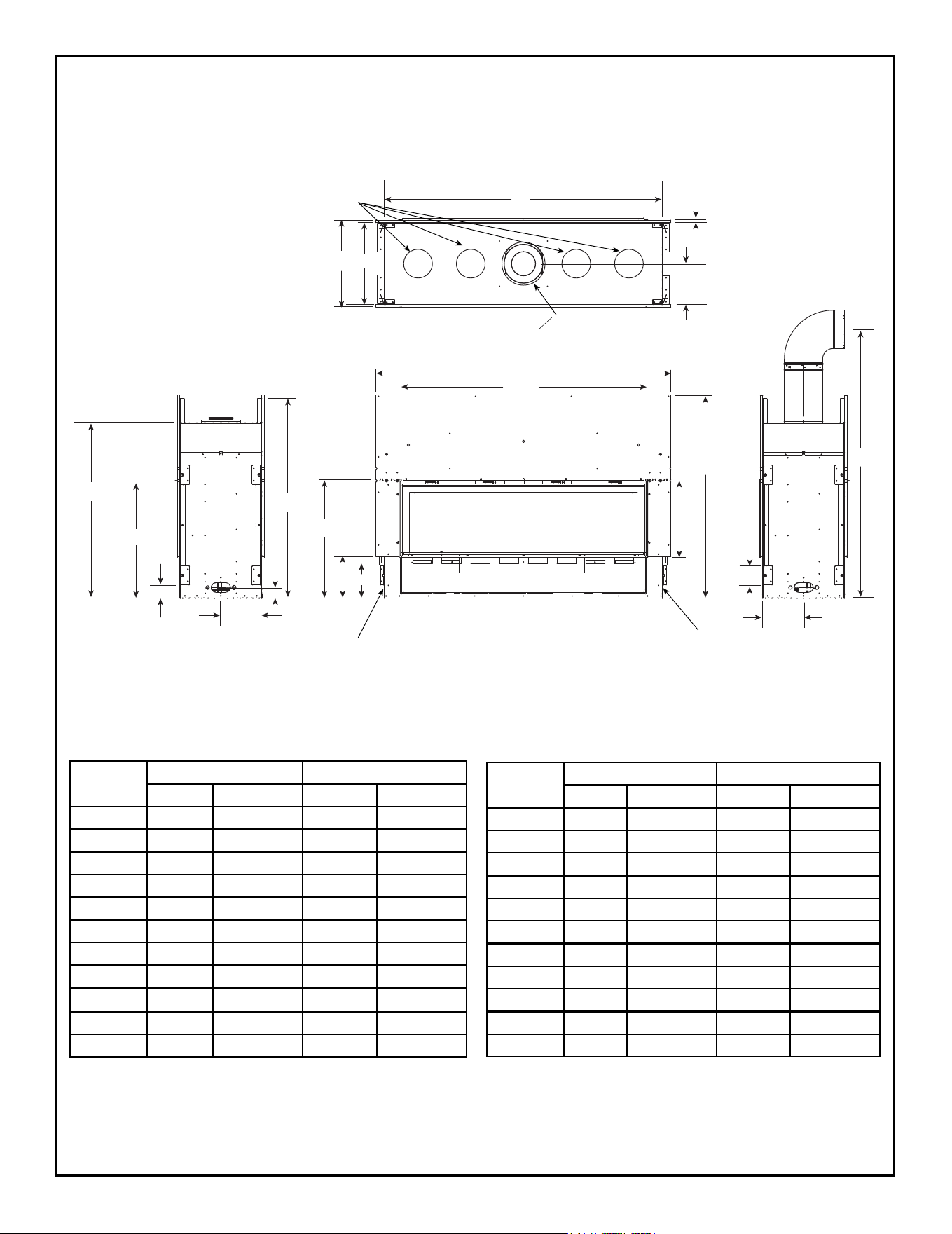

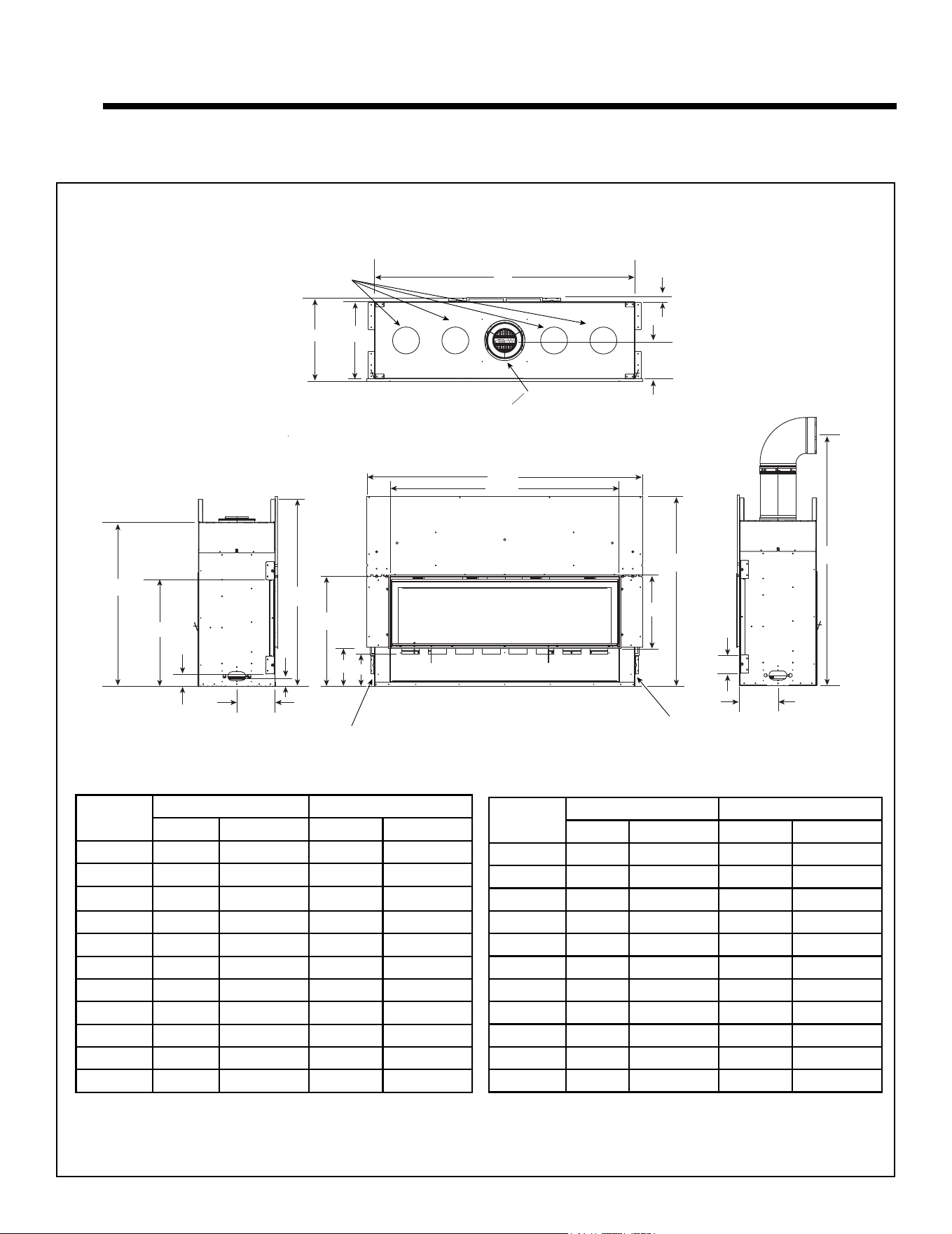

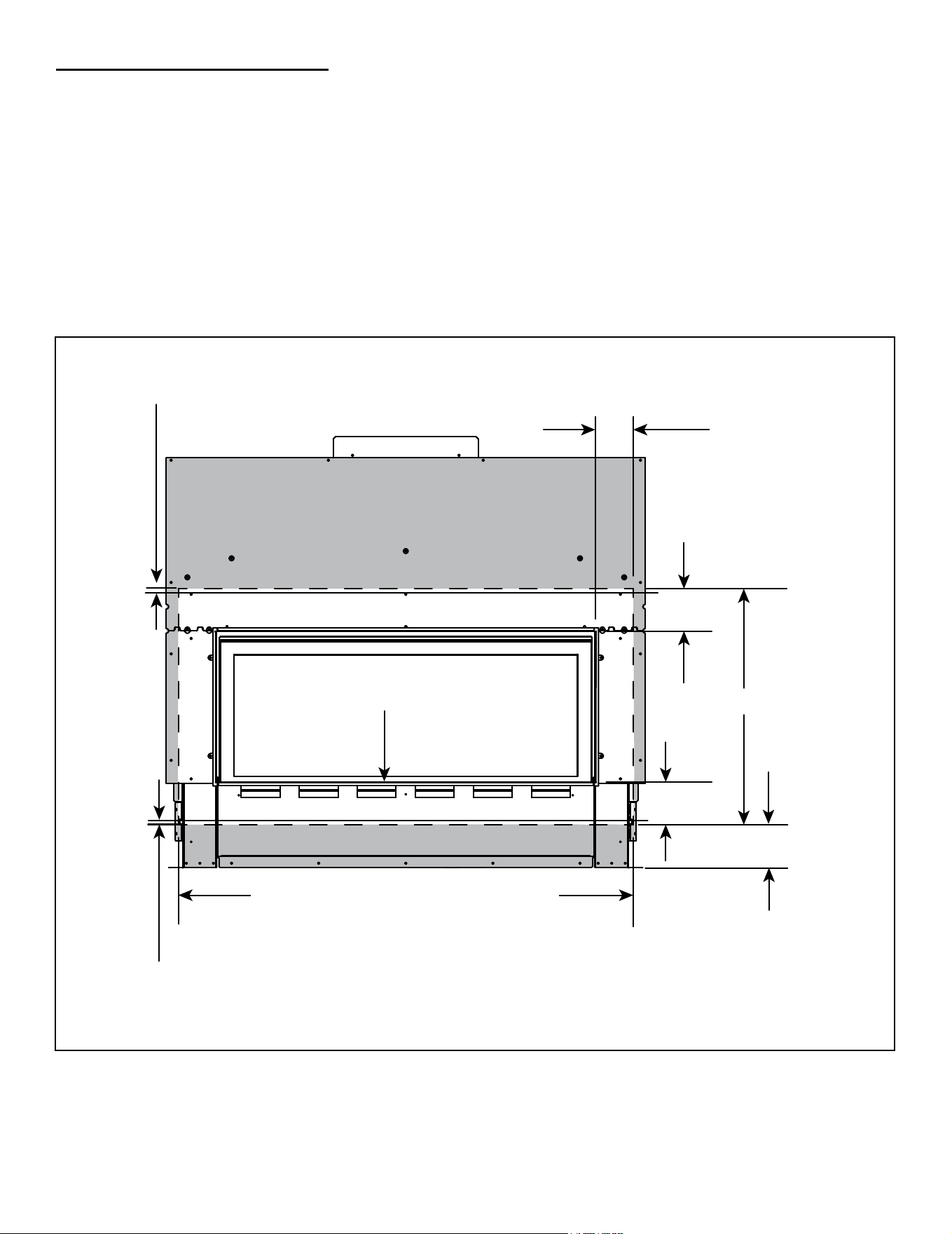

Figure 3.1 Appliance Dimensions - ECHEL36IN-C, ECHEL48IN-C
Location
ECHEL36IN-C ECHEL48IN-C
Inches Millimeters Inches Millimeters
A 49-1/2 1257 61-1/2 1562
B 39-1/4 997 51-1/8 1299
C 15-5/8 397 15-5/8 397
D 42-1/2 1080 42-1/2 1080
E 4 102 4 102
F 8-9/16 218 8-9/16 218
G 63 1600 63 1600
H 8-9/16 218 8-9/16 218
I 1 25 1 25
J 46-3/16 1173 58 1473
K 17-1/8 435 17-1/8 435
Location
ECHEL36IN-C ECHEL48IN-C
Inches Millimeters Inches Millimeters
L 8 203 8 203
M 18-5/8 473 18-5/8 473
N 41-3/4 1061 41-3/4 1061
O 2-3/8 60 2-3/8 60
P 8-9/16 218 8-9/16 218
Q 24-1/2 622 24-1/2 622
R 7-1/4 184 7-1/4 184
S 8-7/8 225 8-7/8 225
T 2-3/4 70 2-3/4 70
U 23-3/4 603 23-3/4 603
V 36-5/8 930 36-5/8 930
H
I
J
K
M
o
CENTERED ON APPLIANCE
L
N
O
P
T
U
V
B
A
C
D
Q
S
R
GAS ACCESS
ELECTRICAL ACCESS
E
F
G
HEAT MANAGEMENT SYSTEMS KNOCKOUTS
IMPORTANT: Must use appropriate
knockout(s) for the selected Heat
Management System. See Section 6.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
12
Location
ECHEL60IN-C ECHEL72IN-C
Inches Millimeters Inches Millimeters
A 74 1880 86 2184
B 63-1/8 1603 75-1/8 1908
C 15-5/8 397 15-5/8 397
D 48-1/2 1232 48-1/2 1232
E 4 102 4 102
F 8-9/16 218 8-9/16 218
G 63 1600 75 1905
H 8-9/16 218 8-9/16 218
I 1 25 1 25
J 70 1778 82 2083
K 17-1/8 435 17-1/8 435
Location
ECHEL60IN-C ECHEL72IN-C
Inches Millimeters Inches Millimeters
L 8 203 8 203
M 18-5/8 473 18-5/8 473
N 47-3/4 1213 47-3/4 1213
O 2-3/8 60 2-3/8 60
P 8-9/16 218 8-9/16 218
Q 24-1/2 622 24-1/2 622
R 7-1/4 184 N/A N/A
S 8-7/8 225 8-7/8 225
T 2-3/4 70 2-3/4 70
U 23-3/4 603 23-3/4 603
V 36-1/2 927 36-1/2 927

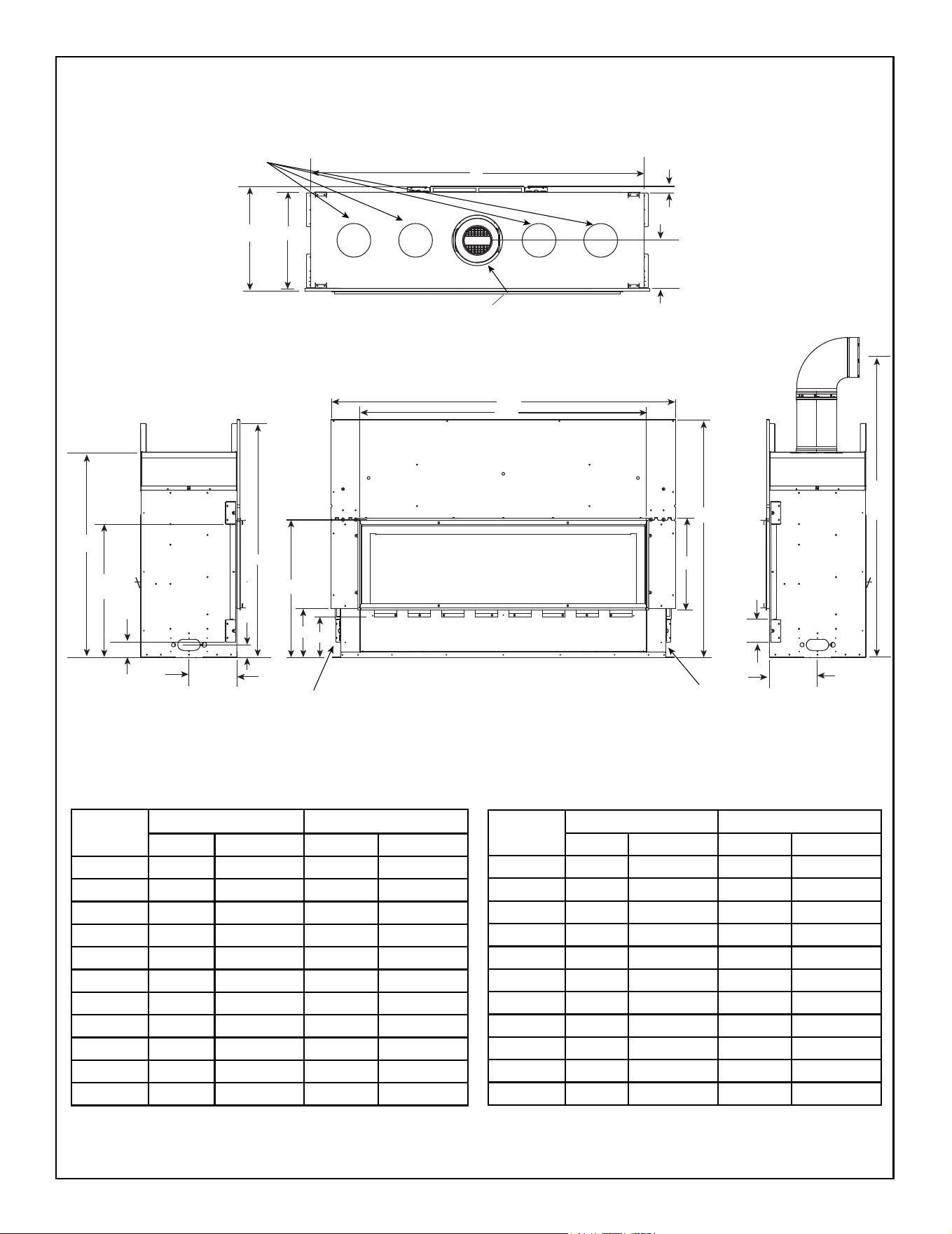

Figure 3.2 Appliance Dimensions - ECHEL60IN-C, ECHEL72IN-C
o
CENTERED ON APPLIANCE
L
H
I
J
K
M
HEAT MANAGEMENT SYSTEMS KNOCKOUTS
IMPORTANT: Must use appropriate
knockout(s) for the selected Heat
Management System. See Section 6.
ELECTRICAL ACCESS
GAS ACCESS
B
A
C
D
Q
S
R
N
O
P
V
U
T
E
F
G
13Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Figure 3.3 Appliance Dimensions - ECHEL36STIN-C, ECHEL48STIN-C
Location
ECHEL36STIN-C ECHEL48STIN-C
Inches Millimeters Inches Millimeters
A 50 1270 62 1575
B 39-1/4 997 51-1/8 1299
C 15-5/8 397 15-5/8 397
D 42-1/2 1080 42-1/2 1080
E 4 102 4 102
F 8-9/16 218 8-9/16 218
G 63 1600 63 1600
H 8-9/16 218 8-9/16 218
I 1/2 13 1/2 13
J 46-3/16 1173 58 1473
K 17-1/8 435 17-1/8 435
Location
ECHEL36STIN-C ECHEL48STIN-C
Inches Millimeters Inches Millimeters
L 8 203 8 203
M 18-1/8 460 18-1/8 460
N 41-3/4 1061 41-3/4 1061
O 2-3/8 60 2-3/8 60
P 8-9/16 218 8-9/16 218
Q 24-1/2 622 24-1/2 622
R 7-1/4 184 7-1/4 184
S 8-7/8 225 8-7/8 225
T 2-3/4 70 2-3/4 70
U 23-3/4 603 23-3/4 603
V 36-1/2 927 36-1/2 927
o
CENTERED ON APPLIANCE
L
H
I
J
HEAT MANAGEMENT SYSTEMS KNOCKOUTS
IMPORTANT: Must use appropriate
knockout(s) for the selected Heat
Management System. See Section 6.
G
E
F
C
D
ELECTRICAL ACCESS
B
A
Q
S
R
GAS ACCESS
T
U
V
N
O
P
K
M
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
14
Figure 3.4 Picture Frame Front Dimensions
PFF DECORATIVE FRONT
Location
ECHEL36IN-C
ECHEL36STIN-C
ECHEL48IN-C
ECHEL48STIN-C
ECHEL60IN-C
Inches Millimeters Inches Millimeters Inches Millimeters
A 37-1/4 946 49-1/4 1250 61-1/4 1556
B 13-1/8 333 13-1/8 333 13-1/8 333
C 47 1194 59 1498 71 1803
D 4-15/16 126 4-15/16 126 4-15/16 126
E 10-1/16 256 10-1/16 256 10-1/16 256
F 23-3/8 594 23-3/8 594 23-3/8 594
G 28-5/16 719 28-5/16 719 28-5/16 719
Note: See Section 10 for hearth, mantel
and nishing requirements.
The PFF decorative front has an installed depth of 3/4 in. (19 mm), measured from the
front of the non-combustible nishing material to the front of the decorative front.
A
B
C
D
E
F
G
Barrier Mesh: Integral to
Decorative Barrier Front
15Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Figure 3.5 Clean Face Trim Front (Inside Fit) Decorative Barrier Front Dimensions
CLEAN FACE TRIM DECORATIVE BARRIER FRONT
Location
ECHEL36IN-C
ECHEL36STIN-C
ECHEL48IN-C
ECHEL48STIN-C
ECHEL60IN-C ECHEL72IN-C
Inches Millimeters Inches Millimeters Inches Millimeters Inches Millimeters
A 39 991 51 1295 63 1600 75 1905
B 16-3/4 425 16-3/4 425 16-3/4 425 16-3/4 425
C 13-1/8 333 13-1/8 333 13-1/8 333 13-1/8 333
D 37-3/16 945 49-3/16 1249 61-3/16 1554 73-3/16 1859
E 40-5/16 1024 52-5/16 1329 64-5/16 1634 76-5/16 1938
F 24 610 24 610 24 610 24 610
G 5/8 16 5/8 16 5/8 16 5/8 16
H 25 635 25 635 25 635 25 635
H
F
C
B
E
A
D
G
Barrier Mesh: Integral to
Decorative Barrier Front
Note: See Section 10 for
hearth, mantel and nishing
requirements.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
16
B. Appliance Location and Clearances to
Combustibles
When selecting a location for the appliance it is important
to consider the required clearances to walls and allow suf-
cient clearance for heat management systems venting.
See Figure 3.6 and Figure 3.7.
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be located
out of trac and away from furniture and draperies.
NOTICE: Illustrations reect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.

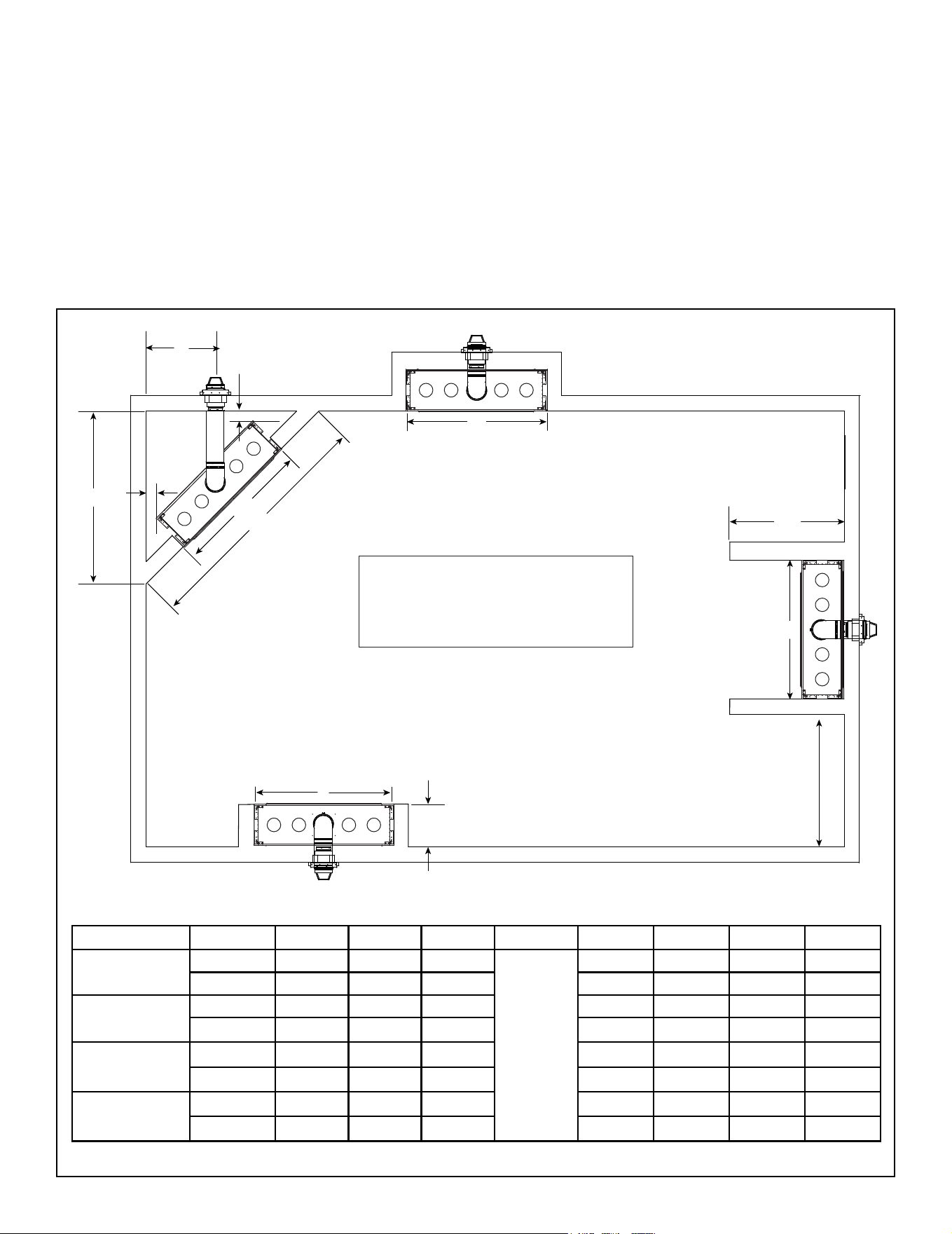

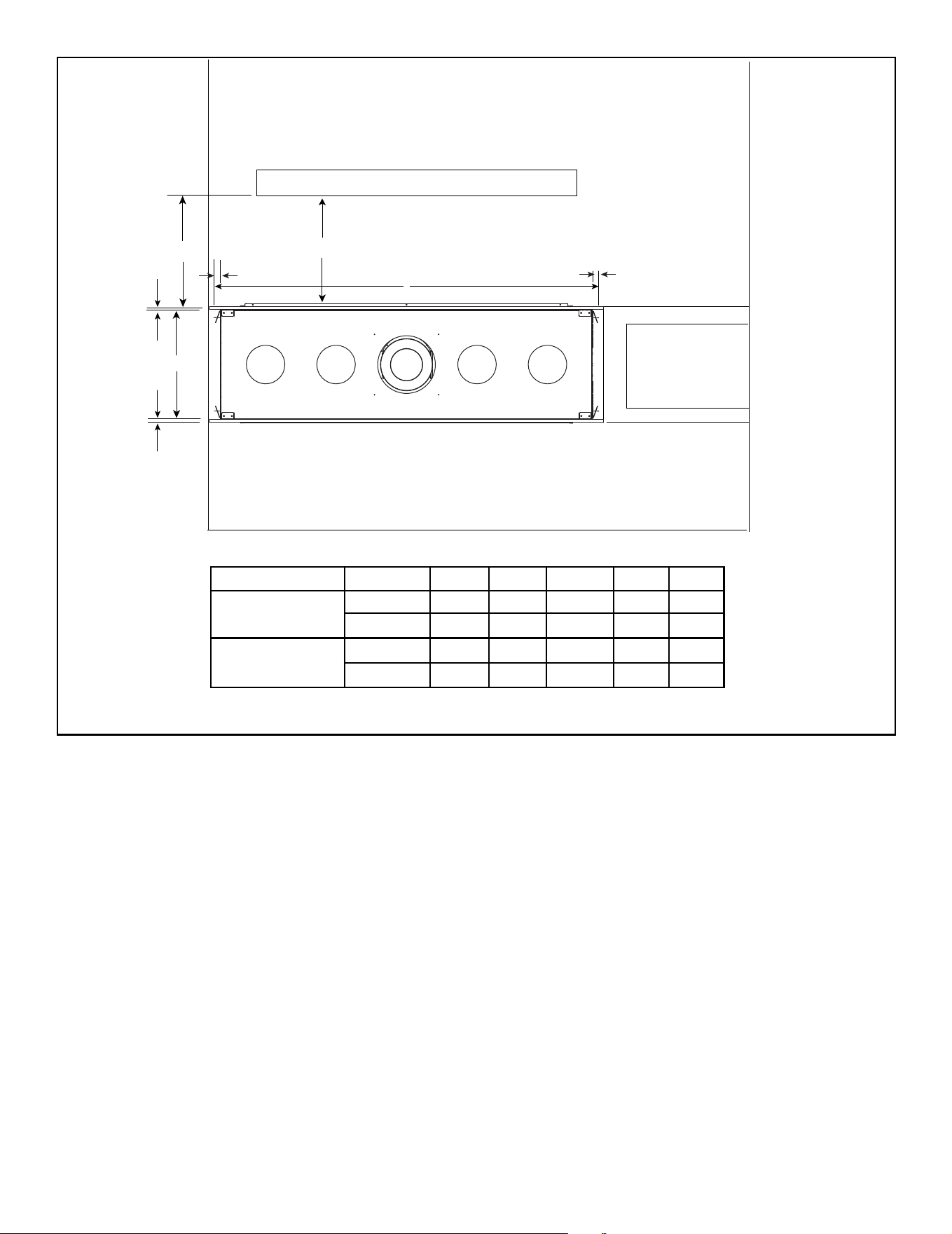

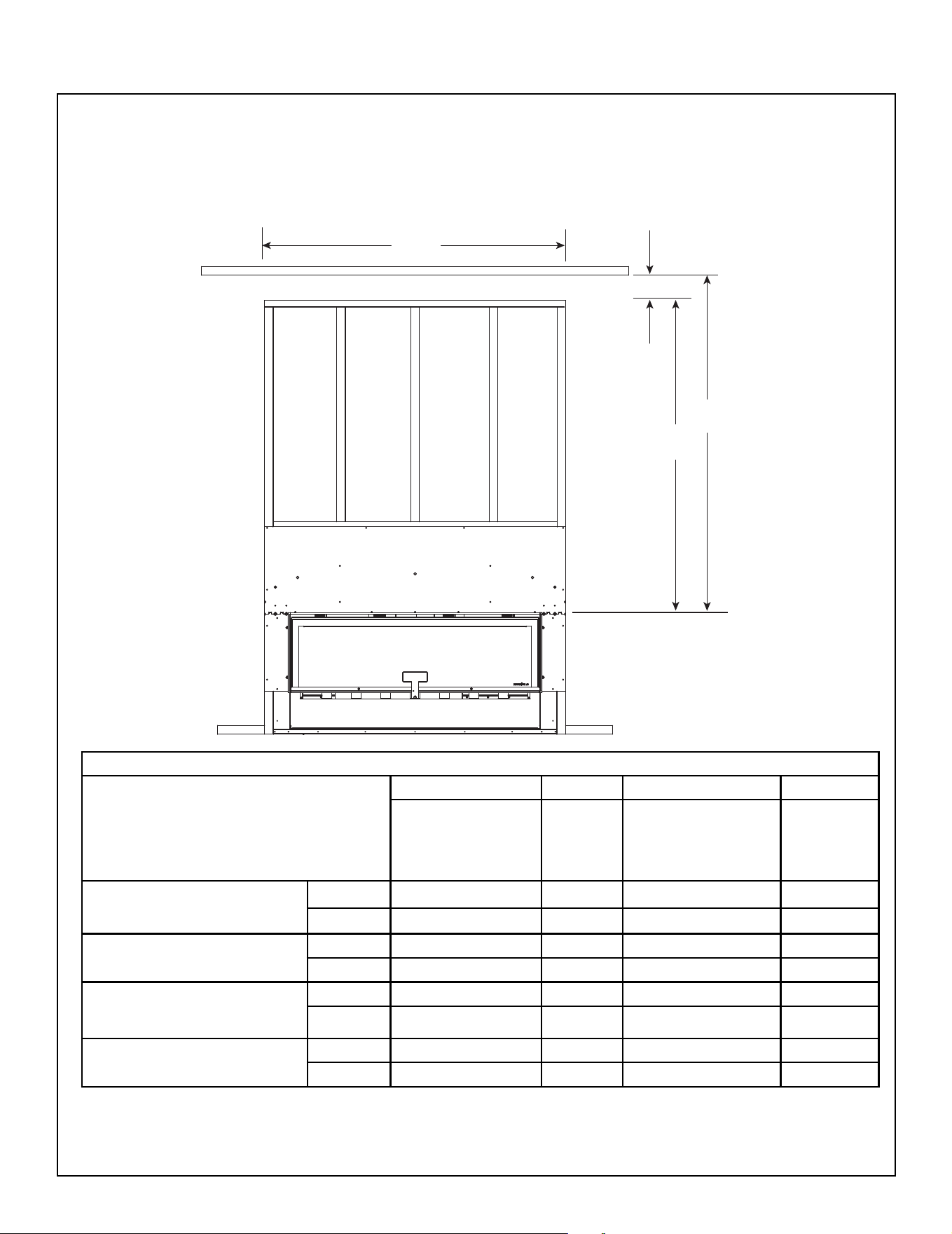

Figure 3.6 Appliance Locations: ECHELON-C Single-Sided Models
Model A B C D E F G H
ECHEL36IN-C
Inches 62-1/2 48-1/4 88-1/8
See
Section
10, Figure
10.17 and
10.18.
24-1/2 18-3/4 1 50
Millimeters 1588 1226 2238 622 476 25 1270
ECHEL48IN-C
Inches 70-3/4 60-1/4 100-3/8 28-1/2 18-3/4 1 62
Millimeters 1797 1530 2550 724 476 25 1575
ECHEL60IN-C
Inches 79-1/2 72-1/4 112-3/8 31-3/4 18-3/4 1 74
Millimeters 2019 1835 2854 807 476 25 1880
ECHEL72IN-C
Inches 88 84-1/4 124-3/8 35-1/4 18-3/4 1 86
Millimeters 2235 2140 3159 895 476 25 2184
B
C
A
B
G
F
E
H
G
D
Refer to Section 10 for hearth, mantel and
wall projection information.
If a Heat Management System will be
installed, refer to Section 6.B for information.
B
18 in. (457 mm) required when Passive Heat Side
Discharge Kit is installed. Refer to the Passive
Heat kit instructions for more information.
17Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Figure 3.7 Appliance Locations: ECHELON-C See-Through Models
NOTICE: This See-Through appliance is NOT
designed or approved for an indoor/outdoor
application.
MODEL A B C D E
ECHEL36STIN-C
Inches 48-1/4 17-1/8 48 1/2 1
Millimeters 1226 435 1219 13 25
ECHEL48STIN-C
Inches 60-1/4 17-1/8 48 1/2 1
Millimeters 1530 435 1219 13 25
C
C
B
A
D
D
E E
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
18

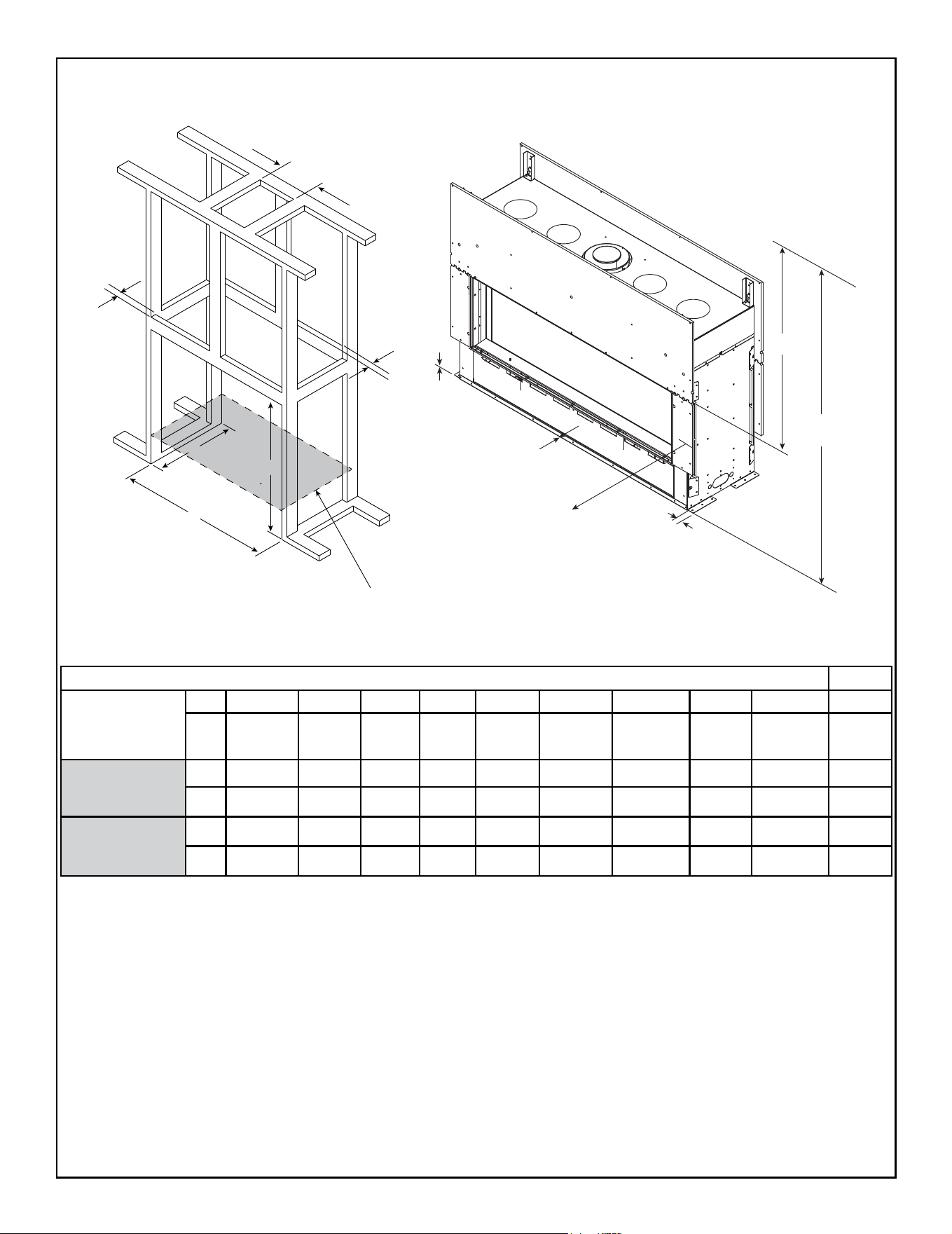

Figure 3.8 Clearances to Combustibles-ECHEL36IN-C, ECHEL48IN-C, ECHEL60IN-C, ECHEL72IN-C

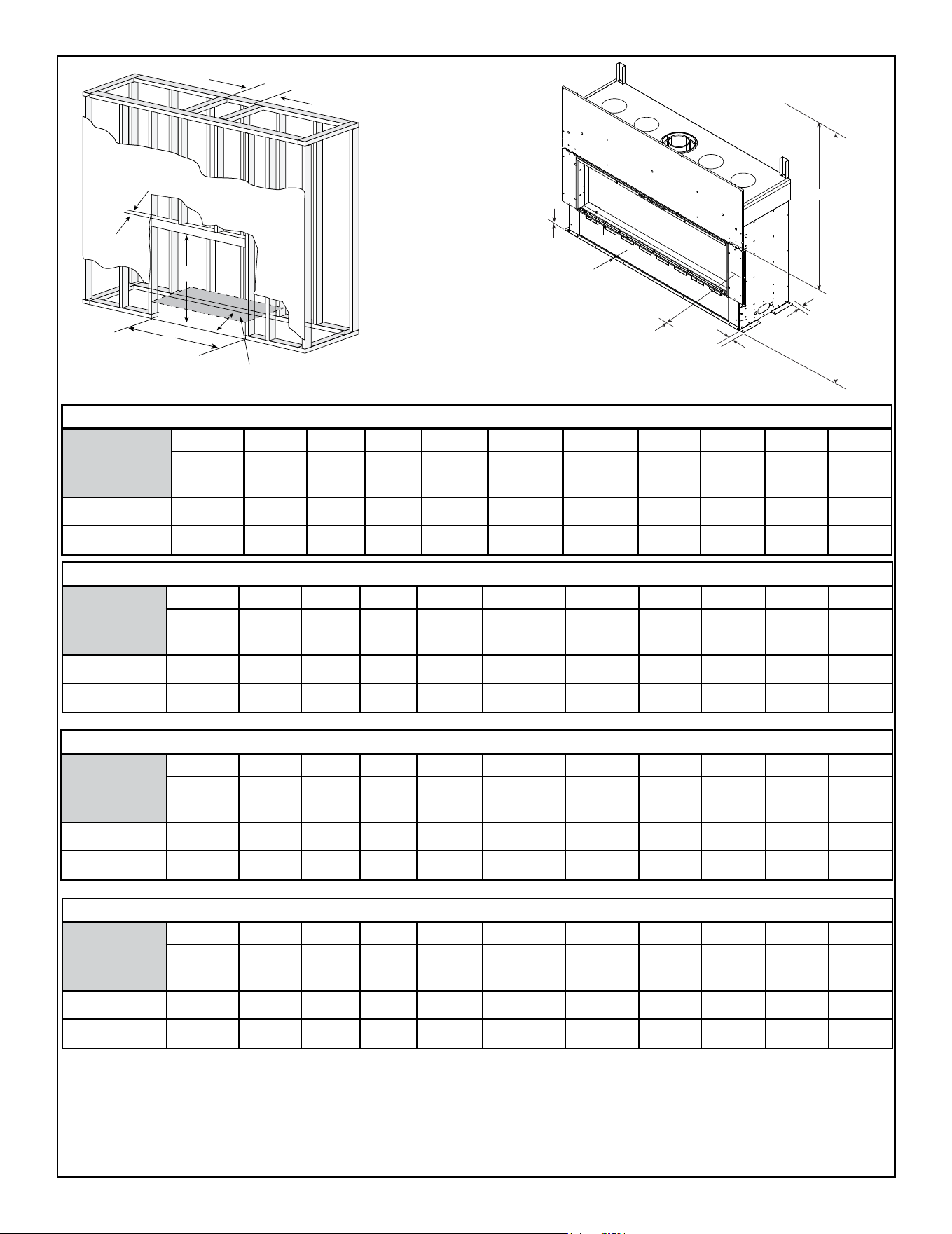

MINIMUM FRAMING DIMENSIONS*
ECHEL48IN-C
A B C D E F G**** H I J K
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling
Combustible
Floor
Combustible
Flooring
Behind
Appliance
Sides of
Appliance
Front of
Appliance
Clearance
to Ceiling
Inches
10 42 18-1/4 60-1/4 31 0 0 1 1 48 55-1/2
Millimeters
254 1067 464 1530 787 0 0 25 25 1219 1410
MINIMUM FRAMING DIMENSIONS*
ECHEL36IN-C
A B C D E F G**** H I J K
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling
Combustible
Floor
Combustible
Flooring
Behind
Appliance
Sides of
Appliance
Front of
Appliance
Clearance
to Ceiling
Inches
10 42 18-1/4 48-1/4 31 0 0 1 1 48 55-1/2
Millimeters
254 1067 464 1226 787 0 0 25 25 1219 1410
MINIMUM FRAMING DIMENSIONS*
ECHEL60IN-C
A B C D E F G**** H I J K
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling
Combustible
Floor
Combustible
Flooring
Behind
Appliance
Sides of
Appliance
Front of
Appliance
Clearance
to Ceiling
Inches
10 48 18-1/4 72-1/4 31 0 0 1 1 48 55-1/2
Millimeters
254 1219 464 1835 787 0 0 25 25 1219 1410
MINIMUM FRAMING DIMENSIONS*
ECHEL72IN-C
A B C D E F G**** H I J K
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling
Combustible
Floor
Combustible
Flooring
Behind
Appliance
Sides of
Appliance
Front of
Appliance
Clearance
to Ceiling
Inches
10 48 18-1/4 84-1/4 31 0 0 1 1 48 55-1/2
Millimeters
254 1219 464 2140 787 0 0 25 25 1219 1410
F
G****
J
I
E
H
K
CEILING
NOTE: E & K dimensions will change if
Passive Heat option is installed. Reference the instructions
included with the Passive Heat Kit for dimensions.
B
D
A
HEADER
DEPTH**
C
APPLIANCE MAY BE INSTALLED
OFF OF FLOOR***
HEADER DEPTH**
* = Adjust framing dimensions for interior sheathing (such as sheetrock)
**= If header depth exceeds 3-1/2 inches, notching may be required to maintain clearances to pipe.
***= If appliance is installed o of oor, maintain required clearances to combustibles.
Construct platform in accordance with local building codes.
****= For installations with vinyl ooring, see Section 3.E.
19Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

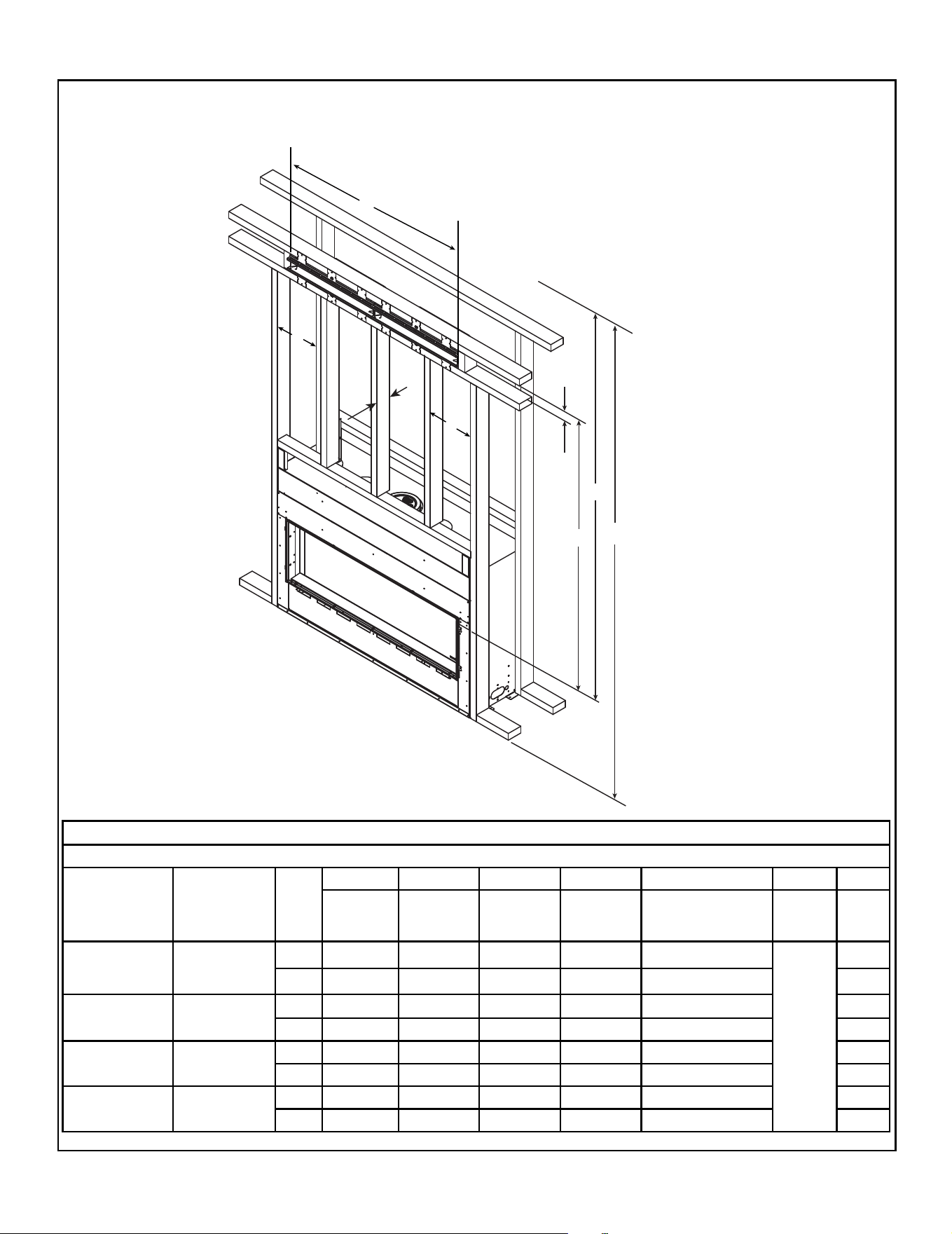

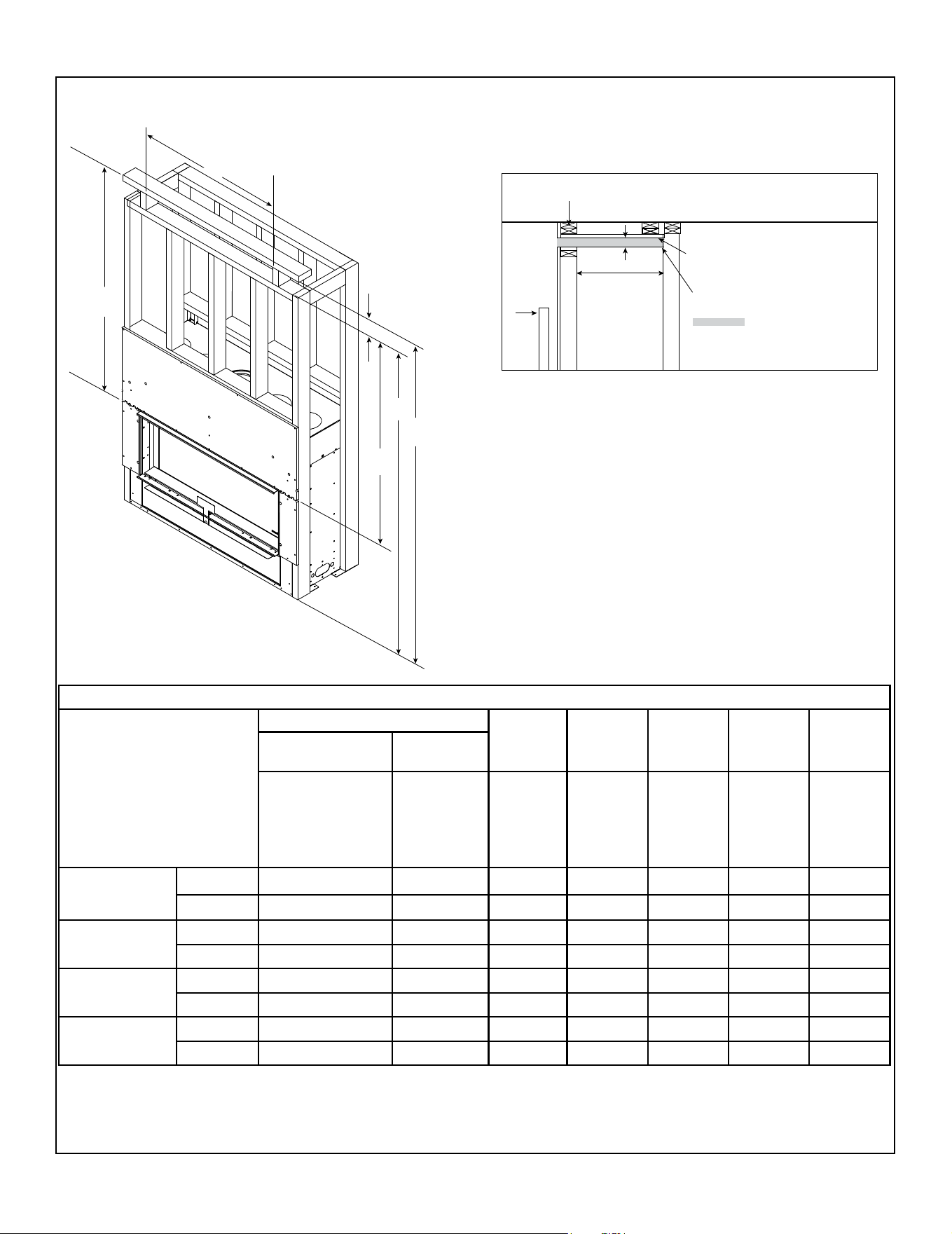

Figure 3.9 Clearances to Combustibles-ECHEL36STIN-C, ECHEL48STIN-C
MINIMUM FRAMING DIMENSIONS*
A B C D E F G**** H I J
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling
Combustible
Floor
Combustible
Flooring
Sides of
Appliance
Front or
Rear of
Appliance
Clearance
to Ceiling
ECHEL36STIN-C
in.
10 42 17 48-1/4 31 0 0 1 48 55-1/2
mm
254 1067 432 1226 787 0 0 25 1219 1410
ECHEL48STIN-C
in.
10 42 17 60-1/4 31 0 0 1 48 55-1/2
mm
254 1067 432 1530 787 0 0 25 1219 1410
C
A
B
D
HEADER
DEPTH**
HEADER
DEPTH**
APPLIANCE MAY BE
INSTALLED OFF OF FLOOR***
F
G****
H
E
I
J
E=MEASUREMENT FROM TOP
OF FIREPLACE OPENING
TO CEILING
J=MEASUREMENT FROM
BOTTOM OF FIREPLACE
TO CEILING
NOTE: E & J dimensions will change if
Passive Heat option is installed. Reference the instructions
included with the Passive Heat Kit for dimensions.
* = Adjust framing dimensions for interior sheathing (such as sheetrock).
**= If header depth exceeds 3-1/2 inches, notching may be required to maintain clearances to pipe.
***= If appliance is installed o of oor, maintain required clearances to combustibles.
Construct platform in accordance with local building codes.
****= For installations with vinyl ooring, see Section 3.E.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
20
CHASE DETAIL
Front Discharge: Air conveyed into the room through one front discharge slot.
Figure 3.10 Passive Heat Front Discharge Framing Dimensions with Clean Face Finish or Trim Kit
WARNING! Risk of Fire! Wire mesh required on bot-
tom of discharge opening when discharge opening is
greater than 3 inches. Secure mesh to top of framing.
Framing Dimensions - Passive Heat Front Discharge (PH-FRT) Single-Sided or See-Through
ROOM CEILING
1-1/2 IN. (2 X 4 FRAMING)
2 IN. MIN.
TV
1/2 IN. X 1/2 IN.
WIRE MESH**
CHASE CEILING (REQUIRED)
WIRE MESH**
= PASSIVE HEAT
DISCHARGE OPENING
FRONT DISCHARGE MINIMUM FRAMING DIMENSIONS
A
B C D E F
TRIM KIT*
(PH-TRIM)
NO TRIM
KIT**
Height of Discharge
Opening
Minimum
Height of
Discharge
Opening
Minimum
Clearance
to
Framing
Width of
Discharge
Opening
Clearance
to Top of
Discharge
Opening
from Bottom
of Appliance
Clearance
from Bottom
of Appliance
to Bottom of
Discharge
Opening
Minimum
Clearance
Appliance
Opening to
Ceiling
ECHEL36IN-C
ECHEL36STIN-C
Inches 3-1/2 2 48 36-1/2 74-1/2 72-1/2 51-1/2
millimeters 89 51 1219 927 1892 1842 1308
ECHEL48IN-C
ECHEL48STIN-C
Inches 3-1/2 2 48 48-1/2 74-1/2 72-1/2 51-1/2
millimeters 89 51 1219 1232 1892 1842 1308
ECHEL60IN-C
Inches 3-1/2 2 48 60-1/2 74-1/2 72-1/2 51-1/2
millimeters 89 51 1219 1537 1892 1842 1308
ECHEL72IN-C
Inches 3-1/2 2 67-1/2 72-1/2 94 92 51-1/2
millimeters 89 51 1715 1842 2388 2337 1308
* Measurement for Trim Kit = 3-1/2 in. + additional nishing material thickness. Figure 3.11 shows vent cover dimensions.
** Measurement for without trim kit = 2 in. + additional nishing material thickness. If discharge opening is greater than 3
inches, wire mesh is required.
A
E
D
C
B
APPLIANCE MAY BE INSTALLED
OFF OF FLOOR
F
21Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

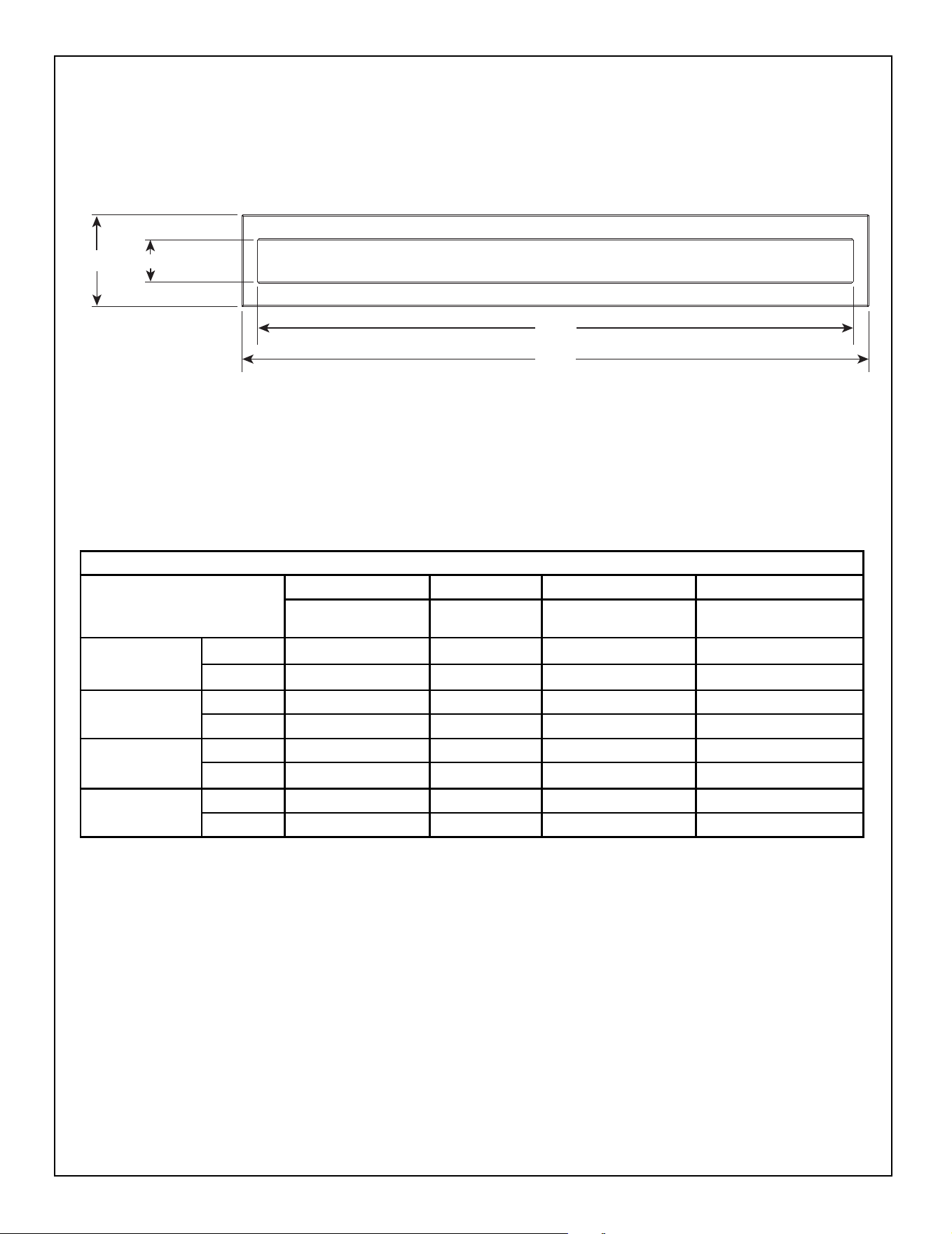

Figure 3.11 Passive Heat Front Discharge - Vent Cover Dimensions
C
D
B
A
PASSIVE HEAT TRIM KIT DIMENSIONS
A
B C D
Inside Height Inside Width Outside Height Outside Width
PHTRIM-36C
Inches 2-9/16 36-1/2 5-5/8 38-3/8
millimeters 65 927 143 975
PHTRIM-48C
Inches 2-9/16 48-1/2 5-5/8 50-3/8
millimeters 65 1232 143 1280
PHTRIM-60C
Inches 2-9/16 60-1/2 5-5/8 62-3/8
millimeters 65 1537 143 1585
PHTRIM-72C
Inches 2-9/16 72-1/2 5-5/8 74-3/8
millimeters 65 1842 143 1889
Passive Heat Front Discharge (PH-FRT) Trim Kit
Vent Cover Dimensions
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
22

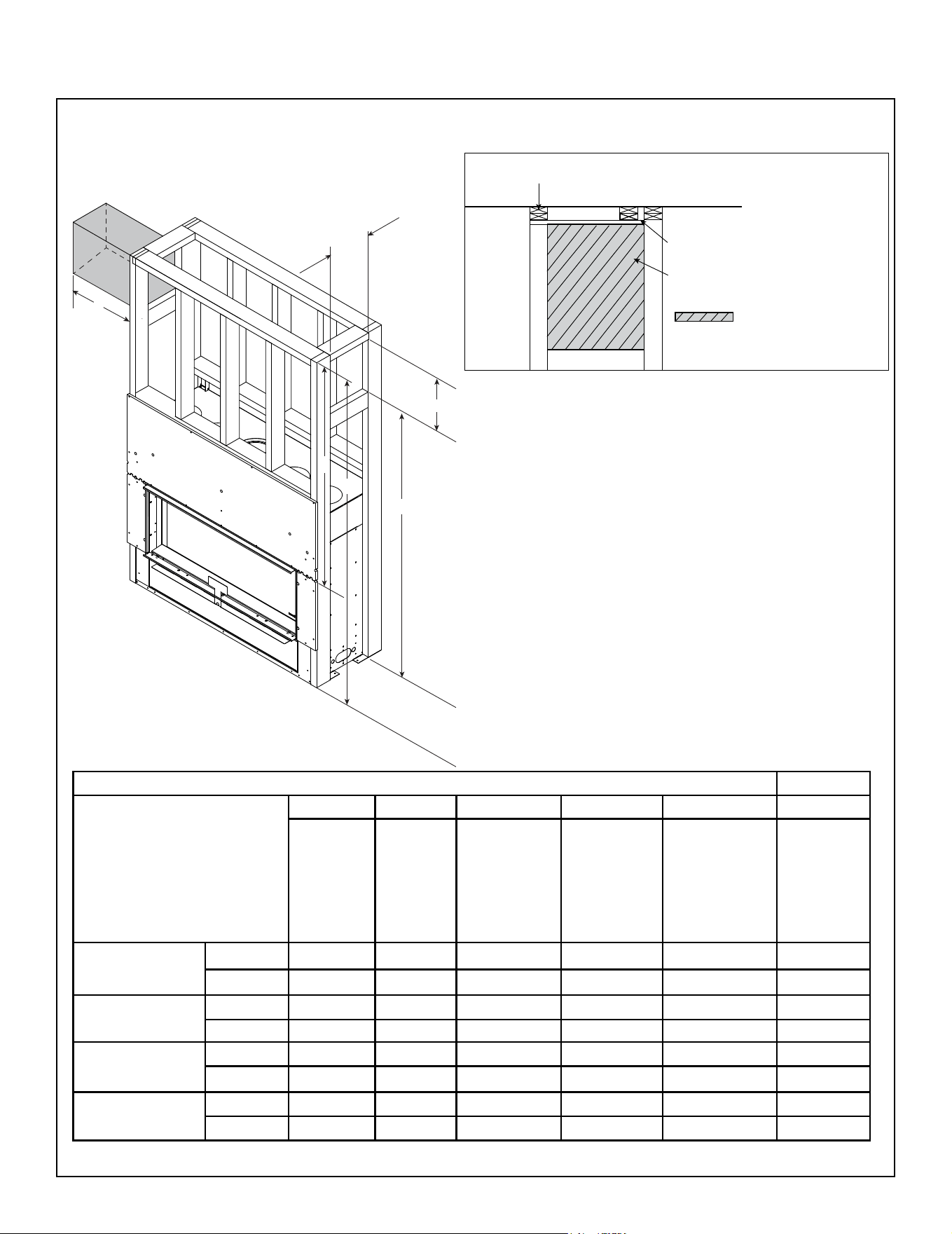

Figure 3.12 Passive Heat Side Discharge Framing Dimensions
Framing Dimensions - Passive Heat Side Discharge (PH-SIDE) Single-Sided or See-Through
WARNING! Risk of Fire! DO NOT place combustible
objects or combustible materials in non-combustible
zone. Appliance and combustible materials will
overheat.
SIDE DISCHARGE FRAMING DIMENSIONS
A
B C D E F
Height of
Discharge
Opening
Width of
discharge
Opening
Minimum
Clearance
Bottom of
Appliance
to Bottom of
Discharge
Opening
Minimum
Clearance
Bottom of
Appliance
to Ceiling
Minimum
Clearance to
Combustible
Materials
Minimum
Clearance
Appliance
Opening to
Ceiling
ECHEL36IN-C
ECHEL36STIN-C
Inches 12-1/4 8-3/4 62-3/4 76-1/2 18 52
millimeters 311 222 1594 1943 457 1321
ECHEL48IN-C
ECHEL48STIN-C
Inches 12-1/4 8-3/4 62-3/4 76-1/2 18 52
millimeters 311 222 1594 1943 457 1321
ECHEL60IN-C
Inches 12-1/4 8-3/4 62-3/4 76-1/2 18 52
millimeters 311 222 1594 1943 457 1321
ECHEL72IN-C
Inches 12-1/4 8-3/4 81-1/4 95 18 70-1/2
millimeters 311 222 2064 2413 457 1791
ROOM CEILING
1-1/2 IN. (2 X 4 FRAMING)
= PASSIVE HEAT
DISCHARGE OPENING
DISCHARGE OPENING
CHASE CEILING ZONE
CHASE CEILING (REQUIRED)
Side Discharge: Air conveyed into the room through two discharge registers,
one on each side of appliance.
E
B
A
C
D
E = NON-COMBUSTIBLE ZONE
(BOTH SIDES)
APPLIANCE MAY BE INSTALLED
OFF OF FLOOR
F
23Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Figure 3.13 Passive Heat Minimum Framing Dimensions Open Top Discharge
* Wire mesh required for front discharge or open top discharge passive heat installations with discharge
opening of 3 inches or greater.
Framing Dimensions - Passive Heat Open Top Discharge Single-Sided or See-Through
WARNING! Risk of Fire! Wire mesh required on bottom of discharge opening when discharge
opening is greater than 3 inches. Secure mesh to top of framing.
C
A
B
D
OPEN TOP DISCHARGE MINIMUM FRAMING DIMENSIONS
A*
B C D
Minimum Height of
Discharge Opening
Clearance
to Framing
Width of Discharge
Opening
Minimum
Clearance
Appliance
Opening to
Ceiling
ECHEL36IN-C/ECHEL36STIN-C
Inches 2 48 51-1/4 50
millimeters 51 1219 1302 1270
ECHEL48IN-C/ECHEL48STIN-C
Inches 2 48 63-1/4 50
millimeters 51 1219 1607 1270
ECHEL60IN-C
Inches 2 48 75-1/4 50
millimeters 51 1219 1911 1270
ECHEL72IN-C
Inches 2 67-1/2 87-1/4 69-1/2
millimeters 51 1715 2216 1765
Open Top Discharge: A minimum of 3 sides must be open allowing air to be conveyed
into the room.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
24
Figure 3.14 Clearances to Combustibles - Ducted Passive Heat Front Discharge
MINIMUM FRAMING DIMENSIONS
FRONT DISCHARGE
MODEL
Ducted
Passive Heat
Kit
A B C D E F G
Height of
Discharge
Opening
Width of
Discharge
Opening
Clearance
Opening to
Framing
Clearance
Opening to
Ceiling
Clearance
Bottom of Appliance
to Ceiling
Framing
2 X 4
Studs
ECHEL36IN-C
ECHEL36STIN-C
PHFR-MCE-36
in.
6 38-3/4 50-1/2 53-1/2 78
16 inches
(406 mm)
on center
3-1/2
mm
152 984 1283 1359 1981 89
ECHEL48IN-C
ECHEL48STIN-C
PHFR-MCE-48
in.
6 50-7/8 50-1/2 53-1/2 78 3-1/2
mm
152 1292 1283 1359 1981 89
ECHEL60IN-C PHFR-MCE-60
in.
6 62-3/4 50-1/2 53-1/2 78 3-1/2
mm
152 1594 1283 1359 1981 89
ECHEL72IN-C PHFR-MCE-72
in.
6 74-3/4 50-1/2 72 96-1/2 3-1/2
mm
152 1899 1283 1829 2451 89
Clearances to Combustibles
Ducted Passive Heat Front Discharge
Ducted Passive Heat Kit (PHFR-MCE)
Single-Sided or See-Through
C
D
E
A
B
F
F
G
Framing Dimensions - Ducted Passive Heat Front Discharge (PHFR-MCE) Single-Sided or See-Through
25Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

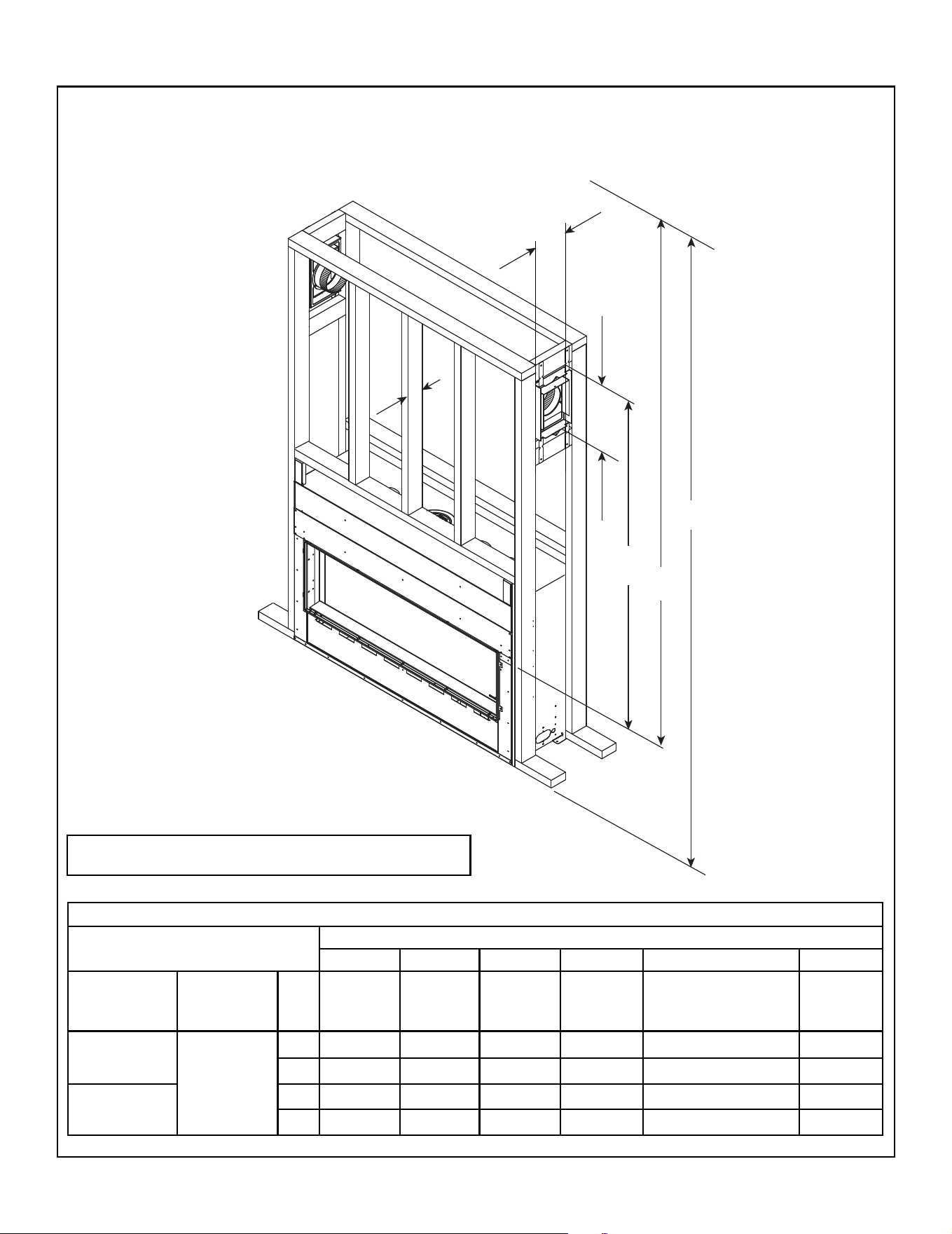

Figure 3.15 Clearances to Combustibles - Ducted Passive Heat Side Discharge
Ducted Passive Heat Side Discharge (PHSI-MCE)
Single-Sided or See-Through
Clearances to Combustibles
MINIMUM FRAMING DIMENSIONS
SIDE DISCHARGE
A B C D E F
MODEL
Ducted
Passive Heat
Kit
Height of
Discharge
Opening
Width of
Discharge
Opening
Clearance
Opening to
Framing
Clearance
Opening to
Ceiling
Clearance
Bottom of Appliance
to Ceiling
2 X 4 Studs
ECHEL36IN-C
ECHEL36STIN-C
PHSI-MCE
in. 16 10-3/16 50 52 76-1/2 3-1/2
mm 406 259 1270 1321 1943 89
ECHEL48IN-C
ECHEL48STIN-C
in. 16 10-3/16 50 52 76-1/2 3-1/2
mm 406 259 1270 1321 1943 89
C
B
A
D
E
F
Framing Dimensions - Ducted Passive Heat Side Discharge (PHSI-MCE) Single-Sided or See-Through
Note: Not for use with 60 inch and 72 inch models.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
26
A chase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should be enclosed inside the chase.
NOTICE: Treatment of ceiling restops and wall shield
restops and construction of the chase may vary with the
type of building. These instructions are not substitutes
for the requirements of local building codes. Therefore,
you MUST check local building codes to determine the
requirements to these steps.
NOTICE: Where required by code, install only sprinkler
heads with a sprinkler activation temperature classied
as Extra High.
• Sprinklers inside of chase: Keep sprinkler head away
from vent and chimney.
• Heat Management applications: Maintain 36 inches of
clearance to openings from which heat is discharged
such as convection slots, passive heat registers, heat
zone registers, etc. Refer to Section 6.B for Heat
Management options allowed for this appliance.
Chases should be constructed and insulated in the same
manner as the thermal envelope of the home based on
the code requirements for that climate zone to prevent air
leakage and draft problems. The chase is an extension of
the building thermal envelope.
To further prevent drafts and air leakage, the wall shield
and ceiling restops should be sealed with caulk or foil
tape with a minimum of 300 ºF continuous exposure
rating to seal gaps. Gas line holes and other openings
should be sealed with caulk with a minimum of 300 ºF con-
tinuous exposure rating or stued with unfaced insulation. If
the appliance is being installed on a cement surface, a layer
of plywood may be placed underneath to prevent conducting
cold up into the room.
Minimum height requirements for an exterior chase on a
top-vented appliance are shown in Figure 3.16. Reference
Figure 4.5 for additional clearances.
NOTICE: Install appliance on hard metal or wood surfaces
extending full width and depth. DO NOT install directly on
carpeting, vinyl, or any combustible material other than
wood.
WARNING! Risk of Fire! Maintain specied air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with replace or chimney.
• Failure to maintain airspace may cause overheating and
a re.

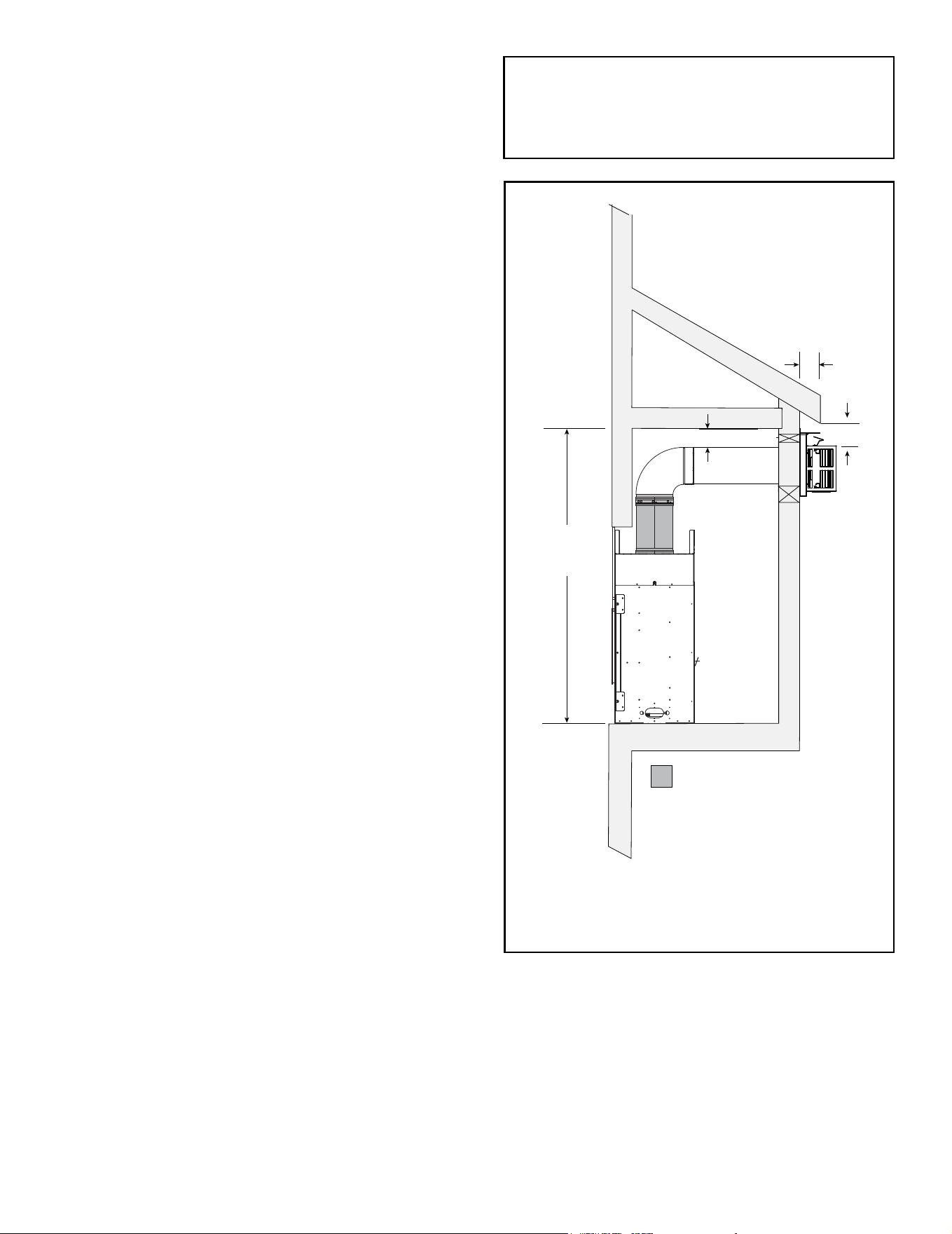

Figure 3.16 Exterior Chase - Minimum Height Requirements
ECHEL36 = 70 IN.
ECHEL48 = 70 IN.
ECHEL60 = 70 IN.
ECHEL72 = 82 IN.
A
REQUIRED MINIMUM OFF TOP
ECHEL36 = 18 IN.
ECHEL48 = 18 IN.
ECHEL60 = 18 IN.
ECHEL72 = 30 IN.
3 IN. MIN.
* NOTE: If overhang “A” is less than 2
inches, clearance from top of termination
cap to bottom of overhang “B” MUST be a
minimum of 4 inches. If A is two inches
or greater, see Figure 4.4, “Minimum
Clearances for Termination.”
B*
C. Constructing the Appliance Chase
Note: Figure 3.8 and Figure 3.9 show the replace installed on
the oor. However, this replace can be elevated o the oor
provided that the replace is properly supported by framing
materials and the ceiling clearances are maintained.
27Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Elevated Hearth Systems
Some hearth systems will elevate the appliance o the
oor at a given dimension. The elevation will also have to
be added to the following: Wall penetration referenced in
Figure 5.2 (Wall penetration) and Rough Opening Height
(header height) referenced in Figure 3.8 and 3.9.
Note: Finished oor thickness should also be considered
when determining installation dimensions.
D. Floor Protection
NOTICE: Install appliance on hard metal or wood surfaces
extending full width and depth. DO NOT install directly
on carpeting, vinyl, tile or any combustible material other
than wood.
WARNING! Risk of Fire! Maintain specied air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with replace or chimney.
• Failure to maintain airspace could cause overheating
and re.
Vinyl ooring is sensitive to heat. To avoid damage to
the vinyl ooring, a 12 inch minimum x 12 inch minimum
hearth is recommended when using vinyl ooring up
to the wall. See Figure 3.17. If no hearth is used, it is
recommended to provide a minimum of 30 inches of
clearance in front of the appliance to the vinyl ooring OR
the bottom of the appliance should be raised a minimum
of 24 inches o of the oor to allow the vinyl ooring to be
installed up to the wall.
Hearth and Home Technologies does not recommend
adhesive based vinyl ooring products due to thermal
expansion during operation. Floating style ooring
can be used, but will reach temperatures up to 110 °F
(based on ambient temperature of 70 °F).
Consult
the manufacturer’s ooring specications to ensure
compatibility.
NOTICE: Clearances that do not meet the minimum
guidelines could result in damage or buckling to the vinyl
ooring and is done at the installer’s risk.
E. Vinyl Flooring
12 IN. MIN.
APPLIANCE WIDTH MIN.
12 IN. MIN.
VINYL

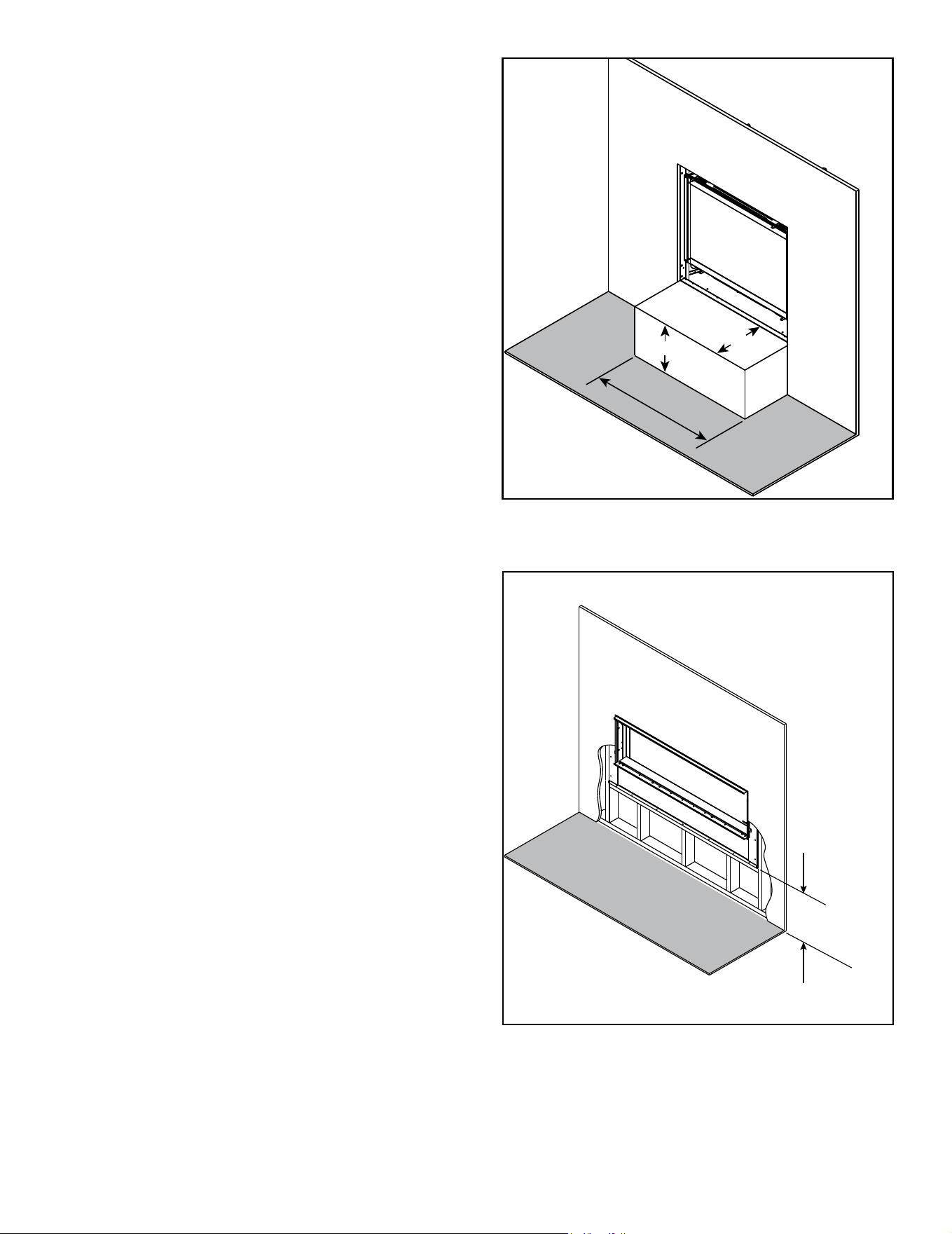

Figure 3.17 Vinyl Flooring Recommendations
24 IN. MIN.
VINYL
Figure 3.18 Vinyl Flooring Recommendations
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
28
B. Vent Termination Minimum Clearances
Roof Pitch H (Min.) Ft
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12 .................................................1.25*
Over 7/12 to 8/12 .................................................1.5*
Over 8/12 to 9/12 .................................................2.0*
Over 9/12 to 10/12 ...............................................2.5*
Over 10/12 to 11/12 .............................................3.25
Over 11/12 to 12/12 .............................................4.0
Over 12/12 to 14/12 .............................................5.0
Over 14/12 to 16/12 .............................................6.0
Over 16/12 to 18/12 .............................................7.0
Over 18/12 to 20/12 .............................................7.5
Over 20/12 to 21/12 .............................................8.0

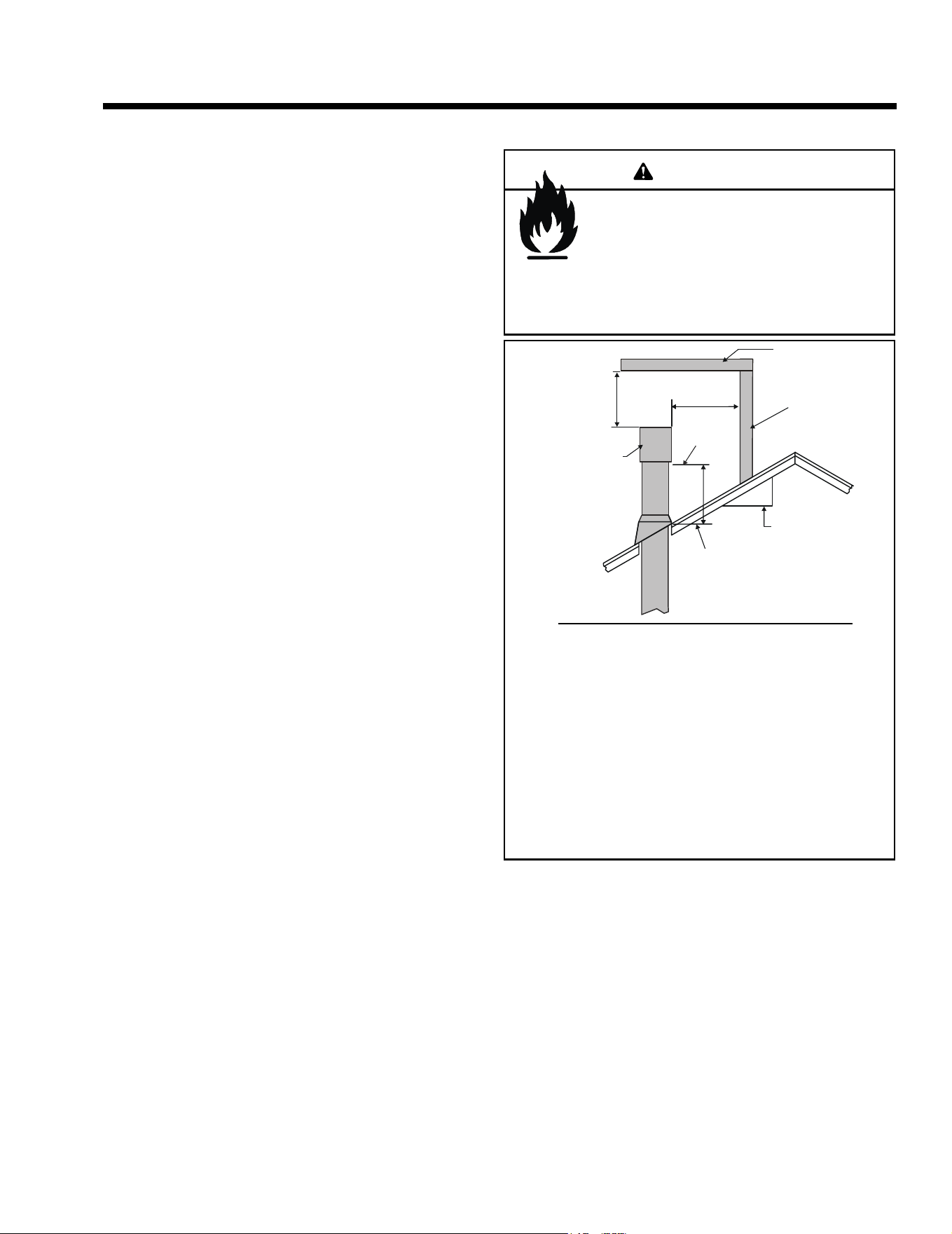

Figure 4.1 Minimum Height From Roof to Lowest Discharge
Opening
HORIZONTAL
OVERHANG
VERTICAL
WALL
GAS DIRECT VENT
TERMINATION CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
2 FT.
MIN.
20 INCHES MIN.
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
4 4
Termination Location and Vent Information
Fire Risk.
Maintain vent clearance to combustibles as
specied.
• DO NOT pack air space with insulation or other
materials.
Failure to keep insulation or other materials away
from vent pipe could cause overheating and re.
WARNING
* H minimum may vary depending on regional snowfall.
Refer to local codes.
A. Approved Pipe
WARNING! Risk of Fire, Delayed Ignition or Asphyxi-
ation. This appliance requires a separate vent. DO NOT
vent to a pipe serving any other appliance.
This appliance is only approved for use with Hearth &
Home Technologies DVP venting systems. Refer to Sec-
tion 12.A for vent component information and dimensions.
Only use listed decorative termination caps/shrouds with
Hearth & Home Technologies approved venting systems.
DO NOT mix pipe, ttings or joining methods from dier-
ent manufacturers.
The pipe is tested to be run inside an enclosed wall.
There is no requirement for inspection openings at each
joint within the wall.
29Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

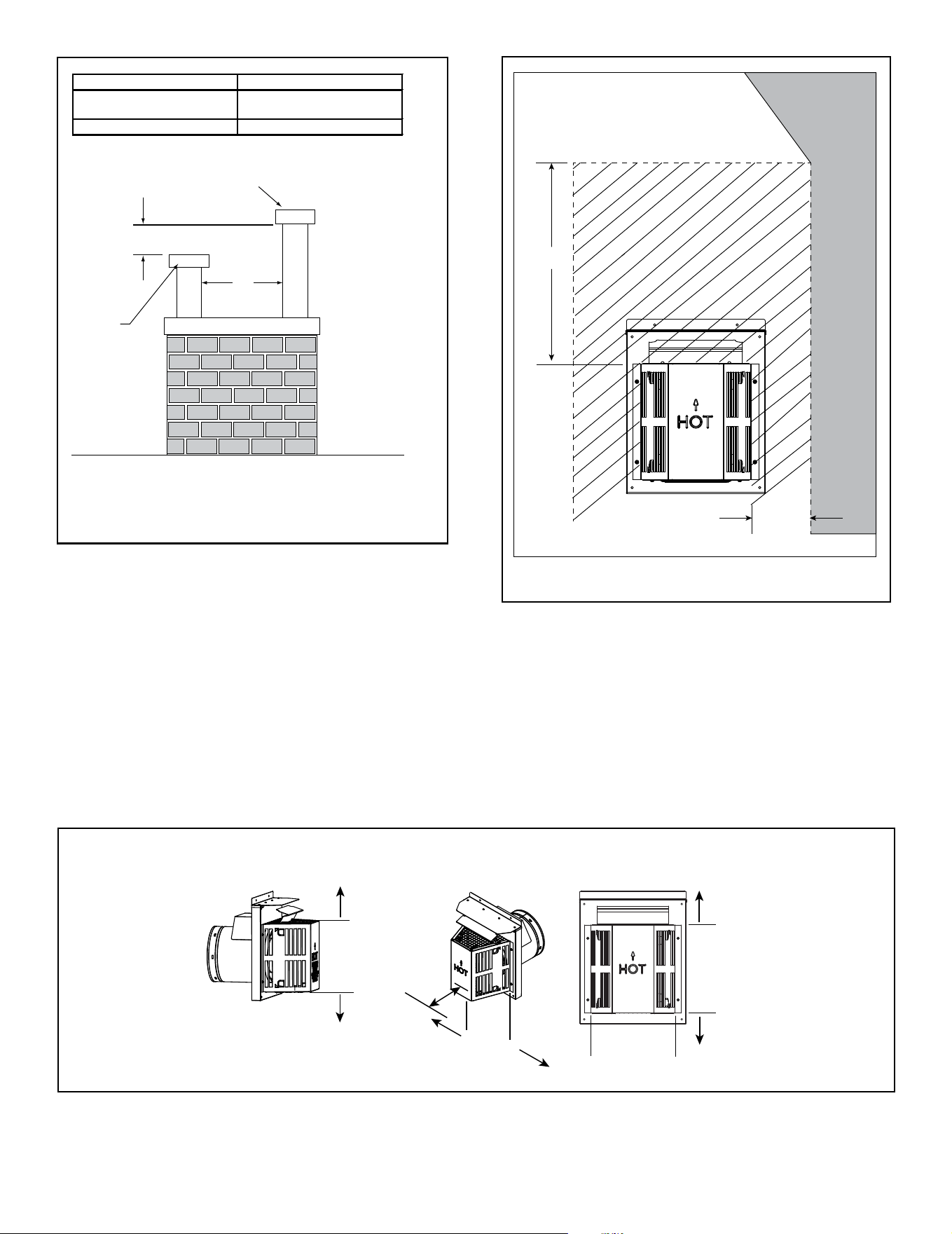

Figure 4.2 Staggered Termination Caps
Wood or Fuel Oil
Termination Cap
B
**Gas
Termination
Cap
A *
* If using decorative cap cover(s), this distance may need to be increased.
Refer to the installation instructions supplied with the decorative cap cover
.
A B
6 in. (minimum) up to 20 in.
152 mm/508 mm
18 in. minimum
457 mm
20 in. and over 0 in. minimum
** If two gas terminations are present, they may be level (B = 0 inches)
provided A is a minimum of 6 inches.
CAUTION! Risk of Burns! Termination caps are HOT,
consider proximity to doors, trac areas or where people
may pass or gather (sidewalk, deck, patio, etc.). Listed
cap shields available. Contact your dealer.
• Local codes or regulations may require different
clearances.
• Hearth & Home Technologies assumes no responsibility
for the improper performance of the appliance when the
venting system does not meet these requirements.
• Vinyl protection kits are suggested for use with vinyl siding.
• Measure horizontal and vertical termination cap clearances
as noted in Figure 4.3.
Figure 4.3
H=Measure Horizontal Distances from H
V=Measure Vertical Distances from V
V
V
CLEARANCE
= 6 IN.
H
H
V
V
H
H
Figure 4.4 Measure Horizontal and Vertical Termination
Clearance to Trapezoid Portion of Cap
OVERHANG
C
E
WALL
C and E dimensions are dened in Figure 4.5.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
30
C
J
B
D
B
F
B
A
E
V
V
V
V
V
V
M
H or i
V
G
X
V
H
A
V
V
H

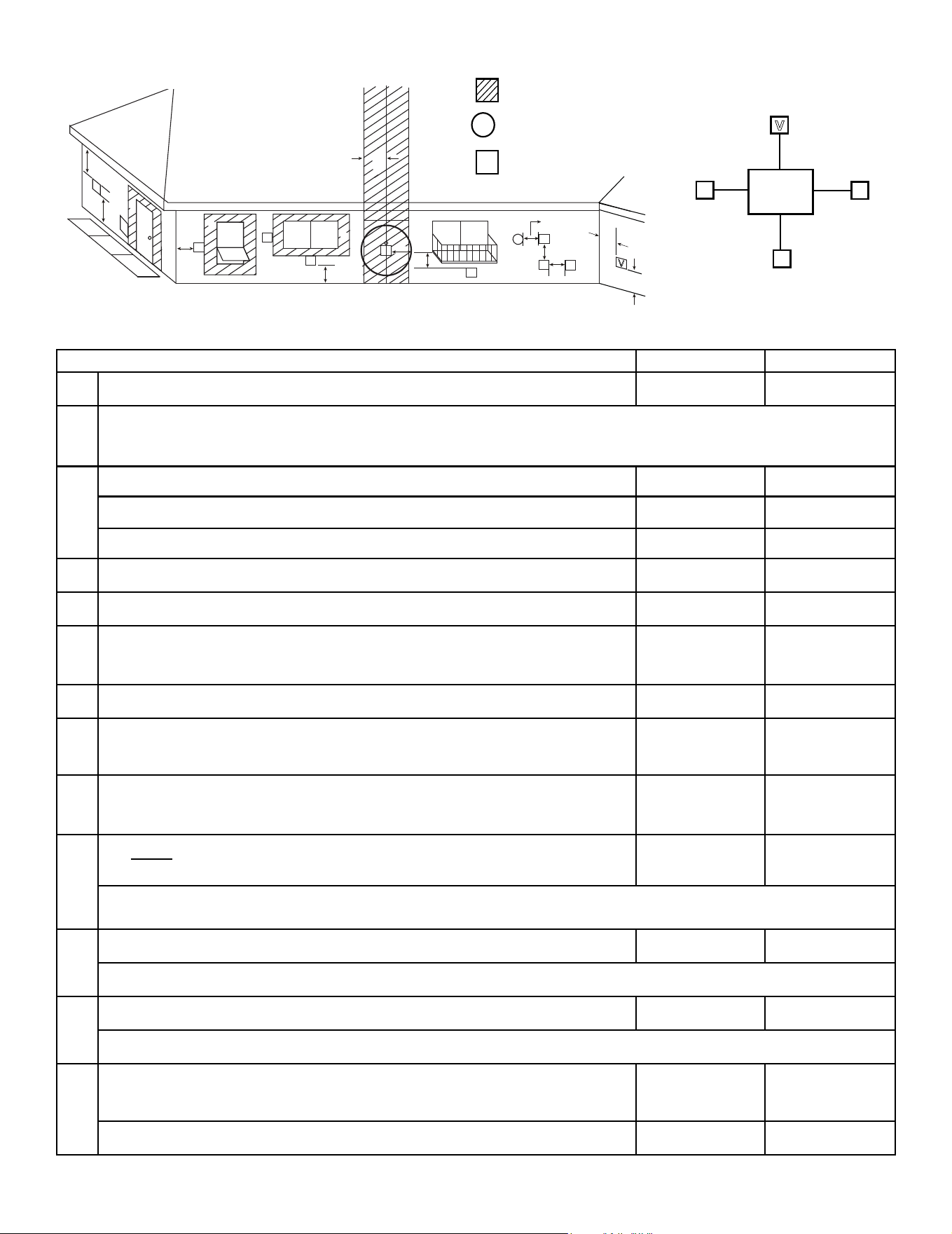

Figure 4.5 Minimum Clearances for Termination
X
= AIR SUPPLY INLET
V
= VENT TERMINAL
= AREA WHERE TERMINAL IS NOT PERMITTED
Electrical
Service
V
K
V
K
V
L
C
V
C. Vent Terminal Clearances
U.S.A. CANADA
A Clearance above grade,veranda, porch, deck, or balcony 12 in. (305 mm) 12 in. (305 mm)
B
Clearance to window or door that may be opened, or to permanently closed window
U.S.A.: = 12 in. min. (305 mm min.) CANADA: = 12 in. min. (305 mm min.)
C
Clearance below unventilated sot 18 in. (457 mm) 18 in. (457 mm)
Clearance below ventilated sot 18 in. (457 mm) 18 in. (457 mm)
Clearance below any vinyl sots and electrical service 30 in. (762 mm) 30 in. (762 mm)
D Clearance to outside corner 6 in. (152 mm) 6 in. (152 mm)
E Clearance to inside corner 6 in. (152 mm) 6 in. (152 mm)
F
Not to be installed above a gas meter/regulator assembly within 3 feet horizontally from
the center-line of the regulator
3 ft (914 mm) 3 ft (914 mm)
G Clearance to gas service regulator vent outlet 3 ft (914 mm) 3 ft (914 mm)
H
Clearance to non-mechanical air supply inlet to building or the combustion air inlet to
any other appliance termination (mechanical or non-mechanical)
9 in.
(229 mm min.)
12 in.
(305 mm min.)
I
Clearance to a mechanical (powered) air supply inlet
***(All mechanical air intakes within 10 feet of a horizontal termination cap must be
a minimum of 3 feet below termination.)
3 ft (914 mm)*** 6 ft (1.8 m)
J
On public property: clearance above paved sidewalk or a paved driveway.
7 ft (2.1 m) 7 ft (2.1 m)**
**(A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings
and serves both dwellings.)
K
Clearance from sides of electrical service 6 in. (152 mm) 6 in. (152 mm)
Location of the vent termination must not interfere with access to the electrical service.
L
Clearance above electrical service 12 in. (305 mm) 12 in. (305 mm)
Location of the vent termination must not interfere with access to the electrical service.
M
Clearance under veranda, porch, deck, balcony or overhang
*(Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of
two sides beneath the oor.)
18 in. (457 mm) 18 in. (457 mm)*
Vinyl or composite overhang 42 in. (1067 mm) 42 in. (1067 mm)
U.S.A. Installations: In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code.
Canadian Installations: In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code.
31Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
D. Use of Elbows
Diagonal runs have both vertical and horizontal vent as-
pects when calculating the eects. Use the rise for the
vertical aspect and the run for the horizontal aspect. See
Figure 4.6.
Two 45º elbows may be used in place of one 90º elbow.
On 45º runs, one foot of diagonal is equal to 8-1/2 inch
(216 mm) horizontal run and 8-1/2 inch (216 mm) vertical
run. A length of straight pipe is allowed between two 45º
elbows. See Figure 4.6.
Figure 4.7 shows the vertical and horizontal osets for
DVP elbows.

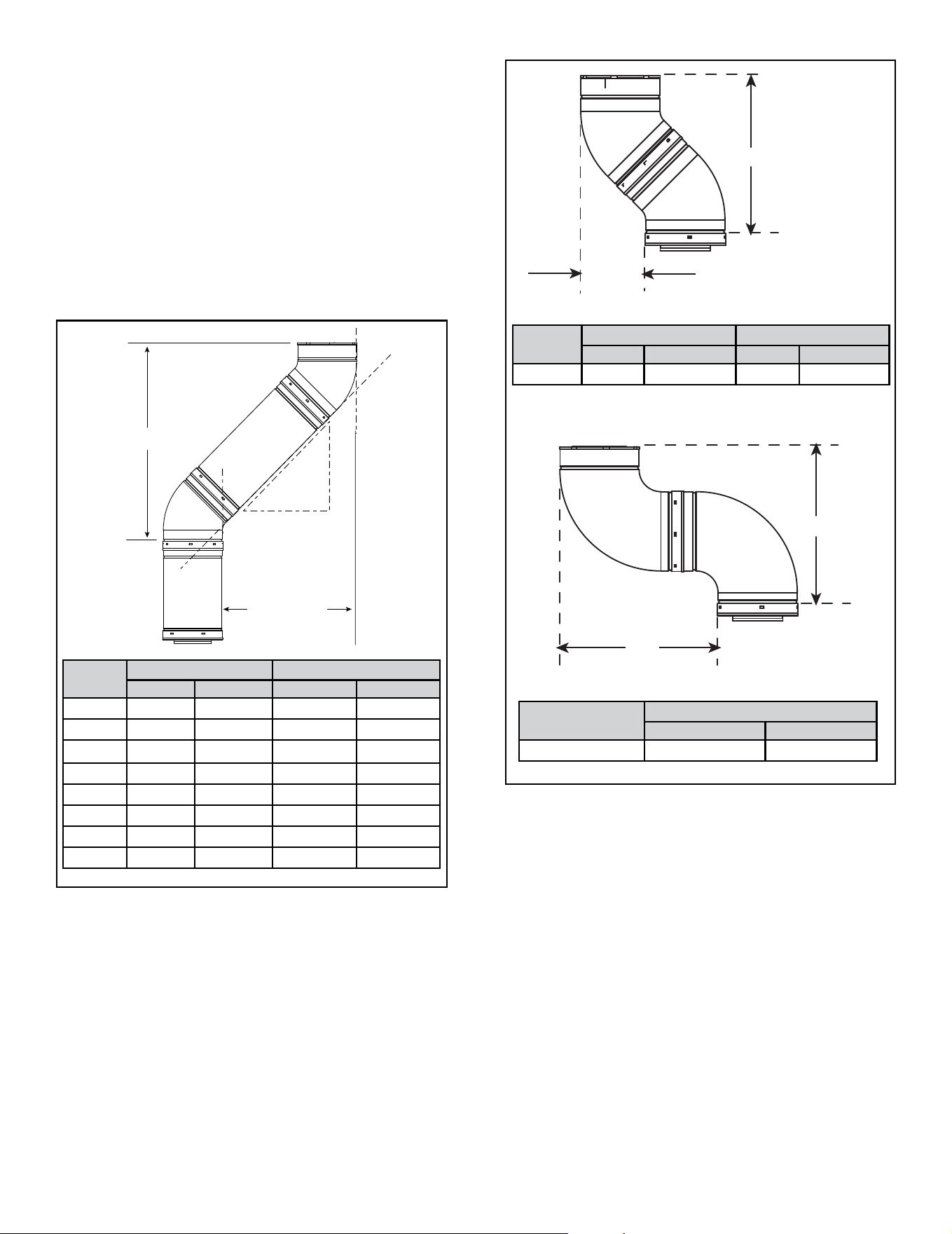

Figure 4.6
HORIZONTAL
VERTICAL
RUN
RISE
EFFECTIVE
LENGTH
Y
X
X
X
DVP
Pipe
Eective Length Rise/Run
Inches Millimeters Inches Millimeters
DVP4 4 102 2-3/4 70
DVP6 6 152 4-1/4 108
DVP12 12 305 8-1/2 216
DVP24 24 610 17 432
DVP36 36 914 25-1/2 648
DVP48 48 1219 34 864
DVP6A 3 to 6 76 to 152
2-1/8-4-1/4 54-108
DVP12A 3 to 12 76 to 305
2-1/8-8-1/2 54-216
Vent Type
X
Inches Millimeters
DVP 16-1/4 413
Figure 4.7 Vertical and Horizontal Oset for DVP Elbows
Vent
Type
X Y
Inches Millimeters Inches Millimeters
DVP 6-5/8 168 16-1/2 419
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
32

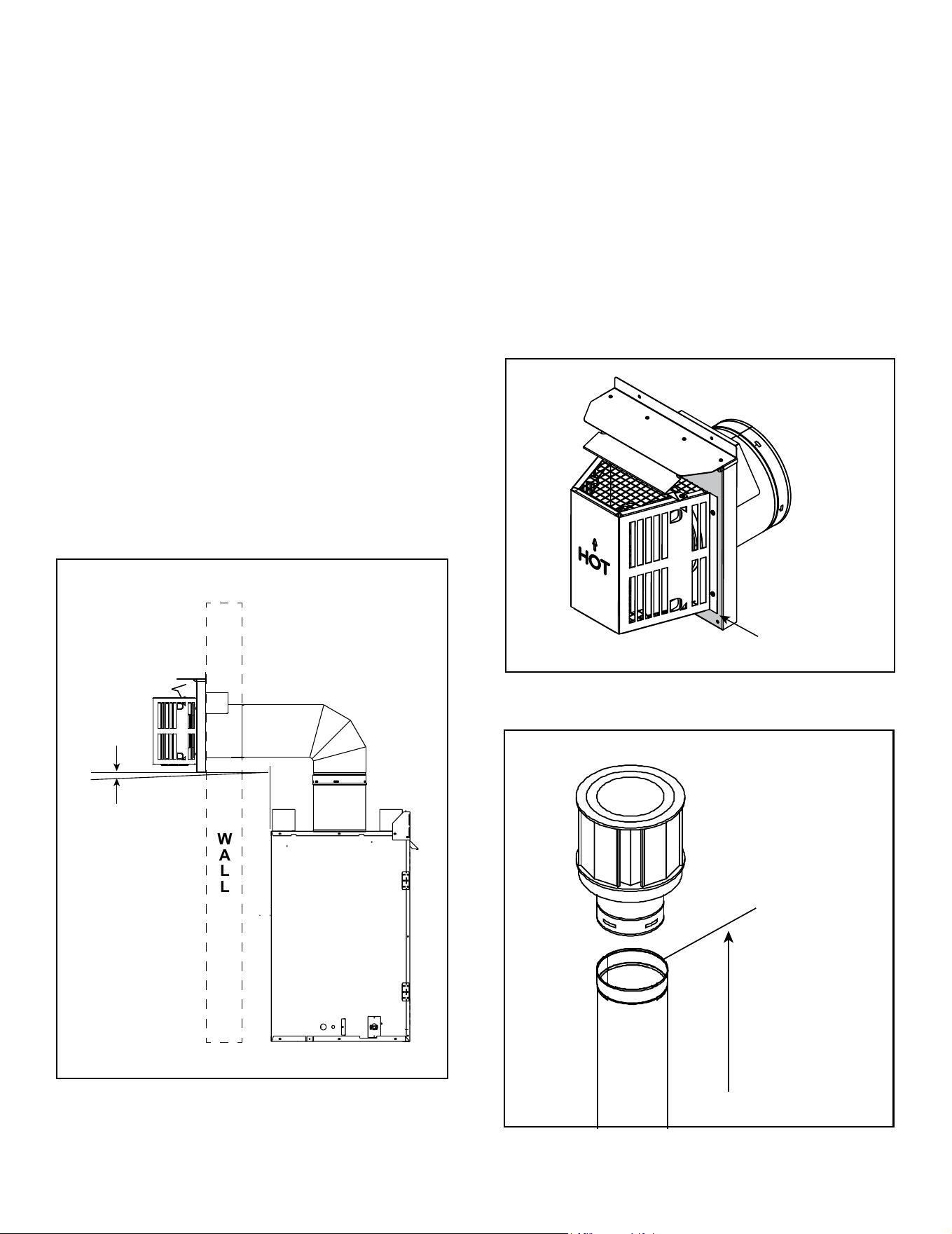

Measuring Standards:
Vertical and horizontal measurements listed in the vent
diagrams and clearances for termination were made
using the following standards:
• Pipe measurements are shown using the eective length
of pipe. See Section 12.A (Figure 12.1), for information
on eective length of pipe components.
• Horizontal terminations are measured to the outside
mounting surface (flange of termination cap). See
Figure 4.9.
• Vertical terminations are measured to top of last section
of pipe. See Figure 4.10.
• Horizontal pipe installed level with no rise.
MEASURE TO SHADED SURFACE
(OUTSIDE MOUNTING SURFACE)
Figure 4.9 Measure to Outside Mounting Surface
Figure 4.10 Measure to Top of Last Section of Pipe
General Rules:
• SUBTRACT 3 ft from the total H measurement for each
90º elbow installed horizontally.
• SUBTRACT 1-1/2 ft from the total H measurement for
each 45º elbow installed horizontally.
• A maximum of three 90º elbows (or six 45º elbows) may
be used in any vent conguration. Some elbows may be
installed horizontally. See Figure 4.12 and Figure 4.19.
• Elbows may be placed back to back anywhere in the
system.
• Any 90º elbow may be replaced with two back to back
45º elbows.
• When penetrating a combustible wall, a wall shield
restop must be installed.
• When penetrating a combustible ceiling, a ceiling restop
must be installed.
• Horizontal runs of vent do not require vertical rise;
horizontal runs may be level.
• Horizontal termination cap should have a 1/4 inch
downward slant to allow any moisture in cap to be
released. See Figure 4.8.
E. Vent Diagrams
Figure 4.8
1/4 in. max.
(6 mm)
WALL
33Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

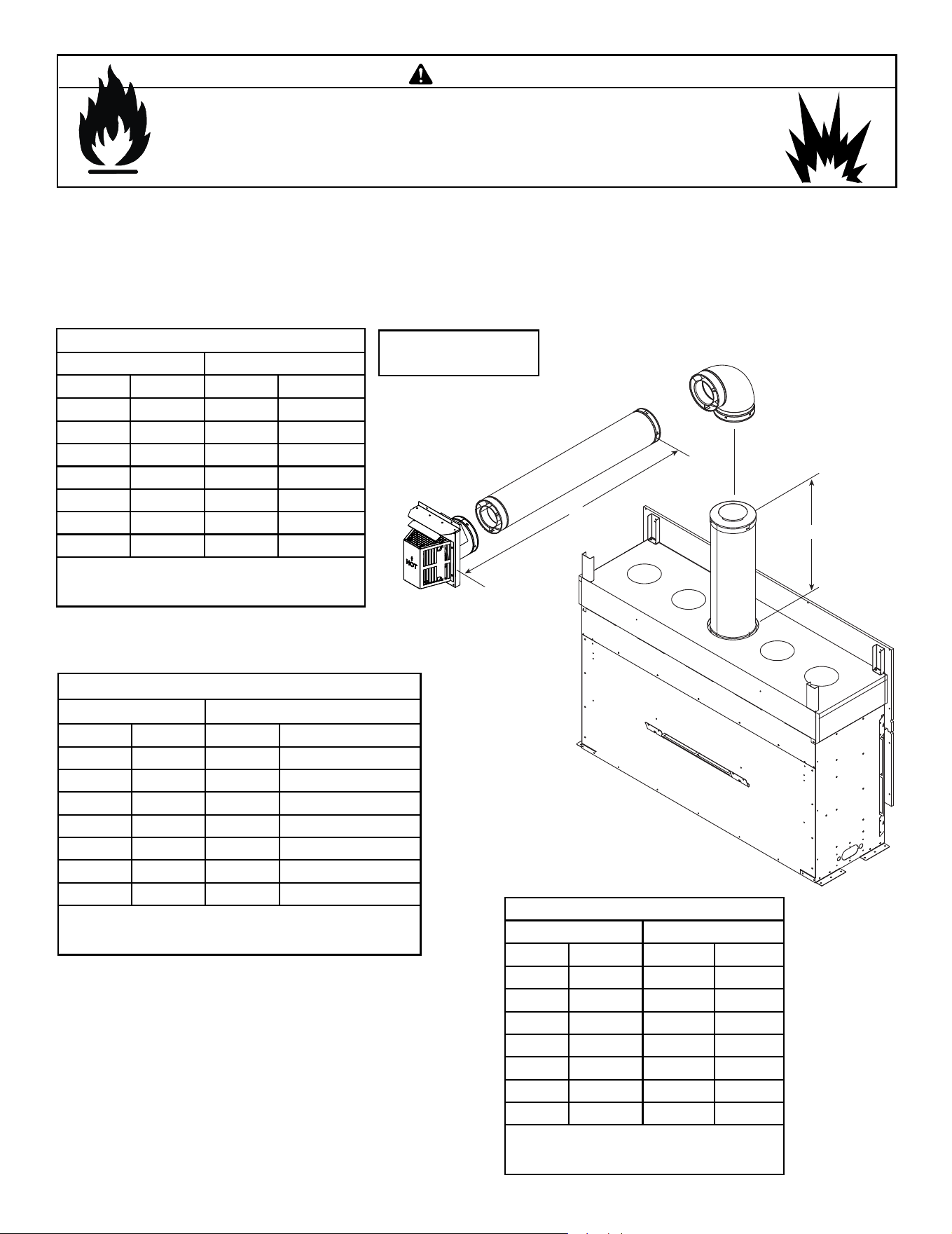

Figure 4.11
Top Vent - Horizontal Termination Venting with 1 elbow
Fire Risk. Explosion Risk.
Do NOT pack insulation or other combustibles between ceiling restops.
• ALWAYS maintain specied clearances around venting and restop systems.
• Install wall shield and ceiling restops as specied.
Failure to keep insulation or other material away from vent pipe could cause re.
WARNING
Note: Use DVP Series
components only.
ECHEL36IN-C, ECHEL48IN-C, ECHEL60IN-C
V
1
Minimum H
1
Maximum
1-1/2 ft. 457 mm 1-1/2 ft. 457 mm
2-1/2 ft. 762 mm 6 ft. 1.8 m
3-1/2 ft. 1.1 m 9 ft. 2.7 m
5 ft. 1.5 m 12 ft. 3.7 m
6 ft. 1.8 m 15 ft. 4.6 m
7 ft. 2.1 m 18 ft. 5.5 m
8 ft. 2.4 m 21 ft. 6.4 m
9 ft. 2.7 m 24 ft. 7.3 m
V
1
+ H
1
= 63 ft. (19.2 m) Maximum
H
1
= 24 ft. (7.3 m) Maximum
WARNING! Risk of Fire!
DO NOT attach elbow directly to the appliance.
• The ECHEL36IN-C/ECHEL36STIN-C, ECHEL48IN-C/ECHEL48STIN-C and ECHEL60IN-C require a minimum of 18 inches
of vertical venting before attaching any elbow to the appliance.
• The ECHEL72IN-C requires a minimum of 30 inches of vertical venting before attaching any elbow to the appliance.
ECHEL36STIN-C, ECHEL48STIN-C
V
1
Minimum H
1
Maximum
1-1/2 ft. 457 mm 3 ft. 914 mm
2-1/2 ft. 762 mm 6 ft. 1.8 m
3-1/2 ft. 1.1 m 9 ft. 2.7 m
5 ft. 1.5 m 12 ft. 3.7 m
6 ft. 1.8 m 15 ft. 4.6 m
7 ft. 2.1 m 18 ft. 5.5 m
8 ft. 2.4 m 21 ft. 6.4 m
9 ft. 2.7 m 24 ft. 7.3 m
V
1
+ H
1
= 63 ft. (19.2 m) Maximum
H
1
= 24 ft. (7.3 m) Maximum
ECHEL72IN-C
V
1
Minimum H
1
Maximum
2-1/2 ft. 762 mm 1-1/2 ft. 457 mm
3-1/2 ft. 1.1 m 6 ft. 1.8 m
4-1/2 ft. 1.4 m 9 ft. 2.7 m
6 ft. 1.8 m 12 ft. 3.7 m
7 ft. 2.1 m 15 ft. 4.6 m
8 ft. 2.4 m 18 ft. 5.5 m
9 ft. 2.7 m 21 ft. 6.4 m
10 ft. 3.0 m 24 ft. 7.3 m
V
1
+ H
1
= 63 ft. (19.2 m) Maximum
H
1
= 24 ft. (7.3 m) Maximum
H
1
V
1
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
34

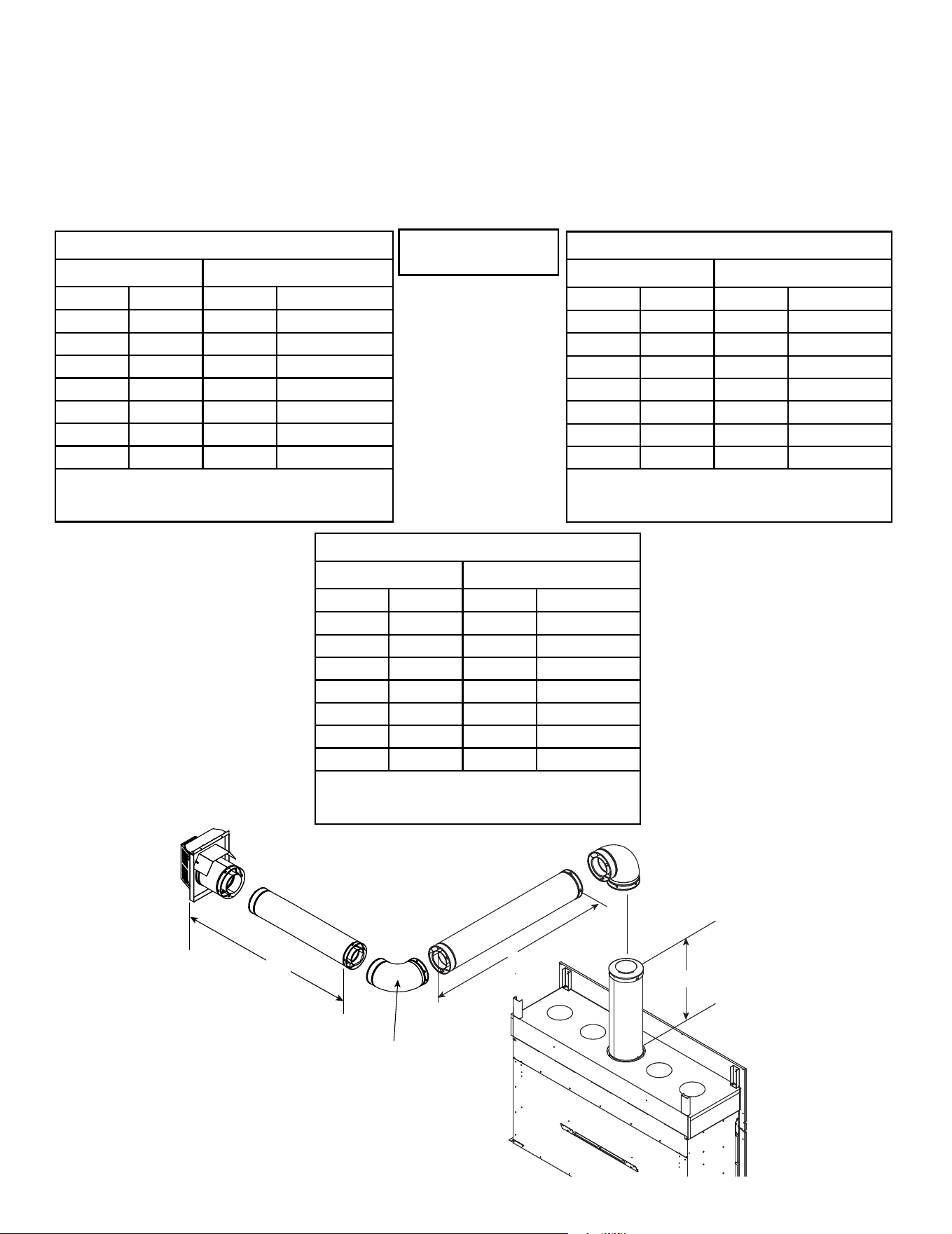

Figure 4.12
Top Vent - Horizontal Termination
Venting with 2 elbows
Note: Use DVP Series
components only.
ECHEL36IN-C, ECHEL48IN-C, ECHEL60IN-C
V
1
Minimum H
1
+ H
2
Maximum
1-1/2 ft. 457 mm 1-1/2 ft. 457 mm
2-1/2 ft. 762 mm 6 ft. 1.8 m
3-1/2 ft. 1.1 m 9 ft. 2.7 m
5 ft. 1.5 m 12 ft. 3.7 m
6 ft. 1.8 m 15 ft. 4.6 m
7 ft. 2.1 m 18 ft. 5.5 m
8 ft. 2.4 m 21 ft. 6.4 m
9 ft. 2.7 m 24 ft. 7.3 m
V
1
+ H
1
+ H
2
= 63 ft. (19.2 m) Maximum
H
1
+ H
2
= 24 ft. (7.3 m) Maximum
ECHEL36STIN-C, ECHEL48STIN-C
V
1
Minimum H
1
+ H
2
Maximum
1-1/2 ft. 457 mm 3 ft. 914 mm
2-1/2 ft. 762 mm 6 ft. 1.8 m
3-1/2 ft. 1.1 m 9 ft. 2.7 m
5 ft. 1.5 m 12 ft. 3.7 m
6 ft. 1.8 m 15 ft. 4.6 m
7 ft. 2.1 m 18 ft. 5.5 m
8 ft. 2.4 m 21 ft. 6.4 m
9 ft. 2.7 m 24 ft. 7.3 m
V
1
+ H
1
+H
2
= 63 ft. (19.2 m) Maximum
H
1
+ H
2
= 24 ft. (7.3 m) Maximum
ECHEL72IN-C
V
1
Minimum H
1
+ H
2
Maximum
2-1/2 ft. 762 mm 1-1/2 ft. 457 mm
3-1/2 ft. 1.1 m 6 ft. 1.8 m
4-1/2 ft. 1.4 m 9 ft. 2.7 m
6 ft. 1.8 m 12 ft. 3.7 m
7 ft. 2.1 m 15 ft. 4.6 m
8 ft. 2.4 m 18 ft. 5.5 m
9 ft. 2.7 m 21 ft. 6.4 m
10 ft. 3.0 m 24 ft. 7.3 m
V
1
+ H
1
+H
2
= 63 ft. (19.2 m) Maximum
H
1
+ H
2
= 24 ft. (7.3 m) Maximum
INSTALLED
HORIZONTALLY
H
2
H
1
V
1
WARNING! Risk of Fire!
DO NOT attach elbow directly to the appliance.
• The ECHEL36IN-C/ECHEL36STIN-C, ECHEL48IN-C/ECHEL48STIN-C and ECHEL60IN-C require a minimum of 18 inches
of vertical venting before attaching any elbow to the appliance.
• The ECHEL72IN-C requires a minimum of 30 inches of vertical venting before attaching any elbow to the appliance.
35Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

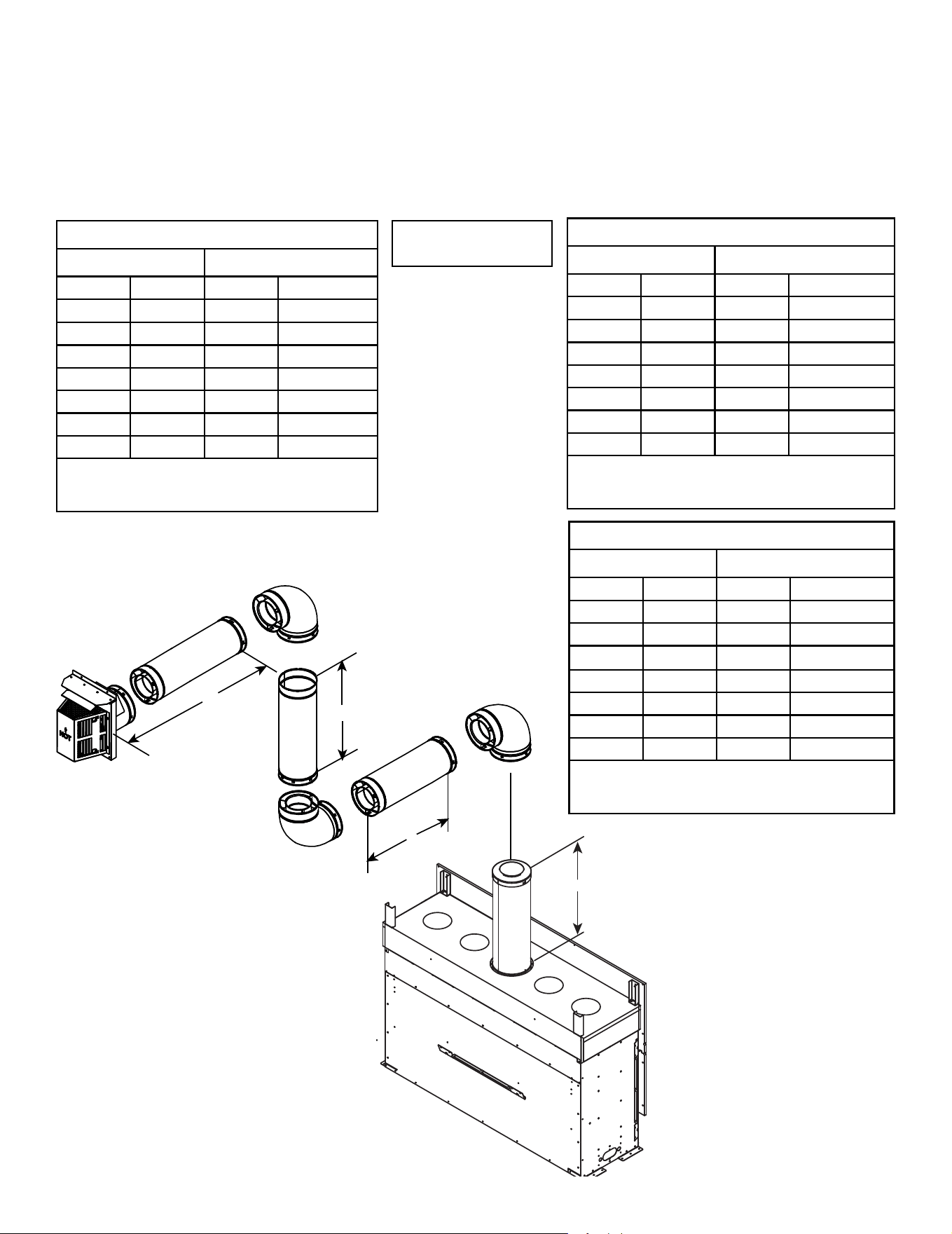

Figure 4.13
ECHEL36STIN-C, ECHEL48STIN-C
V
1
+ V
2
Minimum H
1 +
H
2
Maximum
1-1/2 ft. 457 mm 3 ft. 914 mm
2-1/2 ft. 762 mm 6 ft. 1.8 m
3-1/2 ft. 1.1 m 9 ft. 2.7 m
5 ft. 1.5 m 12 ft. 3.7 m
6 ft. 1.8 m 15 ft. 4.6 m
7 ft. 2.1 m 18 ft. 5.5 m
8 ft. 2.4 m 21 ft. 6.4 m
9 ft. 2.7 m 24 ft. 7.3 m
V
1
+ V
2
+ H
1
+ H
2
= 63 ft. (19.2 m) Maximum
H
1
+ H
2
= 24 ft. (7.3 m) Maximum
ECHEL36IN-C, ECHEL48IN-C, ECHEL60IN-C
V
1
+ V
2
Minimum H
1 +
H
2
Maximum
1-1/2 ft. 457 mm 1-1/2 ft. 457 mm
2-1/2 ft. 762 mm 6 ft. 1.8 m
3-1/2 ft. 1.1 m 9 ft. 2.7 m
5 ft. 1.5 m 12 ft. 3.7 m
6 ft. 1.8 m 15 ft. 4.6 m
7 ft. 2.1 m 18 ft. 5.5 m
8 ft. 2.4 m 21 ft. 6.4 m
9 ft. 2.7 m 24 ft. 7.3 m
V
1
+ V
2
+ H
1
+ H
2
= 63 ft. (19.2 m) Maximum
H
1
+ H
2
= 24 ft. (7.3 m) Maximum
Note: Use DVP Series
components only.
ECHEL72IN-C
V
1
+ V
2
Minimum H
1
+ H
2
Maximum
2-1/2 ft. 762 mm 1-1/2 ft. 457 mm
3-1/2 ft. 1.1 m 6 ft. 1.8 m
4-1/2 ft. 1.4 m 9 ft. 2.7 m
6 ft. 1.8 m 12 ft. 3.7 m
7 ft. 2.1 m 15 ft. 4.6 m
8 ft. 2.4 m 18 ft. 5.5 m
9 ft. 2.7 m 21 ft. 6.4 m
10 ft. 3.0 m 24 ft. 7.3 m
V
1
+ V
2
+ H
1
+H
2
= 63 ft. (19.2 m) Maximum
H
1
+ H
2
= 24 ft. (7.3 m) Maximum
Top Vent - Horizontal Termination
Venting with 3 Elbows
H
2
H
1
V
2
V
1
WARNING! Risk of Fire!
DO NOT attach elbow directly to the appliance.
• The ECHEL36IN-C/ECHEL36STIN-C, ECHEL48IN-C/ECHEL48STIN-C and ECHEL60IN-C require a minimum of 18 inches
of vertical venting before attaching any elbow to the appliance.
• The ECHEL72IN-C requires a minimum of 30 inches of vertical venting before attaching any elbow to the appliance.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
36

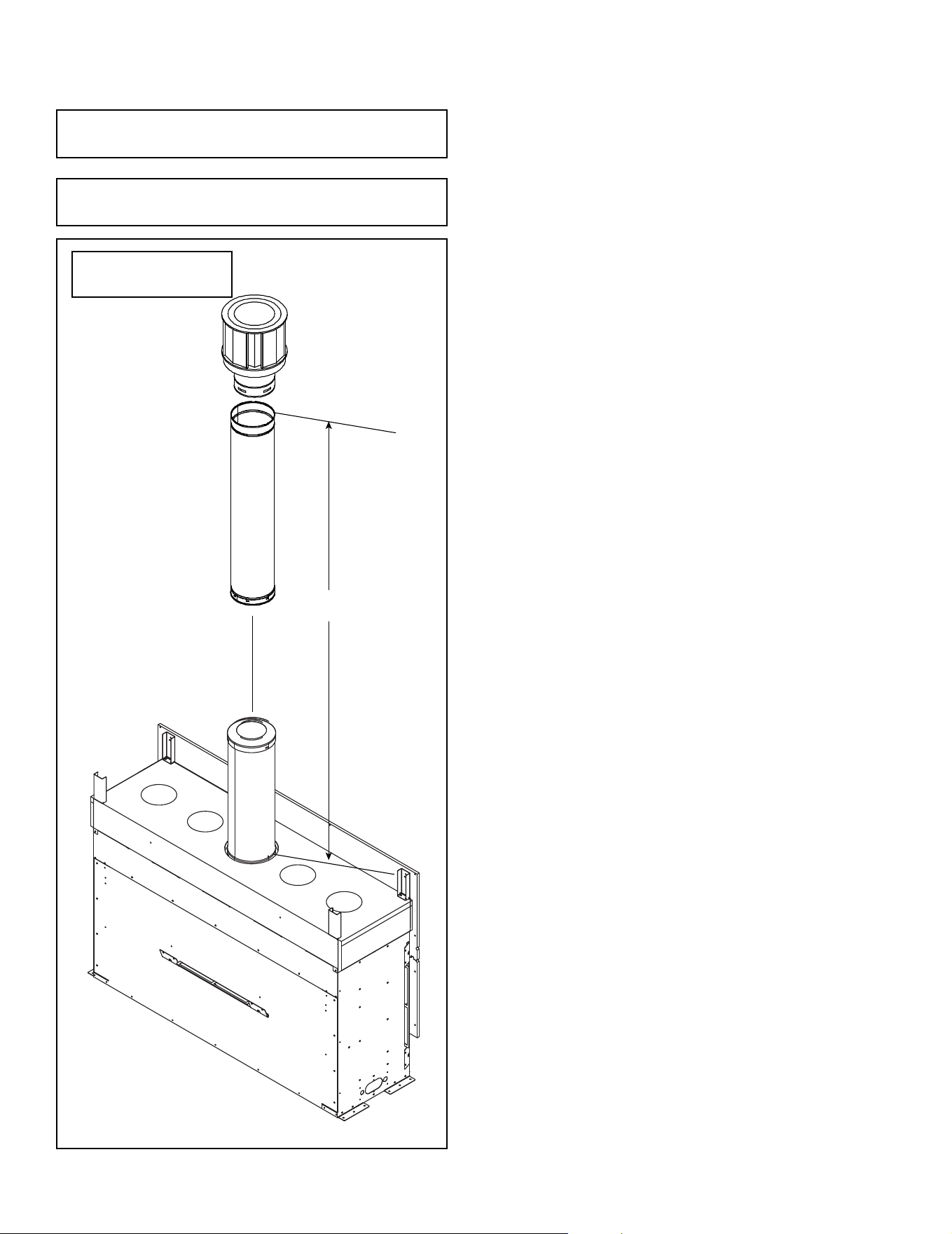

Figure 4.14 Vertical Vent Maximum
Note: If installing a vertical vent/termination o the top of the
appliance, the optional exhaust restrictor may be needed.
V = 2-1/2 ft Min. (762 mm), 50 ft. Max. (15.2 m)
Top Vent - Vertical Termination
No Elbows
Note: Use DVP Series
components only.
V
37Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Exhaust restrictors are recommended for these vertically
terminated products which have excessive draft. Exhaust
restrictors will compensate for high draft, and restore vi-
sual ame height. If the vent conguration has a total
vertical of 20-50 feet, the included exhaust restrictor may
be needed.

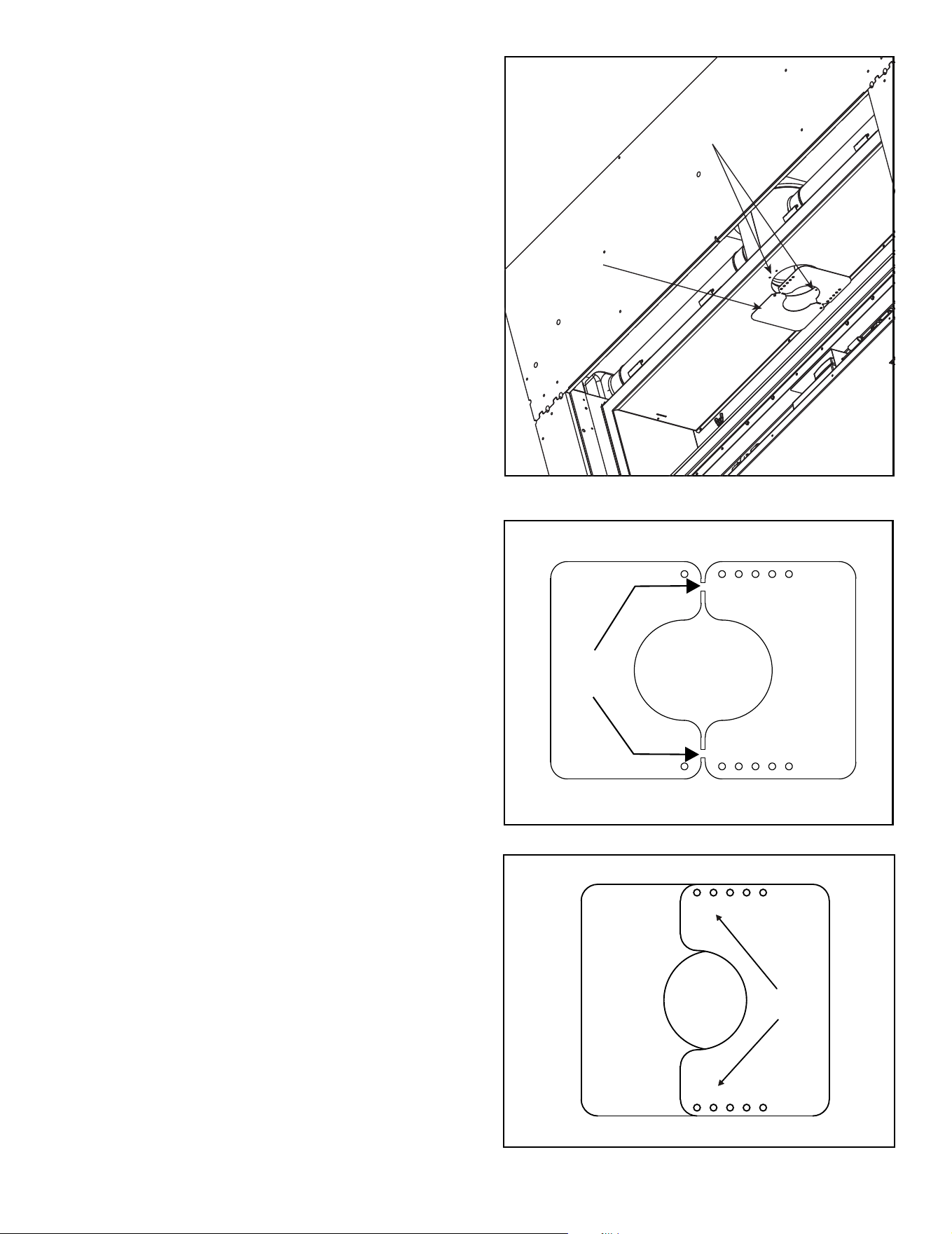

Figure 4.15 Exhaust Restrictor
NOTICE: Before painting, contact your dealer for
information on the appropriate high temperature paint.
Exhaust restrictor: ECHEL36IN-C, ECHEL48IN-C,
ECHEL60IN-C, ECHEL72IN-C
1. Locate the two pilot holes in the inside rebox cham-
ber as shown in Figure 4.15.
2. Break the ue restrictor into two pieces. Do this by
bending the part back and forth until it breaks. See
Figure 4.16.
3. The setting for ECHEL36IN-C, ECHEL48IN-C, ECH-
EL60IN-C and ECHEL72IN-C is a 2.5 inch setting,
or 2-2. Align the holes marked “2” on the numbered
exhaust restrictor piece with the hole on the other ex-
haust restrictor piece. See Figure 4.17. Align the
exhaust restrictor pieces with the pilot holes in the
inner rebox chamber. Use two 1/2 inch self-piercing
screws to secure vent restrictor to rebox heat shield.
4. In some applications, such as those where the re-
place is elevated o the oor, the exhaust restrictor
may be painted, but painting is not required.
EXHAUST
RESTRICTOR
PILOT
HOLES
Figure 4.16 Break the Exhaust Restrictor
1 2 3 4 5
SETTING
1 2 3 4 5
BREAK
HERE
Exhaust restrictor Instructions
Figure 4.17 Set the Exhaust Restrictor
Exhaust restrictor: ECHEL36STIN-C, ECHEL48STIN-C
1. Break the ue restrictor into two pieces. Do this by
bending the part back and forth until it breaks. See
Figure 4.16.
Note: The ECHEL36STIN-C and ECHEL48STIN-C do
not have pilot holes for the exhaust restrictor in the rebox
chamber.
2. The setting for ECHEL36STIN-C and the
ECHEL48STIN-C is a 2.5 inch setting, or 2-2. Align
the holes marked “2” on the numbered exhaust
restrictor piece with the hole on the other exhaust
restrictor piece. See Figure 4.17. Center the exhaust
restrictor on the vent and secure in place with two
1/2 inch self-piercing screws.
3. In some applications, such as those where the re-
place is elevated o the oor, the exhaust restrictor
may be painted, but painting is not required.
NOTICE: Before painting, contact your dealer for
information on the appropriate high temperature paint.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
38

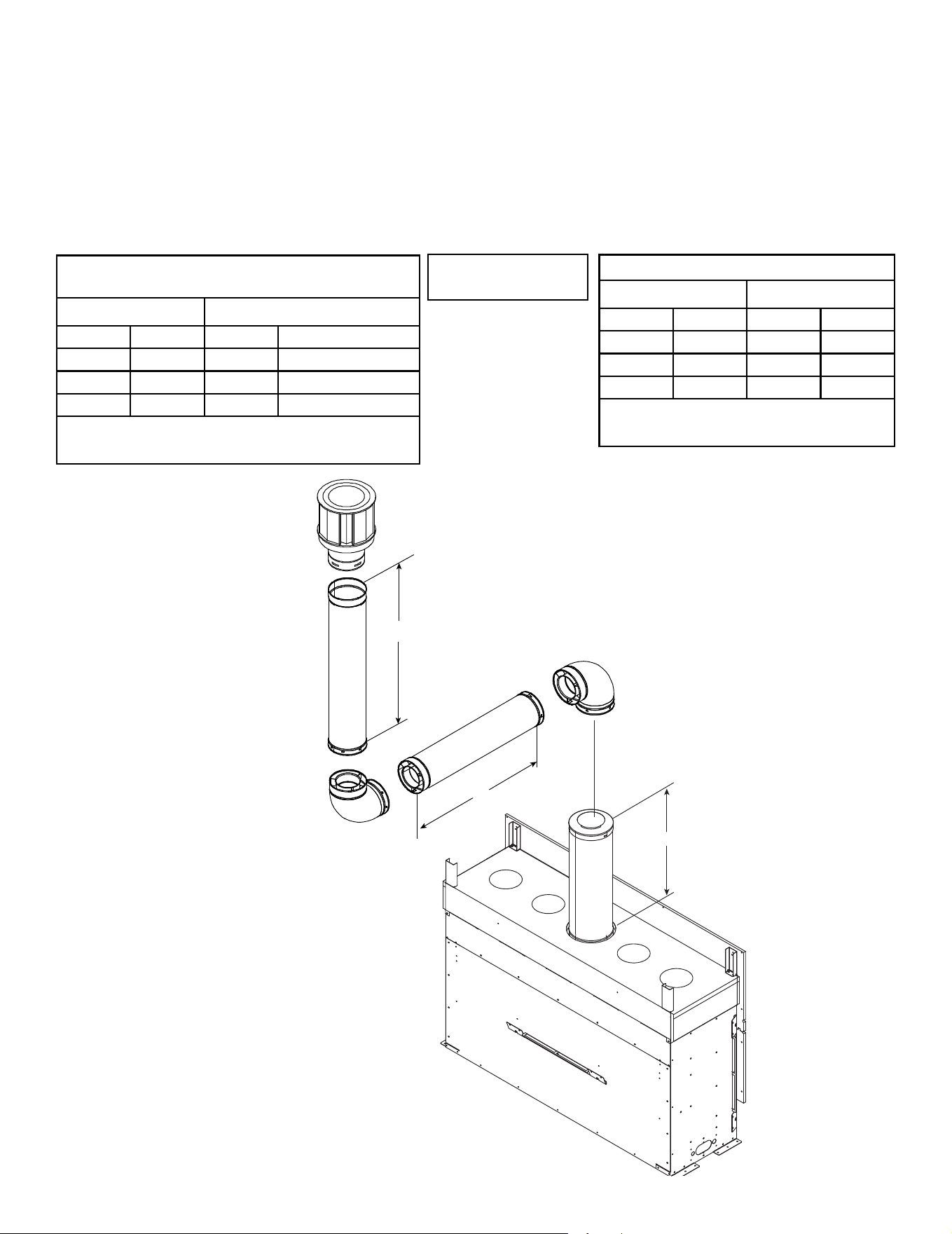

Figure 4.18
Top Vent - Vertical Termination
Venting with 2 elbows
ECHEL36IN-C, ECHEL48IN-C, ECHEL60IN-C
ECHEL36STIN-C, ECHEL48STIN-C
V
1
+ V
2
Minimum H
Maximum
1-1/2 ft. 457 mm 4 ft. 1.2 m
2-1/2 ft. 762 mm 9 ft. 2.7 m
3-1/2 ft. 1.1 m 12 ft. 3.6 m
5 ft. 1.5 m 15 ft. 4.5 m
V
1
+ H
1
+ V
2
= 63 ft. (19.2 m) Maximum
H
Total
= 23 ft. (7.1 m) Maximum
ECHEL72IN-C
V
1
+ V
2
Minimum H
Maximum
2-1/2 ft. 762 mm 4 ft. 1.2 m
3-1/2 ft. 1.1 m 9 ft. 2.7 m
4-1/2 ft. 1.4 m 12 ft. 3.6 m
6 ft. 1.8 m 15 ft. 4.5 m
V
1
+ H
1
+ V
2
= 63 ft. (19.2 m) Maximum
H
Total
= 23 ft. (7.1 m) Maximum
Note: Use DVP Series
components only.
H
1
V
2
V
1
WARNING! Risk of Fire!
DO NOT attach elbow directly to the appliance.
• The ECHEL36IN-C/ECHEL36STIN-C, ECHEL48IN-C/ECHEL48STIN-C and ECHEL60IN-C require a minimum of 18 inches
of vertical venting before attaching any elbow to the appliance.
• The ECHEL72IN-C requires a minimum of 30 inches of vertical venting before attaching any elbow to the appliance.
39Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Figure 4.19
Top Vent - Vertical Termination
Venting with 3 elbows
Note: Use DVP Series
components only.
ECHEL36IN-C, ECHEL48IN-C,
ECHEL60IN-C
ECHEL36STIN-C, ECHEL48STIN-C
V
1
+ V
2
Minimum H
1
+ H
2
Maximum
1-1/2 ft. 457 mm 4 ft. 1.2 m
3 ft. 914 mm 9 ft. 2.7 m
4 ft. 1.2 m 12 ft. 3.7 m
5 ft. 1.5 m 15 ft. 4.6 m
V
1
+ V
2
+ H
1
+ H
2
= 63 ft. (19.2 m) Maximum
H
1
+ H
2
= 23 ft. (7.1 m) Maximum
ECHEL72IN-C
V
1
+ V
2
Minimum H
1 +
H
2
Maximum
2-1/2 ft. 762 mm 4 ft. 1.2 m
4 ft. 1.2 m 9 ft. 2.7 m
5 ft. 1.5 m 12 ft. 3.7 m
6 ft. 1.8 m 15 ft. 4.6 m
V
1
+ V
2
+ H
1
+ H
2
= 63 ft. (19.2 m) Maximum
H
1
+ H
2
= 23 ft. (7.1 m) Maximum
INSTALLED
HORIZONTALLY
H
1
H
2
V
2
v
1
V
1
WARNING! Risk of Fire!
DO NOT attach elbow directly to the appliance.
• The ECHEL36IN-C/ECHEL36STIN-C, ECHEL48IN-C/ECHEL48STIN-C and ECHEL60IN-C require a minimum of 18 inches
of vertical venting before attaching any elbow to the appliance.
• The ECHEL72IN-C requires a minimum of 30 inches of vertical venting before attaching any elbow to the appliance.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
40
A. Vent Clearances to Combustibles
WARNING! Risk of Fire! Maintain air space clearance
to vent. DO NOT pack insulation or other combustibles:
• Between ceiling restops
• Between wall shield restops
• Around vent system
Failure to keep insulation or other material away from
vent pipe could cause overheating and re.
5 5
Vent Clearances and Vent Framing

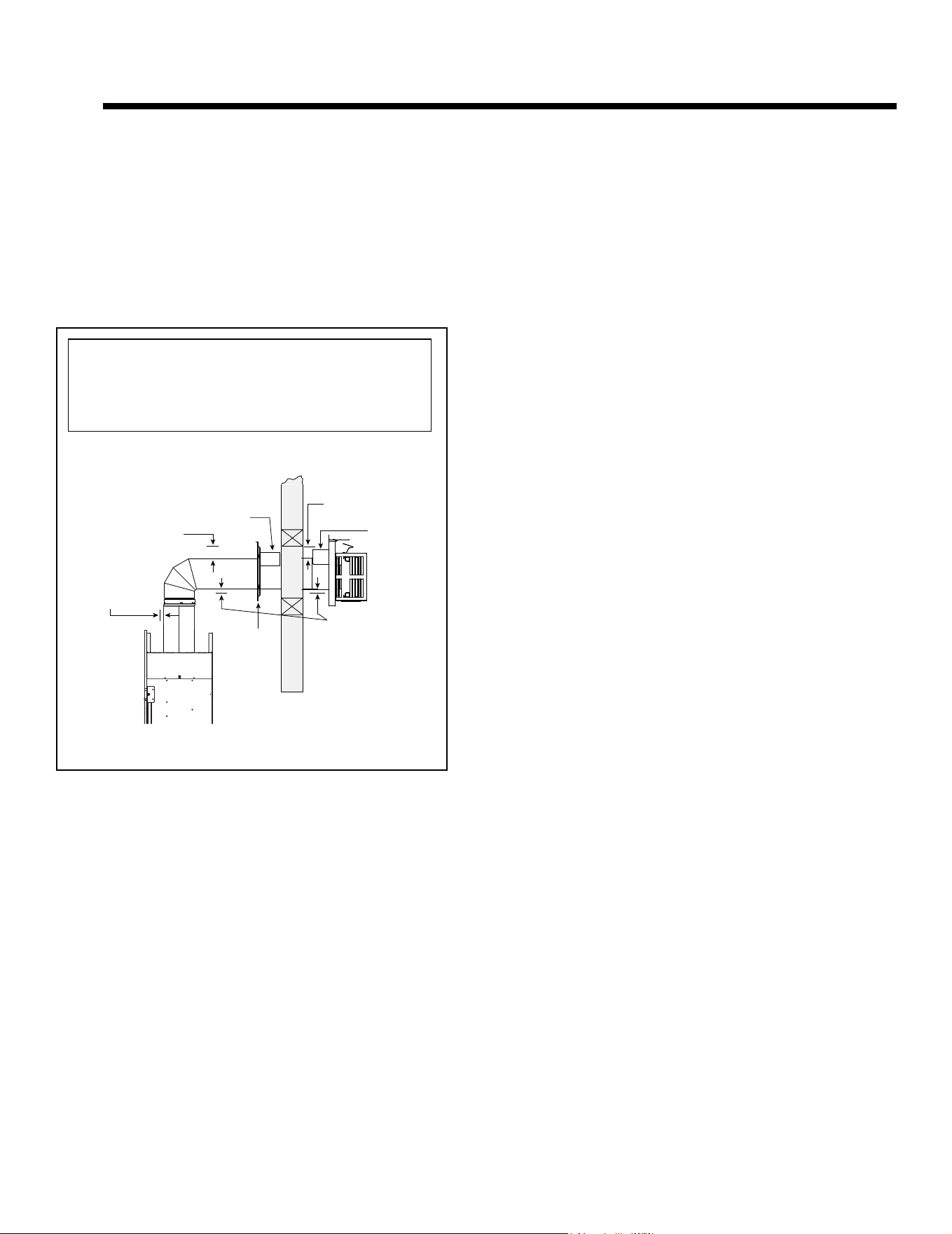

Figure 5.1 Horizontal Venting Clearances To Combustible
Materials
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm).
• DVP heat shield - designed to be used on a wall 4 in. to 7-1/4 in.
(102 mm to 184 mm) thick.
• If wall thickness is less than 4 in. the existing heat shields must be
field trimmed. If wall thickness is greater than 7-1/4 in. a
DVP-HSM-B will be required.
(DVP Pipe Shown)
3 in. (76 mm)
top clearance *
1 in. (25 mm)
clearance
bottom & sides
Heat
Shield
Wall
Shield
Firestop
Heat
Shield
WALL
3 in. (76 mm)
top clearance
1 in. (25 mm)
clearance around
vertical sections
41Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

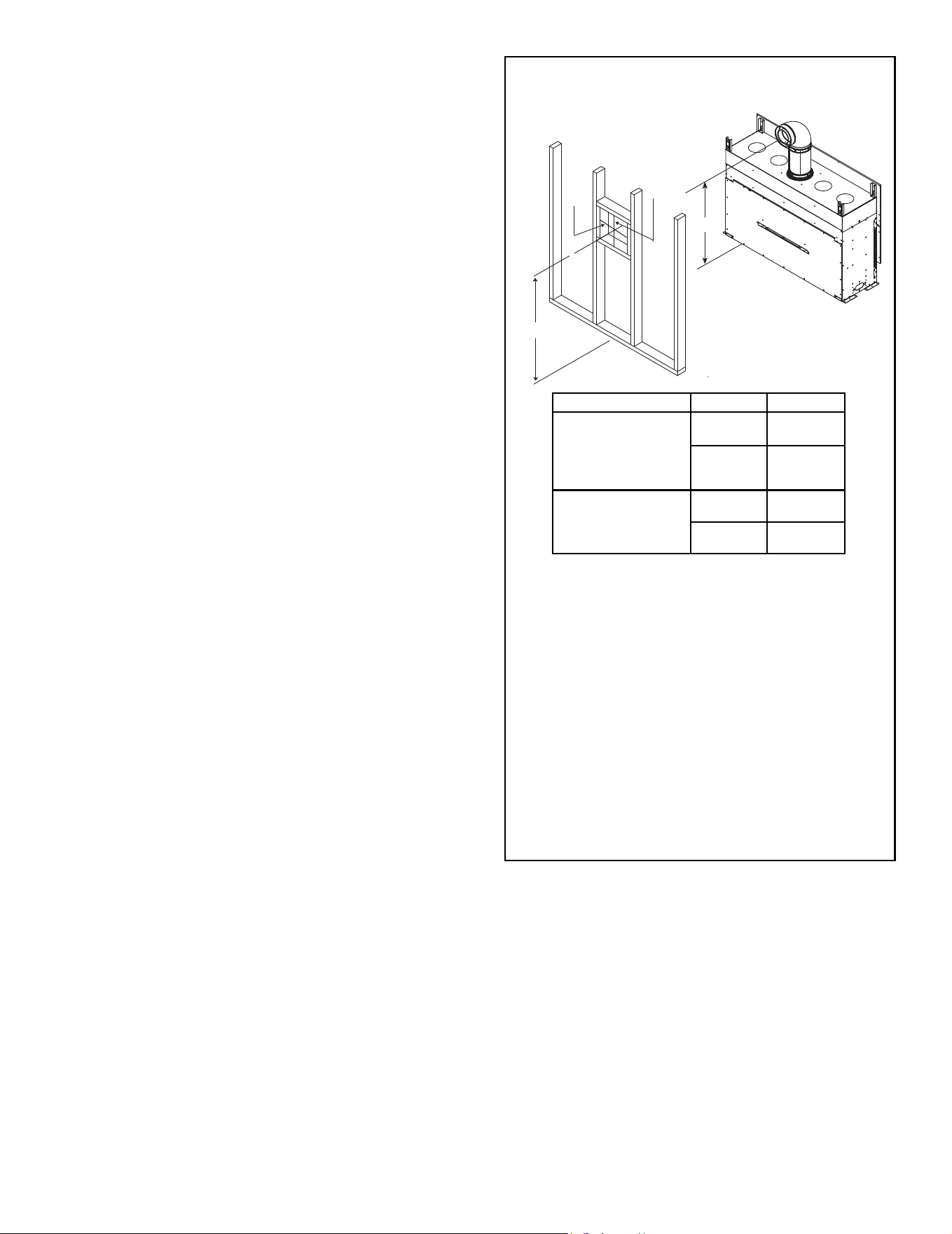

Figure 5.2 Wall Penetration
B. Wall Penetration Framing/Firestops
Combustible Wall Penetration
Whenever a combustible wall is penetrated, you must
frame a hole for the wall shield restop(s). The wall shield
restop maintains minimum clearances and prevents cold
air inltration.
• The opening must be framed on all four sides using the
same size framing materials as those used in the wall
construction.
• SLP pipe - A wall shield restop must be placed on each
side of an interior wall. A minimum 1-1/2 in. (38 mm)
overlap of attached heat shields must be maintained.
• DVP pipe - A wall shield restop is required on one side
only on interior walls. If your local inspector requires a
wall shield restop on both sides, then both wall shield
restops must have a heat shield (refer to Section
12.A.) attached to them.
• See Section 7.F. for information for regarding the instal-
lation of a horizontal termination cap.
Non-Combustible Wall Penetration
If the hole being penetrated is surrounded by non-com-
bustible materials such as concrete, a hole with diameter
one inch greater than the pipe is acceptable.
Whenever a non-combustible wall is penetrated, the wall
shield restop is only required on one side and no heat
shield is necessary.
DO NOT PACK VENT FRAMING HOLE WITH INSULATION
OR OTHER MATERIAL.
MODEL A* B
ECHEL36IN-C
ECHEL36STIN-C
ECHEL48IN-C
ECHEL48STIN-C
ECHEL60IN-C
64 in. 63 in.
1.63 m 1.60 m
ECHEL72IN-C
76 in. 75 in.
1.93 m 1.90 m
* Shows center of vent framing hole for top venting. The
center of the hole is one (1) in. (25.4 mm) above the
center of the horizontal vent pipe.
Note: Measurements for ECHEL36IN-C/ECHEL48IN-C and
ECHEL60IN-C were taken with an 18 inch vertical
section of pipe directly o the top of appliance.
Measurements for ECHEL72-C were taken with an
30 inch vertical section of pipe directly o the top of
appliance.
A
10 in.
12 in.
B
Note: Center of the horizontal vent pipe to the vertical
measuring surface of a trap cap is 5 inches (127 mm).
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
42
D. Install Attic Insulation Shield
WARNING! Fire Risk. The use of an attic
shield is required to prevent loose materials
or insulation from contacting the vent causing
overheating and a re.
The International Fuel Gas Code requires an
attic shield constructed of 26 gauge minimum
steel that extends at least 2 in. (51 mm) above
insulation.
• Attic insulation shields must meet specied
clearances to combustible materials and be
secured in place.
• An attic insulation shield kit is available from
Hearth & Home Technologies. Contact your
dealer to order. Install attic insulation shield
according to instructions included with kit.

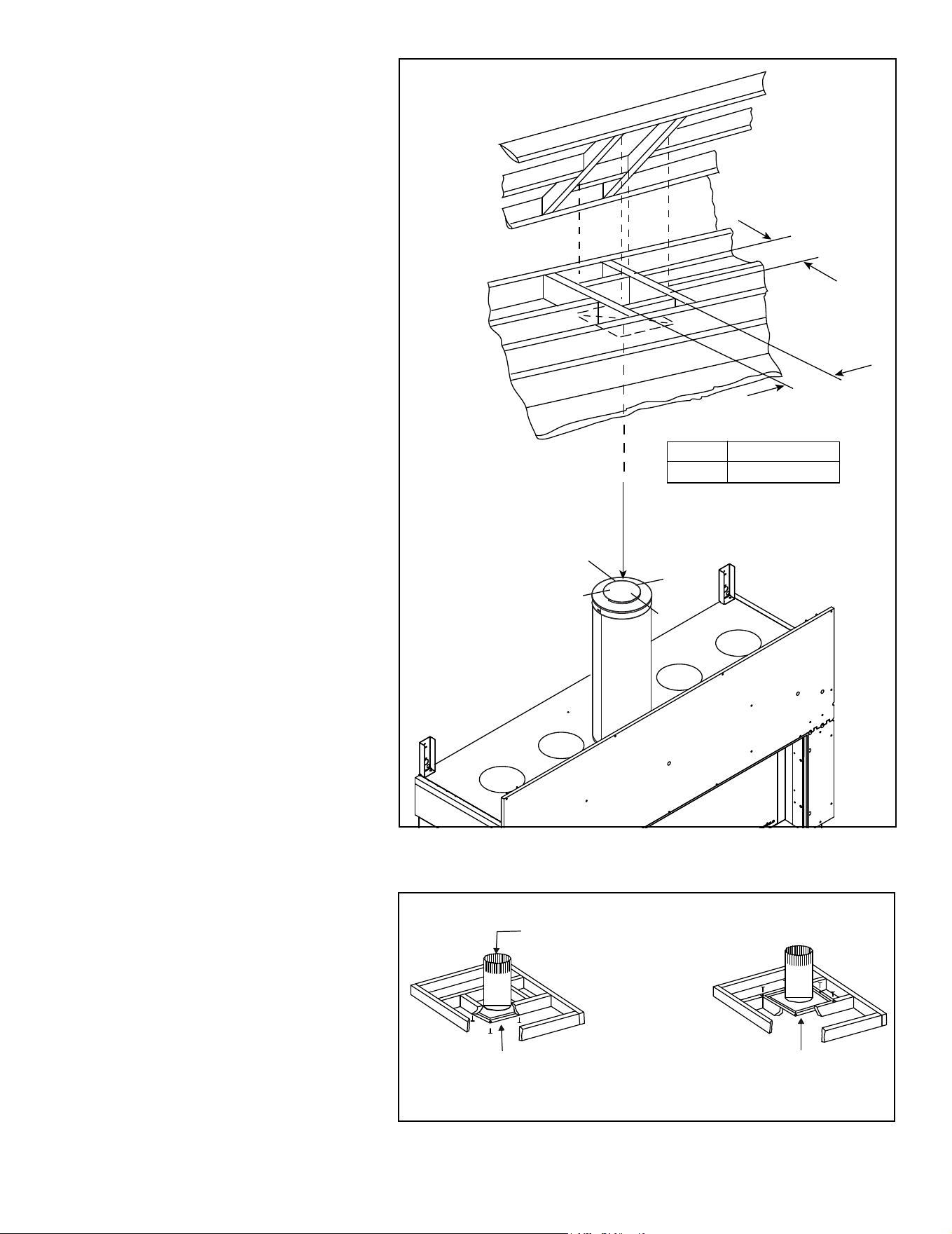

C. Ceiling Firestop/Floor Penetra-
tion Framing
WARNING! Risk of Fire! DO NOT pack insu-
lation around the vent. Maintain clearances to
vent to prevent overheating.
A ceiling restop MUST be used between
oors and attics.
• DVP pipe only - Frame an opening 10 in.
by 10 in. (254 mm by 254 mm) whenever
the vent penetrates a ceiling/oor (see
Figure 5.3).
• Frame the area with the same sized lumber
as used in ceiling/oor joist.
• The ceiling restop may be installed above or
below the ceiling joists when installed with an
attic insulation shield. It must be under joists
between oors that are not insulated. Refer
to Figure 5.4.
• Secure with two fasteners on each side.
Figure 5.4 Installing the Attic Shield
INSTALL ATTIC INSULATION SHIELDS
BEFORE OR AFTER INSTALLATION OF VENT SYSTEM
CEILING FIRESTOP
INSTALLED BELOW CEILING
CEILING FIRESTOP
INSTALLED ABOVE CEILING
Figure 5.3 Installing Ceiling Firestop
ATTIC ABOVE
A
PIPE
DVP
A
10 in. (254 mm)
A
43Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
6 6
Appliance Preparation
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation. Sheet metal edges are sharp.
WARNING! Risk of Fire! DO NOT attach elbow directly
to the appliance.
• The ECHEL36IN-C/ECHEL36STIN-C, ECHEL48IN-C/
ECHEL48STIN-C and ECHEL60IN-C require a minimum
of 18 inches of vertical venting before attaching any
elbow to the appliance.
• The ECHEL72IN-C requires a minimum of 30 inches
of vertical venting before attaching any elbow to the
appliance.
4. Place the 1/8 inch thick, square berglass gasket over
the initial vent section.
5. Place the berglass rope ring over the gasket. Ensure
both the gasket and the rope ring are seated on the top
of the appliance. See Figure 6.2 and Figure 6.3.

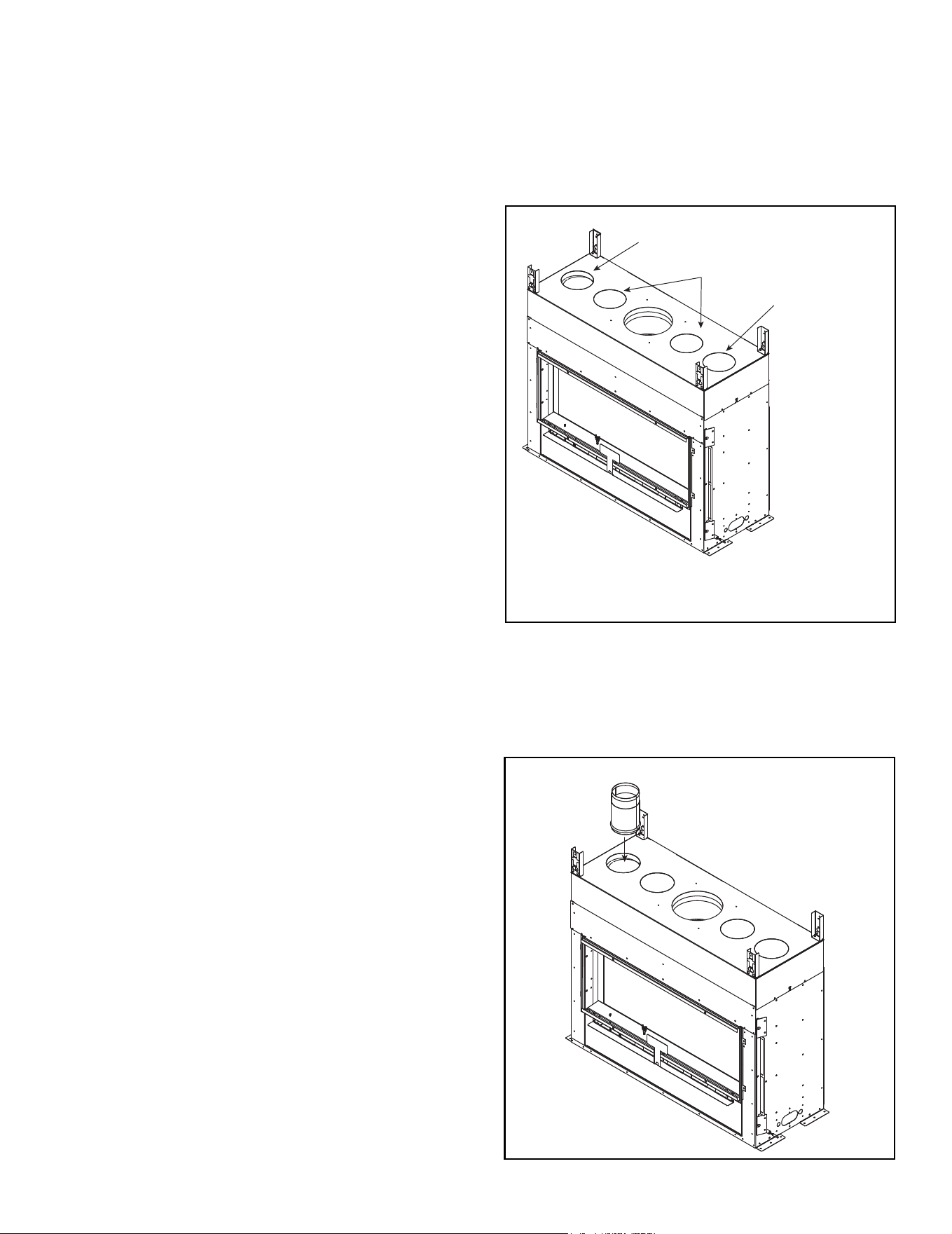

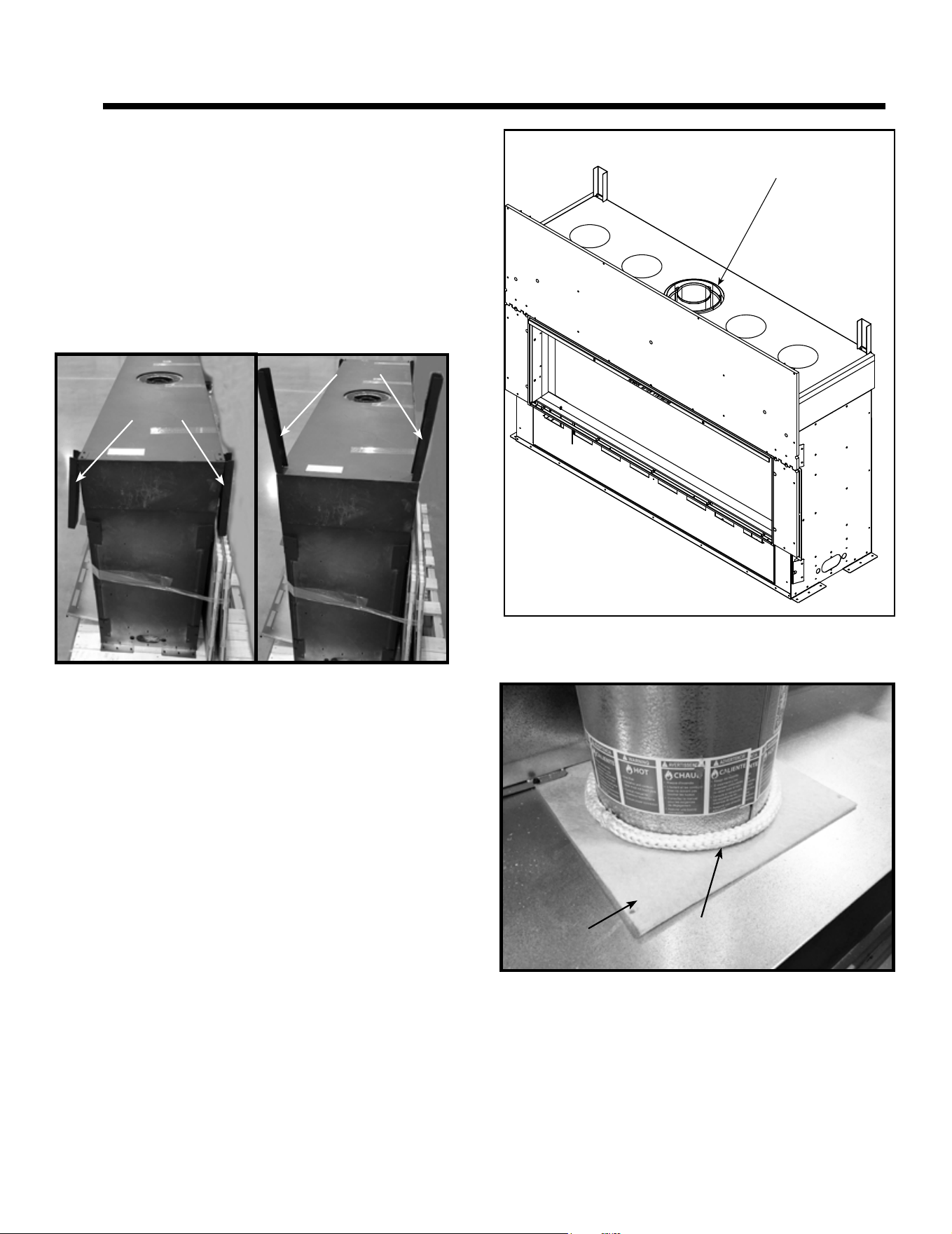

Figure 6.2 Location of Fiberglass Rope Ring
Figure 6.3 Fiberglass Rope Ring Installed
GASKETGASKET
ROPE RINGROPE RING
A. Top Stando Preparation
1. Rotate the four (4) top standos up into vertical position.
60 and 72 only: Push the stando support tab on each
stando toward the center of the appliance and fasten
it in place using the supplied screw and pilot hole. See
Figure 6.1.
2. Place a vent section on the starting collar.
LOCATION FOR INSTALLATION OF
FIBERGLASS ROPE RING
Figure 6.1 Standos Shown in Vertical Position
(See-Through Appliance Shown)
Stando Shipping Position
Stando Installation Position
TOP STANDOFFSTOP STANDOFFS
STANDOFFS STANDOFFS
DOWNDOWN
STANDOFFS STANDOFFS
UPUP
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
44
B. Prepare For Heat Management
Figure 6.5 Heat-Zone-Gas Linear Adapter Collar
Heat-Zone-Gas Adapter Kit (HZLIN-ADP)
The HZLIN-ADP adapter kit is required for use with the
Heat-Zone-Gas Kit and is necessary when the optional
Heat-Zone-Gas Kit is installed on the ECHELON-C
models. See Figure 6.5.
Introduction
An optional heat management system allows the heat from
the appliance to be redirected as desired.
An optional heat management system must be installed by
a qualied service technician at the time of the appliance
installation. Follow the instructions shipped with the kit for
installation and operation.
NOTICE: Additional clearances are required for heat
management systems installations. Provisions must be
made in advance to ensure t within the framing.
• Determine the heat management system(s) that will be
installed.
• Remove the appropriate knockout(s).
• Remove insulation plug(s).
• Center the duct collar around the exposed hole and
attach it to the appliance. See Figure 6.4.
Note: Do this BEFORE nal positioning of the appliance.
• Determine the location for the air register/fan housing
assembly.
Reference the appropriate instructions included with the
heat management system kit for the remaining installation
steps.
WARNING! Risk of Fire! DO NOT block passive heat
registers! Overheating of appliance and combustible
materials will occur.
WARNING! Risk of Fire! DO NOT remove heat
management seal plate unless a heat management
System will be connected at that location. Overheating of
appliance and combustible materials will occur.
*Note: Remove only one of the outside knockouts if installing
the HEAT-OUT-GAS or HEAT-ZONE-GAS. The other knockout is
removed only if another heat management system is installed.
PASSIVE HEAT, HEAT-OUT-GAS*
OR HEAT-ZONE-GAS*
PASSIVE HEAT ONLY
PASSIVE HEAT
HEAT-OUT-GAS* OR
HEAT-ZONE-GAS*
Figure 6.4
Optional Heat Management Systems are:
• HEAT-ZONE
®
-GAS: The heat is diverted into an
adjacent room.
• HEAT-OUT-GAS: The heat is diverted outside the
home/building.
• Passive Heat (PH-FRT, PH-SIDE): The heat is vented
into the room in which the appliance is installed
through a discharge opening(s).
• Ducted Passive Heat (PHFR-MCE, PHSI-MCE) The
heat is ducted into the room in which the appliance
is installed through a discharge opening(s) using an
insulated ducting system. PHSI-MCE side discharge
available only for 36 and 48 inch sized appliances.
The ECHELON-C models may utilize two Heat
Management Systems, but not all are compatible.
Approved combinations are:
• HEAT-OUT-GAS: May be used with one HEAT-ZONE-
GAS or one of the Passive Heat options (PH-FRT, PH-
SIDE, PHFR-MCE, PHSI-MCE).
• HEAT-ZONE-GAS: May be used with one HEAT-OUT-
GAS, one of the Passive Heat options (PH-FRT, PH-
SIDE, PHFR-MCE, PHSI-MCE), or one additional
HEAT-ZONE-GAS.
• Passive Heat (PH-FRT, PH-SIDE, PHFR-MCE, PHSI-
MCE): May be used with HEAT-ZONE-GAS or one
HEAT-OUT-GAS. The dedicated knockouts must be
used only as indicated in Figure 6.4.
45Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
C. Securing and Leveling the Appliance
The diagram shows how to properly position and secure
the appliance. See Figure 6.8. Nailing tabs are provided
to secure the appliance to the framing members.
• Bend out nailing tabs on each side.
• Place the appliance into position.
• Keep nailing tabs ush with the framing.
• Level the appliance from side to side and front to back.
• Shim the appliance as necessary. It is acceptable to use
wood shims underneath the appliance.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs. Use a minimum of one
fastener per nailing tab.
• Optional: Secure the appliance to the oor by inserting
two screws through the pilot holes at the bottom of the
appliance.
Some gures in manual show the replace installed on the
oor. However, this replace can be elevated o the oor
provided that the replace is properly supported by framing
materials and the ceiling clearances are maintained.
Risk of Fire!
Prevent contact with:
• Sagging or loose insulation
• Insulation backing or plastic
• Framing and other combustible
materials
WARNING
DO NOT remove standos or notch the framing
around the appliance standos.
Failure to maintain air space clearance could
cause overheating and re.
Block openings into the chase to prevent entry
of blown-in insulation. Make sure insulation and
other materials are secured.
Setting the Fireplace into the Framing
The left and right nailing tabs were designed as a means
to ensure the replace is mounted ush with the framing
materials. See Figures 6.6-6.8.
1. The shipping anges protrude further out from the ap-
pliance than the side standos. The shipping ange
may be bent upward or broken o in order to place the
appliance into position in the framing.
2. Bend out all nailing tabs. The see-through model will
have eight nailing tabs. The single-sided model will
have four nailing tabs.
3. Screw each nailing tab to the adjoining framing
material. Ensure that the one inch air space clearance
is maintained on the sides and back of the replace.
See Figures 3.8-3.12 for framing and clearance
details.

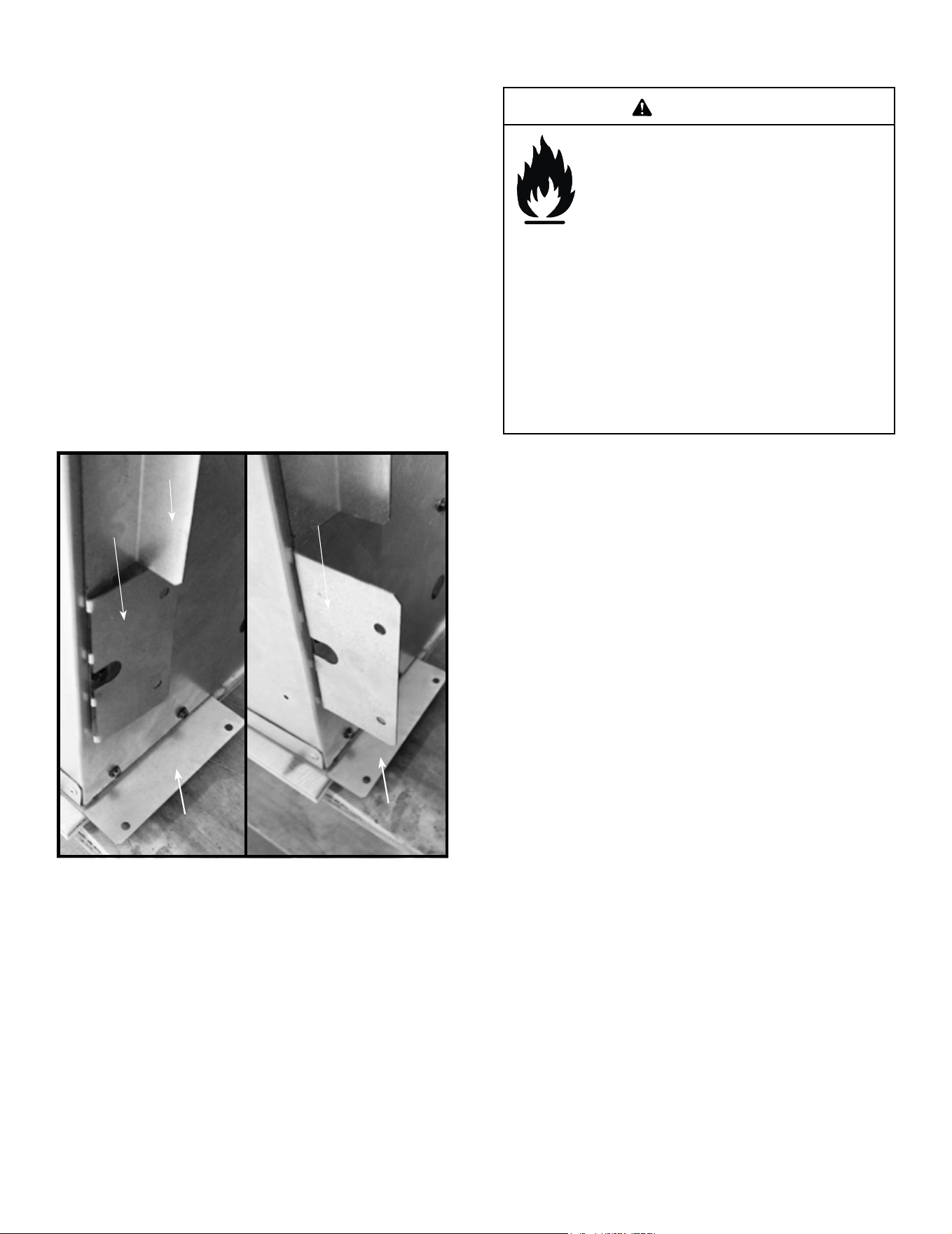

Figure 6.6 Nailing Tabs
Shipping Position
Figure 6.7 Nailing Tabs
Installation Position
SHIPPING SHIPPING
FLANGEFLANGE
NAILING NAILING
TABTAB
SHIPPING SHIPPING
FLANGEFLANGE
NAILING NAILING
TABTAB
1 IN. STANDOFF1 IN. STANDOFF
Securing and Leveling the Appliance
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
46

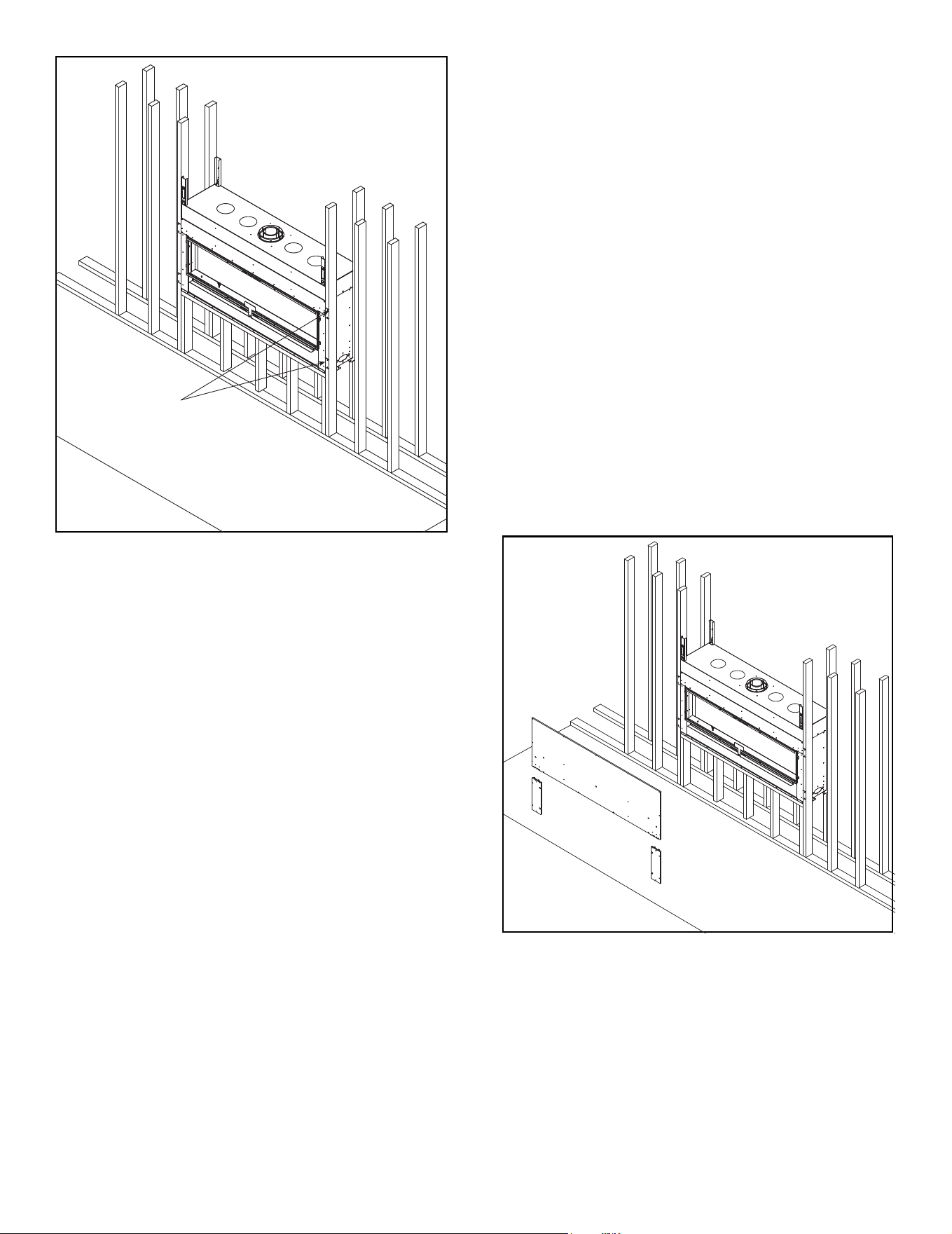

Figure 6.8 Proper Positioning and Securing of an Appliance
NAILING TABS
BOTH SIDES
Figure 6.9 Install Factory-Included Non-Combustible Facing
Material
D. Installing Non-Combustible Facing Material
WARNING! Risk of Fire!
• Follow these instructions exactly.
• Facing materials must be installed properly to prevent
re.
• No materials may be substituted without authorization
by Hearth & Home Technologies.
• Remove protective cardboard sleeve from non-
combustible facing pieces, which are included with the
appliance.
• Install non-combustible facing material to the appliance
using the 1-1/4 inch screws supplied in the manual bag
assembly. There may be extra screws included.
• Attach top board to the framing members with regular
sheetrock screws or nails. See Figure 6.9.
• Attach left and right side pieces to framing members with
regular sheetrock screws or nails.
• Use a wet or dry towel or soft brush to remove dust or
dirt from facing material.
• See Section 10 for nishing materials guidelines.
47Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
7 7
Venting
A. Assemble Vent Sections (DVP Pipe Only)
Attach Vent to the Firebox Assembly
Note: The end of the pipe sections with the lanced tabs
will face toward the appliance.
Attach the rst pipe section to the starting collar:
• Lanced pipe end of the starting collar.
• Inner pipe over inner collar.
• Push the pipe section until all lanced tabs snap in place.
• Lightly tug on pipe to conrm it has locked.
Assemble Pipe Sections
Per Figure 7.2:
• Start the inner pipe on the lanced end of section A into
the ared end of section B.
• Start the outer pipe of section A over the outer pipe of
section B.
• Once both vents sections are started, push rmly until
all lanced tabs lock into place.
• Lightly tug on the pipe to conrm the tabs have locked.
It is acceptable to use screws no longer than 1/2 in. (13
mm) to hold outer pipe sections together. If predrilling holes,
DO NOT penetrate inner pipe.
For 90º and 45º elbows that are changing the vent direction
from horizontal to vertical, one screw minimum should be put
in the outer ue at the horizontal elbow joint to prevent the
elbow from rotating. Use screws no longer than 1/2 in. (13
mm). If predrilling screw holes, DO NOT penetrate inner pipe.
All outer pipe joints must be sealed using one of the meth-
ods below, including the slip section that connects directly
to the horizontal termination cap.
• Apply a bead of silicone sealant (300 ºF minimum con-
tinuous exposure rating) inside the female outer pipe
joint prior to joining sections. See Figure 7.1 OR
Apply a bead of silicone sealant (300 ºF minimum con-
tinuous exposure rating) to the outside of connecting
joint after joining sections OR
Apply aluminum foil tape (300 ºF minimum continuous
exposure rating) to the outside of connecting joint after
joining sections. On horizontal pipe runs, it is recom-
mended that the tape seam is positioned on the bottom
side of the vent pipe.
• Only outer pipes need to be sealed. All unit collar, pipe,
slip section, elbow and cap outer ues shall be sealed
in this manner, unless otherwise stated.
WARNING! Risk of Fire or Explosion! DO NOT break
silicone seals on slip sections. Use care when remov-
ing termination cap from slip pipe. If slip section seals
are broken during removal of the termination cap, vent
could leak.
WARNING! Risk of Fire or Explosion! Vent sections
MUST be installed correctly. Improperly installed vent
sections could leak or cause appliance to overheat.
Requirement for Commercial, Multi-family (Multi-level ex-
ceeding two stories), or High-Rise Applications
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
48

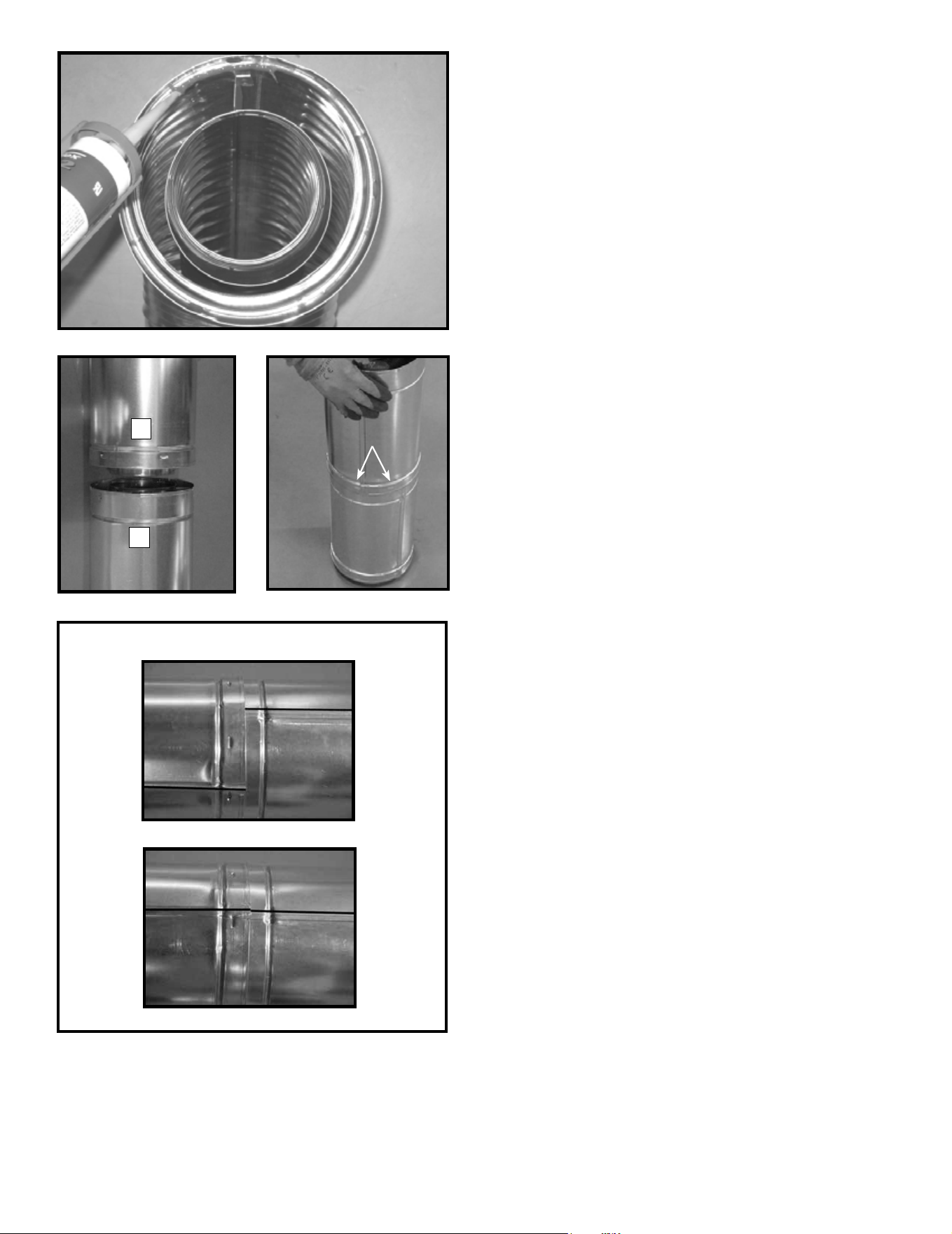

Figure 7.2
A
B
Figure 7.3
Figure 7.4 Seams
Note: Make sure that the seams are not aligned to prevent
unintentional disconnection.
INCORRECT
CORRECT
LancesLances
Figure 7.1 High Temperature Silicone Sealant
NOTICE: When installing a vent system with an HRC
termination cap, all pipe system joints shall be sealed
using a high temperature silicone sealant (300 ºF minimum
continuous exposure rating).
• Apply a bead of silicone sealant (300 ºF minimum
continuous exposure rating) inside the female outer pipe
joint prior to joining sections.
• Only outer pipes are sealed, sealing the inner ue is not
required.
• All unit collar, pipe, slip section, elbow and cap outer
ues shall be sealed.
49Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

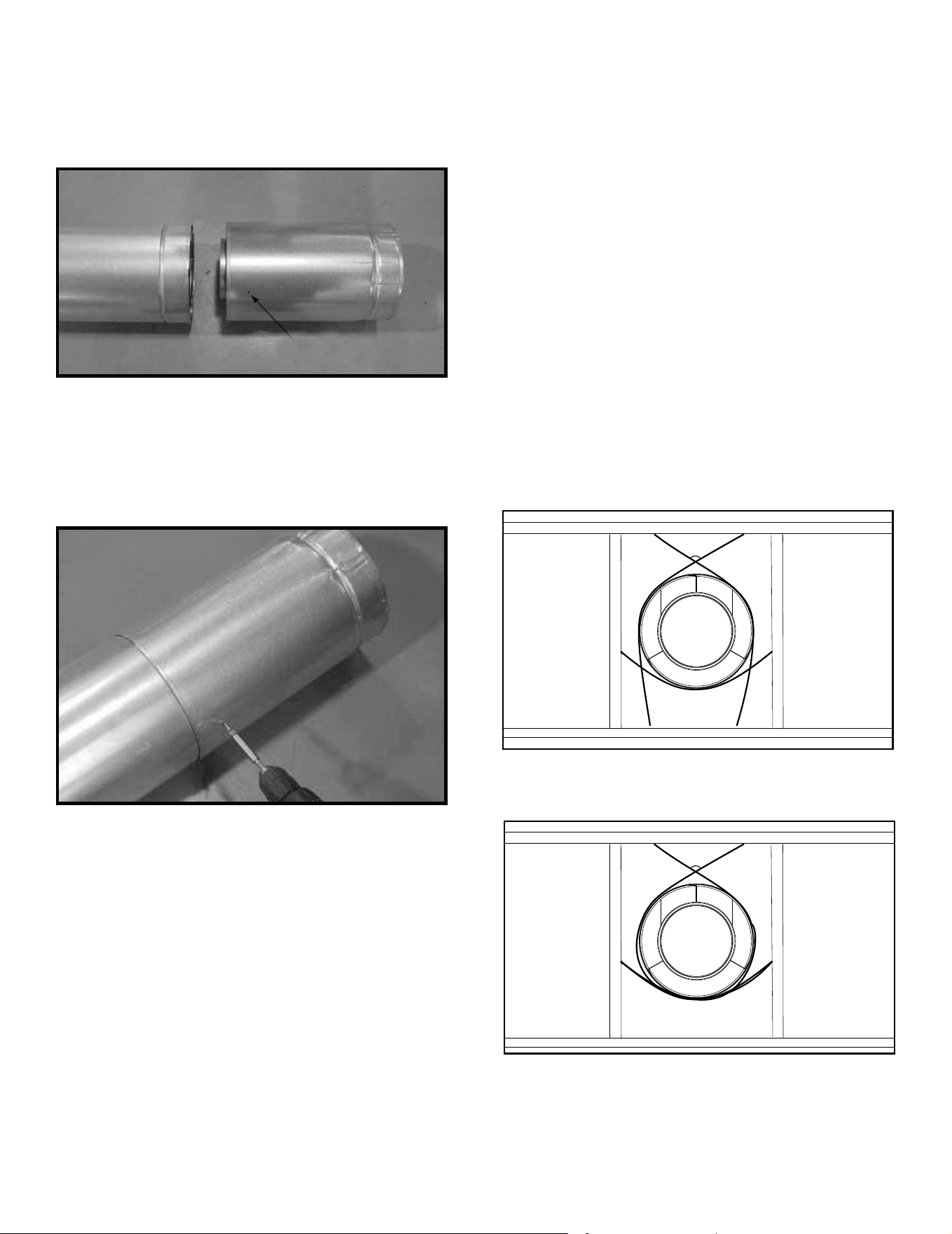

B. Assemble Slip Sections
• Slide the inner ue of the slip section into the inner ue
of the pipe section and the outer ue of the slip section
over the outer ue of the pipe section. See Figure 7.5.
• Slide together to the desired length.
Figure 7.5 Slip Section Pilot Holes
Figure 7.6 Screws into Slip Section
Pilot holePilot hole
• Continue adding pipe as necessary following instructions
in “Assembling Pipe Sections.”
NOTICE: If slip section is too long, the inner and outer
ues of the slip section can be cut to the desired length.
• Maintain a 1-1/2 in. (38 mm) overlap between the slip
section and the pipe section.
• Secure the pipe and slip section with two screws no
longer than 1/2 in. (13 mm), using the pilot holes in the
slip section. See Figure 7.6.
120º
Figure 7.7 Securing Vertical Pipe Sections
C. Secure the Vent Sections
WARNING! Risk of Fire, Explosion or Asphyxiation!
Improper support could allow vent to sag and separate.
Use vent run supports and connect vent sections per in-
stallation instructions. DO NOT allow vent to sag below
connection point to appliance.
• Vertical runs originating o the top of the appliance, with
no osets, must be supported every 8 feet (2.44 m) after
the maximum allowed 25 feet (7.62 m) of unsupported
rise.
• Vertical runs originating o the rear of the appliance, or
after any elbow, must be supported every 8 feet (2.44
m).
• Horizontal runs must be supported every 5 feet (1.52 m).
• Vent supports or plumbers strap (spaced 120º apart)
may be used to support vent sections. See Figures 7.7
and 7.8.
• Wall shield restops may be used to provide horizontal
support to vent sections.
• SLP ceiling restops have tabs that may be used to
provide vertical support.
120º
Figure 7.8 Securing Horizontal Pipe Sections
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
50

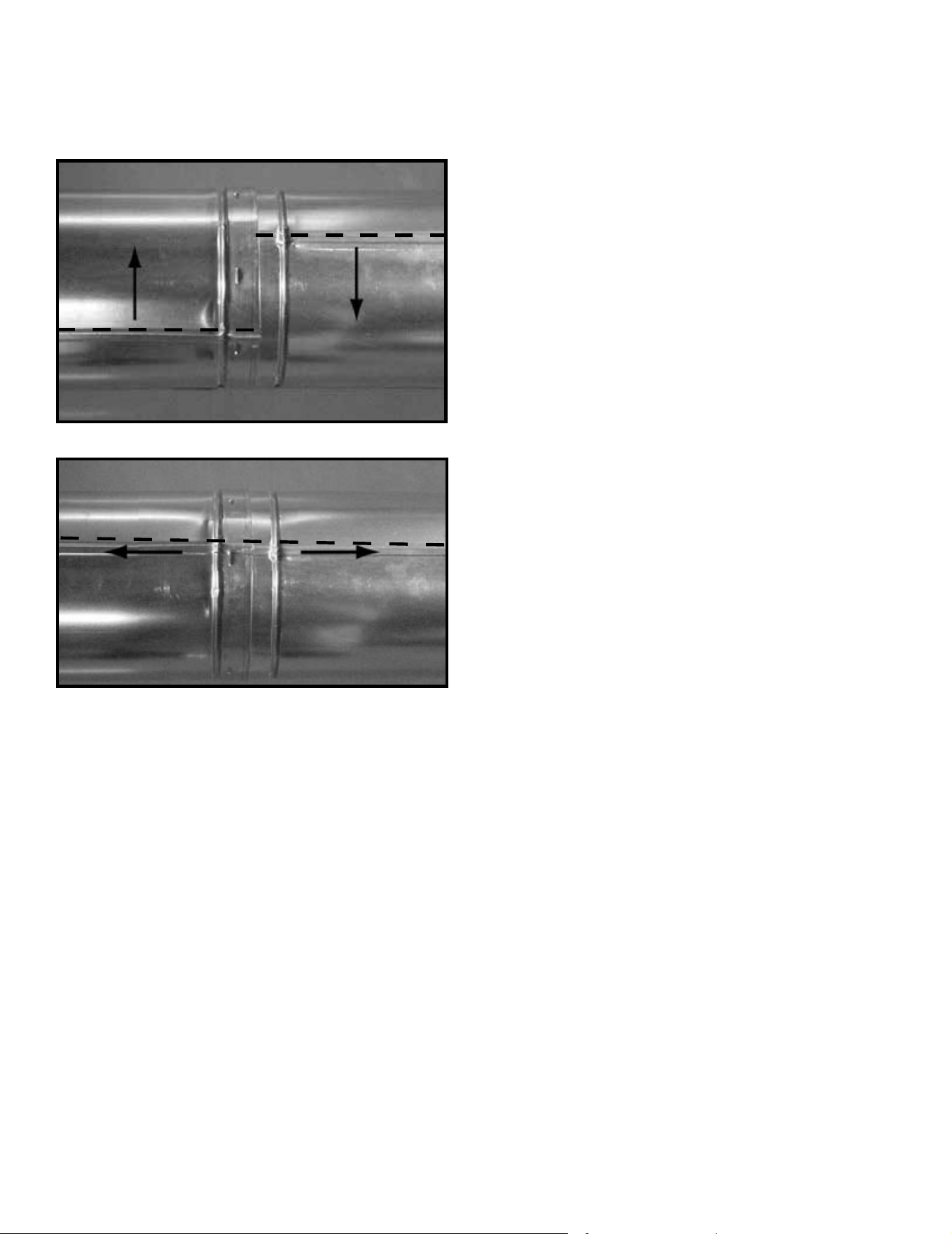

D. Disassemble Vent Sections
• Rotate either section (see Figure 7.9) so the seams on
both pipe sections are aligned as shown in Figure 7.10.
• Pull carefully to separate the pieces of pipe.
Figure 7.10 Align and Disassemble Vent Sections
Figure 7.9 Rotate Seams for Disassembly
51Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
E. Vertical Termination Requirements
Install and Seal Metal Roof Flashing
• See minimum vent heights for various pitched roofs
(Section 4, Figure 4.1) to determine the length of pipe
to extend through the roof.
• Slide the roof ashing over the pipe sections extending
through the roof as shown in Figure 7.11.
• Use an elastomeric or silicone sealant with a minimum of
150 ºF temperature rating to seal the metal roof ashing.

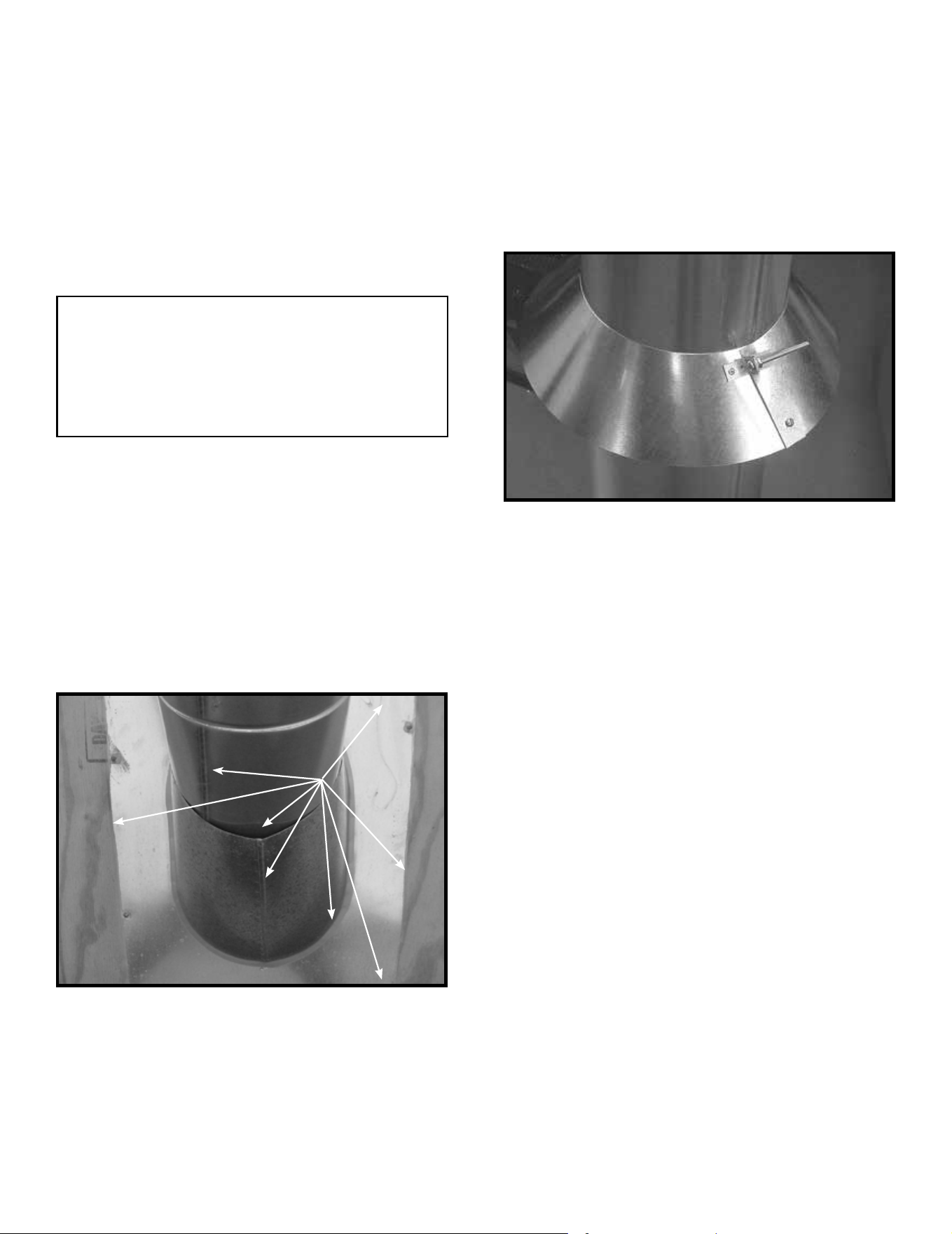

Figure 7.12 Insert Bolt into BracketsFigure 7.12 Insert Bolt into Brackets
NOTICE: Failure to properly seal the roof ashing and pipe
seams could permit entry of water.
• Seal the gap between the roof ashing and the outside
diameter of the pipe.
• Seal the perimeter of the ashing where it contacts the
roof surface. See Figure 7.11.
• Seal the exposed pipe section seams that are located
above the roof.
SEAL
Figure 7.11 Figure 7.11
Assemble and Install Storm Collar
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
• Slide the storm collar onto the exposed pipe section
and align brackets.
• Insert a bolt (provided) through the brackets and install
nut. Do not completely tighten.
• Slide the assembled storm collar down the pipe section
until it rests on the roof ashing. See Figure 7.12.
• Tighten nut and make sure the collar is tight against the
pipe section.
• Seal around the top of the storm collar. See Figure 7.13.
Note: When installing a silicone or EPDM pipe ashing boot
on a metal roof, it is recommended to put a bead of 100%
silicone sealant where the boot contacts the vent pipe to
prevent the entry of water. Follow the manufacturer’s recom-
mendations when installing the boot. Climate regions with
frequent temperatures below - 50 °F (-45.6 °C) should use a
silicone ashing boot.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
52

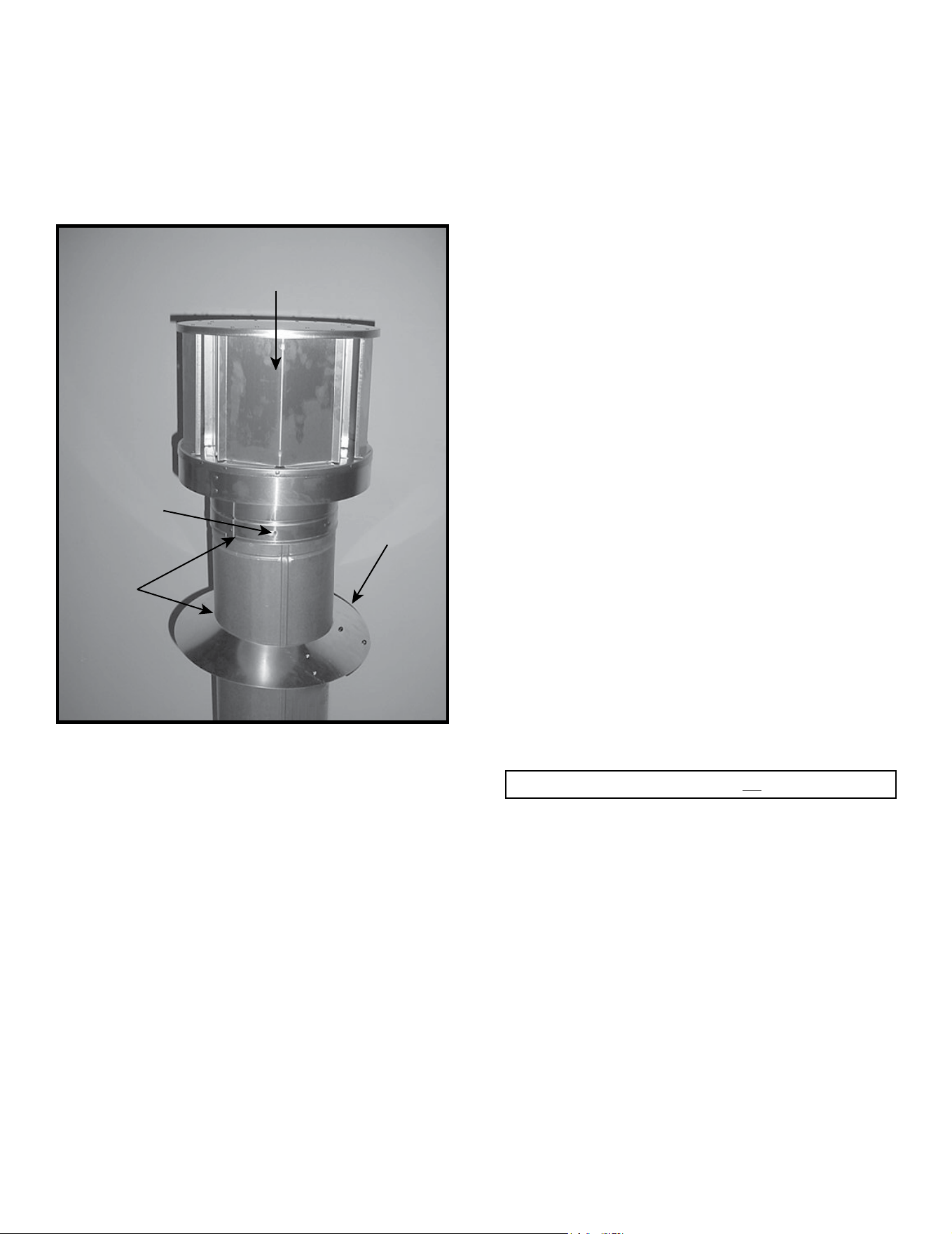

TERMINATION CAP
(1 OF 3)
SCREWS
SEAL
STORM
COLLAR
Install Vertical Termination Cap
• Attach the vertical termination cap by sliding the inner
collar of the cap into the inner ue of the pipe section
while placing the outer collar of the cap over the outer
ue of the pipe section.
• Secure the cap by driving three self-tapping screws
(supplied) through the pilot holes in the outer collar of
the cap into the outer ue of the pipe. See Figure 7.13.
Important Notice: Heat shields may not be eld constructed.
F. Horizontal Termination Requirements
Heat Shield Requirements for Horizontal
Termination
WARNING! Risk of Fire! To prevent overheating and re,
heat shields must extend through the entire wall thick-
ness.
• DO NOT remove the heat shields attached to the
wall shield restop and the horizontal termination cap
(shown in Figure 7.14).
• Heat shields must overlap 1-1/2 in. (38 mm) mini-
mum.
There are two sections of the heat shield. One section
is factory-attached to the wall shield restop. The other
section is factory-attached to the cap. See Figure 7.14.
If the wall thickness does not allow the required 1-1/2 in.
(38 mm) heat shield overlap when installed, an extended
heat shield must be used.
• If the wall thickness is less than 4 in./102 mm (DVP)
or 4-3/8 in./ 111 mm (SLP), the heat shields on the cap
and wall shield restop must be trimmed. A minimum
1-1/2 in. (38 mm) overlap MUST be maintained.
• Use an extended heat shield if the nished wall thickness
is greater than 7-1/4 in. (184 mm).
• The extended heat shield may need to be cut to length
maintaining sucient length for a 1-1/2 in. (38 mm)
overlap between heat shields.
• Attach the extended heat shield to either of the existing
heat shields using the screws supplied with the extended
heat shield. Refer to vent components diagrams in the
back of this manual.
• Rest the small leg on the extended heat shield on top
of the pipe section to properly space it from the pipe
section.
Figure 7.13 Figure 7.13
53Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Note: When using termination caps with factory-supplied
heat shield attached, no additional wall shield restop is
required on the exterior side of a combustible wall.
Install Horizontal Termination Cap (DVP and
SLP Pipe)
WARNING! Risk of Fire! The telescoping ue section of
the termination cap MUST be used when connecting vent.
• 1-1/2 (38 mm) minimum overlap of ue telescoping
section is required.
Failure to maintain overlap could cause overheating
and re.
• Vent termination must not be recessed in the wall. Siding
may be brought to the edge of the cap base.
• Flash and seal as appropriate for siding material at
outside edges of cap.
• When installing a horizontal termination cap, follow
the cap location guidelines as prescribed by current
ANSI Z223.1 and CAN/CGA-B149 installation codes
and refer to Section 4 of this manual.
CAUTION! Risk of Burns! Local codes may require in-
stallation of a cap shield to prevent anything or anyone
from touching the hot cap.
NOTICE: For certain exposures which require superior
resistance to wind-driven rain penetration, a ashing kit
and HRC caps are available. When penetrating a brick
wall, a brick extension kit is available for framing the brick.

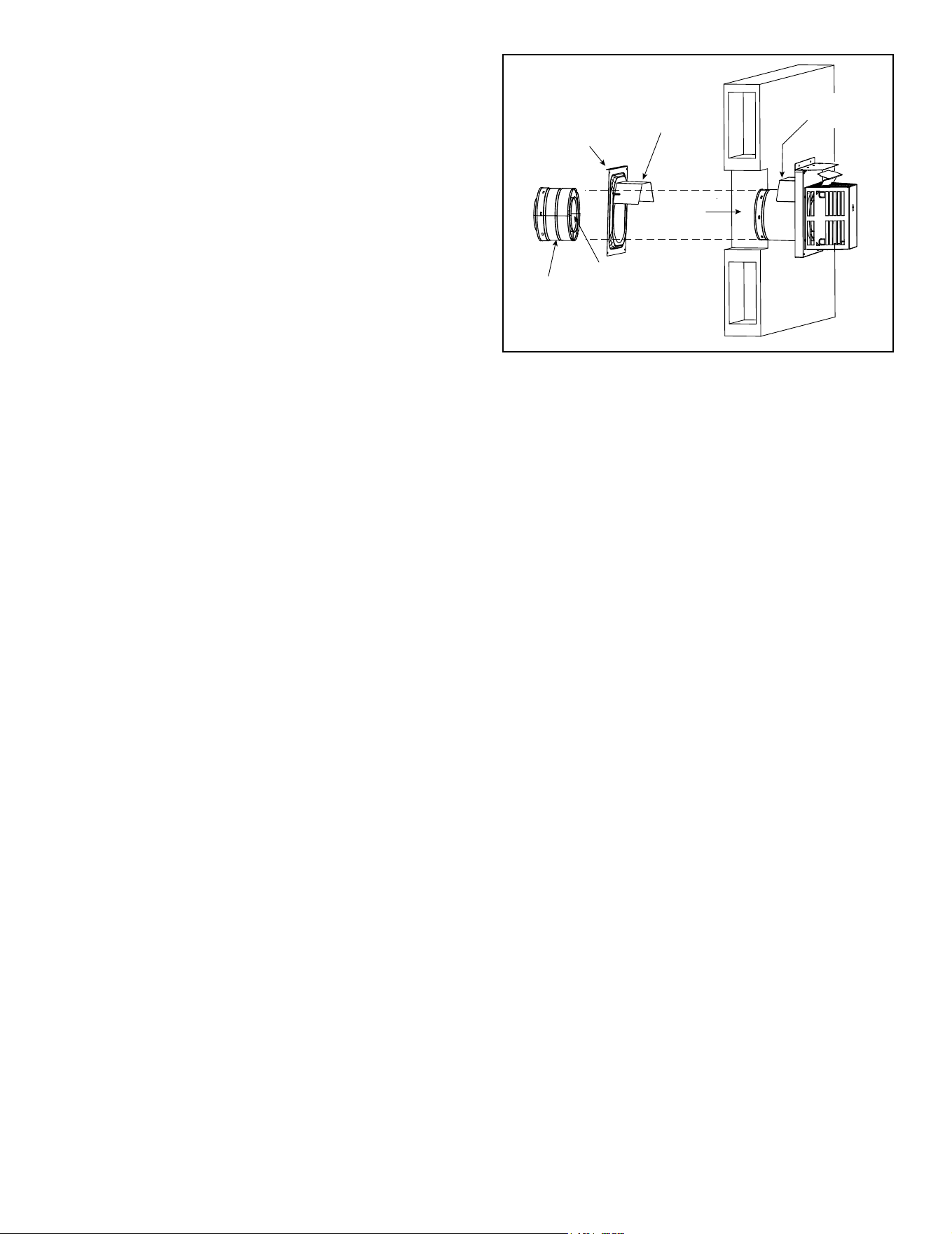

Figure 7.14 Venting Through the Wall
INTERIOR
HEAT SHIELD OR
EXTENDED
HEAT SHIELD
WALL SHIELD
FIRESTOP
HEAT SHIELD
1-1/2 IN. (38 MM) MIN.
OVERLAP
SHEATHING
SLIP SECTION
CAN BE EXTENDED
INNER VENT
OUTER VENT
EXTERIOR
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
54
A. General Information
WARNING! Risk of Shock! DO NOT wire 110-120 VAC
to the ignition module or to the appliance wall switch. (IPI)
Incorrect wiring will damage controls.
NOTICE: This appliance must be electrically wired
and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code
ANSI/NFPA 70-latest edition or the Canadian Electric
Code CSA C22.1.
• Wire the appliance circuit using a minimum 14-2 AWG
with ground to unswitched 110-120 VAC. This is required
for proper operation of the appliance (IntelliFire
®
ignition).
• A 110-120 VAC circuit for this product must be protected
with ground-fault circuit interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.
• Low voltage and 110-120 VAC voltage cannot be shared
within the same wall box.
• In some instances, the spark ignition of the replace may
cause intermittent, non-damaging, interference during
the lighting sequence with a TV plugged into the same
circuit. It is recommended that the replace and TV use
dierent circuits to mitigate the interference potential.
If interference is occurring on the same circuit, the use
of surge protectors may help alleviate the interference.
8 8
Electrical Information
55Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

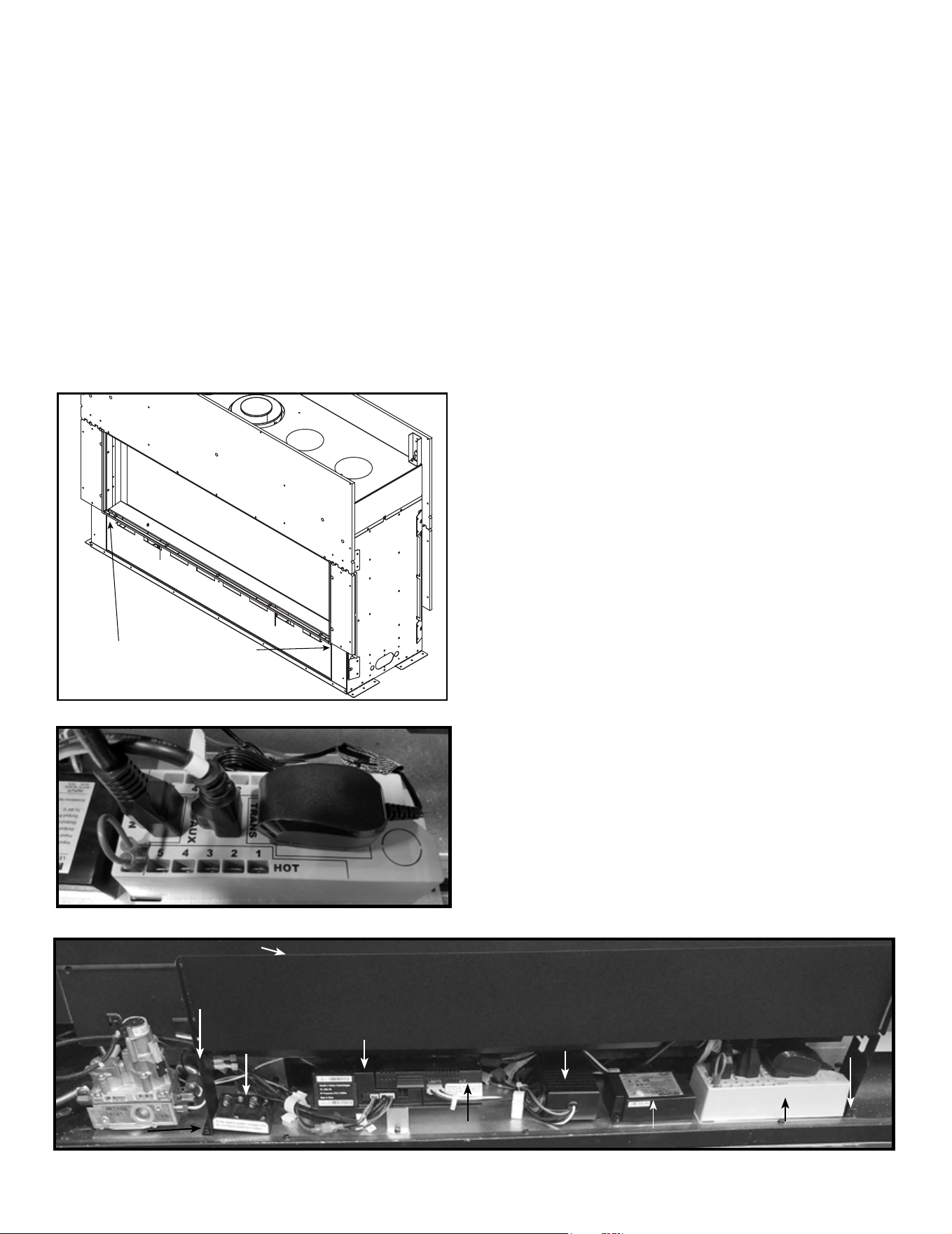

Junction Box Installation
WARNING! Risk of Shock! Label all wires prior to dis-
connection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper
operation after servicing.
1. Remove bottom panel by removing two screws. Screw
locations are shown in Figure 8.1. After removing two
screws, gently lift the panel and pull forward, avoiding
contact with the non-combustible board if possible.
2. Remove insulation.
3. Remove screws on left and right sides of component
heat shield and lift it out of the control cavity. See Figure
8.3 for location of component heat shield screws.
4. Remove the one screw that secures the junction box to
the control tray panel. See Figure 8.2.
5. Route the wire through the strain relief in the outer
wrap and up through the cutout located on the metal
tray under the junction box.
6. Make the connection inside the junction box to the 110-
120V wire. Connect green to the ground nut, black to
black, and white to white.
7. To reattach the junction box, insert one end of the
junction box in the slot provided and securely screw the
other end of the junction box to the control tray panel.
8. Reinstall component heat shield and insulation.
Figure 8.2 Junction Box Detail
CAUTION! Risk of Overheating! Component heat shield
MUST be installed before operating appliance. Electrical
components will be damaged.
Figure 8.1 Bottom Panel Location
Accessories Requirements
• This appliance may be used with a wall switch, wall
mounted thermostat and/or a remote control. Use of
a wall switch will limit the functionality of the remote. A
power vent can not be used with a wall switch.
Wiring for optional Hearth & Home Technologies approved
accessories should be done now to avoid reconstruction.
Follow instructions that come with those accessories.
Electrical Service and Repair
WARNING! Risk of Shock! Label all wires prior to dis-
connection when servicing controls. Wiring errors could
cause improper and dangerous operation. Verify proper
operation after servicing.
WARNING! Risk of Shock! Replace damaged wire with
type 105º C rated wire. Wire must have high temperature
insulation.
Figure 8.3 Valve Cavity (Lower Access Panel Removed)
In the event that the junction box may need to be ac-
cessed or installed after nish methods have been ap-
plied, access is possible by removing the bottom glass
shield.
JUNCTION BOXJUNCTION BOX
LED POWER SUPPLYLED POWER SUPPLY
ACMACM
ECMECM
BATTERY BATTERY
TRAYTRAY
COMPONENT HEAT SHIELDCOMPONENT HEAT SHIELD
COMPONENT INSULATIONCOMPONENT INSULATION
(Behind Component Heat Shield)(Behind Component Heat Shield)
BOTTOM PANEL SCREW LOCATIONS
BOTTOM PANEL
BOTTOM GLASS SHIELD
LED DIMMERLED DIMMER
RESET SWITCH - PROPANE ONLYRESET SWITCH - PROPANE ONLY
SCREWSCREW
SCREWSCREW
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
56
Accessories Requirements
• This appliance ships standard with a remote control.
Wiring for optional Hearth & Home Technologies approved
accessories should be done now to avoid reconstruction.
Follow instructions that come with those accessories.
The junction box, control module, LED power supply
and wall switch receiver can be accessed by removing
the bottom glass shield and component heat shield. The
decorative barrier front must be removed to access these
components. See Figure 8.4.
B. Wiring Requirements
CAUTION! Risk of Overheating! Component heat shield
MUST be installed before operating appliance. Electrical
components will be damaged.
CAUTION! Risk of Overheating! DO NOT remove com-
ponent insulation from top of component heat shield.
Electrical components will be damaged.
NOTICE: Batteries should only be used as a power
source in the event of an emergency power outage.
Batteries should not be used as a primary long-term power
source. Batteries tend to corrode over time. When using
batteries as a power source, the 6 volt transformer must
be unplugged from the receptacle.
Do not store batteries in the battery pack when the
appliance is powered by the 6 volt transformer connected
to permanent electrical service.
IntelliFire Touch
®
Ignition System Wiring
• Wire the appliance junction box to 110-120 VAC for
proper operation of the appliance.
WARNING! Risk of Shock or Explosion! DO NOT wire
IPI controlled appliance junction box to a switched circuit.
Incorrect wiring will override IPI safety lockout.
• Refer to Figure 8.4 IntelliFire Touch (IPI) Wiring Diagram.
• This appliance is equipped with an IntelliFire control valve
which operates on a 6 volt system.
57Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

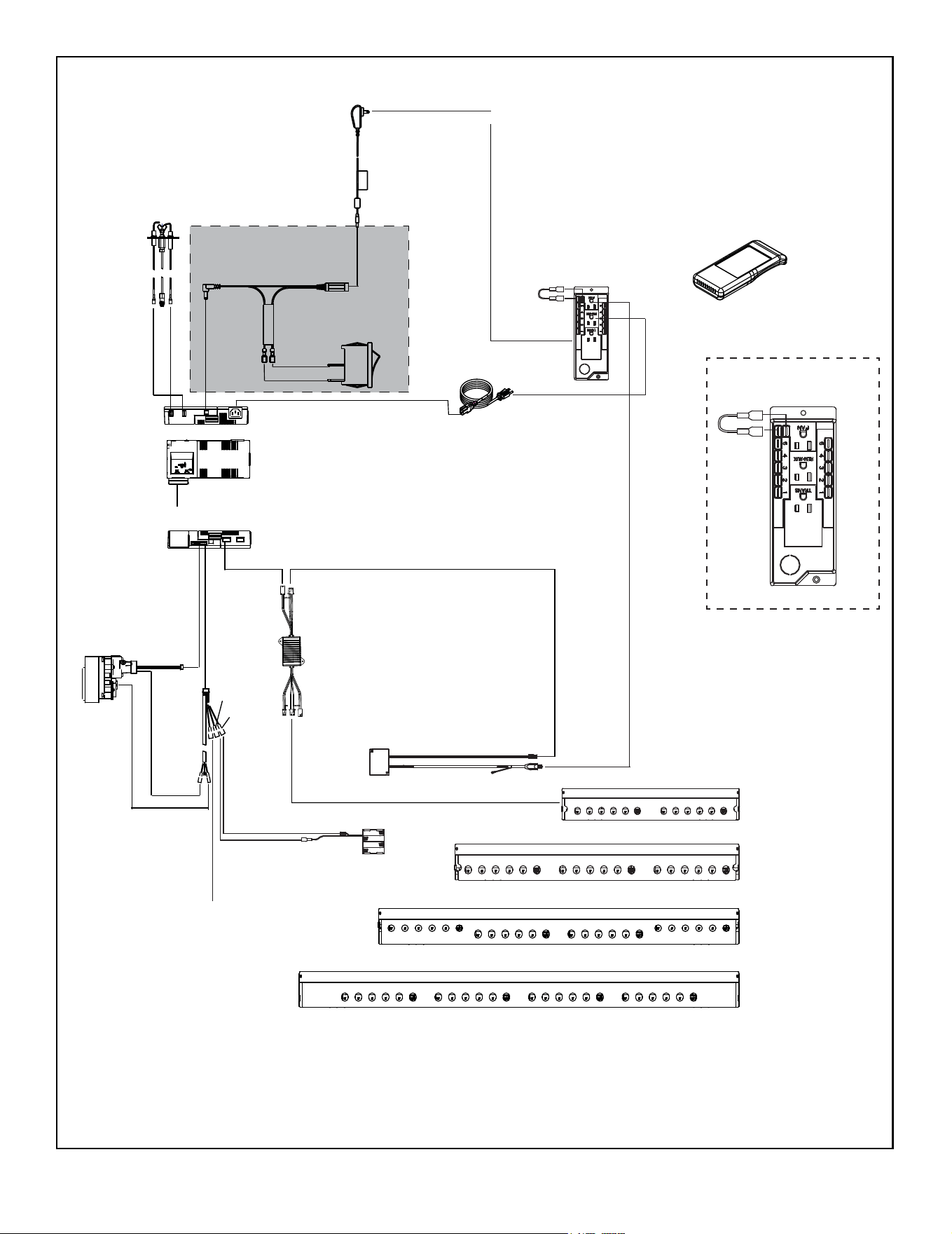

Figure 8.4 IntelliFire Touch Wiring Diagram
LED LIGHT TRAY (36 INCH MODELS)
TO
JUNCTION
BOX 110VAC
LED LIGHT TRAY (60 INCH MODELS)
LED LIGHT TRAY (72 INCH MODELS)
LED LIGHT TRAY (48 INCH MODELS)
IFT-RC400
REMOTE
CONTROL
LED
DIMMER
ORANGE
(PILOT)
RED
BLK
6V DC
BATTERY PACK
BLK
RED
LED
POWER SUPPLY
BROWN
HOT
NEUTRAL
DETAIL A
JUMPER WIRE
BLUE
WHITE
BLACK
RED
BLACK
TO JUNCTION
BOX 110-120 VAC
FLAME
SENSE
IGNITER
6 VAC
TRANSFORMER
JUNCTION BOX
110-120 VAC
HOT
NEUTRAL
RF MODULE
JUMPER WIRE
SEE DETAIL A
RESET SWITCH
2206-298
RESET SWITCH WIRE
2550-135
PROPANE ONLY
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
58

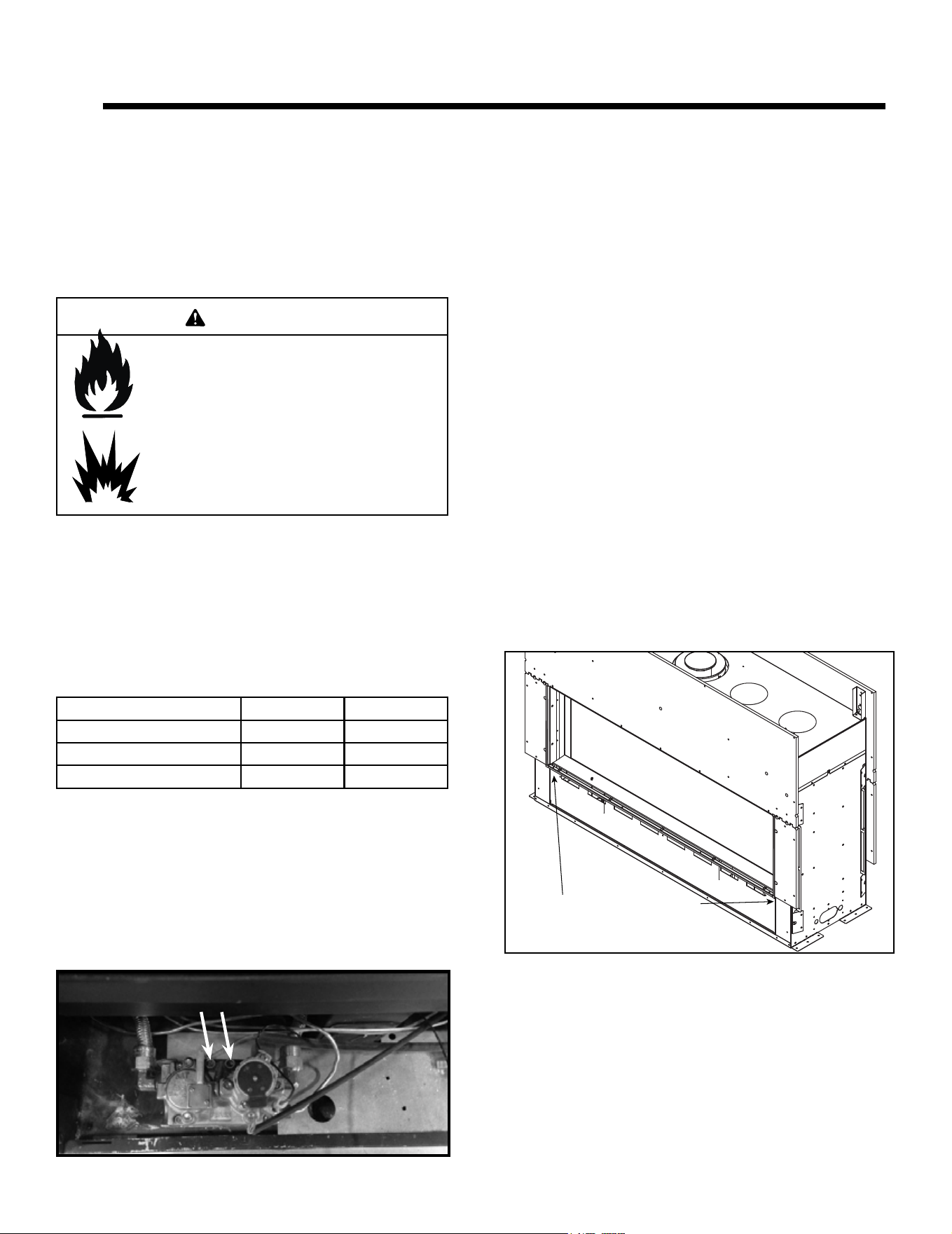

A. Fuel Conversion
• Make sure the appliance is compatible with available gas
types.
• Conversions must be made by a qualified service
technician using Hearth & Home Technologies specied
and approved parts.
B. Gas Pressure
• Verify inlet pressures. Verify minimum pressures when
other household gas appliances are operating.
• Install regulator upstream of valve if line pressure is
greater than 1/2 psig.
• Valve pressure taps are accessible by removing the
decorative barrier front and the bottom glass shield.
9 9
Gas Information
Gas Pressure Natural Gas Propane
Minimum inlet pressure 5.0 in. w.c. 11.0 in. w.c.
Maximum inlet pressure 10.0 in. w.c. 13.0 in. w.c.
Manifold pressure 3.5 in. w.c. 10.0 in. w.c.
Note: Have the gas supply line installed in accordance with
local codes, if any. If not, follow ANSI Z223.1. Installation
should be done by a qualied installer approved and/or
licensed as required by the locality. (In the Commonwealth
of Massachusetts installation must be performed by a
licensed plumber or gas tter).
Note: A listed (and Commonwealth of Massachusetts ap-
proved) 1/2 in. (13 mm) T-handle manual shut-o valve
and exible gas connector are connected to the 1/2 in. (13
mm) control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
Fire Risk.
Risk of Fire! Risk of Explosion!
Incorrect pressure will damage valve.
• Isolate gas supply piping BEFORE pressure
testing gas line at test pressures above 1/2
psig.
• Close the manual shuto valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
WARNING
• Optimum appliance performance requires proper input
pressures.
• Gas line sizing requirements will be determined in ANSI
Z223.1 National Fuel Gas Code in the USA and CAN/
CGA B149 in Canada.
• Pressure requirements when in operation are:
Figure 9.1 Valve Pressure Taps
VALVE PRESSURE TAPSVALVE PRESSURE TAPS
Note: This appliance does include a manual gas shuto
valve that is located in the valve compartment. This manual
gas shuto valve is accessible for service by removing
the decorative barrier front and the bottom glass shield.
The valve is most accessible if it is located forward in the
control cavity of the appliance.
Depending upon local code, an additional manual gas
shuto, in a readily accessible area may be required and
located upstream from the appliance.
The bottom panel is removable if nishing material is not
installed. See Figure 9.2.
If the nishing materials have been installed around the
appliance opening, proceed as follows:
1. Remove bottom glass shield.
2. Remove screws on left and right sides of component
heat shield and lift it out of the control cavity.
Figure 9.2 Bottom Glass Shield and Bottom Panel Location
CAUTION! Risk of Overheating! Component heat shield
MUST be installed before operating appliance. Electrical
components will be damaged.
C. Gas Service Access
BOTTOM PANEL SCREW LOCATIONS
BOTTOM PANEL
BOTTOM GLASS SHIELD
59Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
3. Unplug the 6V transformer from the junction box.
This will turn the power o to the appliance.

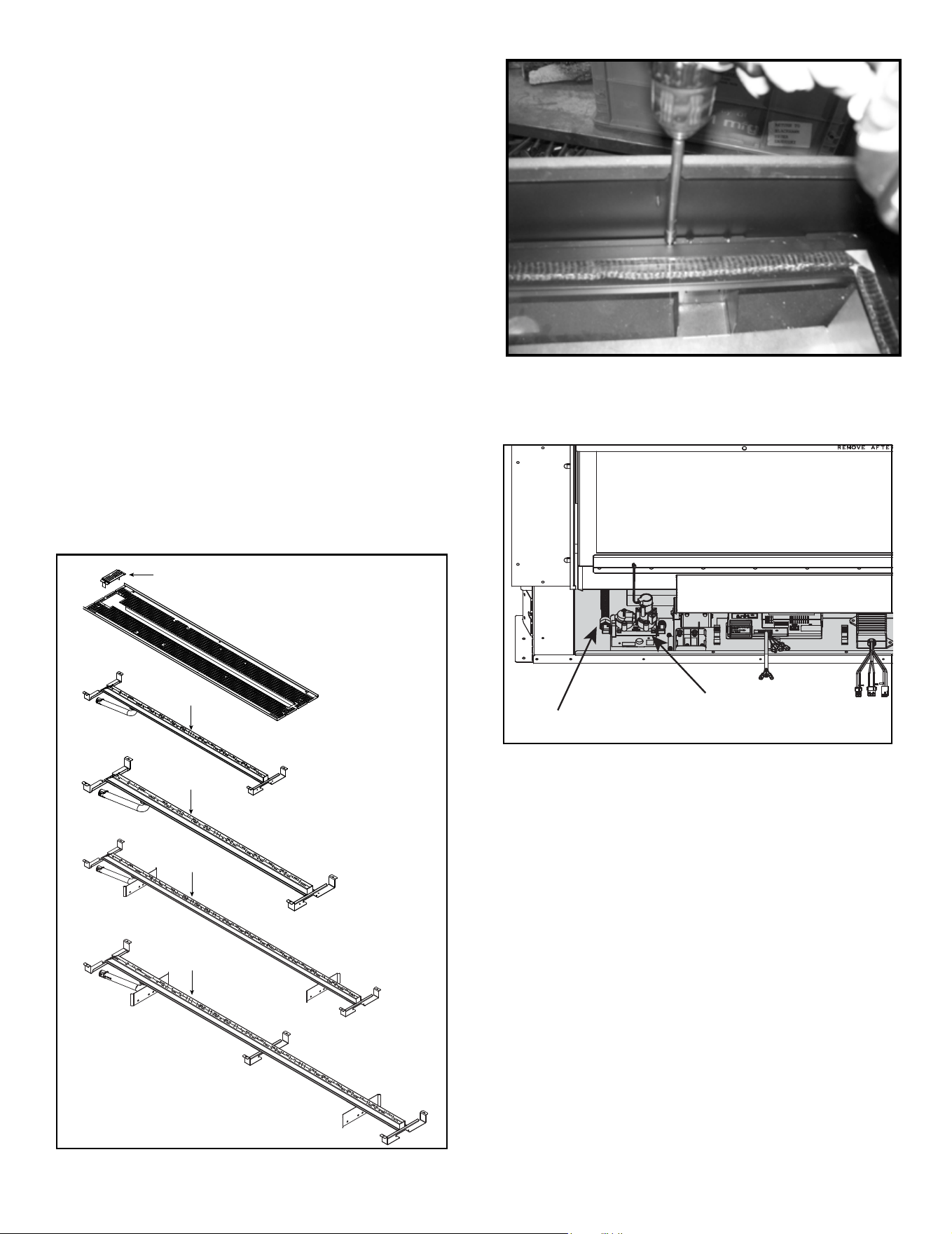

Figure 9.3 Media Tray with Burner and Pilot Shield
4. Turn the gas shuto handle to the “OFF” position to
shut o the gas supply.
If additional access is needed, proceed as follows:
5. Remove glass assembly from appliance by unlatch-
ing the top spring latches from the glass frame and
lifting glass frame assembly out of the bottom brack-
et.
6. Remove interior media and refractory from the appli-
ance if already installed.
7. Remove the media tray. It is attached to the interior
rebox bottom with ten screws. See Figure 9.3.
8. Remove the two screws that attach the pilot to the
burner.
9. Remove the four screws securing the burner to the
rebox sides and disengage burner from orice. Re-
move burner. See Figure 9.3.
10. Remove the eight screws that secure the glass window.
Remove the glass window. Handle with care. See
Figure 9.4.
11. Remove light tray from appliance by lifting up and out
through the bottom glass opening.
Figure 9.5 Gas Fitting Access with Bottom Glass Shield Removed
Figure 9.4 Gas and Electrical Access - Remove Glass Window
PILOT SHIELD
MEDIA TRAY
BURNER 36
BURNER 48
BURNER 60
BURNER 72
GAS VALVE
GAS ACCESS
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
60
D. Gas Connection
• Refer to Section 3 for location of gas line access in
appliance.
• Gas line may be run through the left side of appliance.
• The gap between supply piping and gas access hole
may be sealed with caulk or aluminum foil tape with a
minimum of 300 ºF continuous exposure rating or stued
with non-combustible, unfaced insulation to prevent cold
air inltration.
• Ensure that gas line does not come in contact with outer
wrap of the appliance. Follow local codes.
• Pipe incoming gas line into valve compartment.
• Connect incoming gas line to the 1/2 in. (13 mm) NPT
connection on manual shuto valve.
WARNING! Risk of Fire or Explosion! Support control
when attaching pipe to prevent bending gas line.
WARNING! Risk of Fire or Explosion! Gas build-up
during line purge could ignite.
• A small amount of air will be in the gas supply lines.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as sparks or
open ames.
Light the appliance. It will take a short time for air to purge
from lines. When purging is complete the appliance will
light and operate normally.
WARNING! Risk of Fire, Explosion or Asphyxiation!
Check all ttings and connections with a non-corrosive
commercially available leak-check solution. DO NOT use
open ame. Fittings and connections could have loos-
ened during shipping and handling.
E. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Input ratings are certied without a
reduction of input rate for elevations up to 4500 feet
(1370 m)above sea level. Please consult provincial and/
or local authorities having jurisdiction for installations at
elevations above 4500 feet (1370 m).
Check with your local gas utility to determine proper
orice size.
61Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Shutter Setting Verication / Flame Appearance
• After 15 minutes, the ames will be a yellow/blue mix.
The front ames may be blue at this time.
• After 30 minutes, the ames should be yellow with
some blue ames near the burner ports.
• After 1 hour, the ame will be at its maximum maturity.

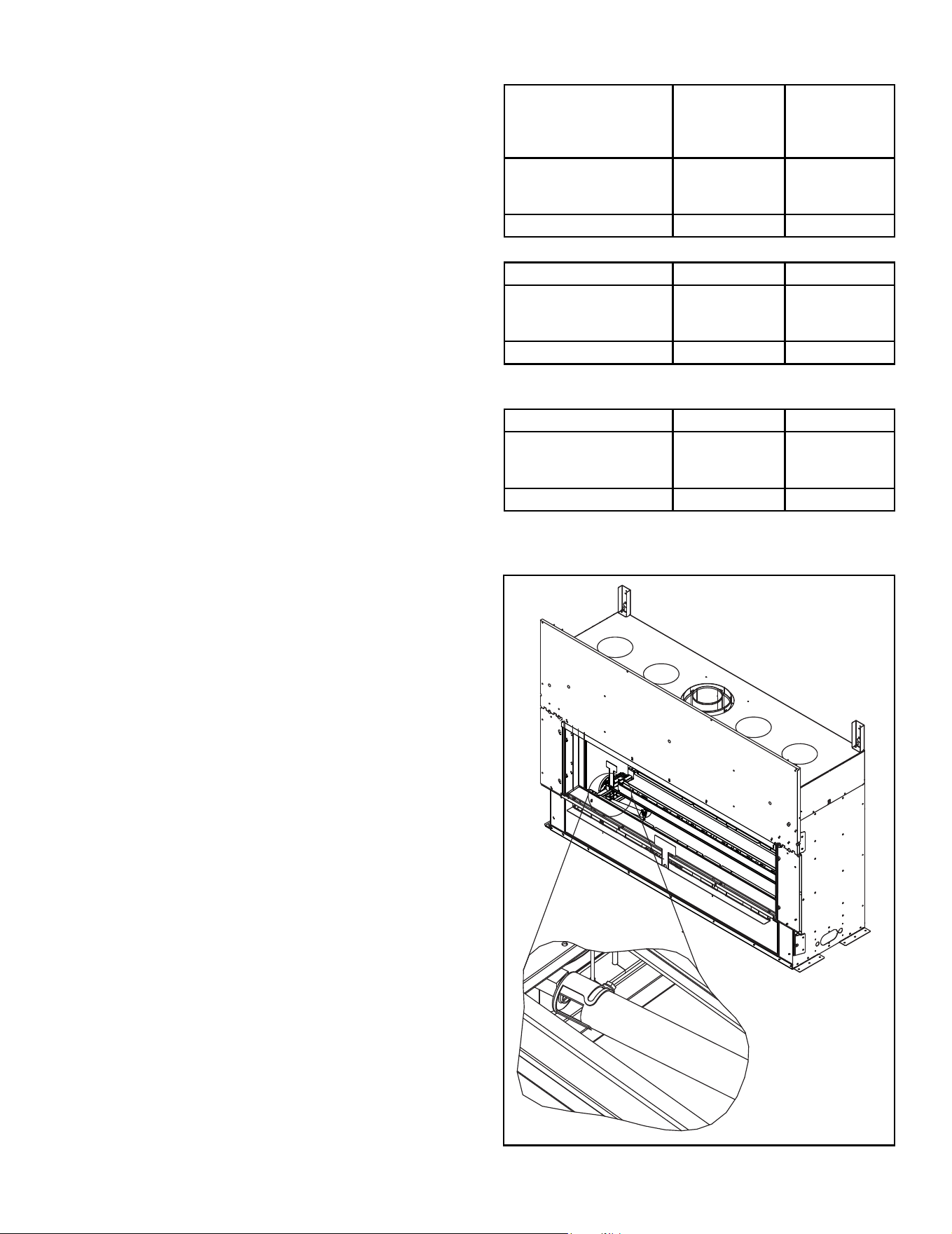

Figure 9.6 Air Shutter Location
F. Air Shutter Setting
WARNING! Risk of Explosion or Delayed Ignition!
Improperly adjusted air shutter could cause soot buildup.
NOTICE: If sooting occurs, provide more air by opening
the air shutter.
Air shutter settings may be adjusted by a qualied install-
er at the time of installation. The air shutter is set at the
factory for minimum vertical vent run. Adjust air shutter for
longer vertical runs. See Figure 9.6.
Air shutter settings should be adjusted by a qualied ser-
vice technician at the time of installation. The air shut-
ter is set at the factory for a typical horizontal termination
through a 2 X 6 wall. See Figure 4.11 Top Vent - Horizon-
tal Termination With One Elbow.
• Refer to Gas Service Access instructions in Section 9.C
to access the air shutter.
• Loosen the 1/4 in. screw.
• Twist shutter to adjust.
• Shutter may be open for longer horizontal vent runs.
• Do not close the air shutter more than 1/16 in. for NG or
1/4 in. for propane.
• Tighten the screw.
Air Shutter Settings
ECHEL36IN-C
ECHEL36STIN-C
ECHEL48IN-C
ECHEL48STIN-C
NG Propane
NO REFRACTORY OR
GLASS REFRACTORY
KIT
Standard
Opening=
3/16 in.
Standard
Opening=
Full Open
LOG KIT 1/4 in. Full Open
ECHEL60IN-C NG Propane
NO REFRACTORY OR
GLASS REFRACTORY
KIT
Standard
Opening=
Full Open
Standard
Opening=
Full Open
LOG KIT Full Open Full Open
ECHEL72IN-C NG Propane
NO REFRACTORY OR
GLASS REFRACTORY
KIT
Standard
Opening=
Full Open
Standard
Opening=
Full Open
LOG KIT Full Open Full Open
DETAIL
NOTICE: Flames should not appear orange or stretch
to the top of the rebox. If ames are dark orange with
dark, smoky tips, provide more primary air to the burner
by opening the air shutter accordingly.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
62
10 10
Finishing
A. Facing Material
NOTICE: Surface temperatures around the appliance will
become warm while the appliance is in operation. Ensure
materials used for all surfaces (oor, walls, mantels, etc.)
will withstand temperatures up to 190°F.
Risk of Fire!
DO NOT apply combustible materials beyond the min-
imum clearances. Comply with all minimum clearanc-
es to combustibles as specied in this manual. Ma-
terials overlapping into non-combustible zones could
ignite and will interfere with air ow through decora-
tive barrier fronts.
• Metal front of appliance may be covered with non-
combustible materials only.
• Facing and/or nishing materials must not interfere
with air ow through decorative barrier fronts, removal
of decorative barrier fronts or access for service.
• Facing and/or finishing materials must never
overhang into the glass opening.
• Observe all clearances when applying combustible
materials.
• Seal gaps between the nished wall and appliance
top and sides using a 300 ºF minimum sealant. Refer
to Figure 10.1.
WARNING
WARNING! Risk of Fire! Comply with all minimum clear-
ances to combustibles as specied. Framing closer than the
minimums listed must be constructed entirely of noncom-
bustible materials (i.e., steel studs, concrete board, etc.).
Splatter Guard
The splatter guard is a piece of corrugated material used
to protect the appliance during the installation process
before nishing work on the whole hearth is complete.
A splatter guard is factory-installed on ECHELON-C
models. Splatter guards must be removed before
appliance is red.
WARNING! Risk of Fire! Remove the splatter guard be-
fore lighting the appliance. Shut o gas to the appliance
when the splatter guard is in place to prevent accidental
operation.
WARNING! Risk of Fire! Maintain specied air space
clearances to combustibles. Inadequate air space could
cause overheating and re.
Finishing Instructions
It is important to follow the framing and nishing instruc-
tions to ensure proper placement of replace into the sur-
rounding framing/nishing materials.
Wall sheathing materials 1/2 in. thick are specied in
this installation manual to properly align with the factory-
included non-combustible material.
WARNING! Risk of Fire! Factory-included non-combus-
tible board MUST be installed. DO NOT remove or cover
it with combustible material, such as:
• Drywall (gypsum board)
• Plywood
• Materials that do not meet the ASTM E 136 Non-com-
bustibility standard (below).
Removal of installed, non-combustible board and/or use
of materials not meeting the ASTM E 136 standard could
cause re.
Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 ºC.
NOTICE: The maximum nishing material not only includes
the decorative nish materials (marble, tile, slate, etc) but
also the thin set, lath, and adhesive used to attach the
decorative nish material.
Finishing Materials
NOTICE: Hearth & Home Technologies recommends
using multiple pieces of decorative nish material around
the opening of the appliance to reduce the chances of
the material cracking. A single piece of decorative nish
material (such as marble or granite) is more susceptible
to cracking due to uneven heating and cooling which
causes temperature dierentials within the material itself.
The use of multiple pieces will reduce the temperature
dierentials in each piece and reduce the likelihood of
cracks. In addition to using multiple pieces of decorative
nish material, the installation of the Passive Heat optional
heat management system will also reduce the chances of
cracking.
If using vinyl ooring, refer to Section 3.E.
Materials with higher temperature ratings may be re-
quired in areas around the replace opening. Comply with
all specications in this manual.
63Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
MAXIMUM SCREW LENGTH = 3/4 INCH
(LOWER COVER PANEL)
MAXIMUM SCREW LENGTH = 2 INCHES
(INSTALLED NON-COMBUSTIBLE BOARD)
NON-COMBUSTIBLE MATERIAL
ONLY IN THIS AREA
2 IN.
= NO FASTENERS IN THIS AREA

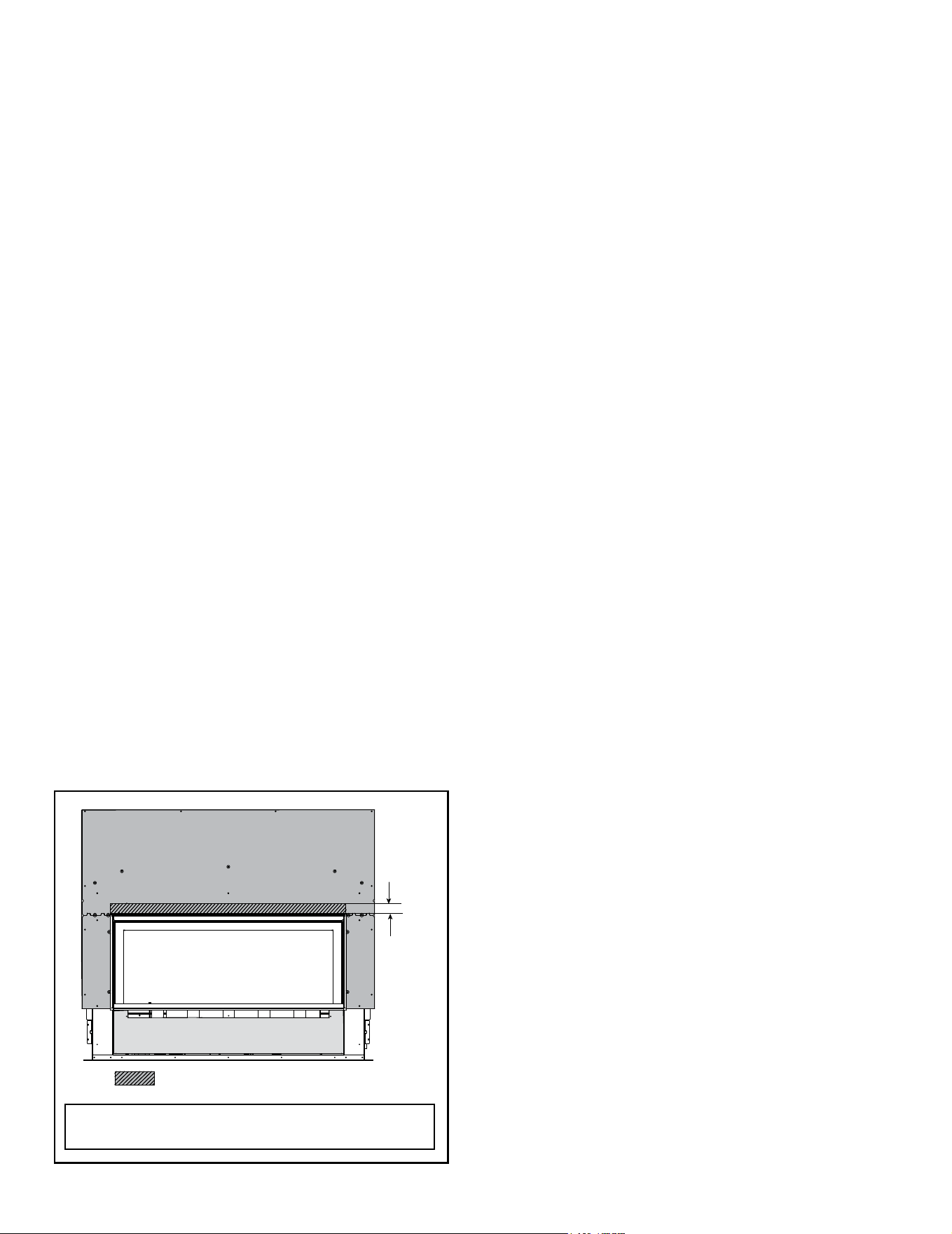

Figure 10.1 Screw Length Requirements
Note: It is acceptable to use a high temperature silicone
sealant to adhere drywall to lower cover panel.
The appliance is designed to mate with 1/2 in. wall
sheathing materials such as drywall, plywood, wood
composites, or non-combustible materials.
To ensure good adhesion of drywall compounds and
tape, thoroughly clean the non-combustible board and
surrounding drywall to remove dust. The non-combusti-
ble board may be primed with a high-quality PVA primer.
WARNING! Risk of Fire! DO NOT apply combustible
materials beyond the minimum clearances. Comply with
all minimum clearances to combustibles as specied in
this manual. Materials overlapping into non-combustible
zones could ignite and will interfere with air ow through
decorative barrier fronts.
WARNING! Risk of Fire! DO NOT install drywall or other
combustible materials directly onto the installed non-
combustible board. Overlapping materials could ignite.
WARNING! Risk of Fire! DO NOT use screws longer
than two inches when attaching nishing materials to in-
stalled non-combustible material. Screws longer than two
inches will compromise clearance and could cause over-
heating and re.
WARNING! Risk of Fire, Explosion or Asphyxiation!
DO NOT use screws more than 3/4 of an inch long on
lower cover panel. Longer screws may penetrate gas line
or damage valve or electrical components.
It is acceptable to pre-drill holes and use self-tapped
screws in the factory-included non-combustible board
which may be used to lathe (a backer for tile, marble,
etc.). Screws being installed through the installed non-
combustible board should be self-tapping type with a
maximum length of 2 inches. See Figure 10.1.
When installing nish material on the lower cover panel,
DO NOT drill or install screws longer than 3/4 of an inch.
Screws longer than 3/4 of an inch could penetrate the
lower cover panel causing damage to components or
penetrate the gas line. See Figure 10.1.
Attaching Non-Combustible Board
When nishing the wall around the replace, it is critical
that wall sheathing be fastened properly. Wall sheathing
fasteners, such as screws or nails, are not permitted in
some locations. See Figure 10.1.
Introduction
If the desired nished replace installation does not uti-
lize non-combustible nishing materials (such as tile,
marble, stone, etc.), special attention must be paid to the
installation of drywall/gypsum wallboard to the side joints
of the non-combustible board to minimize potential devel-
opment of cracking and paint discoloration. Hearth and
Home Technologies has tested the following methods
and materials and therefore recommends the following
steps for the best drywall performance.
Filling and Finishing Seams
1. Step 1: Fill all gaps and joints between the non-
combustible board pieces and the drywall with a
general purpose chemically setting joint compound
such as Durabond® 45 Joint Compound manufactured
by USG (Sheetrock® brand), recommended by Hearth
& Home Technologies. Use a drywall knife to rmly
press the joint compound into all gaps. See Figure
10.1. Allow these joints to dry.
2. Step 2: All joints are to be taped with berglass mesh
tape 1 7/8” minimum width, and embedded with
Setting-Type joint compound, such as with Durabond®
Joint Compound manufactured by USG (Sheetrock®
brand), or equivalent. Allow these joints to dry.
3. Step 3: Depending on the technique used in steps
1 and 2, two to three nishing coats are required to
provide a smooth and durable nish. Hearth and
Home Technologies recommends a lightweight or all-
purpose compound. Allow each coat to properly cure.
Allow the nishing coat(s) to cure for 24 hours before
operating appliance.
Painting
If desired nishing includes a painted wall, a high-quality
100% acrylic latex paint with a high-quality latex primer
base coat are recommended around the appliance to limit
discoloration. Oil-based or standard acrylic paints may
be more prone to discoloration due to heat exposure.
B. Drywall Installation
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
64

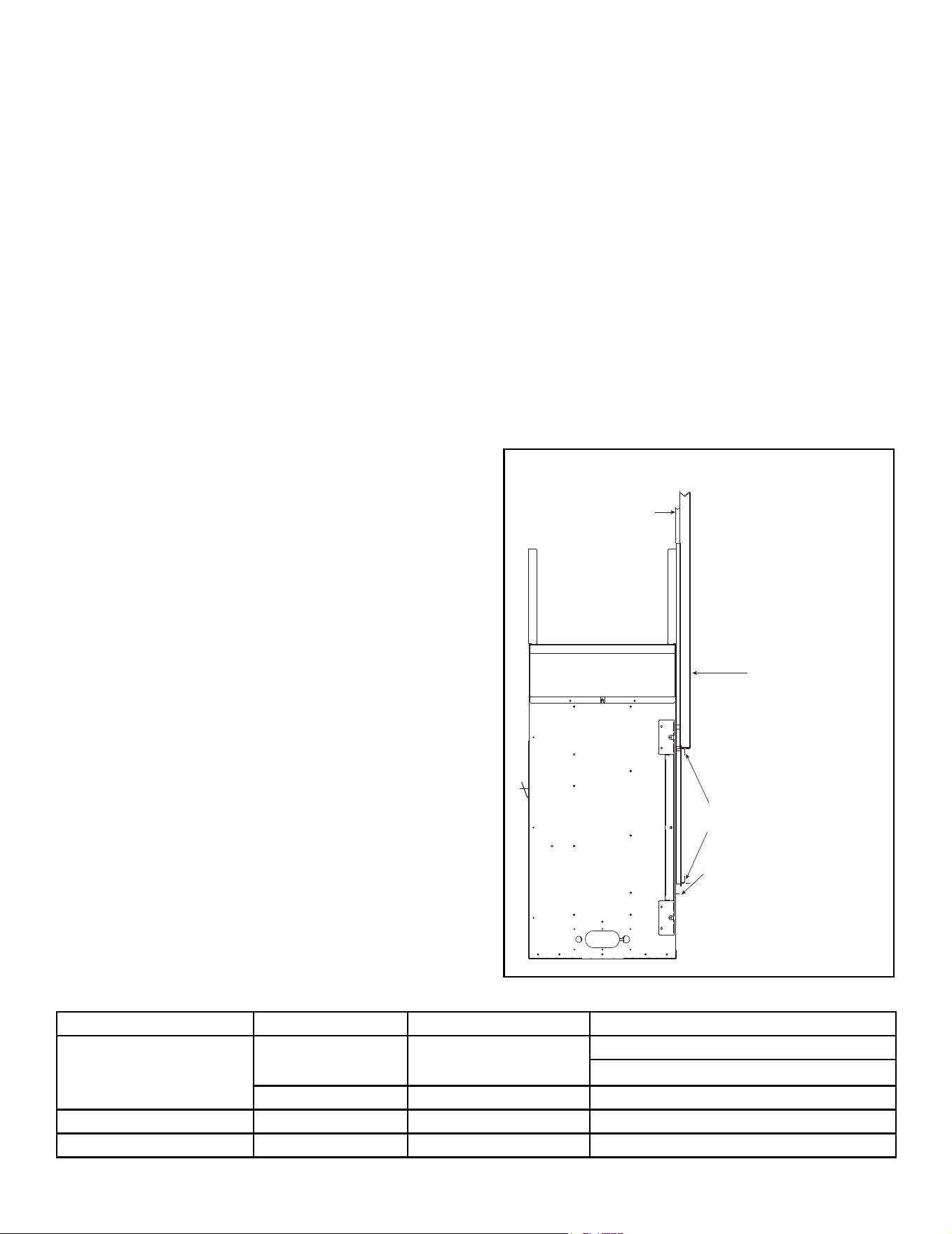

Figure 10.2 Finishing and Facing Materials - Single-Sided Models
BOTTOM
FINISHING
TEMPLATE
FINISHING
GUARDS
NON-COMBUSTIBLE
FINISHING MATERIAL
OVERLAP FIT = 0-1 IN. THICK
INSIDE FIT = 1-4 IN. THICK
1/2 IN. THICK WALL
SHEATHING
Decorative Barrier Front Finishing Method Material Thickness Trim Ring
Clean Face Trim (CFT)
Inside Fit 1-4 inches
Included & Not Used (Option #1)
Included & Used (Option #2)
Overlap Fit 0-1 inch Included & Used
Picture Frame Front (PFF) Overlap Fit 0-1 inch Not included
Picture Frame Front (PFF) Inside Fit 1-4 inches Not included
Table 1
Facing Material
• Facing and/or nishing materials must not interfere with
air ow through decorative barrier fronts.
• Facing and/or nishing materials must never overhang
into the glass opening.
• Observe all clearances when applying combustible
materials.
Finishing - Hearth
See Inside Fit or Overlap Method sections to determine
the necessary requirements for installation of a non-
combustible hearth for this model. Only hearths made of
non-combustible materials are allowed.
Decorative facing material thickness is measured from
the face of the installed non-combustible board. See
Figure 10.2 and Figure 10.3.
The fronts for this appliance are compatible with non-
combustible materials. See Figure 10.2 and Figure 10.3.
Refer to Section 1.E and 1.F of this manual for denitions
and qualications of non-combustible and combustible
materials.
Specic requirements for each method of installation are
described in this section.
Installation of nishing materials can be accomplished
by either the “overlap” or “inside-t” method, depending
on what type of decorative barrier front is to be installed.
See Figure 10.2 and 10.3. Overlap t decorative barrier
fronts include the Quattro and Loft Forge. The Clean
Face Trim Front (CFT) can be either an inside t or an
overlap t. See Table 1.
NOTICE: The location of the Passive Heat discharge
opening could allow for venting and other construction
materials to be visible. It is acceptable to paint the vent pipe
and other construction materials using a high temperature
paint with a minimum of 300 °F continuous exposure rating.
Hearth & Home Technologies recommends using black
touch up paint (part number TUP-GBK-12) available from
your Hearth & Home Technologies dealer.
WARNING! Risk of Fire! Maintain specied air space
clearances to combustibles. Failure to comply with
these instructions may cause a re or cause the appli-
ance to overheat.
WARNING! Risk of Fire! Maintain specied air space
clearances to combustibles. Inadequate air space could
cause overheating and re.
Drywall Joint-Crack Prevention and Repair
Drywall joints around the replace will be aected by ex-
posure to elevated temperatures, along with other envi-
ronmental, structural factors due to new construction, and
methods used to install and nish the drywall. If a crack
does emerge adjacent to the replace, it can be perma-
nently repaired by lling it with a paintable latex caulk,
followed by repainting.
Some movement of the screws used to secure the non-
combustible board to the appliance/surround framing is
expected. If a blemish begins to show over a screw head,
sand the surface to remove the blemish and repaint.
65Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

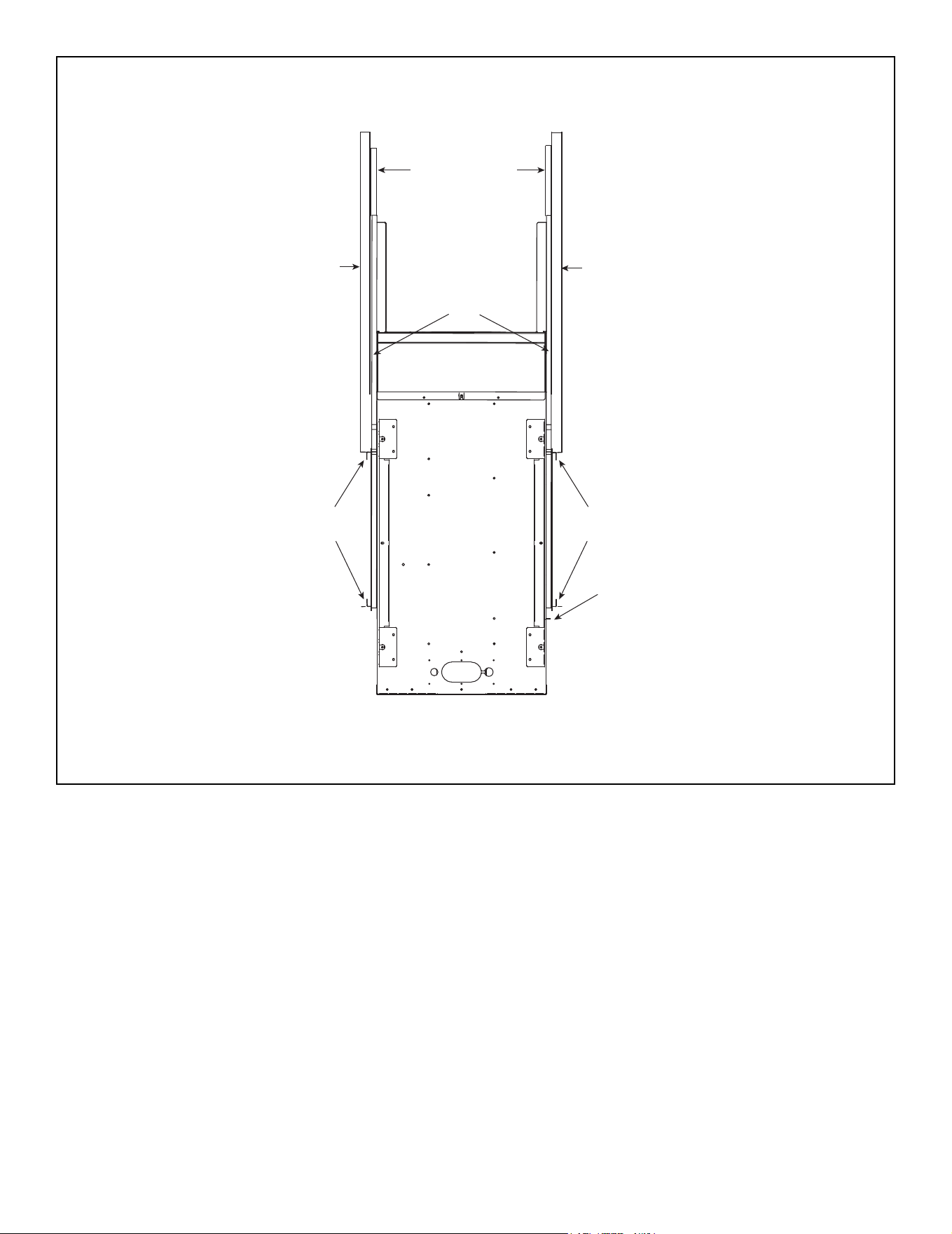

Figure 10.3 Finishing Materials - See-Through Models
NON-COMBUSTIBLE
FINISHING MATERIAL
OVERLAP FIT = 0-1 IN. THICK
INSIDE FIT = 1-4 IN. THICK
NON-COMBUSTIBLE
FINISHING MATERIAL
OVERLAP FIT = 0-1 IN. THICK
INSIDE FIT = 1-4 IN. THICK
BOTTOM FINISHING TEMPLATE
(Control side only)
FINISHING
GUARDS
FINISHING
GUARDS
1/2 IN.
INSTALLED
NON-COMBUSTIBLE
BOARD
1/2 IN. THICK
WALL SHEATHING
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
66
NOTICE: This one inch maximum not only includes the
decorative nish materials (marble, tile, slate, etc) but also
the thin set, lath and adhesive used to attach the decorative
nish material.
WARNING! Risk of Fire! DO NOT apply combustible
materials beyond the minimum clearances. Comply with
all minimum clearances to combustibles as specied in
this manual. Overlapping materials could ignite.
Clean Face Trim Front (CFT)
Overlap Fit (0-1 Inch Thick Finishing Method)
Non-Combustible Finish Materials
1. Remove bottom nishing template from bottom access
panel. Verify that factory-installed nishing guards are
installed to ensure nishing material does not extend
into the replace opening. See Figure 10.2 and 10.3.
2. The non-combustible nish material, 0-1 inch thick,
should be installed up to the replace opening on all
four sides, including the bottom access panel, cover-
ing the eight rectangular holes. Refer to Figure 10.4
for minimum nished opening dimensions.
WARNING! Risk of Fire! DO NOT apply nishing mate-
rial beyond the nishing guard. Appliance will overheat if
nishing material extends into appliance opening.
NOTICE: Decorative barrier front will not t properly if
nishing material is applied beyond the nishing guard.
4. Follow Overlap Fit section of the instructions provided
with decorative barrier front.
FIREPLACE VIEWING AREA
15-3/4 IN.
51-1/8 IN.ECHEL48IN-C/ECHEL48STIN-C
39-1/8 IN.ECHEL36IN-C/ECHEL36STIN-C
63-1/8 IN.ECHEL60IN-C
75-1/8 IN.ECHEL72IN-C

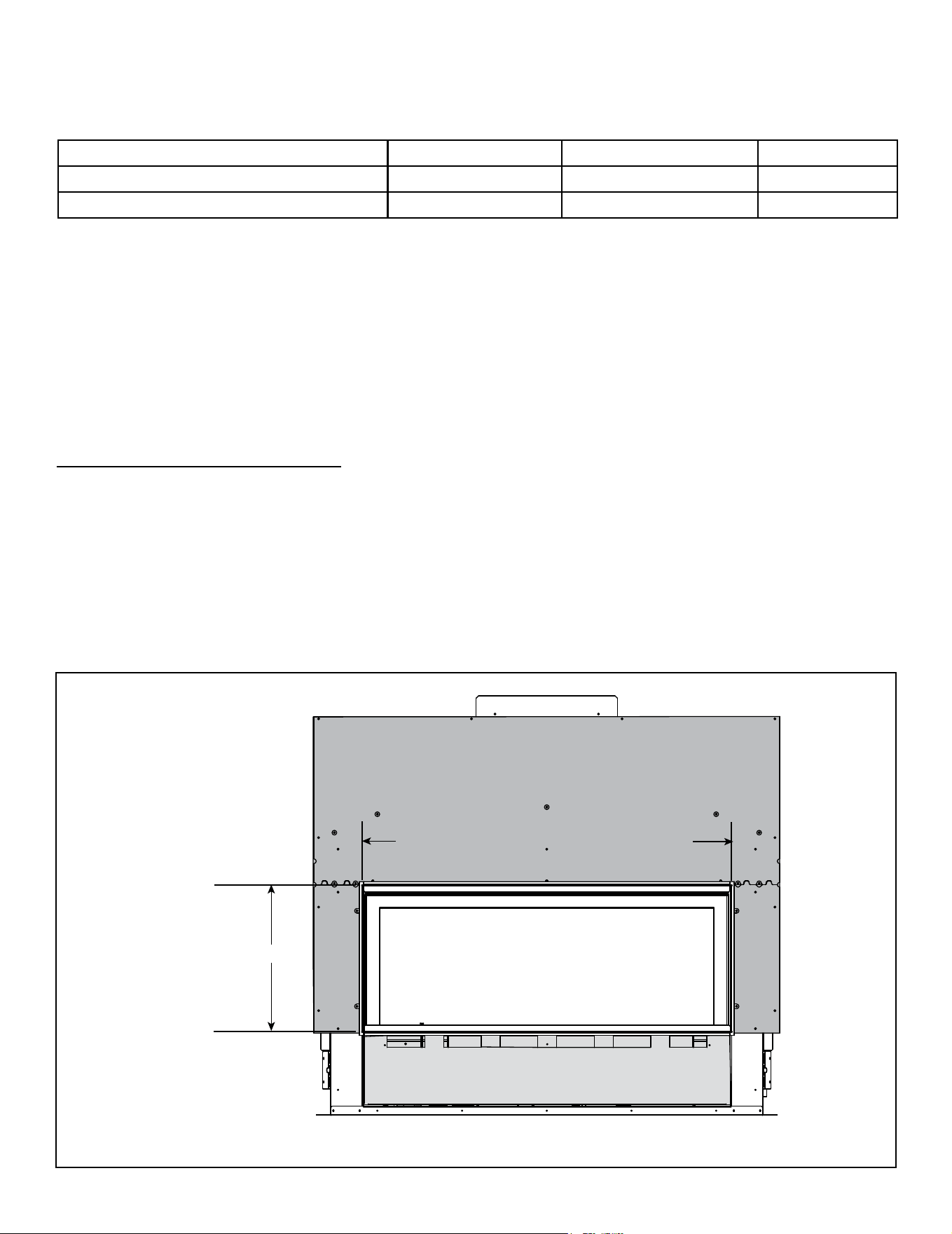

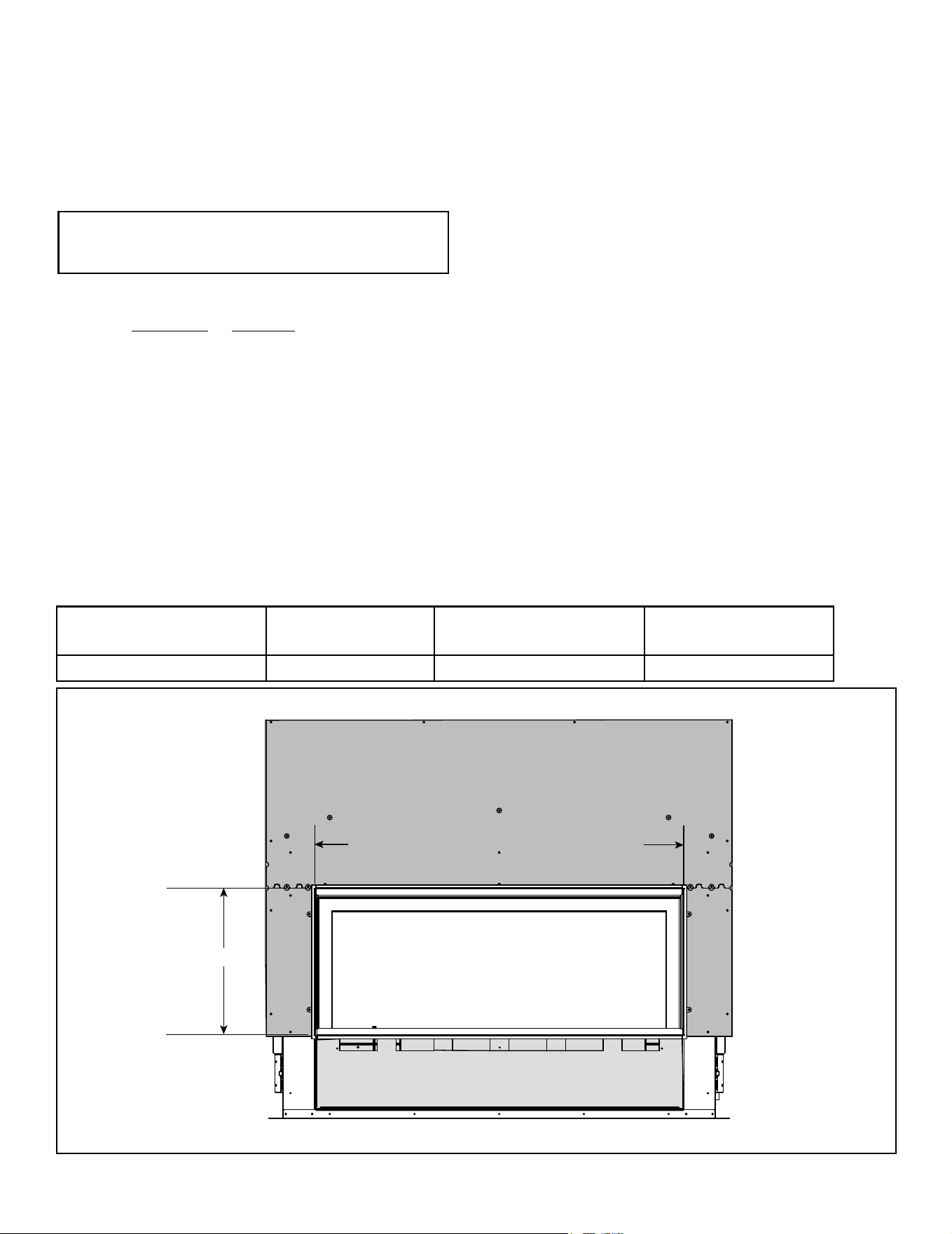

Figure 10.4 Minimum Finished Opening Dimensions - Clean Face Trim Front Method
Note: When a Clean Face Trim decorative barrier front
is installed, the rectangular holes in bottom access panel
will be covered.
C. Decorative Barrier Fronts
WARNING! Risk of Burns! A decorative barrier front is
required for this model. DO NOT operate this appliance
without a decorative barrier front in place.
Note: See appliance Owner’s Manual for TV mounting
guidelines.
Only decorative barrier fronts certied for use with this ap-
pliance model may be used. Contact your dealer for a list
of decorative barrier fronts that may be used.
The decorative barrier fronts approved for use with this
appliance have been designed to be installed by two
methods: Overlap Fit or Inside Fit. Before beginning the
installation, it is important to determine which method will
be used.
Decorative Barrier
Front
Finishing Method Material Thickness Trim Ring
Clean Face Trim (CFT) Overlap Fit 0-1 inch Included & Used
67Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
Non-Combustible Finish Materials
NOTICE: This four inch maximum not only includes the
decorative nish materials (marble, tile, slate, etc) but also
the thin set, lath and adhesive used to attach the decorative
nish material.
Note: When a Clean Face Trim decorative barrier front
is installed, the rectangular holes in bottom access panel
will be covered.
Clean Face Trim Front (CFT)
Inside Fit (1-4 Inches Thick Finishing Method)
There are two options for this method of nishing:
With Decorative Trim Ring: (Option #2)
The trim ring, which is included with the CFT front, will be
installed and used as a nishing template. It will be left
exposed.
WARNING! Risk of Fire! DO NOT apply nishing mate-
rial beyond the trim ring. Appliance will overheat if nish-
ing material extends into appliance opening.
1. Remove bottom nishing template from bottom access
panel. Verify that factory-installed nishing guards are
installed to ensure nishing material does not extend
into the replace opening. See Figures 10.2 and 10.3.
2. The non-combustible nish material, 1-4 inches thick,
should be installed up to the replace opening on all
four sides, including the bottom access panel, cover-
ing the eight rectangular holes. Refer to Figure 10.4.
WARNING! Risk of Fire! DO NOT apply nishing mate-
rial beyond the nishing guard. Appliance will overheat if
nishing material extends into appliance opening.
NOTICE: Decorative barrier front will not t properly if
nishing material is applied beyond the nishing guard.
3. Follow Inside Fit section of the instructions provided
with decorative barrier front.
1. Remove nishing template from bottom access panel.
2. Remove top and bottom nishing guards.
3. Install trim ring (included with CFT decorative barrier
front). Push trim ring completely into the opening.
4. Place trim ring into position and install the four shoul-
der bolts through the trim ring as shown in Figure 10.6.
Install the screw as shown in Figure 10.5.
Finishing materials may be installed up to the trim ring but
must not extend beyond it. See Figure 10.7.
Figure 10.5 Install Trim Ring
Figure 10.6 Install Shoulder Bolts
BOTTOM GLASS SHIELD
SHOULDER
BOLTS (4)
RECTANGULAR HOLE
BOTTOM PANEL
BOTTOM FINISHING TEMPLATE
WARNING! Risk of Fire! DO NOT apply combustible
materials beyond the minimum clearances. Comply with
all minimum clearances to combustibles as specied in
this manual. Overlapping materials could ignite.
NOTICE: It is recommended that high temperature silicone
sealant (500º F minimum continuous exposure rating) be
used to adhere the trim ring to the nishing material.
Without Decorative Trim Ring: (Option #1)
Note: You will not use the trim ring, which is shipped with
the CFT front, for this application.
CFT Finishing Method Trim Ring
Inside Fit
Included & Not Used
(Option #1)
Included & Used
(Option #2)
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
68
Figure 10.8 Finishing and Facing Materials - Inside Fit
CFT Decorative Barrier Front Only
Finishing - Raised Hearth in Front of Appliance
A non-combustible hearth may be installed in front of the
appliance only if the inside t nishing method with CFT
doors is used.
1. Non-combustible hearth material may be placed up to
the bottom edge of the trim ring. The hearth may be a
maximum of twelve inches in depth.
TRIM RING INSTALLED
FINISH TO THIS EDGE
FINISH TO THIS EDGE OF TRIM RING
Figure 10.7 Non-Combustible Finish Material Diagram for 1-4
Inch Thick Inside Fit Method Using Trim Ring
(Option #2)
CFT FRONTS ONLY
TRIM RING
CFT FRONTS ONLY
12 IN. MAX
NON-COMBUSTIBLE HEARTH
69Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
WARNING! Risk of Fire! DO NOT apply combustible
materials beyond the minimum clearances. Comply with
all minimum clearances to combustibles as specied in
this manual. Overlapping materials could ignite.
1. Follow instructions provided with decorative front for
installation.
0-1 Inch Thickness Overlap Fit Method
The non-combustible nishing material, 0-1 inch thick,
should be installed up to the replace opening on the top
bottom and sides.
Use the factory-installed top nishing guard to ensure the
nishing material does not extend into the replace open-
ing.
See Figure 10.9 for minimum nished opening dimen-
sions.
Figure 10.9 Non-Combustible Finish Material Diagram for 0-1 Inch Thick Overlap Fit Method (Picture Frame Front)
WARNING! Risk of Fire! DO NOT apply nishing mate-
rial beyond the top nishing guard and the bottom nish-
ing template. Appliance will overheat if nishing material
extends into appliance opening.
NOTICE: Decorative front will not t properly if nishing
material is applied beyond the nishing guard.
Picture Frame Front (PFF)
Non-Combustible Finish Materials
Overlap Fit (0-1 Inch Thick Finishing Material Only)
Decorative Front Finishing Method Material Thickness Trim Ring
Picture Frame Front (PFF) Overlap Fit 0-1 inch Not included
Picture Frame Front (PFF) Inside Fit 0-4 Not included
FIREPLACE VIEWING AREA
15-3/4 IN.
51-1/8 IN. ECHEL48IN-C/ECHEL48STIN-C
39-1/8 IN. ECHEL36IN-C/ECHEL36STIN-C
63-1/8 IN. ECHEL60IN-C
NOTICE: If one inch maximum nishing material thickness
is exceeded, the decorative barrier front will not t. This
one inch maximum not only includes the decorative nish
materials (marble, tile, slate, etc) but also the thin set, lath
and adhesive used to attach the decorative nish material.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
70
0-4 Inch Thickness-Inside Fit Method
0-4 Inches Finishing (Inside Fit):
See Figure 10.10 the required measurements to ensure
the proper t of the PFF. The top and bottom will have a
1/2 inch space from the PFF to the nished wall above
and below it. This is required to prevent the appliance
from overheating.
WARNING! Risk of Fire! DO NOT apply combustible
materials beyond the minimum clearances. Comply with
all minimum clearances to combustibles as specied in
this manual. Overlapping materials could ignite.
Figure 10.10 Minimum Finished Opening Dimensions - Picture Frame Front - Inside Fit 0-4 Inch
24-3/8 IN.
ECHEL36IN-C/ECHEL36STIN-C = 47-1/4 IN.
ECHEL48IN-C/ECHEL48STIN-C = 59-1/4 IN.
ECHEL60IN-C = 71-1/4 IN.
4-7/16 IN.
4-7/16 IN.
4-1/8 IN.
4-1/2 IN.
1/2 IN. (TOP & BOTTOM) BETWEEN FINISHING MATERIAL
& PFF SURROUND FOR AIR FLOW
1/2 IN.
RECTANGULAR ACCESS HOLES COVERED
1/2 IN. (TOP & BOTTOM) BETWEEN FINISHING MATERIAL
& PFF SURROUND FOR AIR FLOW
71Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

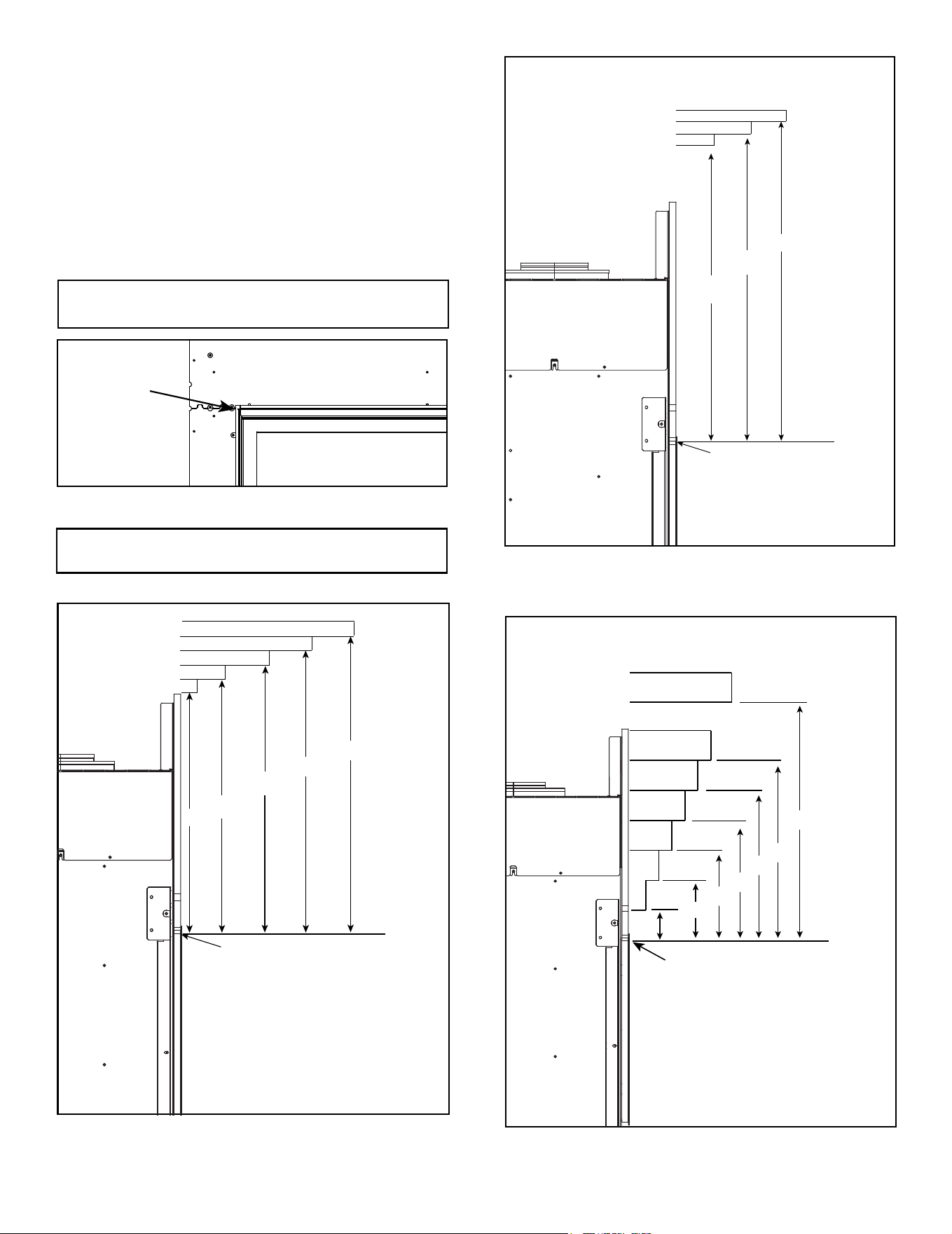

D. Mantel and Wall Projections
WARNING! Risk of Fire! Comply with all minimum clear-
ances to combustibles as specied. Framing closer than the
minimums listed must be constructed entirely of noncom-
bustible materials (i.e., steel studs, concrete board, etc.)
Combustible Mantels
Note: For non-combustible replace nish material (marble,
stone, etc) specications refer to Section 10.A.
Figure 10.12 Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles - ECHEL36IN-C,
ECHEL36STIN-C, ECHEL48IN-C and ECHEL48STIN-C
MEASUREMENT FROM
TOP EDGE OPENING
18
20
23
26
29
9
12
6
3
1
Measurement from top edge opening
to bottom of appliance = 24-1/2 IN.
MAX.
Note: All measurements in inches.
MEASUREMENT FROM
TOP EDGE OPENING
24
27
30
9
6
3
Measurement from top edge opening
to bottom of appliance = 24-1/2 IN.
MAX.
Figure 10.13 Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles - ECHEL60IN-C and
ECHEL72IN-C
Note: All measurements in inches.
TOP OF APPLIANCE OPENING
Figure 10.11 Location of Appliance Opening
If the Passive Heat kit will be installed, see Figure 10.18
for details regarding clearances to combustibles in addi-
tion to the requirements for Combustible and Non-Com-
bustible Mantel diagrams and the Mantel Leg/Wall Pro-
jection diagrams (Figure 10.11-Figure 10.17).
Figure 10.14 Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles - Passive Heat Kit
Installed (All Sizes)
Note: All measurements in inches.
MEASUREMENTS FROM TOP EDGE
OF THE APPLIANCE OPENING
4
5
6
16
3
2
1
6
7
8
9
10
11
18
MAX.
Measurement from top edge of opening
to bottom of appliance = 24-1/2 IN.
Note: Minimum distance from top edge opening to ceiling
can be found in the Framing and Clearances section 3.B.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
72
Non-Combustible Mantels
Note: All measurements in inches.
Figure 10.15 Minimum Vertical and Maximum Horizontal
Dimensions of Non-Combustibles - Overlap Fit
Finishing
3 FT. MAXIMUM
4-1/2 IN.
MINIMUM
FIREPLACE OPENING
See Appliance Dimension Diagram-Dimension B
Figure 3.1 (ECHEL36IN-C, ECHEL48IN-C)
Figure 3.2 (ECHEL60IN-C, ECHEL72IN-C)
Figure 3.3 (ECHEL36STIN-C, ECHEL48STIN-C)
Figure 10.17 Mantel Leg or Wall Projections
(Acceptable on both sides of opening)
Mantel Legs Or Wall Projections Extending Past The Face Of The Fireplace (Combustible or Non-Combustible)
Figure 10.18 Mantel Leg or Wall Projections
(Acceptable on both sides of opening)
OVERLAP FIT
Figure 10.16 Minimum Vertical and Maximum Horizontal
Dimensions of Non-Combustibles - Inside Fit
Finishing
INSIDE FIT
Note: All measurements in inches.
7 IN.
MINIMUM
UNLIMITED
FIREPLACE OPENING
See Appliance Dimension Diagram-Dimension B
Figure 3.1 (ECHEL36IN-C, ECHEL48IN-C)
Figure 3.2 (ECHEL60IN-C, ECHEL72IN-C)
Figure 3.3 (ECHEL36STIN-C, ECHEL48STIN-C)
MEASUREMENTS FROM TOP EDGE
OF THE APPLIANCE OPENING
4
5
6
16
3
2
1
6
7
8
9
10
11
18
MAX.
Measurement from top edge of opening
to bottom of appliance = 24-1/2 IN.
MEASUREMENTS FROM TOP EDGE
OF THE APPLIANCE OPENING
4
5
6
16
9
10
18
MAX.
Measurement from top edge of opening
to bottom of appliance = 24-1/2 IN.
7
11
73Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

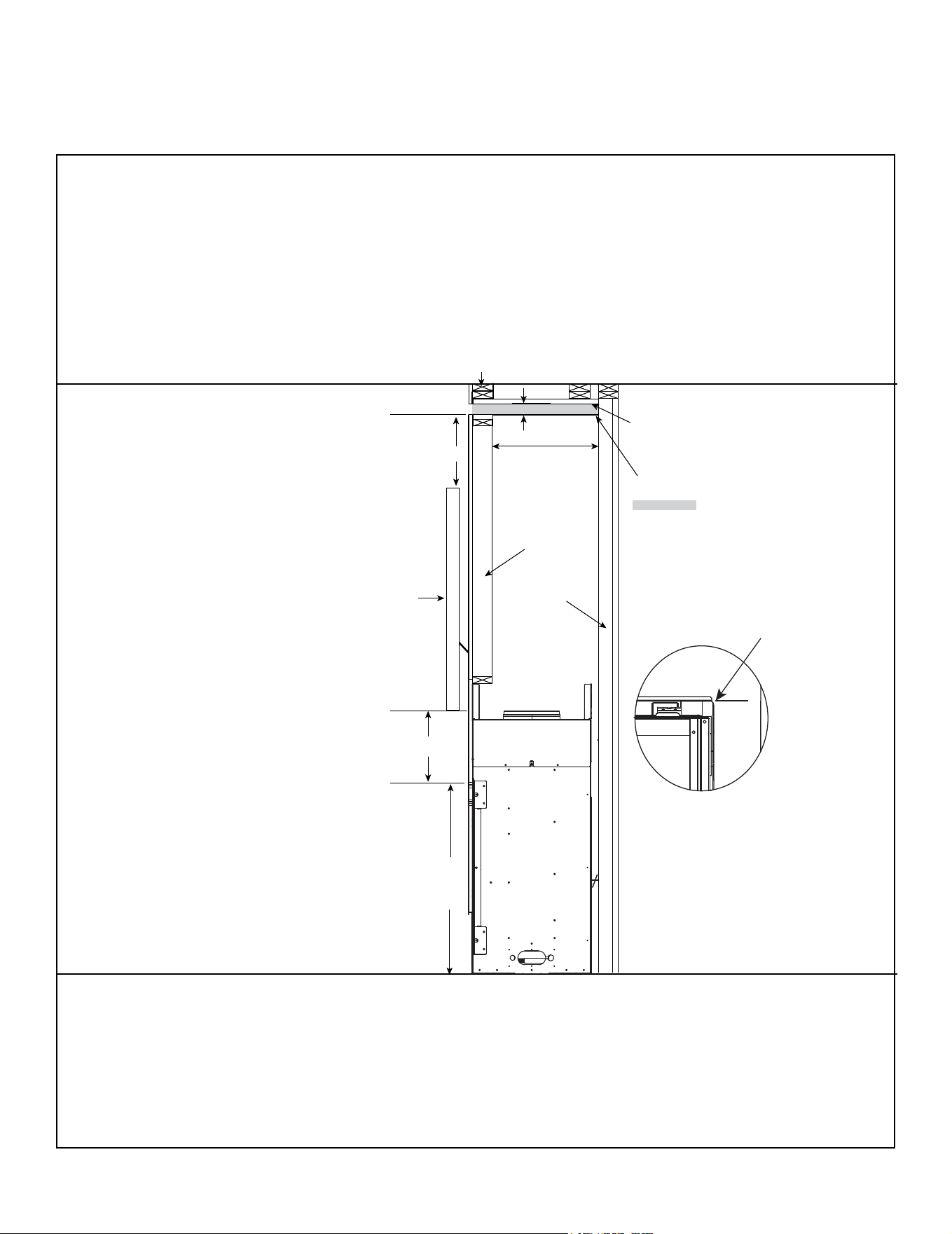

Figure 10.19 Clearances with Passive Heat Optional Heat Management System Installed
Clearances with Passive Heat Optional Heat Management System
Figure 10.19 shows the required clearances for appliance,
ceiling nishing material and framing members. Ensure
all clearances are maintained.
WARNING! Risk of Fire! Wire mesh required on bottom of discharge opening when discharge
opening is greater than 3 inches. Secure wire mesh to top of framing.
Measurement from top edge
of opening to bottom of
appliance = 24-1/2 IN.
ROOM CEILING
TV
12 IN. MIN.
4 IN. MIN.
1/2 IN. X 1/2 IN.
WIRE MESH*
* Wire mesh required for front discharge or open top discharge passive heat installations with discharge opening of 3 inches or greater.
Good Faith Guidelines for TV Installations
Above a ECHELON-C Fireplace with Passive Heat Option
(Single-Sided Appliance Shown)
FIREPLACE
OPENING
2 X 4 FRAMING
2 X 4 OR 2 X 6
FRAMING
WIRE MESH*
= PASSIVE HEAT
DISCHARGE OPENING
2 IN. MIN.
1-1/2 IN. (2 X 4 FRAMING)
CHASE CEILING - SEE FIGURES 3.10-3.12
Required for non-ducted front and side
discharge passive heat installations.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
74

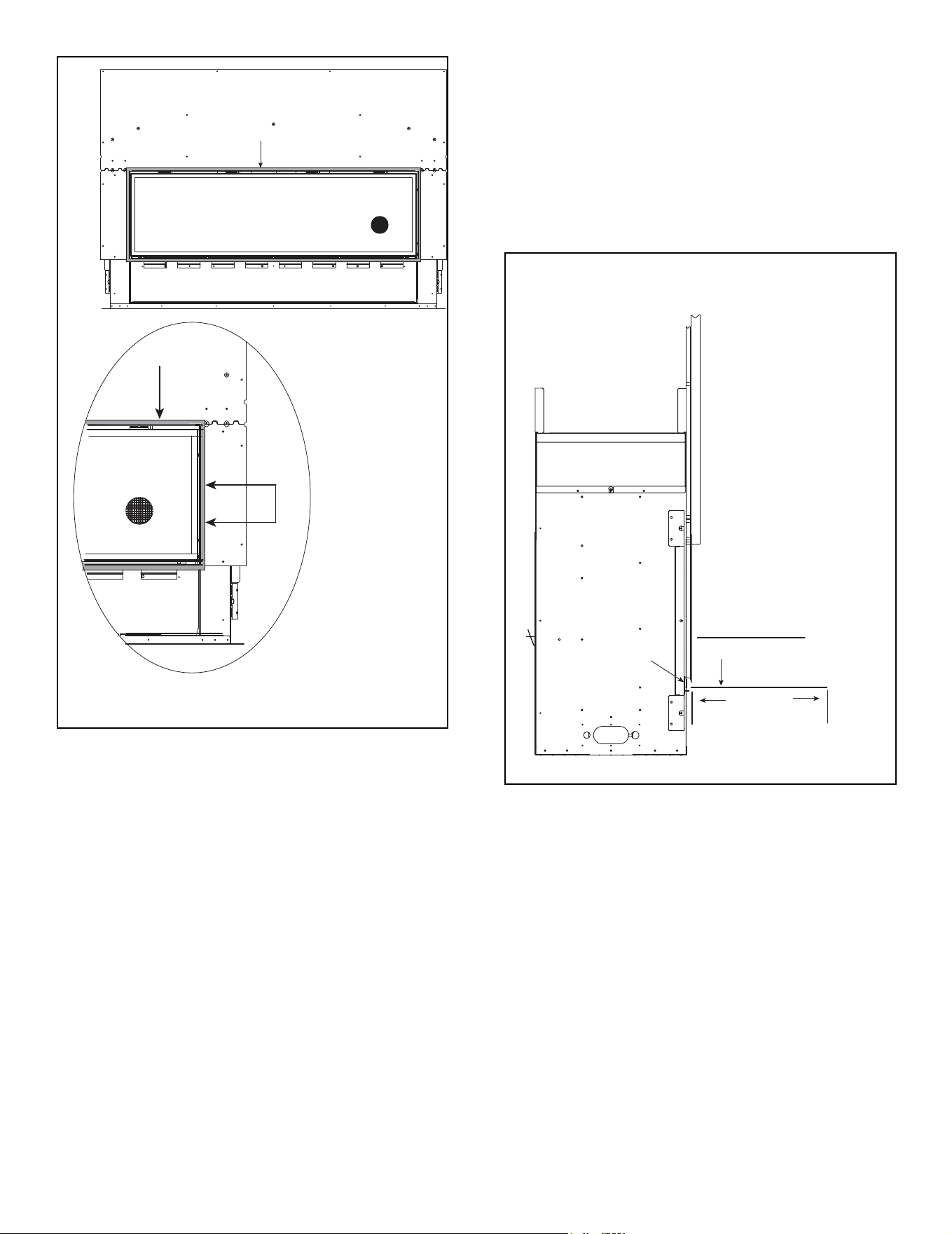

11 11
Appliance Setup

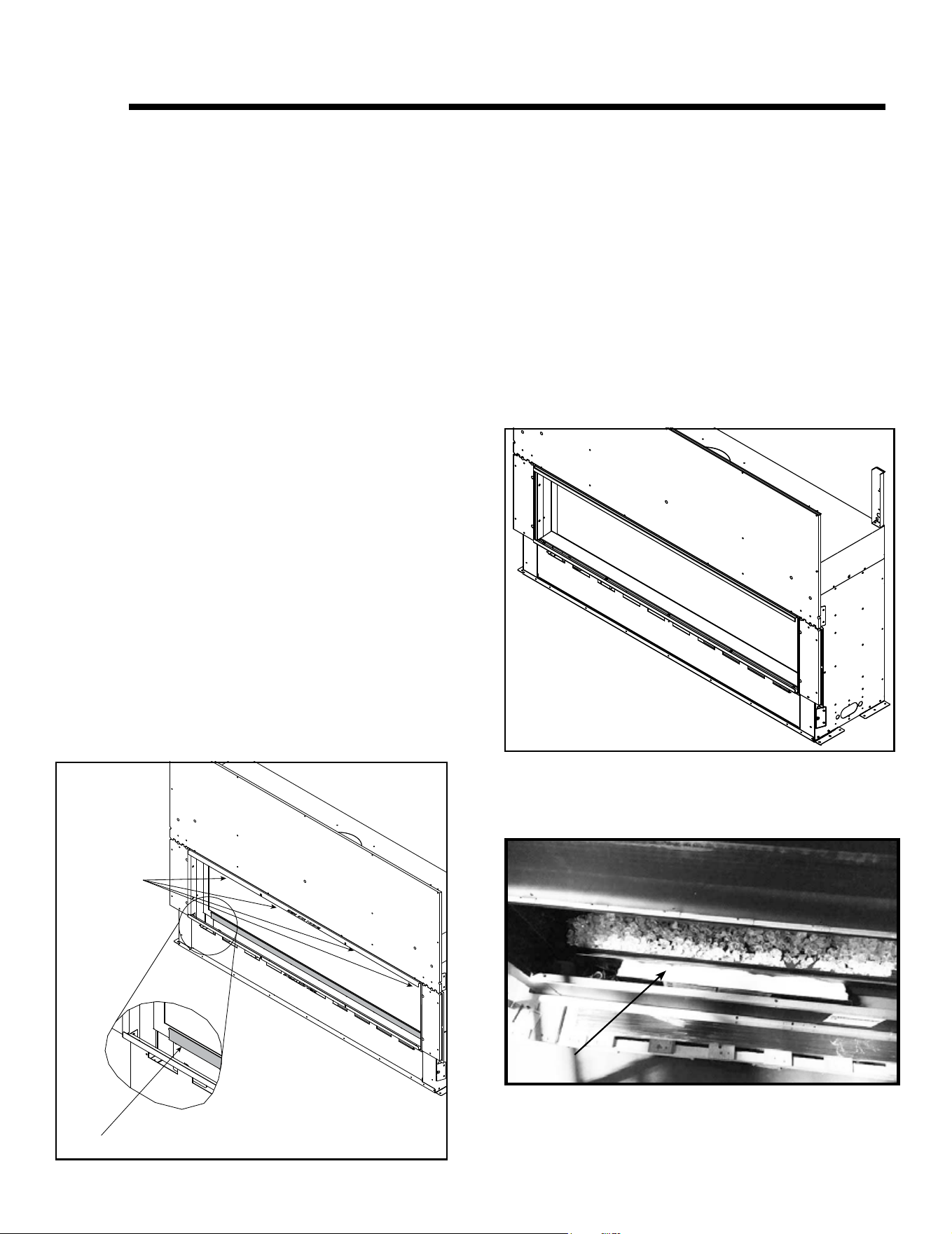

Figure 11.1 Fixed Glass Assembly
A. Fixed Glass Assembly Removal and Re-
placement
WARNING! Risk of Asphyxiation! Handle xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT strike, slam or scratch glass.
• DO NOT operate replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
Removing Fixed Glass Assembly
1. Remove the decorative barrier front from replace and
set aside on work surface.
2. Remove bottom glass shield. See Figure 11.2.
3. Locate the glass latches that are on the upper edge of
the glass frame of the appliance. See Figure 11.1.
4. Use both index ngers to release the glass clips.
5. Allow glass to tilt forward. Grasp glass on the upper
return lip of glass frame and lift up and out. The glass
should lift easily out of the bottom retaining lip.
Replacing Fixed Glass Assembly
1. Locate retaining lip on lower front face of rebox.
2. Place glass assembly into retaining lip end. Tilt top of
glass assembly toward replace.
3. Assure proper left to right placement of glass and
engage all four spring latches.
4. Replace bottom glass shield and decorative barrier
front.
B. Remove the Shipping Materials/Install
Bottom Glass Shield
Remove shipping materials from inside or underneath
the rebox. Verify all components are with the replace.
Unwrap the bottom glass shield and replace in the same
location as shown in Figure 11.2.
Figure 11.2 Bottom Glass Shield Location
BOTTOM GLASS SHIELD
CAUTION! Risk of Overheating! DO NOT remove com-
ponent insulation from top of component heat shield.
Electrical components will be damaged.
Figure 11.3 Component Insulation Location
COMPONENT INSULATIONCOMPONENT INSULATION
BOTTOM RETAINING LIP
GLASS CLIPS
Note: The return bend on the bottom glass shield will slide
between the rebox glass and the rebox glass frame.
Firm pressure may be required to engage the bottom glass
shield into the rebox glass assembly.
75Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
F. Install Media (Included)
A media kit is included for use with the ECHELON mod-
els. Install glass media as instructed. Use the chart
below to determine the amount of media to use for the
model size being installed. Three additional color options
are available for use with Echelon.
Cleaning the Media
During shipment of the media, dust and debris can
accumulate. It is recommended that the media be rinsed
thoroughly with water to remove dust and small particles.
An easy method to clean the media is to place the media
into a pail and rinse thoroughly. Spread the media out
over paper towels and allow the media to dry before
installing them into the replace.
WARNING! Choking Hazard! Keep media out of reach
of children.
MODEL
MEDIA-MAX. #
OF BAGS
ECHEL36IN-C/ECHEL36STIN-C 3
ECHEL48IN-C/ECHEL48STIN-C 4
ECHEL60IN-C 6
ECHEL72IN-C 7
NOTICE: DO NOT EXCEED MAXIMUM AMOUNT OF
MEDIA. Place media as instructed. Flame performance
could be impacted. Sooting could occur.
C. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the rebox or underneath in the control cavity.
E. Install Log Set or Stones (Optional)
An optional log set and/or stones kit is available for use
with the ECHELON models. Install the accessories per
instructions included with kit.
D. Install Glass Refractory (Optional)
An optional glass refractory kit is available for use with the
ECHELON models. Install the kit per instructions included.
WARNING! Risk of Fire! Remove all debris and objects
from rebox top and appliance top before operating the
appliance.
Inspect for and remove all debris that may have
accumulated or objects that may have been placed on
the rebox top and appliance top during the installation
process. All debris and objects must be removed prior to
operation of the appliance. Firebox top and appliance top
are shown in Figure 11.4.

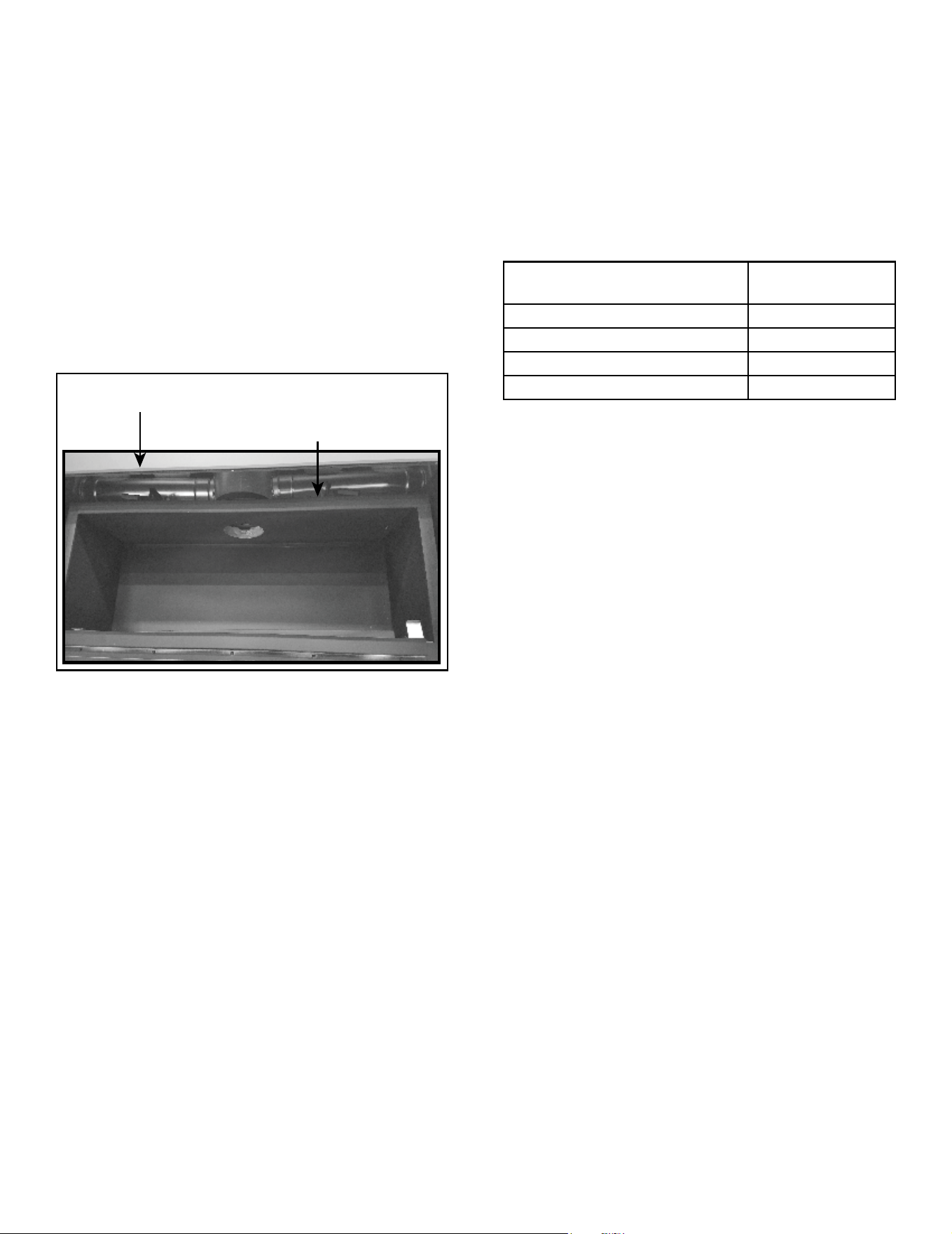

Figure 11.4
APPLIANCE TOP
FIREBOX TOP
Optional Passive Heat Kit Installations Only:
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
76

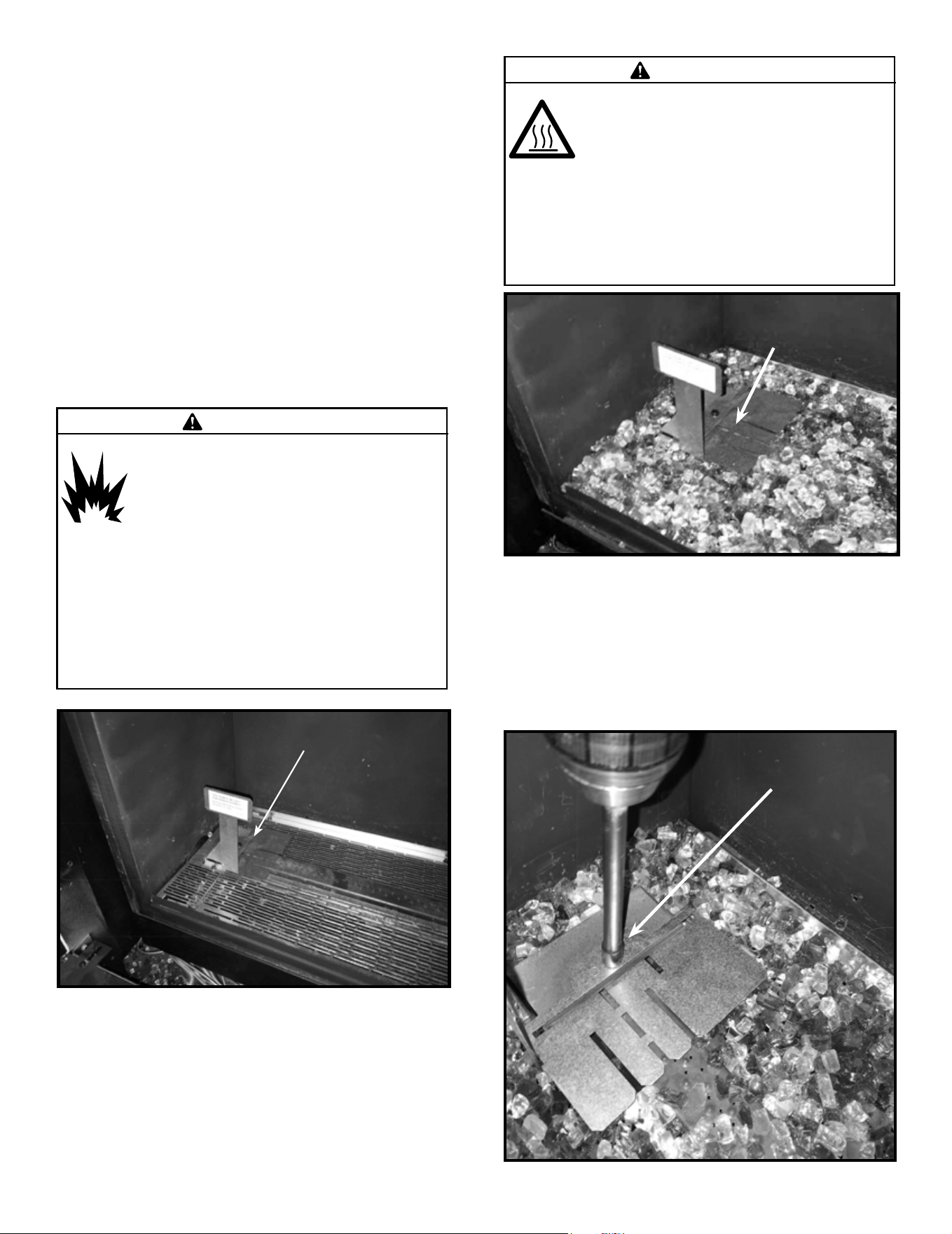

WARNING
Delayed Ignition Risk
• Place media according to instructions.
• Do NOT place media in area in front of pilot
• Do NOT place media in a position that they may
fall into area in front of pilot.
• Do NOT place media in a position that pieces may
fall between the media tray and back of rebox.
• Do NOT use any media other than the Hearth
& Home Technologies-supplied options for this
replace model.
• Do NOT exceed one layer of media on base pan.
Fireplace will not function properly.
Delayed ignition may occur.
INSTALLATION
Note: If both the media and logs will be installed, the logs
must be installed rst.
1. Set aside a handful of media which will be used later to
conceal the pilot end of the burner.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during
installation. Sheet metal edges are sharp.
2. The media placement jig, shown in Figure 1, MUST
be used any time media are placed on the burner to
ensure that there is no media in the burner lighting area.
Verify that the media placement jig is correctly installed
in place in the appliance. See Figure 1.
CAUTION! Risk of Burns! The replace should be turned
o and cooled before media is installed.
Figure 1 Media Placement Jig Location
MEDIAMEDIA PLACEMENT JIG PLACEMENT JIG
3. The media placement jig must remain in place while
media is placed on the media tray and around the pilot
bracket.
4. Place an even layer of media around the media tray as
shown in Figure 2. DO NOT place media on media
placement jig.
5. Remove the screw, noted in Figure 3, from the media
placement jig and carefully lift the jig out of the appliance.
DO NOT allow any pieces of media to fall into the
area in front of the pilot.
Figure 3. Remove Media Placement Jig
WARNING! Risk of Explosion! DO NOT place media
directly in front of the pilot assembly. Delayed ignition
could occur.
SCREWSCREW
Figure 2. Media Placement Jig in Place
NO MEDIA ON JIGNO MEDIA ON JIG
WARNING
Risk of Asphyxiation or Fumes.
• Place media according to instructions.
• Do NOT place media in area between glass and
rebox.
• Do NOT place media in a position that they may
fall into area between glass and rebox.
• Do NOT use any media other than the media
supplied with this replace.
Fireplace will not function properly.
Gas leak may occur.
77Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

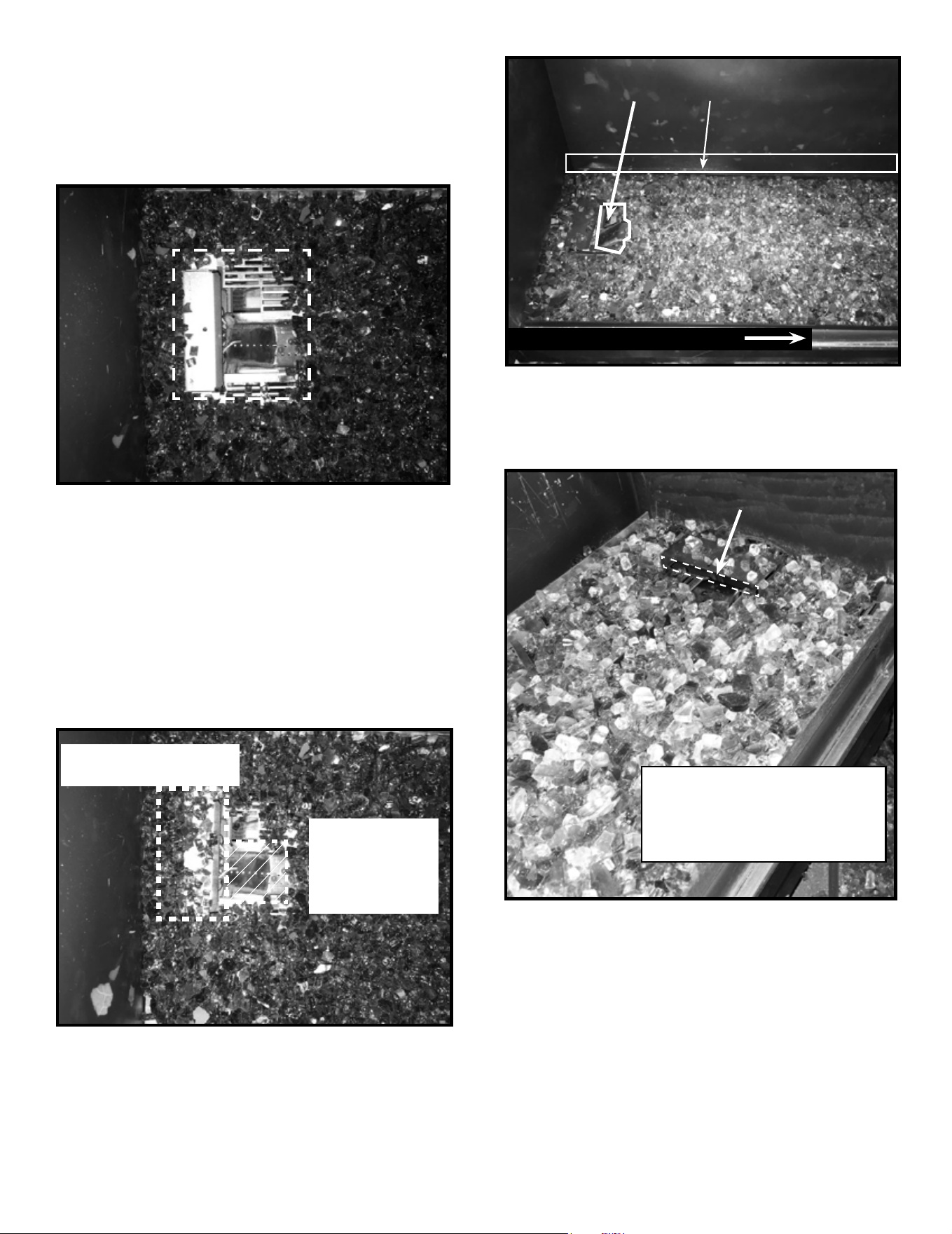

Figure 6. Media Installed
NO MEDIA ALLOWEDNO MEDIA ALLOWED
NO MEDIA IN GLASS RAILNO MEDIA IN GLASS RAIL
Figure 7. Media Placement Restriction Area
ECHEL60IN-C ANDECHEL60IN-C AND
ECHEL72IN-C MODELS ECHEL72IN-C MODELS
ONLYONLY
DO NOT PLACE MEDIA IN THIS AREADO NOT PLACE MEDIA IN THIS AREA
9. ECHEL60IN-C and ECHEL72IN-C ONLY:
DO NOT place media in front of opening on right side
of the burner (60 and 72 only). Flame appearance will
be aected. See Figure 7.
10. Check between the pilot and burner and remove any
media that has fallen into this area.
11. Turn the appliance on to verify that the pilot and the
burner light properly.
12. Remove any glass media that may have fallen in the
bottom glass rail. Glass will not install properly if media
is present in glass rail. See Figure 6.
13. Reinstall glass assembly.
14. Install bottom glass shield between glass and glass
frame. See Figure 8.
15. Reinstall mesh front.
6. Place the media set aside in Step 1 over the pilot
shield and areas shown in Figure 4 uncovered by
removing the media placement jig. See Figure 4. DO
NOT allow any media in the 1 inch area shown in
Figure 5.
7. Check the pilot area to ensure there is no media
in between the end of the burner and the pilot.
Performance issues will occur if media is present.
WARNING! Risk of Explosion! DO NOT place media
between end of burner and pilot. Delayed ignition could
occur.
Figure 4. Media Installed with Media Placement Jig Removed
Figure 5. Pilot Shield Media installation.
MEDIA ALLOWEDMEDIA ALLOWED
ON PILOT SHIELD ON PILOT SHIELD
NO MEDIA NO MEDIA
ALLOWEDALLOWED
APPROX. 1 IN.APPROX. 1 IN.
SQUARE SQUARE
8. DO NOT allow media to fall between the media tray
and the back of the rebox. Remove any fallen media
before proceeding. See Figure 6.
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
78

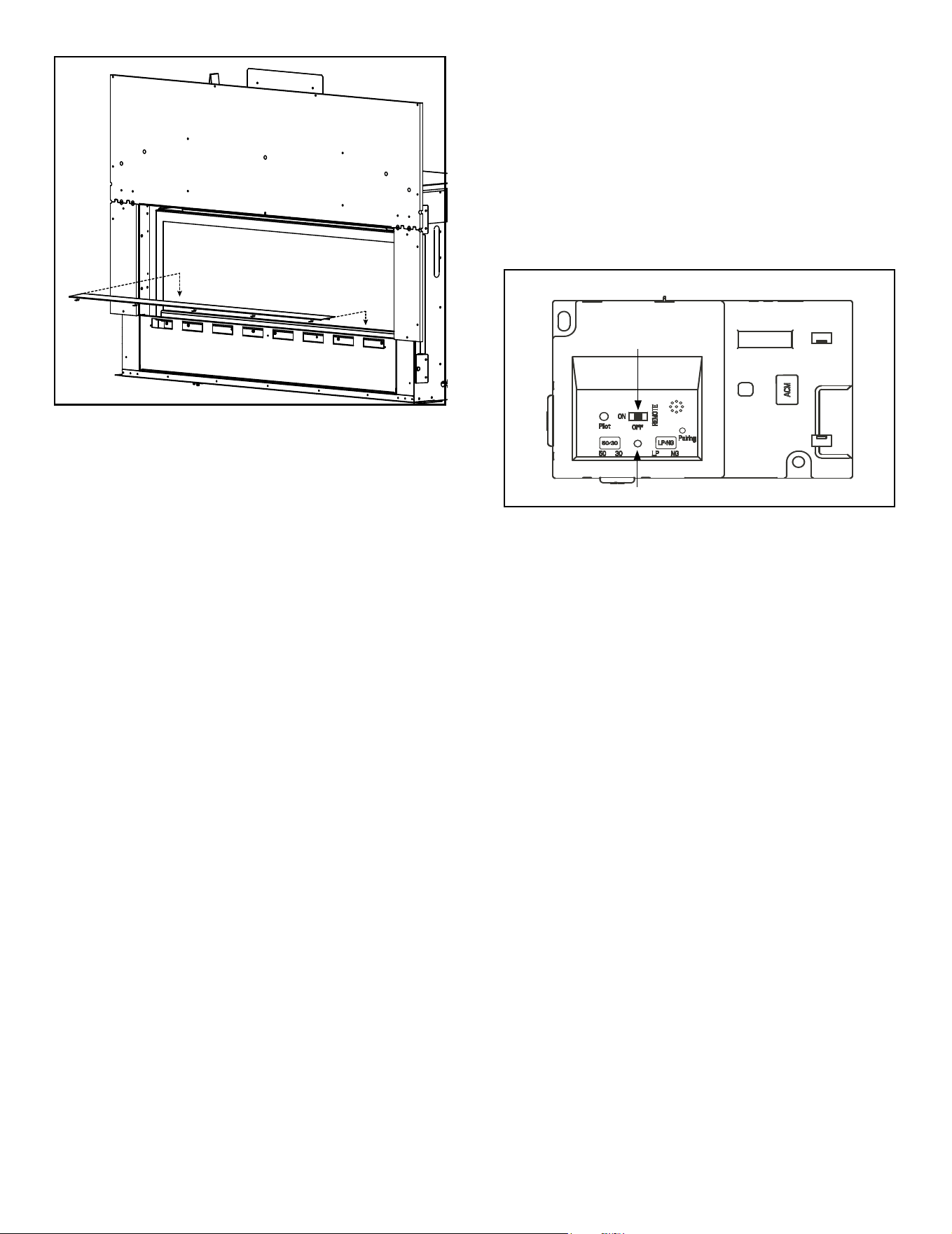

G. IntelliFire Touch
®
Control System Setup
• Detailed instructions for electrical wiring and
connections are provided in Section 8.
• Determine if this appliance is equipped with a Module
Reset Switch. See Section 8. Verify this switch is in
the ON position.
• Verify that the 3-Position switch on the IFT-ECM is
switched to the REMOTE position. Detailed Operating
Instructions for the IFT-ECM are provided in Section
3.K of the Owner’s Manual.
Figure 11.4 IFT-ECM
This appliance is factory-equipped with an IntelliFire
Touch remote control. The remote was paired to the
replace and tested at the factory. It does not need to
be paired again, unless an accessory kit will be added
at the time of installation. If no additional accessory will
be added, simply follow steps one through seven below.
1. If installed, remove batteries from remote.
2. Verify that the new appliance has power and secure
electrical connections.
3. Adjust the ECM selector switch to ‘REMOTE’ mode.
4. Switch the master reset switch to ‘ON’ (if equipped).
5. Wait to verify LED indicator on the ECM stops ashing.
6. Install batteries in the RC400 remote.
7. The RC400 remote will automatically pair to the
appliance as pre-set at the factory.
3 POSITION SWITCH
TOP VIEW
LED INDICATOR
Figure 8. Install Bottom Glass Shield
TROUBLESHOOTING
After the initial start up burn, it may be necessary to
adjust the media placement to achieve the best ame
appearance. While ame height variation is normal, there
may appear to be higher peaks in some areas and low
ame peaks in other areas.
If the ame height appears to be excessively high in
some spots, applying more media to these areas on top
of the burner will help even out the ames. Spreading
the media as evenly as possible is the most eective way
to achieve optimal ame appearance and the most even
ame heights. One or more test burns may be required
to watch the ames mature and see how even they look
before making adjustments.
H. Install Decorative Barrier Front
WARNING! Risk of Fire! Install ONLY decorative barrier
fronts approved by Hearth & Home Technologies. Unap-
proved decorative barrier fronts could cause replace to
overheat.
IMPORTANT! This fireplace requires an installed
decorative barrier front to prevent direct contact with
the hot viewing glass. DO NOT operate the replace
with the barrier removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
For more information refer to the instructions supplied with
your decorative barrier front.
79Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
12 12
Reference Materials

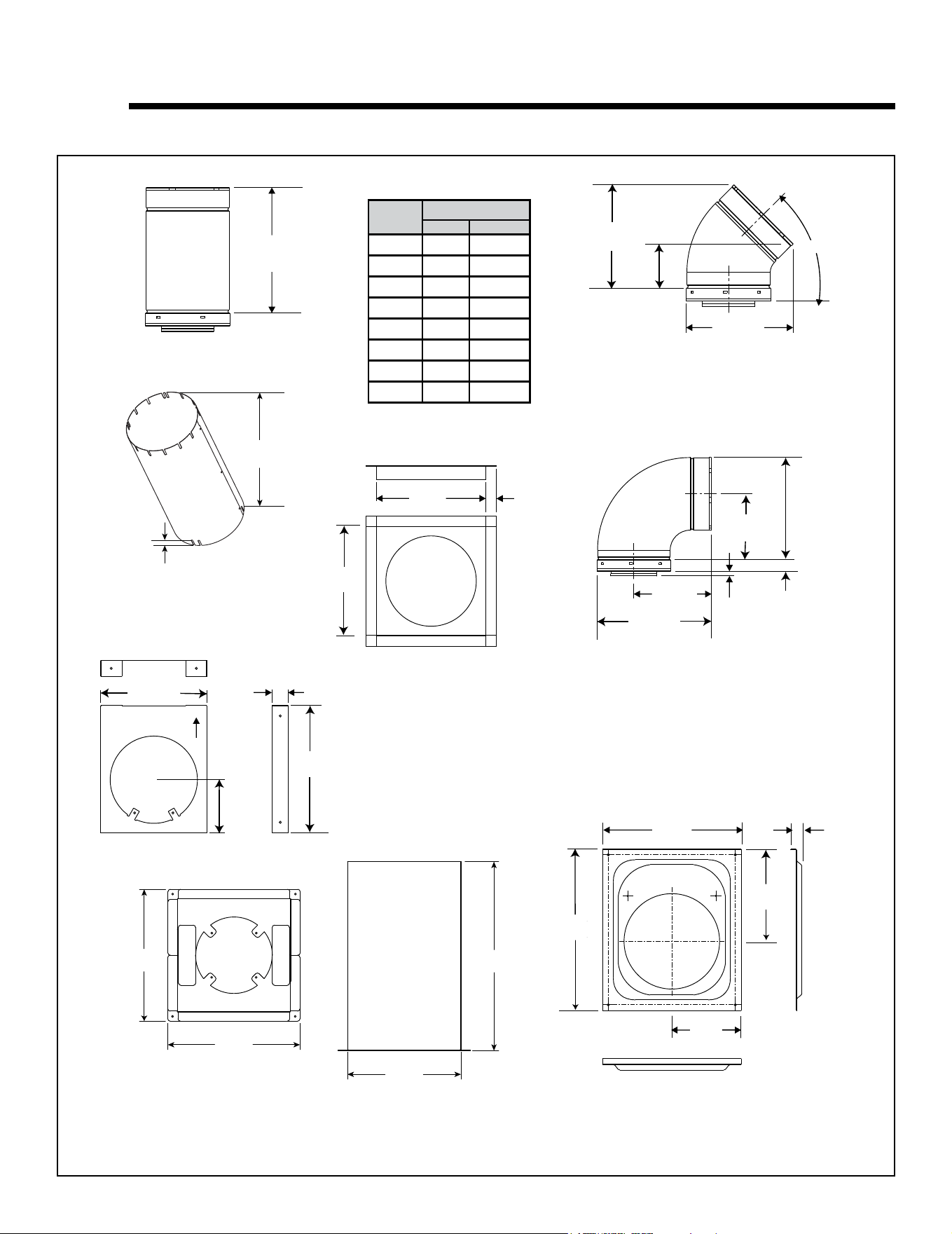

A. Vent Components Diagrams
Figure 12.1 DVP Vent Components
Pipe
Eective Length
Inches Millimeters
DVP4 4 102
DVP6 6 152
DVP12 12 305
DVP24 24 610
DVP36 36 914
DVP48 48 1219
DVP6A 3 to 6 76 to 152
DVP12A 3 to 12 76 to 305
10-1/2 in.
(267 mm)
10-7/8 in.
(276 mm)
45
°
7-3/8 in.
(187 mm)
11-3/8 in.
(289 mm)
1-1/4 in. (32 mm)
9-1/4 in.
(235 mm)
13-1/4 in.
(337 mm)
1/2 in.
TYP
DVP90ST (90° Elbow)
10 in.
(254 mm)
10 in.
(254 mm)
1 in.
(25 mm)
DVP-FS (Ceiling Firestop)
DVP45 (45º Elbow)
DVP Pipe (see chart)
Effective
Height/Length
4-7/8 in.
(124 mm)
(13 mm)
10 in.
(254 mm)
1- 1/2 in.
(38 mm)
5 in.
(127 mm)
12 in.
(305 mm)
UP
DVP-HVS (Vent Support)
12 in.
(305 mm)
14 in.
(356 mm)
1 in.
(25 mm)
8 in.
(203 mm)
6 in.
(152 mm)
DVP-WS (Wall Shield Firestop)
Finished Height: 19-3/4 in./502 mm
UNIV-AS2 (Attic Insulation Shield)
Tab=1 in.
(25.4 mm)
20-3/4 in.
(527 mm)
14 IN.
(356 MM)
14 IN.
(356 MM)
20 IN.
(508 MM)
12 IN.
(305 MM)
DVP-RDS
ROOF DECK INSULATION SHIELD
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
80
A. Vent Components Diagrams (continued)

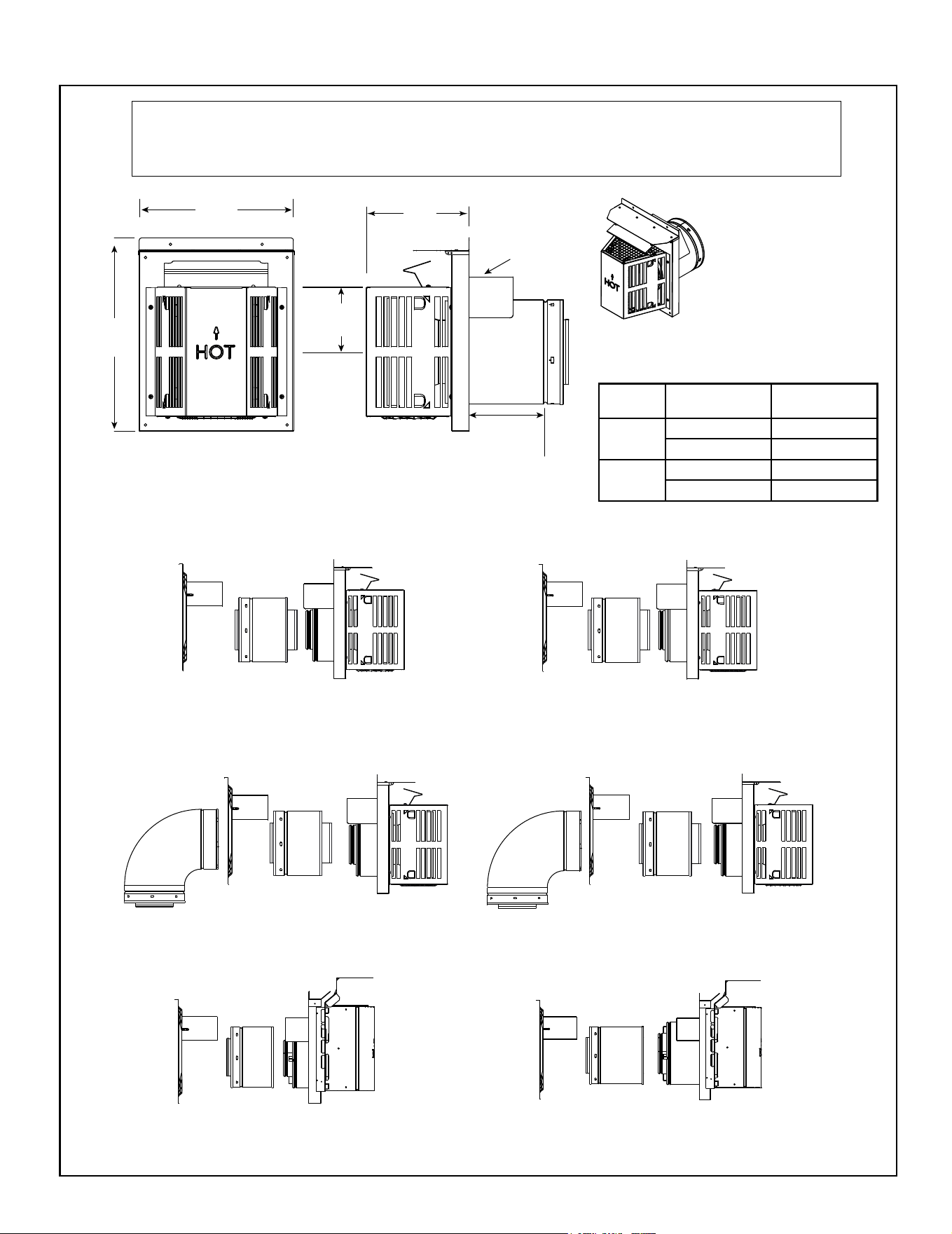

Figure 12.2 DVP Vent Components
DVP-HPC1
Can adjust 2-1/8 in. (4-1/4 to 6-3/8)
DVP-TRAP1
DVP-TRAP2
DVP-TRAPK2
DVP-TRAPK1
DVP-TRAP
Horizontal Termination Cap
Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm). The heat shield is designed to be
used on a wall 4 in. to 7-1/4 in. (102 mm to 184 mm) thick. If wall thickness is less than 4 in. (102 mm) the
existing heat shields must be field trimmed. If wall thickness is greater than 7-1/4 in. (184 mm) a DVP-HSM-B
will be required.
* Center of the horizontal vent pipe to
the vertical measuring surface.
DVP-HPC2
Can adjust 4-1/8 in. (6-3/8 to 10-1/2)
Term Cap
Minimum
Effective Length
Maximum
Effective Length
Trap1
3-1/8 in. 4-5/8 in.
79 mm 117 mm
Trap2
5-3/8 in. 9-3/8 in.
137 mm 238 mm
15-1/8 in.
(384 mm)
12 in.
(305 mm)
Heat
Shield
Max
Effective
Length
*5 in.
(127 mm)
8 in.
(203 mm)
81Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

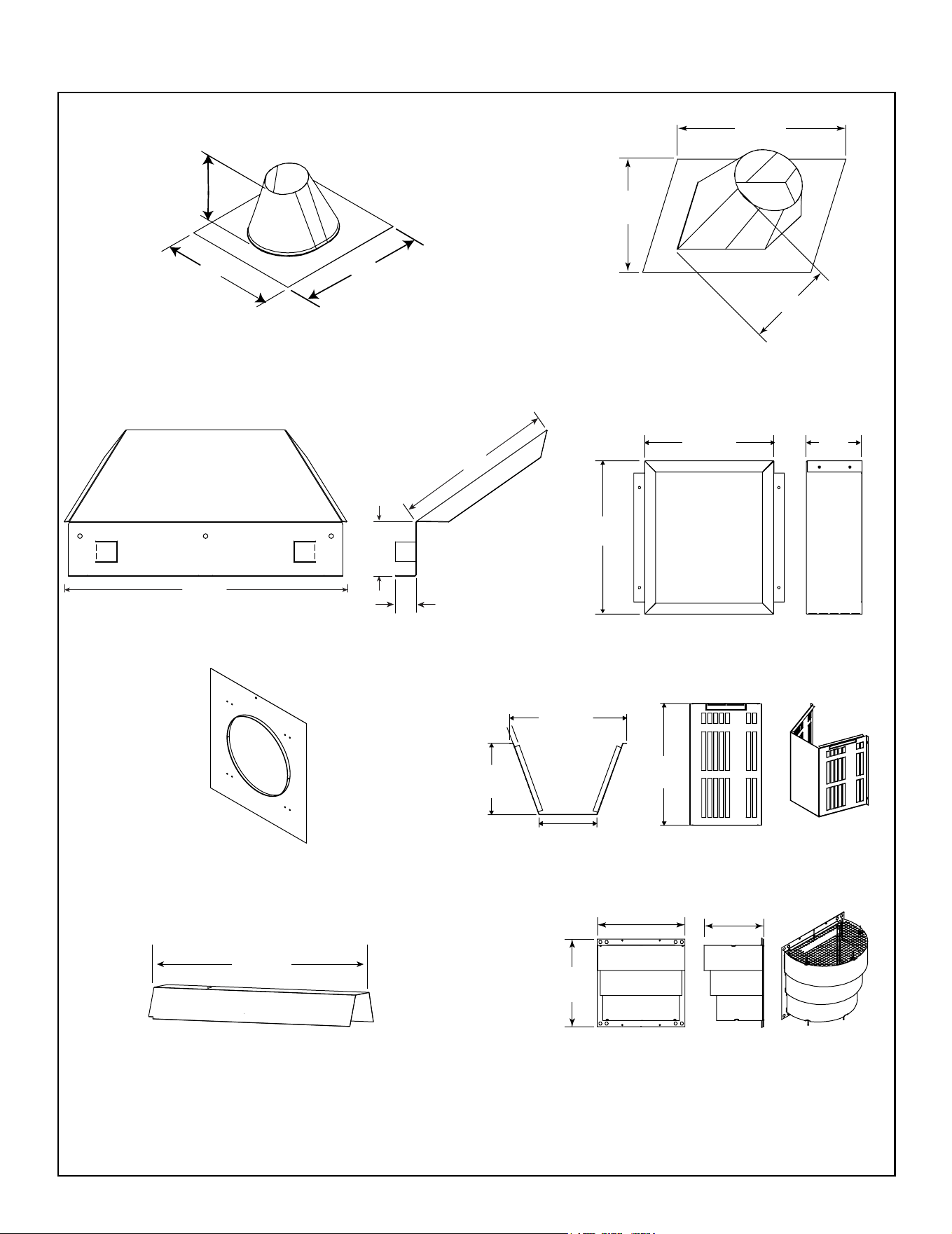

A. Vent Components Diagrams (continued)
Figure 12.3 DVP Vent Components
13-1/4 in.
(337 mm)
24-5/8 in.
(625 mm)
27-1/2 in.
(699 mm)
RF6
Roof Flashing
31 in.
(787 mm)
24-5/8 in.
(625 mm)
13-1/4 in.
(337 mm)
RF12
Roof Flashing
Cap Shield
DRC-RADIUS
13-7/8 in.
(352 mm)
9-1/2 in.
(241 mm)
14 in.
(356 mm)
COOL-ADDM
Cap Shield
11-5/8 in.
(295 mm)
5-3/4 in.
(146 mm)
7-1/8 in.
(181 mm)
12-1/8 in.
(308 mm)
DVP-BEK2
DVP-HPC Cap Brick Extension
13-7/8 in.
(352 mm)
5 in.
(127 mm)
11-7/8 in.
(302 mm)
DVP-TRAPFL
Flashing
26 in.
660 mm
DVP-HSM-B
Extended Heat Shield
TRAP-VSS
Vinyl Siding Shield
12 IN.
(305 mm)
2-3/8 IN.
(60 mm)
7 IN.
(178 mm)
15/16 IN.
(24 mm)
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
82

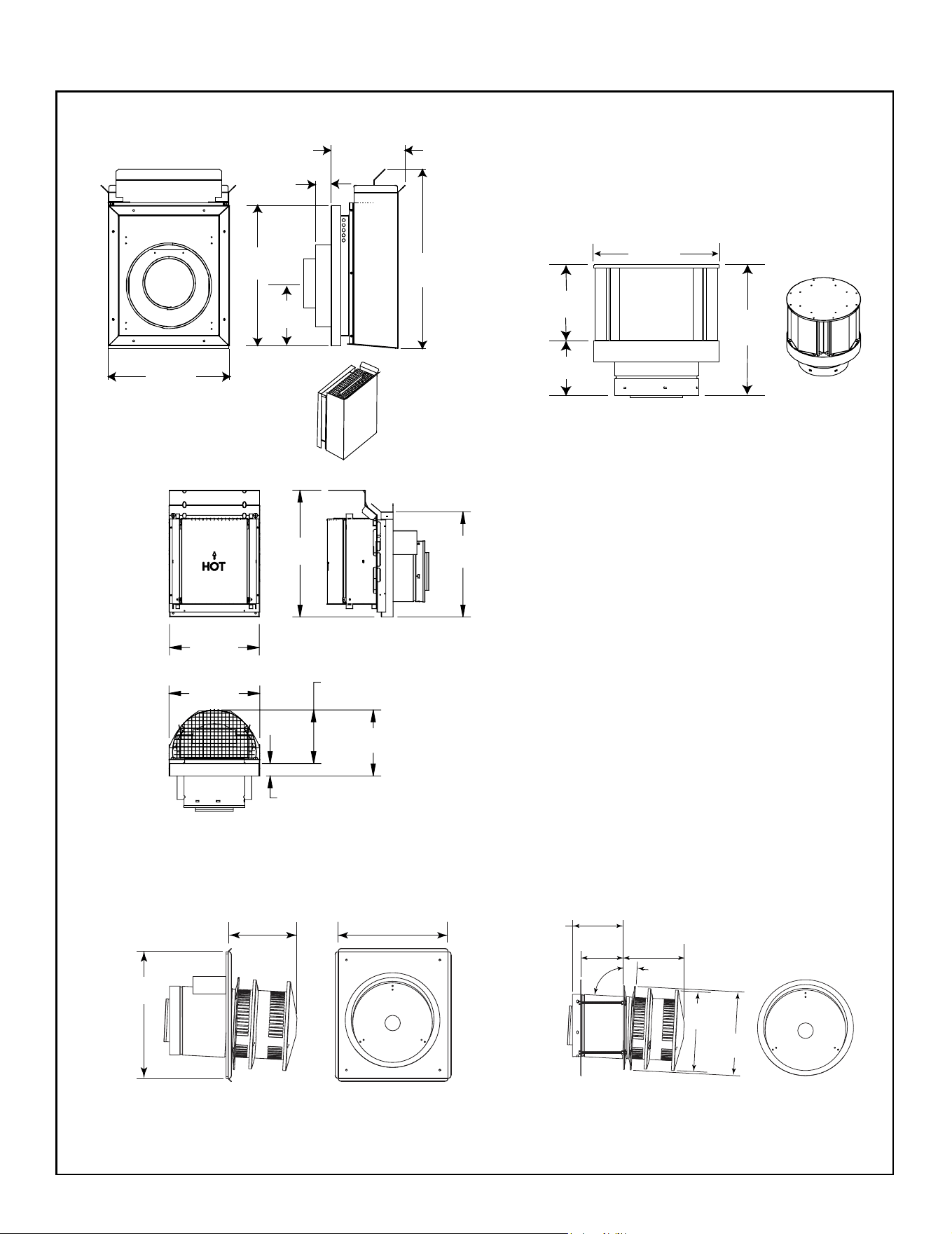

DVP-TB1
Basement Vent Cap
12 in.
(305 mm)
1-1/2 in.
(38 mm)
7-3/8 in.
(187 mm)
14 in.
(356 mm)
17-3/4 in.
(451 mm)
7-1/4 in.
12 in.
305 mm
(184 mm)
5-1/4 in.
(133 mm)
12-1/2 in.
(318 mm)
DVP-TVHW
VerticalTermination Cap (Highwind)
14 in.
(356 mm)
12 in.
(305 mm)
12-1/8 in.
(314 mm)
7-1/8 in.
(181 mm)
8-3/4 in.
(222 mm)
1-5/8 in.
(41 mm)
16-7/8 in.
(429 mm)
DVP-HPC
High Performance Cap
6 in.
152 mm
A. Vent Components Diagrams (continued)
Figure 12.4 DVP Vent Components
13 in.
(330 mm)
15 in.
(381 mm)
8-1/8 in.
(206 mm)
DVP-HRC-SS
10-7/8 in.
276 mm
10-1/2 in.
267 mm
3°
87°
Effective Length
5-3/4 to 8-3/8 in.
146 to 213 mm
5-1/2 in.
140 mm
8-3/8 in.
213 mm
DVP-HRC-ZC-SS
83Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

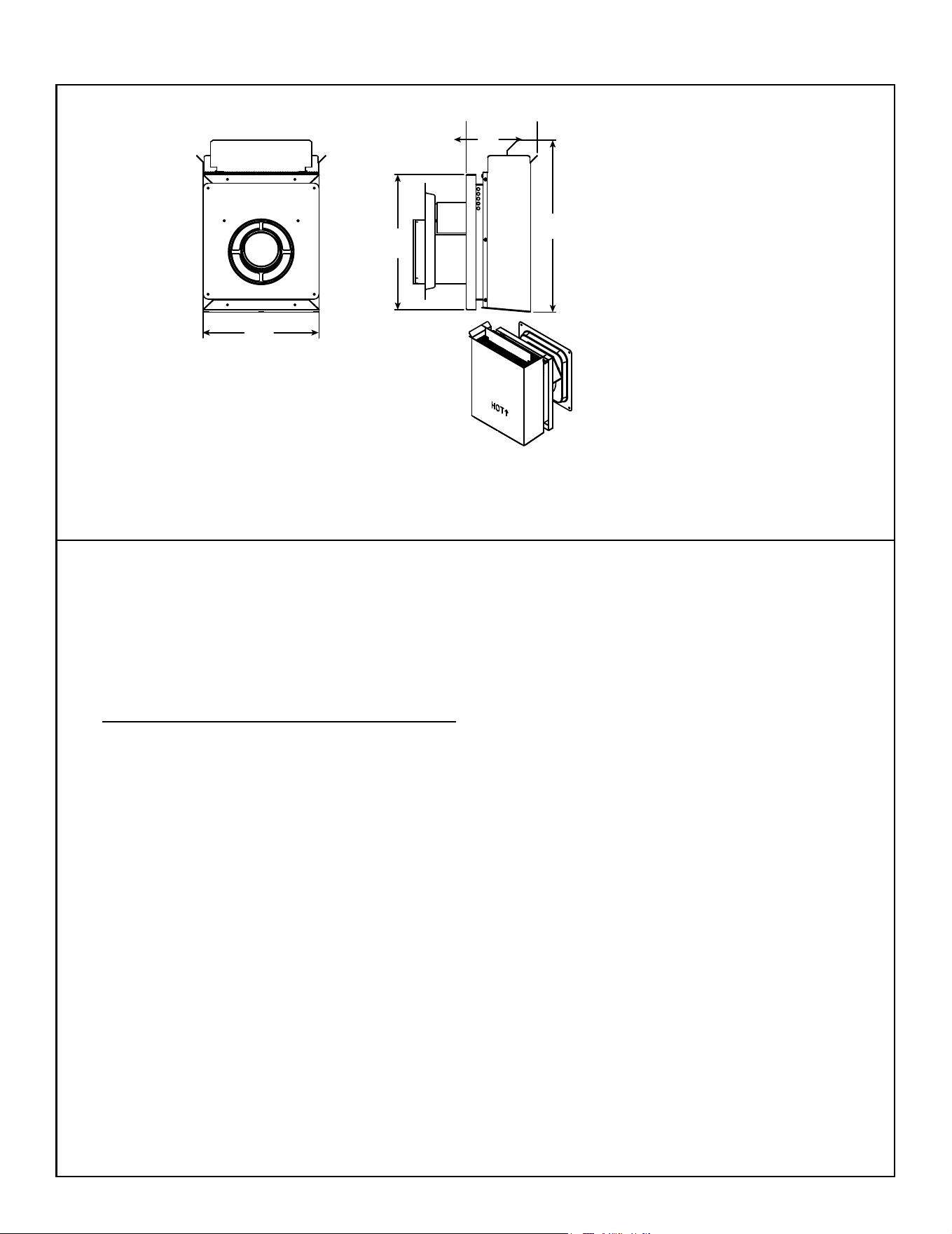

17-7/8 IN.
454 mm
7-3/8 IN.
187 mm
14 IN.
356 mm
12 IN.
305 mm
SLP-TB1
Basement Vent Cap
A. Vent Components Diagrams (continued)
DECORATIVE TERMINATIONS/SHROUDS
Only use listed decorative termination caps/shrouds with Hearth & Home Technologies approved venting
systems.
This applies to both DVP and SLP venting systems.
Decorative Terminations Caps/Shrouds
DTO134
DTO146
DTS134
DTS146
LDS33
LDS46
LDS-BV
Figure 12.5 Vent Components
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
84
A. Vent Components Diagrams (continued)

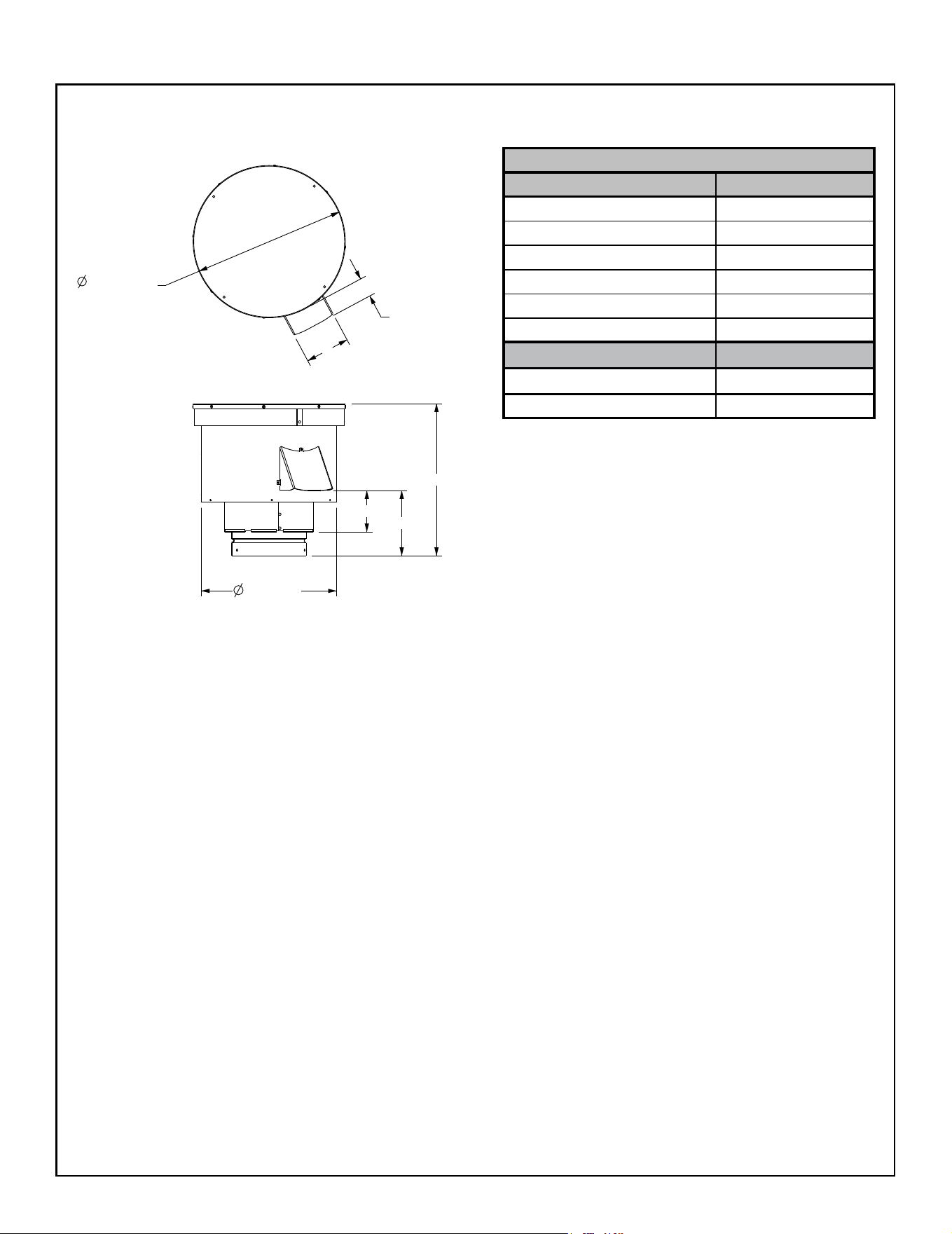

Figure 12.6 PVV-SLP Vent Components
13-5/8 IN.
13-11/16 IN.
1-3/4 IN.
4 IN.
5-7/8 IN.
3-11/16 IN.
12-1/8 IN.
TOP VIEW
SIDE VIEW
Required Wire Harness and PVV-SLEEVE
Lengths Available Part Number
10 ft. PV Wire Harness PVI-WH10
20 ft. PV Wire Harness PVI-WH20
40 ft. PV Wire Harness PVI-WH40
60 ft. PV Wire Harness PVI-WH60
80 ft. PV Wire Harness PVI-WH80
100 ft. PV Wire Harness PVI-WH100
Description Part Number
12 in. Wire Harness Sleeve PVV-SLEEVE-12
48 in. Wire Harness Sleeve PVV-SLEEVE-48
PVV-SLP
Vertical Power Vent
Note: A wire harness is required to power the PVV-SLP and connect it to the appliance. It is ordered separately from
the PVV-SLP. Contact your dealer to order.
Note: The PVV-SLEEVE-12 and/or PVV-SLEEVE-48 is required to be installed with the PVV-SLP. It is ordered
separately from the PVV-SLP. Contact your dealer to order.
85Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23

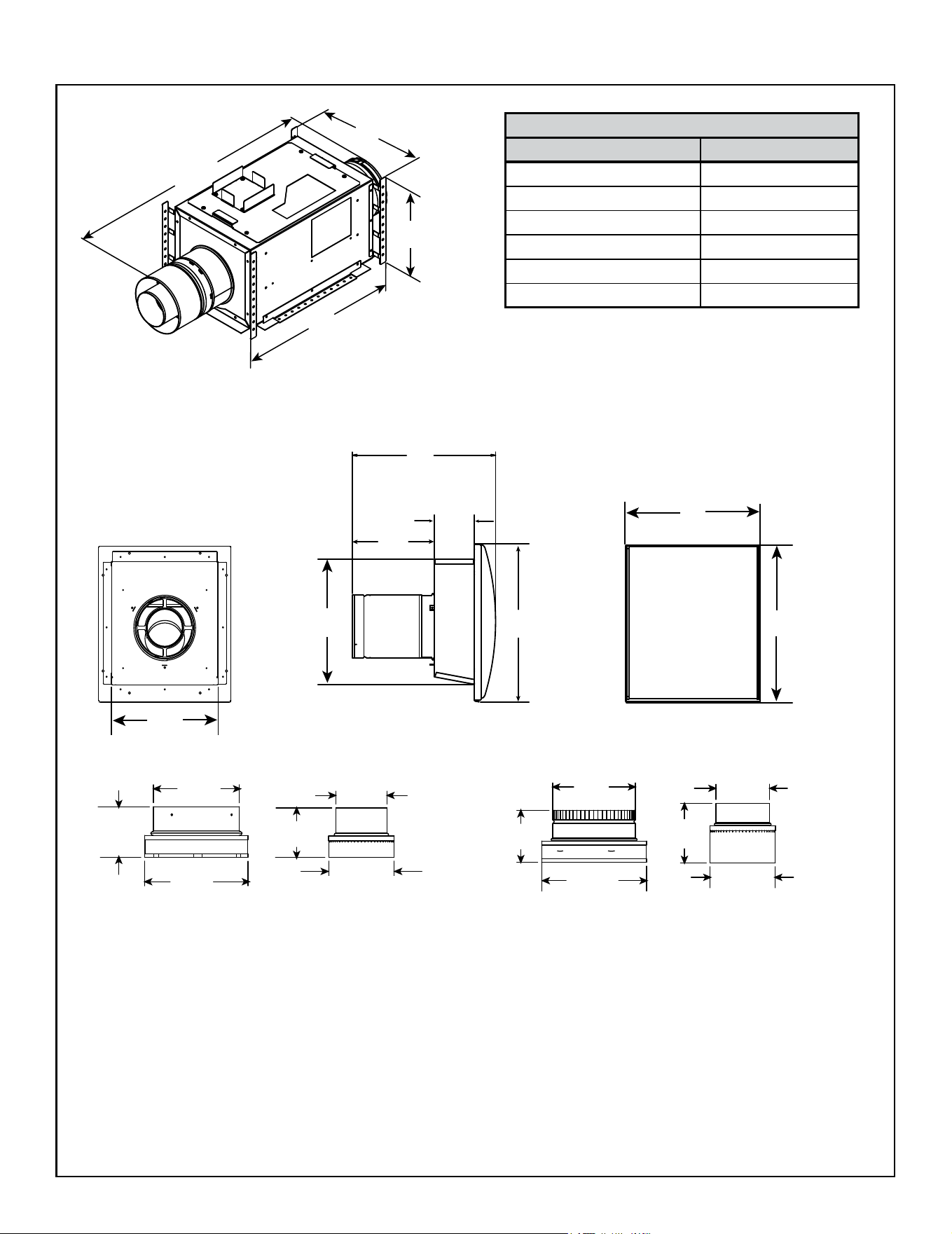

Figure 12.5 PVI-SLP-B Vent Components
Optional Wire Harness
DESCRIPTION PART NUMBER
10 FT PV Wire Harness PVI-WH10
20 FT PV Wire Harness PVI-WH20
40 FT PV Wire Harness PVI-WH40
60 FT PV Wire Harness PVI-WH60
80 FT PV Wire Harness PVI-WH80
100 FT PV Wire Harness PVI-WH100
PVI-SLP-B
Power Vent Inline
SLP-LPC
SLP Low Prole Cap
(Approved for use with PVI-SLP-B only)
Note: Wire harnesses required to power the PVI-SLP-B
connect to the appliance and are ordered separately from
PVI-SLP-B. Contact your dealer to order.
16 IN.
406 mm
15 IN.
(381 mm)
16-11/16 IN.
(424 mm)
9-3/16 IN.
(233 mm)
4-1/2 IN.
114 mm
16-11/16 IN.
424 mm
13-5/8 IN.
(346 mm)
12-1/2 IN.
(318 mm)
12-1/2 IN.
318 mm
20-3/4 IN.
527 mm
13-5/8 IN.
346 mm
EFFECTIVE LENGTH
32 IN. (813 mm) MIN.
35 IN. (889 mm) MAX.
Note: SLP-LPC, SL-2DVP and DVP-2SL
components must be accompanied by a PVI-SLP-B.
SL-2DVP
Adapter
3-15/16 in.
(101 mm)
6-11/16 in.
(169 mm)
8 in.
(203 mm)
3-15/16 in.
(101 mm)
3-13/16 in.
(97 mm)
5-1/16 in.
(128 mm)
6-3/8 in.
163 mm
4-3/16 in.
106 mm
4-5/8 in.
117 mm
5-1/16 in.
128 mm
8-1/8 in.
206 mm
DVP-2SL
Adapter
4 in.
102 mm
Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
86
A. Vent Components Diagrams (continued)
Required Wire Harness
DESCRIPTION PART NUMBER
10 FT PV Wire Harness PVI-WH10
20 FT PV Wire Harness PVI-WH20
40 FT PV Wire Harness PVI-WH40
60 FT PV Wire Harness PVI-WH60
80 FT PV Wire Harness PVI-WH80
100 FT PV Wire Harness PVI-WH100
Note: Wire harnesses required to power the PVLP-SLP connect to the appliance and are ordered separately from
PVLP-SLP. Contact your dealer to order.

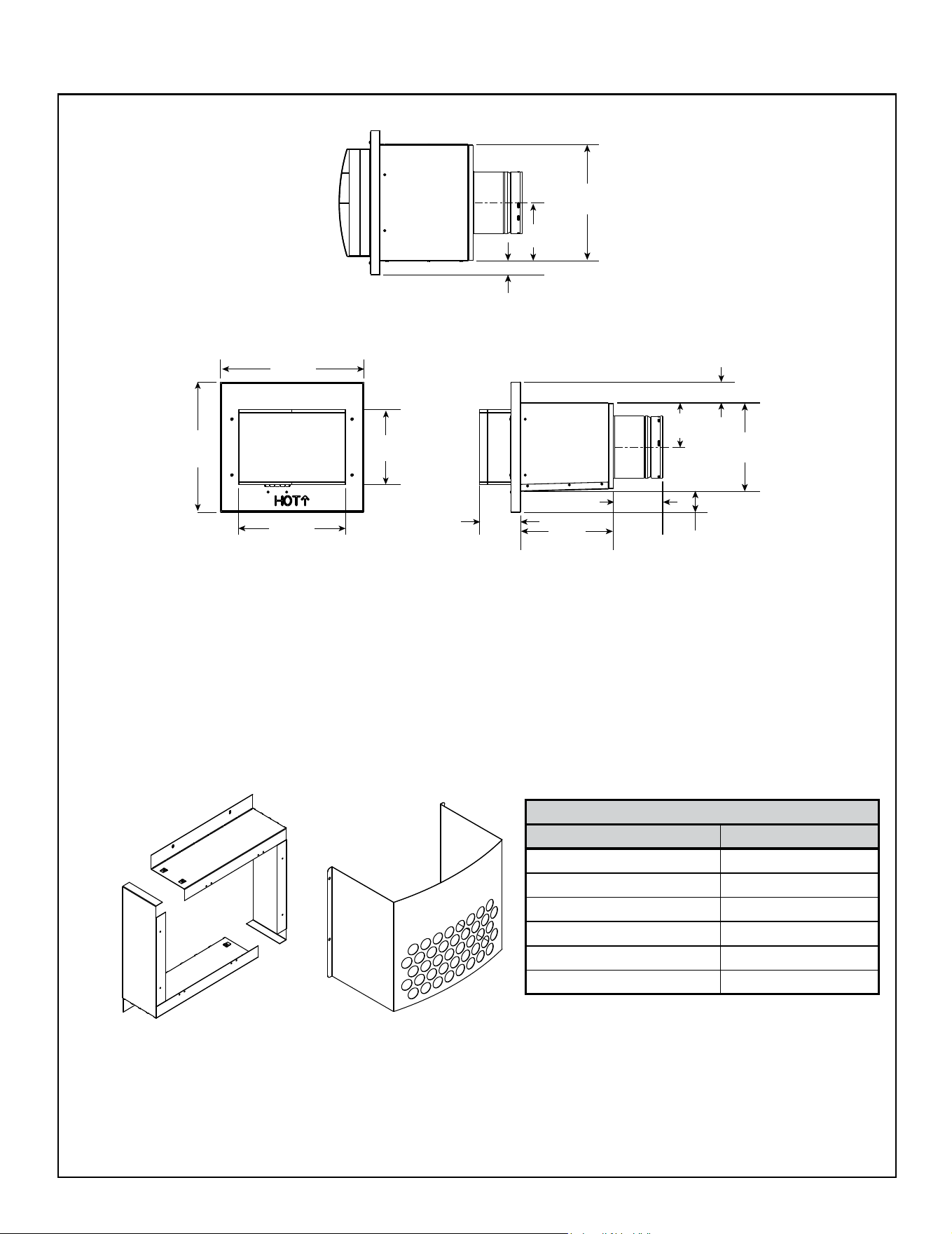

Figure 12.6 PVLP-SLP Vent Components
PVLP-HS
Heat Shield
14 IN.
356 mm
15-1/2 IN.
394 mm
11-1/2 IN.
292 mm
8 IN.
203 mm
4-3/8 IN.
112 mm
10 IN.
254 mm
5-1/4 IN.
135 mm
2-1/4 IN.
57 mm
9-1/2 IN.
241 mm
4-3/4 IN.
121 mm
2-1/4 IN.
57 mm
1-1/2 IN.
38 mm
6-1/4 IN.
159 mm
Front View
Top View
Side View
Note: A PVLP-HS heat shield is available and sold separately. Use if the PVLP-SLP is installed in a high trac area.
PVLP-BEK
Brick Kit
PVLP-SLP
Power Vent Low Prole
87Majestic • ECHEL36IN-C/STIN-C, ECHEL48IN-C/STIN-C, ECHEL60IN-C, ECHEL72IN-C Installation Manual • 2608-980 Rev. o • 4/23
B. Accessories
Remote Controls, Wall Controls and Wall
Switches
Follow the instructions supplied with the control installed
to operate your replace:
For safety:
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
See your dealer if you have questions.
Printed in U.S.A. - Copyright 2023
Optional Heat Management Systems Kits
After a qualied service technician has installed the heat
management system, follow the instructions supplied with
the kit for operation. Contact your dealer if you have
questions.
Note: Optional heat management systems kit must be
installed while the top of the appliance is accessible.
• Preparation for installation of Heat-Zone-Gas, HEAT-
OUT-GAS or Passive Heat is discussed in Section 6.B.
Install approved accessories per instructions included
with accessories. Contact your dealer for a list of ap-
proved accessories.
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional acces-
sories with this appliance. Using non-listed accessories
could result in a safety hazard and will void the warranty.
Majestic, a brand of Hearth & Home Technologies
7571 215
th
Street West, Lakeville, MN 55044
www.majesticproducts.com
Please contact your Majestic dealer with any questions or concerns.
For the location of your nearest Majestic dealer,
please visit www.majesticproducts.com.
