INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
1
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
REMOVAL/INSTALL OF WINDOW REGULATOR (741-586)
Ford Econoline Van 1992–2006
General Tech Tips:
• Use painter’s tape rather than duct tape to secure window. It will not damage paint or leave sticky residue.
• A plastic pry tool is useful. It will not easily damage delicate trim like a screwdriver or metal pry bar.
• The replacement regulator should have a liberal amount of grease on slide area. If there is not much grease
present, white lithium grease works well to lubricate the slide area.
• Aftermarket window tinting can cause the window to travel slower and put additional strain on the window
regulator assembly.
• Window run channels should be cleaned and lubricated before installation of a new window regulator
assembly. Silicone spray works well.
PLEASE WEAR SAFETY
GLASSES!

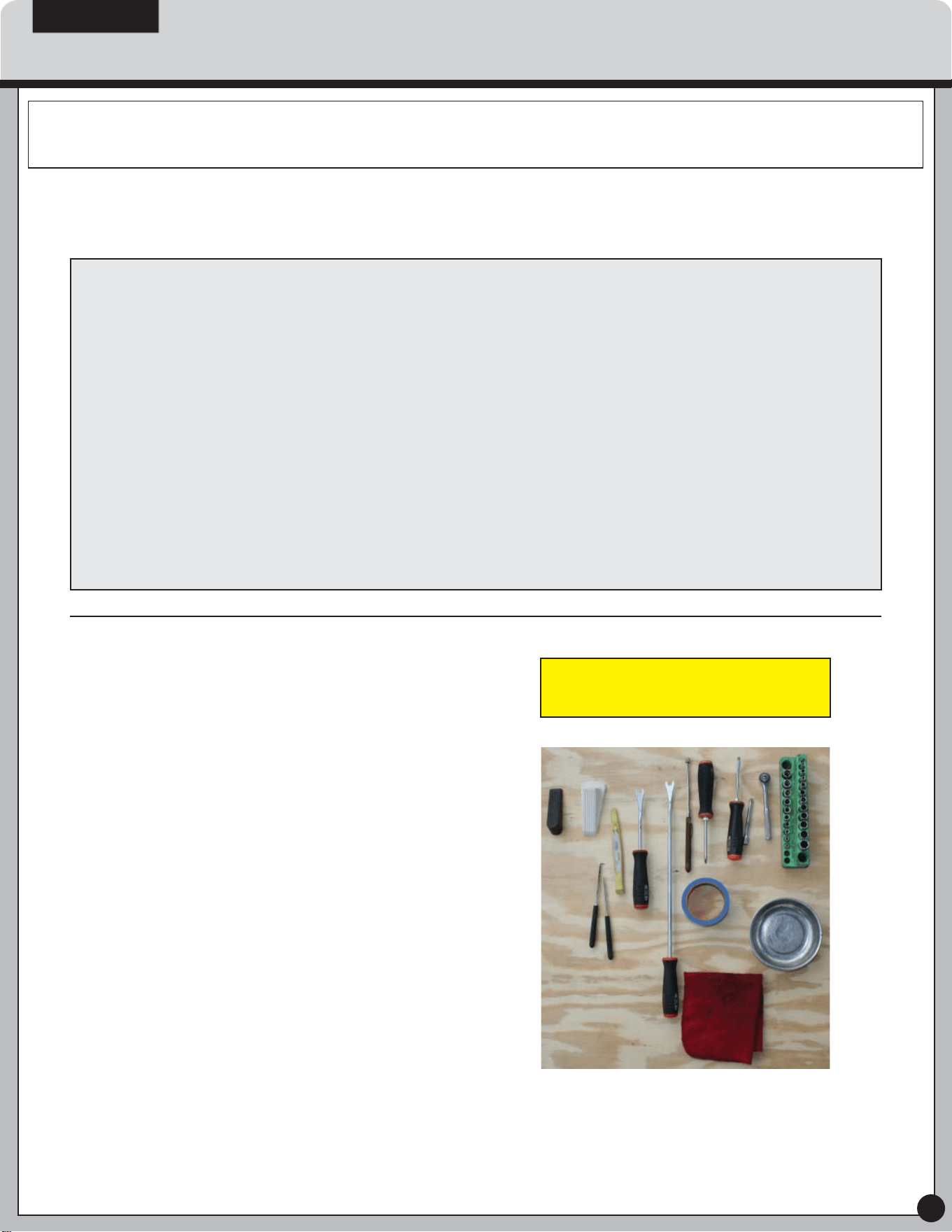

Tools required for removal and installation
of window regulator and motor assembly:
• Silicone spray lubricant
• Trim panel removal tool
• Pick
• Saddle cup assembly, tape, or wedge
to hold window in place
• Flat-blade screwdriver or plastic pry tool
• 10mm socket or driver
• Phillips screwdriver
• Grease pencil or marker
• T-20 Torx bit
• 1/4” drill bit, 3/8” reversible drill
• Body fasteners (Dorman pn# 702-013)
• Pop rivet gun (optional)
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
2
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
Removal Instructions

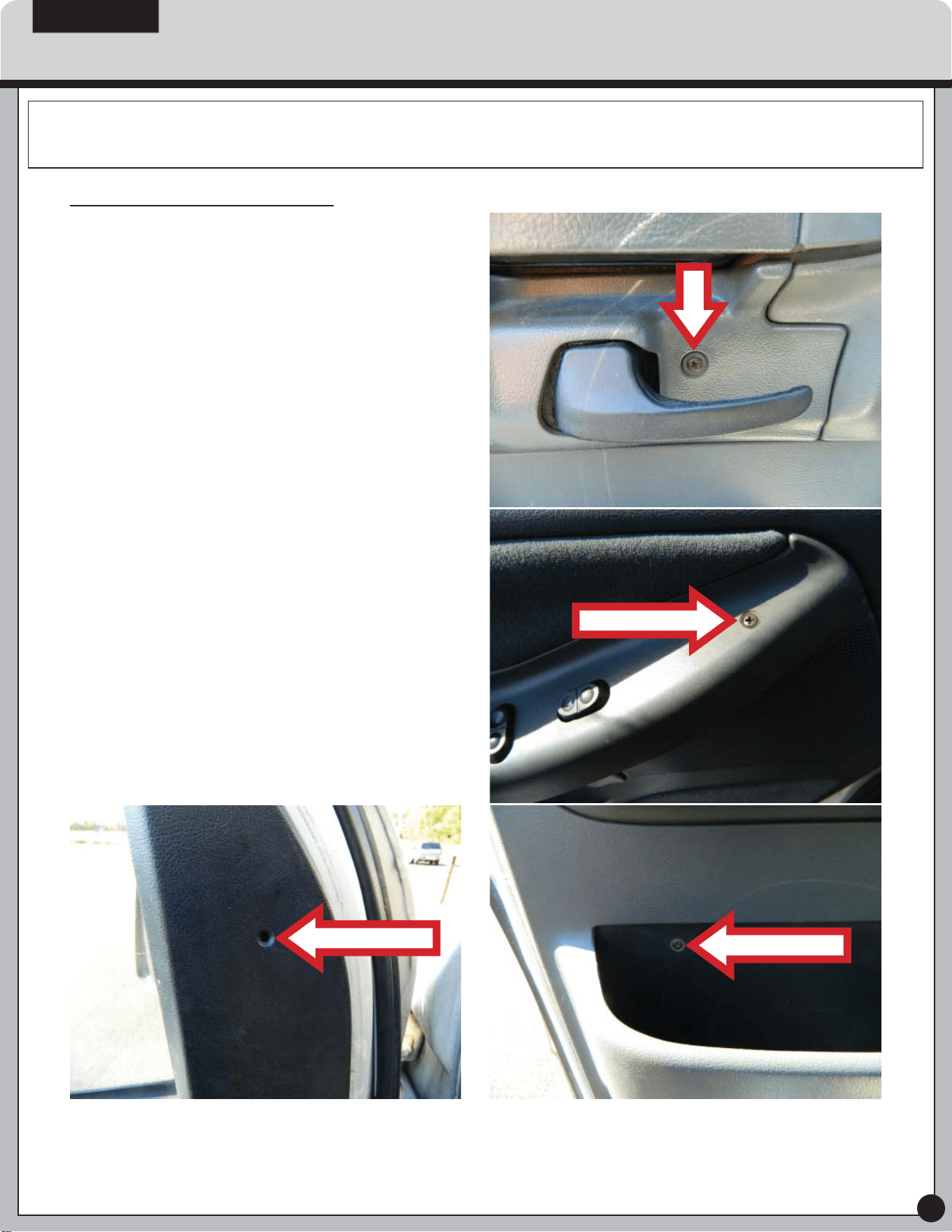

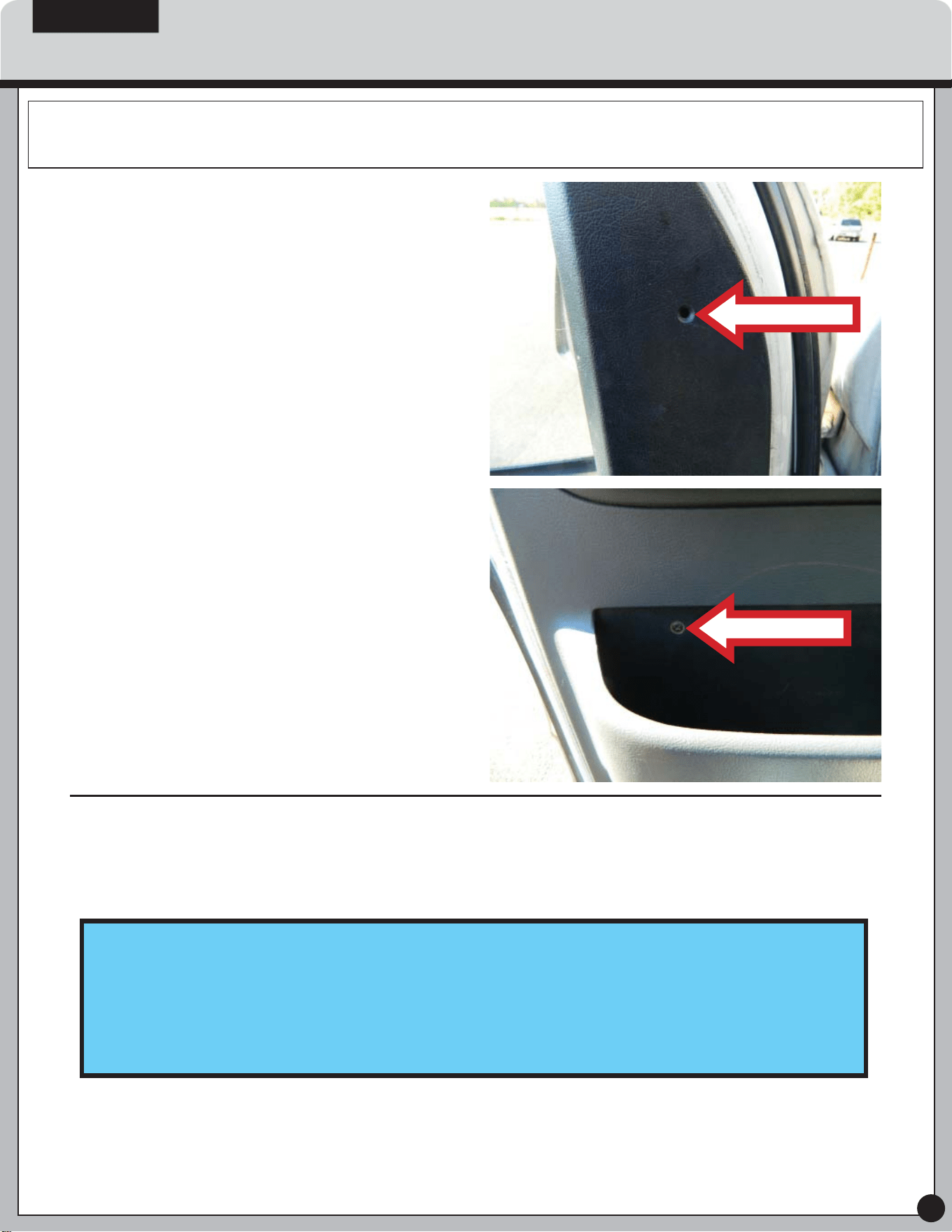

STEP 1: Using a Phillips head screwdriver,
remove the four (4) interior door trim panel
retaining screws.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
3
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
STEP 4: To remove the power switch assembly, lift it in an upward motion. Once you have
released the power switch assembly, place the switch through the opening of the interior
door trim panel.
STEP 5: To remove the interior door trim panel, grasp the interior door trim panel from
the bottom and lift it in an upward motion.

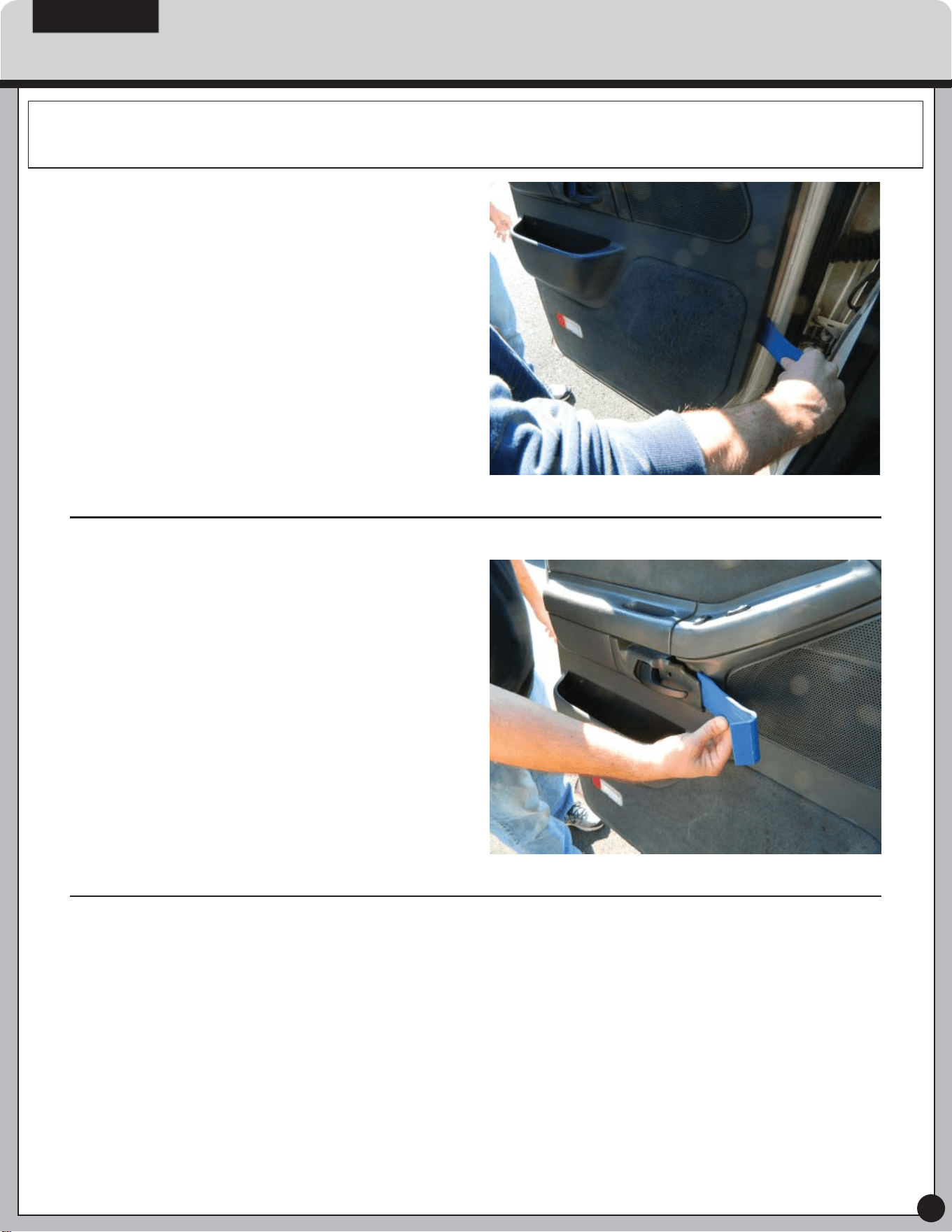

STEP 2: Using a trim panel removal tool,
place the tool between the interior door trim
panel and the door and pry toward you to
release the interior door trim panel
from the door.

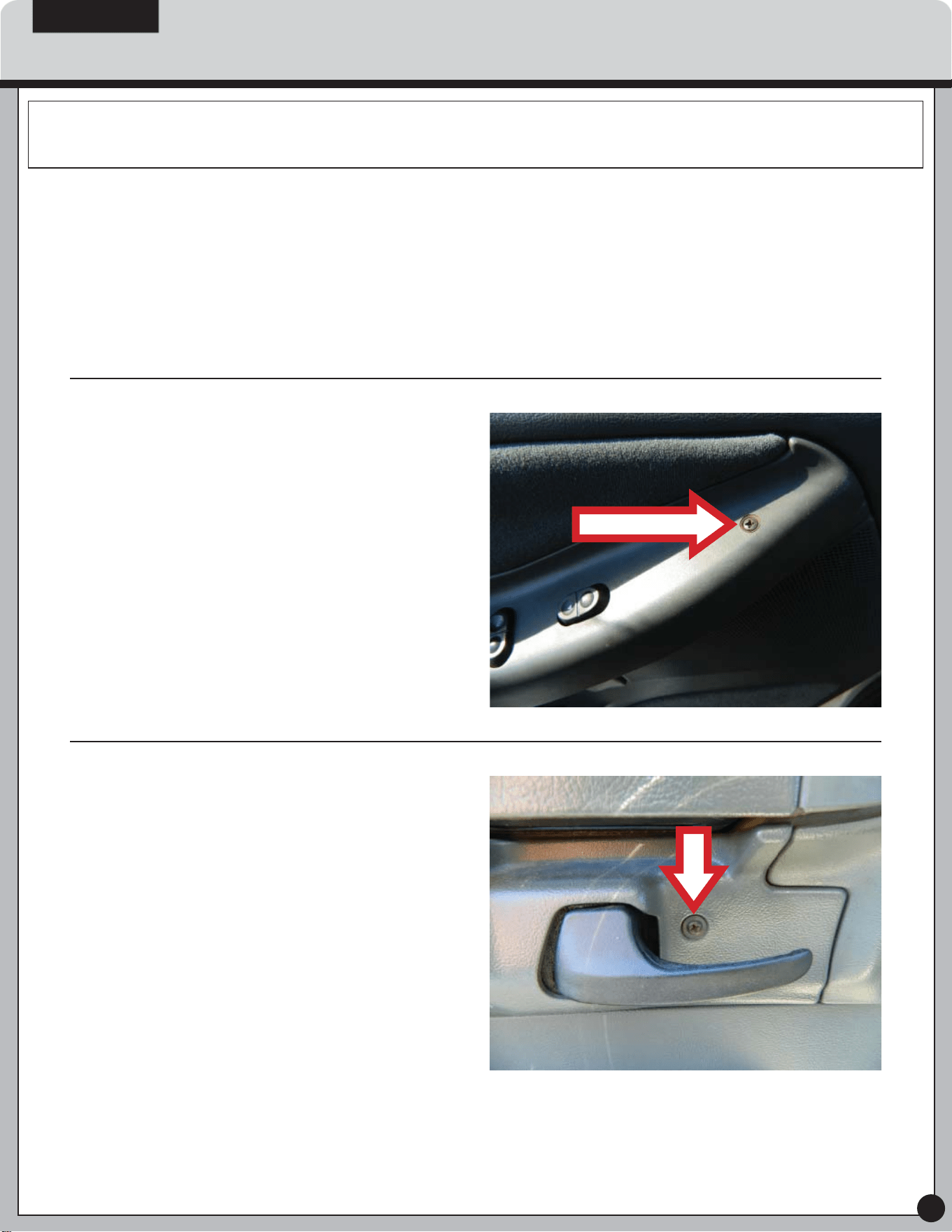

STEP 3: Using a trim panel removal tool,
remove the interior door handle
bezel assembly.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
4
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.

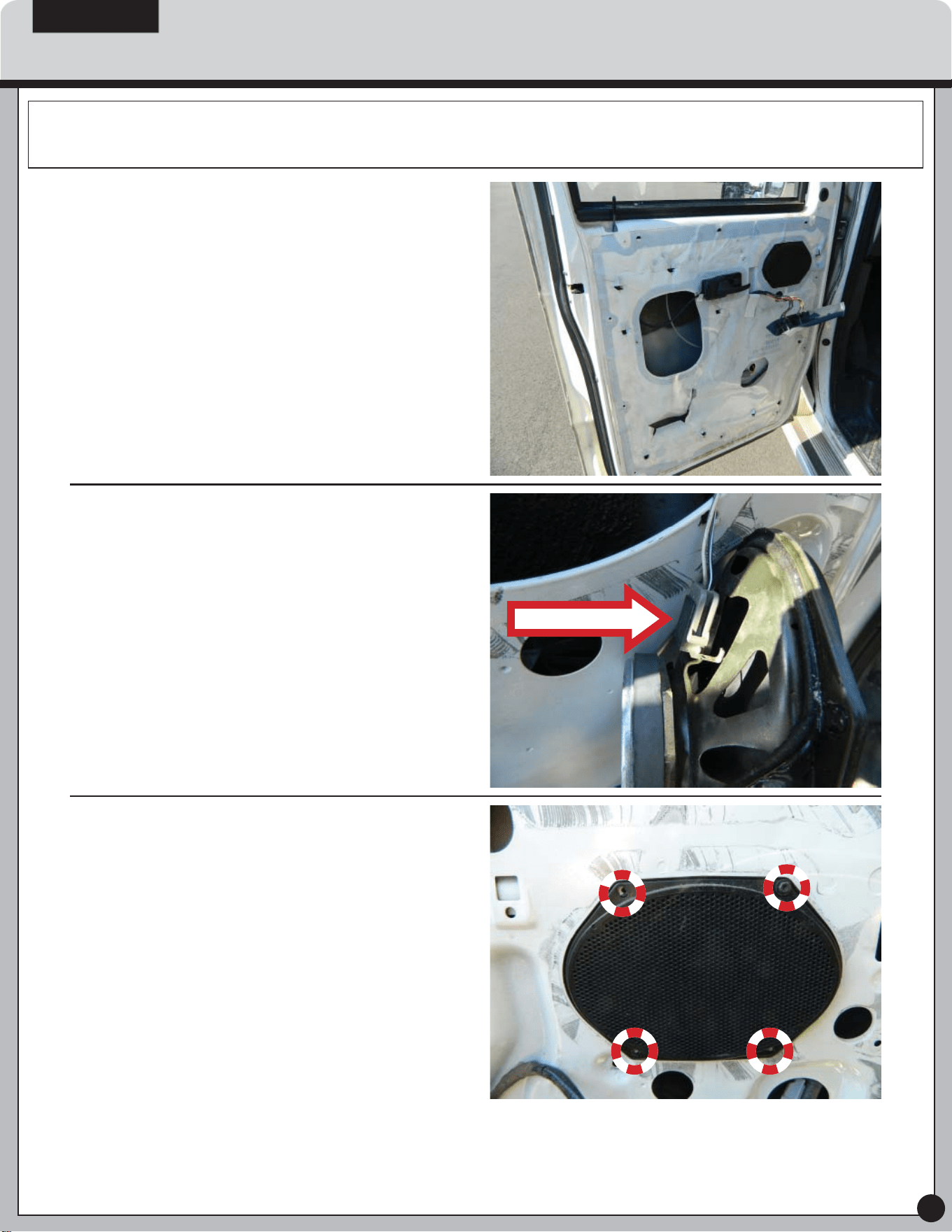

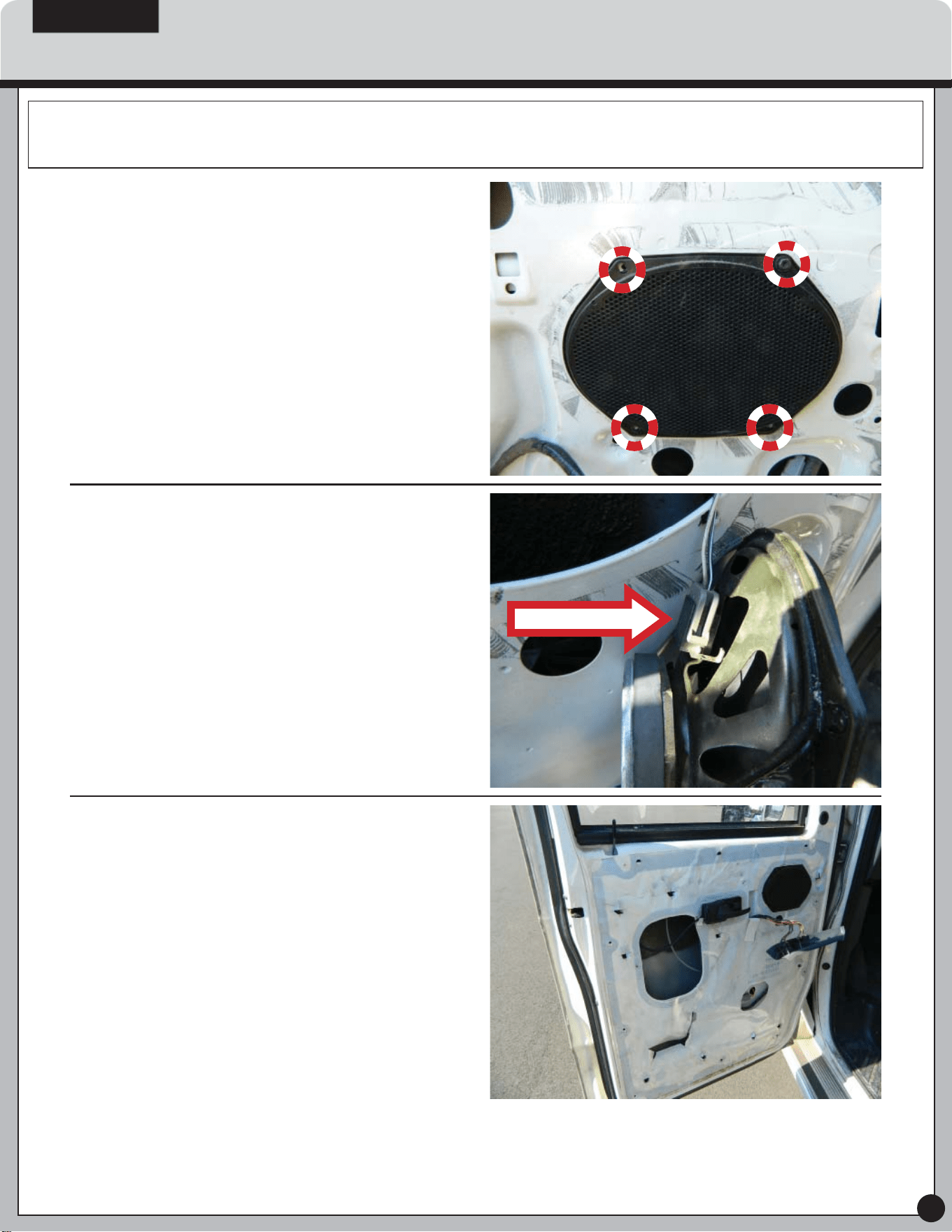

STEP 6: Using a T-20 Torx bit, remove
the four (4) door speaker retaining screws.
STEP 8: Remove the water vapor barrier.
STEP 7: Disconnect the door speaker.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
5
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
STEP 9: Lower the door glass, exposing
the rivets mounting the door glass to the
window regulator. Once the mounting rivets
are exposed, use your 1/4” drill bit and 3/8”
drill to remove the rivets. CAUTION: USE
CAUTION WHILE REMOVING THE RIVETS.
FAILURE TO DO SO WILL RESULT
IN GLASS BREAKAGE.
STEP 10: Once the door glass has been disconnected from the window regulator,
manually slide the door glass into the closed position and hold in place with a saddle cup
assembly, painter’s tape, or a wedge.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
6
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.

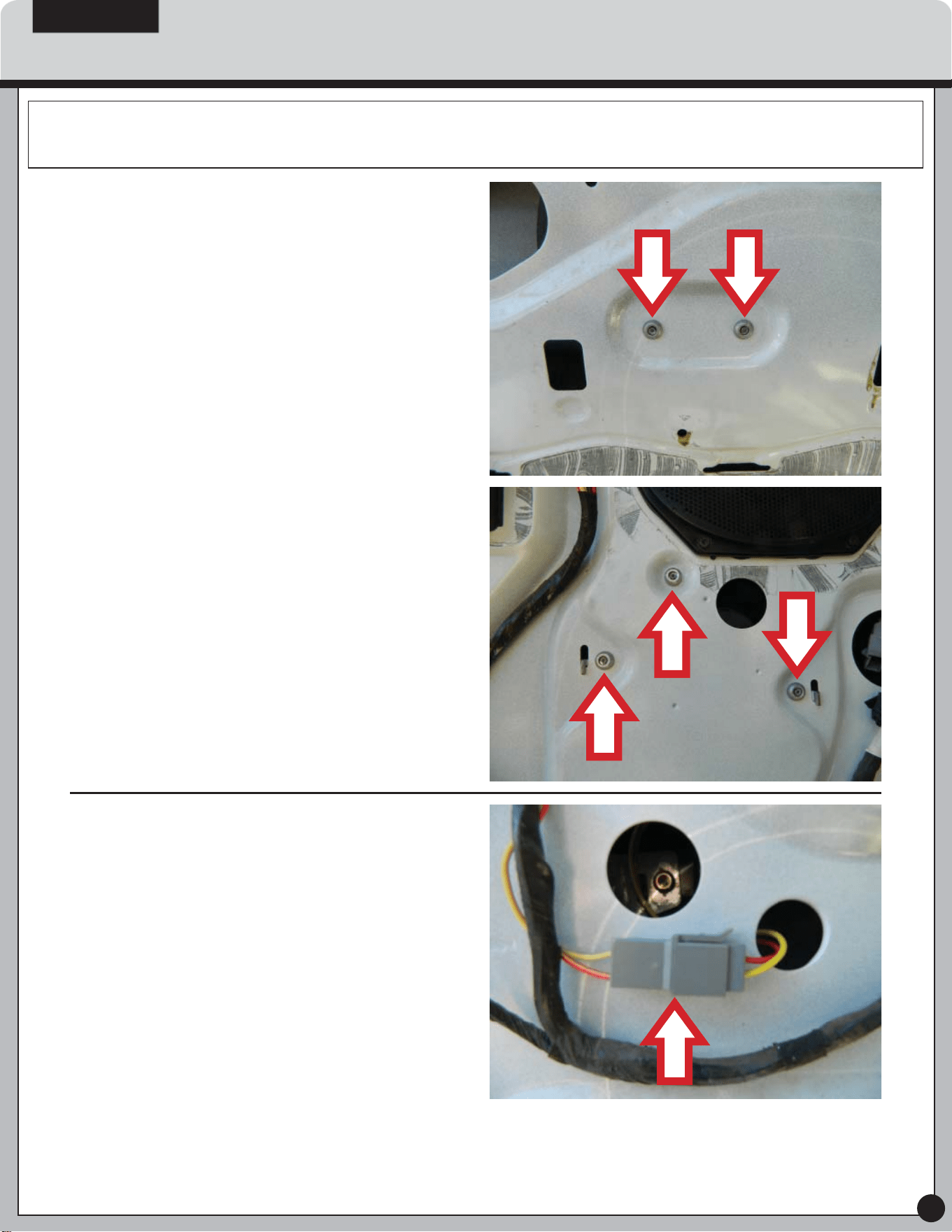

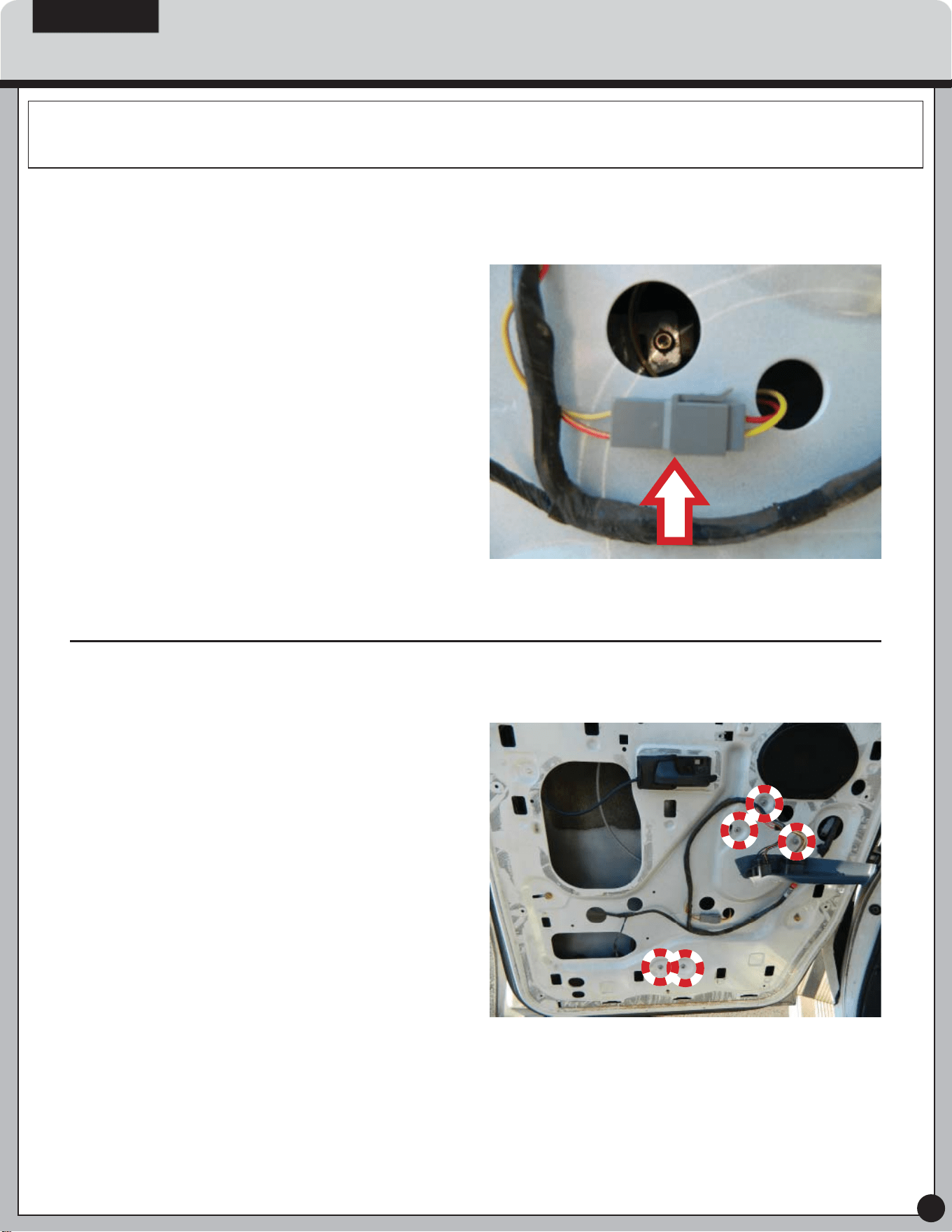

STEP 11: Disconnect the window lift motor.
STEP 12: Using a 1/4” drill bit and 3/8”
drill, remove the ve (5) window regulator
retaining rivets. CAUTION: YOU ARE ONLY
REMOVING THE HEADS OF THE RIVETS.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
7
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.

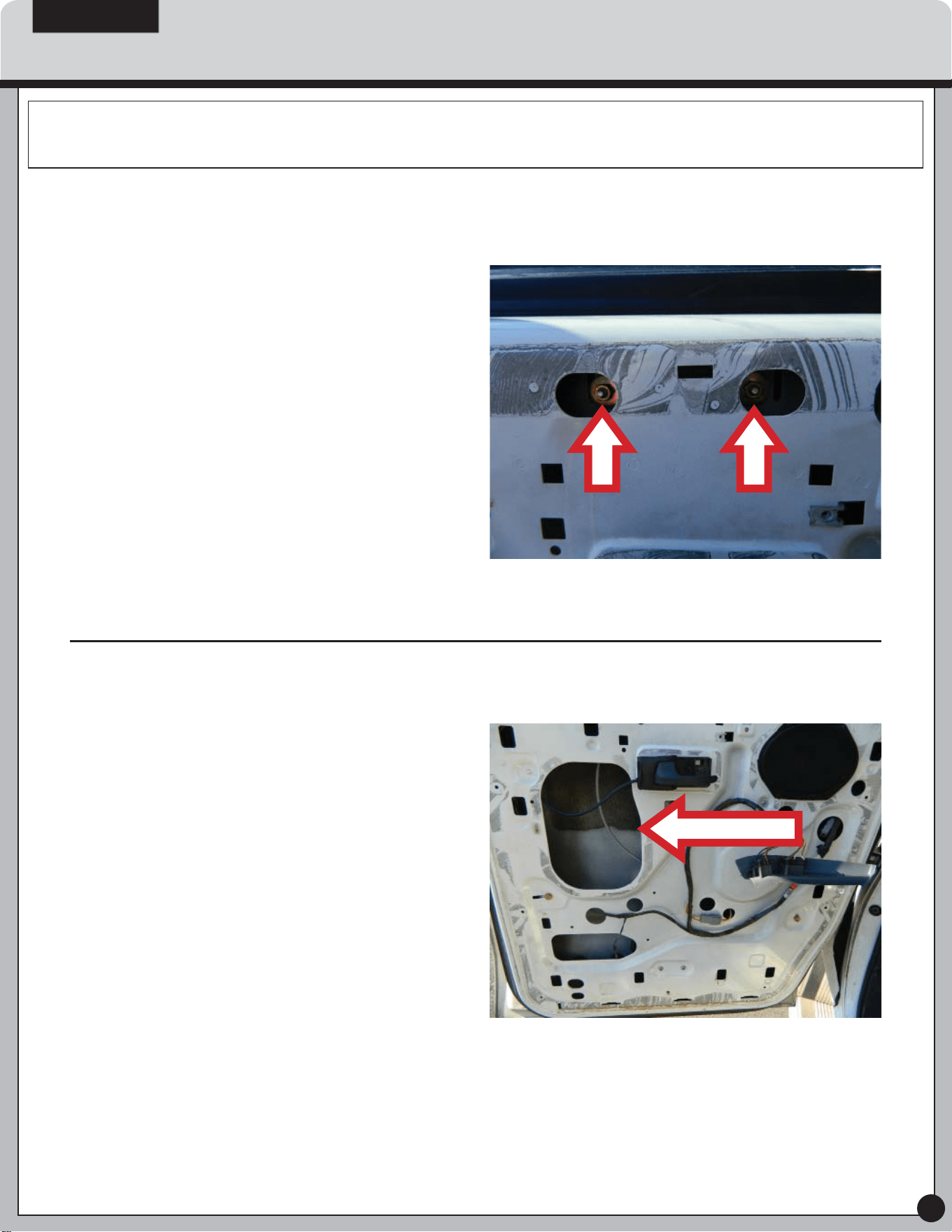

STEP 14: Remove the window regulator
through the main access hole.

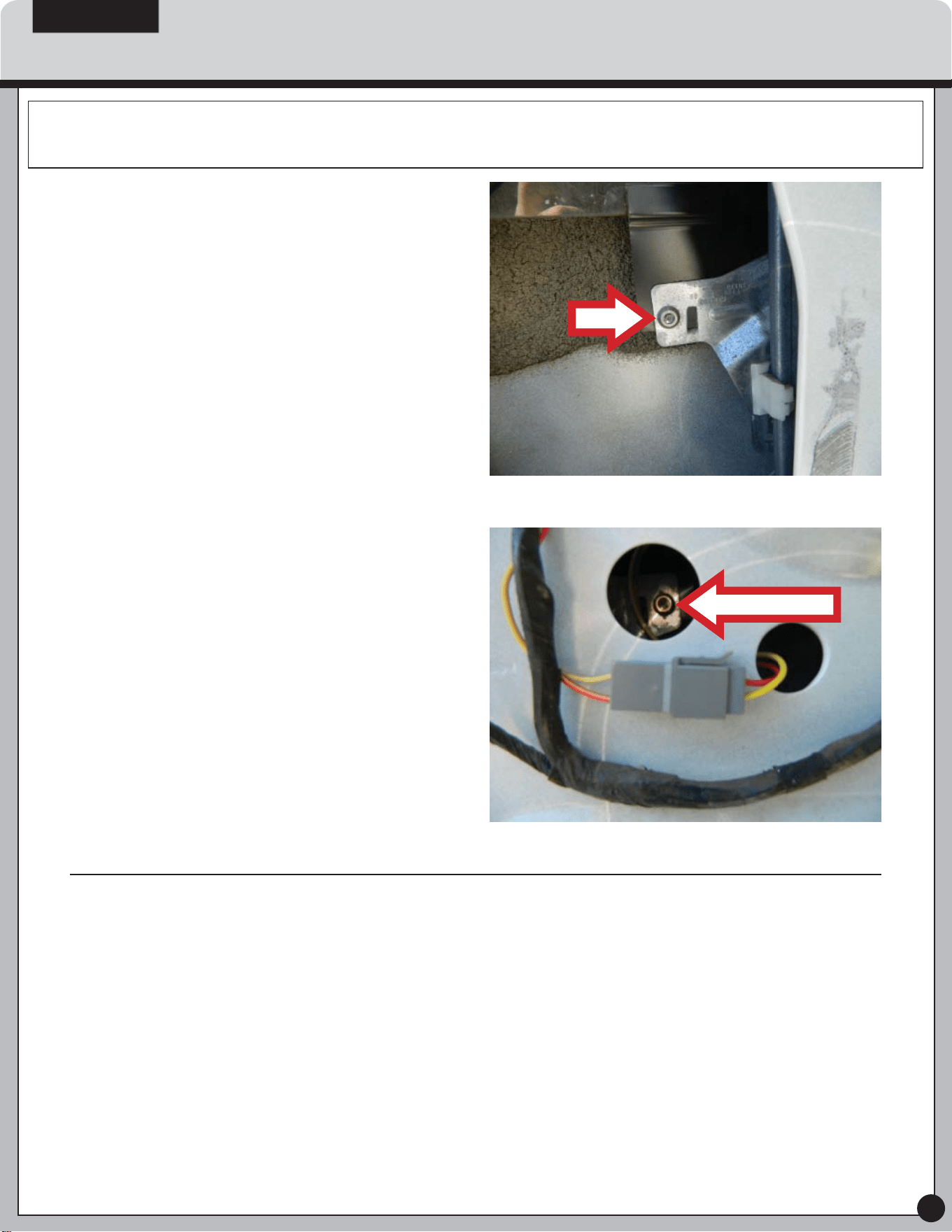

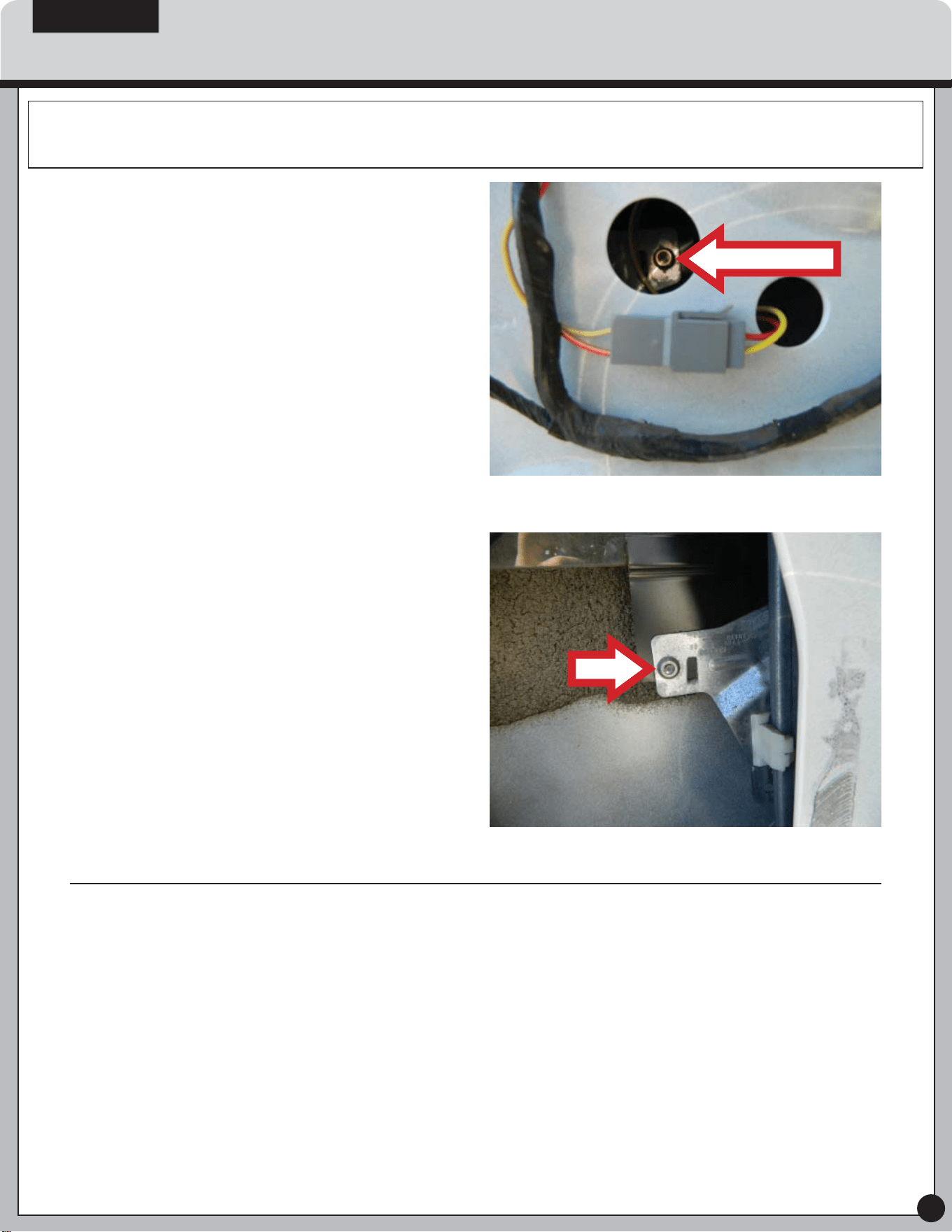

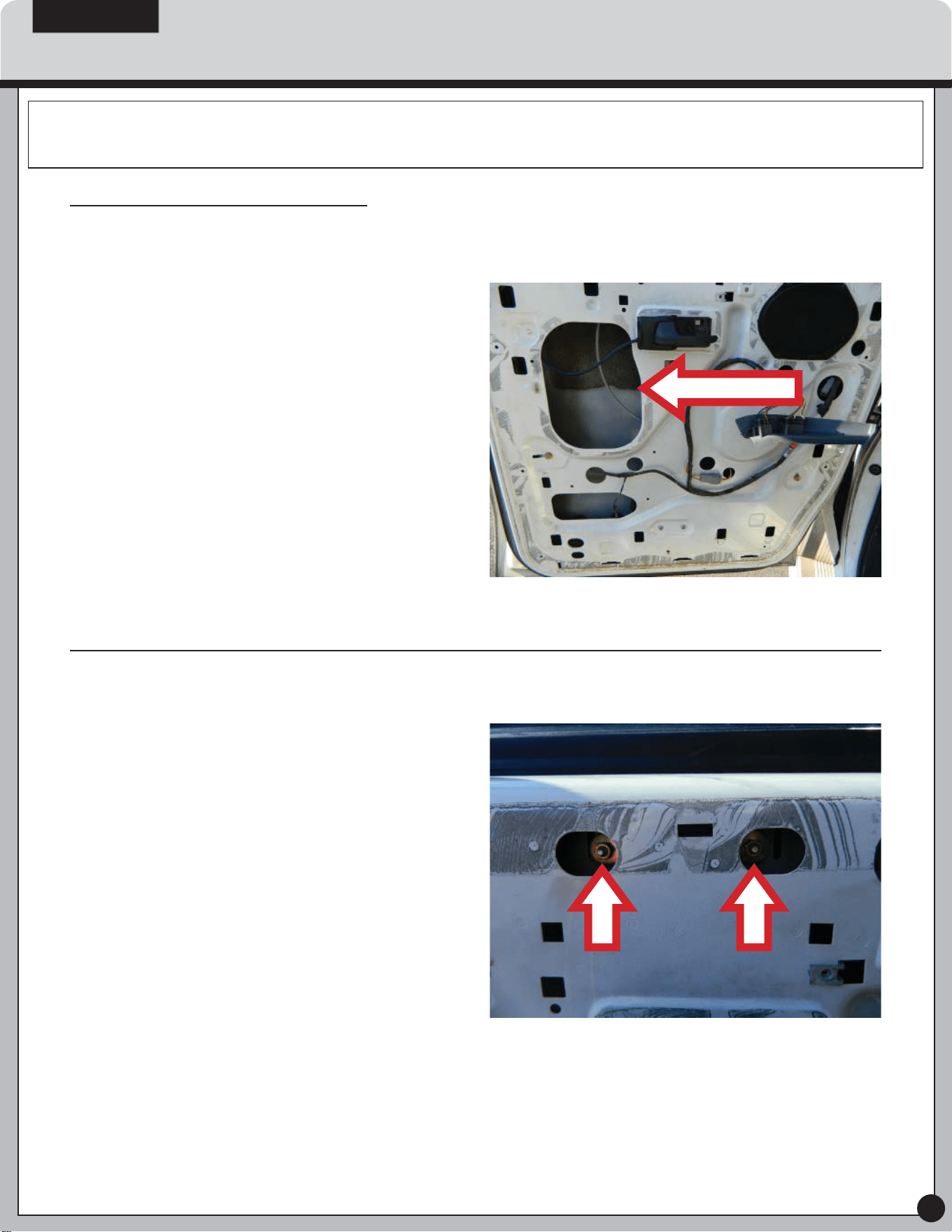

STEP 13: Using a 10mm socket and ratchet
assembly, remove the two (2) window
regulator retaining nuts.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
8
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
Installation Instructions
STEP 1: Place the window regulator
assembly through the main access hole.
STEP 2: Using a 10mm socket and ratchet
assembly, attach the upper part of the
window regulator.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
9
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
STEP 3: Using Dorman install kit
# 702-013, install the necessary hardware for
the remaining window regulator retaining
screws. NOTE: Dorman install kit # 702-013
includes both screws and rivets. If you have
access to a pop rivet gun, you may use the
included pop rivets. However, you have the
option to replace the pop rivets with the
included screws and nuts.
STEP 4: Connect the window lift motor.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
10
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
STEP 5: Raise or lower the window regulator,
aligning the points attaching the window
glass to the window regulator. NOTE: It is
recommended that you use the hardware
included in Dorman kit # 702-013
by replacing the pop rivets with screws
and nuts. In doing so, you drastically reduce
the chance of damaging or breaking
the door glass.
STEP 6: Manually slide the door glass into position and attach the door glass using
Dorman kit # 702-013.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
11
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
STEP 7: Install the water vapor barrier.
STEP 8: Connect the door speaker.
STEP 9: Using a T-20 Torx bit or 6mm socket
and ratchet assembly, install the four (4)
door speaker retaining screws.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
12
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
STEP 10: Push the power switch assembly through the opening of the interior door
trim panel.
STEP 11: To install the interior door trim panel, align the ledge on the door weather
stripping with the back side of the interior door trim panel. Be sure to align the interior
door trim panel retainers with the corresponding holes that are pre-cut on the door.
STEP 12: Using a Phillips head screw driver,
attach the power switch assembly.
STEP 13: Using a Phillips head screwdriver,
install the interior door handle
bezel assembly.
INSTALL/REMOVAL INSTRUCTIONS: WINDOW REGULATOR
741-586
Disclaimer:
Even though every attempt is made to ensure this information is complete and accurate, it is impossible to account for all possible circumstances or situations. Please consult with a quali ed auto technician
before attempting to perform any work you are not quali ed to do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor Vehicle Safety Standards by the National Highway Tra c Safety
Administration). Be sure that your work is performed in accordance with such standards and that you do not disable any motor vehicle safety feature.
ATTENTION: Refer to the appropriate shop manual for your vehicle to obtain speci c service procedures for this part. If you do not have
a service manual or lack the skill to install this part, it is recommended that you seek the services of a quali ed technician. Pay special
attention to all cautions and warnings included in the shop manual. Read and follow all instructions carefully.
13
©2013 Dorman Products, Inc.
No reproductions in whole or in part without prior written approval.
STEP 14: Using a Phillips head screw driver,
install the upper and lower interior door trim
panel retaining screws.
STEP 15: Verify that all of the interior door trim panel retaining screws are secure and that
the window regulator assembly is operating properly.
We appreciate your opinions regarding this product!
Please call our Technical Assistant with any challenges or suggestions
regarding the installation or operation of this product.
1-800-523-2492
