Body-Solid PFI150 Flat Incline Bench User Manual

V PFI150-20200618

Owner’s Manual

WWW.BODYSOLID.COM

PFI150

FLAT INCLINE BENCH



#DWRULE-4



#DWRULE-4

PFI150

TABLE OF CONTENTS

•SAFETY INSTRUCTIONS.......................

•PREPARATION.......................................

•PART/HARDWARE LIST..........................

•HARDWARE ILLUSTRATION.................

•ASSEMBLY INSTRUCTIONS.................

•EXPLODED VIEW...................................

•CONTACT PAGE.....................................

PAGE 4

PAGE 5

PAGE 6

PAGE 7

PAGE 12

PAGE 19

PAGE 20

PFI150

SAFETY INSTRUCTIONS

When using exercise equipment,

you should always take basic

precautions including the

following:

• ReadallinstructionsbeforeusingthePFI150.These

instructionsarewrittentoensureyoursafetyandto

protecttheunit.

• Donotremoveanysafetylabelsfromthe

machine.

• Donotallowchildrenonorneartheequipment.

• Usetheequipmentonlyforitsintendedpurpose

asdescribedinthisguide.Donotuseaccessory

attachmentsthatarenotrecommendedbythe

manufacturer.Suchattachmentsmightcauseserious

injuries.

• Wearproperexcerciseclothingandshoesforyour

workout,nolooseclothing.

• Keephands,limbs,looseclothing,andlonghairwell

outofthewayofallmovingparts

• Usecarewhengettingonorofftheunit.

• Donooverexertyourselforworktoexhaustion.

• Ifyoufeelanypainorabnormalsymptoms,stopyour

workoutimmediatelyandconsultyourphysician.

• Neveroperateunitwhenithasbeendroppedor

damaged.Returntheequipmenttoaservicecenter

forexaminationandrepair.

• Neverdroporinsertobjectsintoanyopeninginthe

equipment.

• Alwayschecktheunitanditscablesbeforeeachuse.

Makesurethatallfastenersandcablesaresecure

andingoodworkingcondition.

• Donotusetheequipmentoutdoorsornearwater.

Personal Safety During Assembly

• Beforebeginningassembly,pleasetakethetimeto

readtheinstructionsthoroughly.

• Readeachstepintheassemblyinstructionsand

followthestepsinsequence.Donotskipahead.If

youskipahead,youmaylearnlaterthatyouhave

todisassemblecomponentsandthatyoumayhave

damagedtheequipment

• AssembleandoperatethePFI150onasolid,level

surface.Locatetheunitafewfeetfromthewallsor

furnituretoprovideeasyaccess.

ThePFI150isdesignedforyourenjoyment.Byfollow-

ingtheseprecautionsandusingcommonsense,you

willhavemanysafeandpleasurablehoursofhealthful

exercisewithyourPowerlineFlatInclineBench.

Afterassembly,youshouldcheckallfunctionsto

ensurecorrectoperation.Ifyouexperienceproblems,

rstrechecktheassemblyinstructionstolocateany

possibleerrorsmadeduringassembly.Ifyouare

unabletocorrecttheproblem,callthedealerfrom

whomyoupurchasedthemachineorcall1-800-556-

3113forthedealernearestyou.

Obtaining Service

PleaseusethisOwner’sManualtomakesurethat

allpartshavebeenincludedinyourshipment.When

orderingparts,youmustusethepartnumberand

descriptionfromthisOwner’sManual.Useonly

PowerlinebyBodySolidreplacementpartswhen

servicingthismachine.Failuretodosowillvoidyour

warrantyandcouldresultinpersonalinjury.

Forinformationaboutproductoperationor

service,checkouttheofcialPowerlinewebsite

atwww.bodysolid.comorcontactanauthorized

PowerlinedealeroraPowerlinefactory-authorized

servicecompanyorcontactBody-Solidcustomer

serviceatoneofthefollowing:

TollFree:1-800-556-3113

Phone: 1-708-427-3555

Fax: 1-708-427-3556

Email: [email protected]

Orwriteto:Body-Solid,Inc.

 ServiceDepartment

 1900S.DesPlainesAve.

 ForestPark,IL60130USA

Retain this Owner’s Manual for

furture reference. Part numbers

are required when ordering parts.



PFI150

PREPARATION

Required tools

Thebasictoolsthatyoumustobtainbeforeassembling

thePFI150includebutarenotlimitto:

 •StandardWrenchSet

 •MetricWrenchSet

 •AdjustableWrench

 •Standard/MetricAllenKeySet

 Installation Requirements

 Followtheseinstallationrequirementswhenassembling

thePFI150:

 SetupthePFI150onasolid,atsurface.Asmooth,at

surfaceunderthemachinehelpskeepitlevel.

 Provideamplespacearoundthemachine.Openspace

aroundthemachineallowsforeasieraccess.

 Foraestheticpurposes,insertallboltsinthesame

directionunlessspecied(intextorillustrations)todo

otherwise.

 Leaveroomforadjustments.Tightenfastenerssuchas

bolts,nuts,andscrewssotheunitisstable,butleave

roomforadjustments.Donotfullytightenfastenersuntil

instructedintheassemblystepstodoso.

 Filloutandmailthewarrantycard.

 Ordering Replacement Parts

 Ifyouneedtoorderreplacementpartspleasebe

 preparedtoprovidethefollowinginformation

 whencontactingussothatwecanassistyoubetter.

 1.ModelNumber

 2.PlaceofPurchase

 3.SerialNumber(S/N)

 4.Part#andDescription 

Assembly Tips

Readall“Notes”oneachpagebeforebeginningeachstep.

WhileyoumaybeabletoassemblethePFI150usingthe

illustrationsonly,importantsafetynotesandothertipsmaybe

includedinthetext.

Somepiecesmayhaveextraholesthatyouwillnotuse.Use

onlythoseholesindicatedintheinstructionsandillustrations.

NOTE: Withsomanyassembledparts,proper

 alignmentandadjustmentiscritical.While

 tighteningthenutsandbolts,besuretoleave

 roomforadjustments.

NOTE: Thebottlesthataremarked“Poison”isyour

 touchuppaint.Keepawayfromchildren.

CAUTION:Obtainassistance!Ifyoufeellikeyoucan’t

 assemblethePFI150byyourselfthendo

 notattempttodosoasthiscouldresultin

 injury.ReviewtheInstallationRequirements

 beforeproceedingwiththefollowingsteps.

↑

YOUR S/N # CAN

BE FOUND HERE

PFI150

PART LIST

Part #

QTY

DESCRIPTION

MAIN FRAME

REAR STABILIZER

SEAT FRAME

BACK FRAME

SEAT SUPPORT FRAME

BACK SUPPORT FRAME

M12x130mm HEX HEAD BOLT

M12x120mm HEX HEAD BOLT

M12x25mm BUTTON HEAD CAP SCREW

M10x95mm HEX HEAD BOLT

M10x25mm FLAT HEAD PHILLIPS SCREW

M8x45mm HEX HEAD BOLT

M8X15mm HEX HEAD BOLT

M12 WASHER

M12 LOCK WASHER

M10 WASHER

M8 WASHER

M8 LOCK WASHER

M12 NYLON LOCKNUT

M10 NYLON LOCKNUT

M8 NYLON LOCKNUT

TRANSPORT WHEEL

RUBBER STOPPER

SEAT PAD

BACK PAD

SHAFT

M8X8mm SET SCREW

PFI150

HARDWARE ILLUSTRATION

Part #4 M10X95mm HEX HEAD BOLT QTY.2

Part #3 M12X25mm BUTTON HEAD CAP SCREW QTY. 2

Part #1 M12x130mm hex head bolt QTY. 1

Part #2 M12x120mm hex head bolt QTY. 1

PRE-INSTALLED

PFI150

HARDWARE ILLUSTRATION

Part #8 M12 WASHER QTY. 6

Part #7 M8X15mm HEX HEAD BOLT QTY. 8

Part #5 M10X25mm FLAT HEAD PHILLIPS SCREW QTY.1

Part #6 M8X45mm HEX HEAD BOLT QTY. 2





















































































































































































PRE-INSTALLED

PFI150

HARDWARE ILLUSTRATION

Part #12 M8 LOCK WASHER QTY. 8

Part #11 M8 WASHER QTY. 12

Part #9 M12 LOCK WASHER QTY. 2

Part #10 M10 WASHER QTY. 4





















































































































































































PFI150

HARDWARE ILLUSTRATION

Part #15 M10 NYLON LOCK NUT QTY. 2

Part #13 M12 NYLON LOCK NUT QTY. 2



























































































Part #14 M10 NYLON LOCK NUT QTY. 2















































































































































































































































































Part #21 M8X8mm SET SCREW QTY. 2

PRE-INSTALLED

PFI150

NOTE

PFI150

STEP 1

BE CAREFUL TO ASSEMBLE ALL COMPONENTS IN THE

SEQUENCE THAT THEY ARE PRESENTED.

NOTE:

finger tighten all hardware FIRST. wrench tighten all hardware

at the END of step 1A. some components may be pre-assembled.

nylon lock nuts will not fully screw onto bolts, must wrench tighten.

1A. attach Rear Stabilizer (B) to Main Frame (A) using:

2 - (#4) m10x95mm hex head bolt

4 - (#10) m10 washer

2 - (#14) m10 nylon lock nut

1B. attach Transport Wheels (#16) to Rear Stabilizer (B) using:

2 - (#6) m8x45mm hex head bolt

4 - (#11) m8 washer

2 - (#15) m8 nylon lock nut

PFI150

STEP 1

above shows step 1 assembled

and completed

PFI150

STEP 2

BE CAREFUL TO ASSEMBLE ALL COMPONENTS

IN THE SEQUENCE THAT THEY ARE PRESENTED.

NOTE:

finger tighten all hardware FIRST. wrench tighten all hardware

at the END of step 2B. some components may be pre-assembled.

nylon lock nuts will not fully screw onto bolts, must wrench tighten.

2A. attach Seat Support Frame (E) to Seat Frame (C) using:

1 - (#1) m12x130mm hex head bolt

2 - (#8) m12 washer

1 - (#13) m12 nylon lock nut

2B. attach Back Support Frame (F) to Back Frame (D) using:

1 - (#2) m12x120mm hex head bolt

2 - (#8) m12 washer

1 - (#13) m12 nylon lock nut

PFI150

STEP 2

above shows step 2 assembled

and completed

PFI150

STEP 3

BE CAREFUL TO ASSEMBLE ALL COMPONENTS

IN THE SEQUENCE THAT THEY ARE PRESENTED.

NOTE:

finger tighten all hardware FIRST. wrench tighten all hardware

at the END of step 3B. some components may be pre-assembled.

nylon lock nuts will not fully screw onto bolts, must wrench tighten.

3A. attach Seat Pad (#18) to Seat Frame (C) using:

4 - (#7) m8x15mm hex head bolt

4 - (#11) m8 washer

4 - (#12) m8 lock washer

3B. attach Back Pad (#19) to Back Frame (D) using:

4 - (#7) m8x15mm hex head bolt

4 - (#11) m8 washer

4 - (#12) m8 lock washer

PFI150

STEP 3

above shows step 3 assembled

and completed

PFI150

NOTE

PFI150

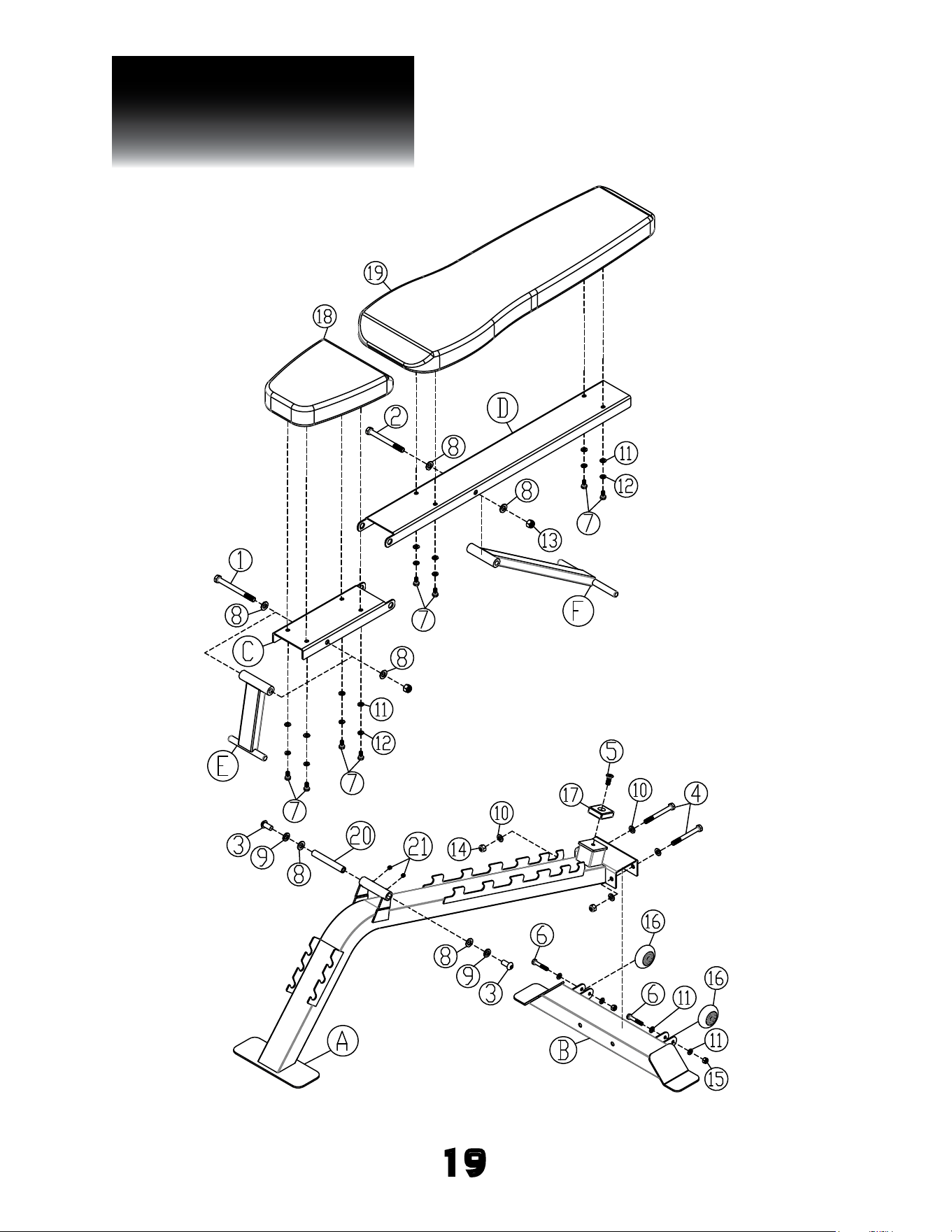

EXPLODED VIEW
